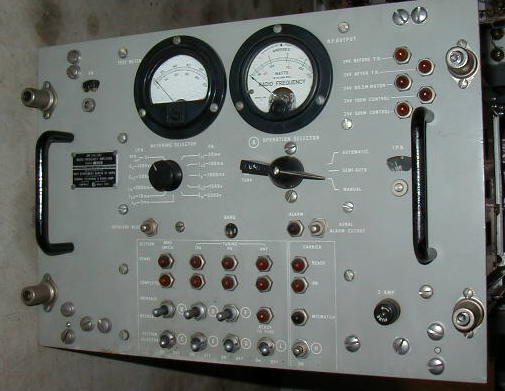

RFA front panel |

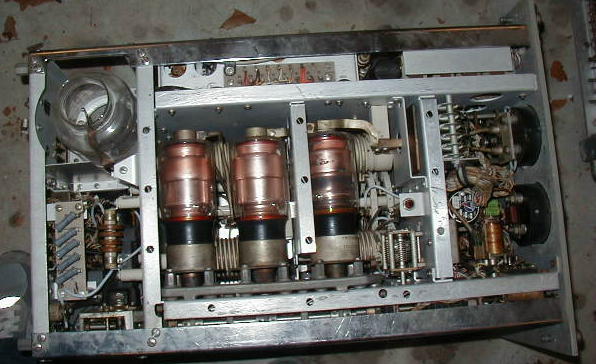

top view

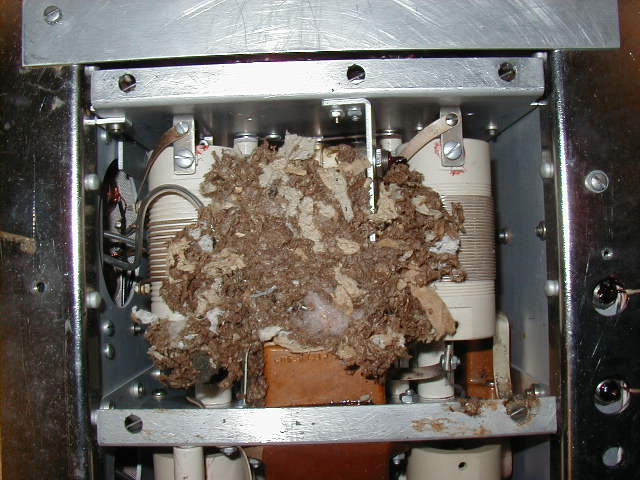

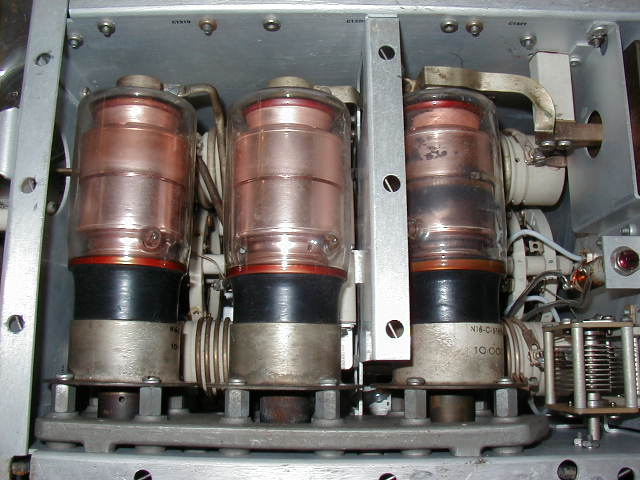

4-400 chimney upper left |

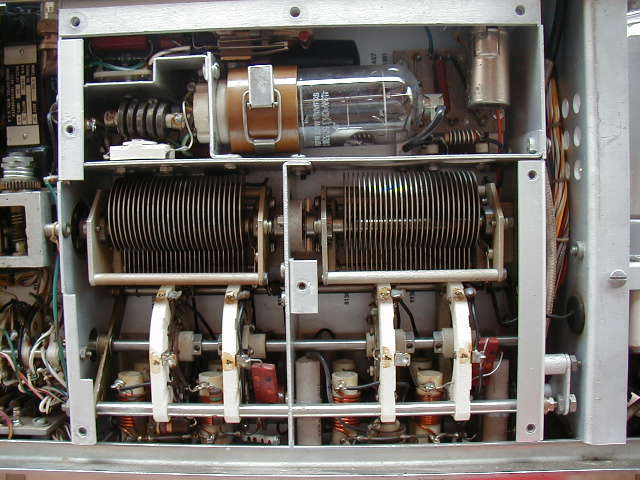

vacuum variables

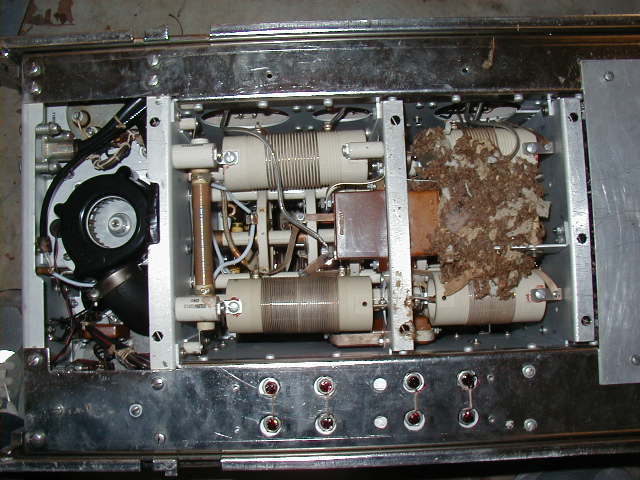

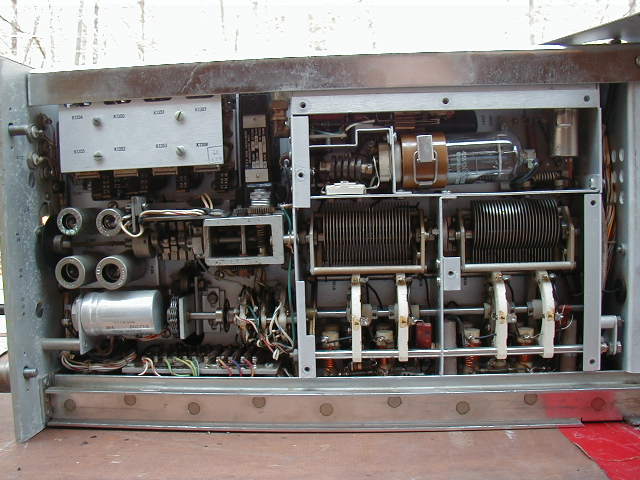

HF tank coils below |

PA autotune drive motor for vacuum variables and MF coil slugs |

meters and bandswitch drive motor |

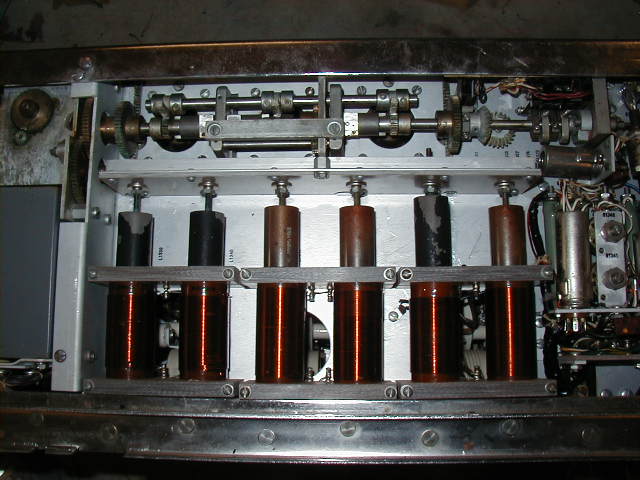

left side - big slug-tuned MF coils |

output RF sensor and internal dummy load |

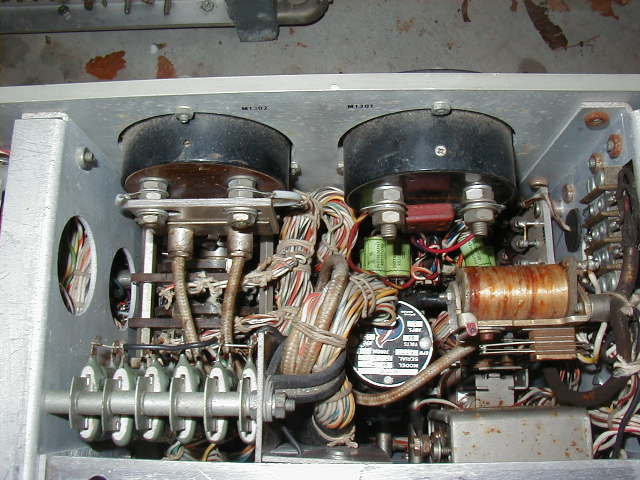

uh-oh - removed the bottom cover |

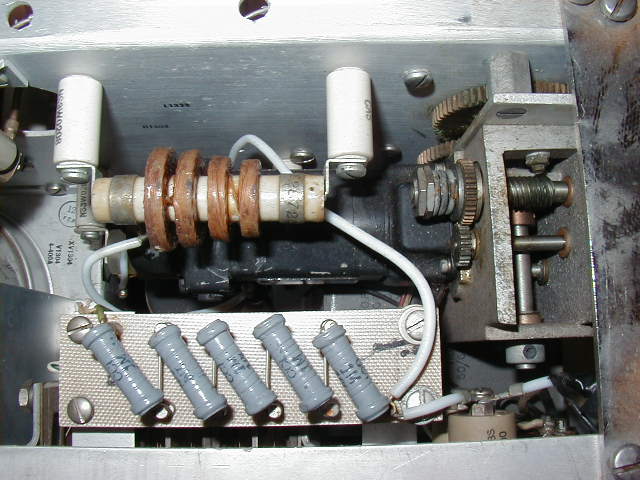

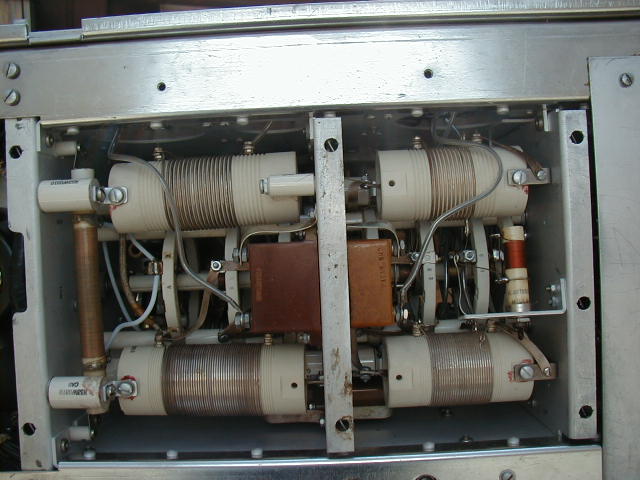

HF tank coil nest |

HF tank coils after cleaning |

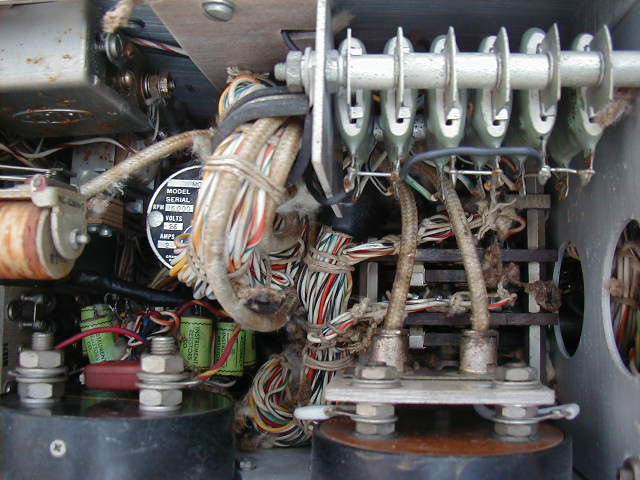

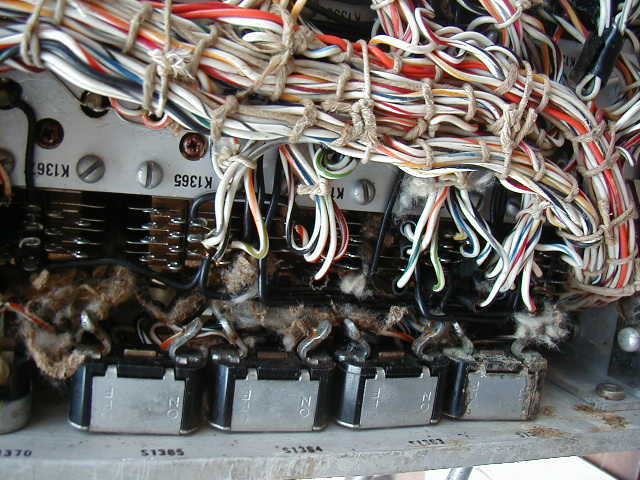

more mouse nest- this time stuffed into the autotune sequencer control

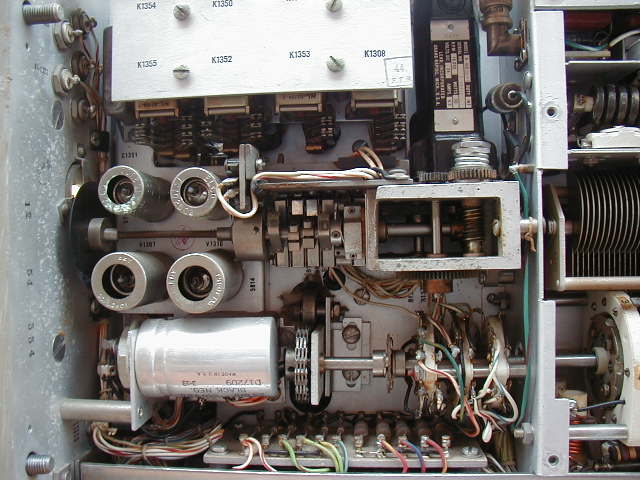

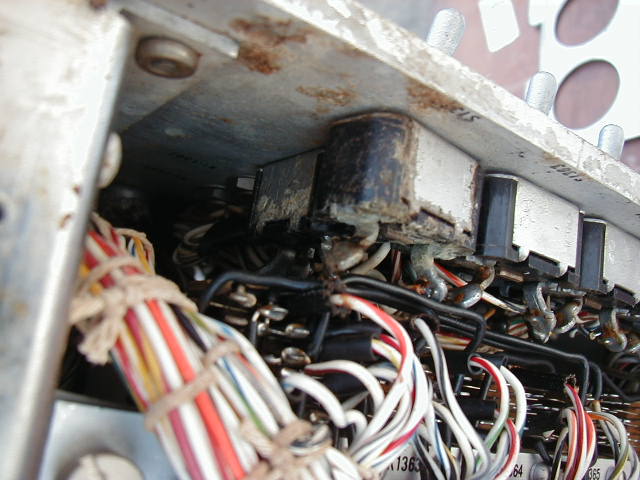

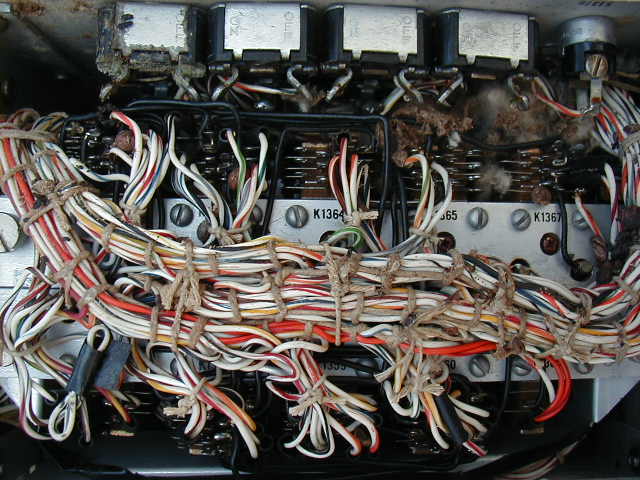

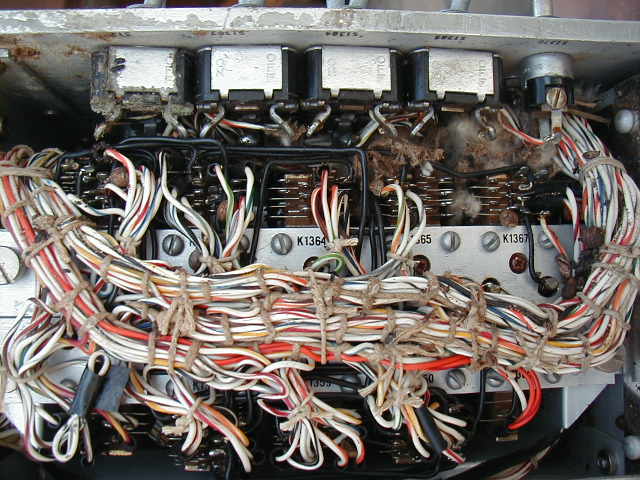

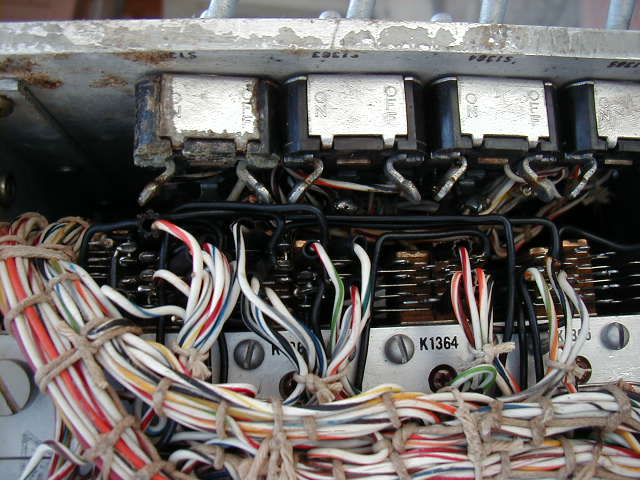

relays and switches |
 |
 |
 |

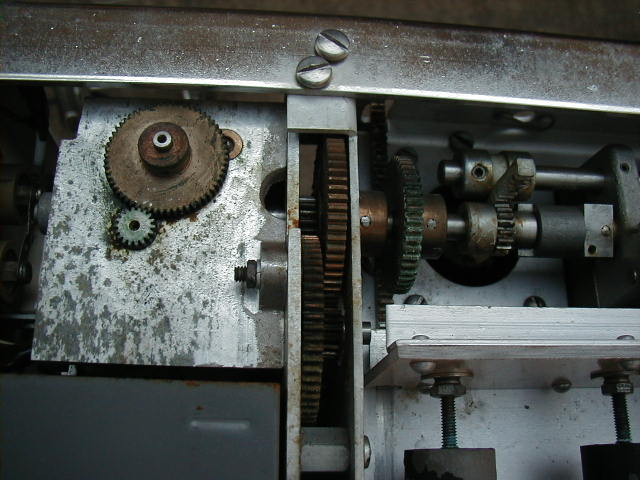

only a little corrosion on gears - not serious |
 |
 |

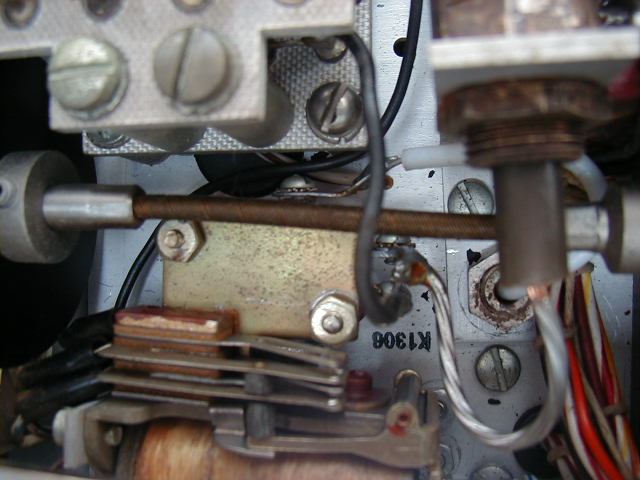

microswitch that steers output to internal dummy load or external
antenna |

driver (IPA) side - motor tuned IPA input and output cap |
 |

IPA RF sensor, autotune motor, and switch cams |
 |
 |

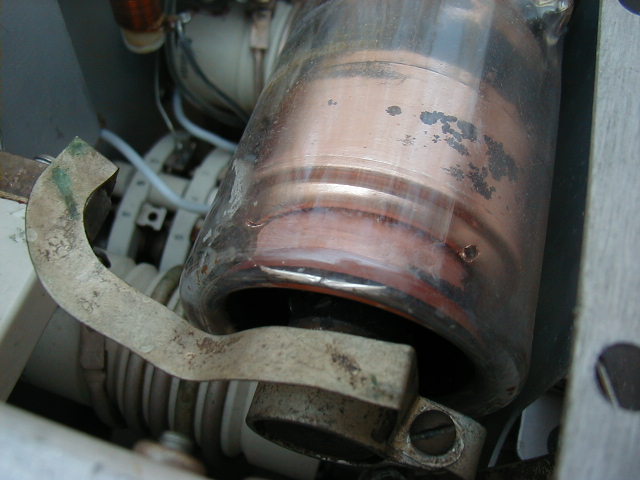

crack in vacuum variable? |

after an hour of vacuuming and air hose work, there was still stuff
coming out of the autotune sequencer |

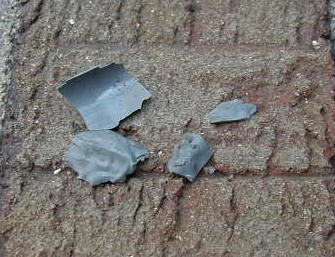

epoxy? pieces that fell out when cleaning |
|
|
