Navy WWII Portable, Transportable, and Mobile Transmitter-Receiver Radio Equipment

Back to WWII Transmitter Page
Back to Main Navy Radio Page
Click here for WWII Receivers
Also check out Rob Flory's WWII Navy Radio Site
Go to http://www.qrz.com/db/KD6TKX to see Andy's really great WW2 Navy Radio Shack
Please send e-mail if you have any photos, additional info, etc.
Many of these photos are of equipment that was for sale on eBay.
Manufacturer Codes (CCI, CKB, etc.) - see this list
Go here for Manuals for Transmitters and Transceivers

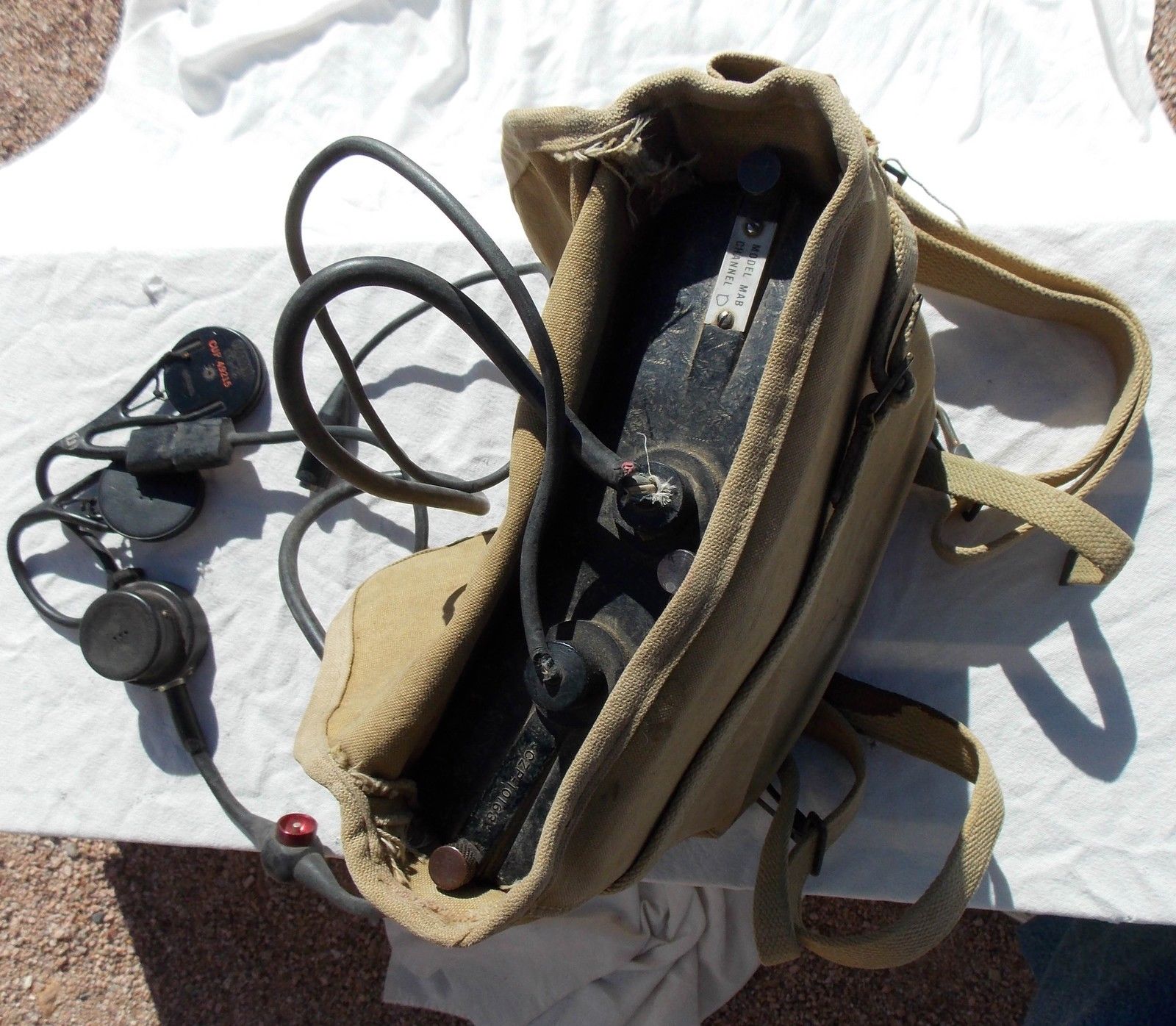

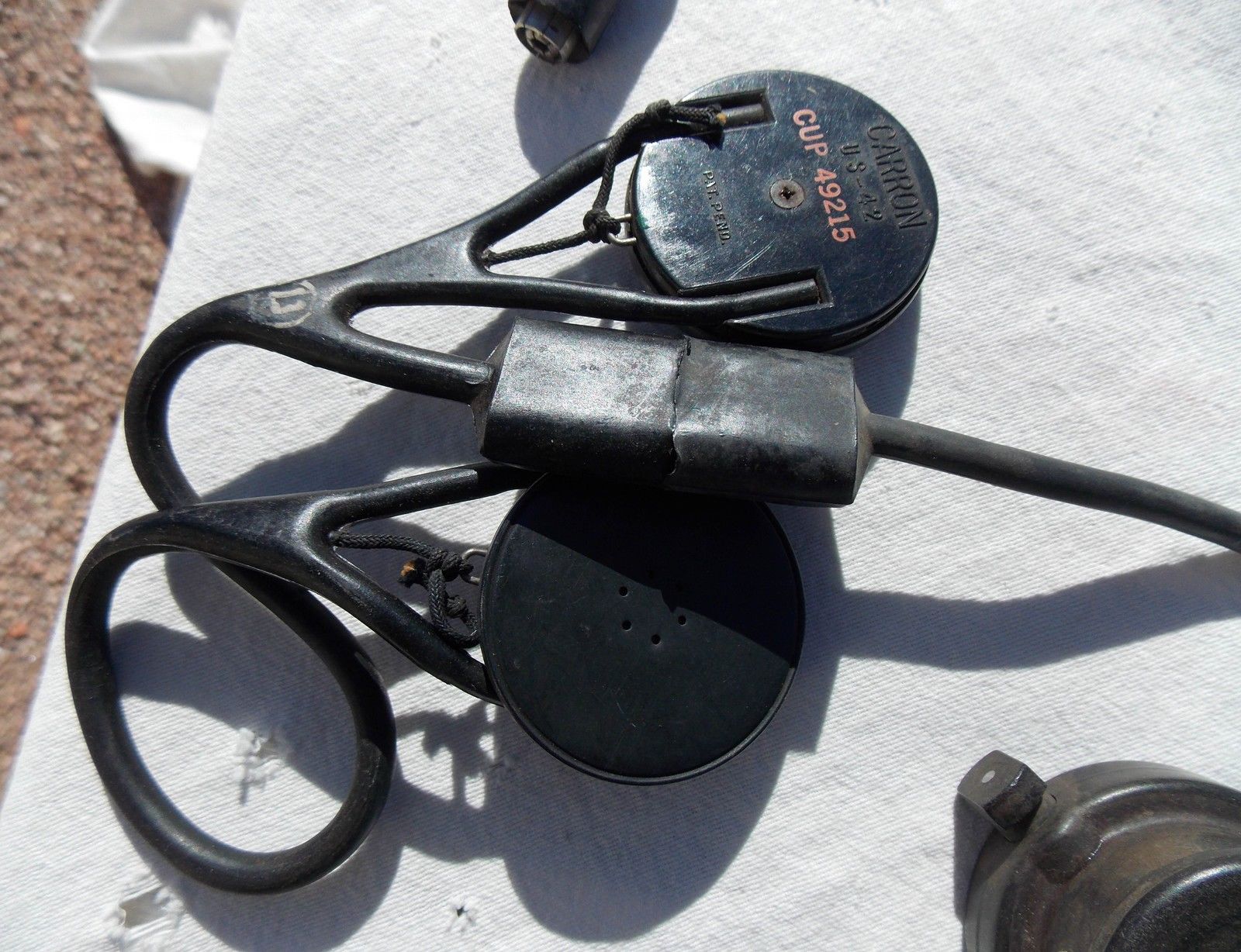

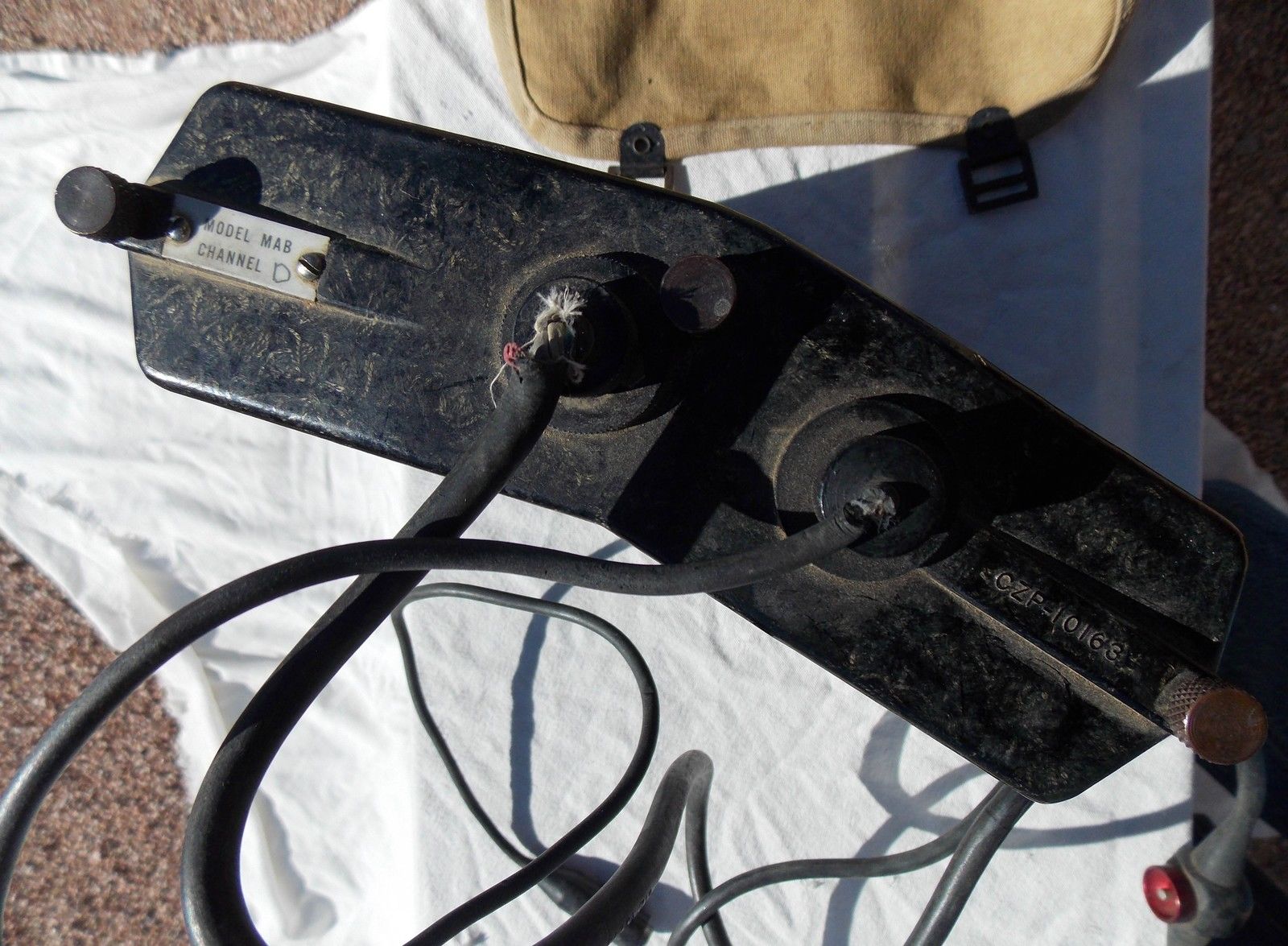

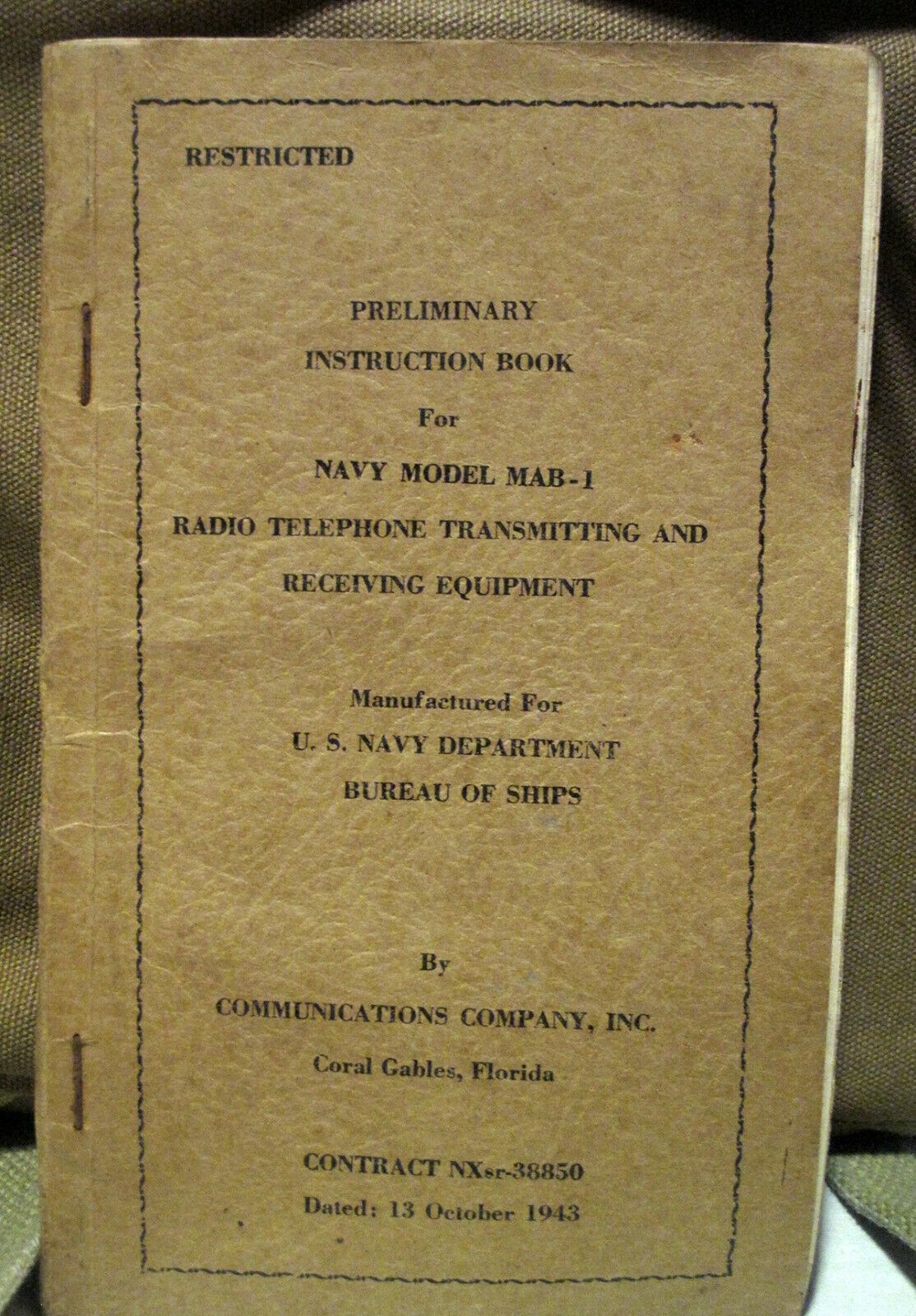

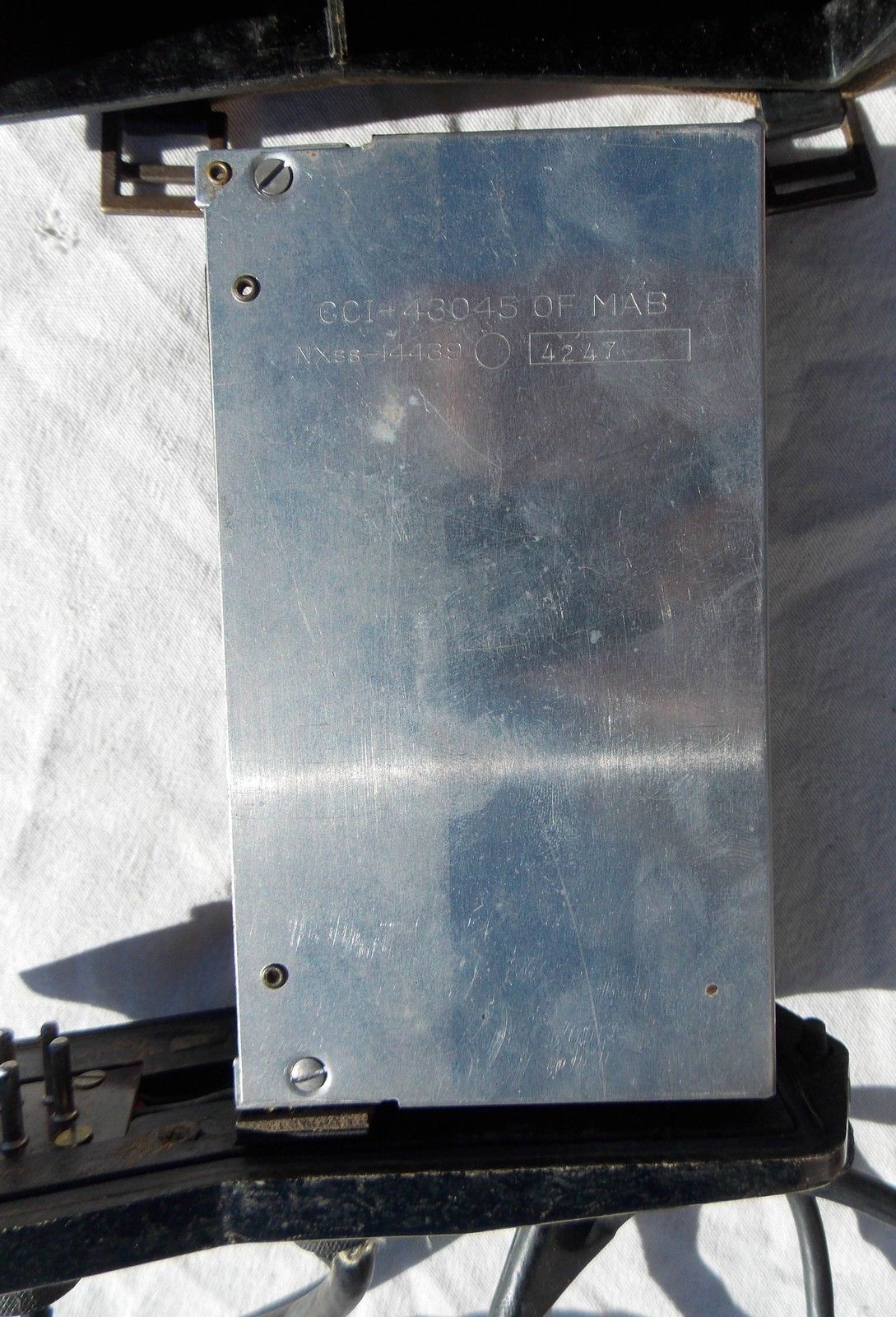

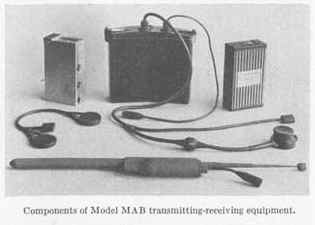

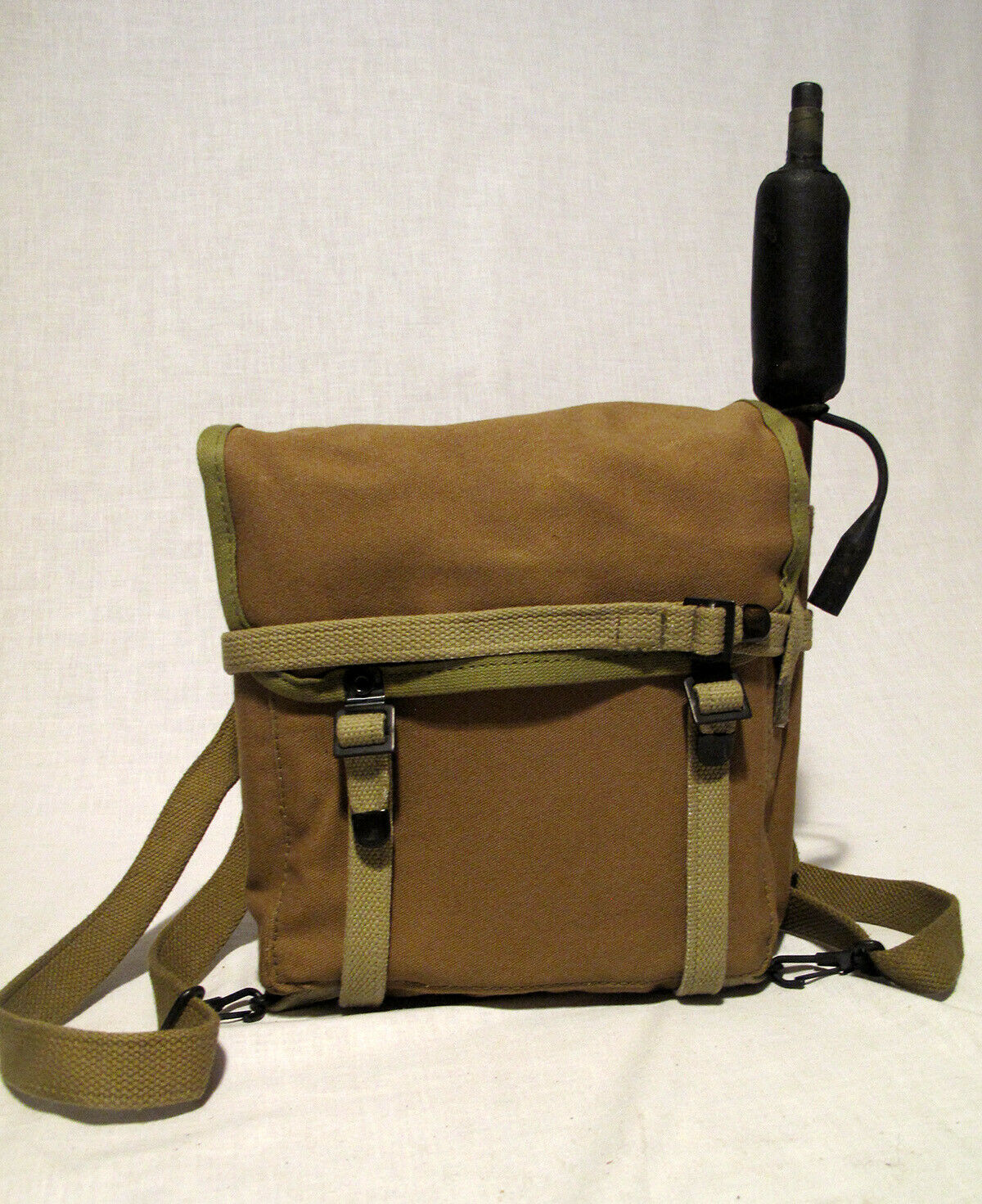

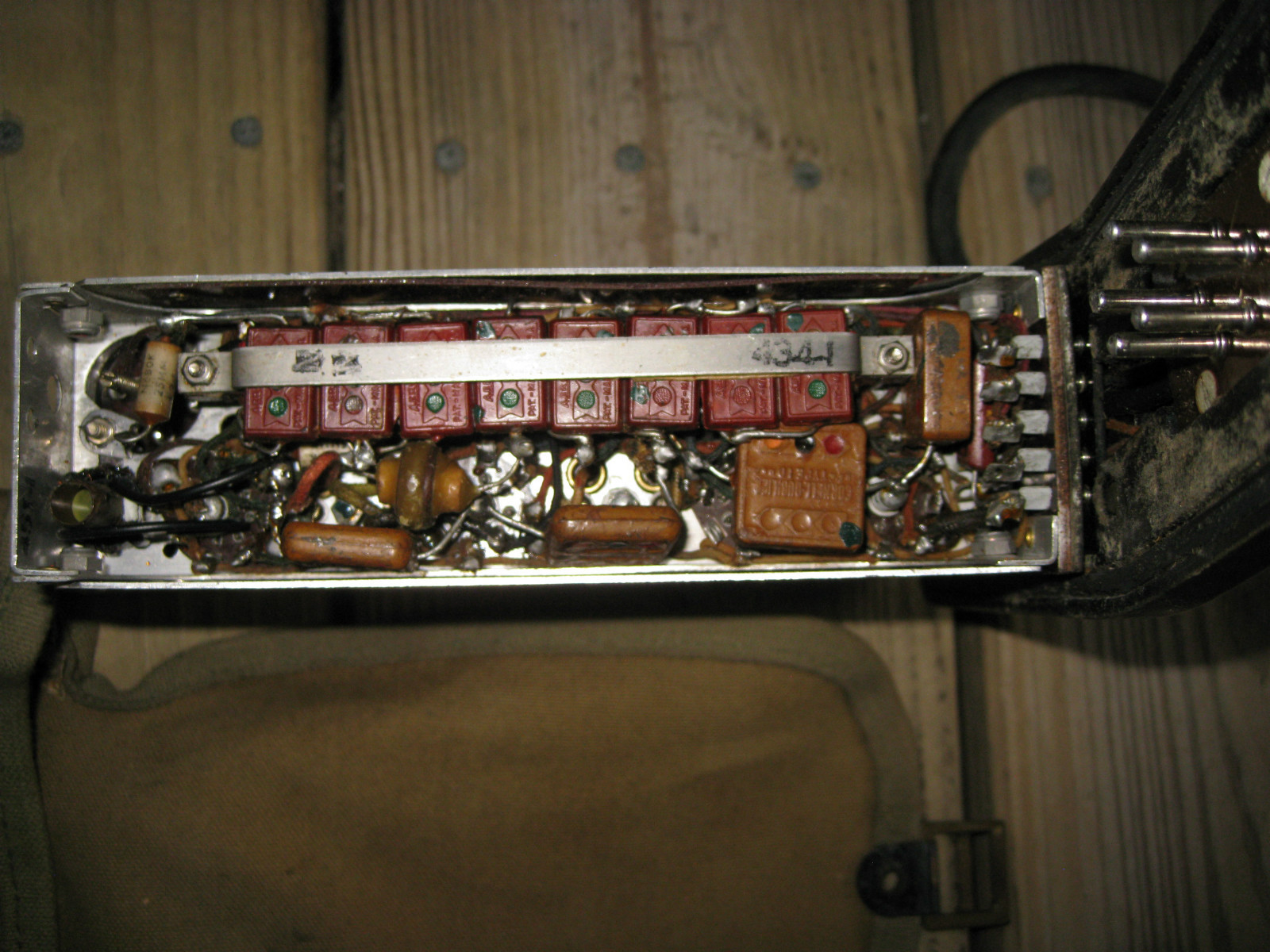

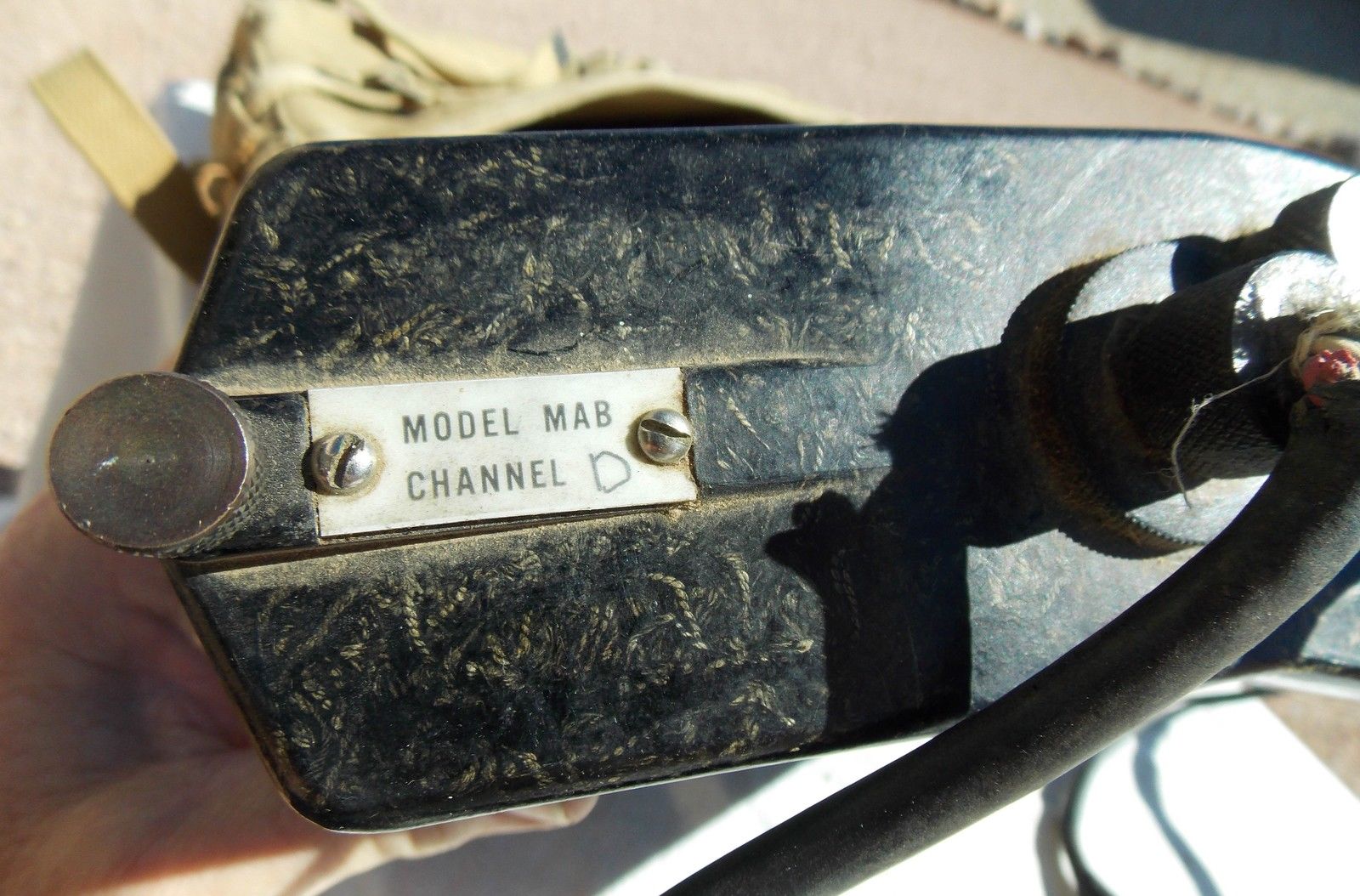

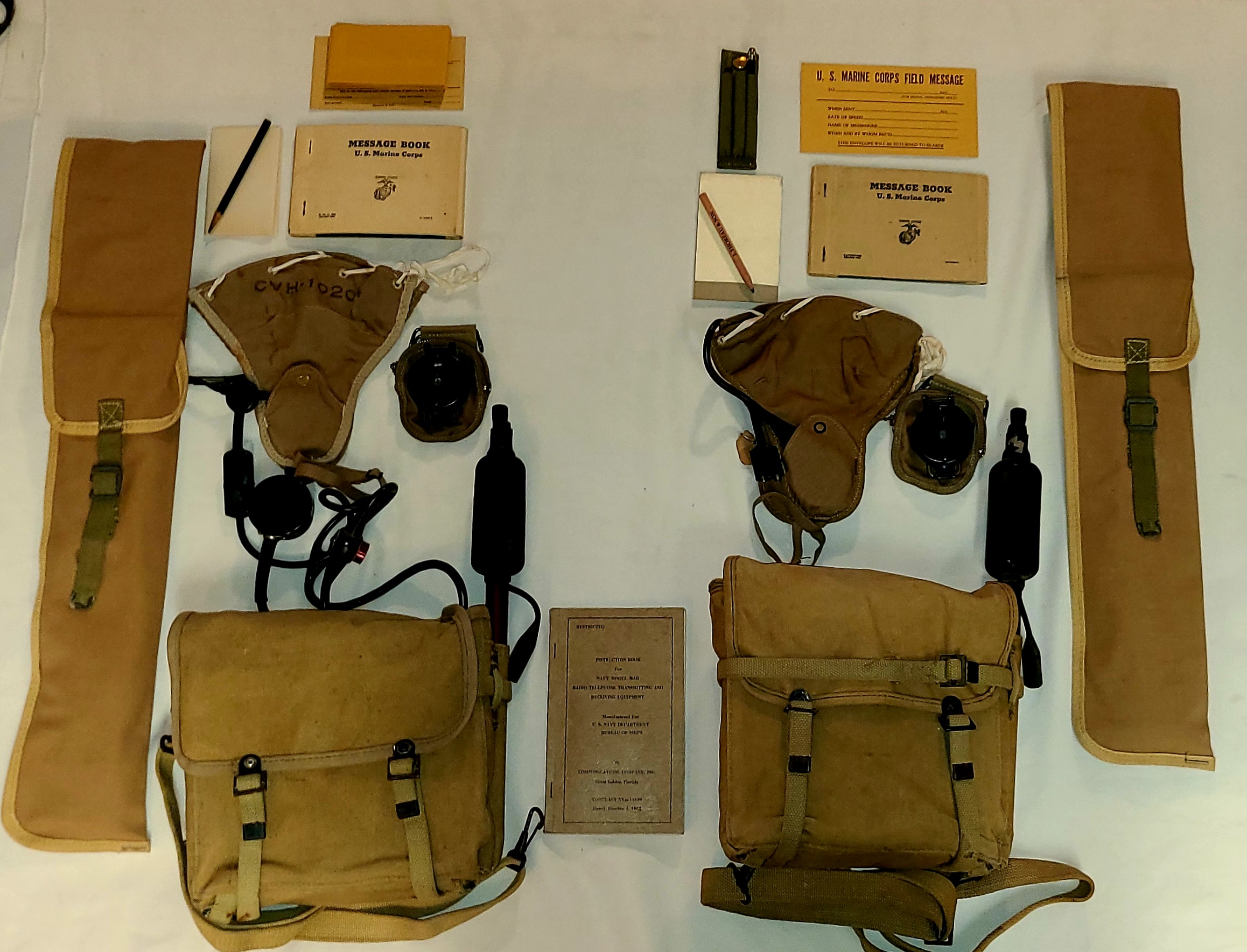

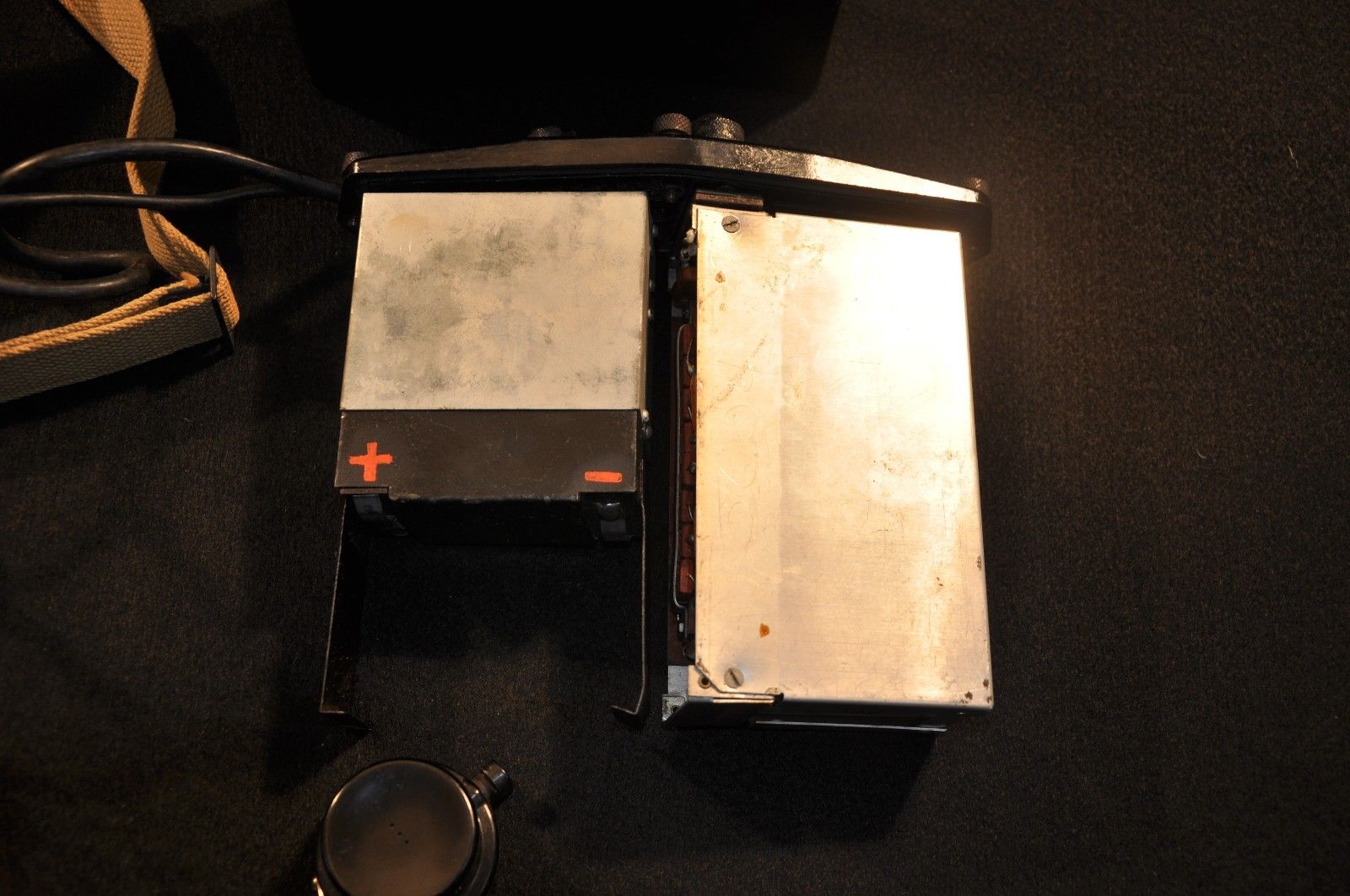

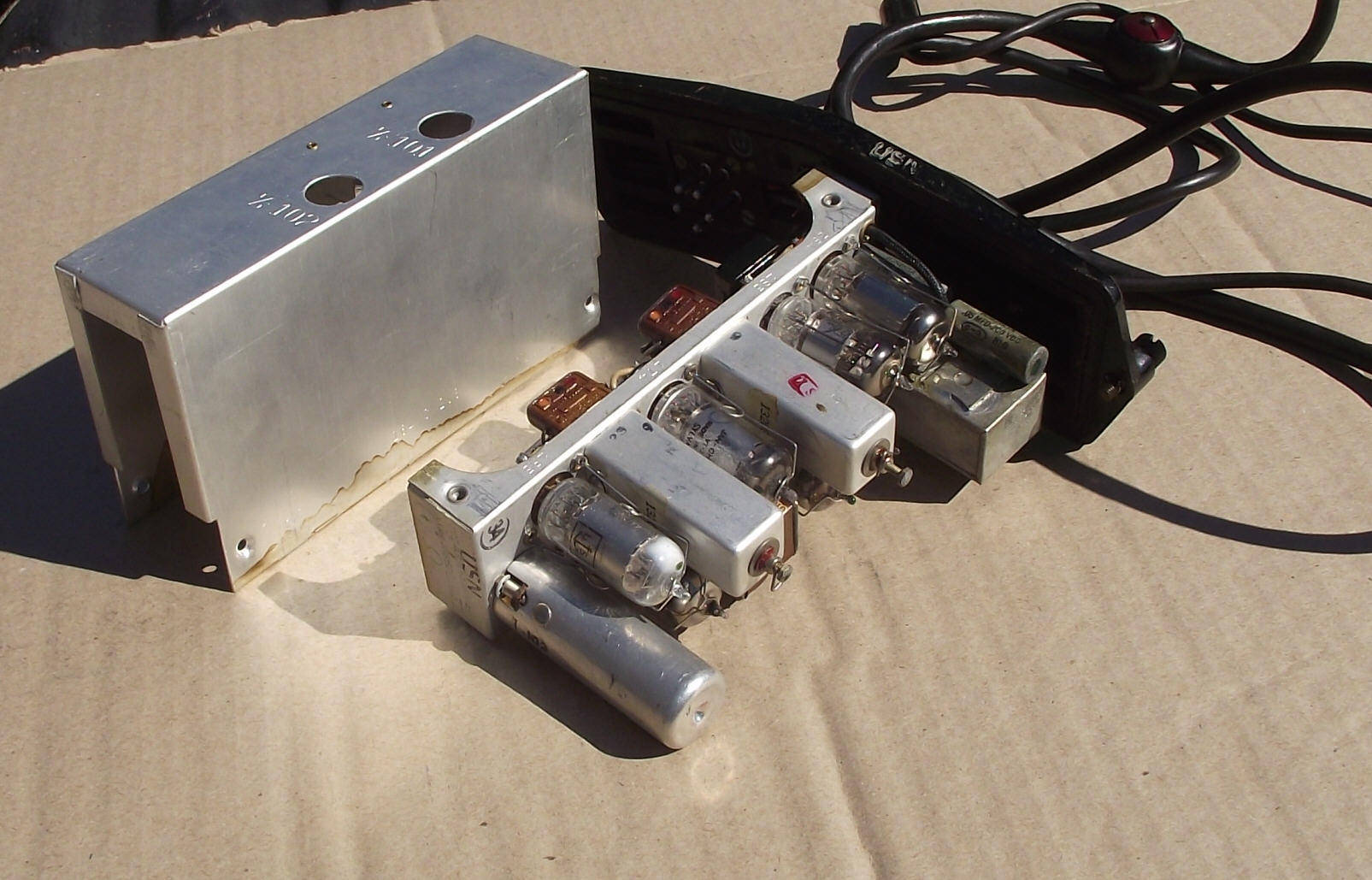

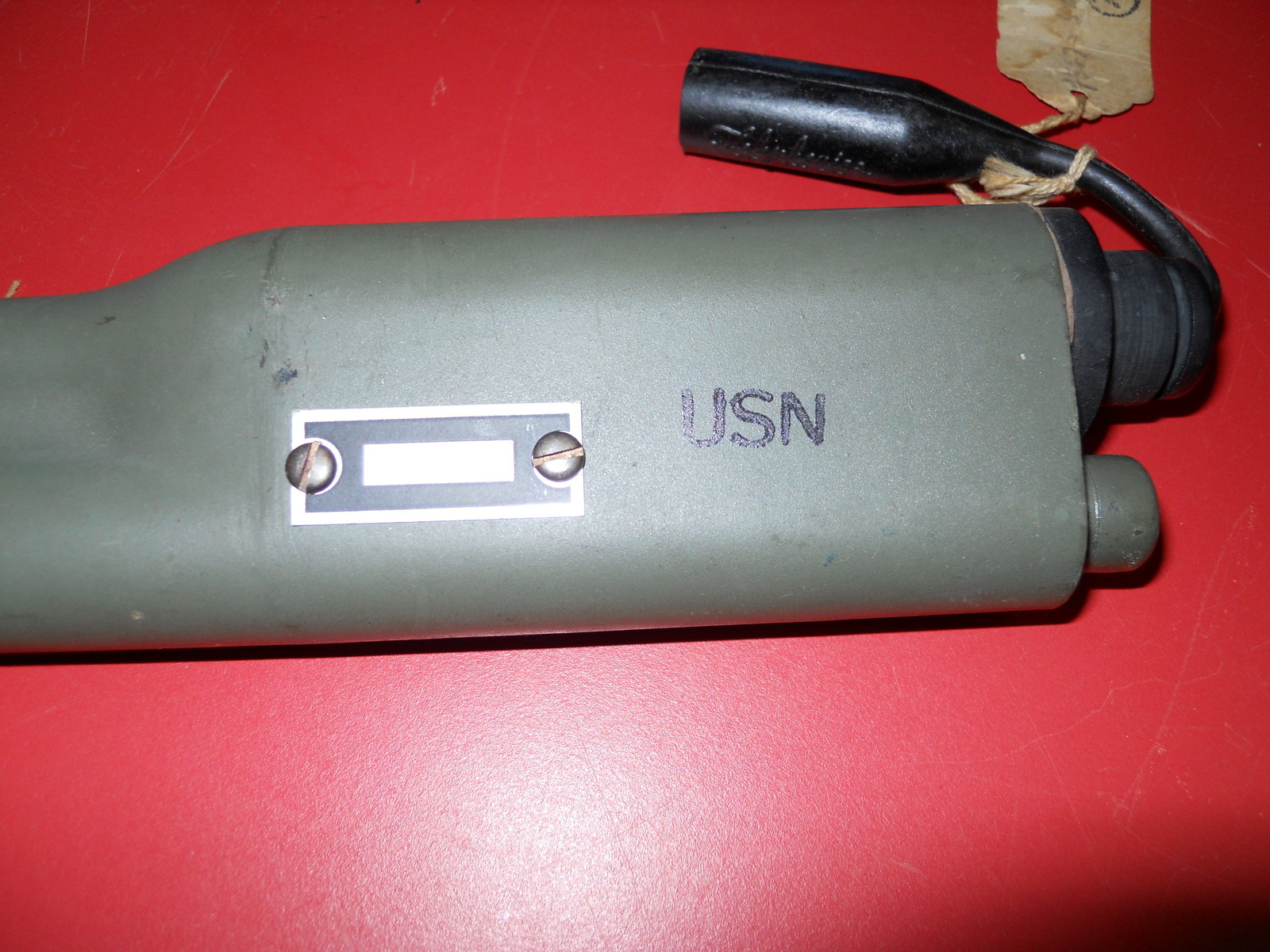

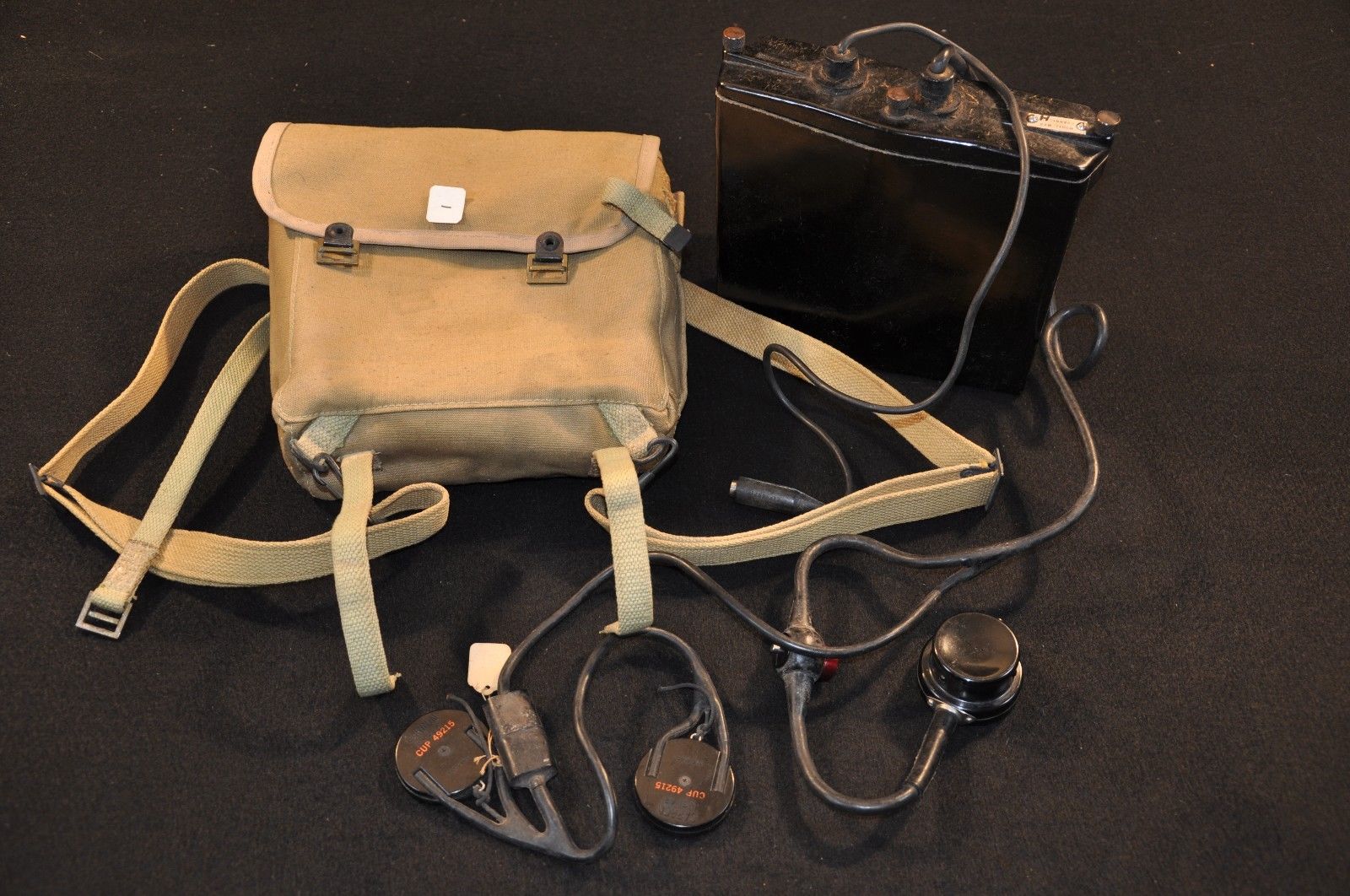

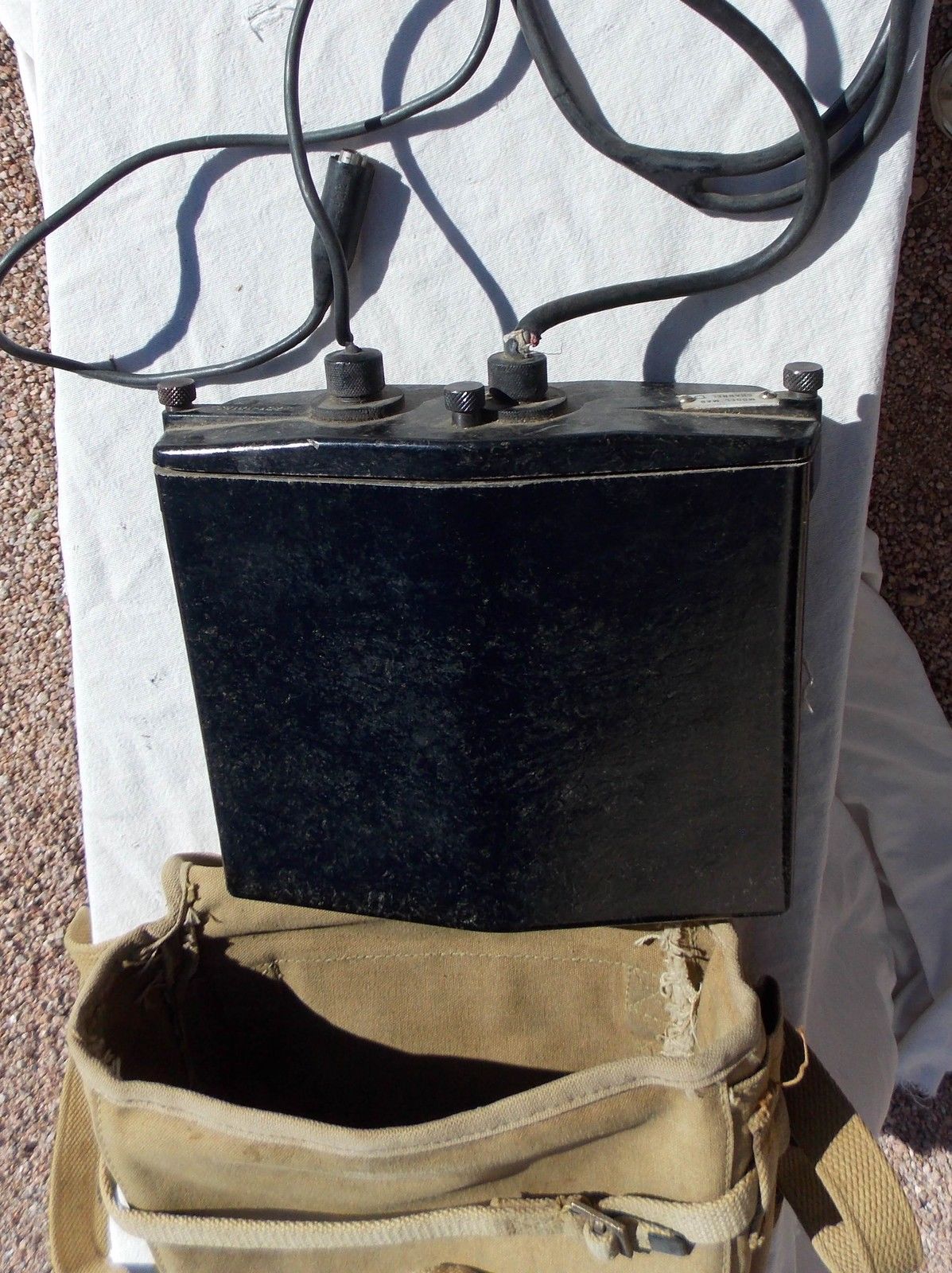

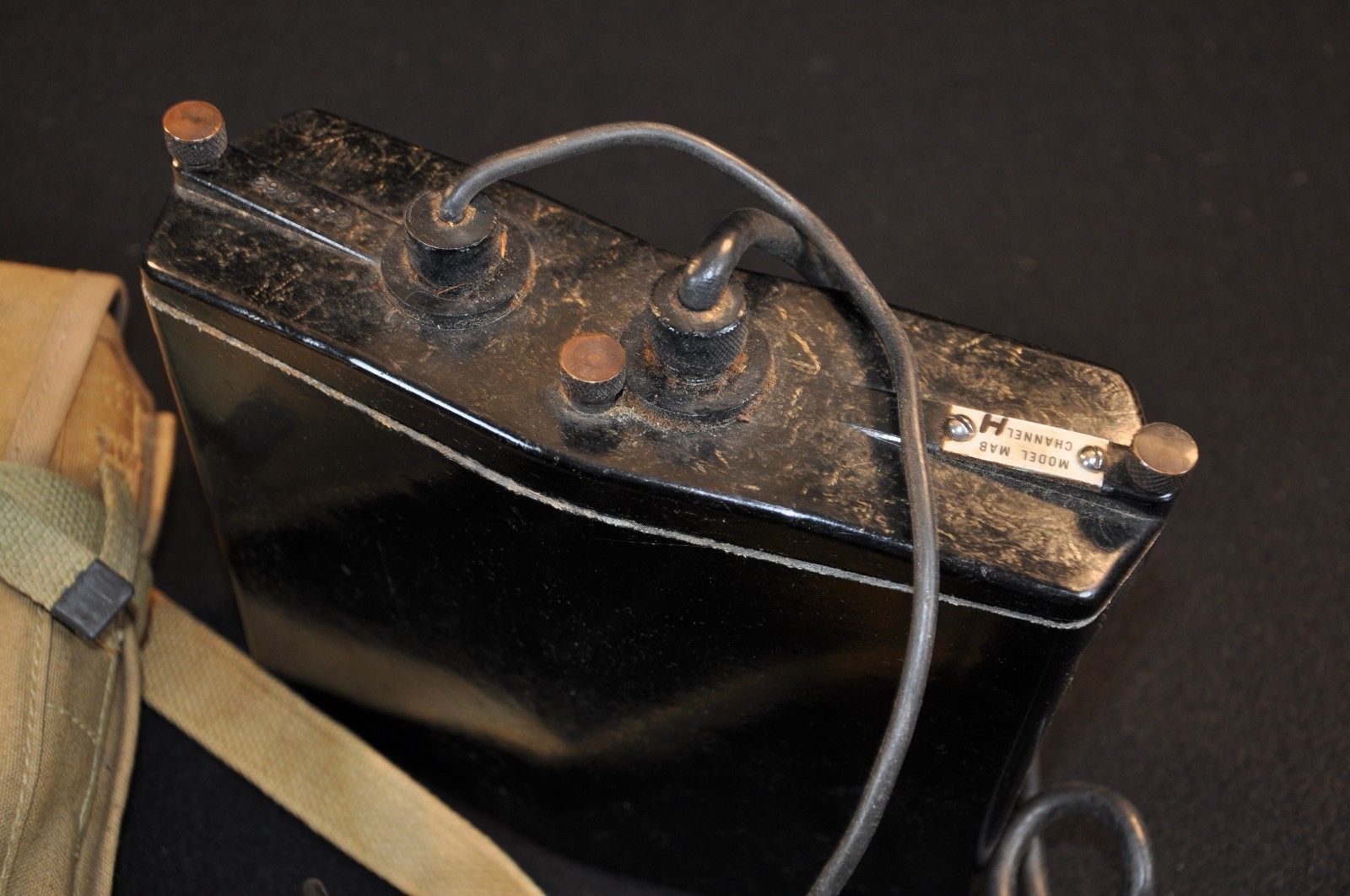

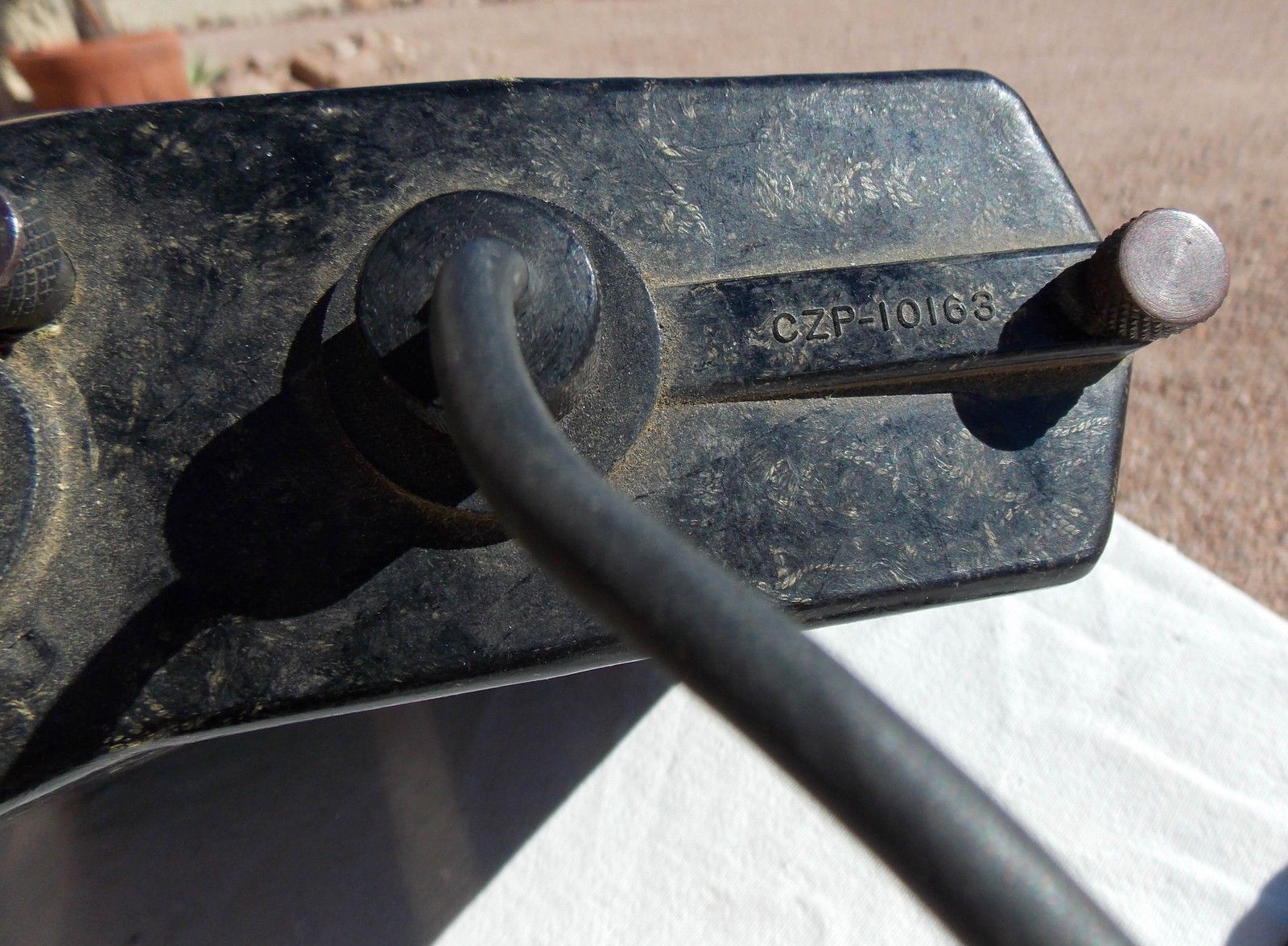

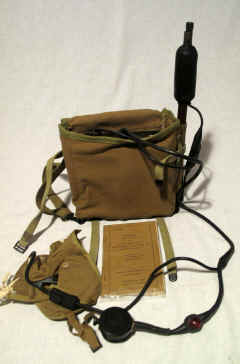

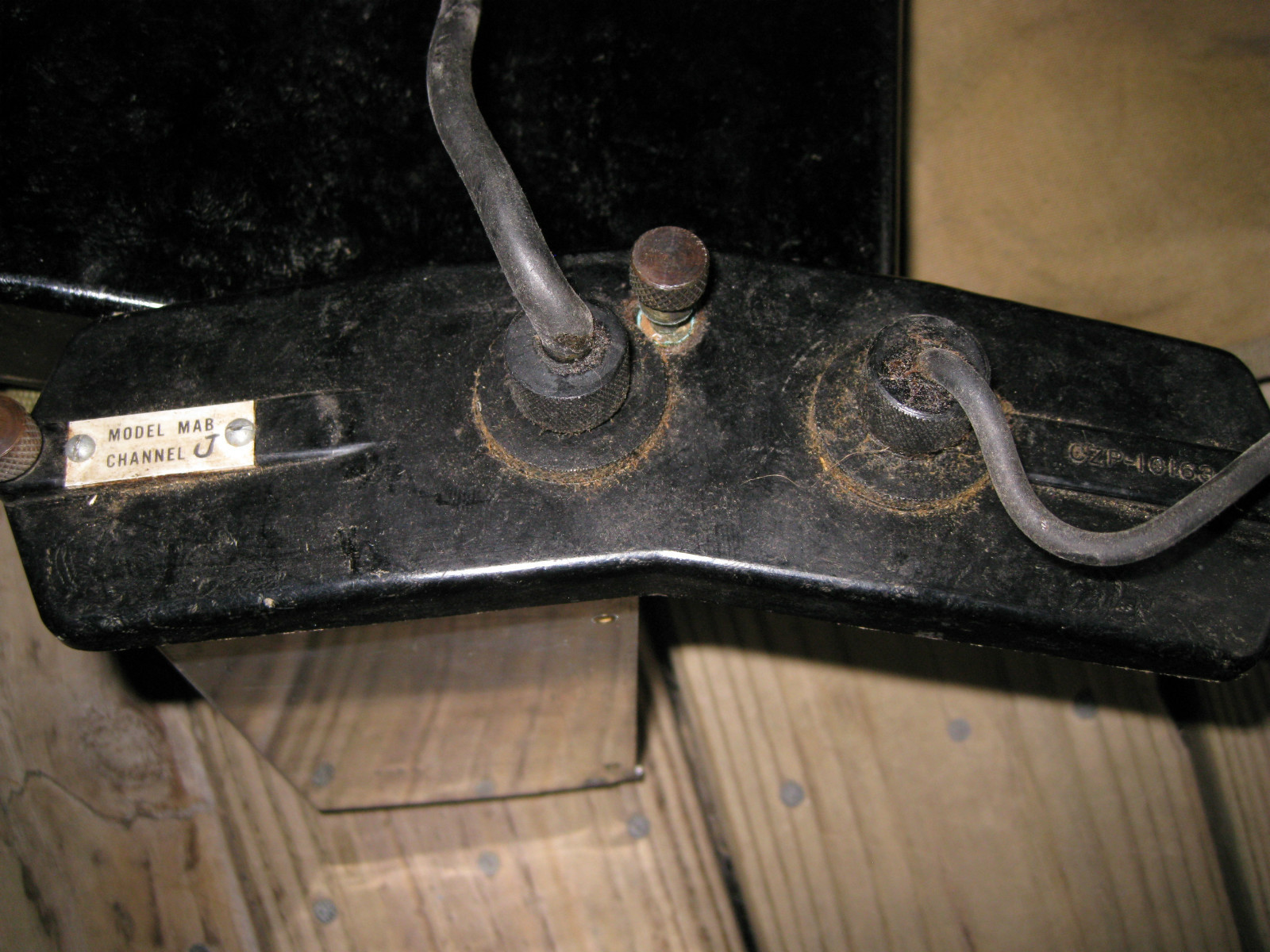

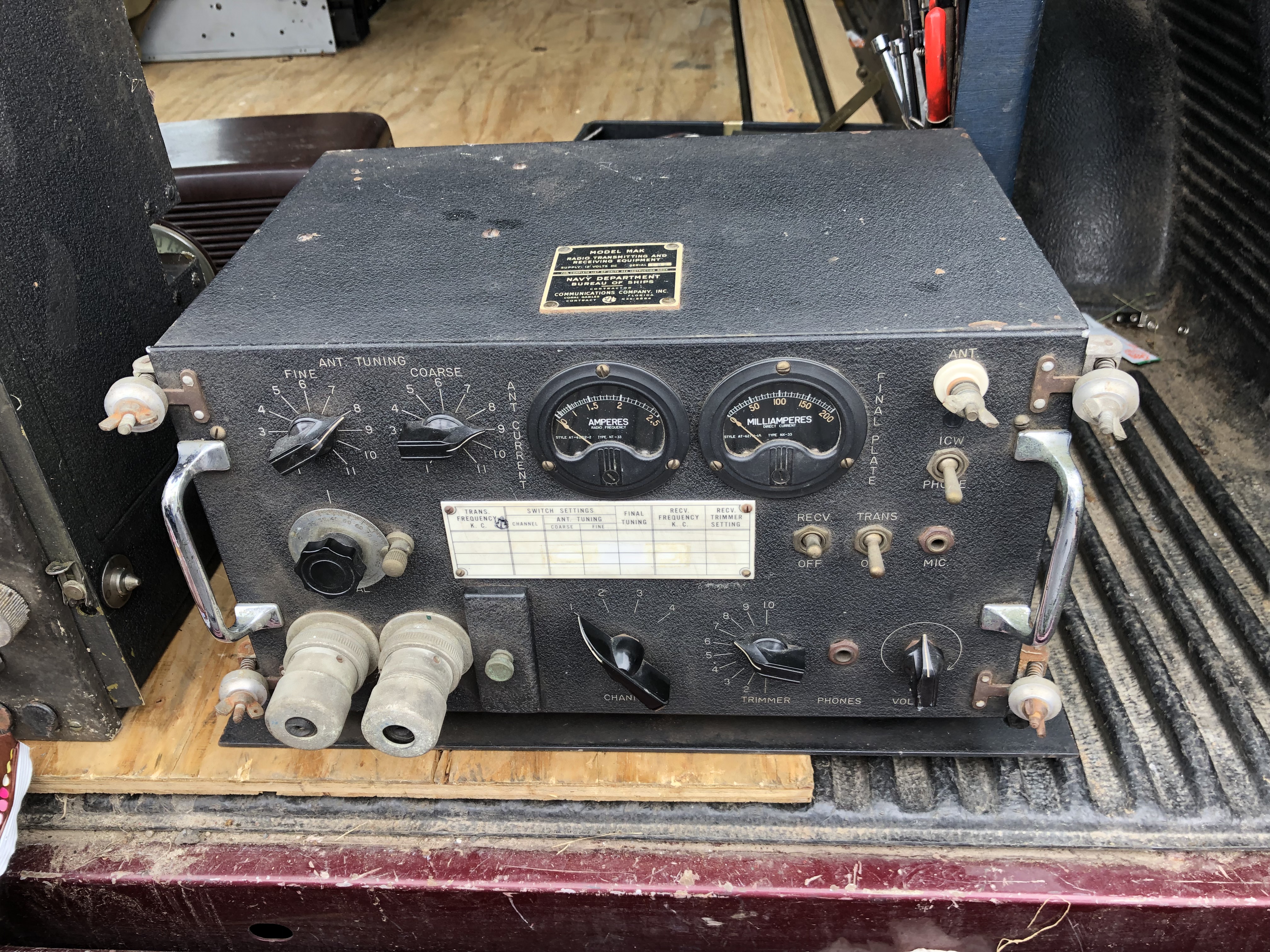

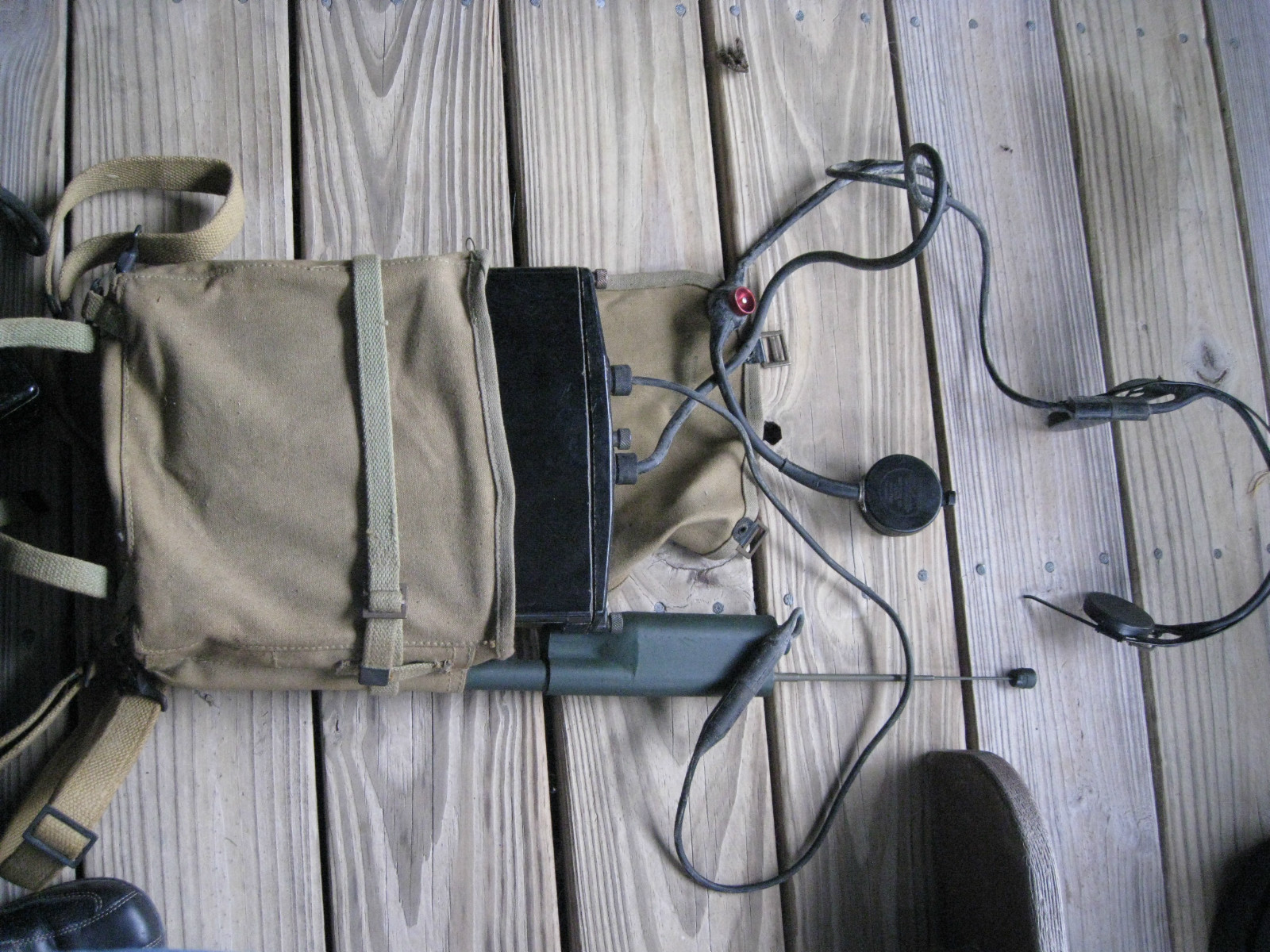

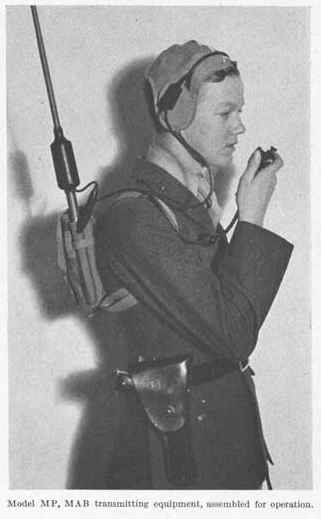

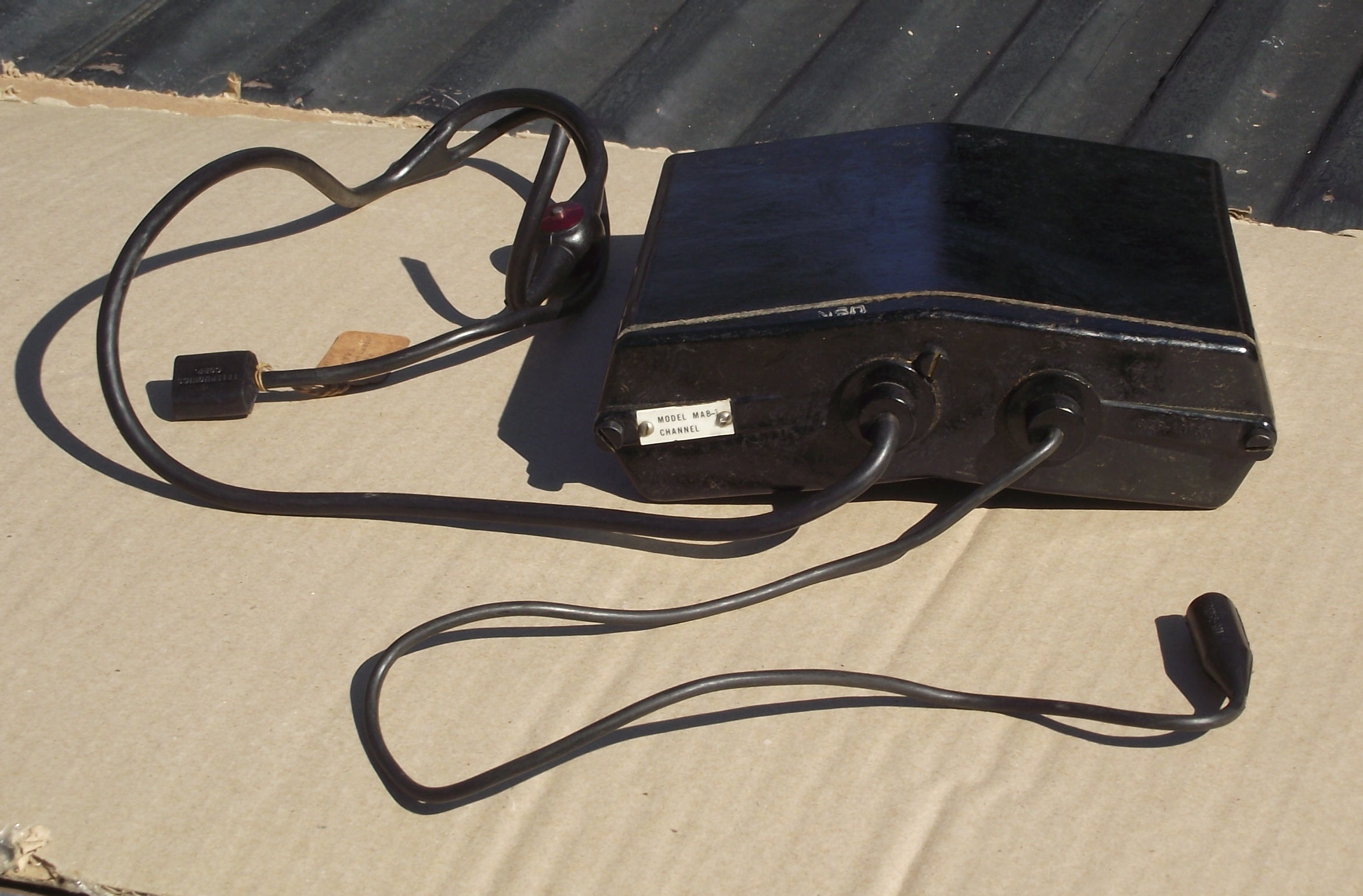

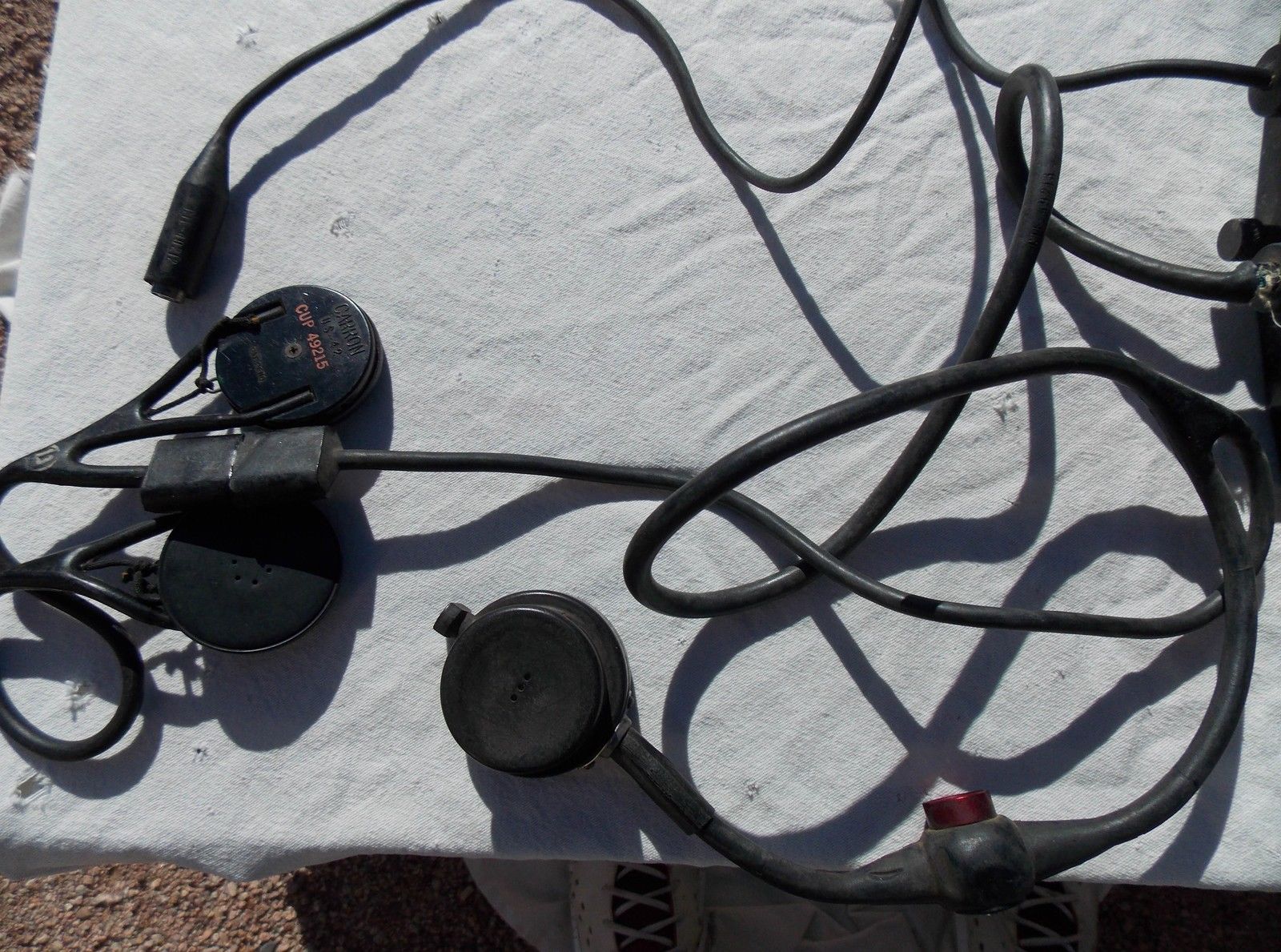

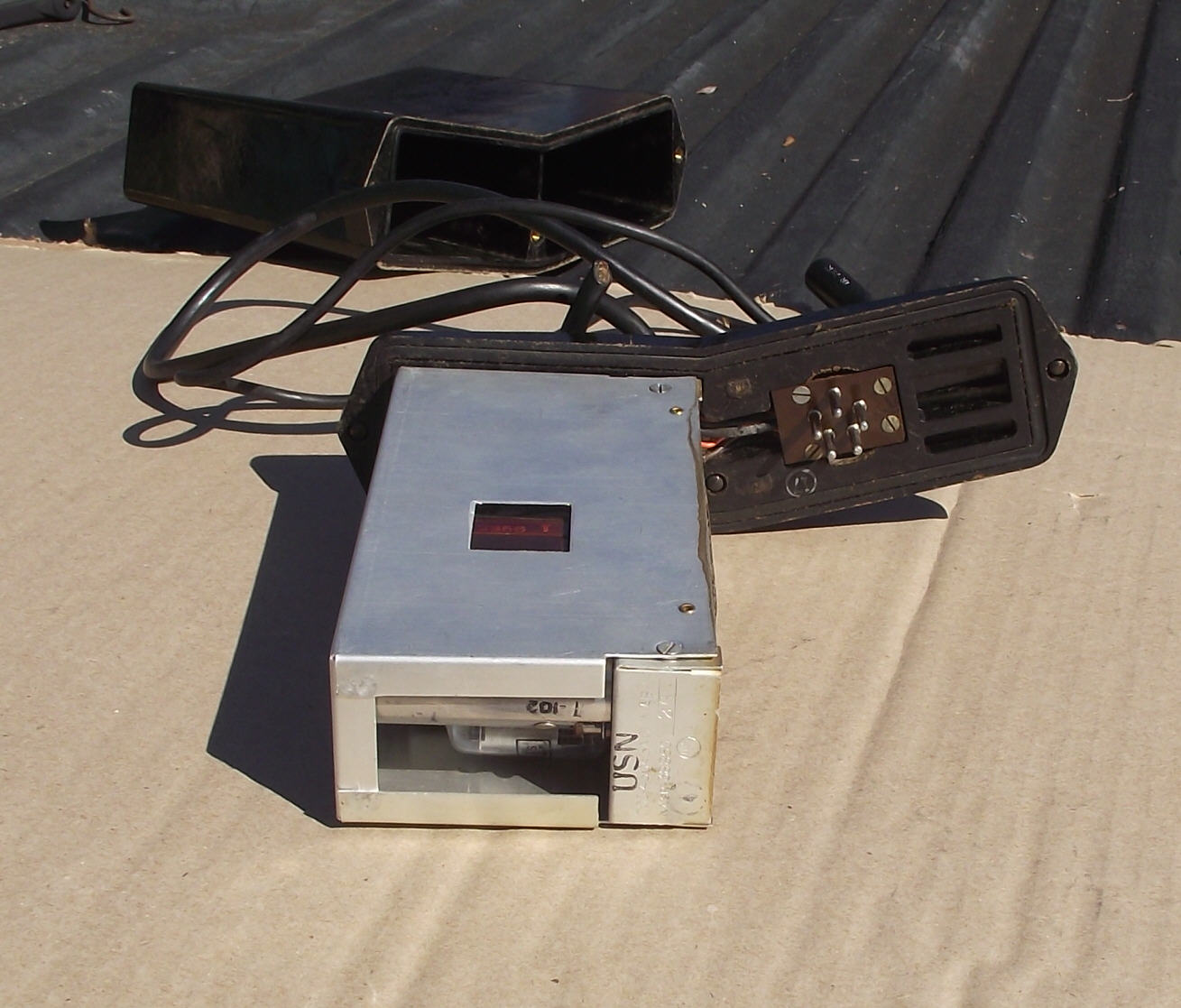

MAB - Spec Sheets N6CC's great MAB Page Manual		Display photos thanks to George Feliciano

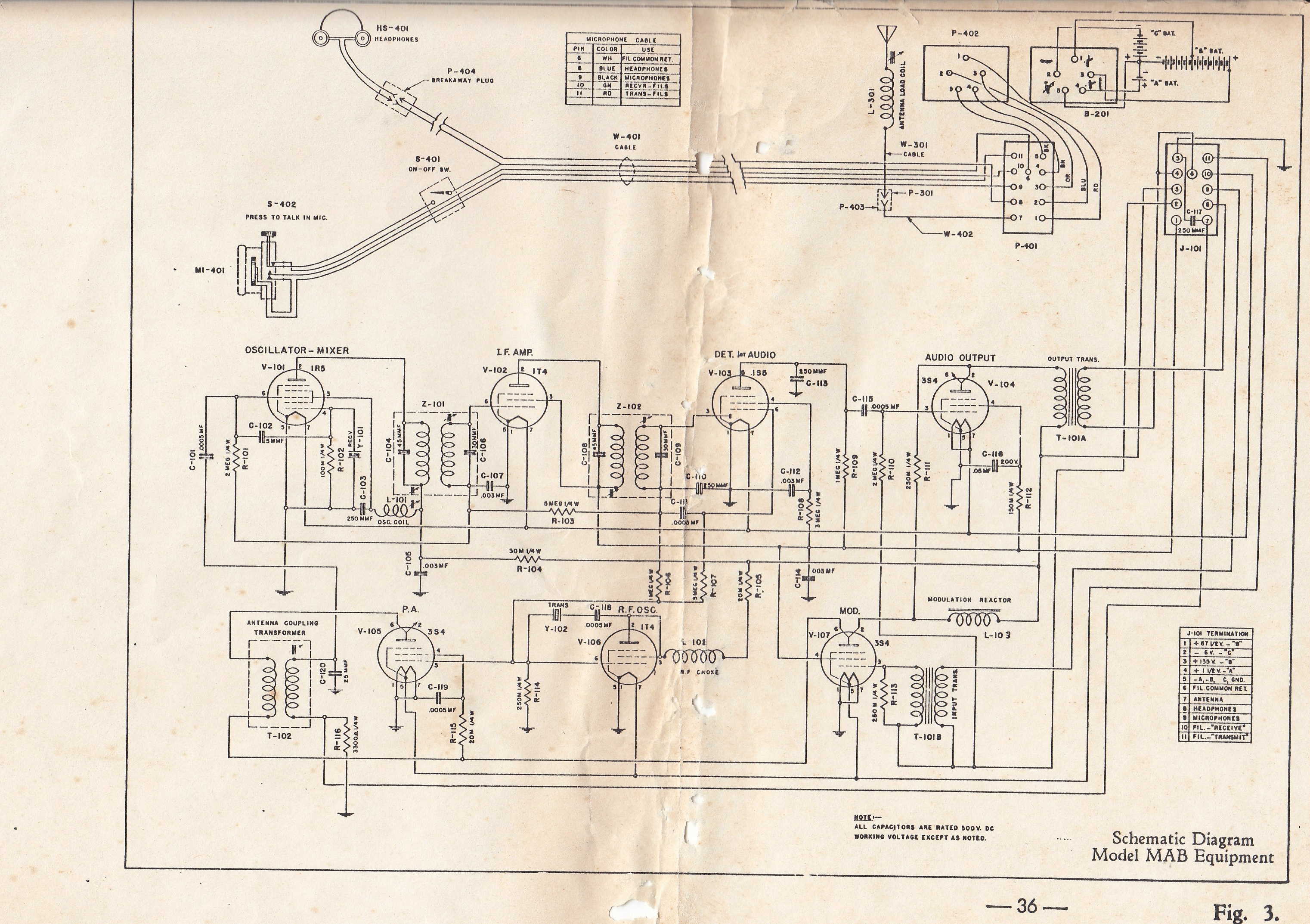

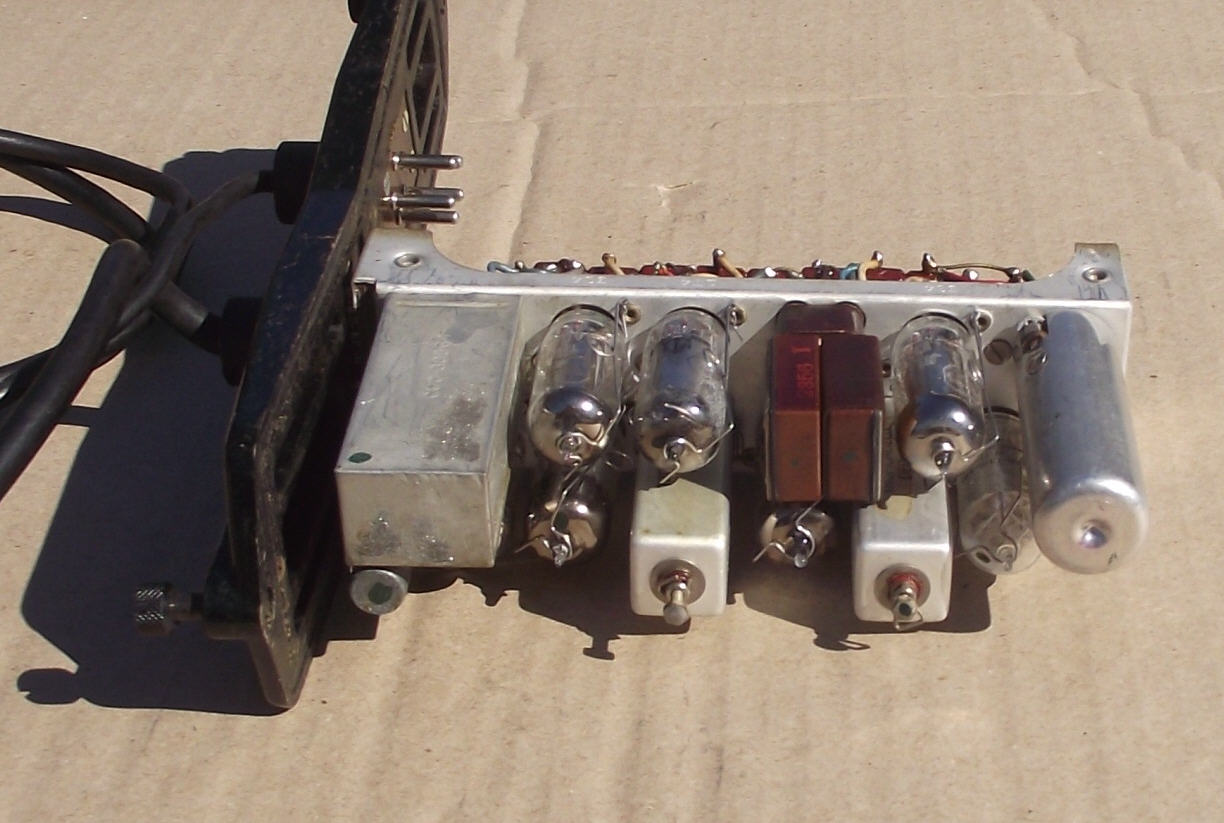

MAB schematic and photos thanks to WB5WSV

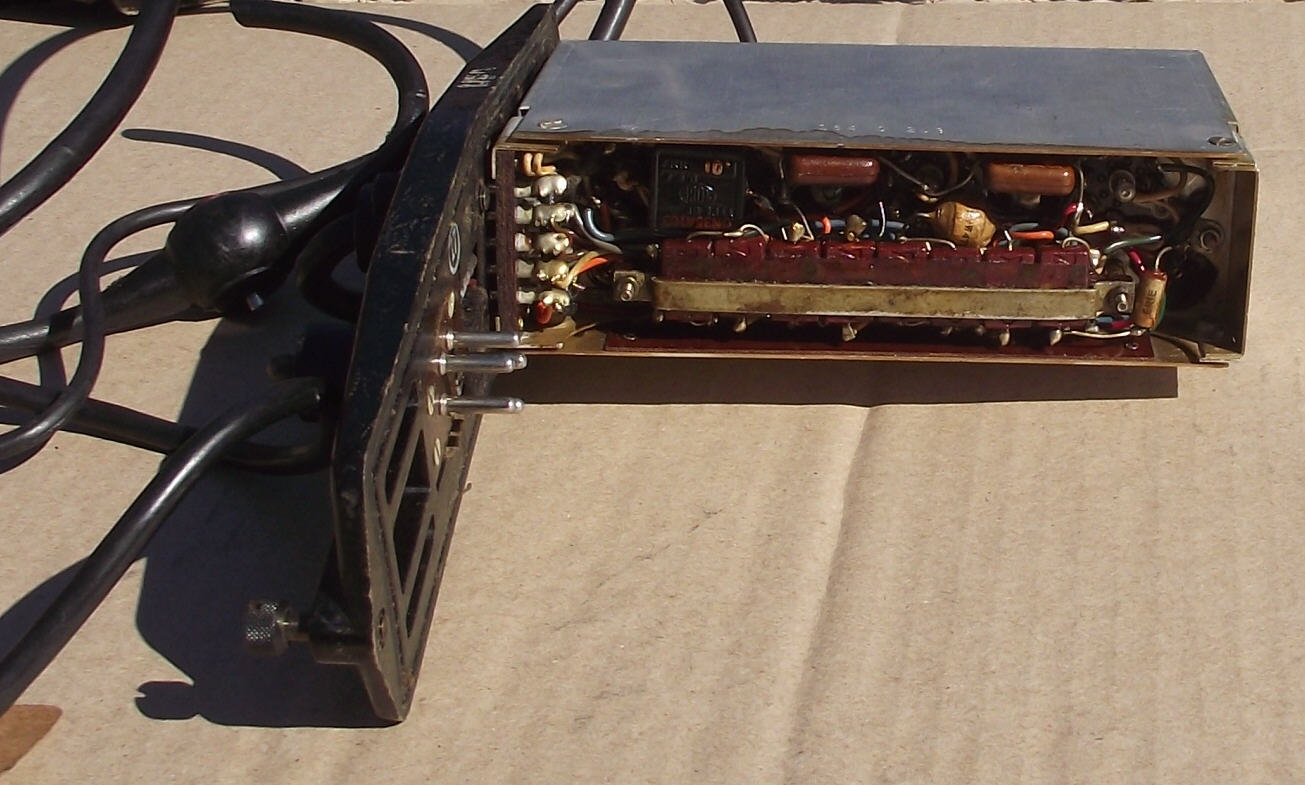

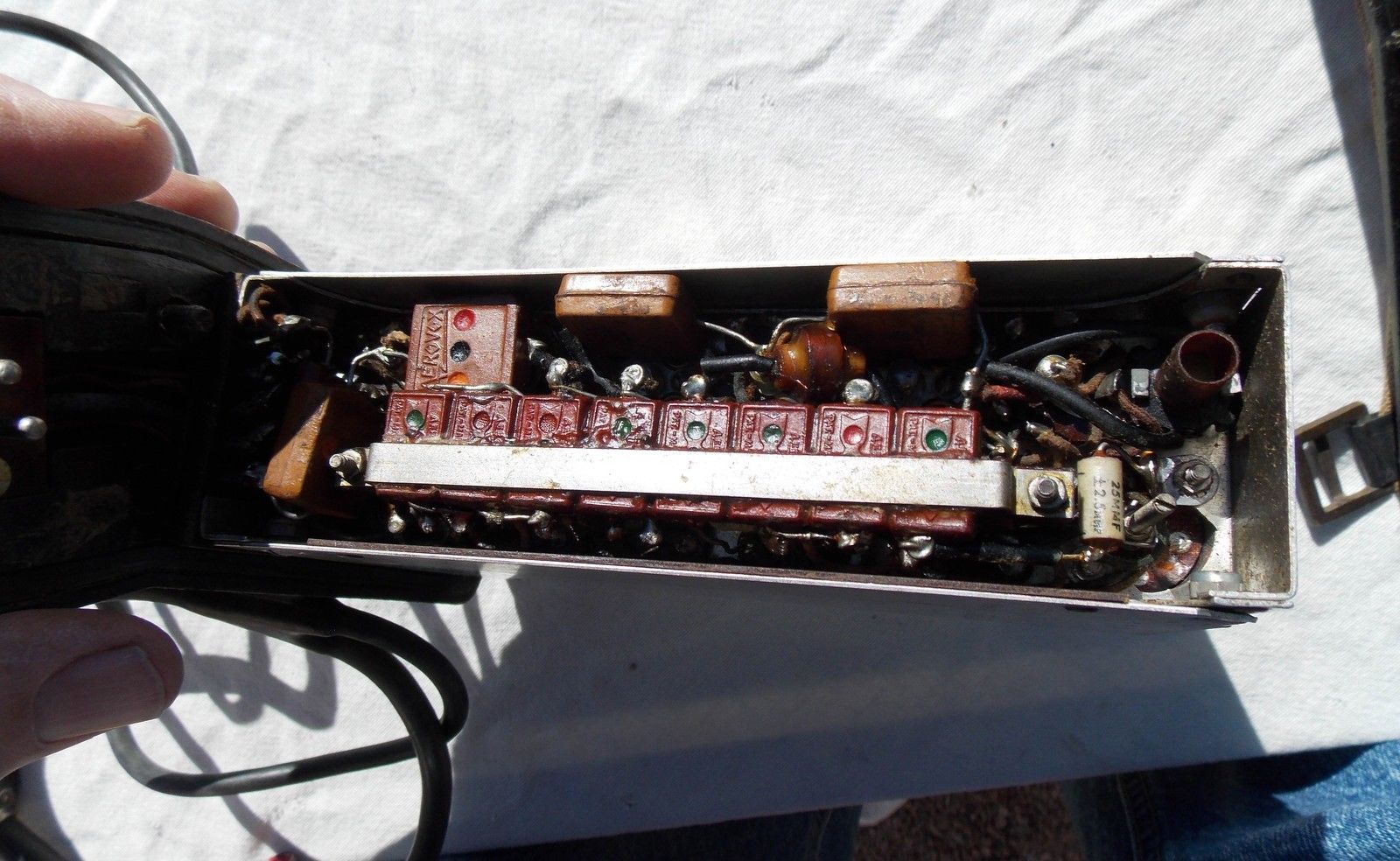

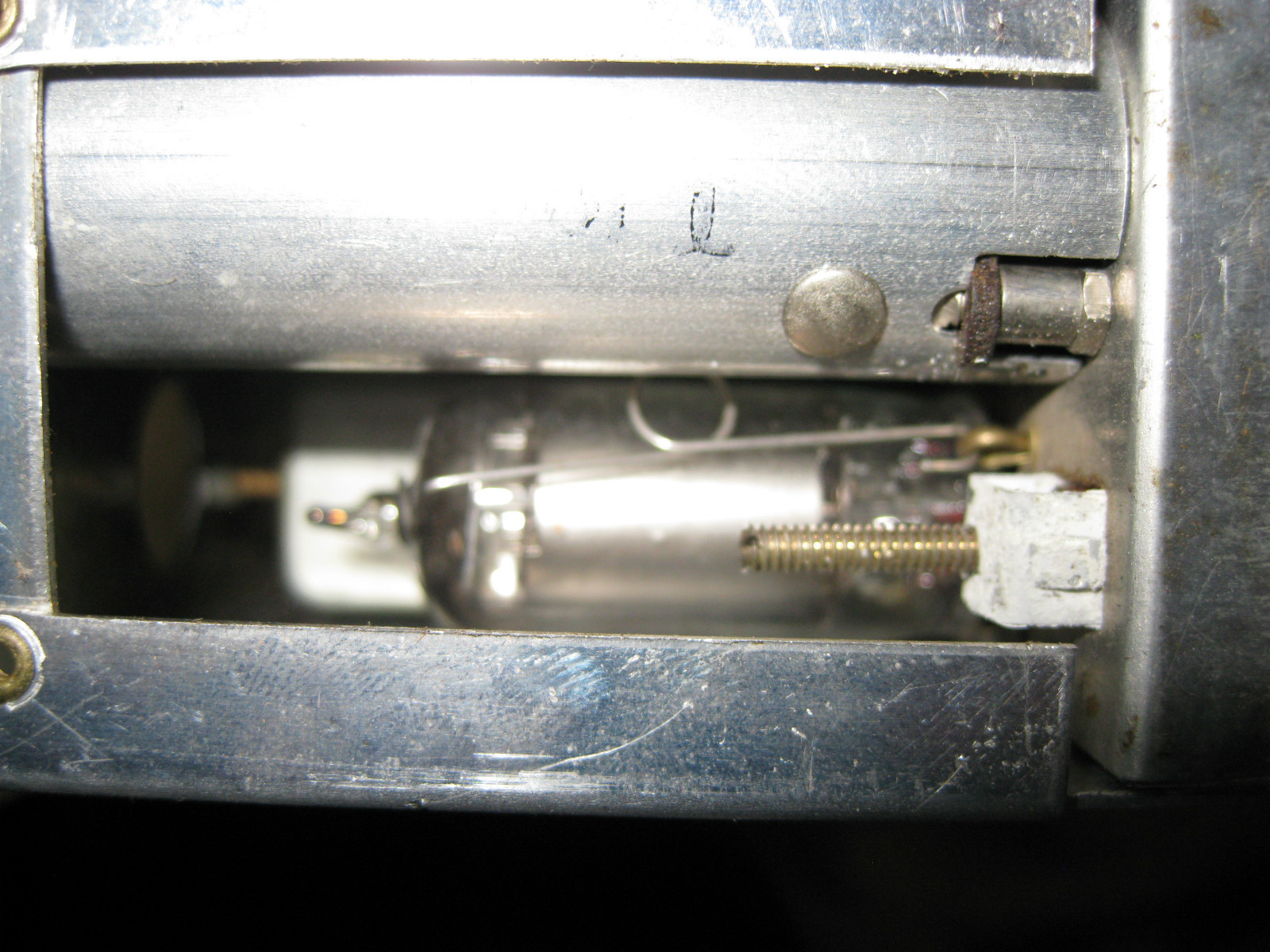

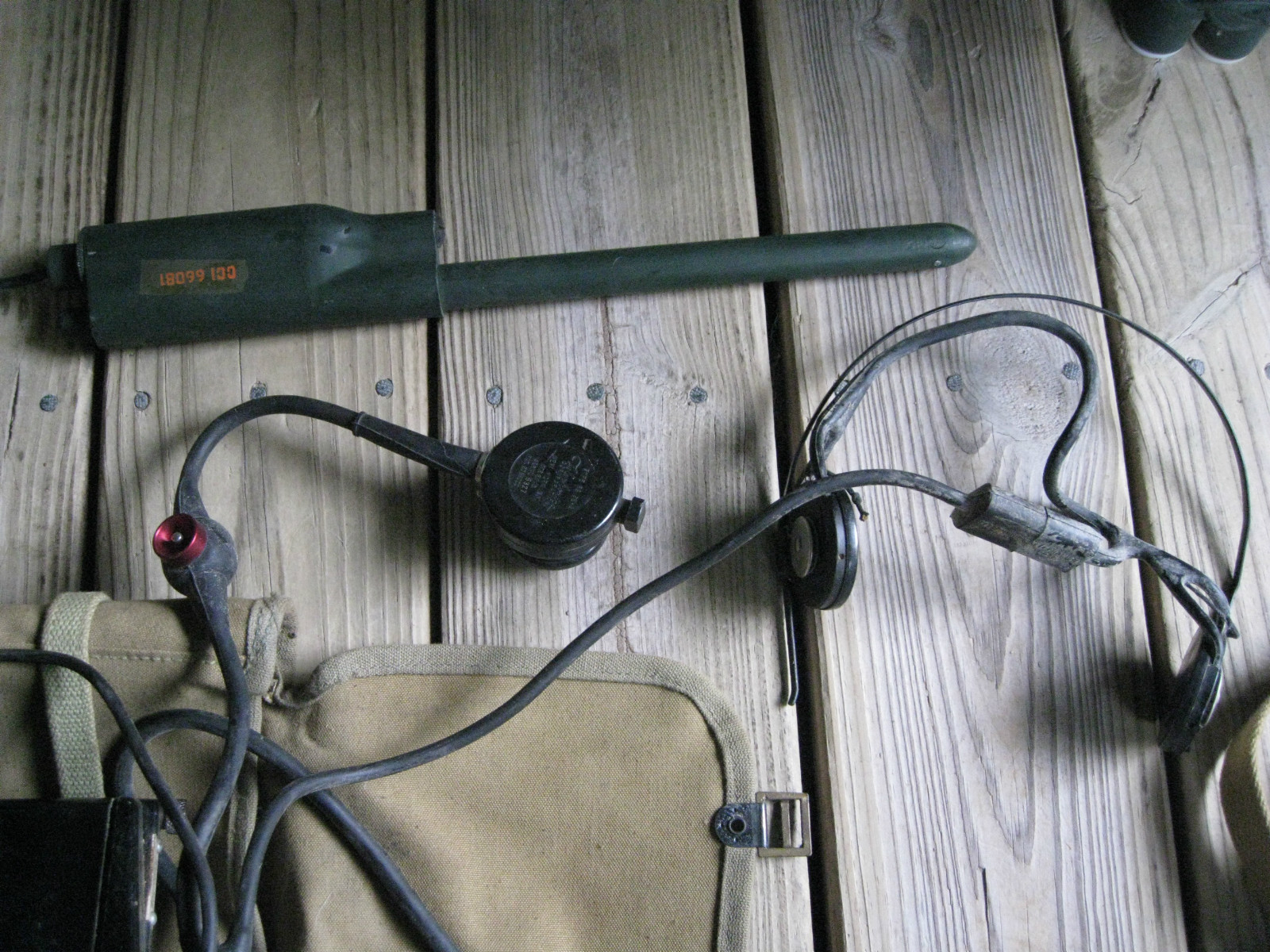

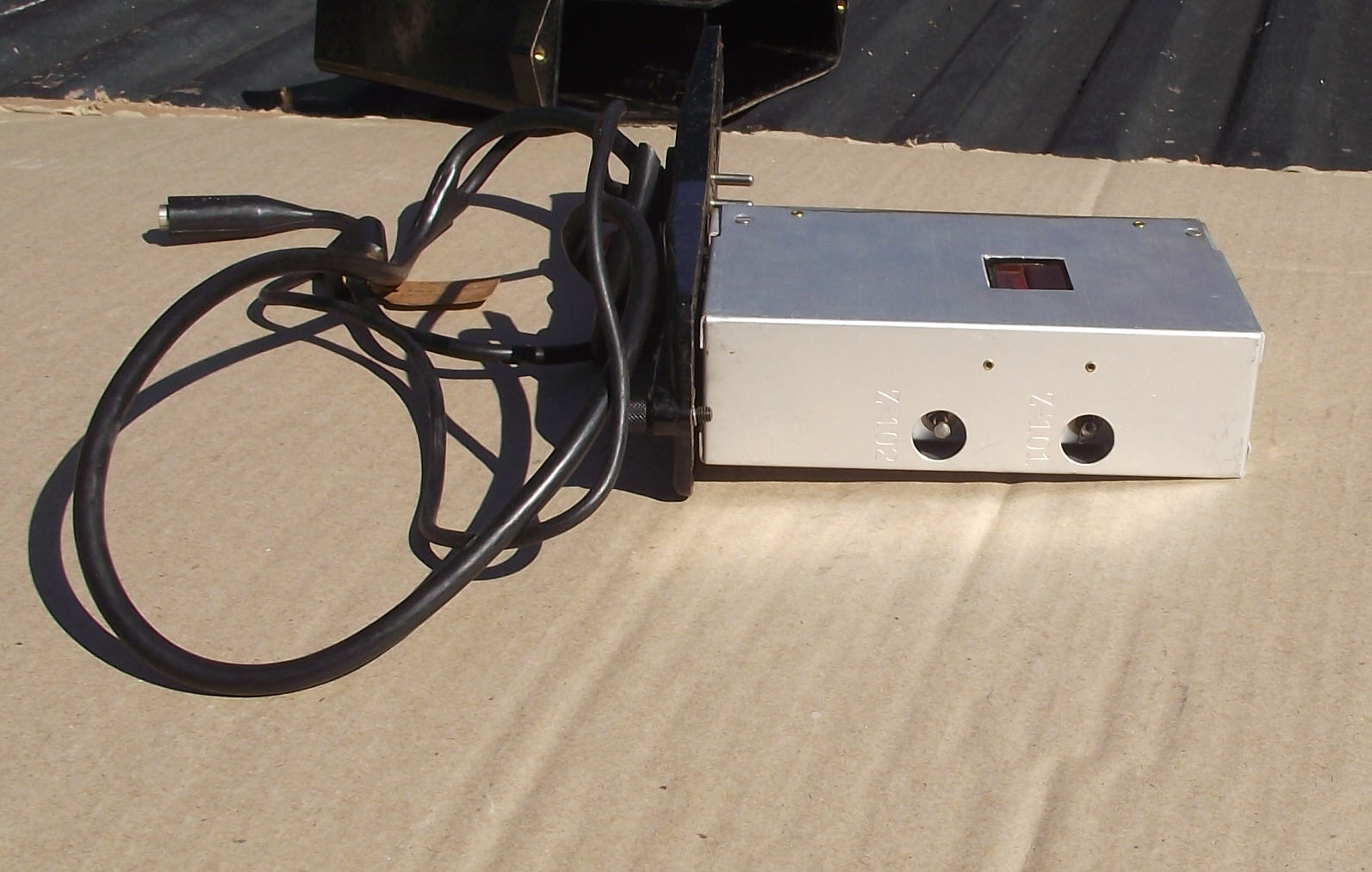

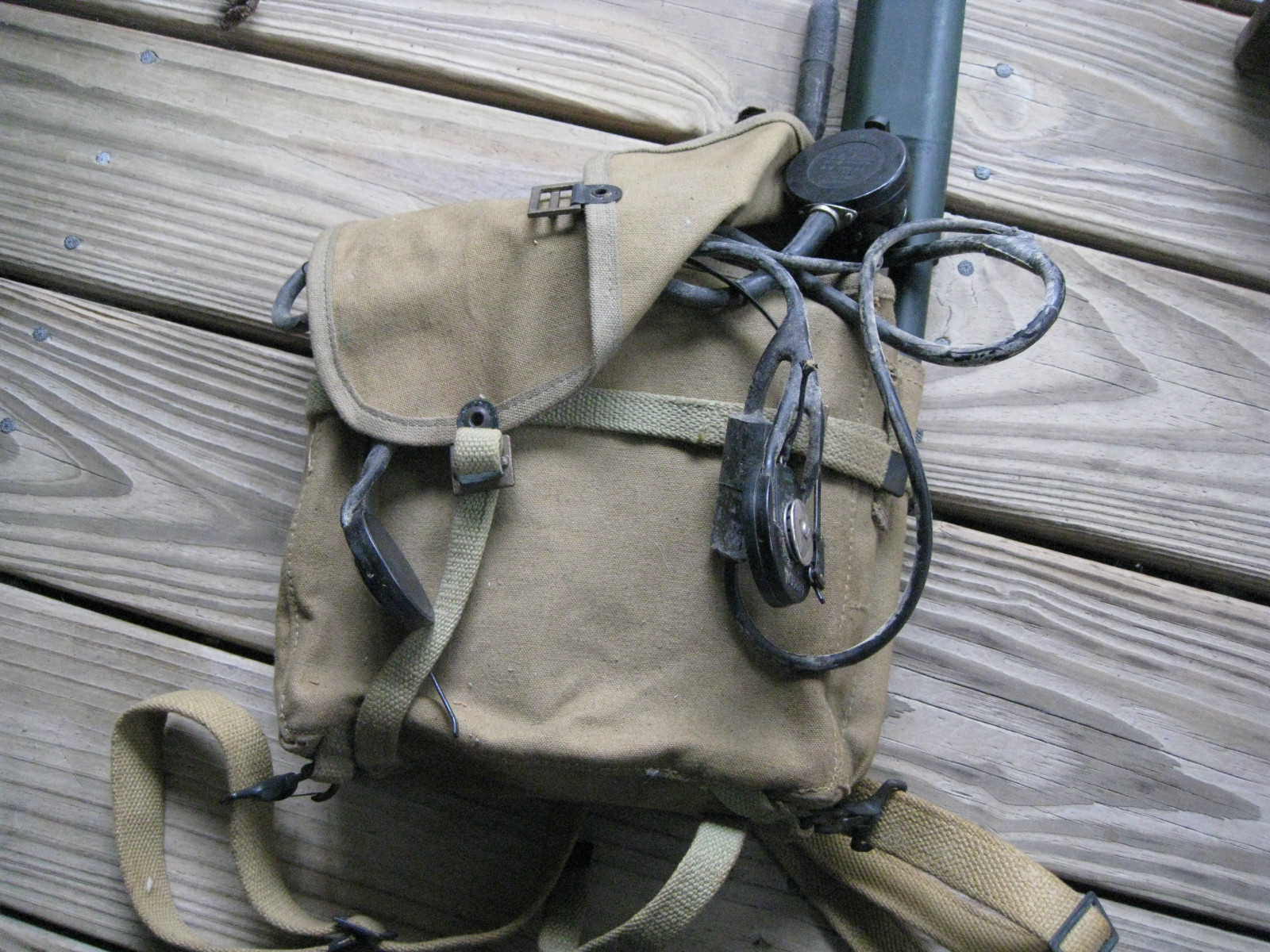

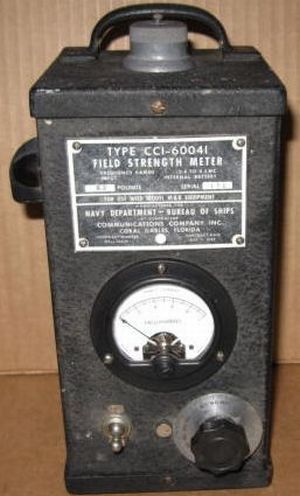

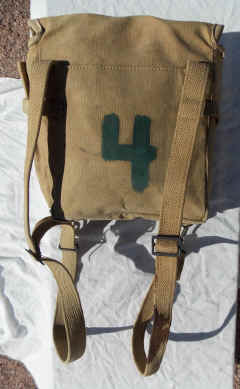

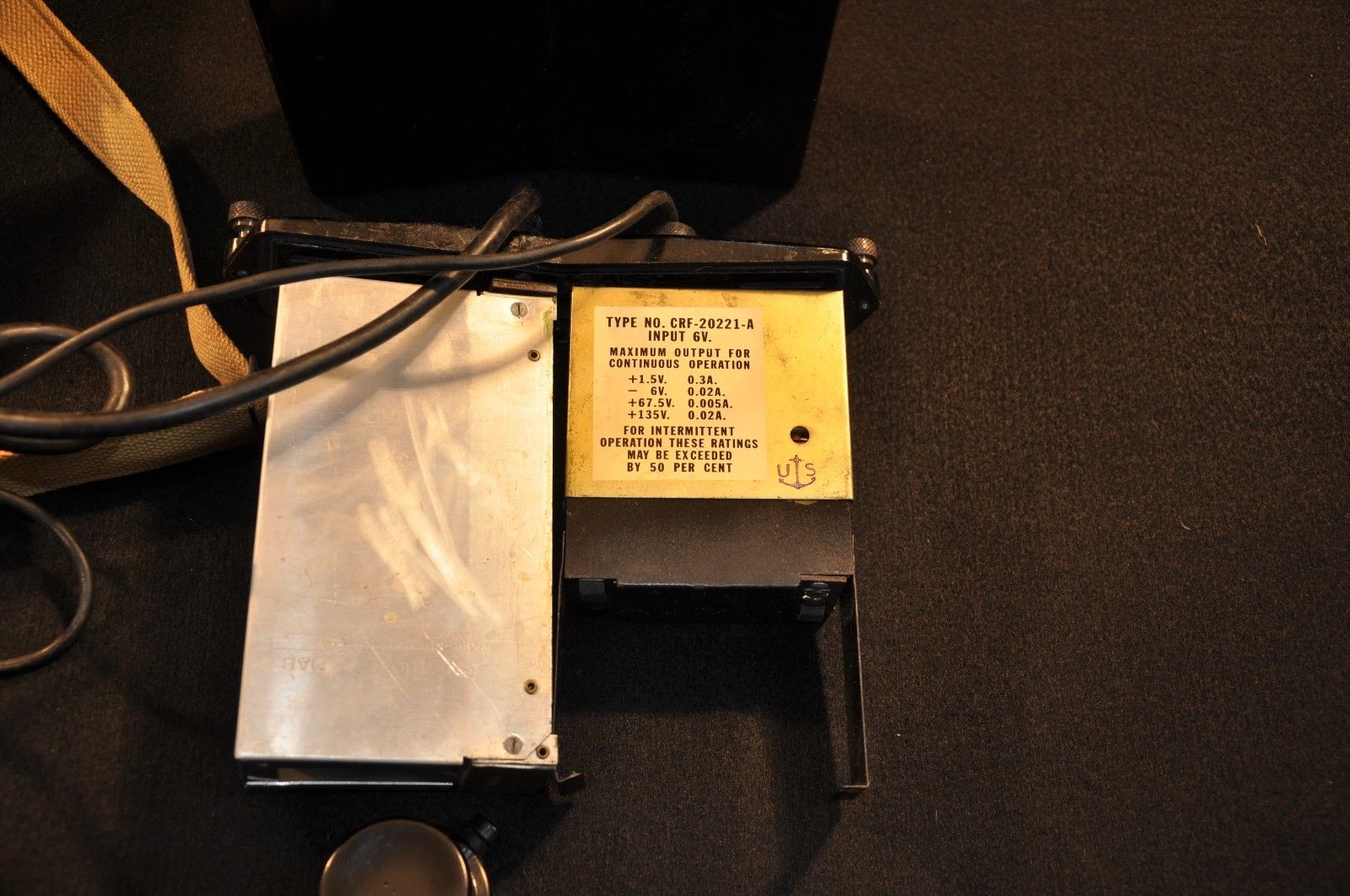

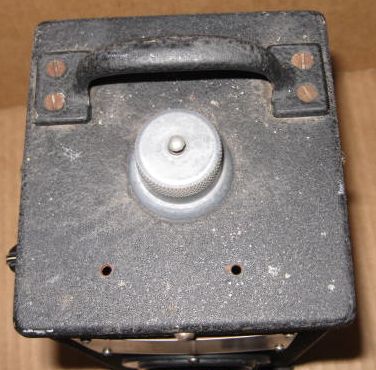

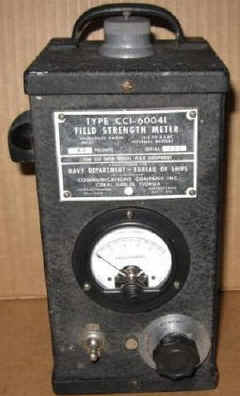

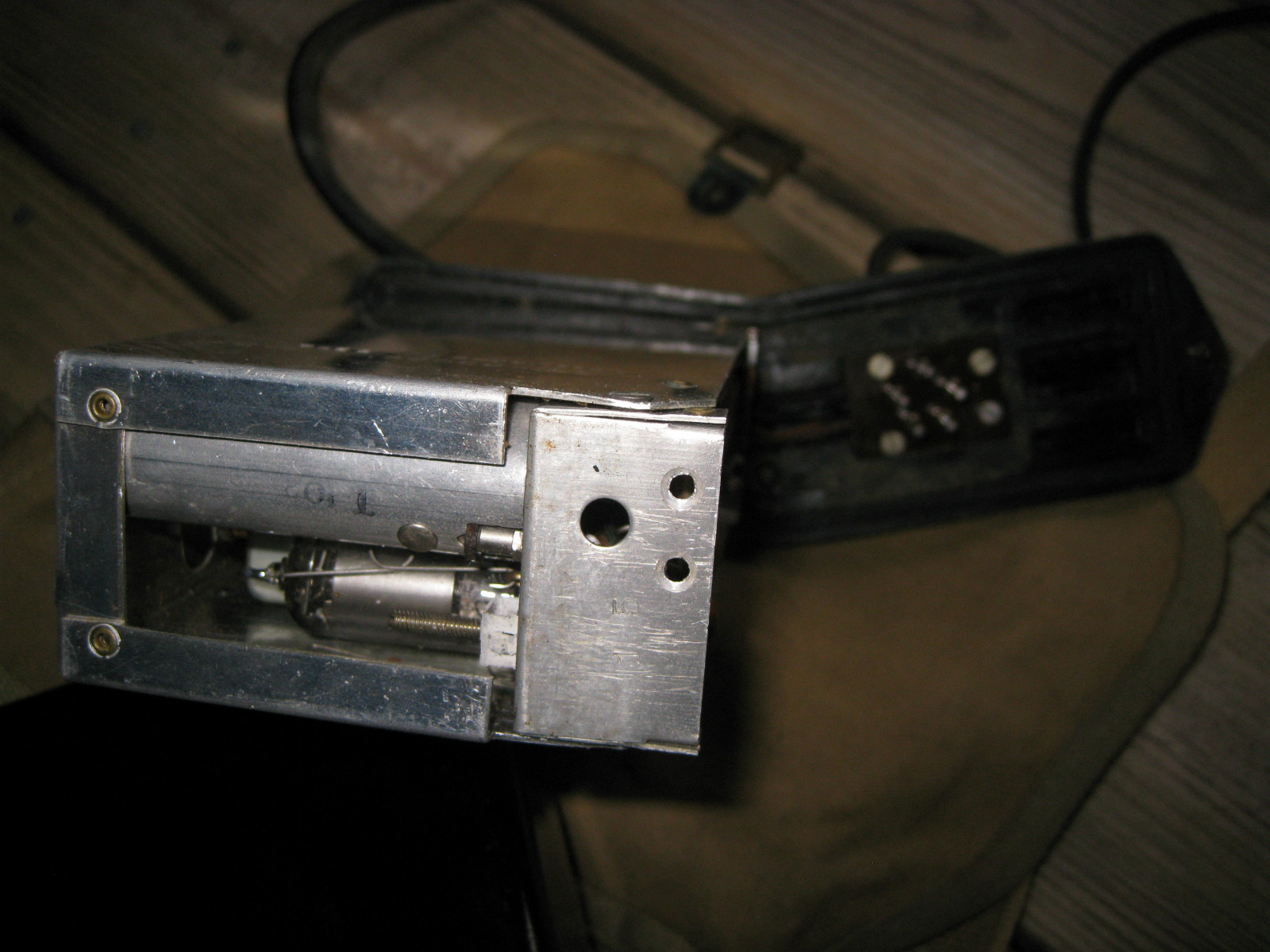

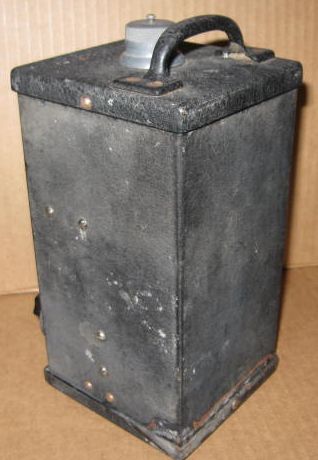

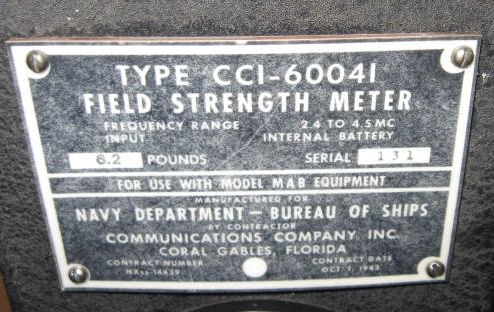

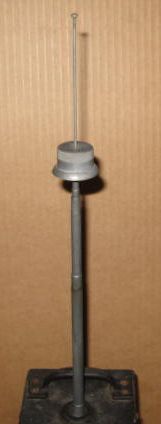

MAB field strength meter (CCI-60041)

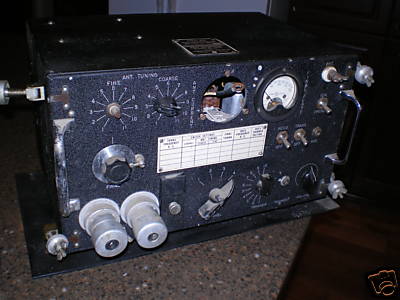

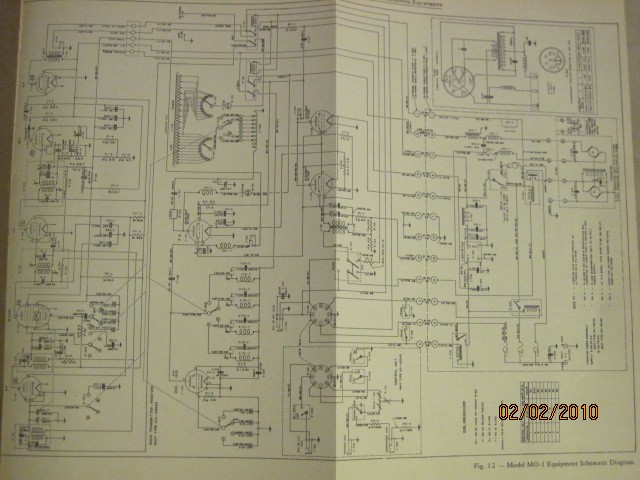

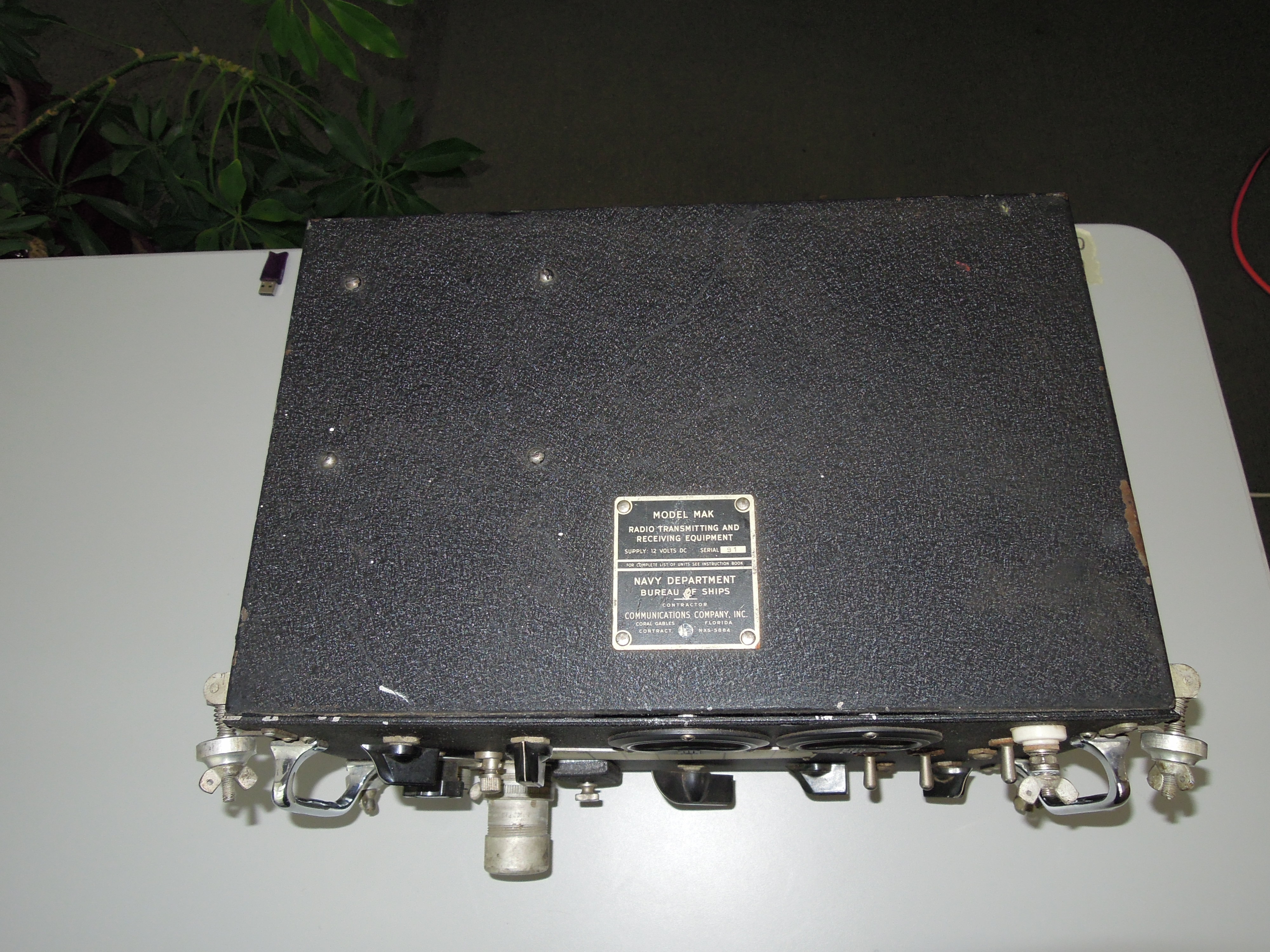

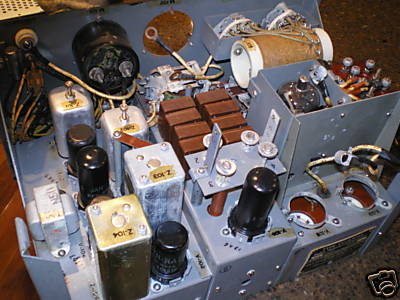

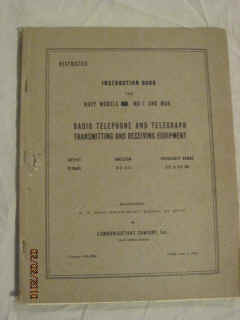

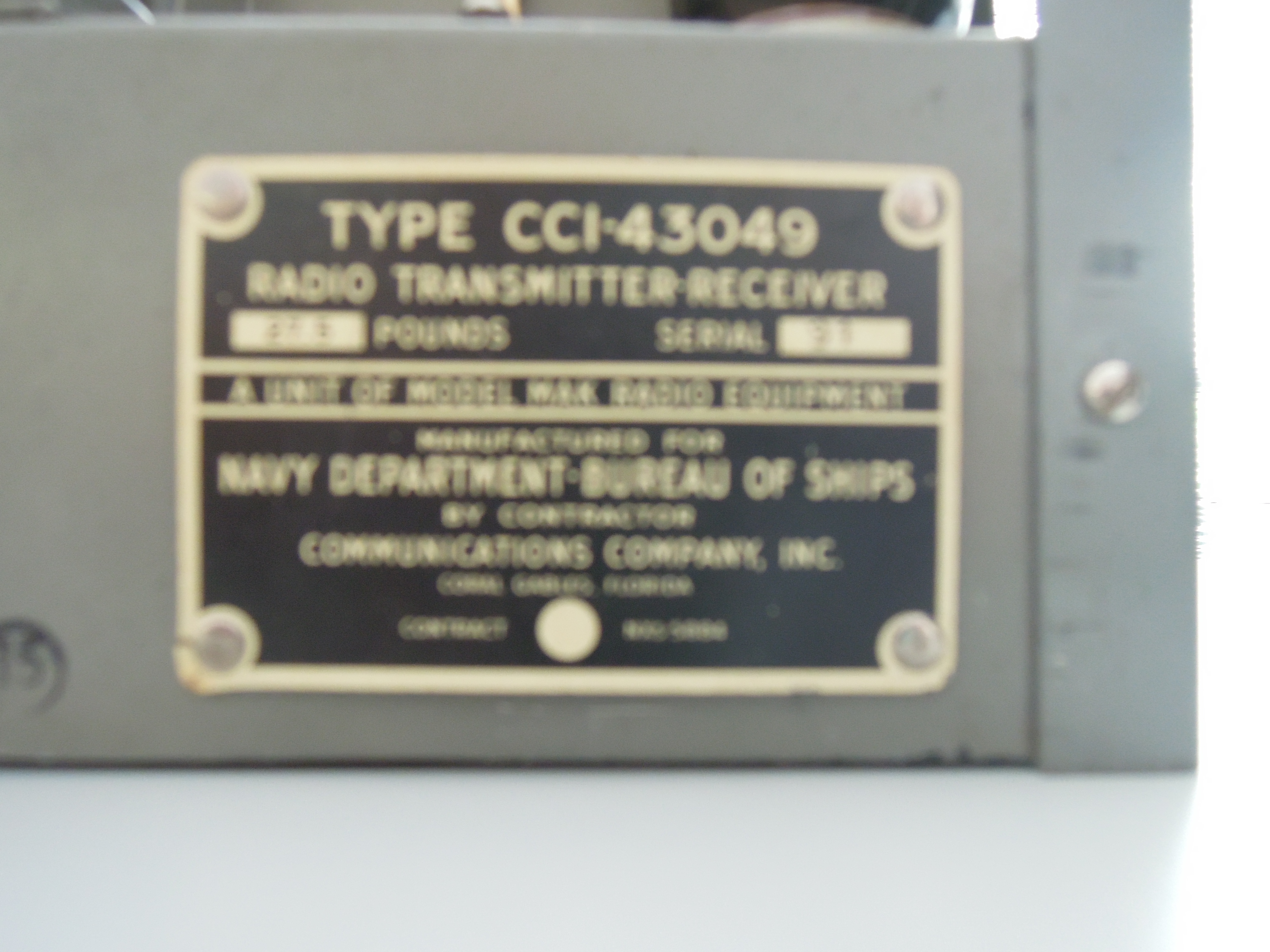

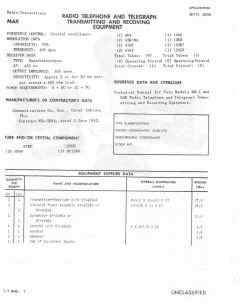

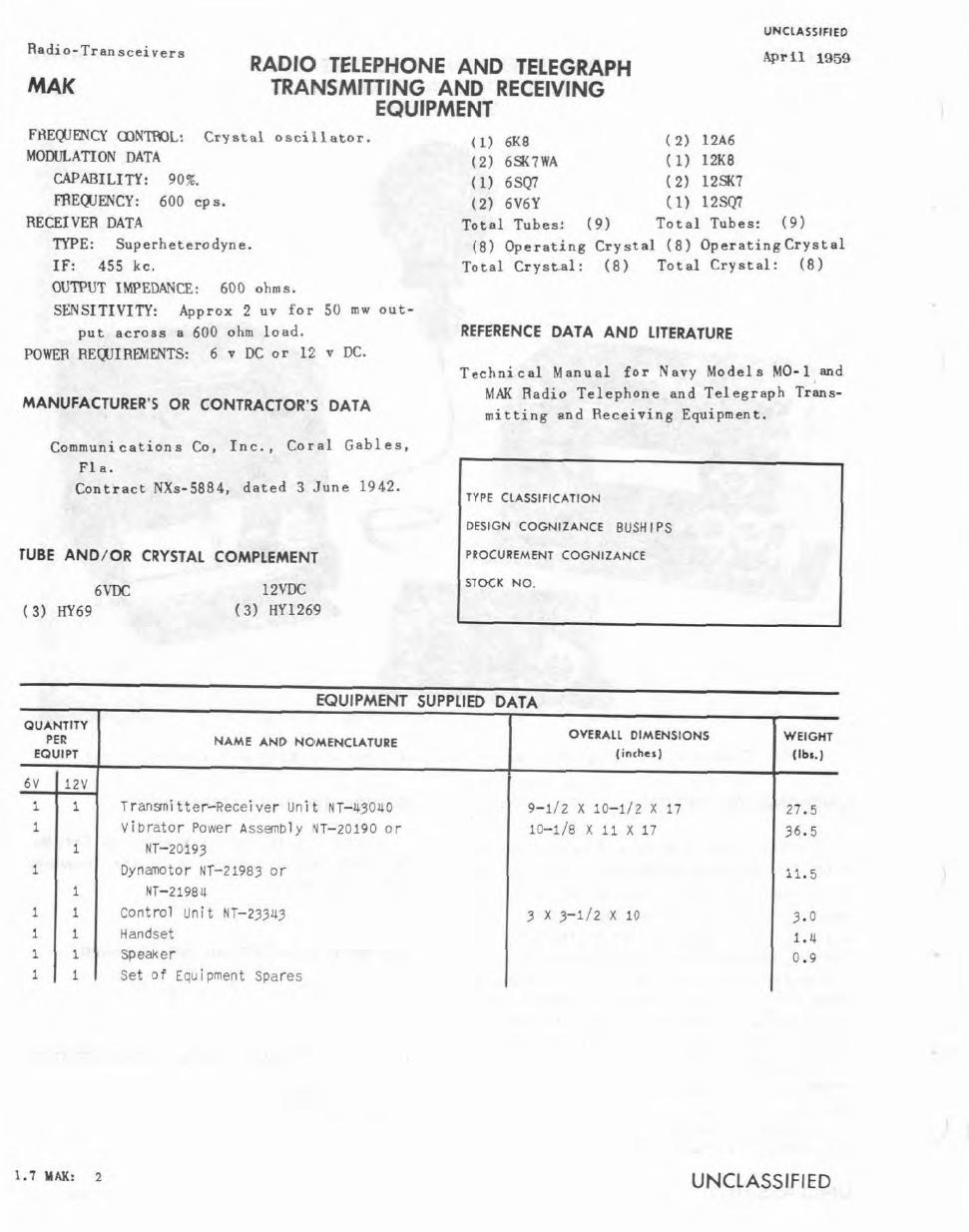

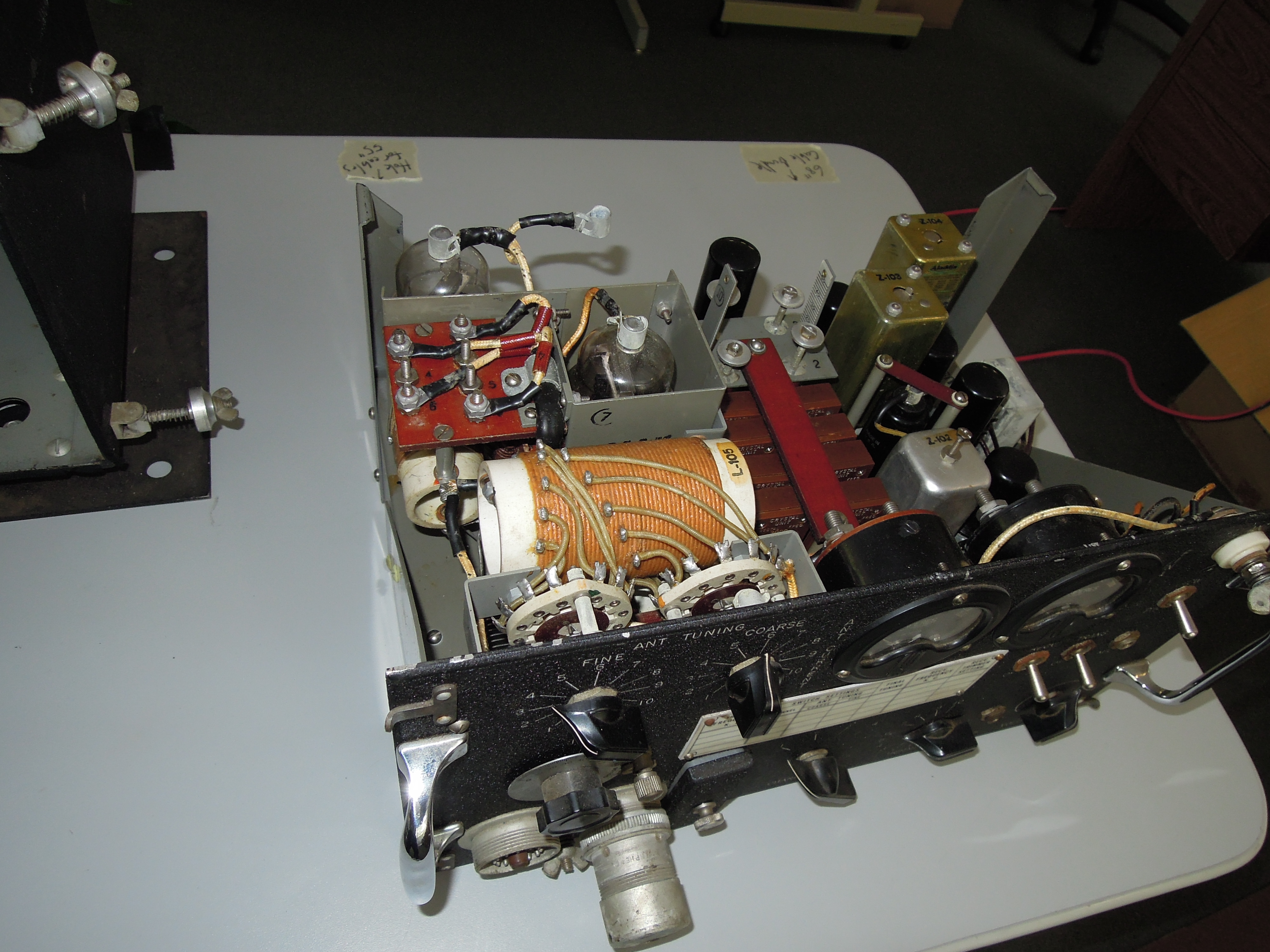

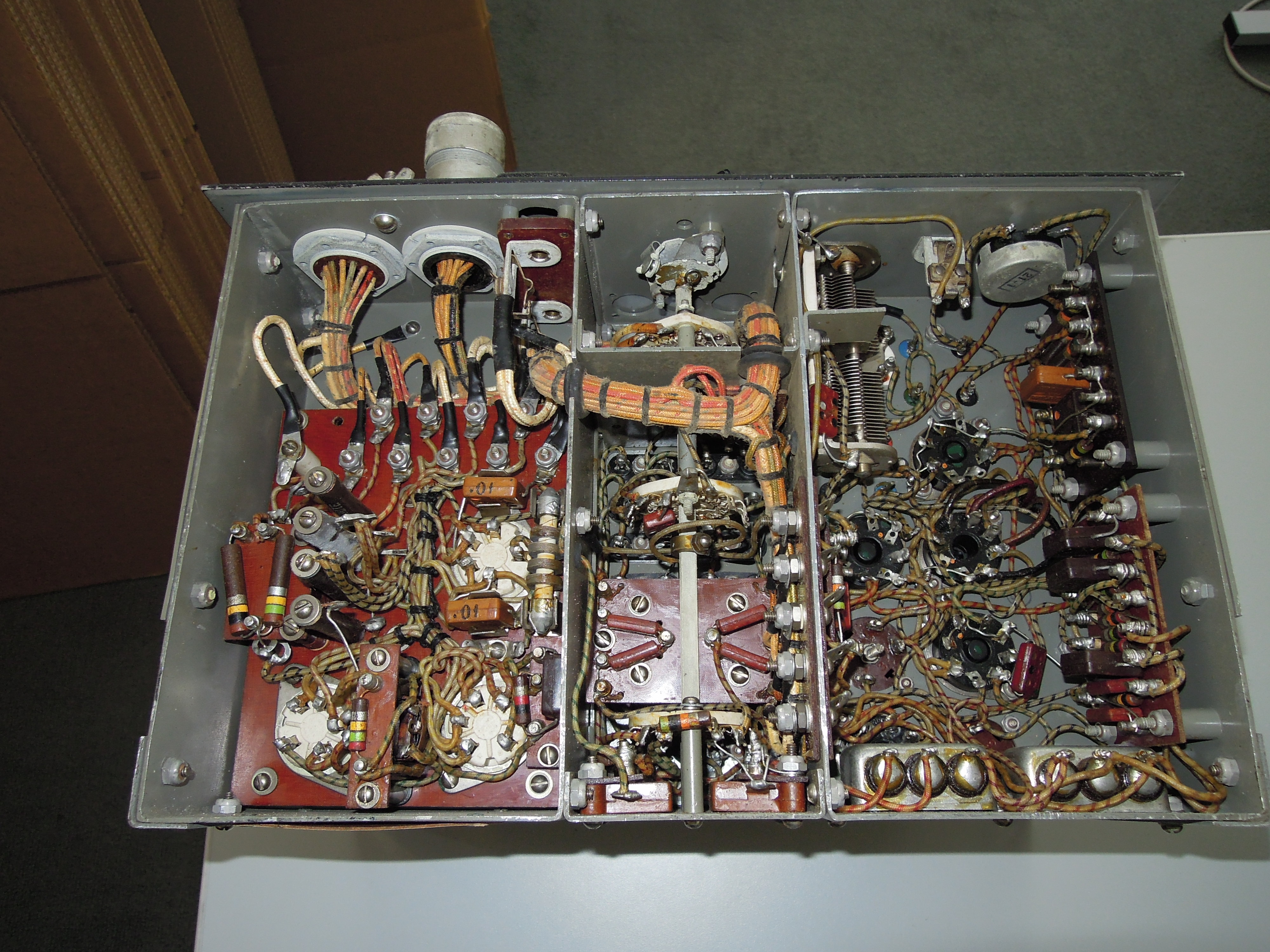

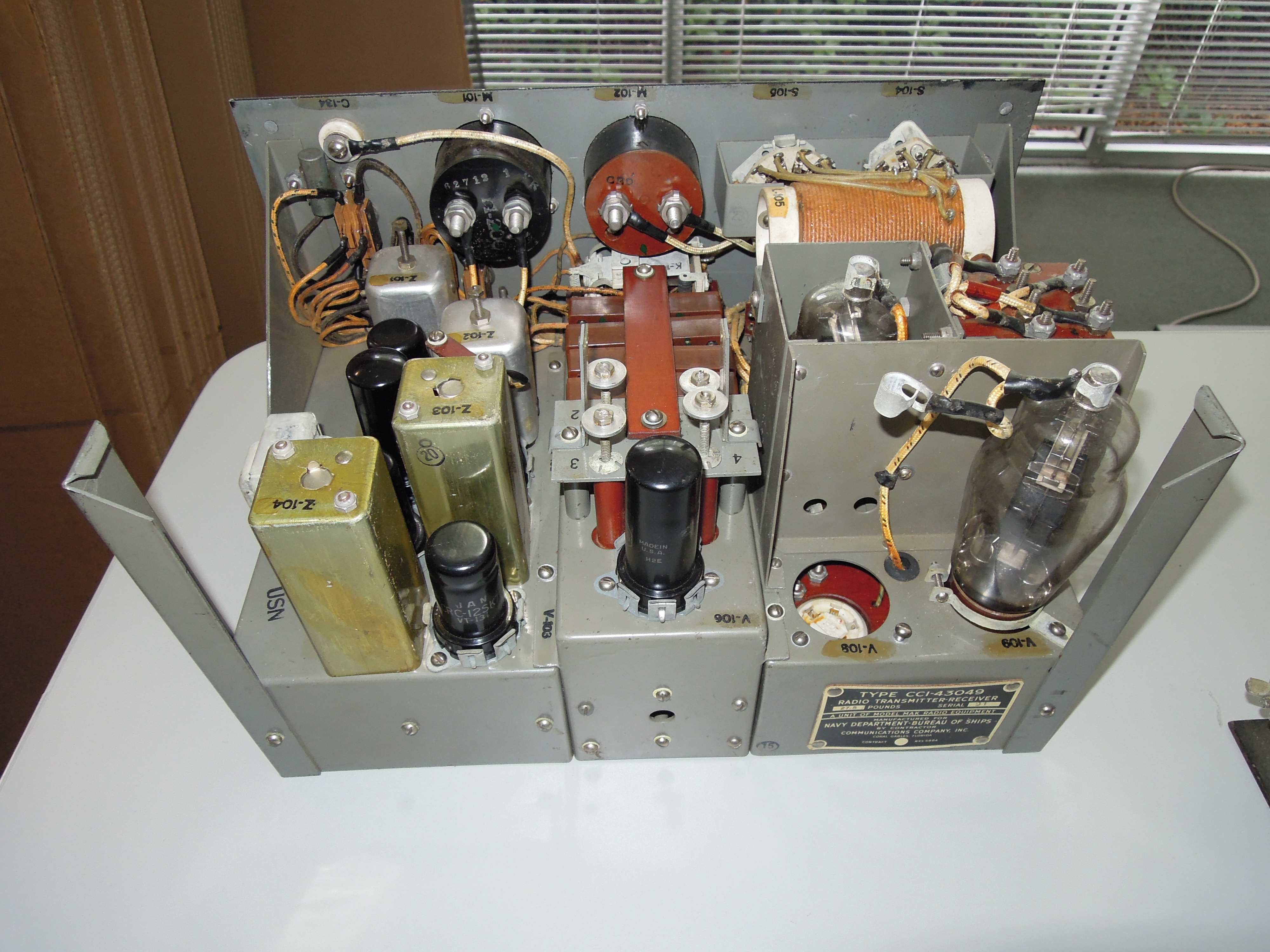

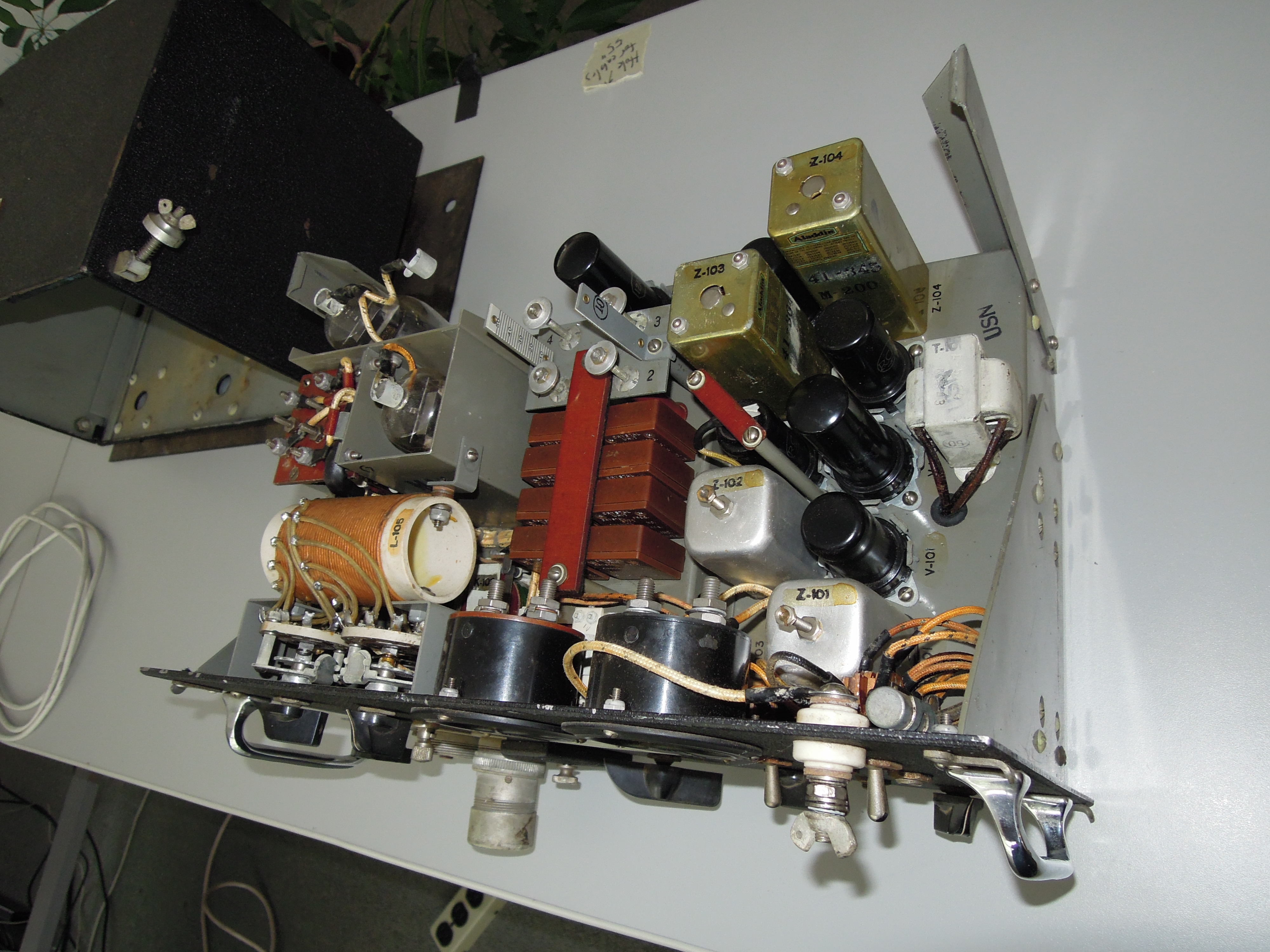

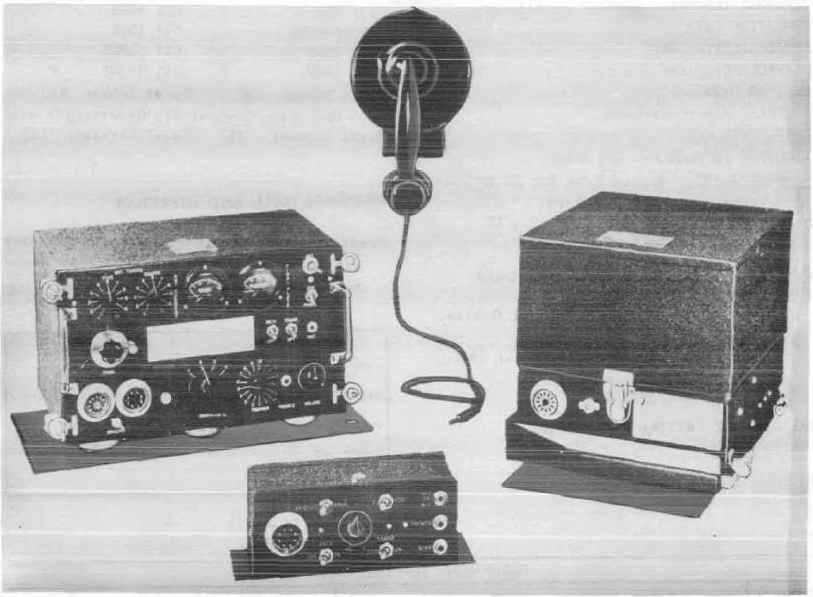

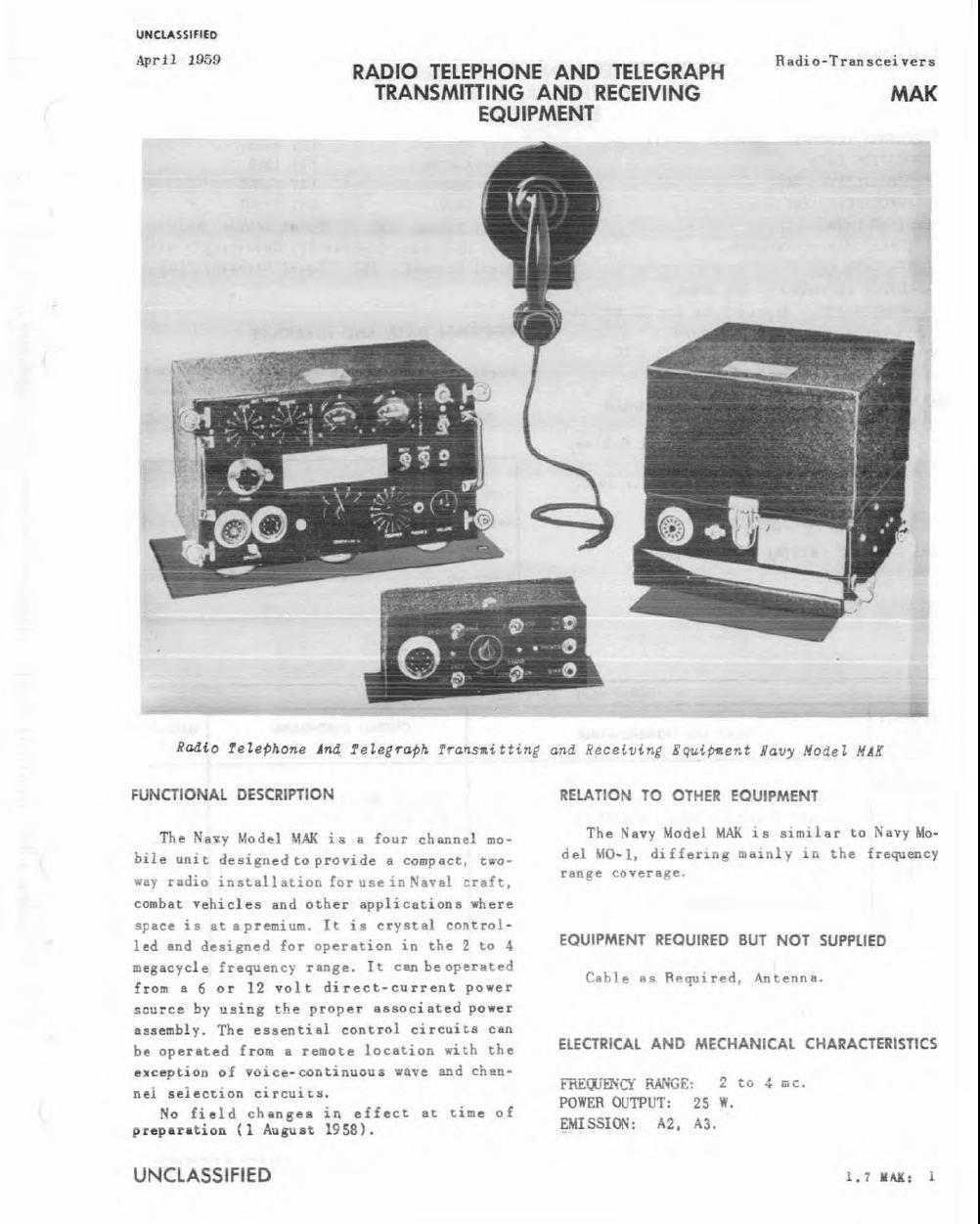

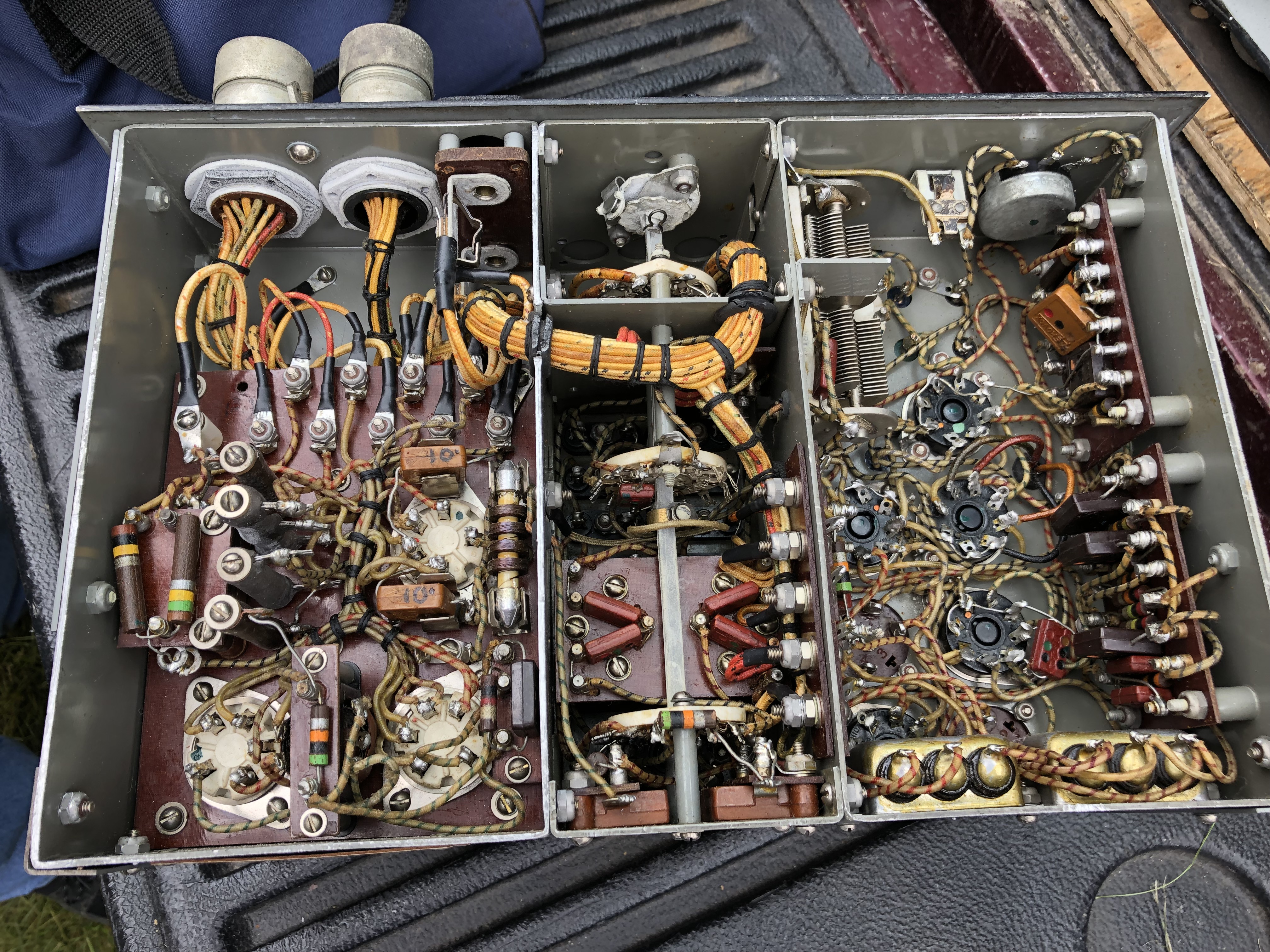

MAK (also MO)	Video of MAK operation

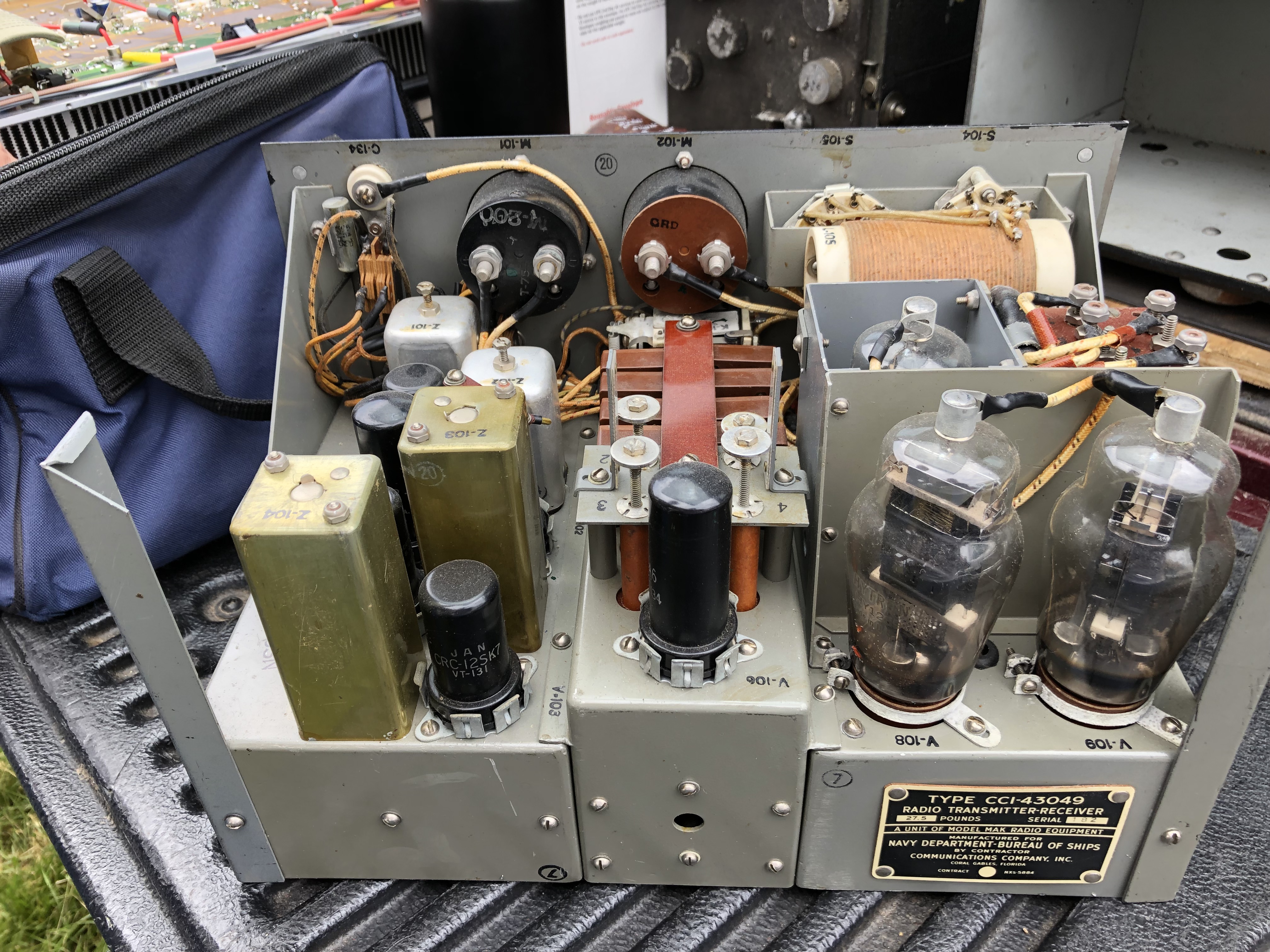

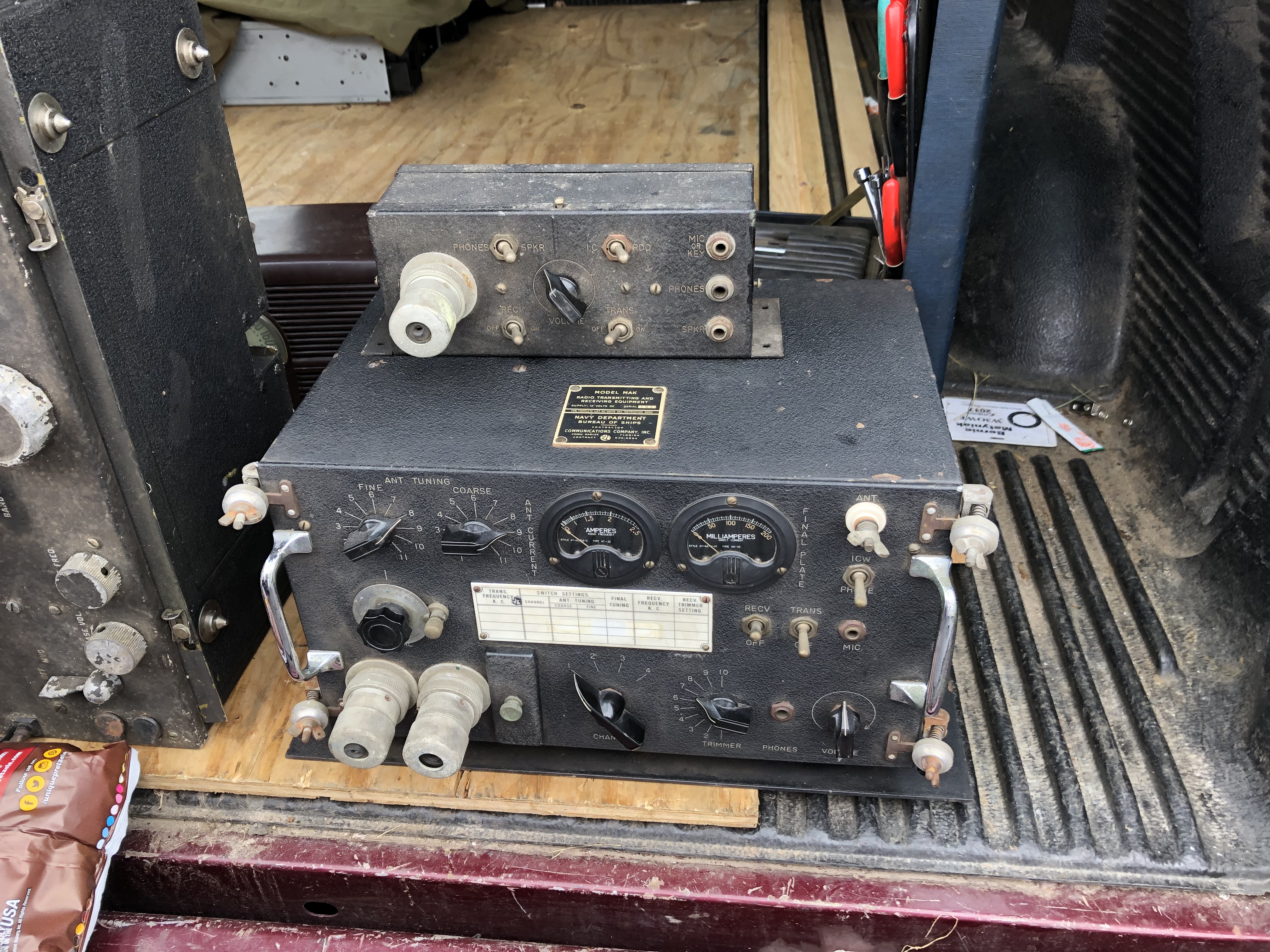

			Dayton 2019 - MAK with CCI-23343 control unit.
Dayton 2019 -	Dayton 2019 -	Dayton 2019 -	Dayton 2019 -
MAK from 2012 Dayton hamfest

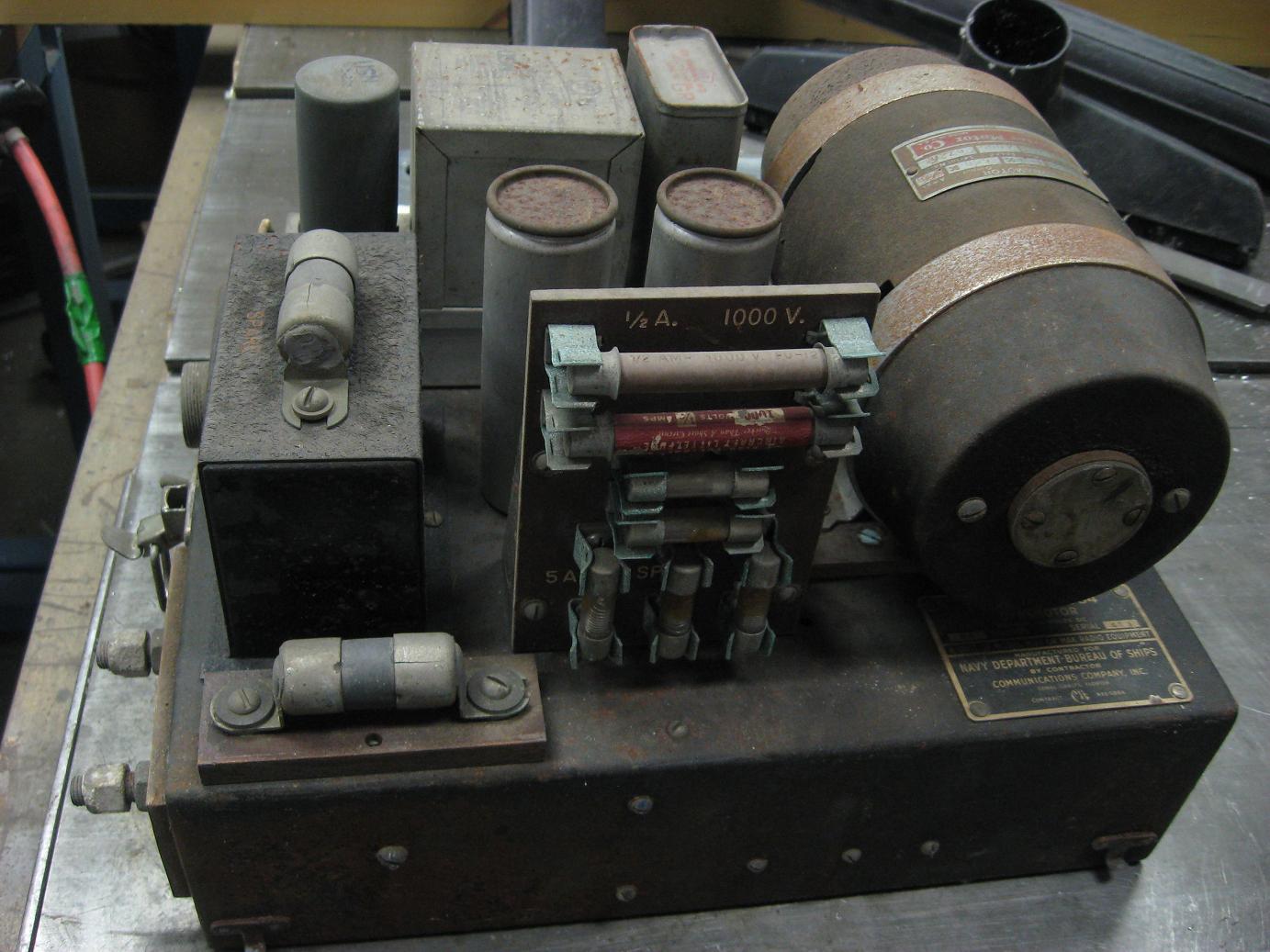

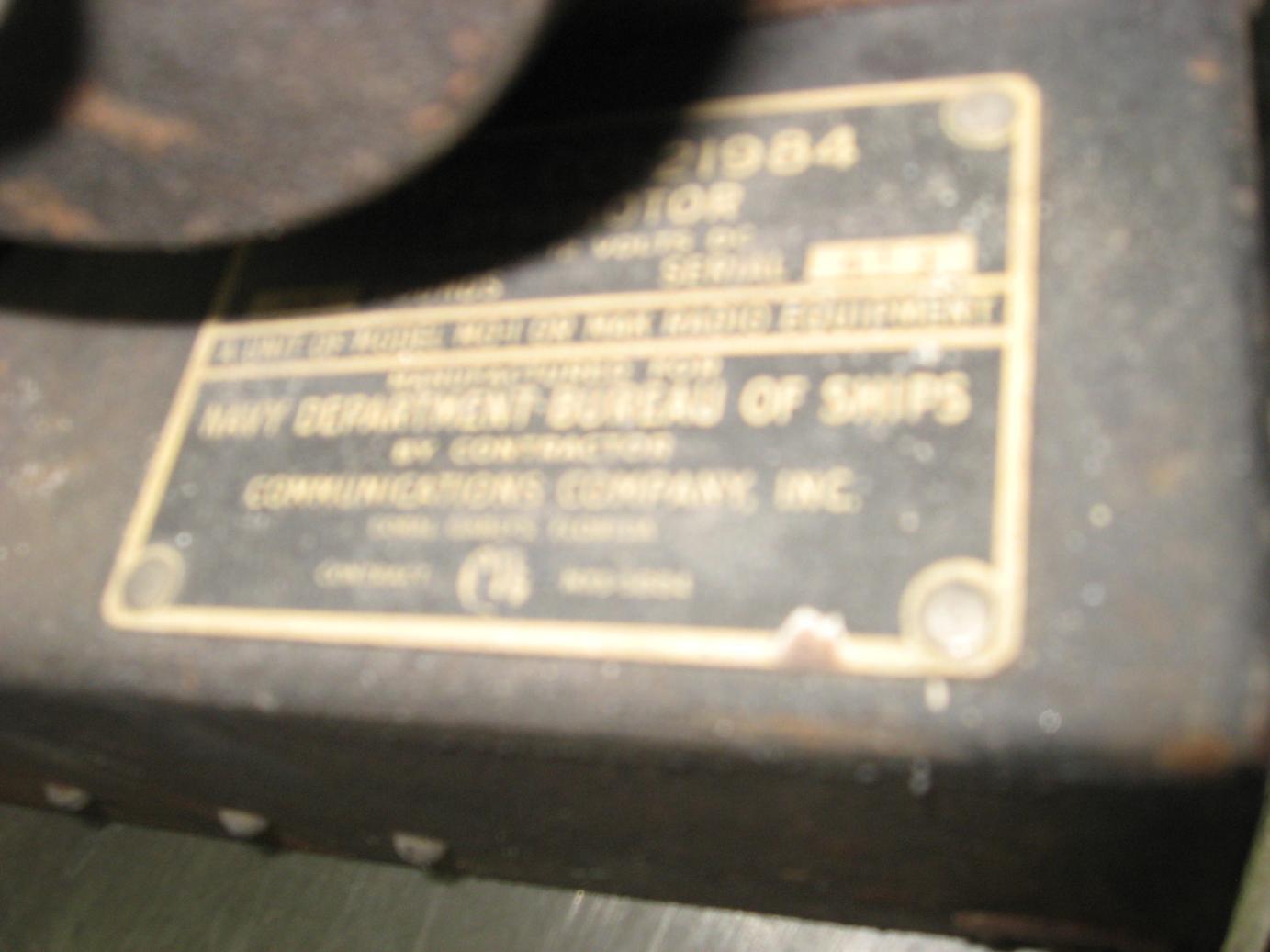

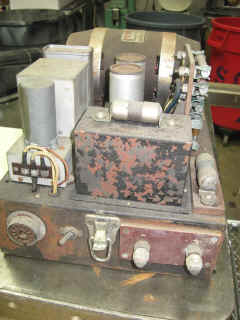

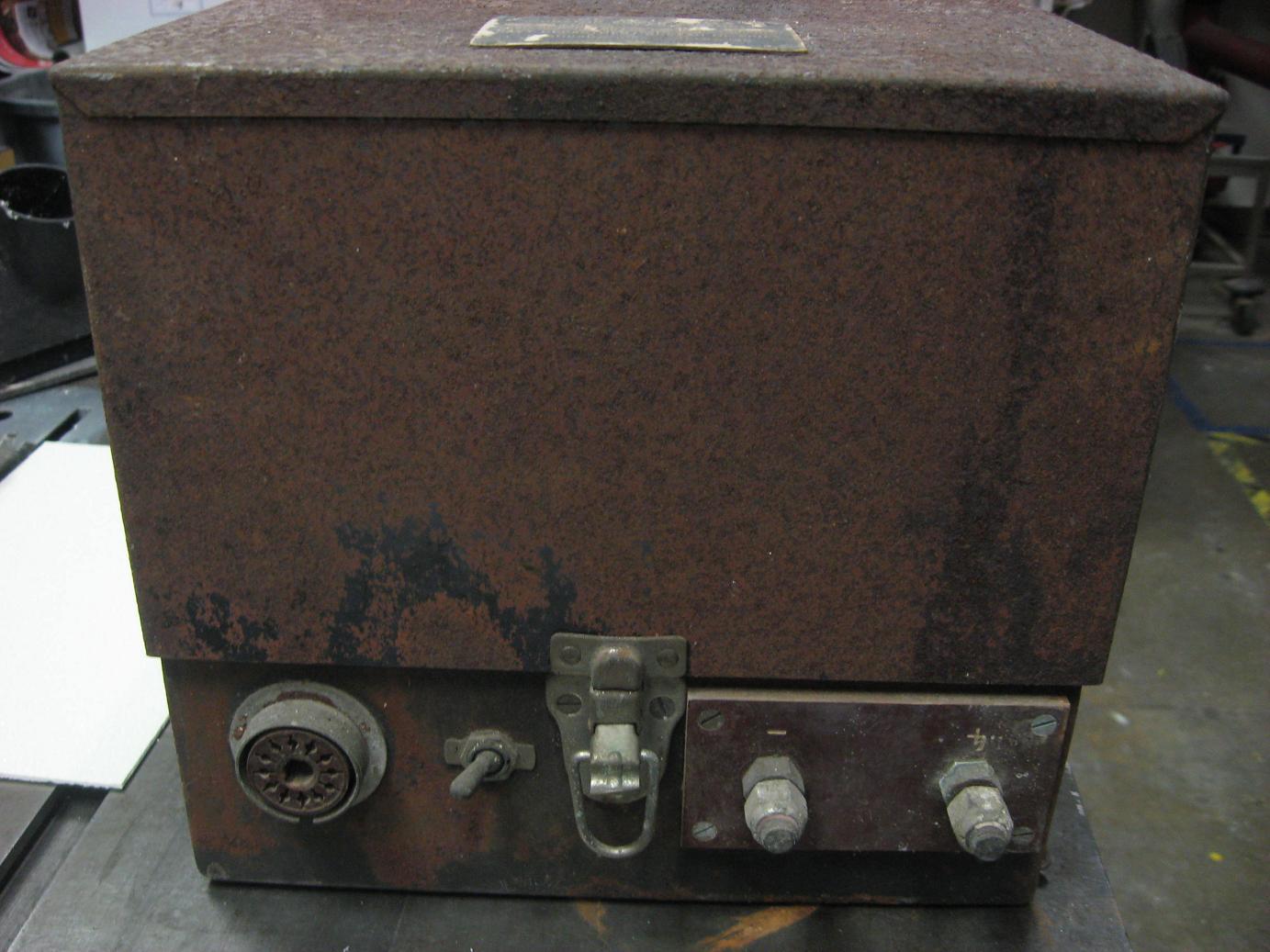

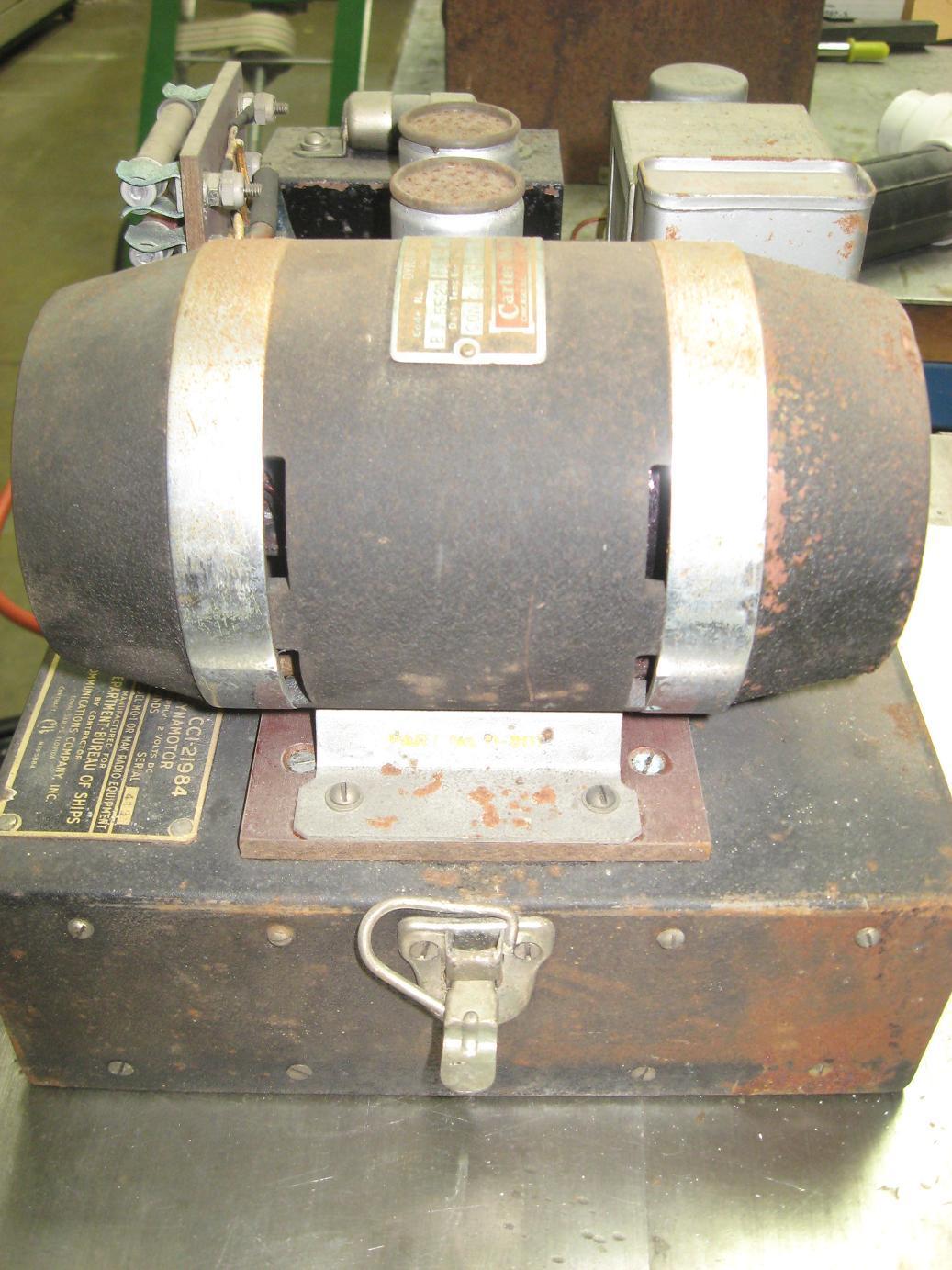

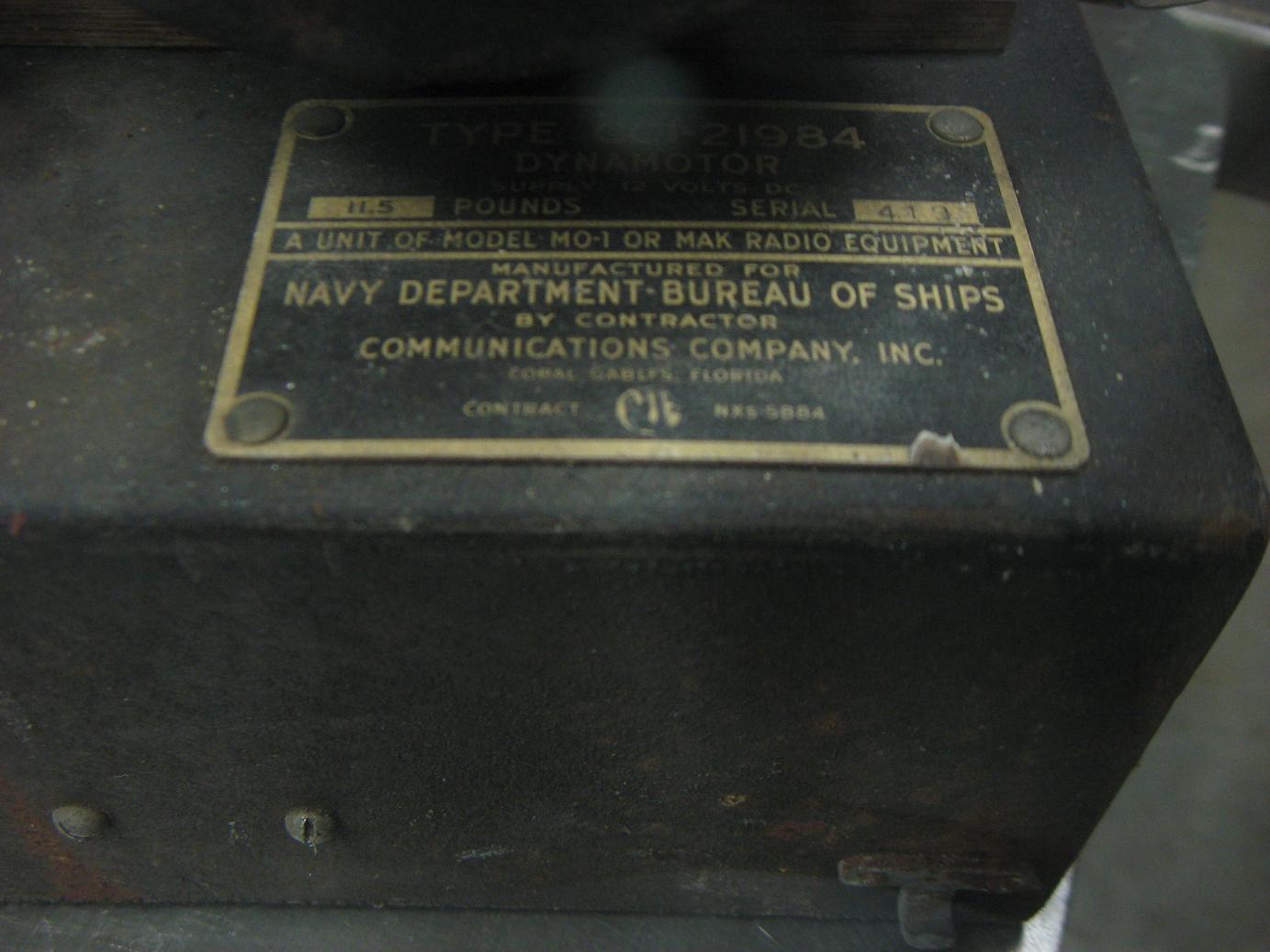

NT-21984 Power Supply for MAK or MO

			--

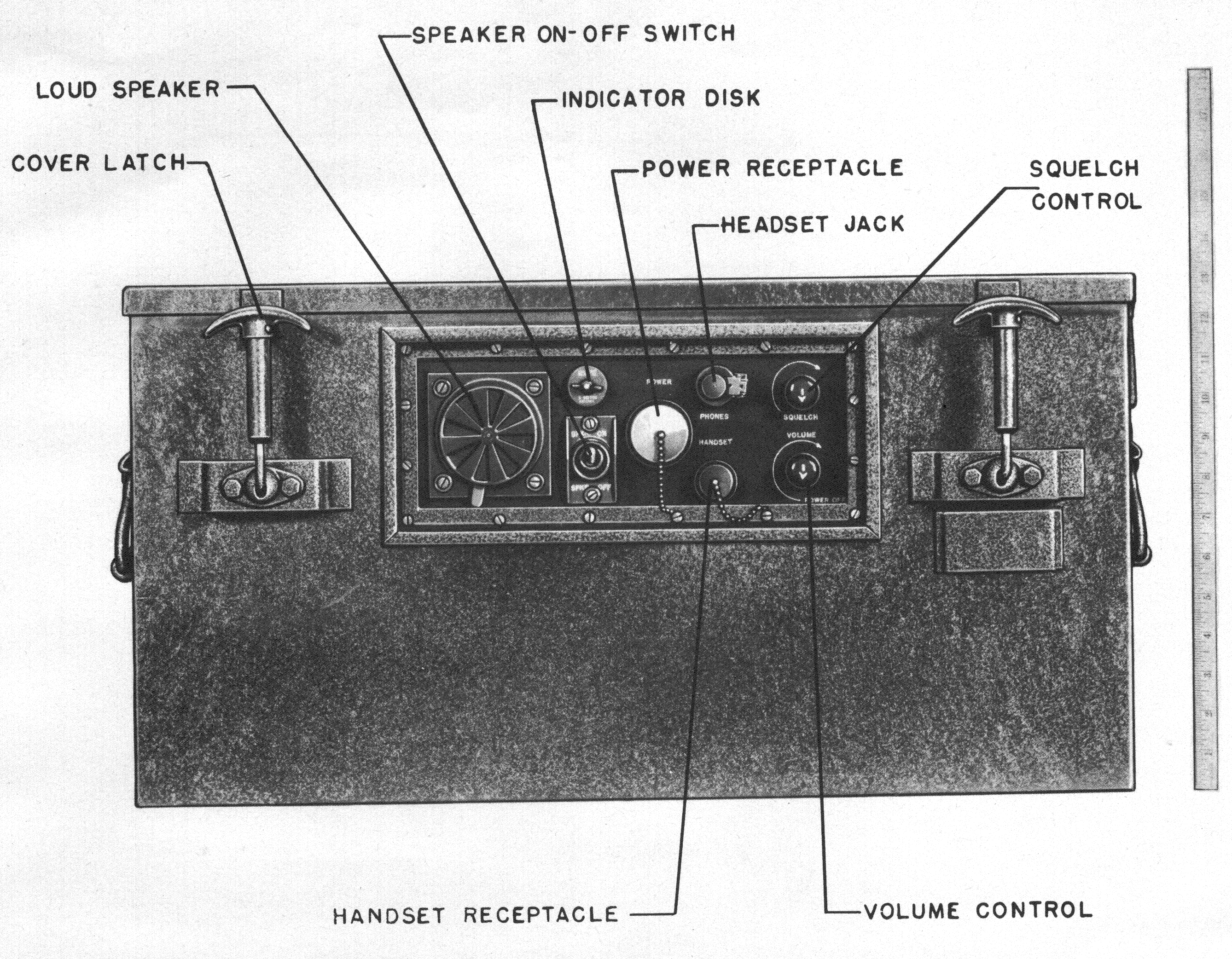

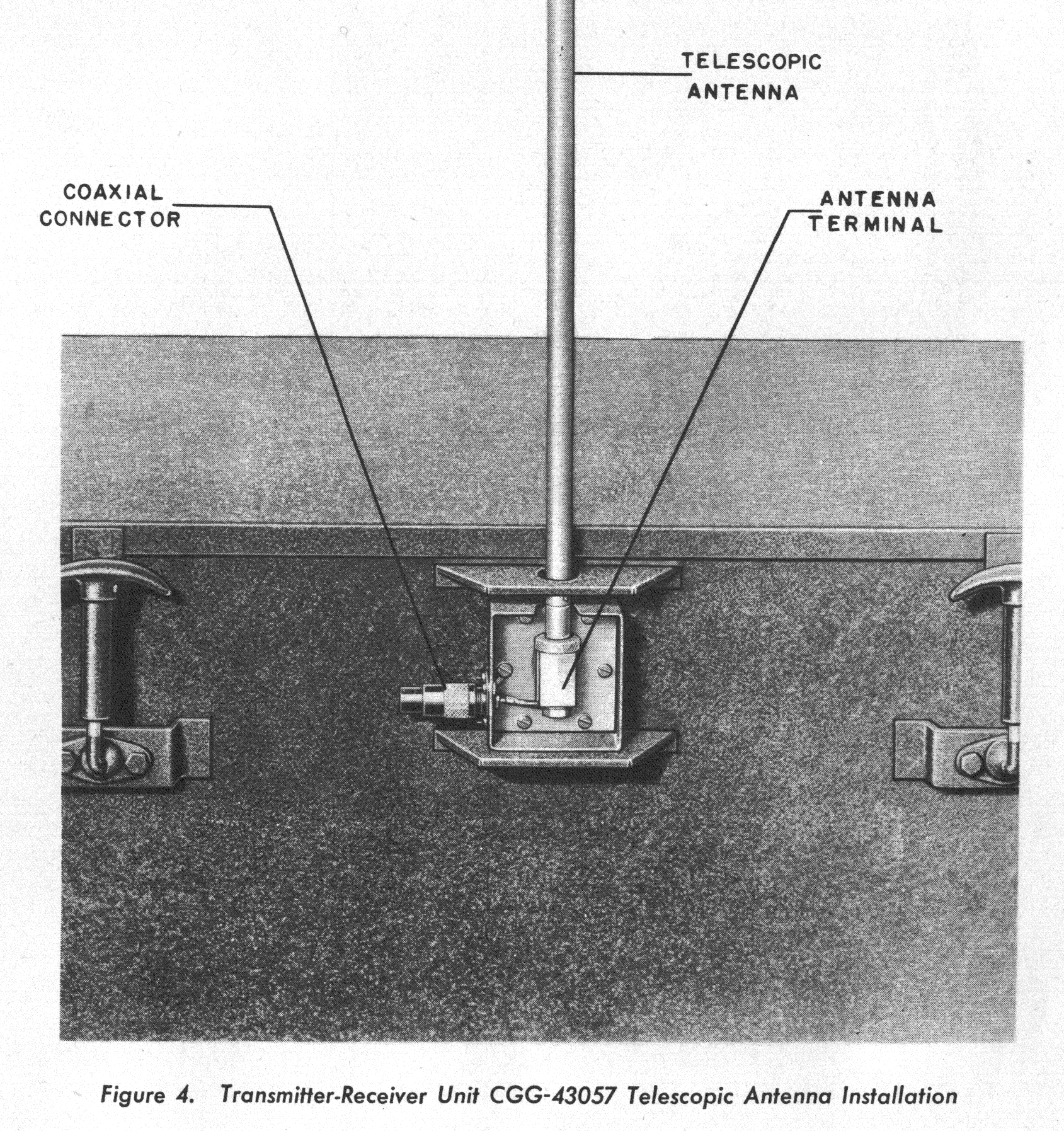

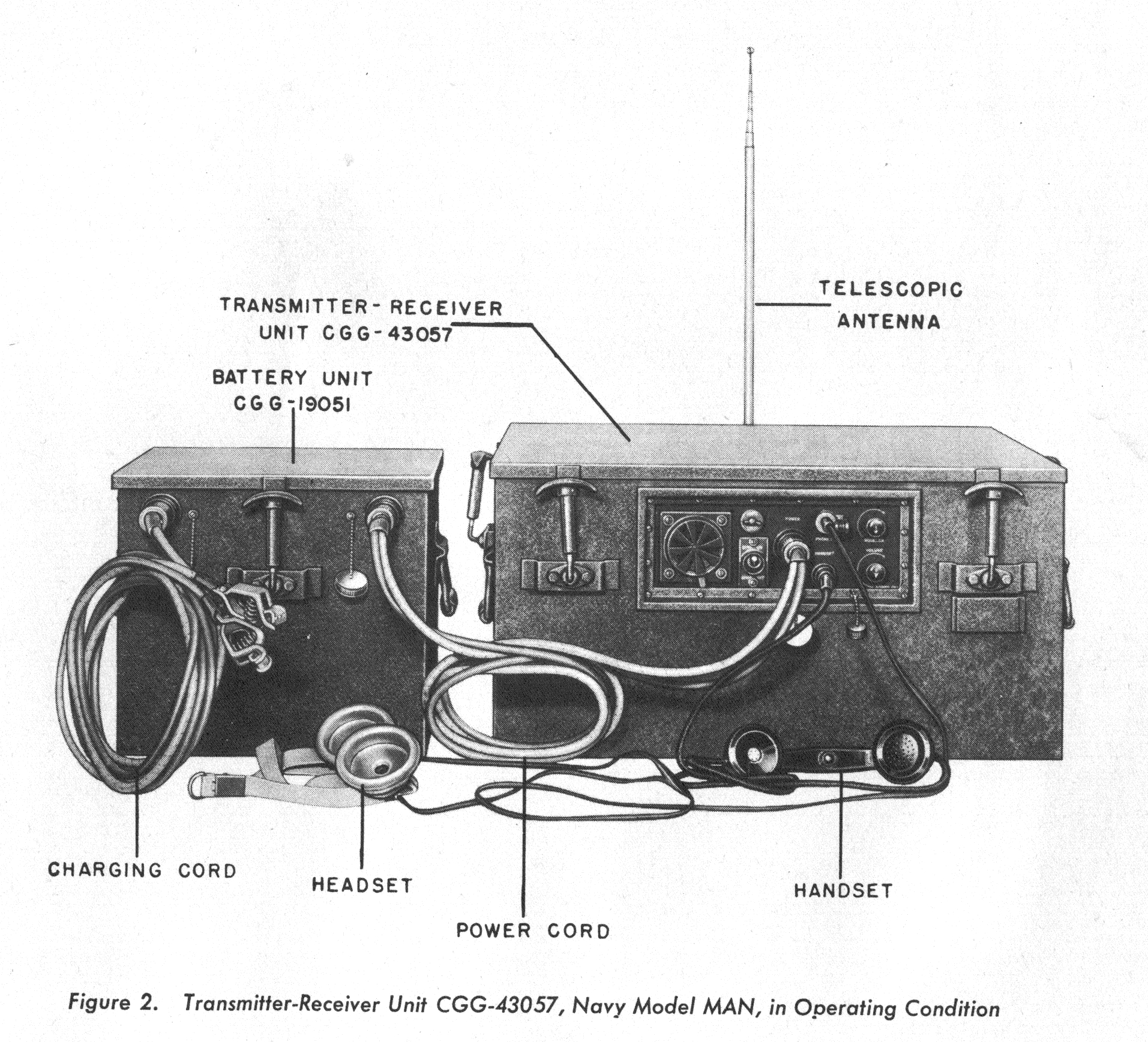

MAN (CGG-43057)	30-40mc, FM, 20w Motorola FMT-24VW xmtr Motorola FMR-13V rcvr
MAR MAR Manual - pdf download More MAR photos and info		photo thanks to Ken K4KQR	Many More MAR photos

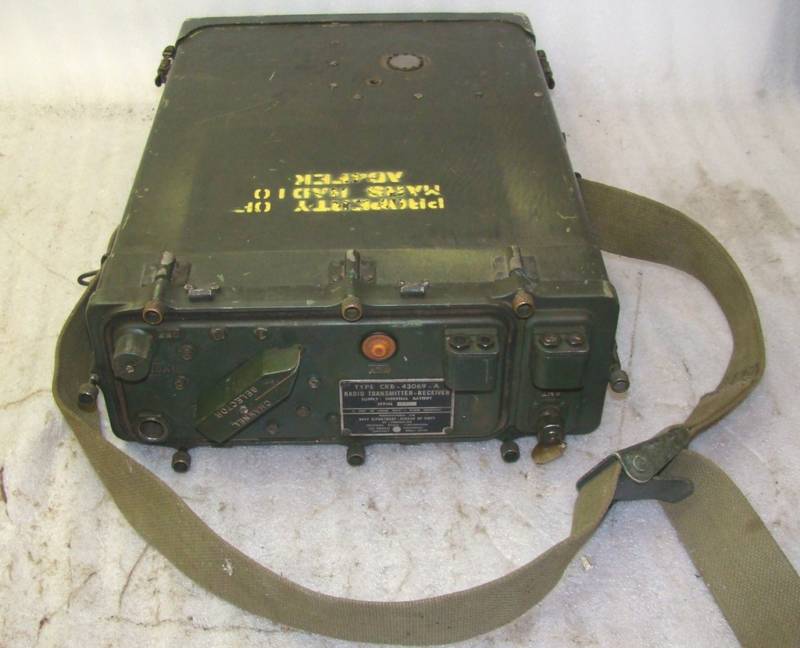

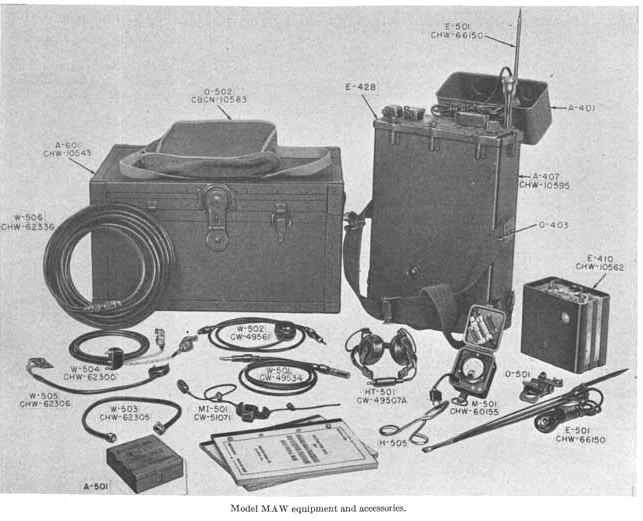

MAW - Photos and Info Page MAW Spec Sheets

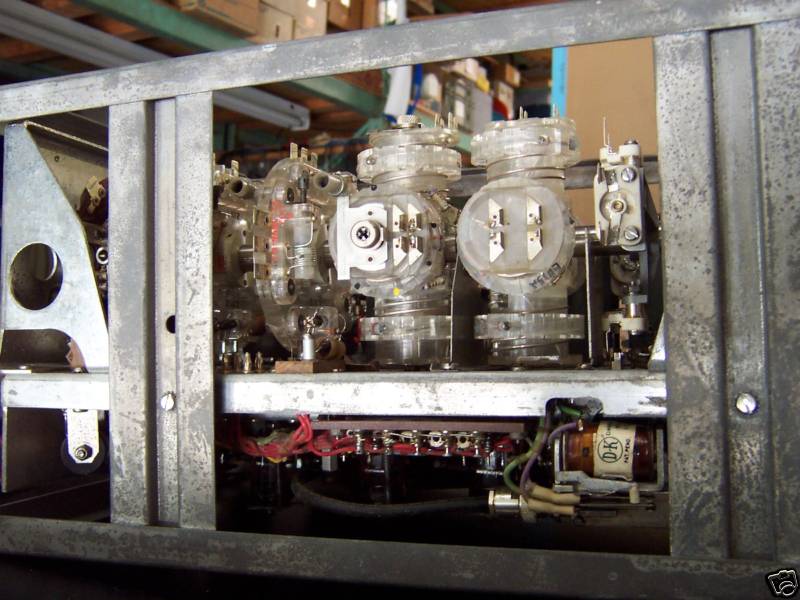

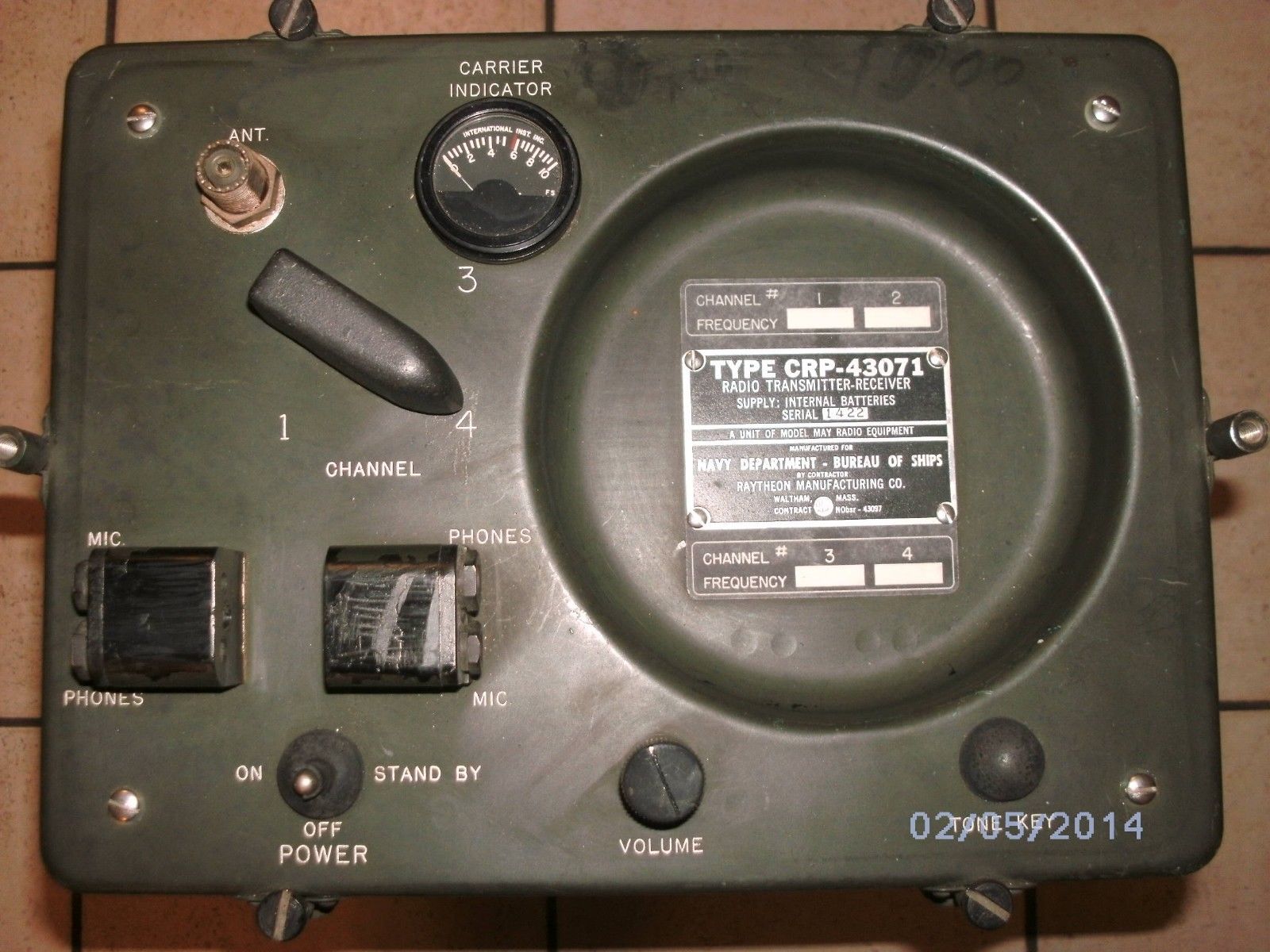

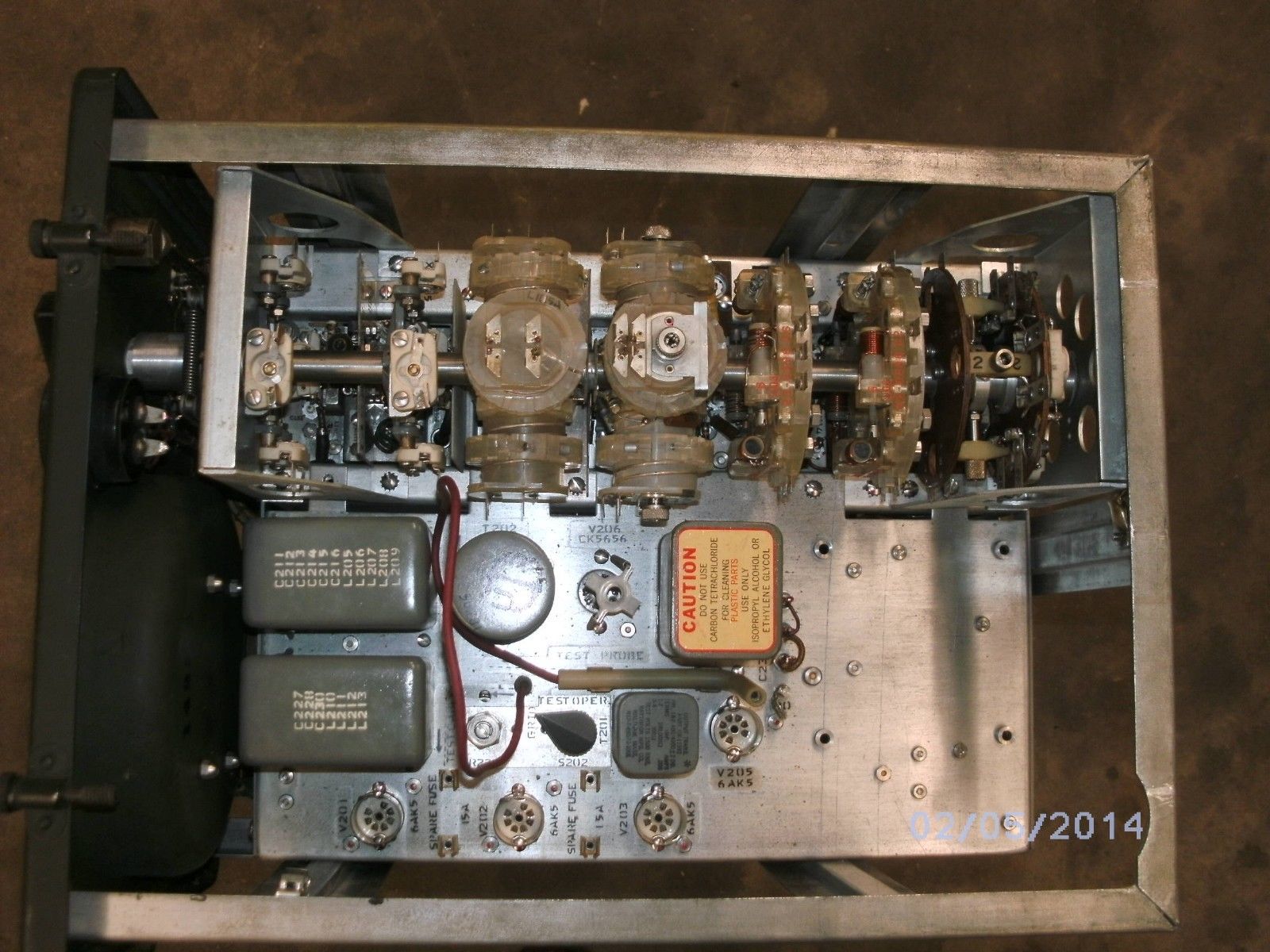

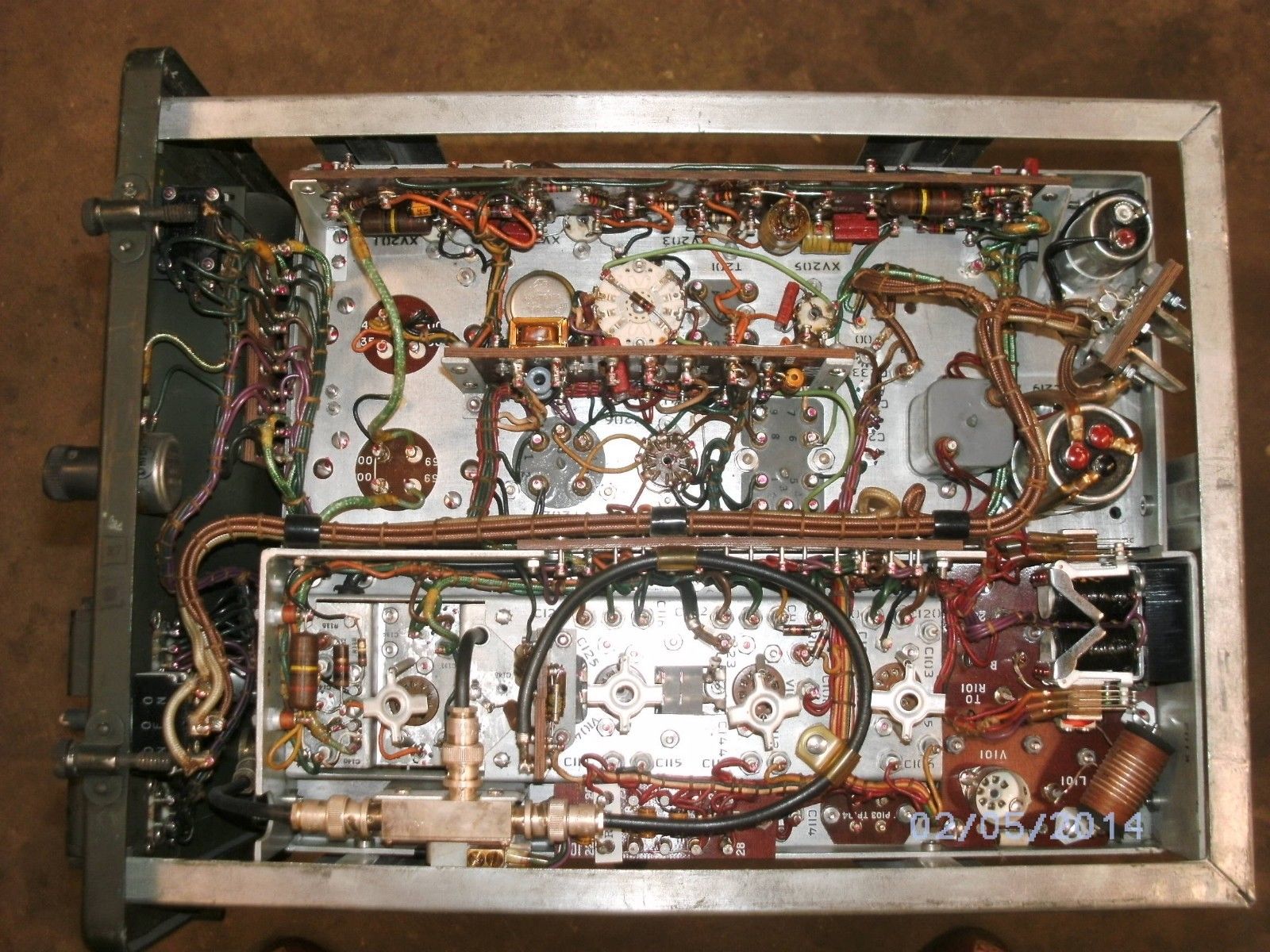

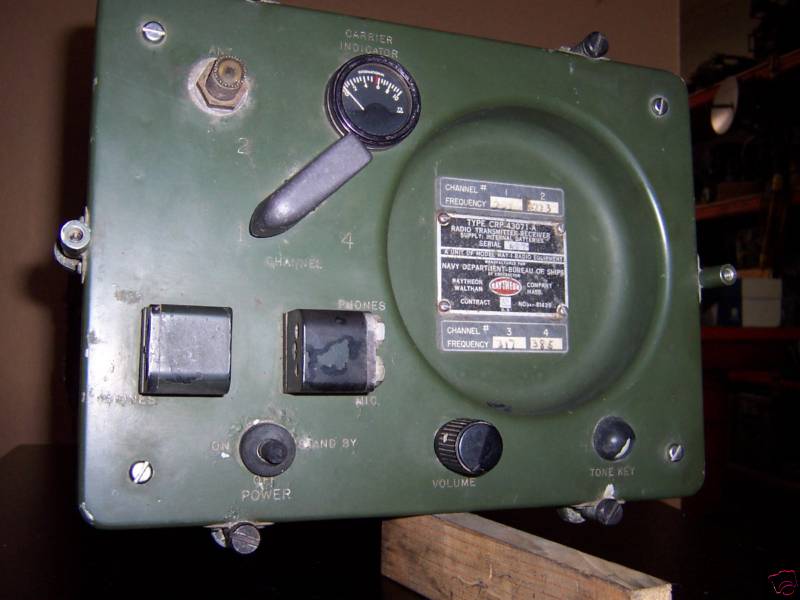

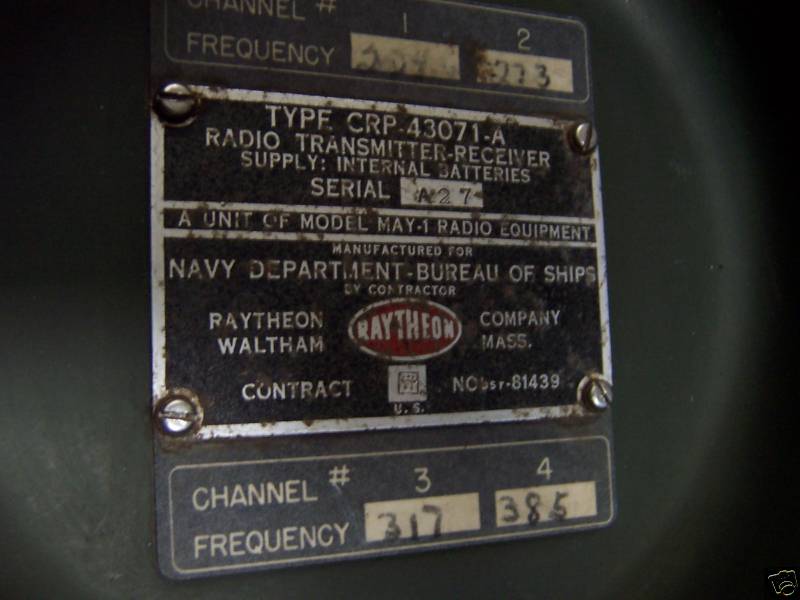

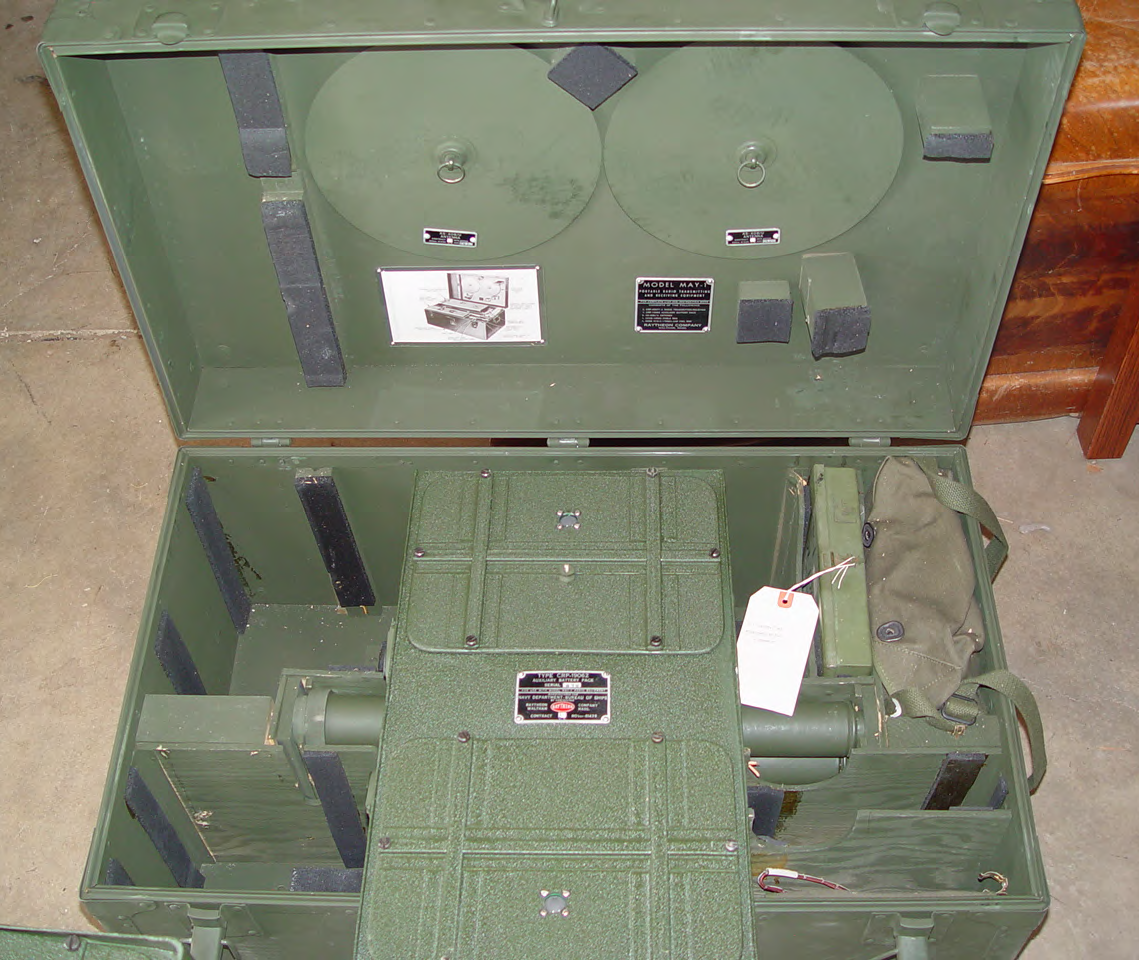

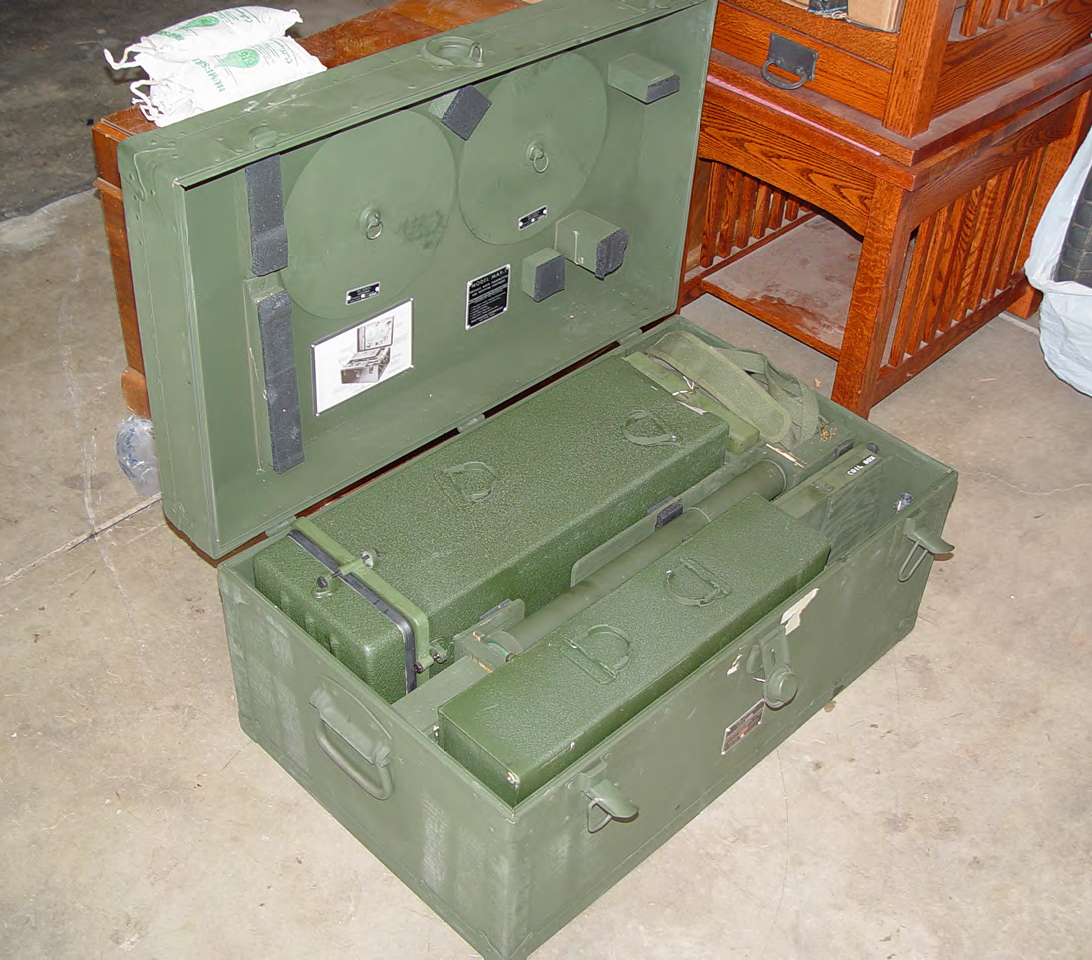

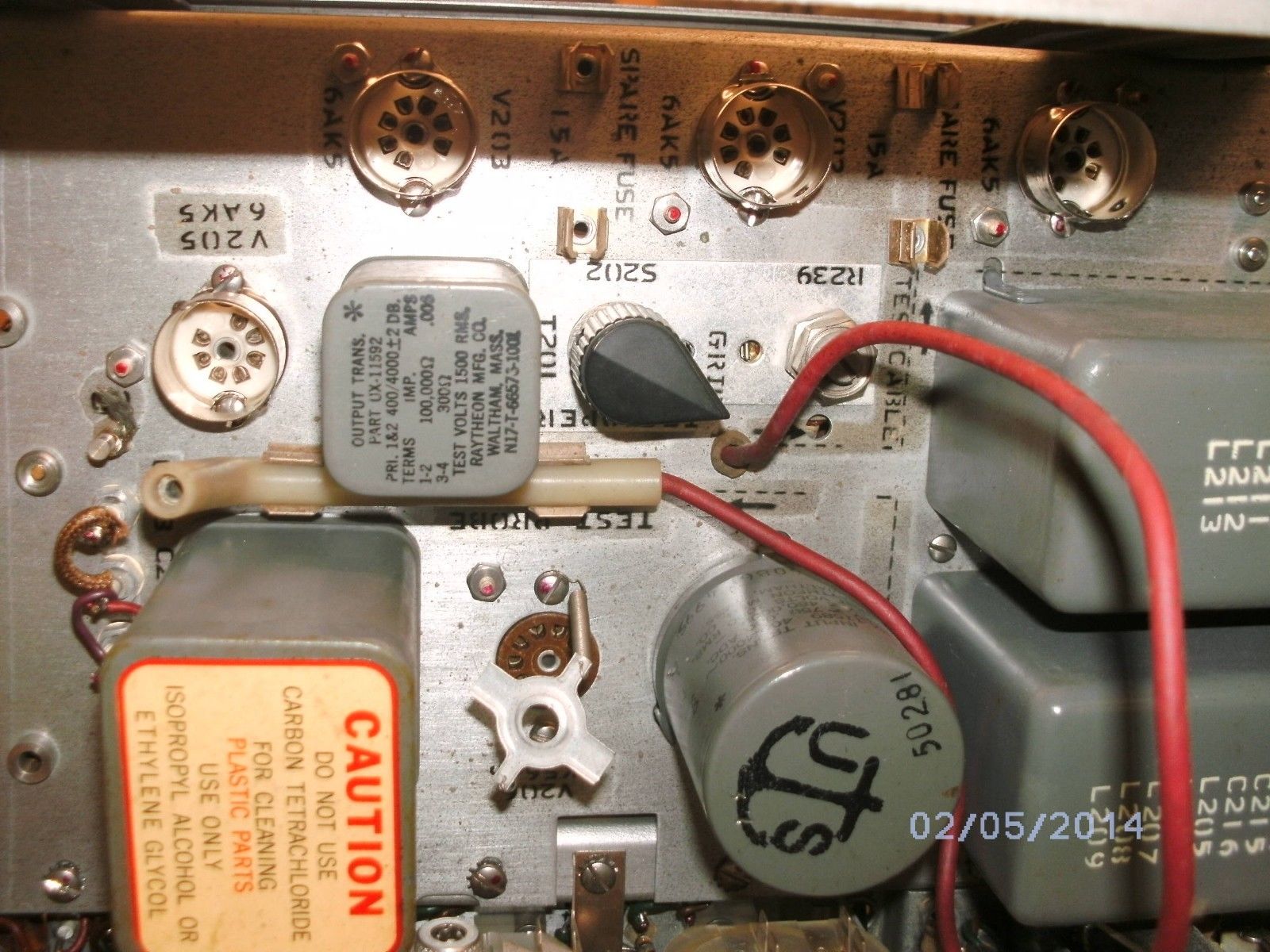

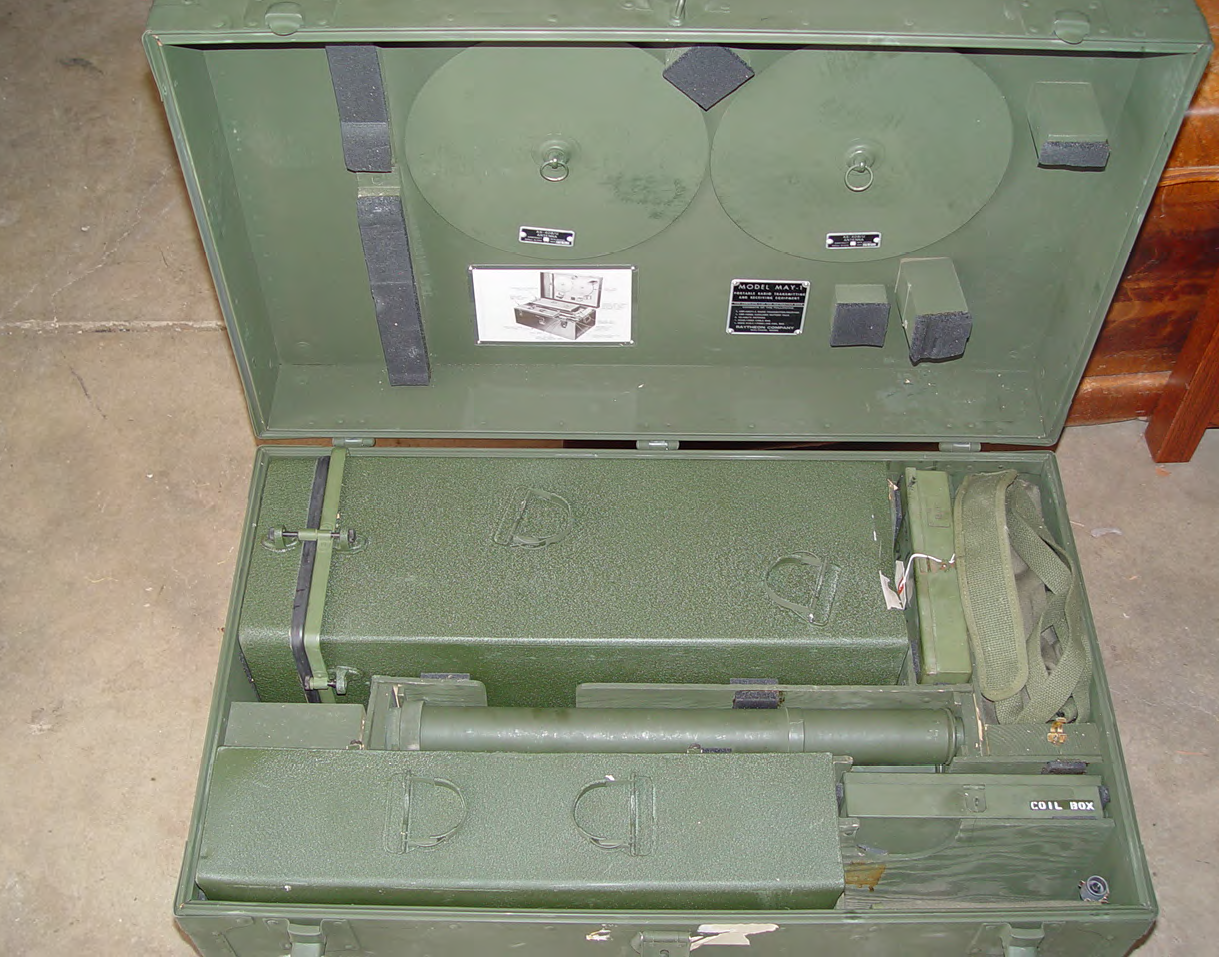

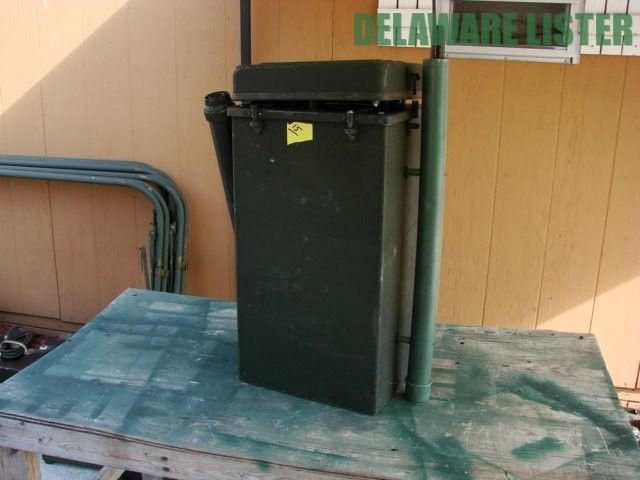

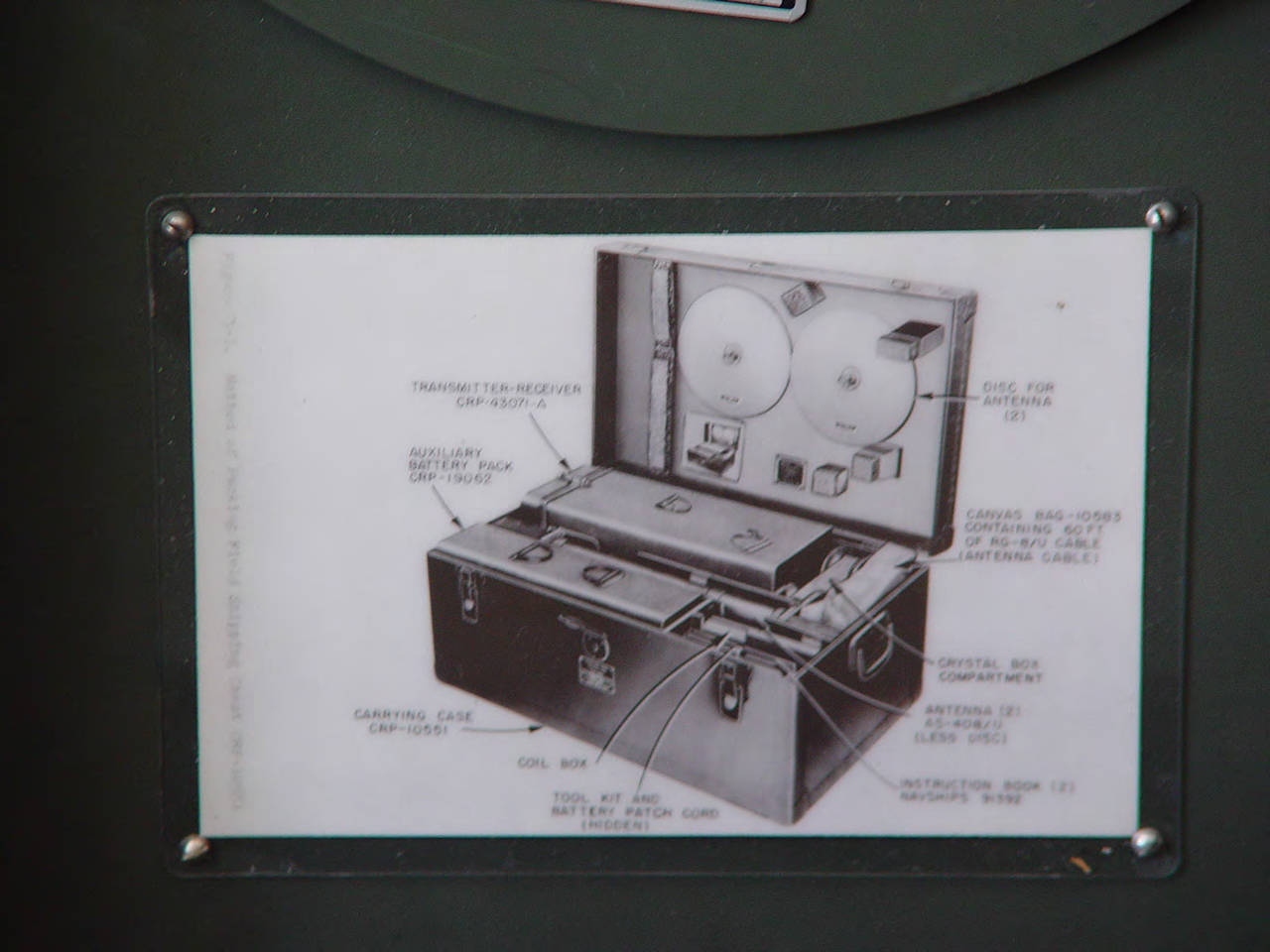

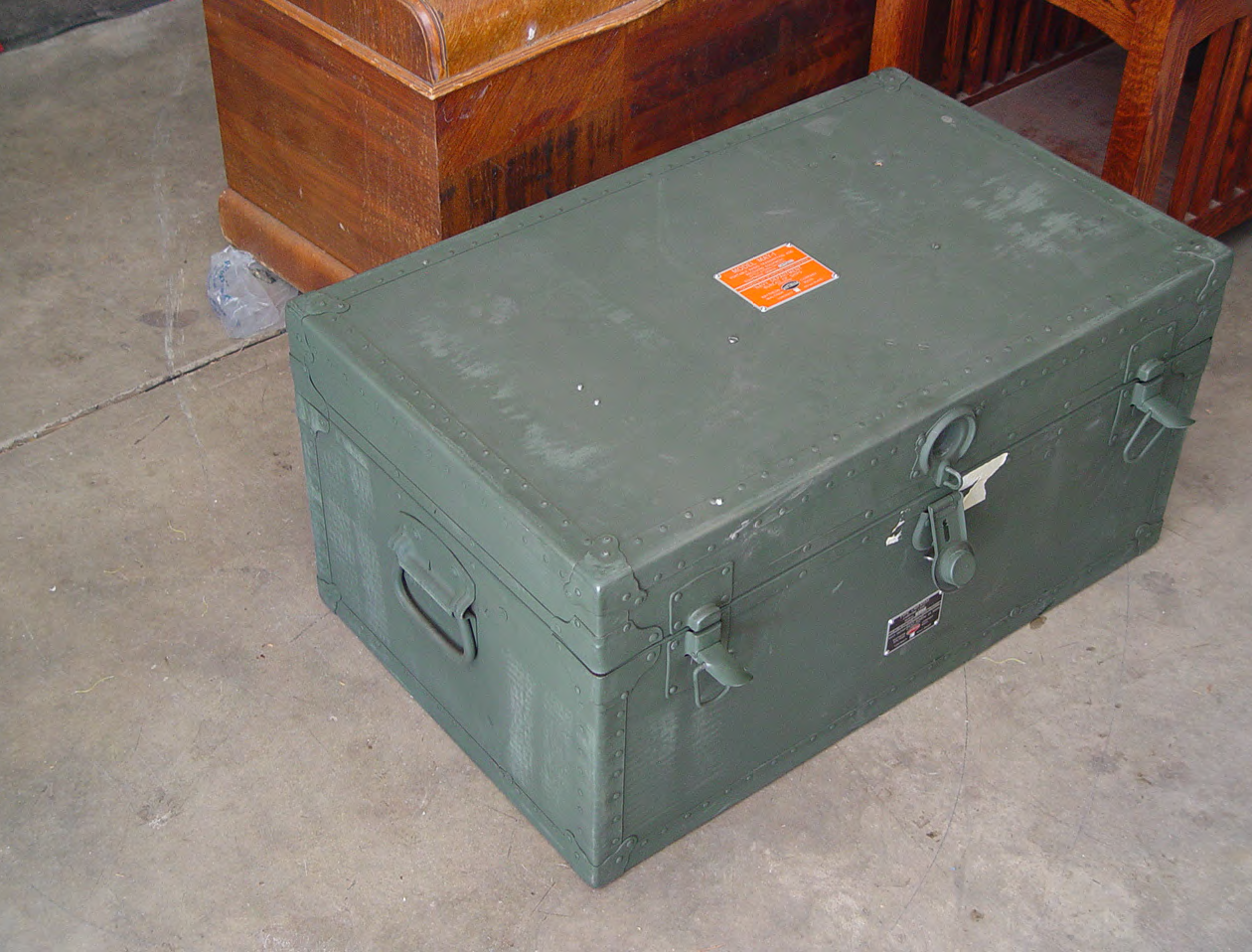

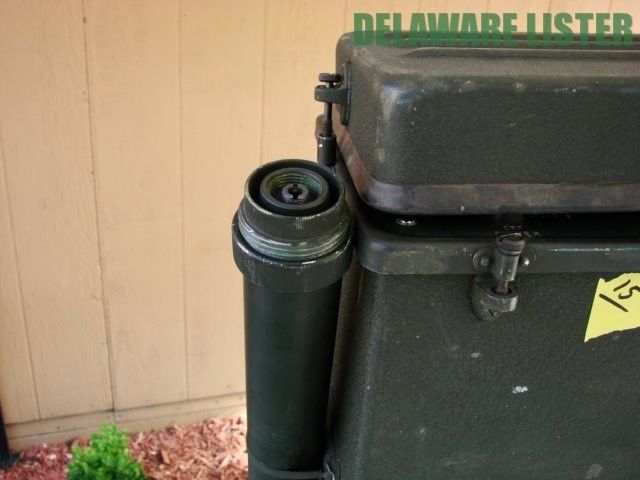

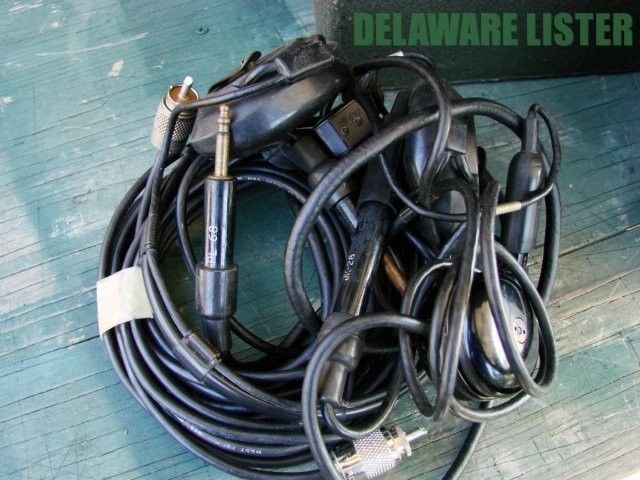

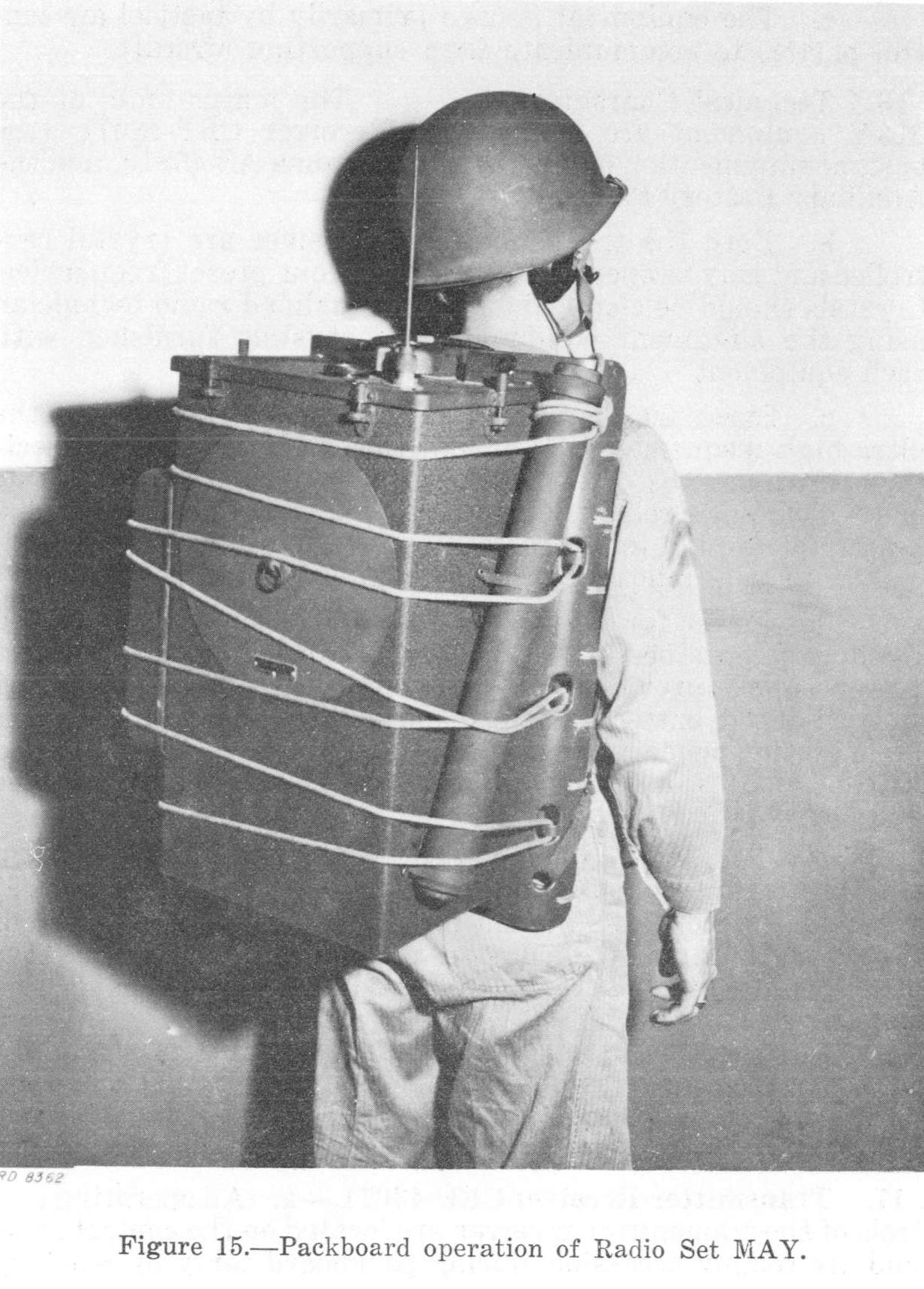

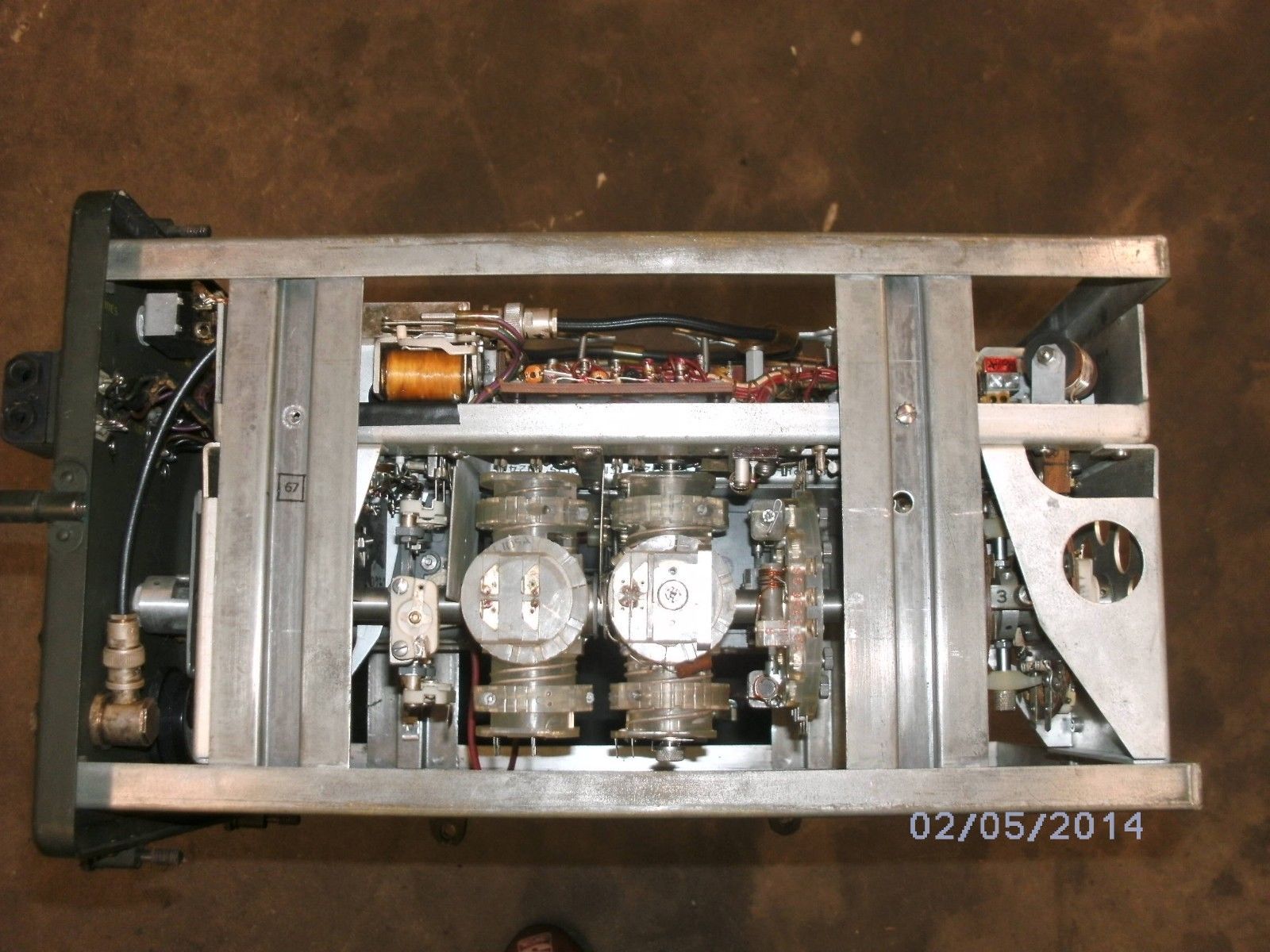

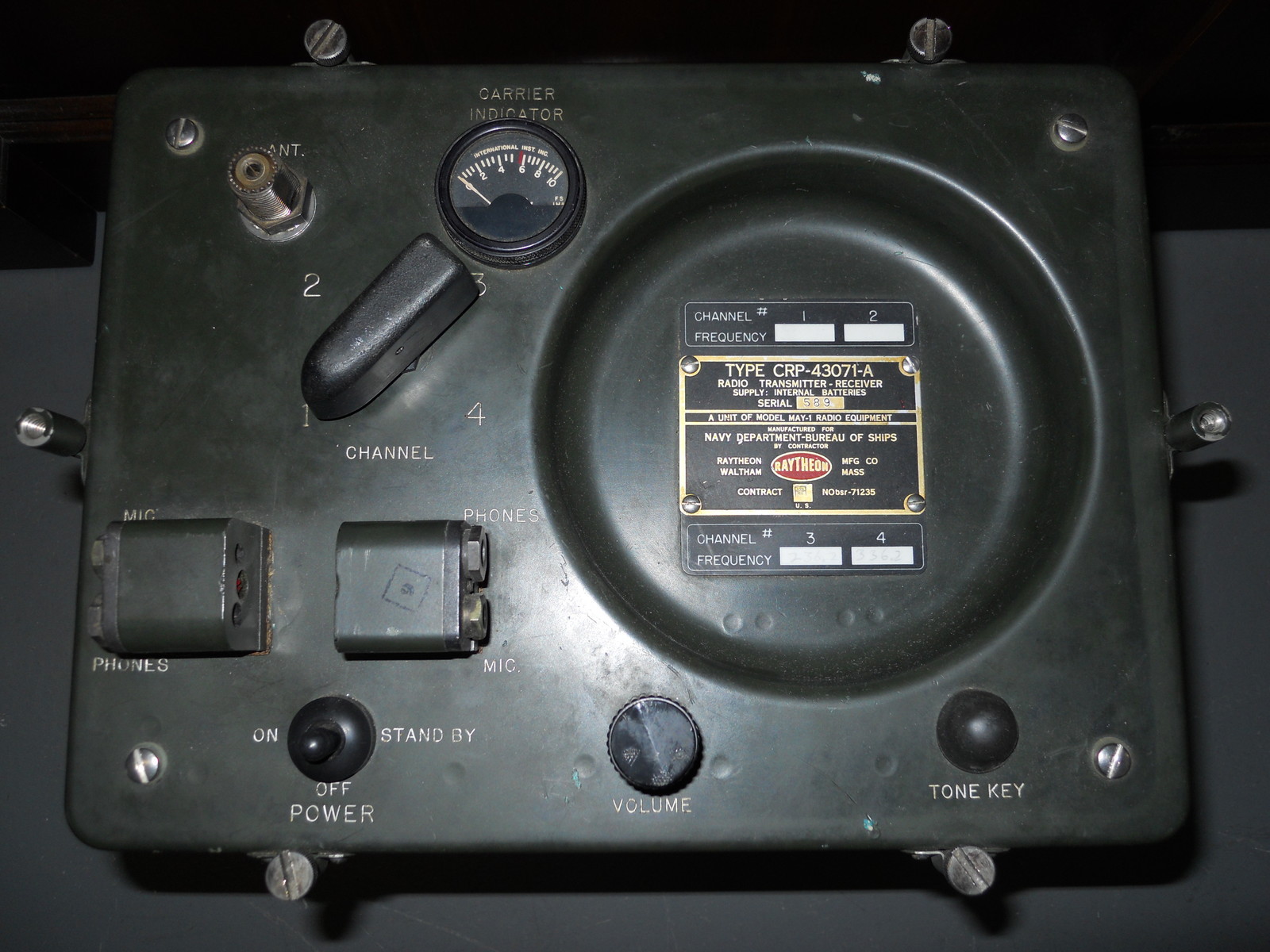

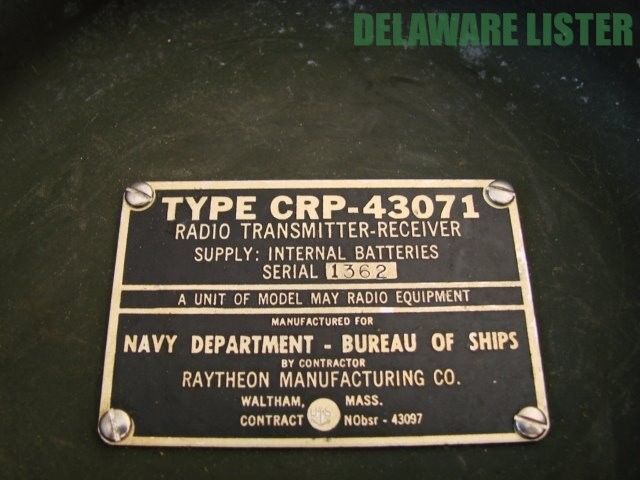

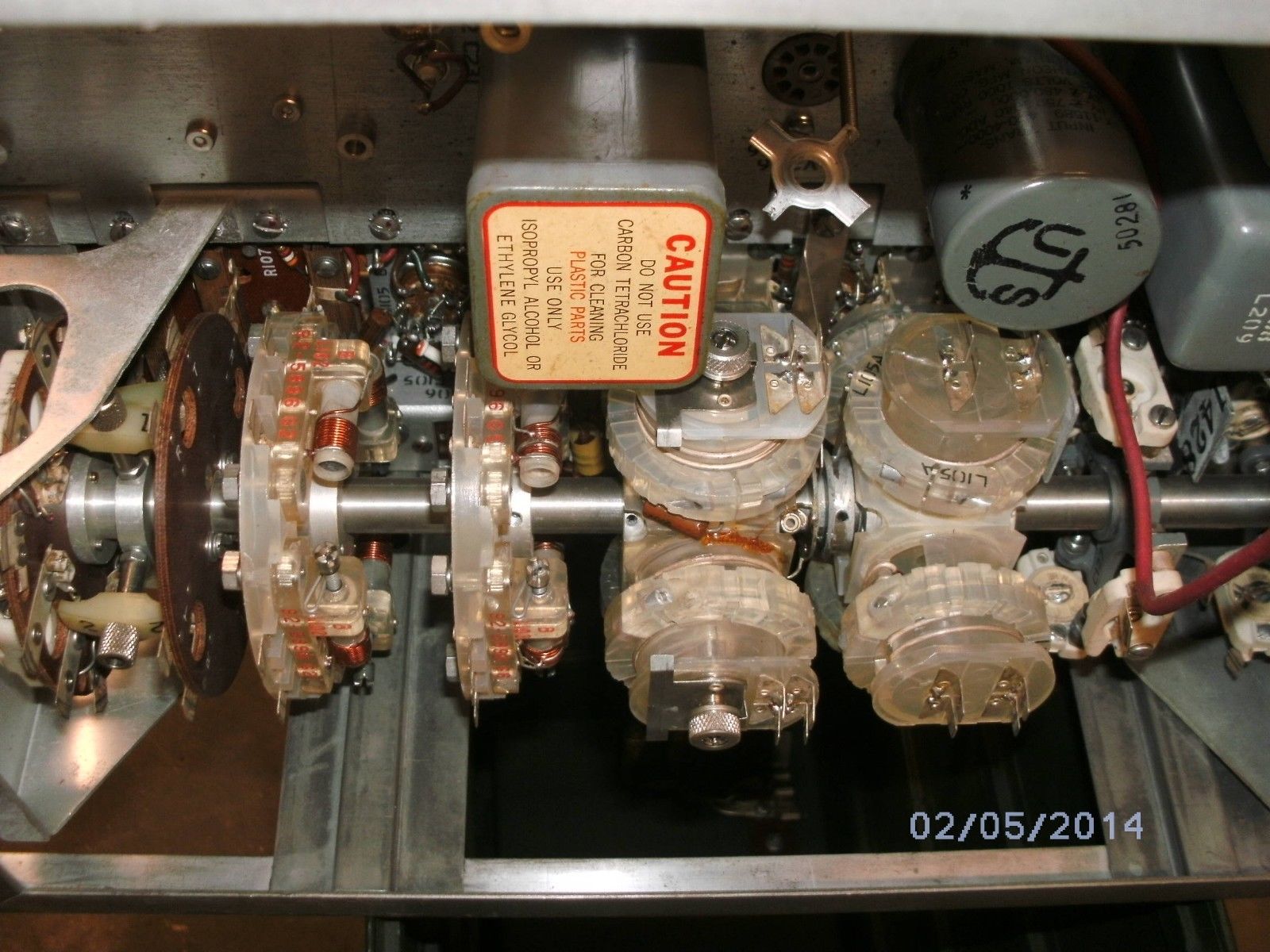

MAY 4-channel 225-390 mc AM CRP-43071 Transmitter-Receiver AS-40810 Discone Antenna CRP-19062 Aux. Battery Pack MAY Operation - download 4.8 MB pdf	MAY-1
			--
			--


		--	--

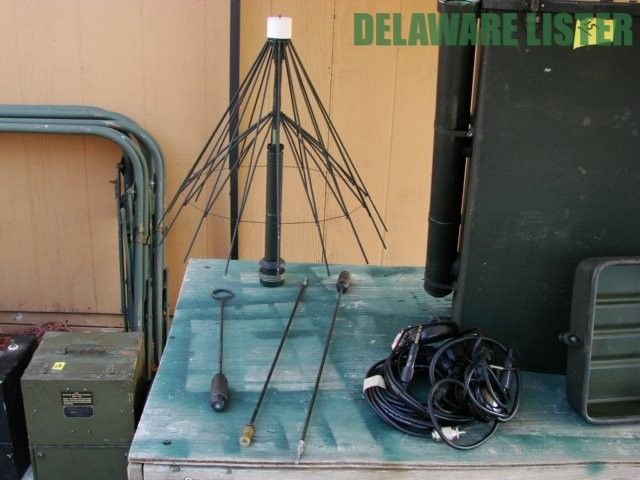

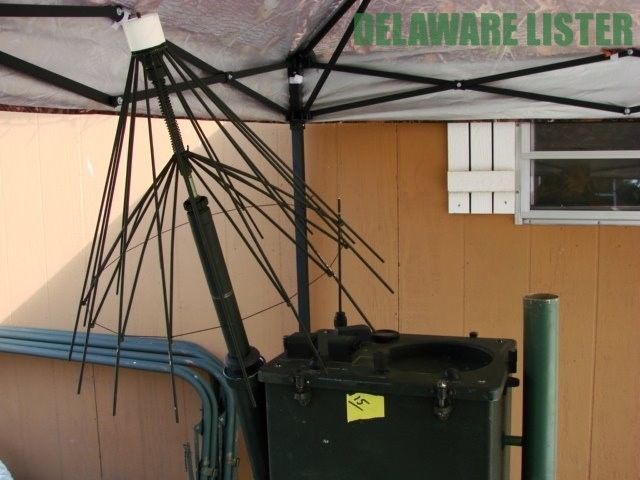

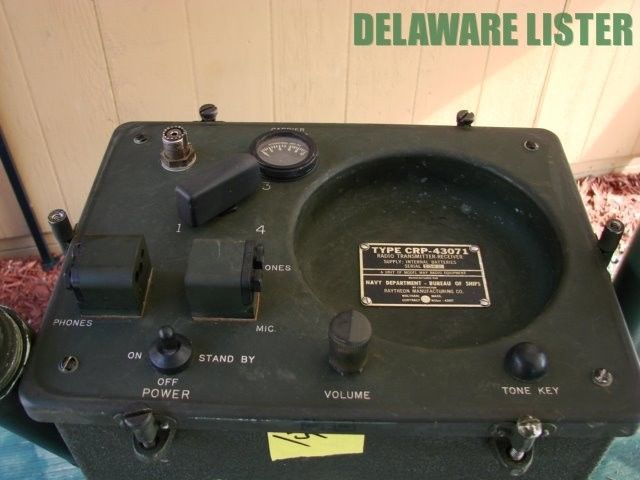

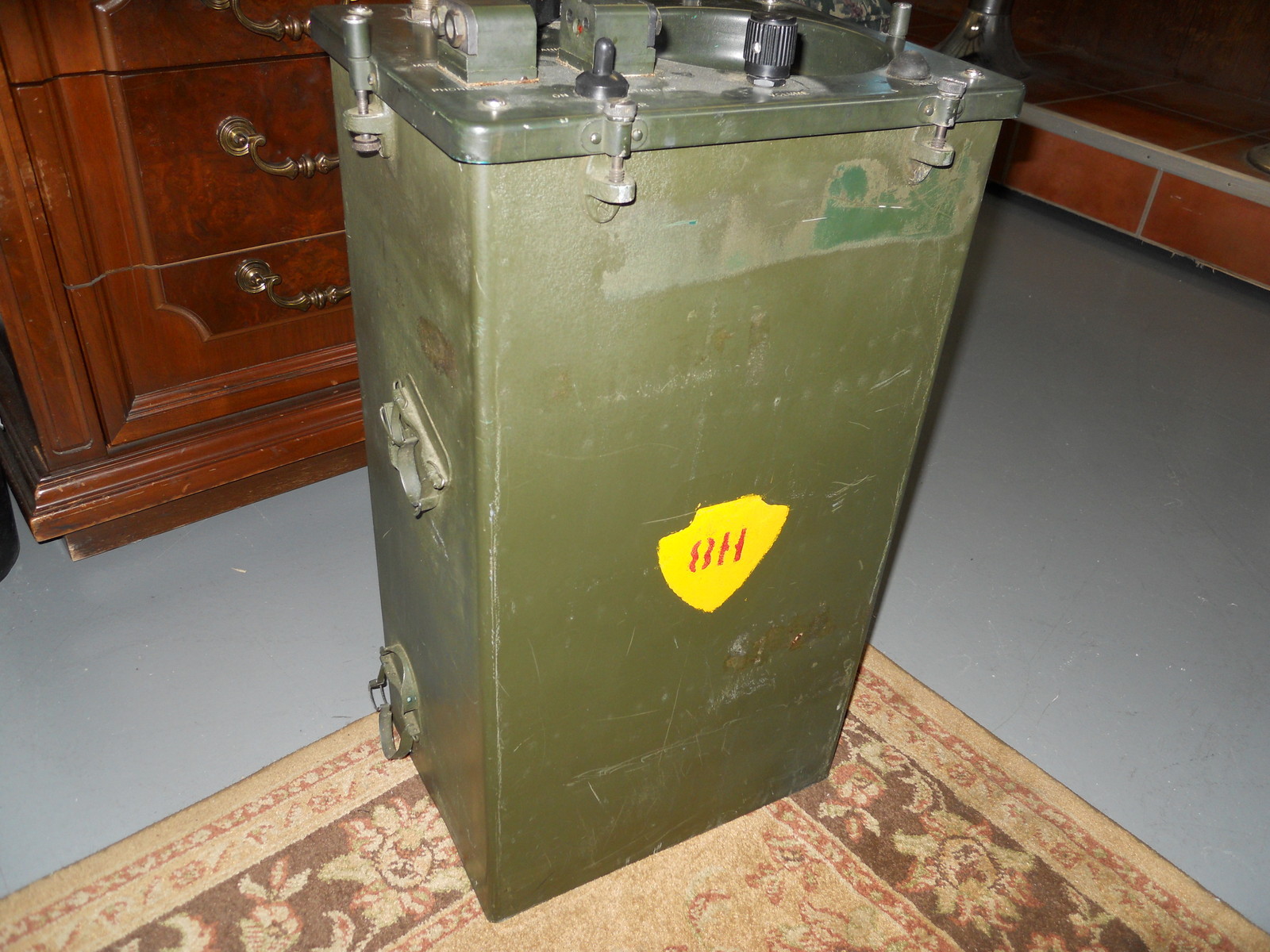

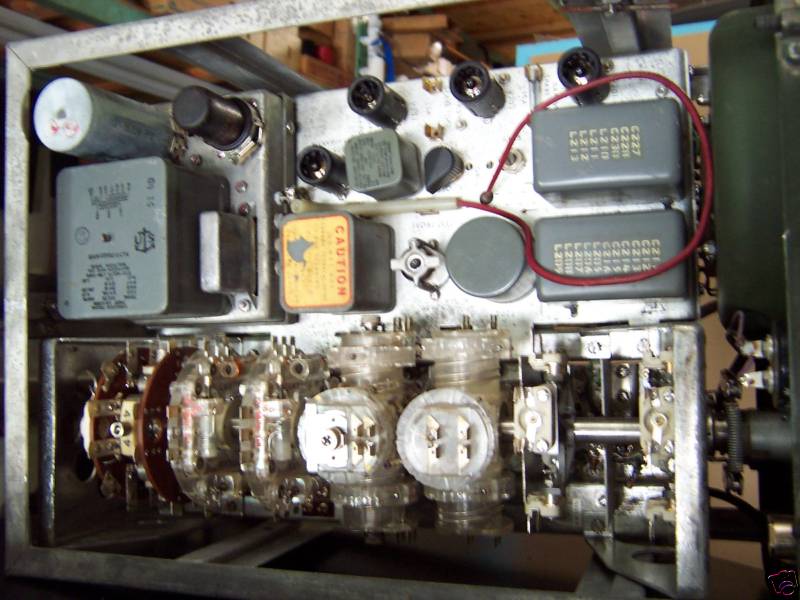

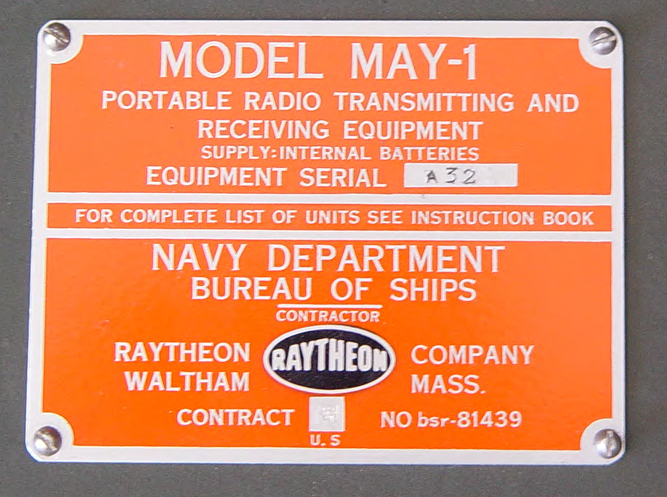

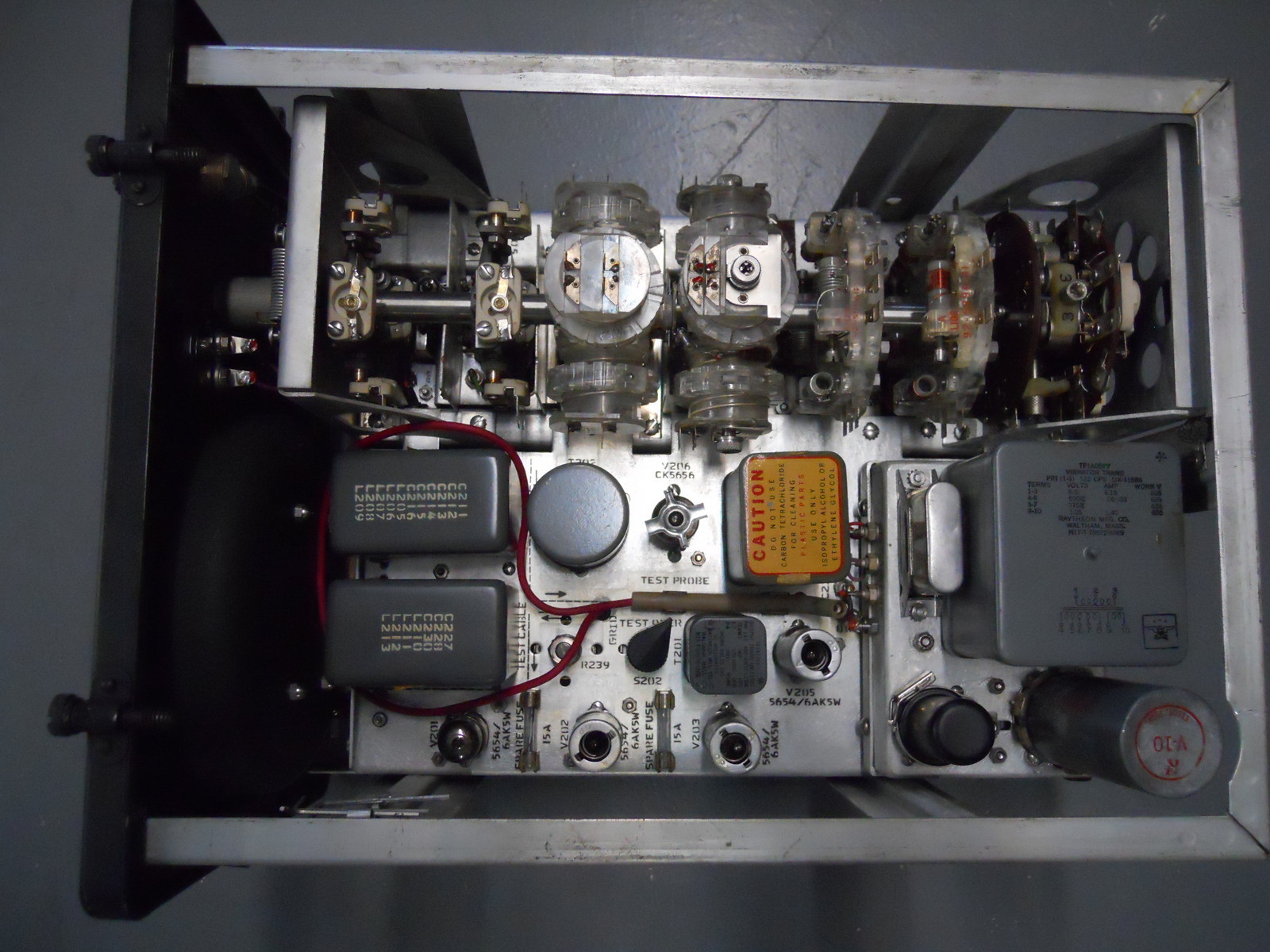

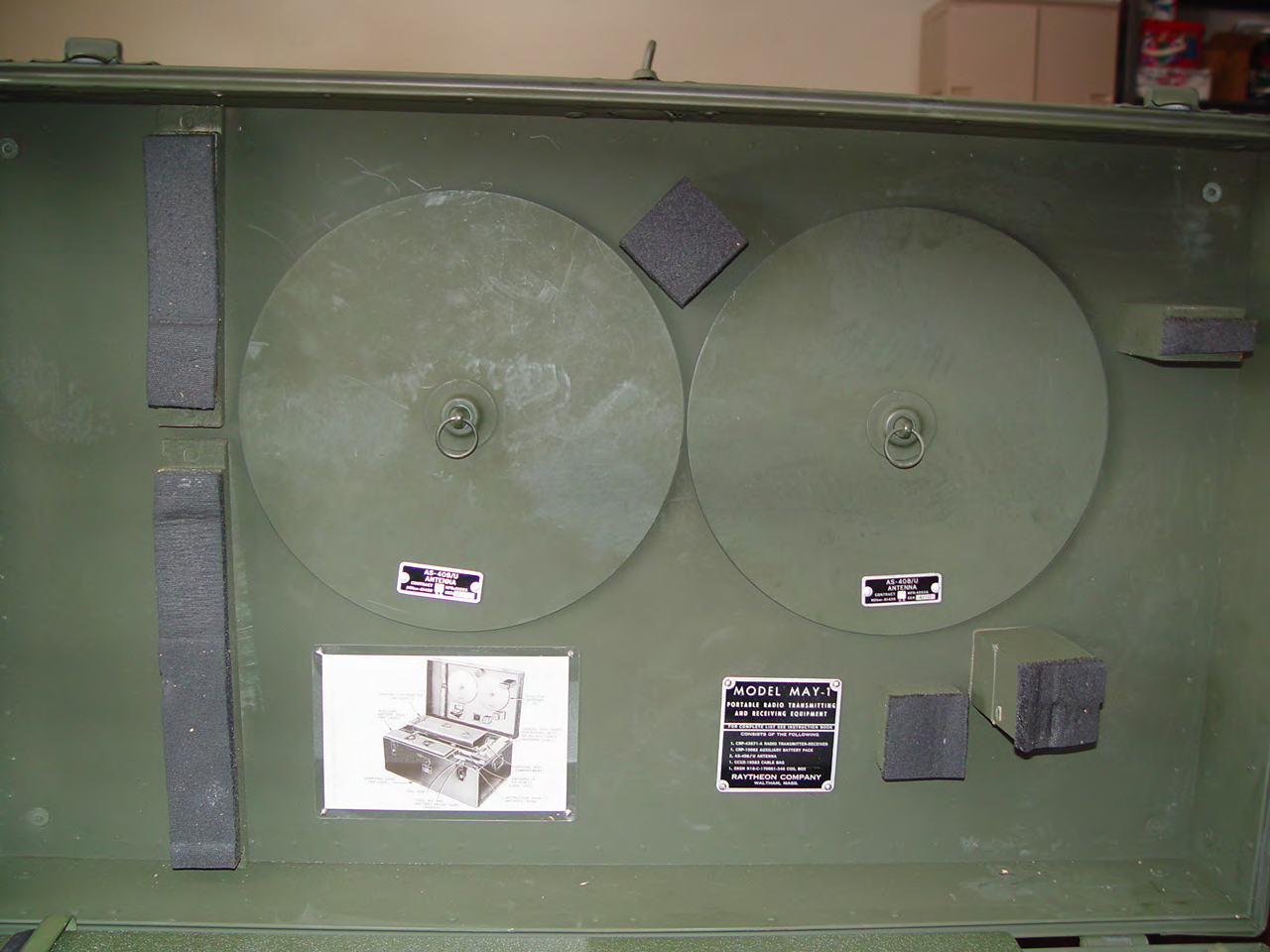

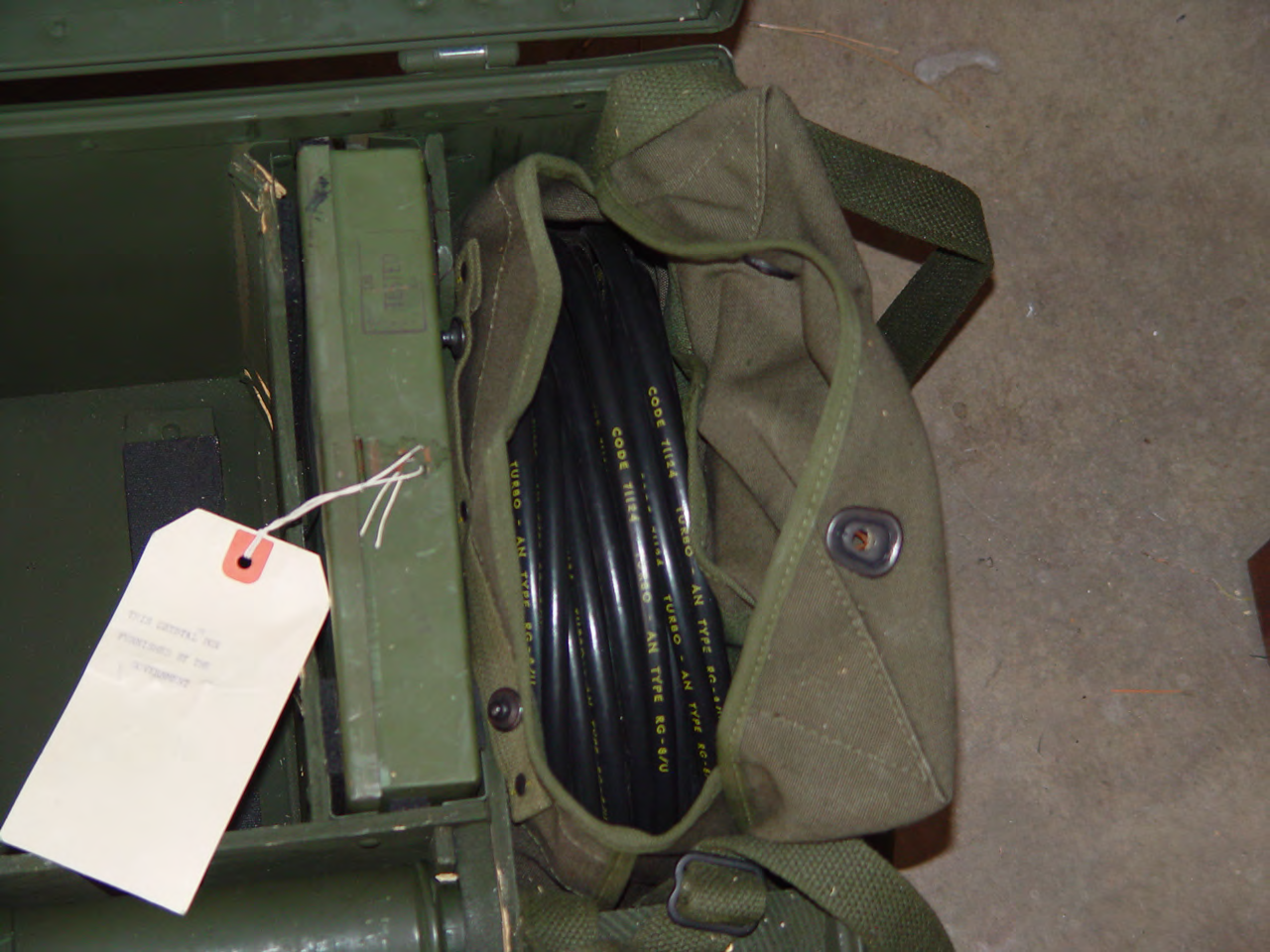

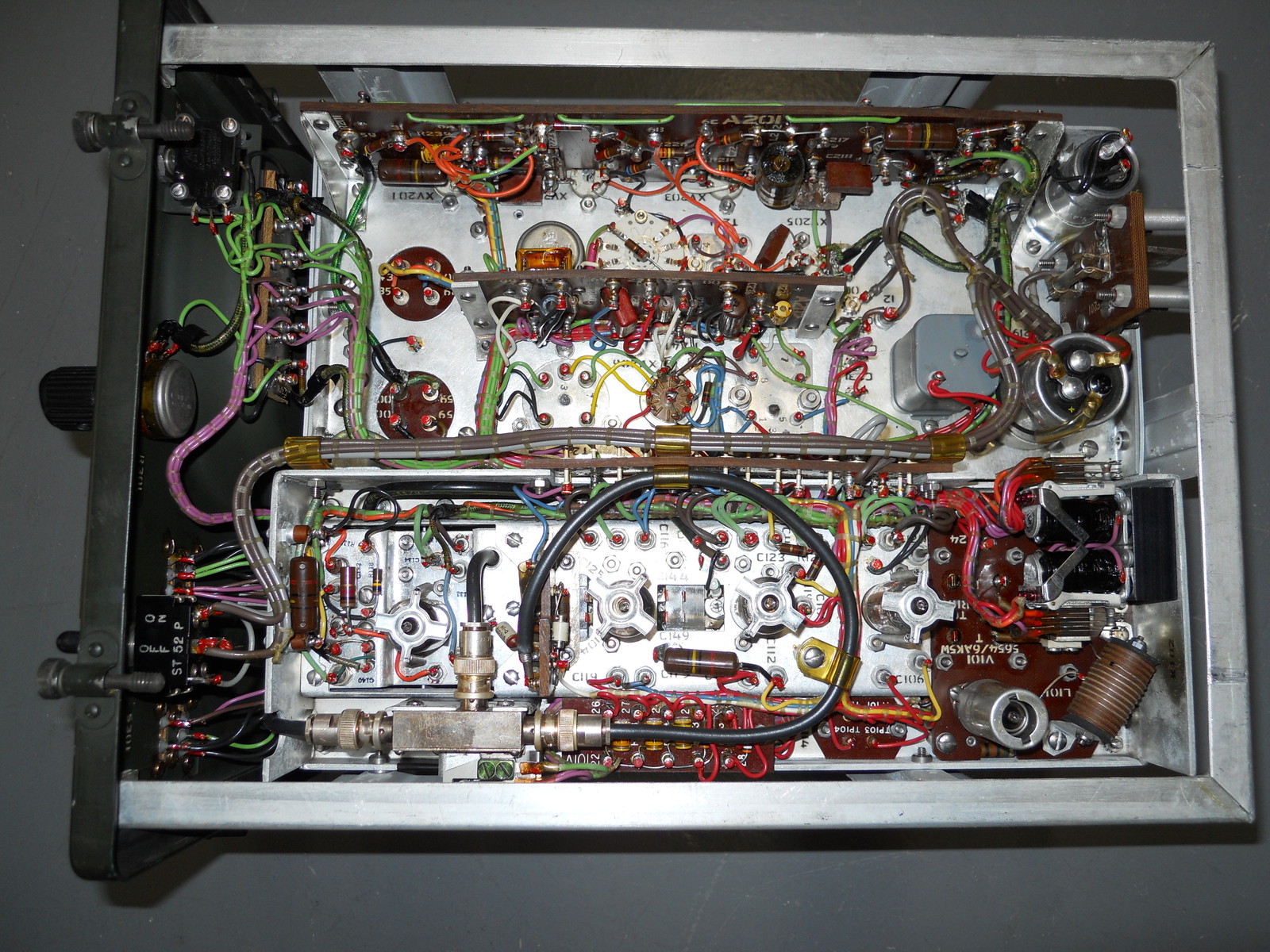

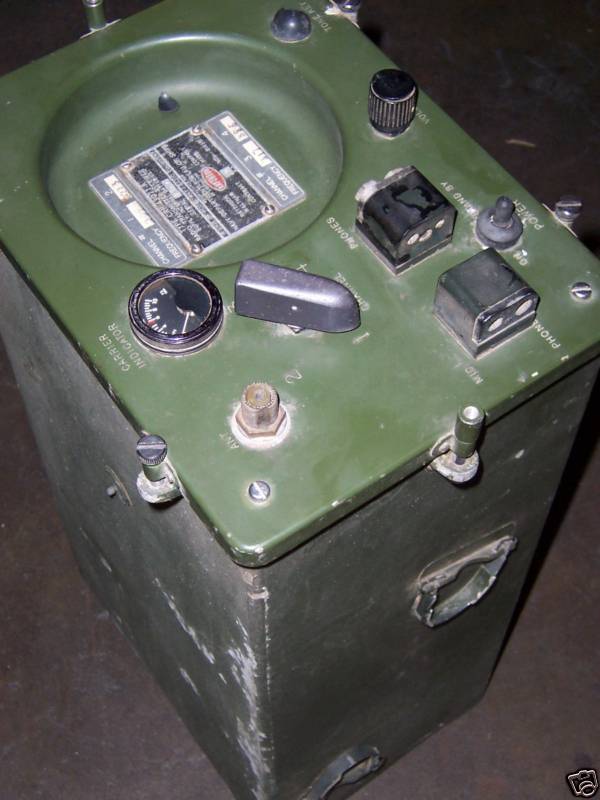

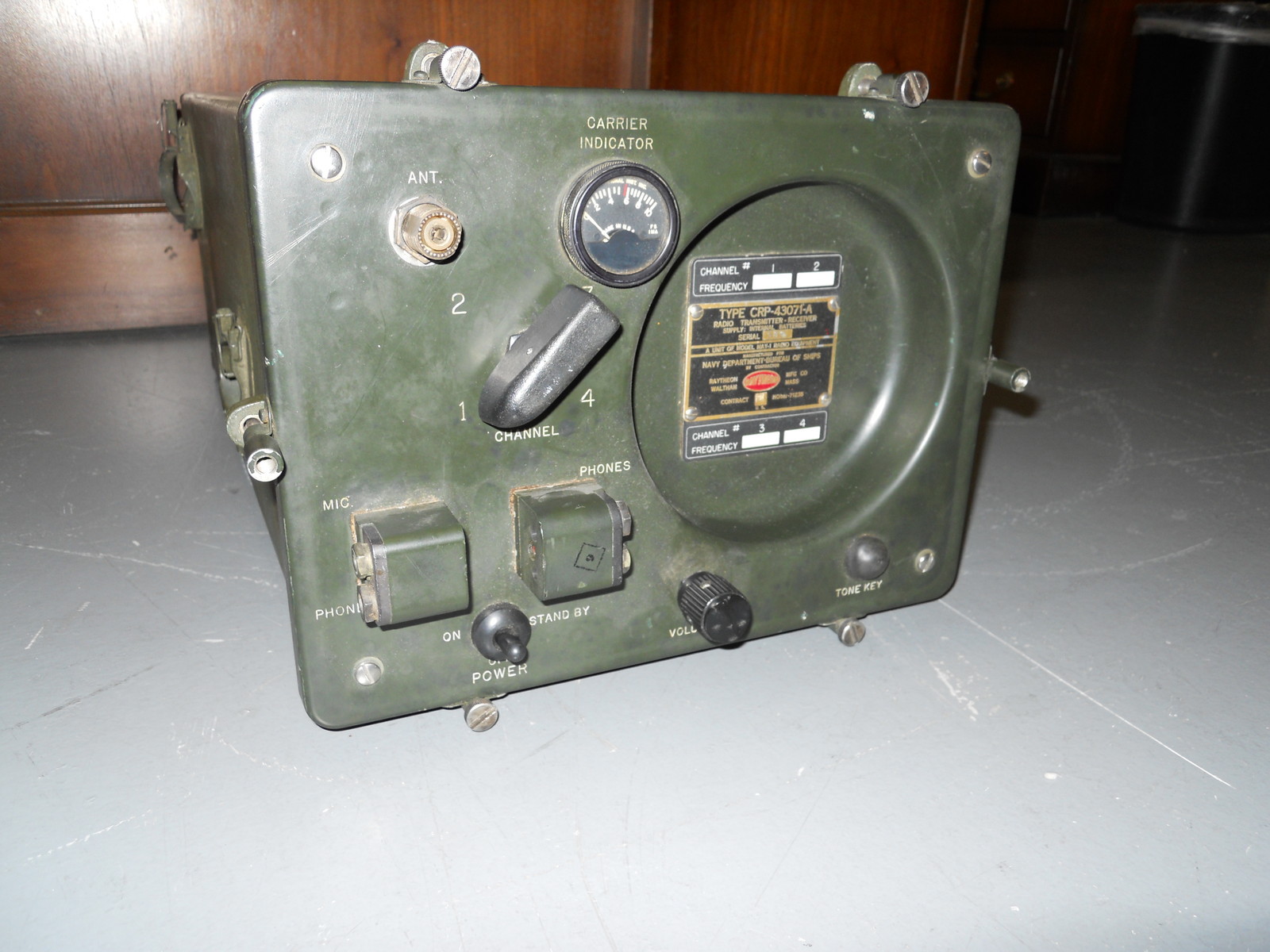

MAY-1 - NOS 03/14



		--	--

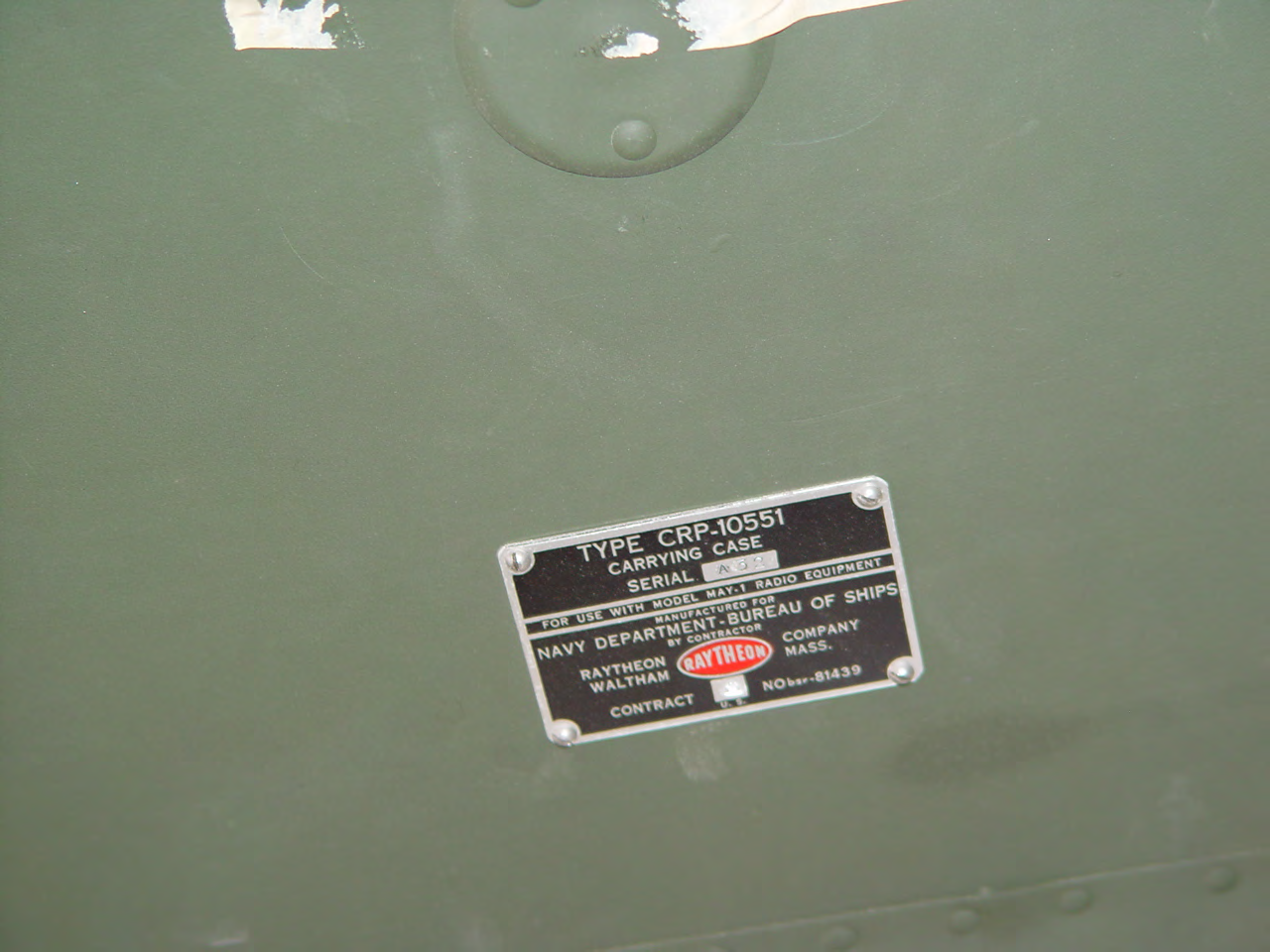

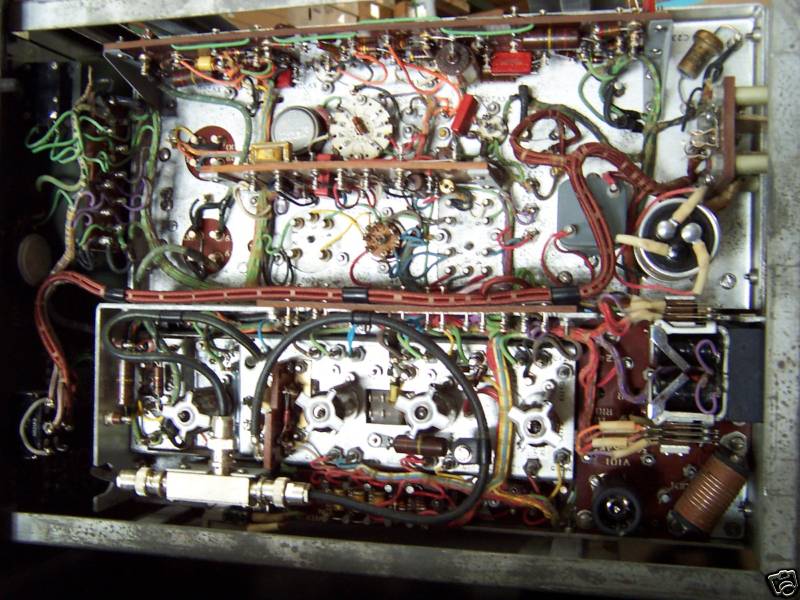

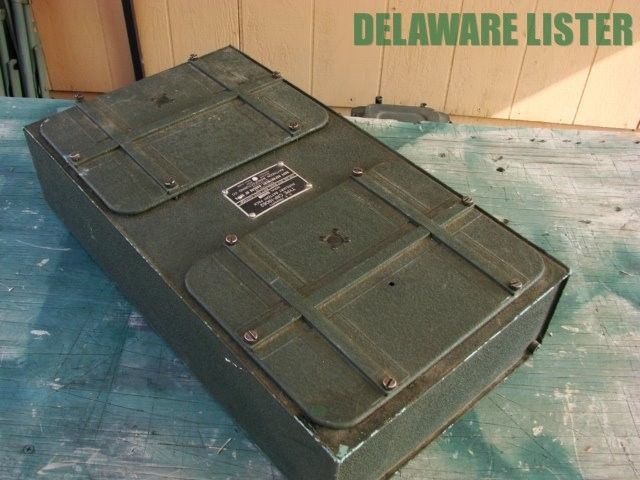

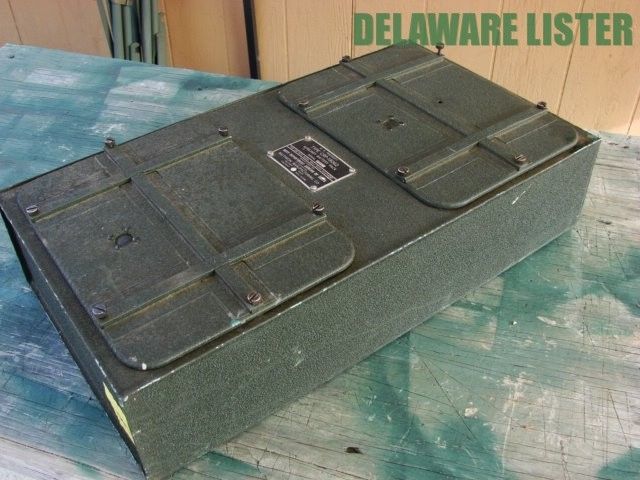

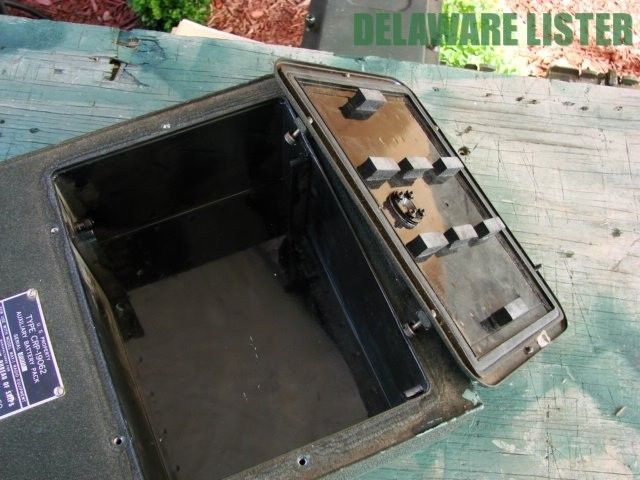

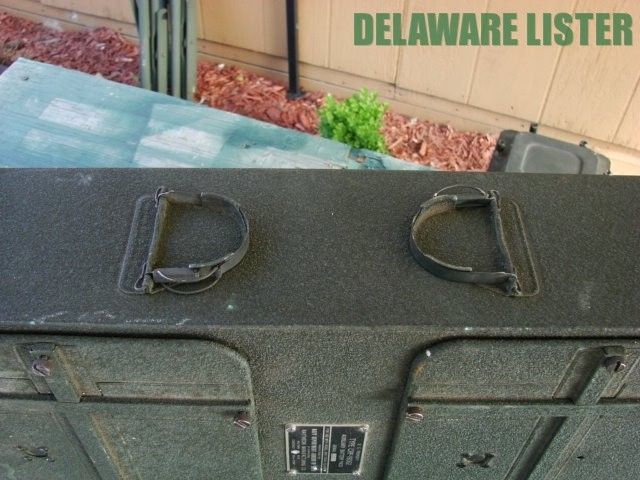

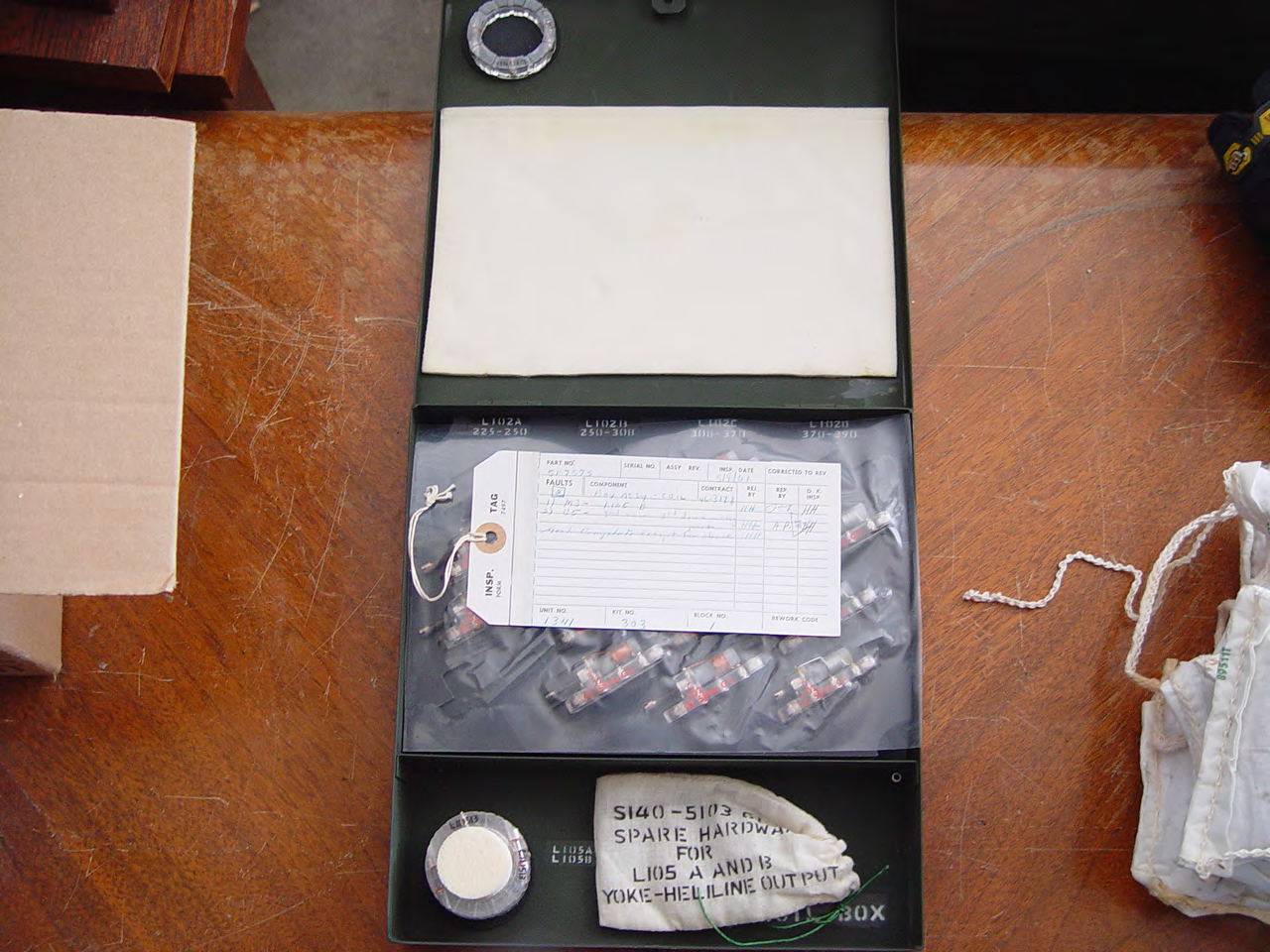

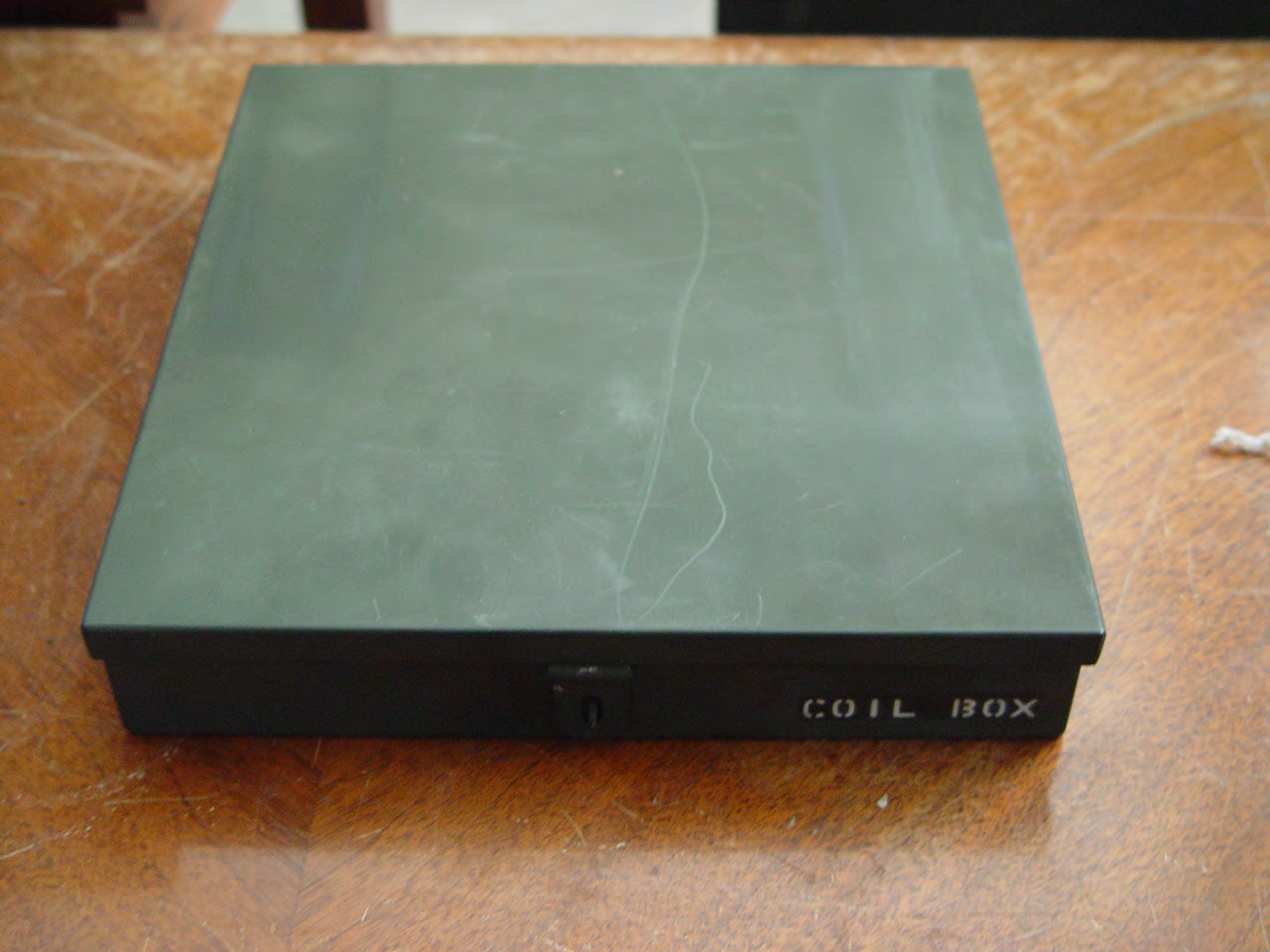

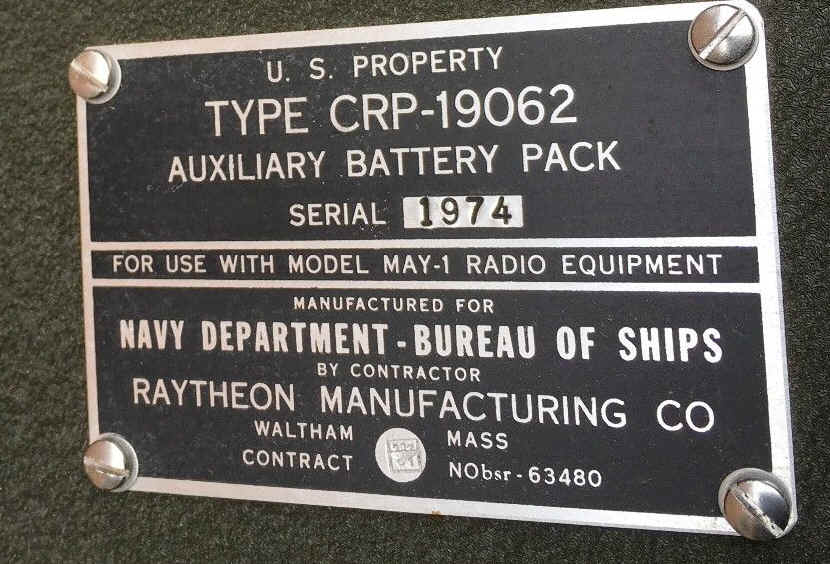

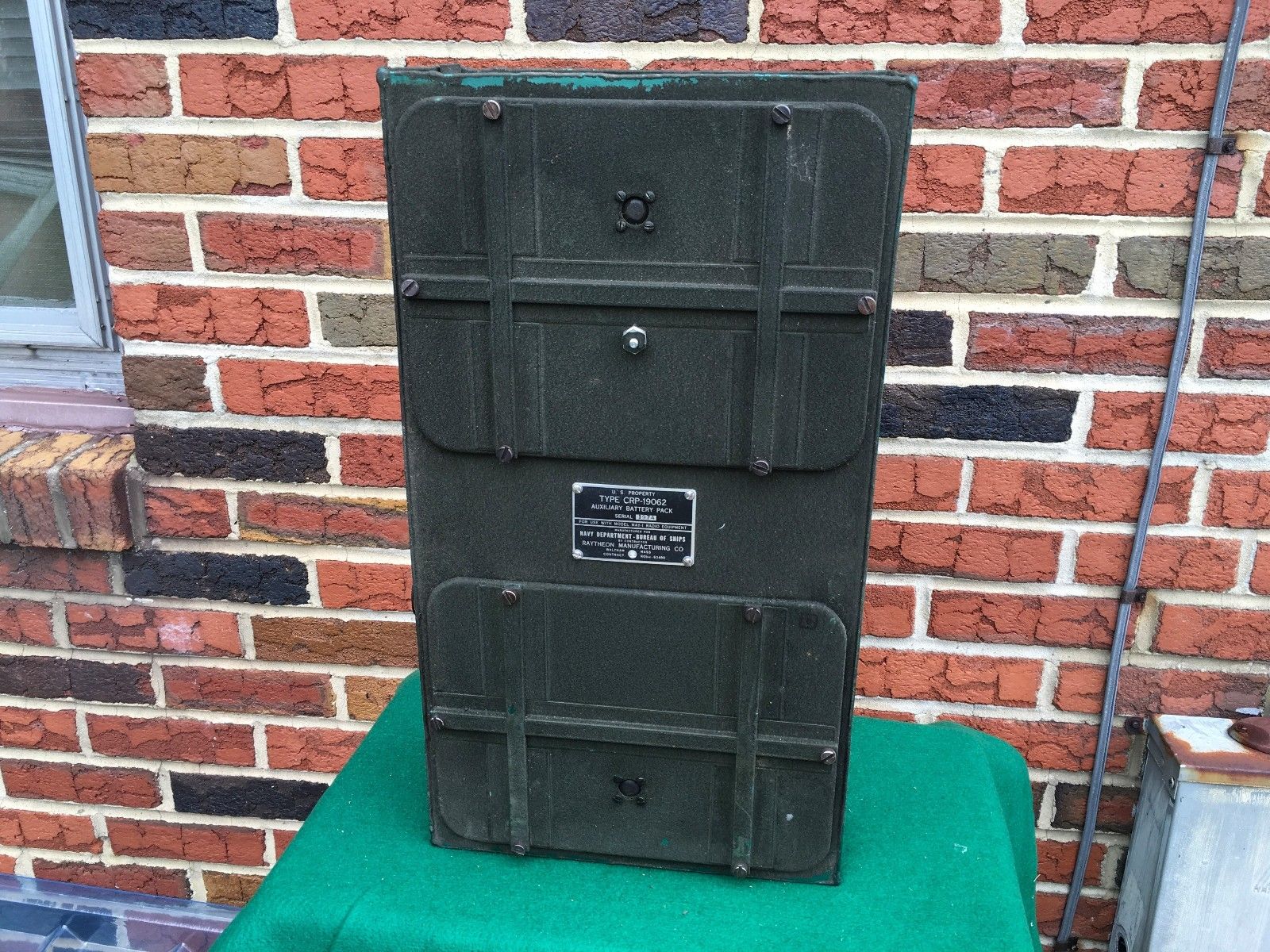

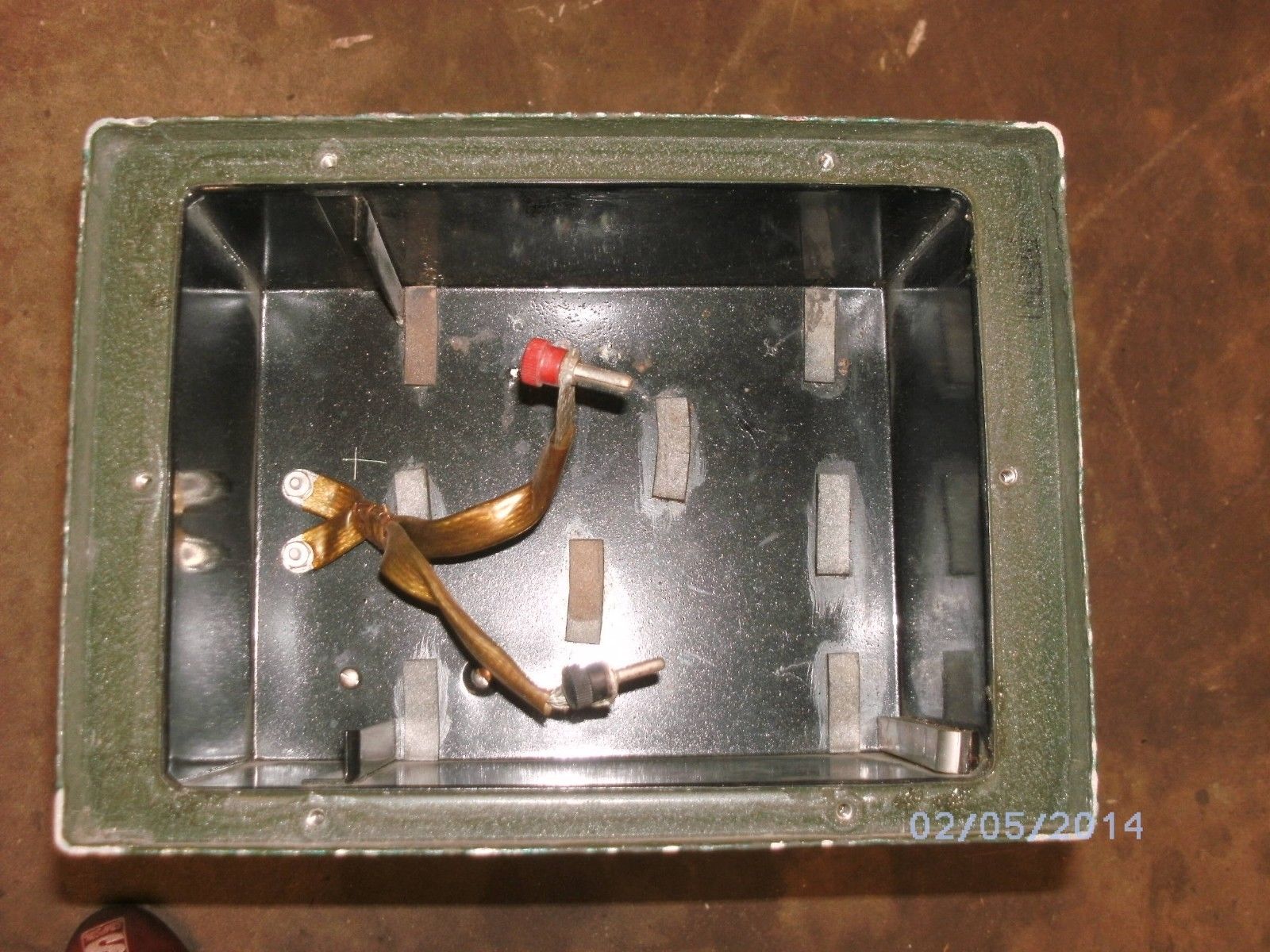

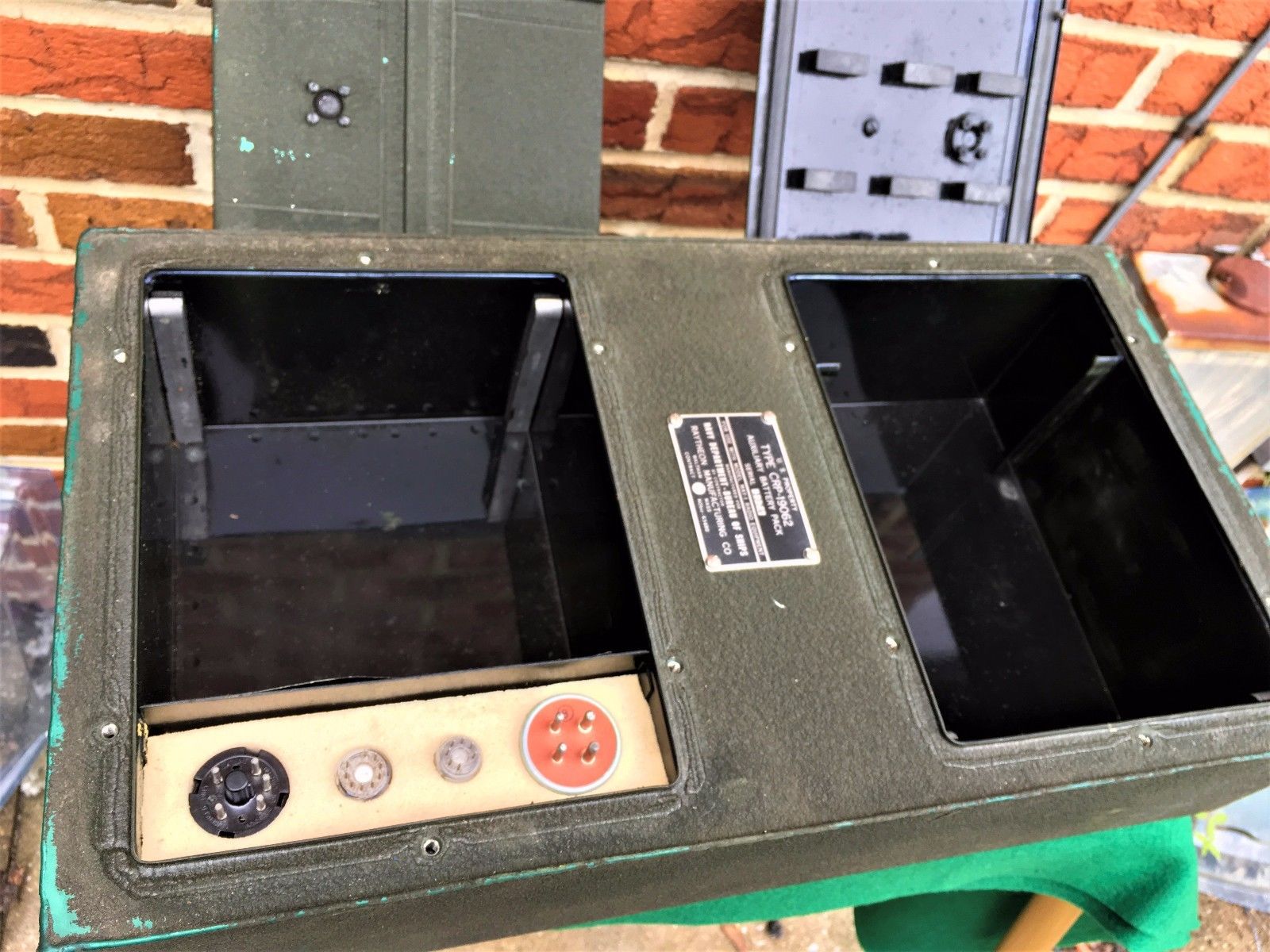

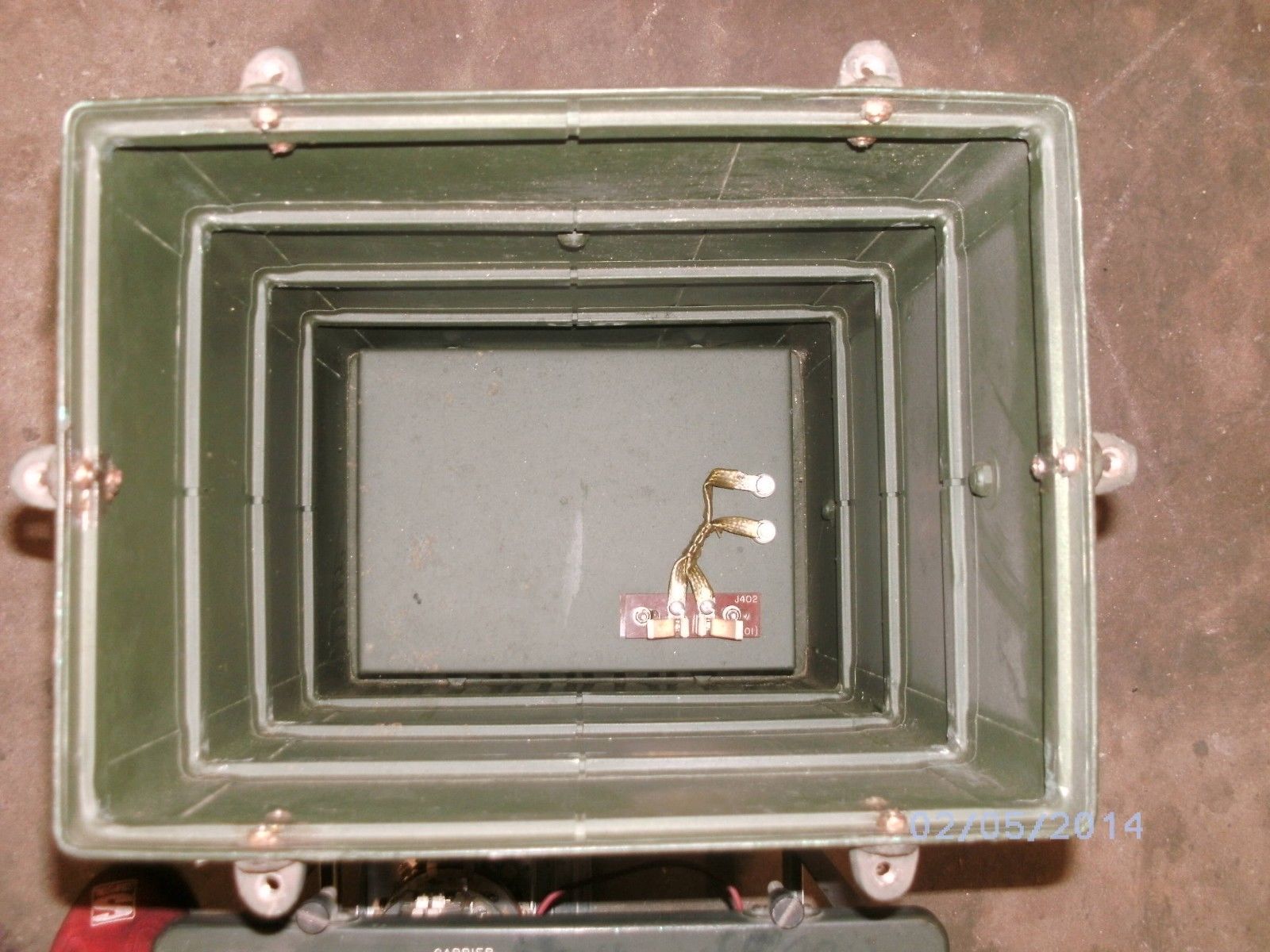

MAY-1 Auxiliary Battery Pack (CRP-19062)

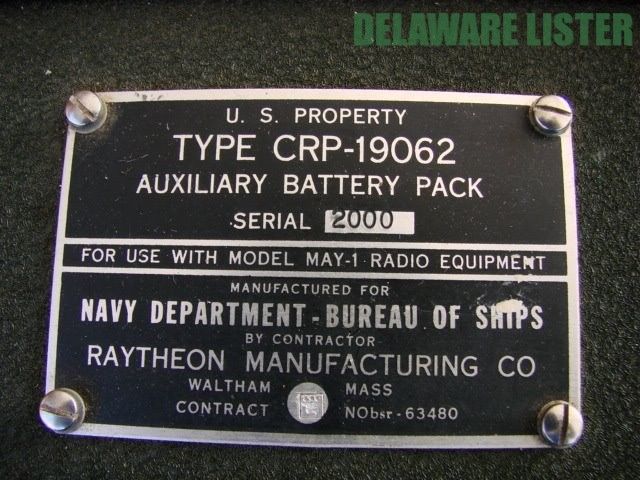

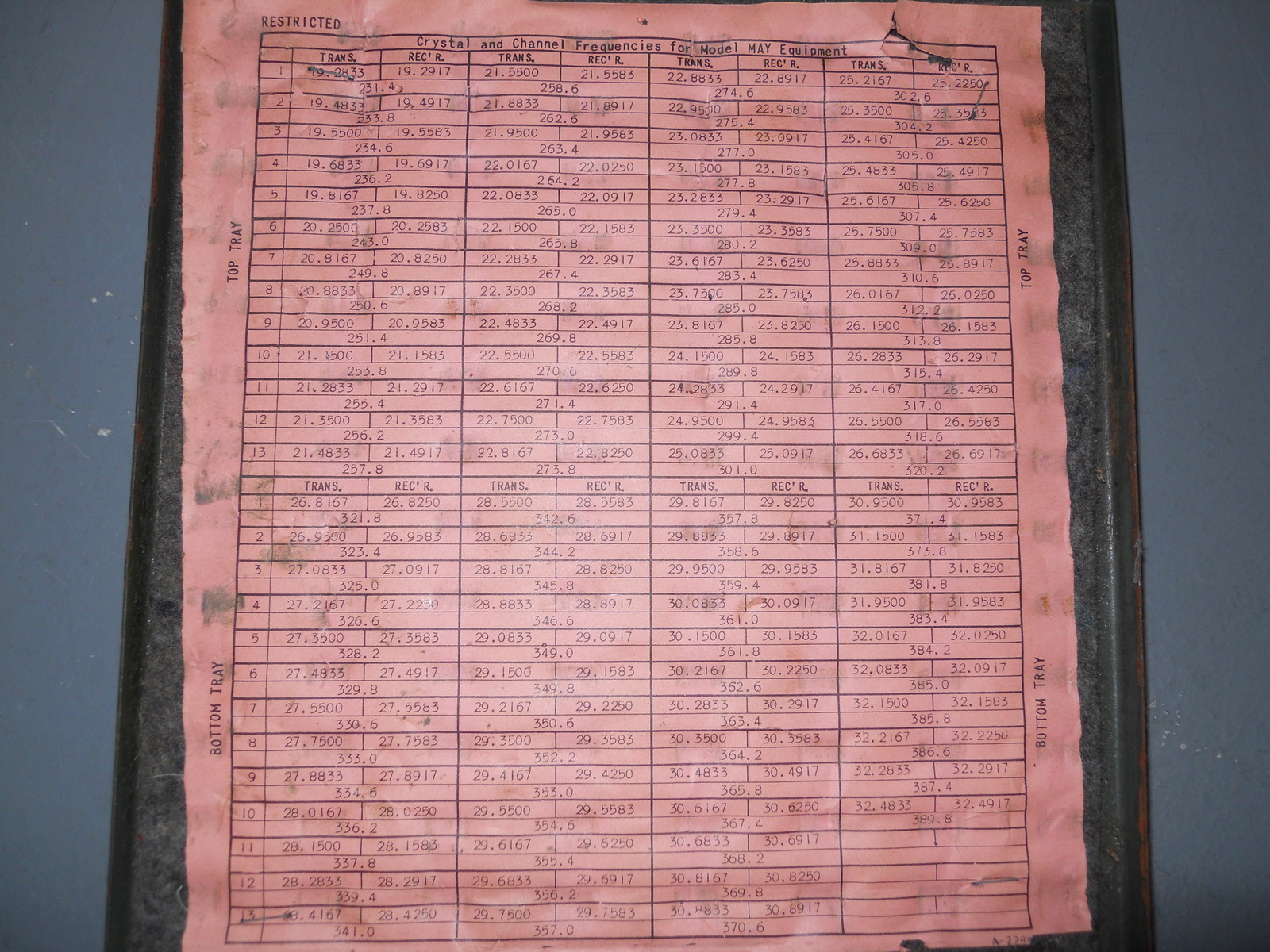

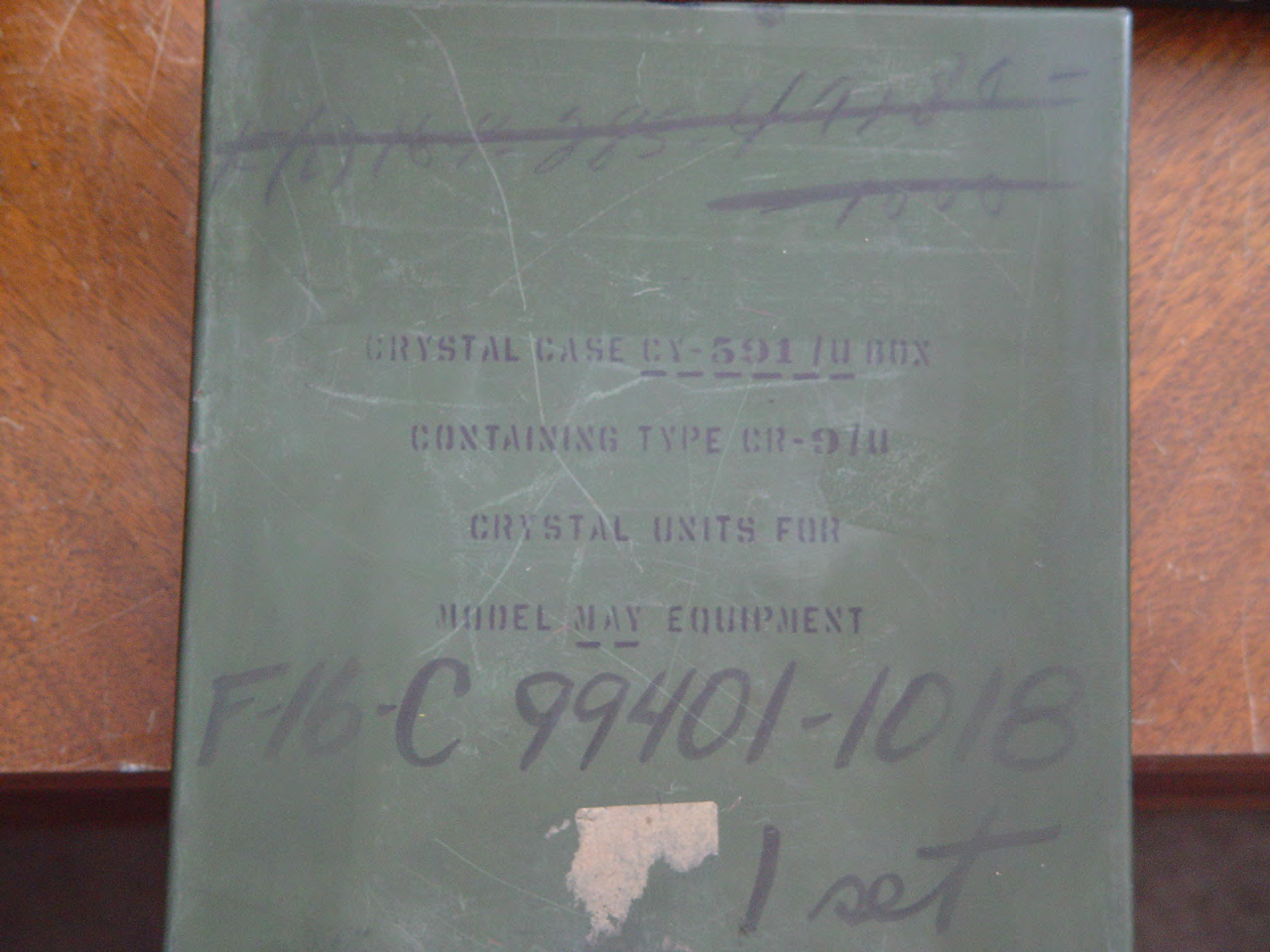

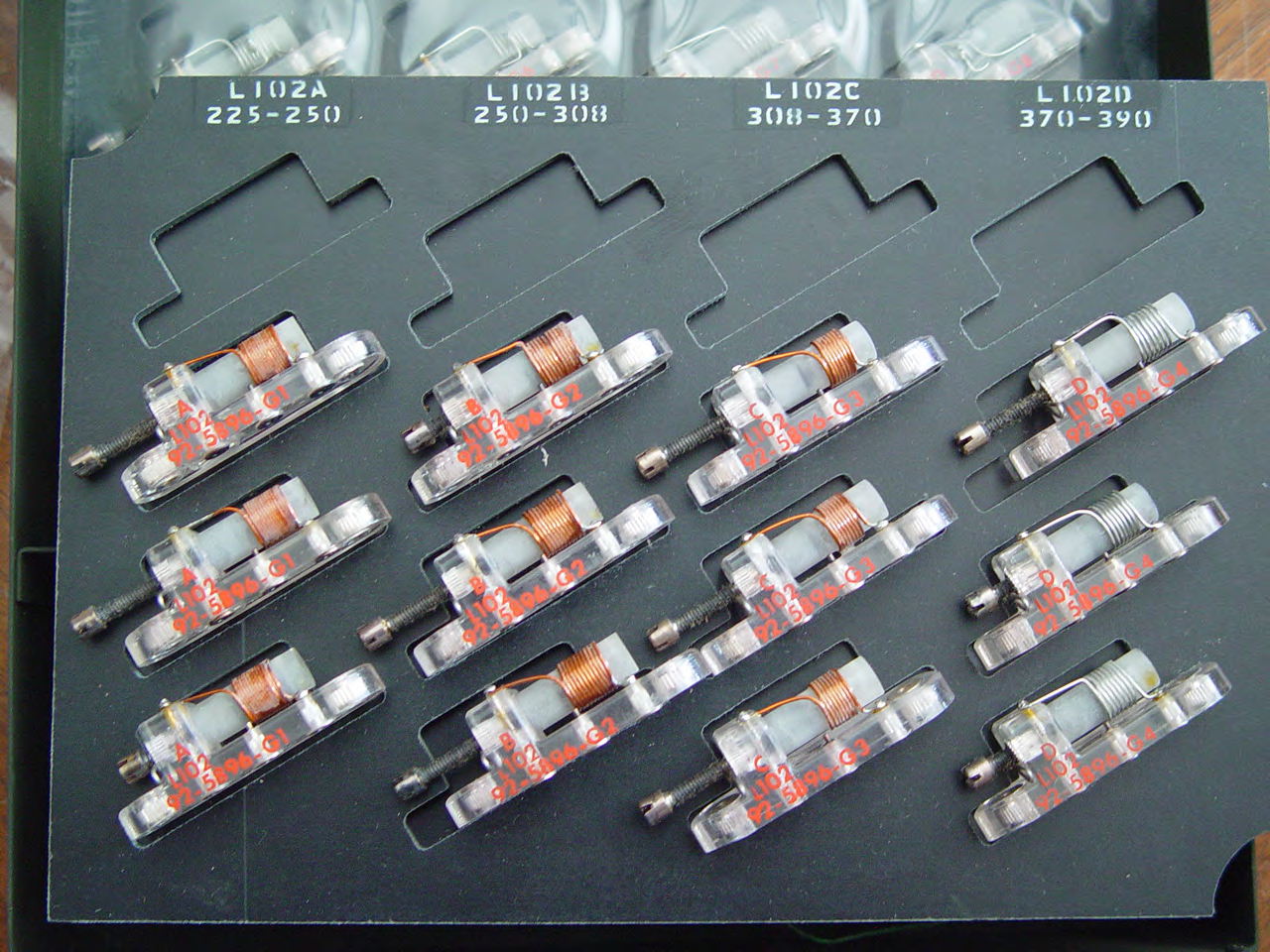

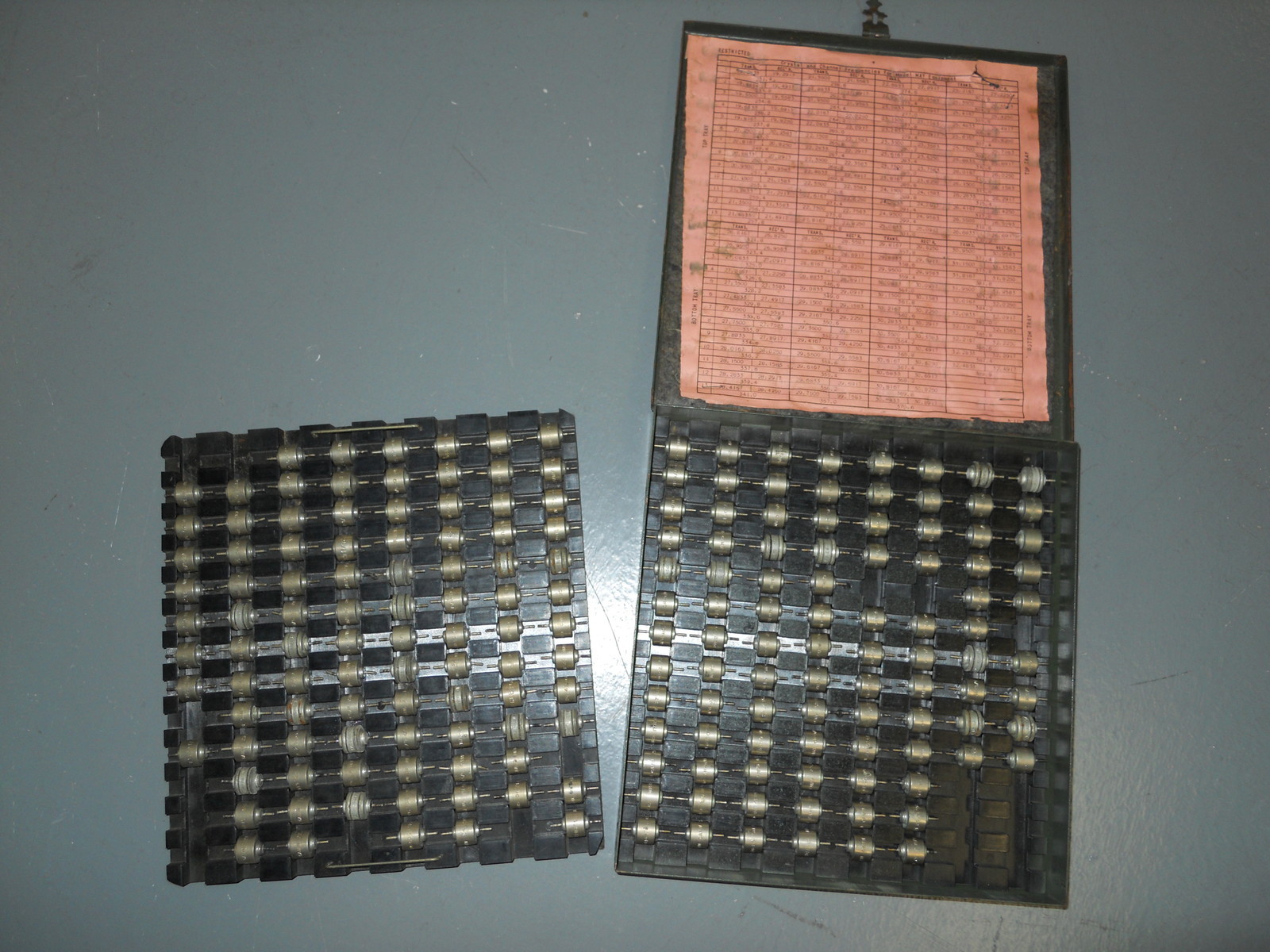

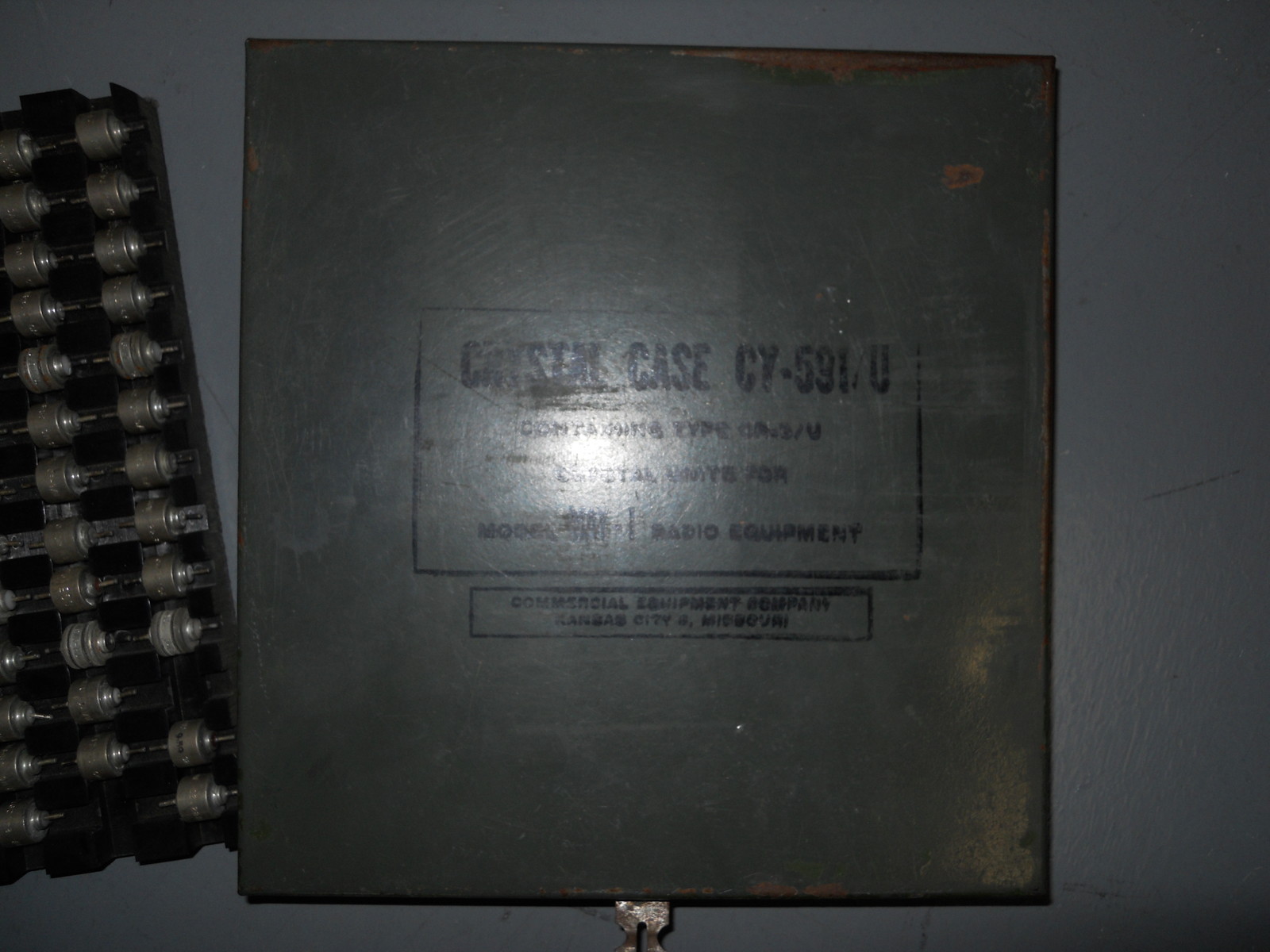

MAY Crystals			--

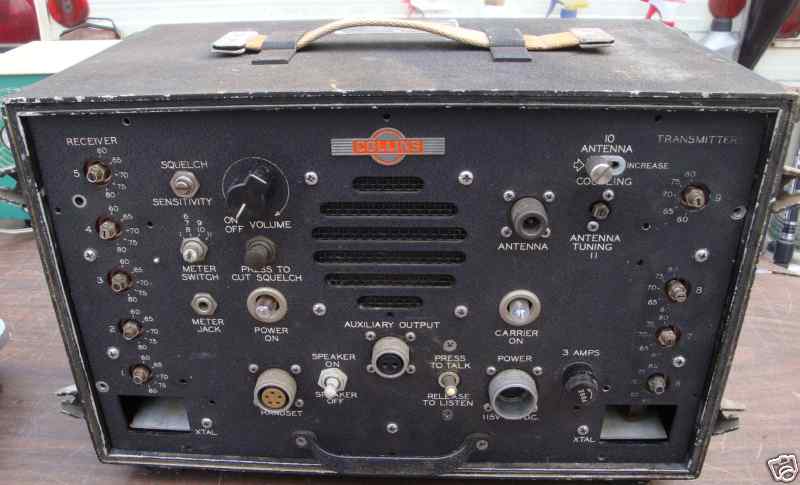

MBF MBF Spec Sheets More MBF photos and info			--

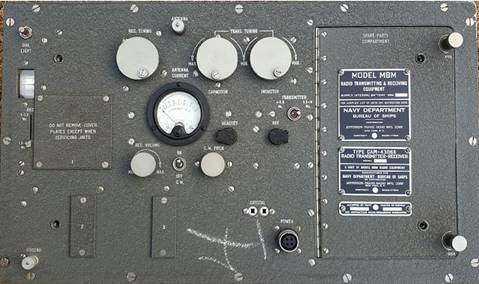

MBM (CAPI- 43066)	Manufacturer: Jefferson Travis Year of production: 1945 only Production: at least 157, this unit's serial. Weight: 20 lbs ( trans-rec unit only ) Freq range: 4-7.5, 7.5-14 Mcs. Modes: receive A1 A2 A3, transmit A1 Emission power: 20-12 watt; lower power on crystal harmonic. Transmitter, 6V6, 6L6	Employment: coastwatcher and forward operations in Pacific War theater Power: hand-cranked generator, or internal 6 volt storage battery in Power Supply unit (not shown ), or external 6 volt battery. Four screw holes at 4 corners receive the fasteners for the waterproof lid. Three composite units are supplied in luggage-style suitcase: radio unit; power-supply with internal battery; hand-crank generator. Right 1/3 of radio pictured is storage area for spare tubes, crystals, headphone, key. Photo and Info thanks to Hue Miller Manual NAVSHIPS 900,581
MBN (AN/PRC-7(XN-1))	need photo	spec sheets	Manual NAVSHIPS 91389

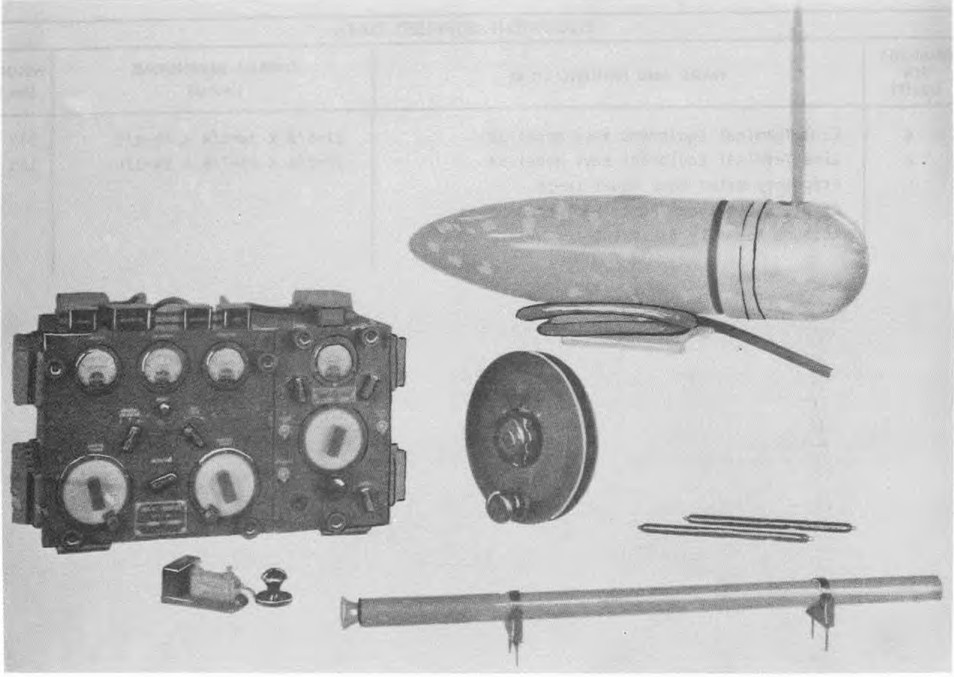

ME - airborne HF receiver-transmitter Spec Sheets 3000-4000 kc		- photo thanks to Hue Miller	Transmitter SE-3061 Receiver SE-3062 Case SE-3060 Generator SE-3067
The Model ME is designed for use with aircraft of the observation and reconnaissance types. Its purpose is for communications with both ships and other planes. The transmitter and receiver are enclosed in one case and connected by detachable cables to the wind driven generator, battery, key, antenna, and frame of the plane. Break-in operation is obtained by means of a relay which connects the antenna to the transmitter when the key is closed but leaves the antenna connected to the receiver at all other tines. Transmission is continuous wave, crystal controlled, at a predetermined constant frequency. The receiver is of the non-radiating type arranged for damped or un-damped wave reception.
MM portable transmitter-receiver (TBW + RBM)	1944 - TBW xmtr with RBM receivers	1945 - TBW xmtr with RBM receivers	--

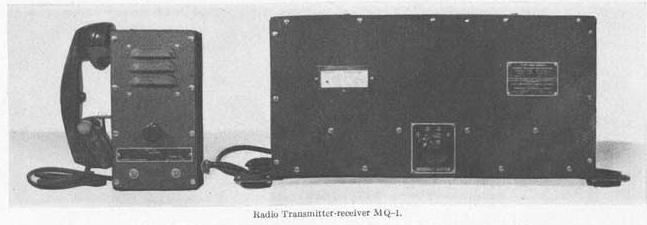

MO - see MAK	--	MQ transmitter-receiver More MQ photos and info

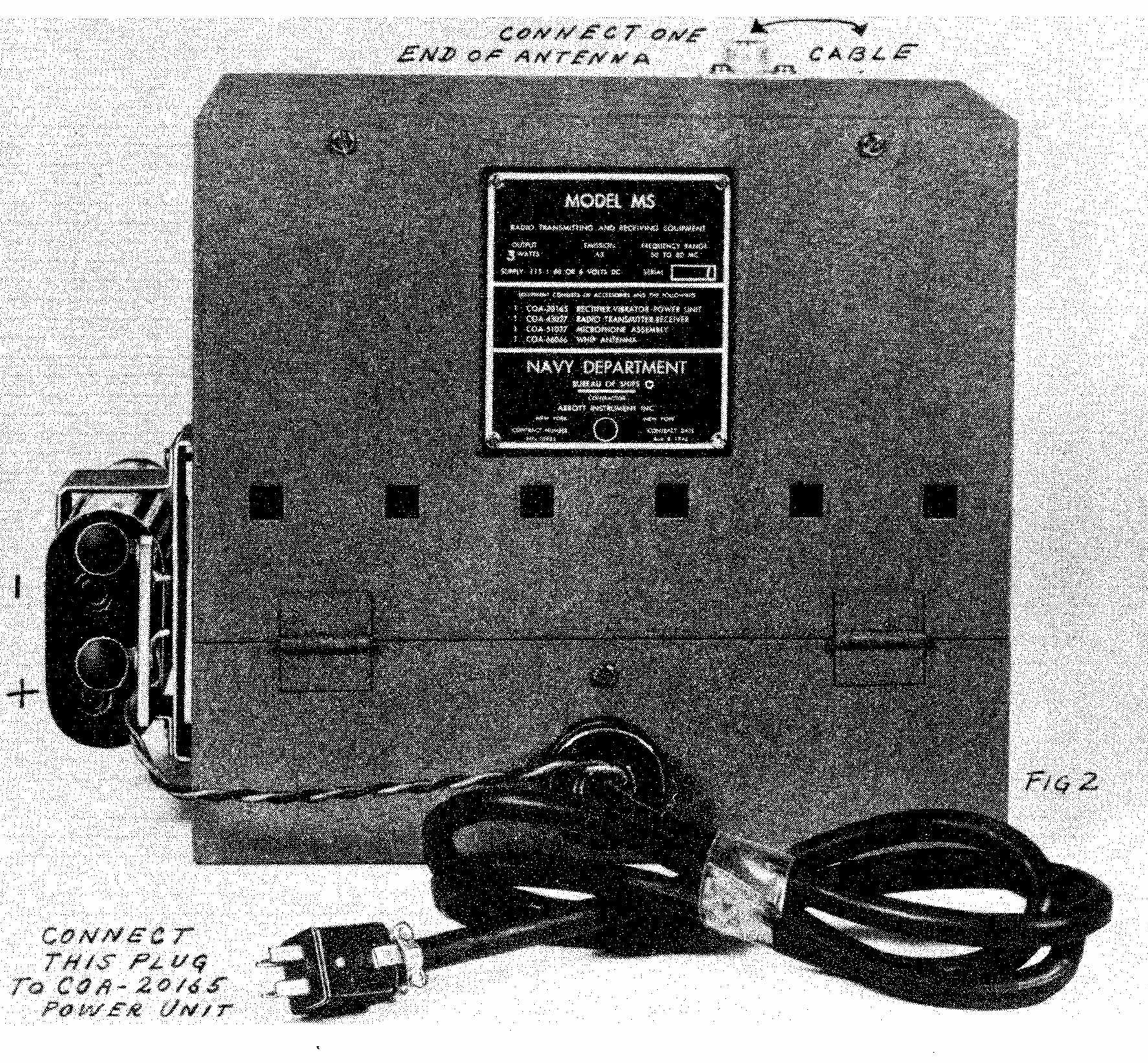

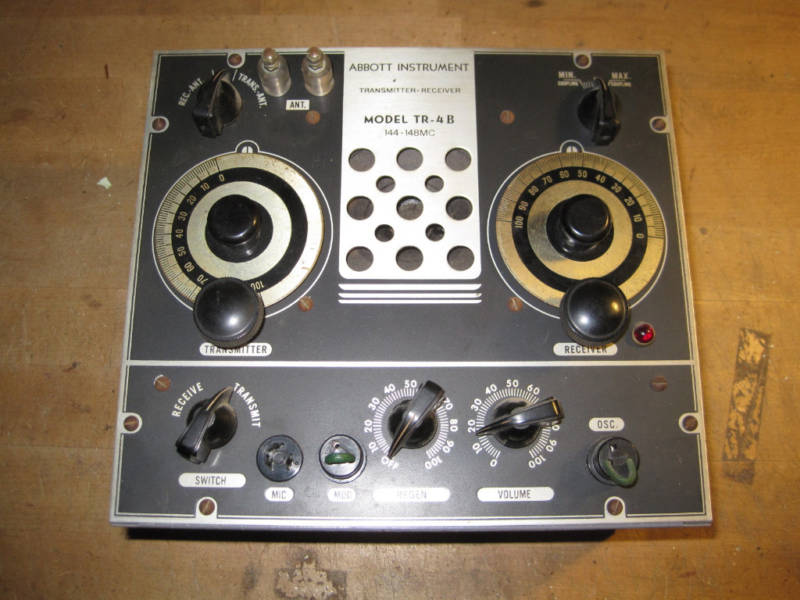

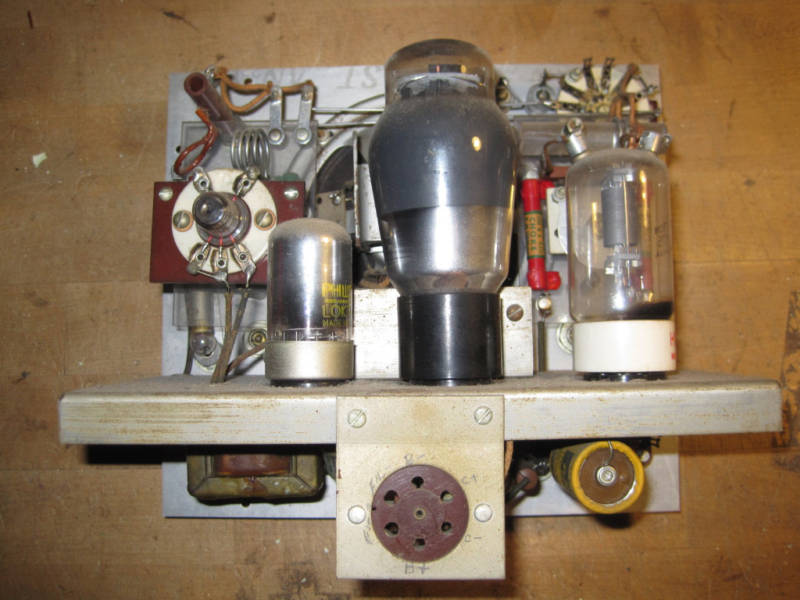

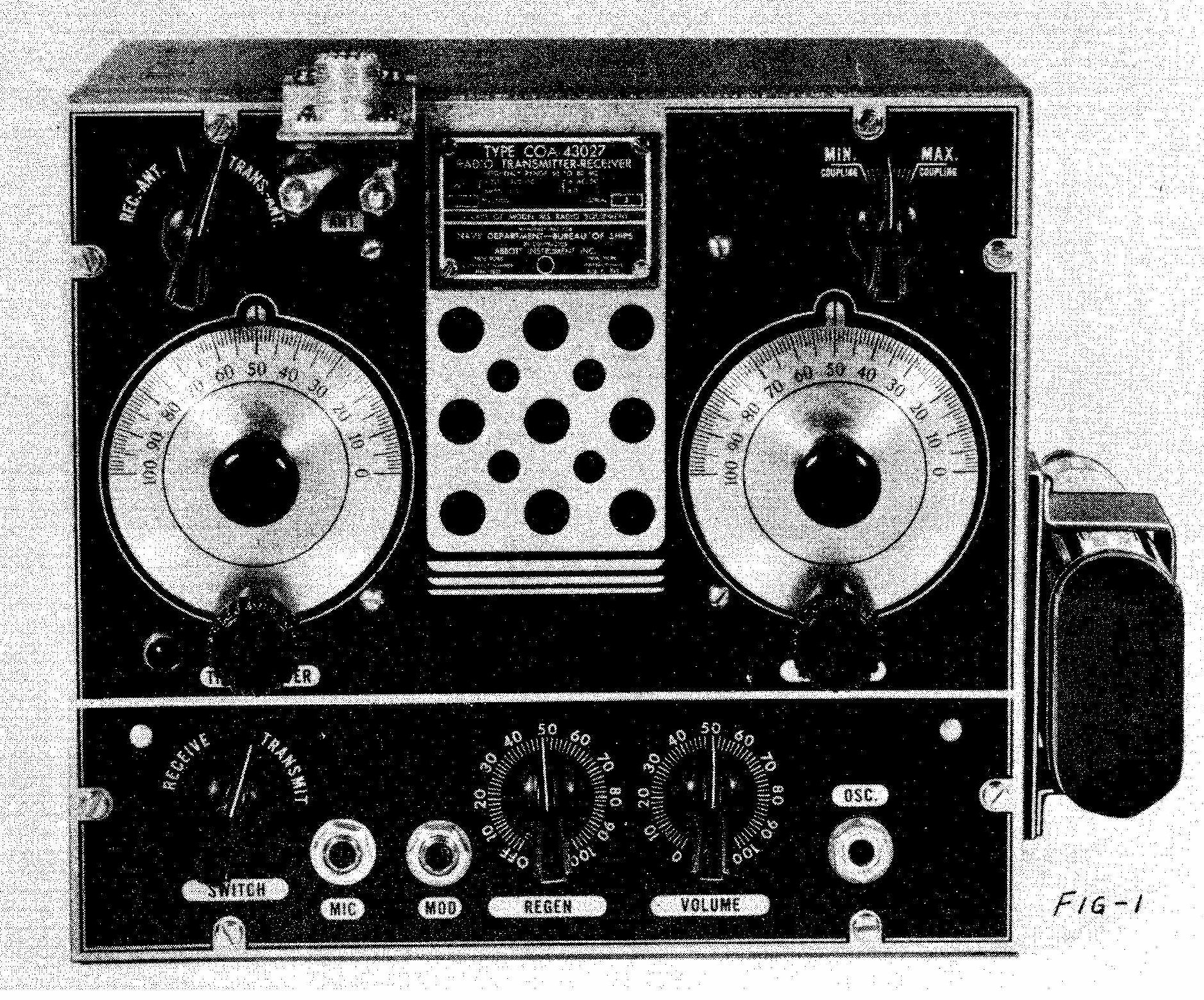

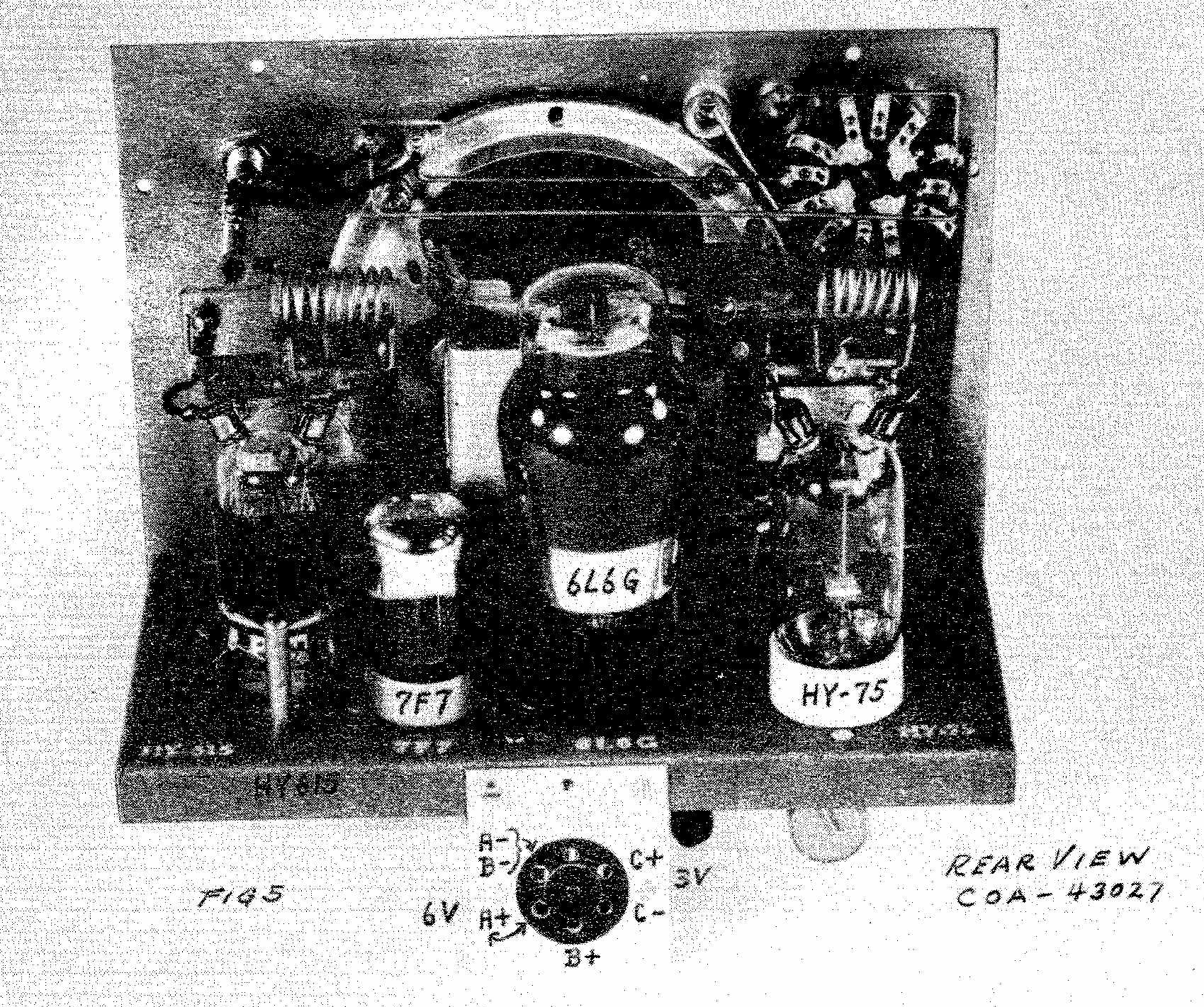

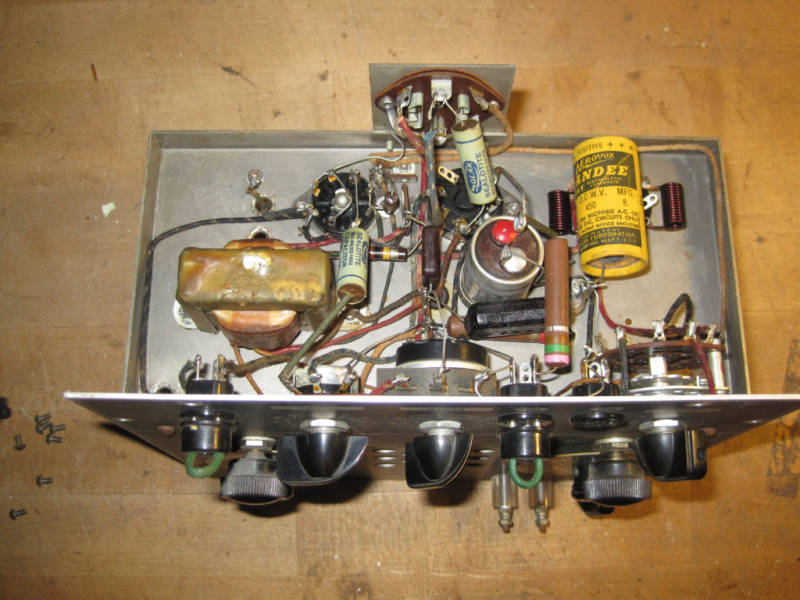

MS (Abbott TR-4)	60-80mc AM		Download manual
			--

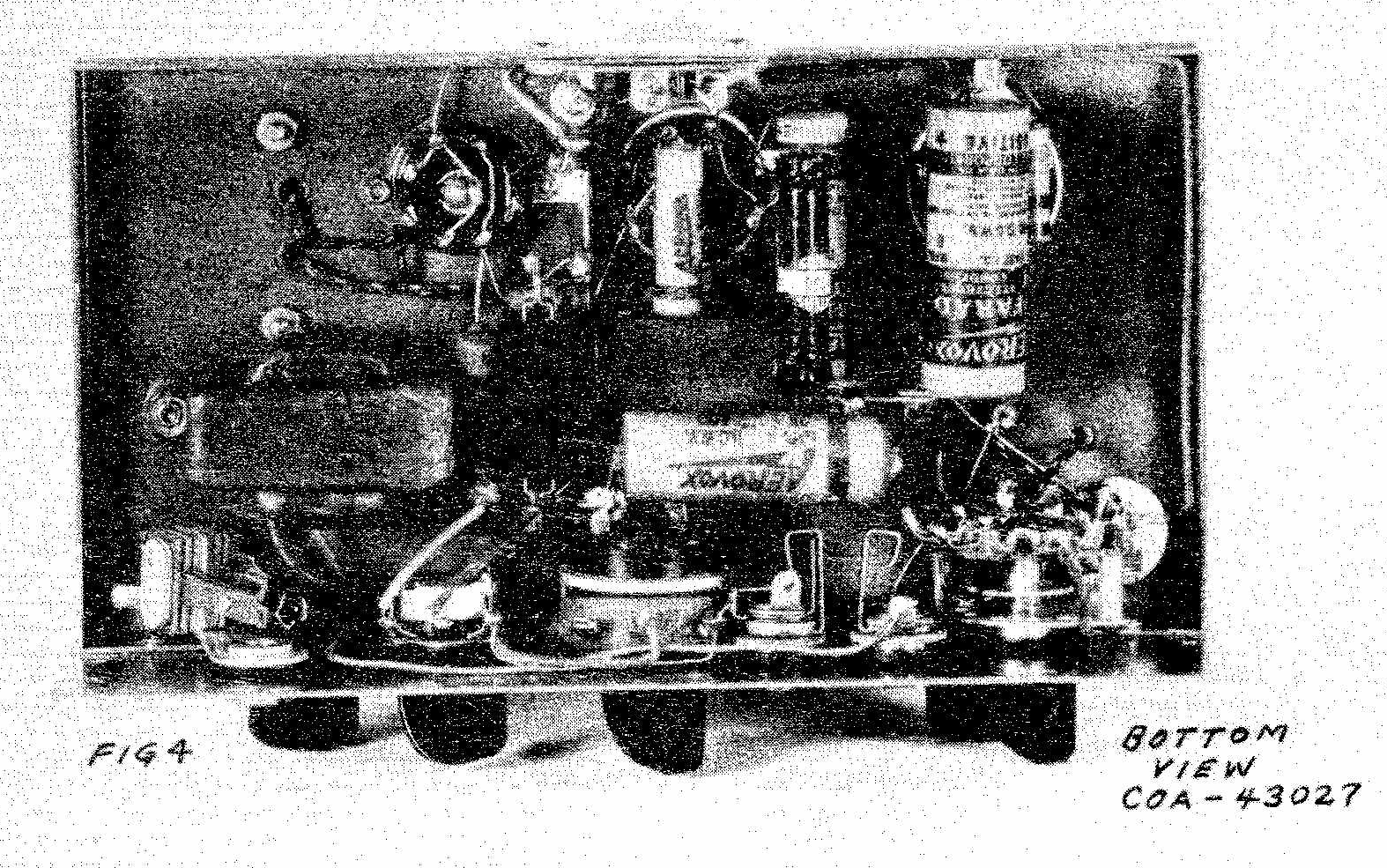

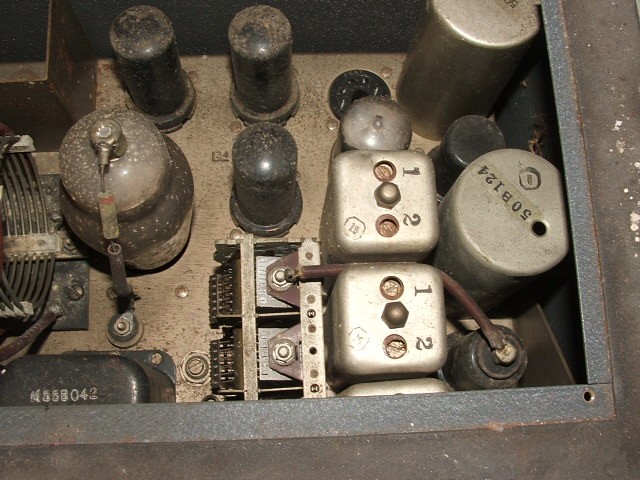

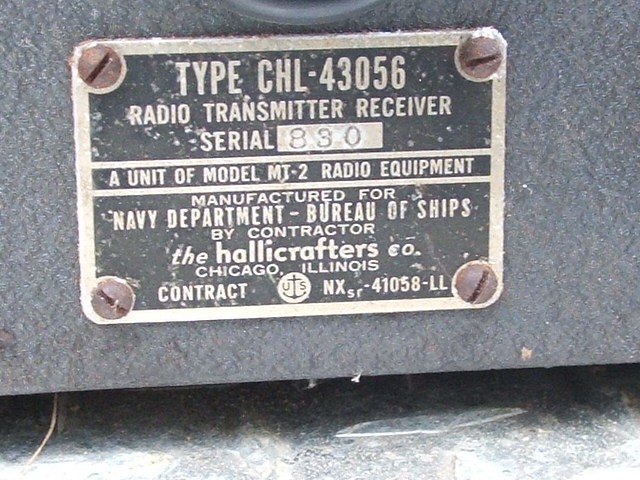

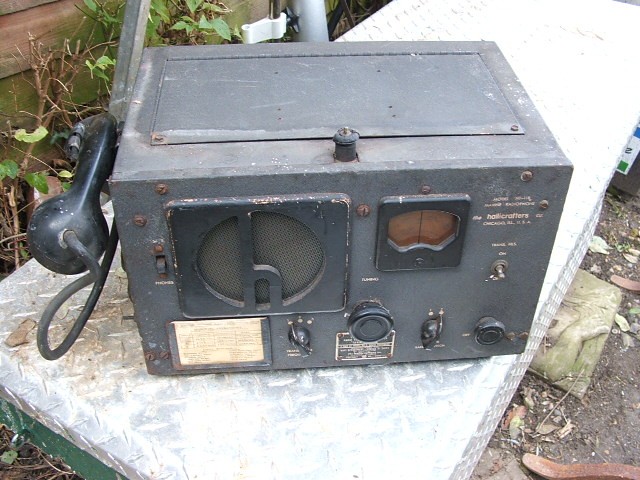

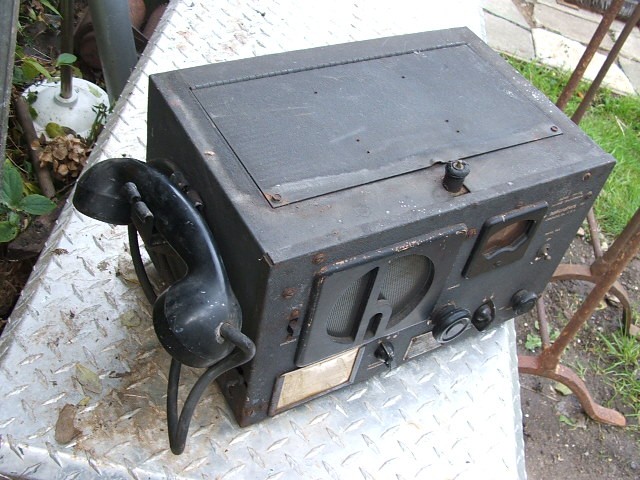

MT-2 (CHL-43056) (Hallicrafters HT-11)

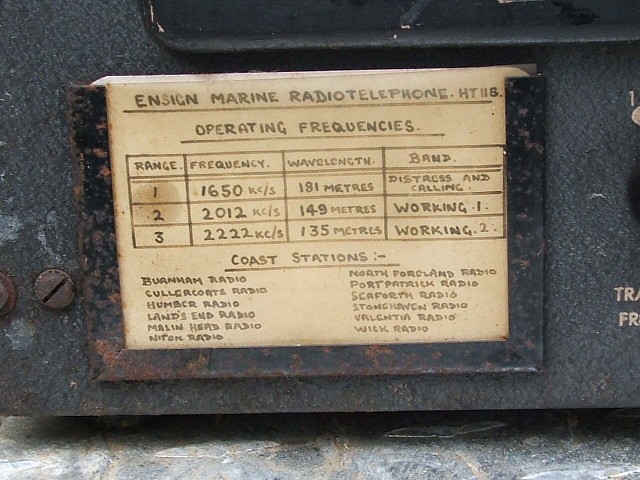

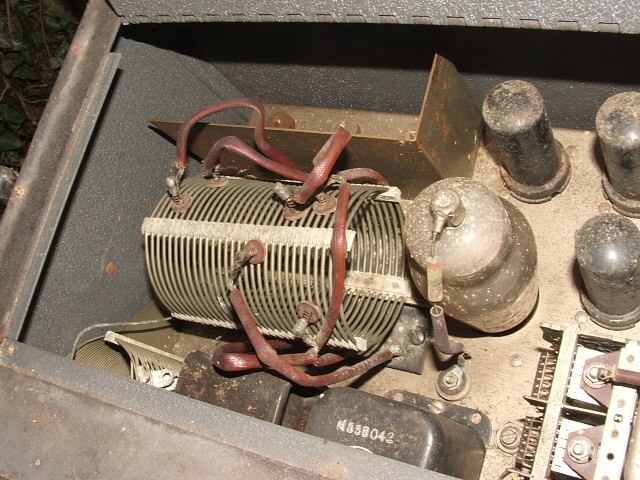

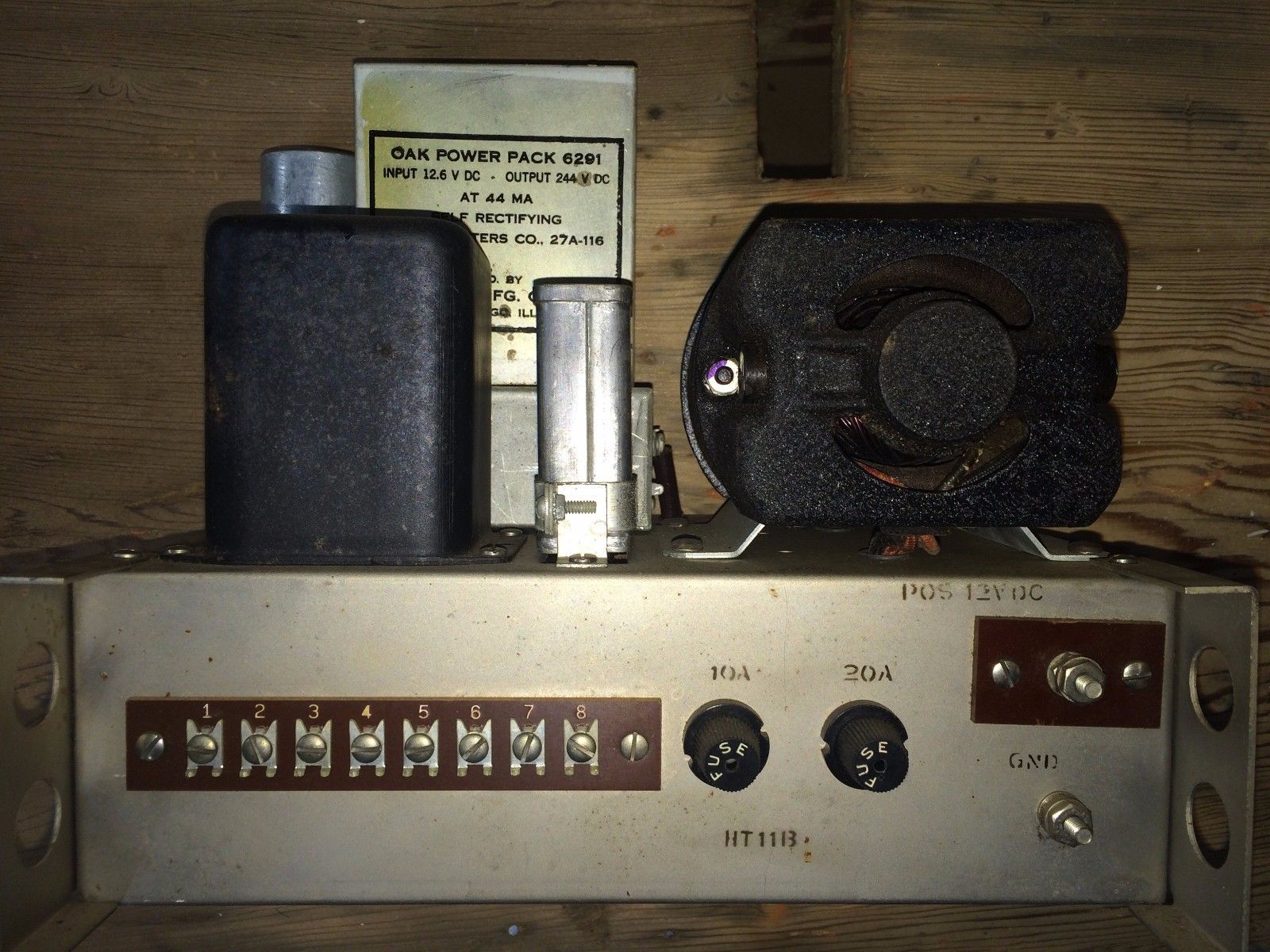

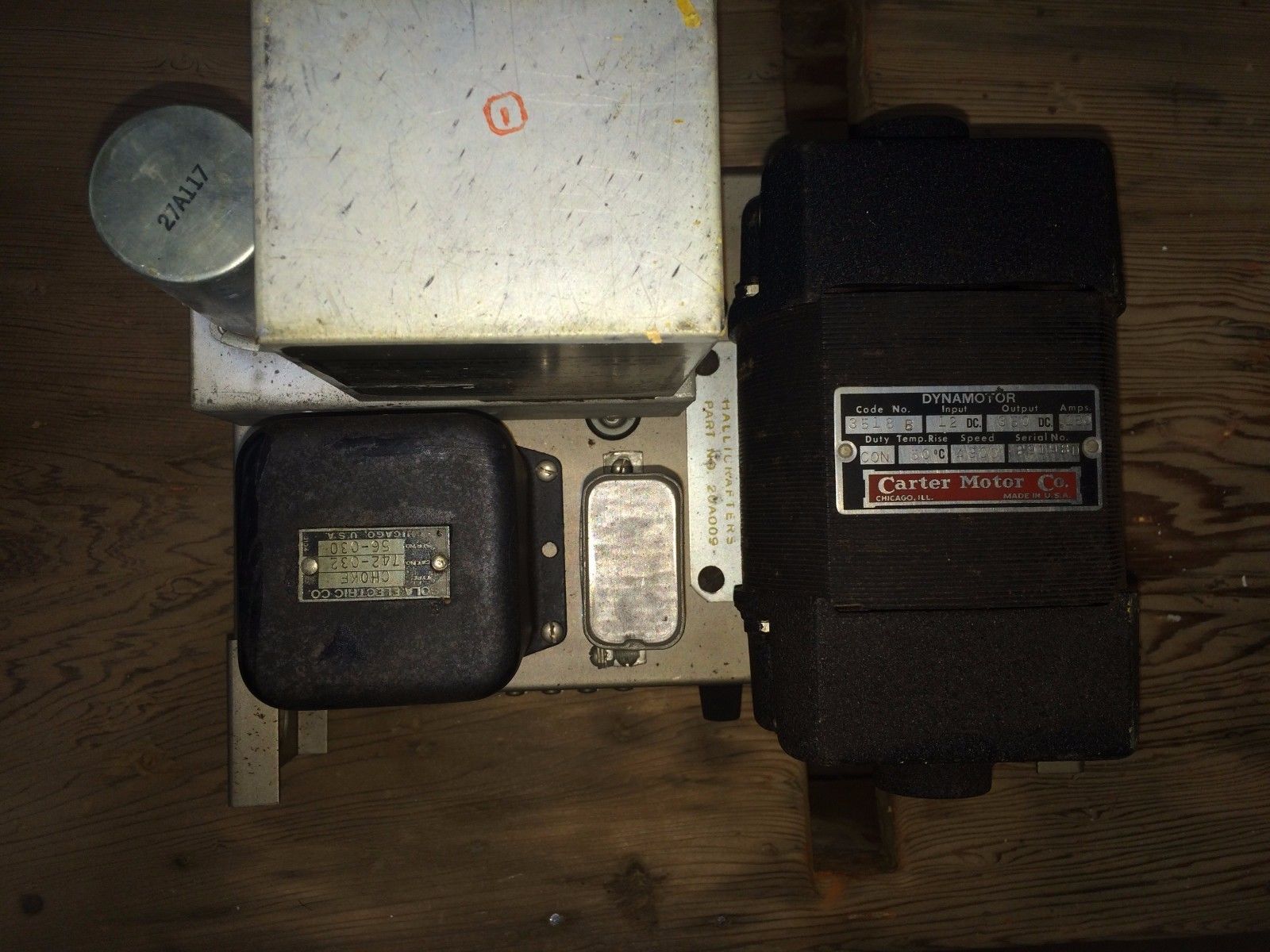

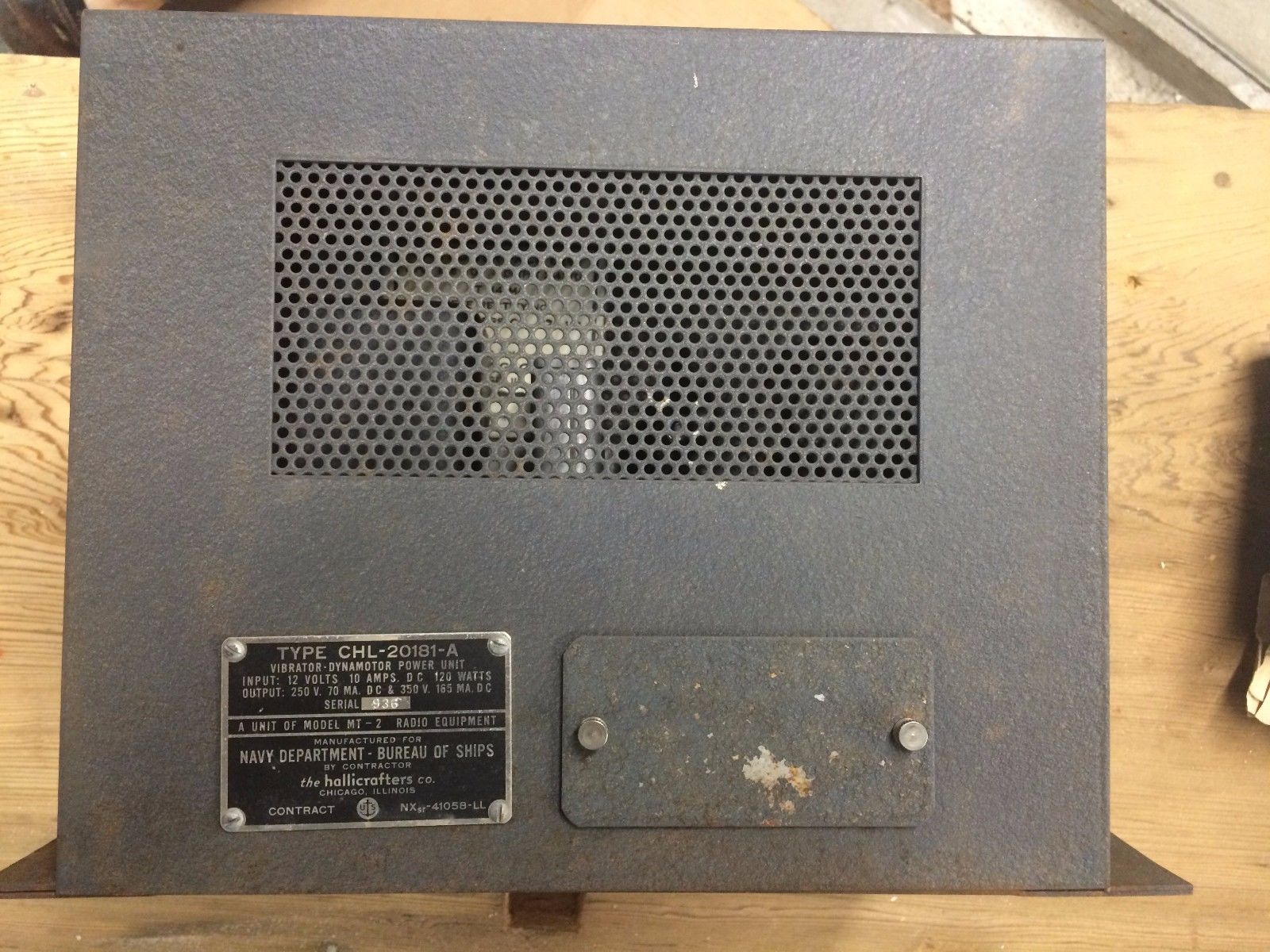

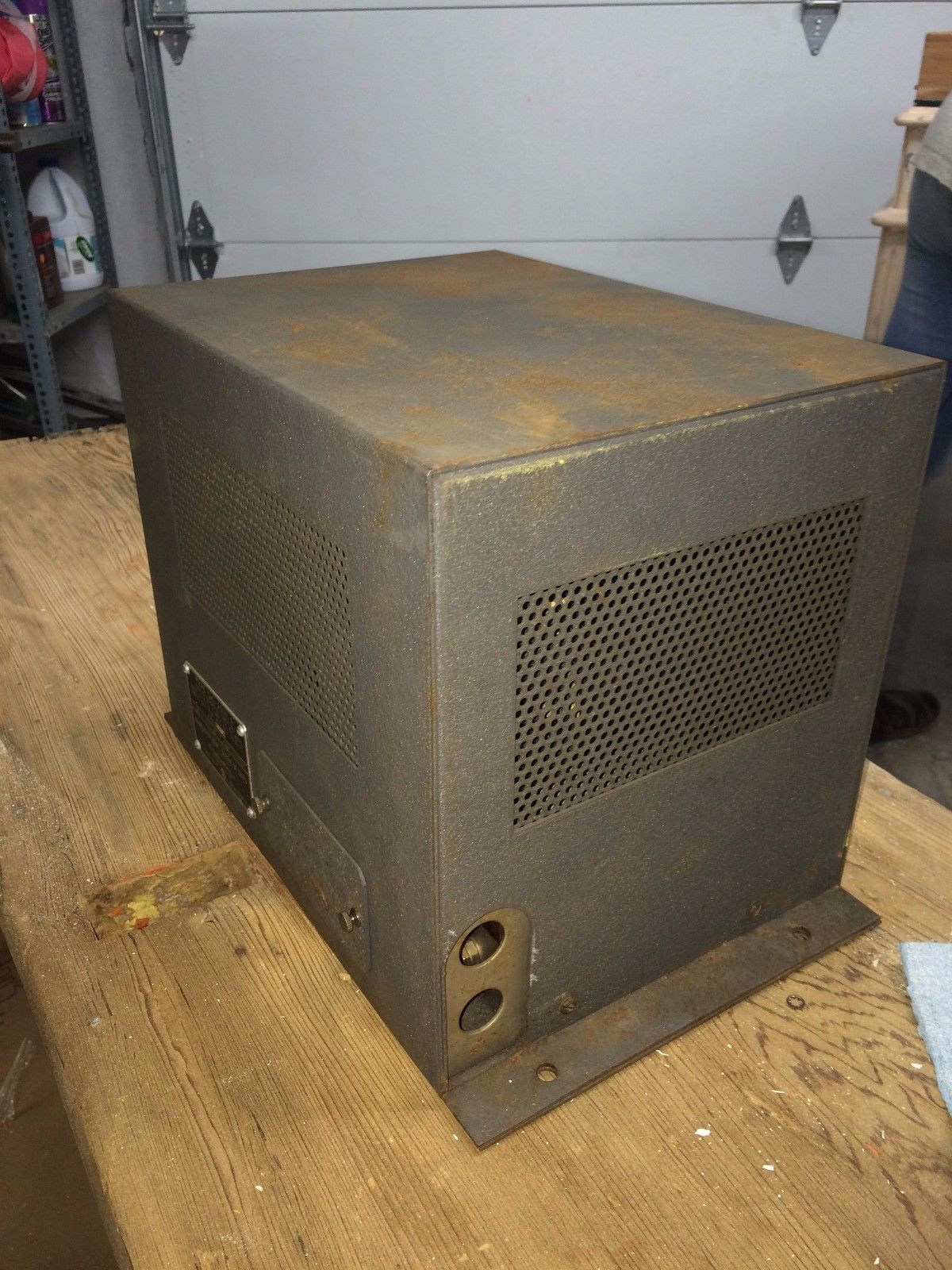

CHL-20181-A power supply for MT-2
		--	--

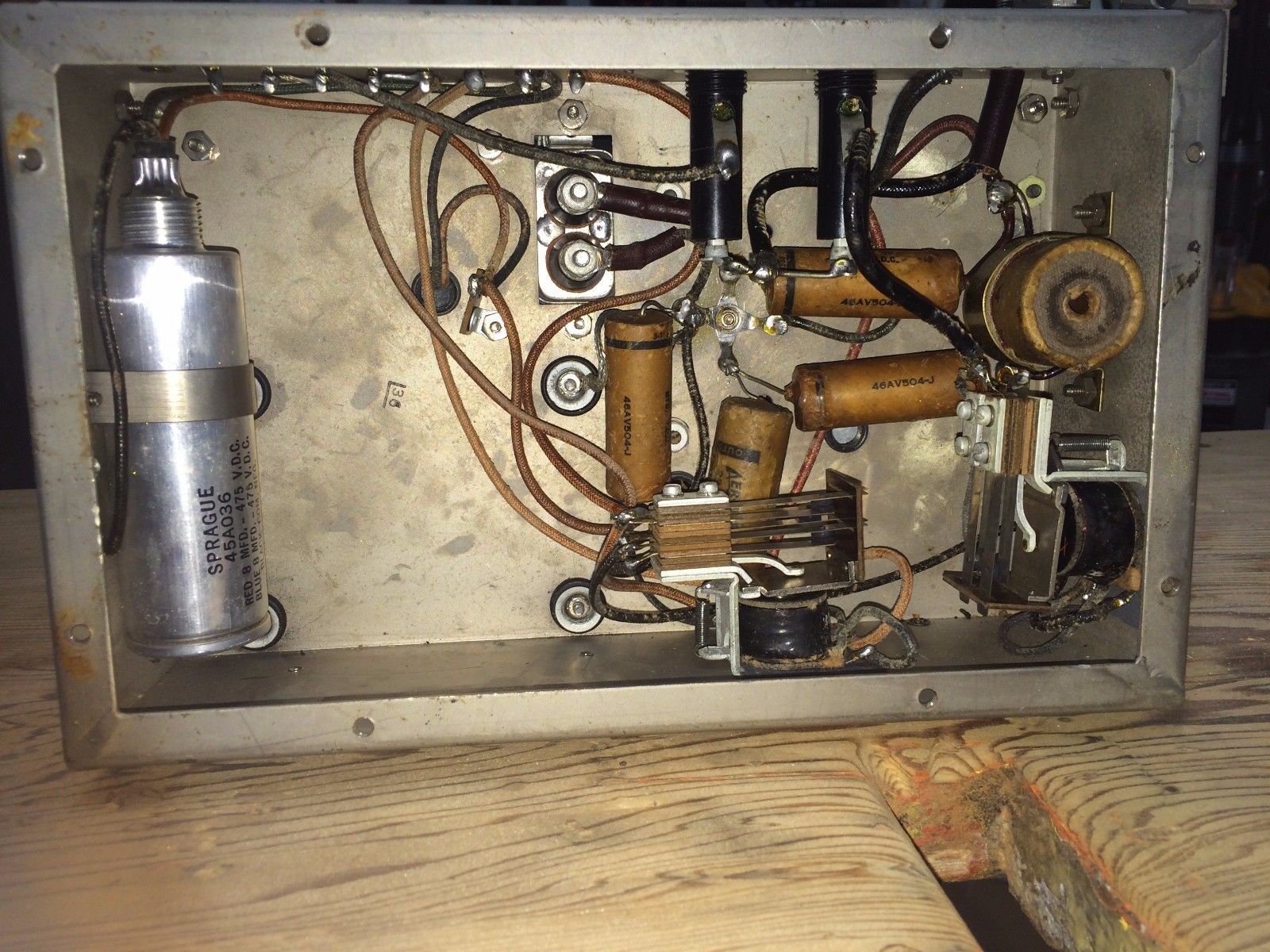

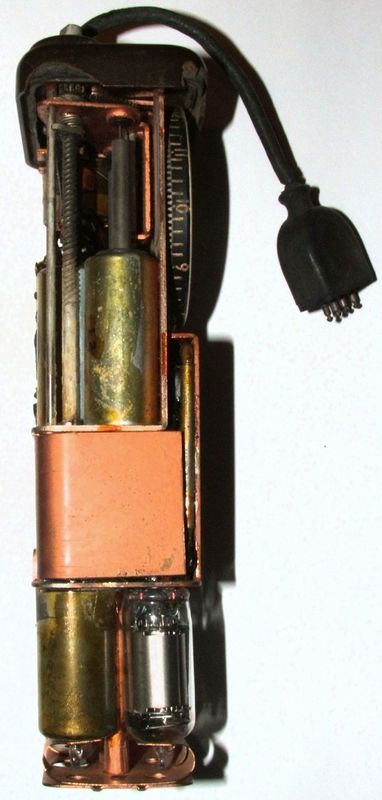

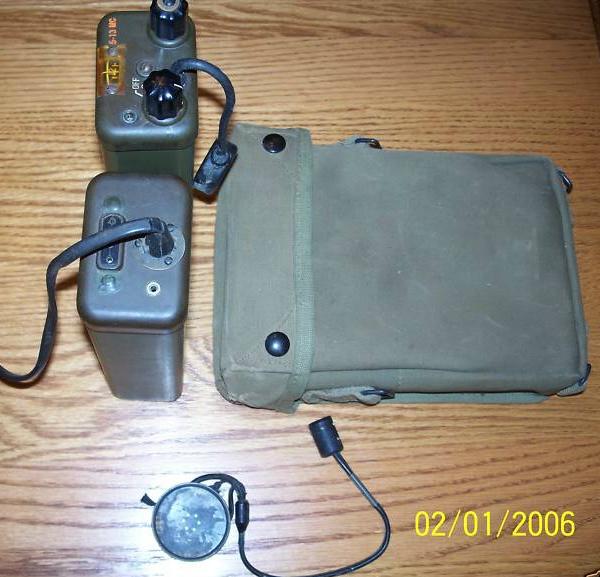

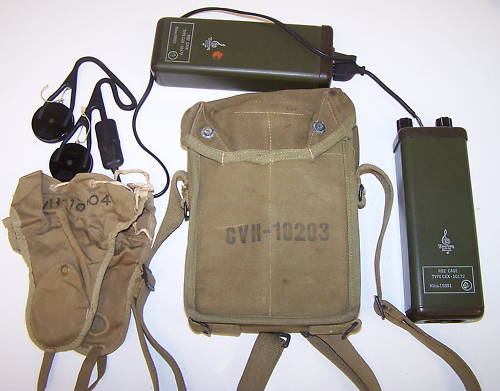

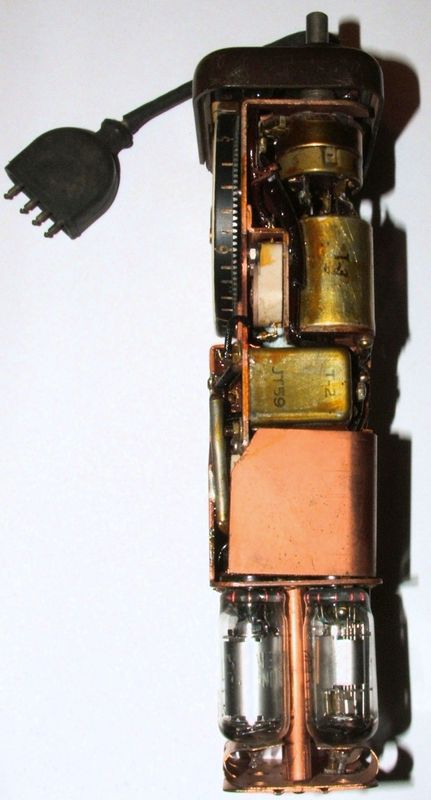

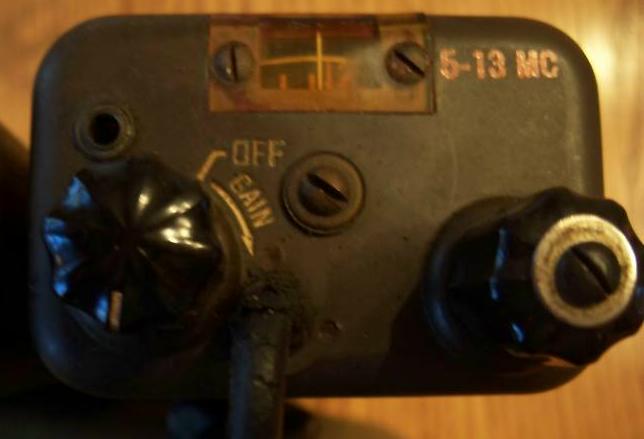

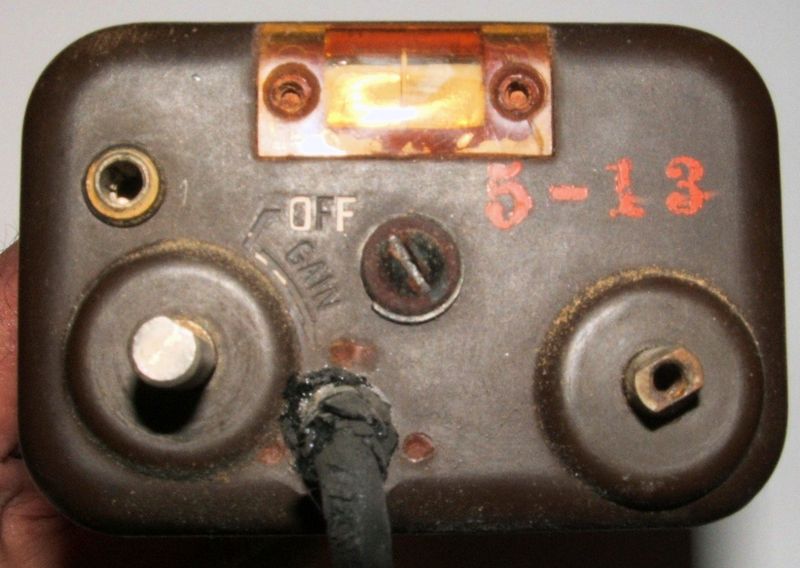

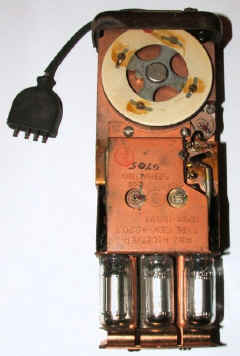

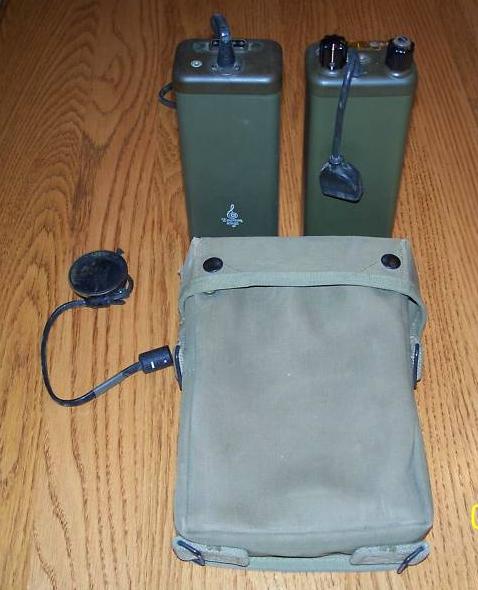

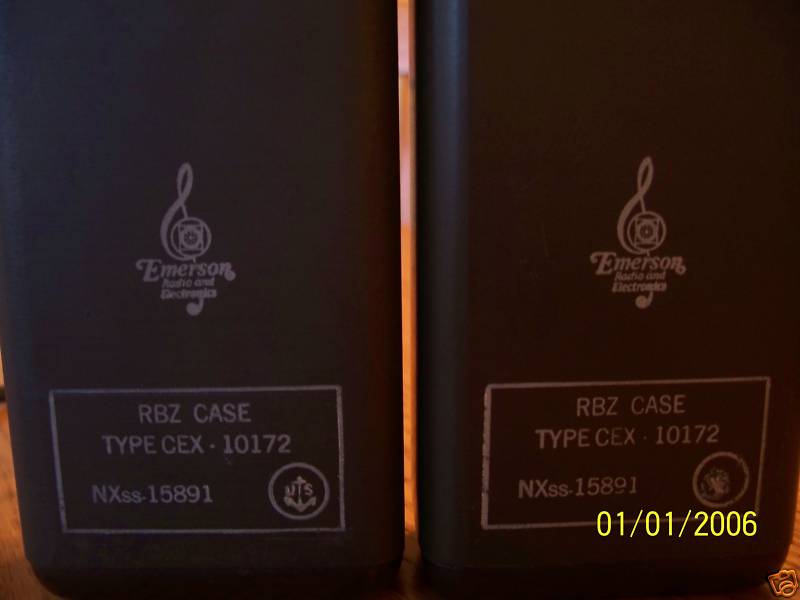

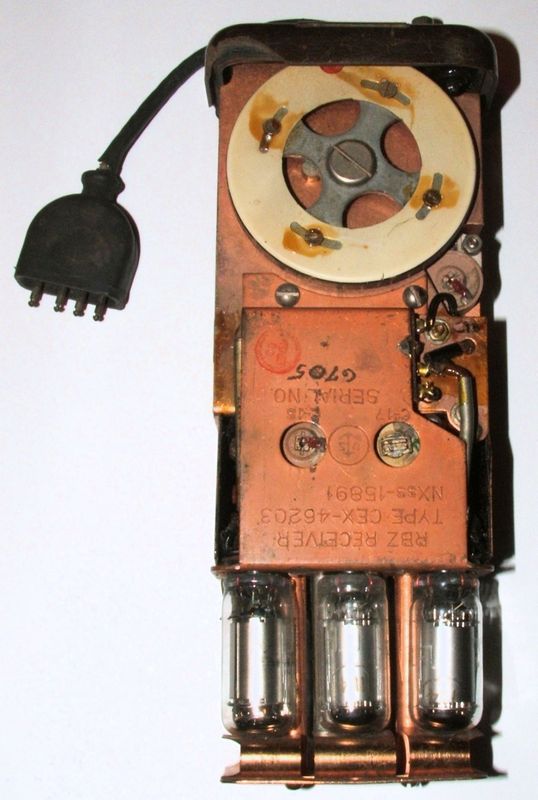

RBZ RBZ Spec Sheets


		--	--

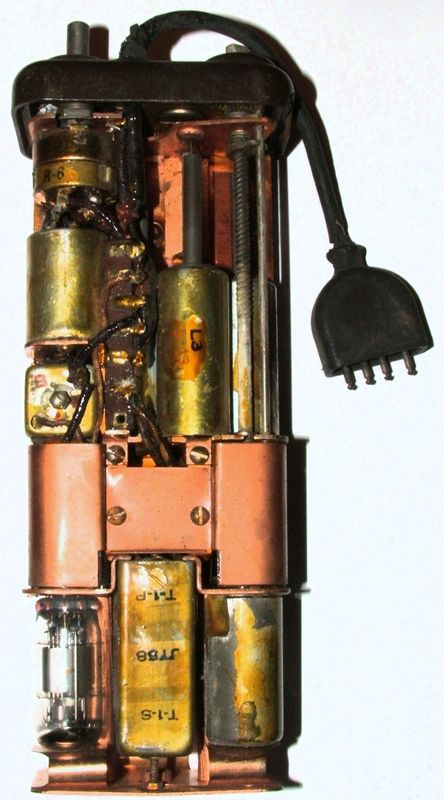

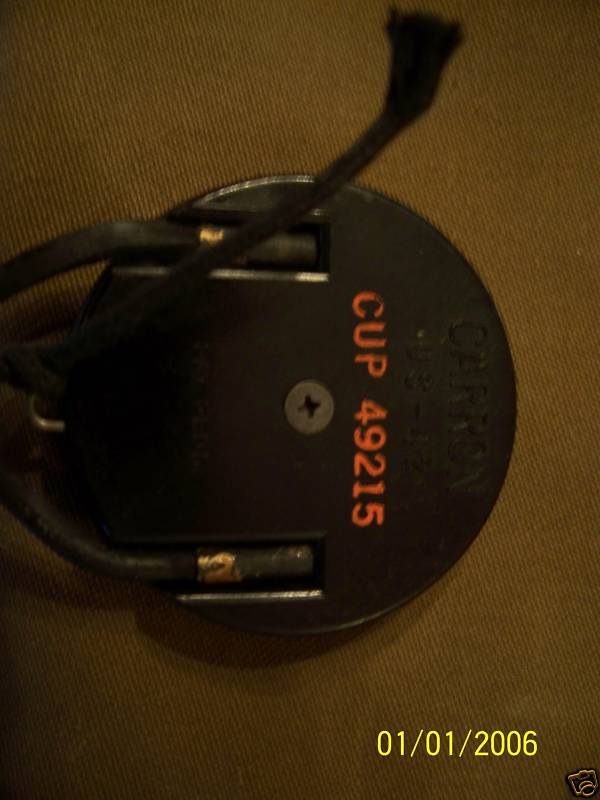

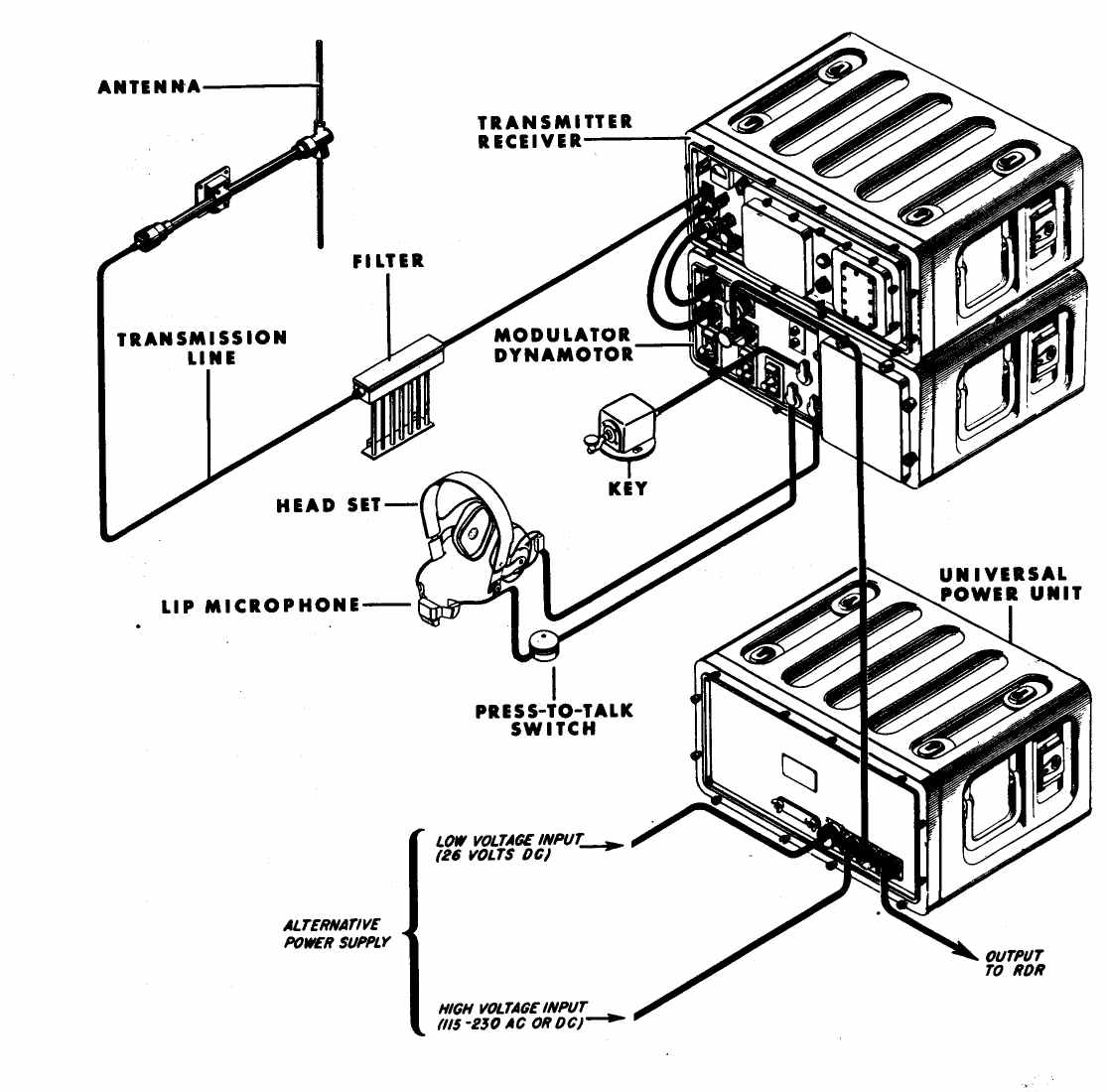

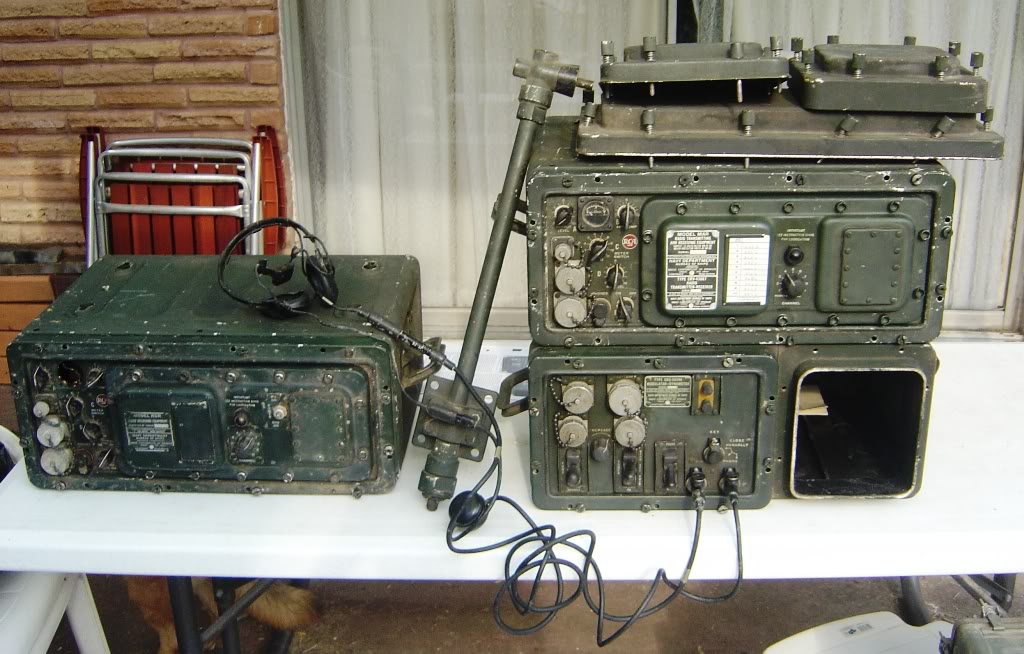

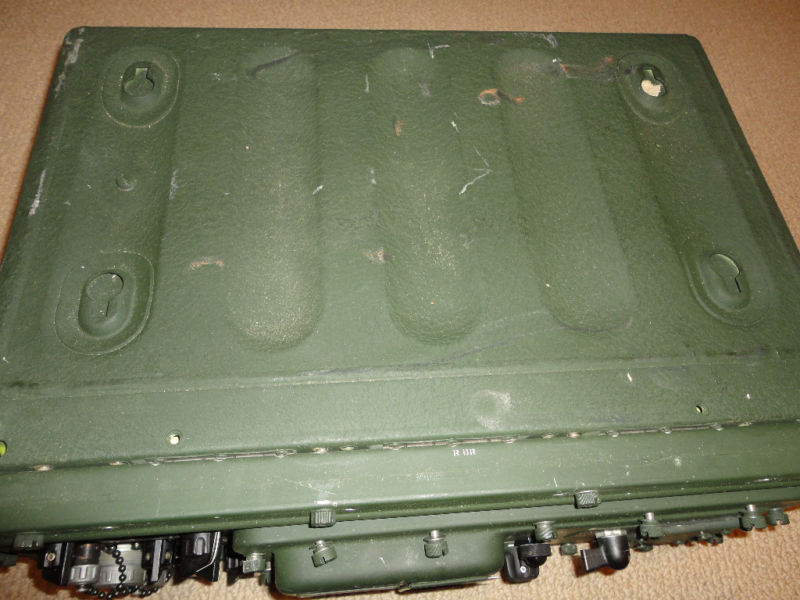

RDR (CRV-46283) RDR Spec Sheets Also see MAR page and manual			Manual - NAVSHIPS 900,841

			Photo thanks to WB5WSV
			Photo thanks to WB5WSV

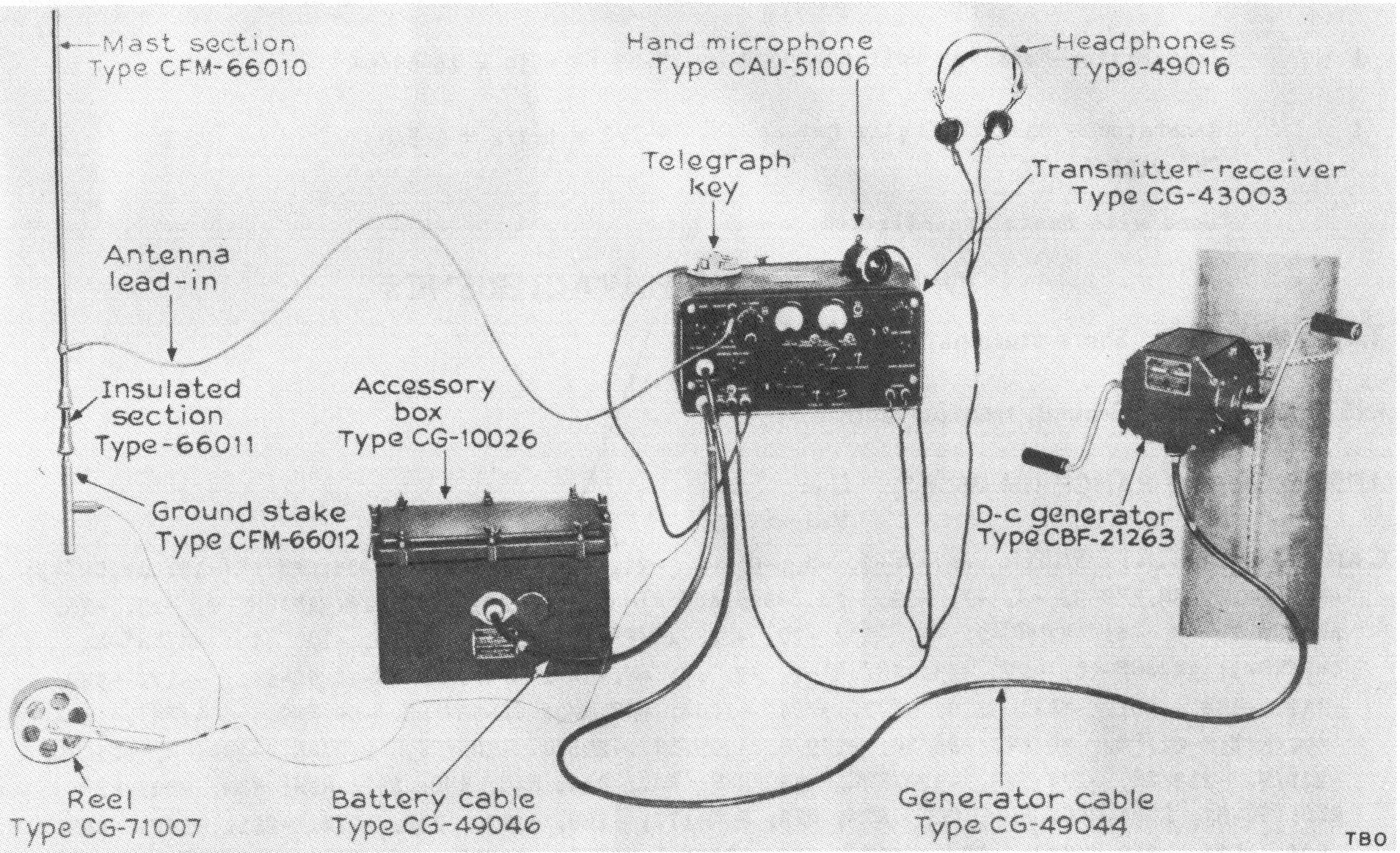

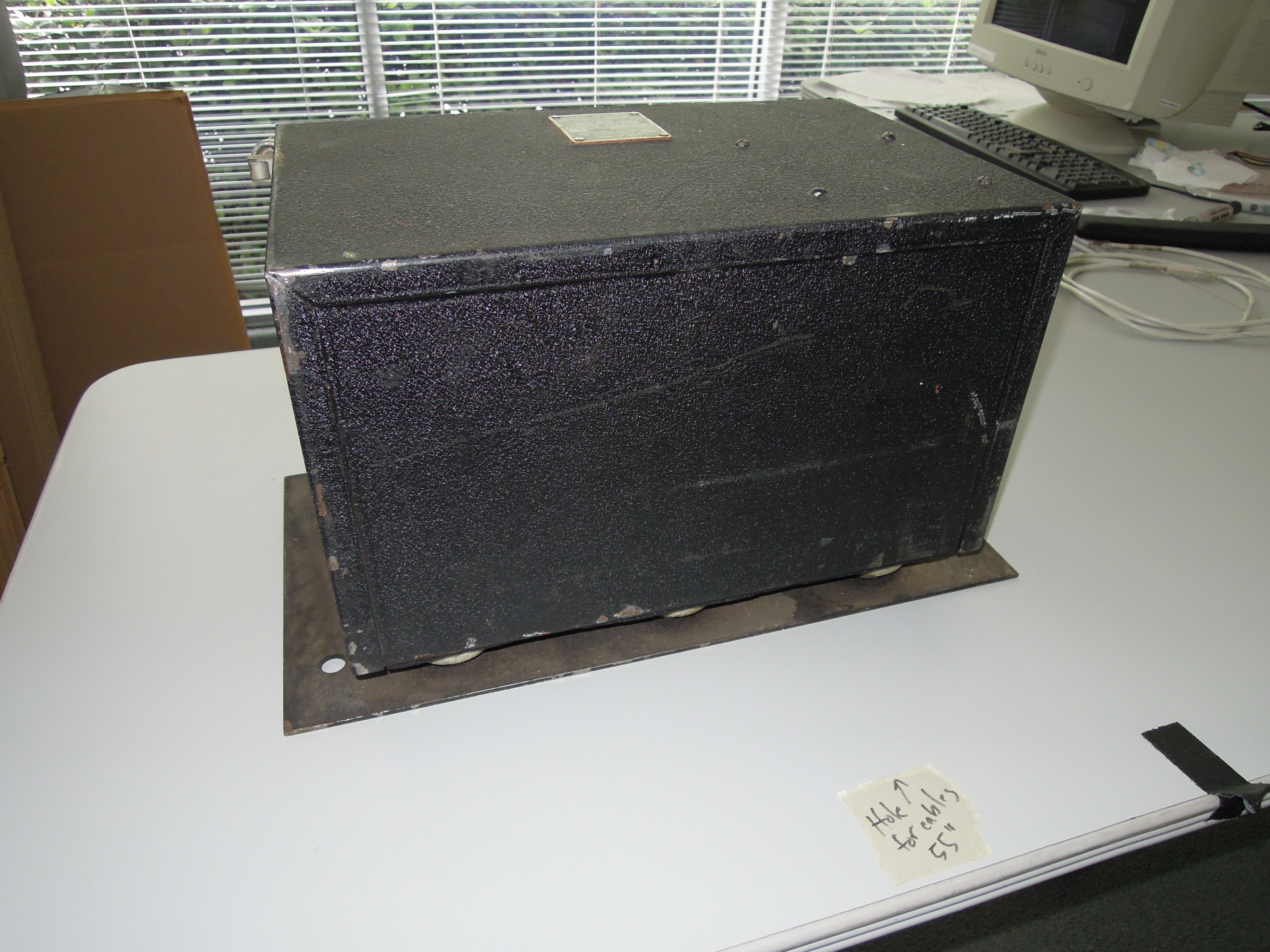

TBO predecessor to TBX GE model 4KH1A1 Need a better photo and more info		Photos - click on the expand icon in upper-right of the photo, then you can zoom in on a high-res version. Photo 1 - system Photo 2 - cases Photo 3 - exterior Photo 4 - interior Photo 5 - accessory box	Transmitter 2000-3500 kc Receiver 2000-8000 kc Spec Sheet

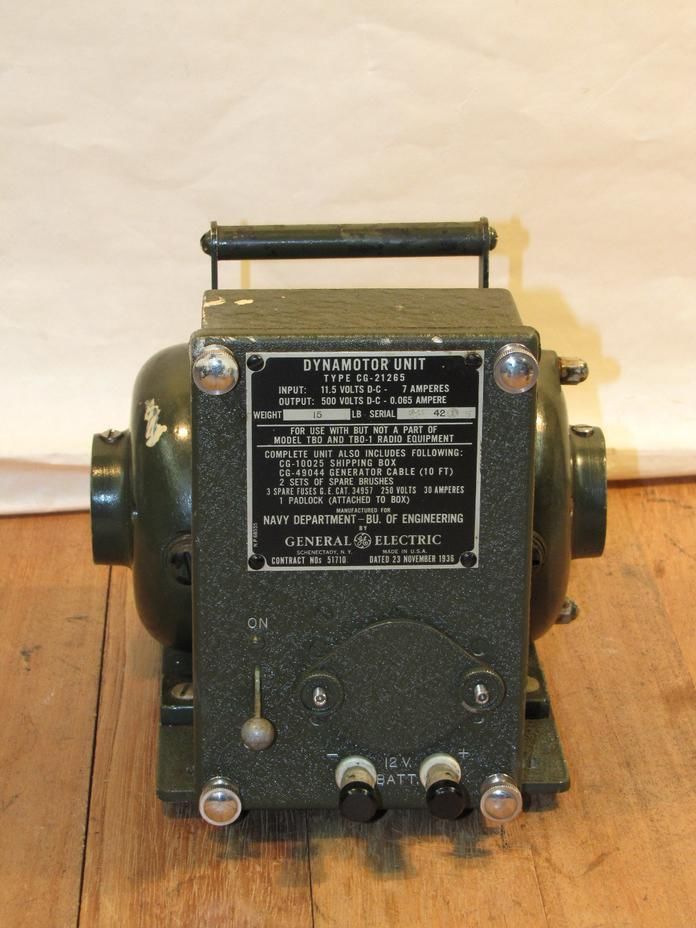

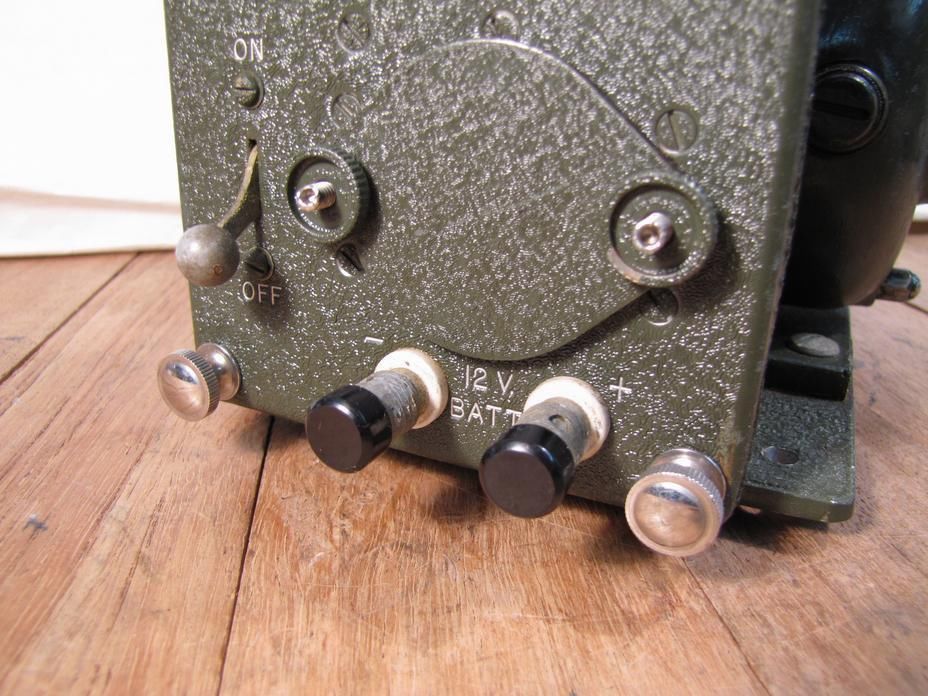

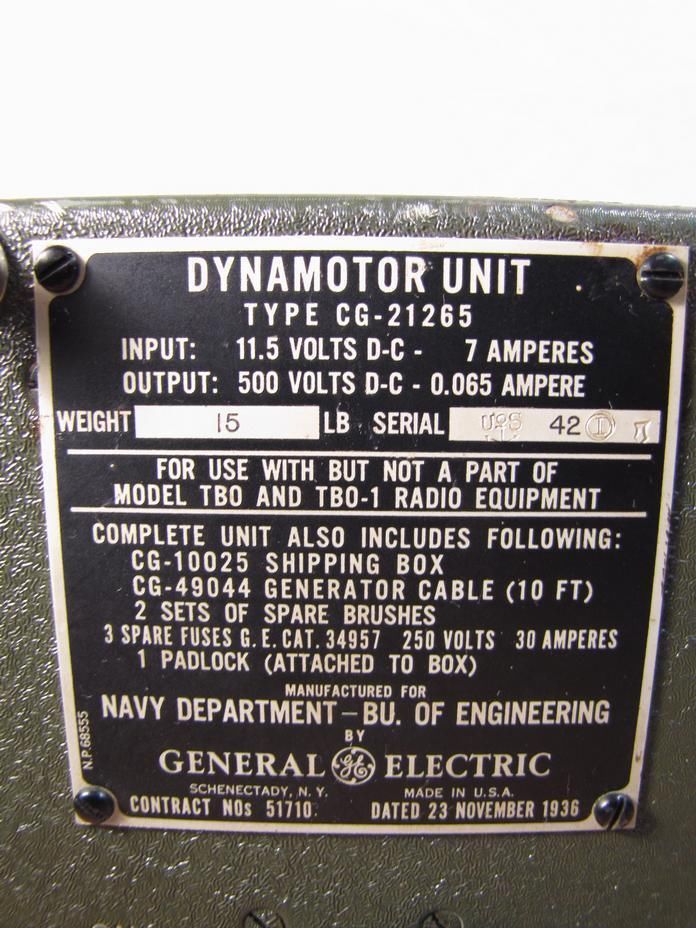

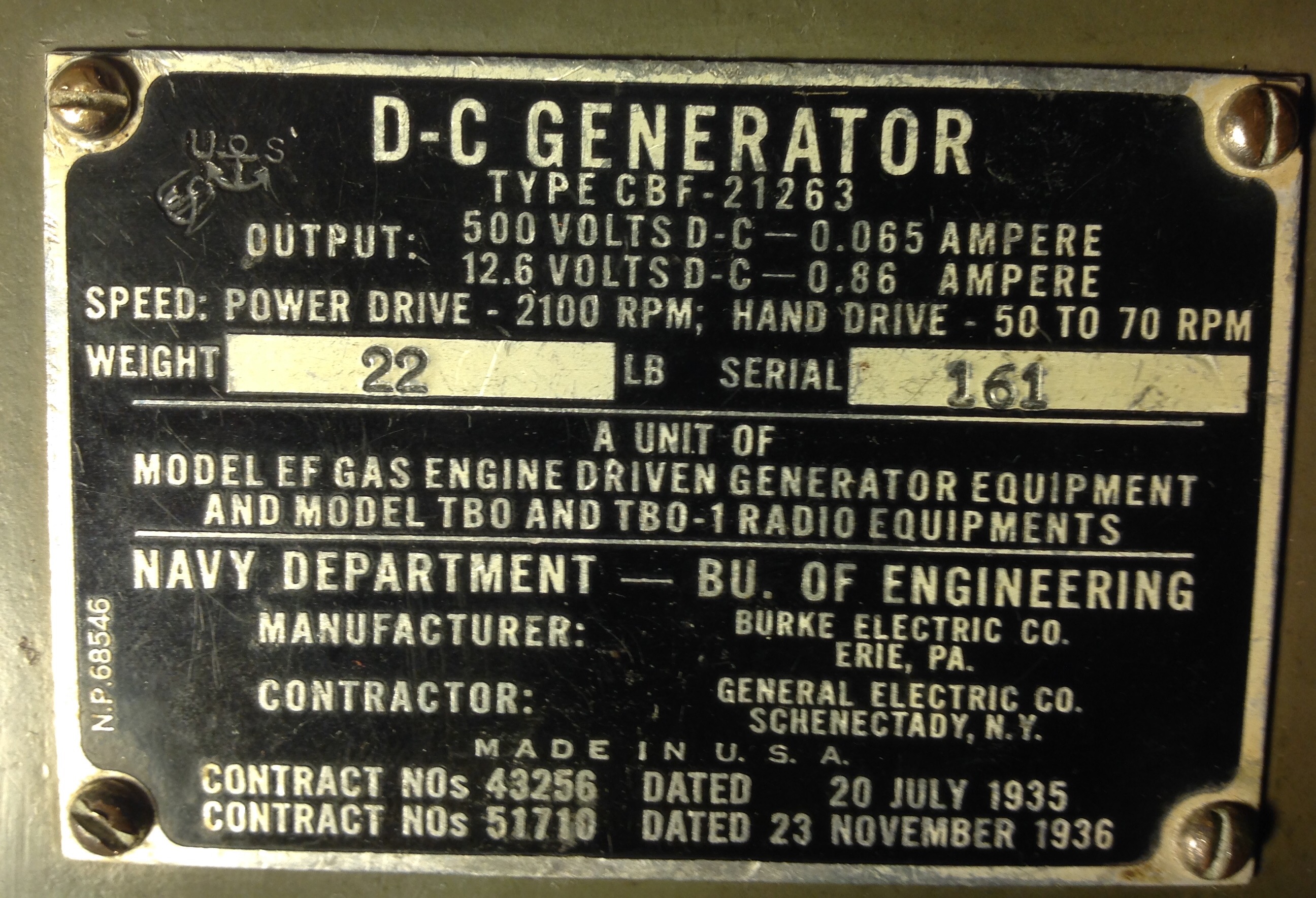

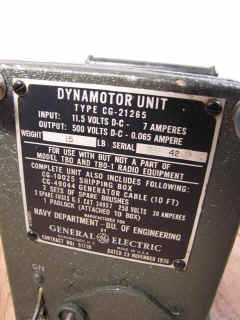

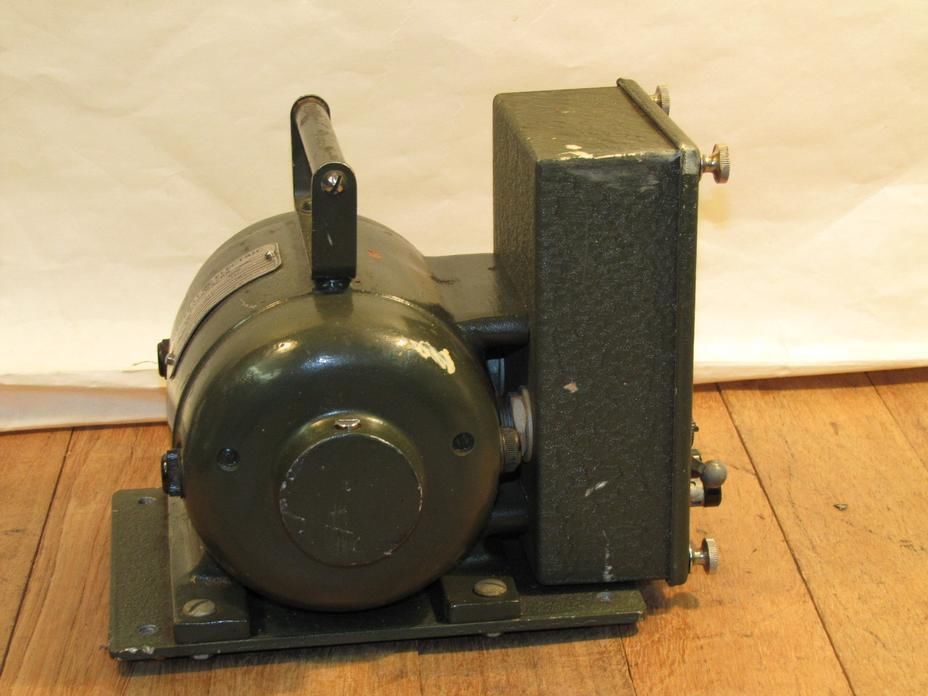

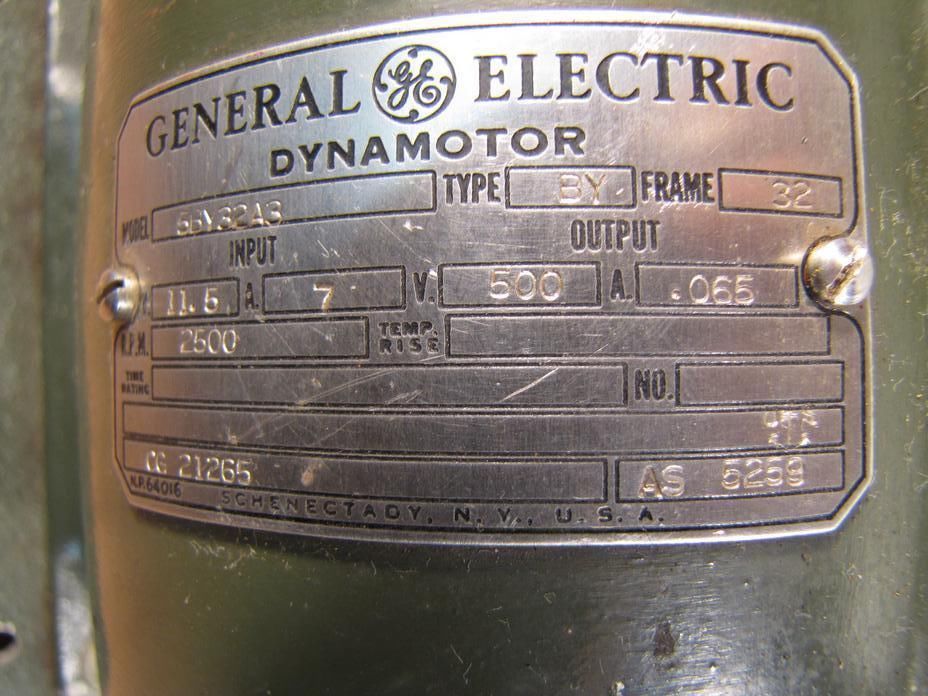

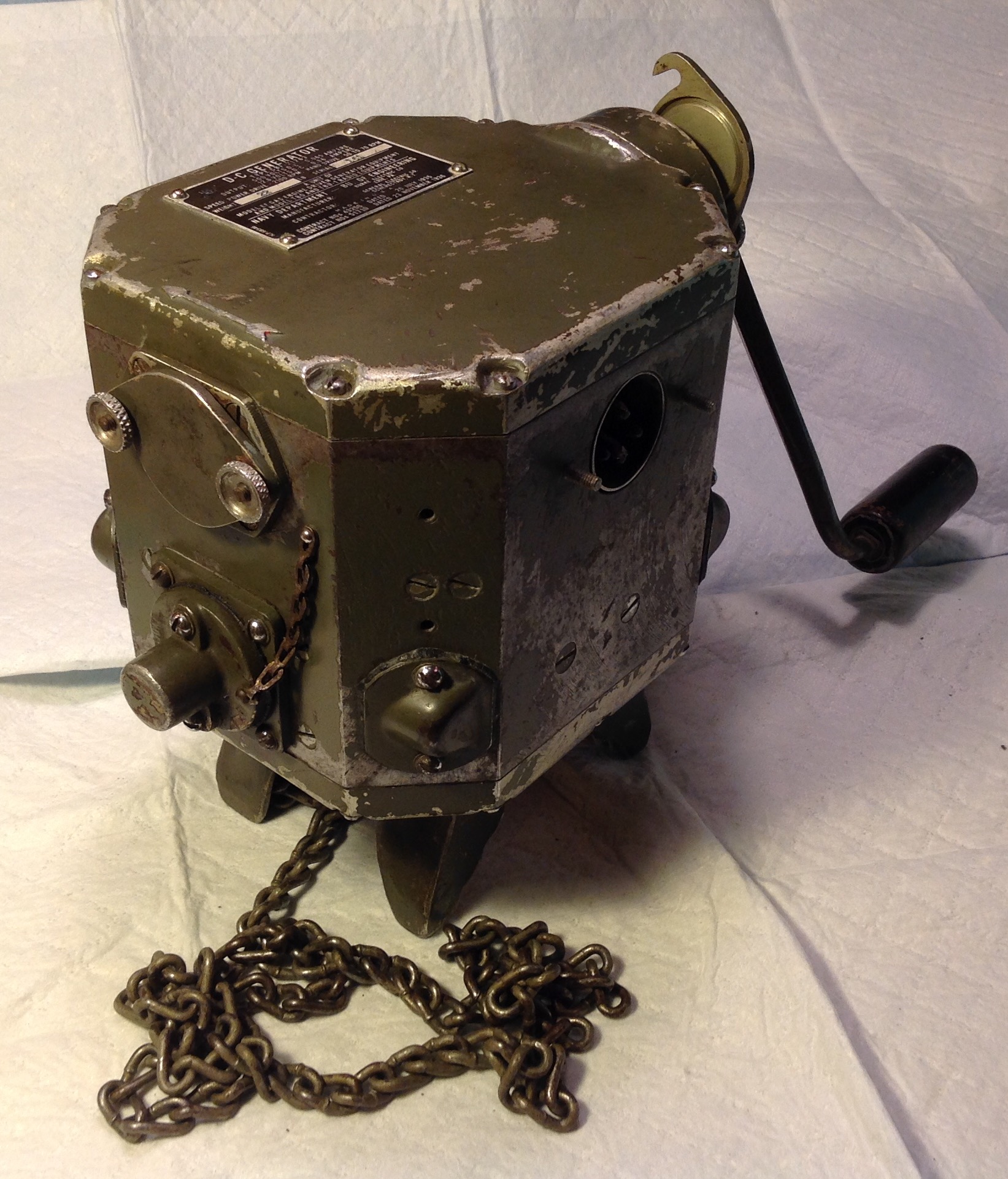

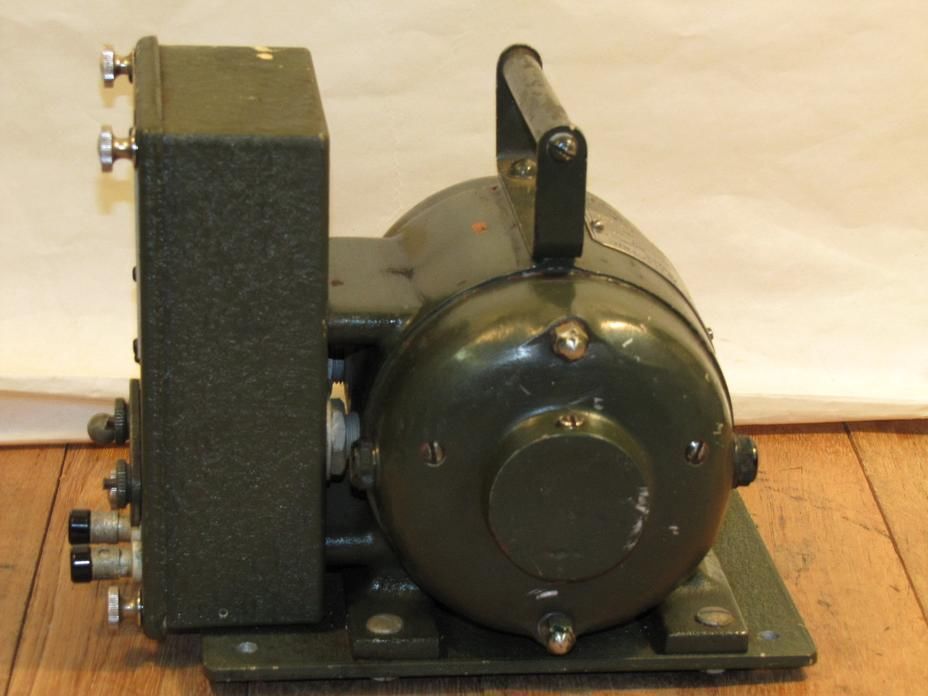

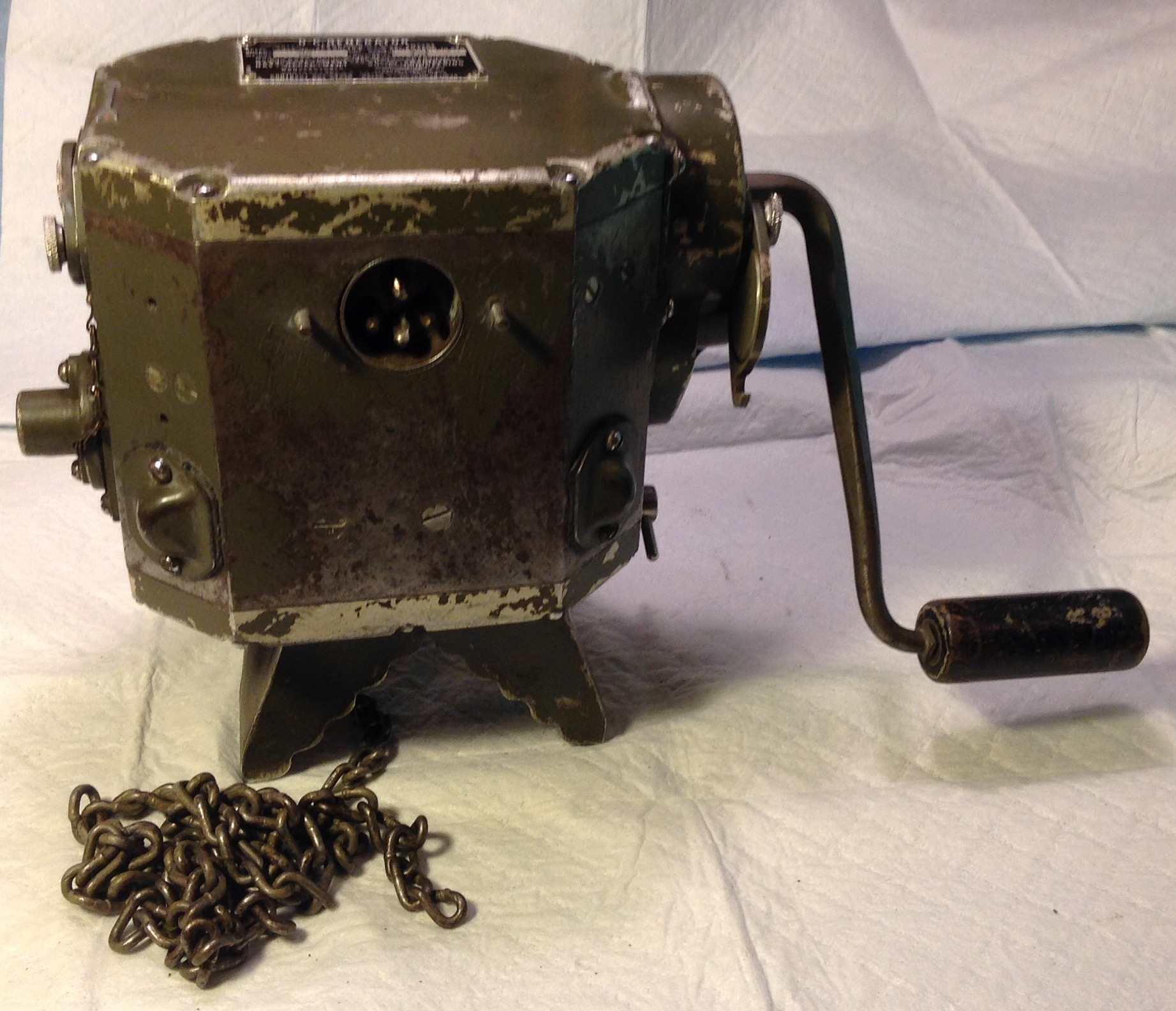

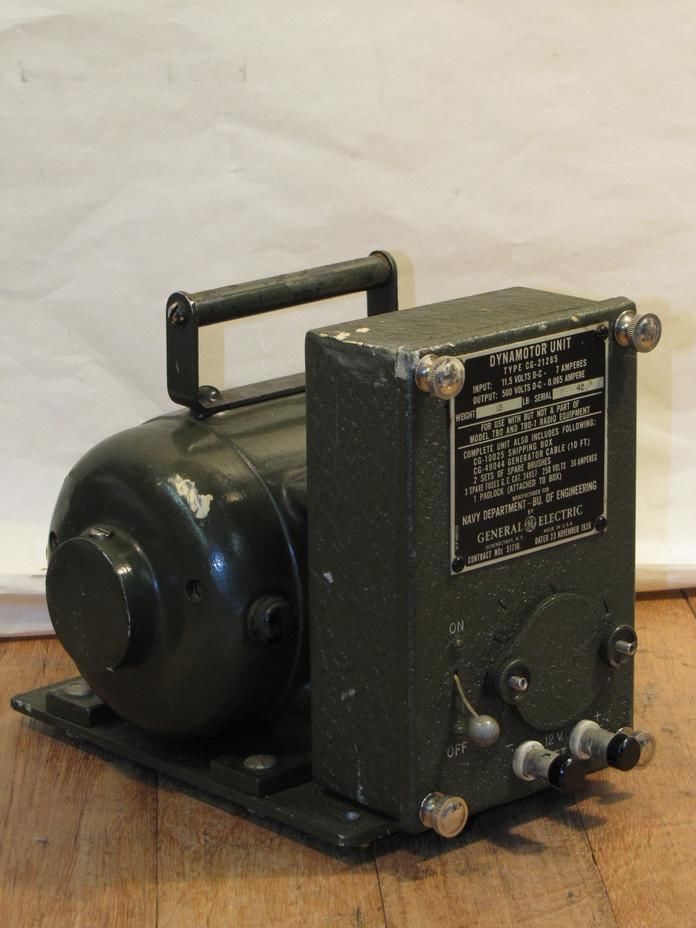

Generator for TBO			--

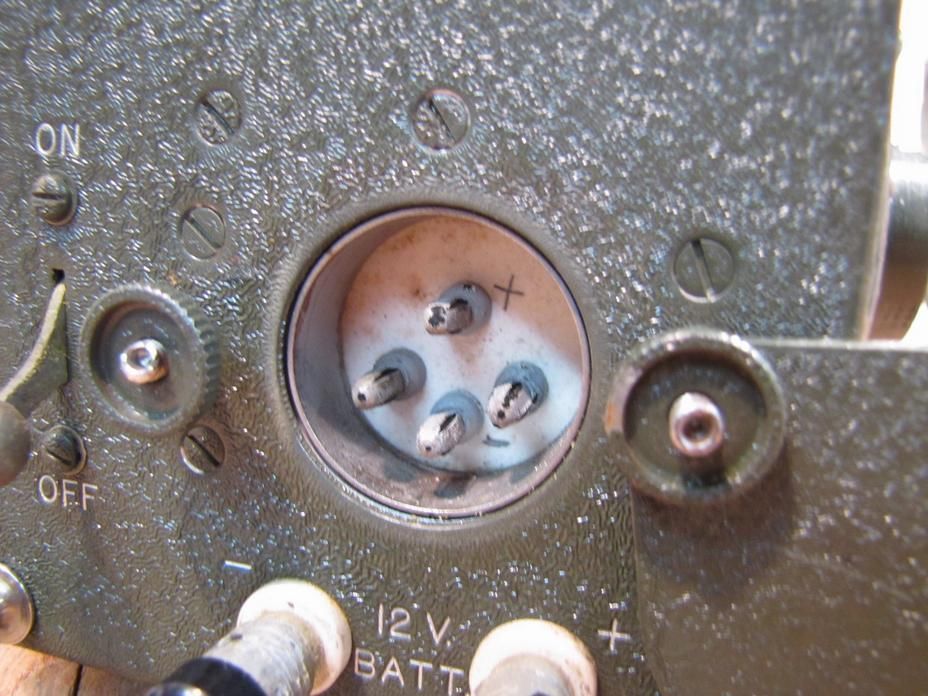

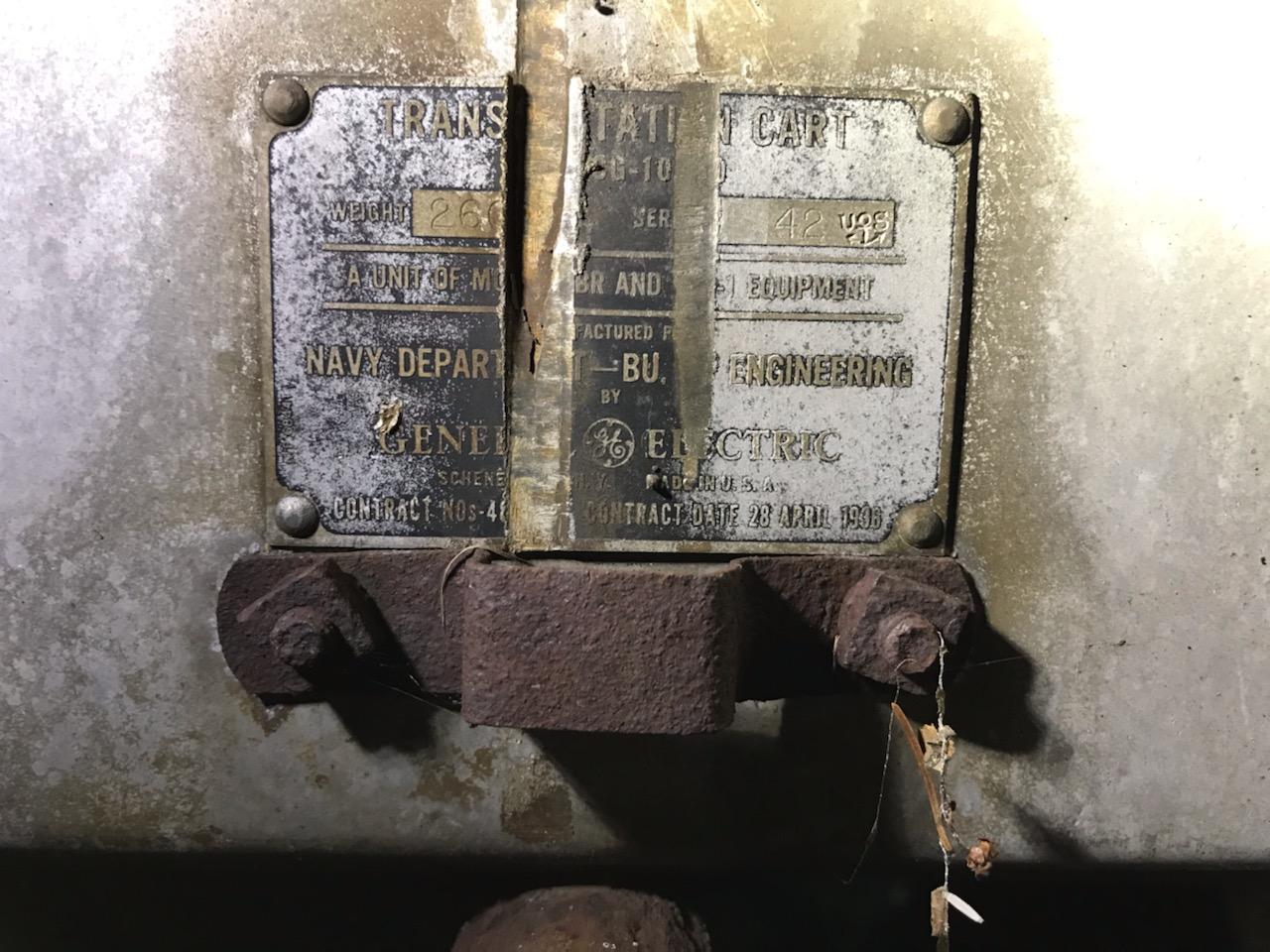

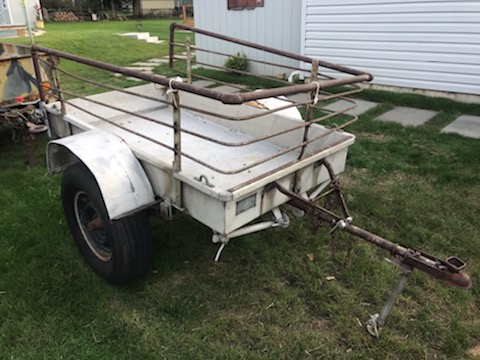

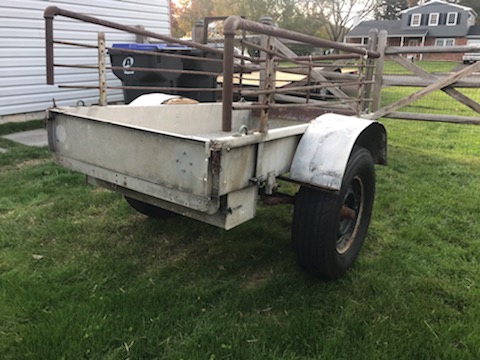

TBR, TBR-1 Transportable Transmitter-Receiver Carried on two transportation carts (CG-10030) with fold-down legs and tailgates that were used as operating desks I am looking for a photo of the complete system. Please send email if you can help	Equipment photos and specs Manuf by GE 2-18mc AM/CW 100w (TBR-1 added 300kc-2mc CW) Receiver was evidently an RAL variant

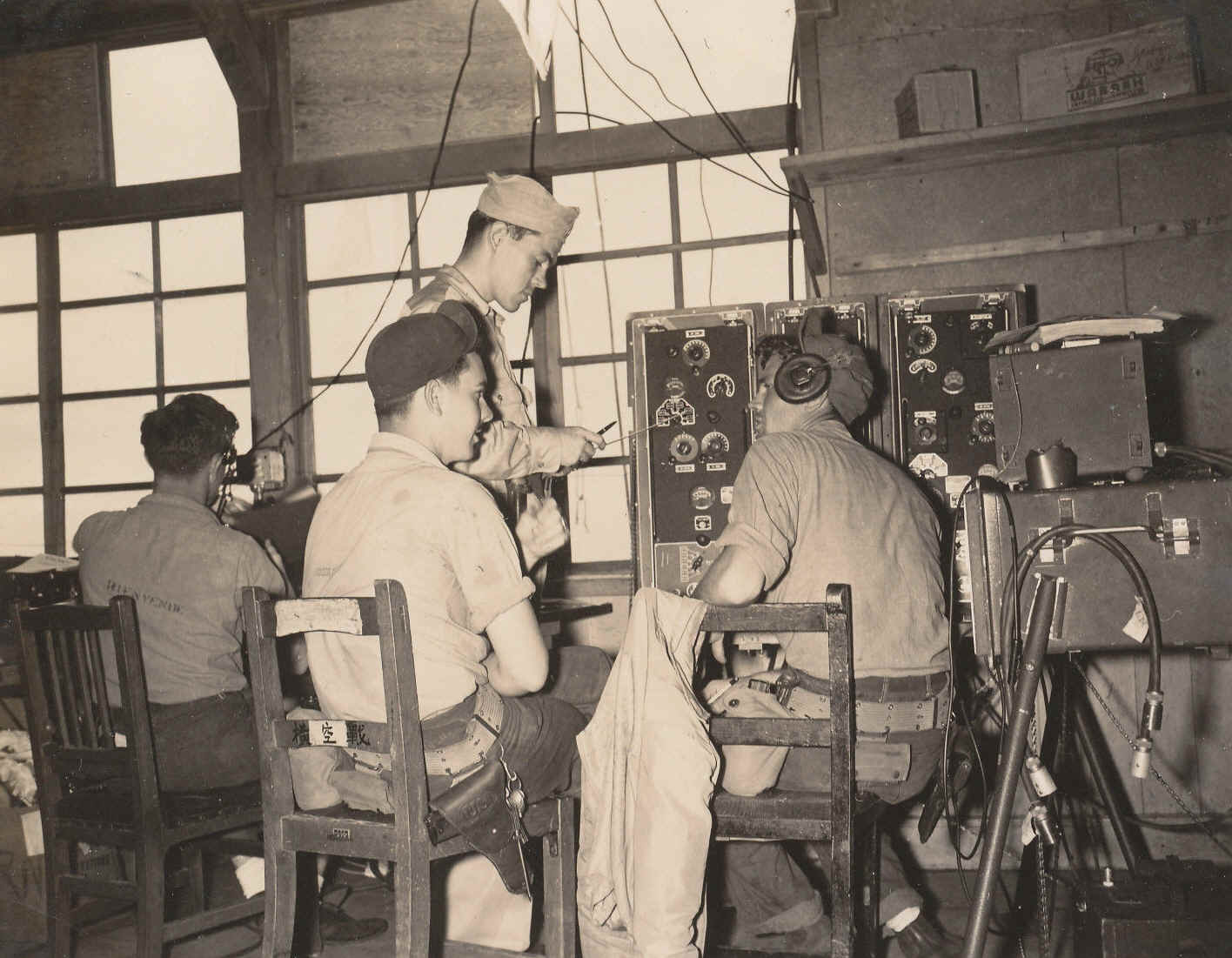

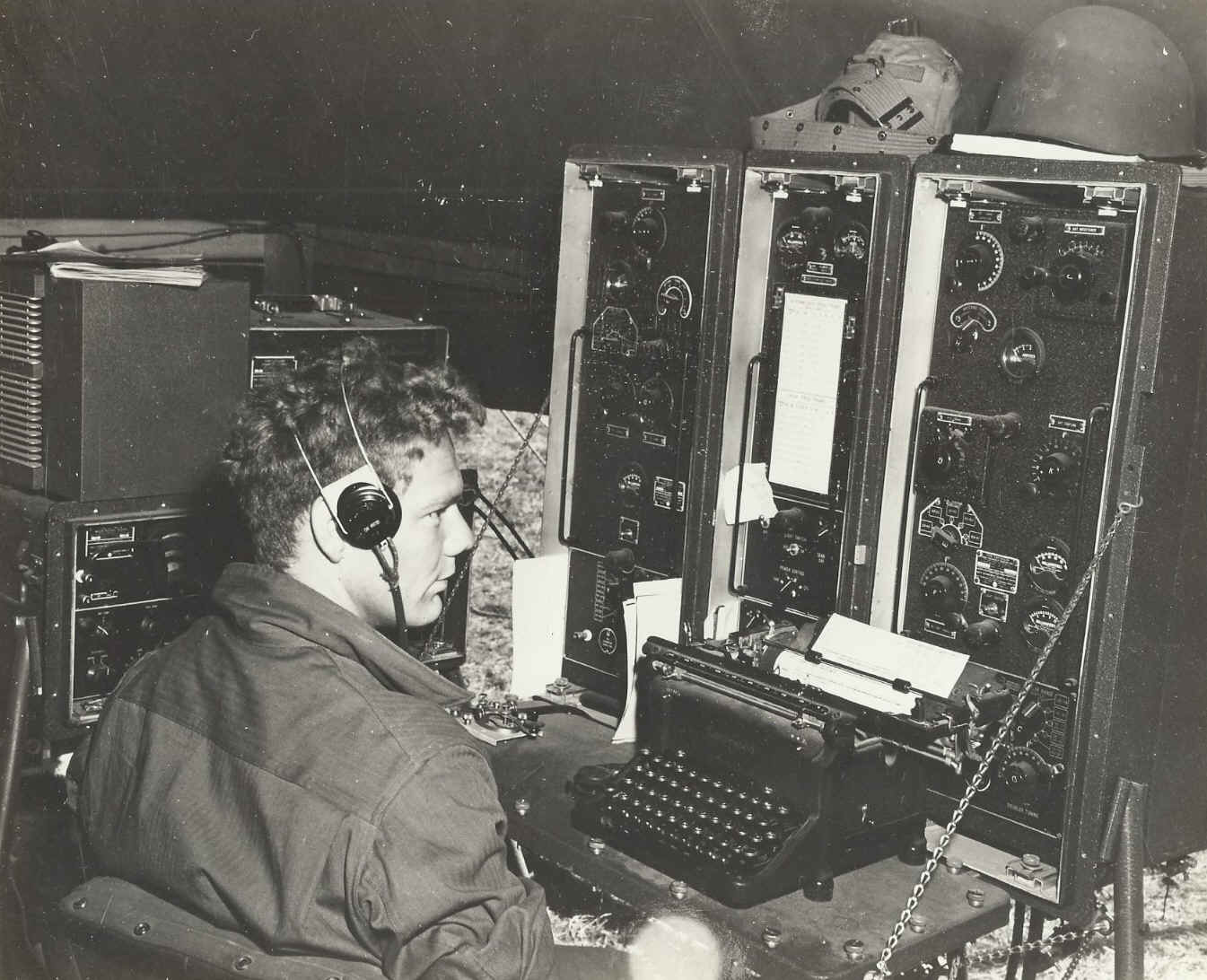

TBW - More Photos	TBW Spec Sheets TBW Video MF and HF transmitters with rectifier/modulator and 800 cps gasoline engine generator - article in Electric Radio magazine Oct 2001 p38	1944 - TBW with RBM receivers	1945 - TBW with RBM receivers

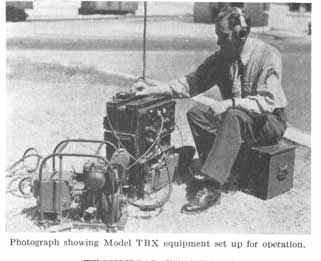

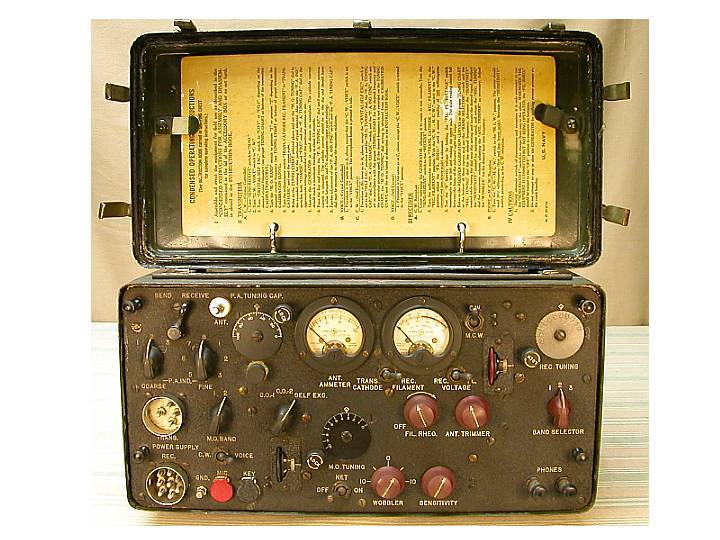

TBX Video of TBX operation Another Video TBX Spec Sheets More TBX Photos and Info

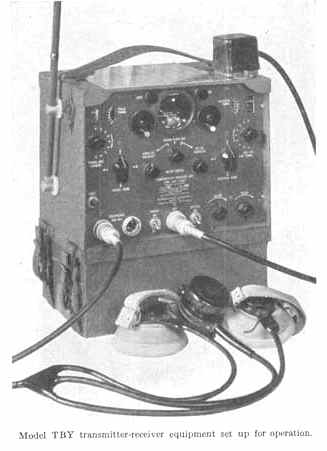

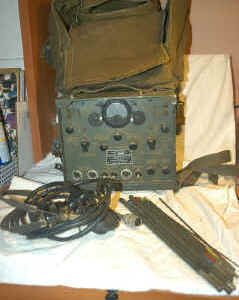

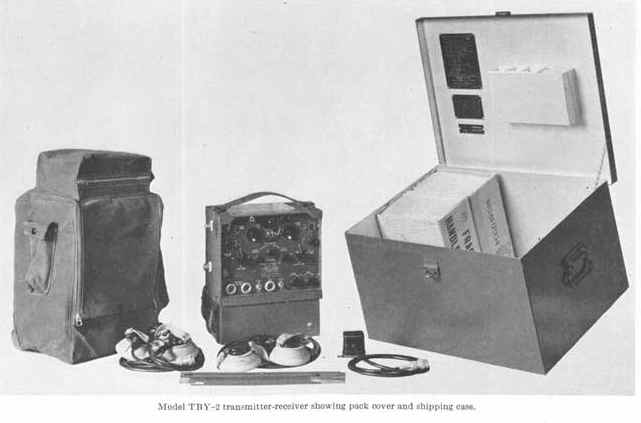

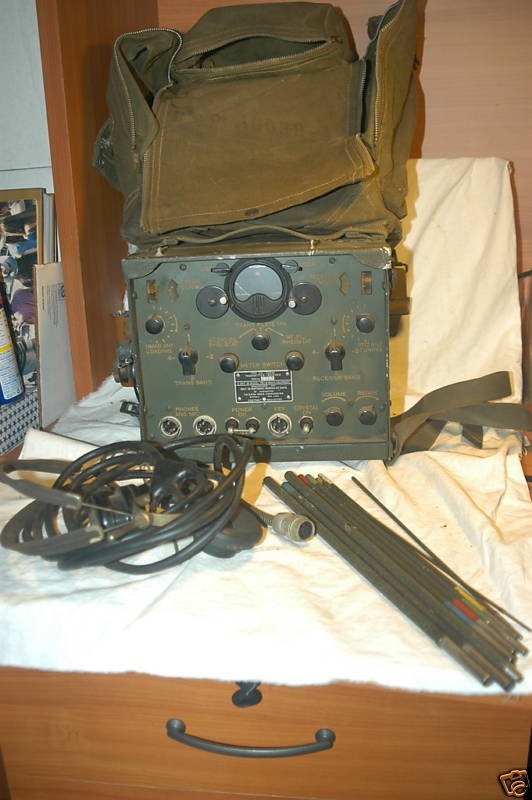

TBY TBY Spec Sheets More TBY Photos and Info			--

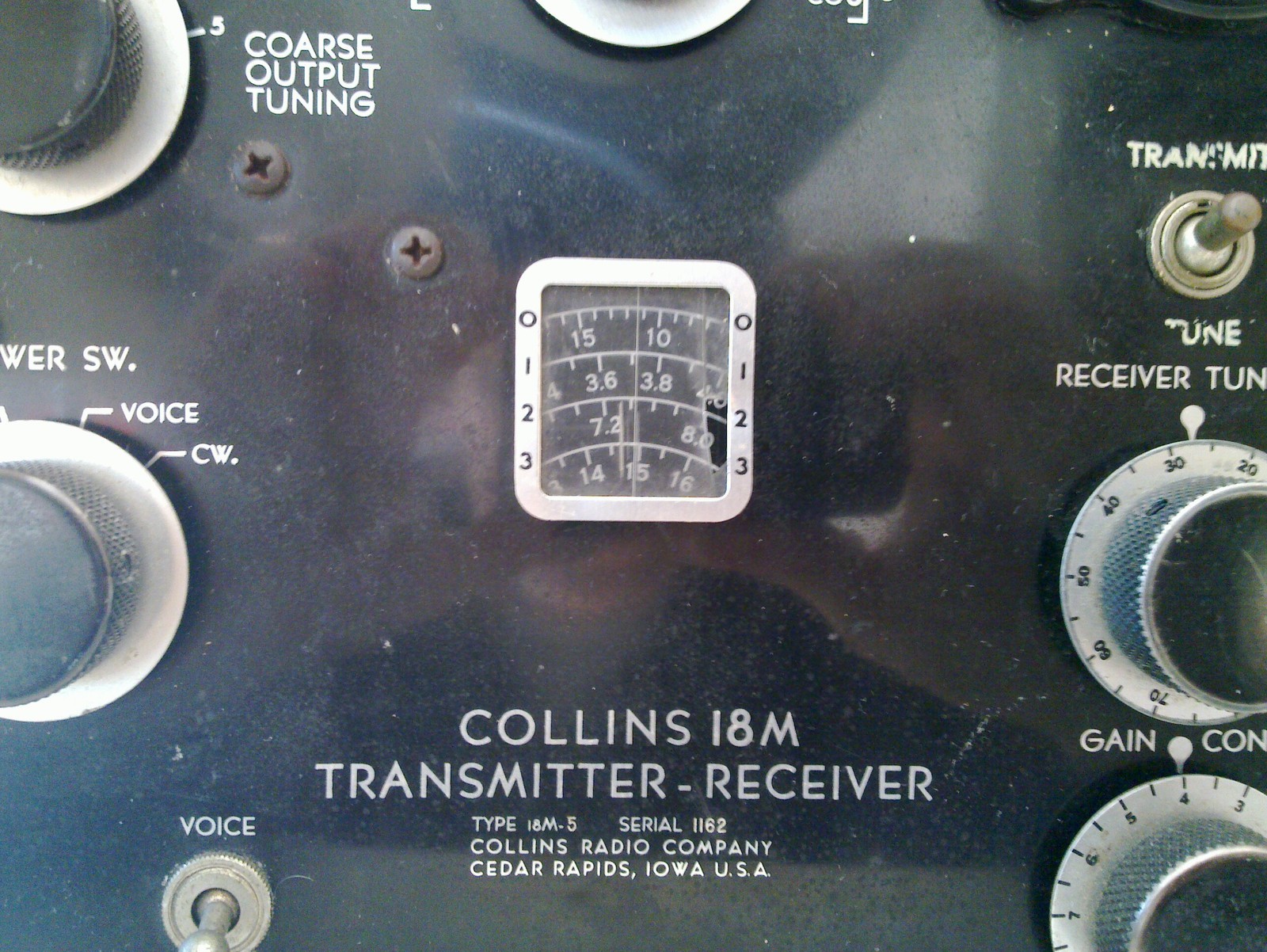

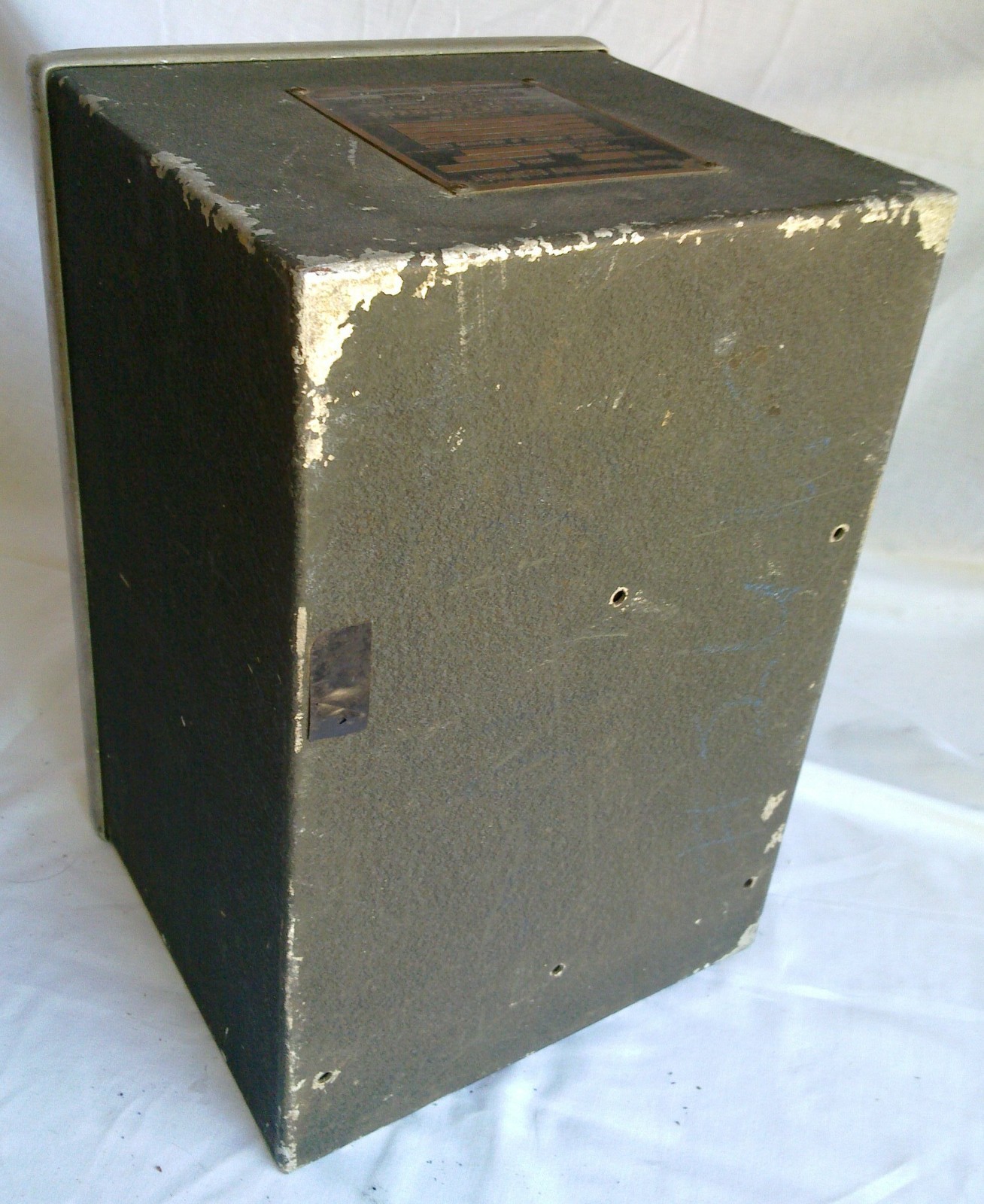

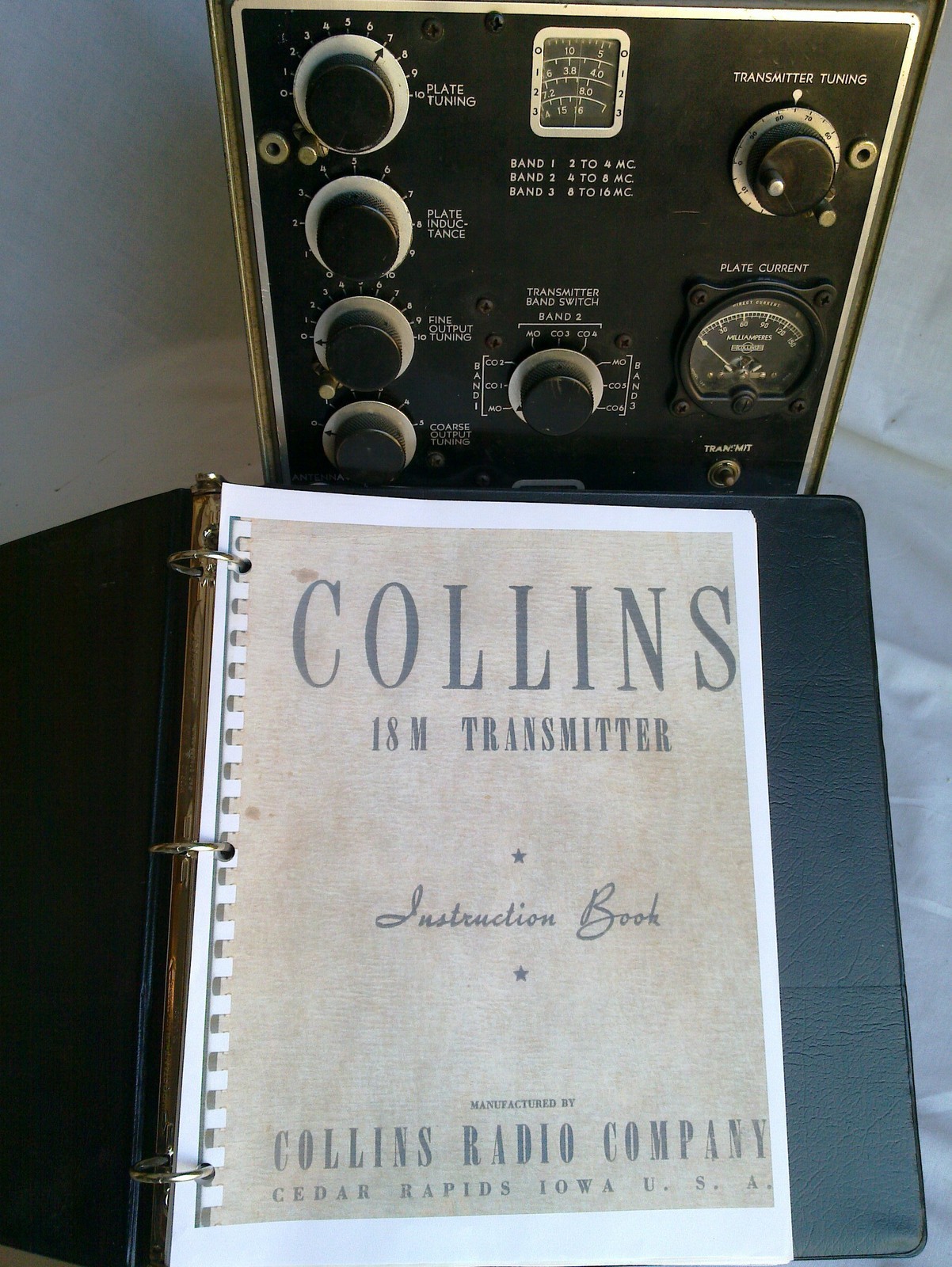

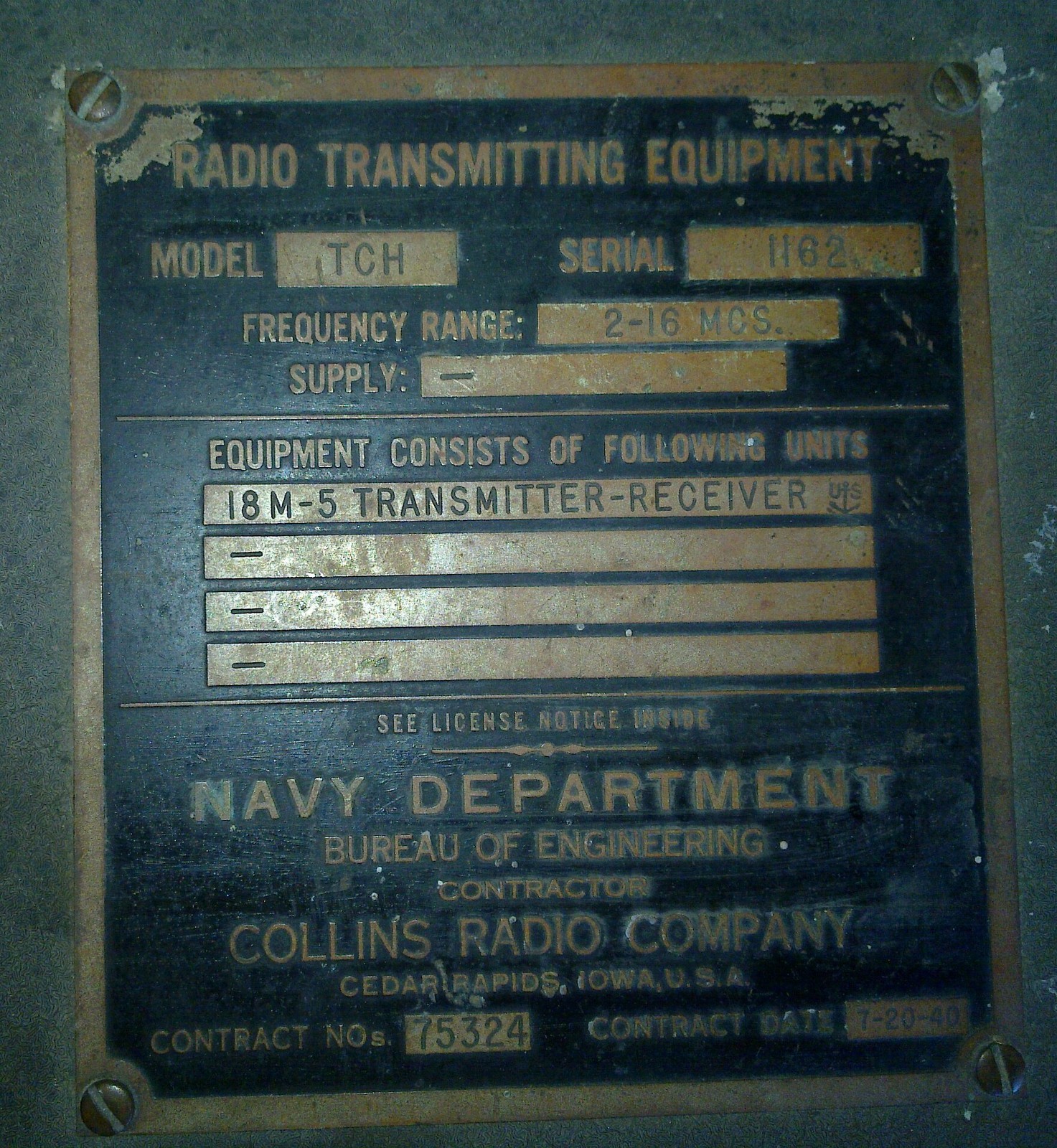

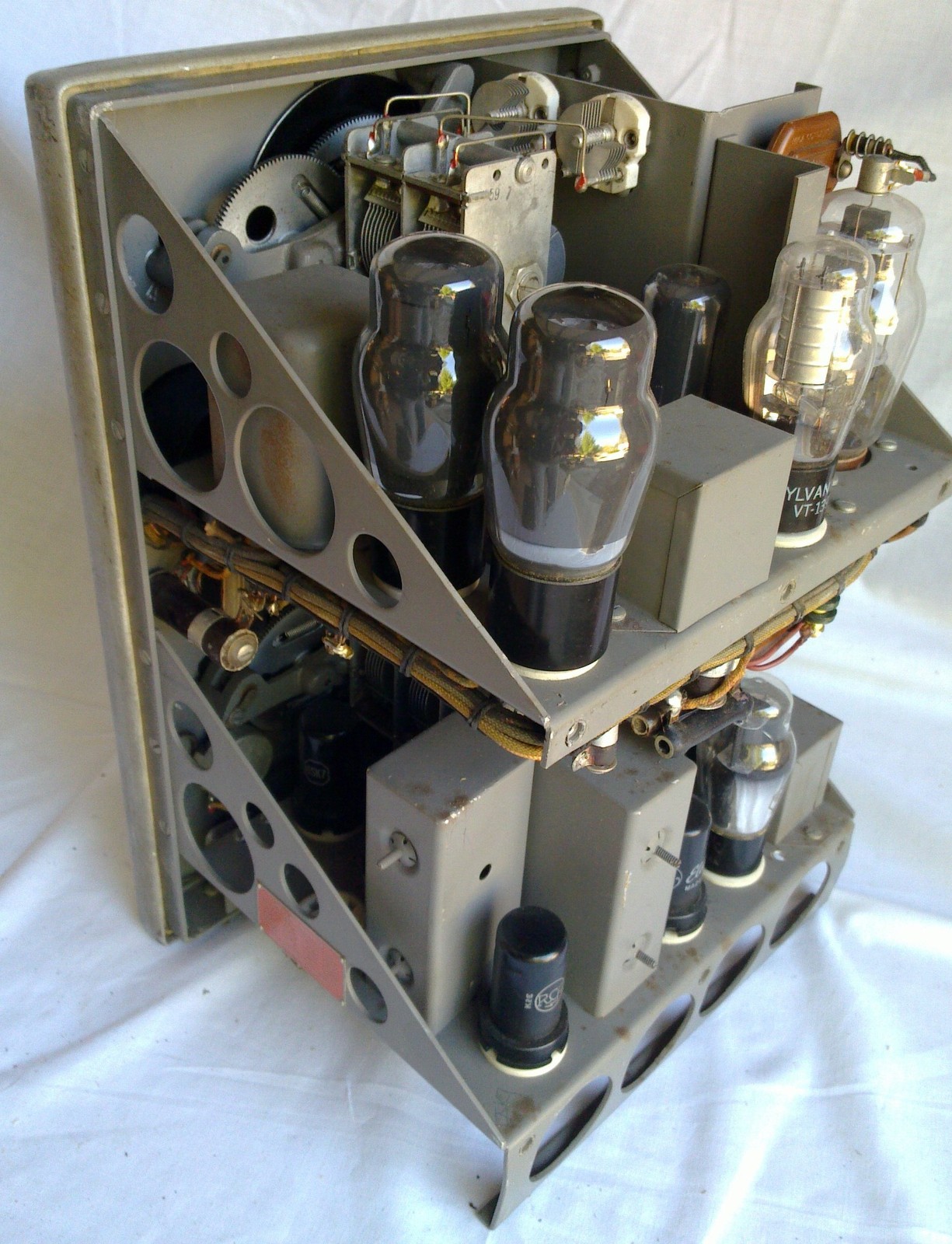

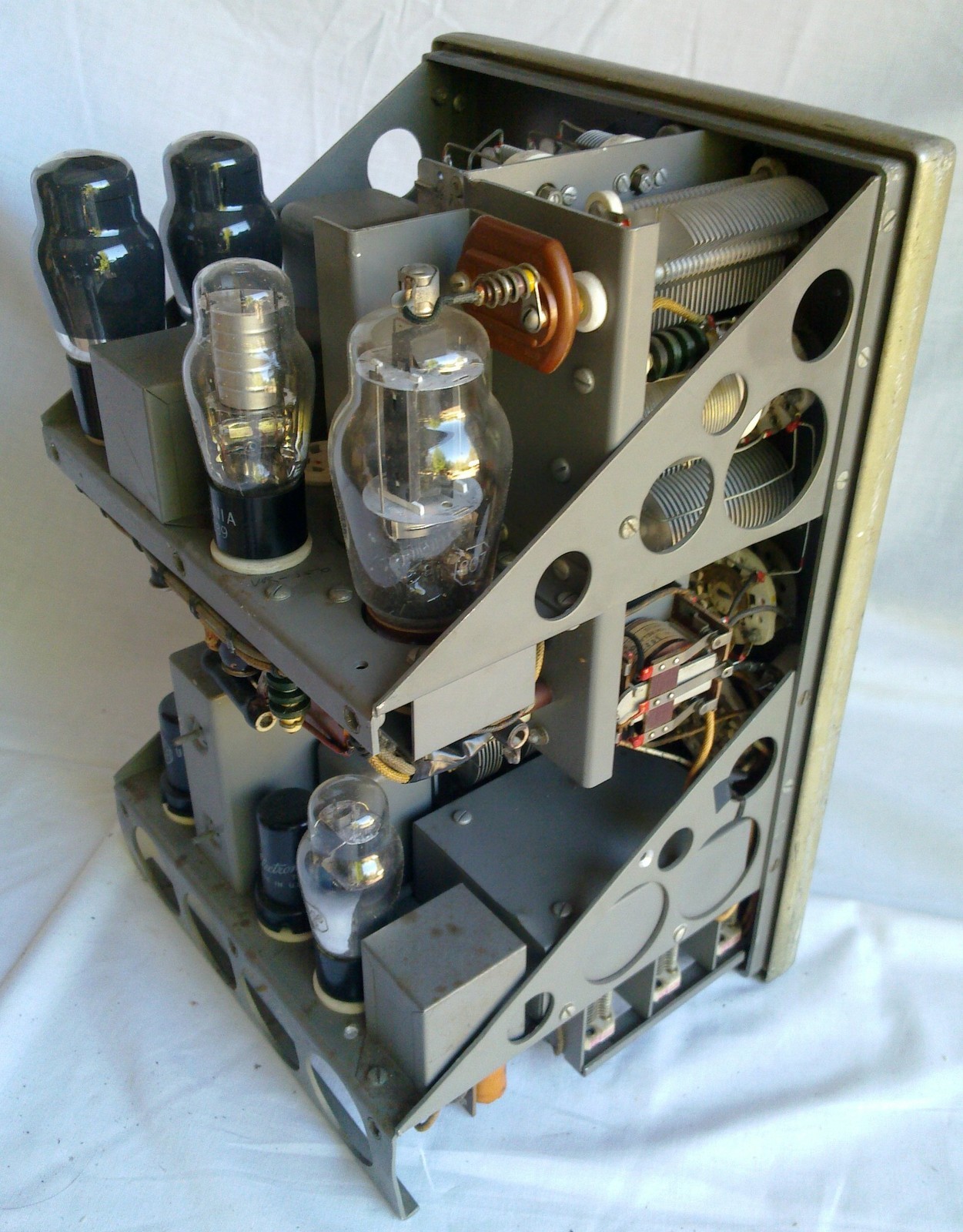

TCH (Collins 18M) HF xmtr-rcvr
			---
