US Navy Transmitter Test Equipment

Spectrum Analyzer Equipment

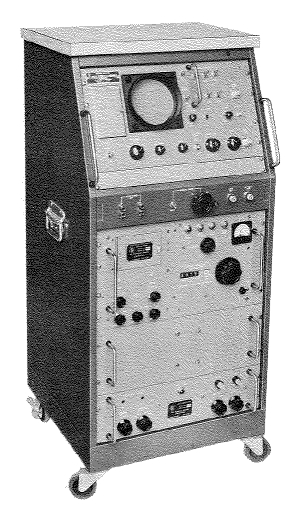

AN/GRM-33 Single Sideband Analyzer Set (TMC PTE)


Commonly used in transmitter sites -
TMC Model PTE, -1, -2, -3, -4

Includes

  • AN/URM-116 Spectrum Analyzer
  • O-330/FR Master Oscillator (TMC VOX)
  • O-579/URT Two-tone generator
    (TMC TTG)

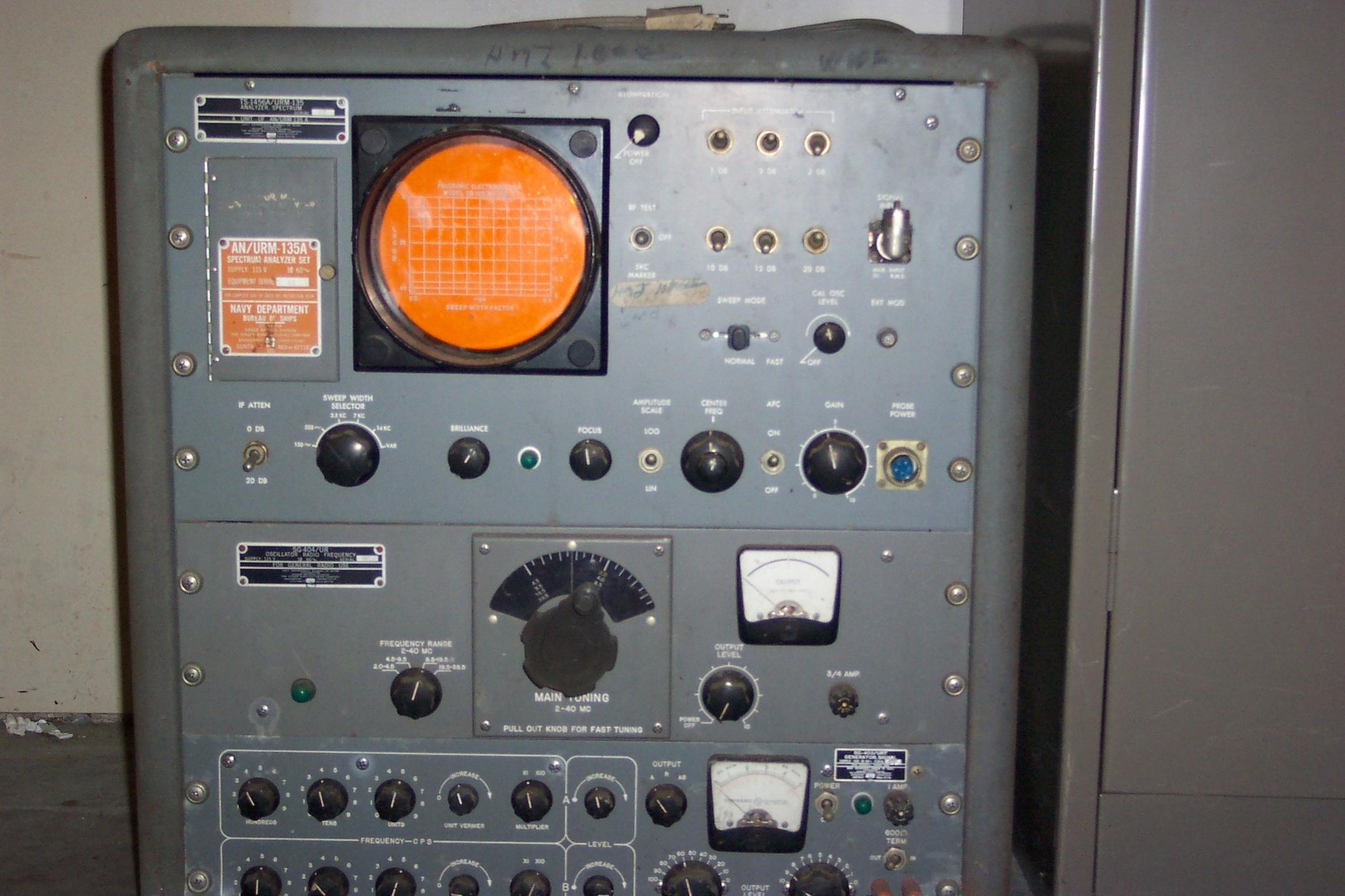

AN/URM-135A Spectrum Analyzer Set

Similar to AN/GRM-33
2-40 mc center freq.
150cps-14kc sweep width

. Includes:

  • TS-1456A/URM-135 analyzer
  • SG-404/UR 2-40 mc tuner
  • SG-403/URT two-tone AF generator
Analyzer is Panoramic SB-12b Download SB-12b manual from BAMA

Please let me know if you have a manual for the complete URM-135A or any of the other components

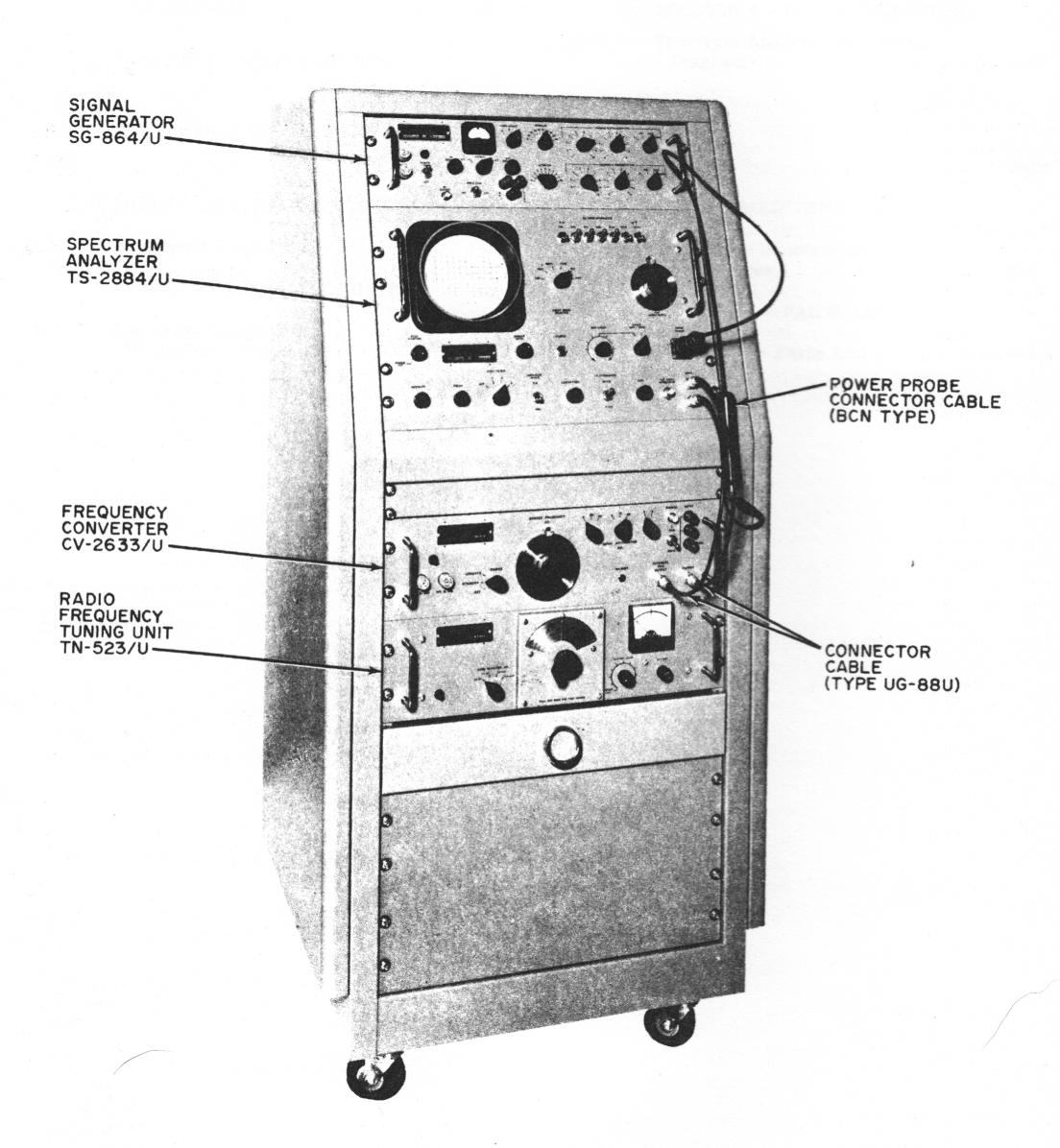

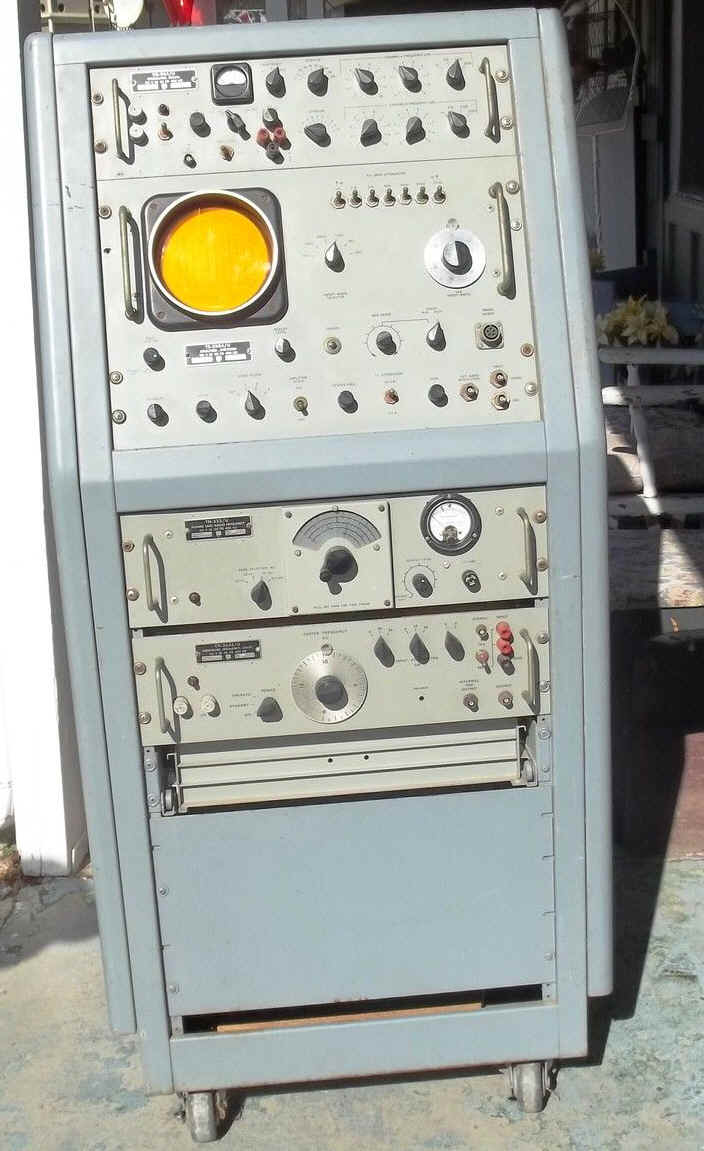

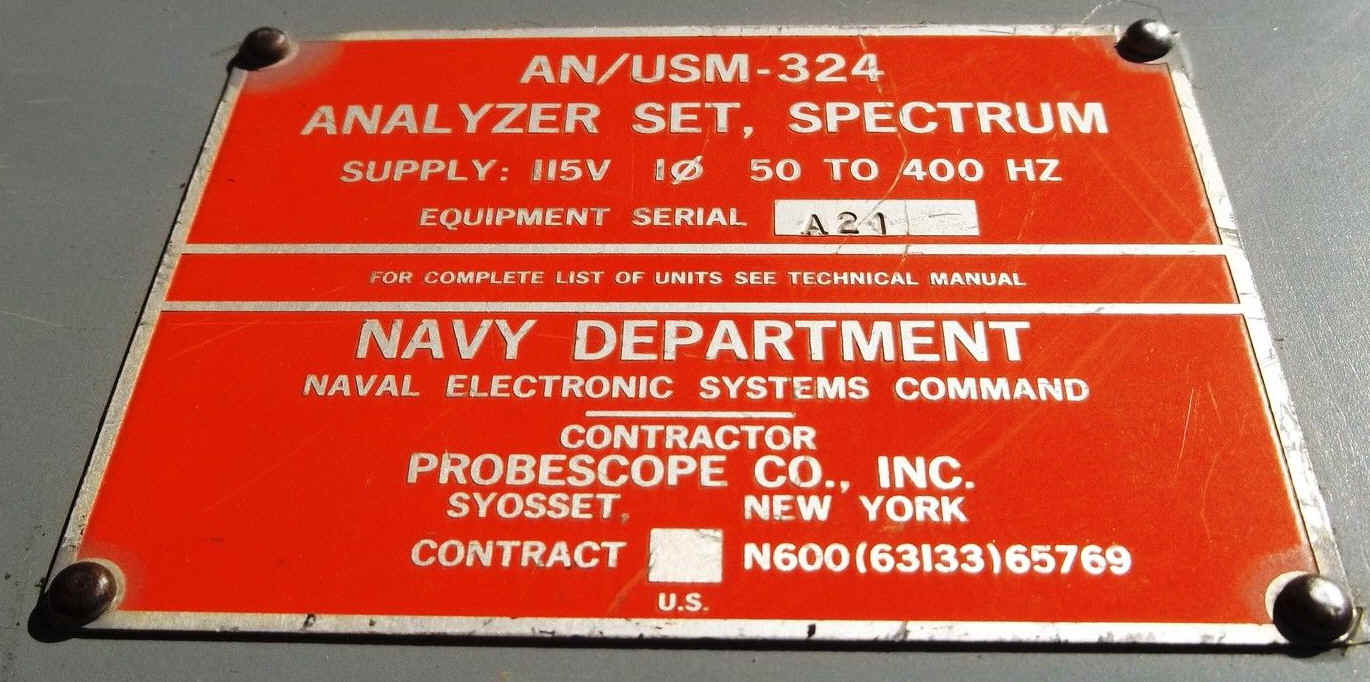

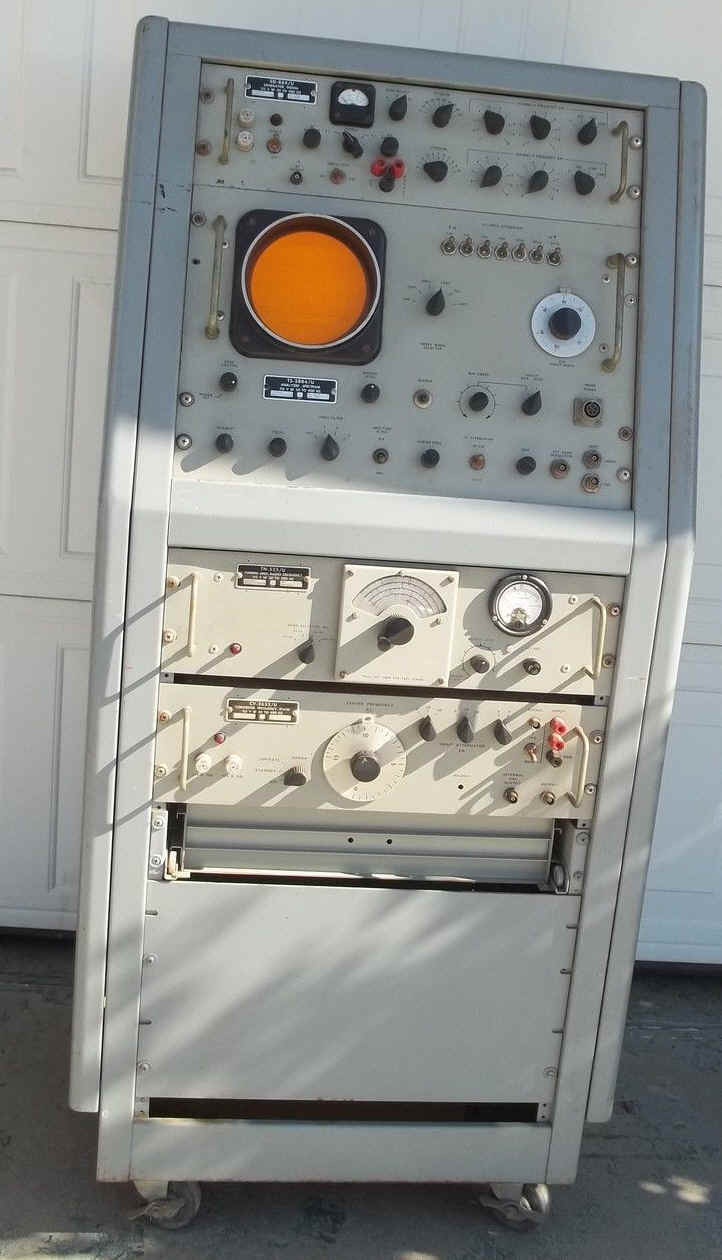

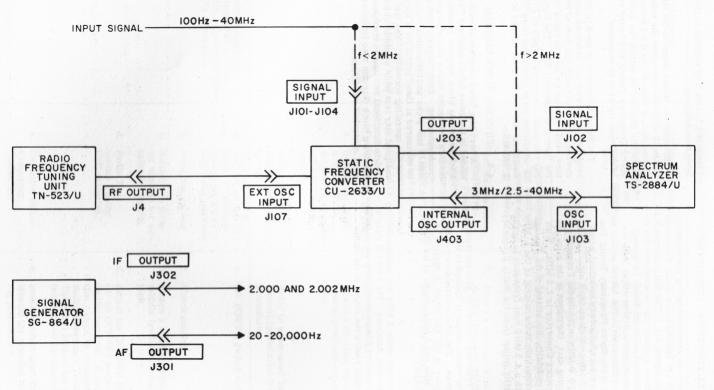

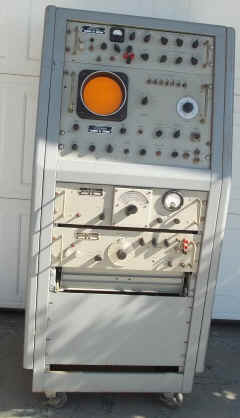

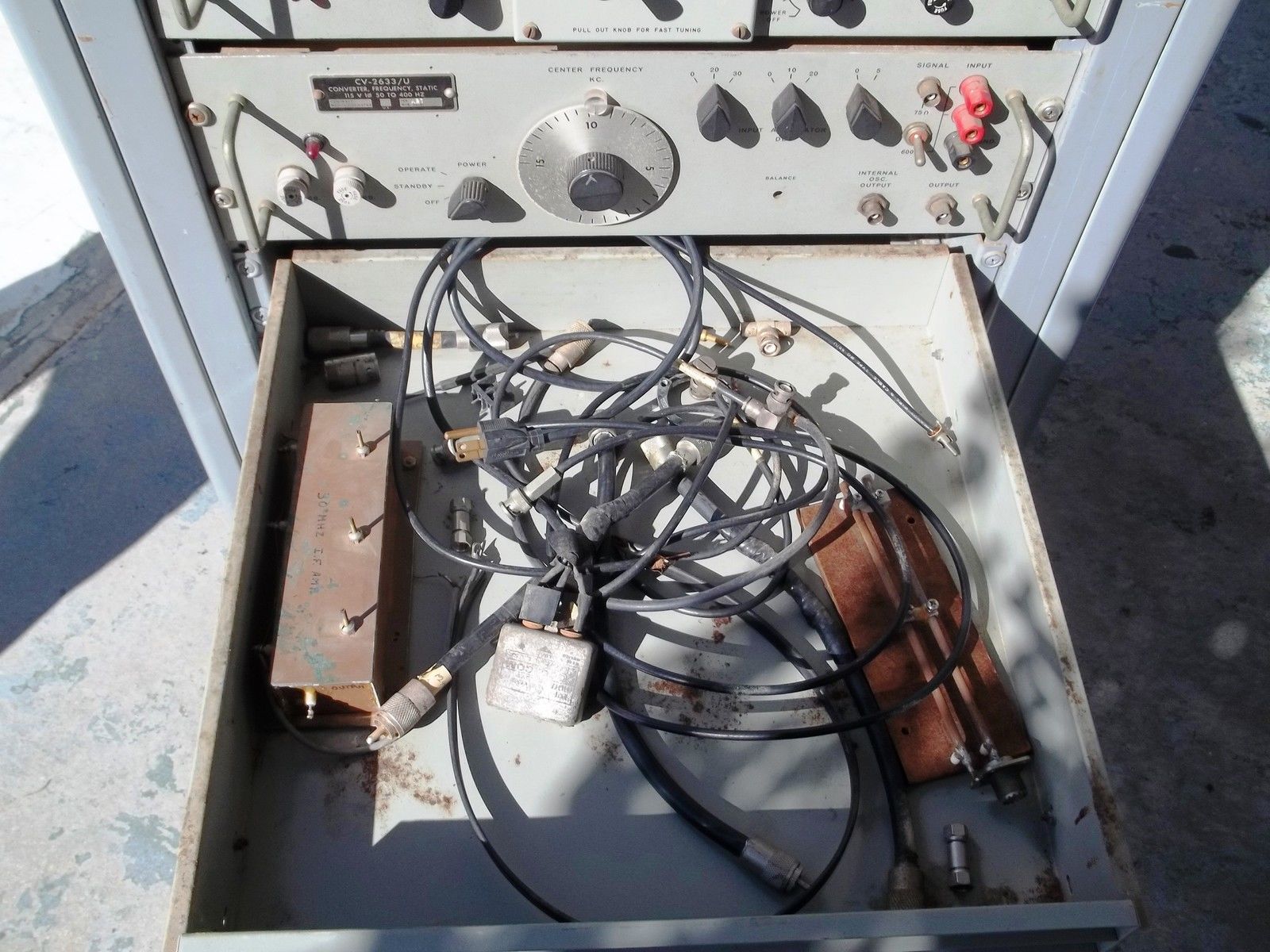

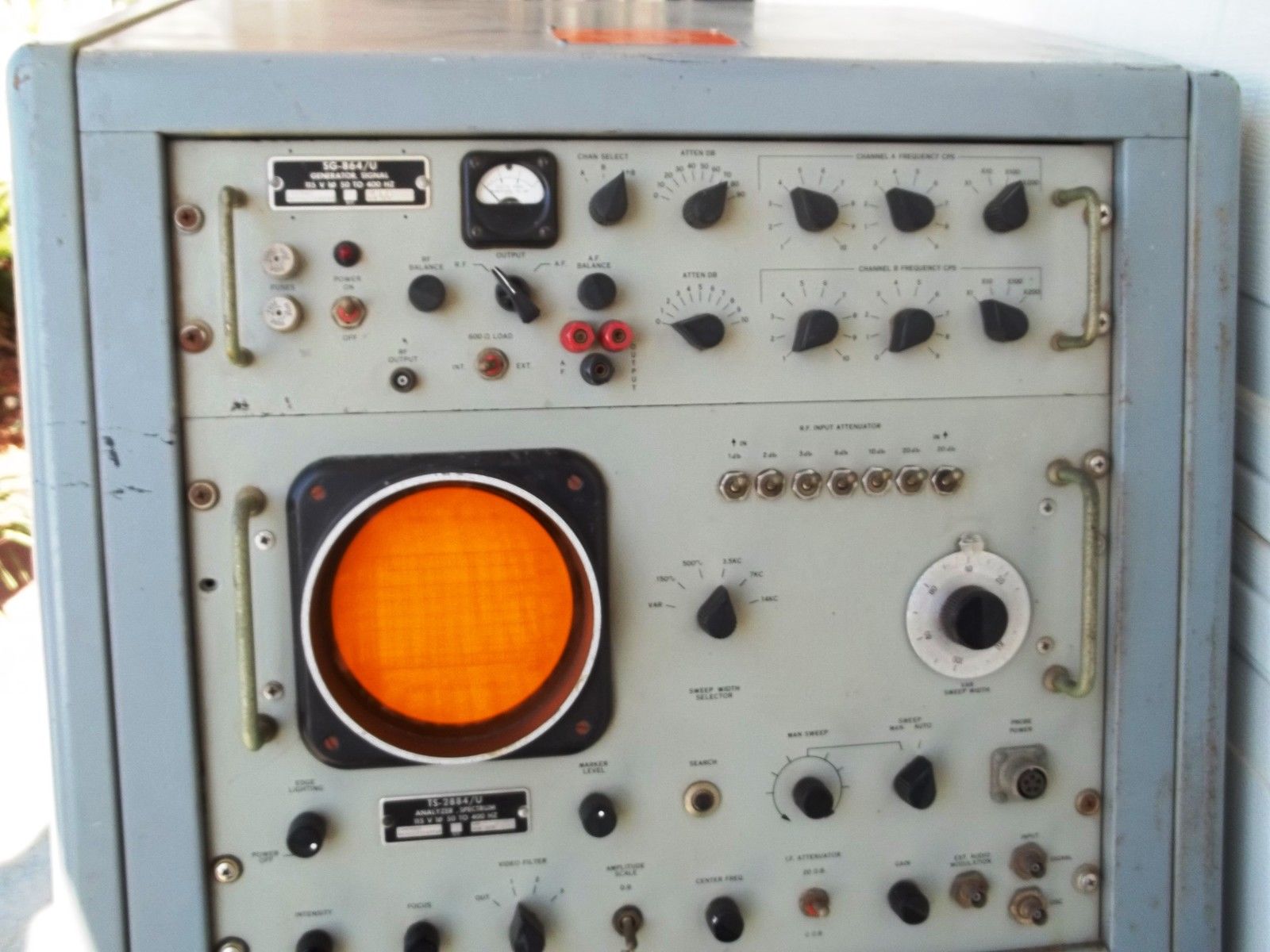

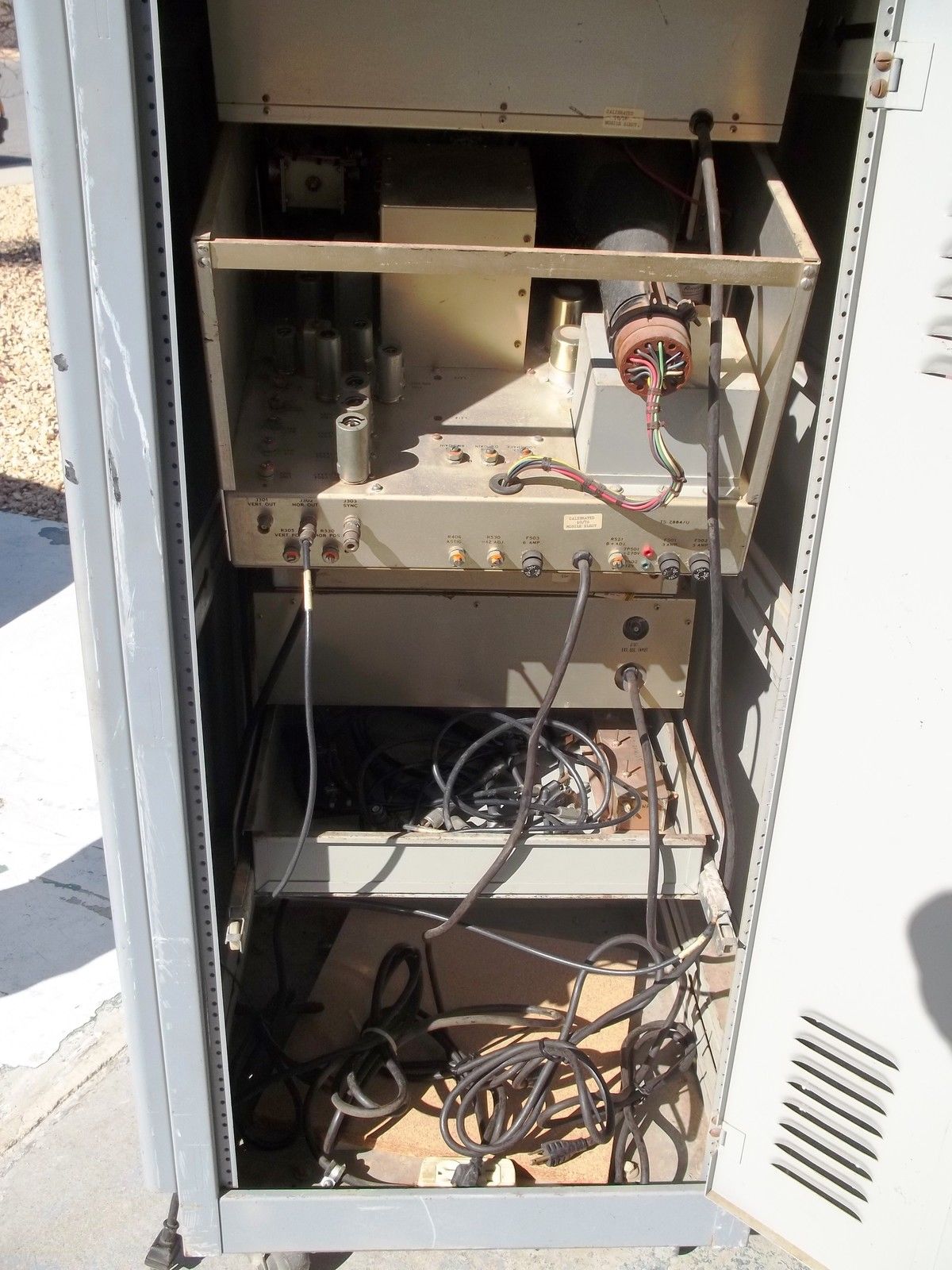

AN/USM-324 Spectrum Analyzer Set

Similar to AN/URM-135A
100cps-40 mc center freq.
150cps-14kc sweep width

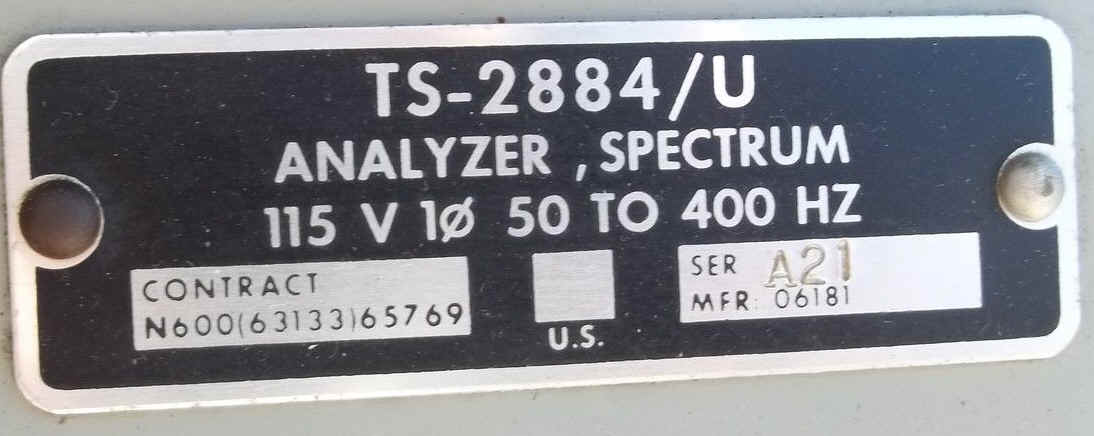

  • TS-2884/U Spectrum Analyzer

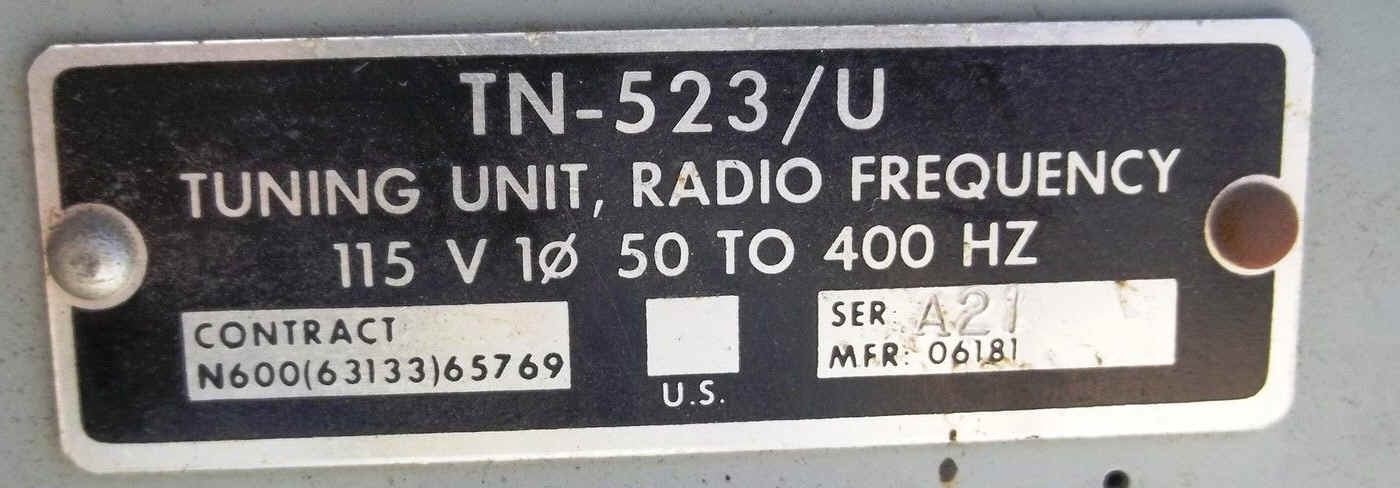

  • TN-523/U 2-40 mc tuner

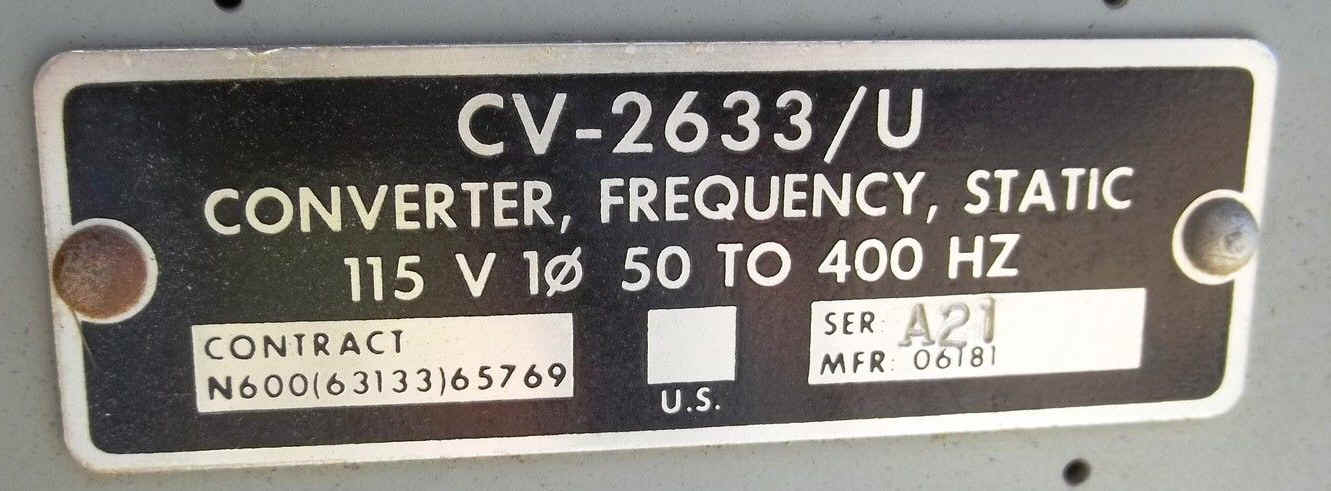

  • CV-2633/U converter (100 cps-2mc)

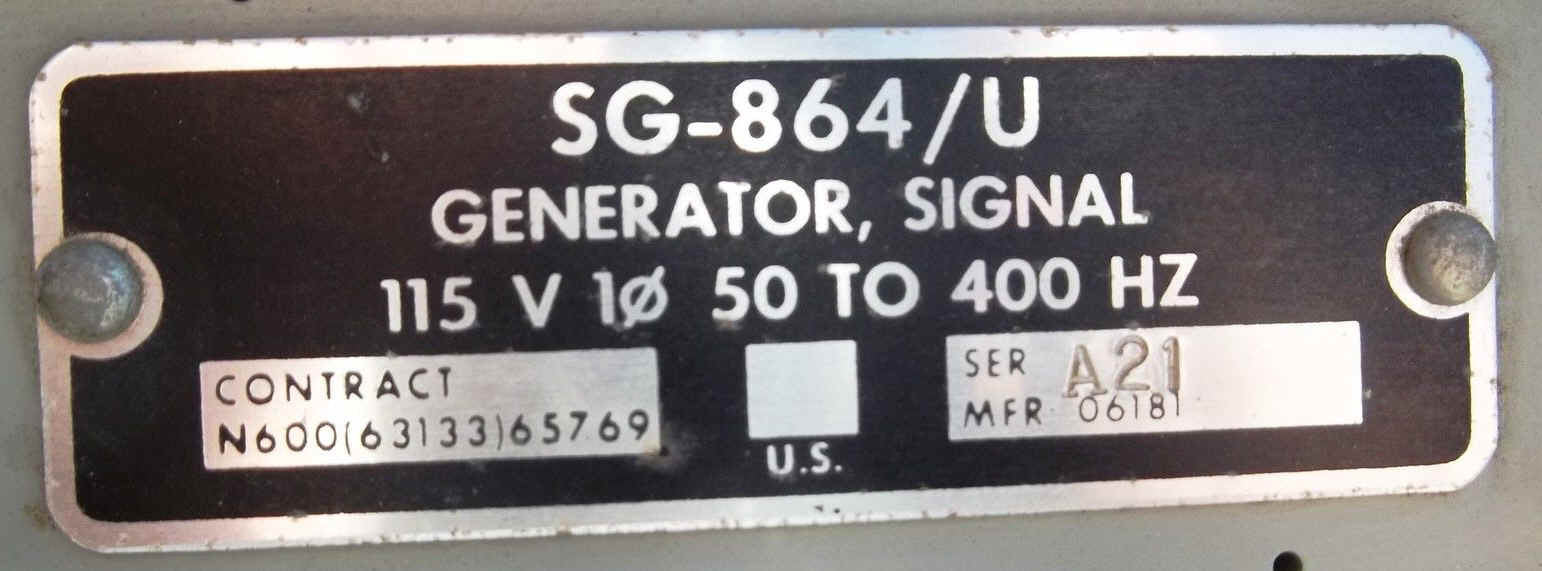

  • SG-864/U  two-tone AF/RF generator





System manual - NAVSHIPS 0967-876-5010

See individual component manuals for schematics, parts, etc.

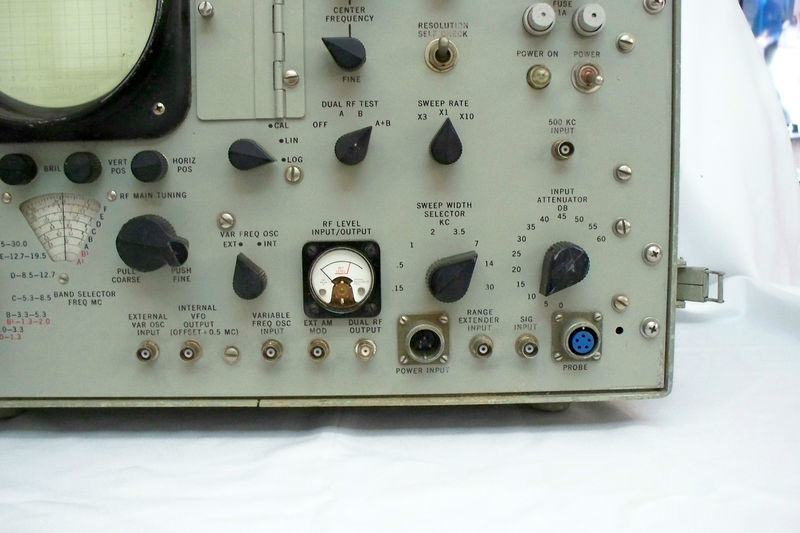

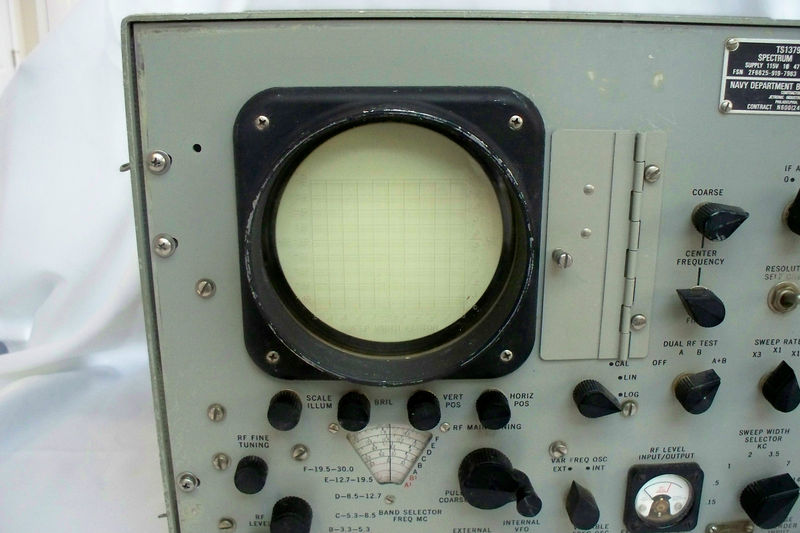

TS-1379/U Spectrum Analyzer

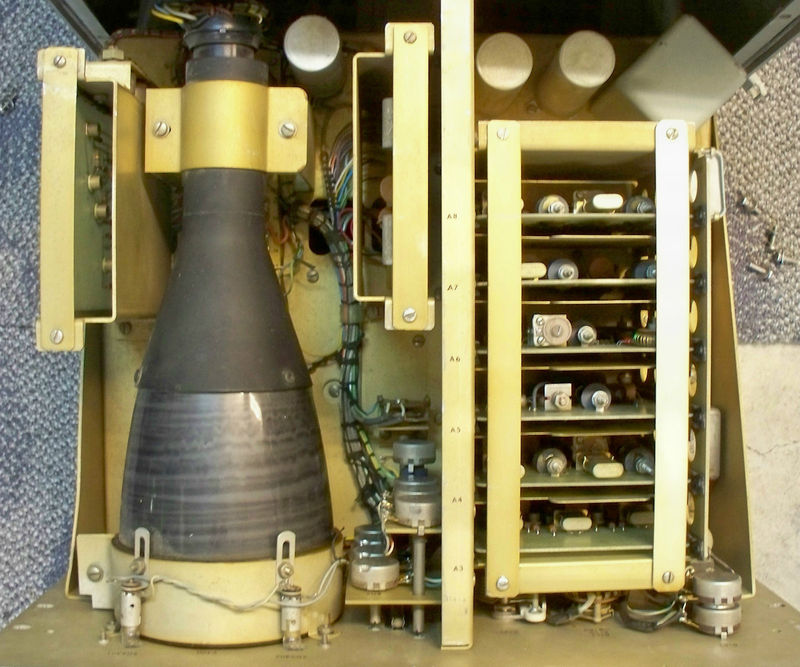

interior view




manuf by Intercontinental Instruments

equip. available from www.fairradio.com

Manual available from www.vintagemanuals.com -
(NOT the same as TS-1379A/U manual)

Input
   485-515kc
   2mc-31.5mc
   100cps-2mc with CV-2353/U or CV-2353A/U
Sweep Width
   150cps-30kc

manual NAVSHIPS 0969-246-4010

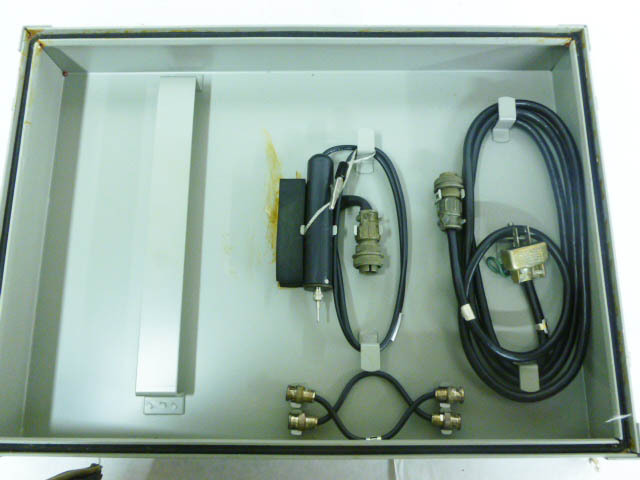

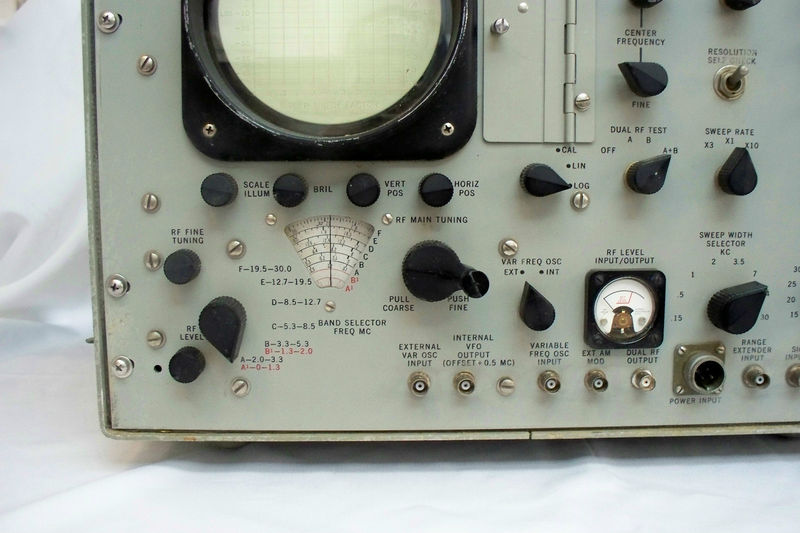

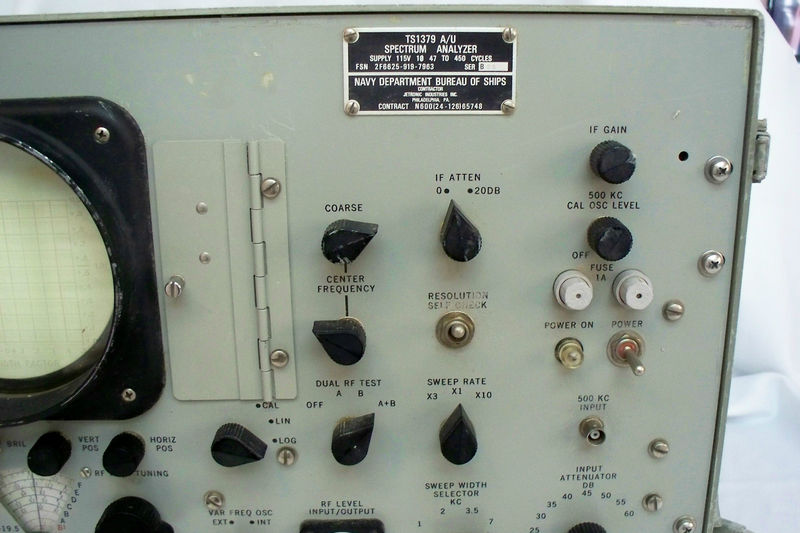

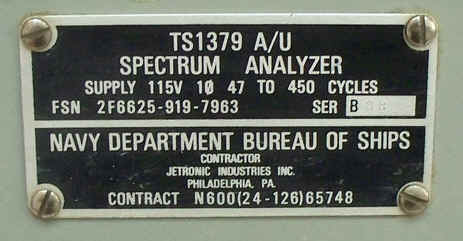

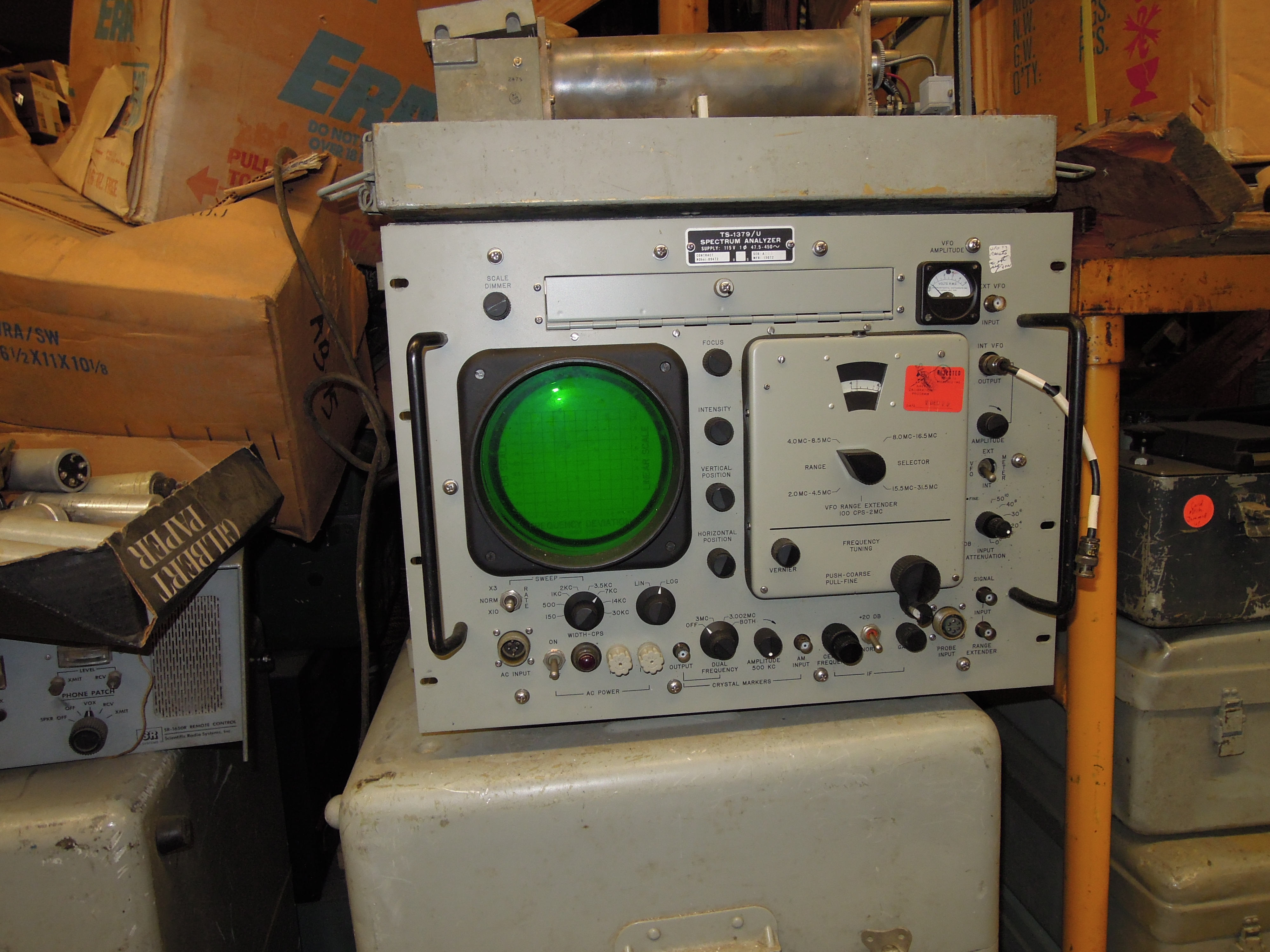

TS-1379A/U Spectrum Analyzer

functionally equivalent to TS-1379/U but quite different design and construction


manuf by Jetronics




Input
   485-515kc
   2mc-30mc
   100cps-2mc with CV-2353A/U
Sweep Width
   150cps-30kc
Manual- NAVSHIPS 0969-094-3010
- download here

WANTED - board A4 or A6 for TS-1379A -  Please help!

A4 board needed to restore my TS-1379A

A4 board - reverse side

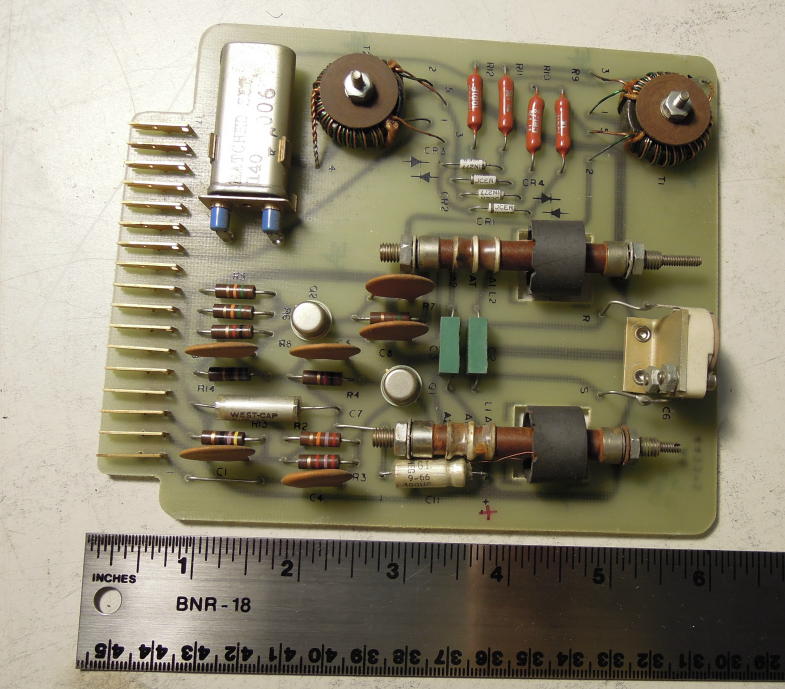

A6 board - it has the same coils and I could use them to make an A4 board.

GENERAL DESCRIPTION. The Spectrum Analyzer TS-1379A/U is a sensitive, high resolution test instrument of the automatic scanning, superheterodyne receiver type. The primary application is in testing Single Side Band (SSB) transmitters and receivers for measurement of third order distortion of the transmitted or received signal.
    The Spectrum Analyzer permits analysis of one or many signals simultaneously, Each signal within the band scanned (sweep width) is displayed on the CRT element as one of a series of "pips". The pip amplitude indicates the signal level. The pip position along the horizontal axis indicates the signal frequency.
    Any one of six parts of the RF band - the "Band Scanned" - within the 2mc - 30mc range of the Analyzer may be selected by means of the Band Selector tunable oscillator, and the "Scanning Width" may be selected by the Sweep Width Selector. The Sweep Width Selector positions provide eight different degrees of frequency separation of the signal display. A preset operating mode automatically adjusts Sweep Width, Gain, Resolution, and Scanning Rate at each one of the Sweep Width positions.
    The Band Selector tunable oscillator is a high stability continuous tuning signal generator designed to provide local injection signals over the frequency range of 2. 5mc to 30mc. It is a fully transistorized, precision, variable capacitor tuned oscillator. The 0. 3 volts rms output signal is the first local oscillator in the heterodyne system. The tunable oscillator is free from spurious signals, hum and noise are suppressed at least 60db below signal level. The unit is particularly suitable for use in intermodulation testing.
   The Spectrum Analyzer is also valuable for monitoring a frequency band for the appearance of or disappearance of and shift of signals. A display of frequency distribution can be obtained by selecting the Sweep Width, bringing the "Scanned Band" into the narrowest position (150cps) to enable examination of signals so closely adjacent in frequency that their corresponding "pips" normally are merged together. At this reduced Sweep Width (150cps) signals with an amplitude ratio of 60db separated by 50cps are clearly indicated. One of the internal self-checking features, the Internal Dual Frequency RF Test, simulates such a test.

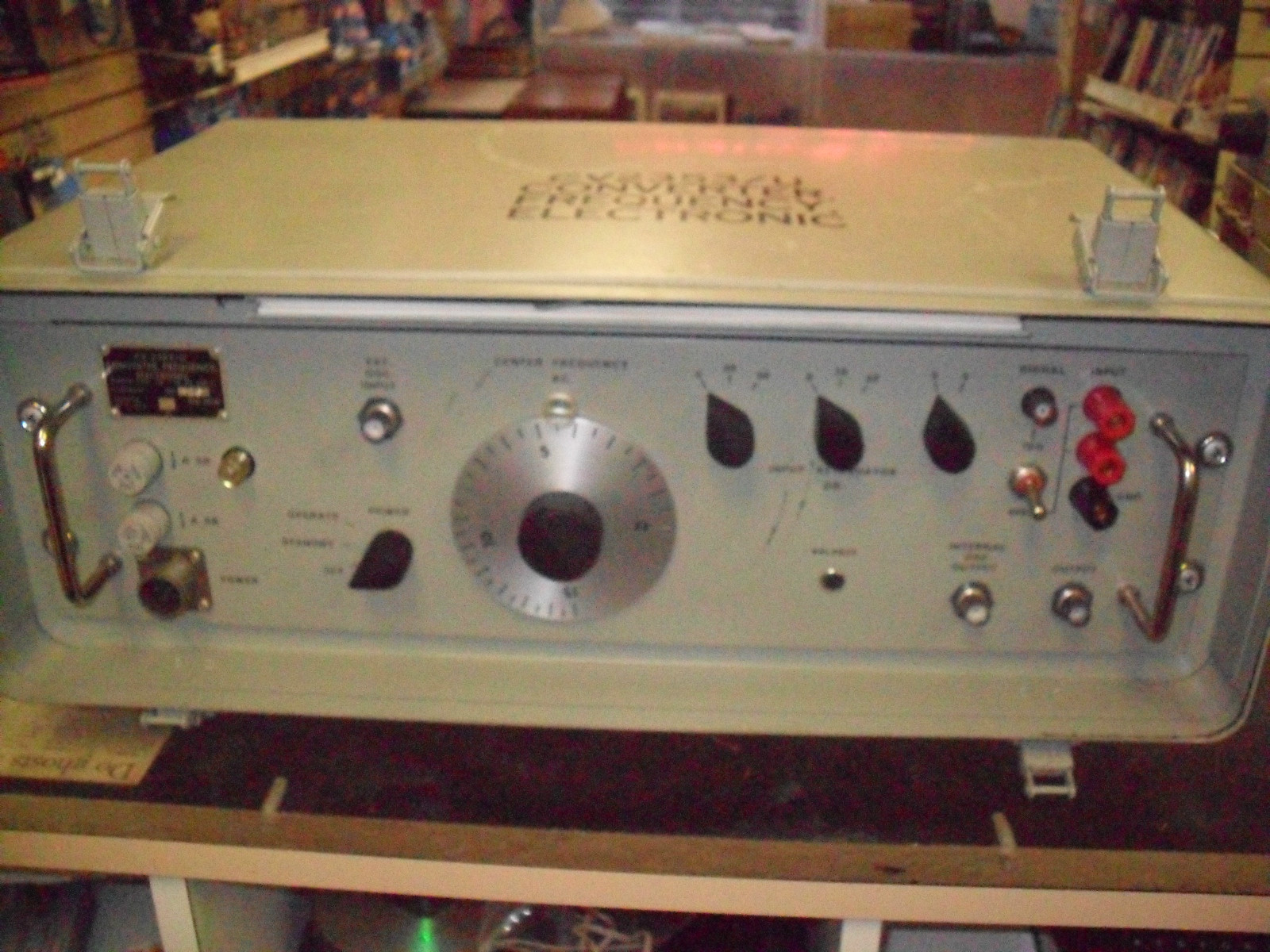

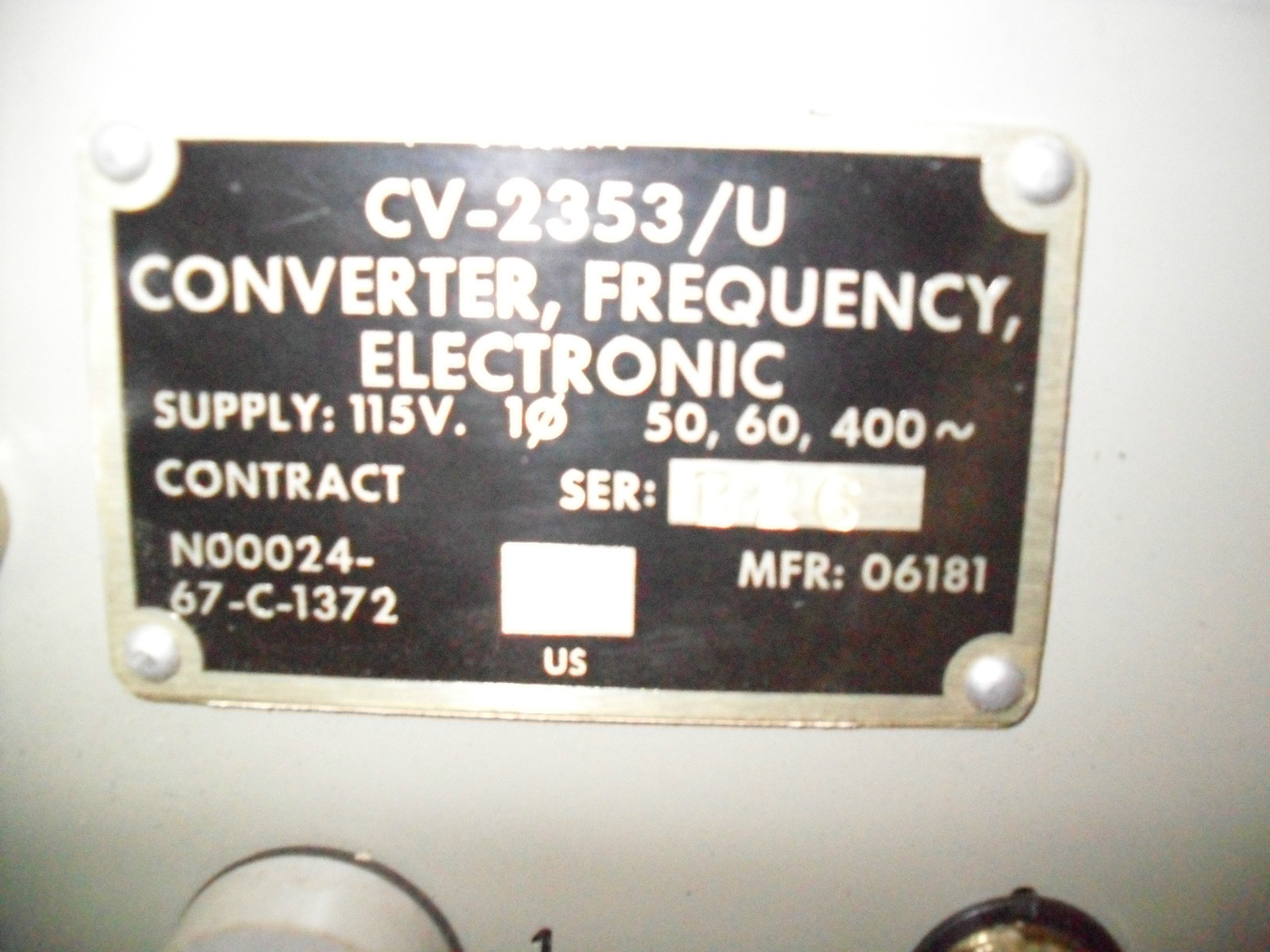

CV-2353/U Frequency Converter

Range extender for TS-1379 spectrum analyzer
adds 100cps-2mc coverage





Download manual (pdf)
(thanks to Elden Meyer)


--

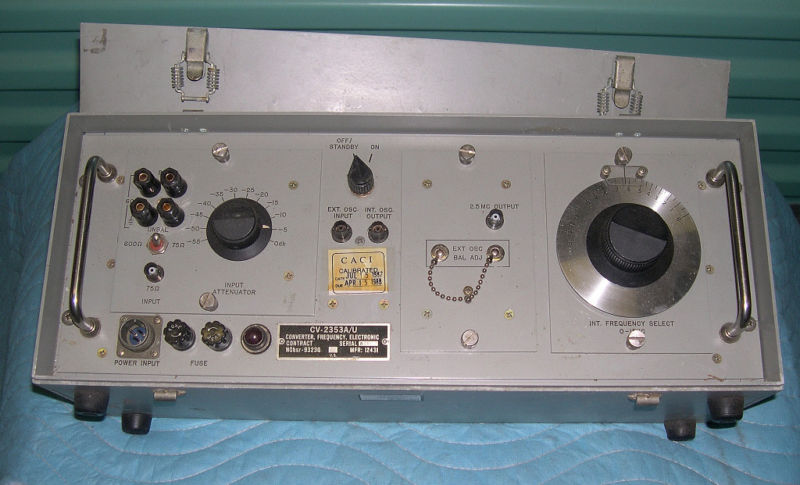

CV-2353A/U Frequency Converter

Range extender for TS-1379A spectrum analyzer
adds 100cps-2mc coverage

Please send e-mail if you have a manual or any info.

Available from www.fairradio.com


See manual for CV-2353 above - not the same, but operation is similar



--

Two-tone Signal Generators

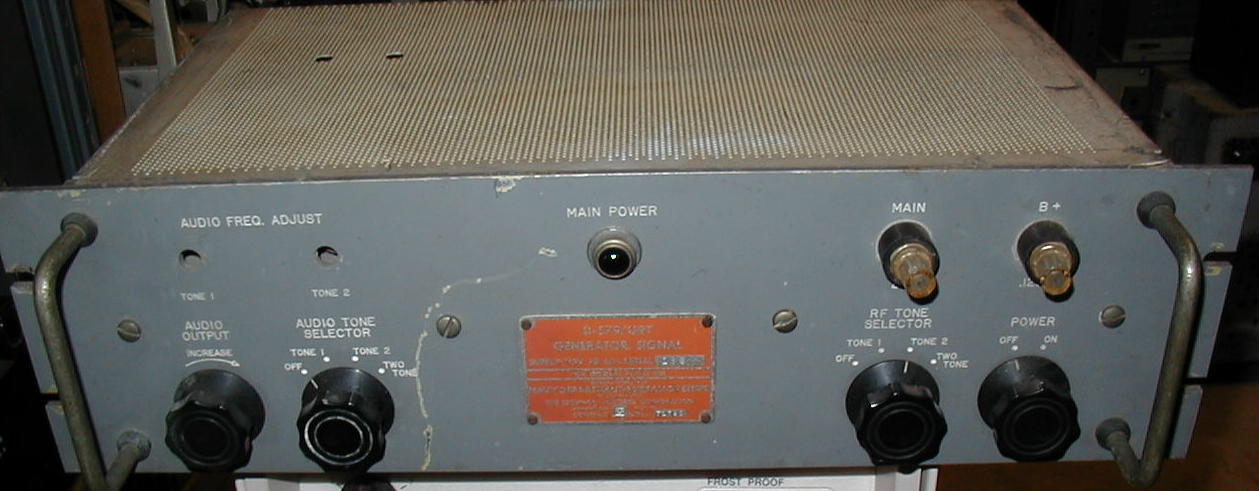

O-579/URT & O-579A/URT
two-tone AF & RF test generator

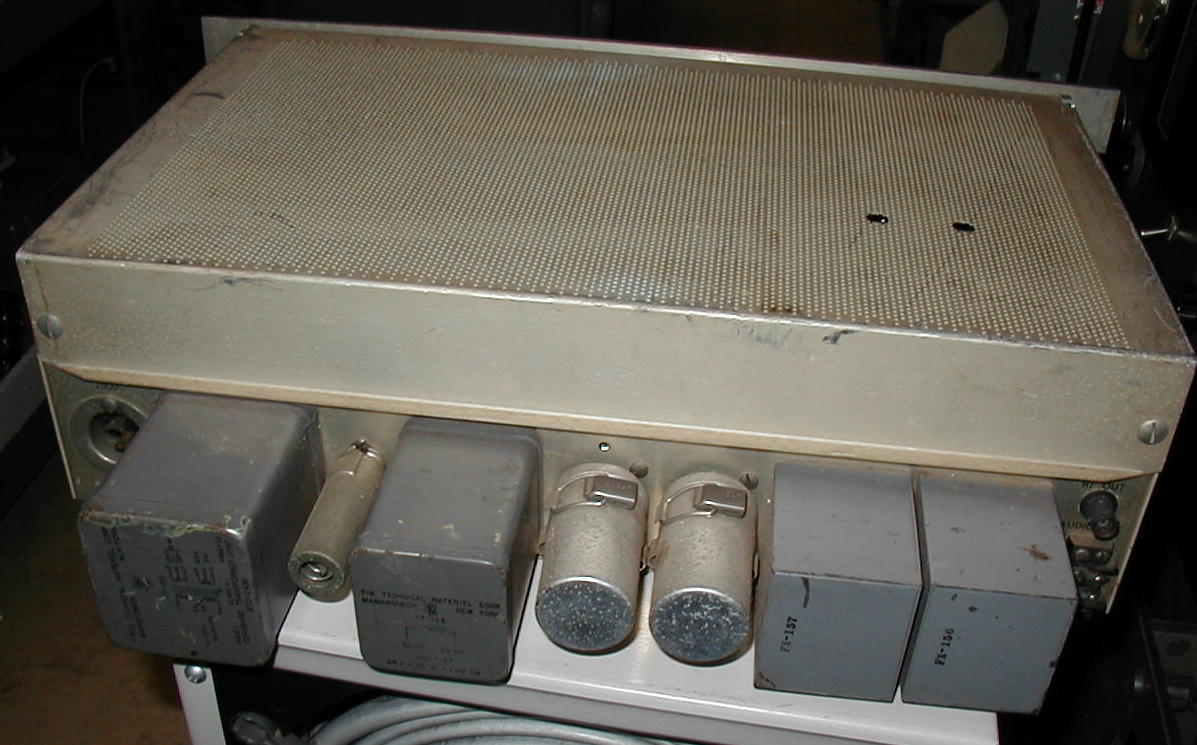

o579-urt-03.JPG (126216 bytes) Two-tone test generator - used with spectrum analyzer in non-synthesized FRT-39 and FRT-40



TMC model TTG (O-579)

TMC model TTG-2 (O-579A)

manual & spec sheets thanks to K4OZY

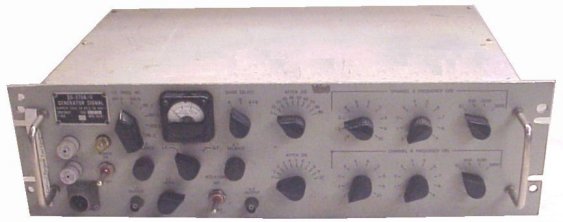

SG-376/U Two-tone test generator

Used with TS-1379A
Transistorized two-tone IF Signal Generator for testing SSB equipment. Has two 20 - 20Khz audio oscillators and two independent IF oscillators. IF outputs 497.5, 498.5, 501.5, or 502.5Khz . Output levels 2-2.5 V into 600 ohms (AF); 1-1.25 V into 60 ohms (IF) with attenuation to 100 db in 1 or 10 db steps. The AF and IF signal outputs are independent of each other. Generates two separate AF signals which can be used independently, one at a time, or both can be added for simultaneous use. It also generates four different, unmodulated IF signals which are available independently, one at a time, or in specific pairs simultaneously. Available from www.fairradio.com

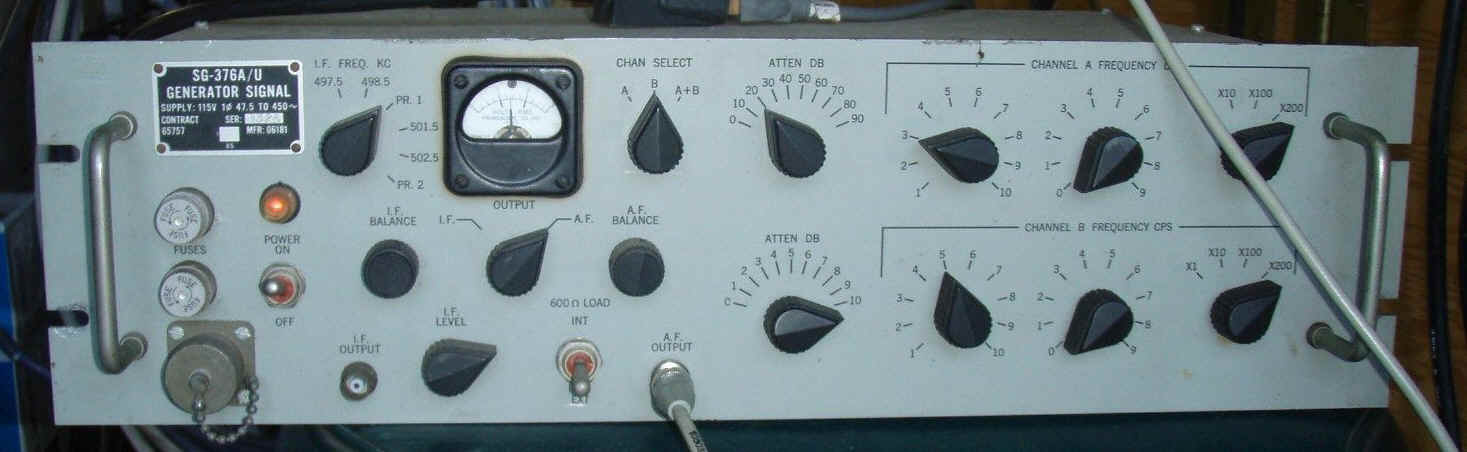

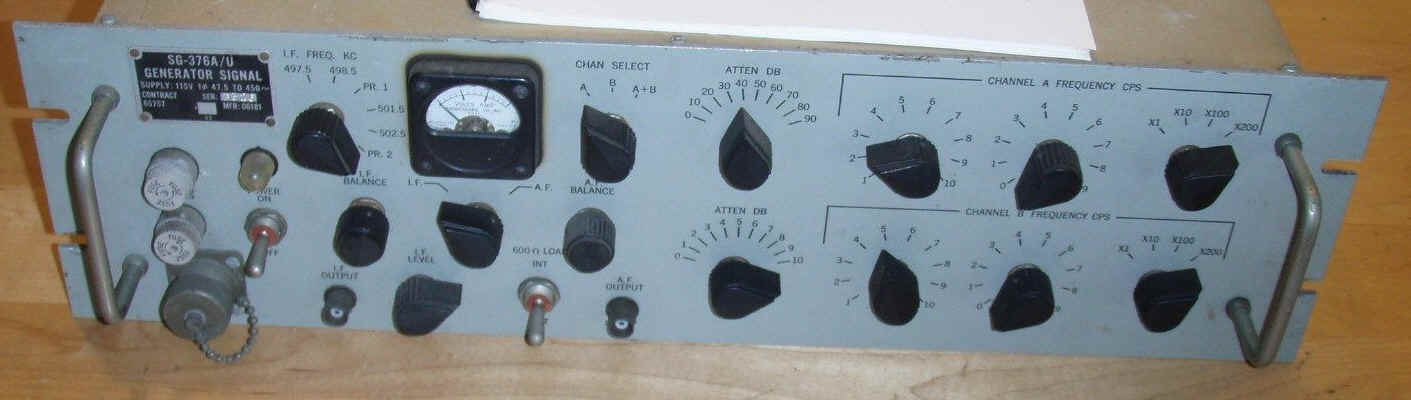

SG-376A/U

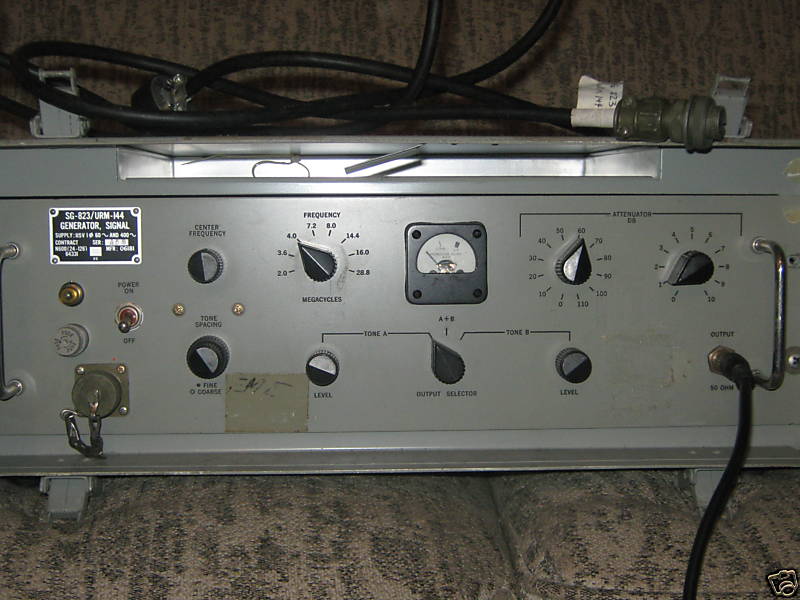

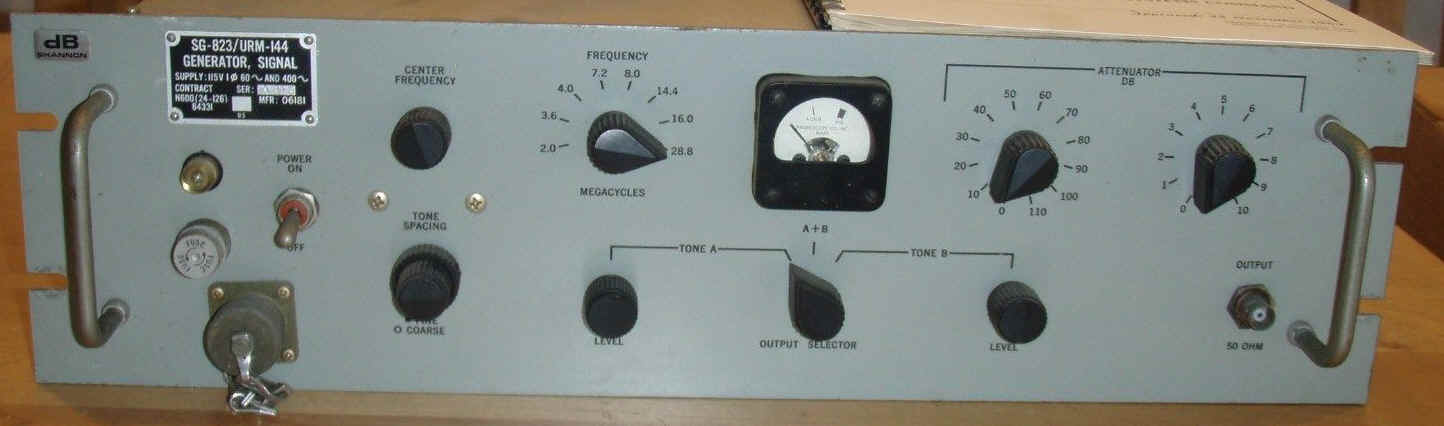

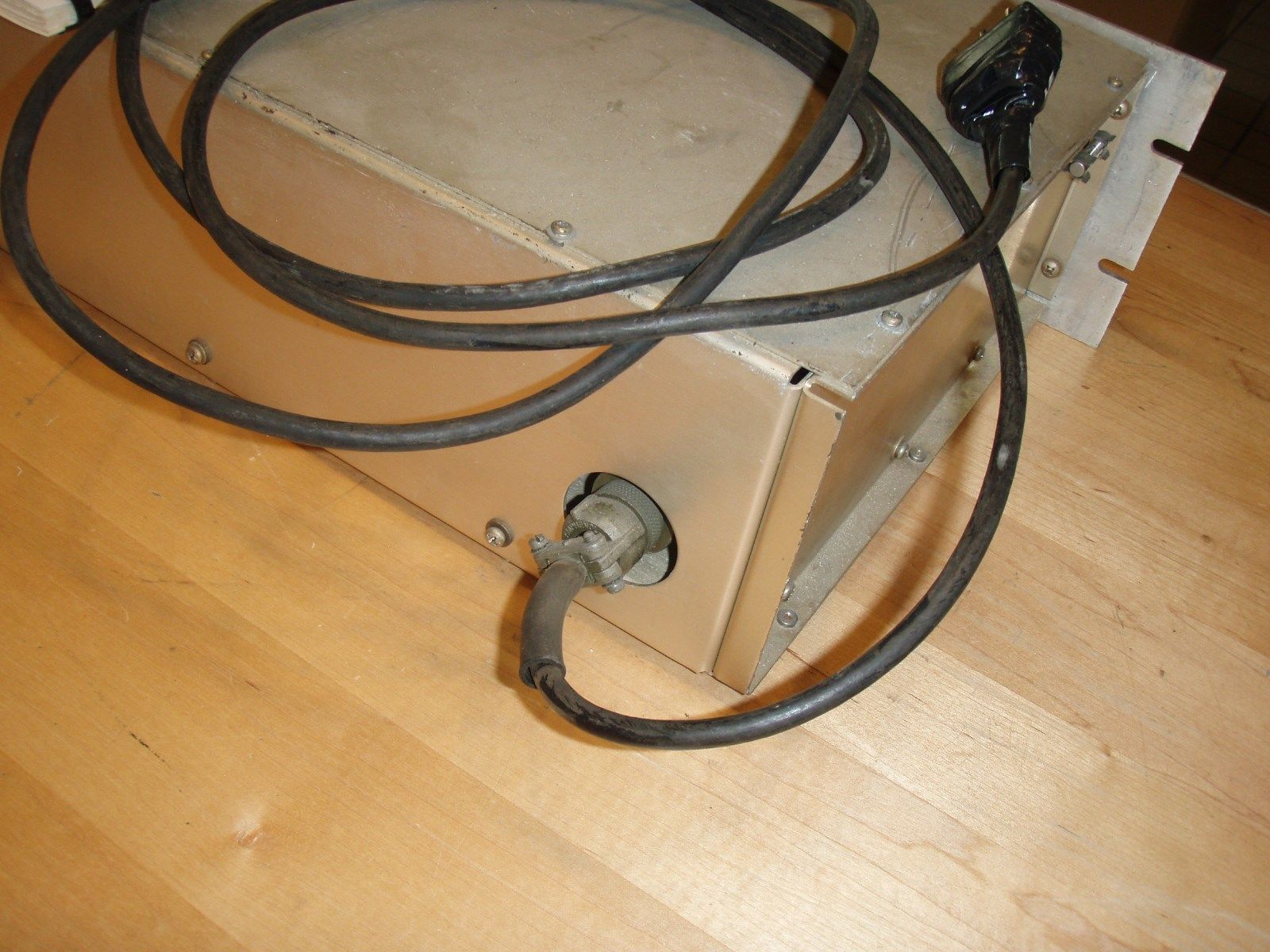

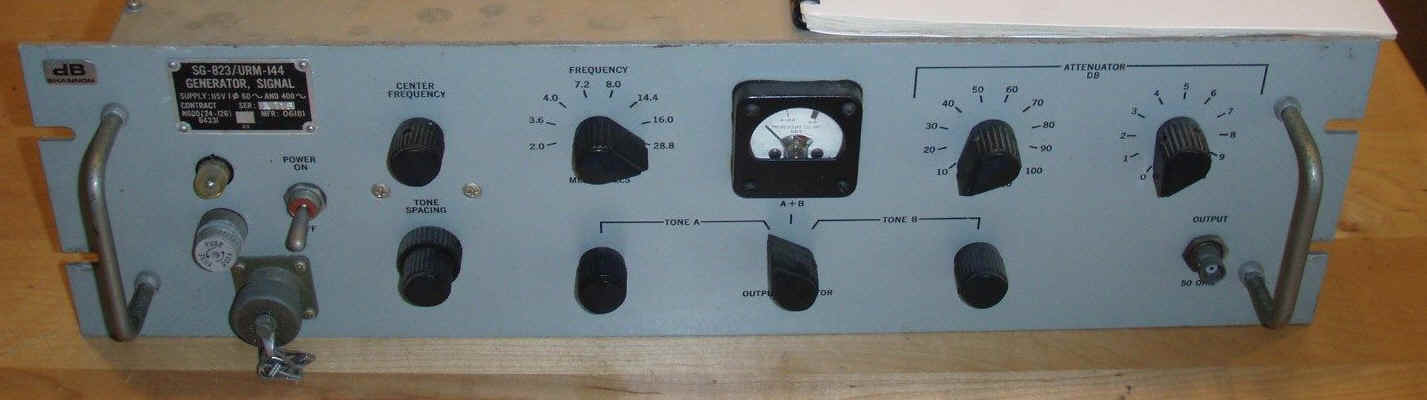

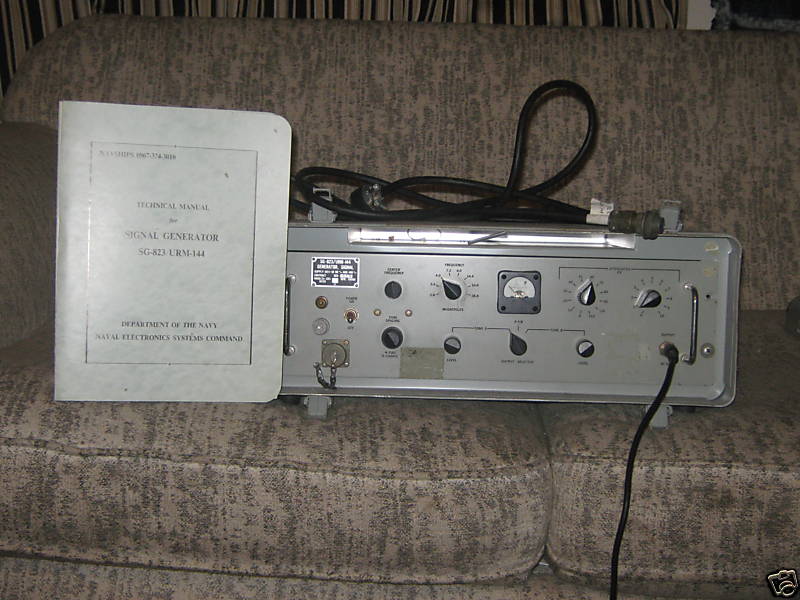

SG-823/URM-144 Two-tone RF generator

manual available from www.fairradio.com

Also check there for equipment


RF Signal Monitors

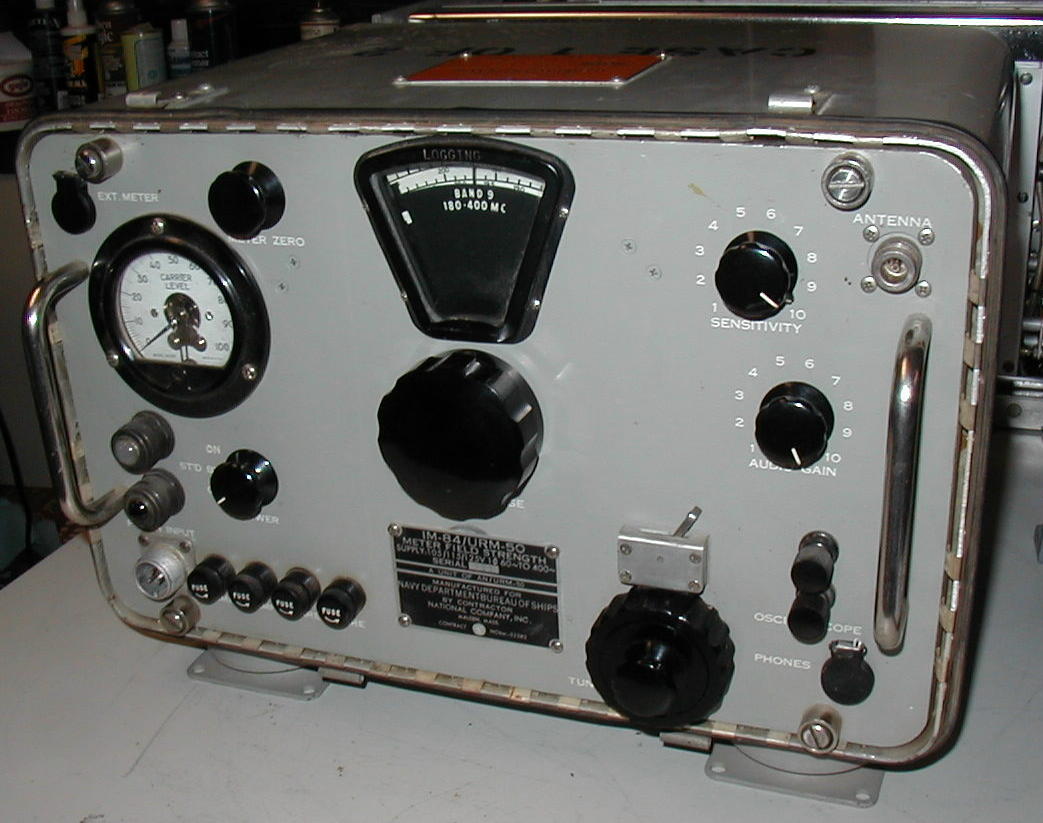

AN/URM-50
Field Strength Meter

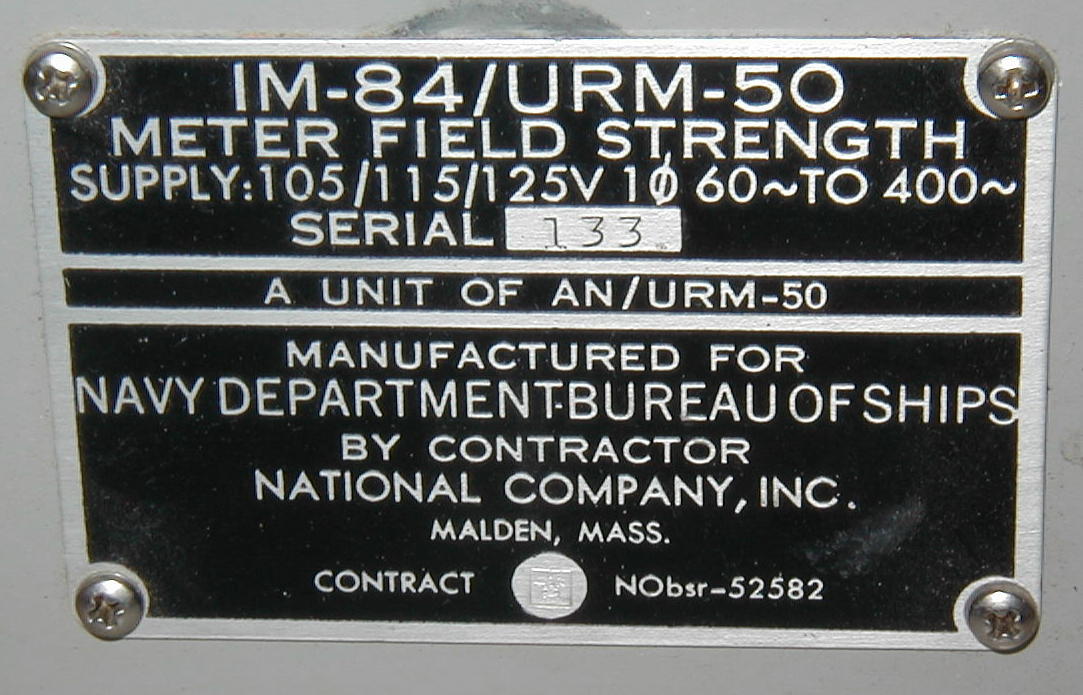

IM-84/URM-50

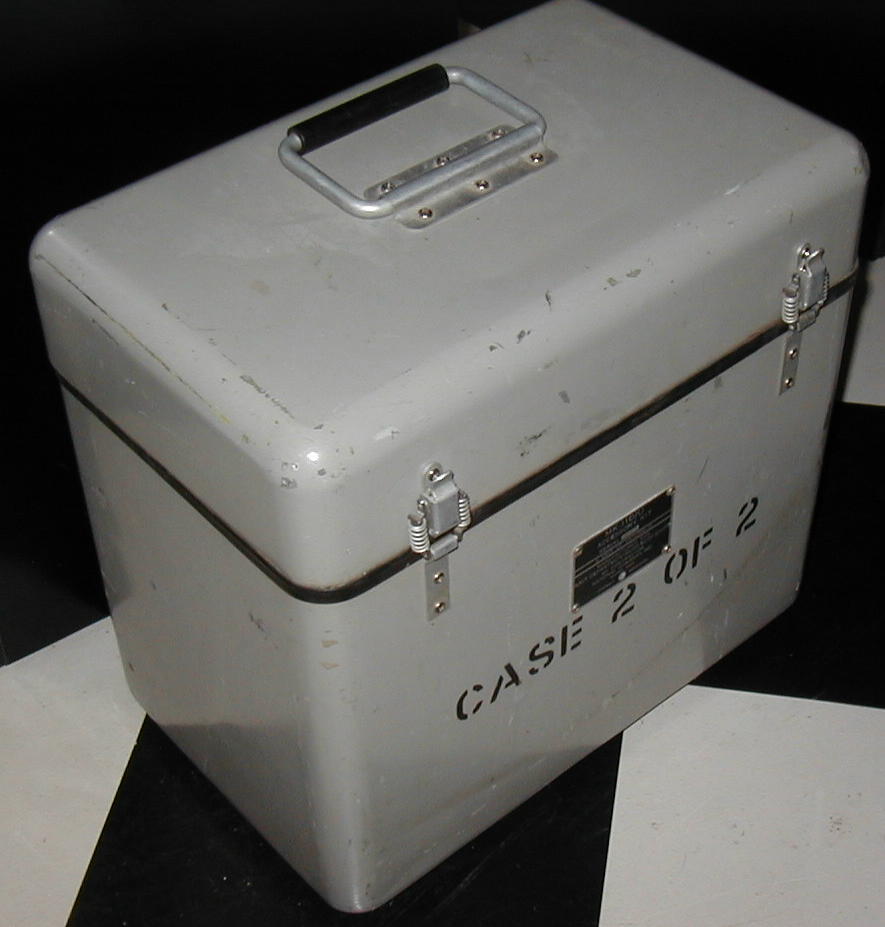

accessory case
300 kc - 400 mc TRF receiver

used with external antenna or handheld RF sniffer to tune & monitor transmitters

  • IM-84/URM-50 FSM
  • accessory case
  • remote meter
  • RF sniffer coil
  • mast-mounted antenna

schematic - download 0.3 MB pdf

manuf National

NAVSHIPS 91946 -
download 28 MB pdf


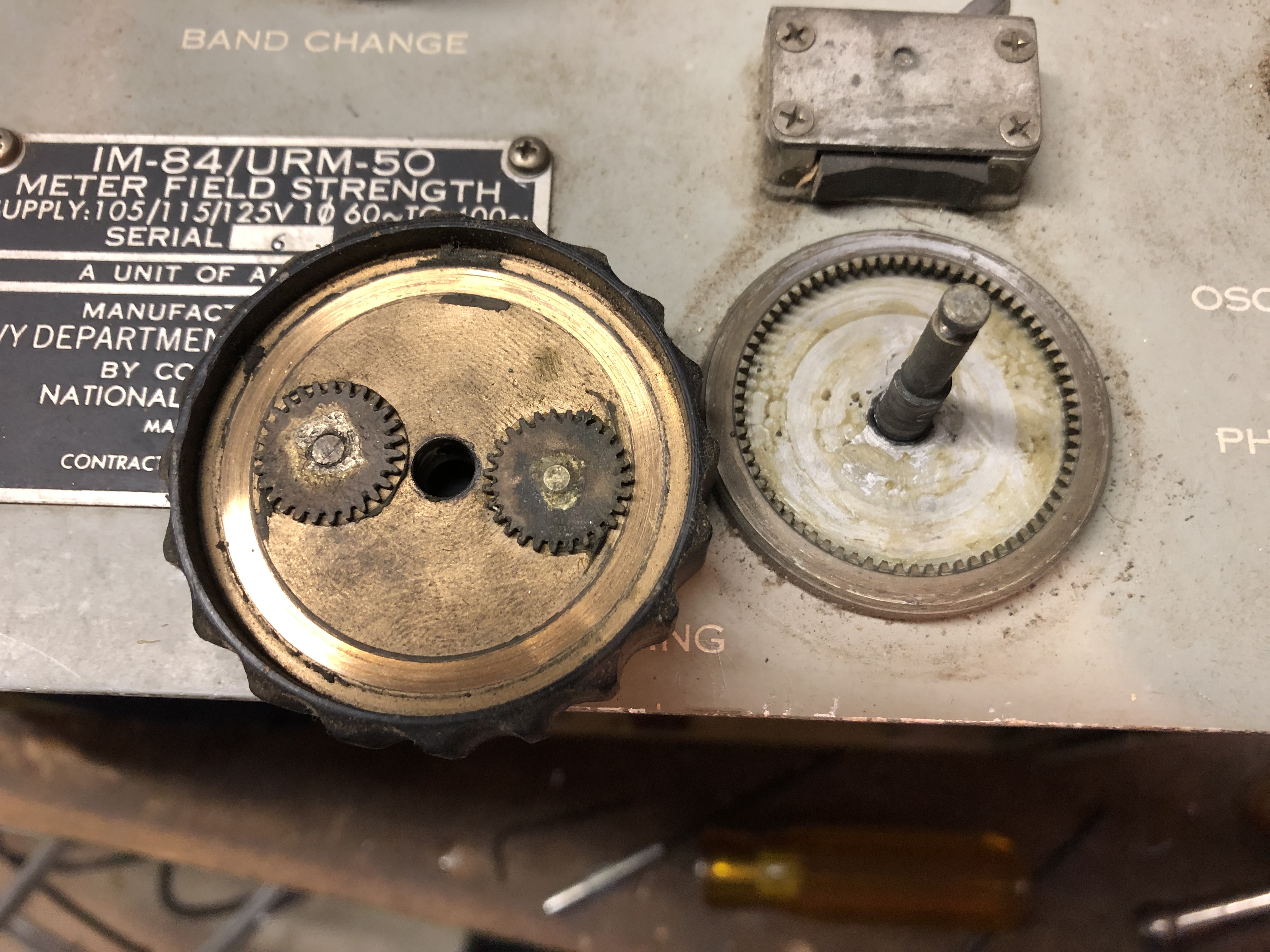

Tuning dial mechanism

>>>>>>>>>>>>>>

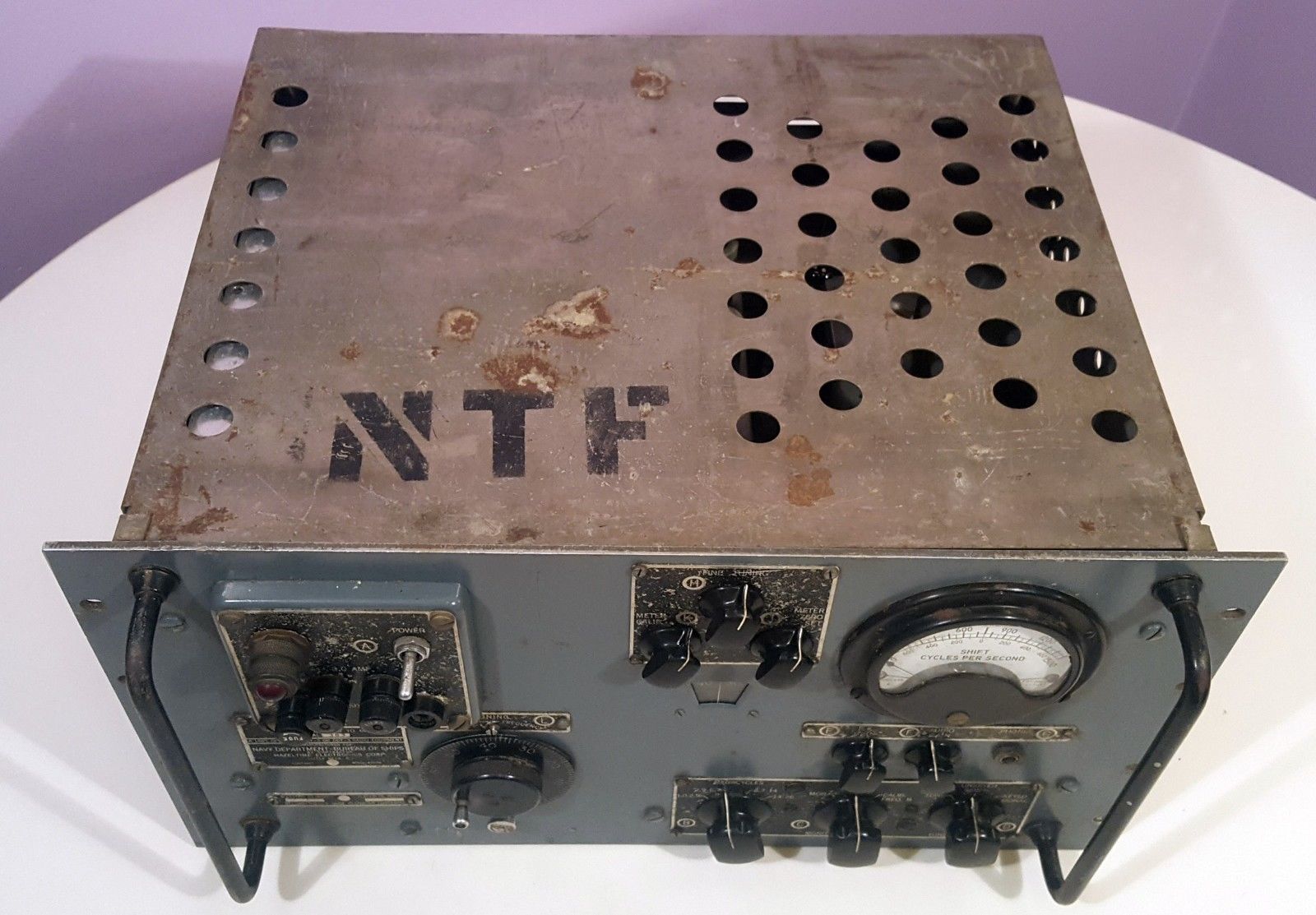

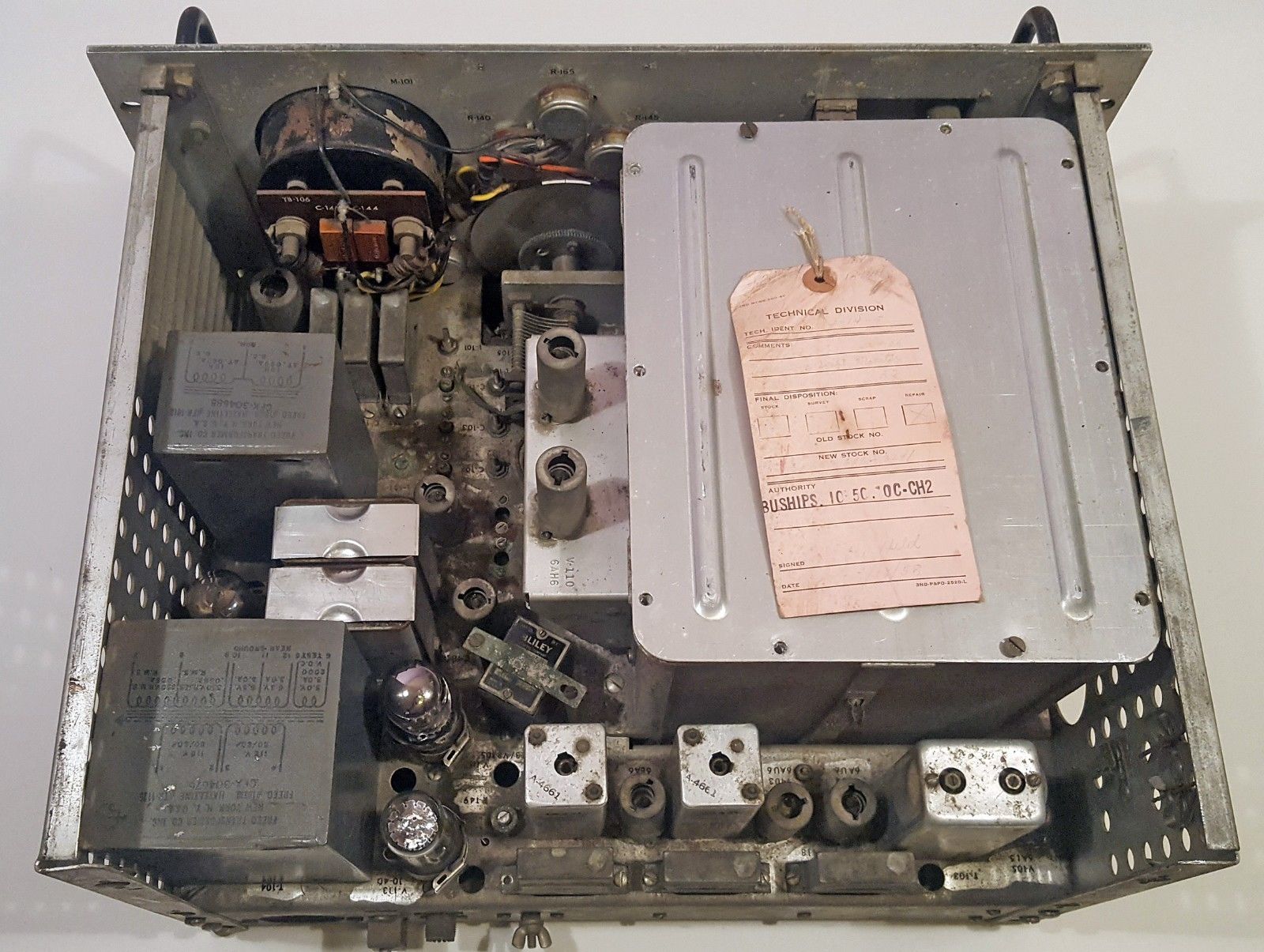

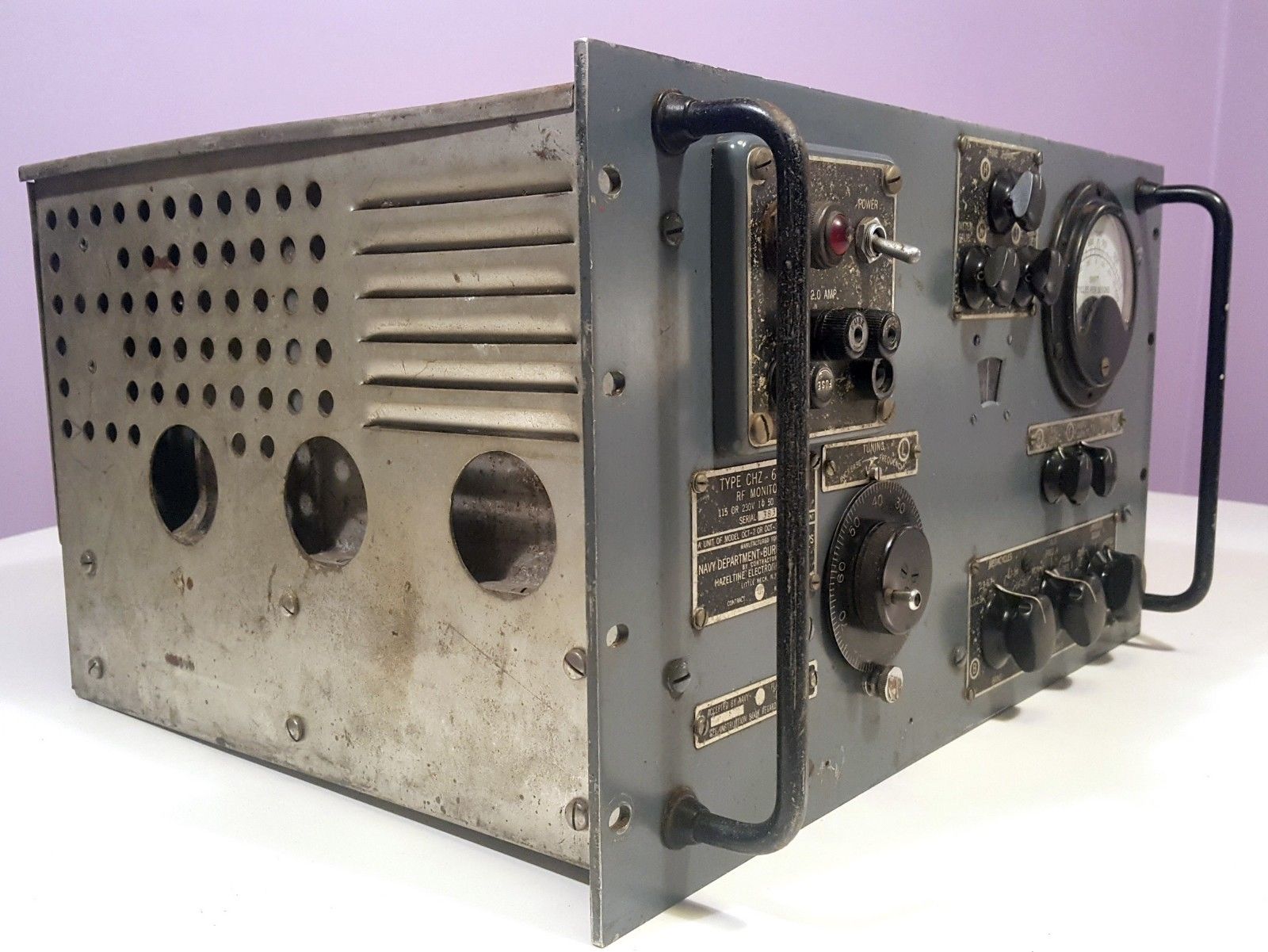

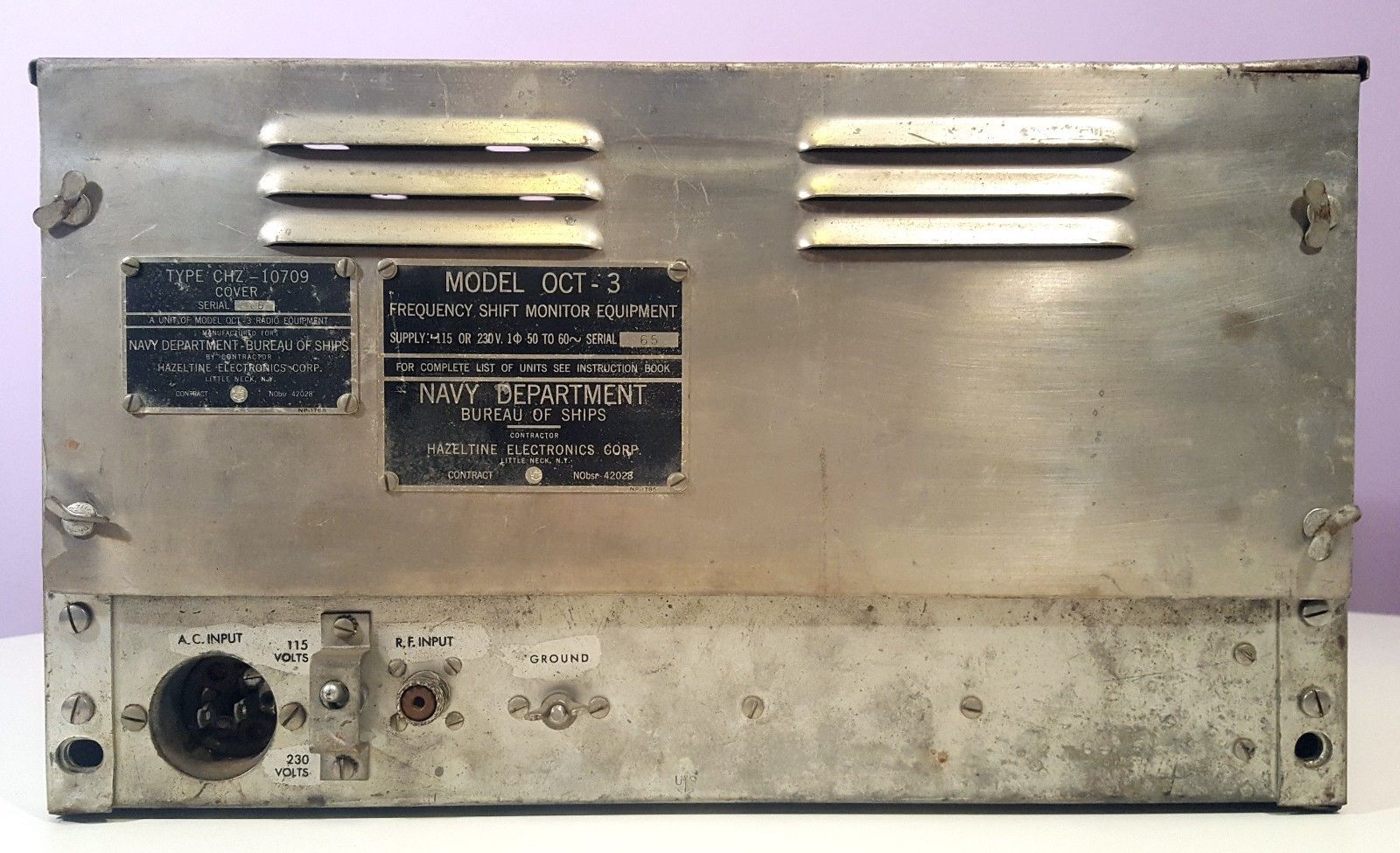

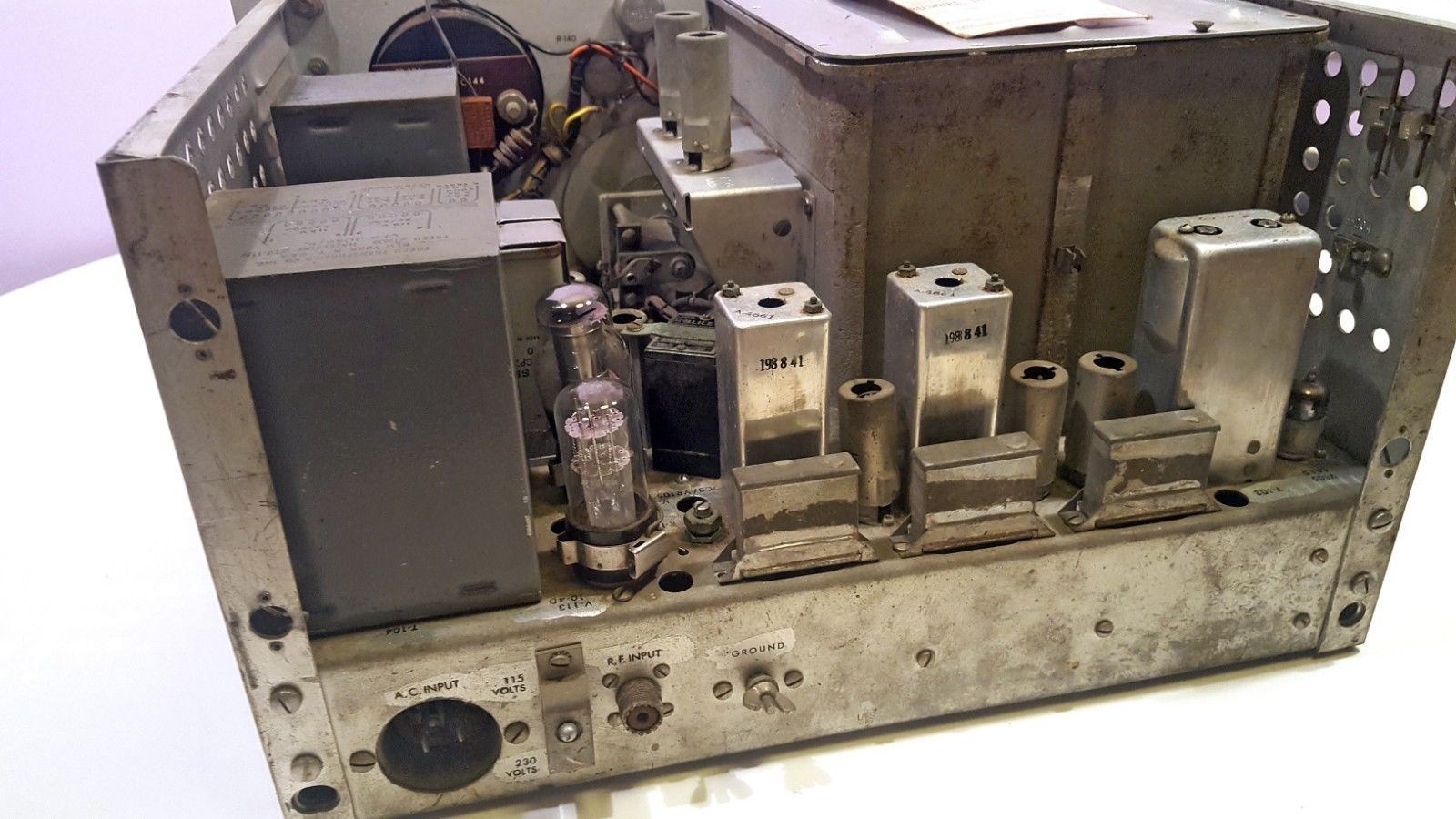

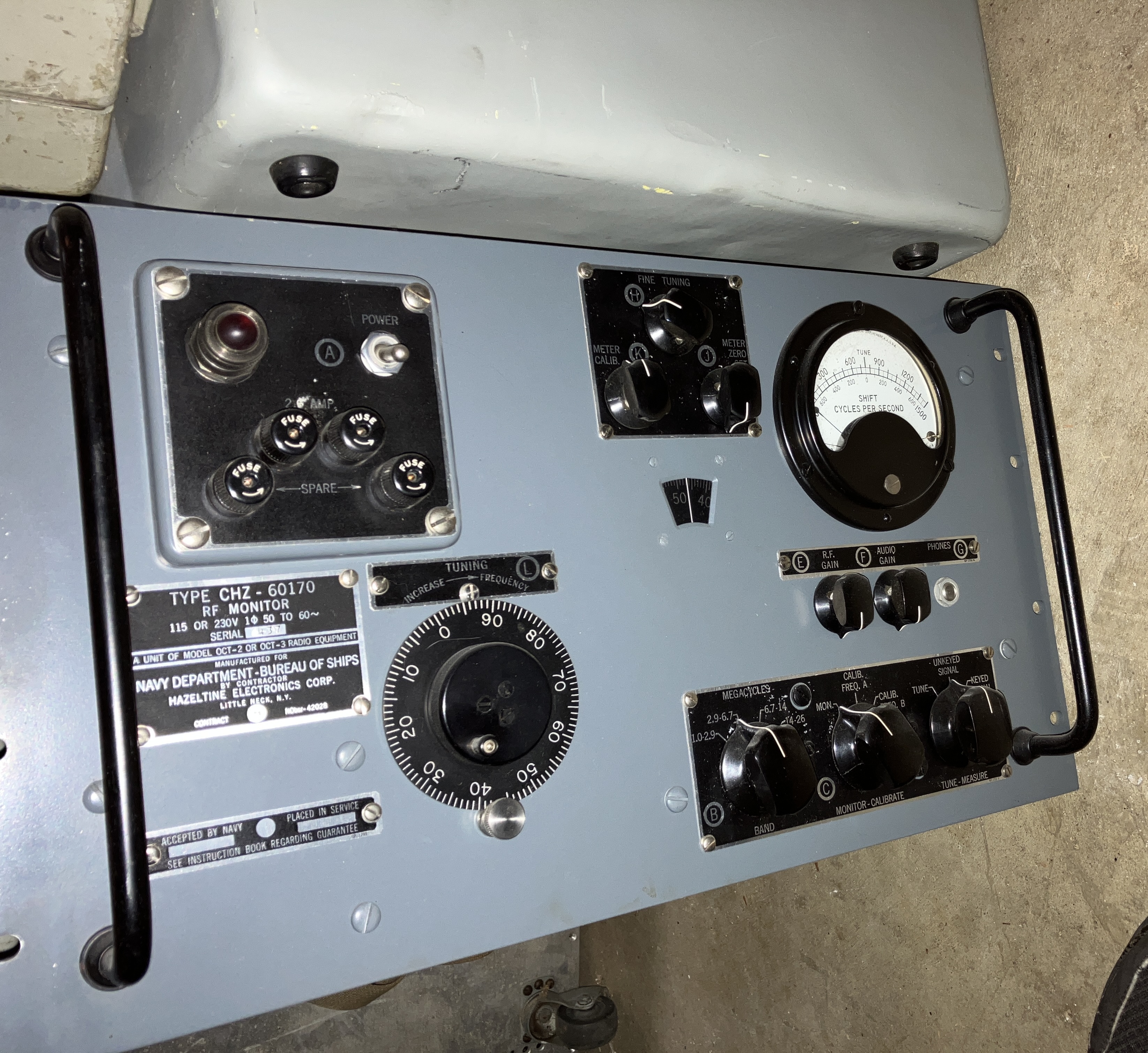

OCT-2 (cabinet)
OCT-3 (rack mount)
Frequency Shift Monitor

two OCT-3 new in crate -

1-26 mc receiver with FSK deviation meter to measure RTTY shift

comprises CHZ-60170 receiver
Senses RF in transmitter room or uses external antenna
- see pp 172-173 of "RTTY from A to Z"



OCT-2 (cabinet) and OCT-3 (rack mount) are a 1947 contract. There was an earlier OCT with a different design before this model. It is used to monitor FSK shift in RTTY transmitters. It is basically a superhet receiver with two limiters and a discriminator whose output is supplied to a VTVM which indicates the amount of frequency shift. The audio output (phones) comes from the discriminator to aid in tuning, so it is essentially an FM receiver, not useful for AM or CW.

manuf - Hazeltine

NAVSHIPS 91131 - download

OCT-2 schematic

oct3-1808-01.jpg (267722 bytes) oct3-1808-02.jpg (230973 bytes) oct3-1808-03.jpg (214969 bytes) oct3-1808-05.jpg (251012 bytes)
oct3-1808-06.jpg (306505 bytes) oct3-1808-07.jpg (191287 bytes) oct3-1808-08.jpg (210955 bytes) oct3-1808-09.jpg (177701 bytes)

DUMMY LOADS & RF WATTMETERS (DA = Dummy Antenna)

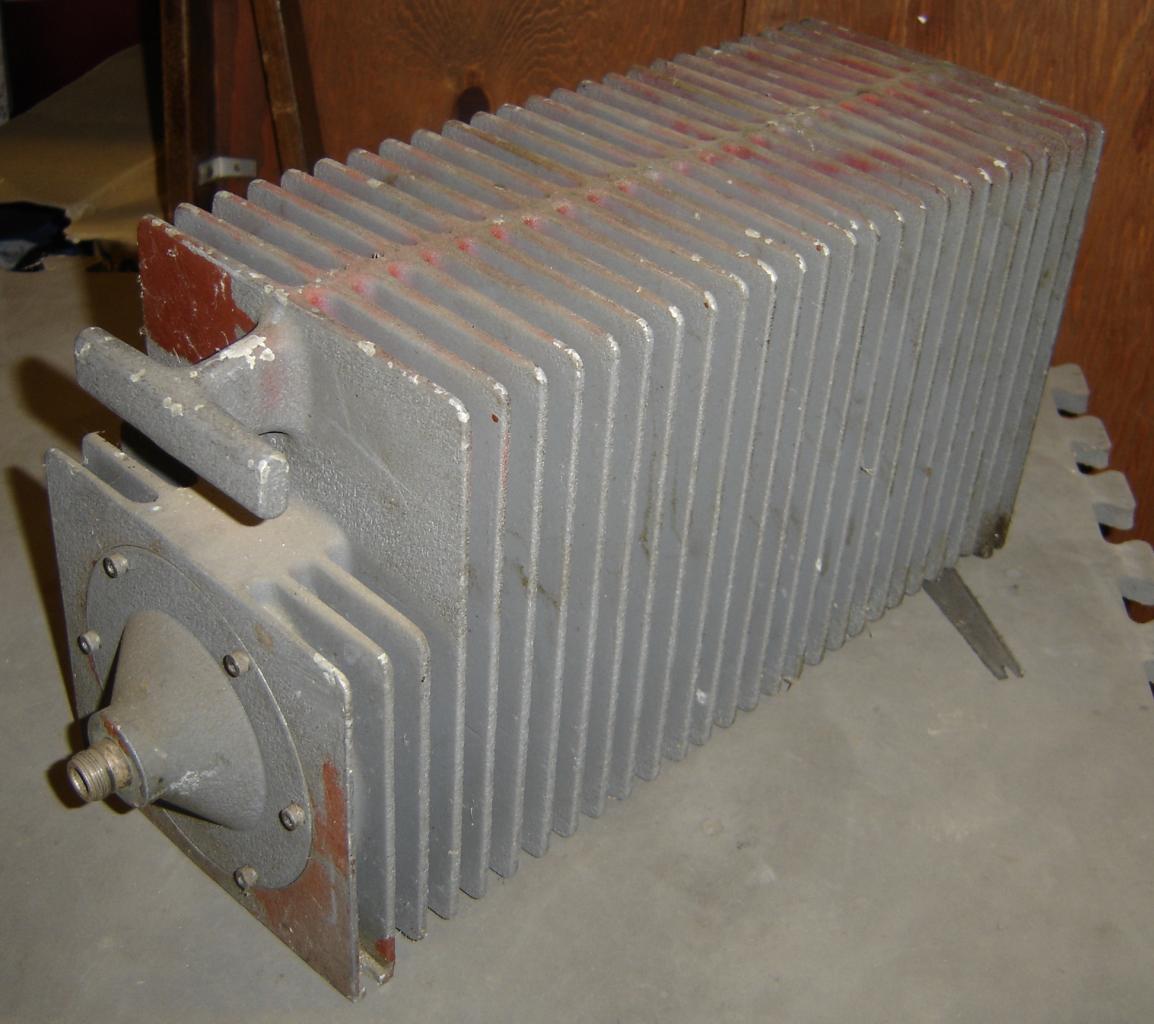

DA-75/U Dummy Loadda75-u-1807.jpg (111720 bytes)

1.3-1000 MHz
1000 W
50 ohms
-- --

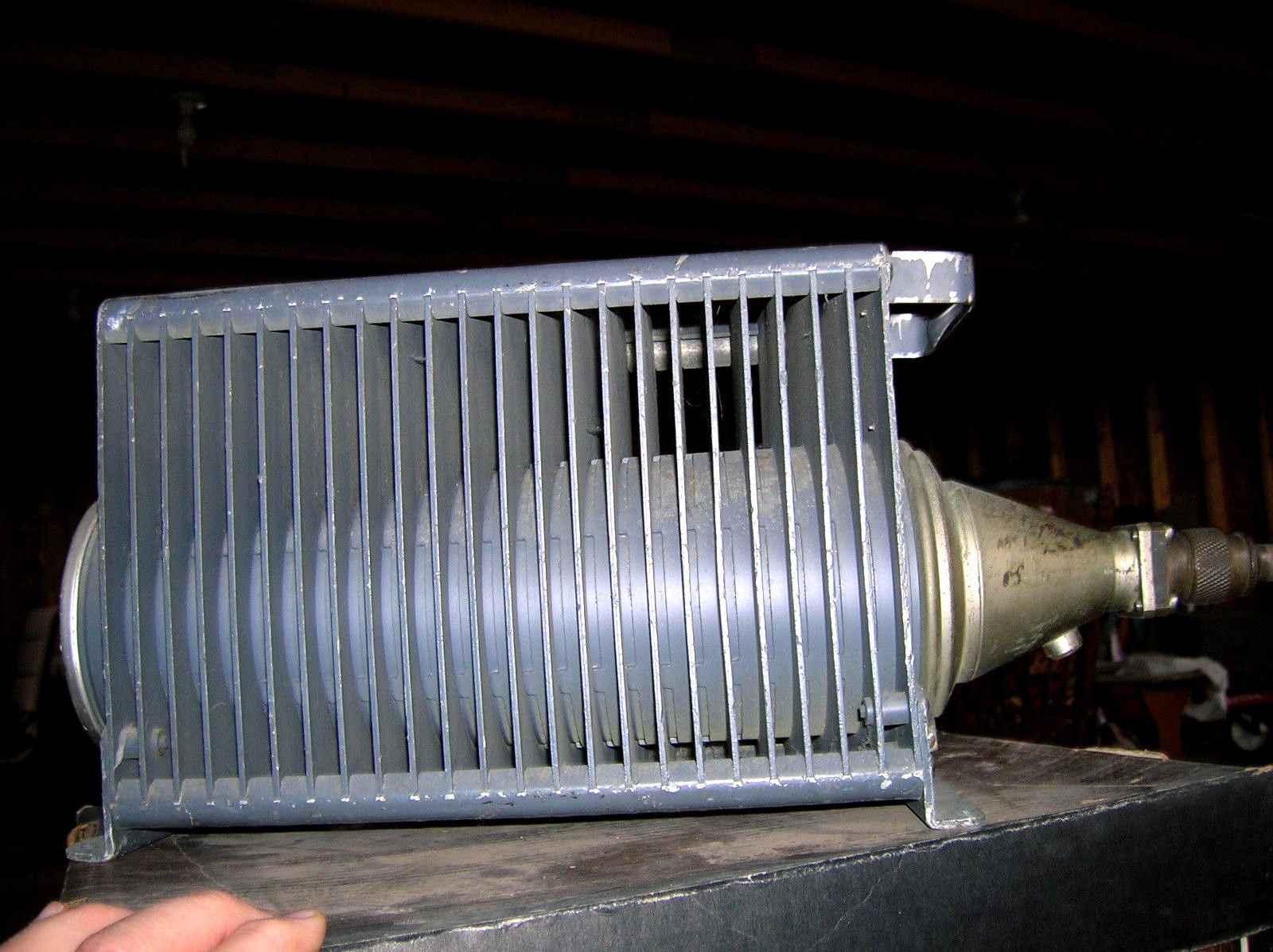

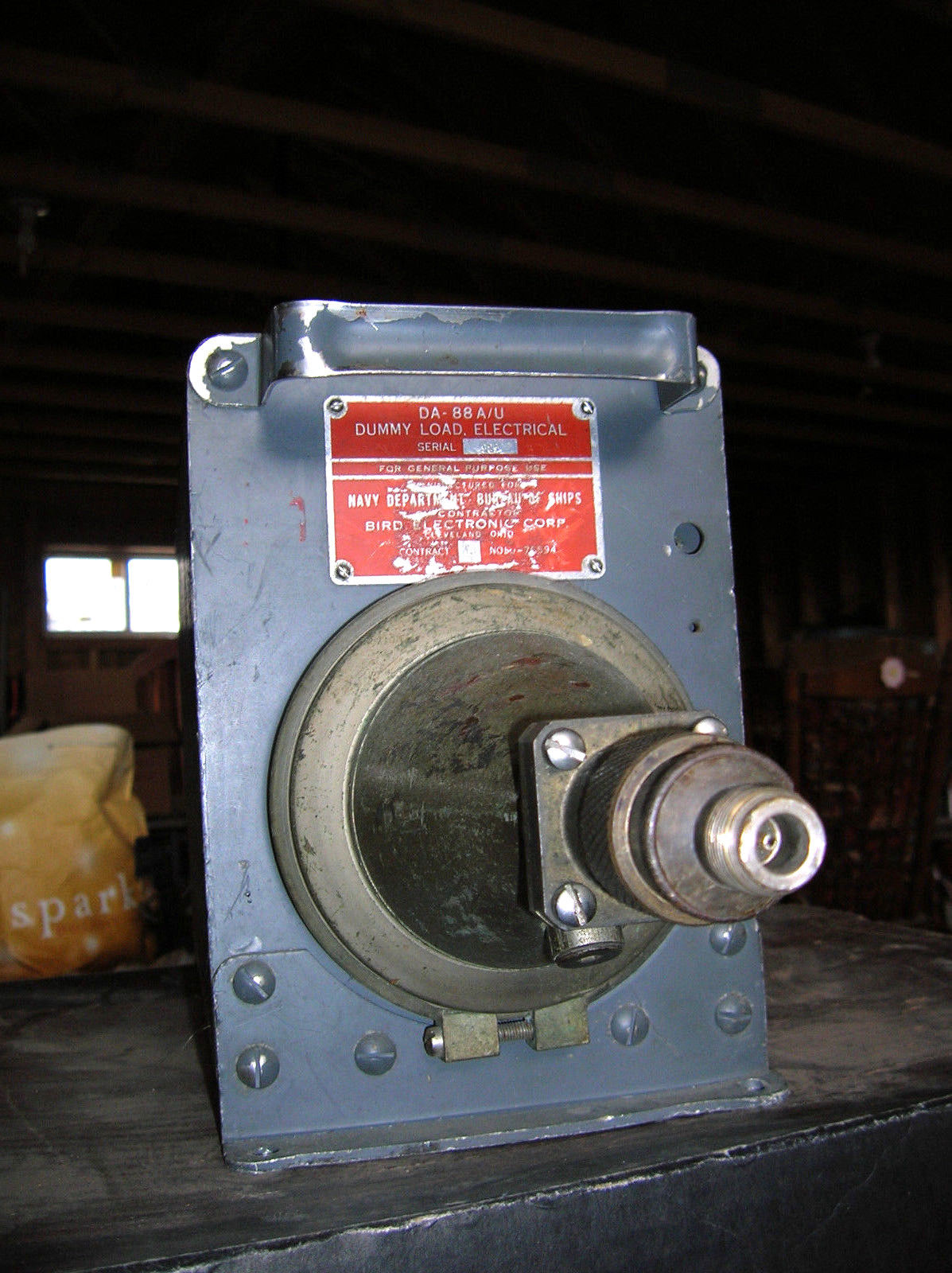

DA-88A/U Dummy Load

500W

50 ohms

DC-4GHz

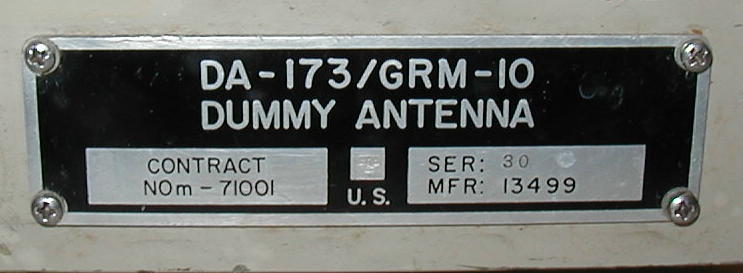

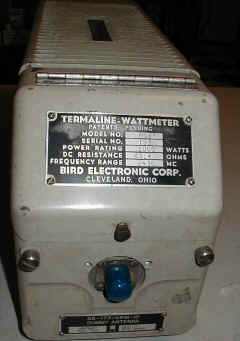

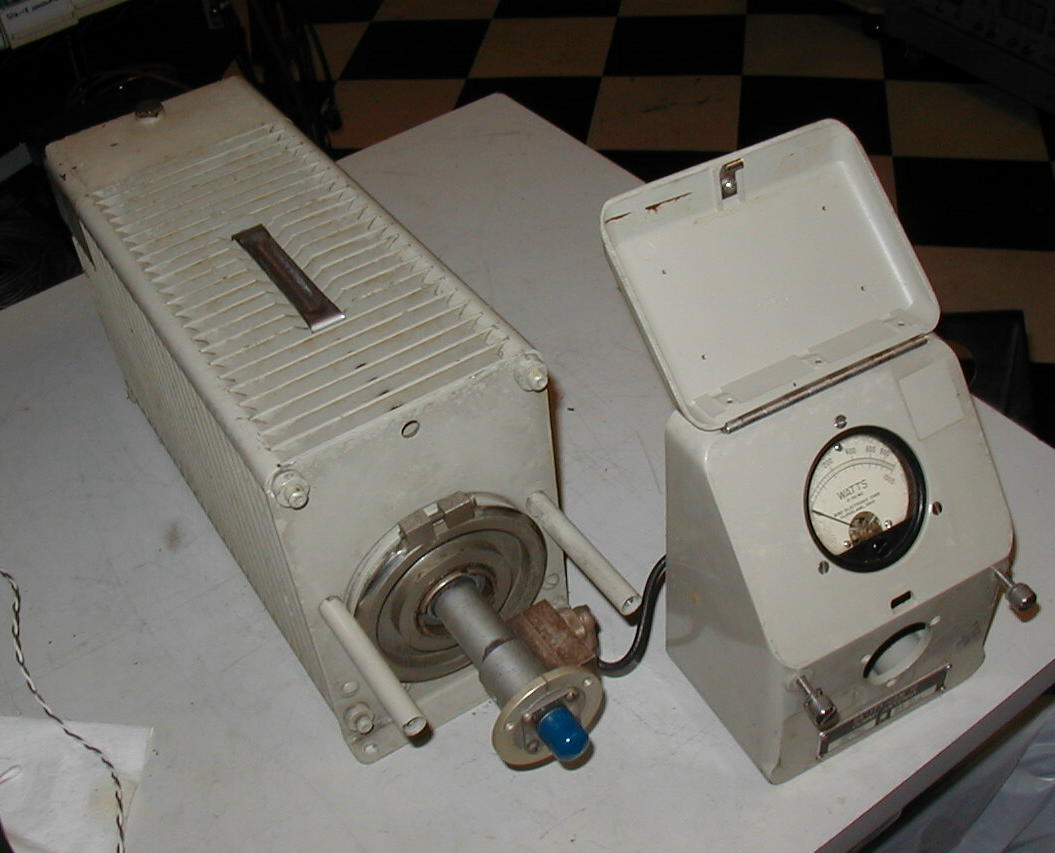

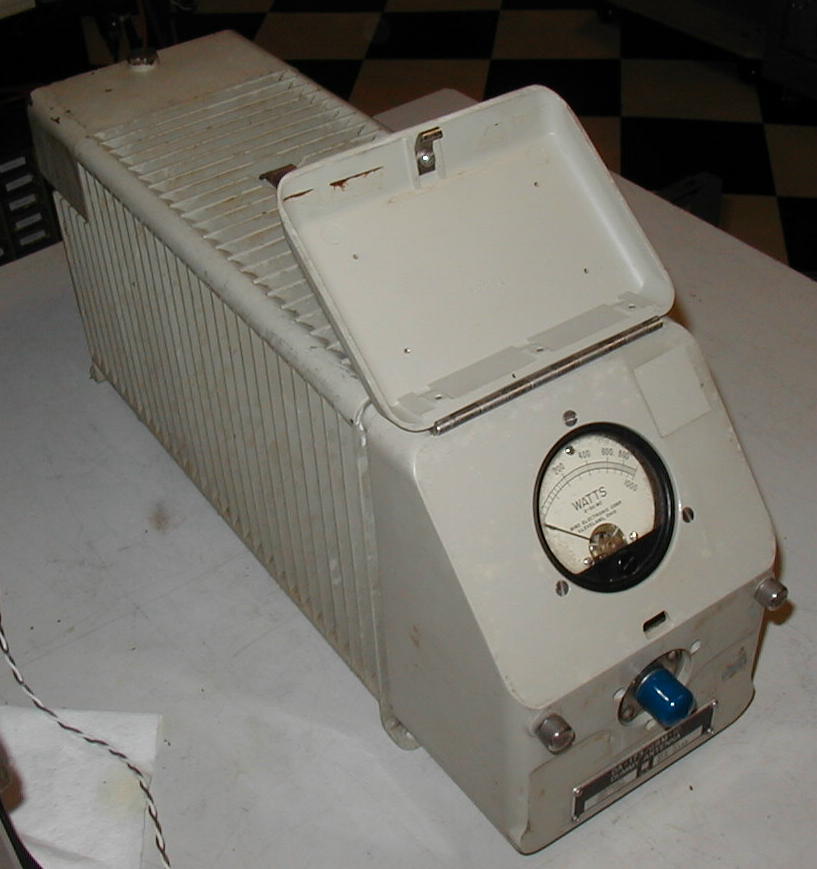

DA-173/GRM-10 Dummy Load & Wattmeter

2-30 mc, 1000w
Bird Model 694

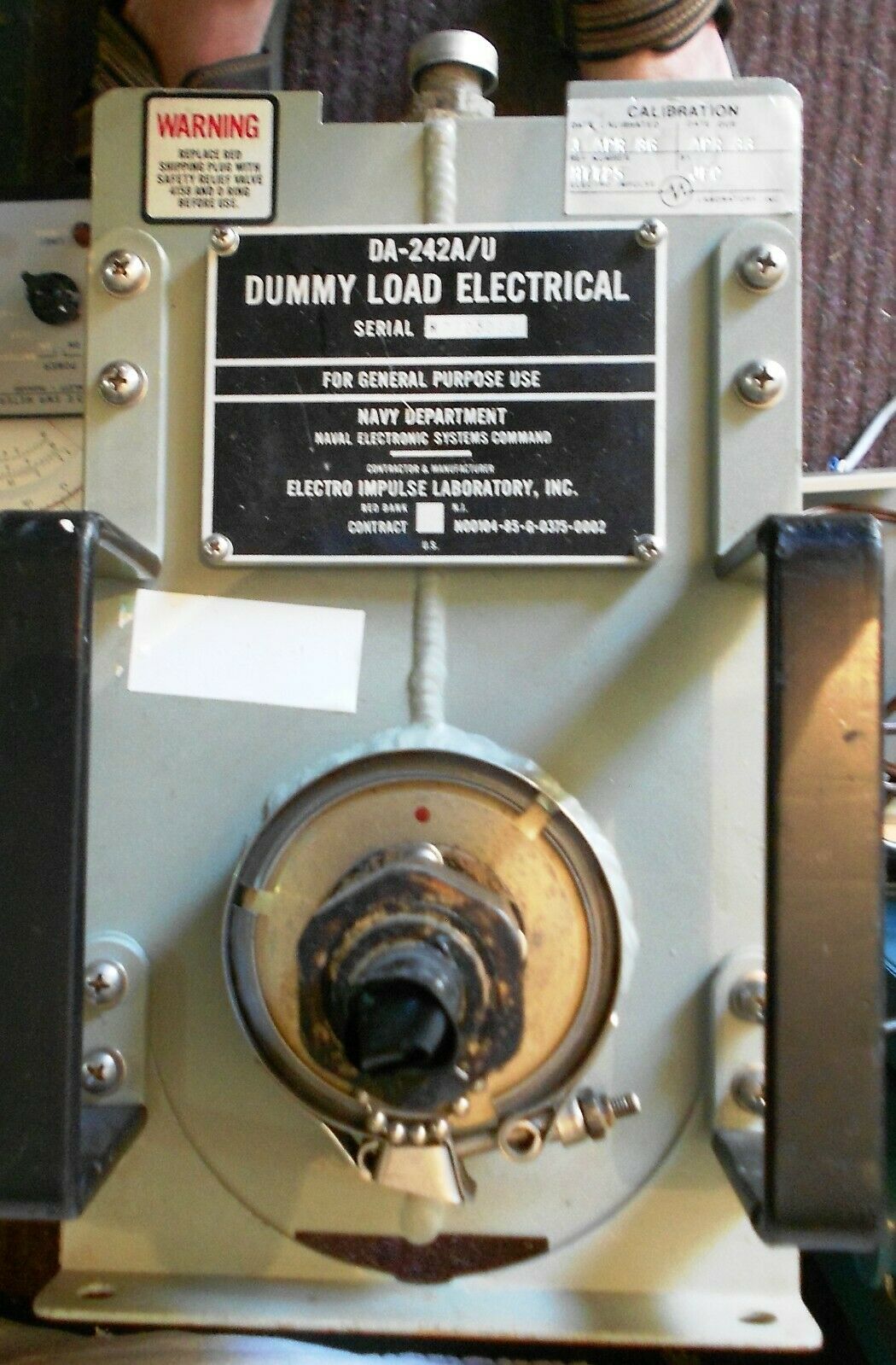

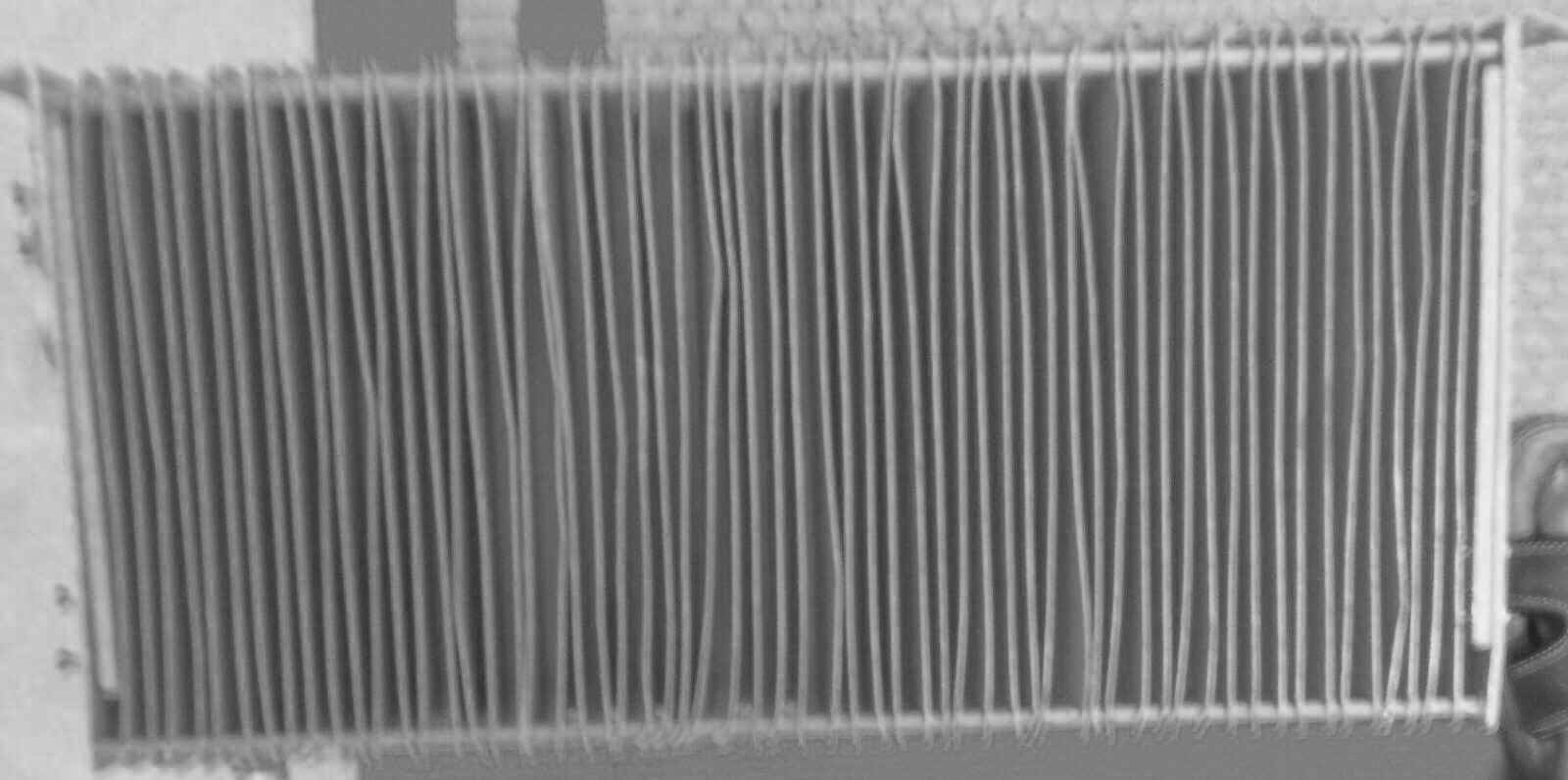

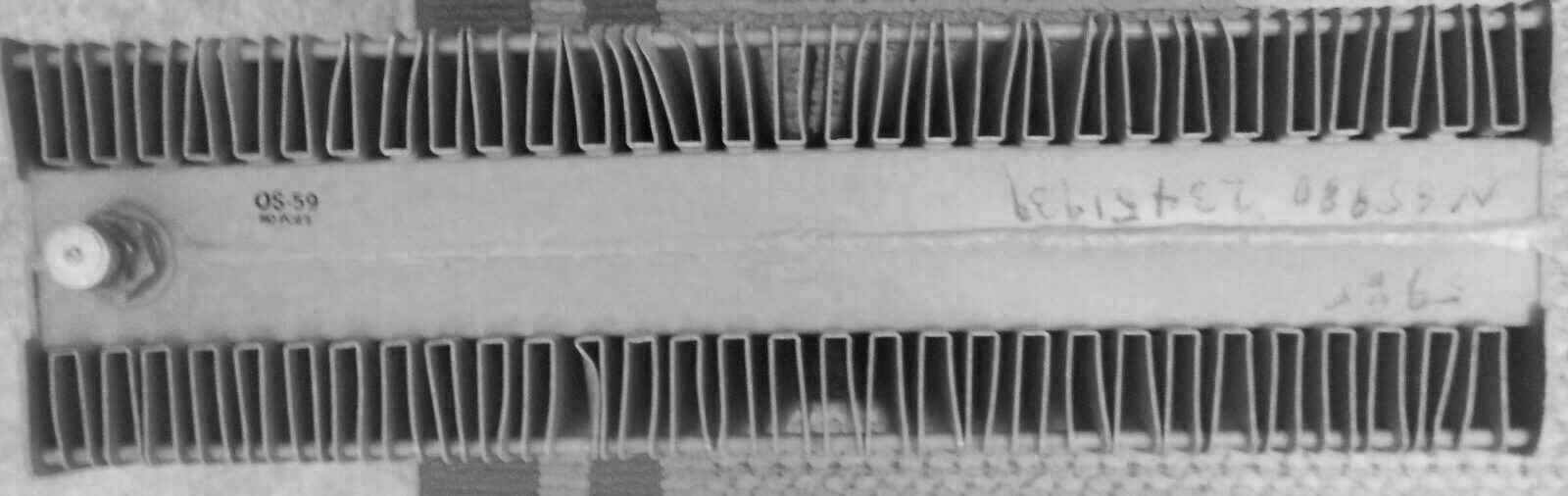

DA-242A/U Dummy Load

2000 Watts

DC-500mc

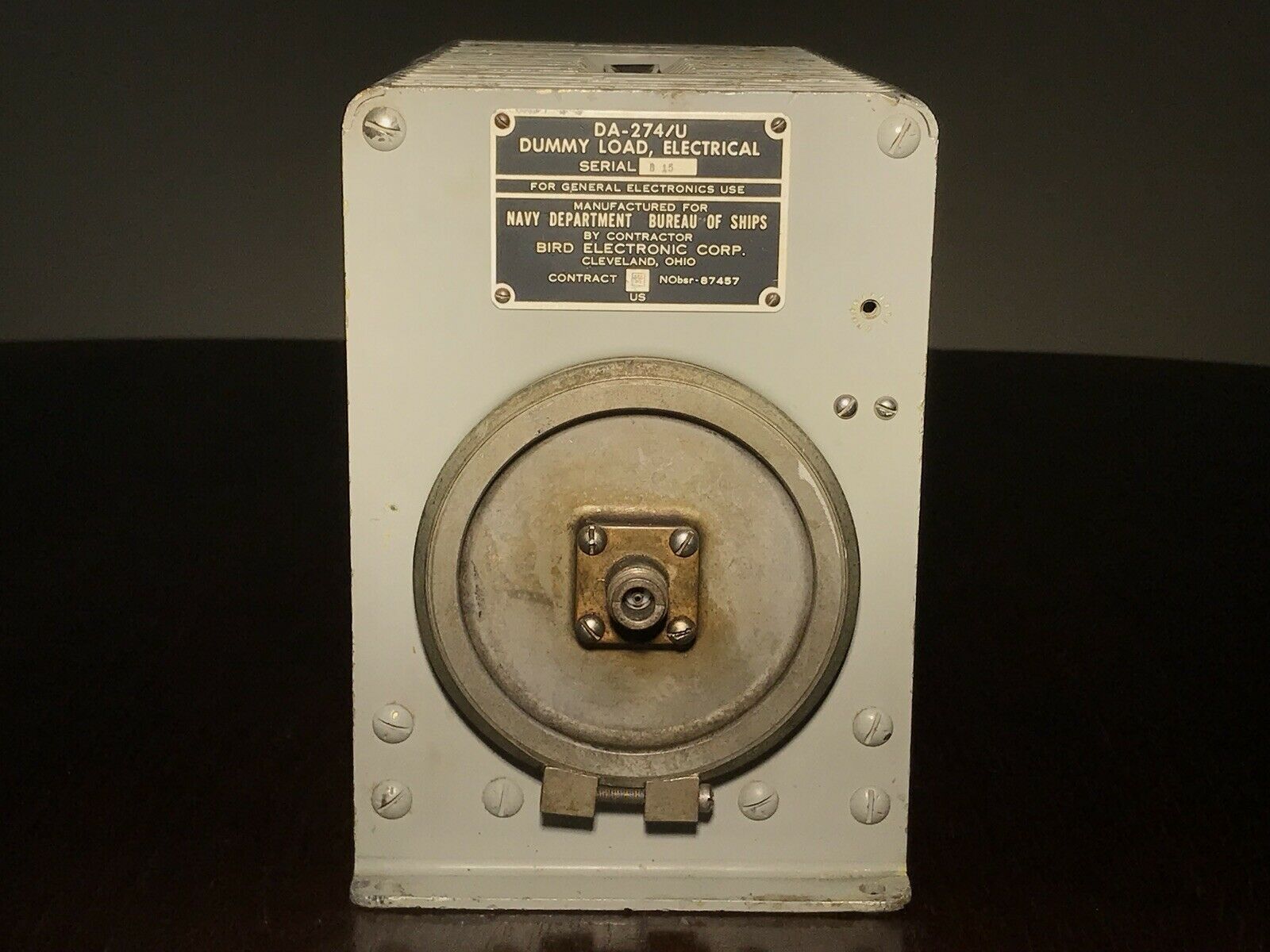

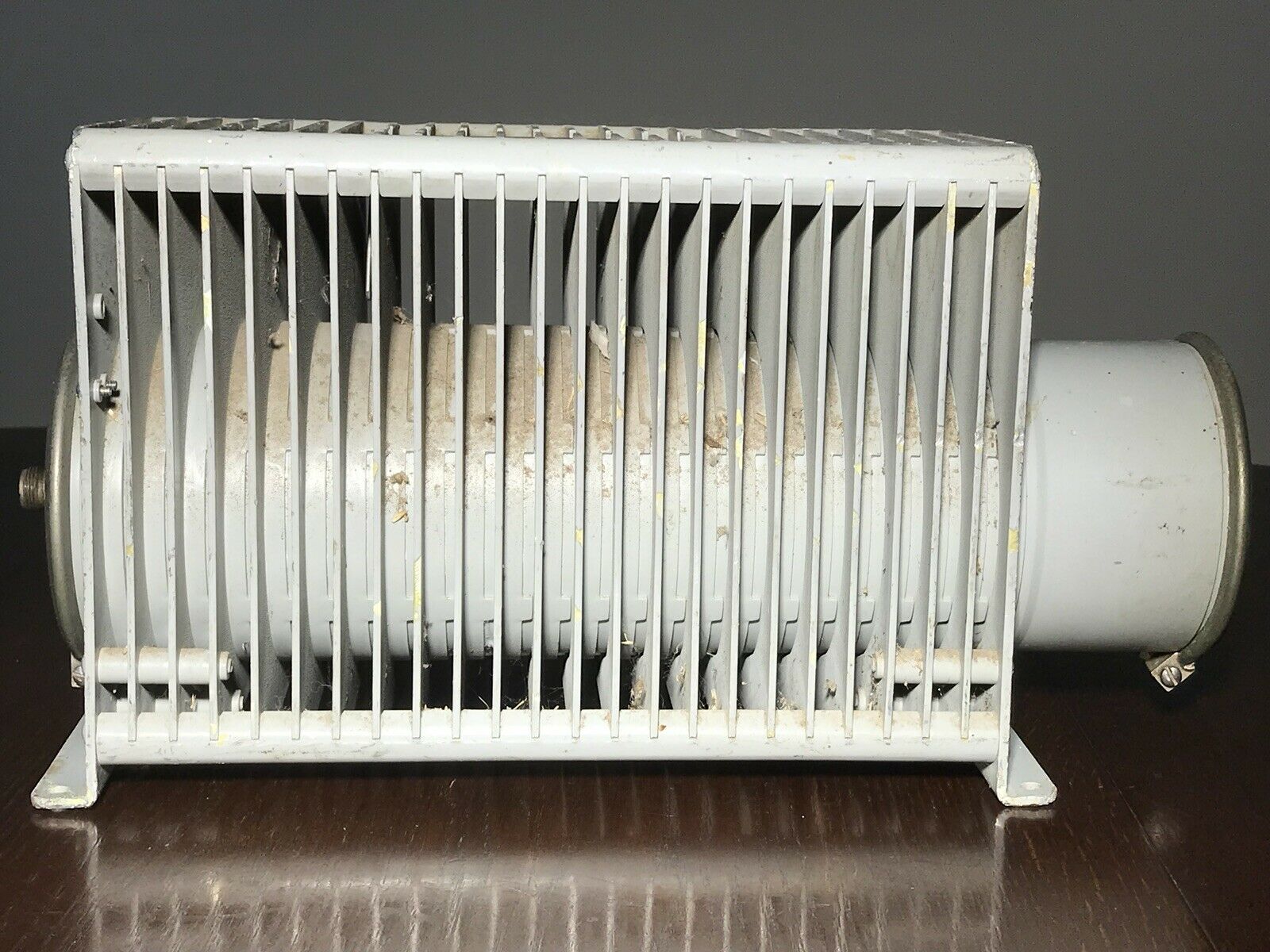

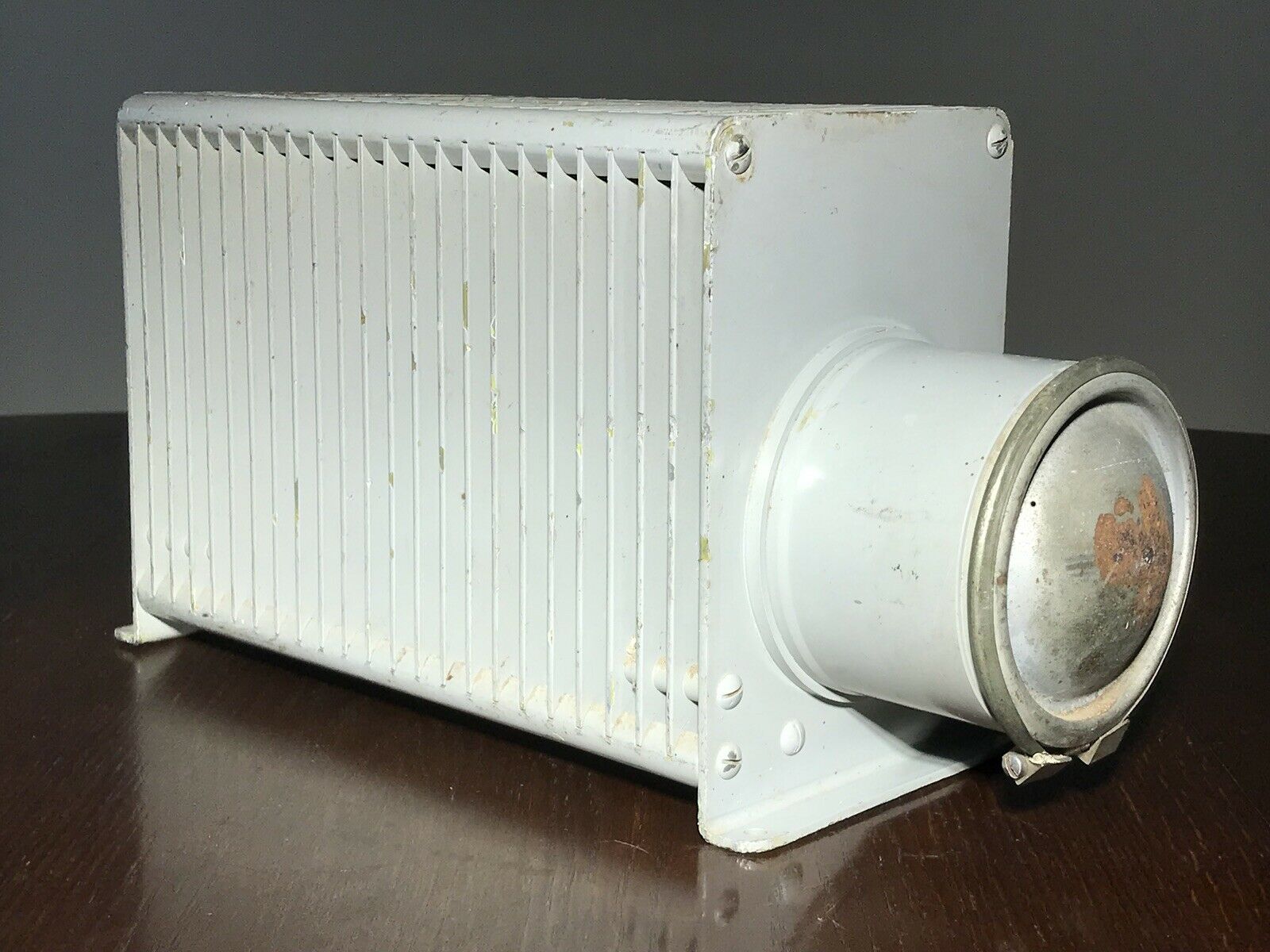

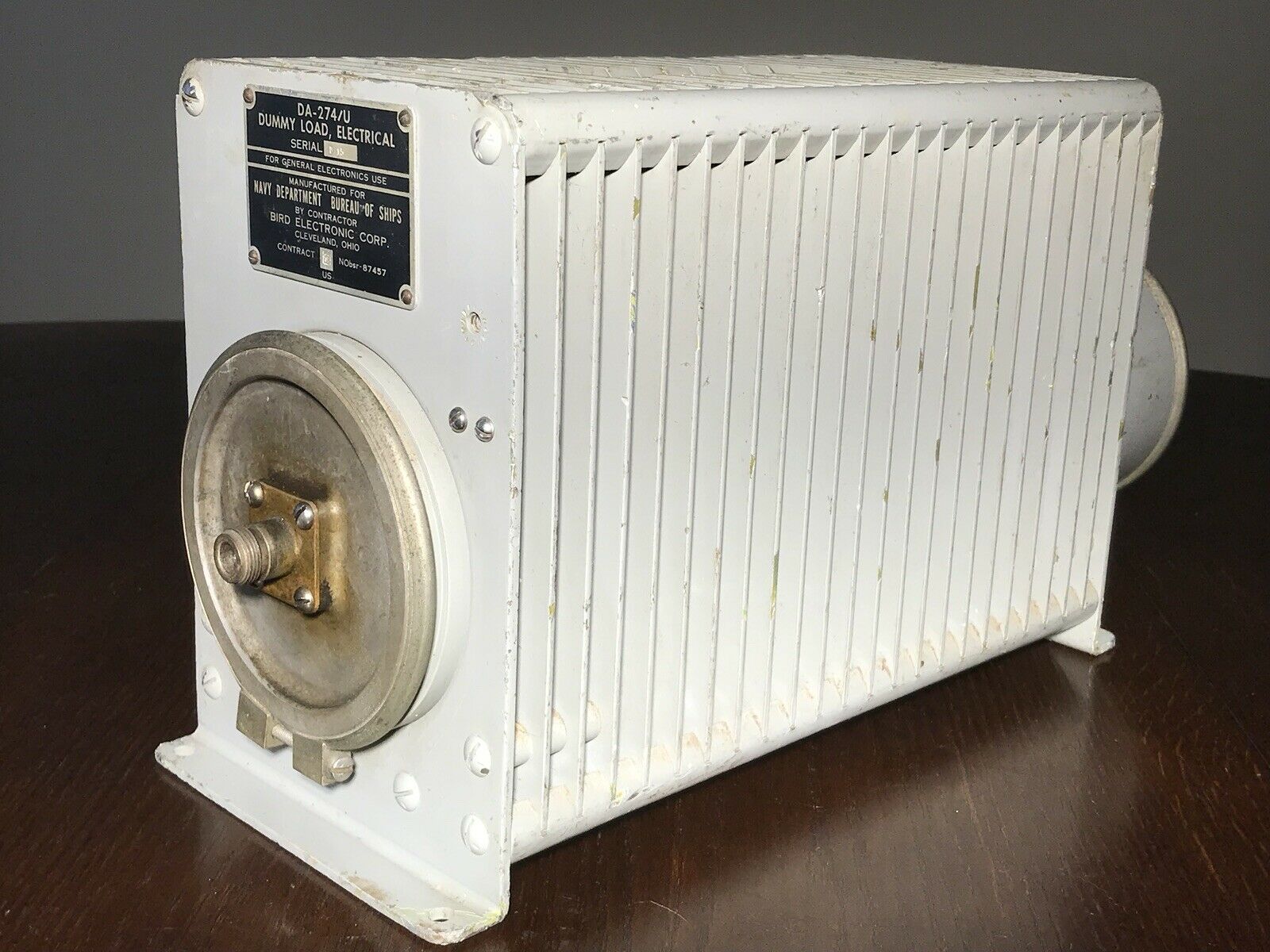

DA-274/U Dummy Load

DC-2500mc
600 Watts

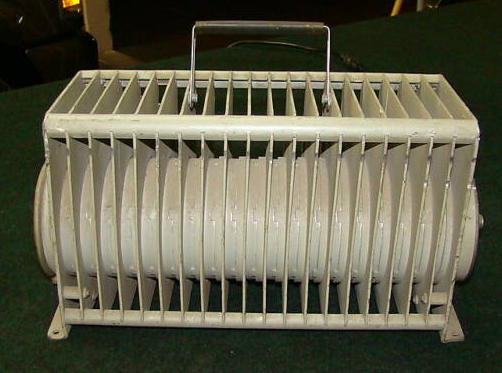

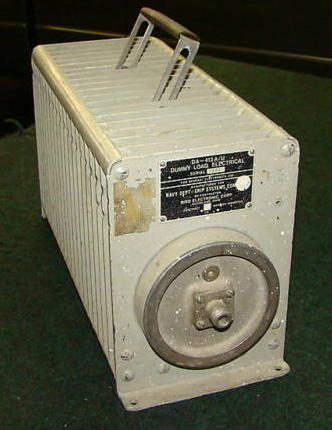

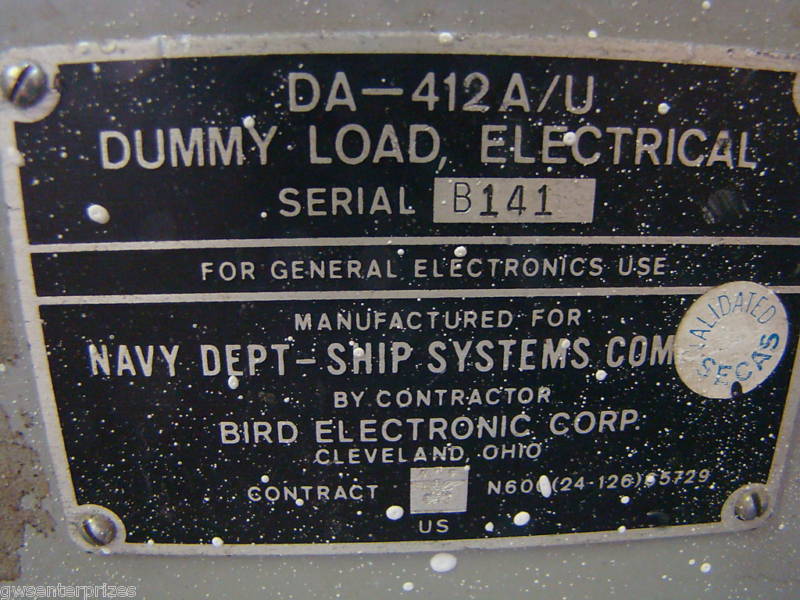

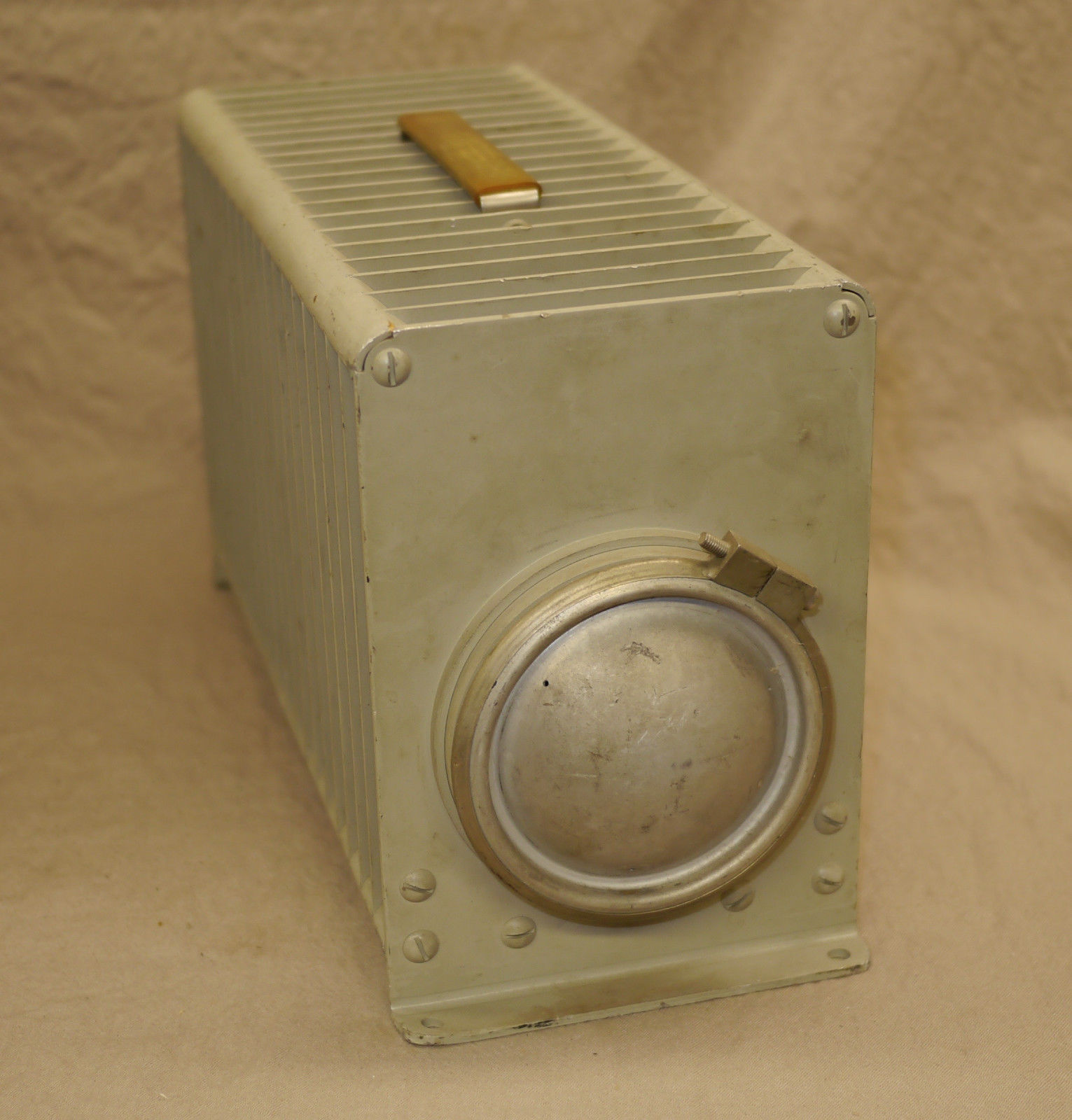

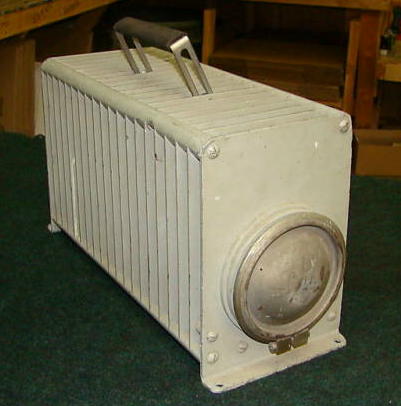

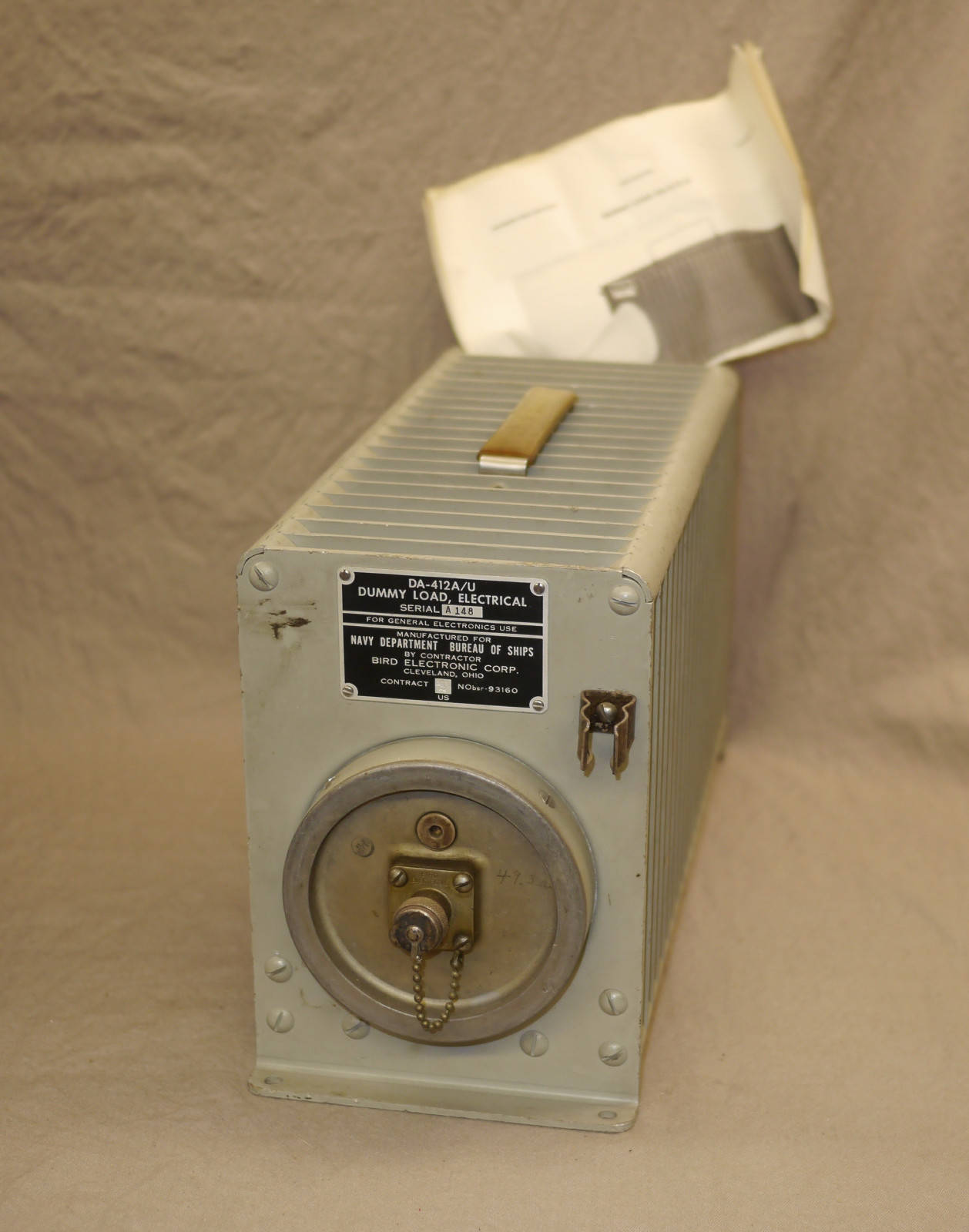

DA-412A/U Dummy Load



DC-3000 mc, 600w
Instructions

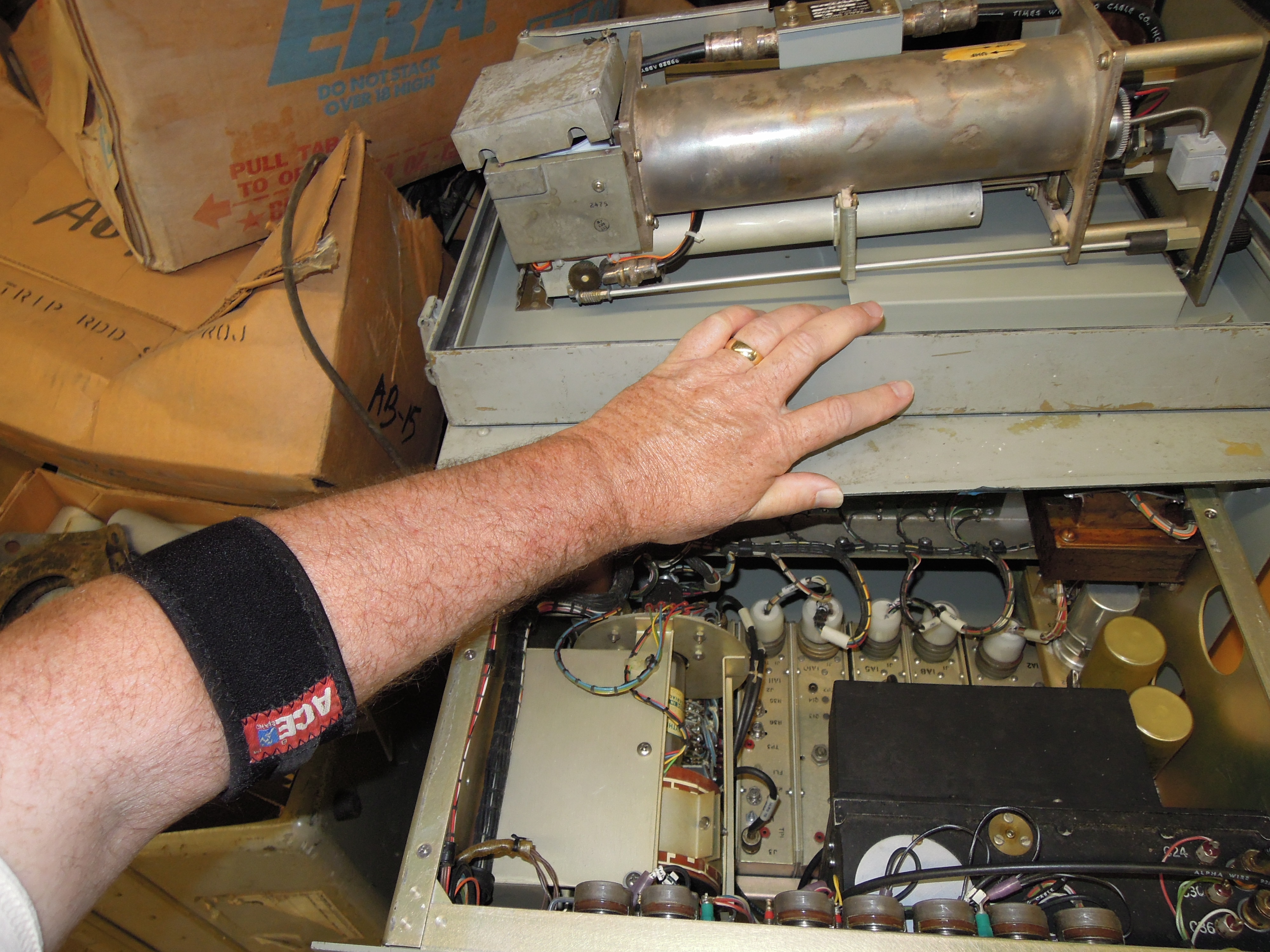

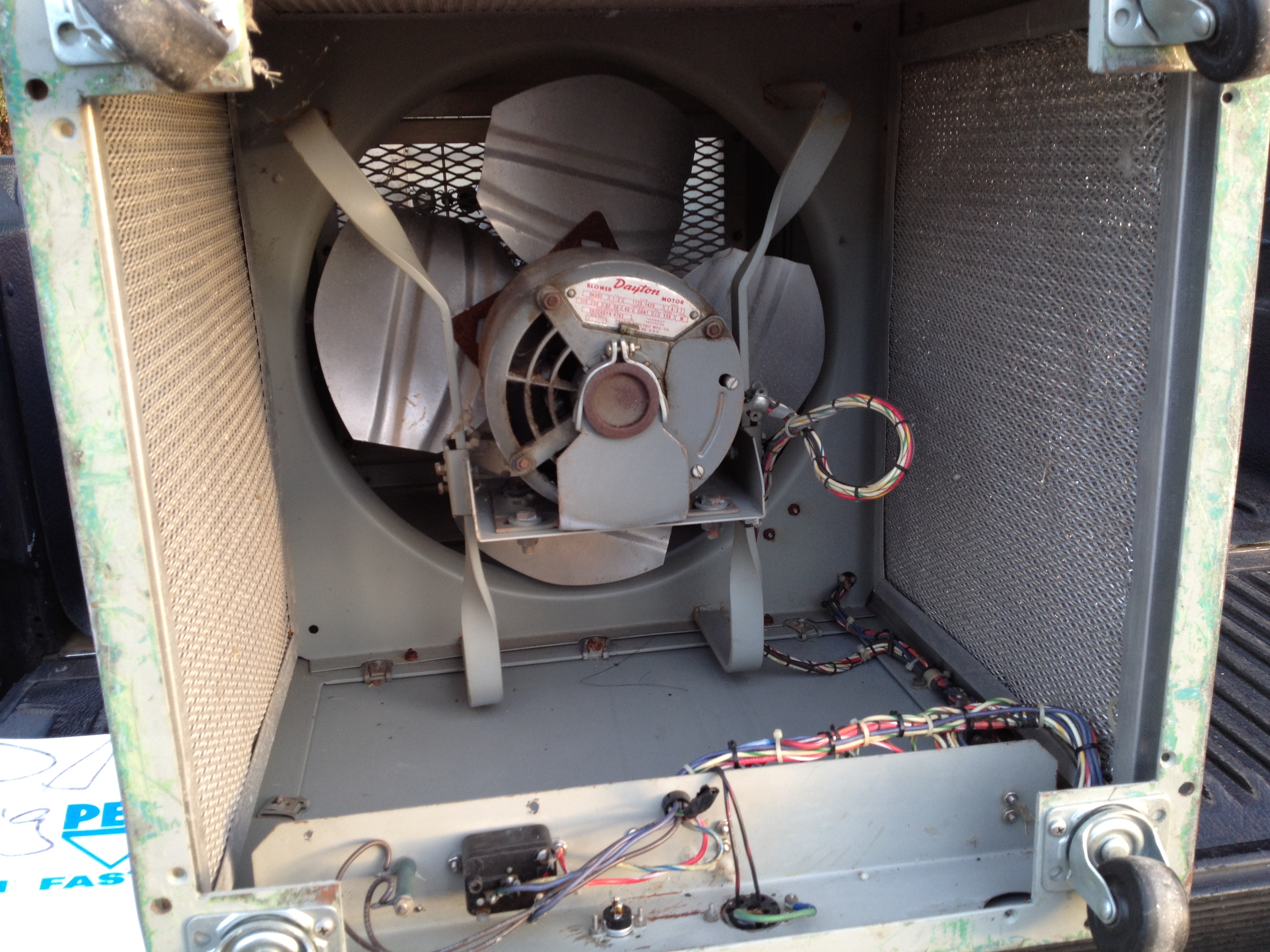

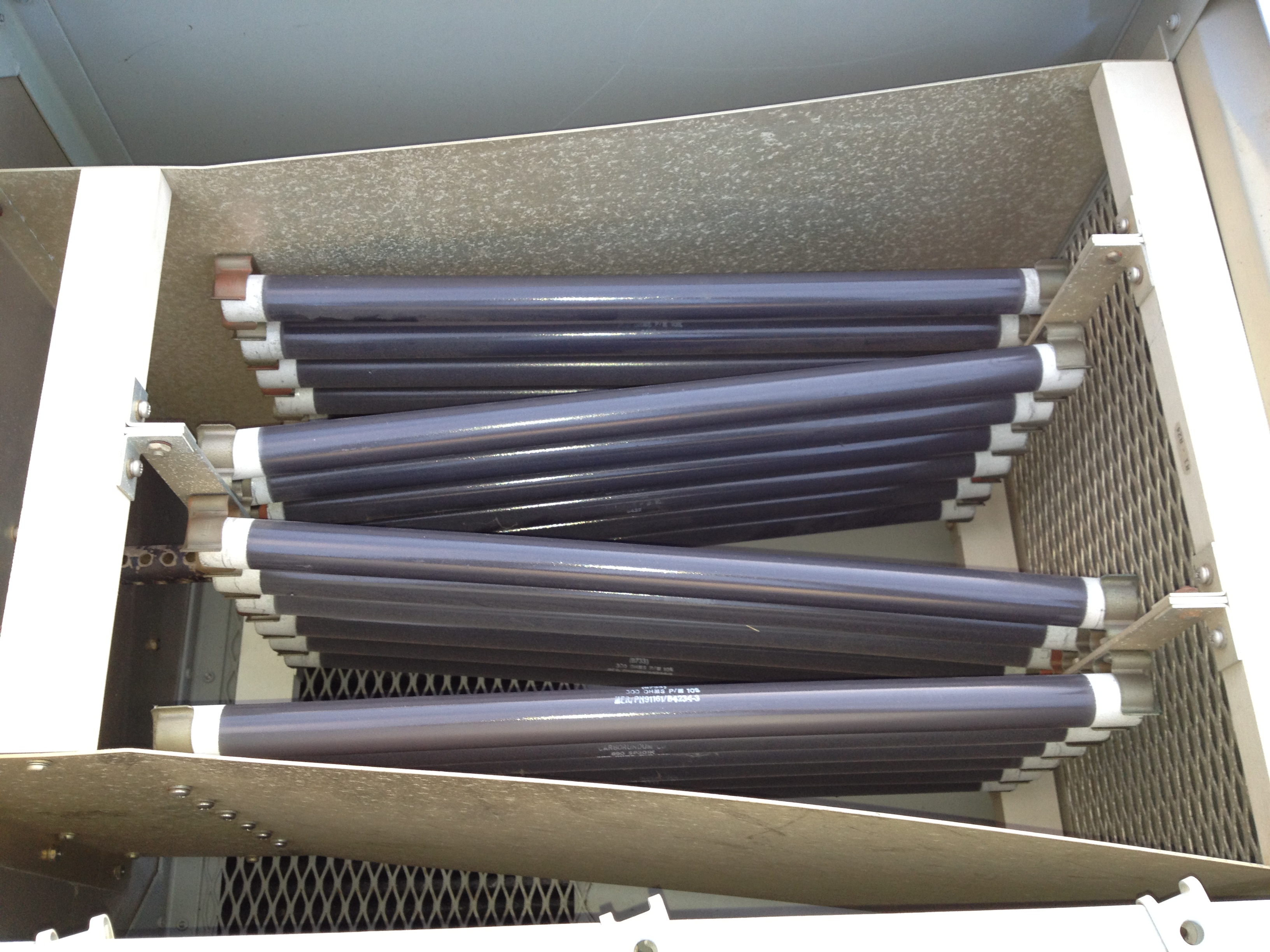

DA-484/URT Dummy Load

10kw air-cooled 2-30 mc - 5' tall cabinet  with a large fan in the bottom and 24 ea. 300 ohm resistors in the top portion.

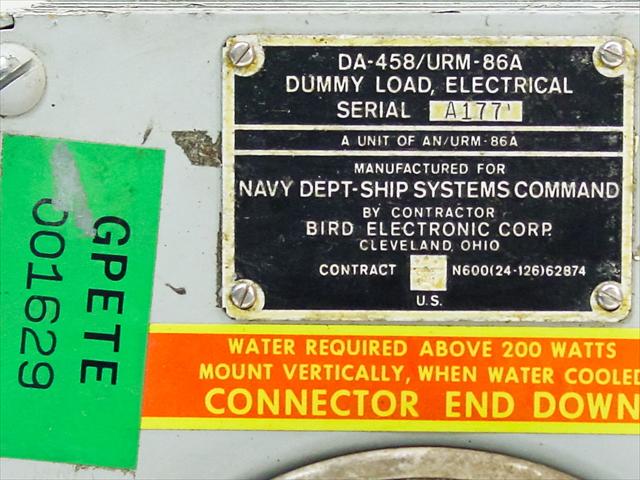

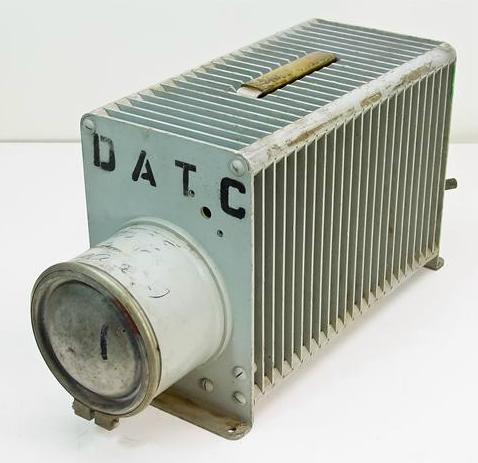

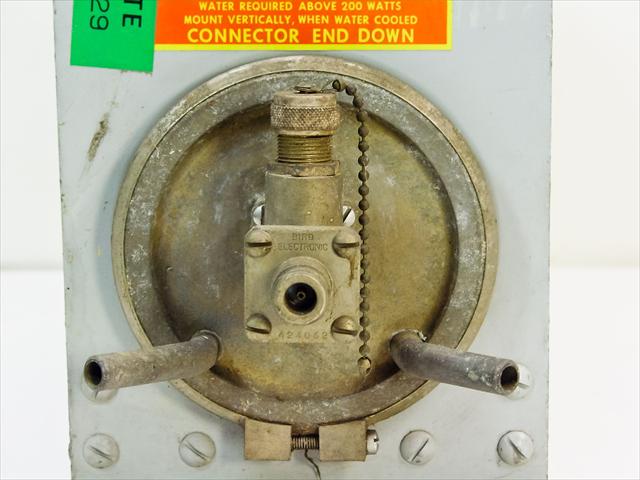

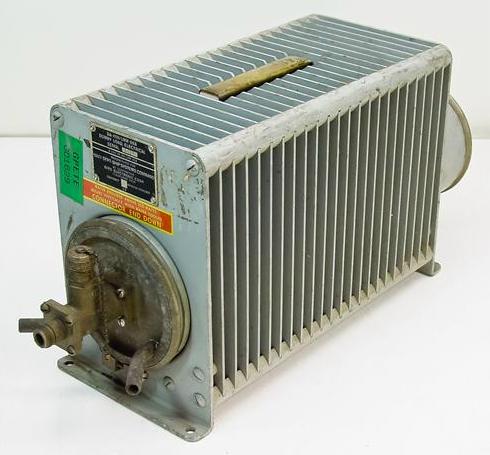

DA-458/URM-86A Dummy Load

DA-458/URM-86A Dummy Load
used with IM-??/URM-86A meter?

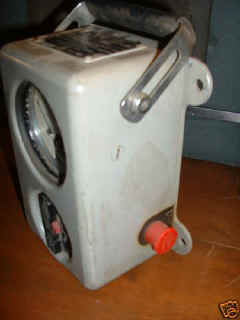

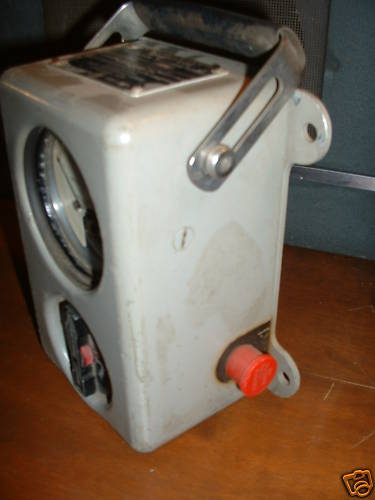

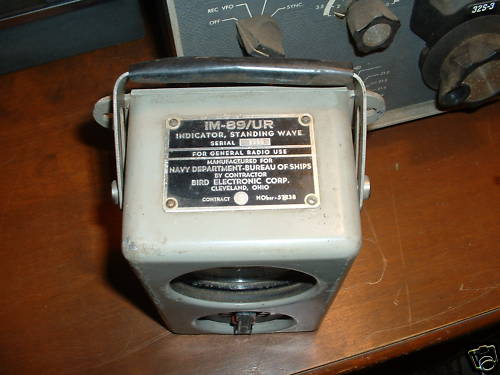

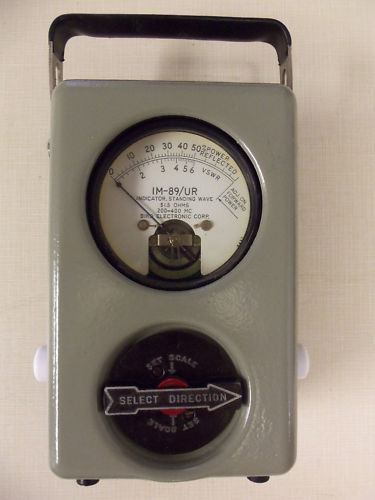

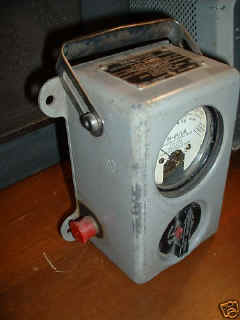

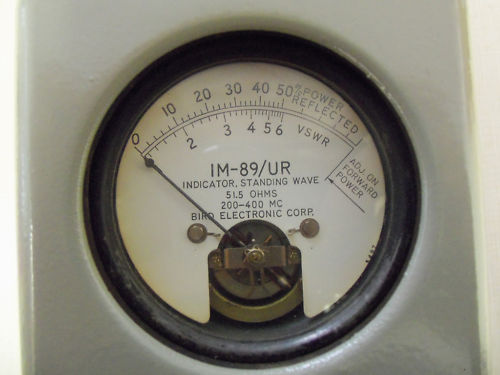

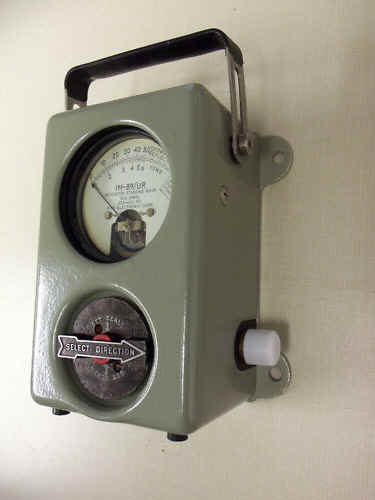

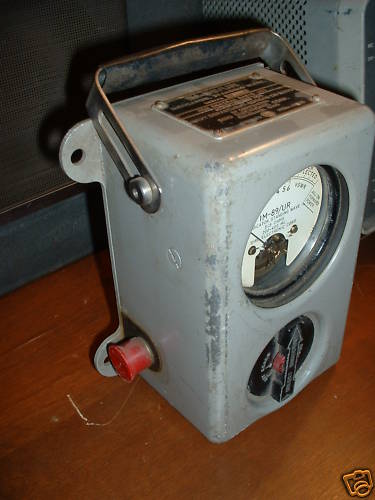

IM-89/UR SWR Meter
200-400 Mc

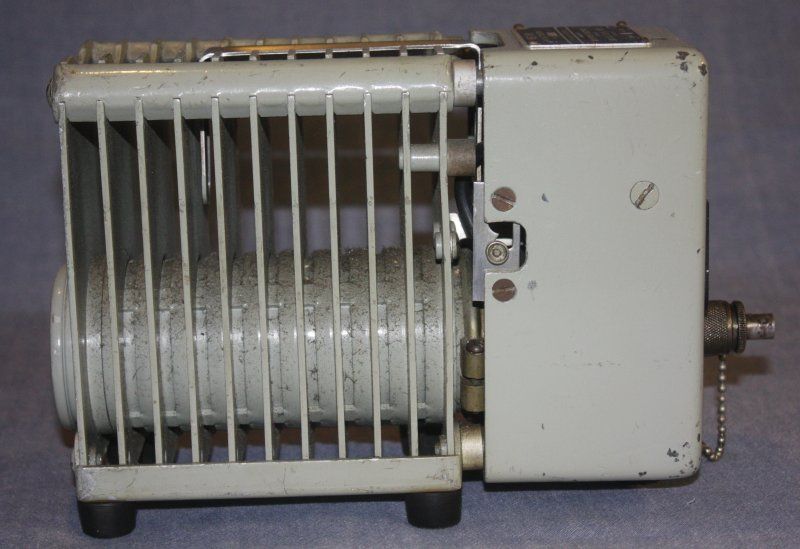

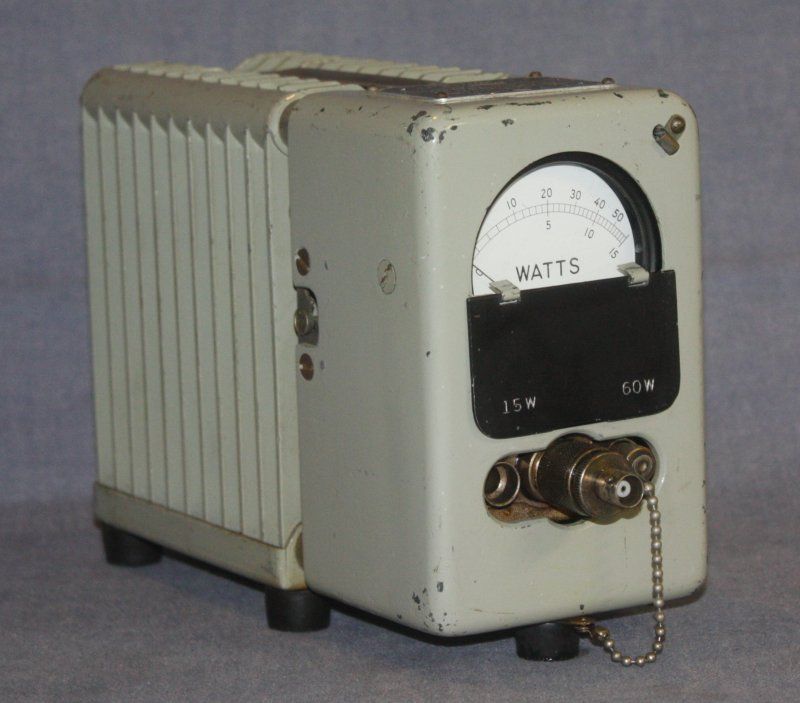

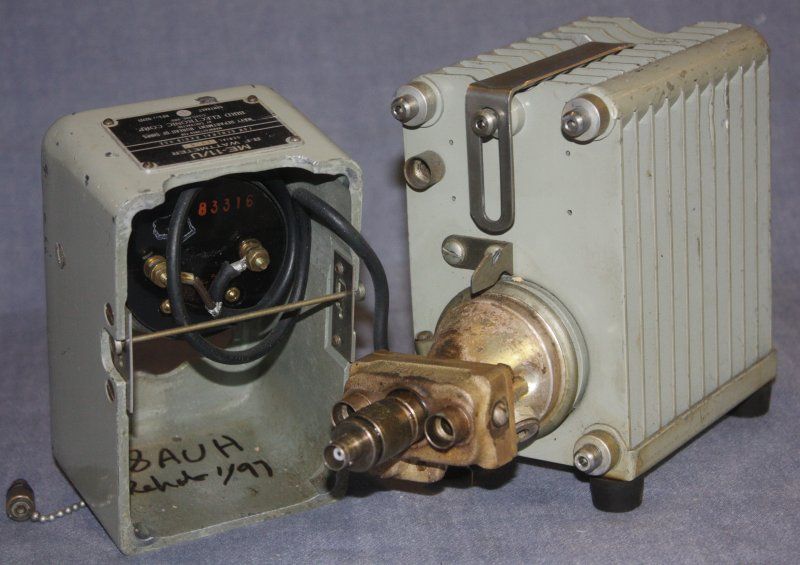

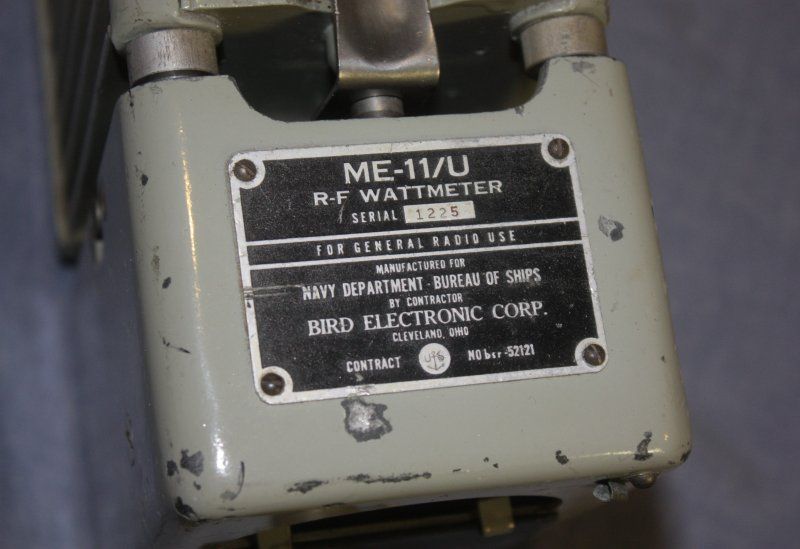

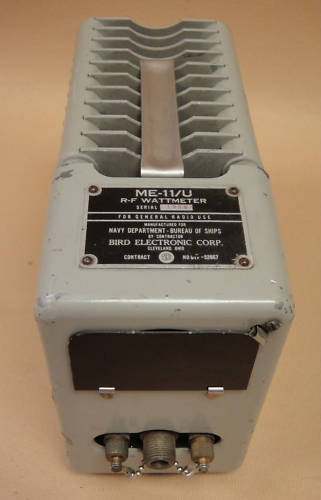

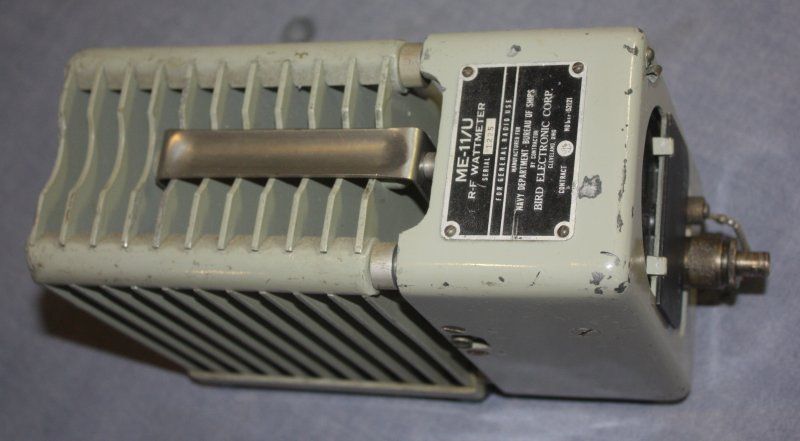

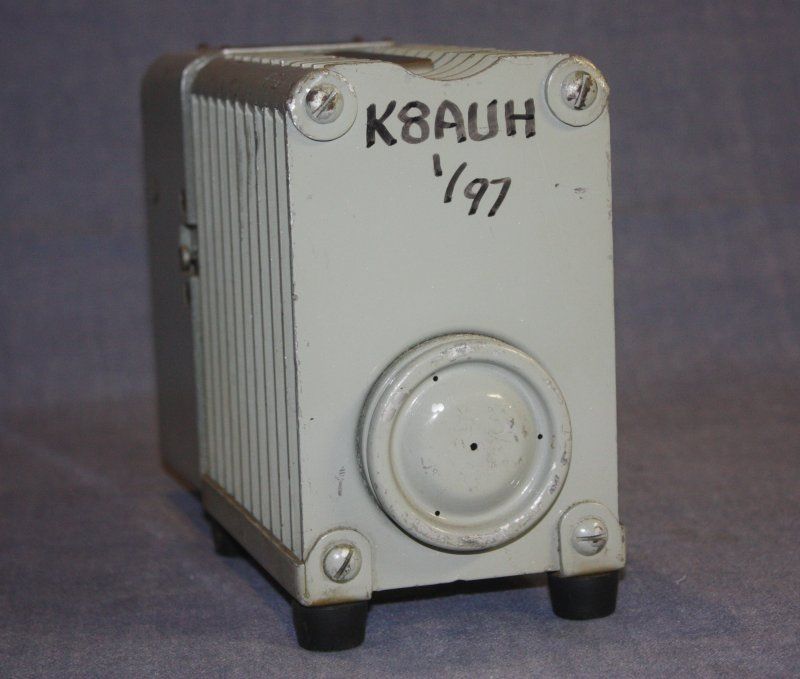

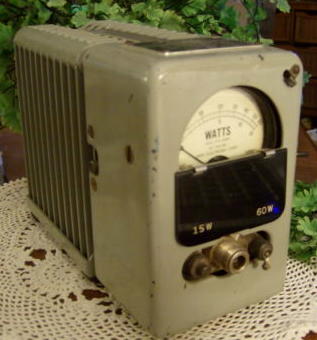

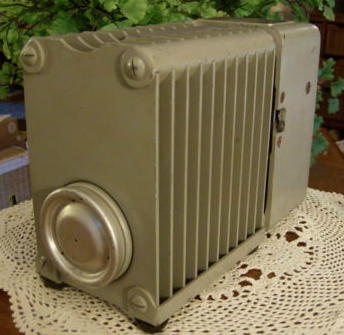

ME-11/U wattmeter & dummy load (15 w and 60 w scales)
(30-500 mc)

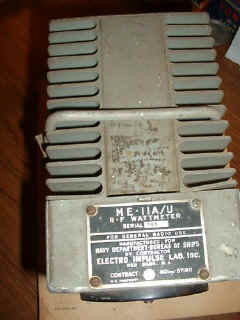

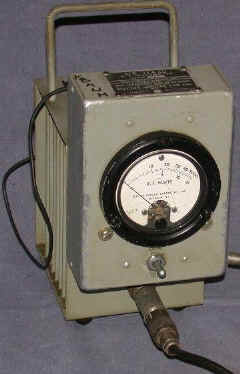

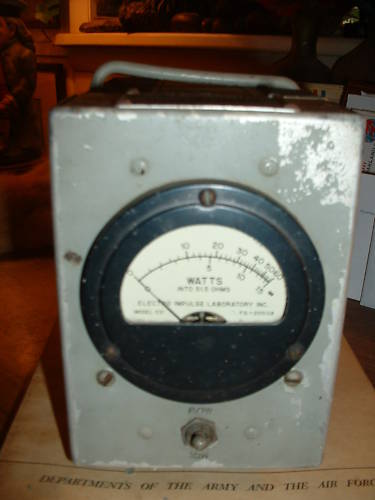

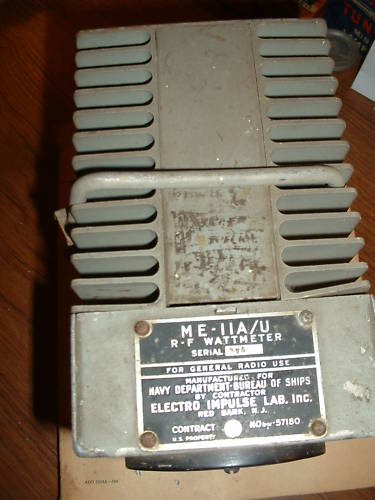

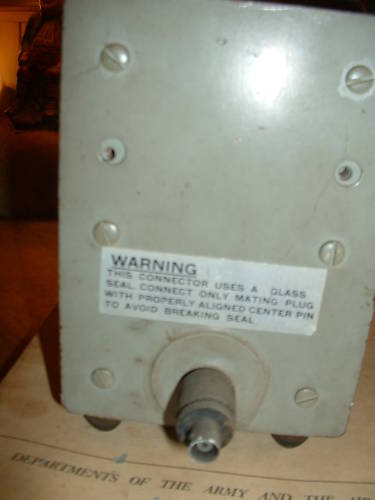

ME-11A/U
(30-600 mc)

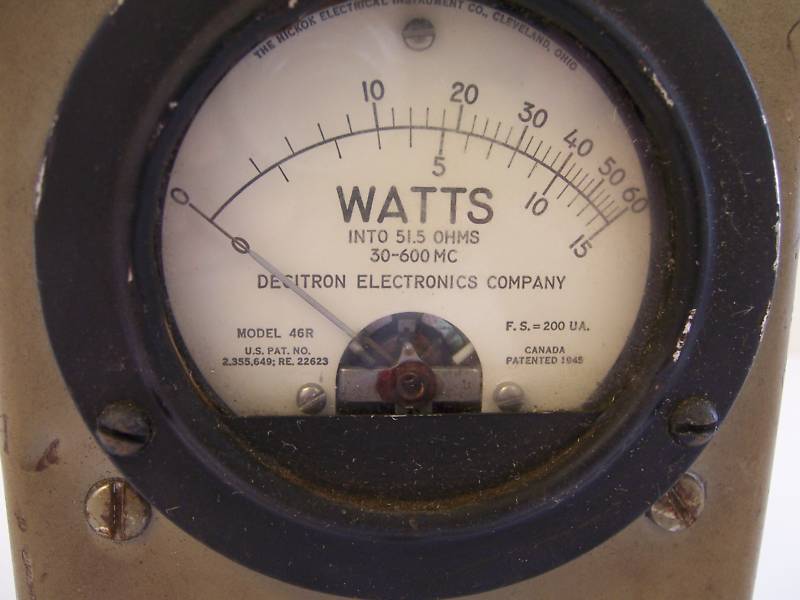

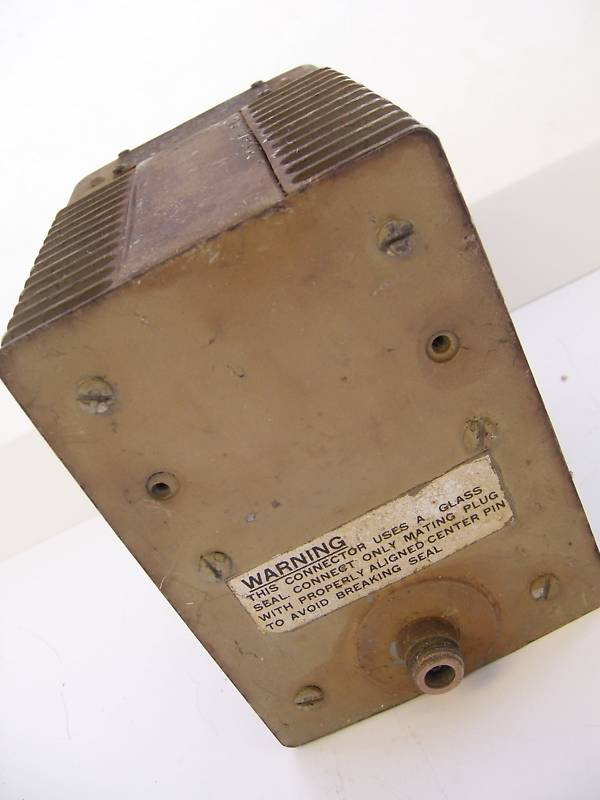

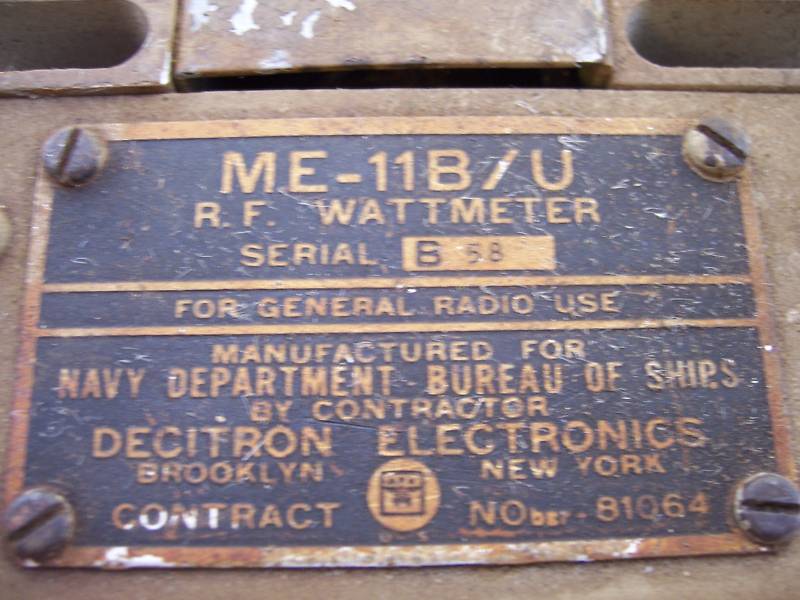

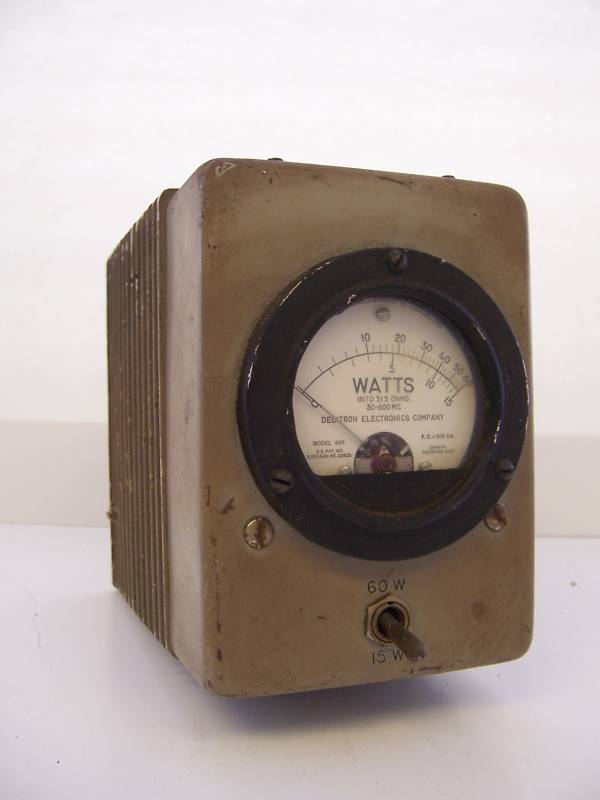

ME-11B/U
(30-600 mc)

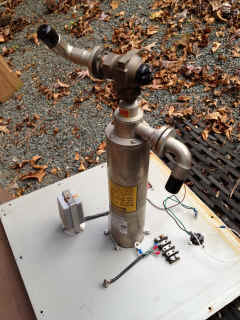

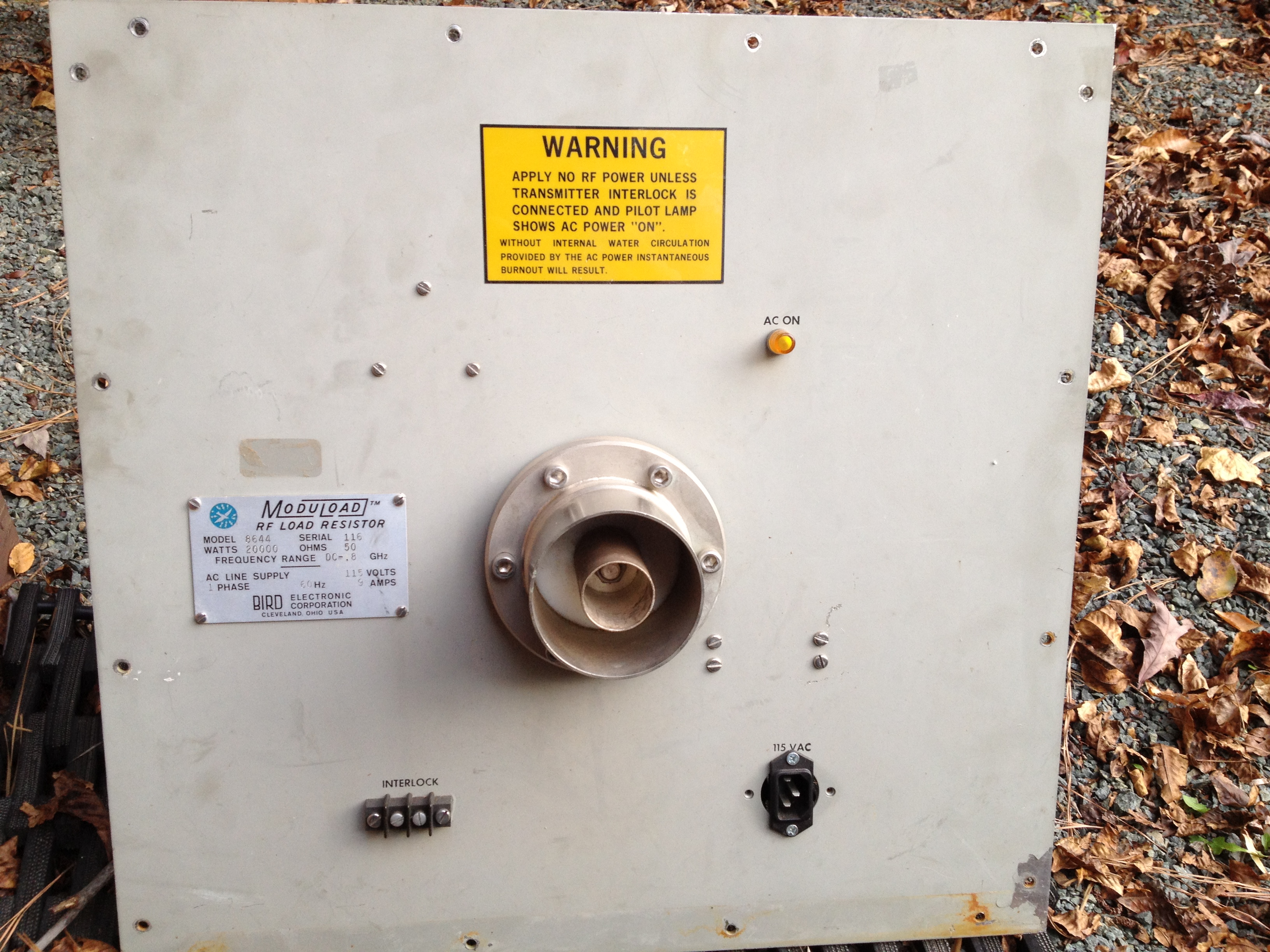

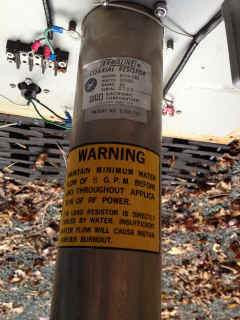

Bird 8644 20kw dummy load

water-cooled DC-800mc
8gpm minimum
