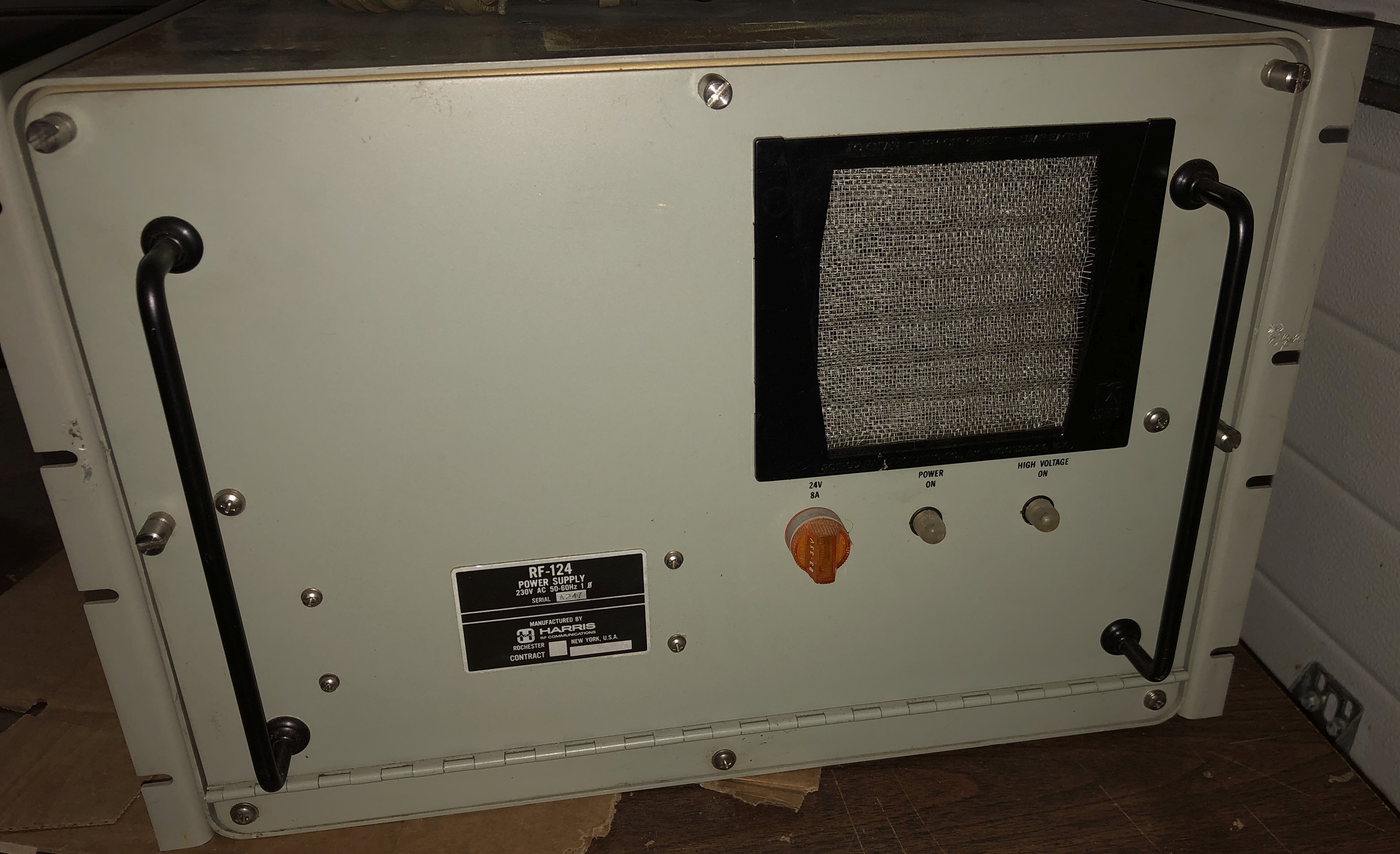

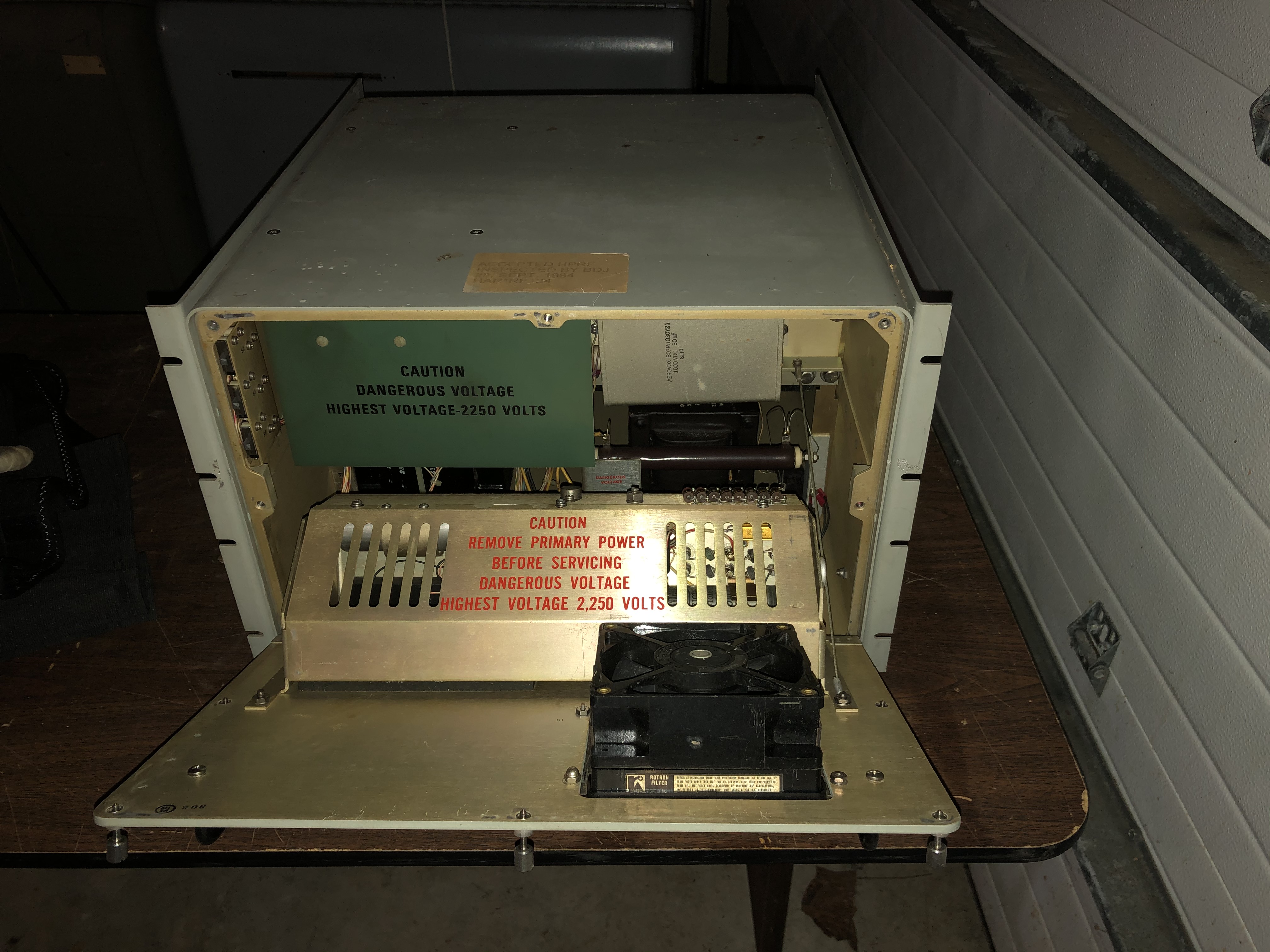

Power Supply - Harris RF-124 (PP-5237/URC) - 200 lbs., Input - 230vac, 1-phase,
60Hz
Outputs - 2250vdc, 1200ma + 500vdc, 900ma + 115vac, 60 Hz + 115vac, 400Hz
(for amp blower)
|
 |
 |
|
 |
Amplifier - AM-6909/URT is AM-3924/URT with FC14 installed (Harris
RF-110A)
|
Front view
 |

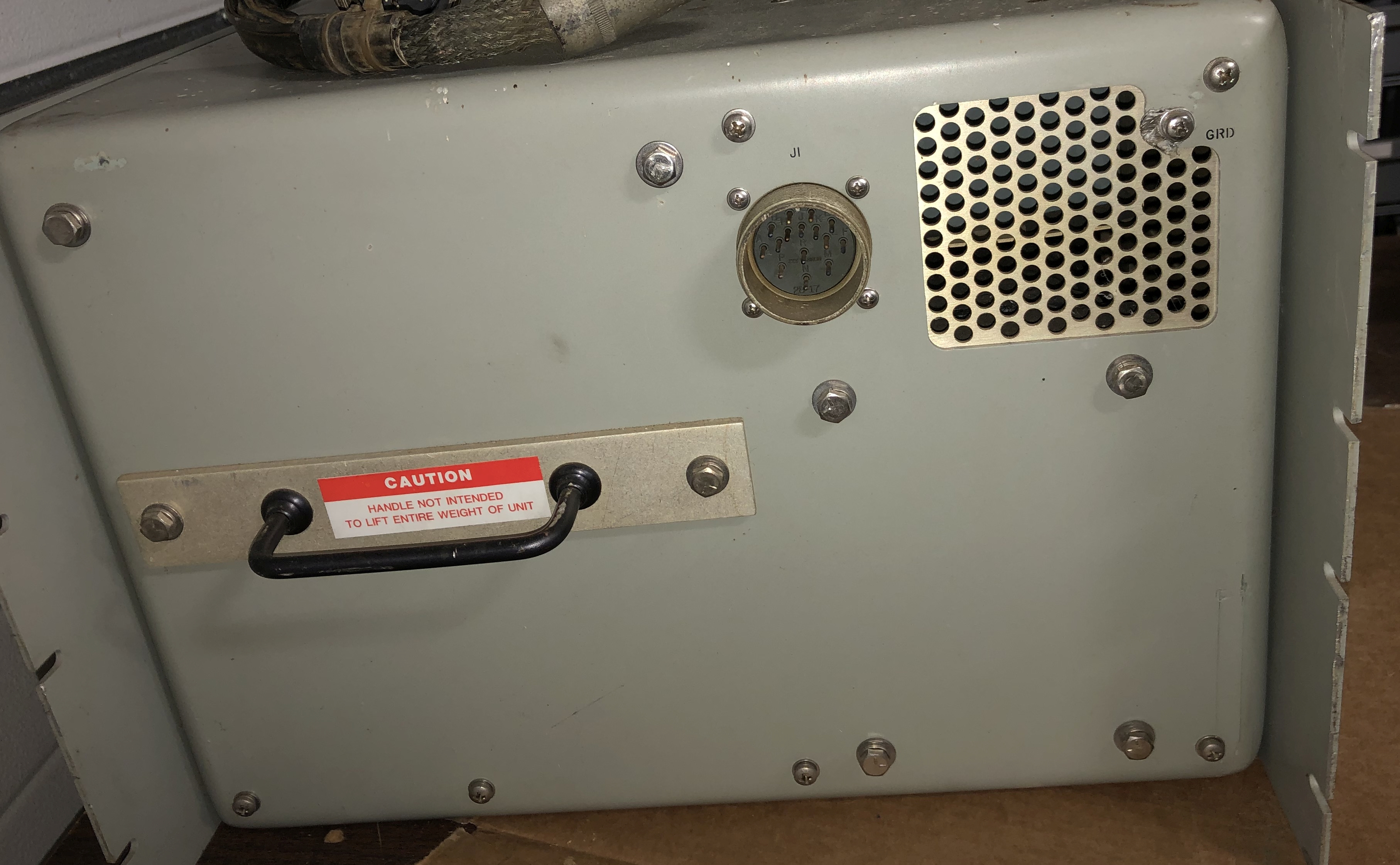

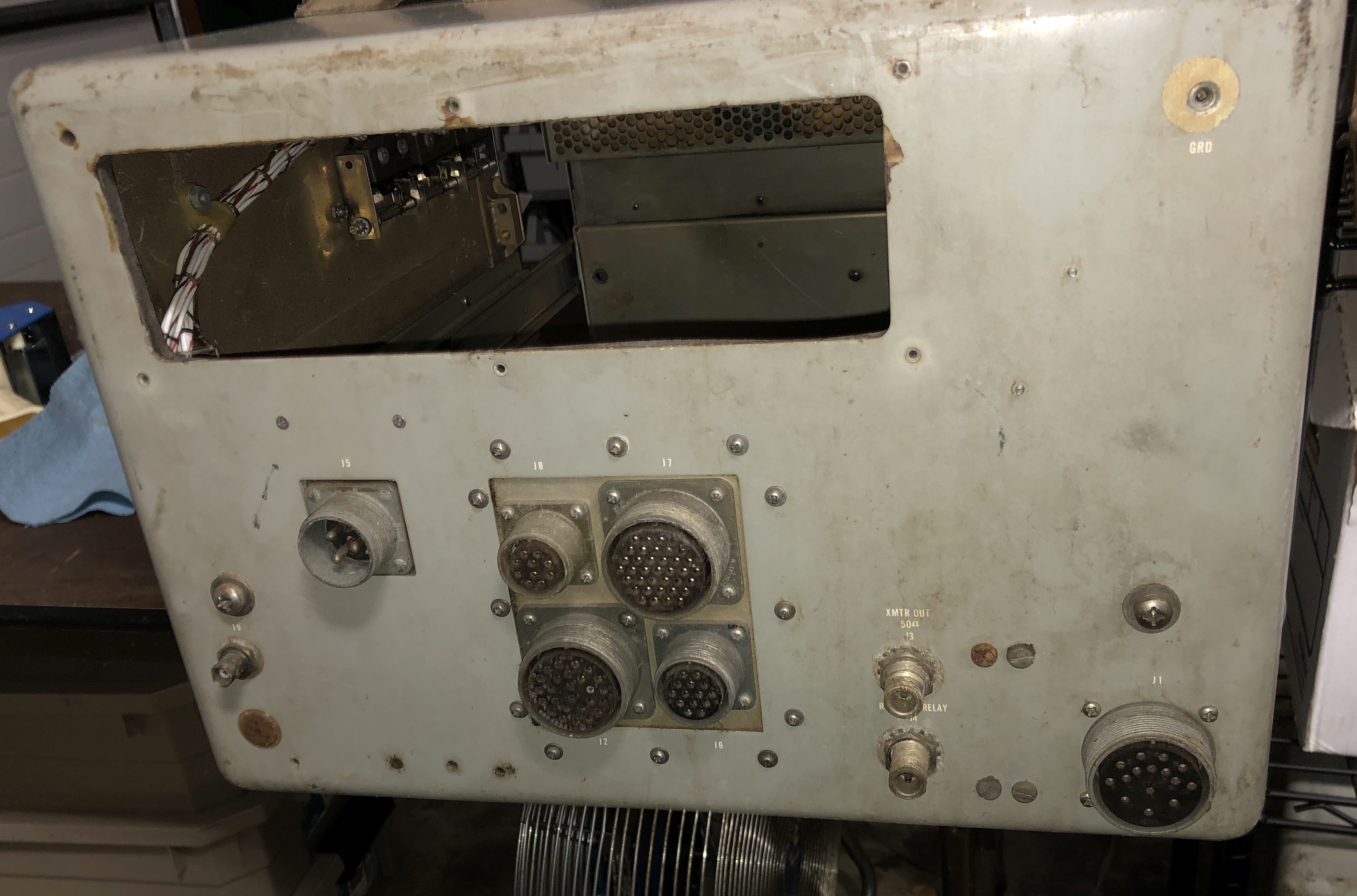

Rear view
 |

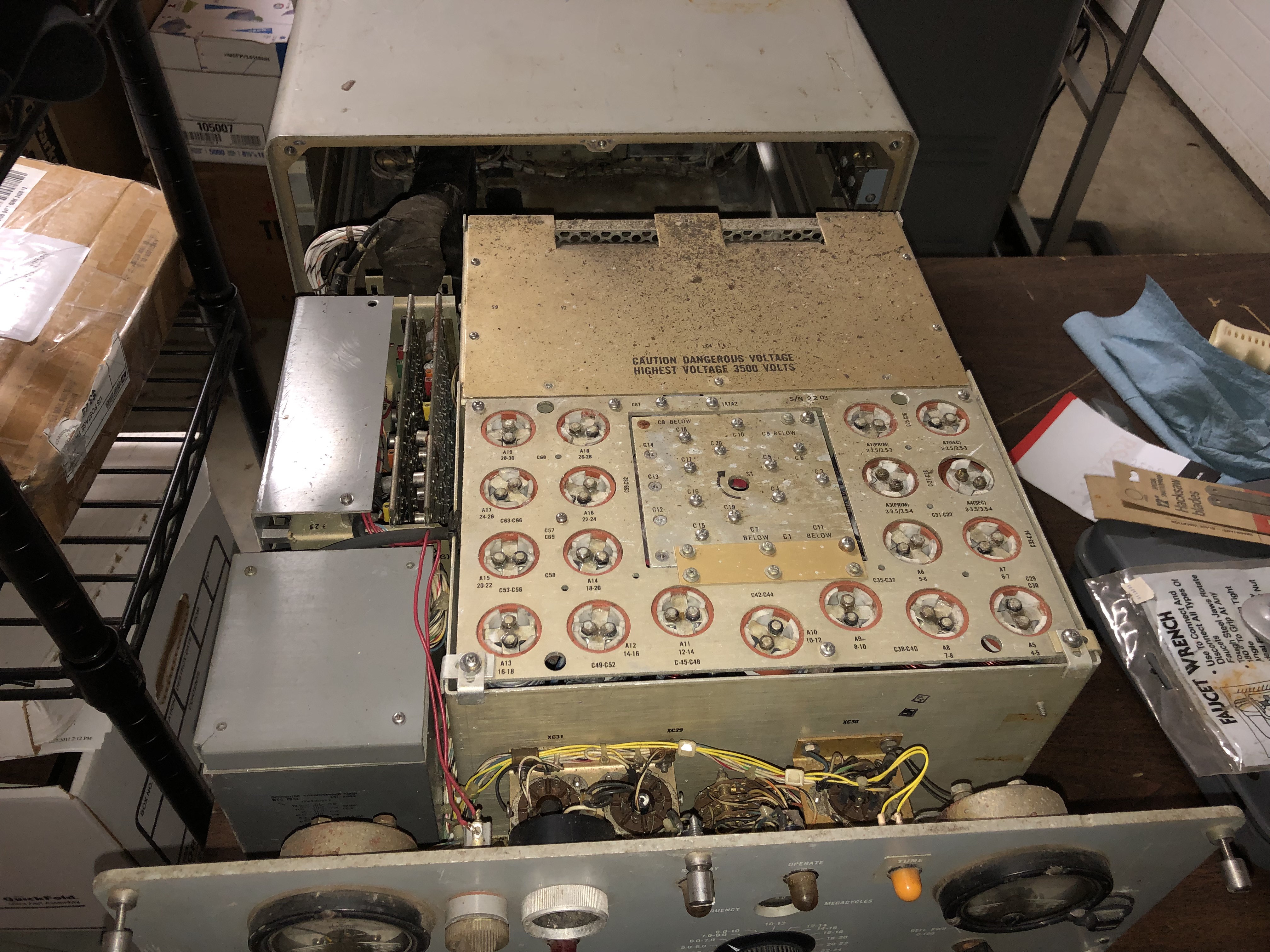

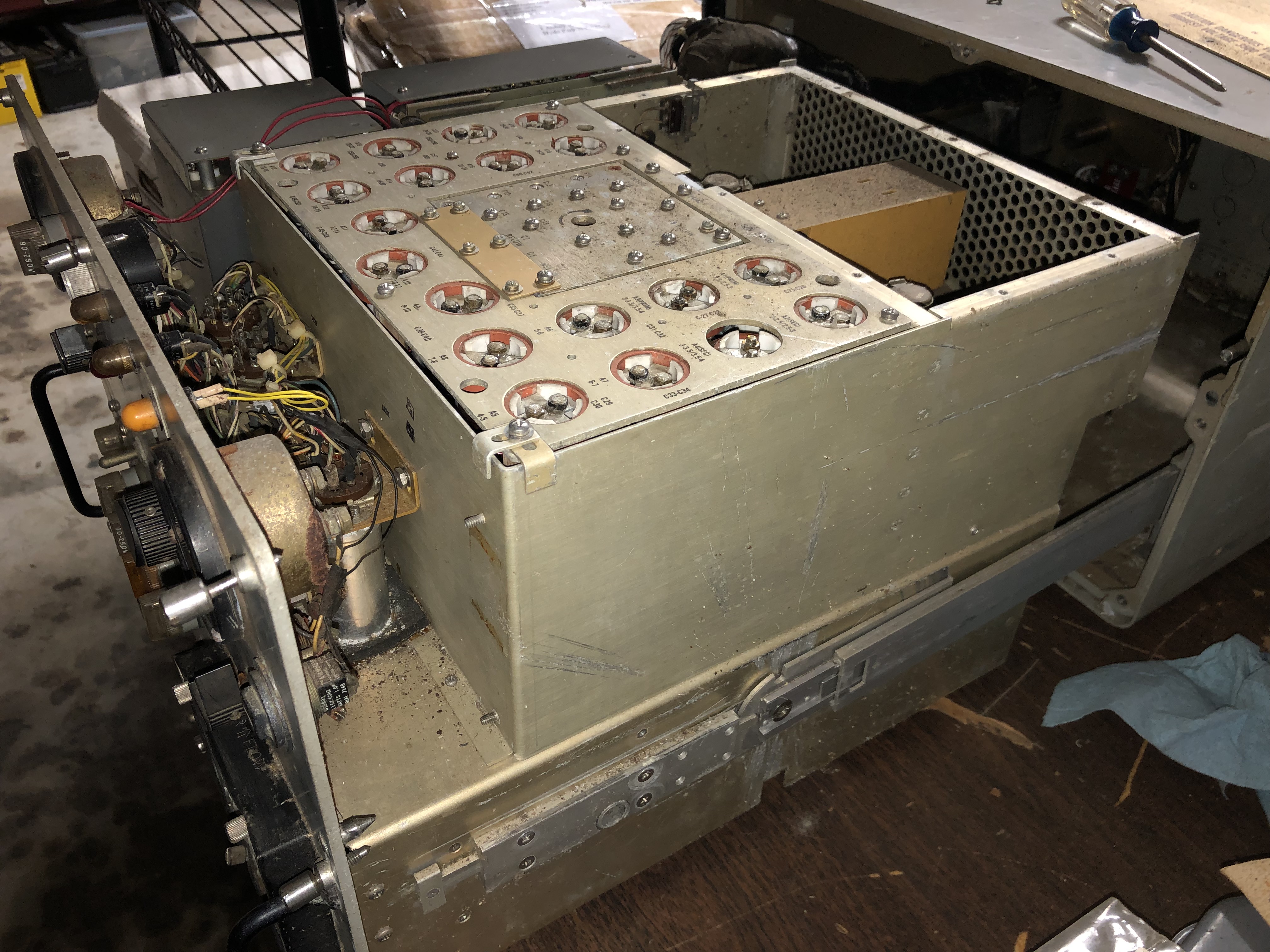

Top view - output RF transformers
 |

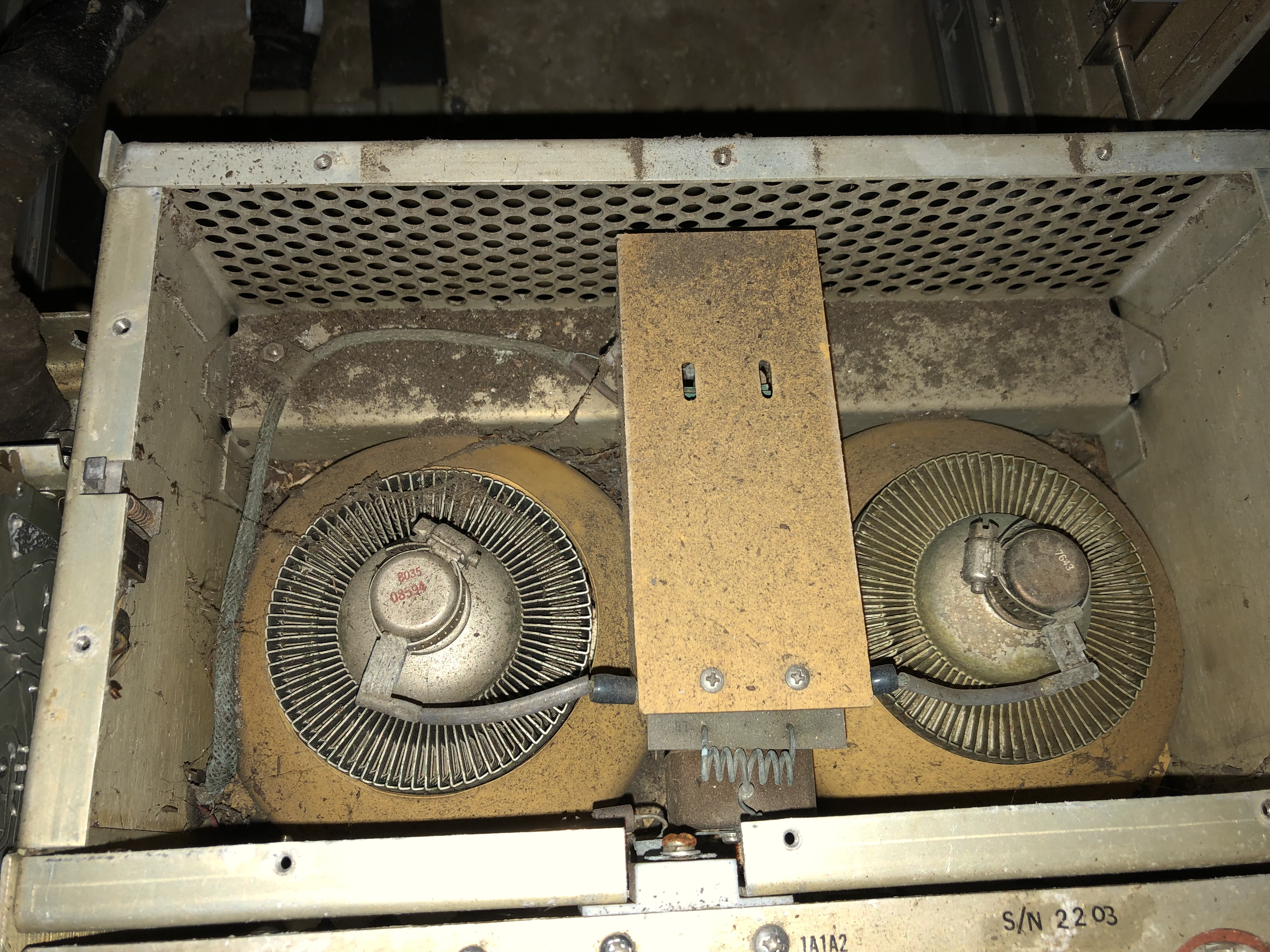

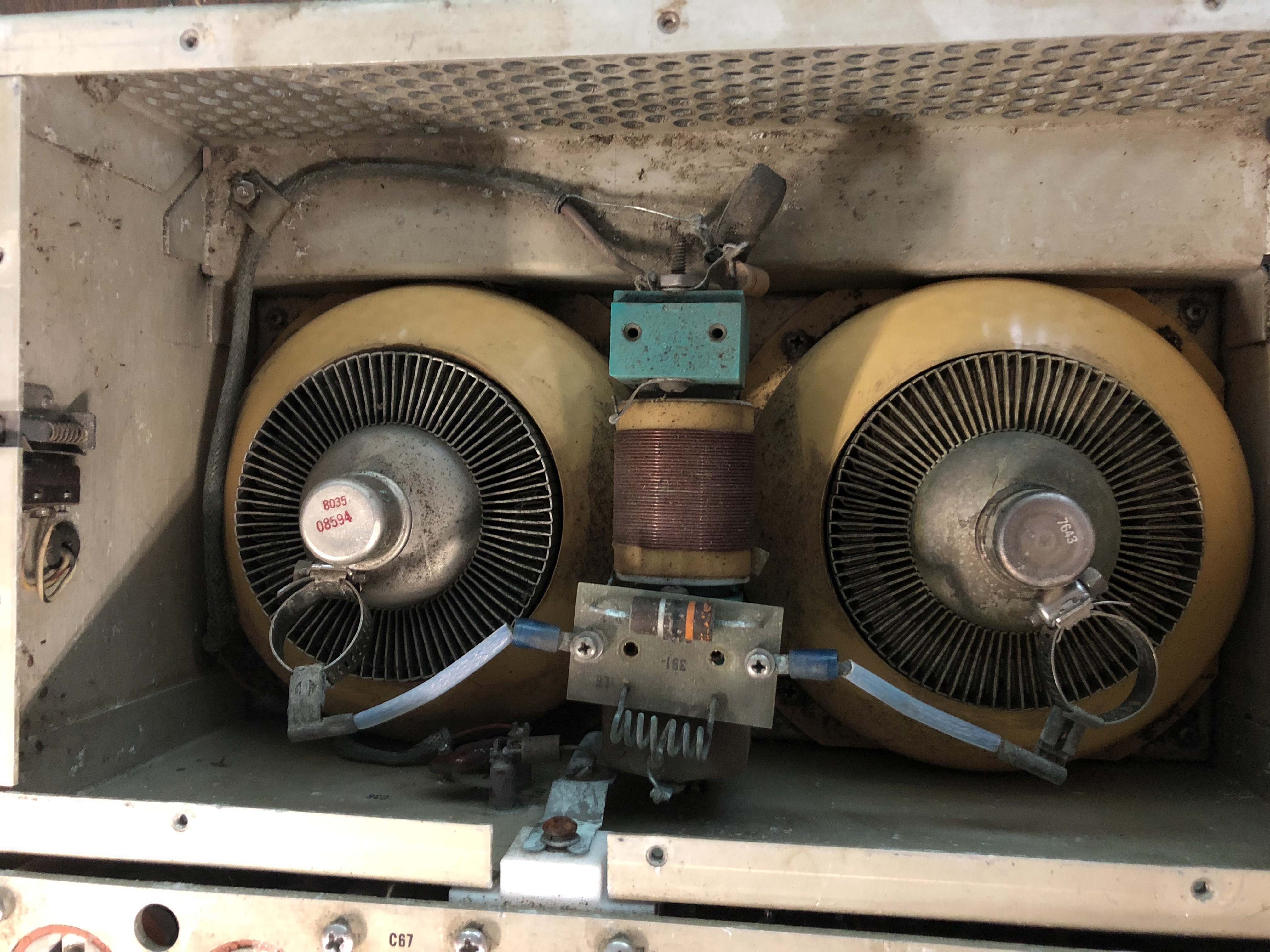

Finals - two 4CX1500B beam power tetrodes
 |

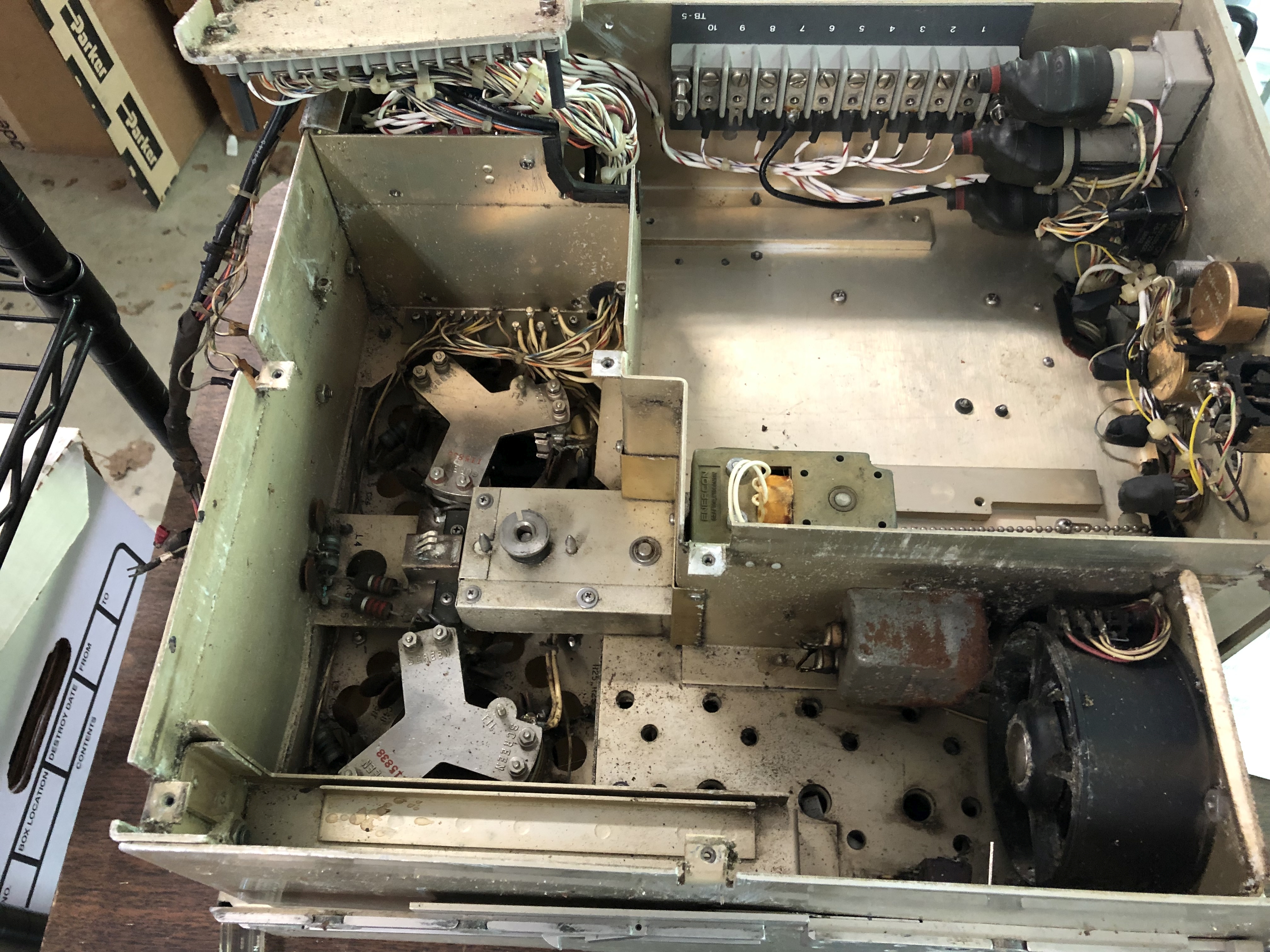

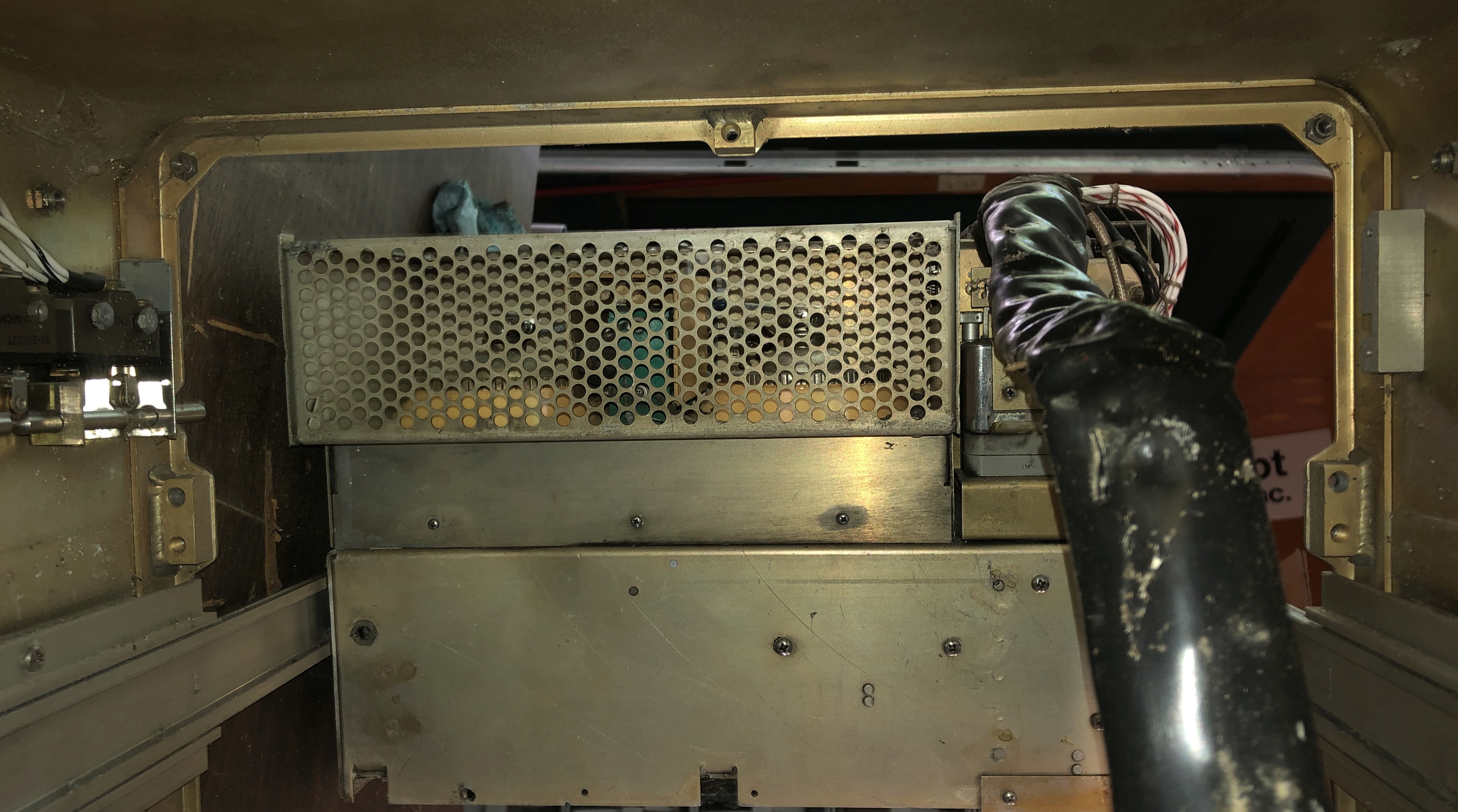

Bottom view - empty space is used for 400Hz p/s (PP-3917) in
AM-3924
 |

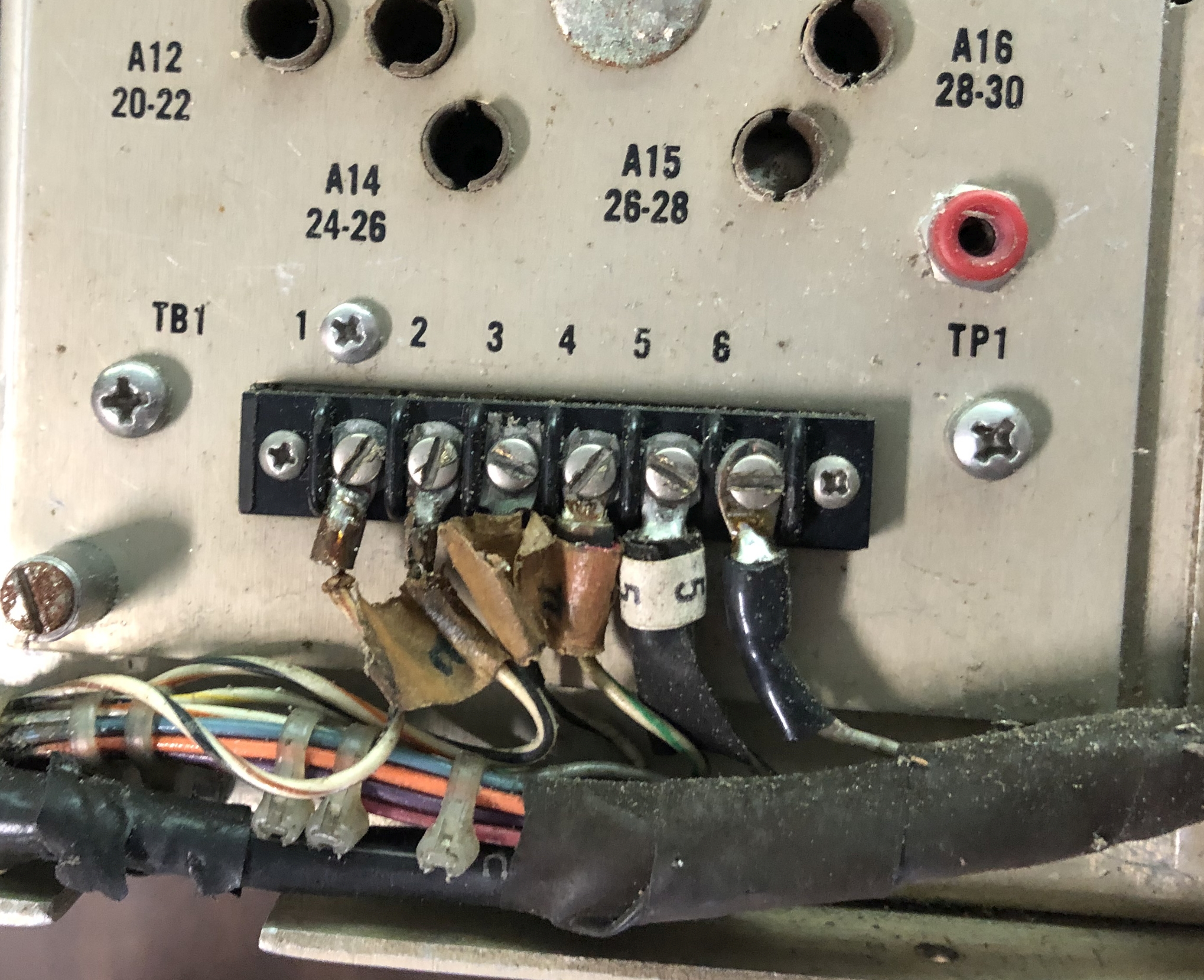

Terminal board installed (in FC14) turns AM-3924 into
AM-6909
 |

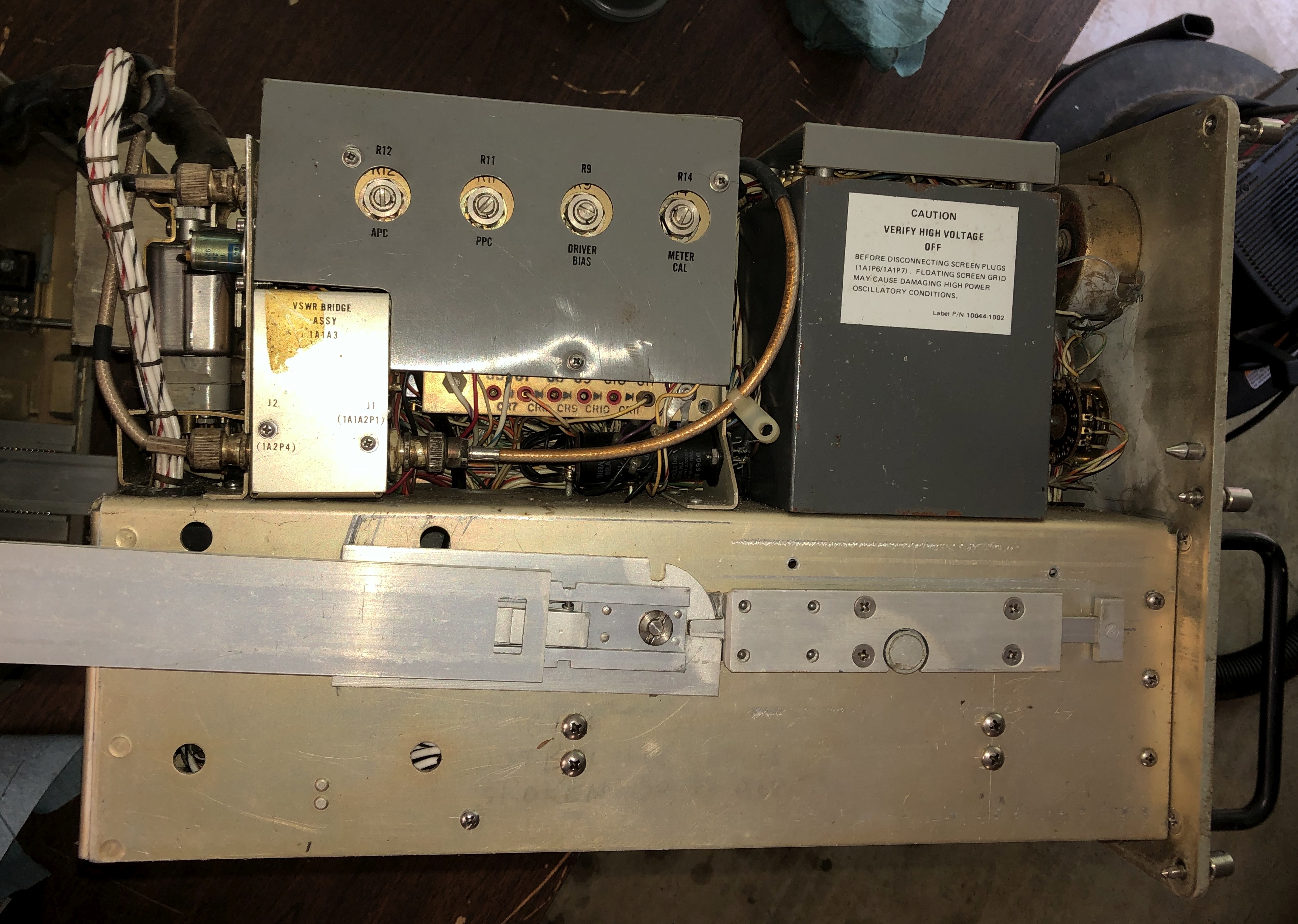

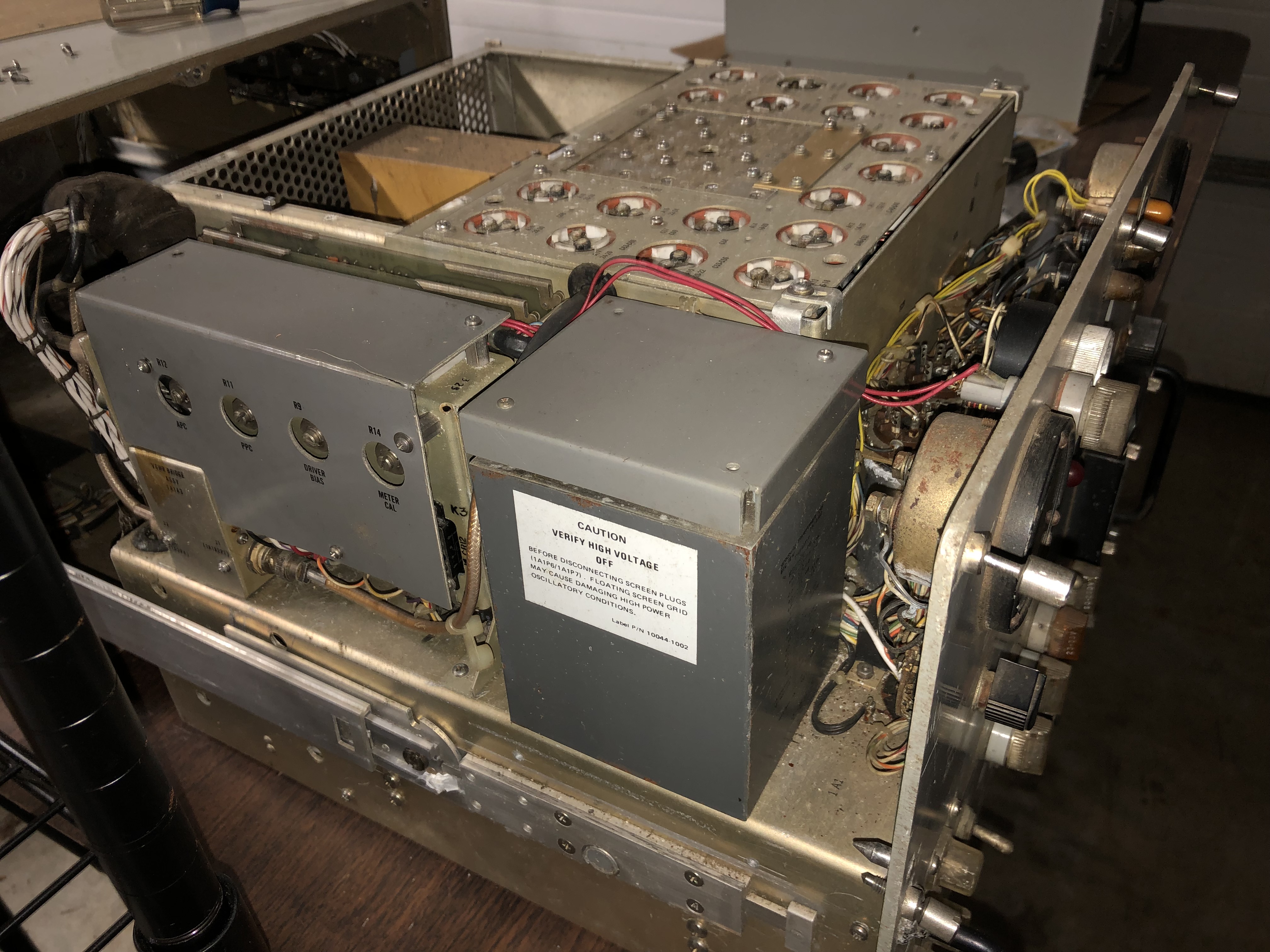

Left side view - filament/bias transformer & control
logic boards
 |
Right side view - output RF transformers
 |

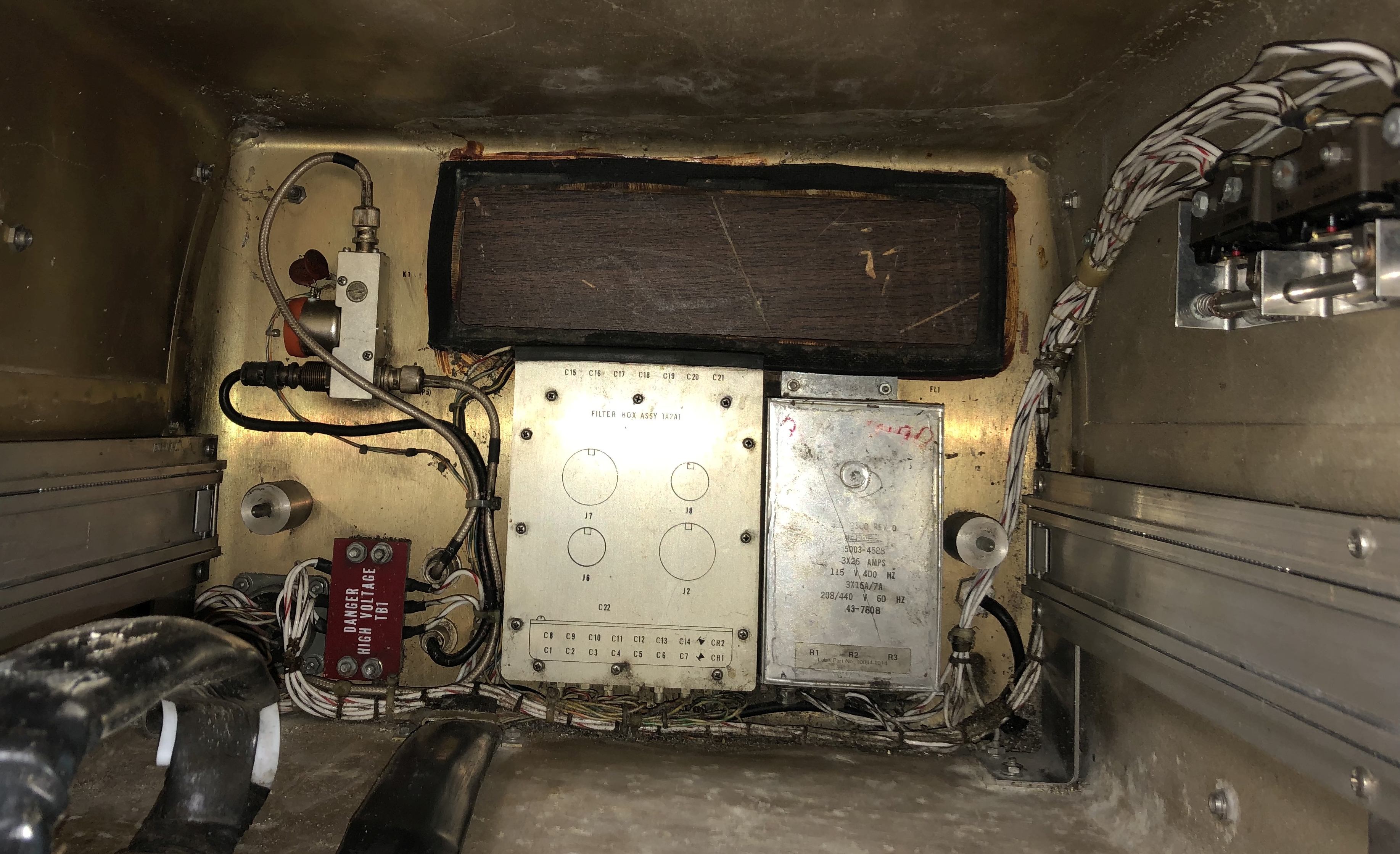

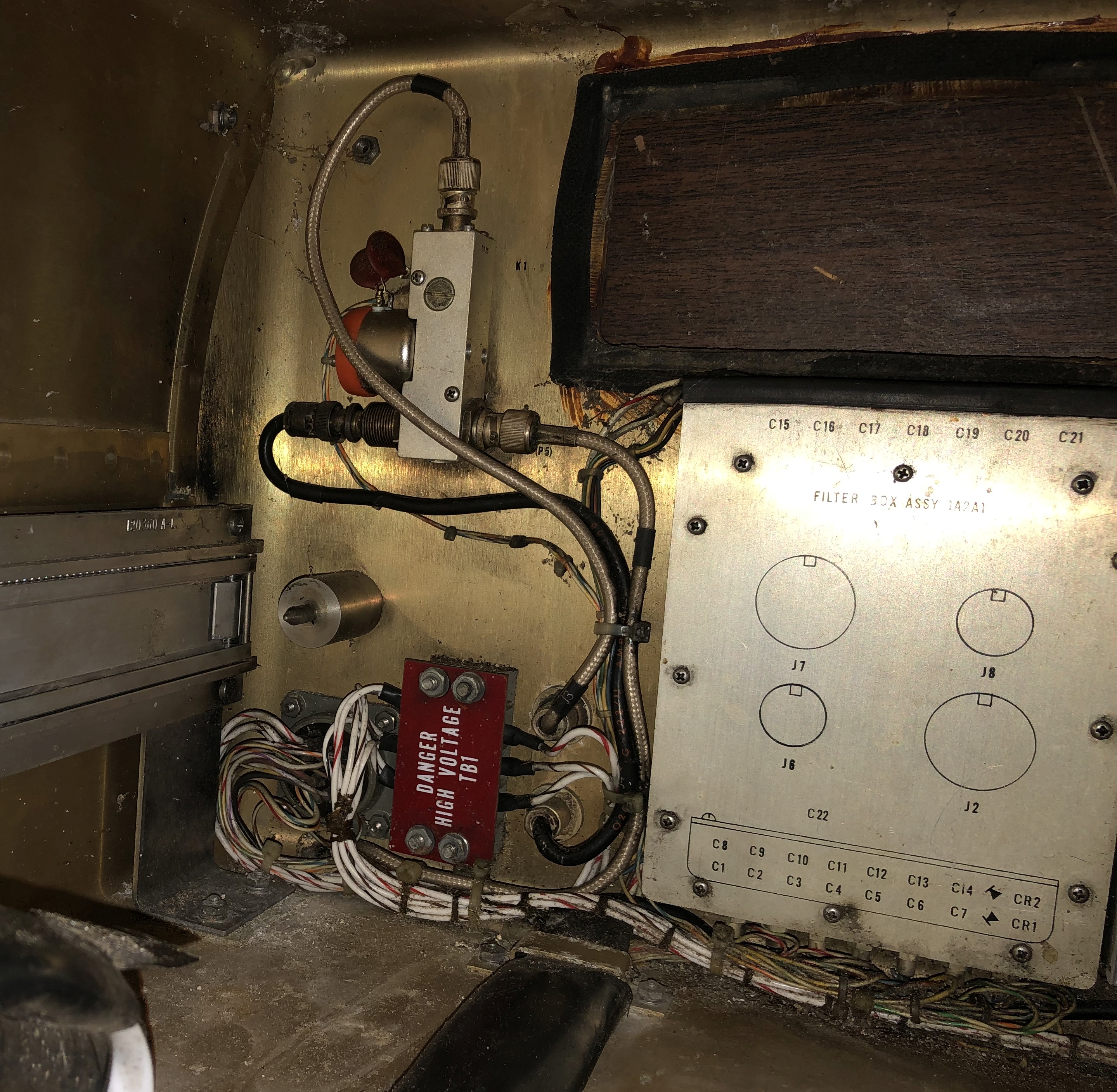

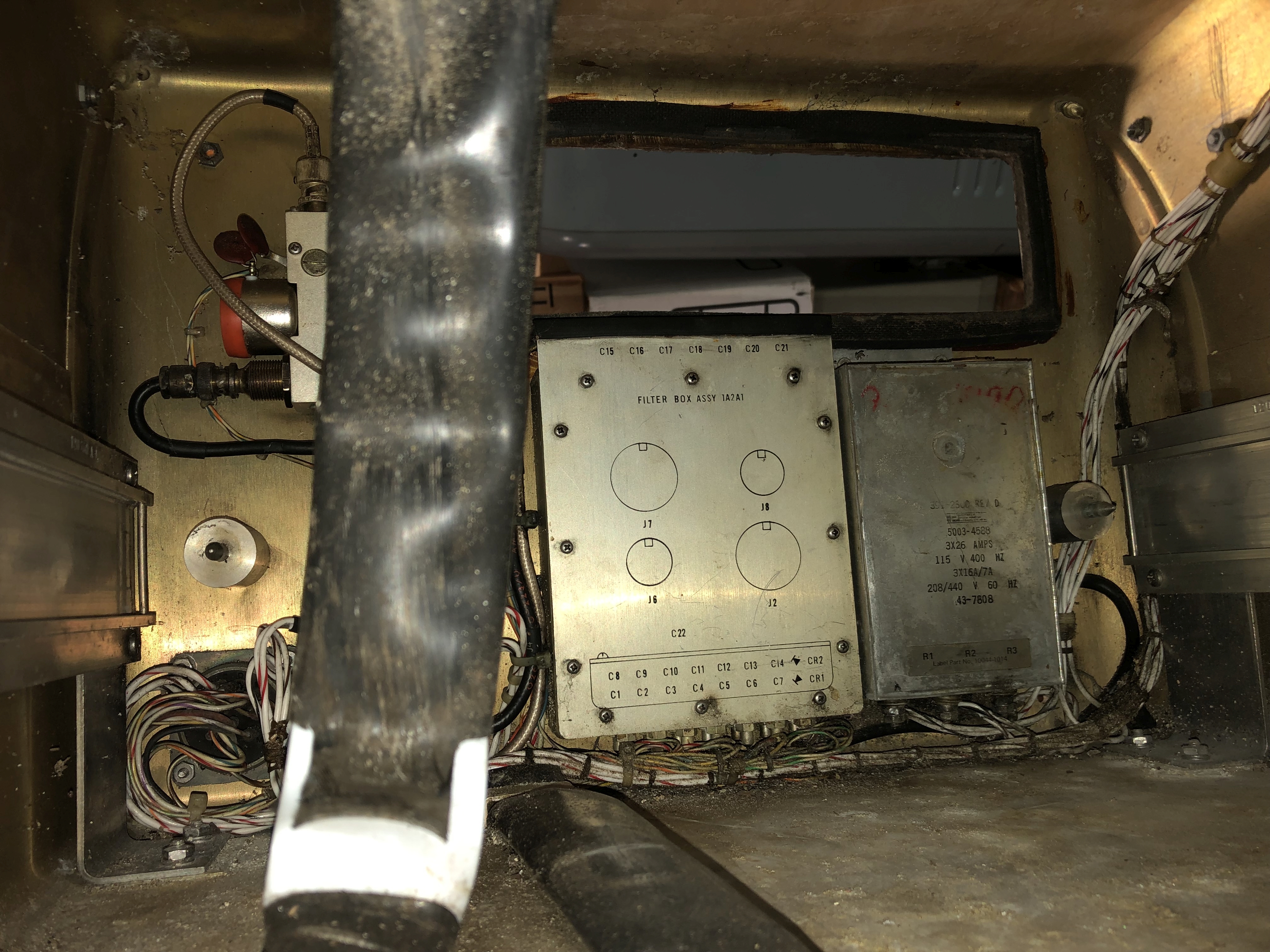

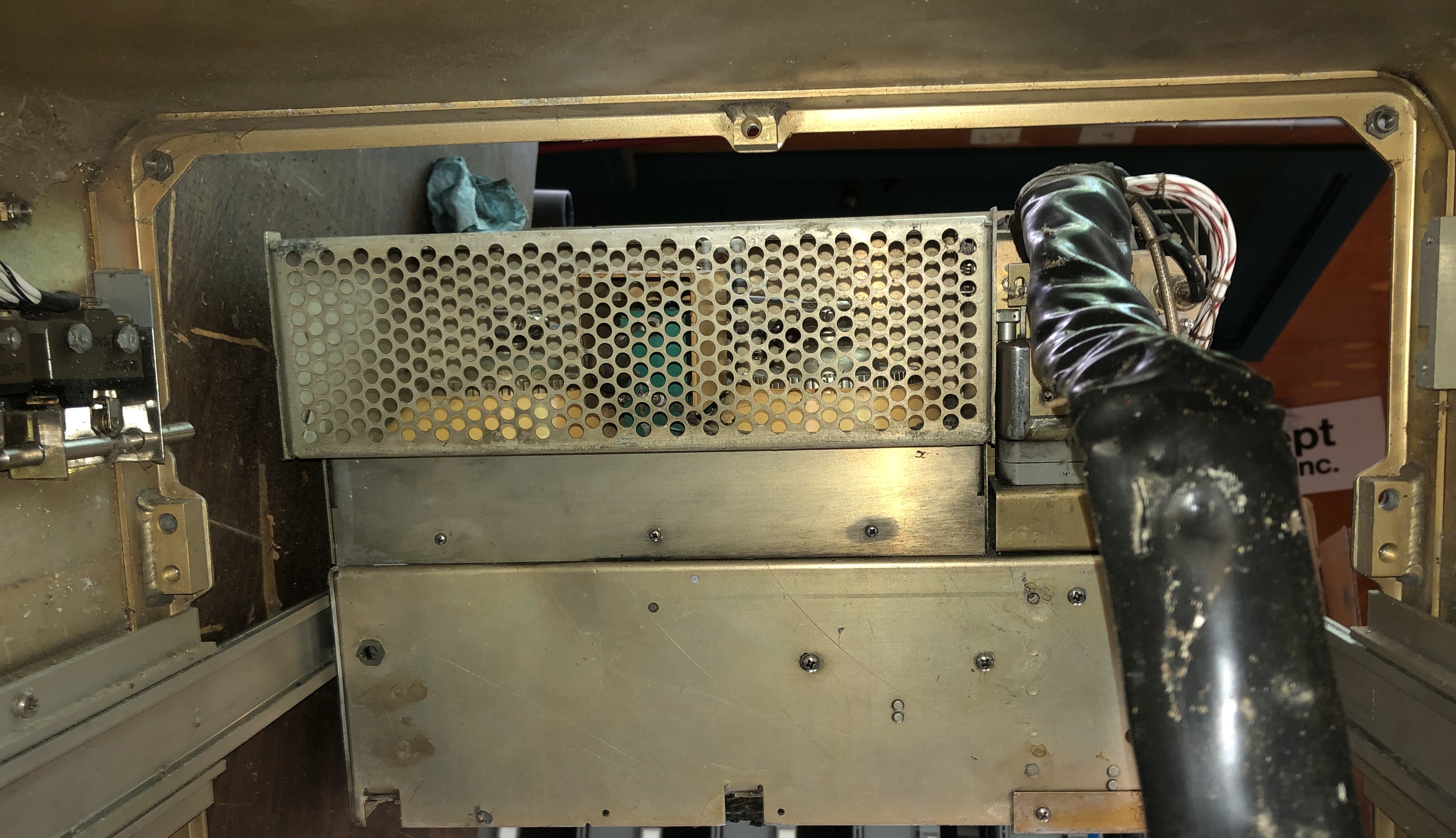

Inside rear of cabinet showing T-R relay
 |

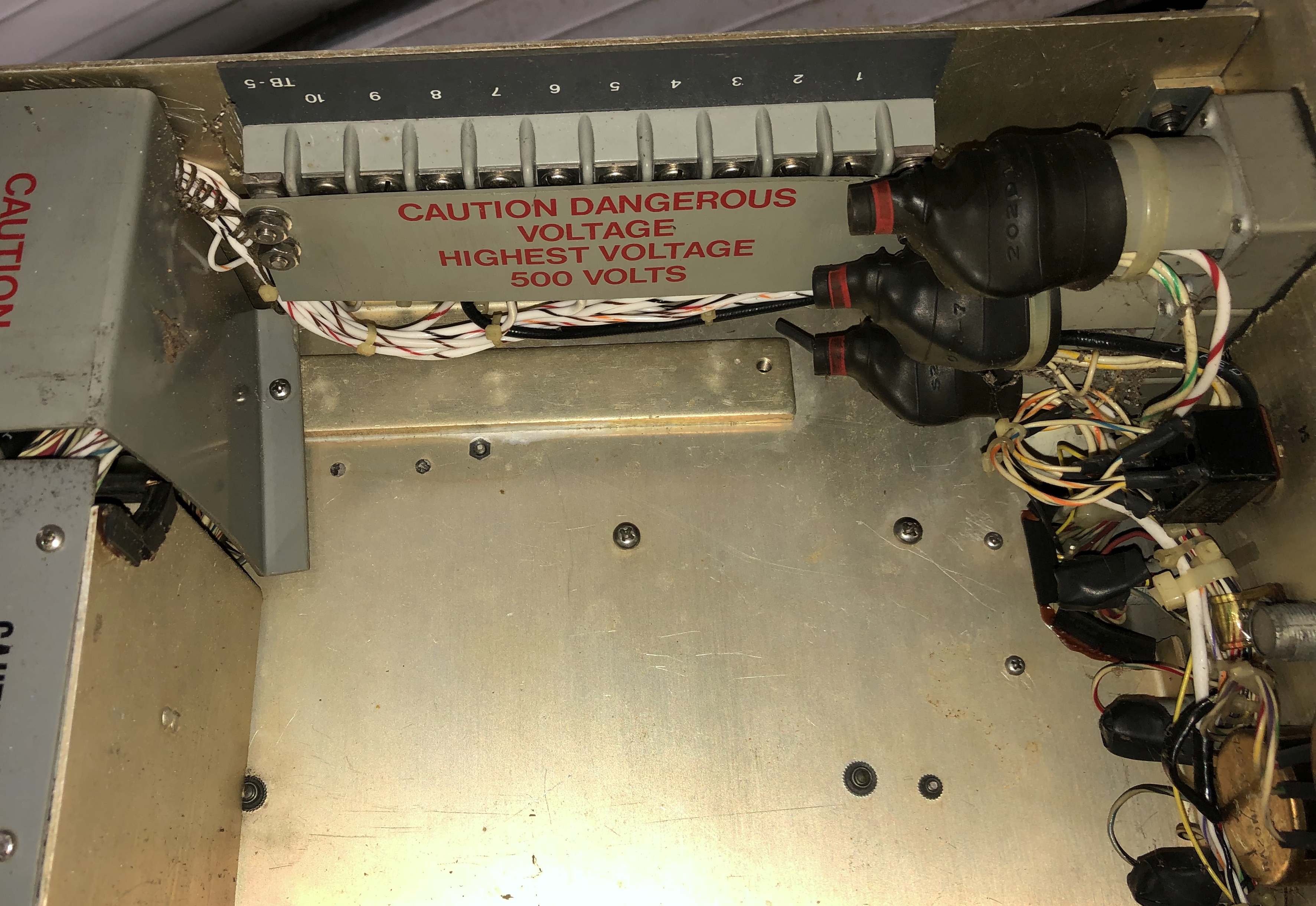

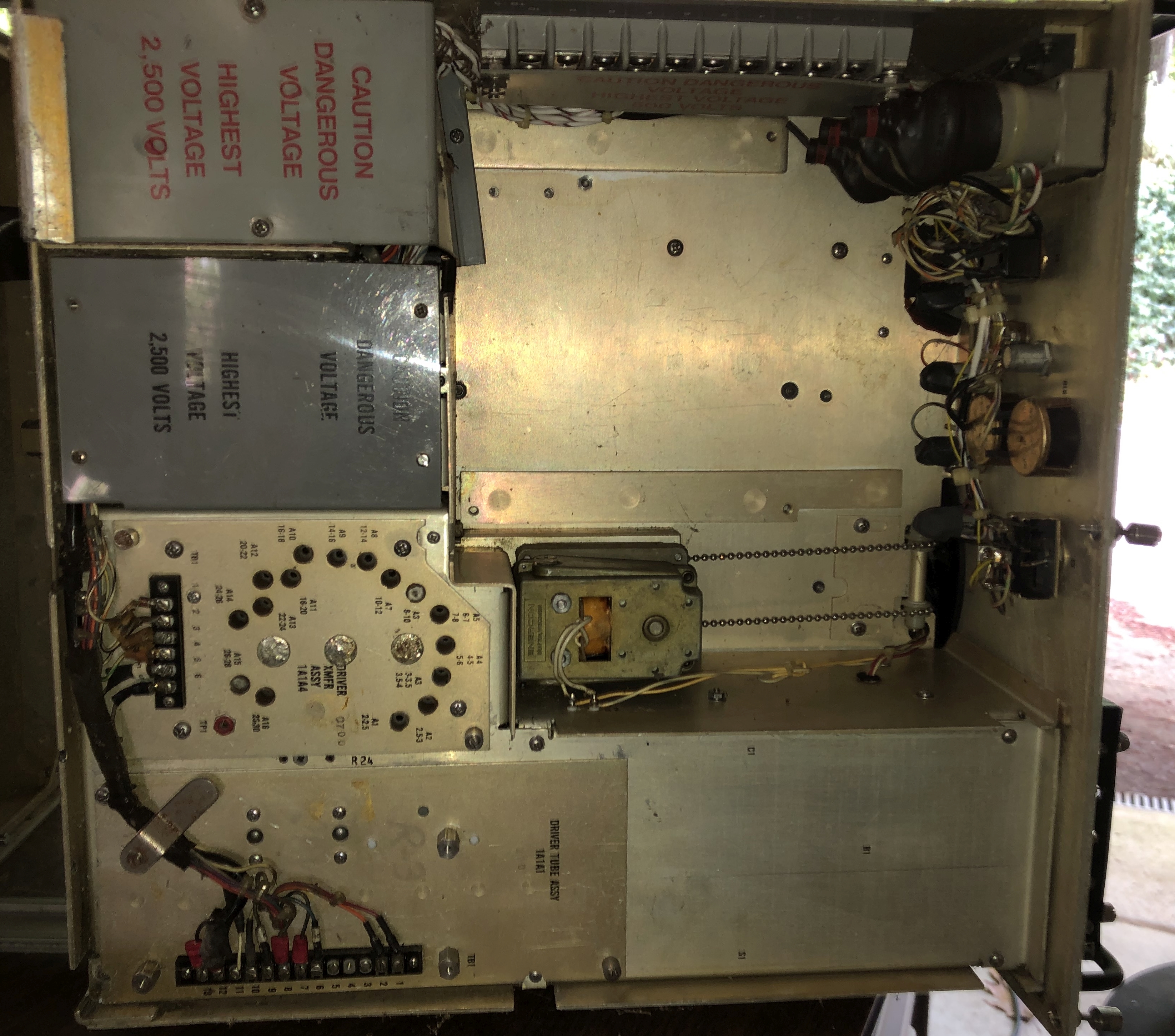

Bottom view with driver assemblies and cover removed
 |

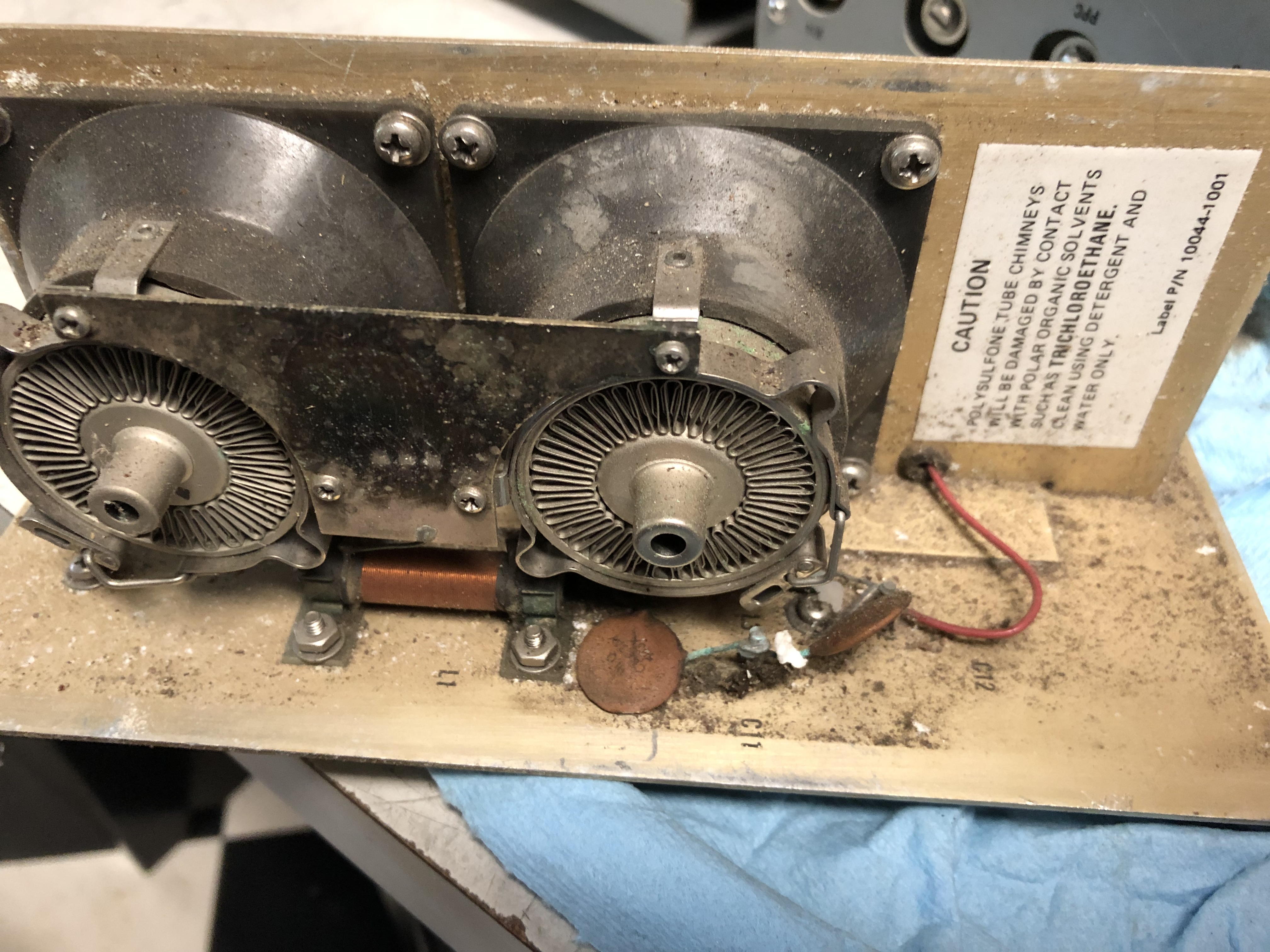

Driver assembly - two 8122 beam power tetrodes
 |

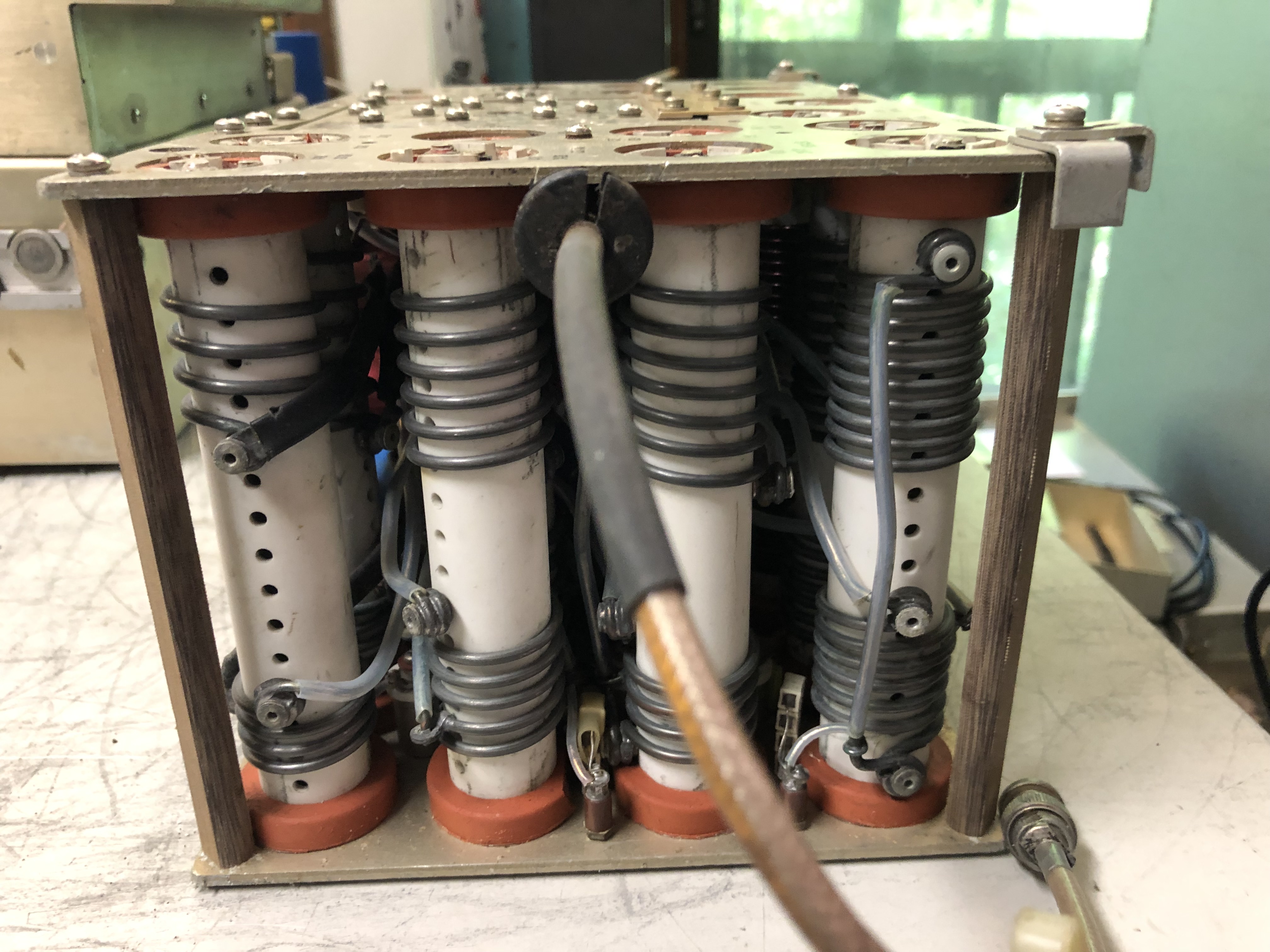

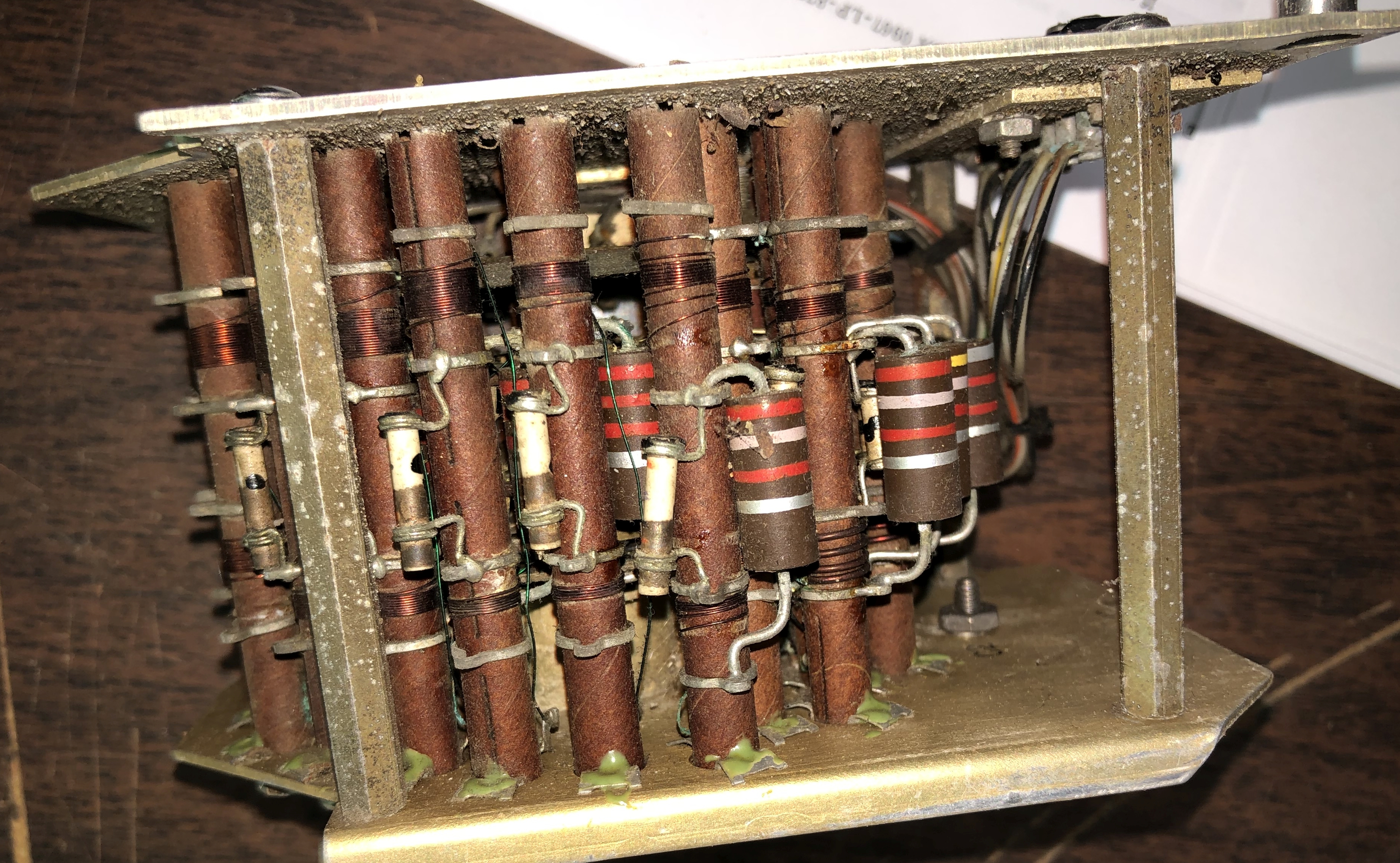

Driver RF transformer assembly
 |

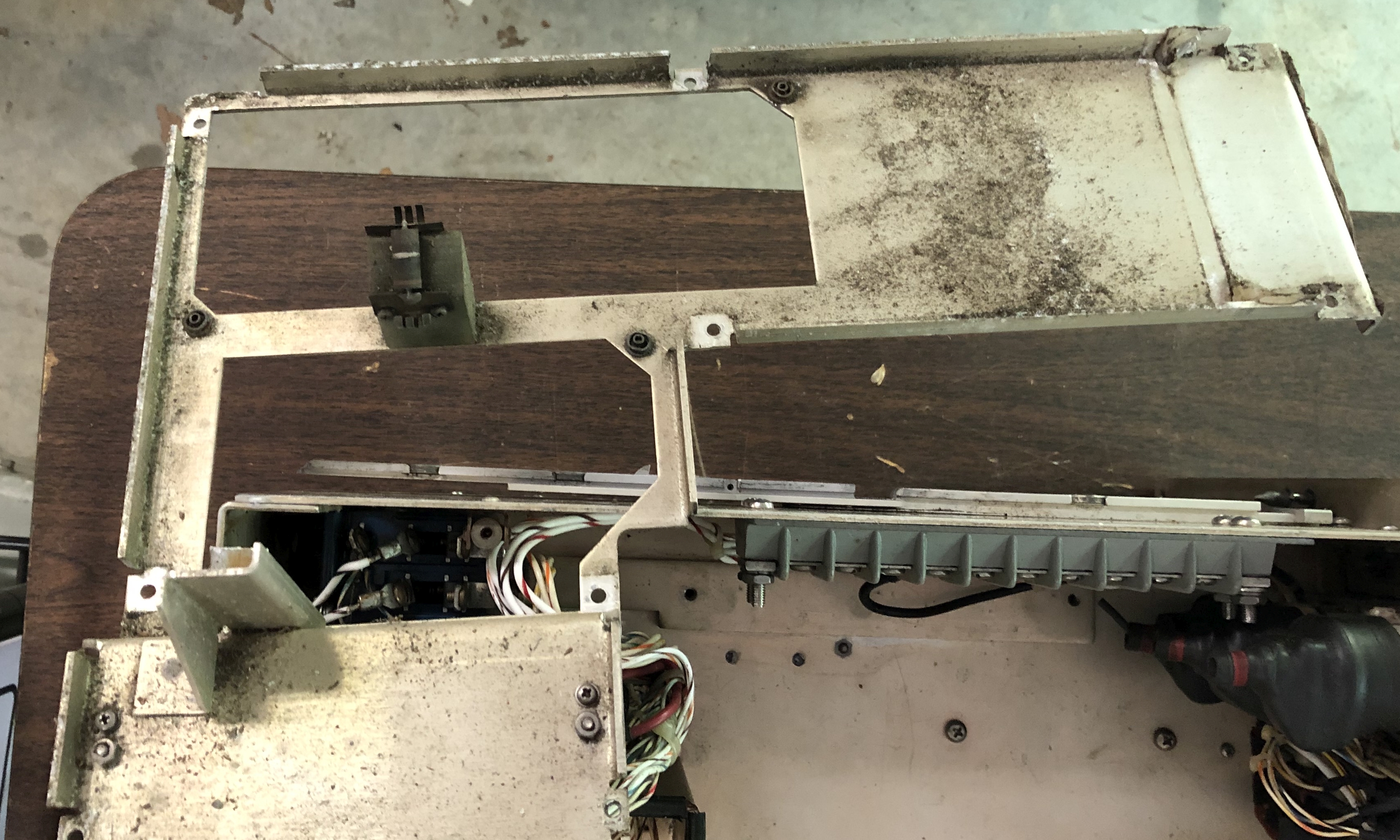

| Miscellaneous photos to help with restoration
and re-assembly |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

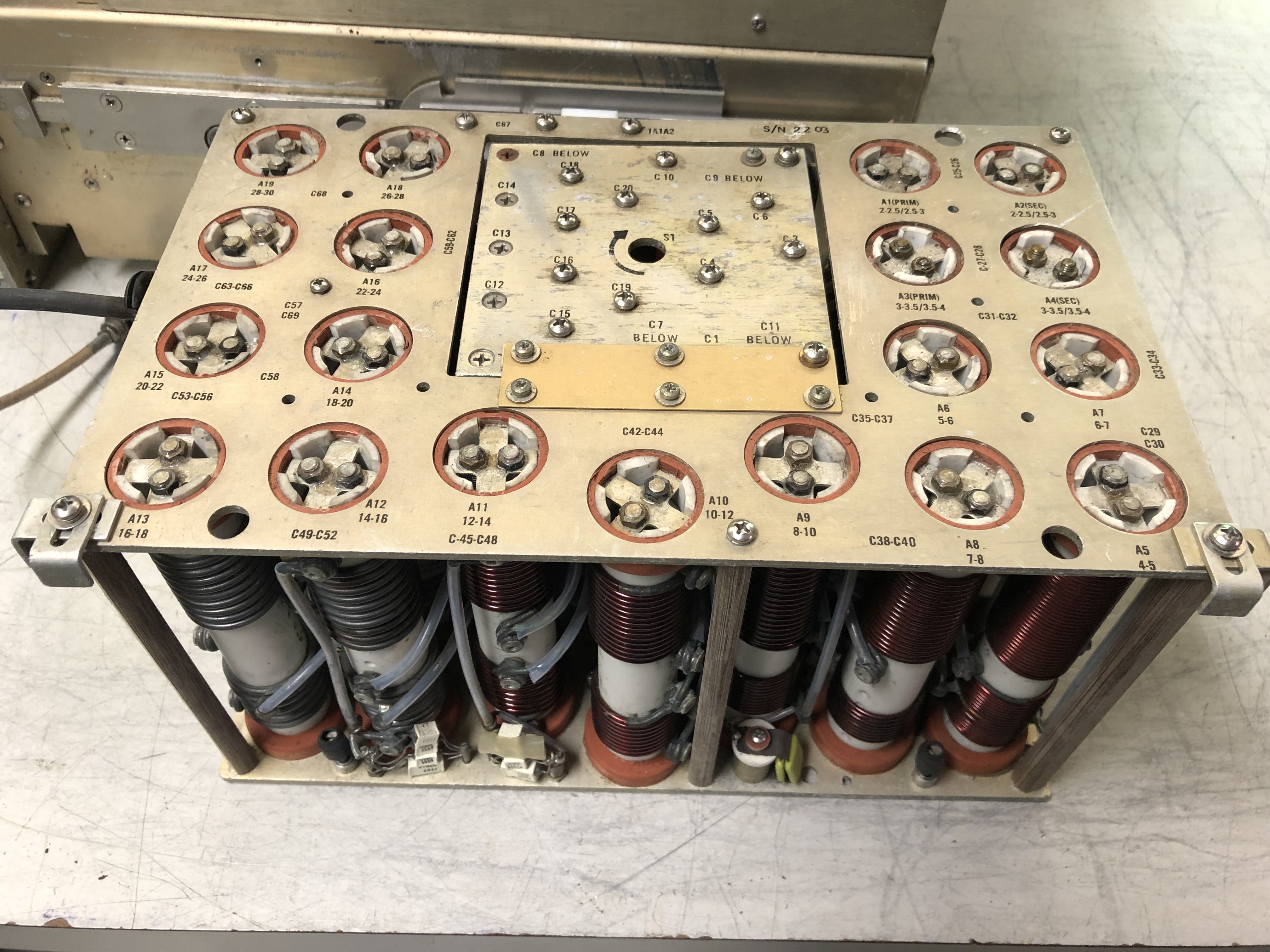

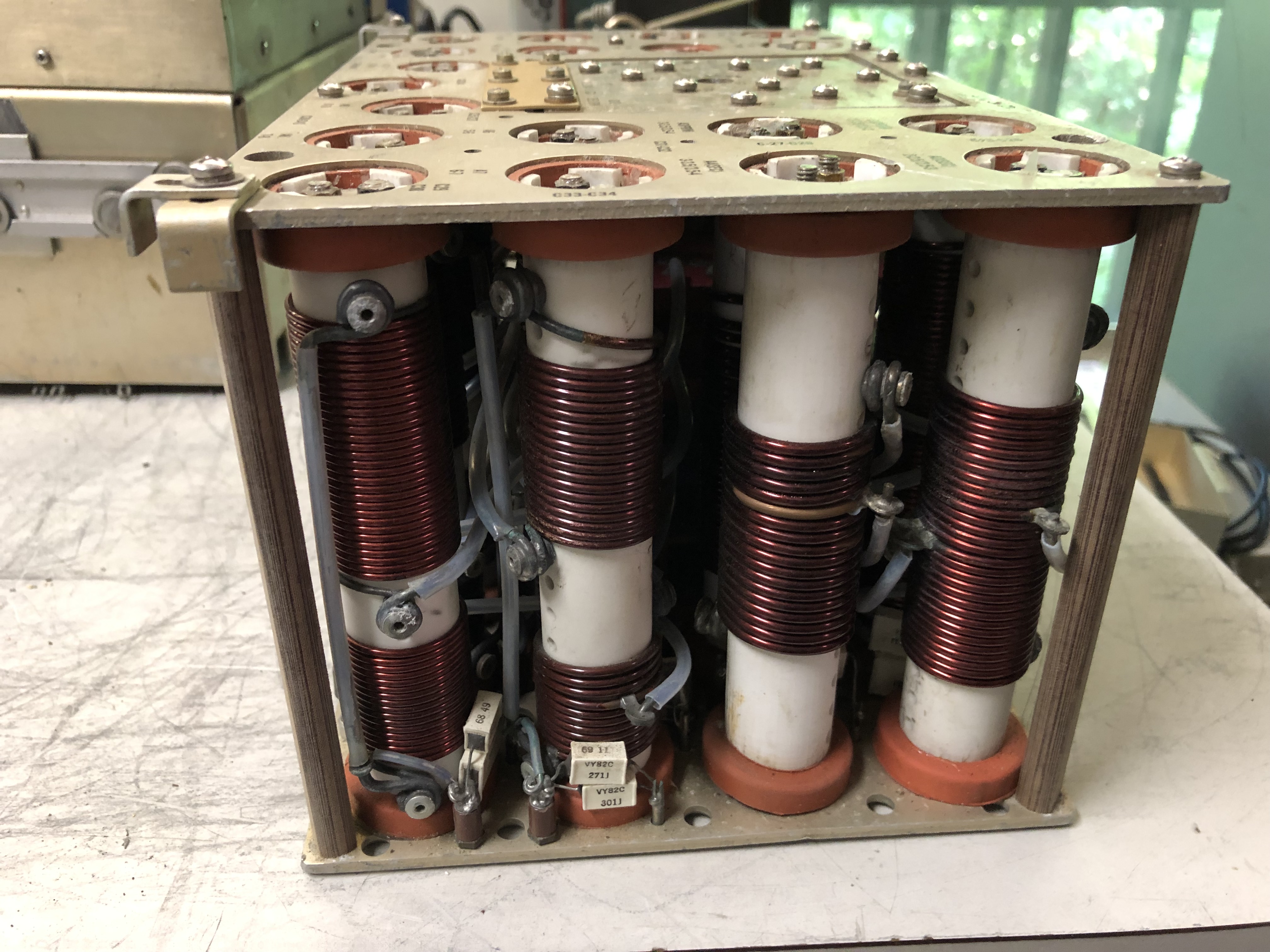

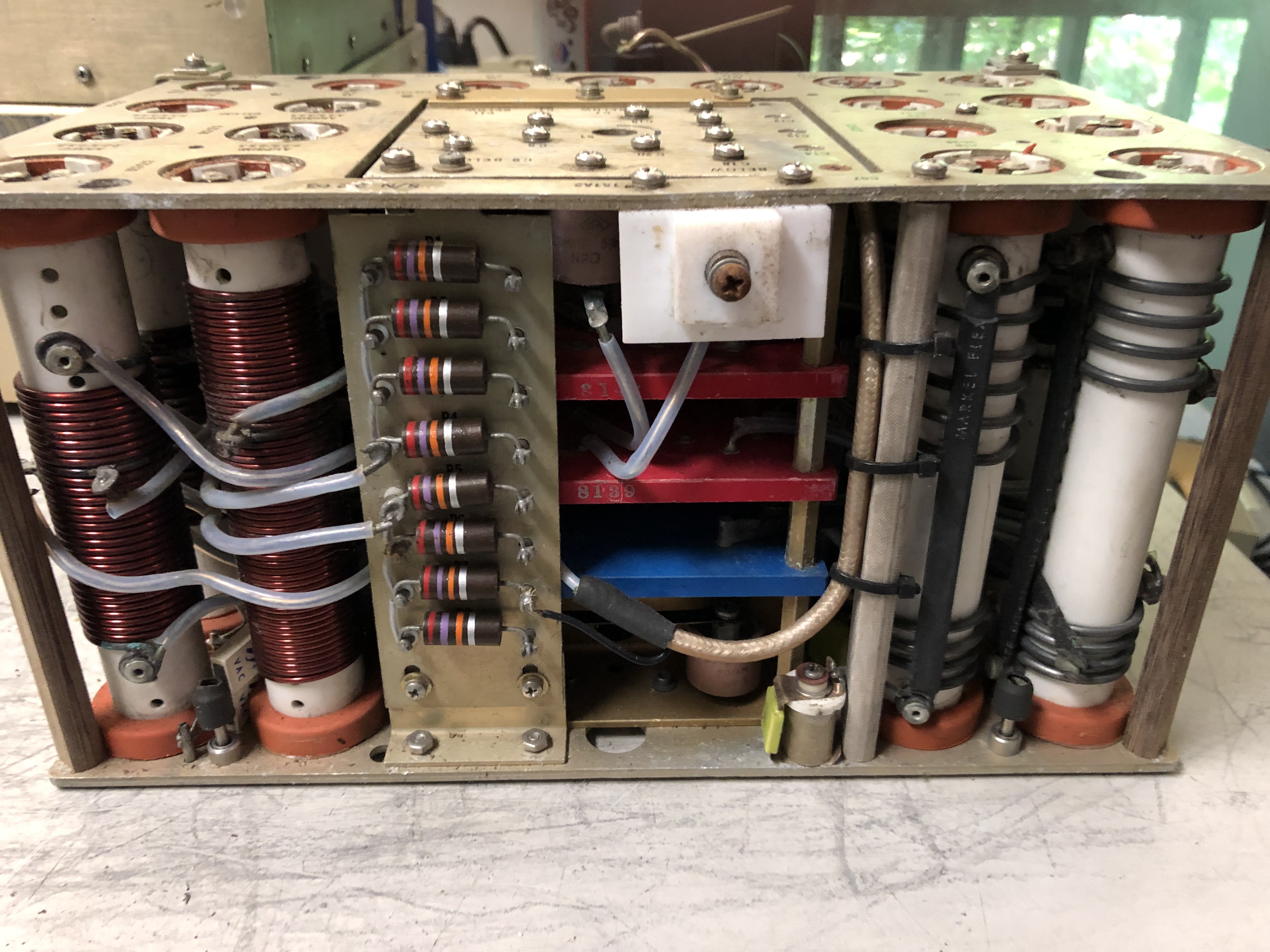

Output RF transformers
 |

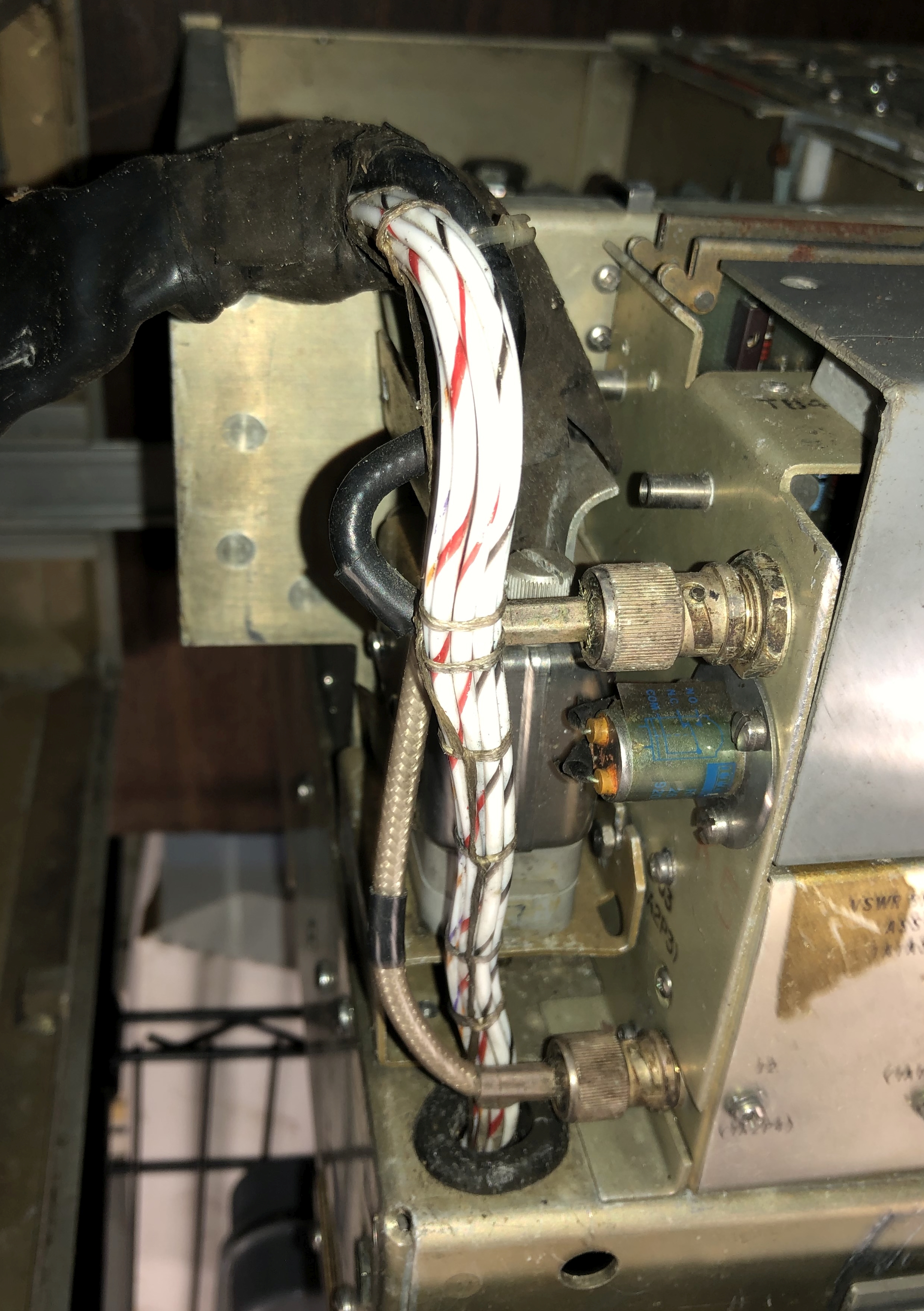

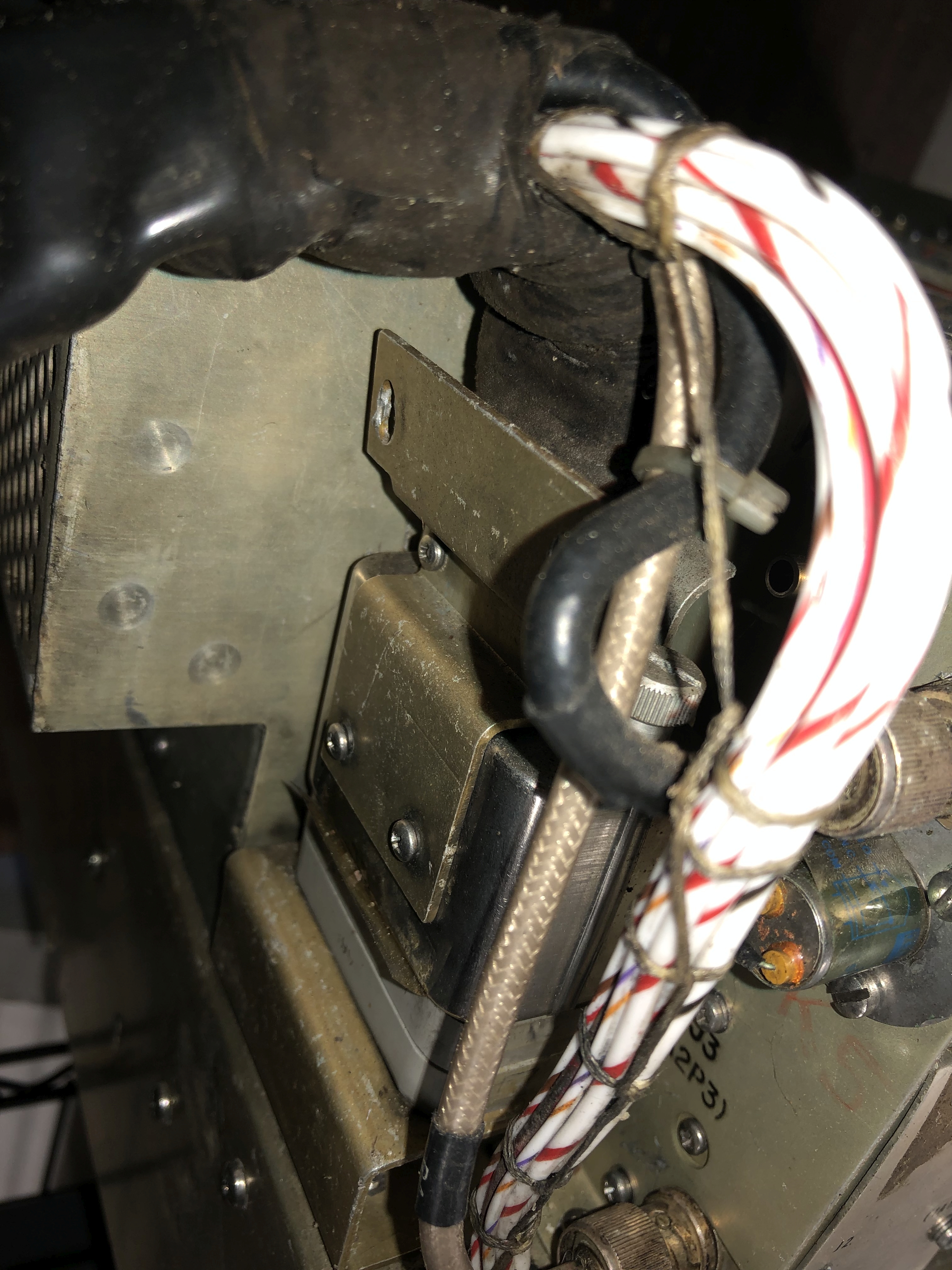

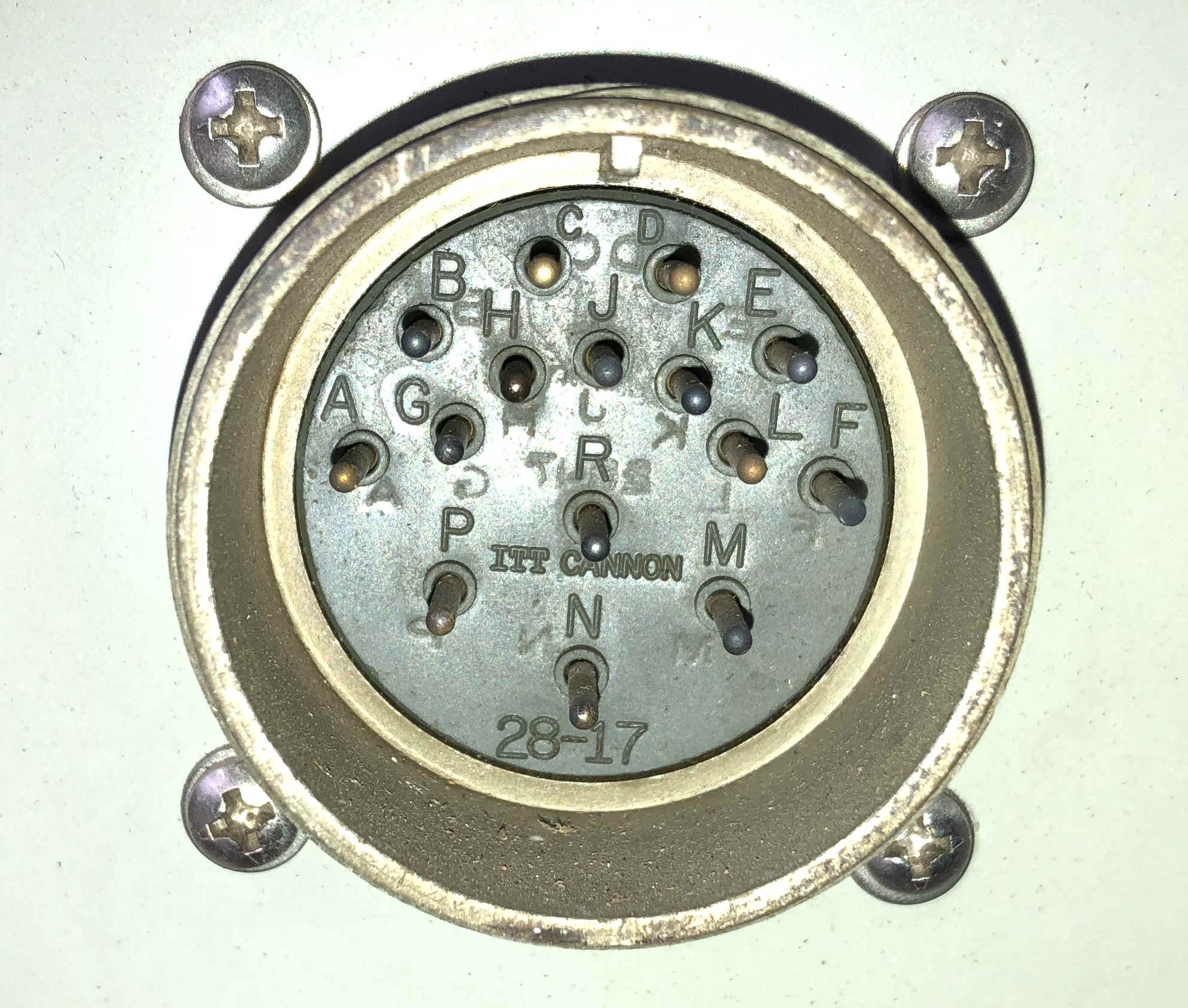

| Umbilical connections |
 |
 |
 |
 |
 |
 |
 |
 |

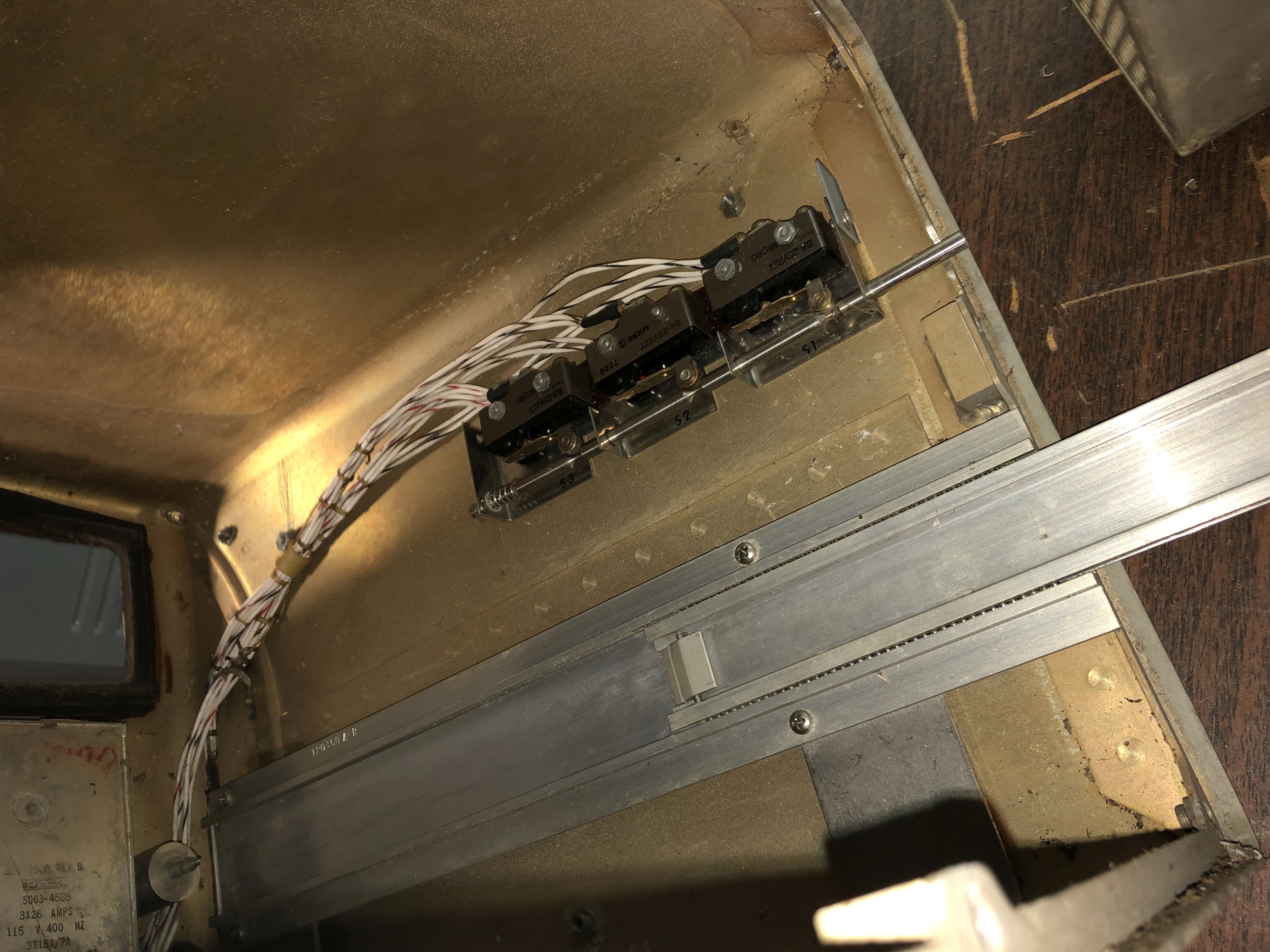

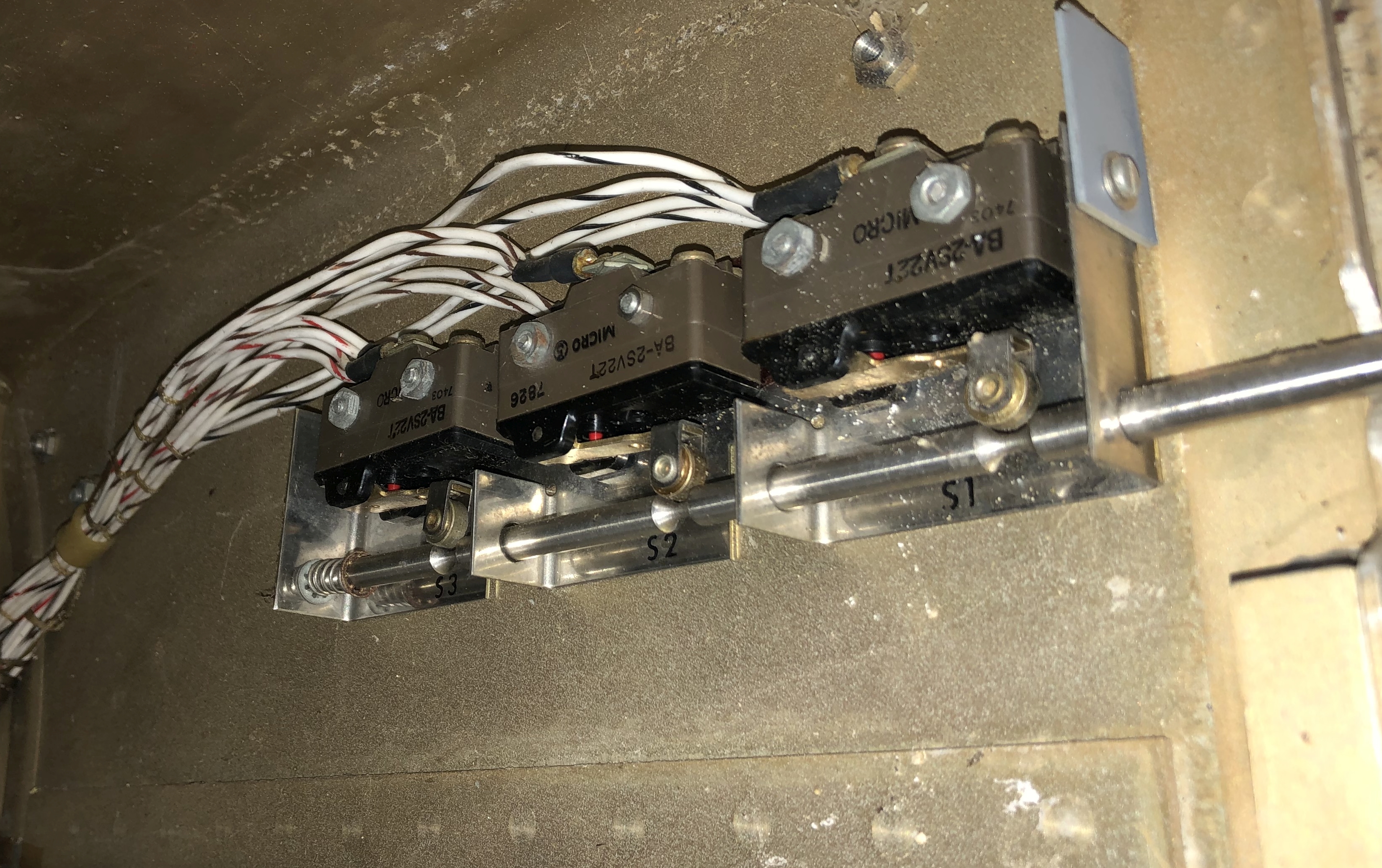

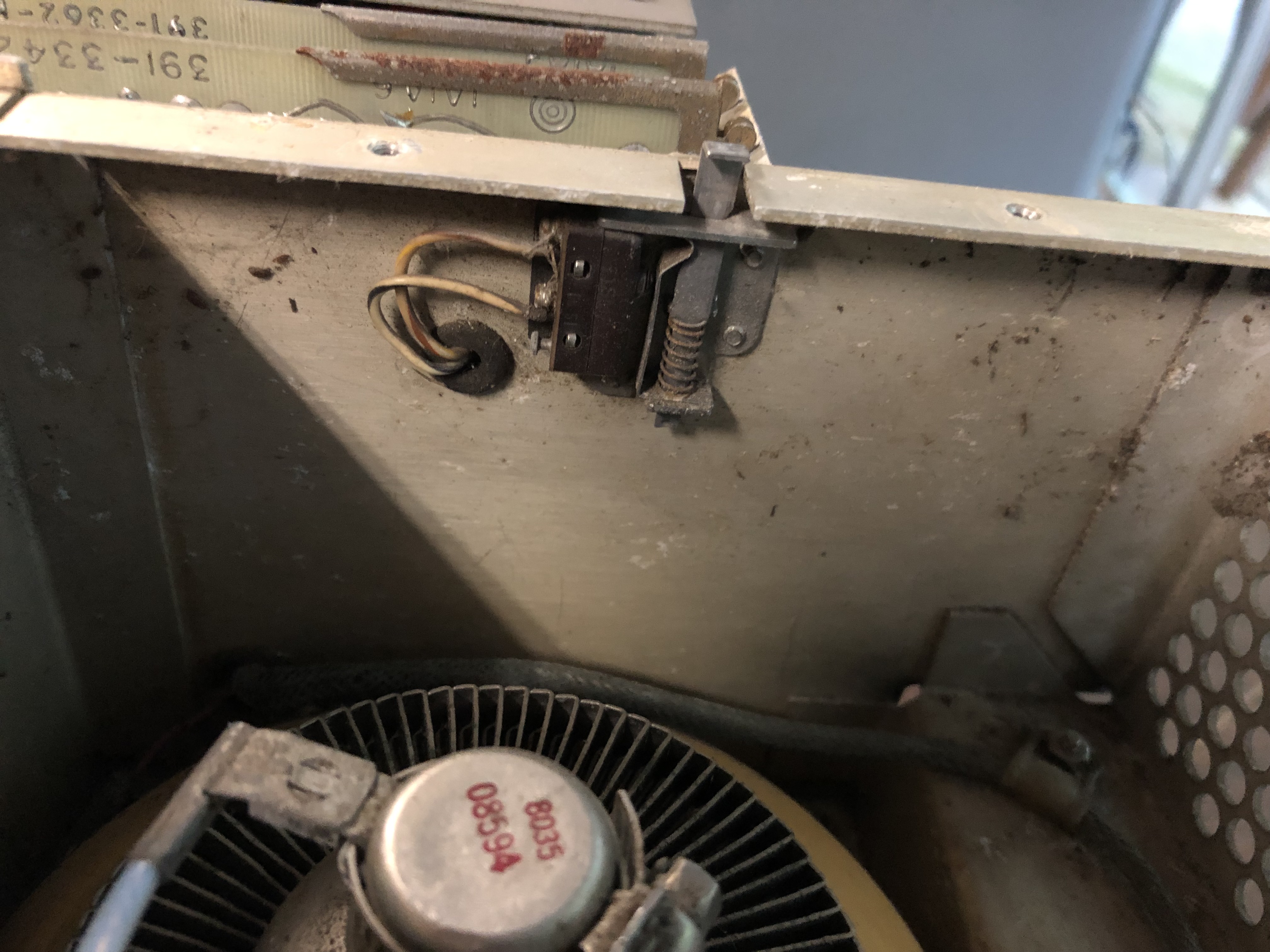

Cabinet interlock
 |
 |
Final cover interlock
 |

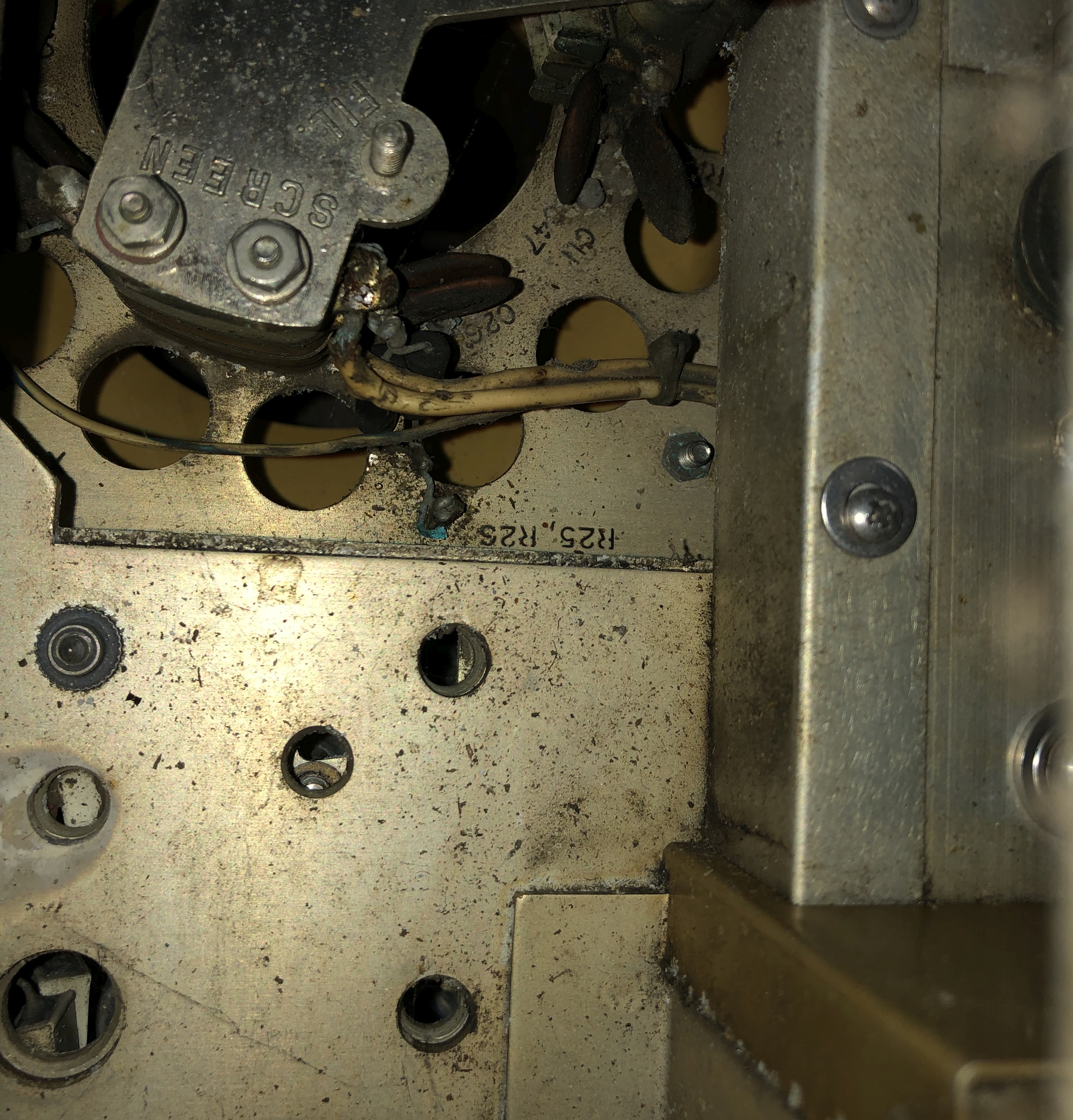

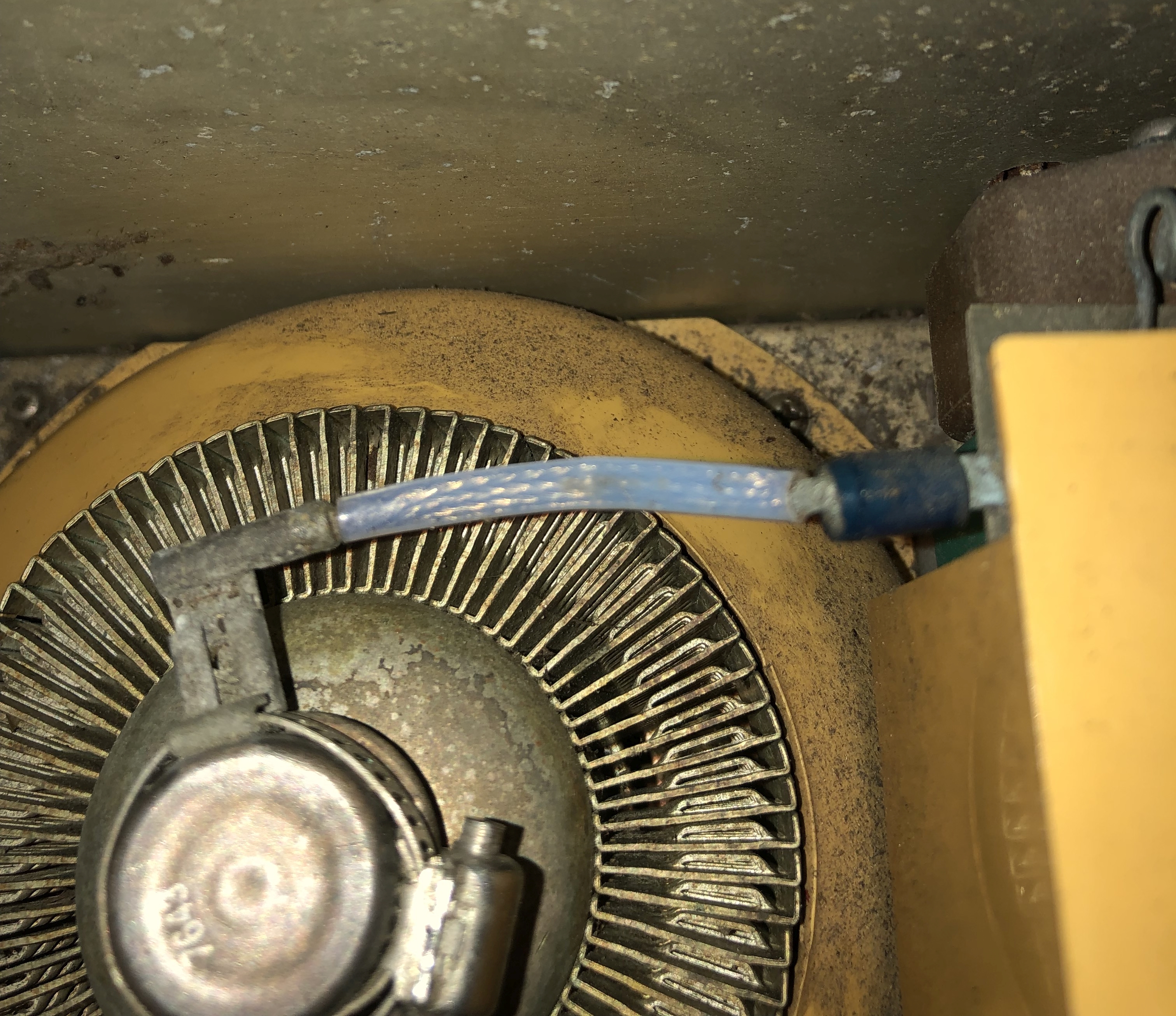

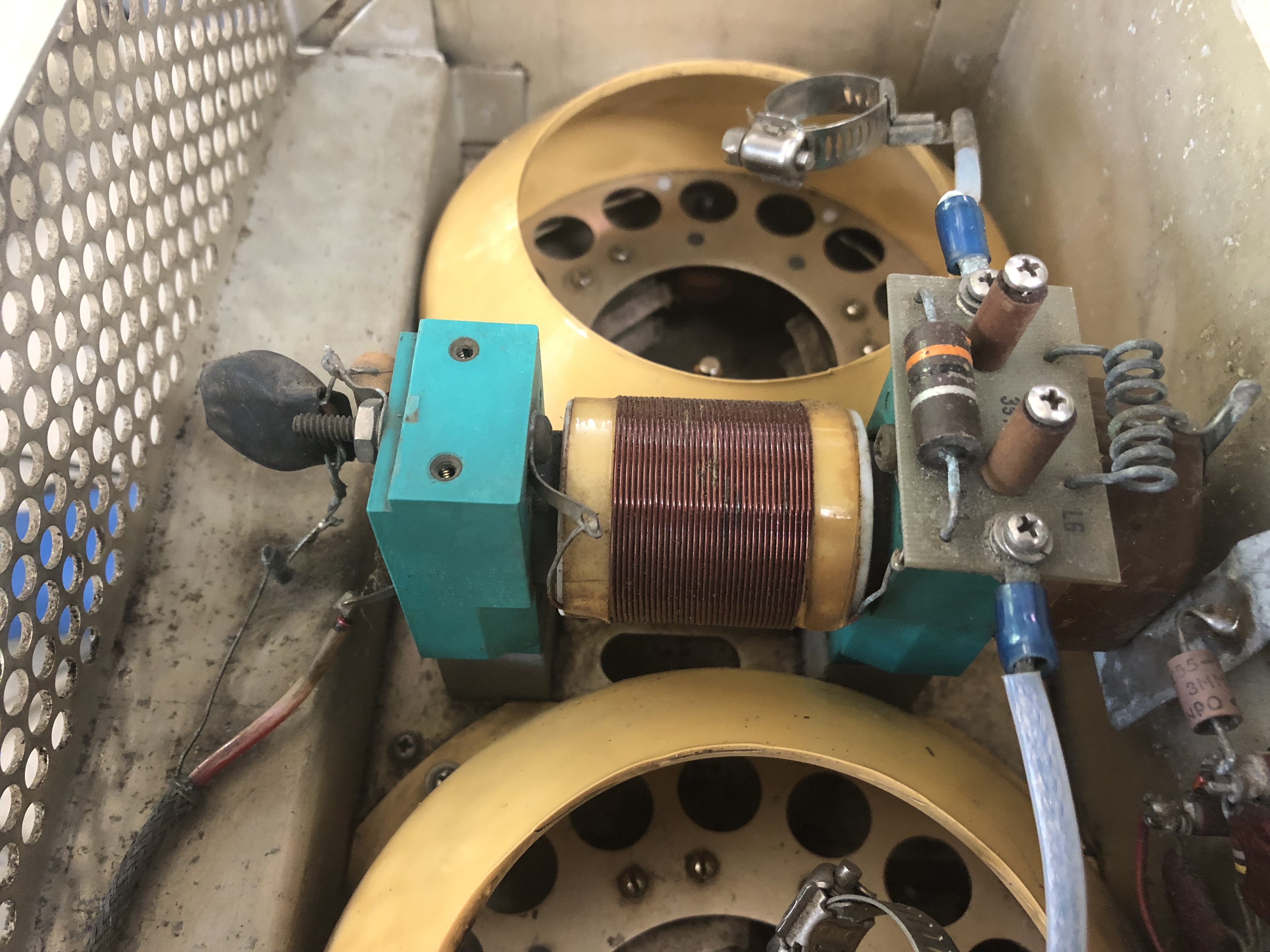

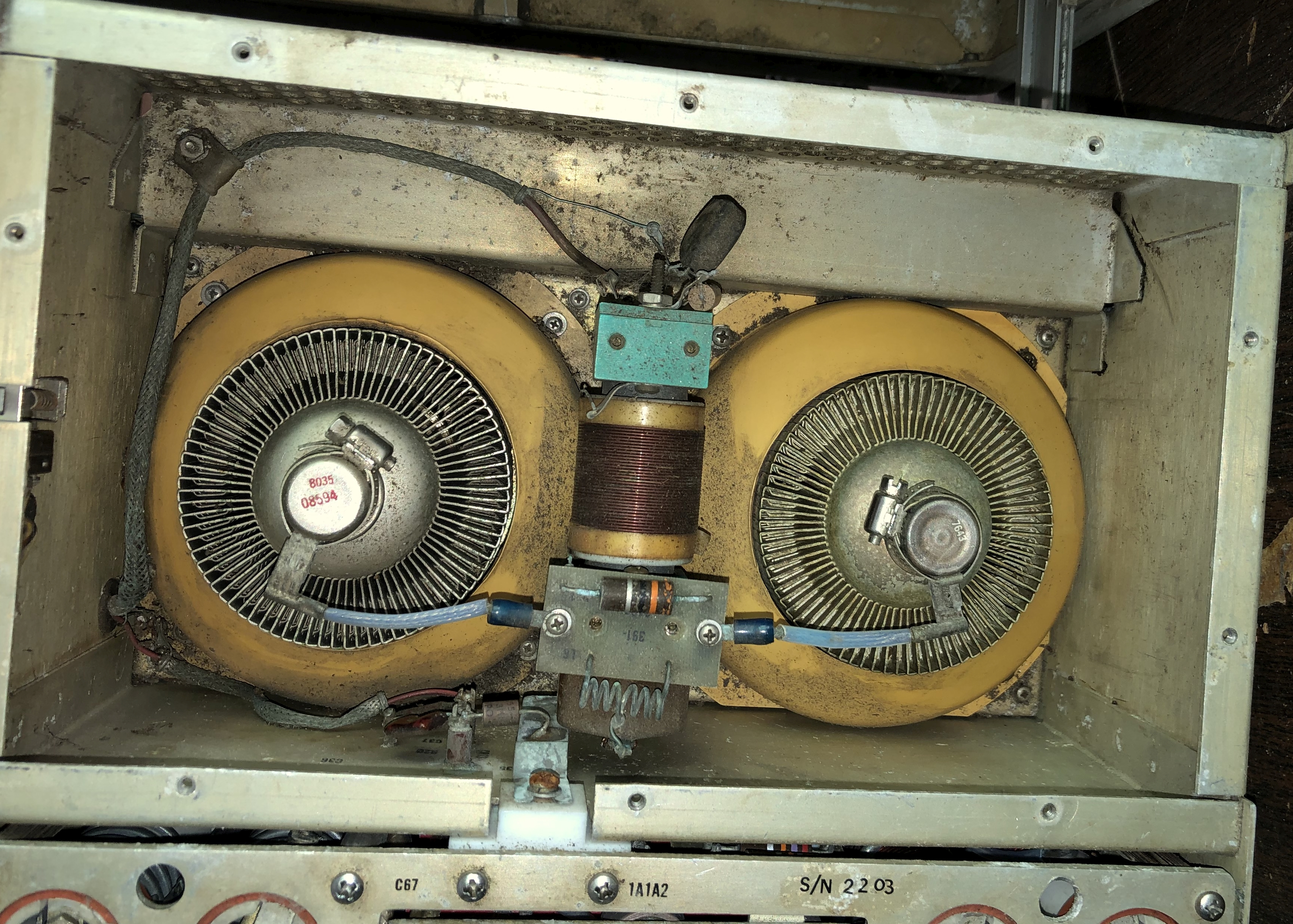

Finals
 |

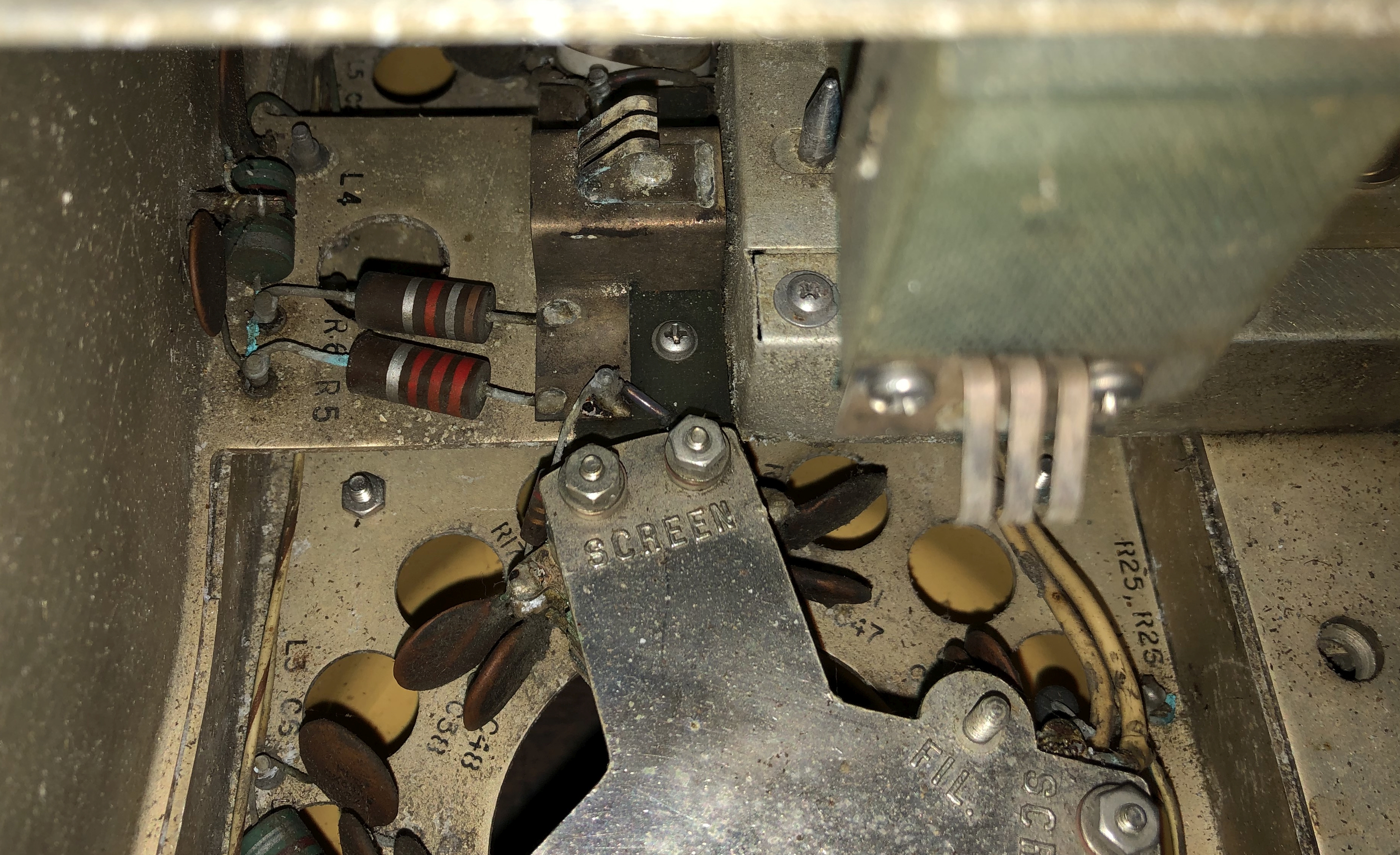

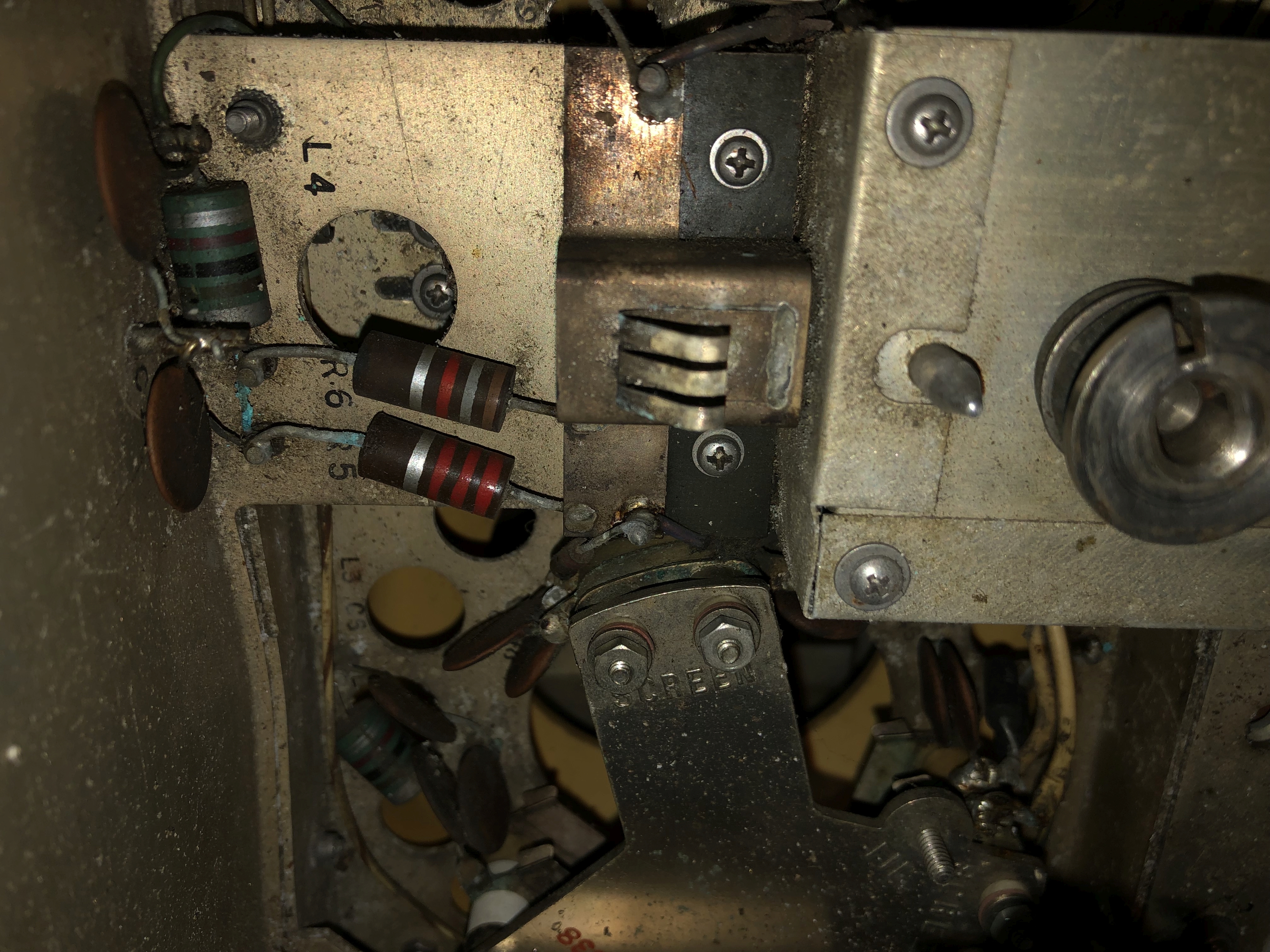

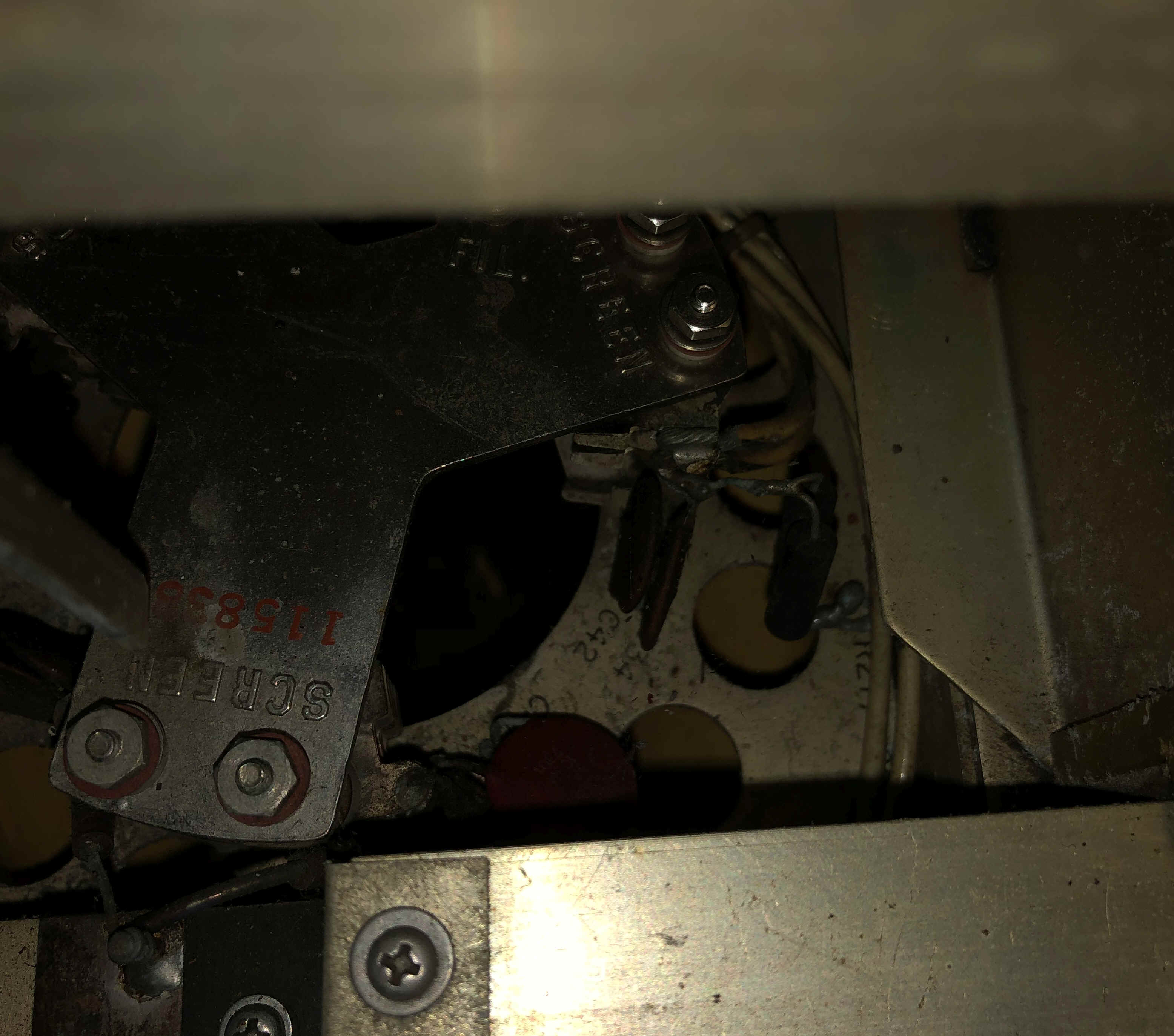

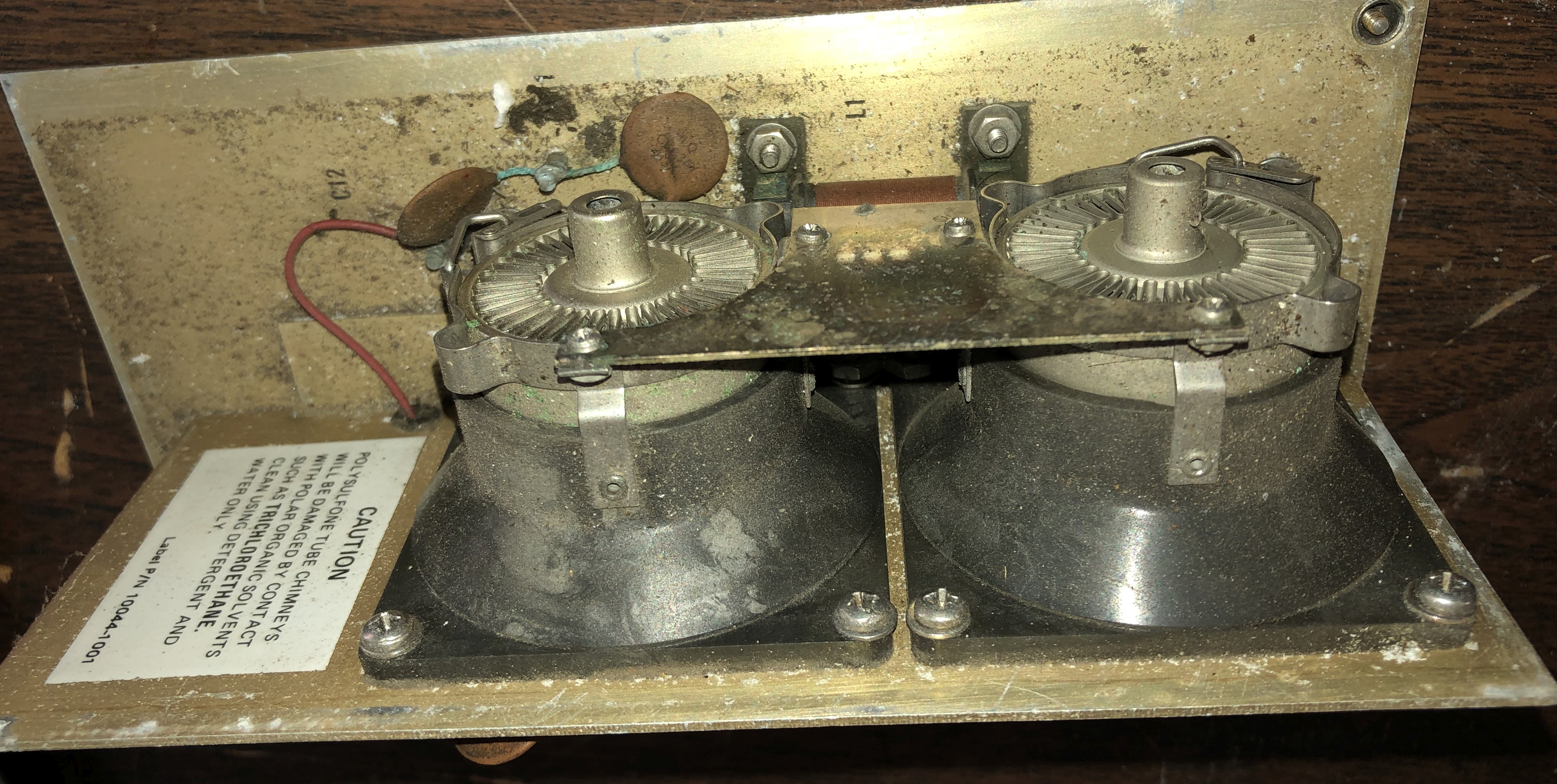

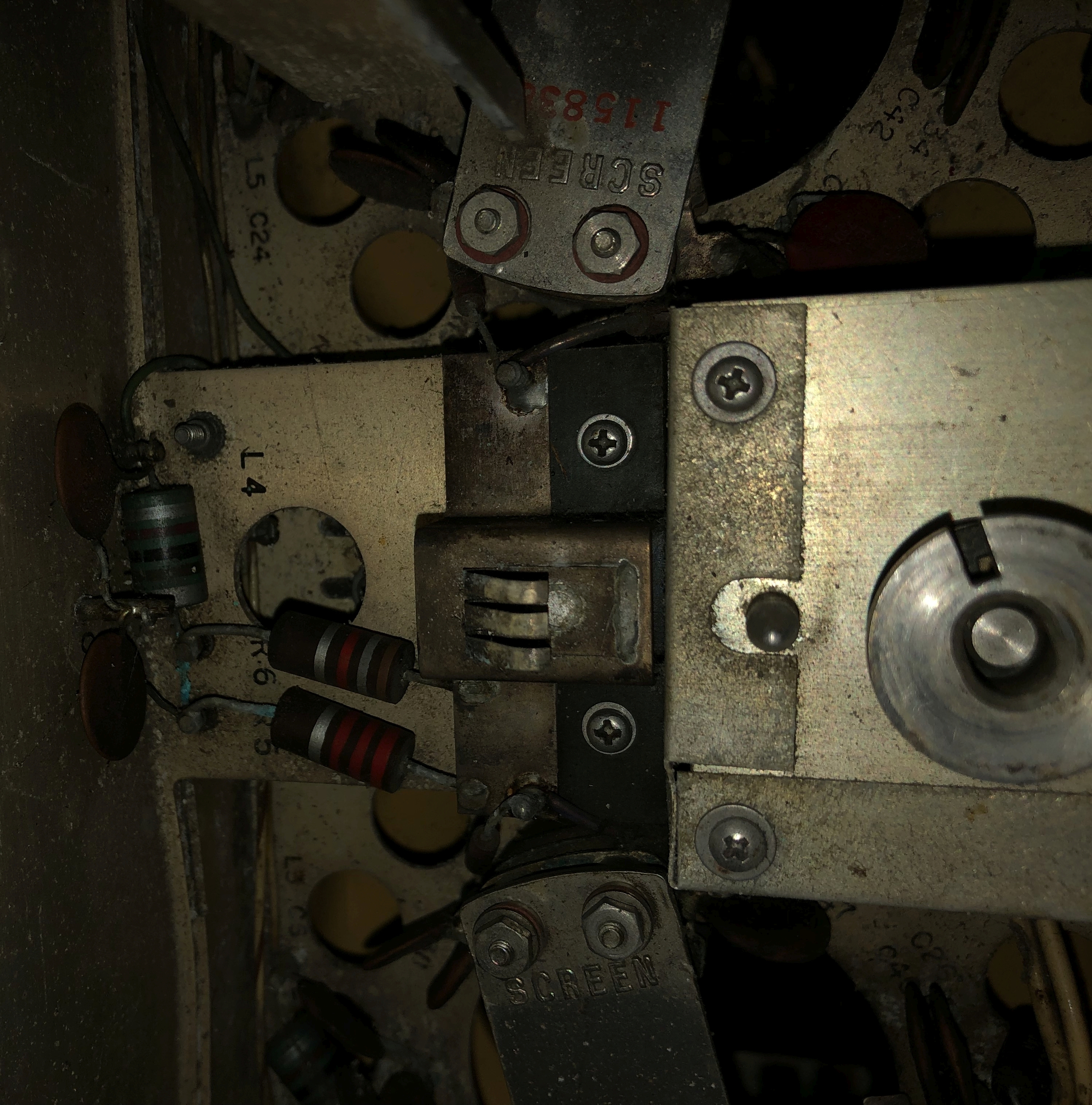

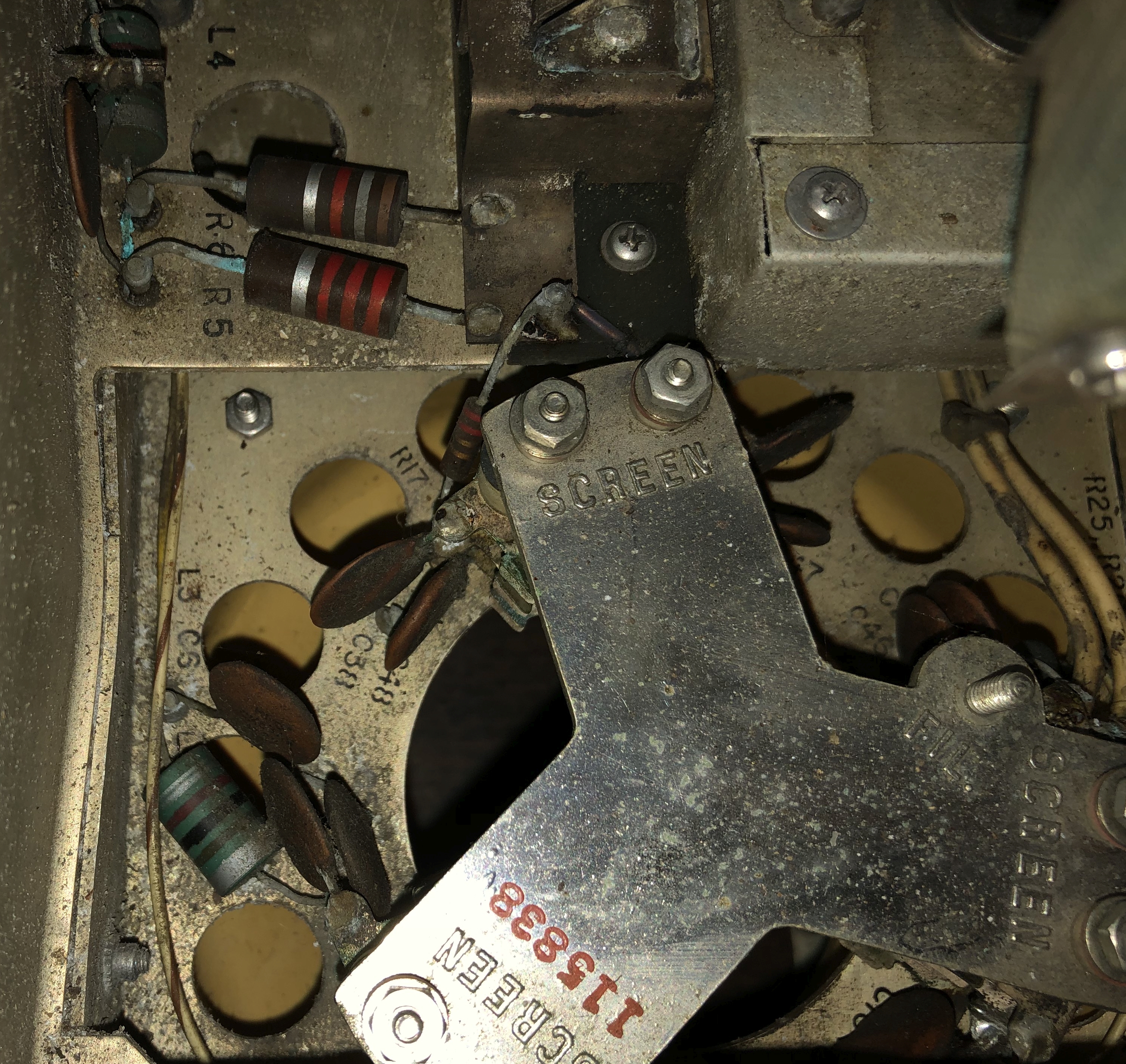

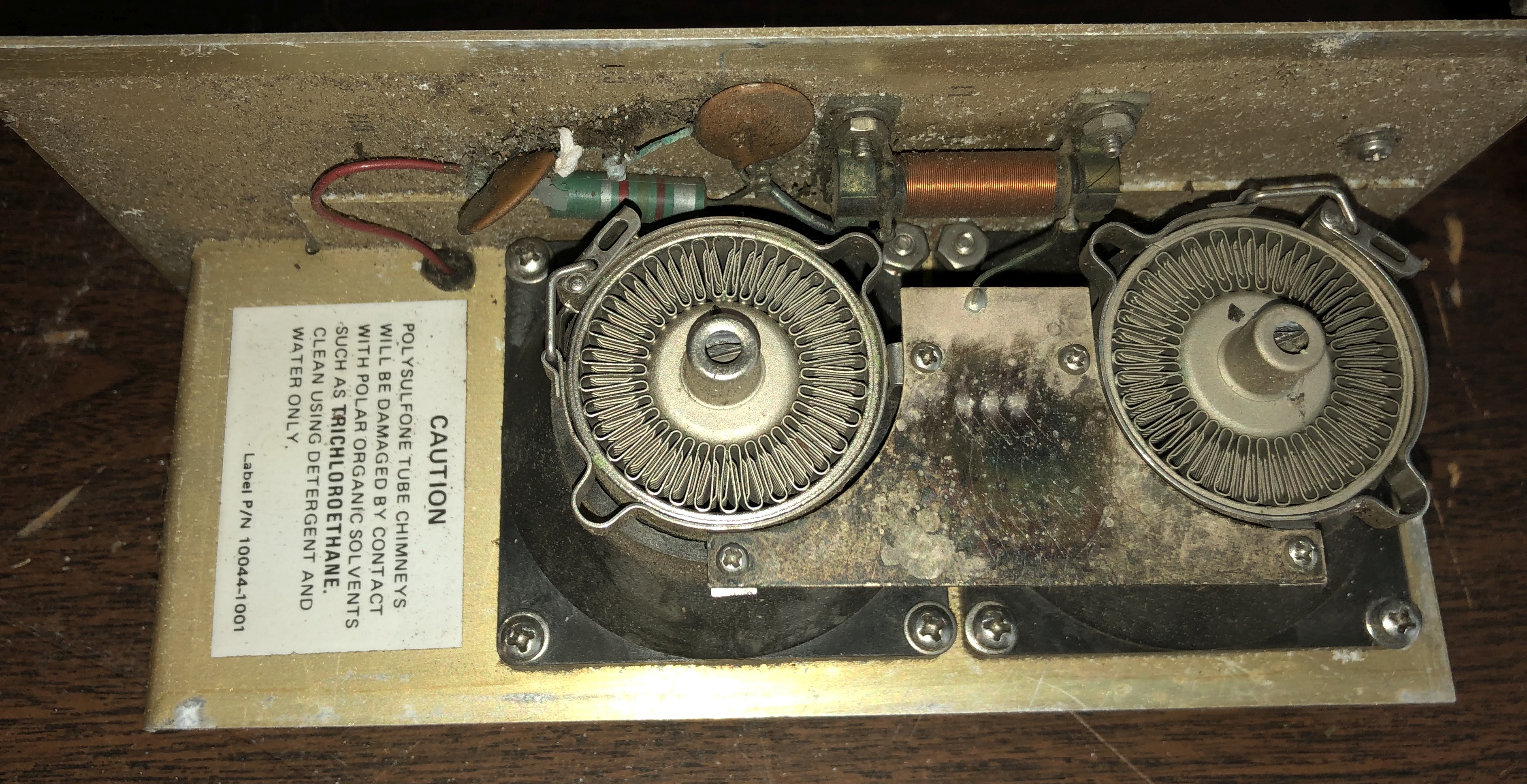

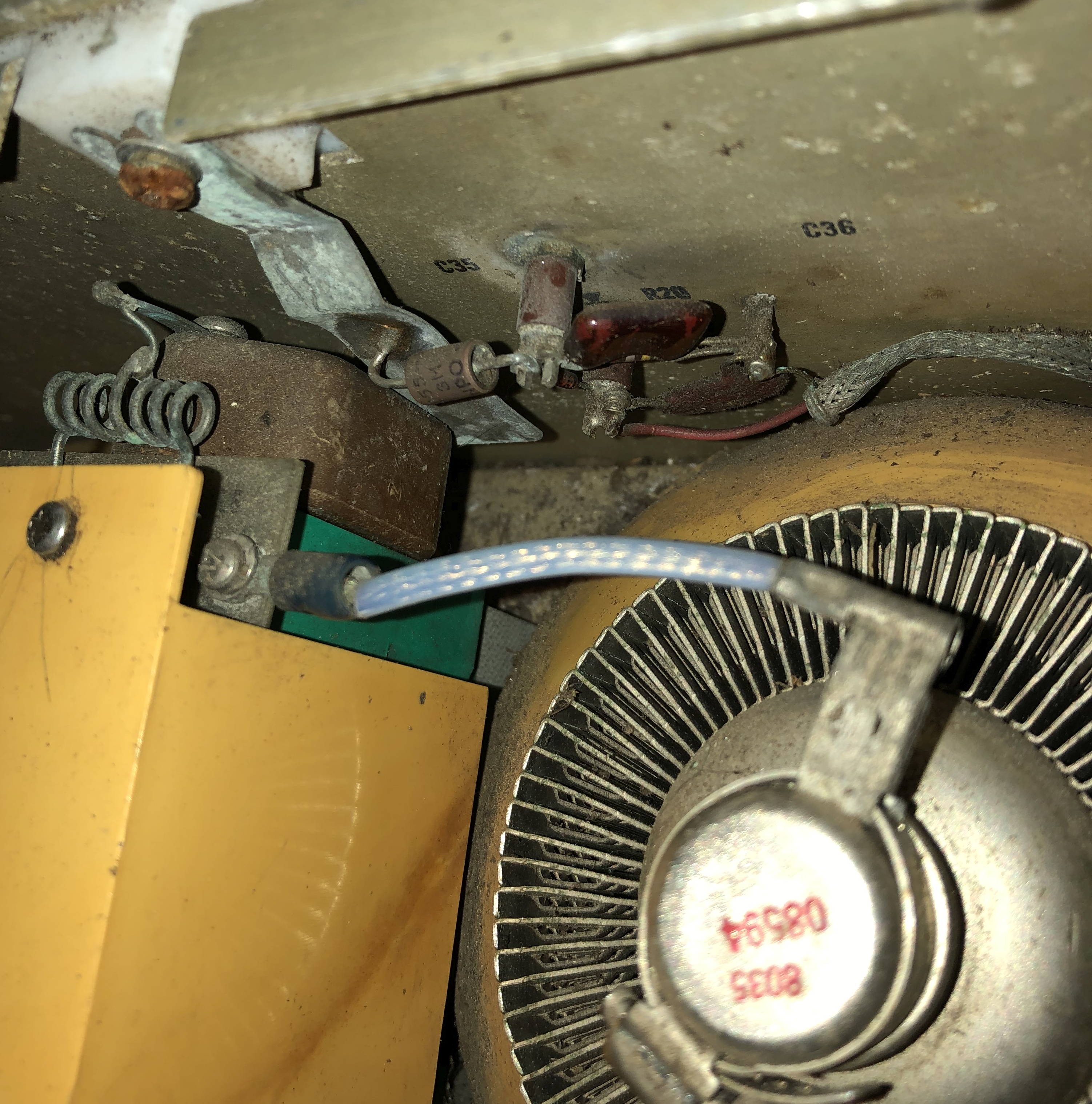

Final sockets
 |
Left
 |
Right
 |

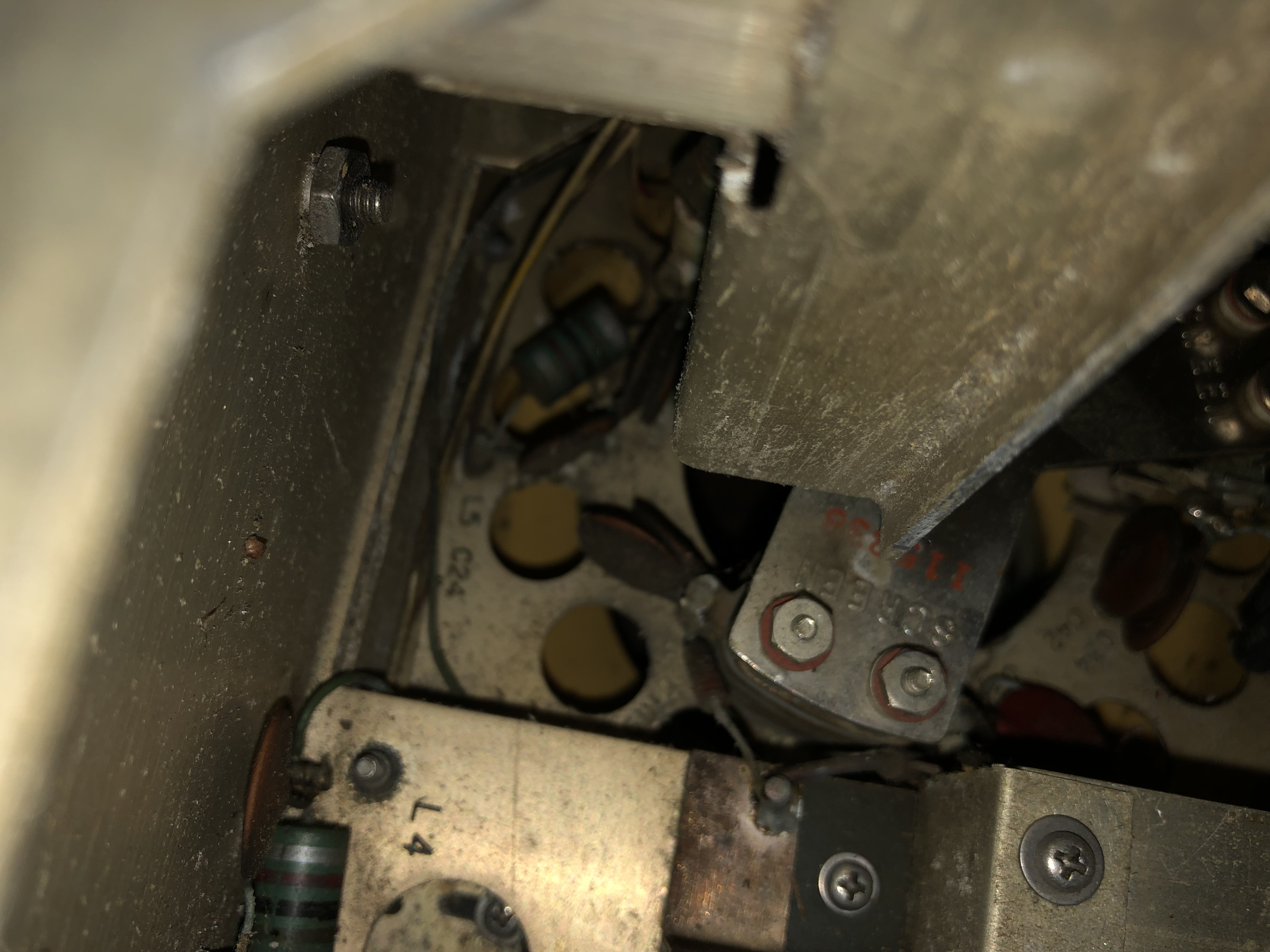

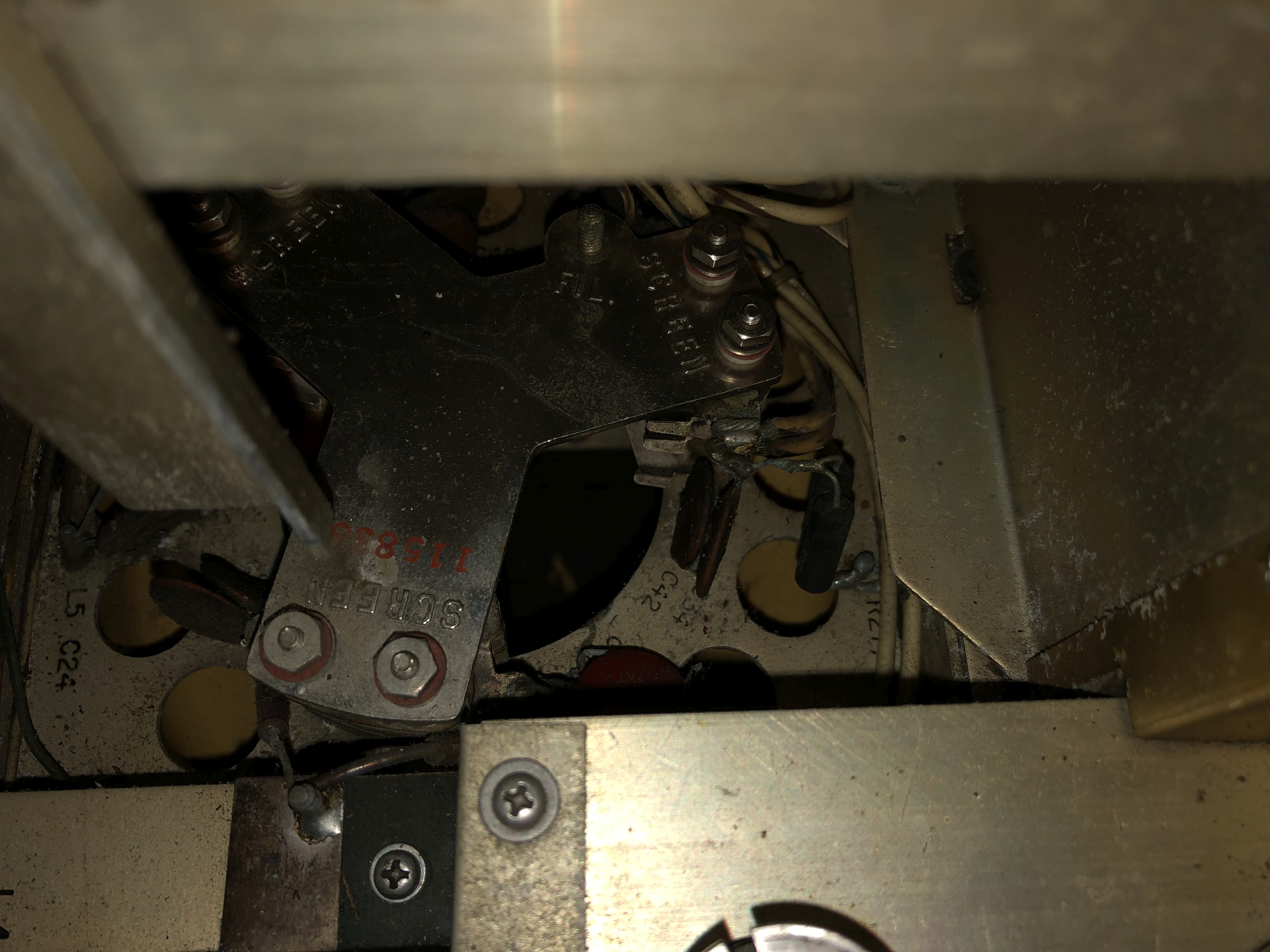

Driver sections
 |

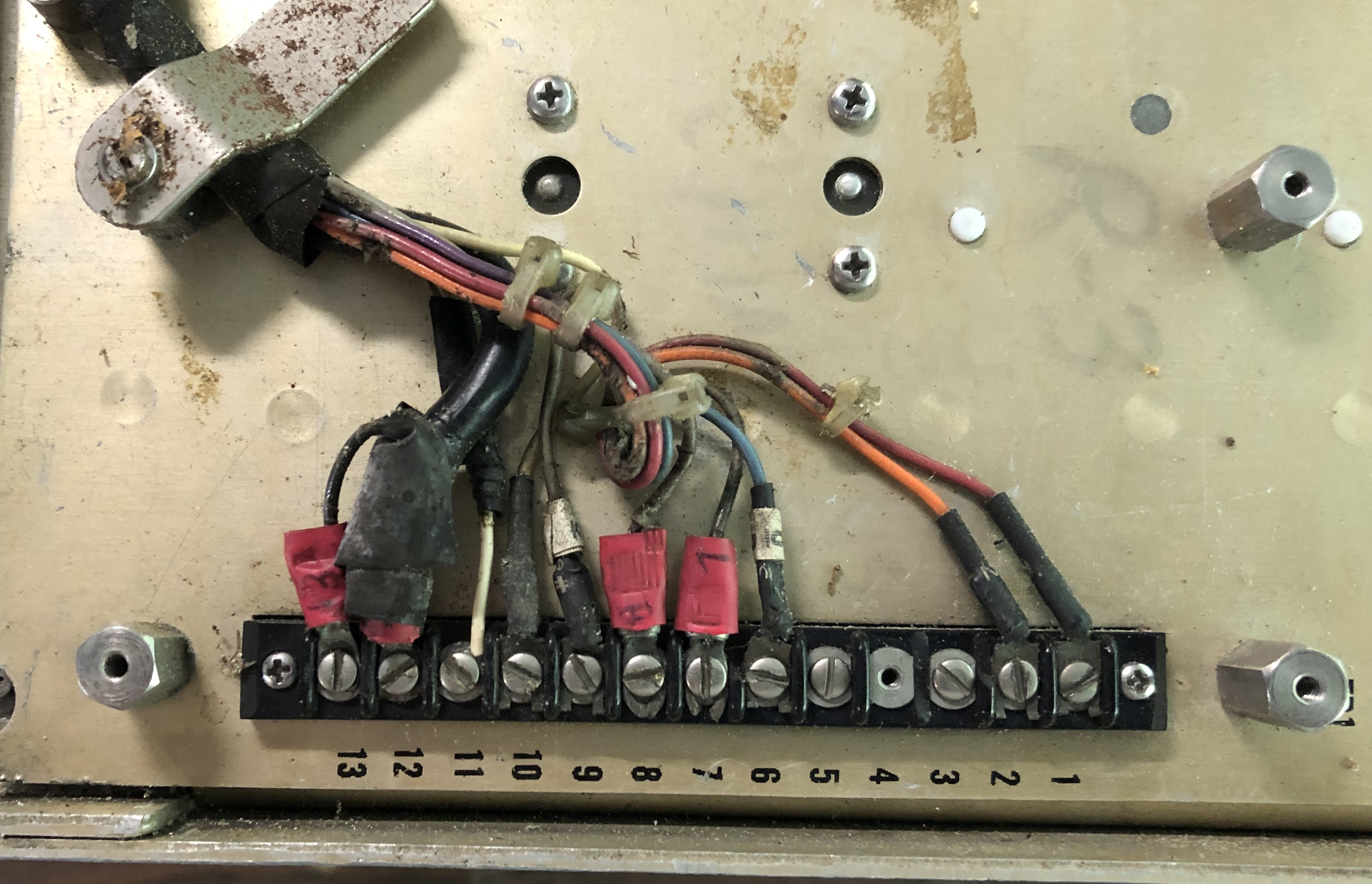

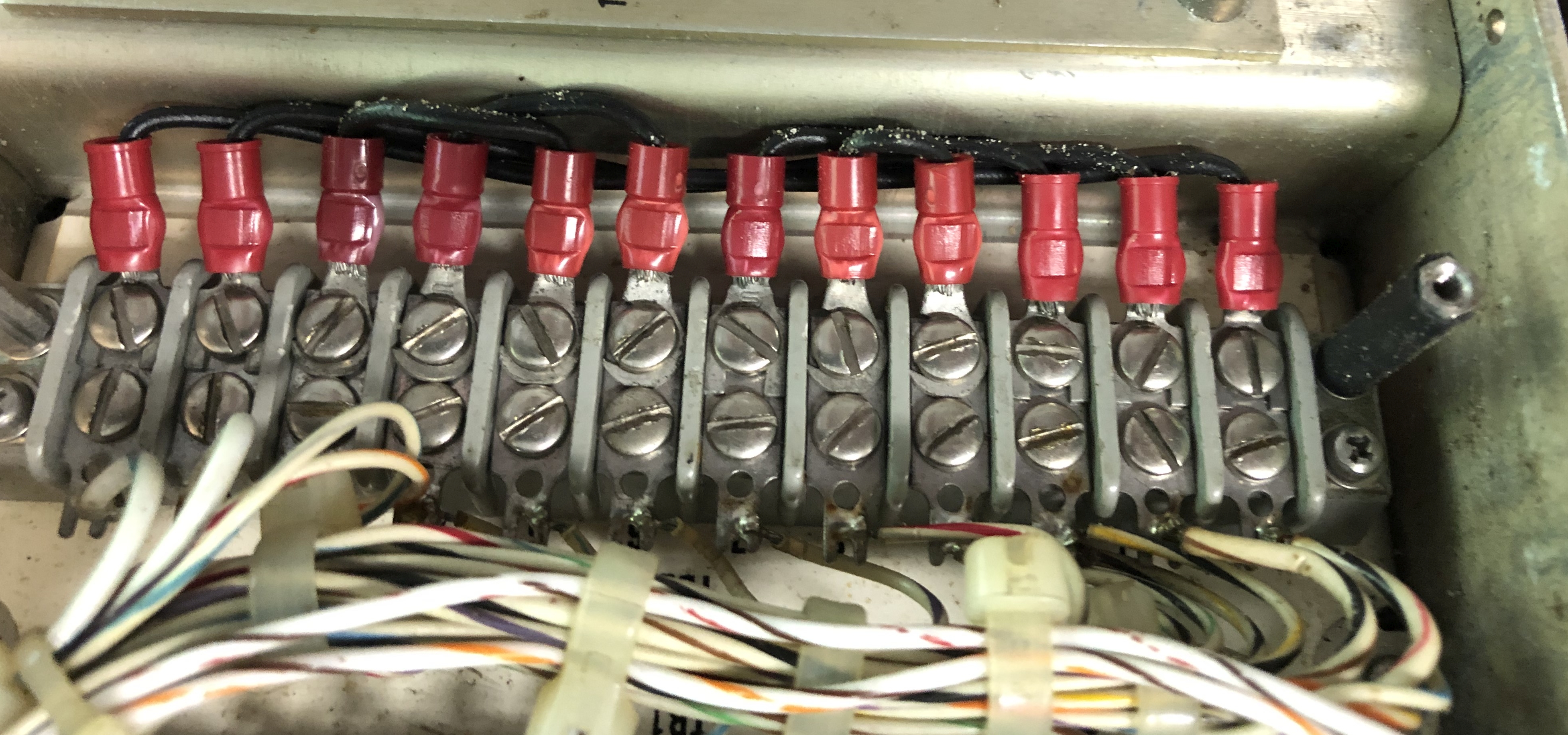

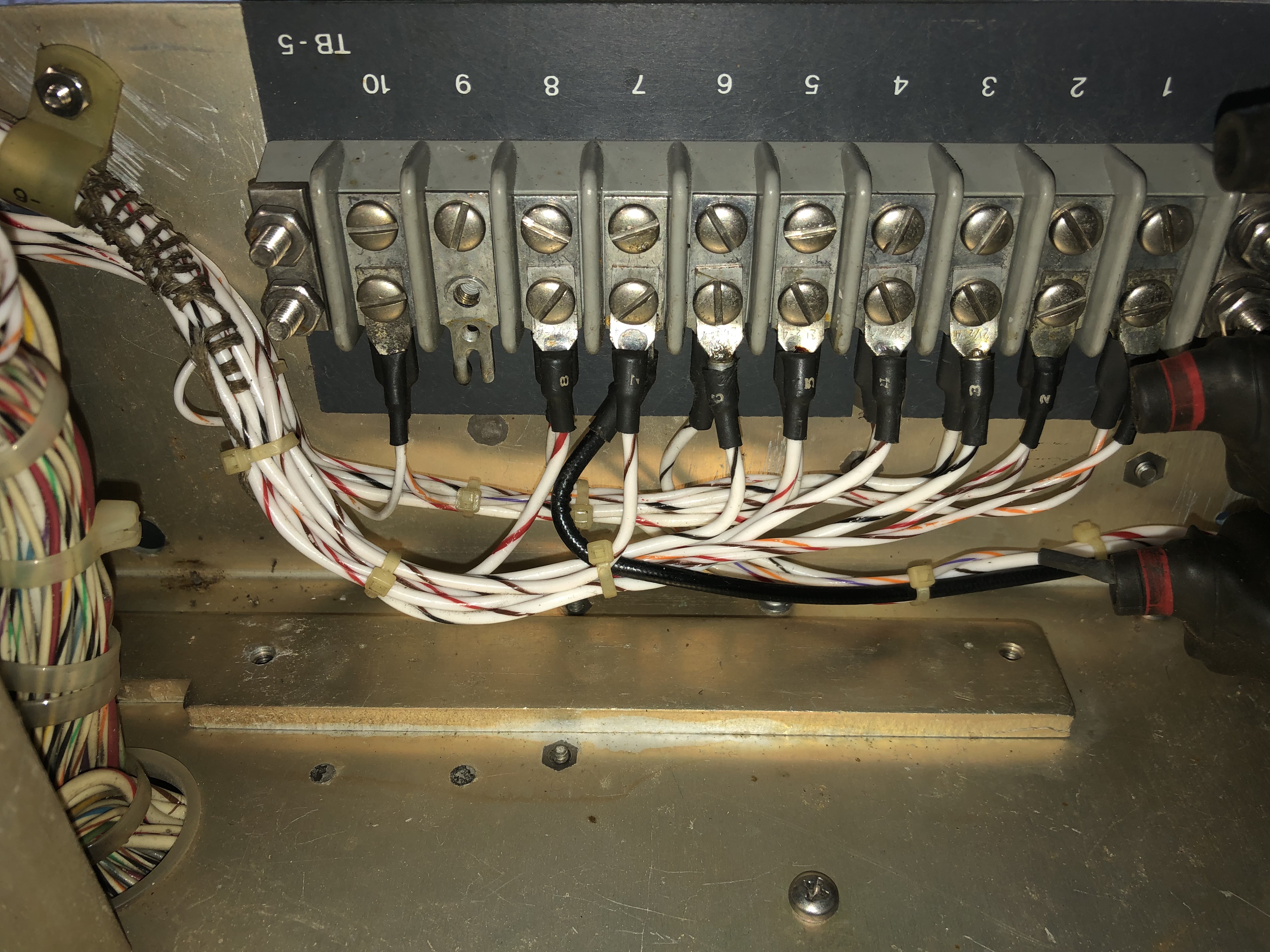

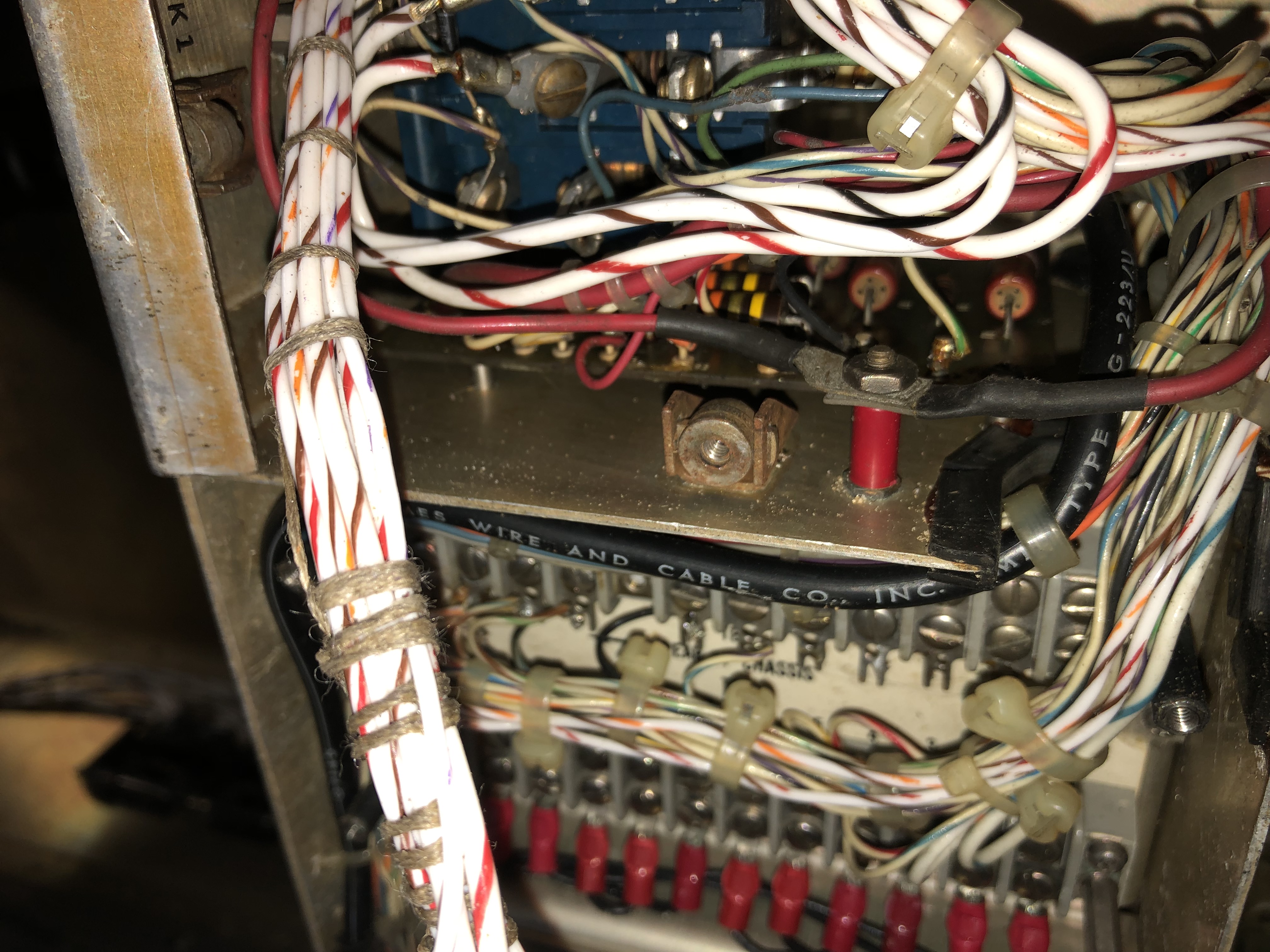

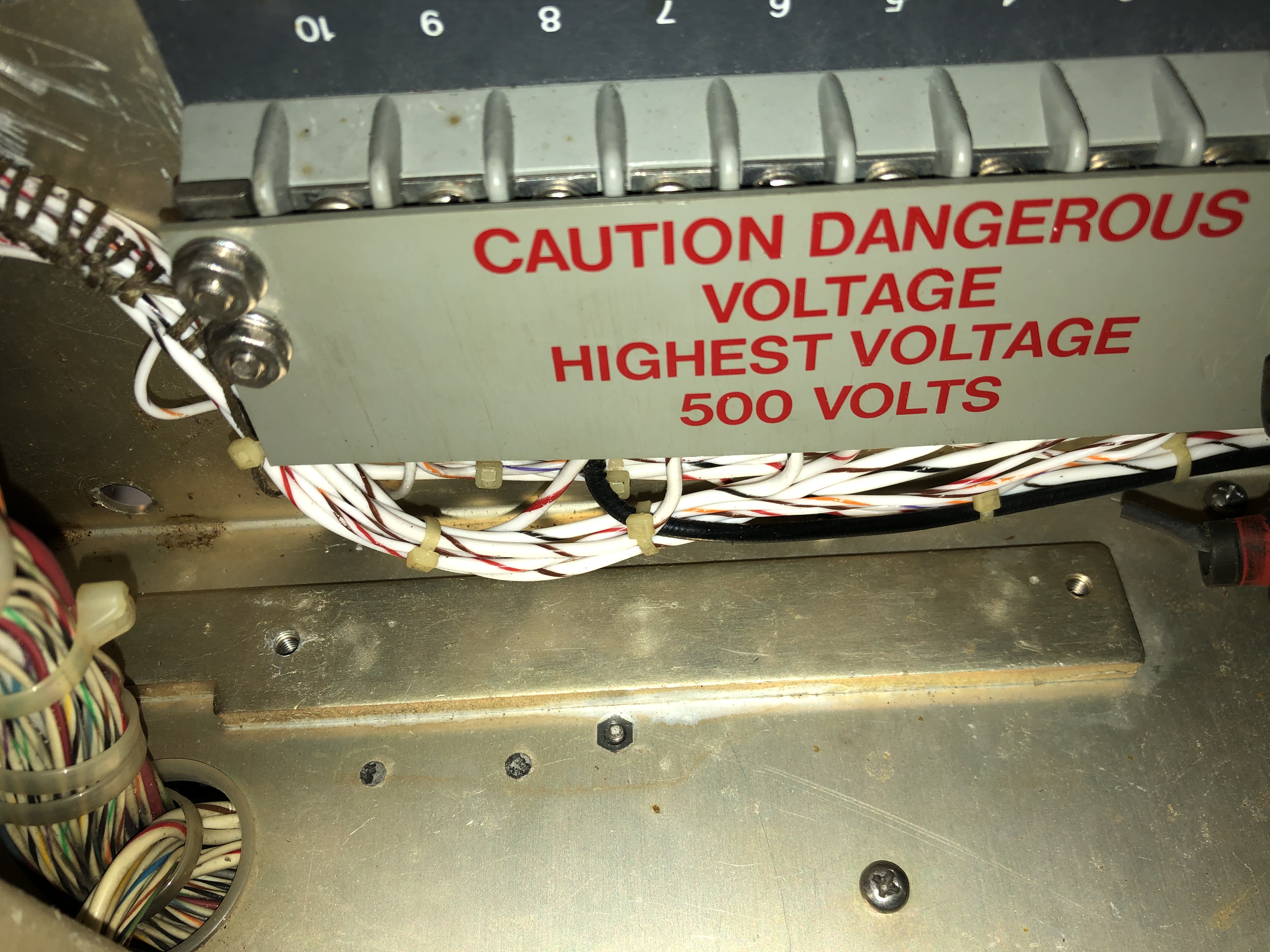

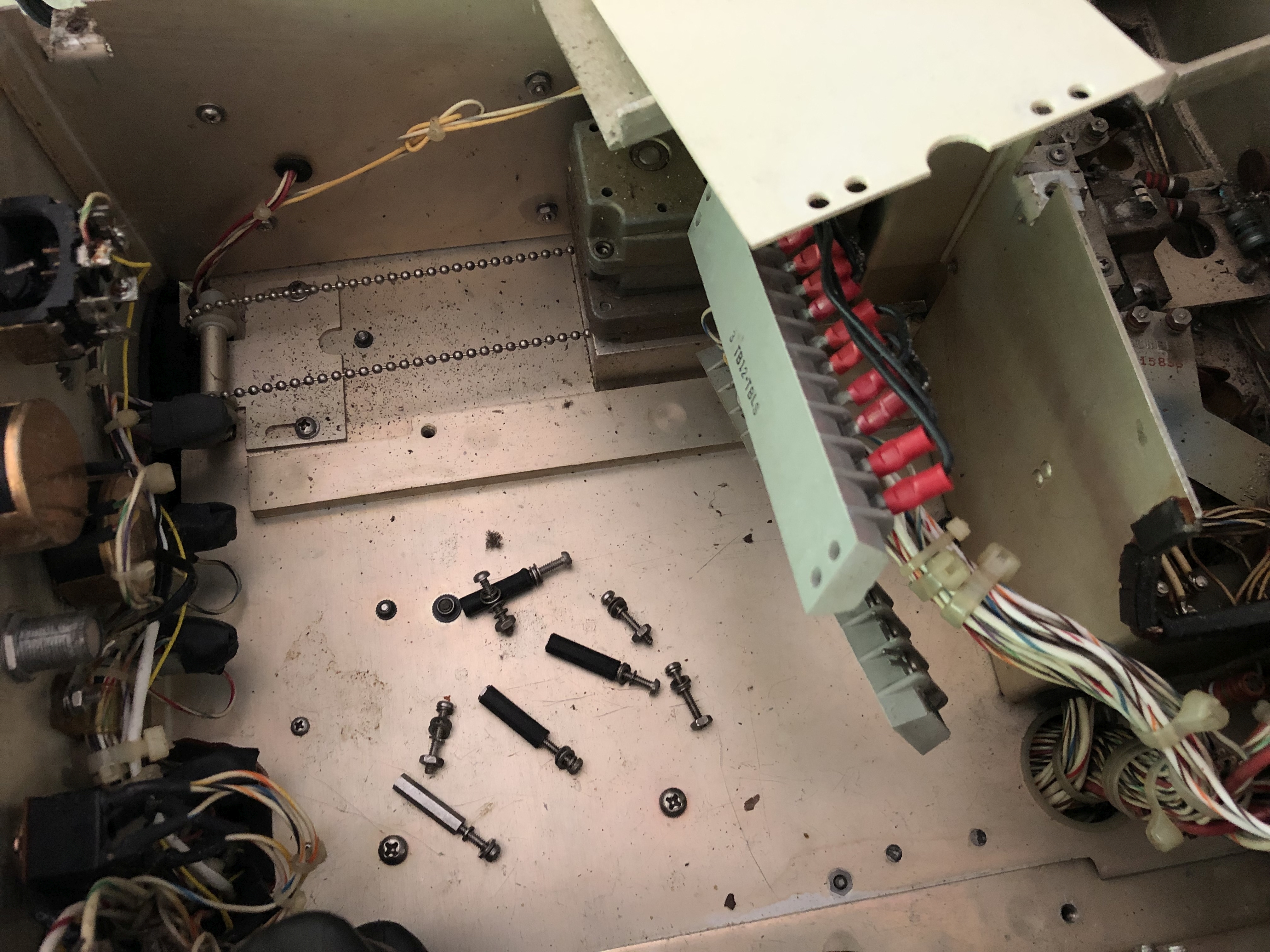

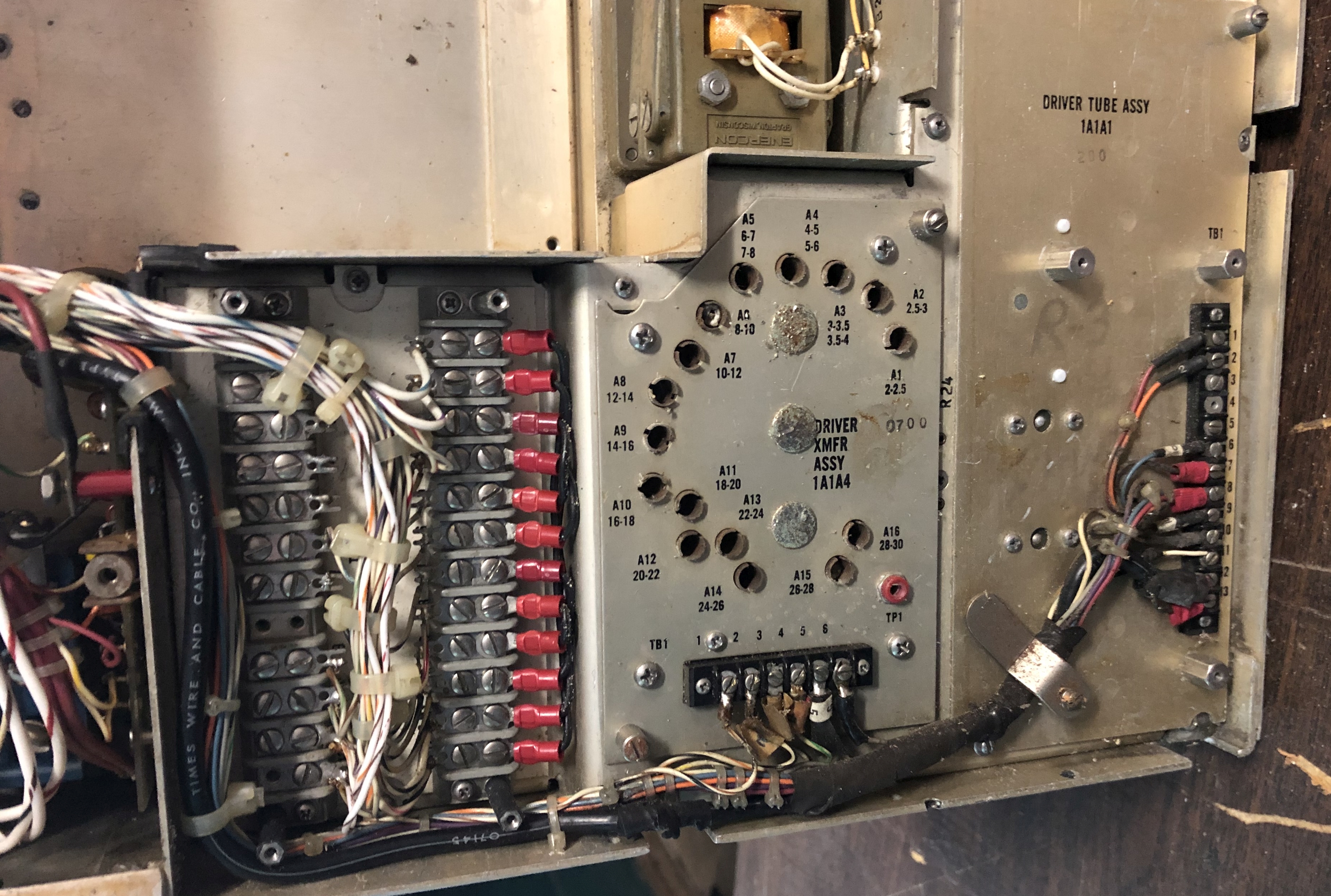

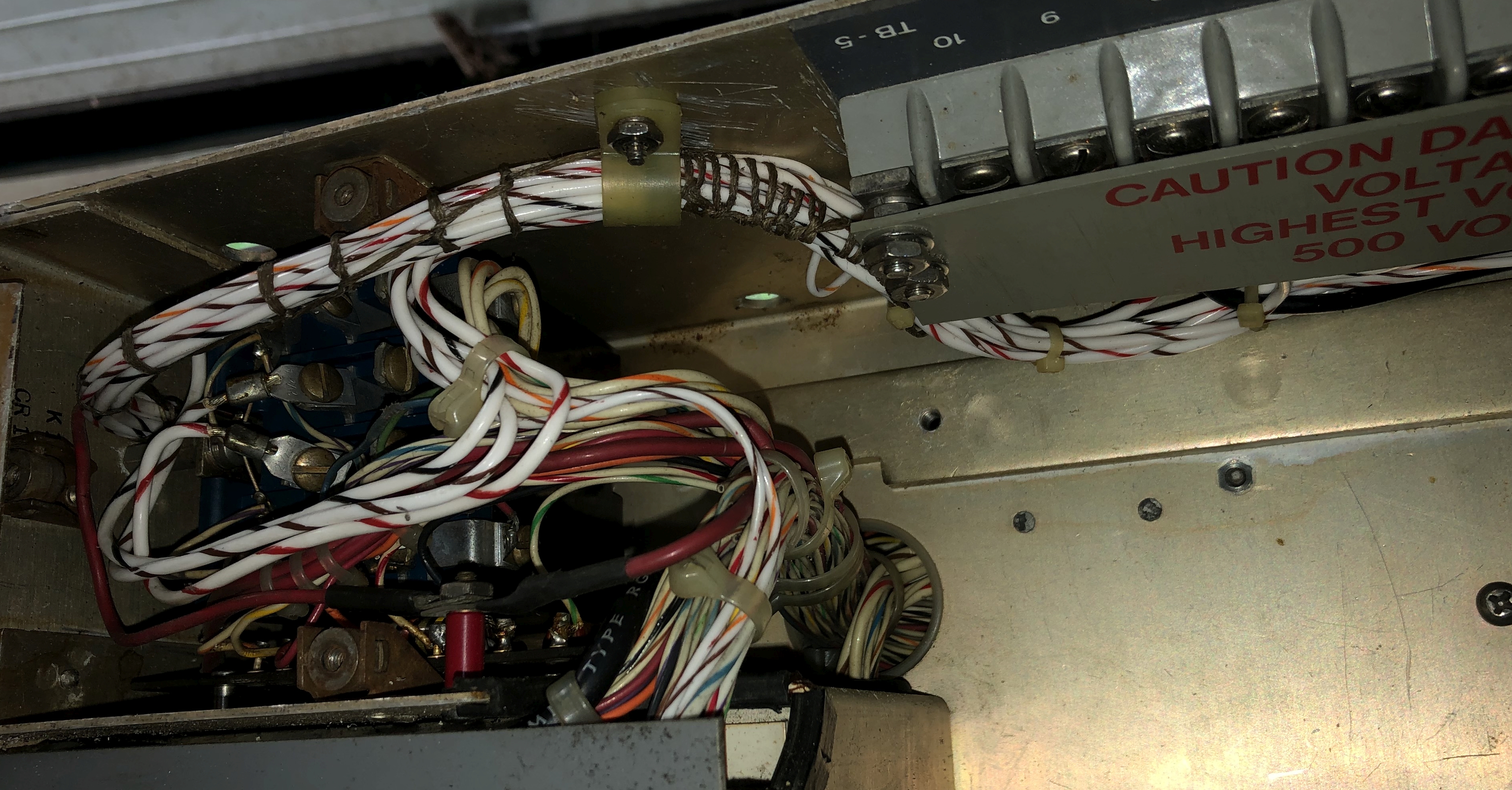

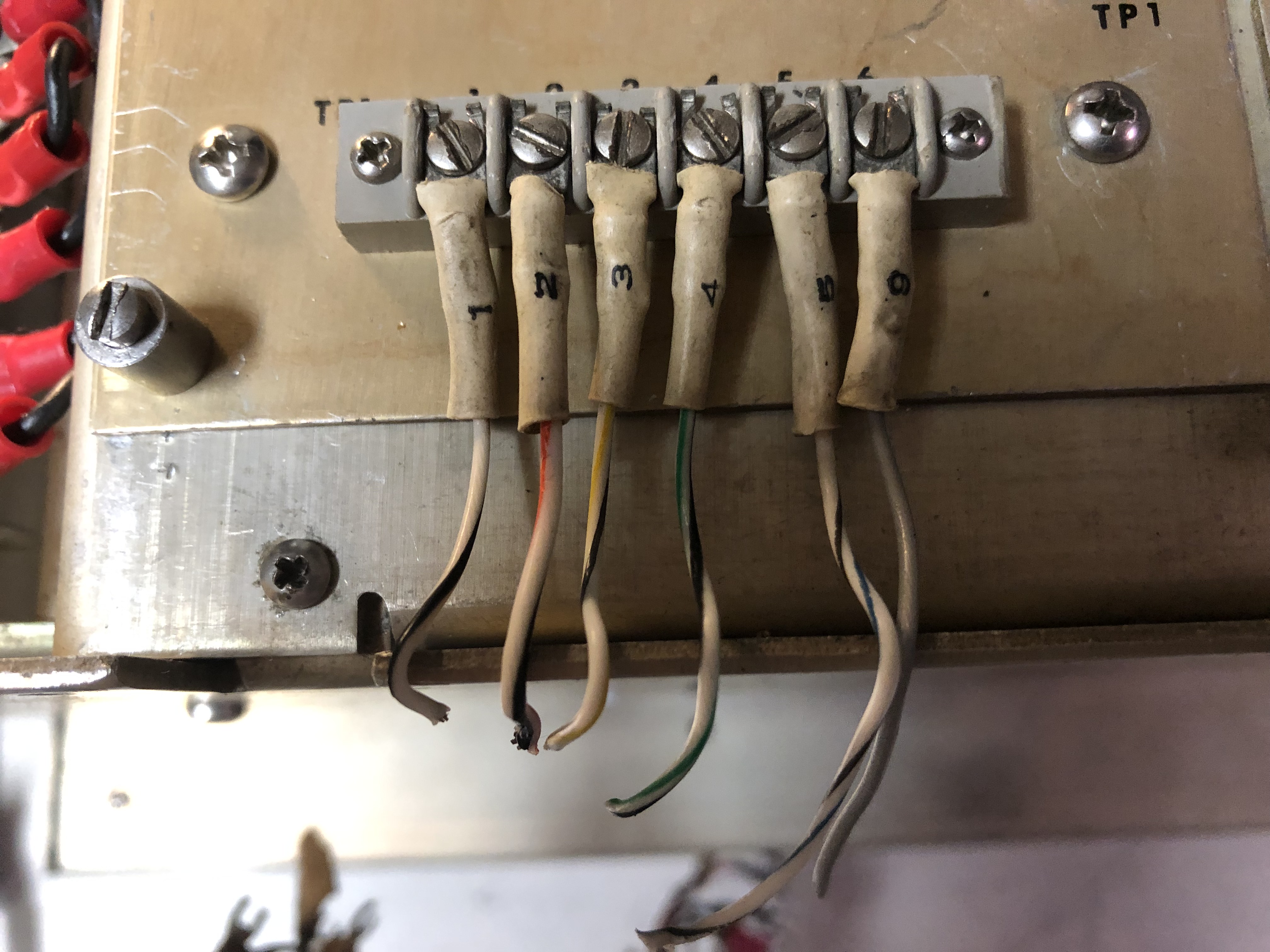

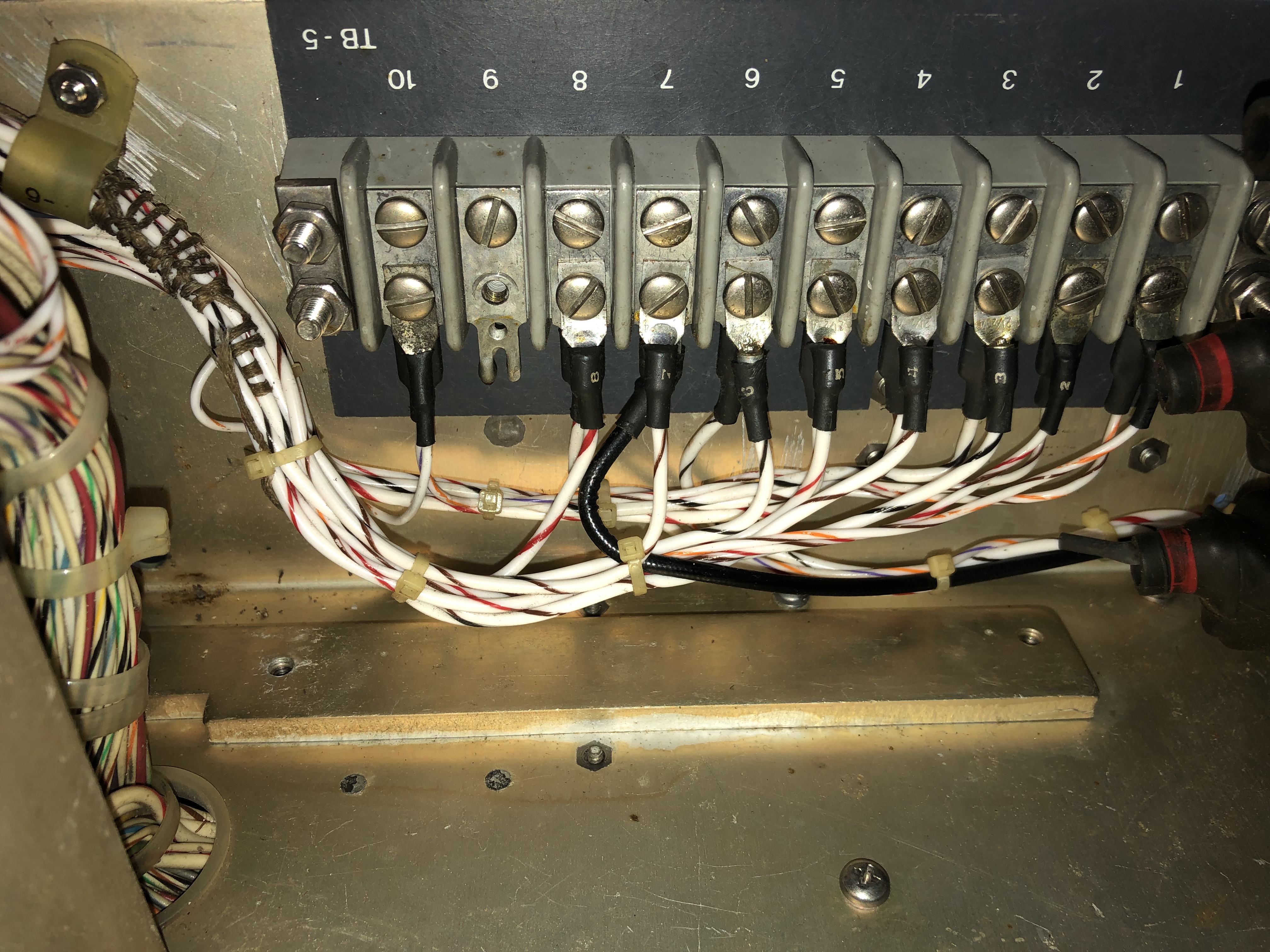

| Terminal strip connections before disassembly |
 |
 |
 |
 |

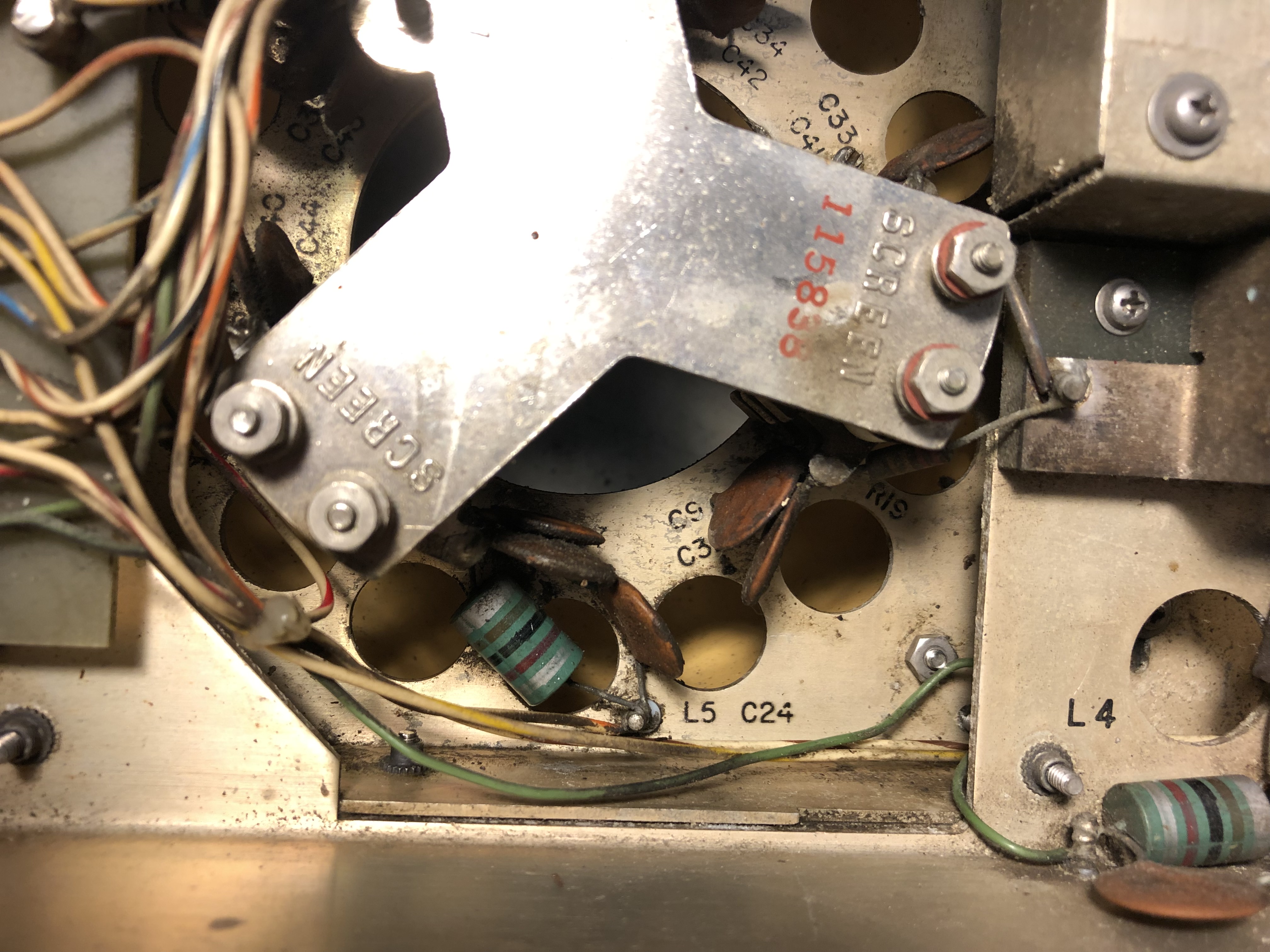

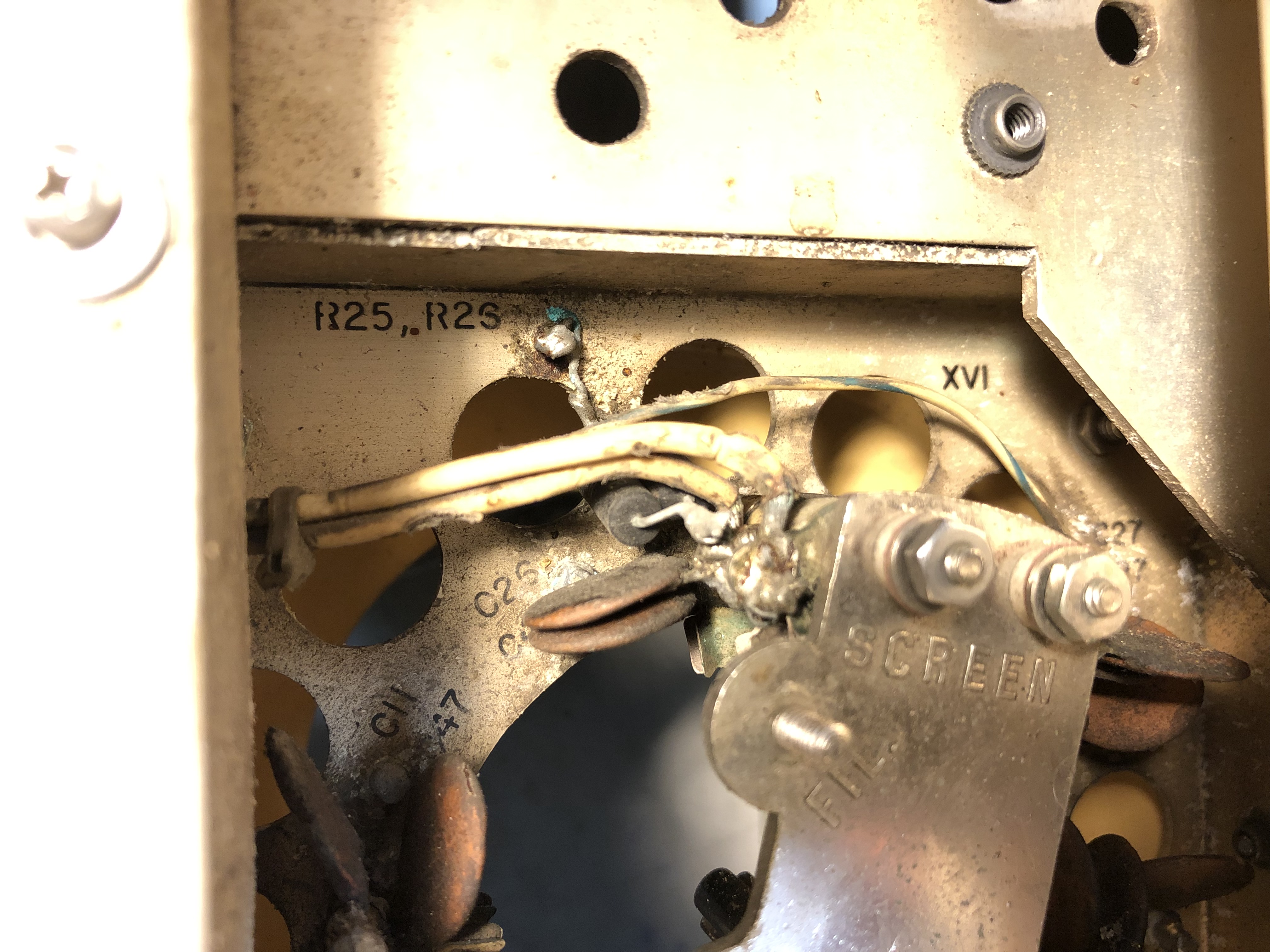

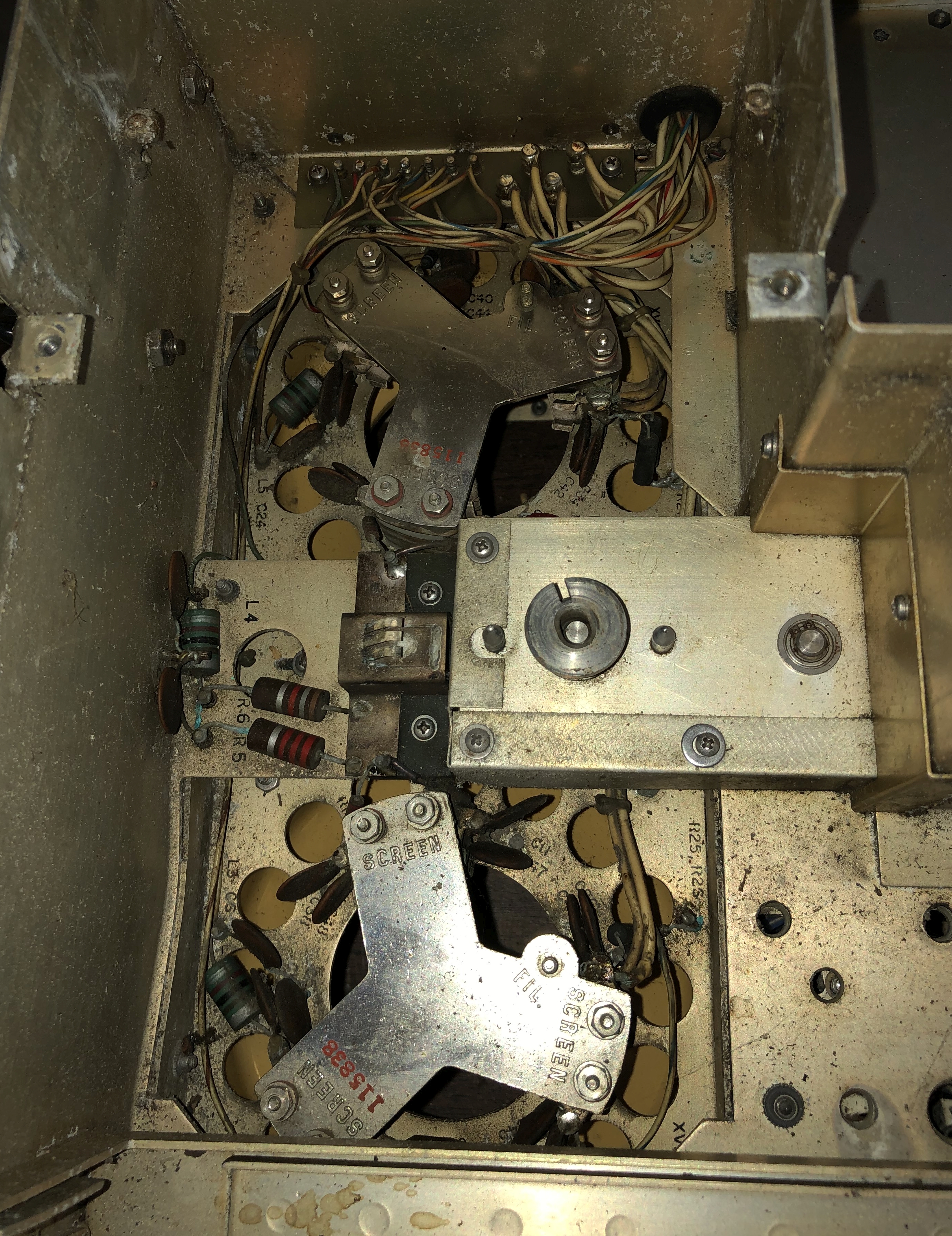

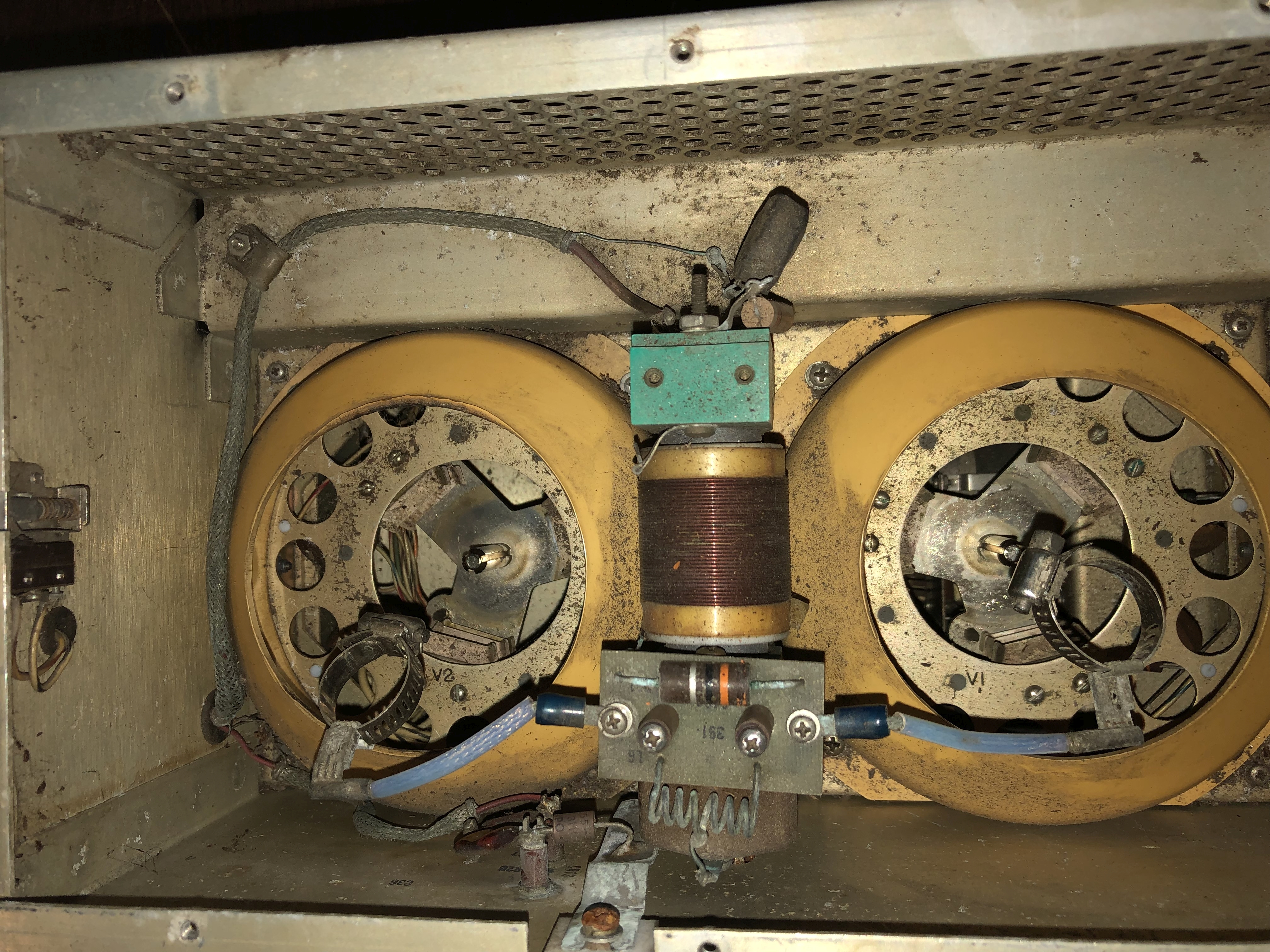

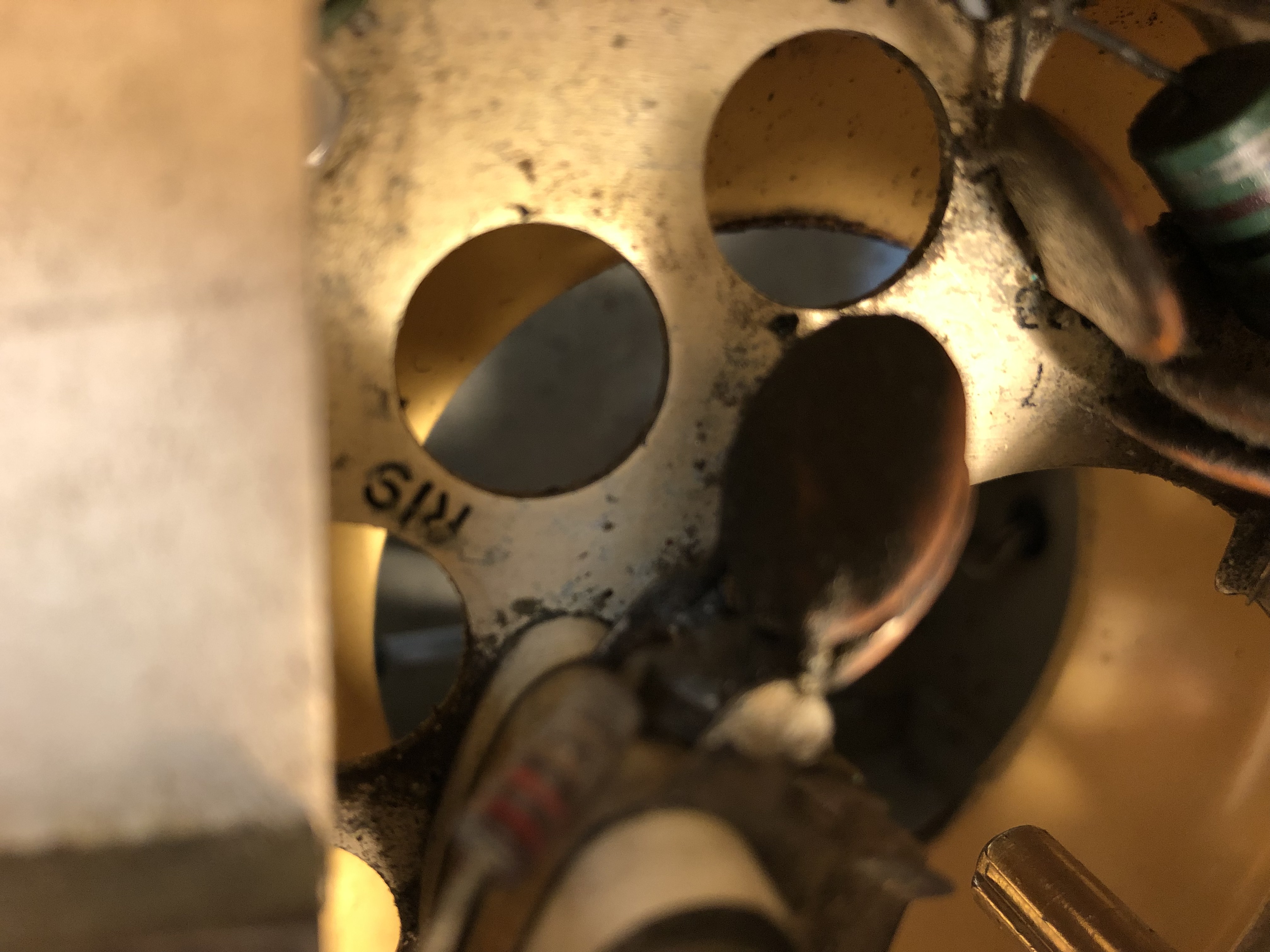

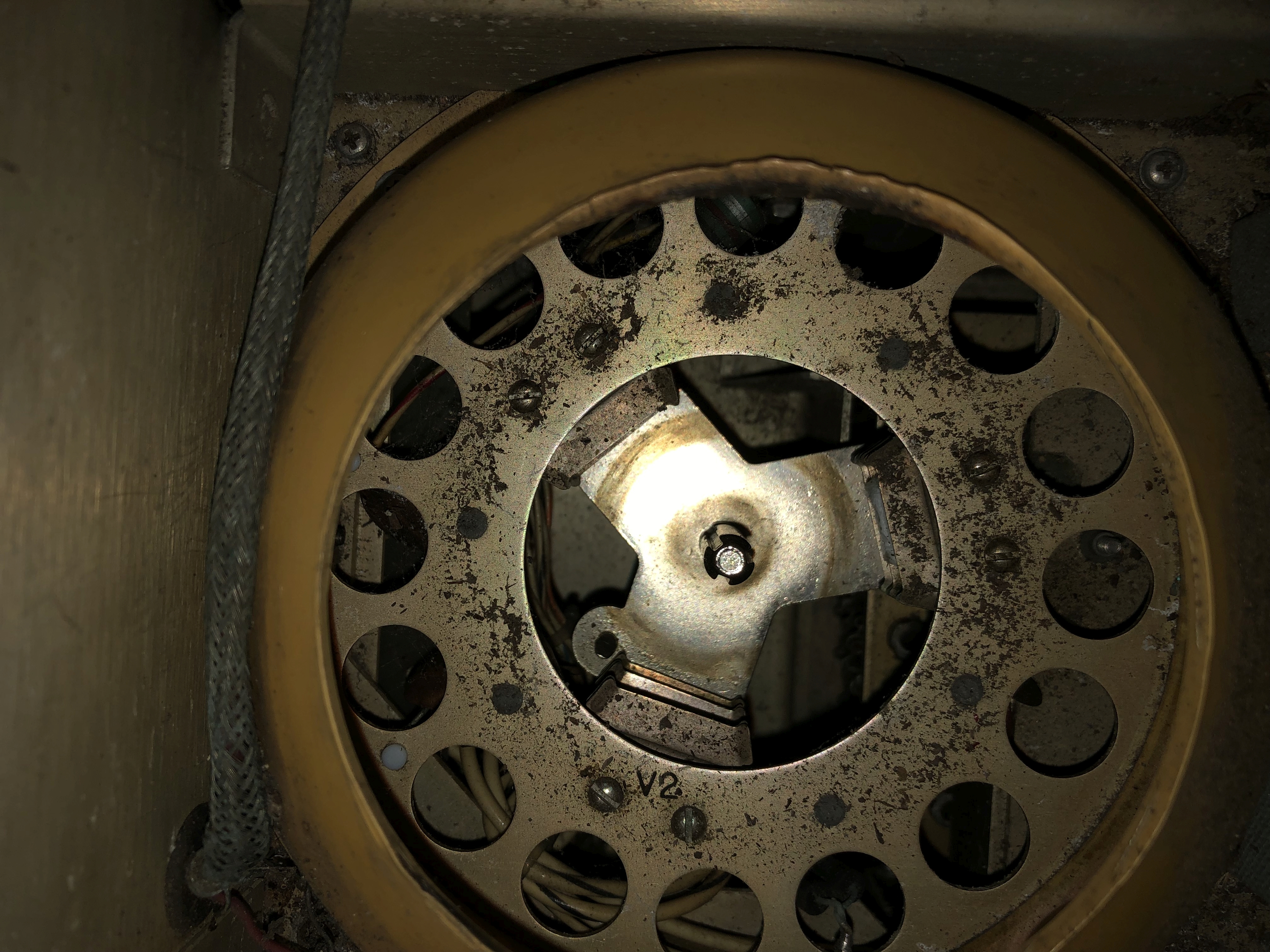

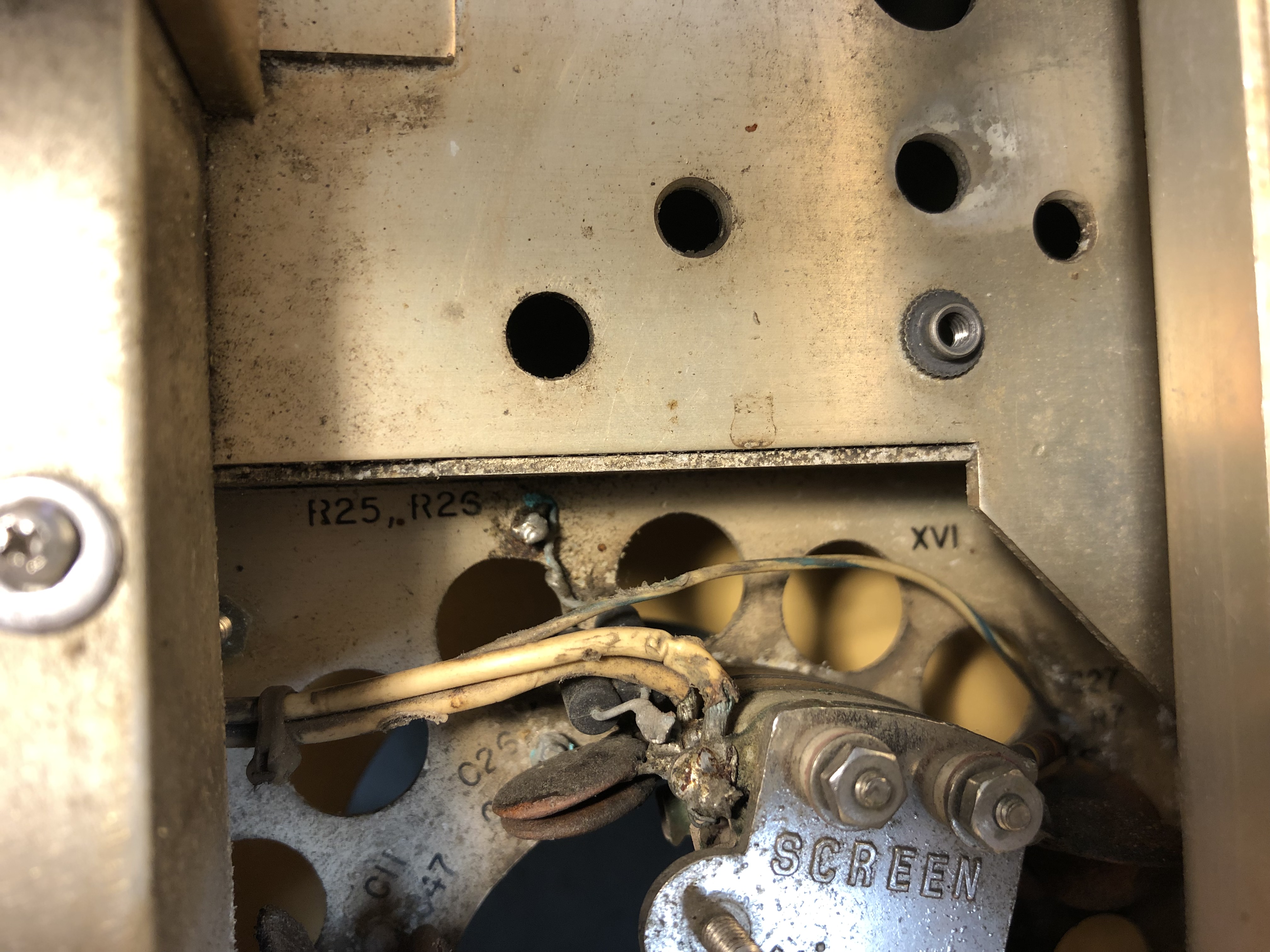

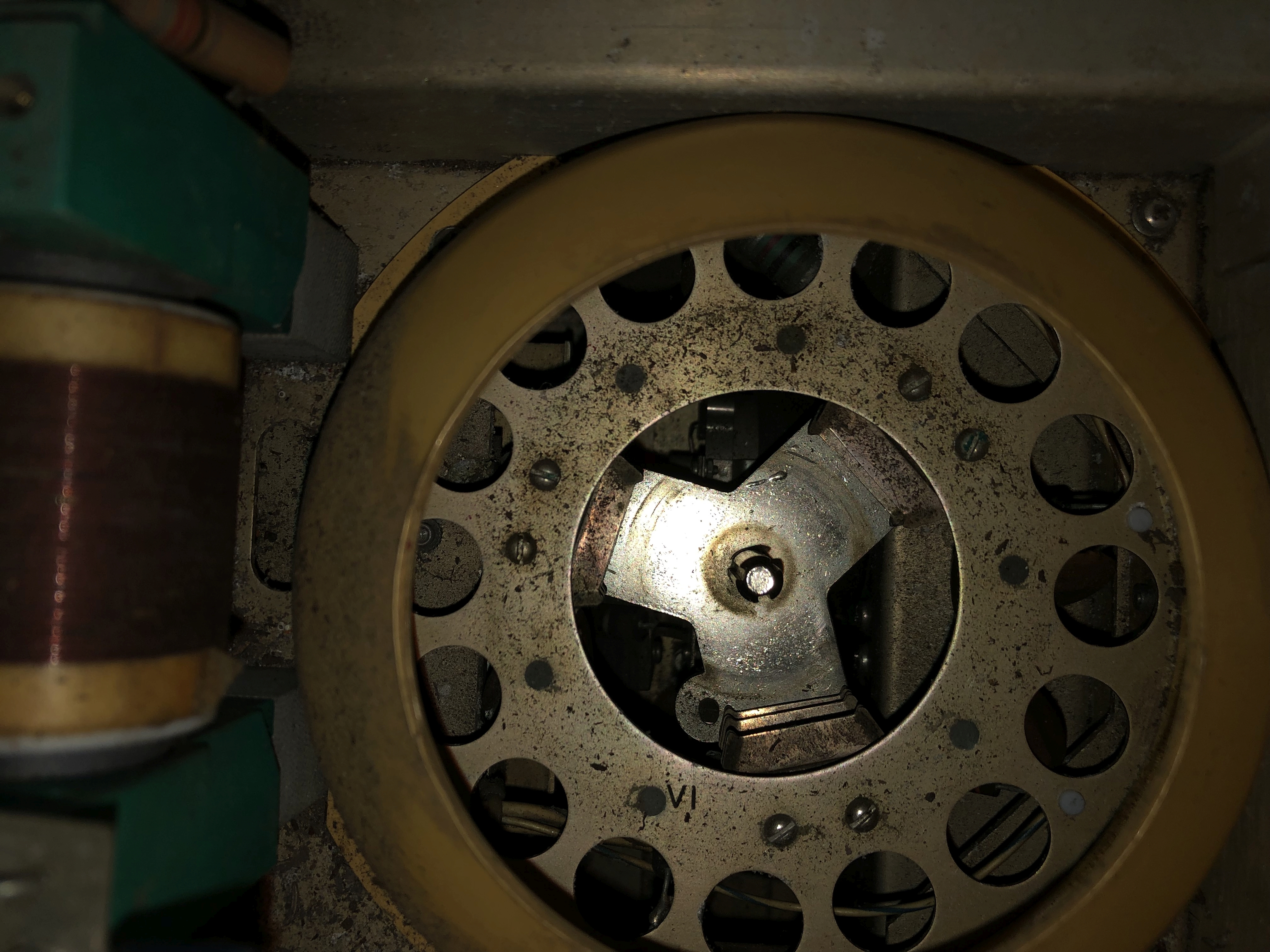

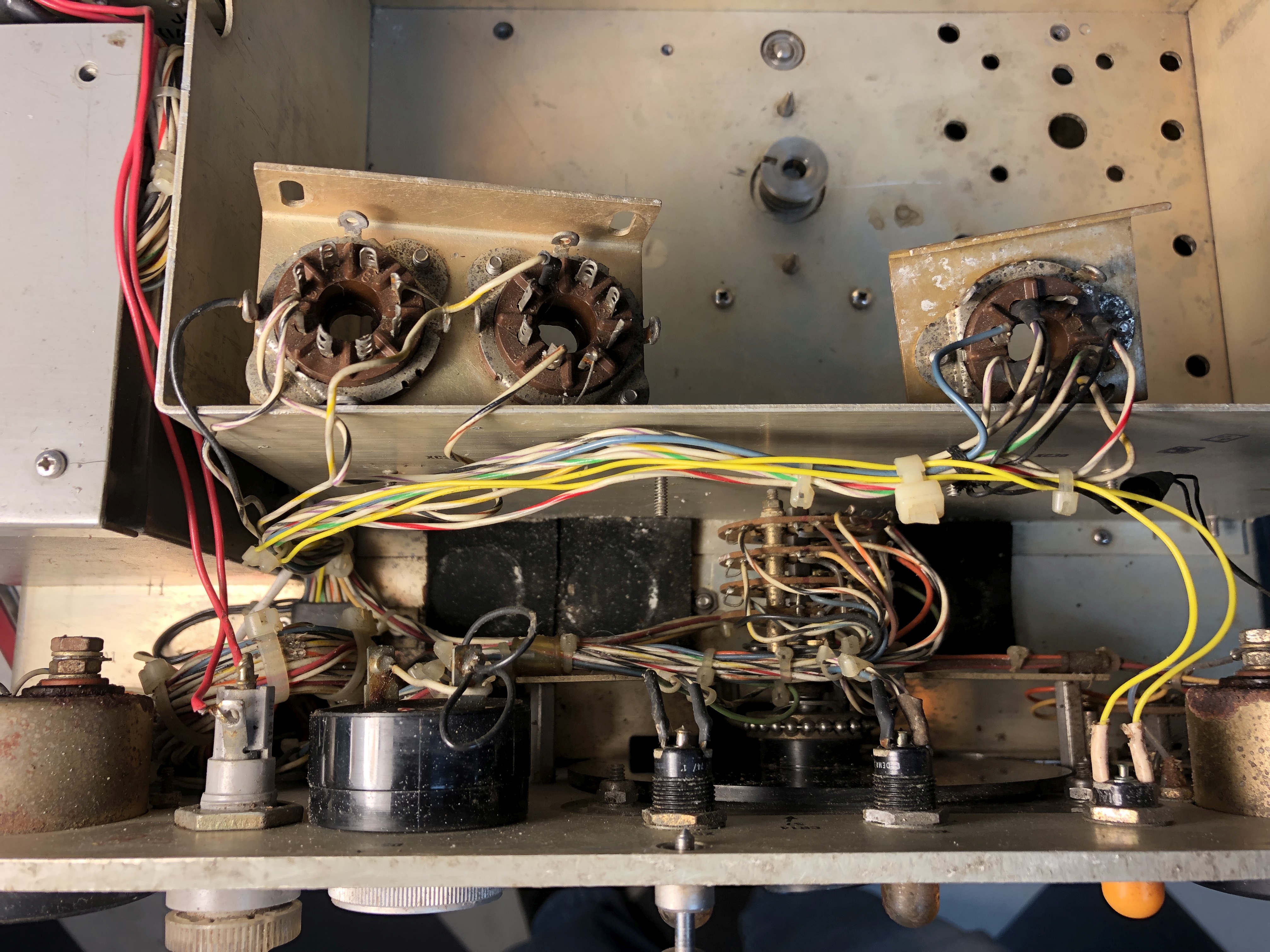

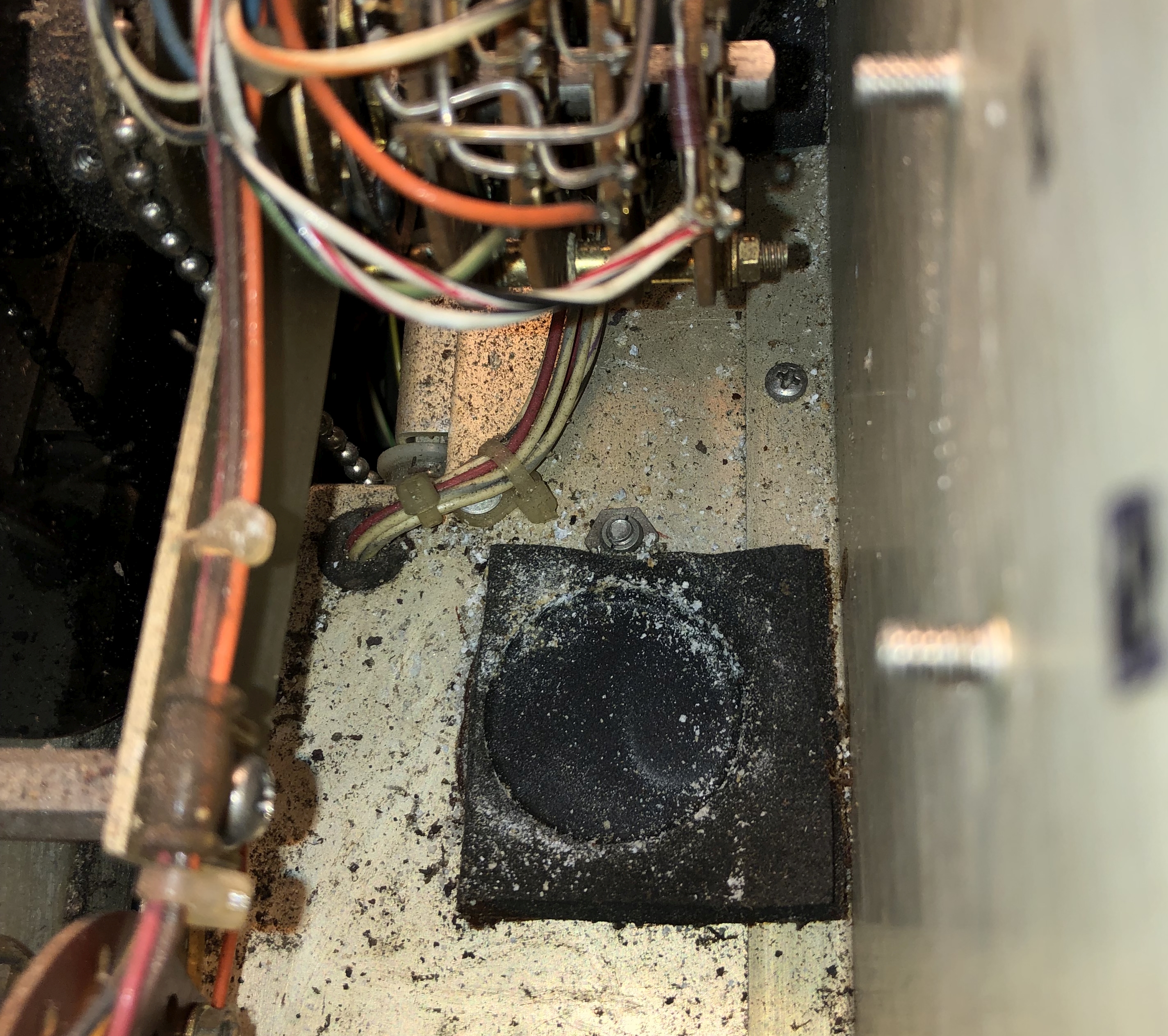

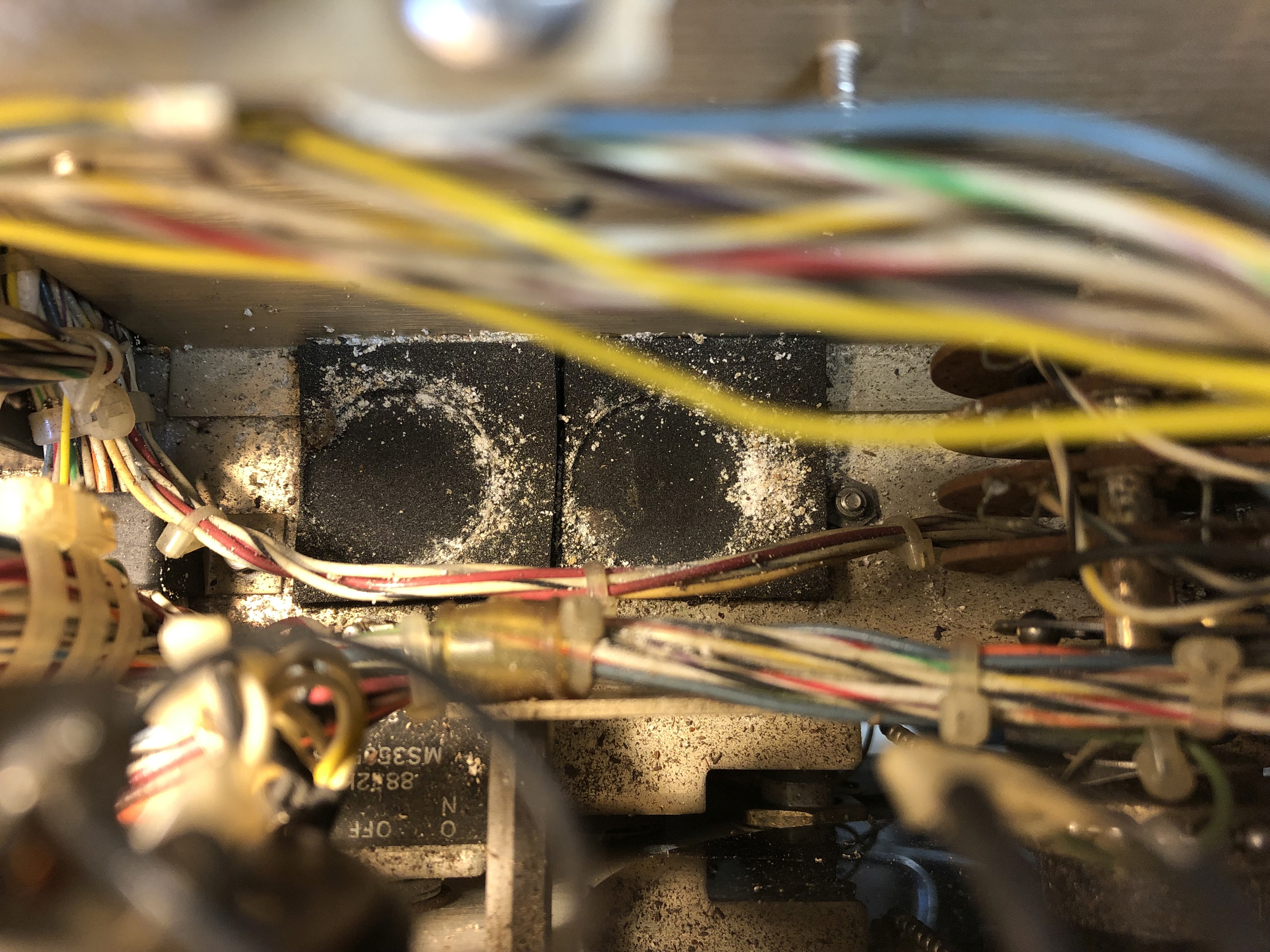

| Final tube sockets from below |
 |
 |
 |
 |
 |
 |
 |
 |

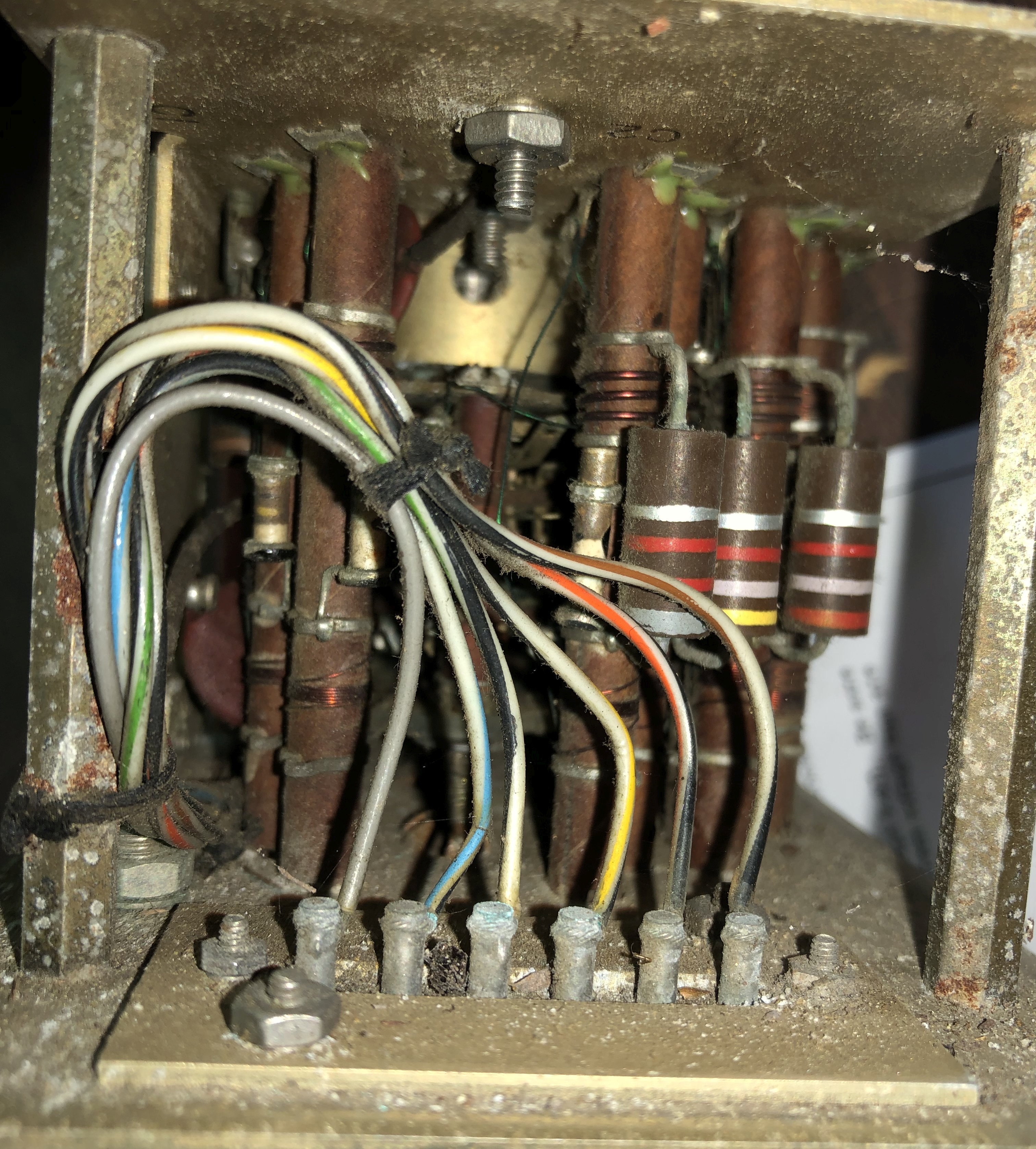

| Driver RF transformers |
 |
 |
 |
 |
 |

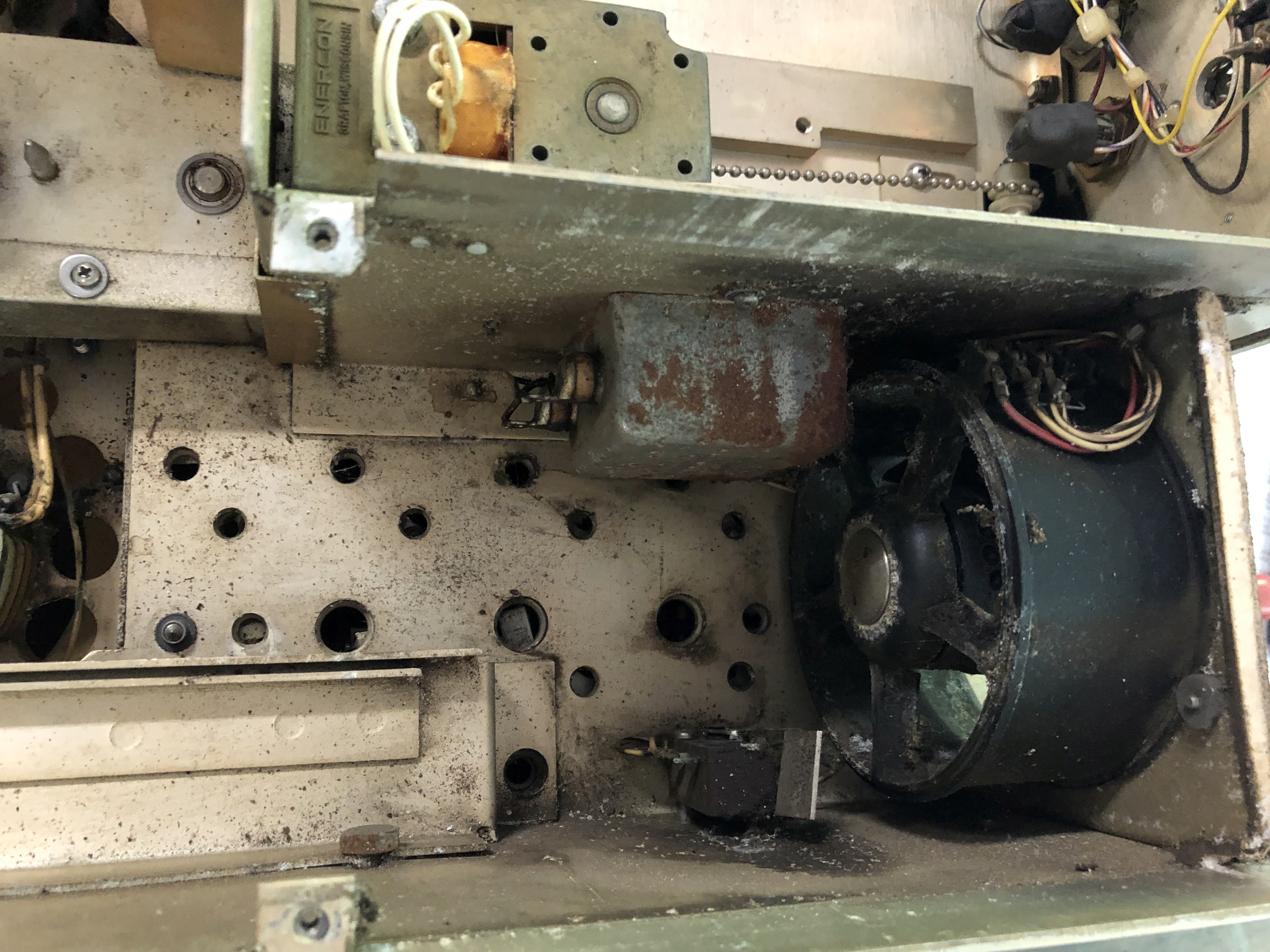

Blower compartment
 |
 |
 |

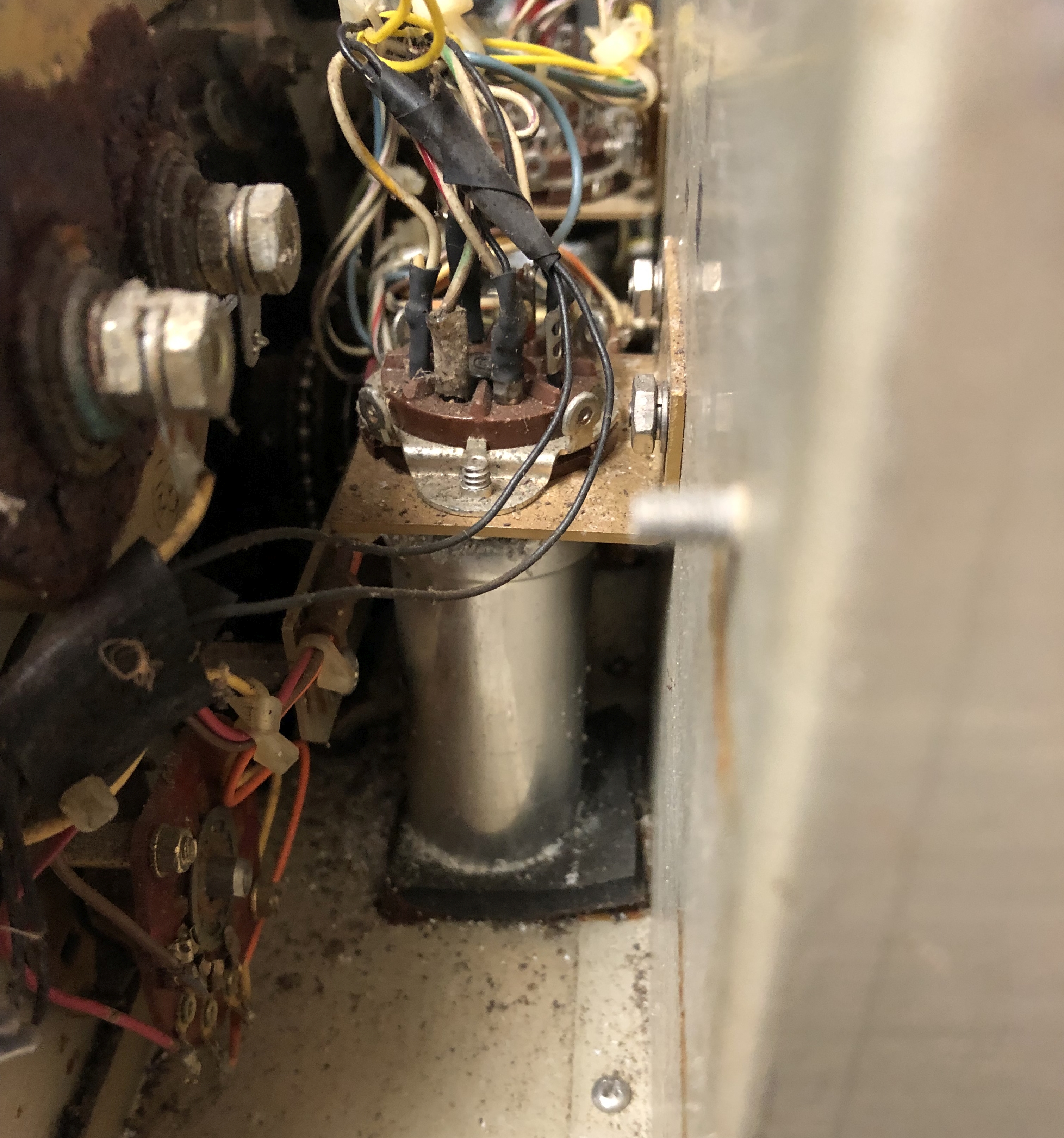

| Driver tubes |
 |
|
 |
 |

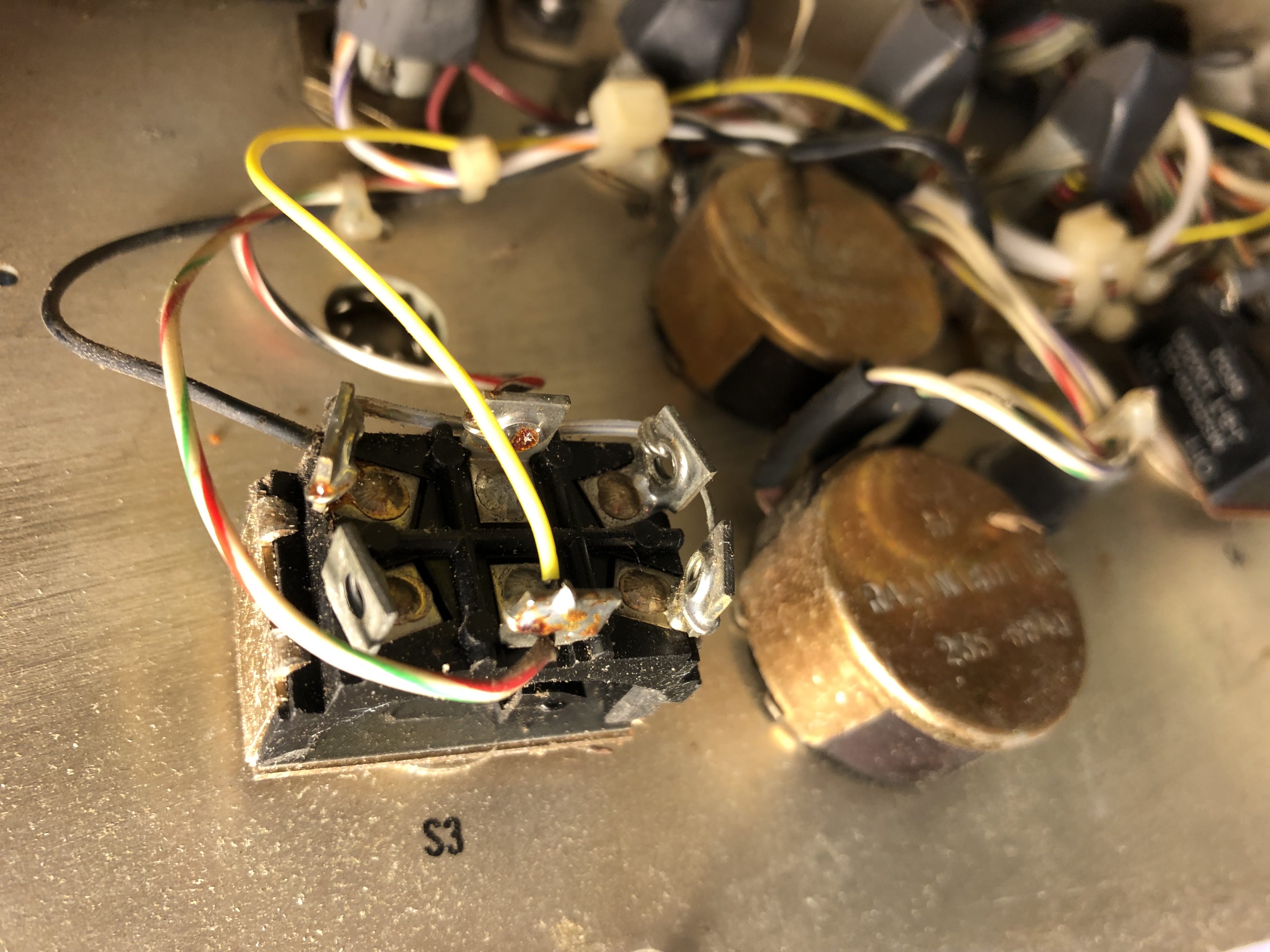

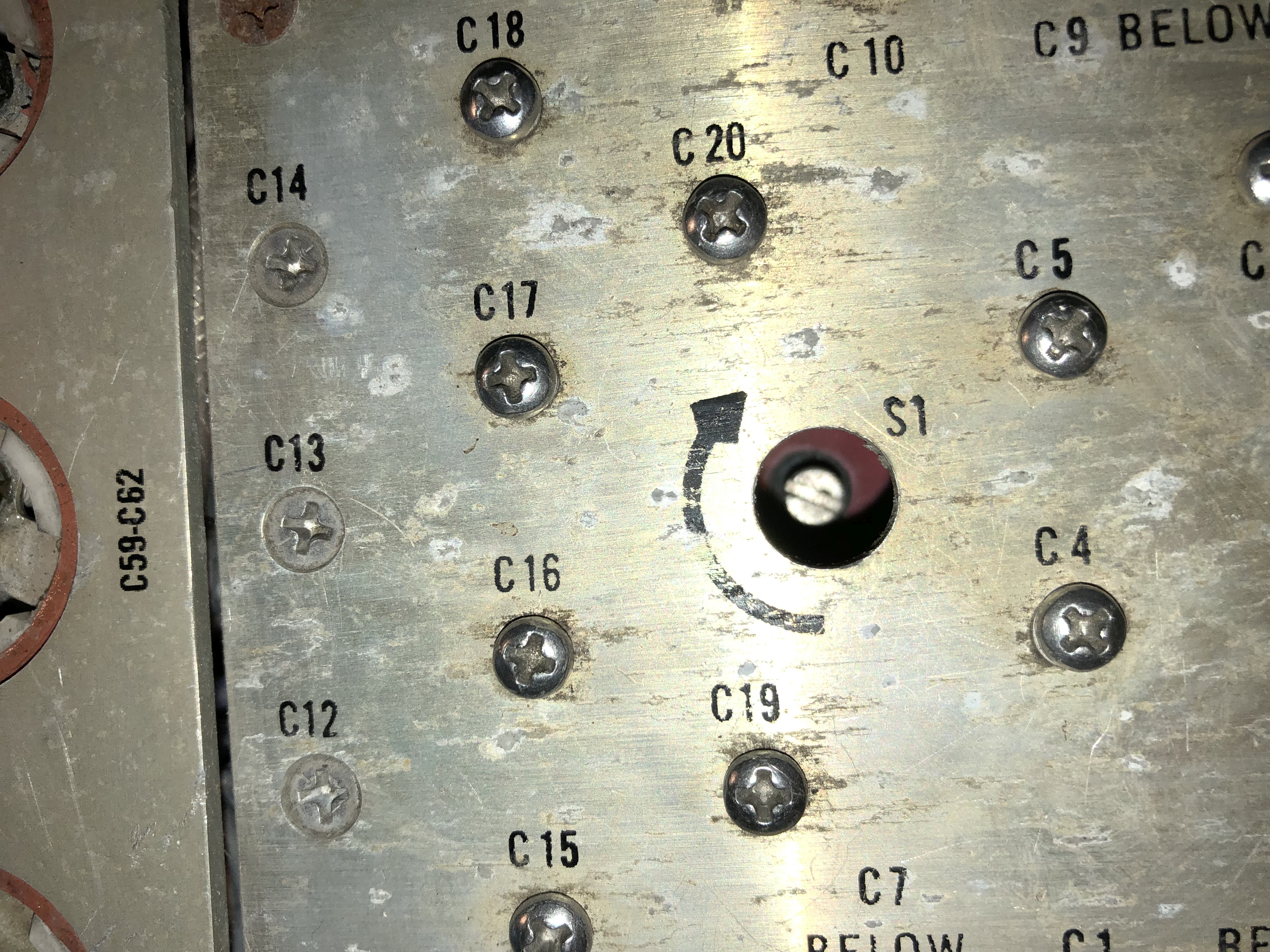

Busted tune switch
 |
 |

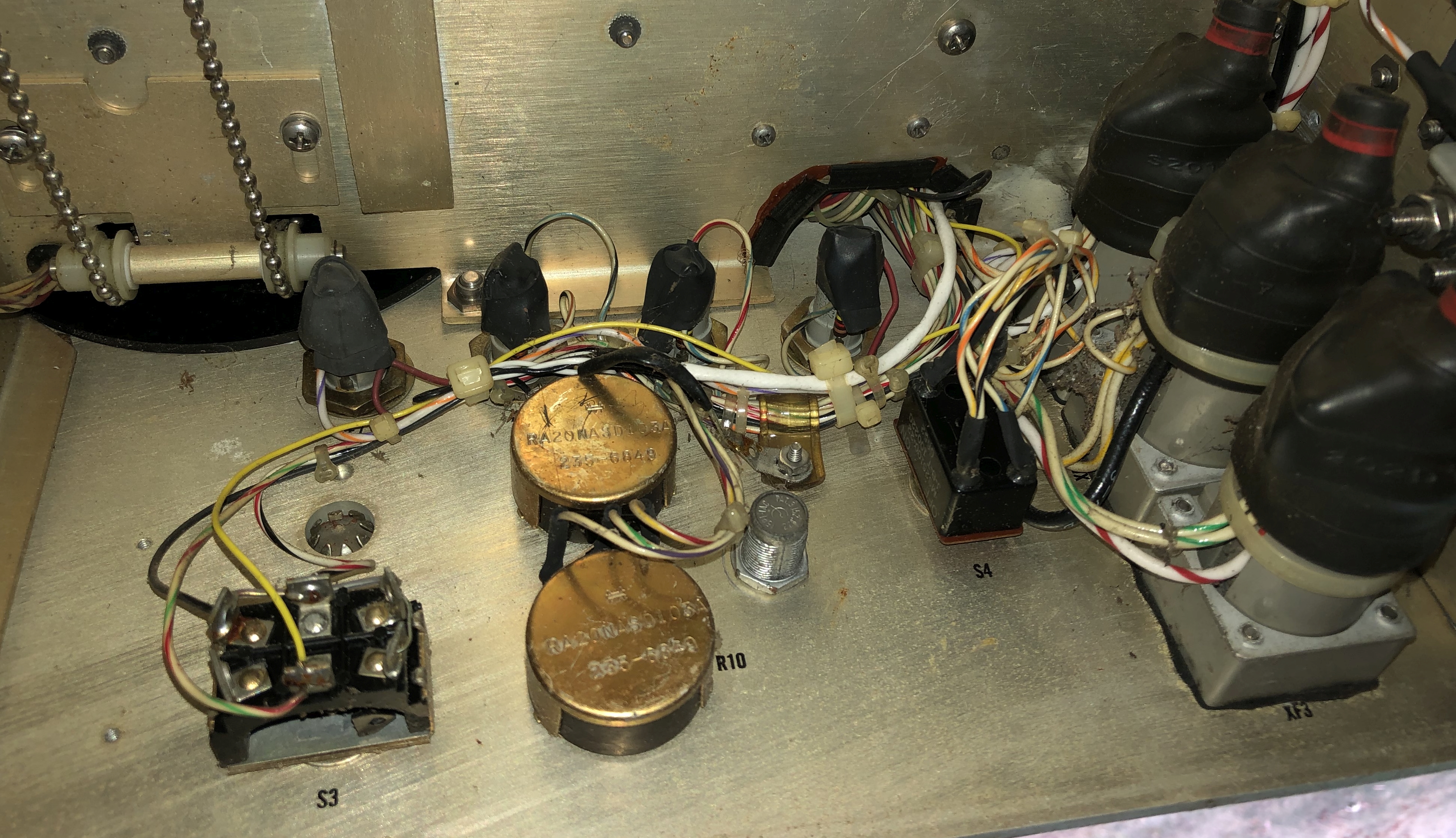

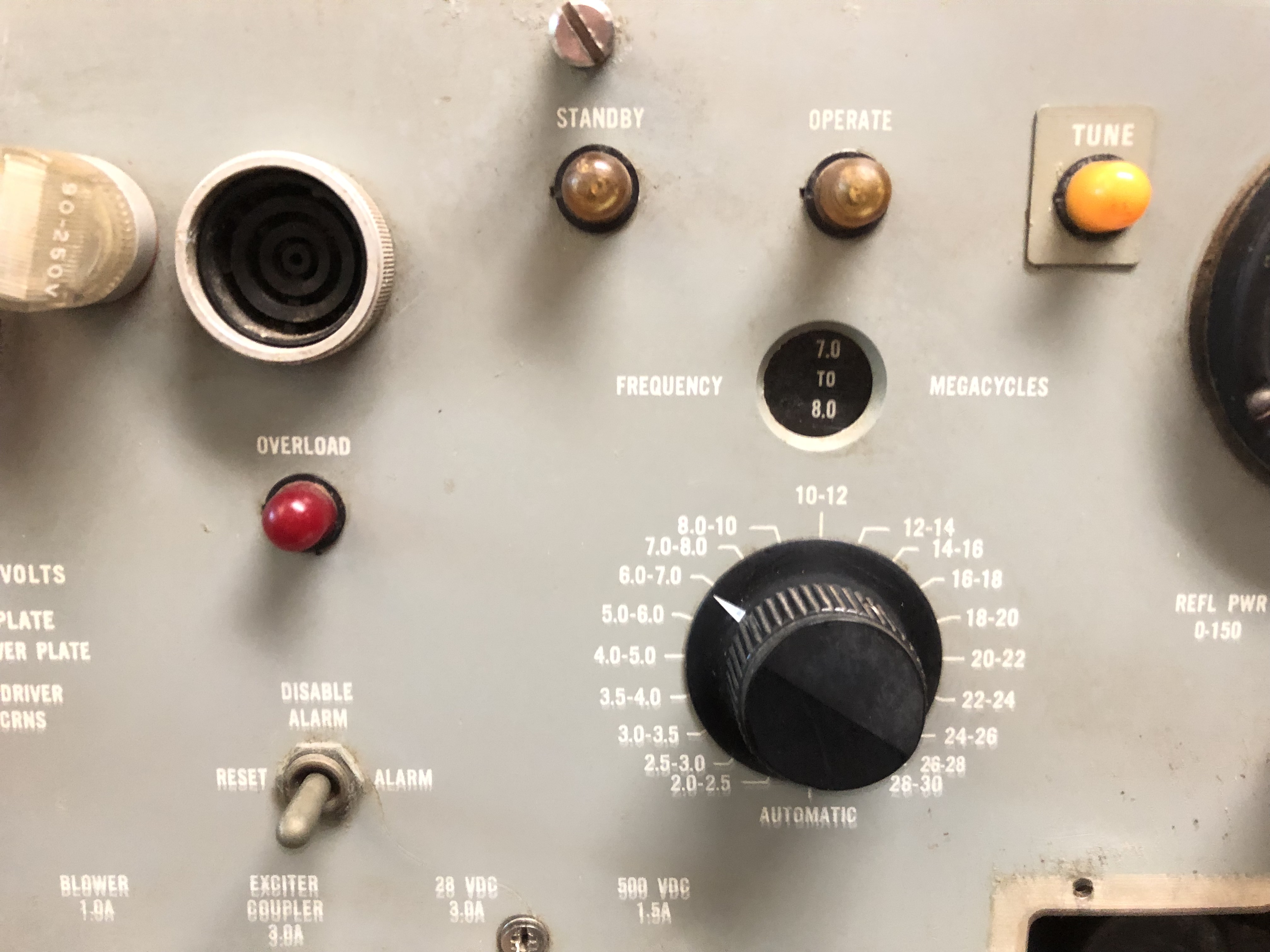

Settings at disassembly
 |

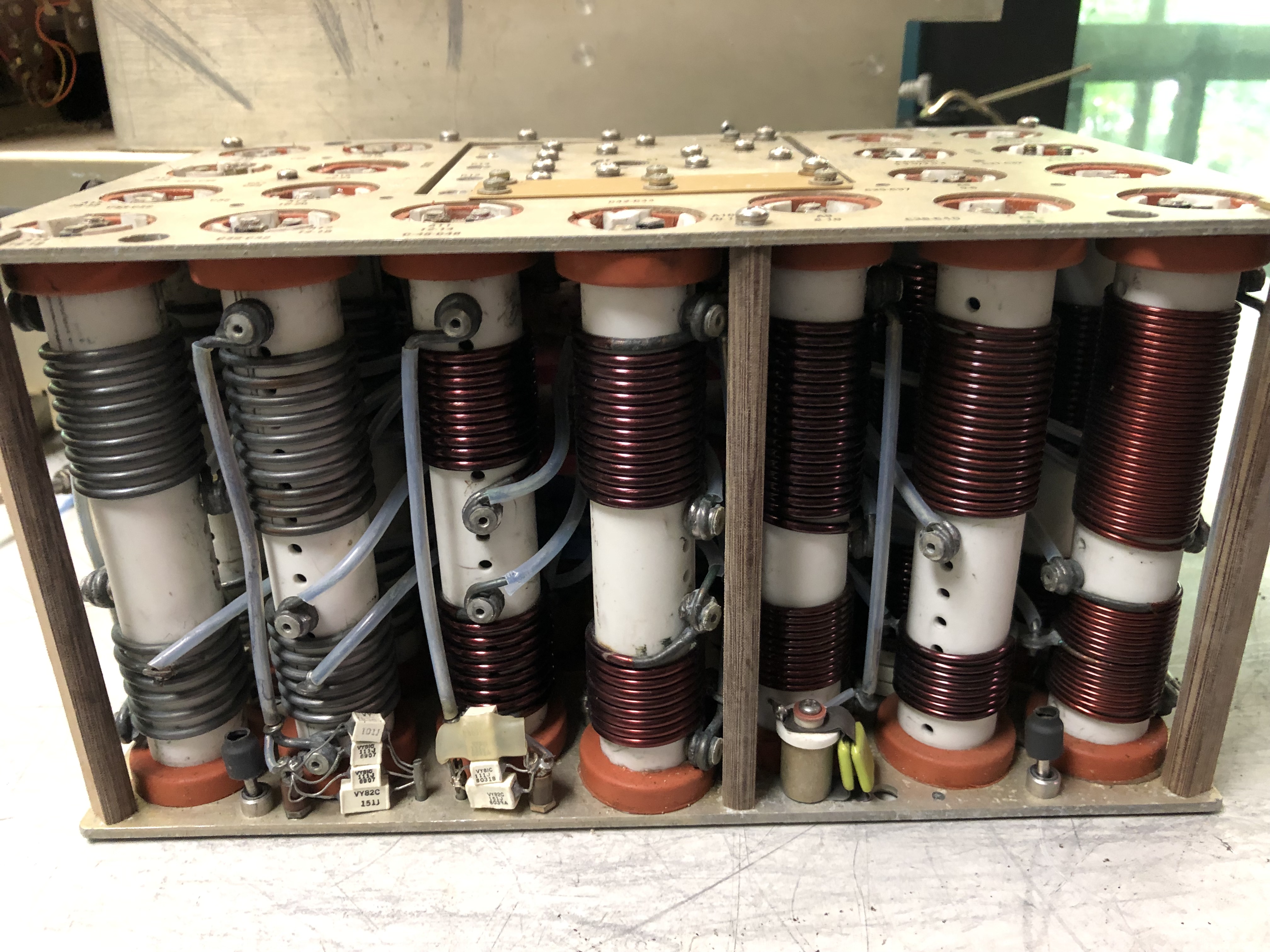

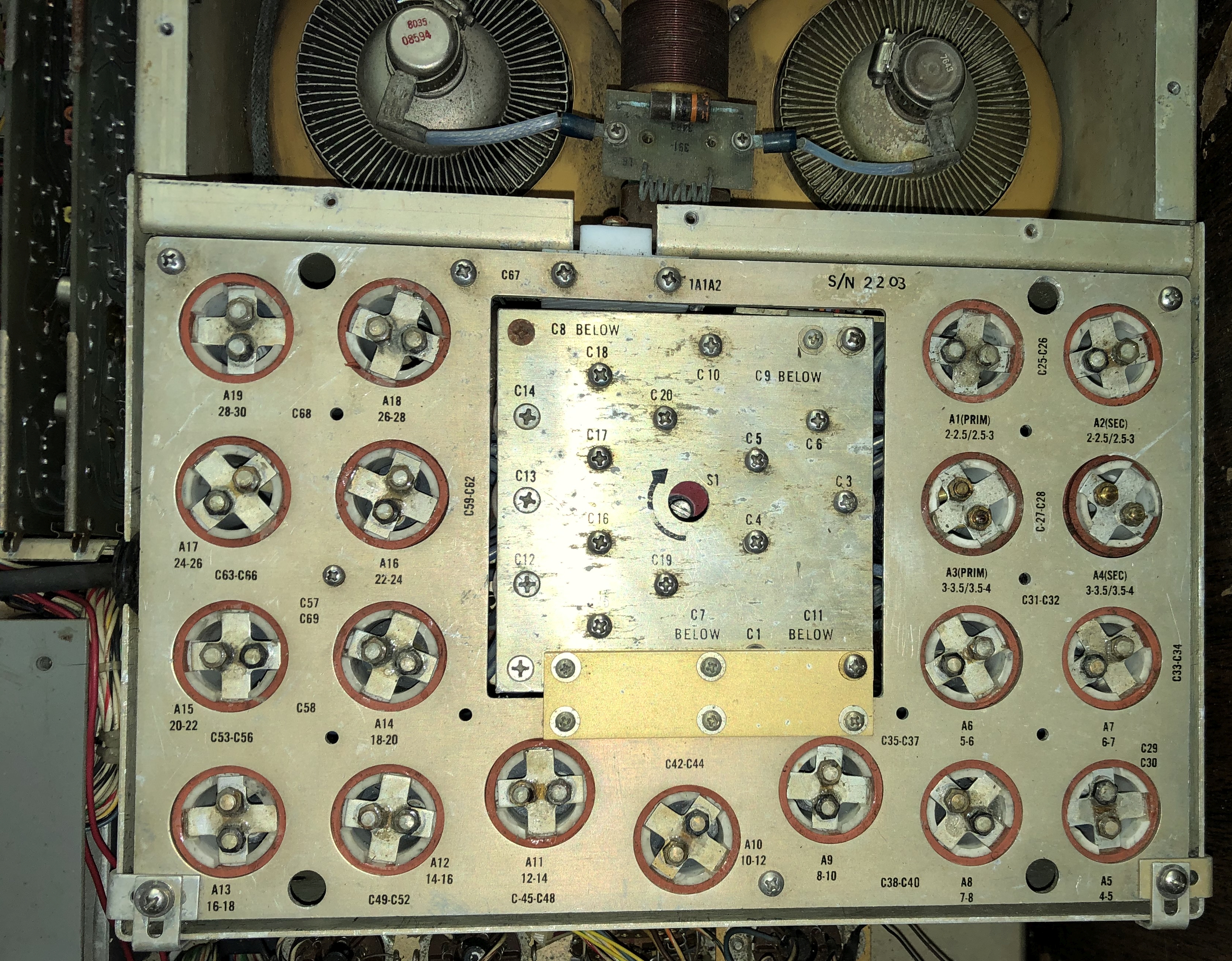

| Output RF transformers |
 |
 |
 |
 |
 |
 |
 |
 |

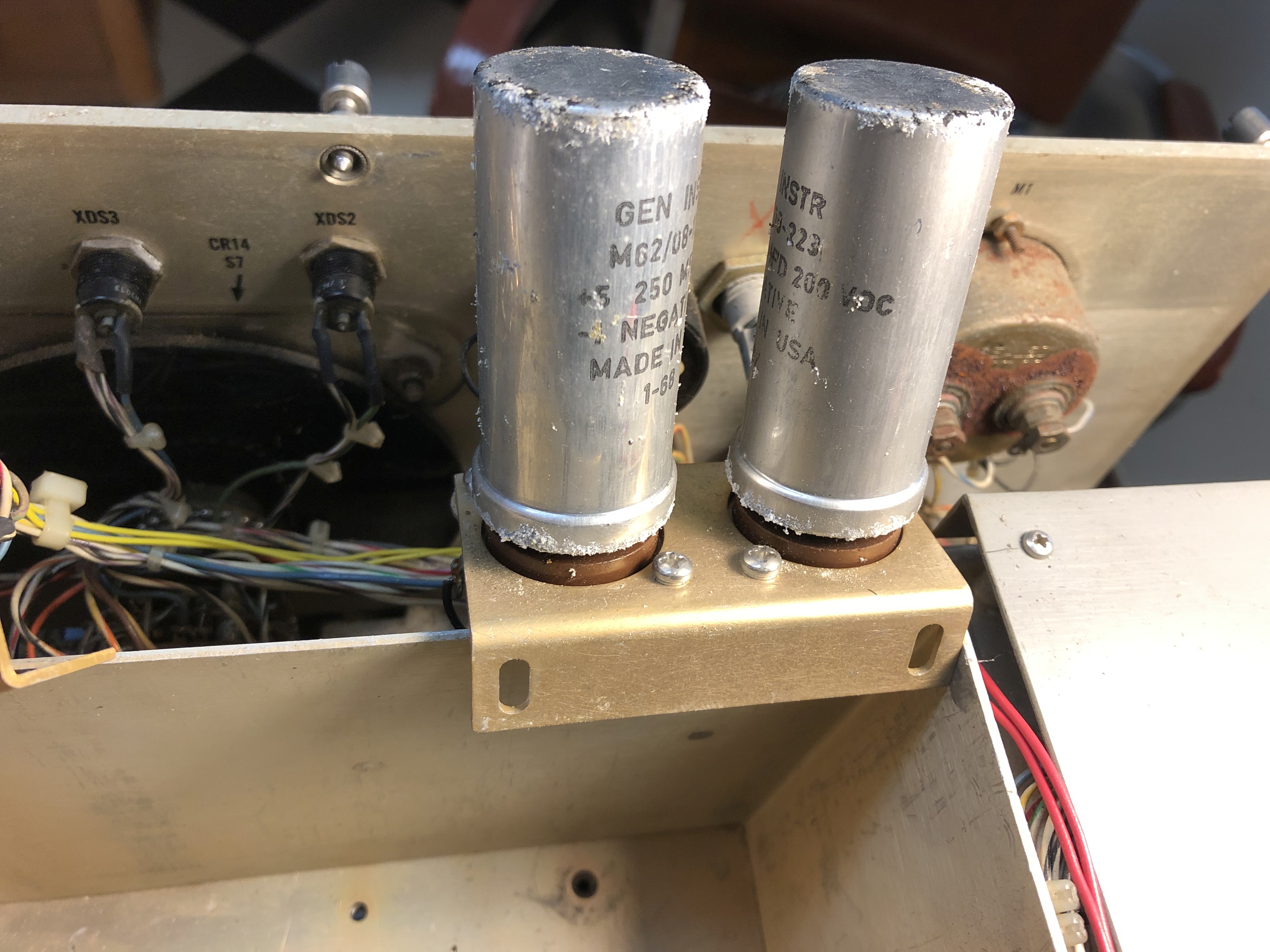

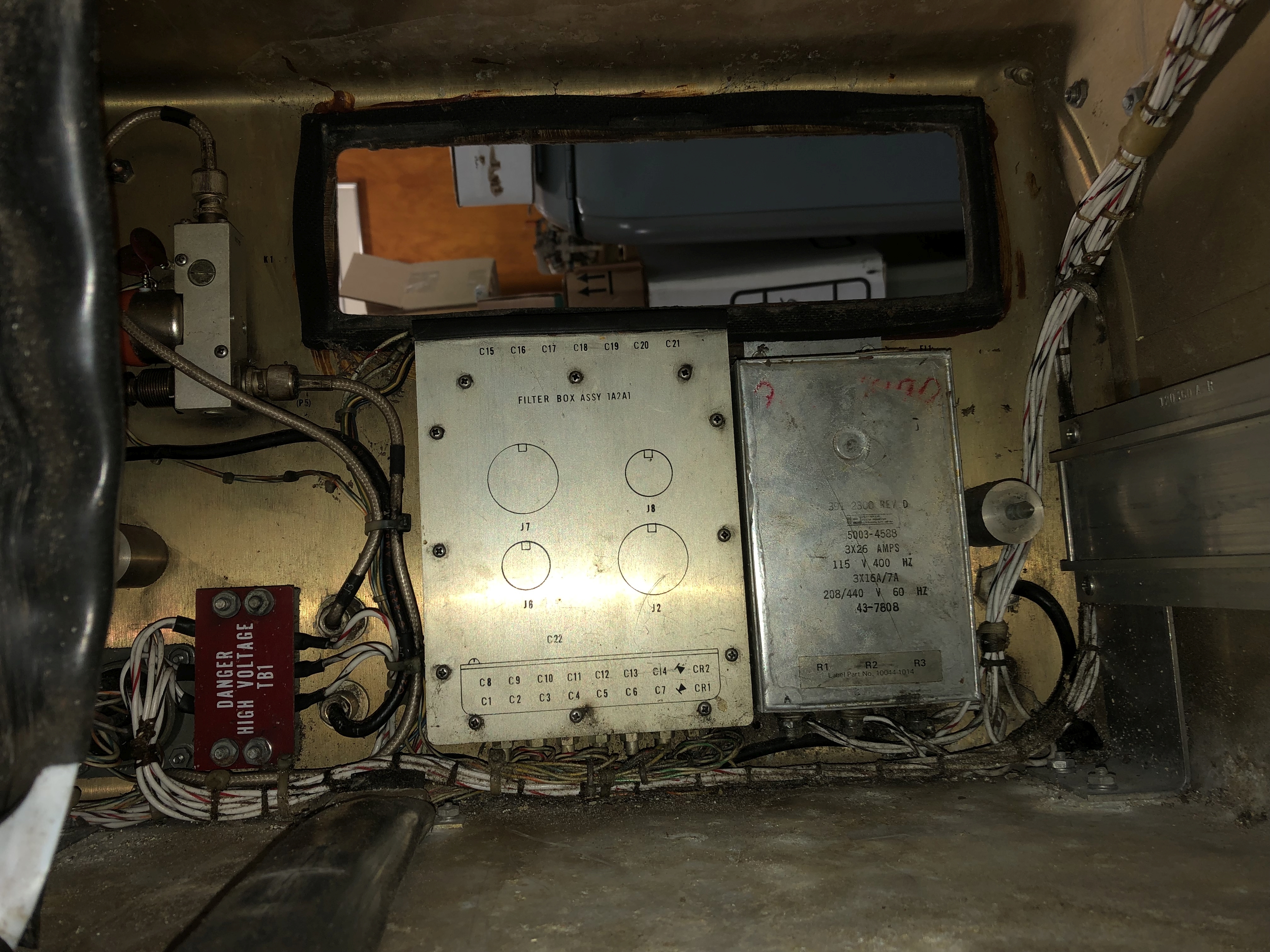

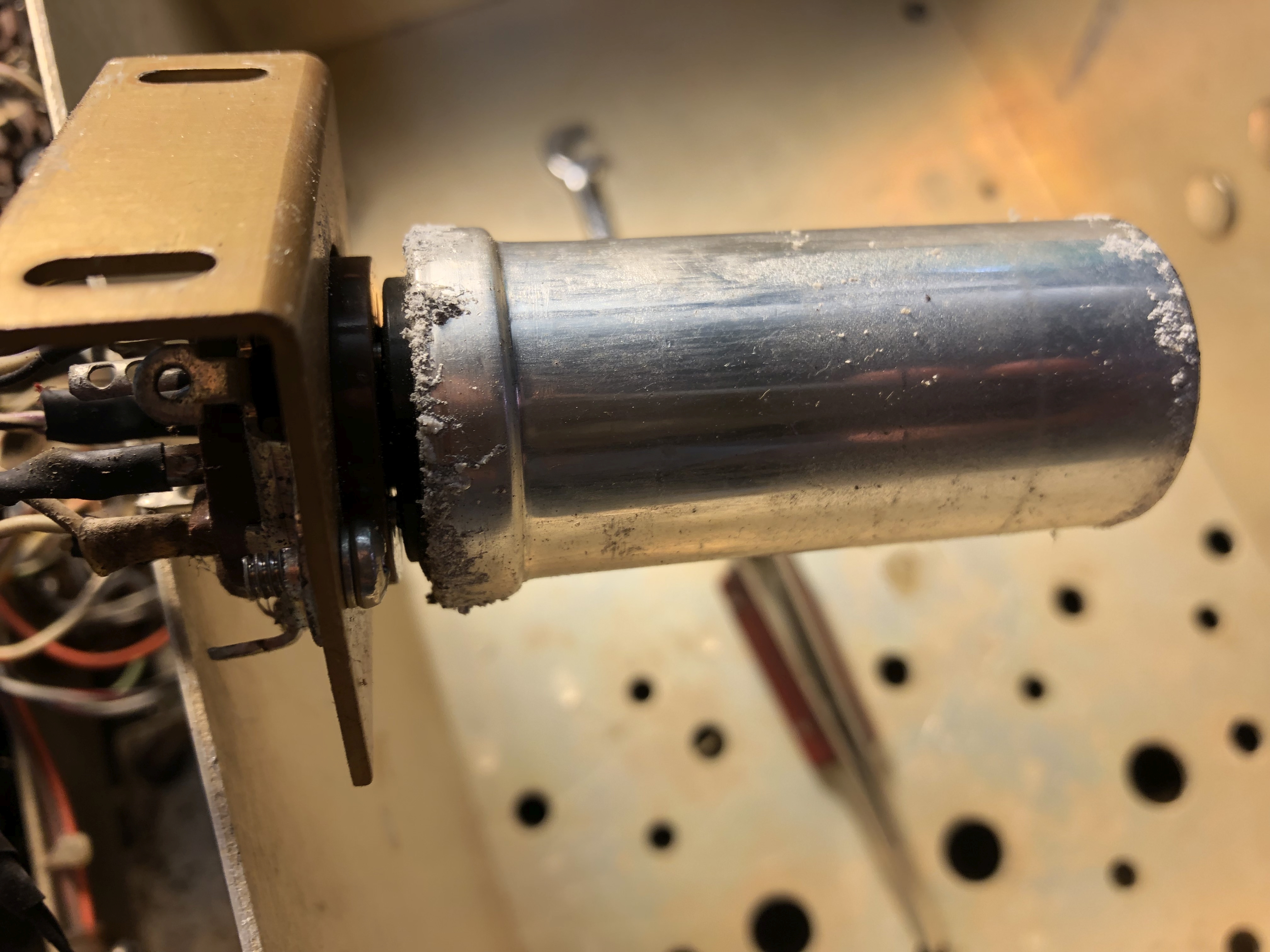

| Power supply filter caps |
 |
 |
 |
 |
 |
 |
 |
== |

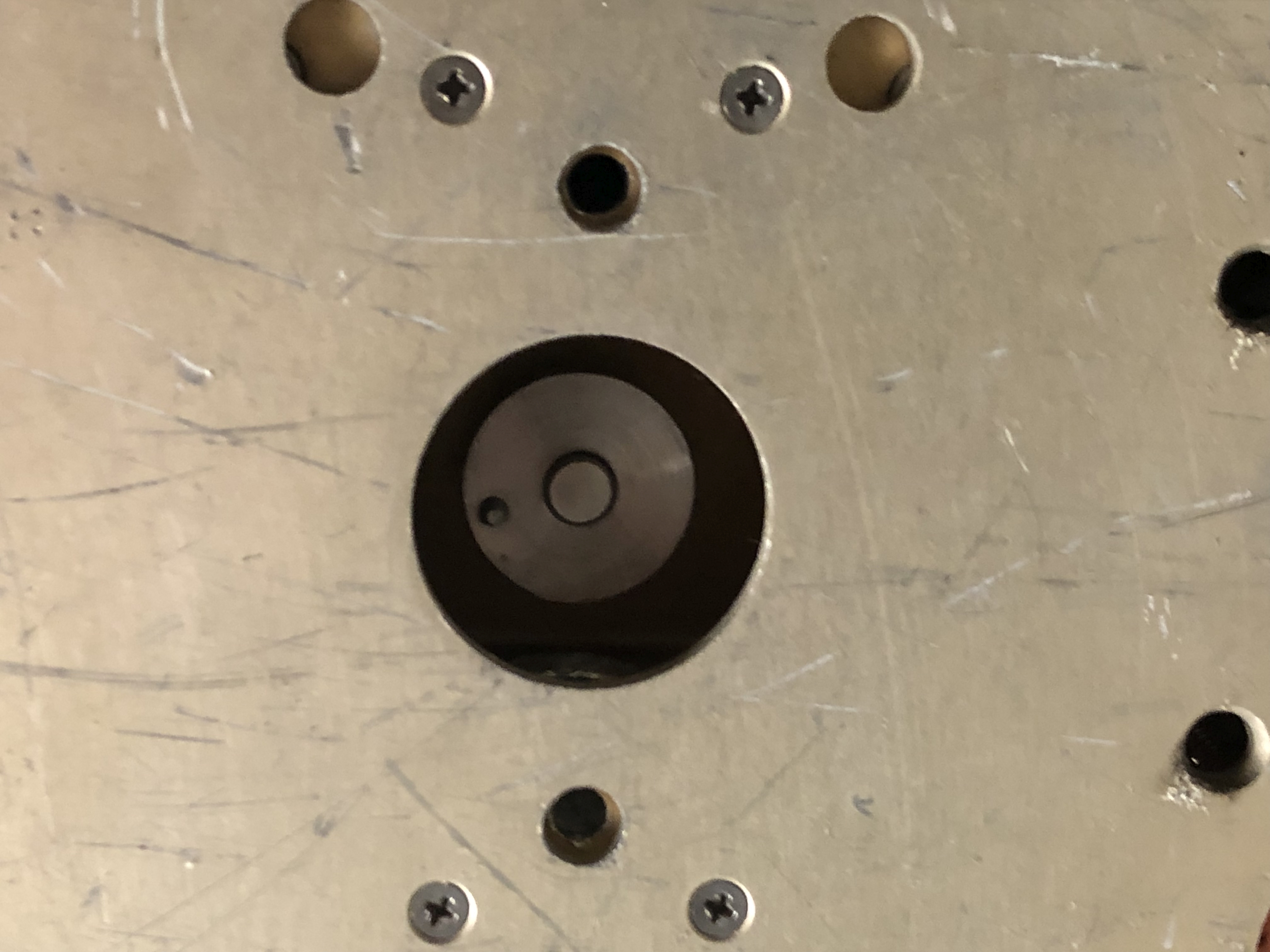

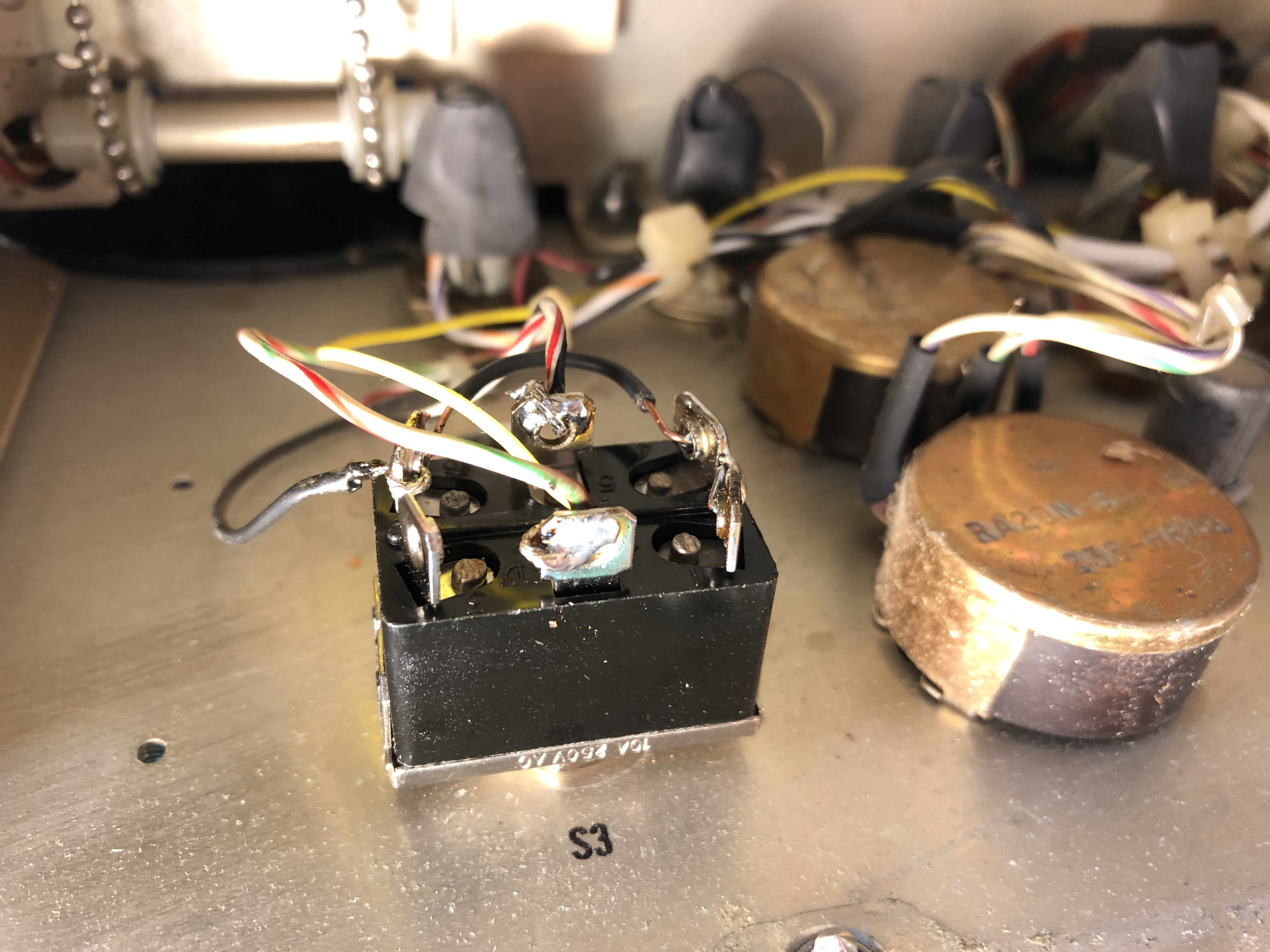

Replaced busted key-tune switch
 |
 |
 |
|
| Misc photos to aid in restoration |
 |
 |
 |
 |
 |
 |
 |
 |

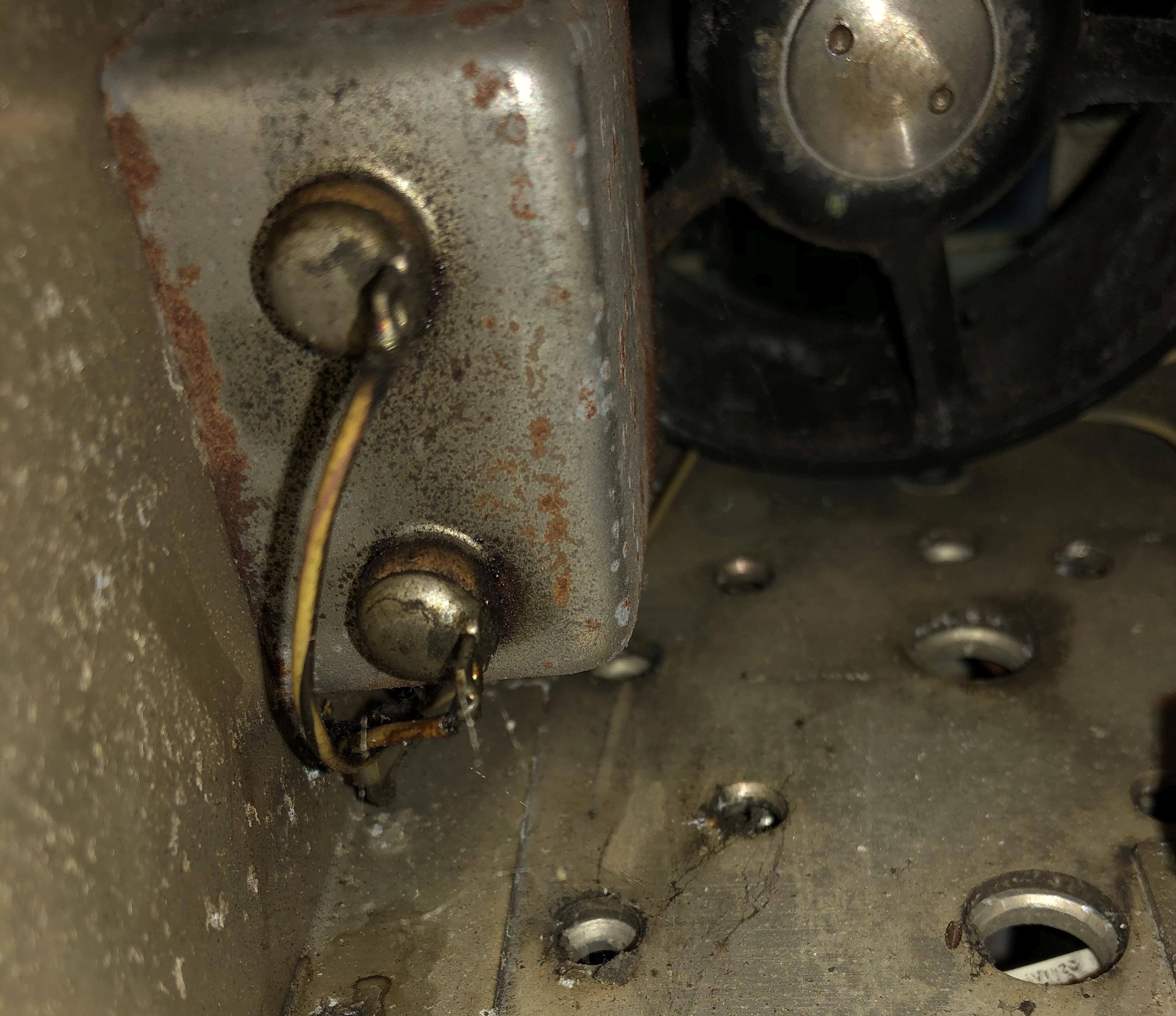

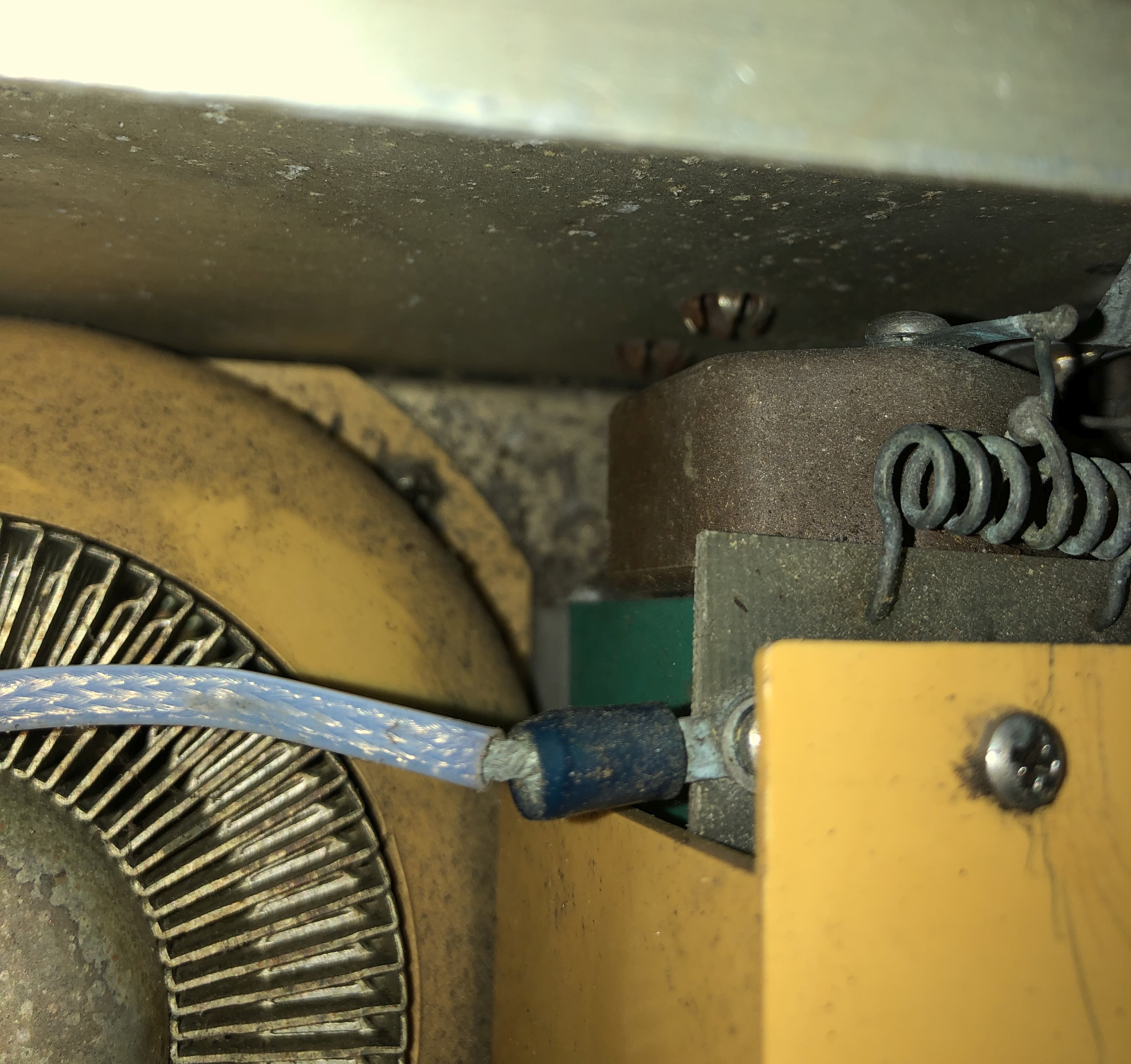

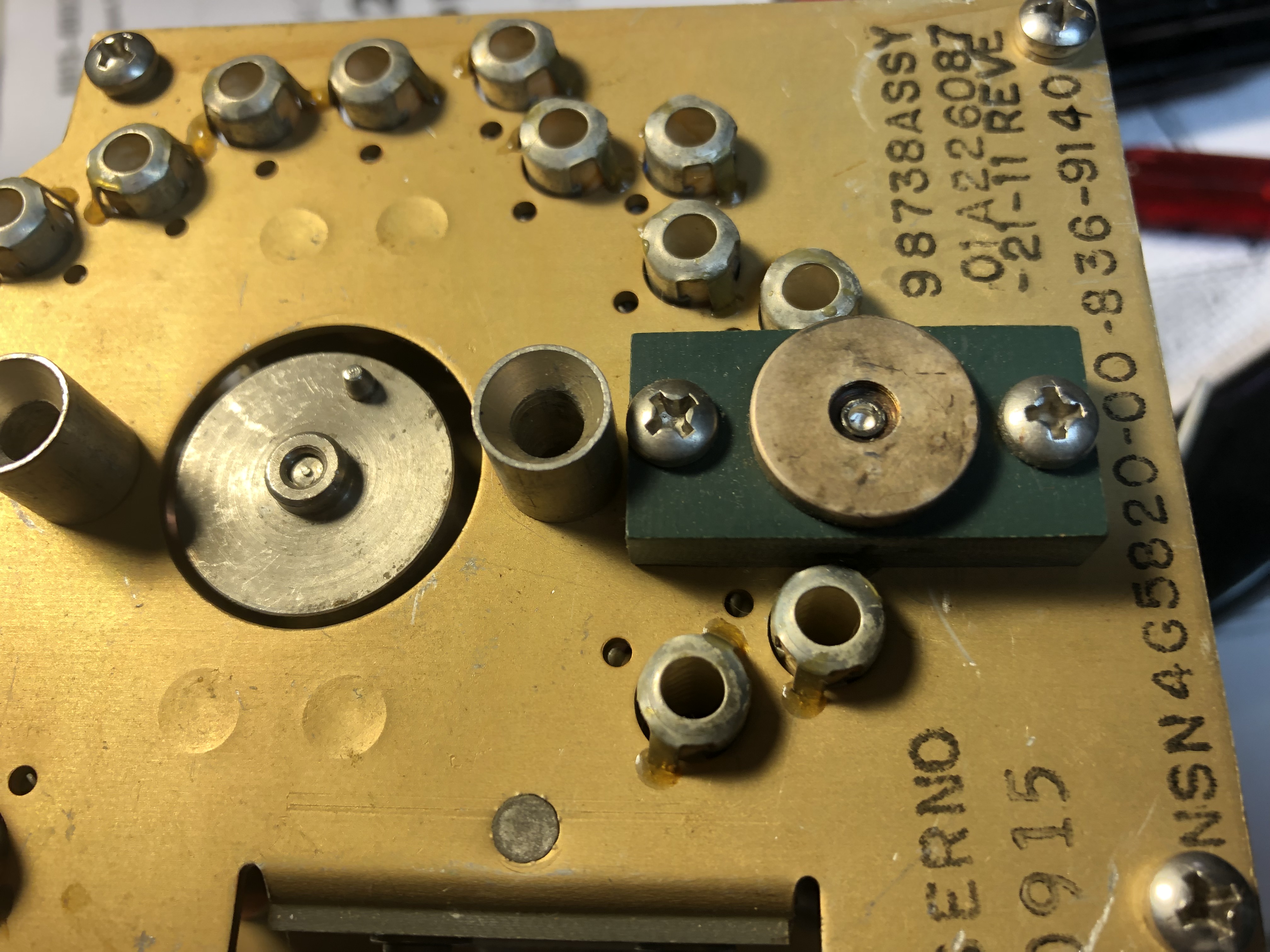

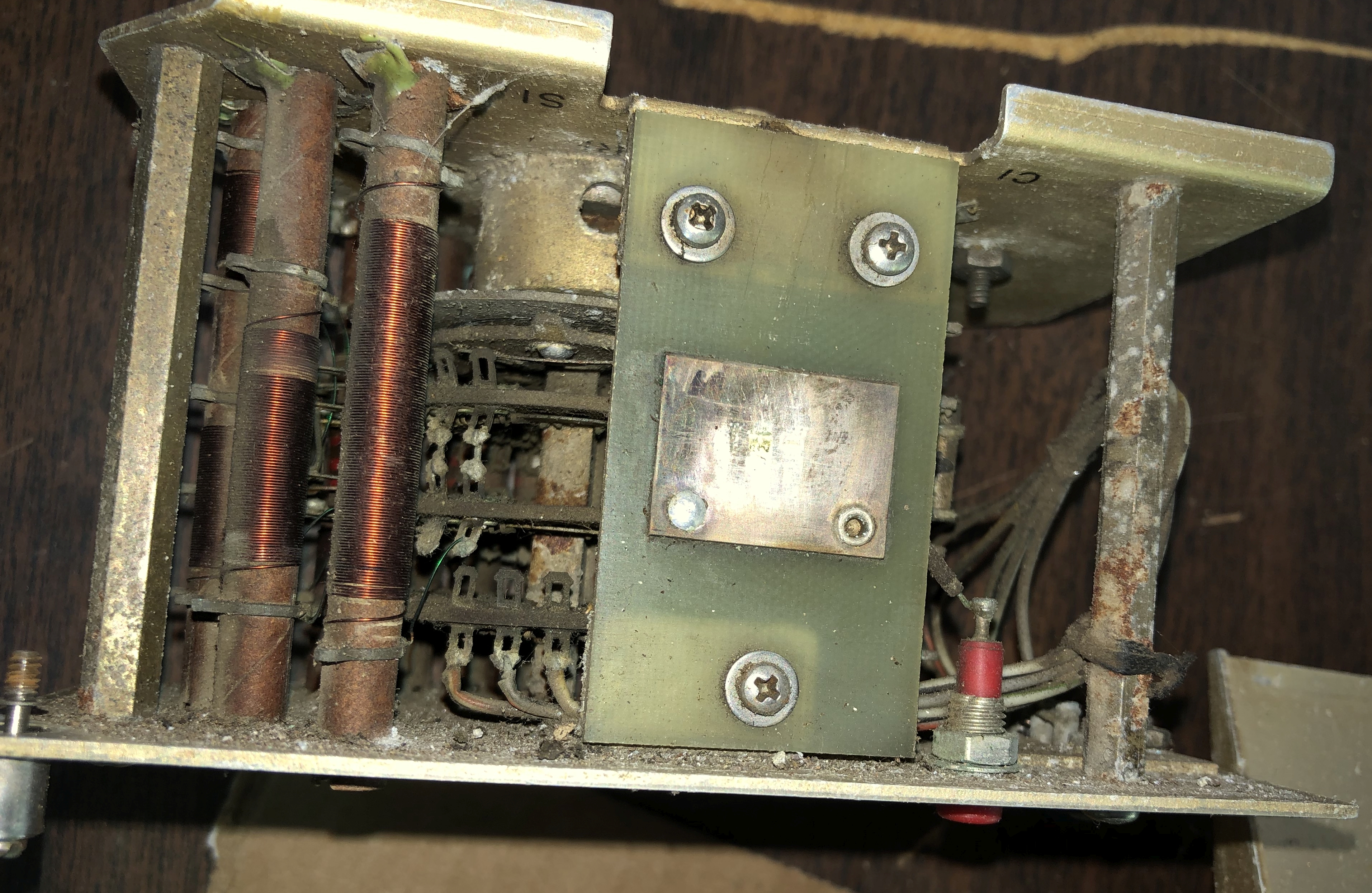

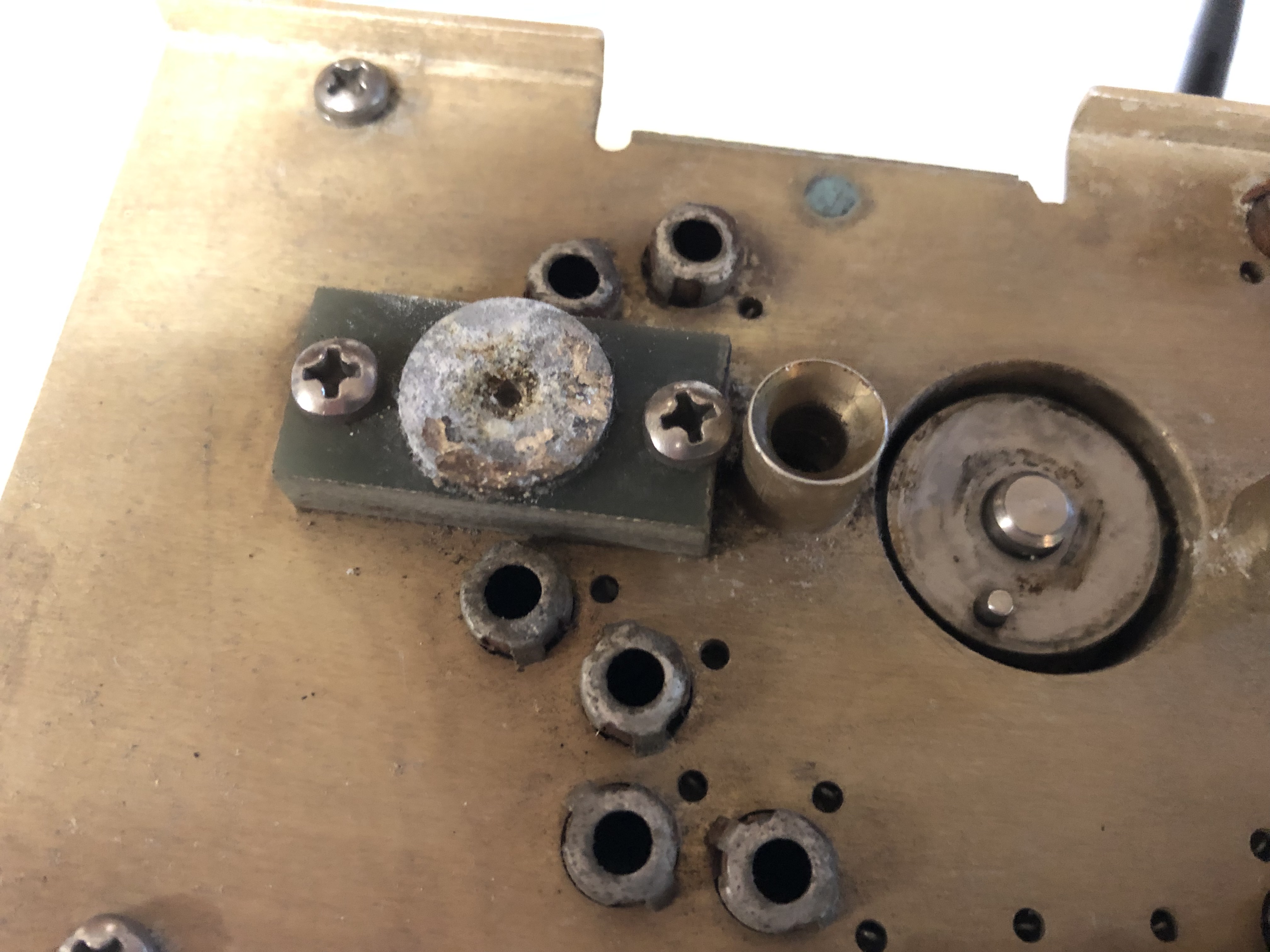

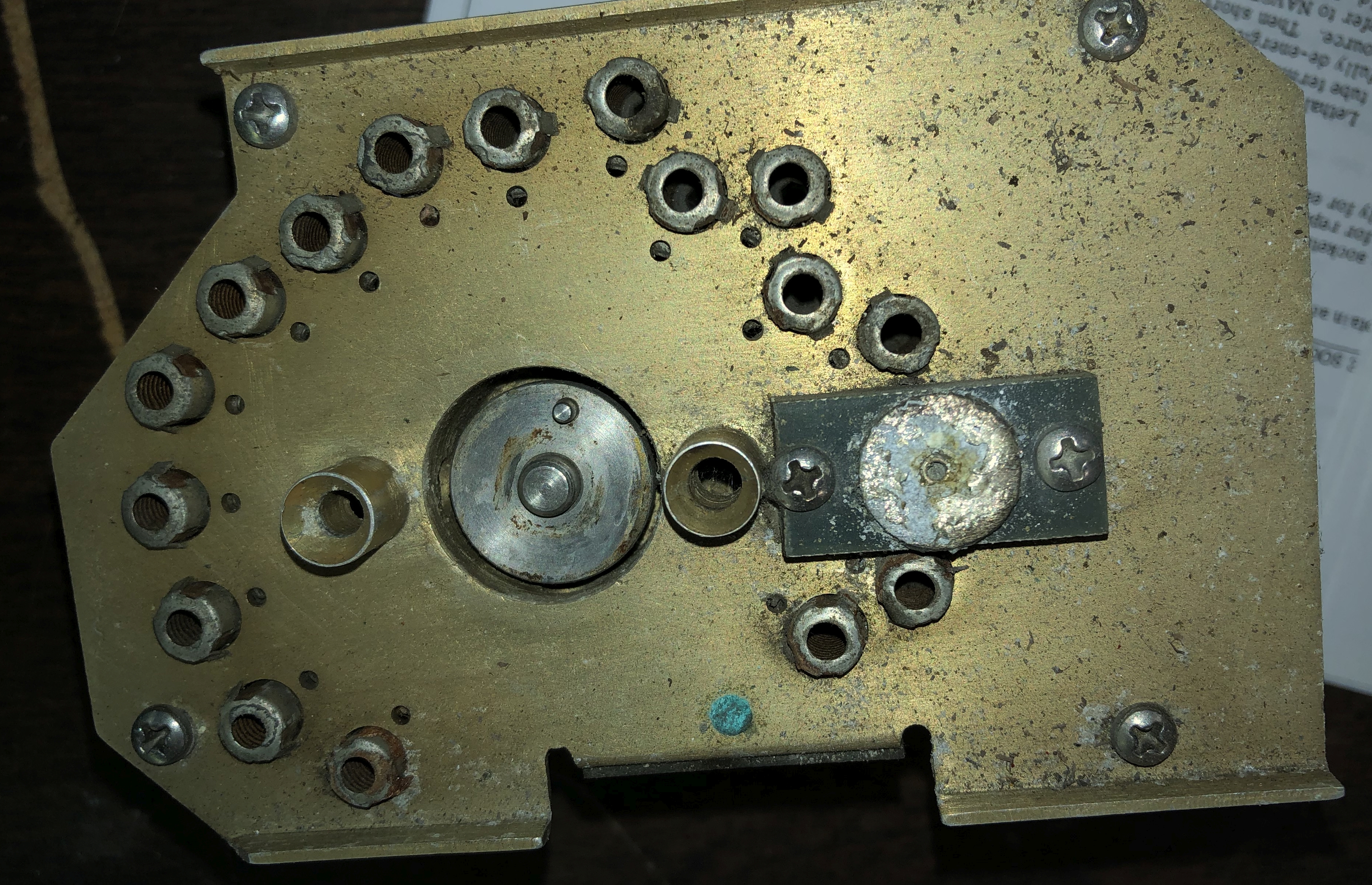

Driver xfmr module - corroded contact
 |
Replacement driver xfmr module
 |
Connections on replacement xfmr unit
 |

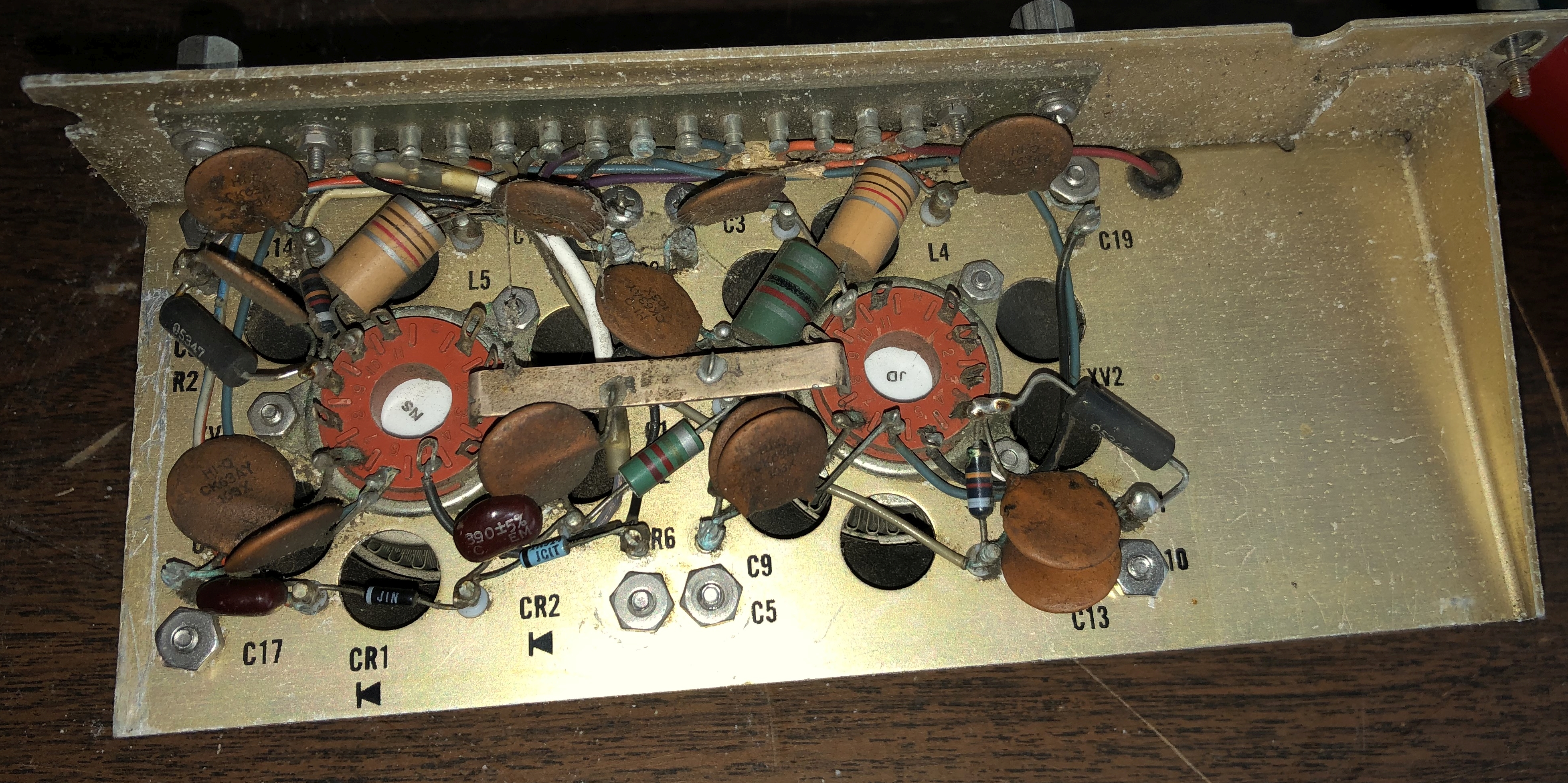

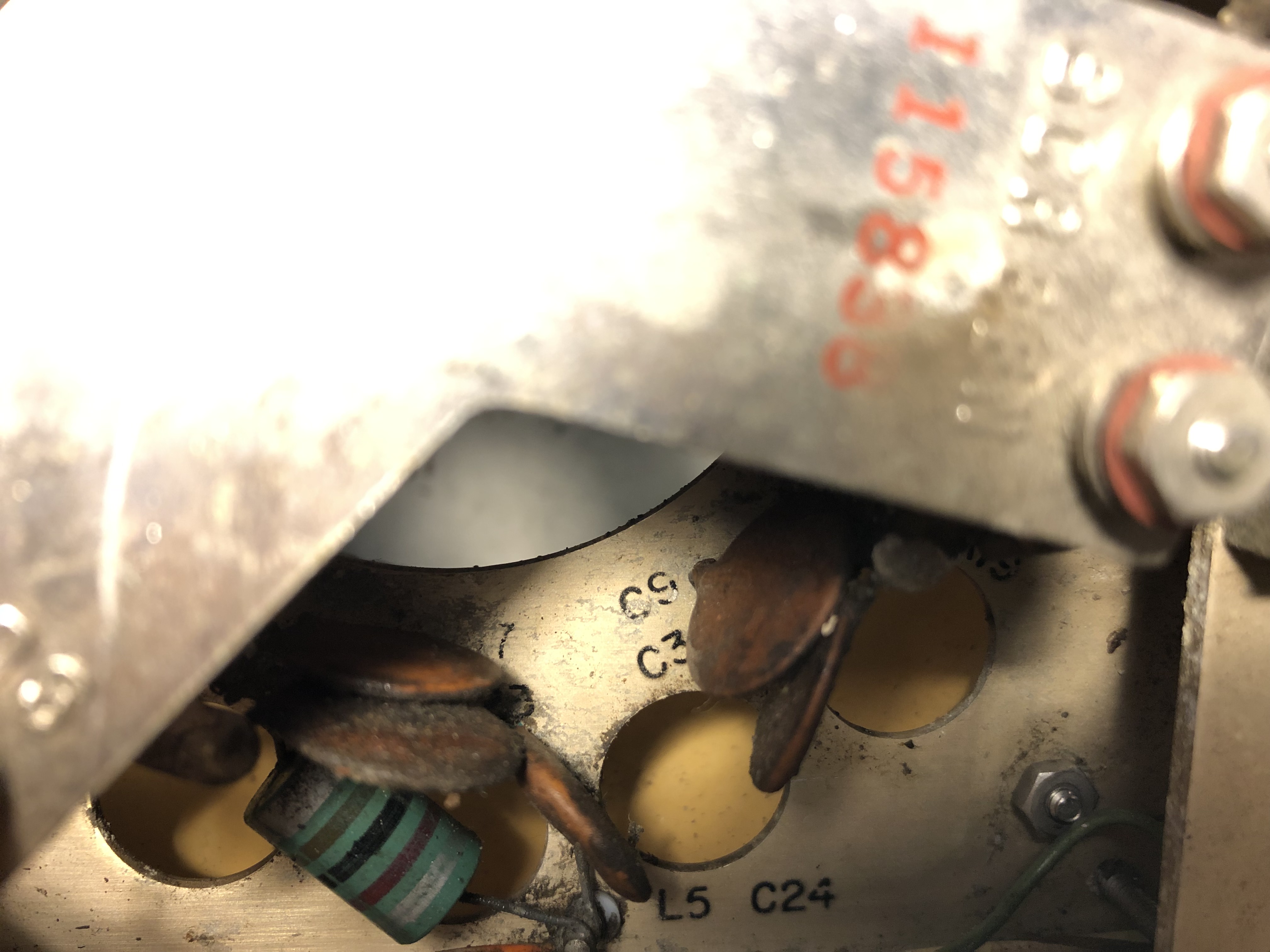

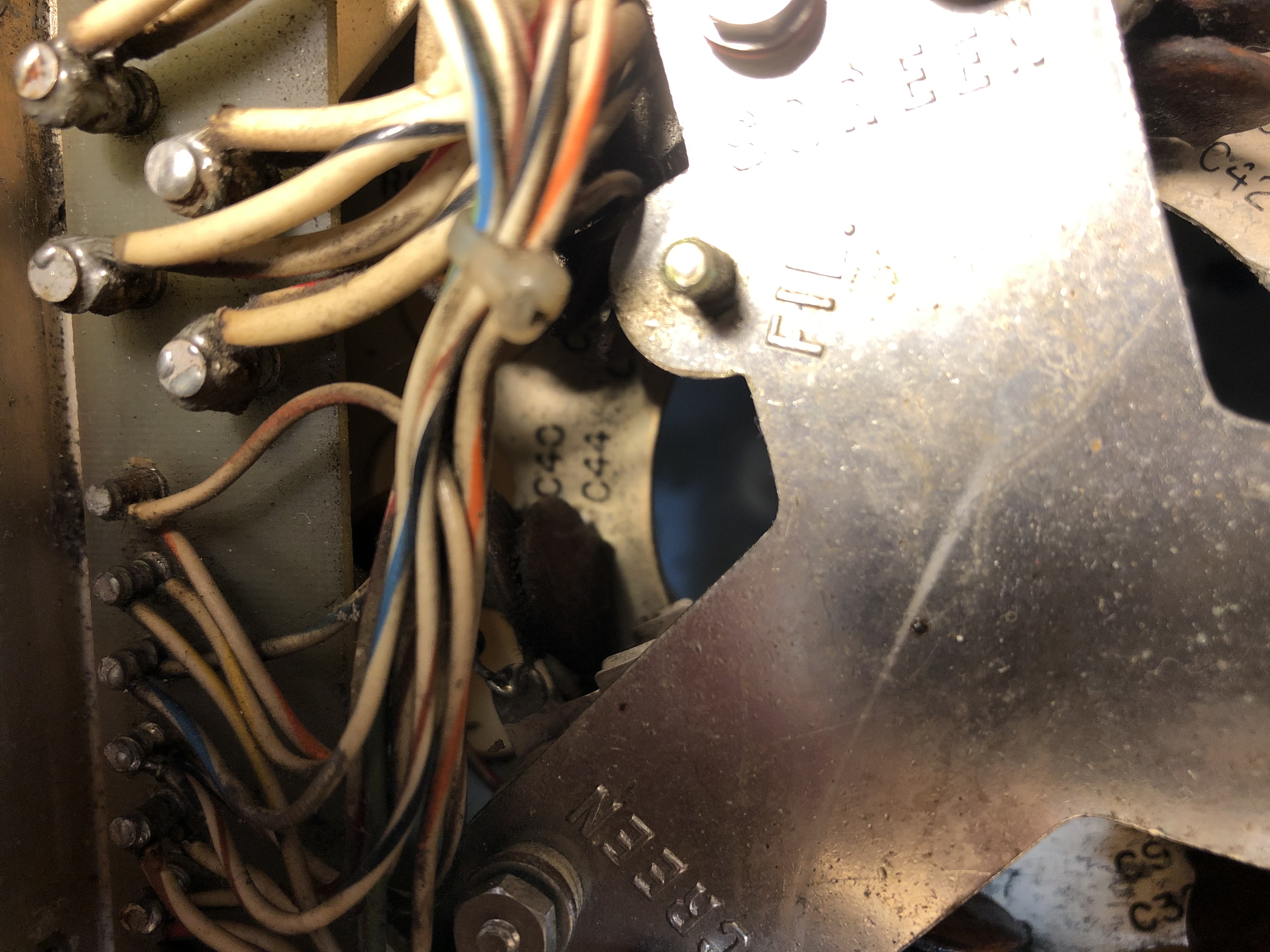

Driver assembly
 |

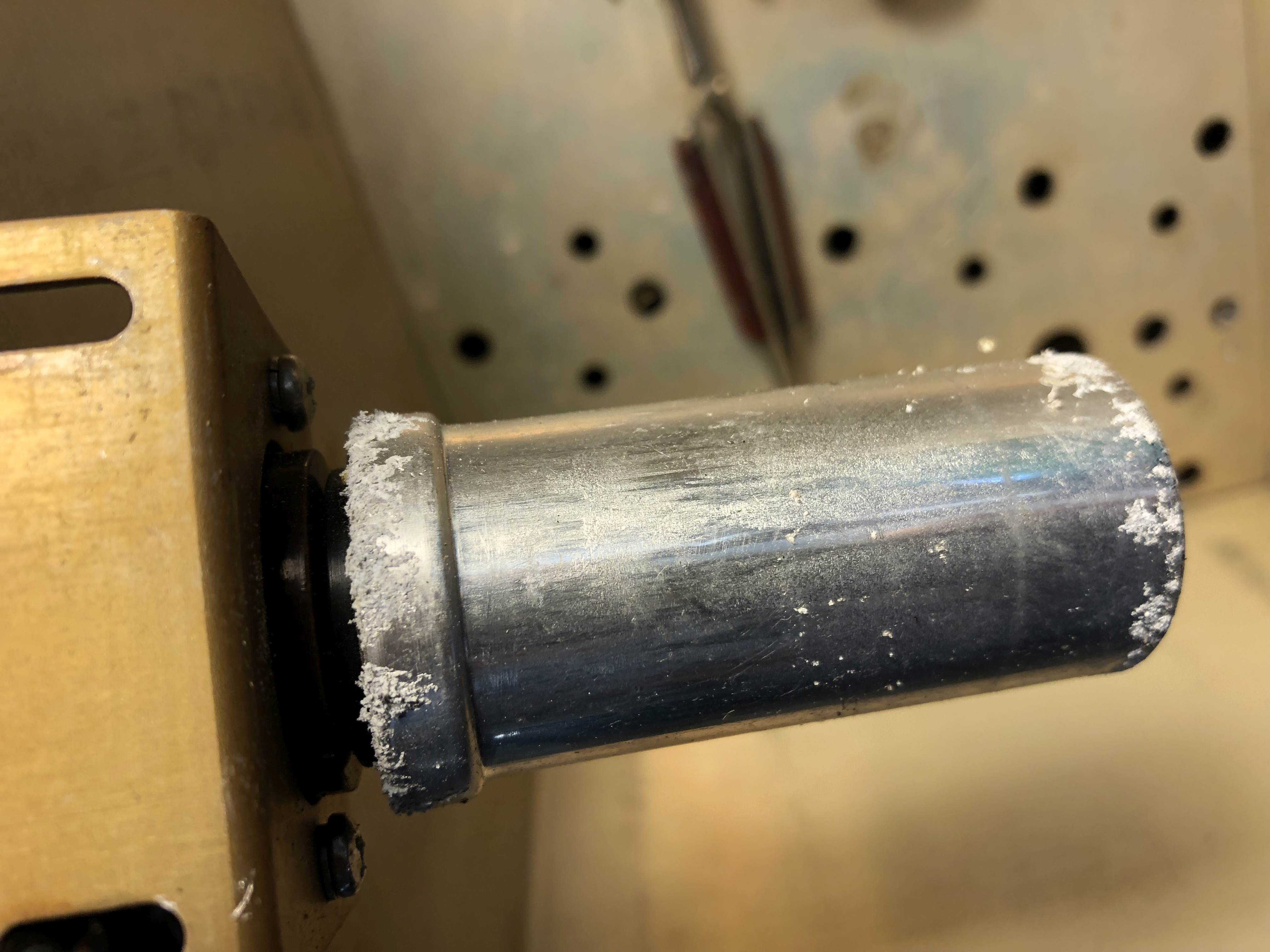

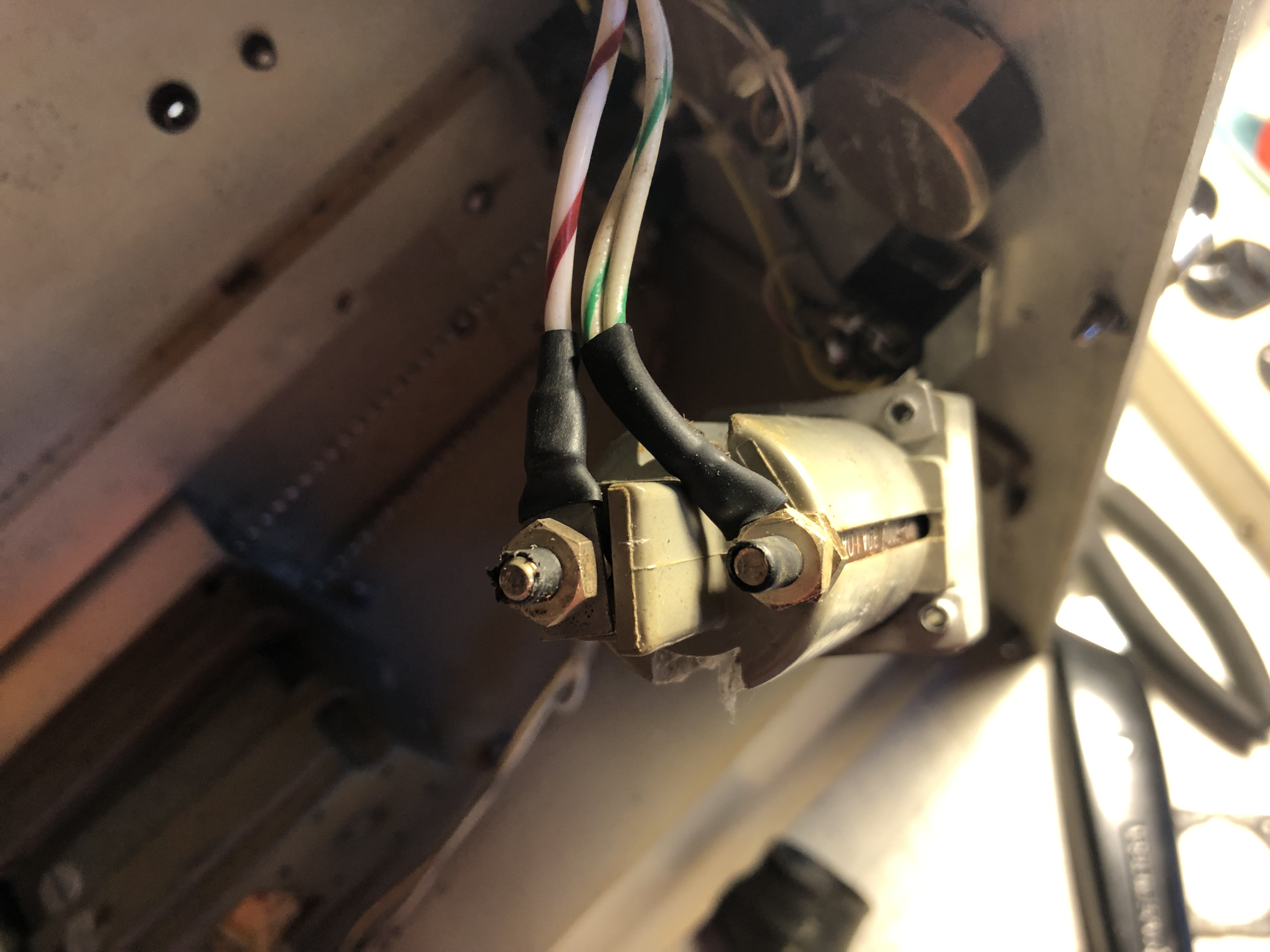

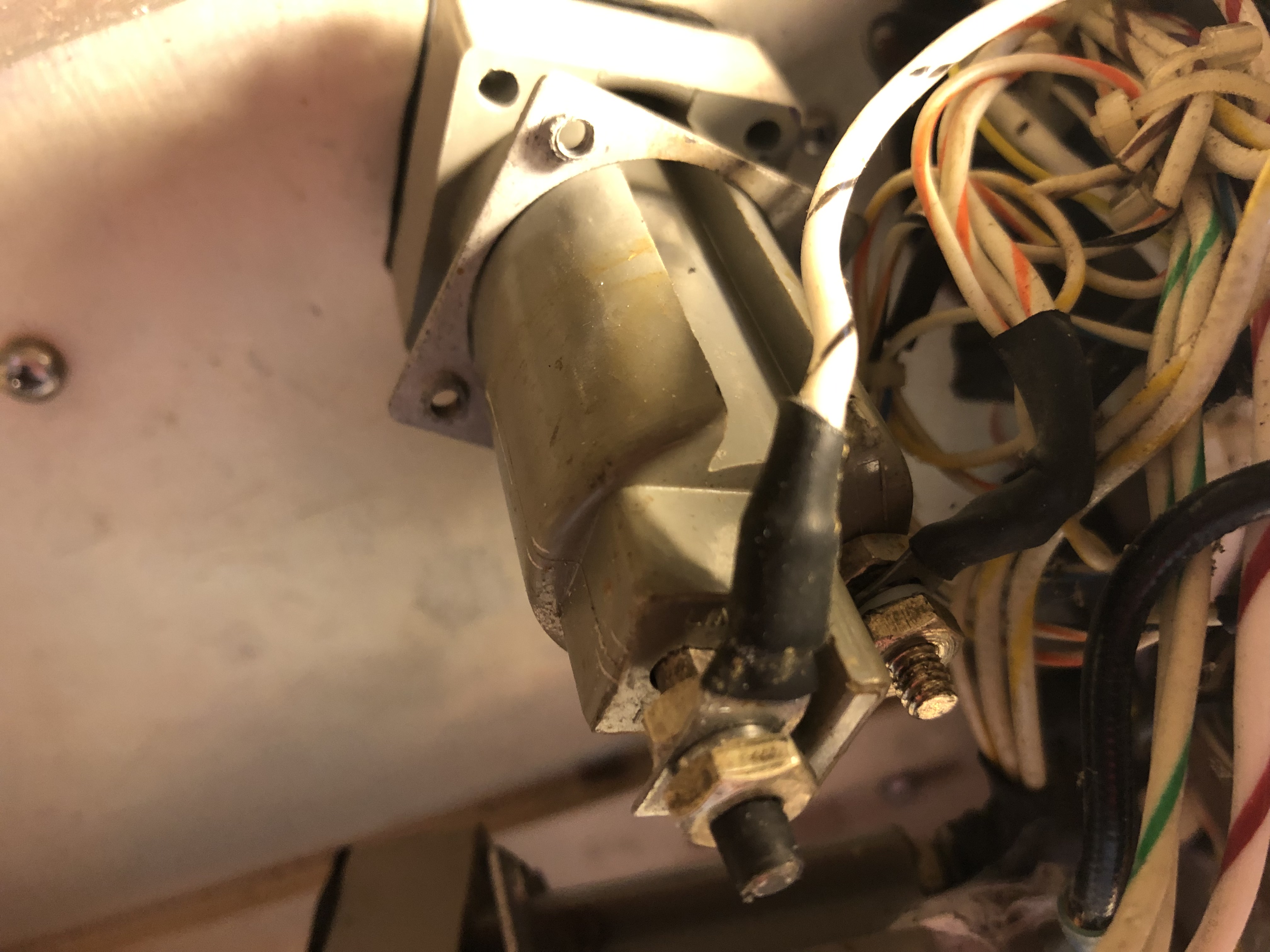

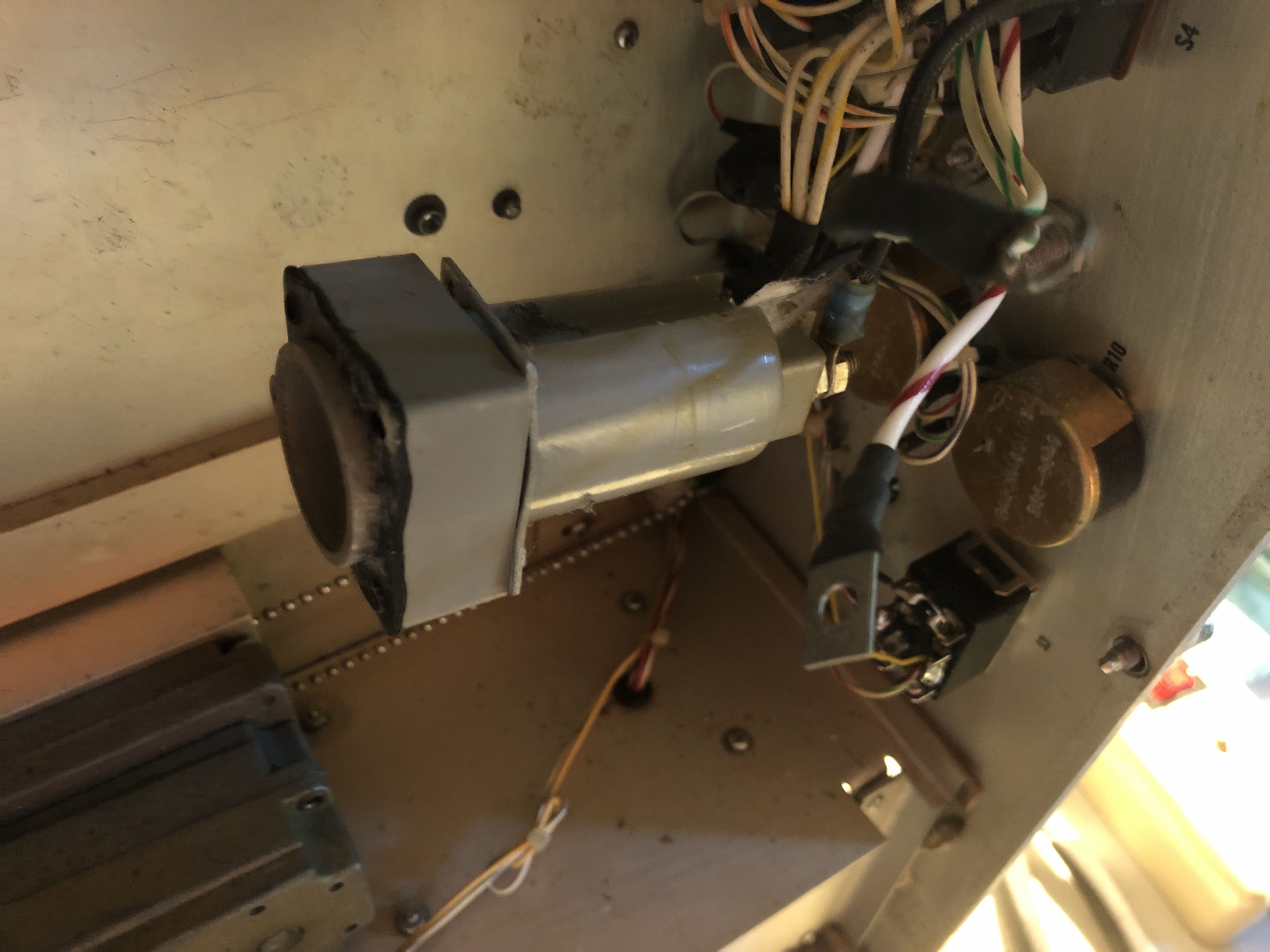

| Main Fuses - stuck because of corroded O-rings |
 |
 |
 |
 |
 |
== |
== |
== |
| |
|
|
|
