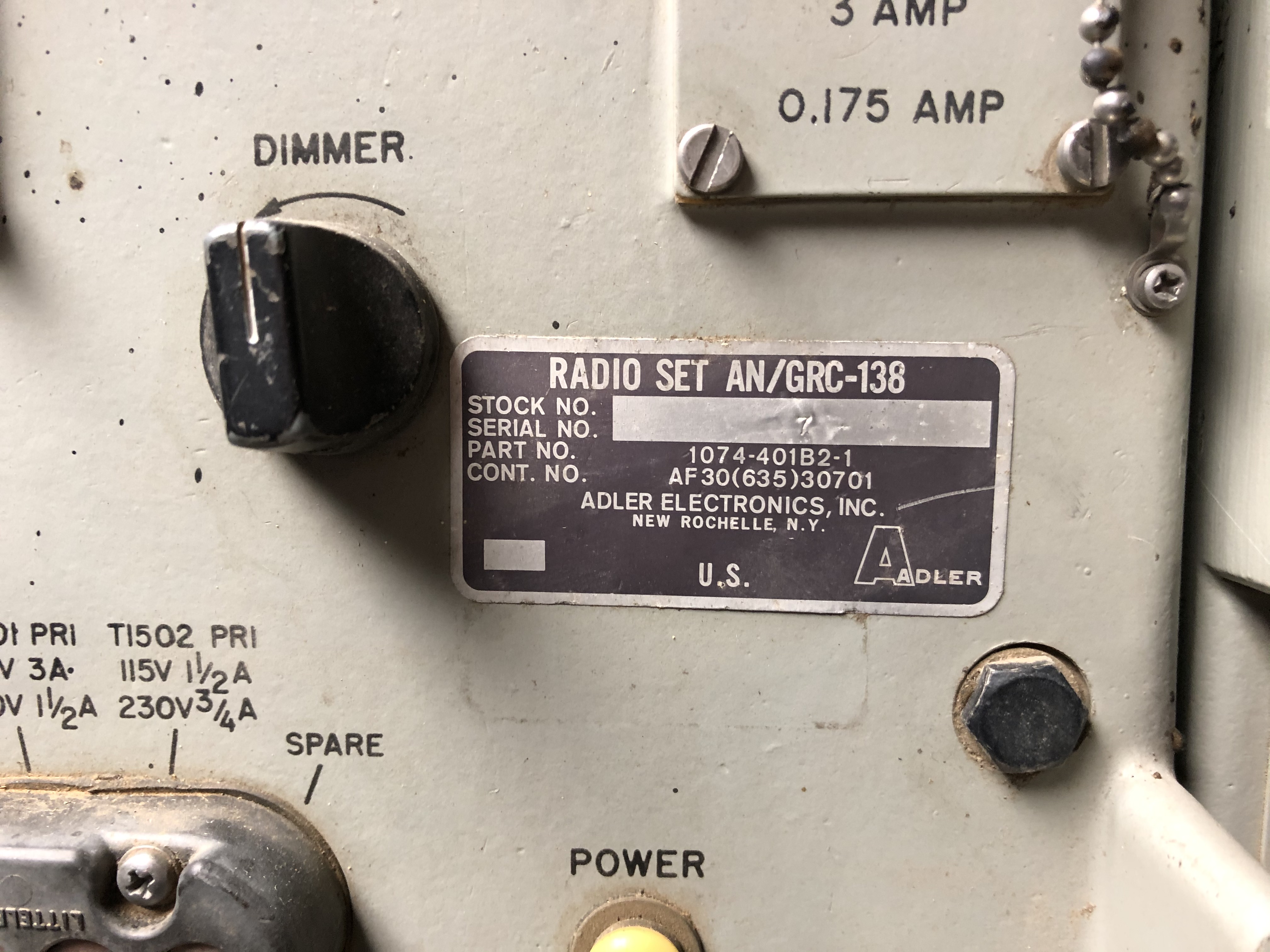

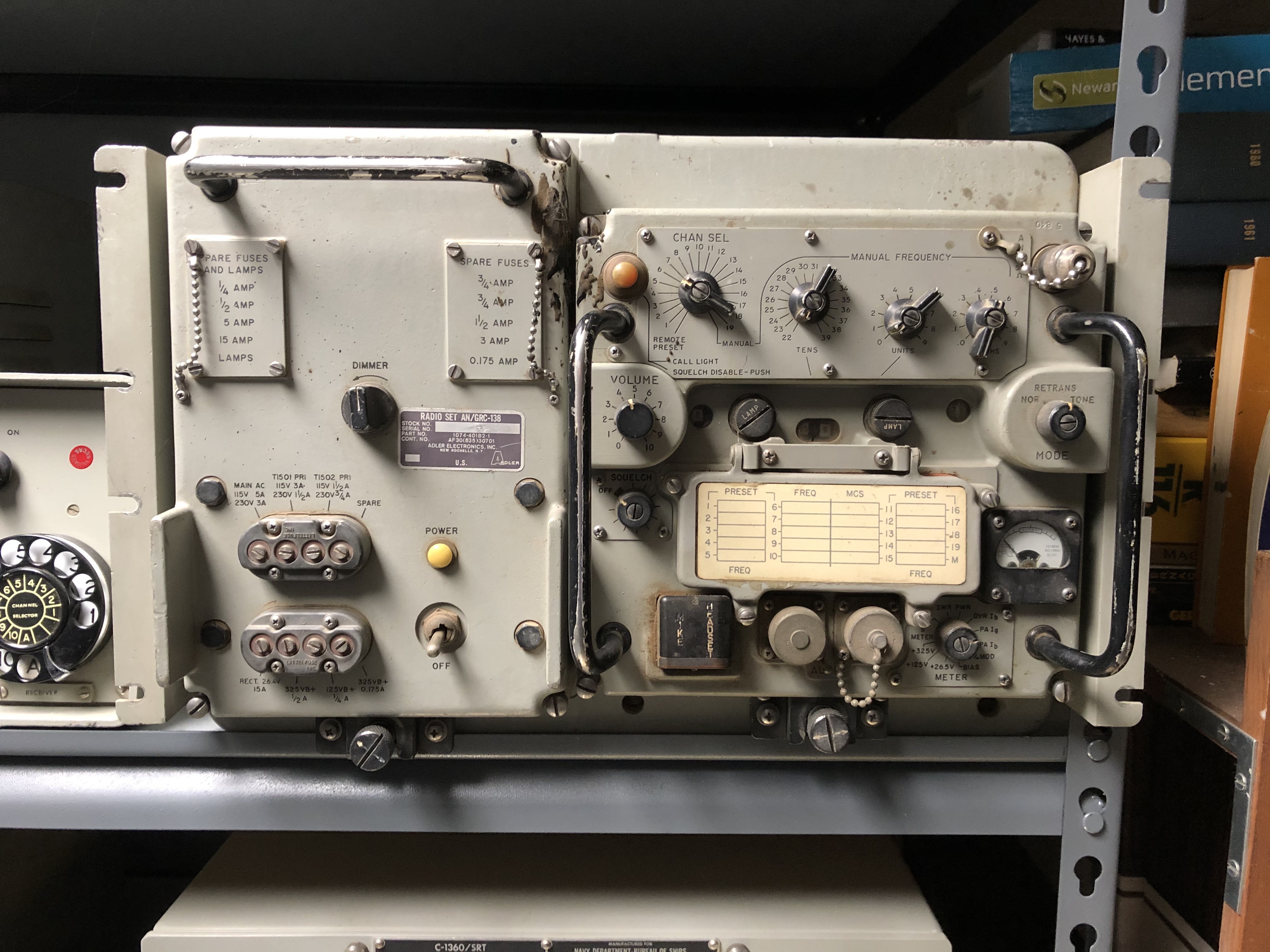

| This USAF contract version has the blower

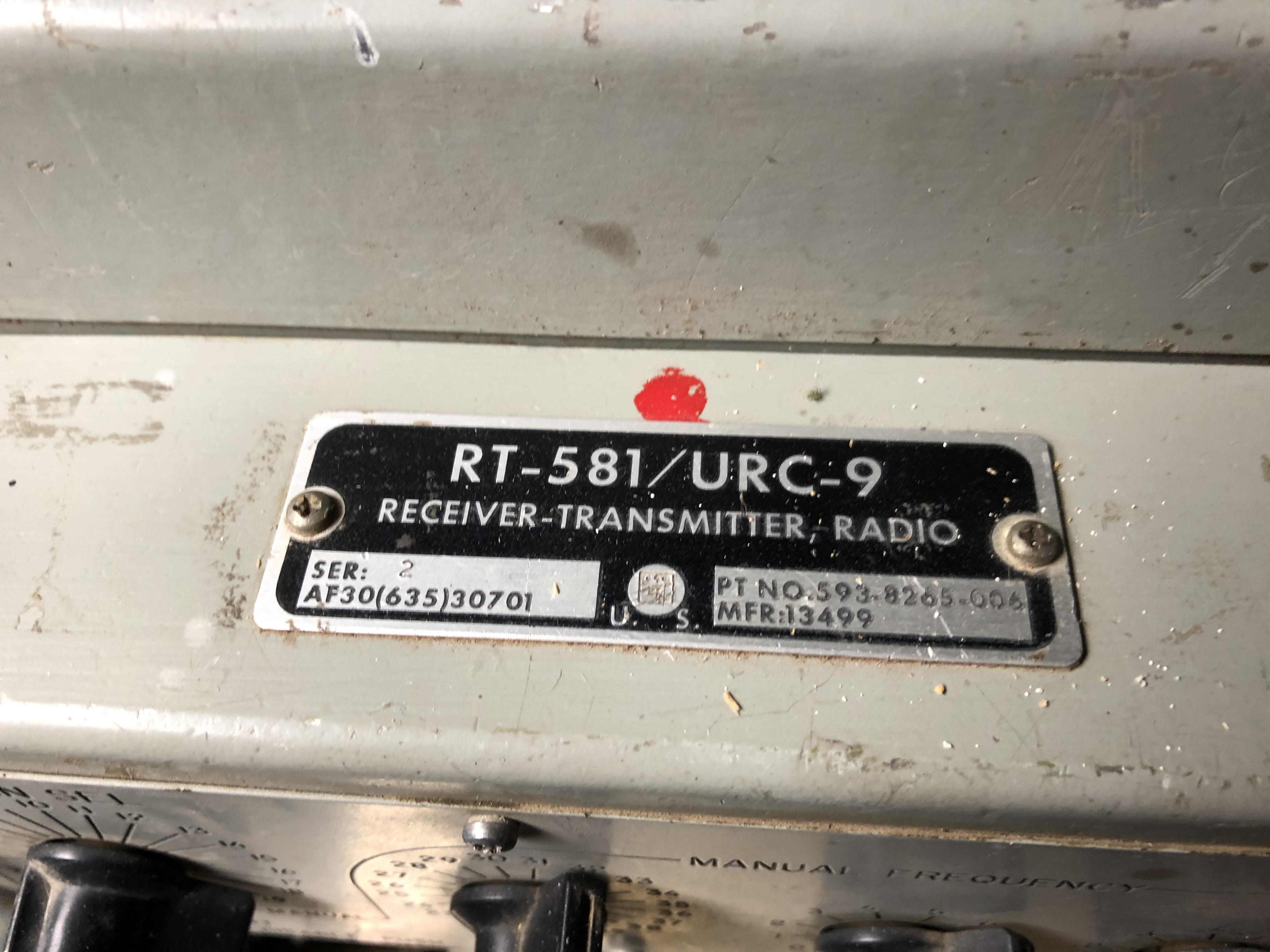

removed from the RT-581 section. Air is blown through a duct from the

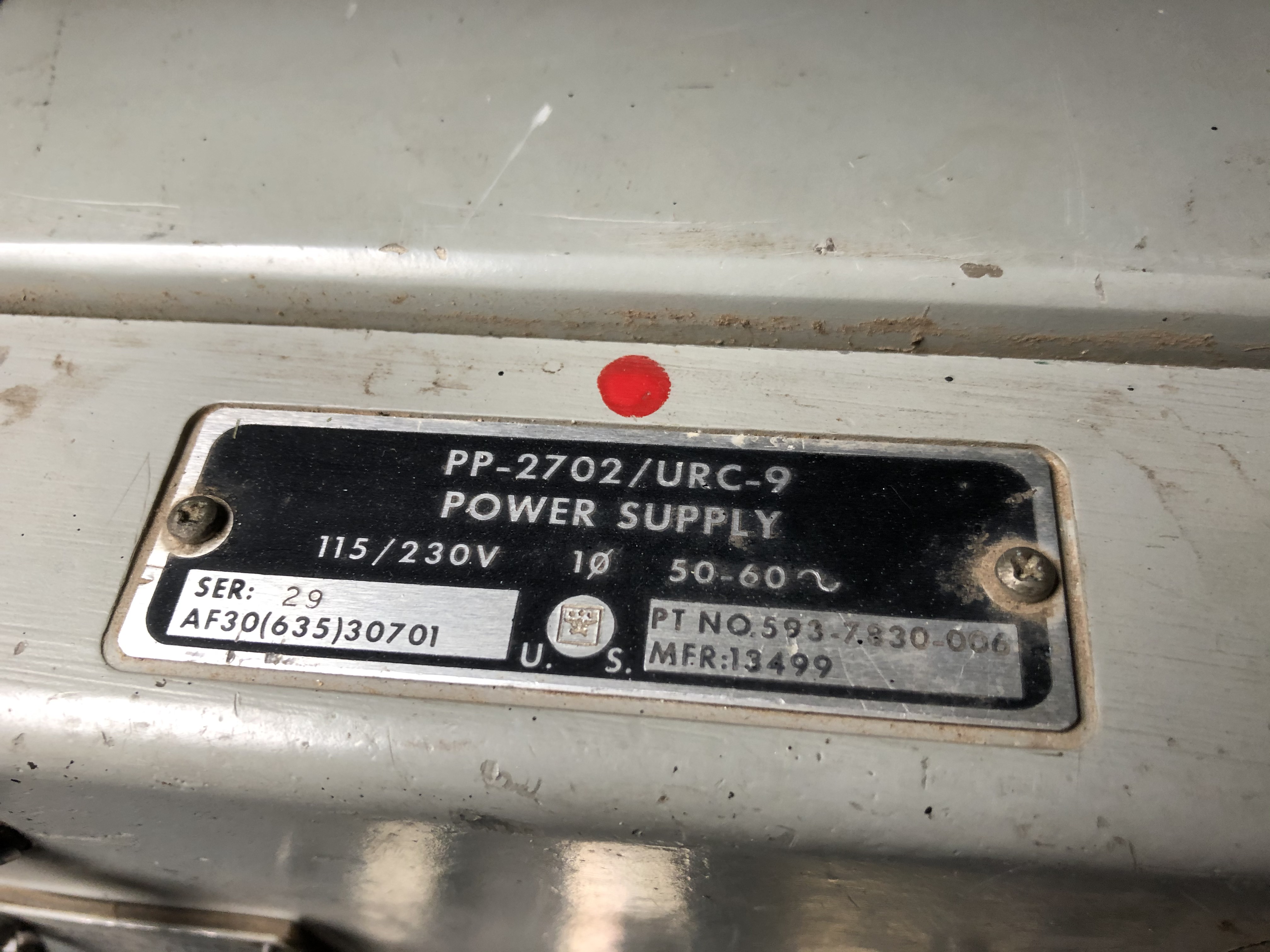

PP-2702 section and into the final amp portion of the RT-581. Air exhausts
from the RT-581 through the right side of the cabinet. |
 |
 |
 |
 |

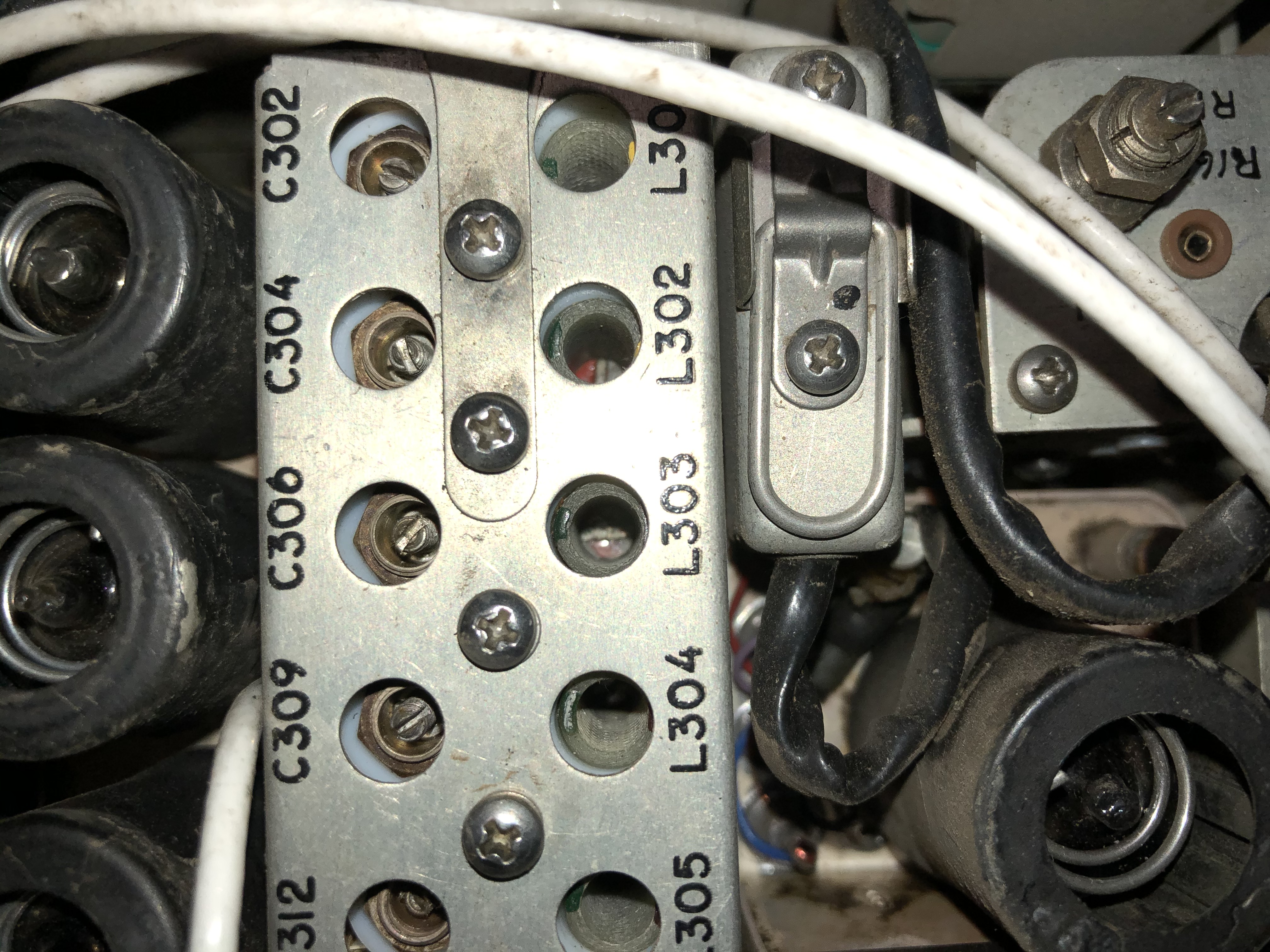

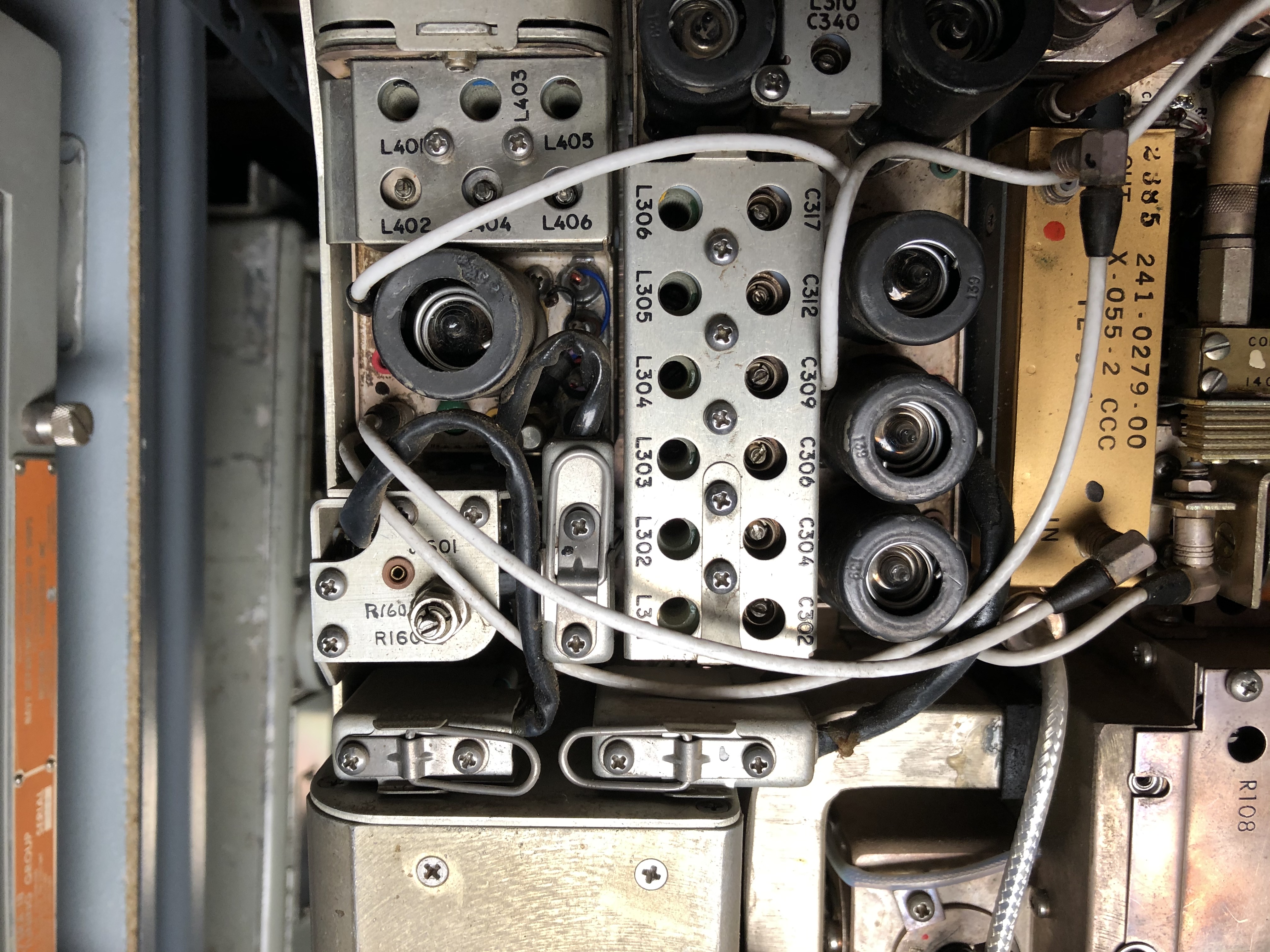

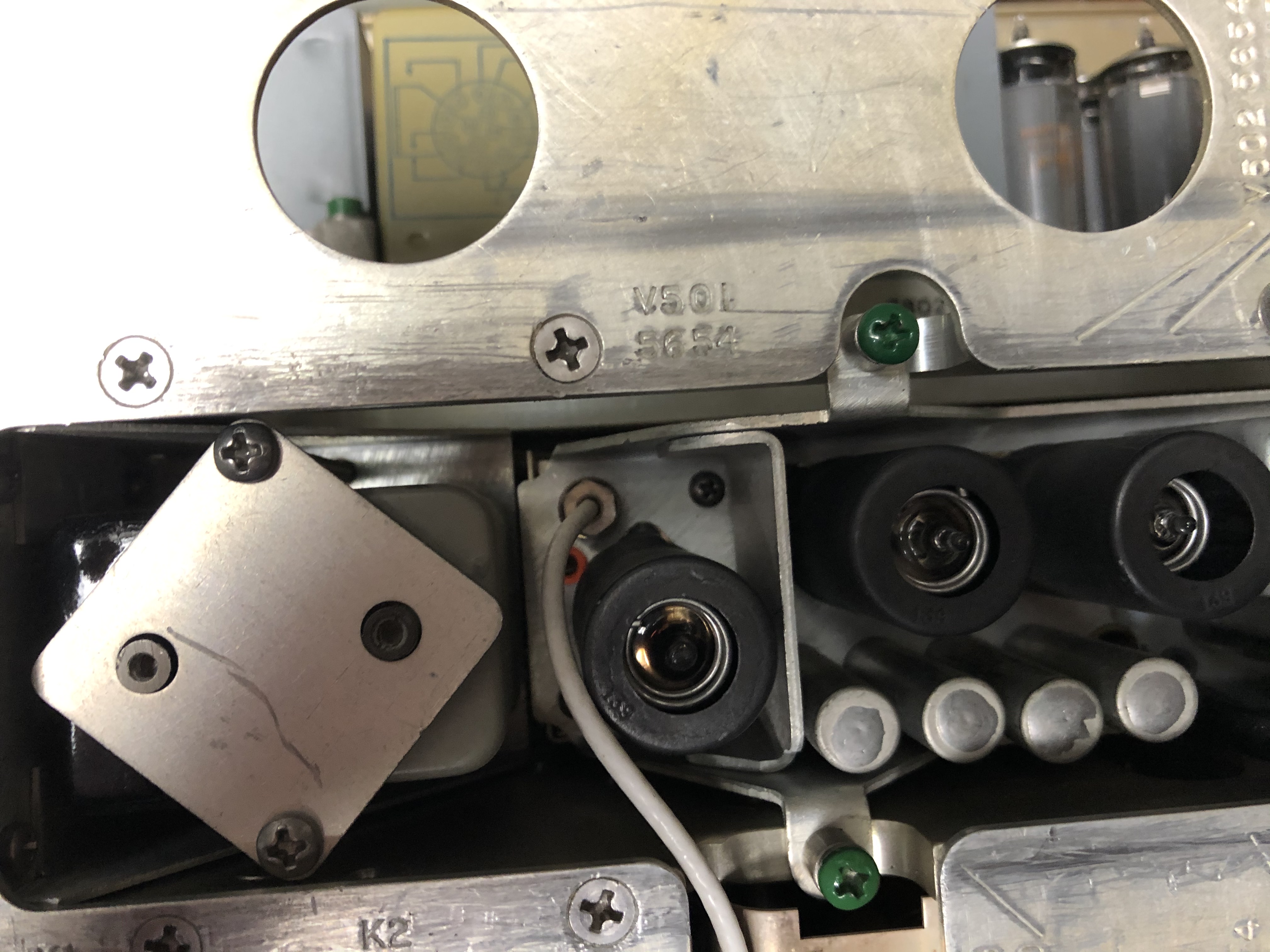

| L300 series coils do have slugs but they are pretty deep
down |
 |
 |
== |

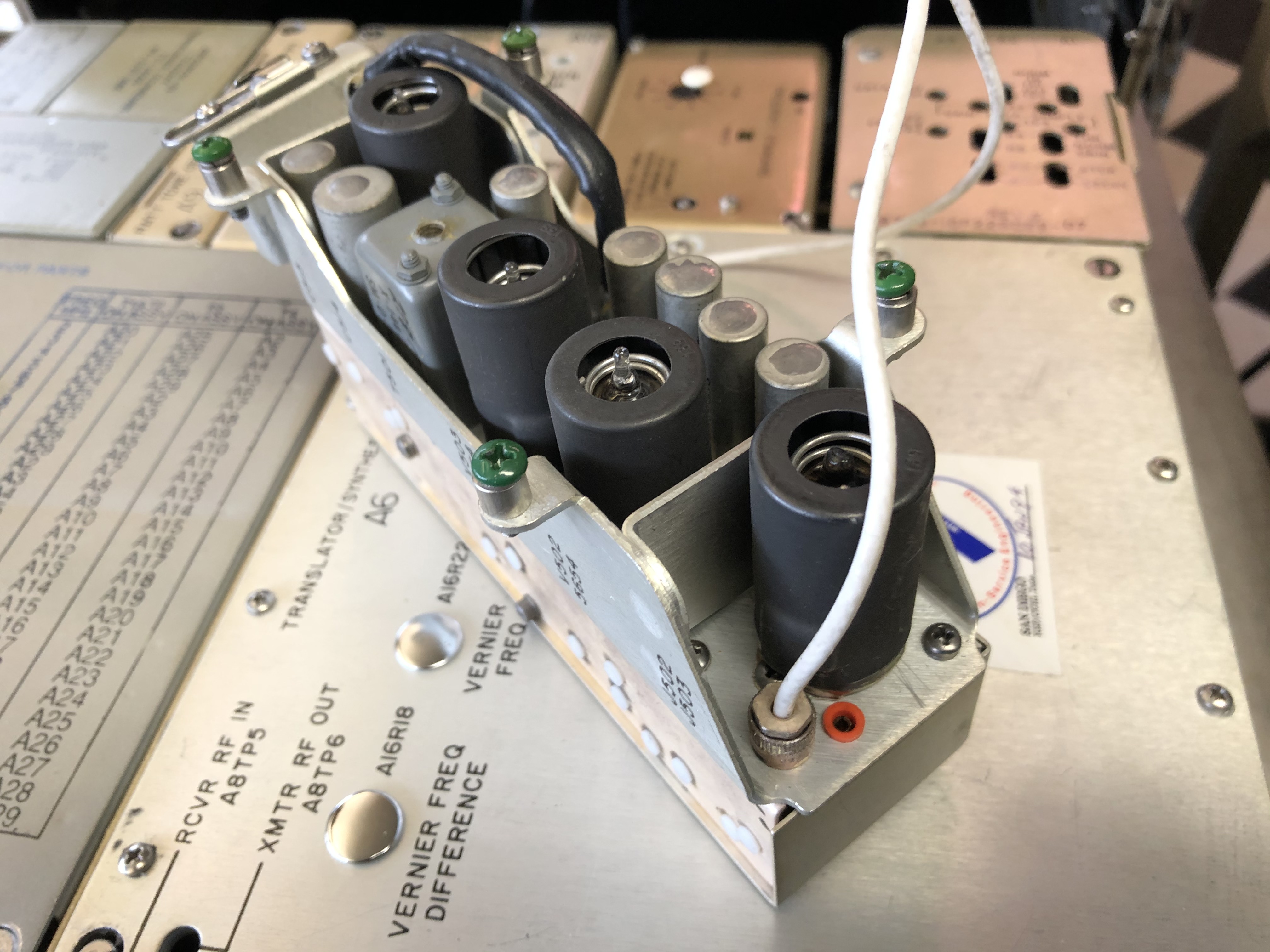

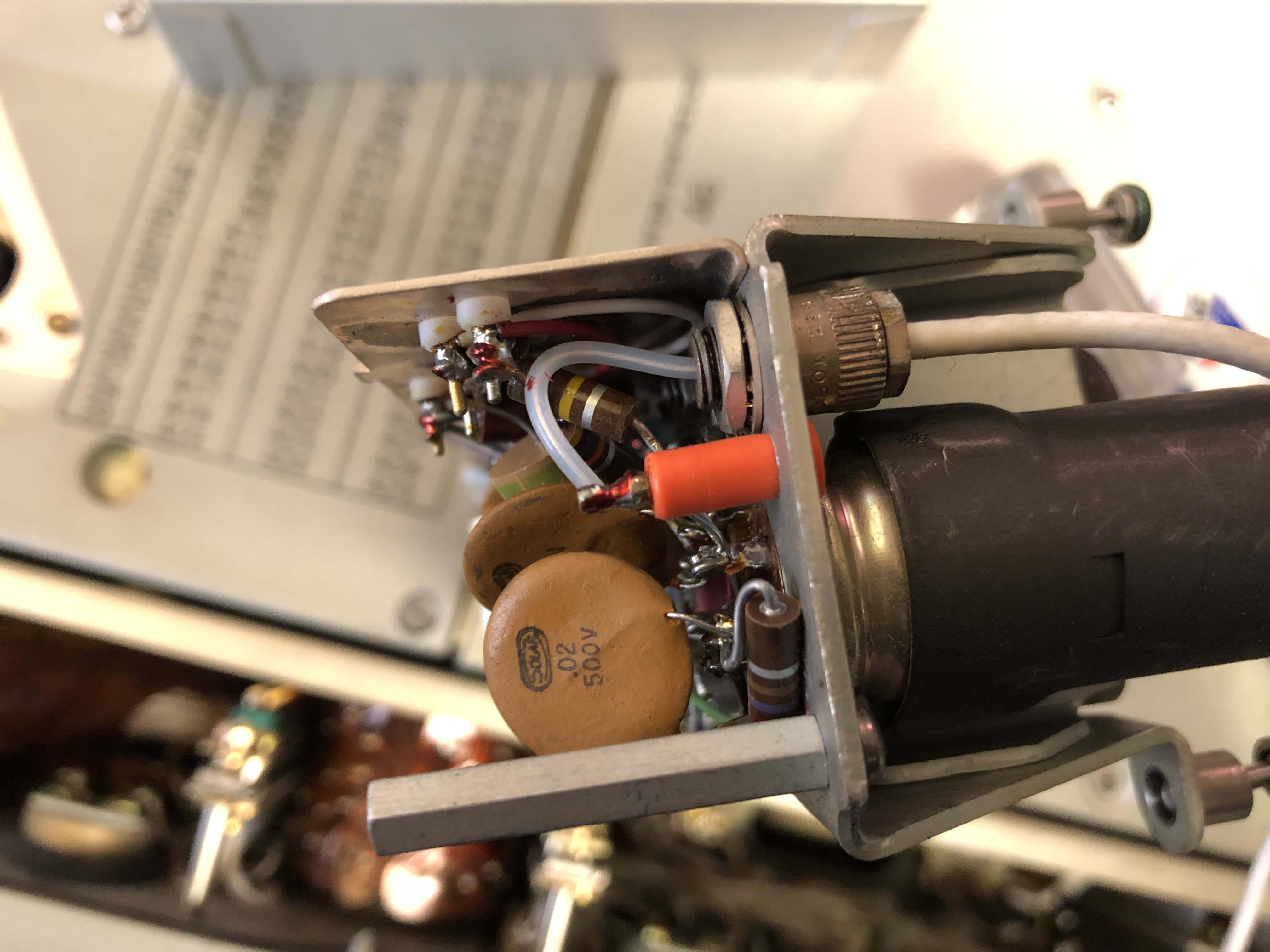

Filter FL-901 IN connector

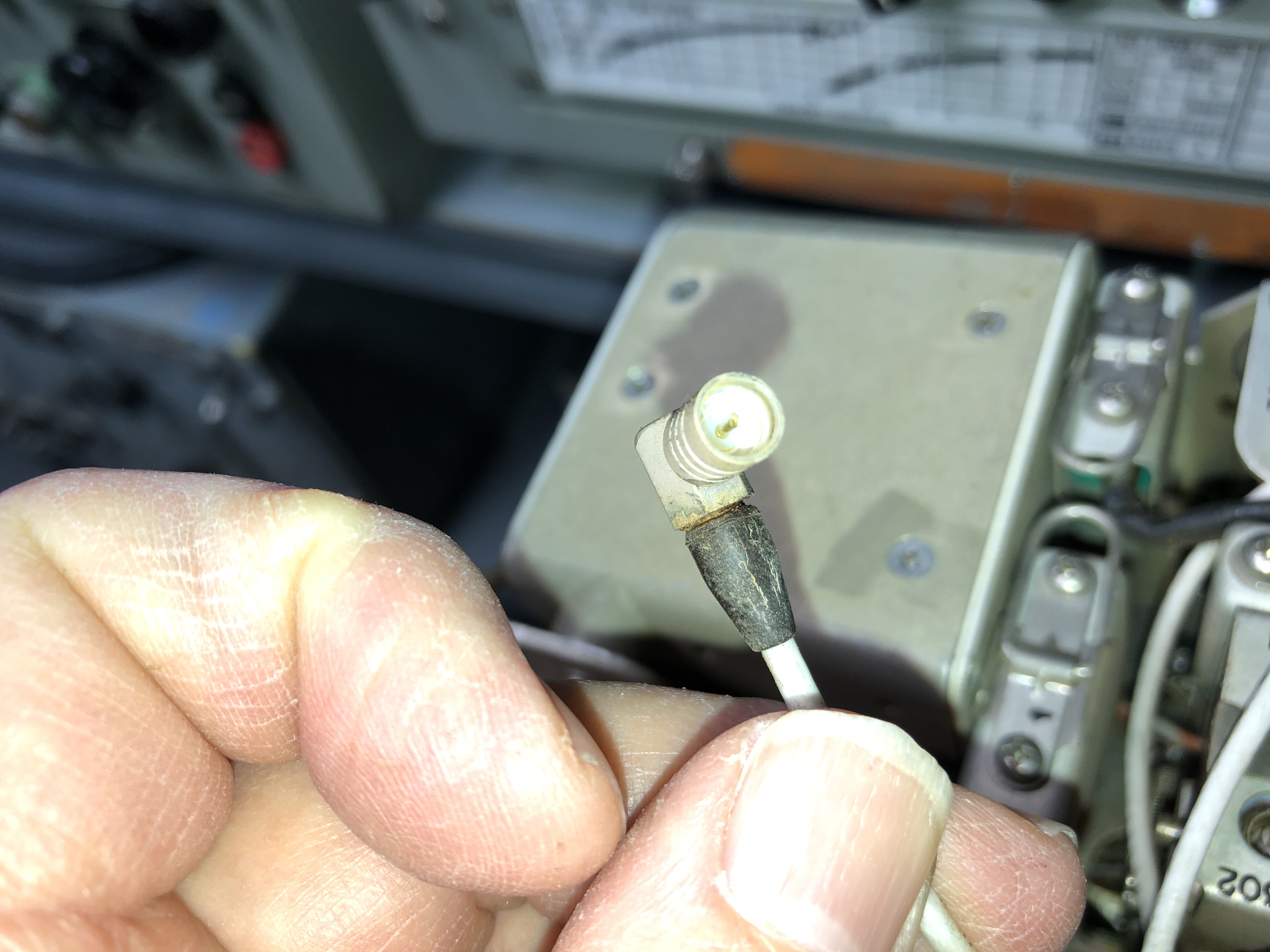

Cable plugs into 400 series module
|
 |
 |
== |
| Filter FL-901 OUT cable goes to 500 series module - hardwired |
 |
 |
 |
