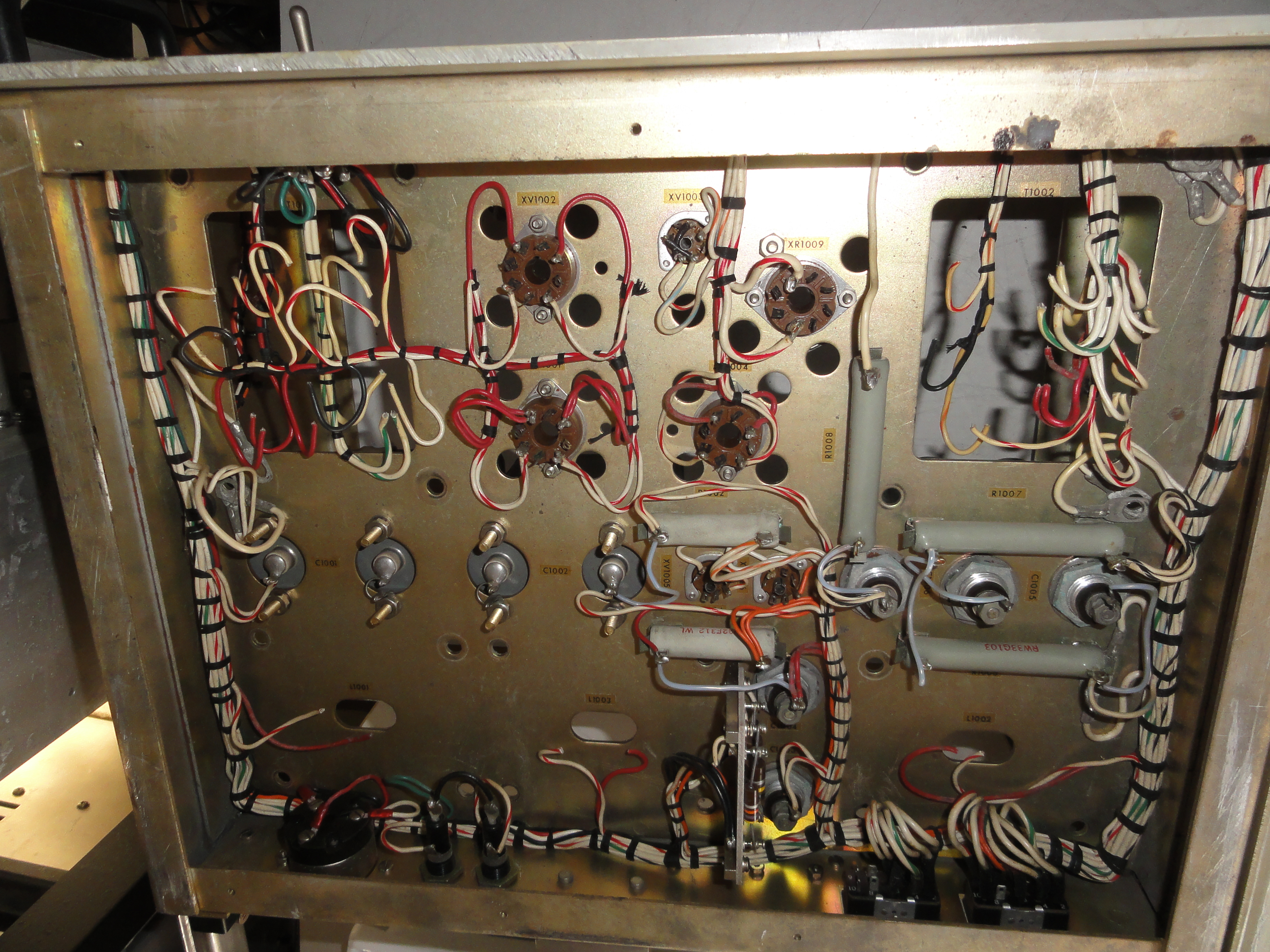

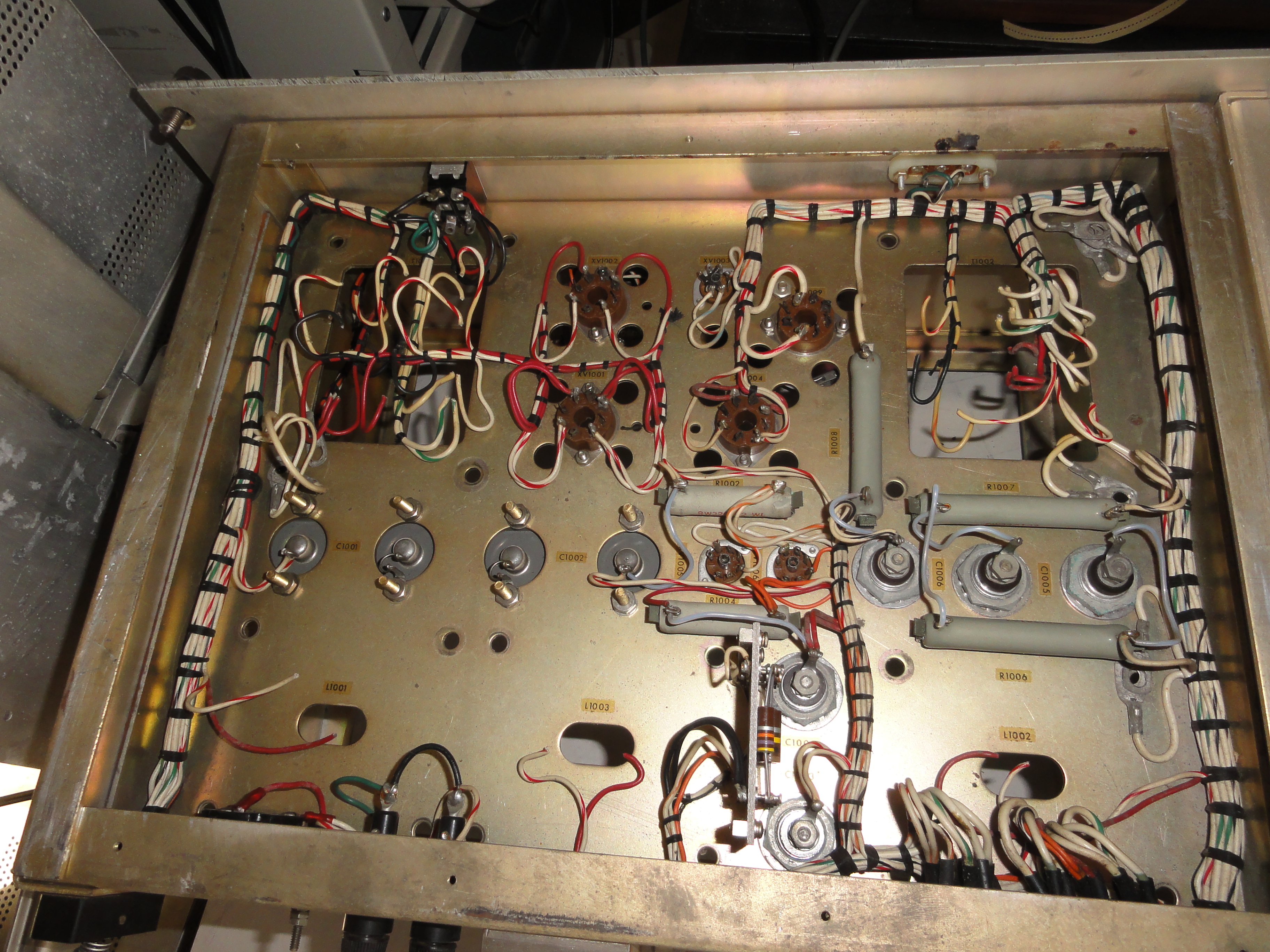

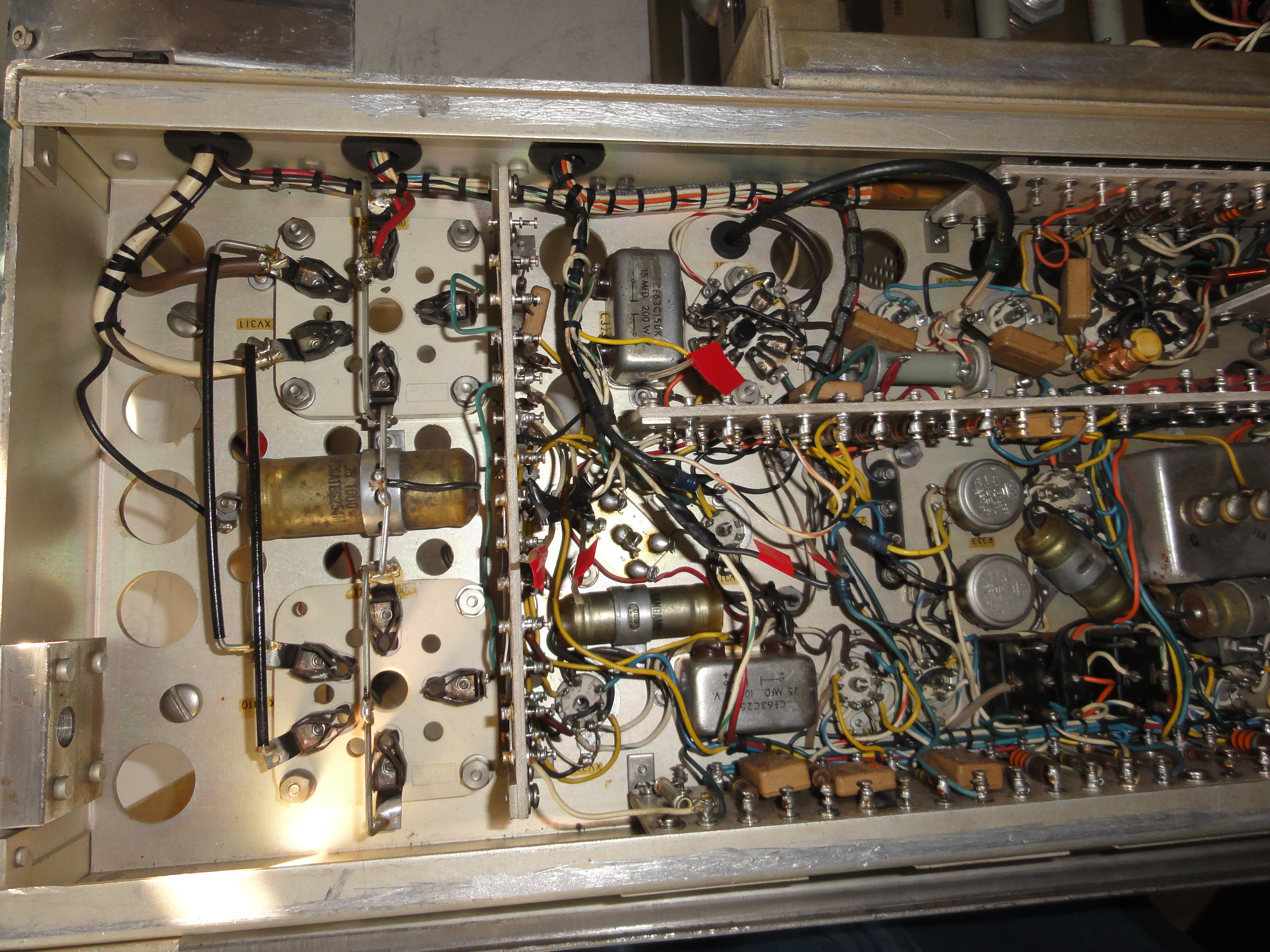

Drawer 4 - Modulator and MO/FSK power supply
Still need to re-install transformers in p/s
Drawer 3 - RF Deck
Drawer 2 - PA Tank circuit - modified by previous owner
- ready to start re-assembly
Drawer 1 - Antenna Tuner - modified by previous owner

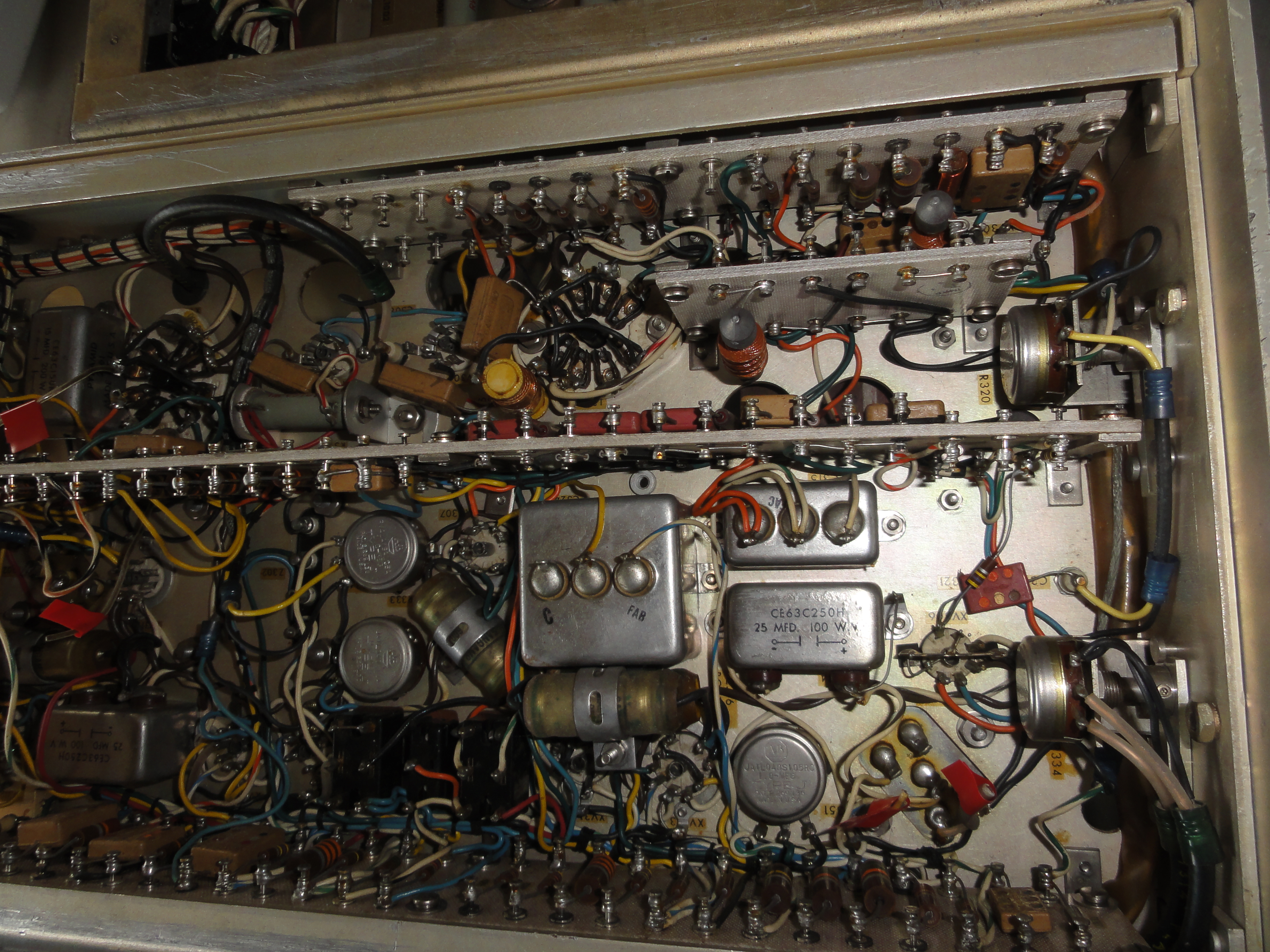

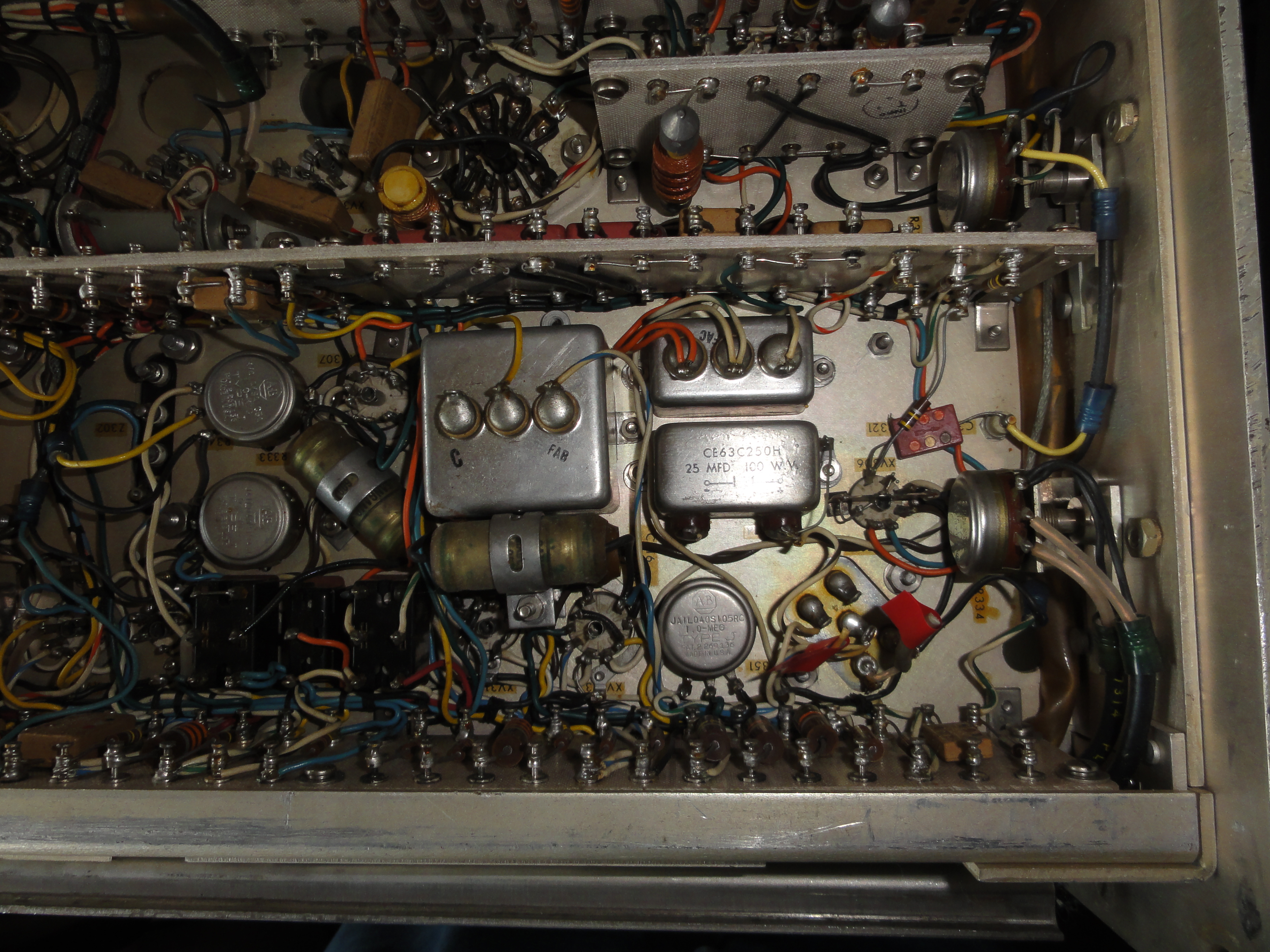

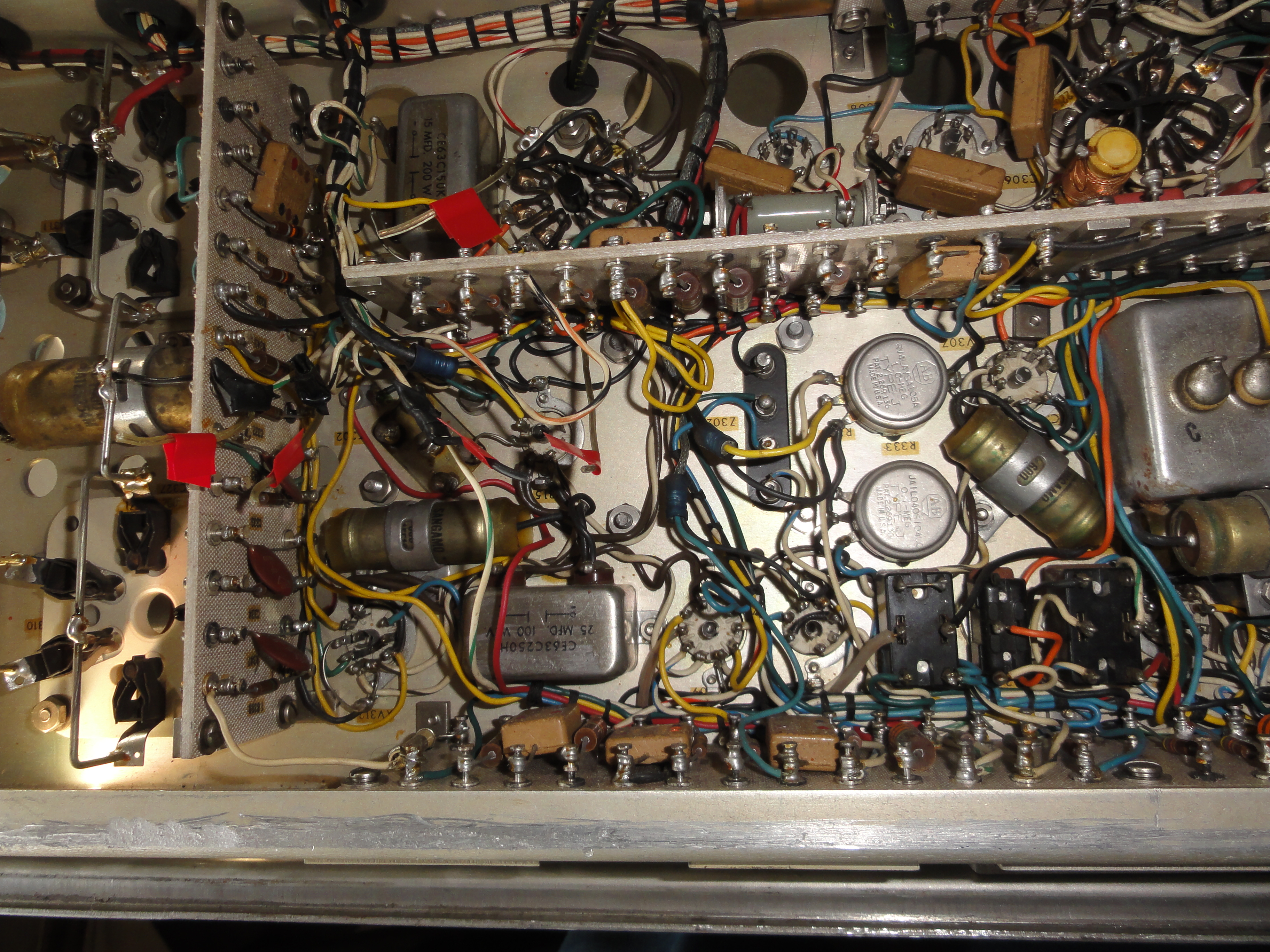

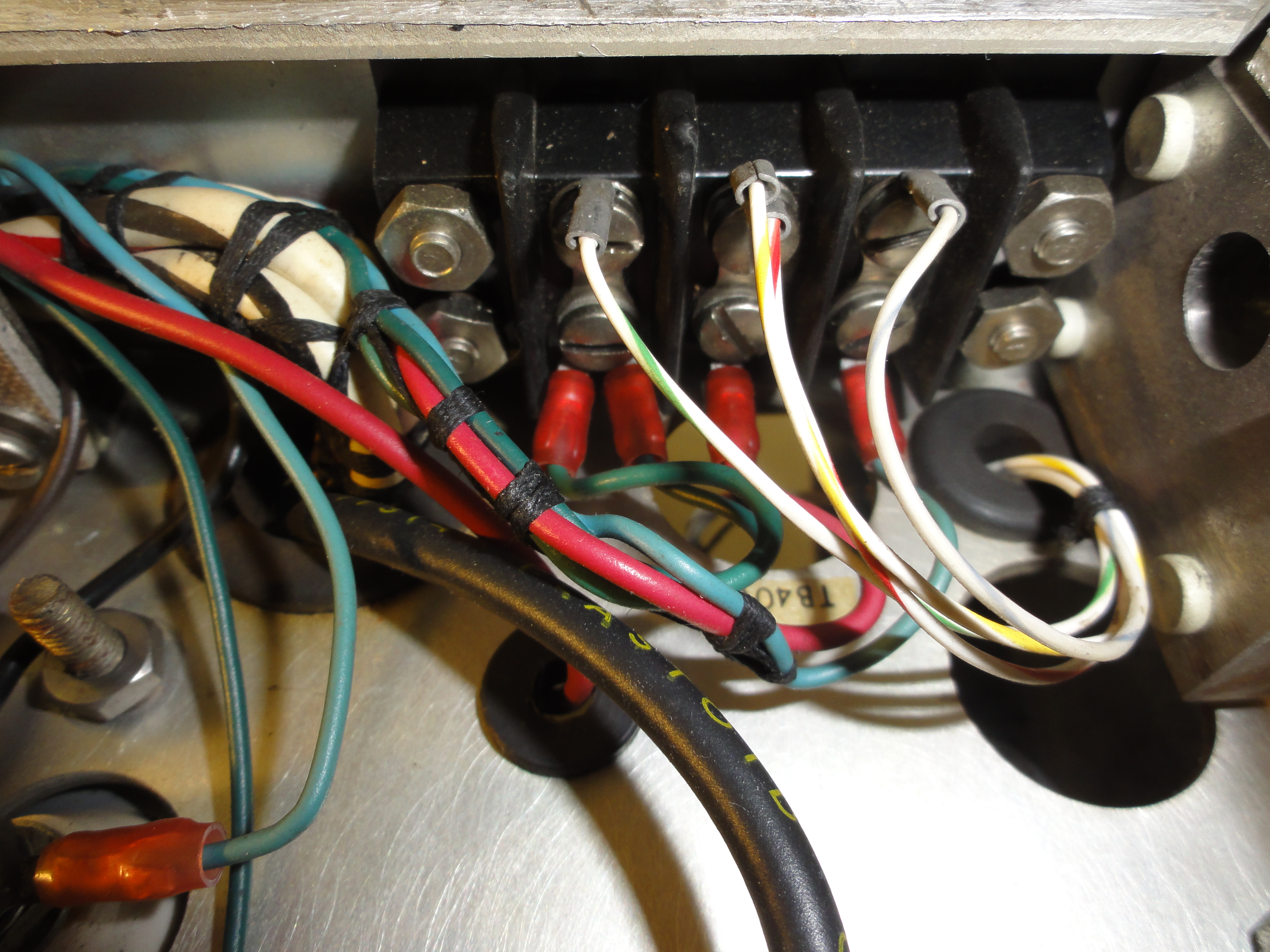

Drawer 4 - Modulator and MO/FSK power supply |
|||
|
|
|
|
|
|
|
|
|
|

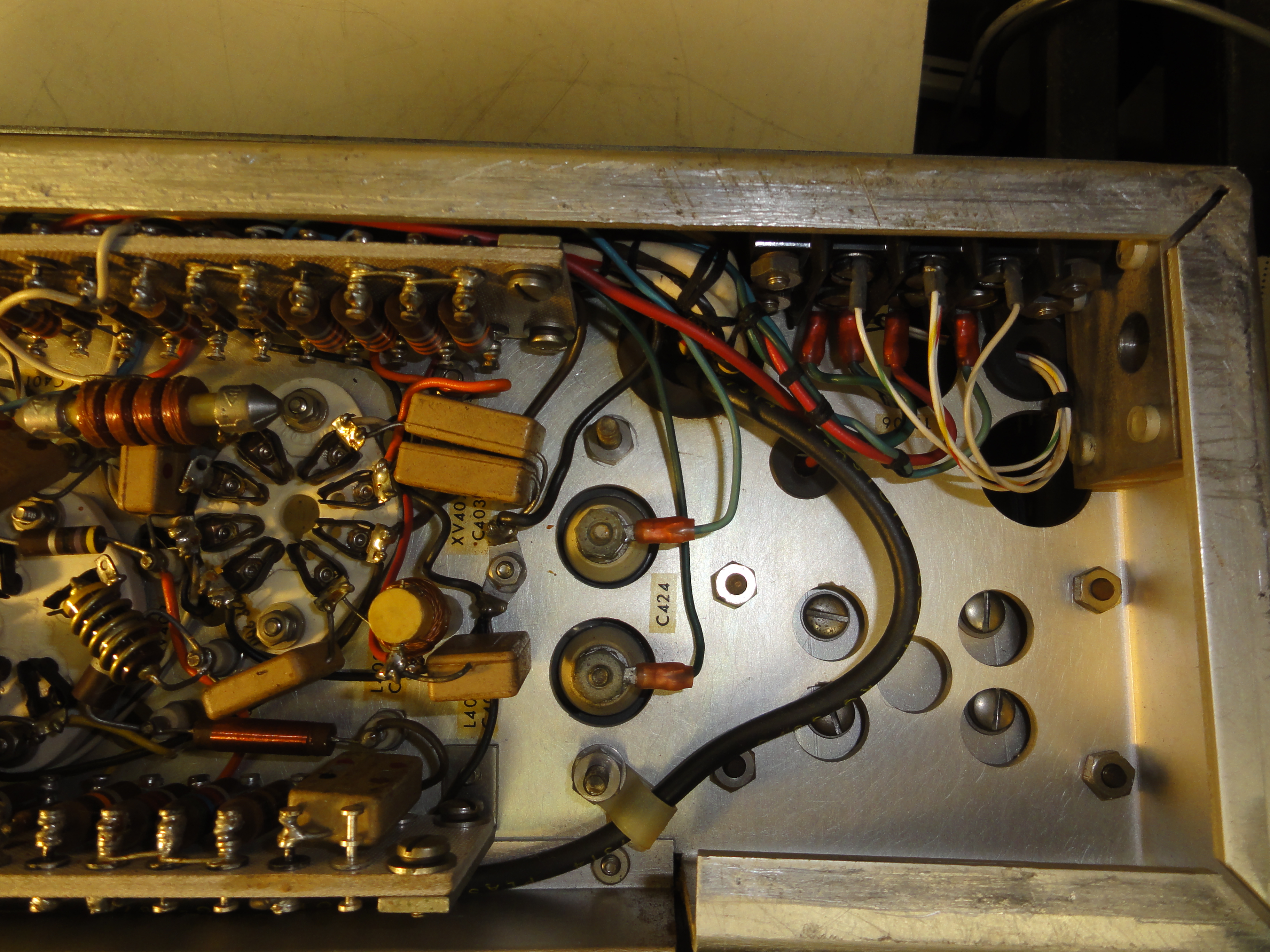

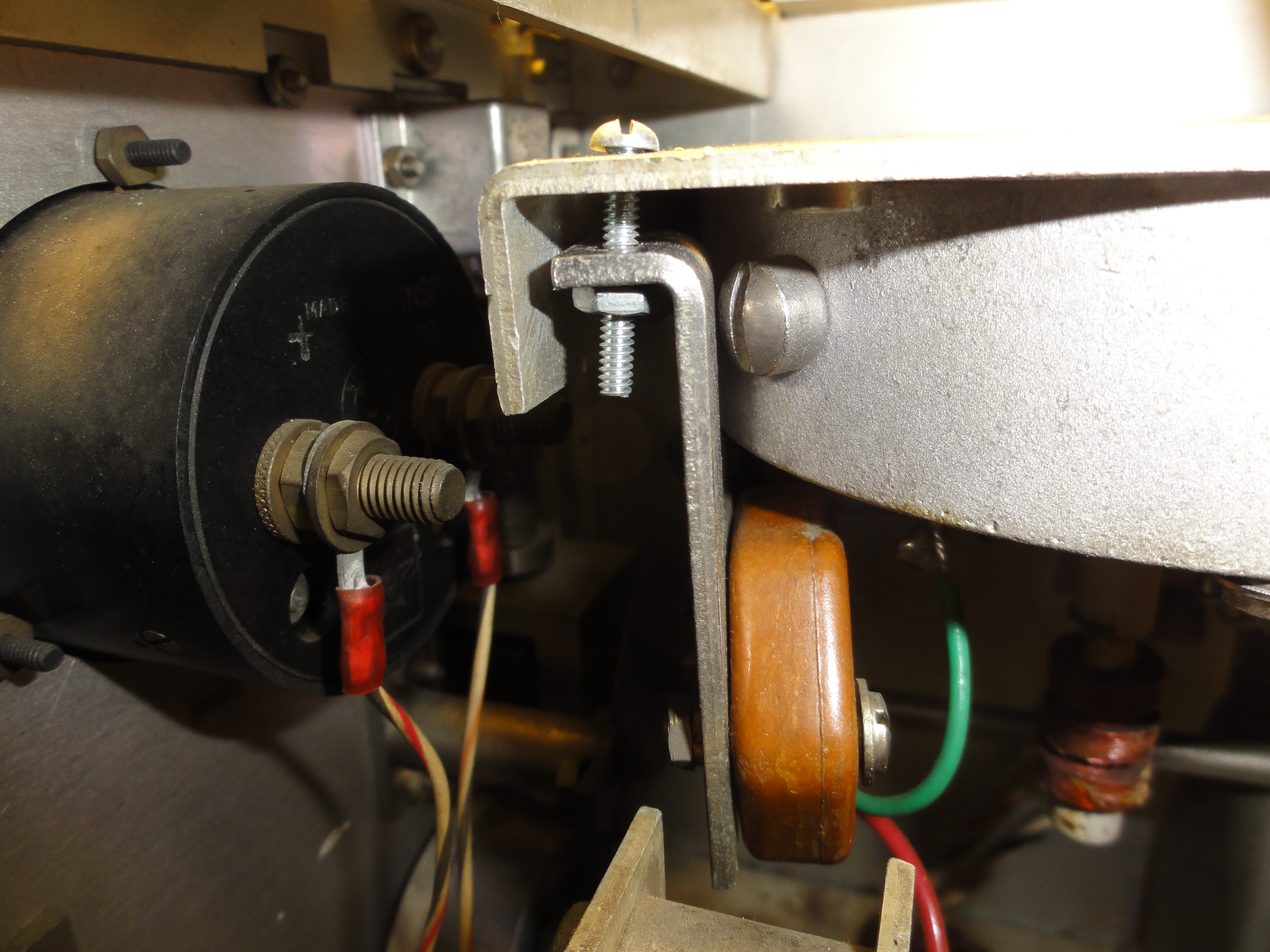

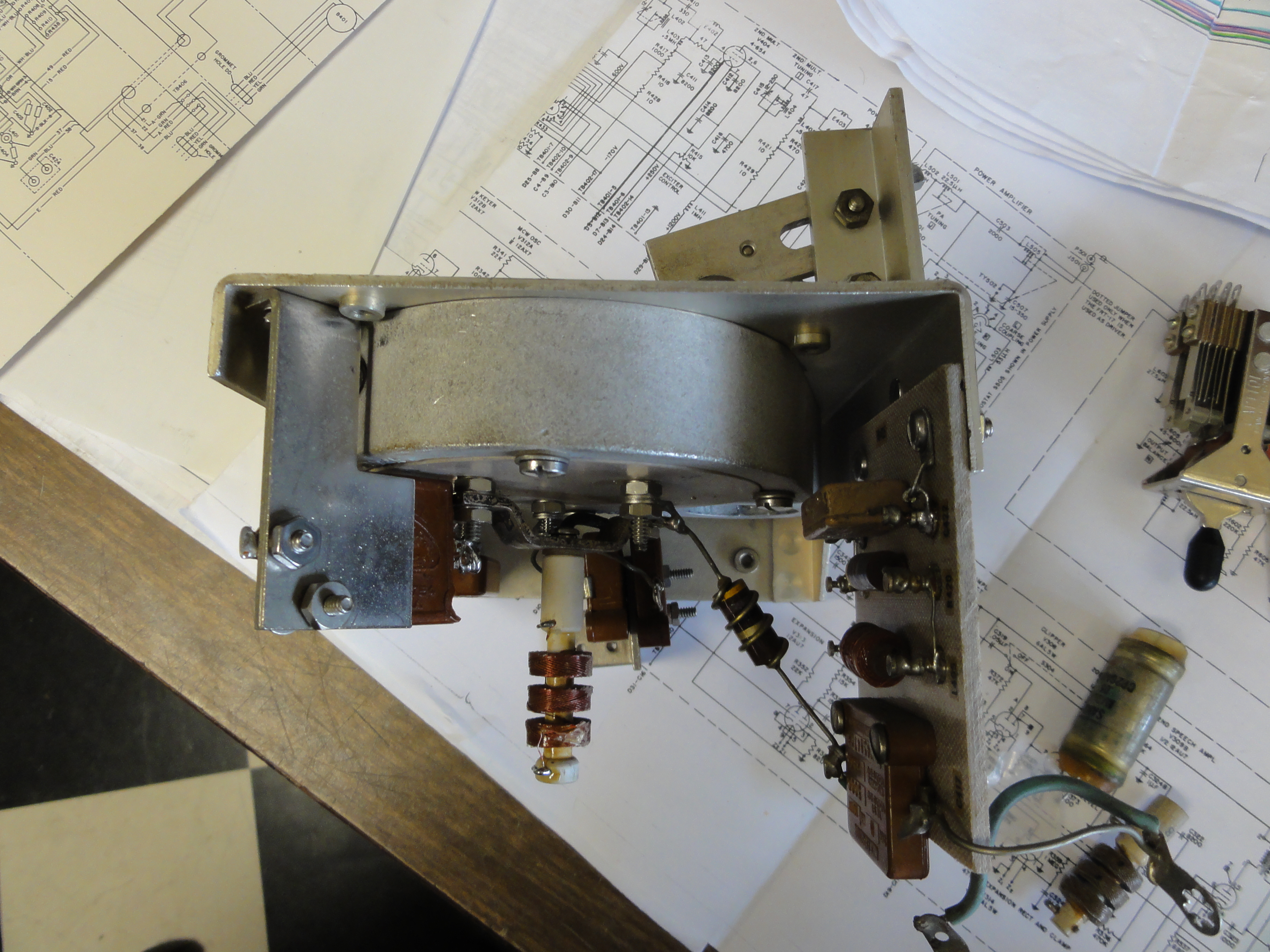

Electrolytics and Bathtub caps checked OK. Replaced paper caps with
orange drop mylars.
Still need to re-install transformers in p/s |
-- |

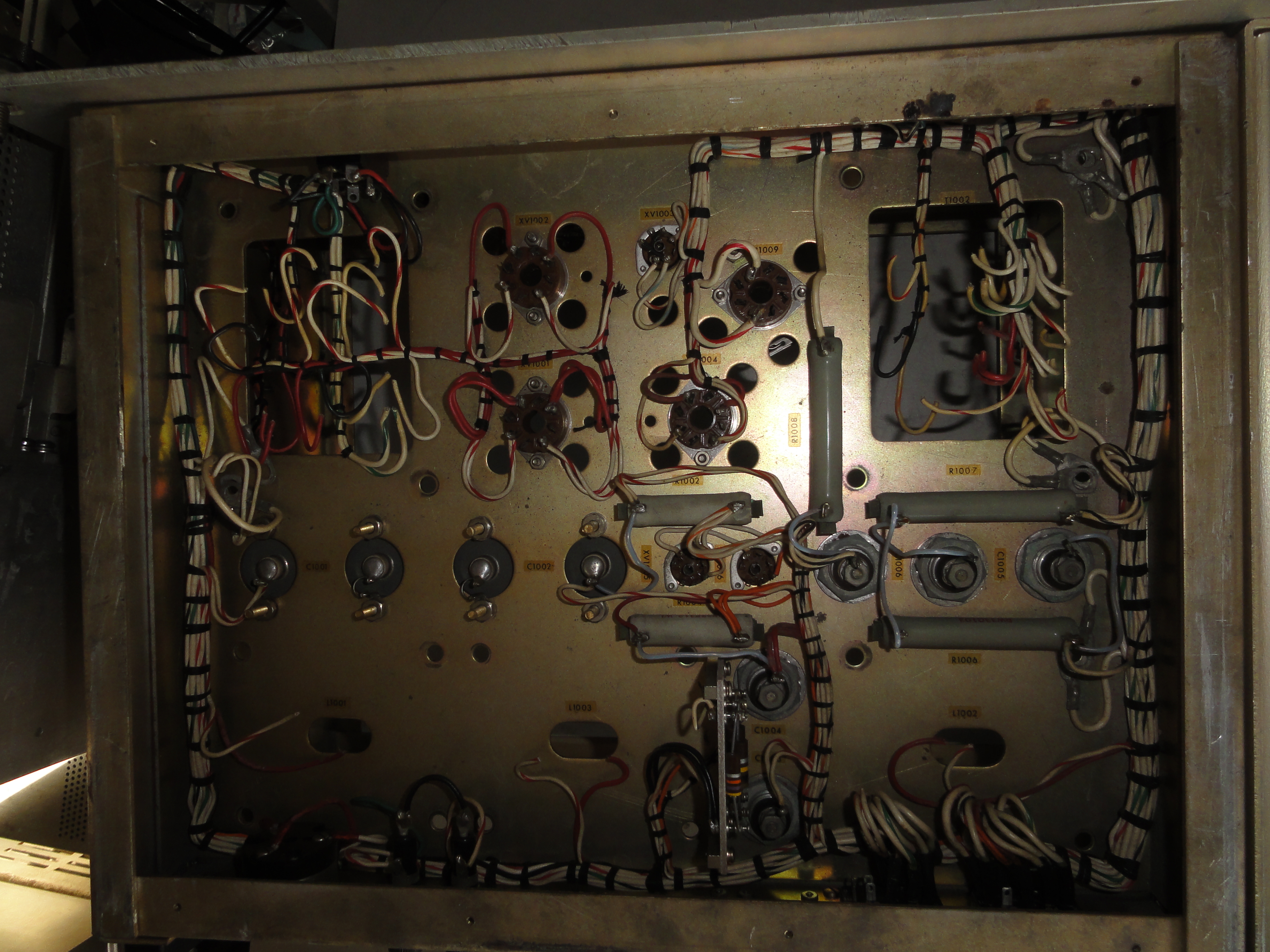

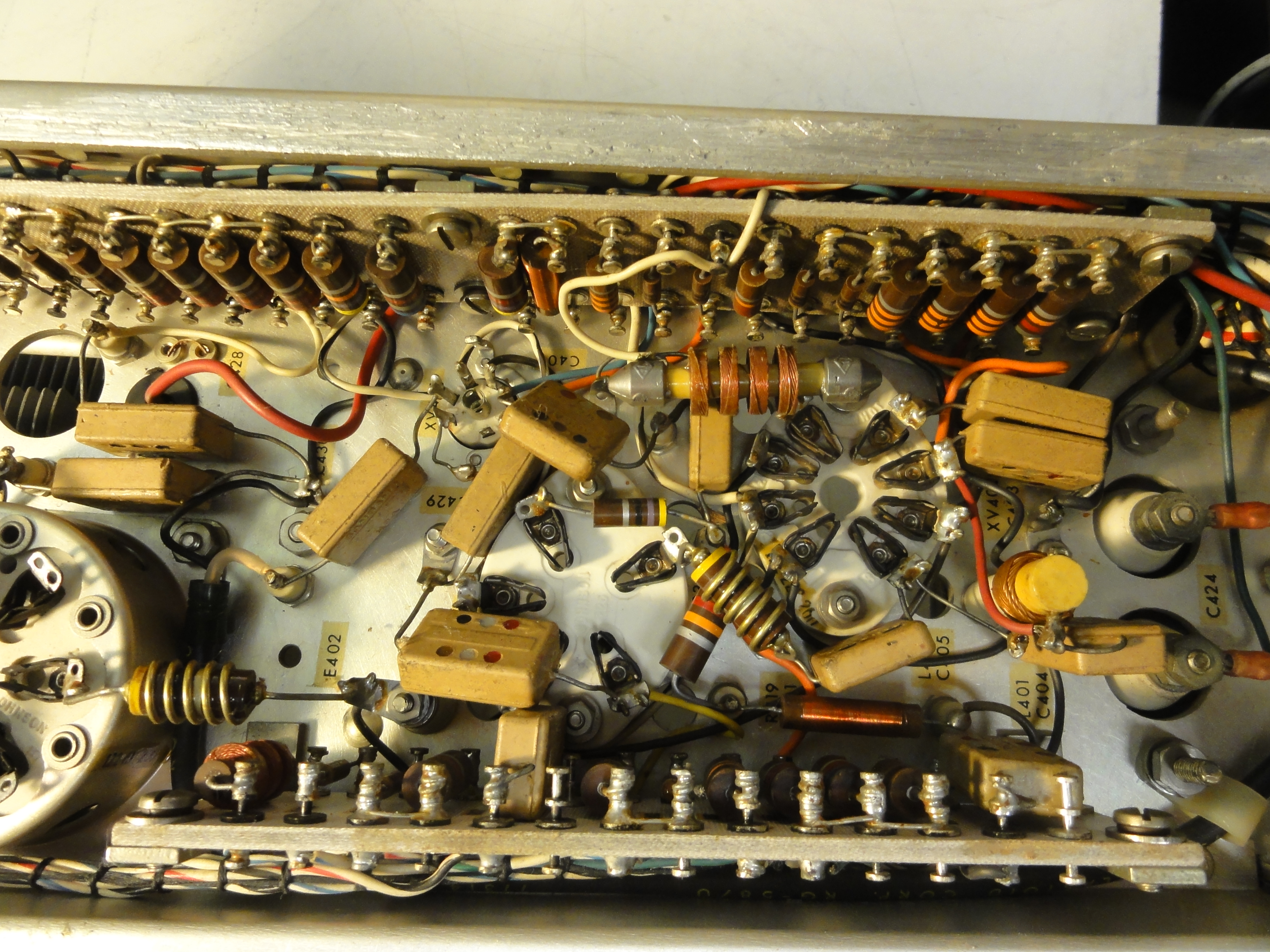

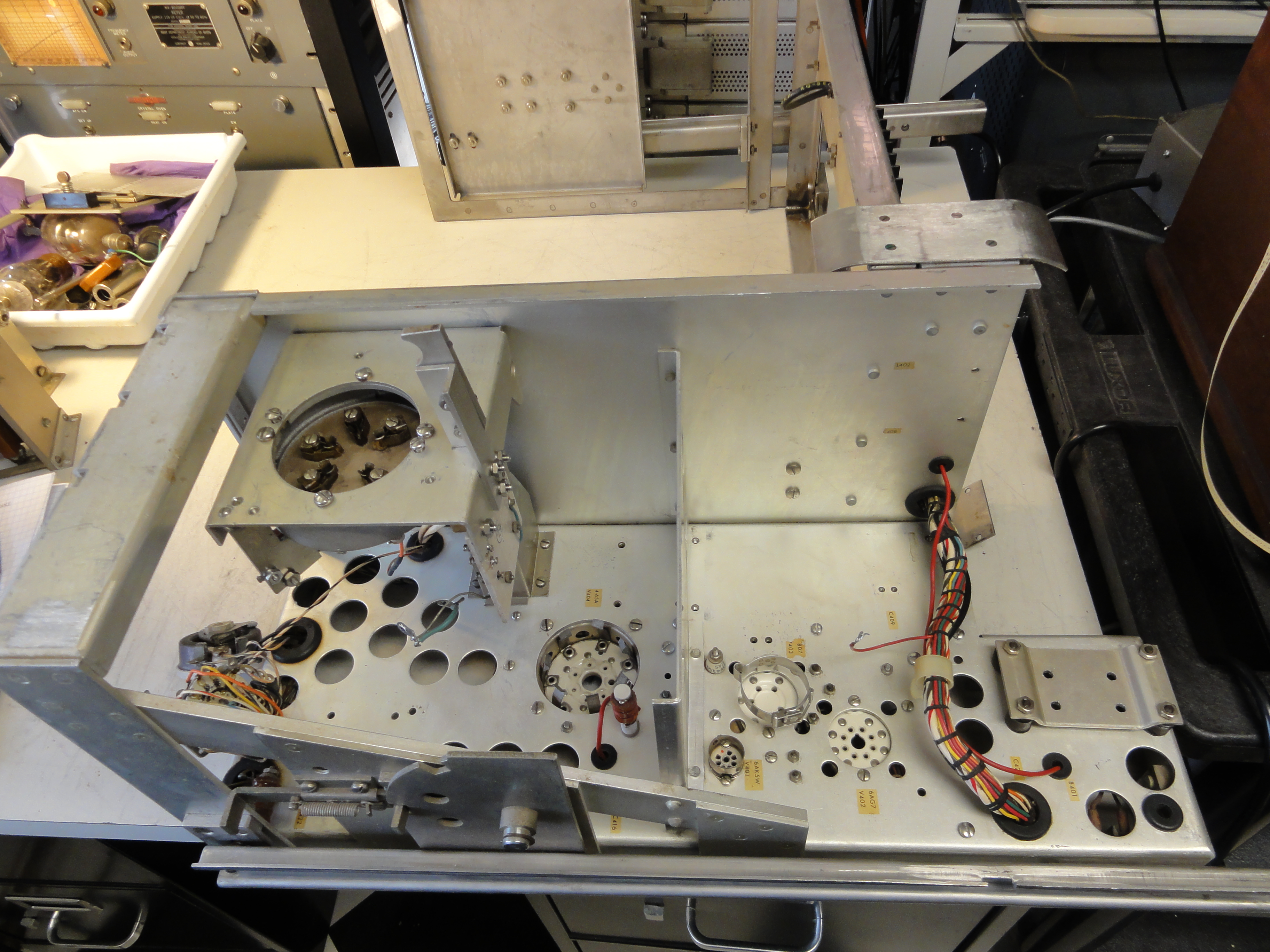

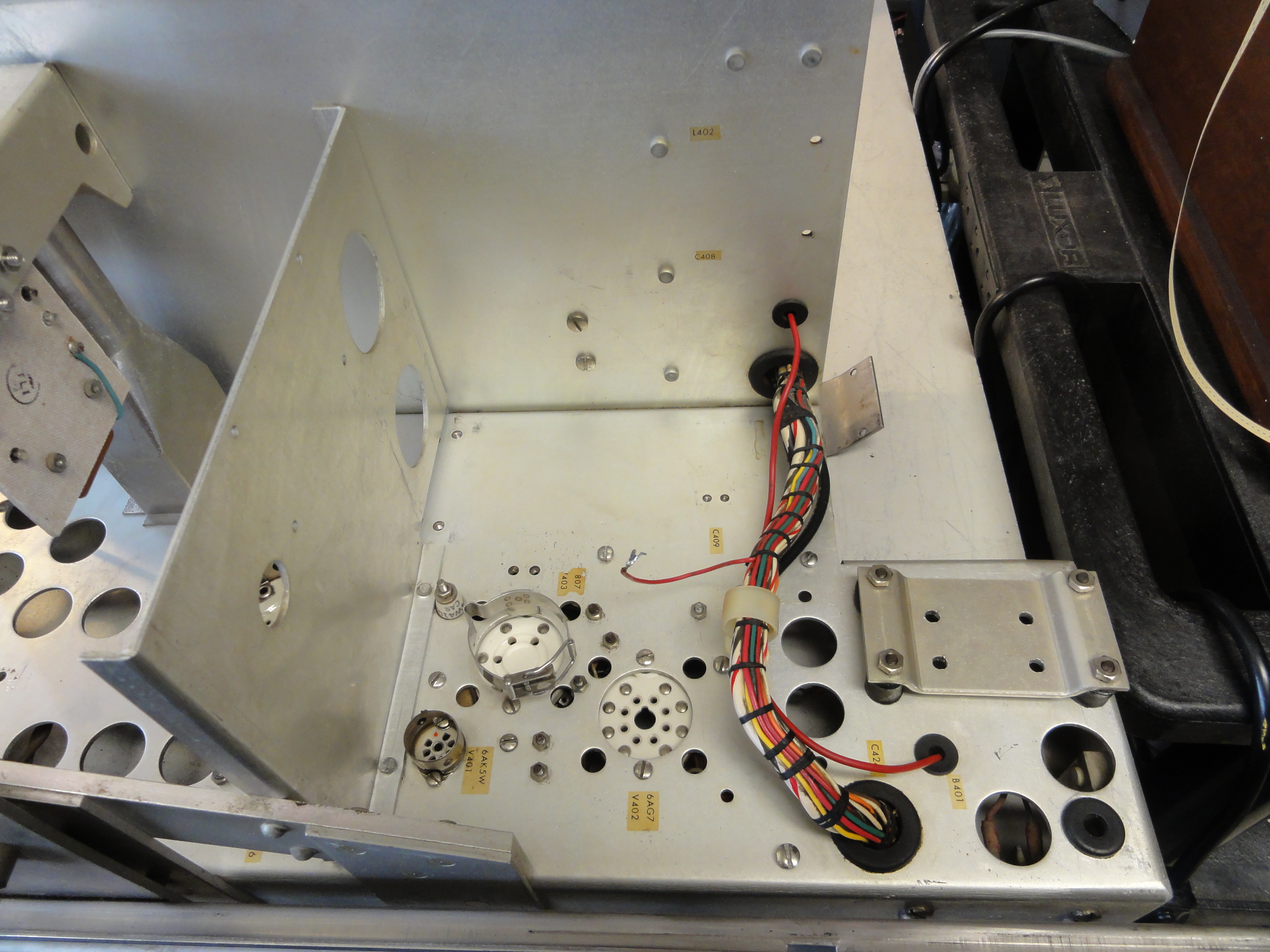

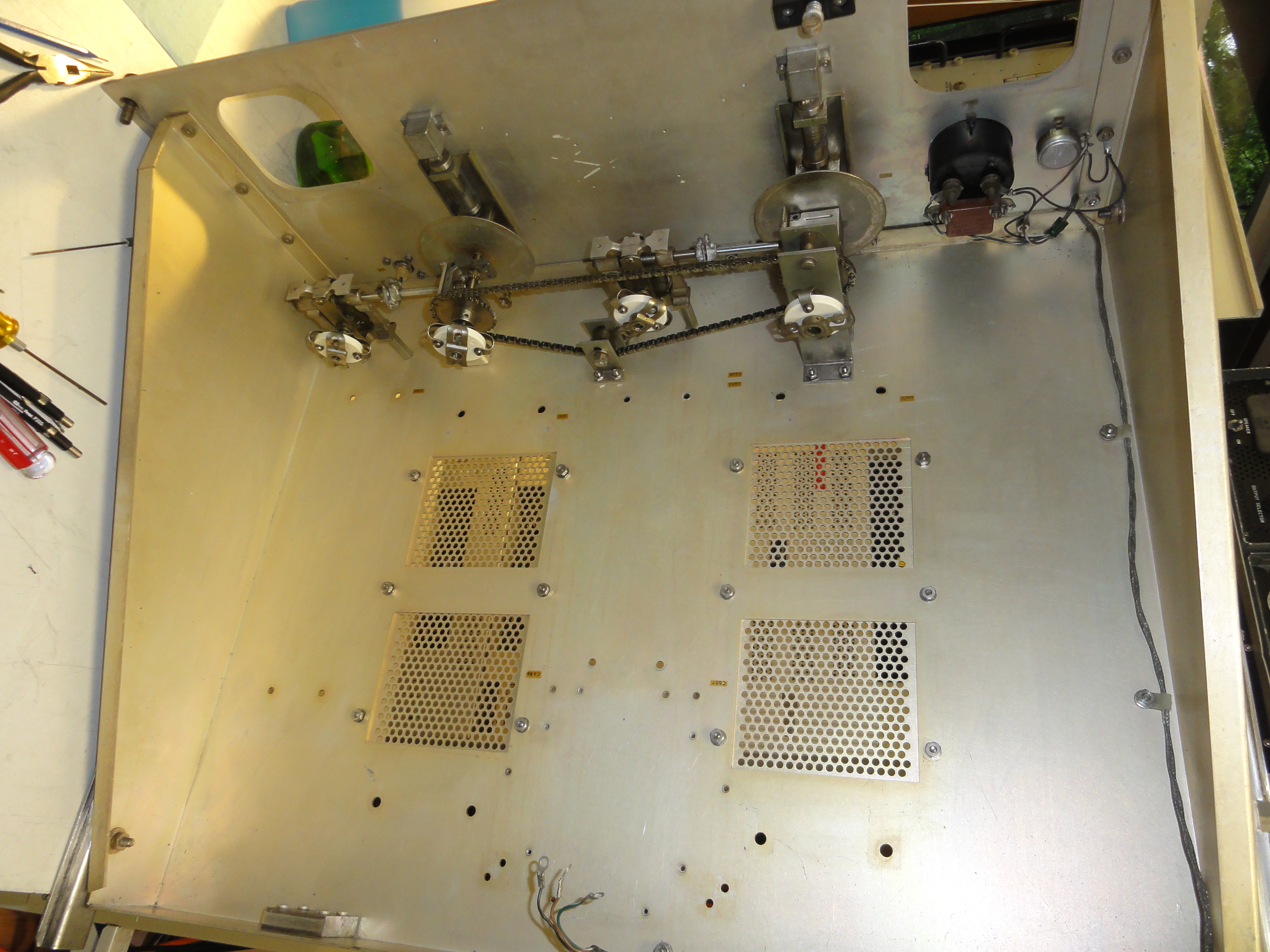

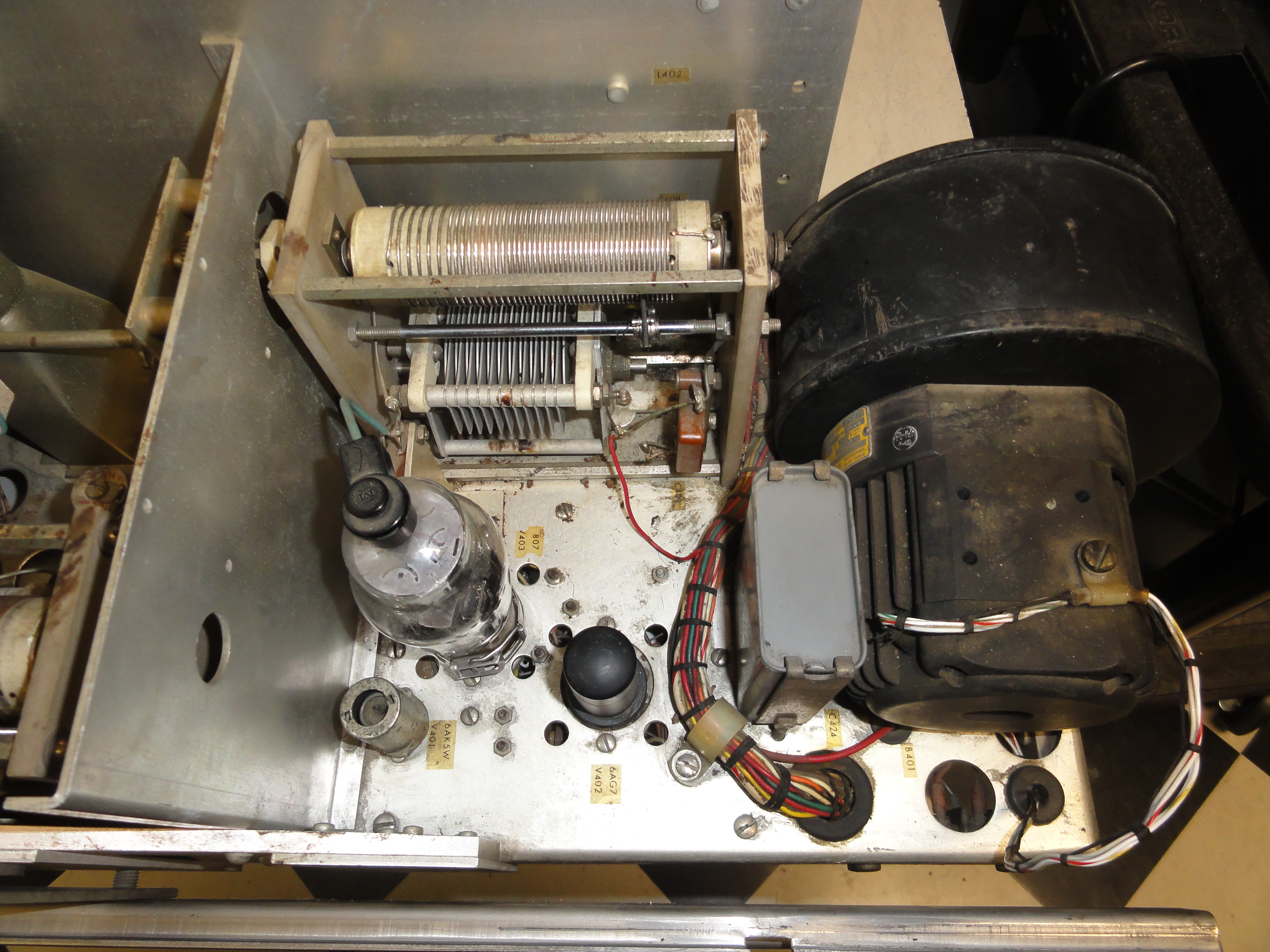

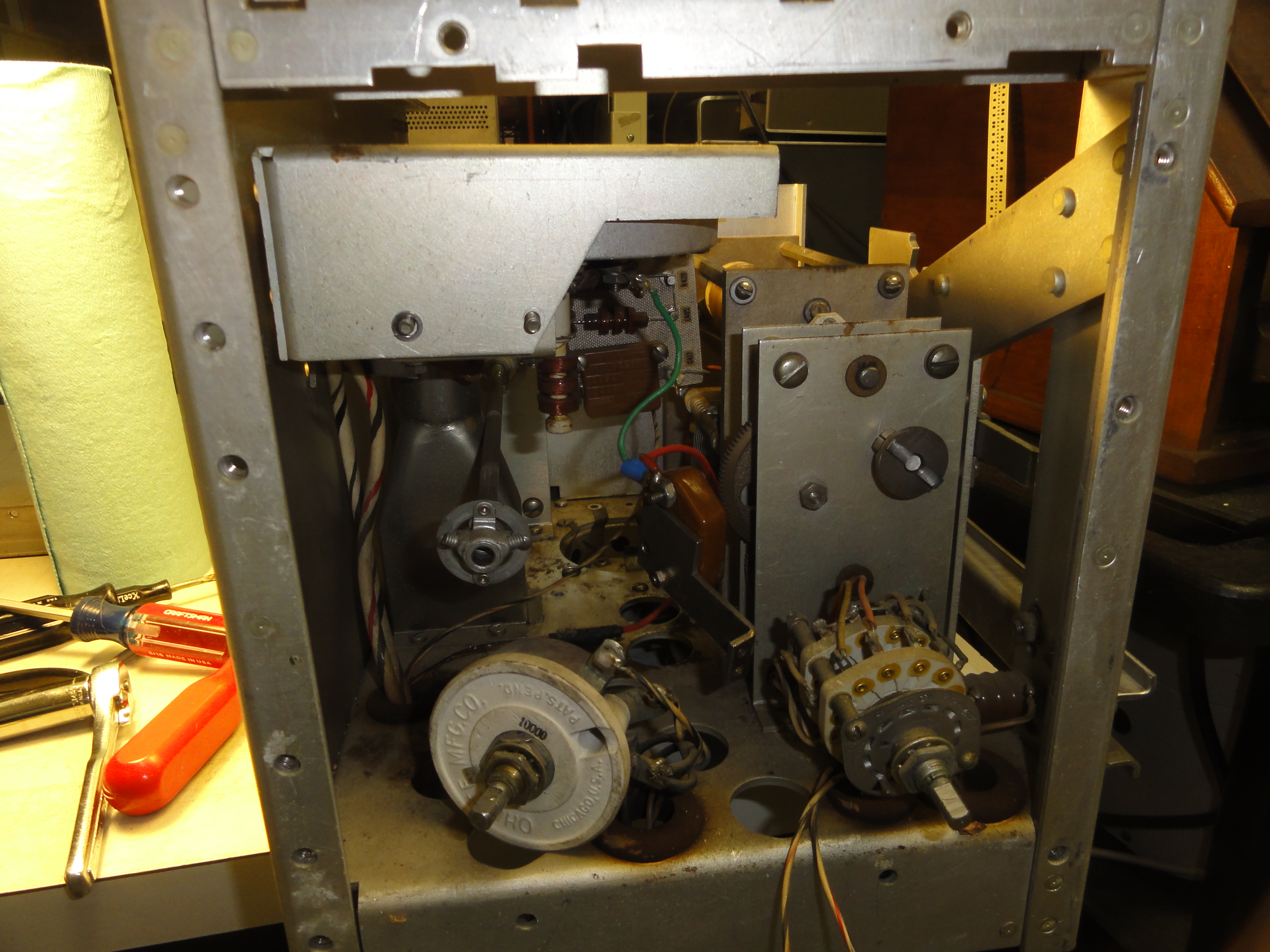

Drawer 3 - RF Deck |
|||

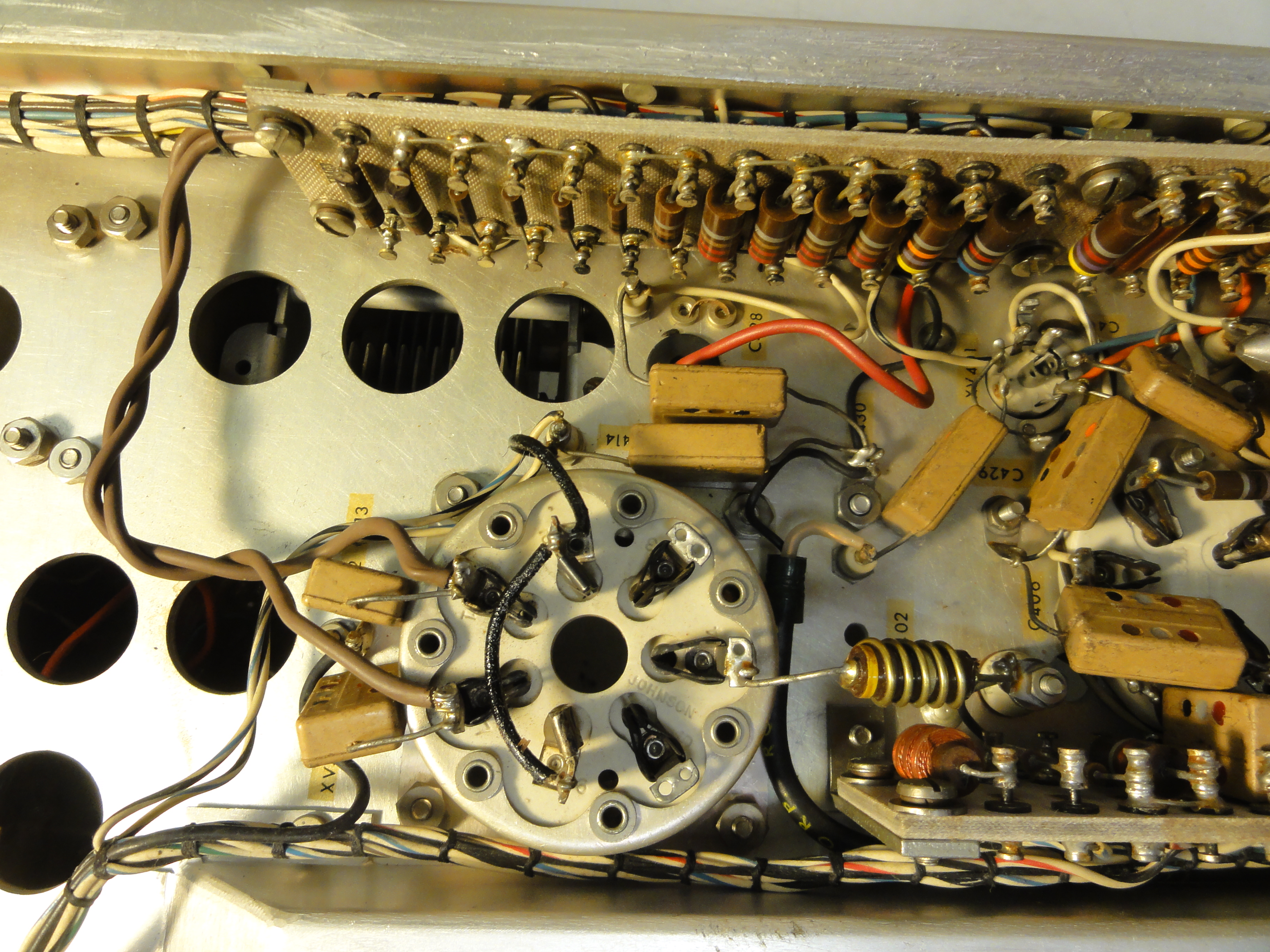

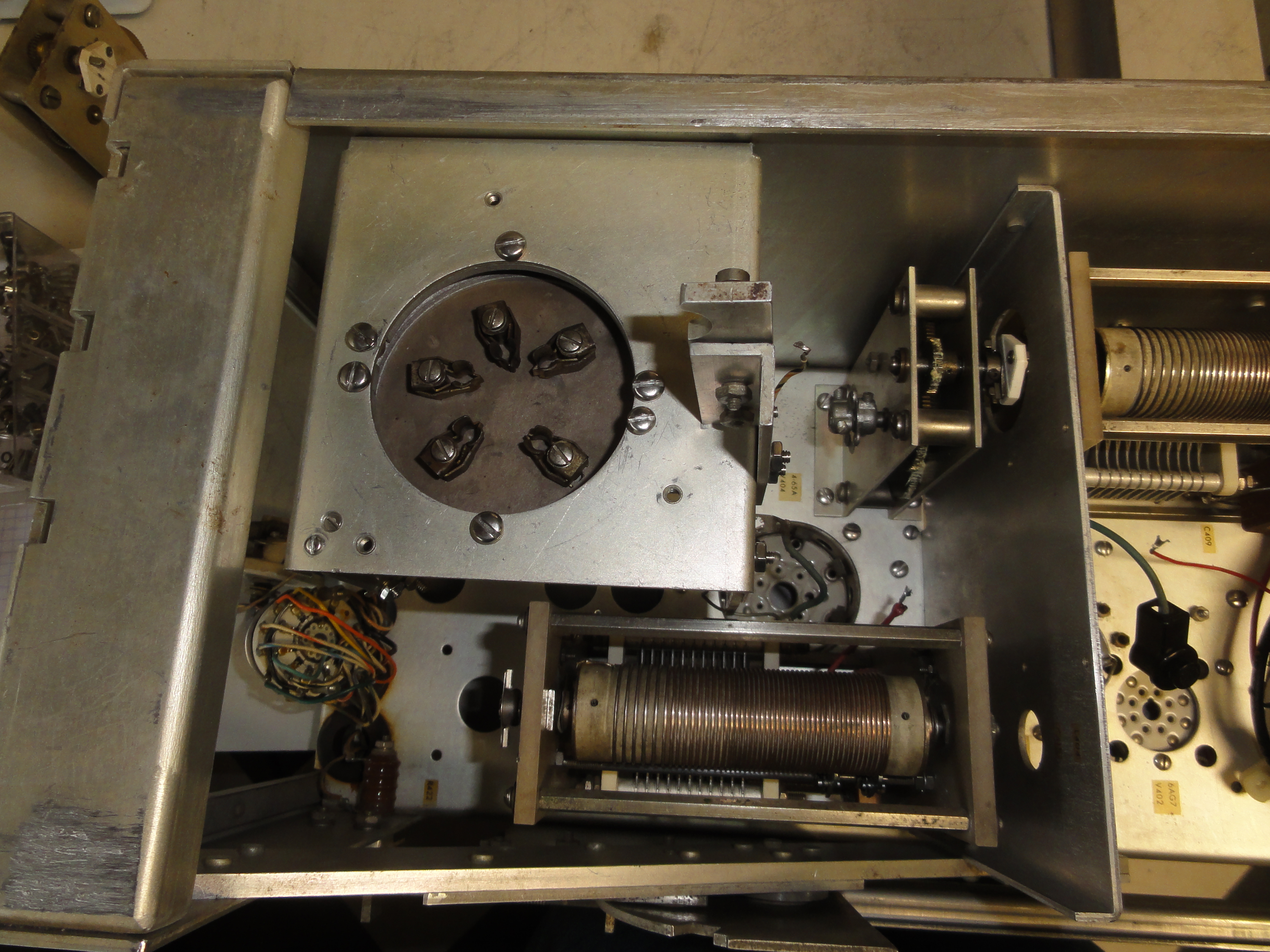

| 6AG7 buffer & 807 1st multiplier |
4-65 2nd multiplier |

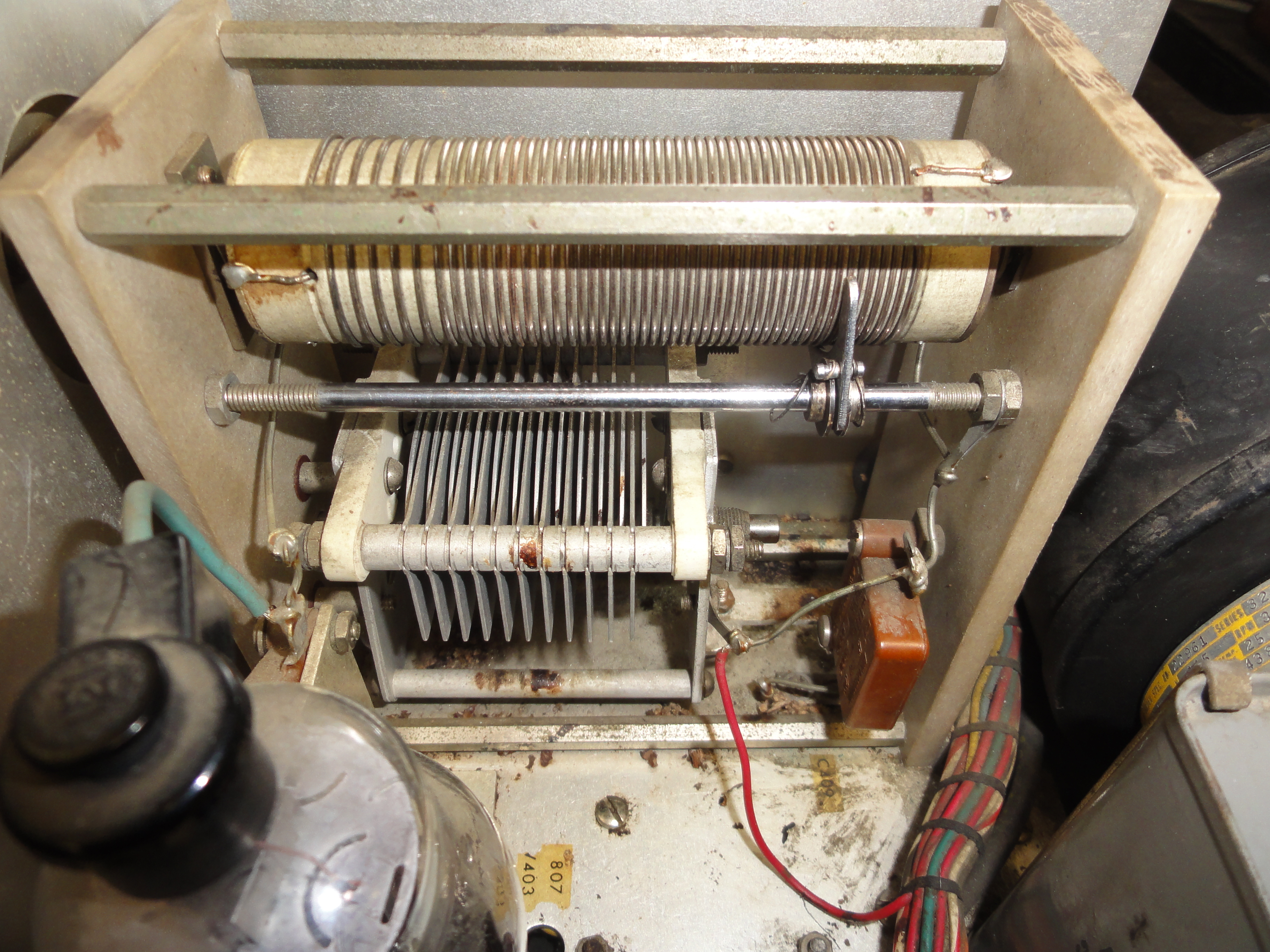

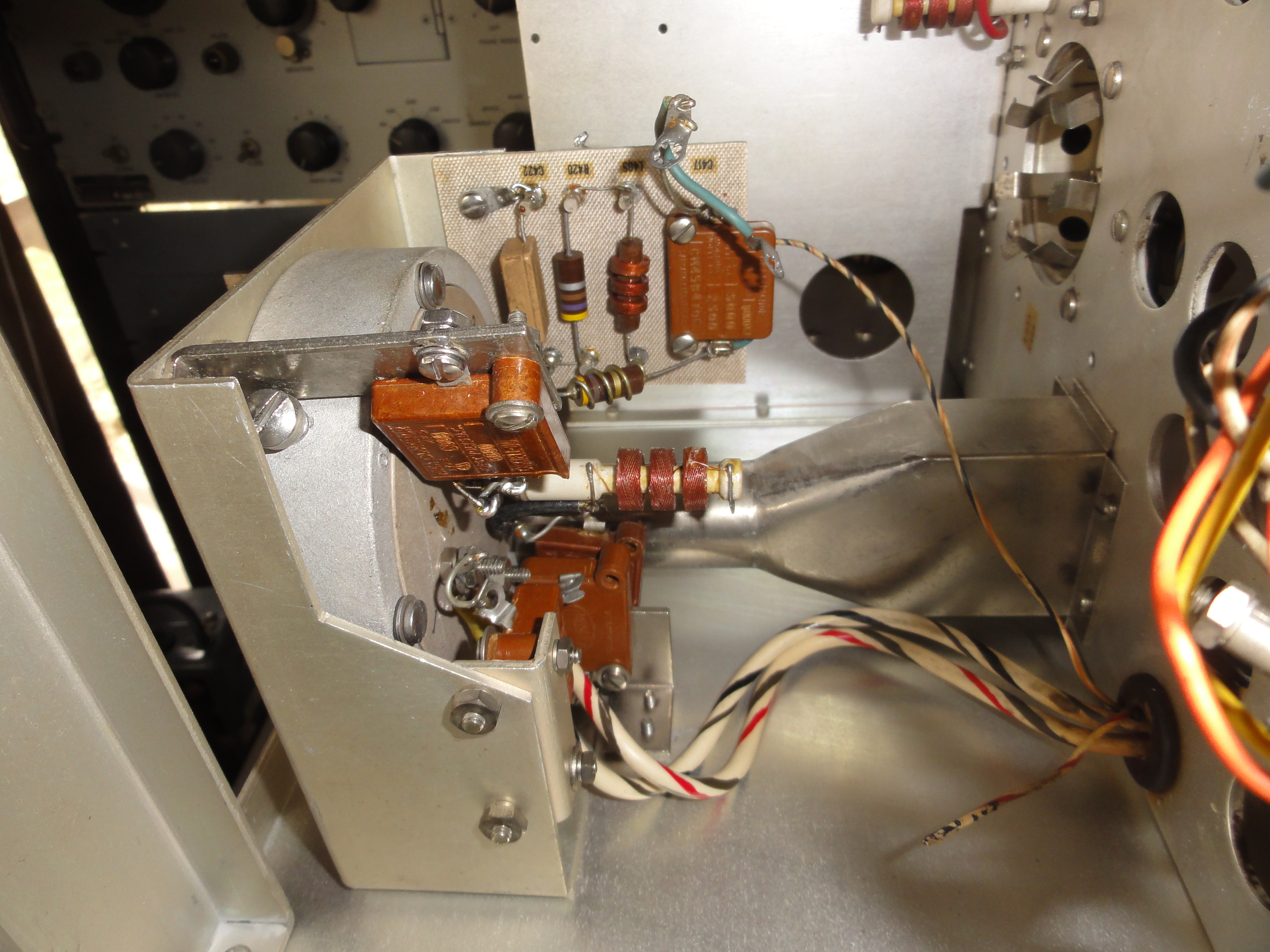

4-400 input circuitry |
|

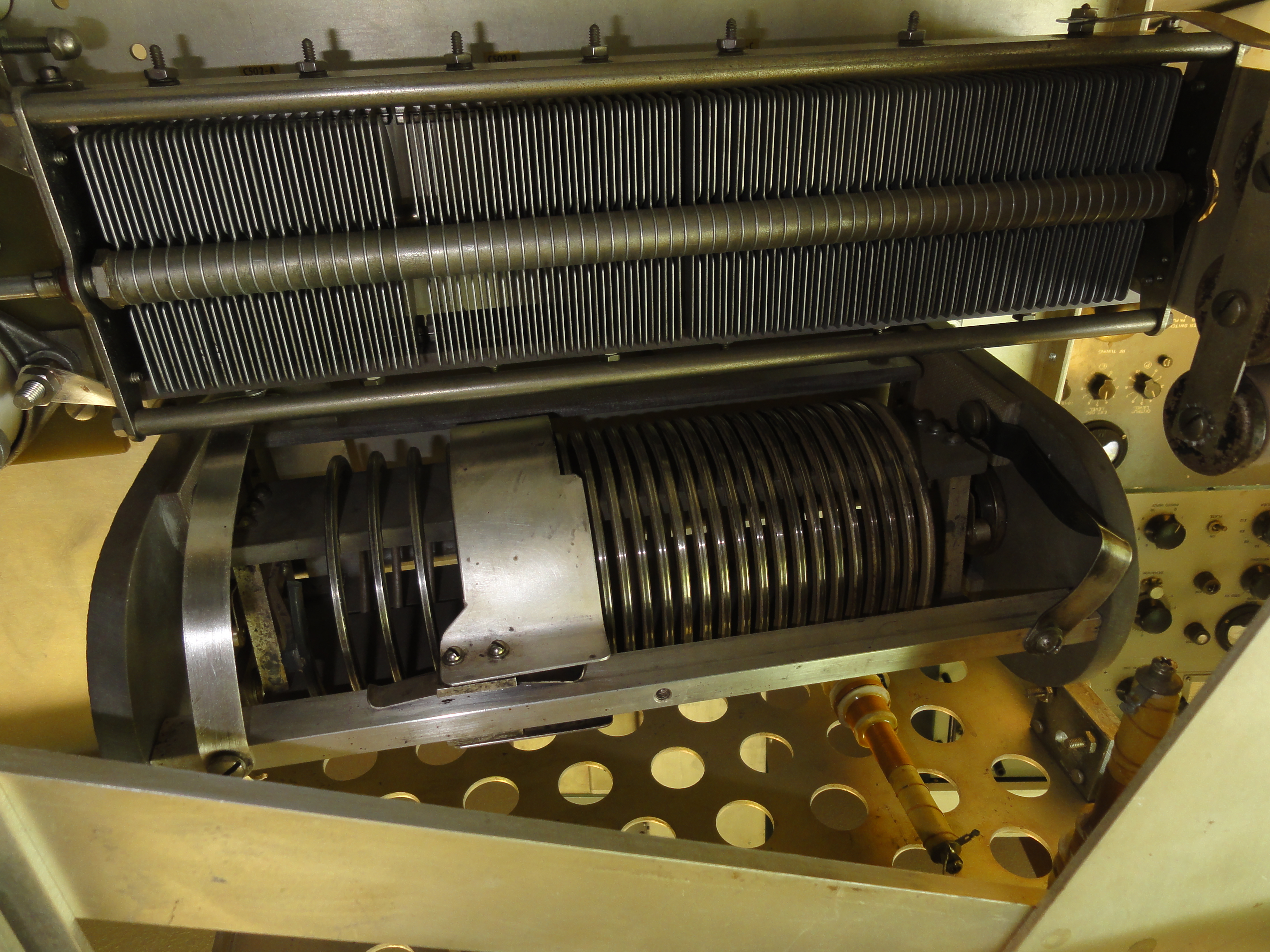

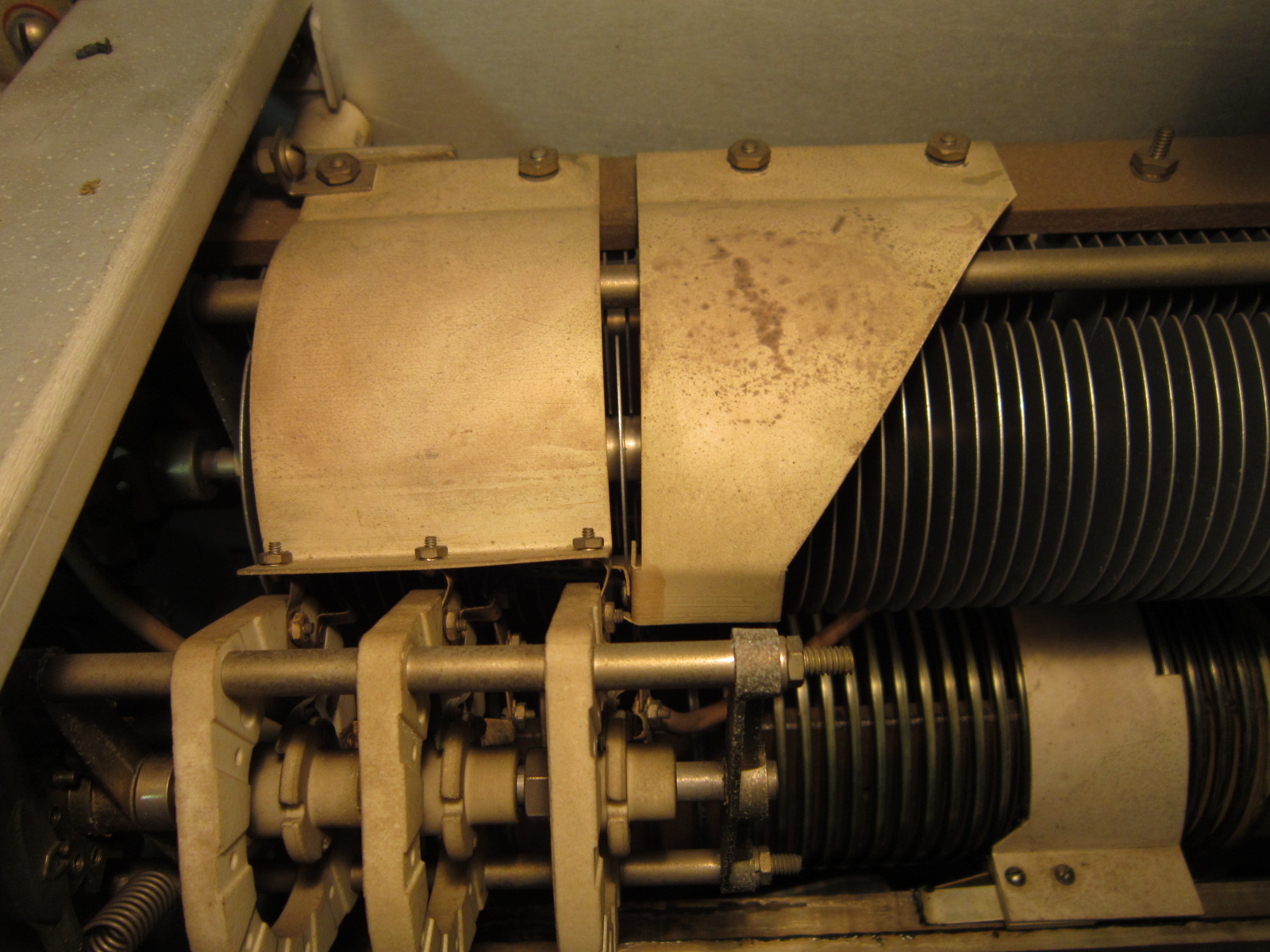

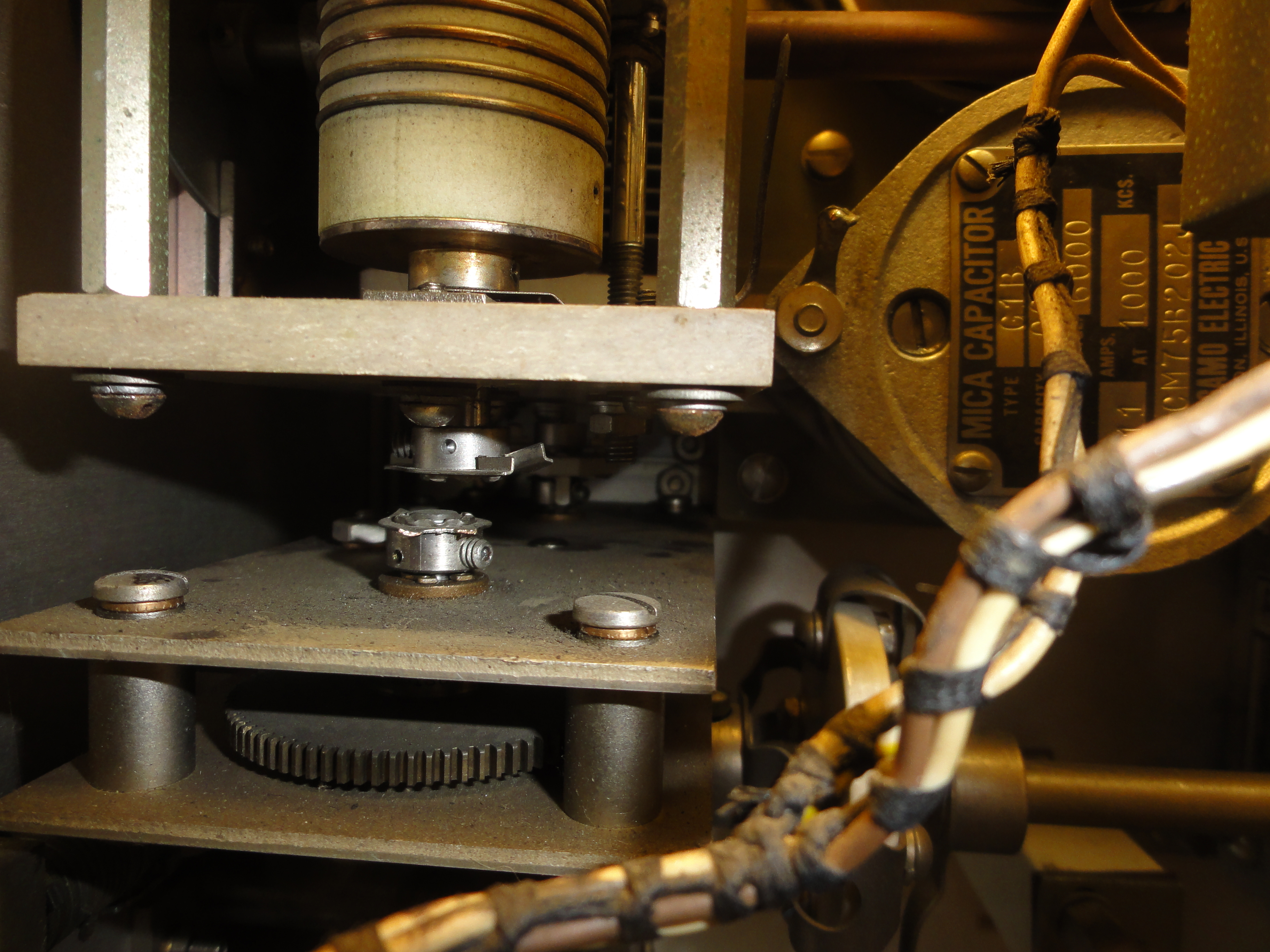

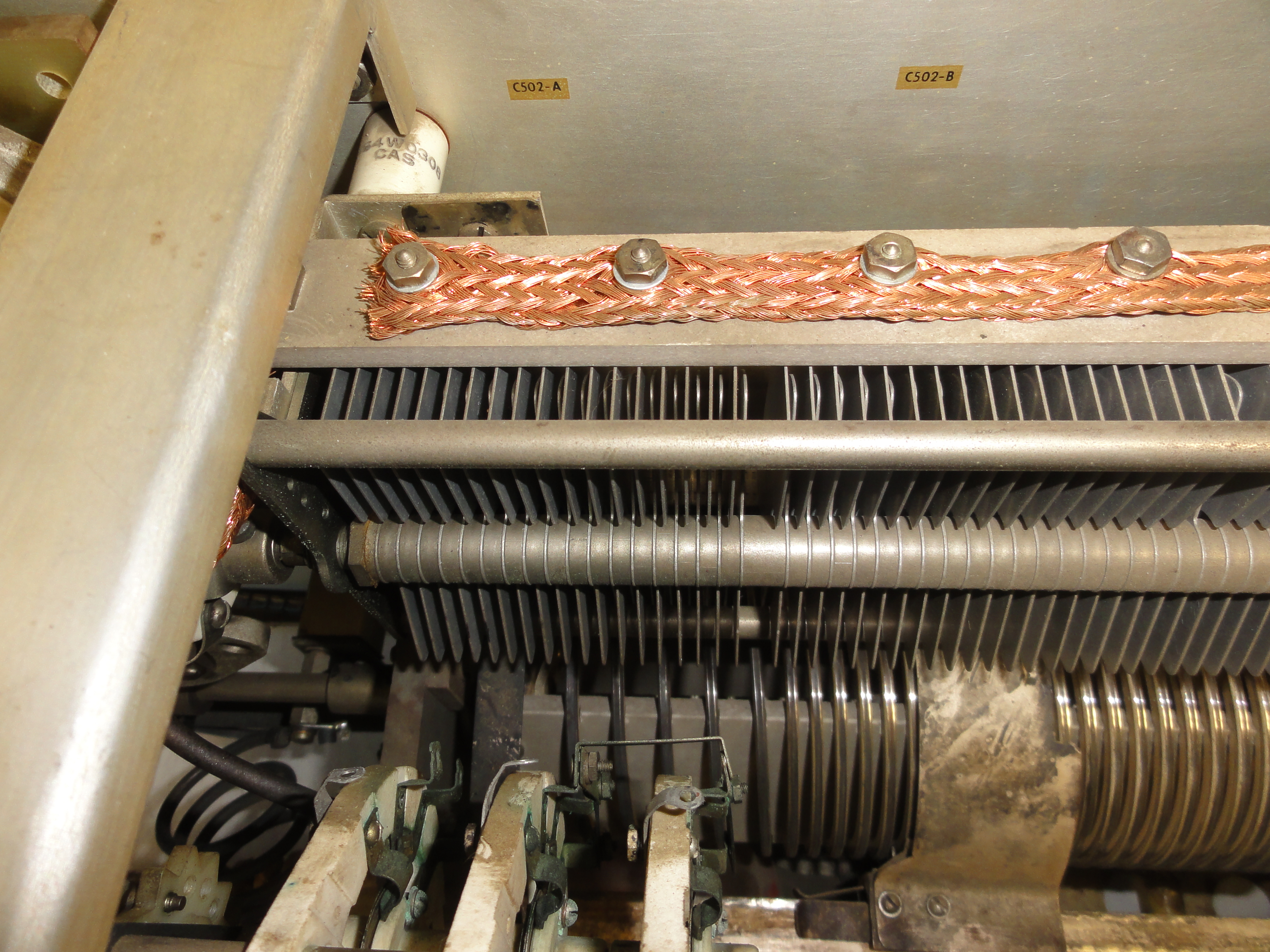

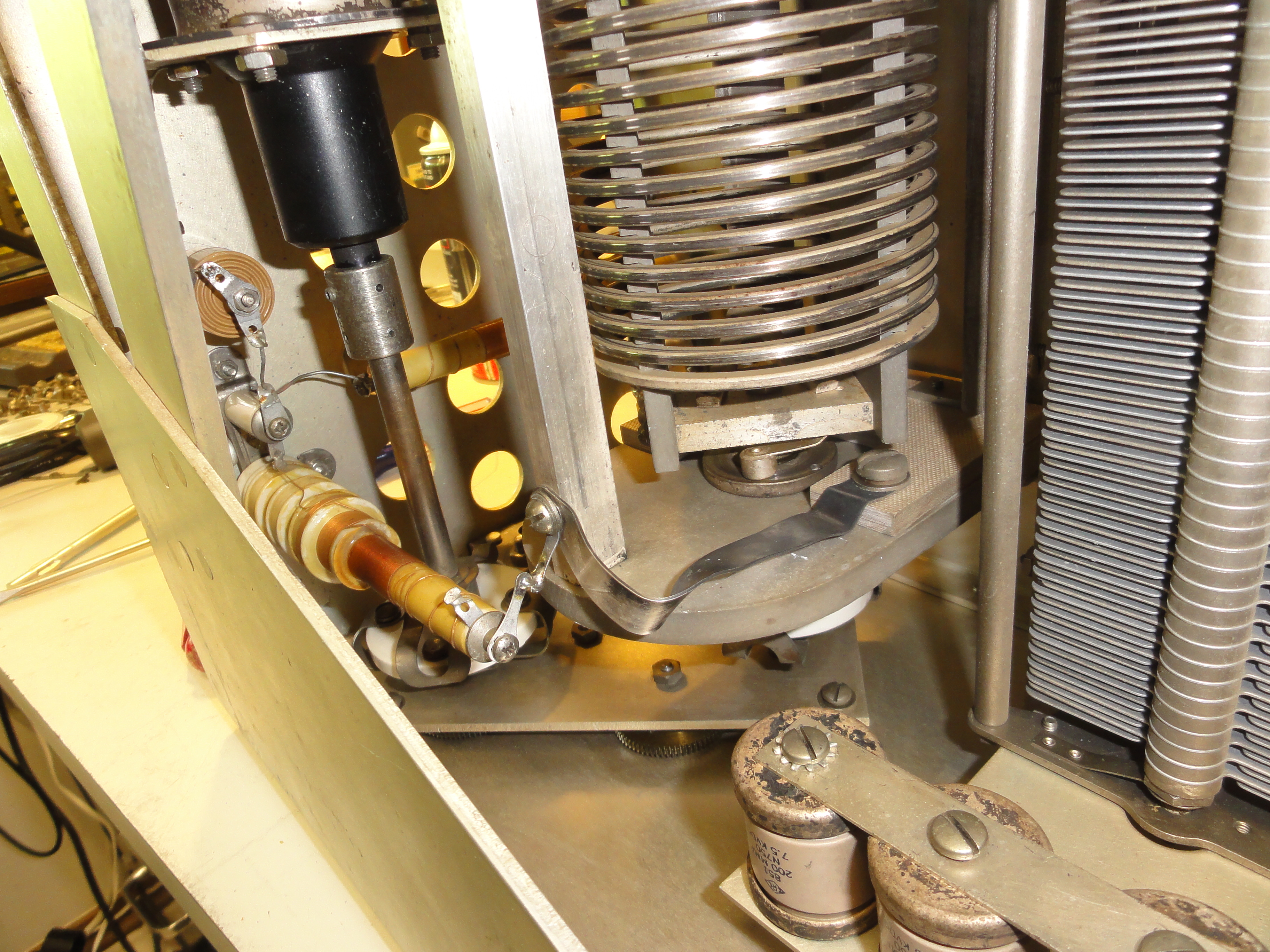

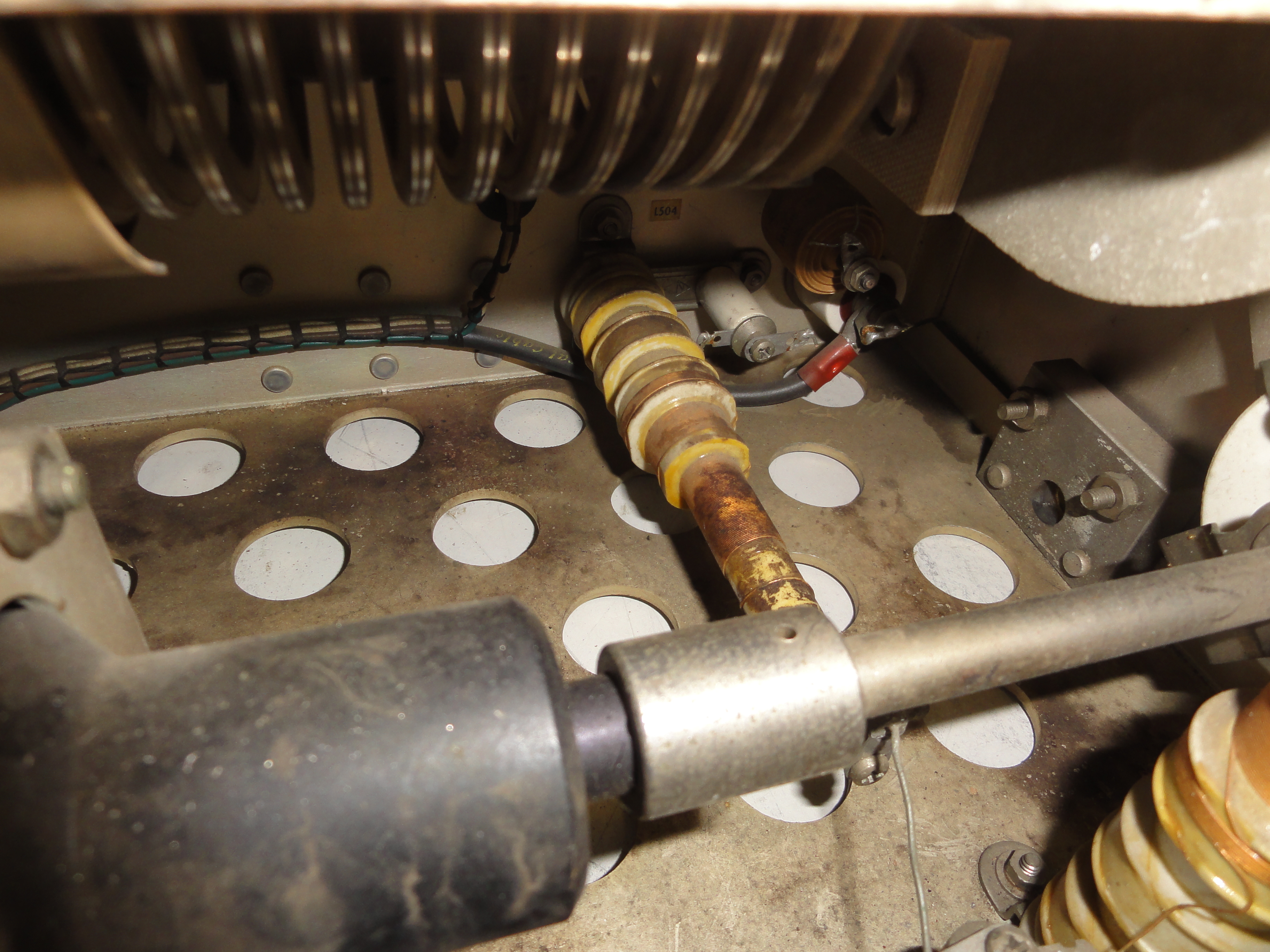

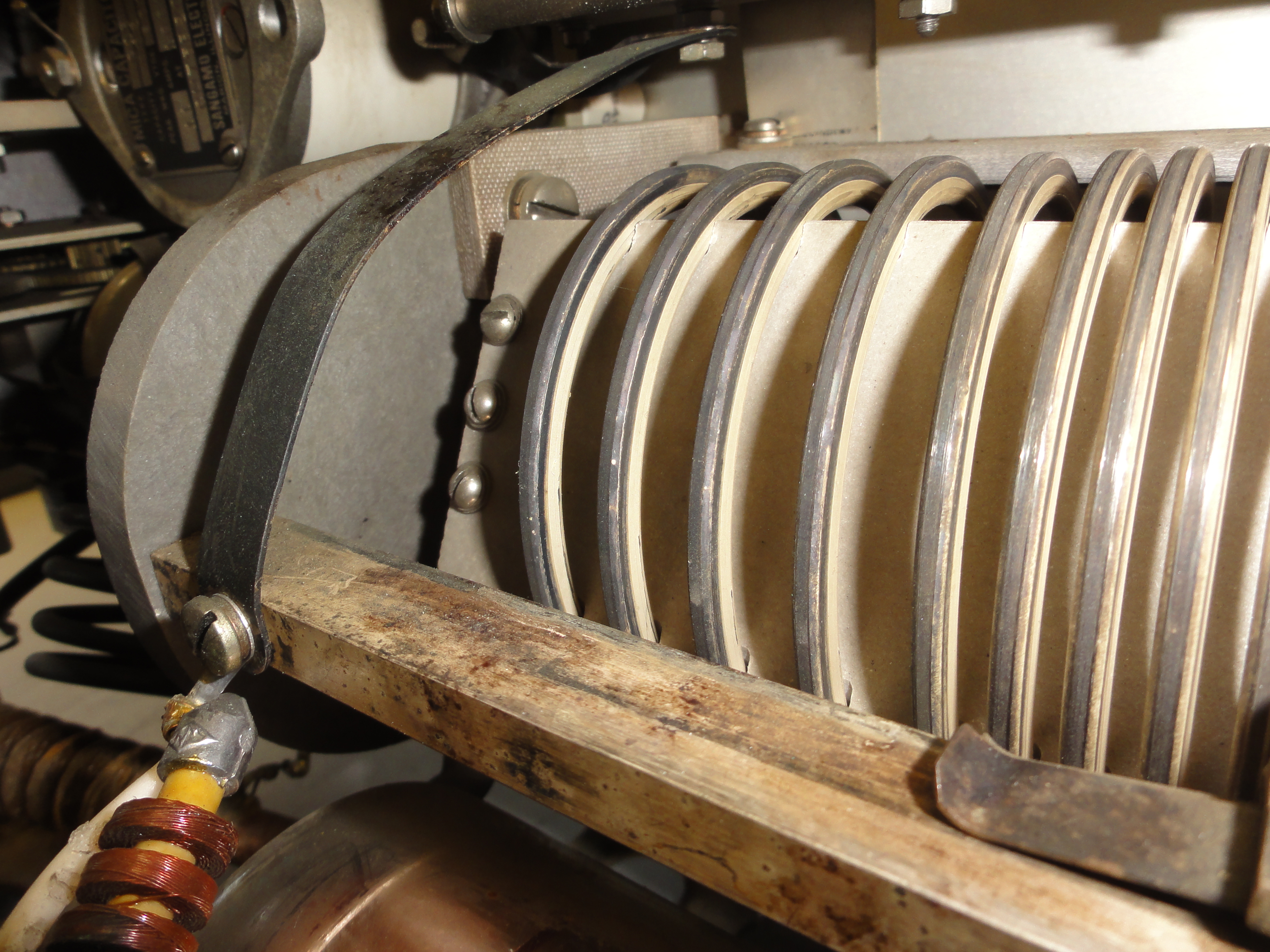

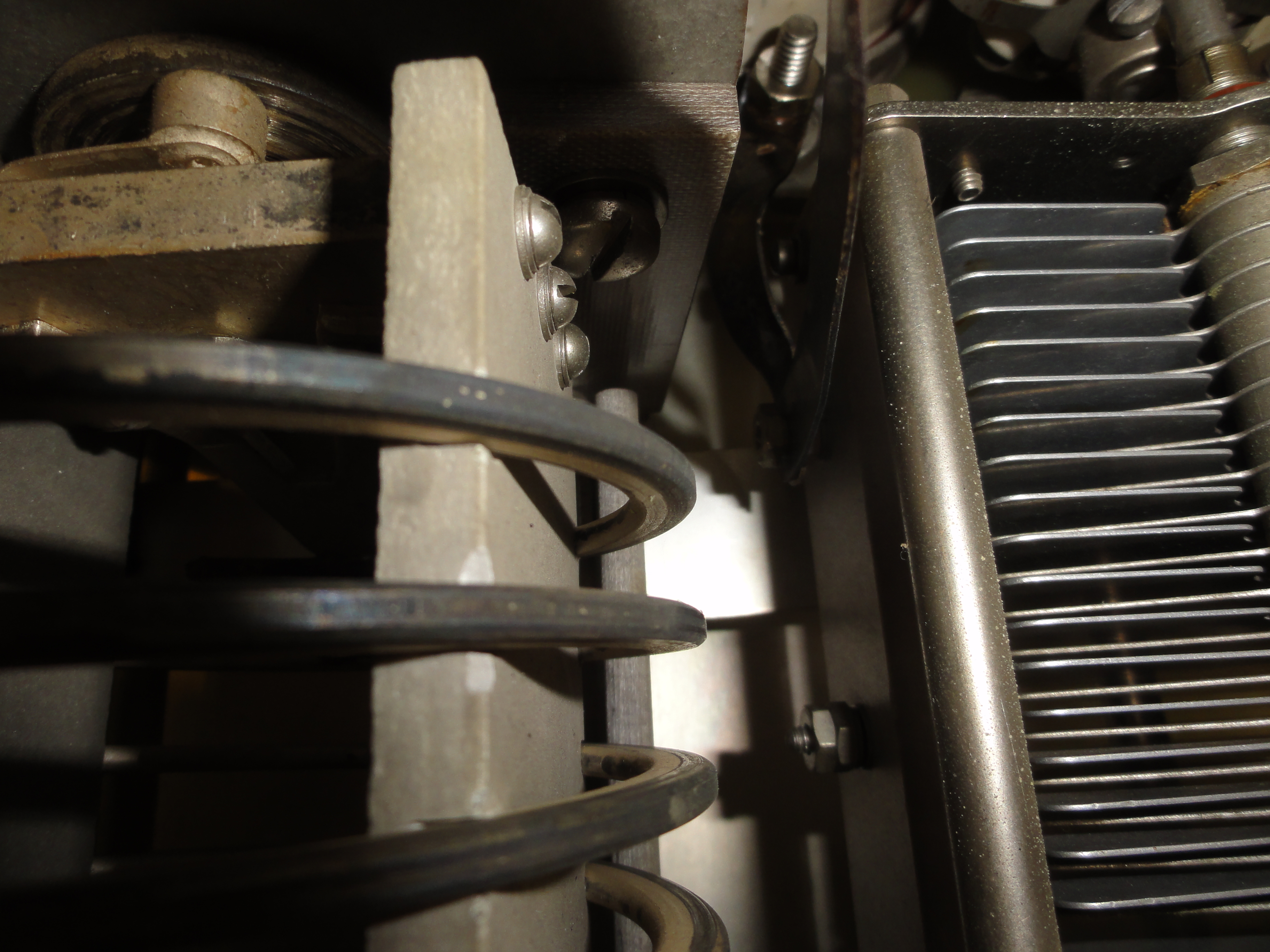

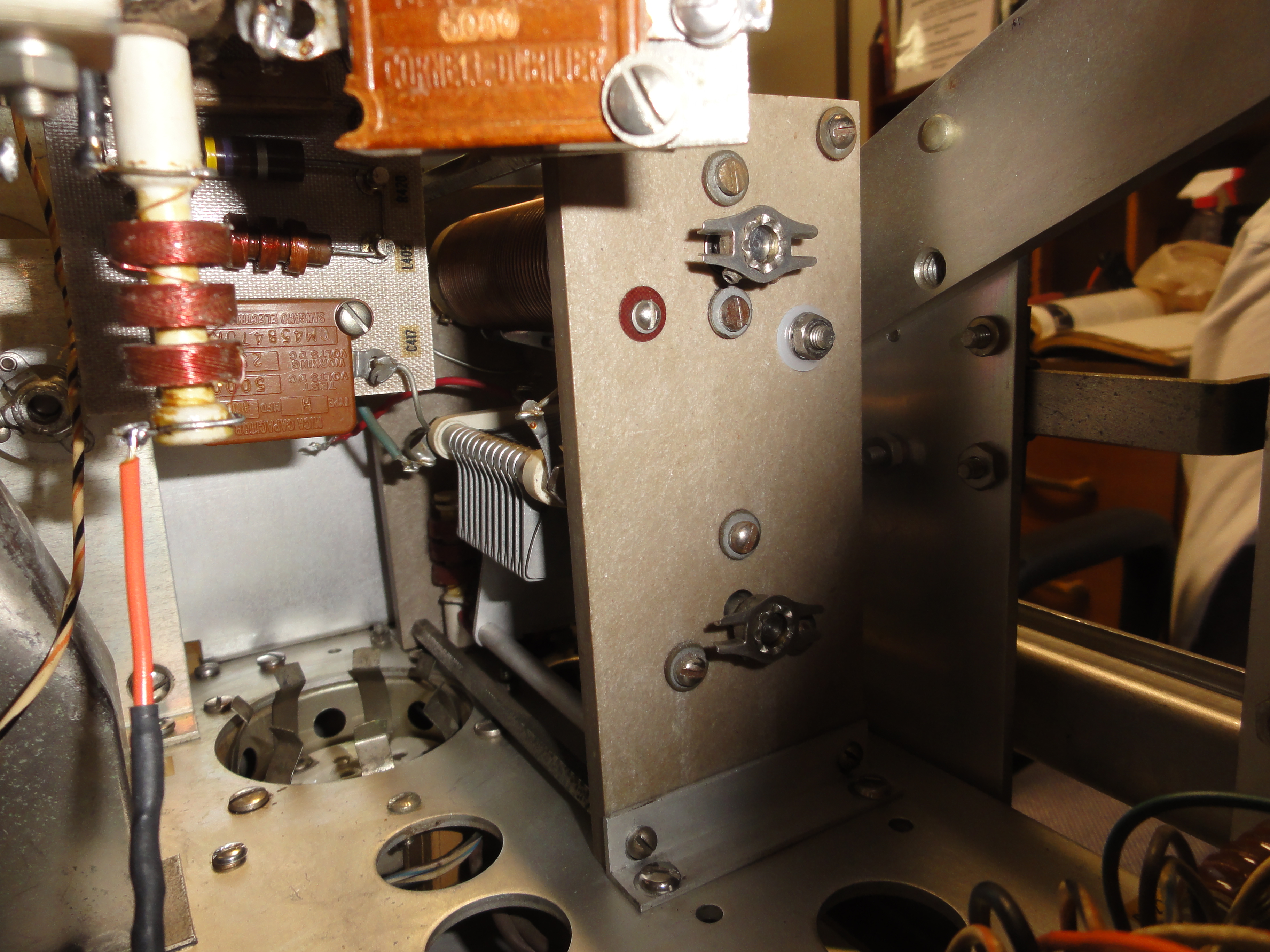

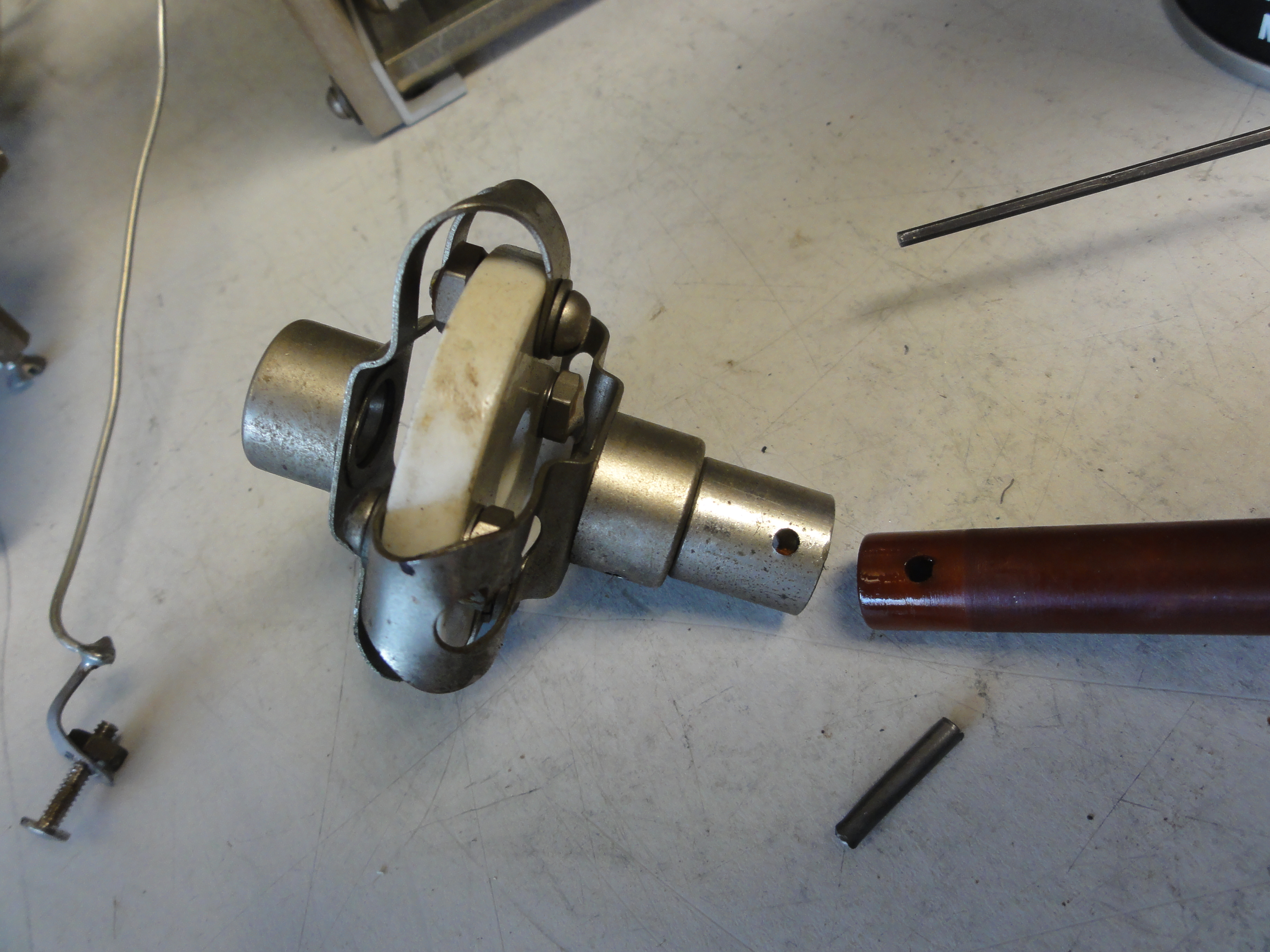

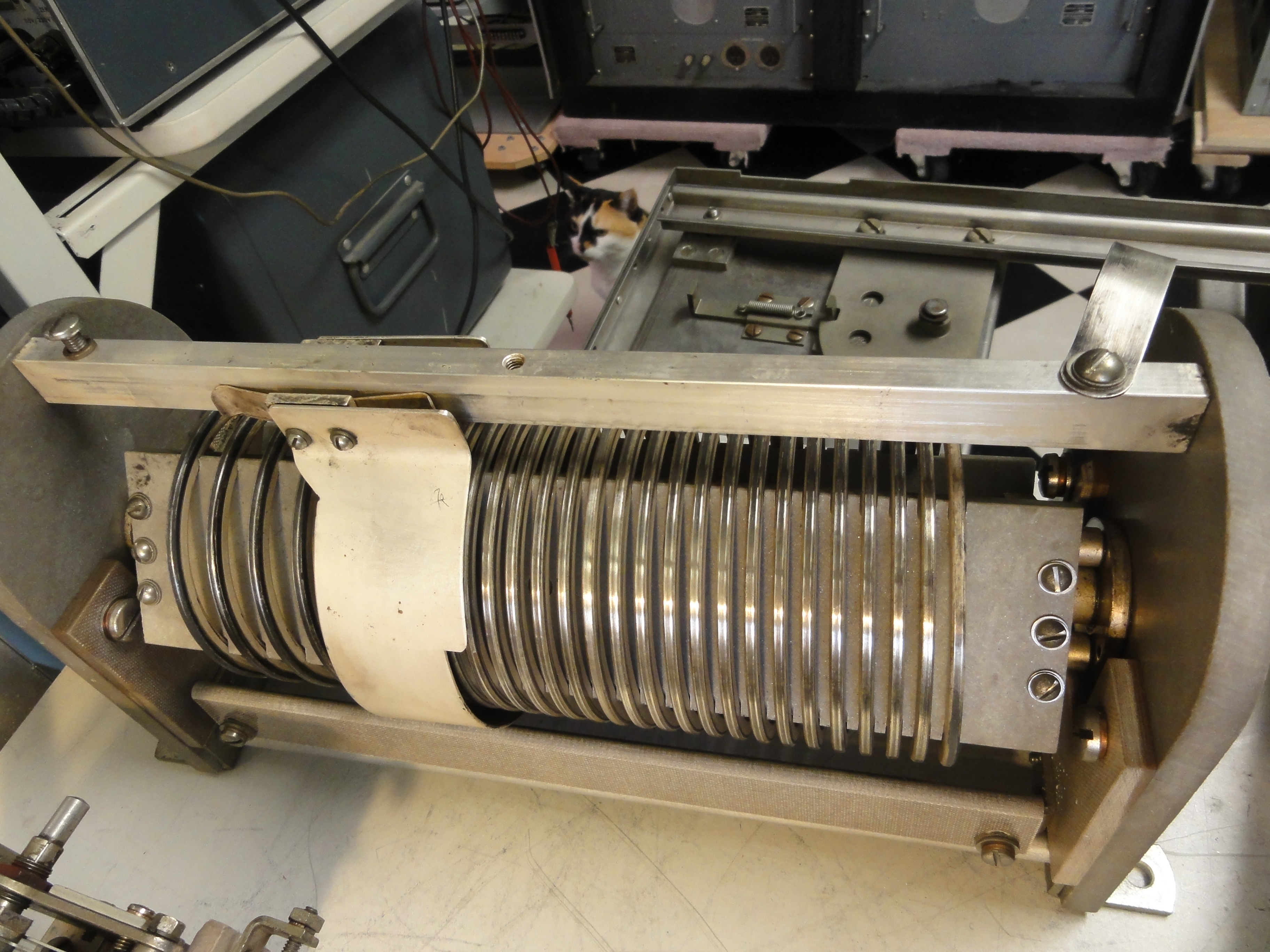

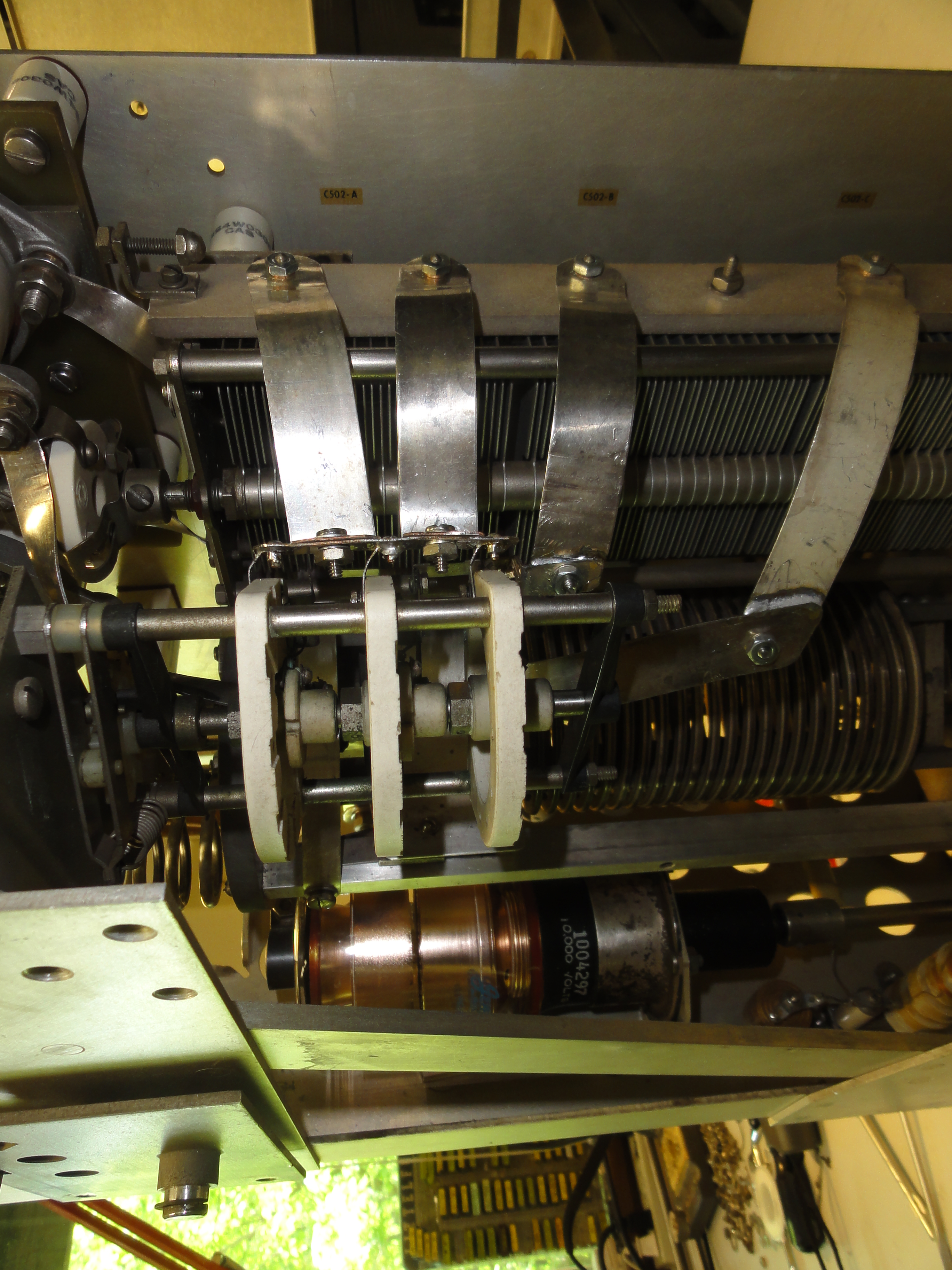

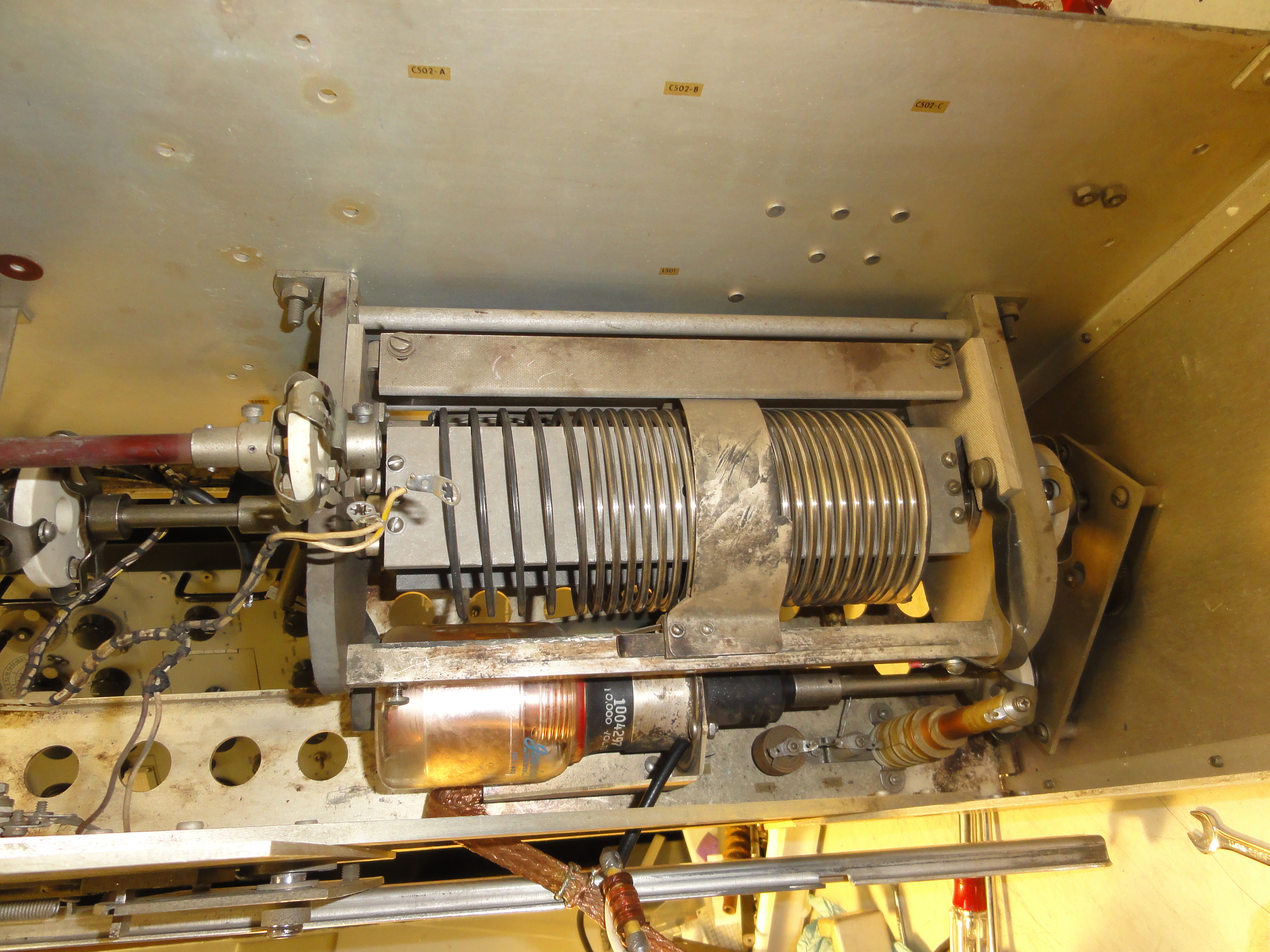

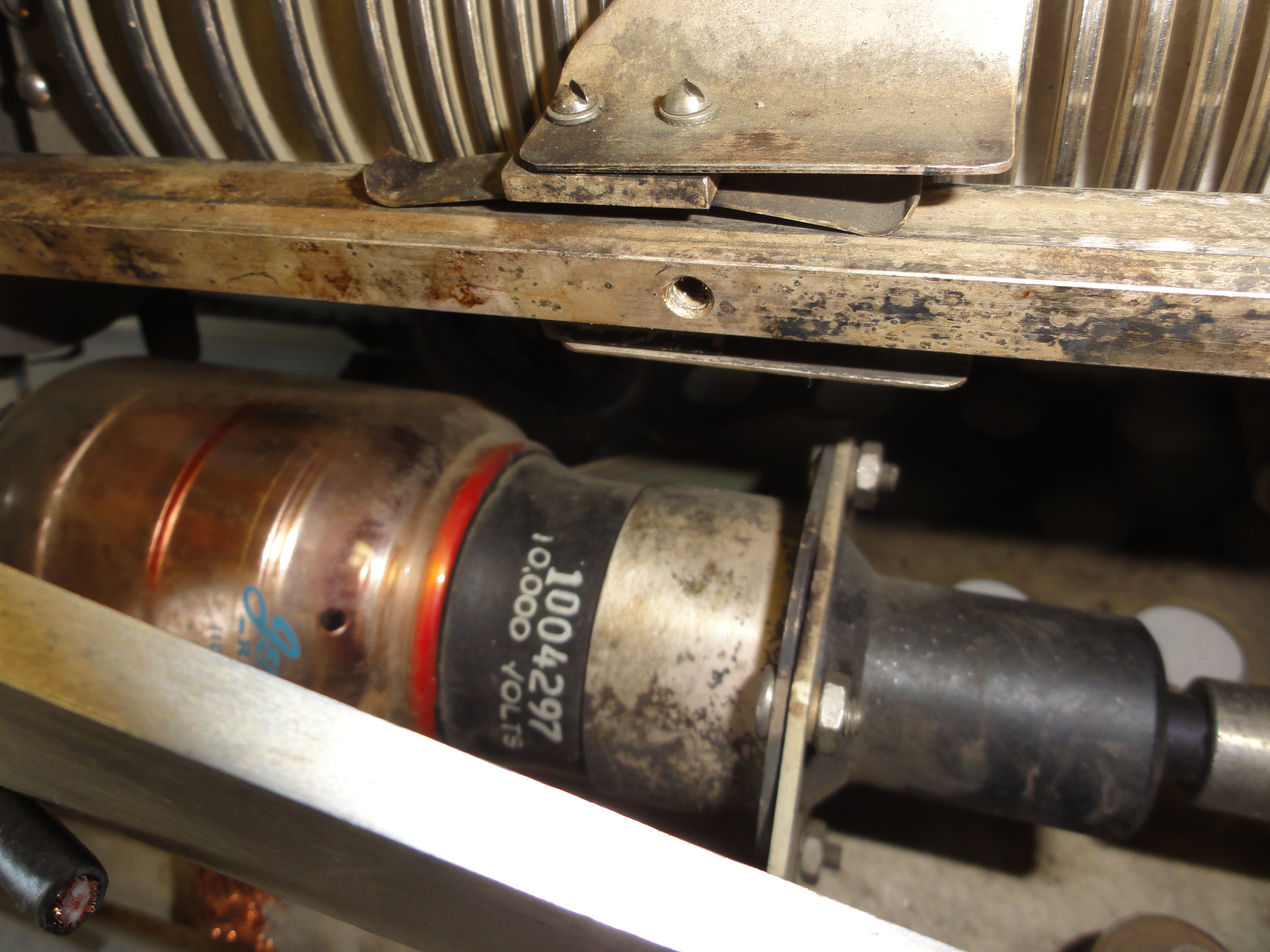

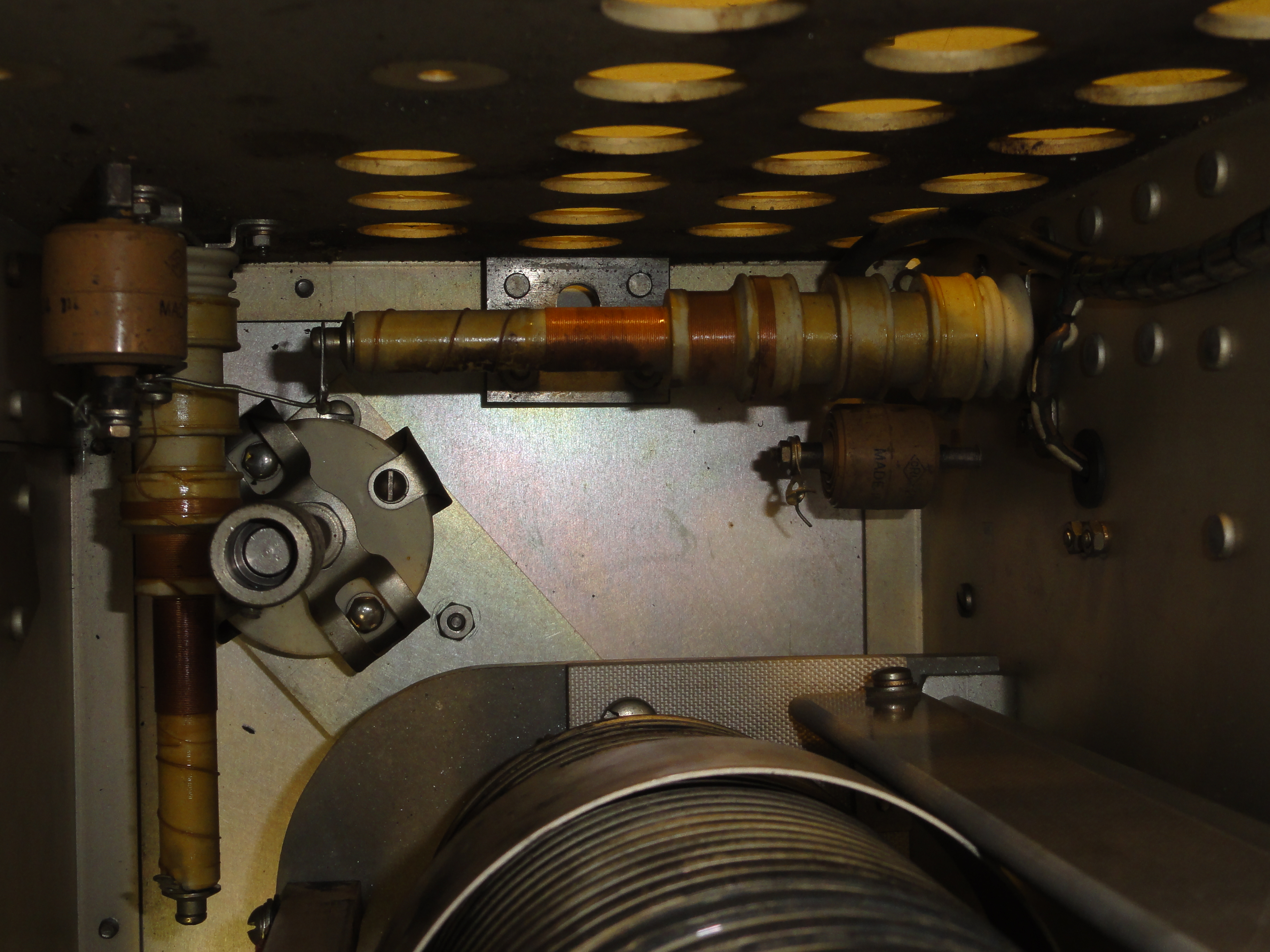

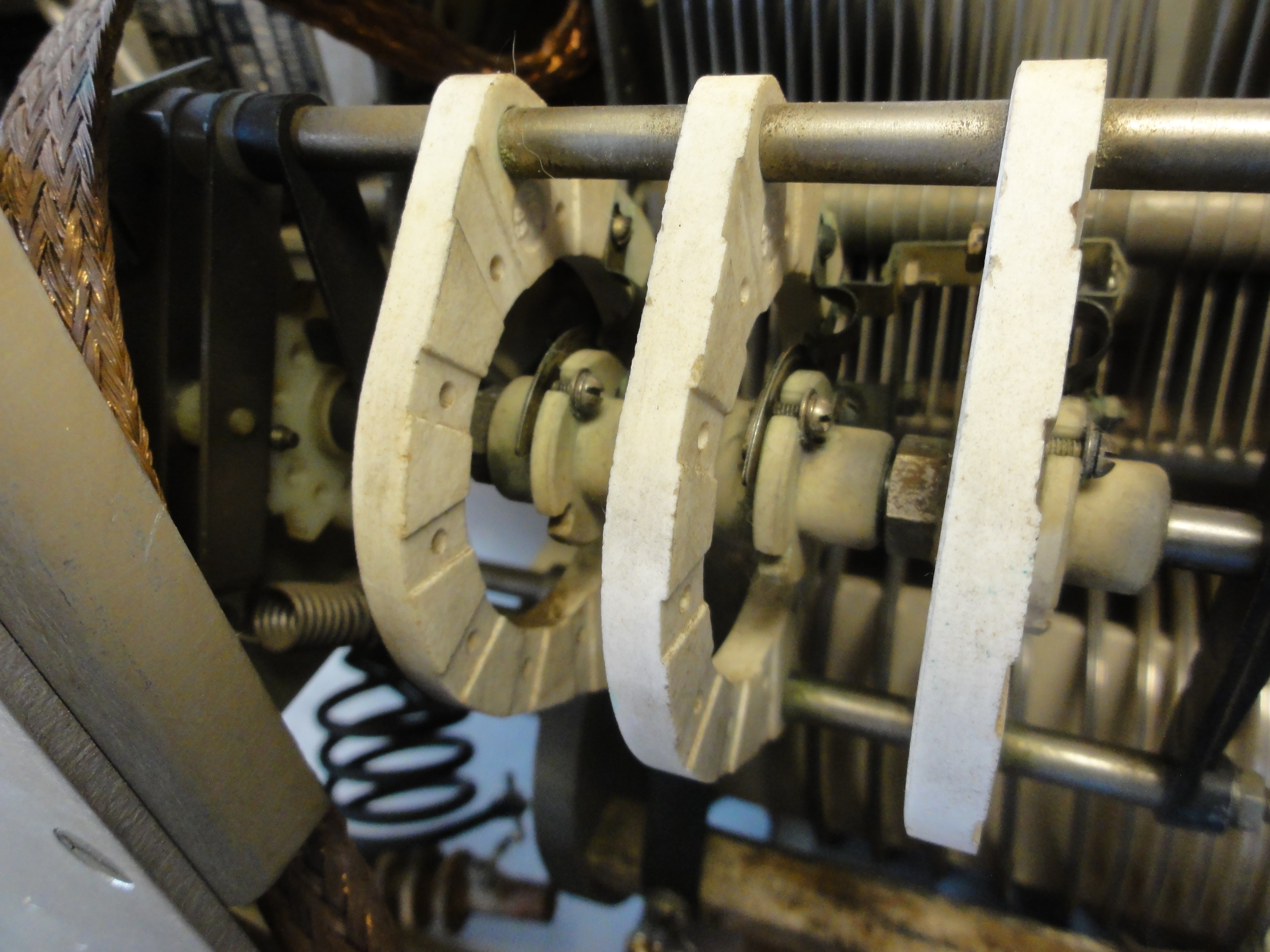

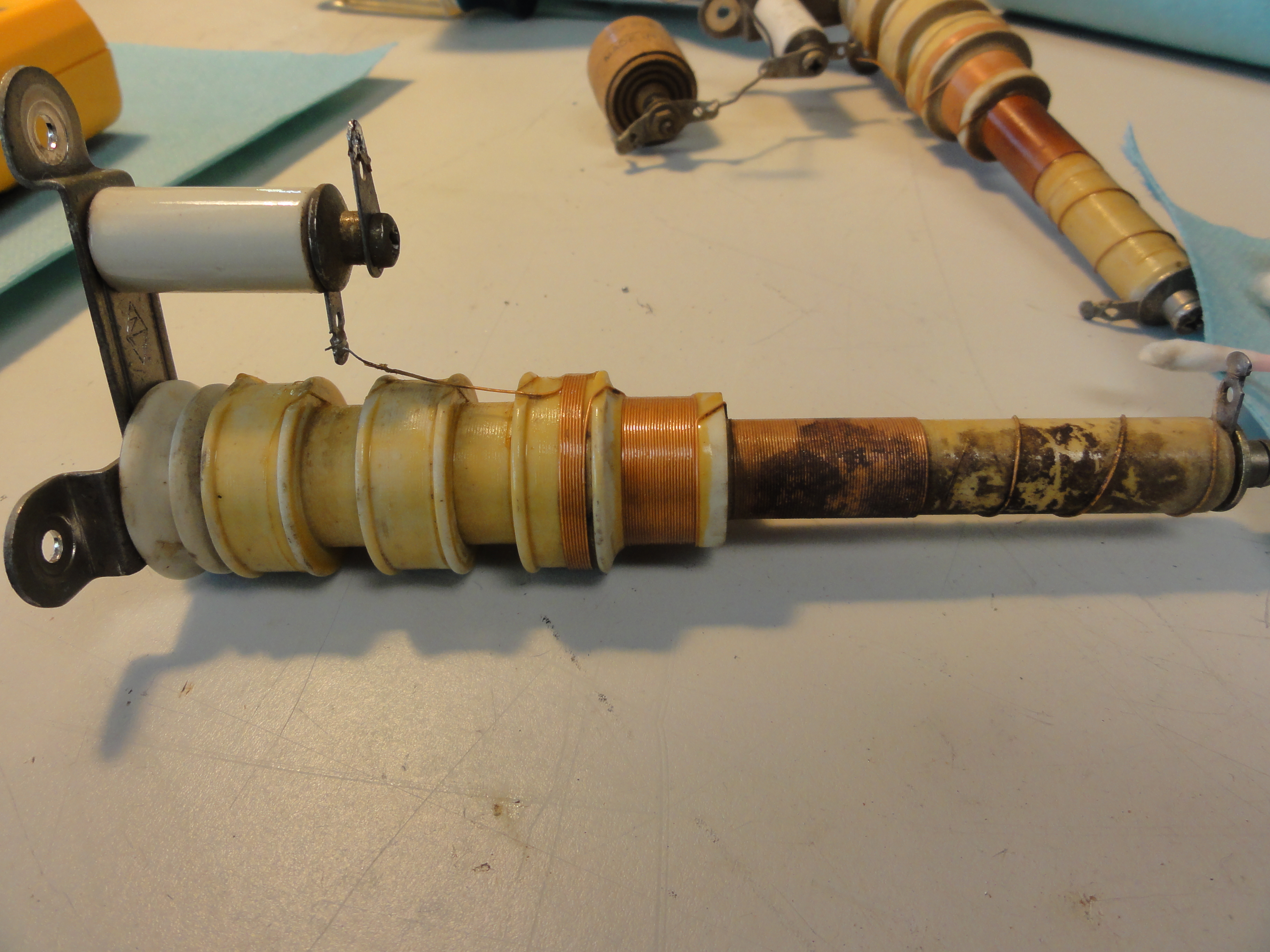

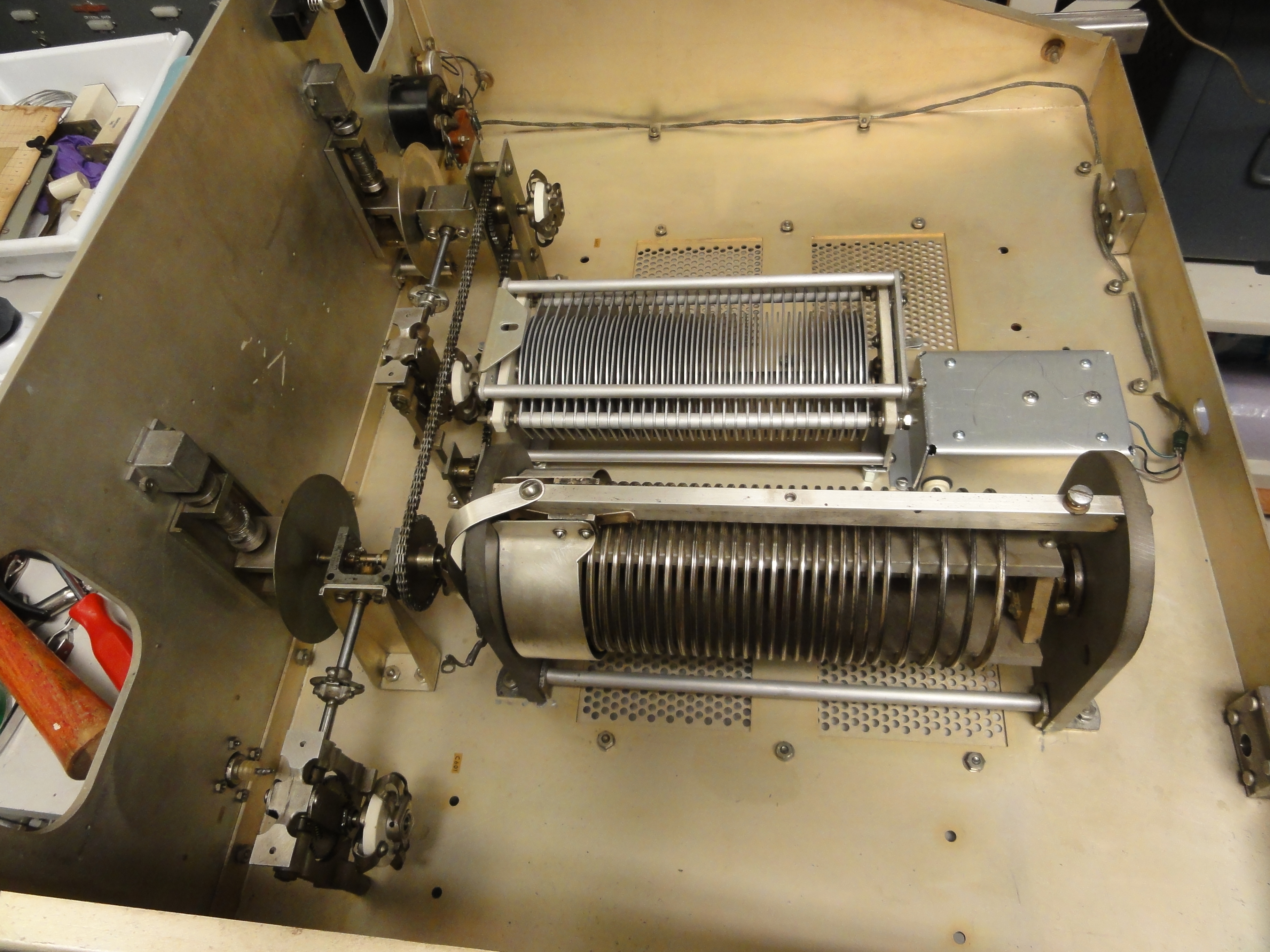

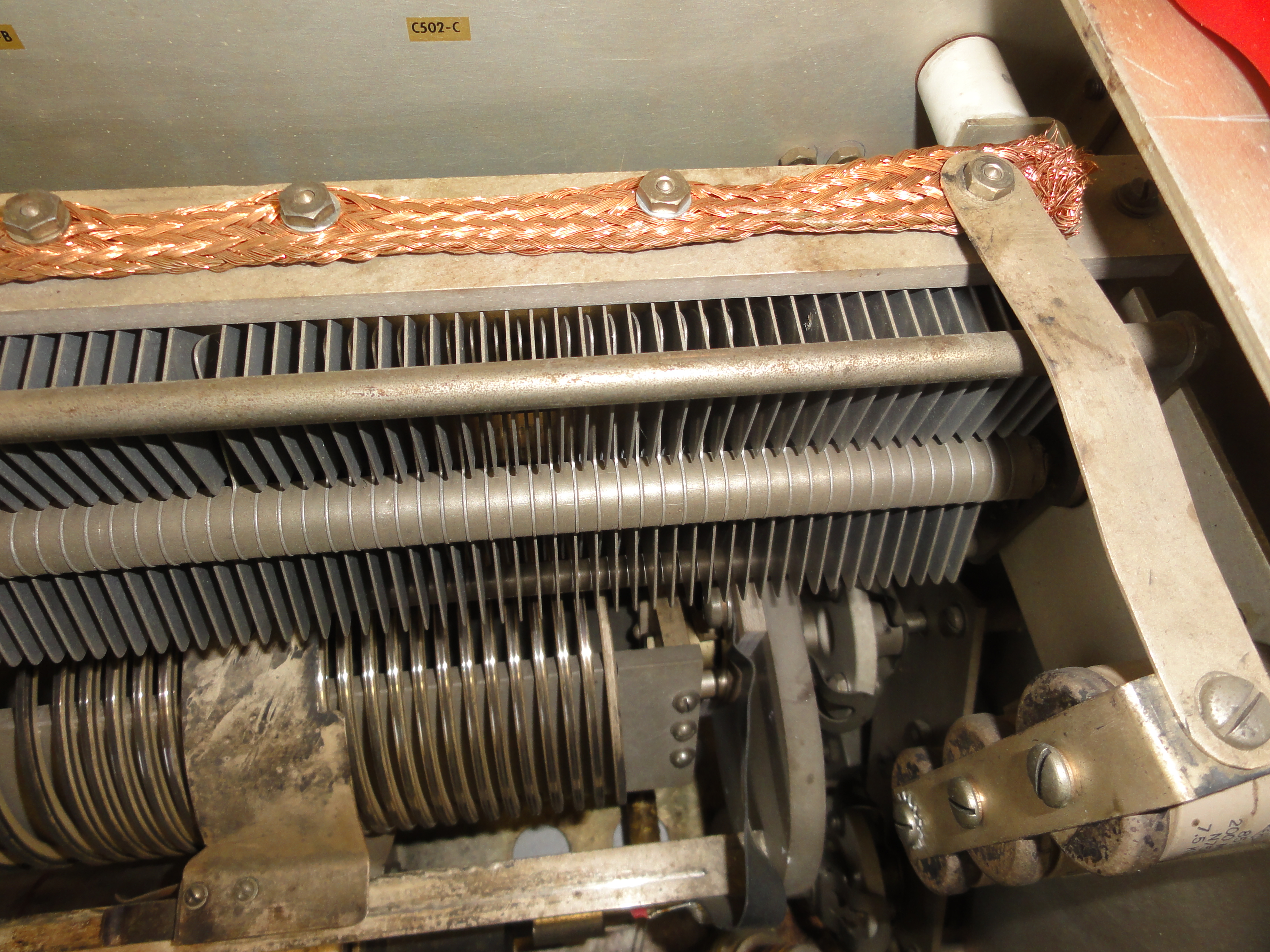

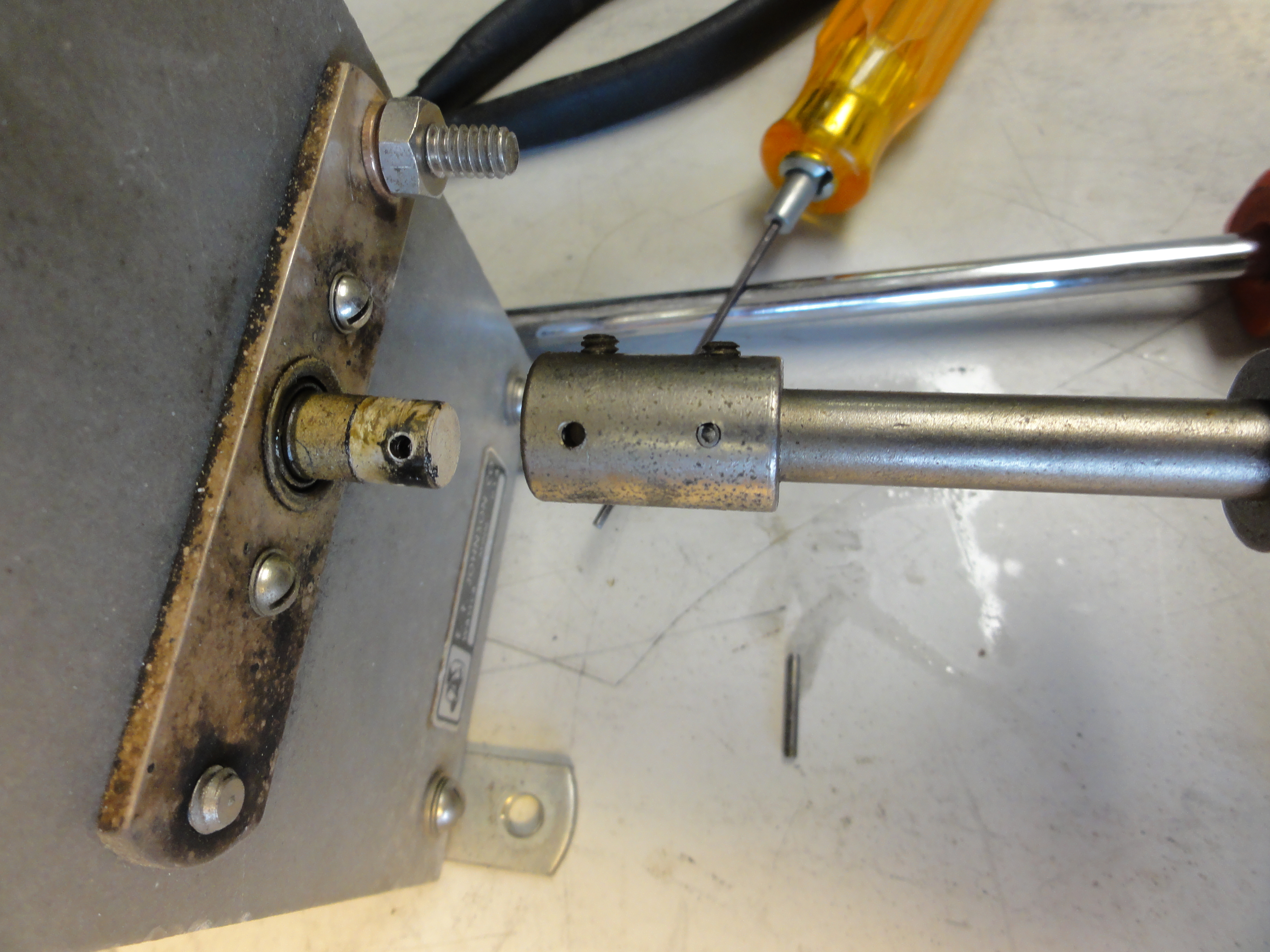

| Roller Inductor detail photos
|
This is after initial cleaning outdoors! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

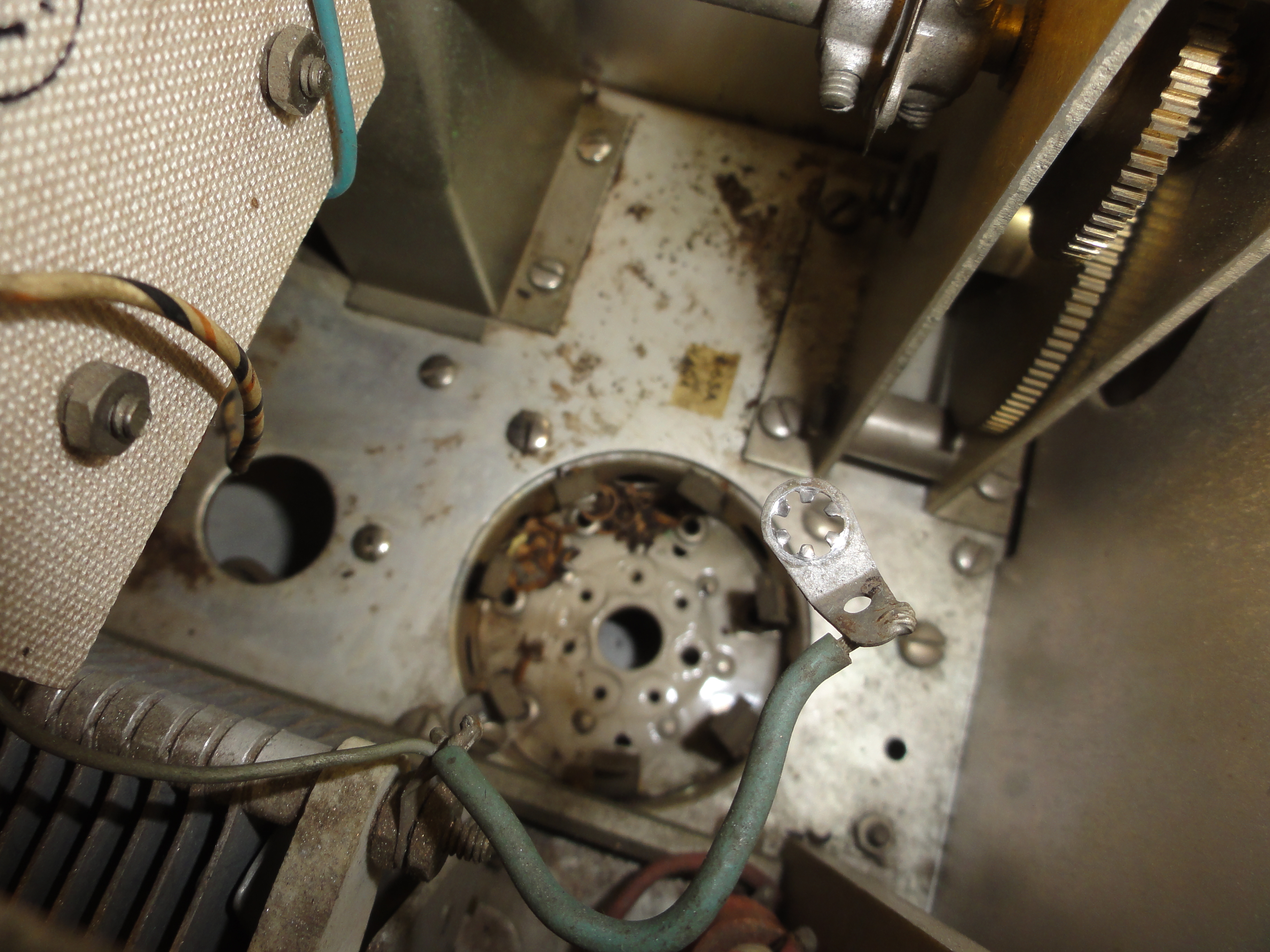

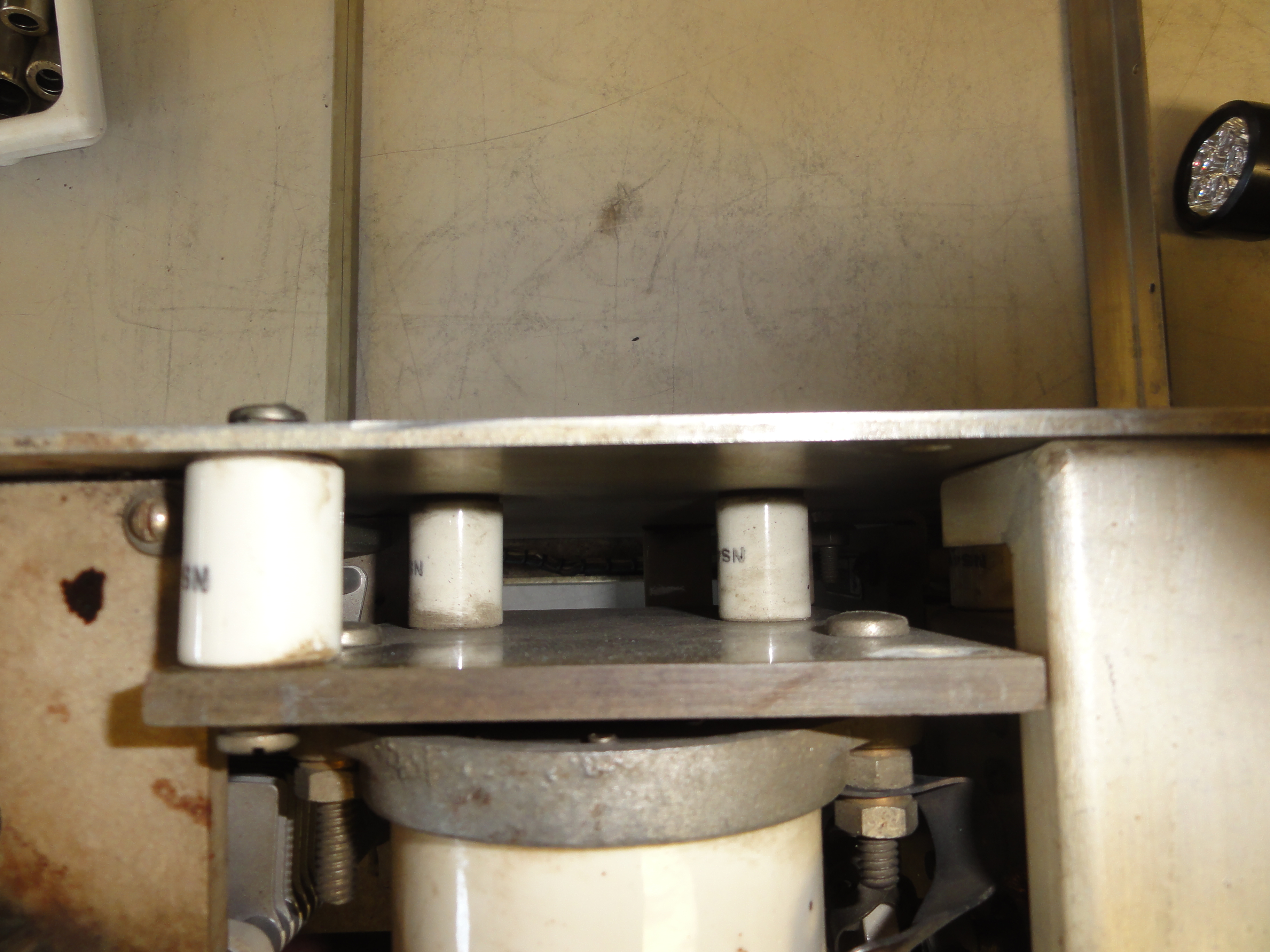

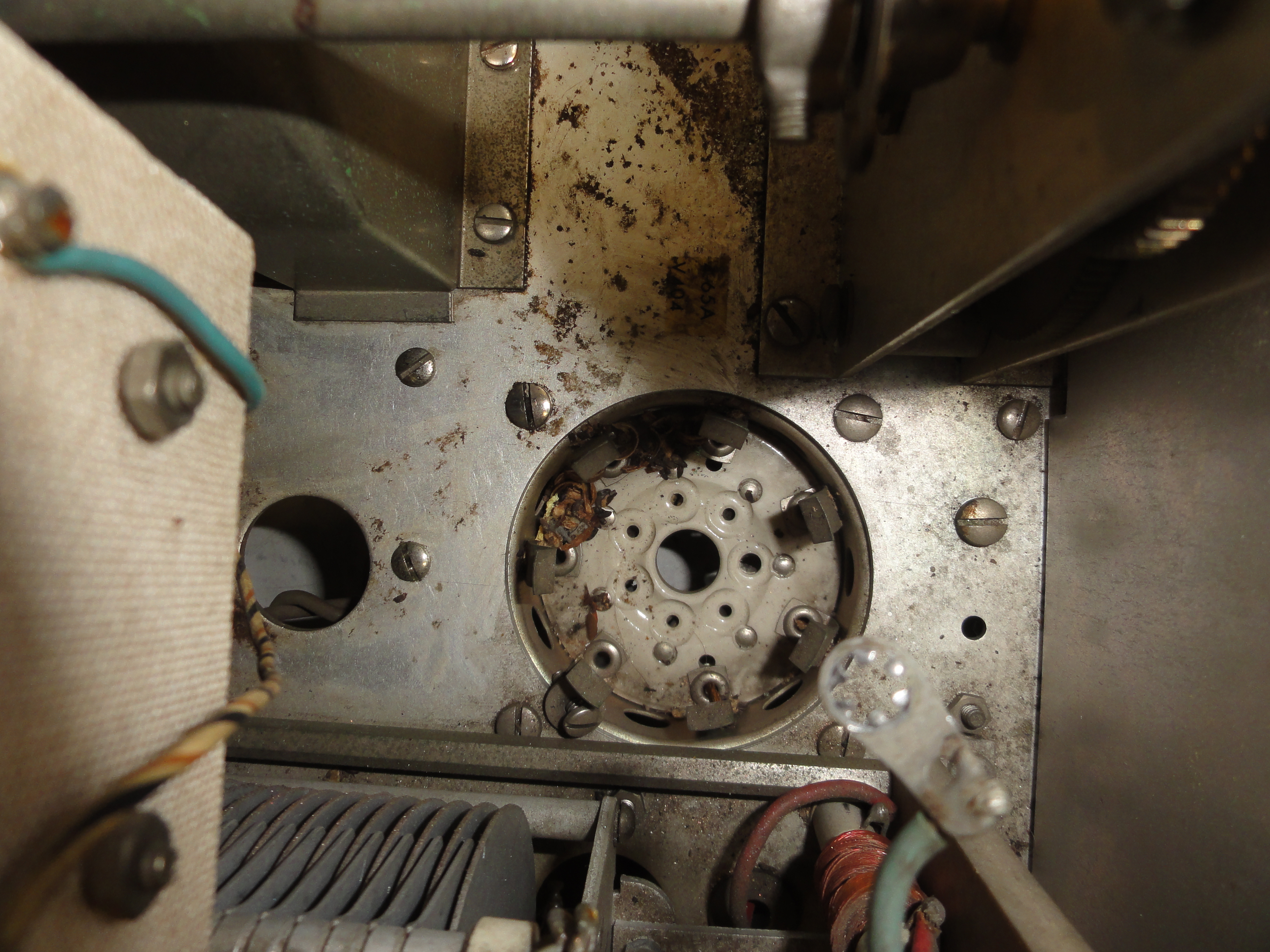

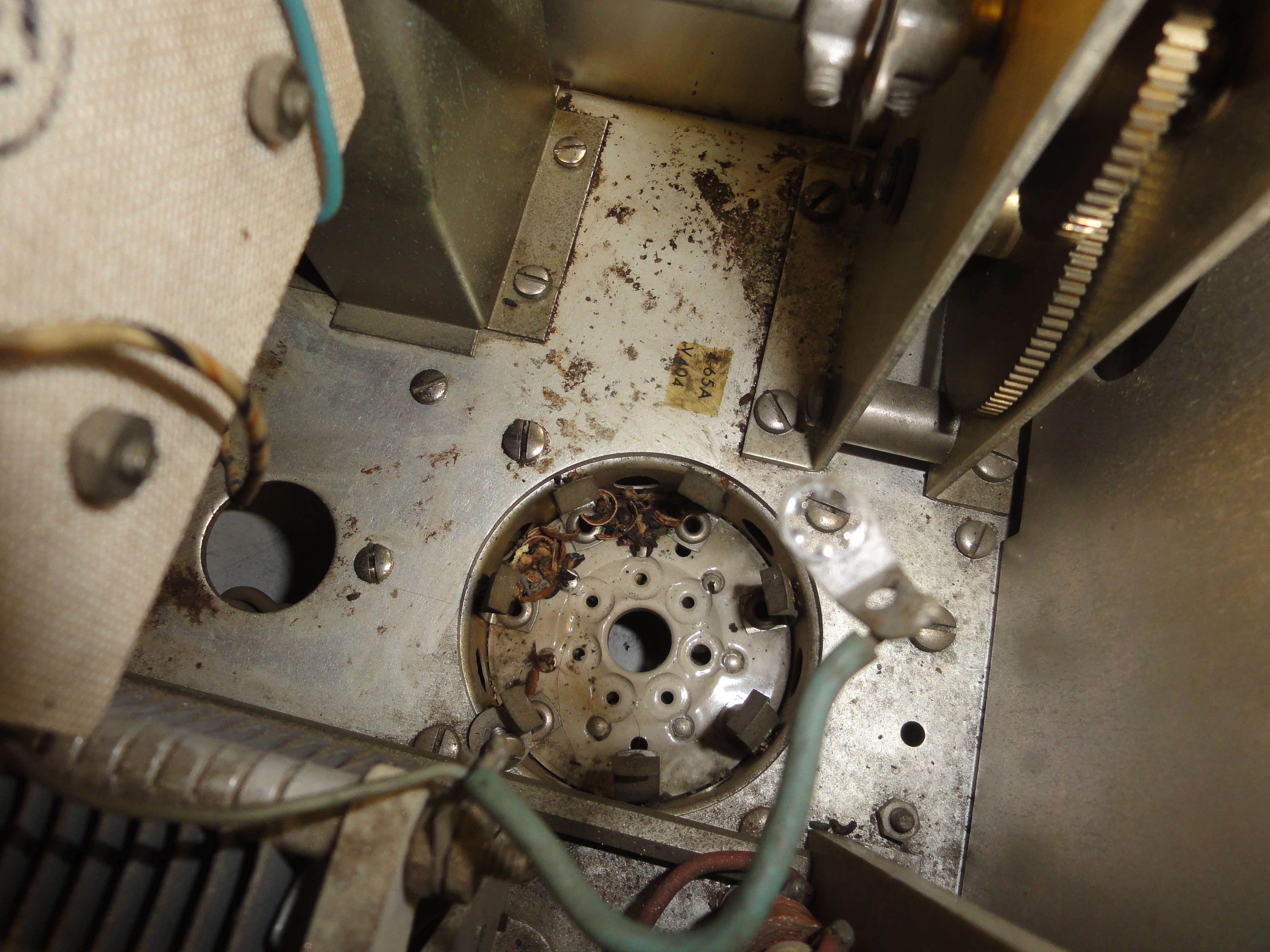

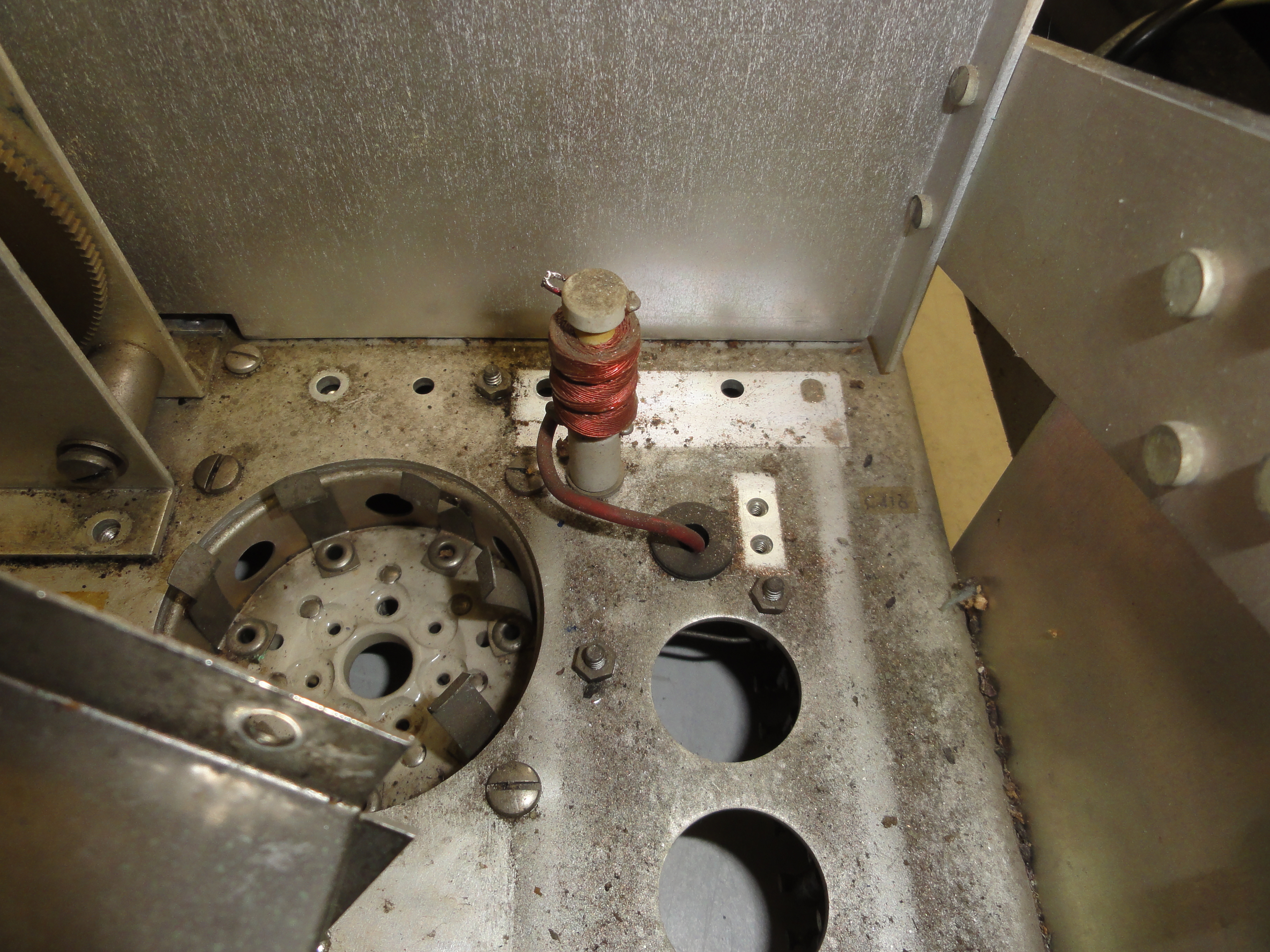

| before removing PA socket |
Cleaning and refurbishing |
|
|
|
|
|
|
|
|
|

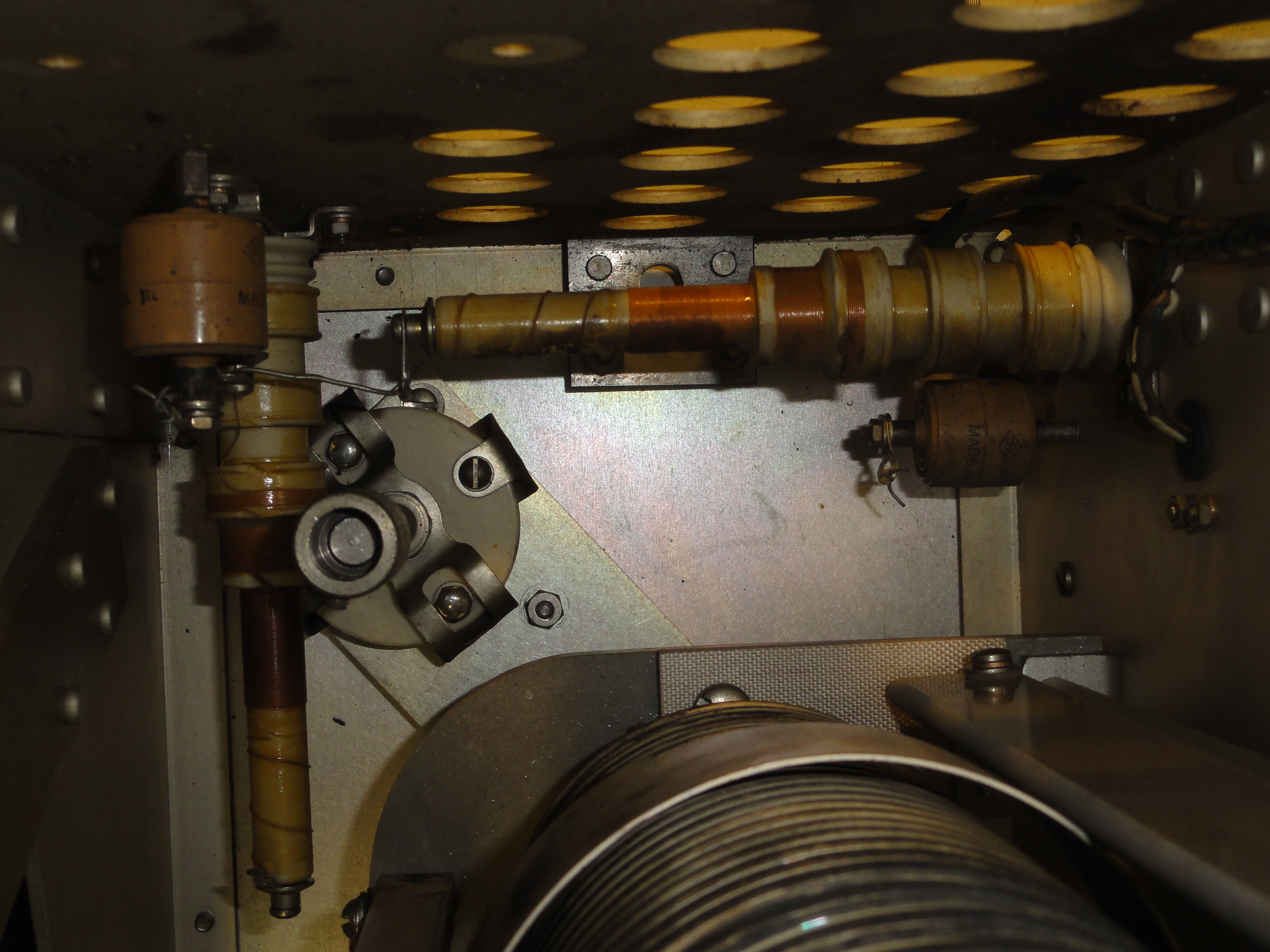

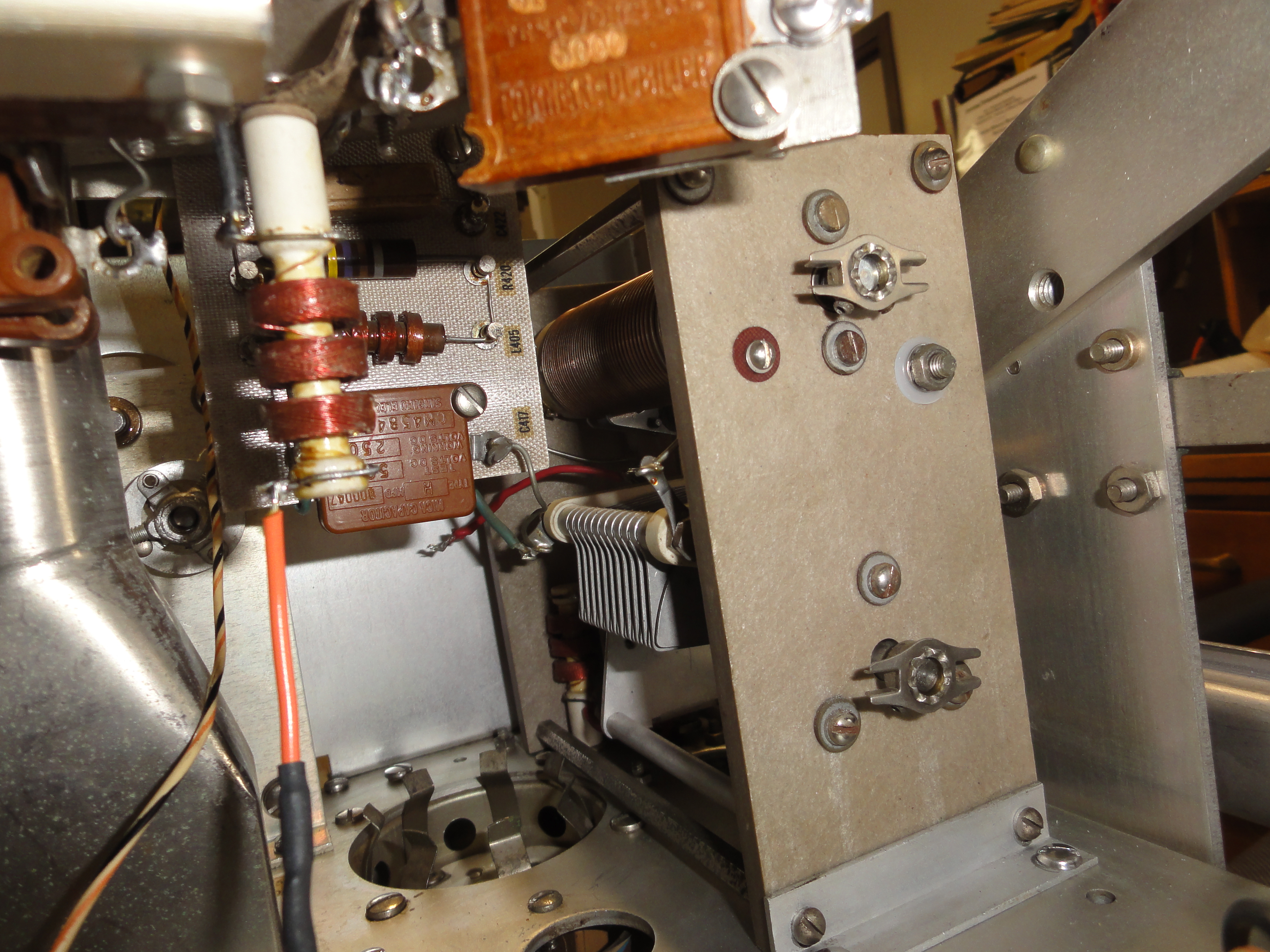

re-installed multiplier tank circuit assembly |
| Re-installed driver tank circuit assembly |

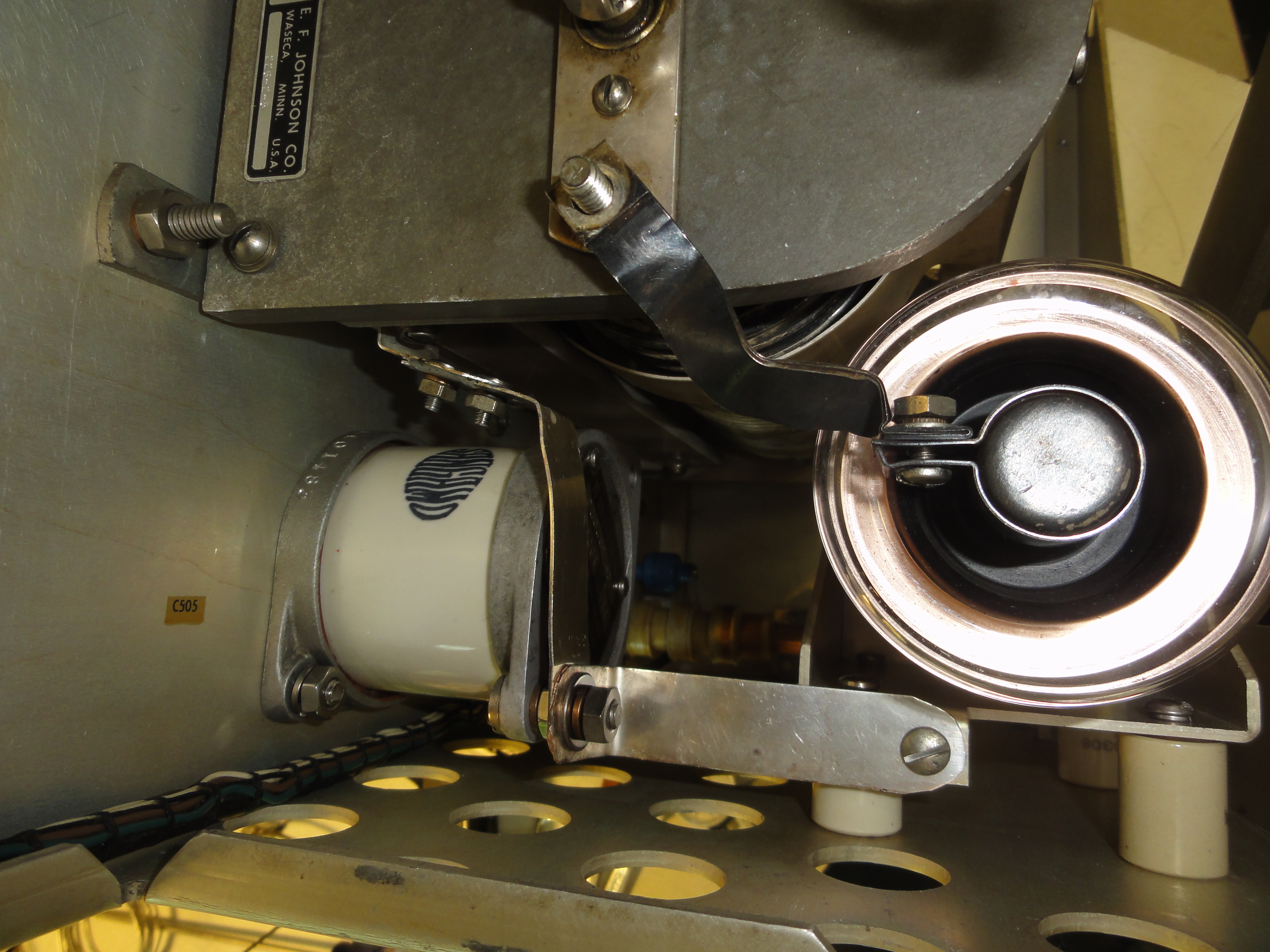

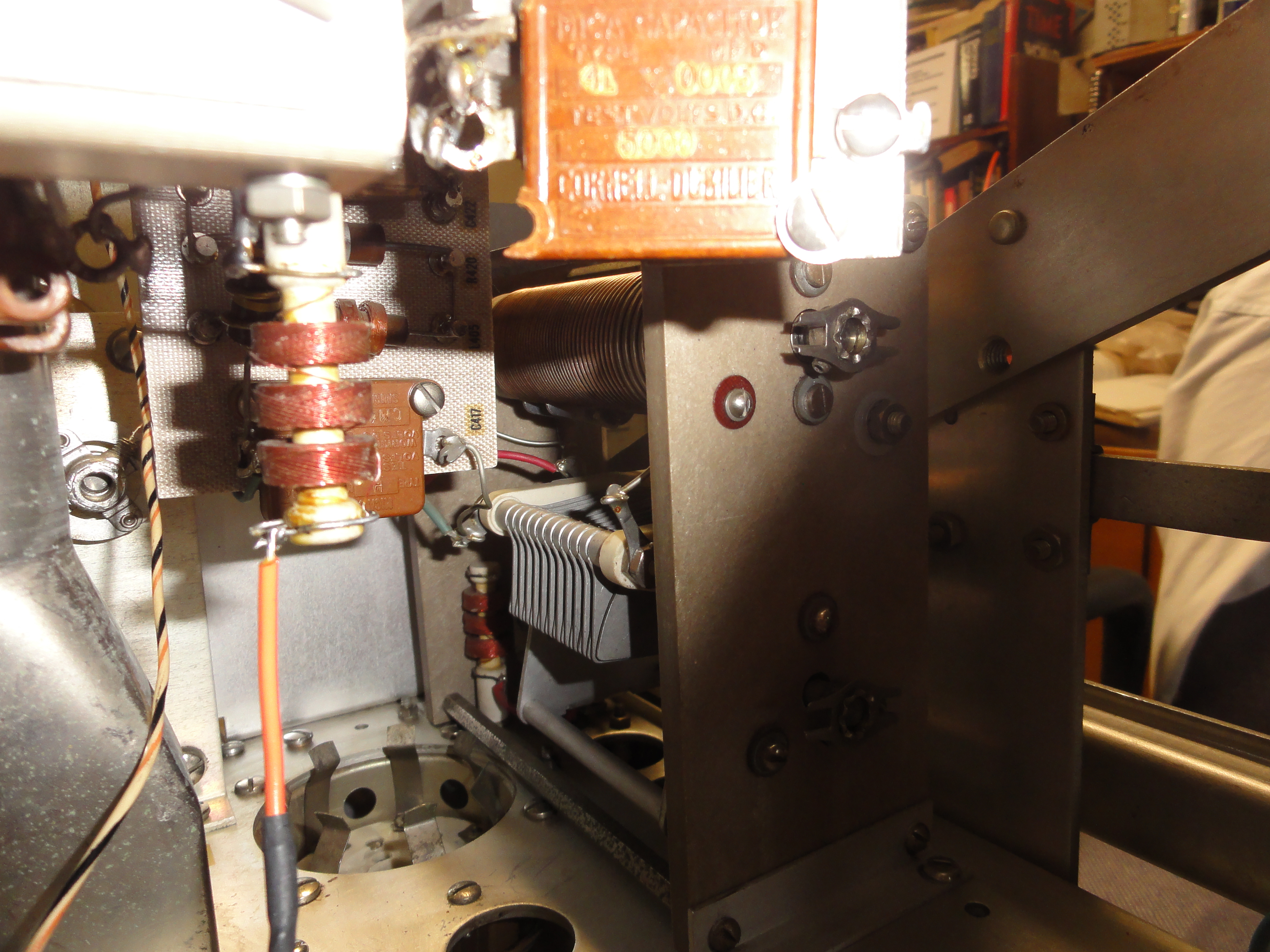

PA screen RF choke in foreground |
|
|

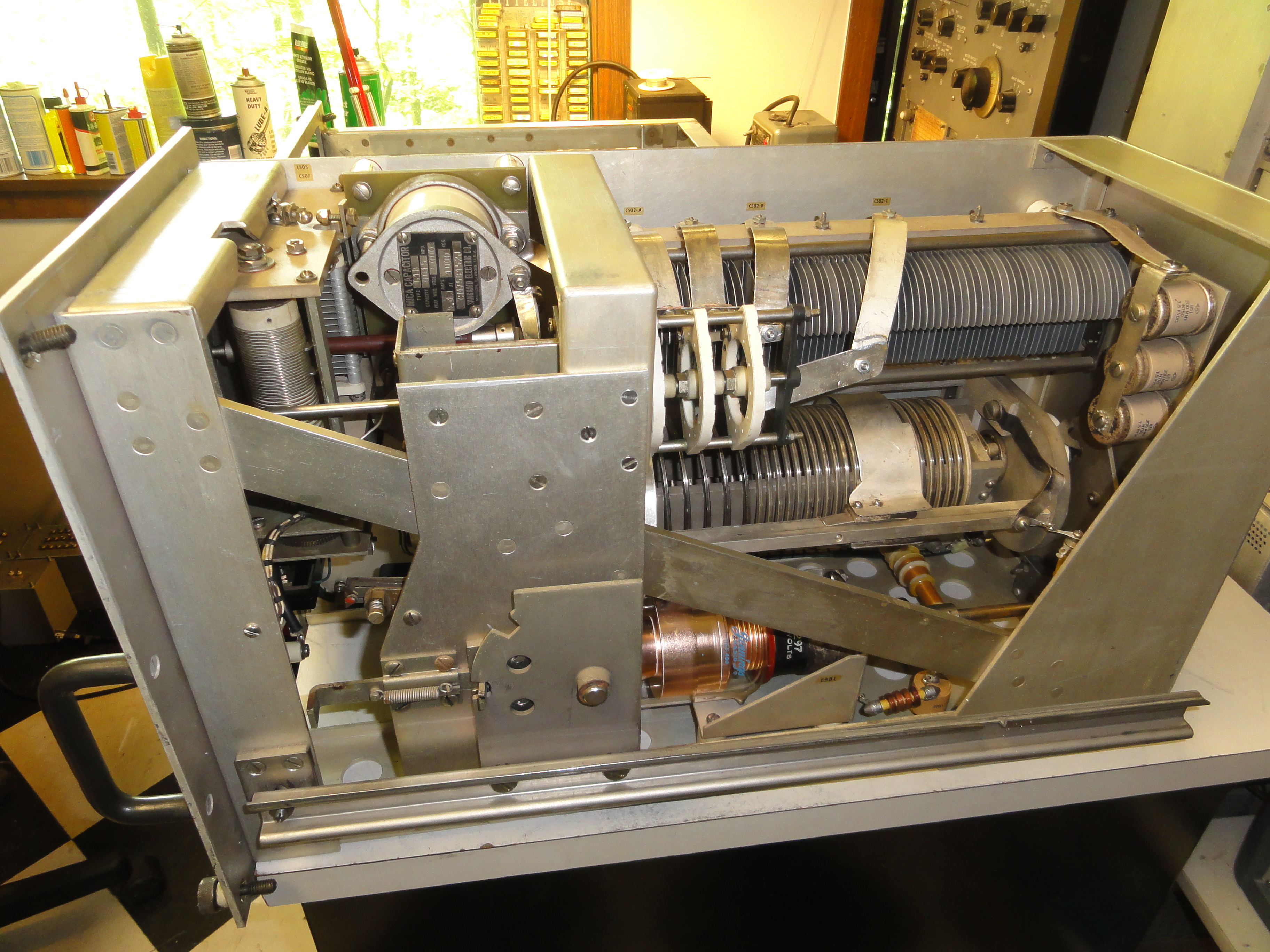

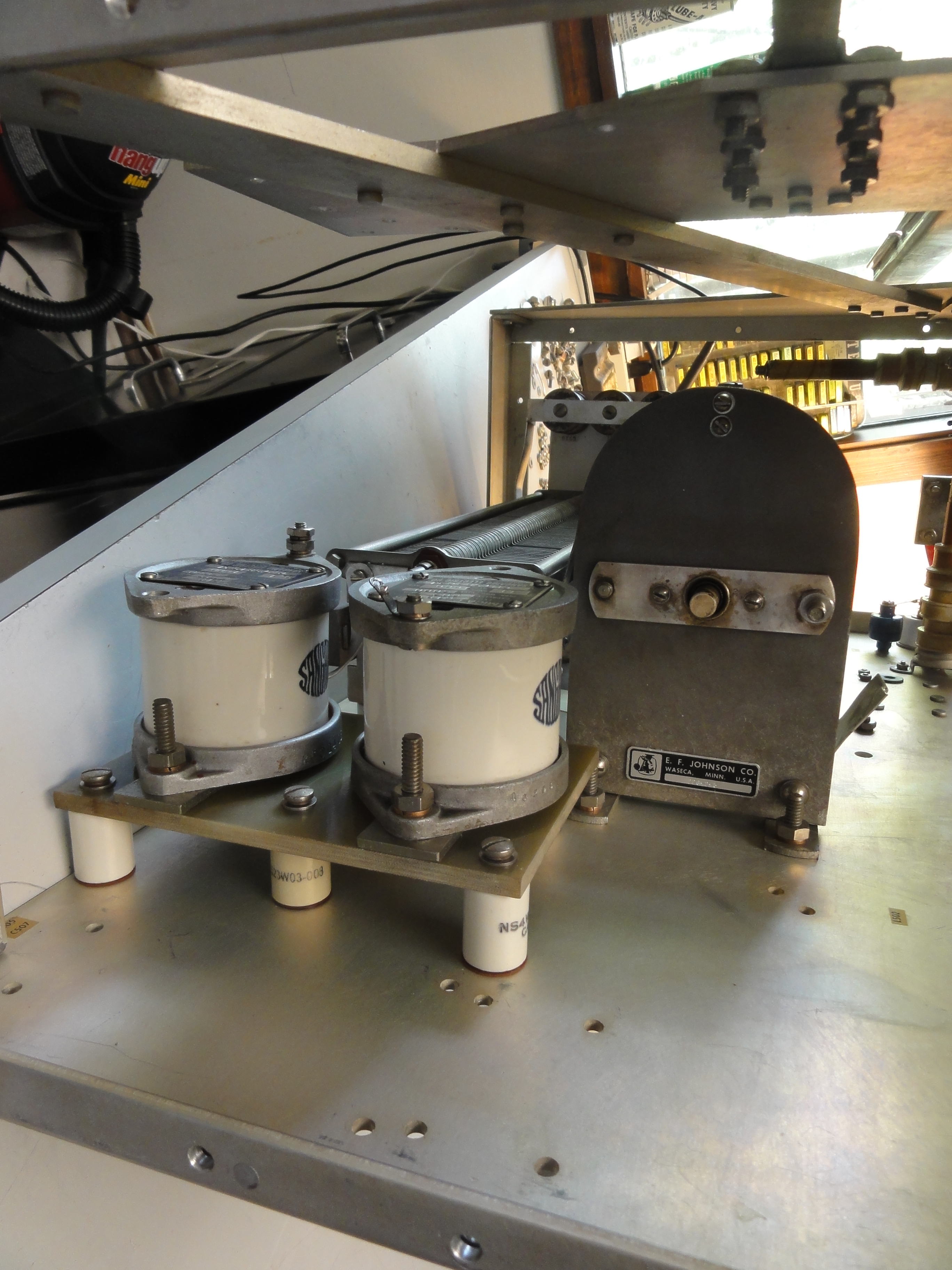

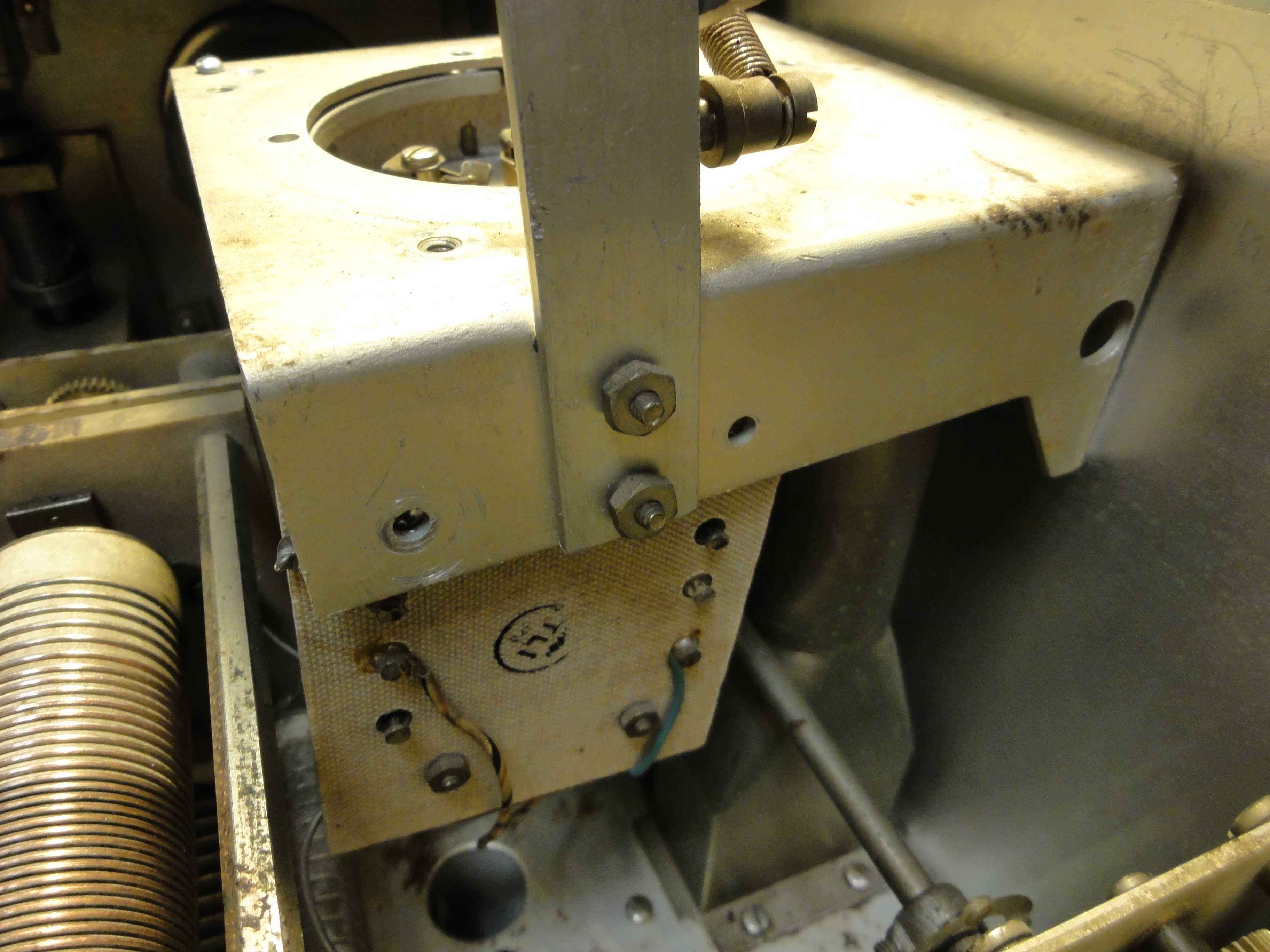

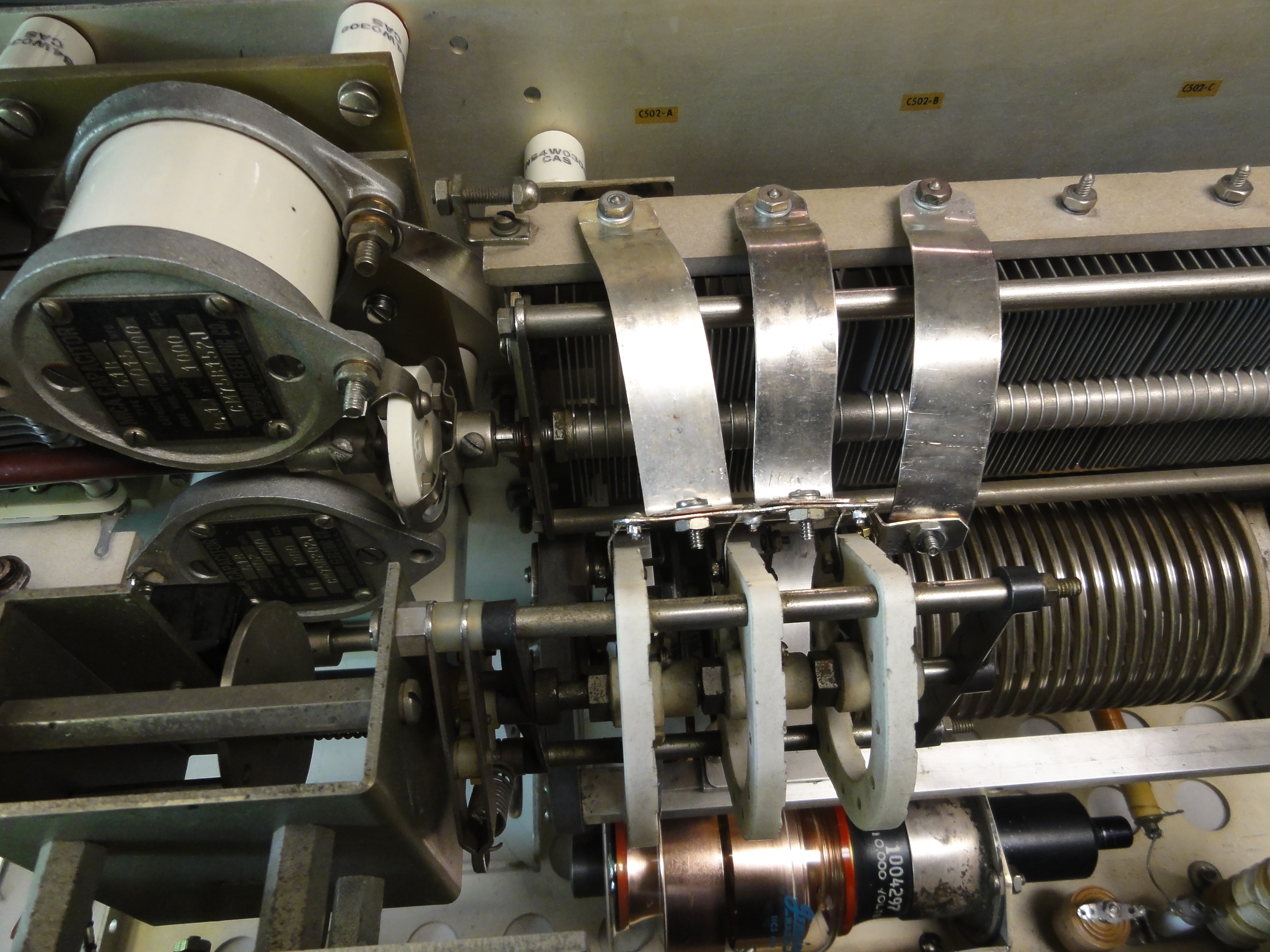

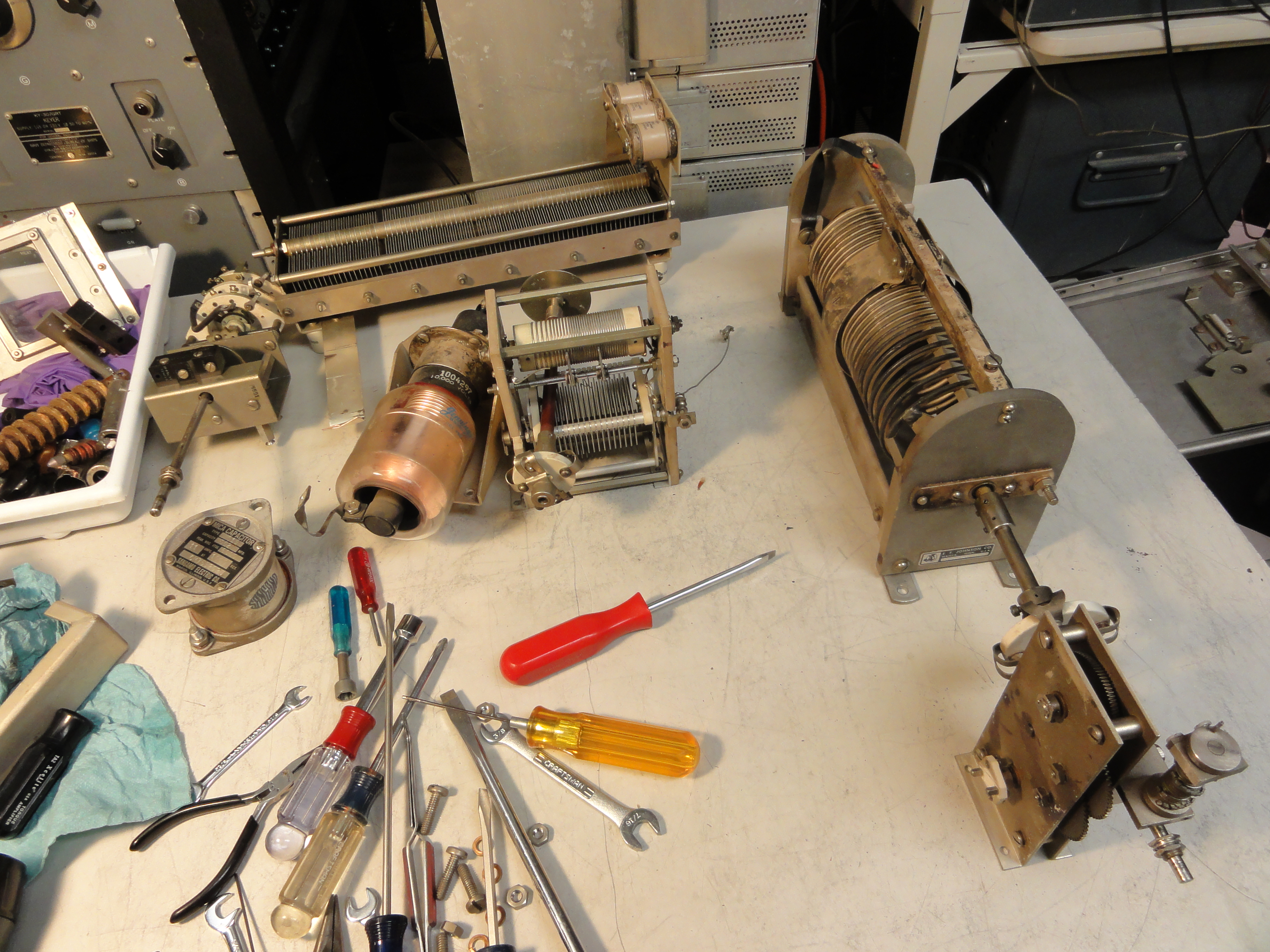

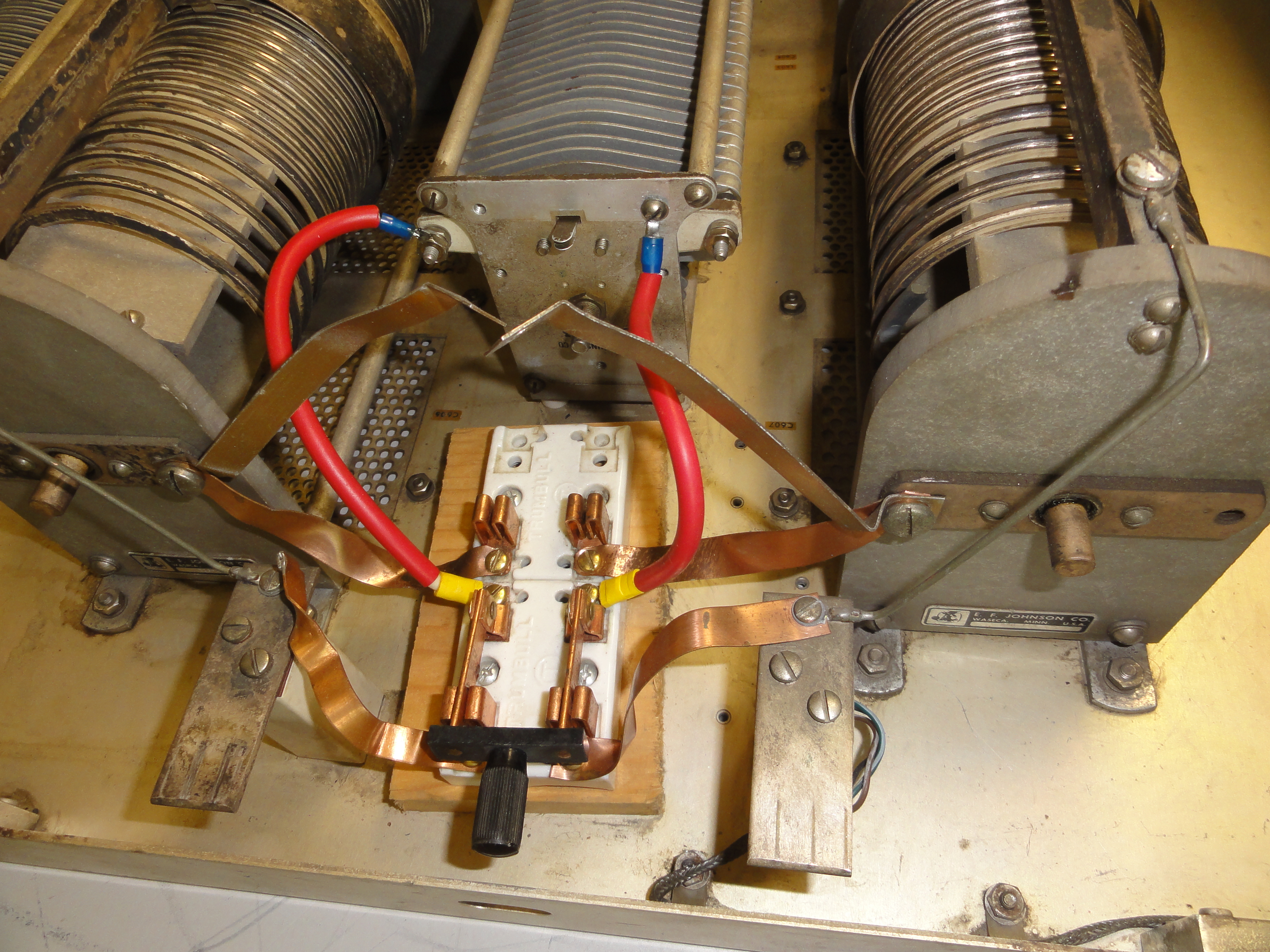

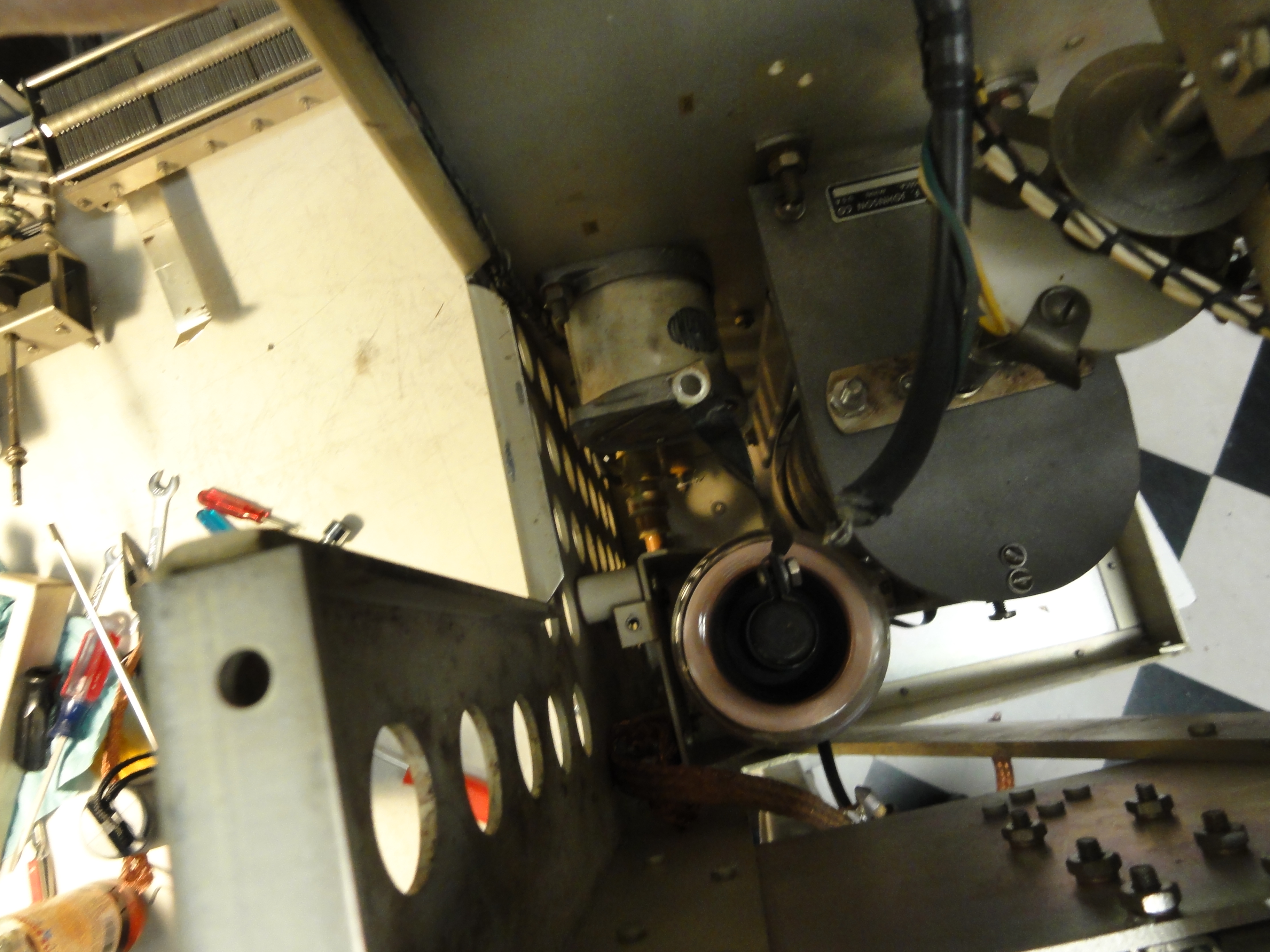

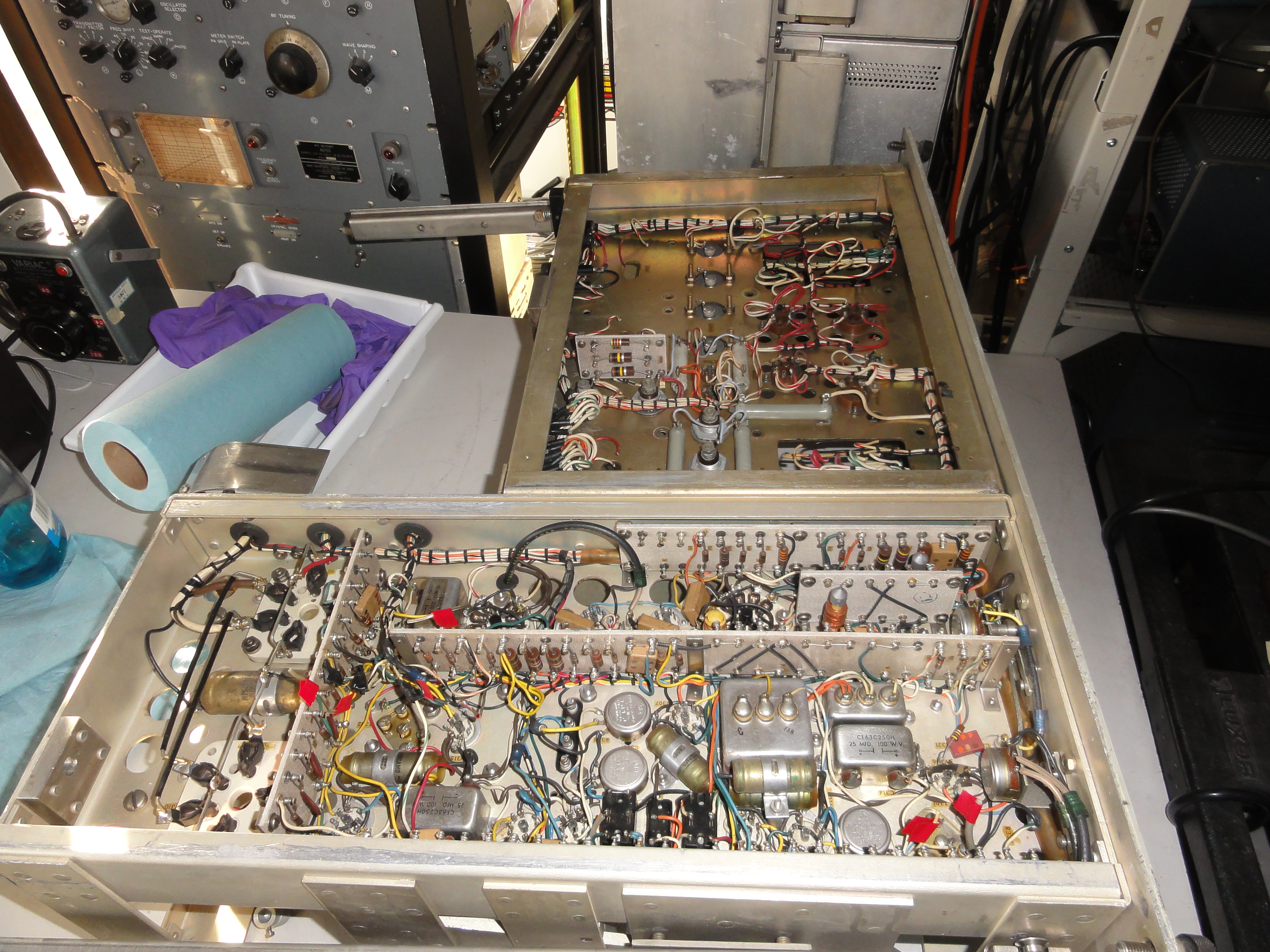

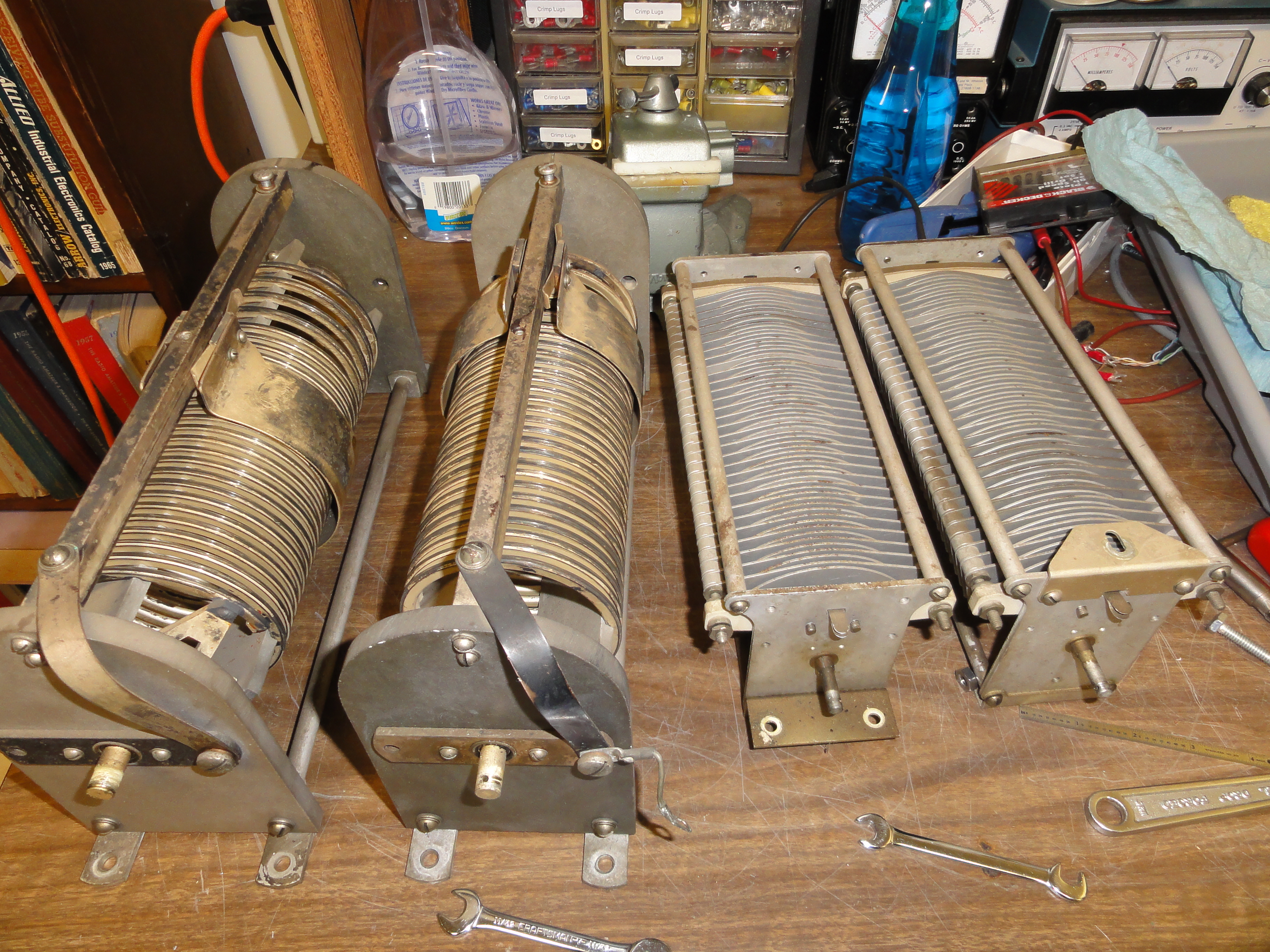

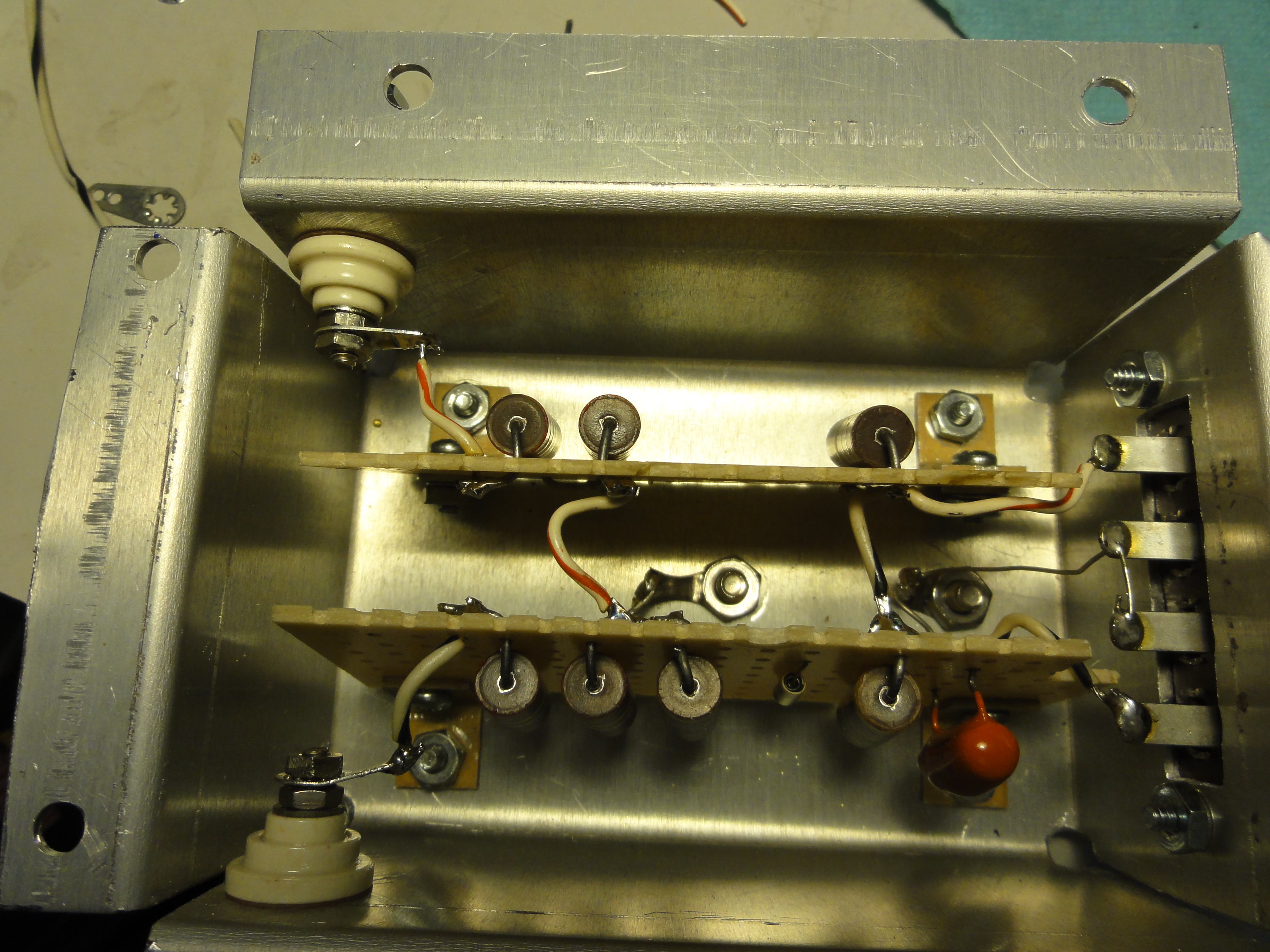

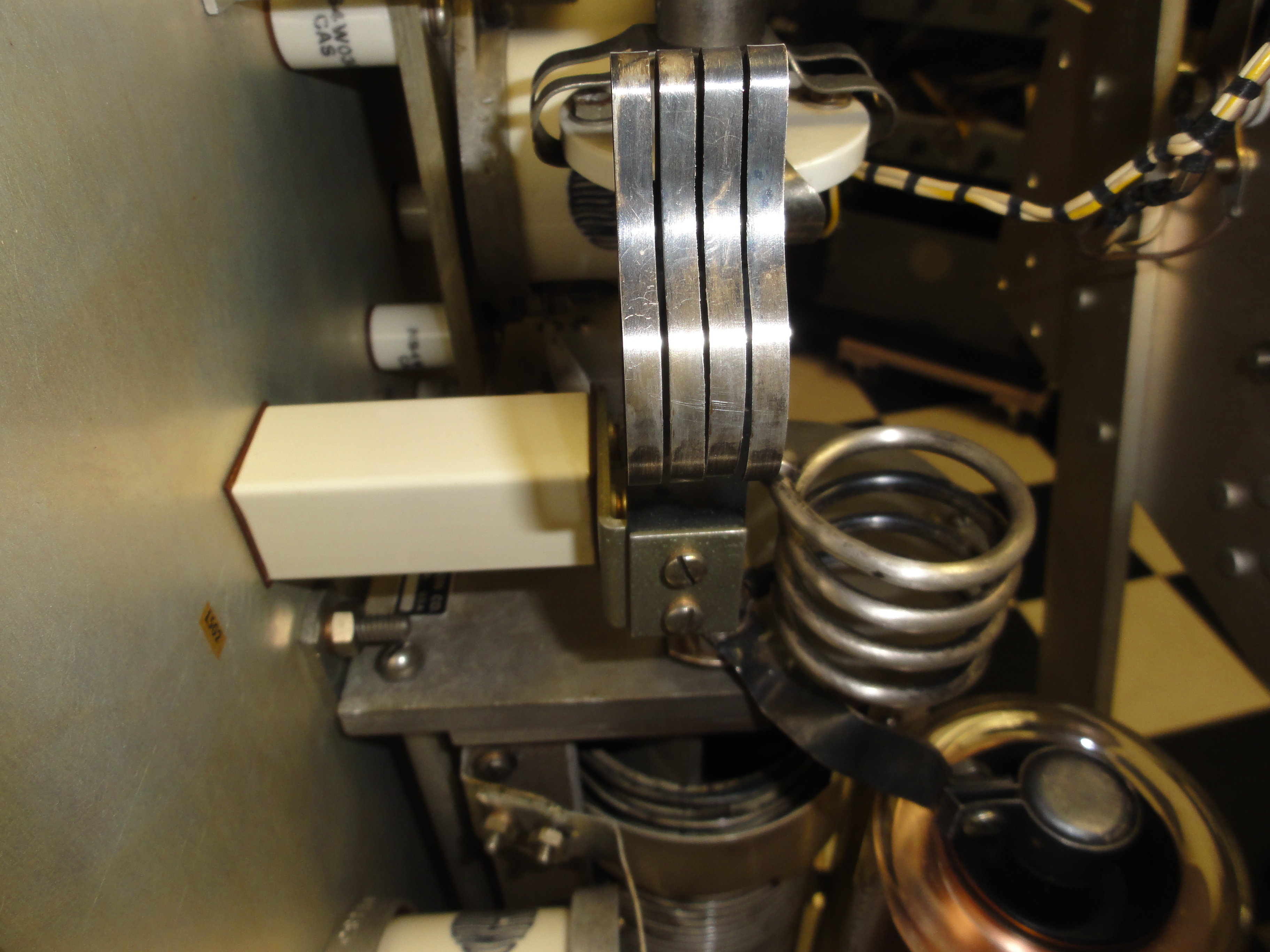

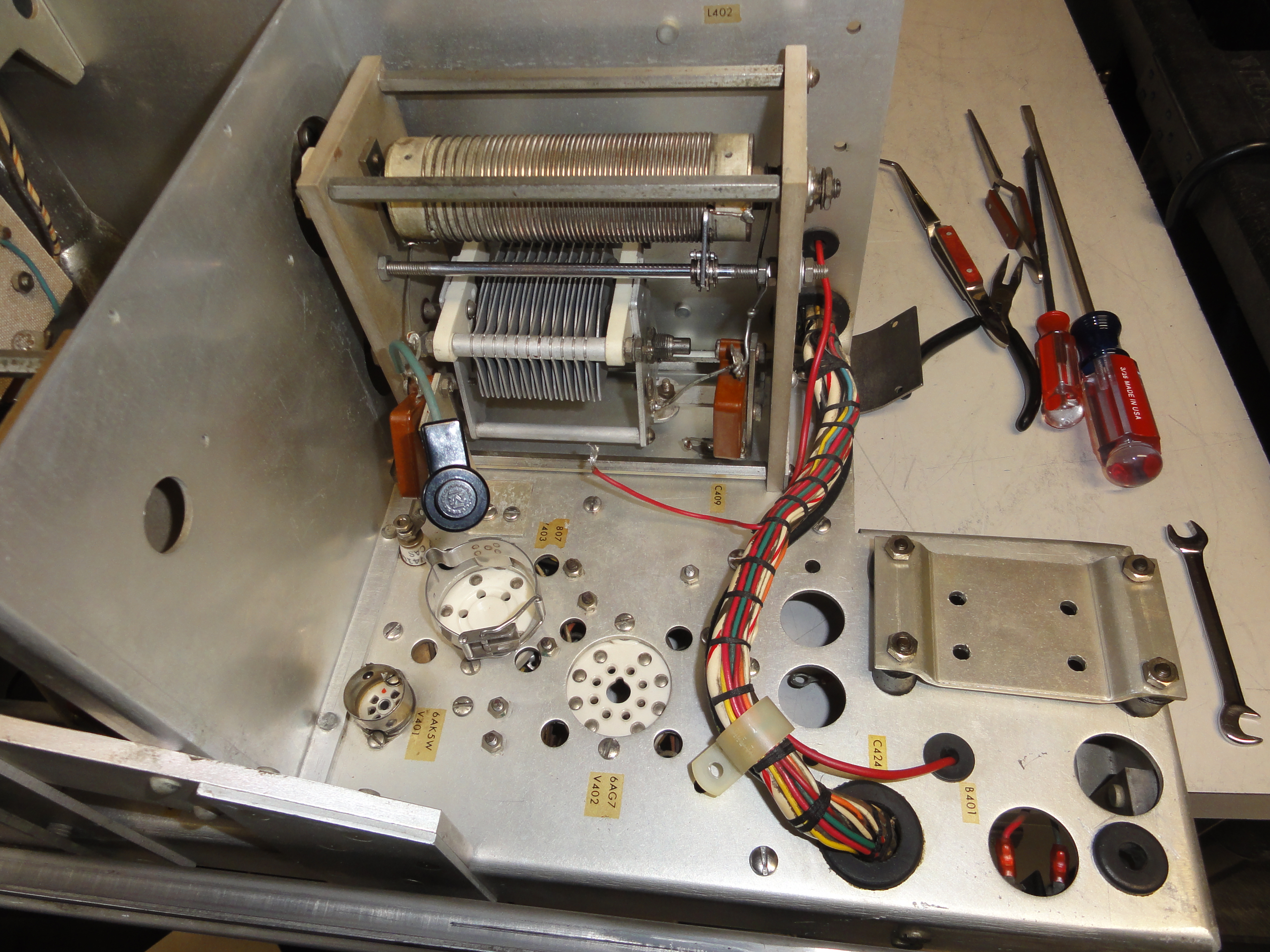

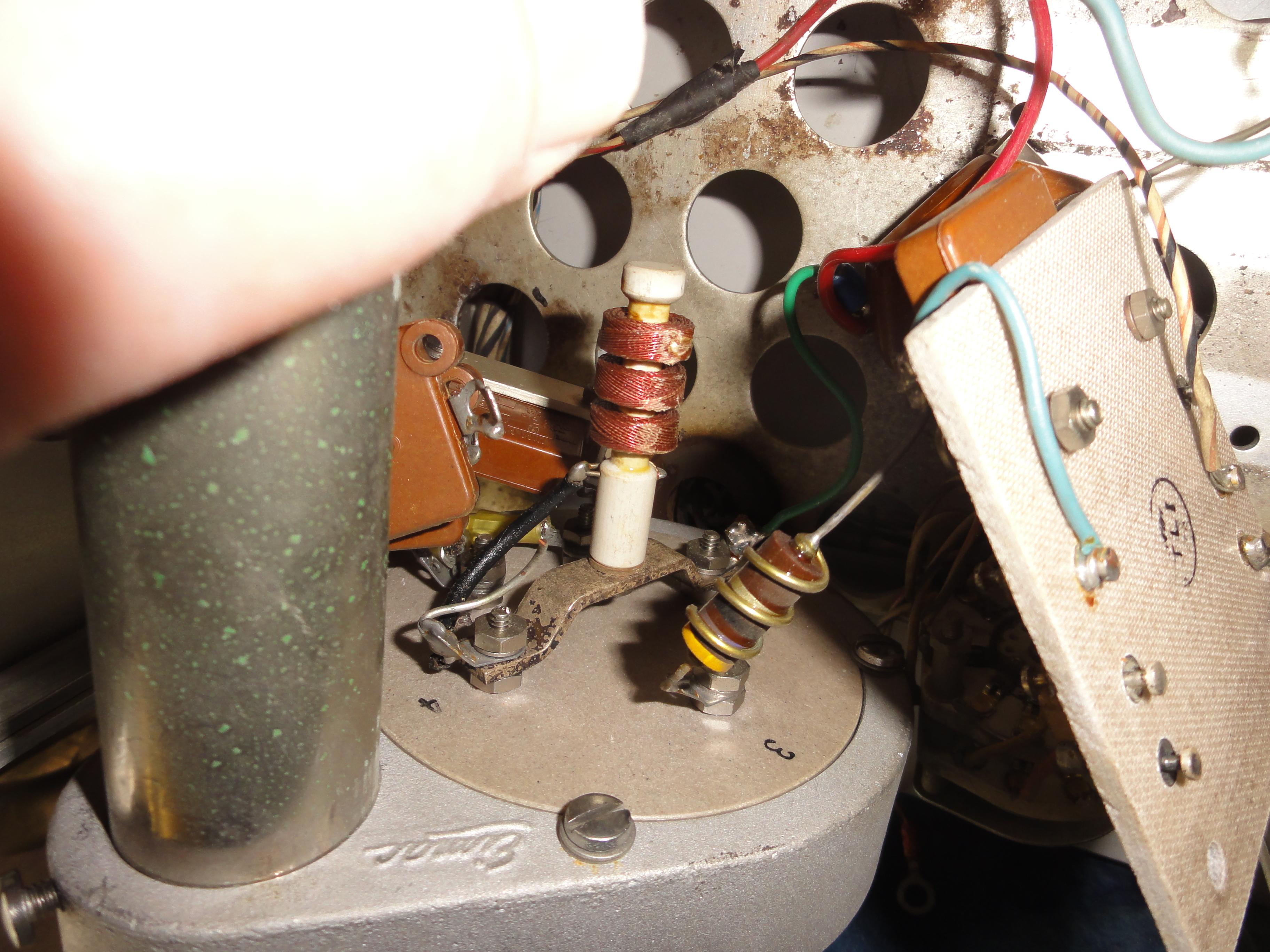

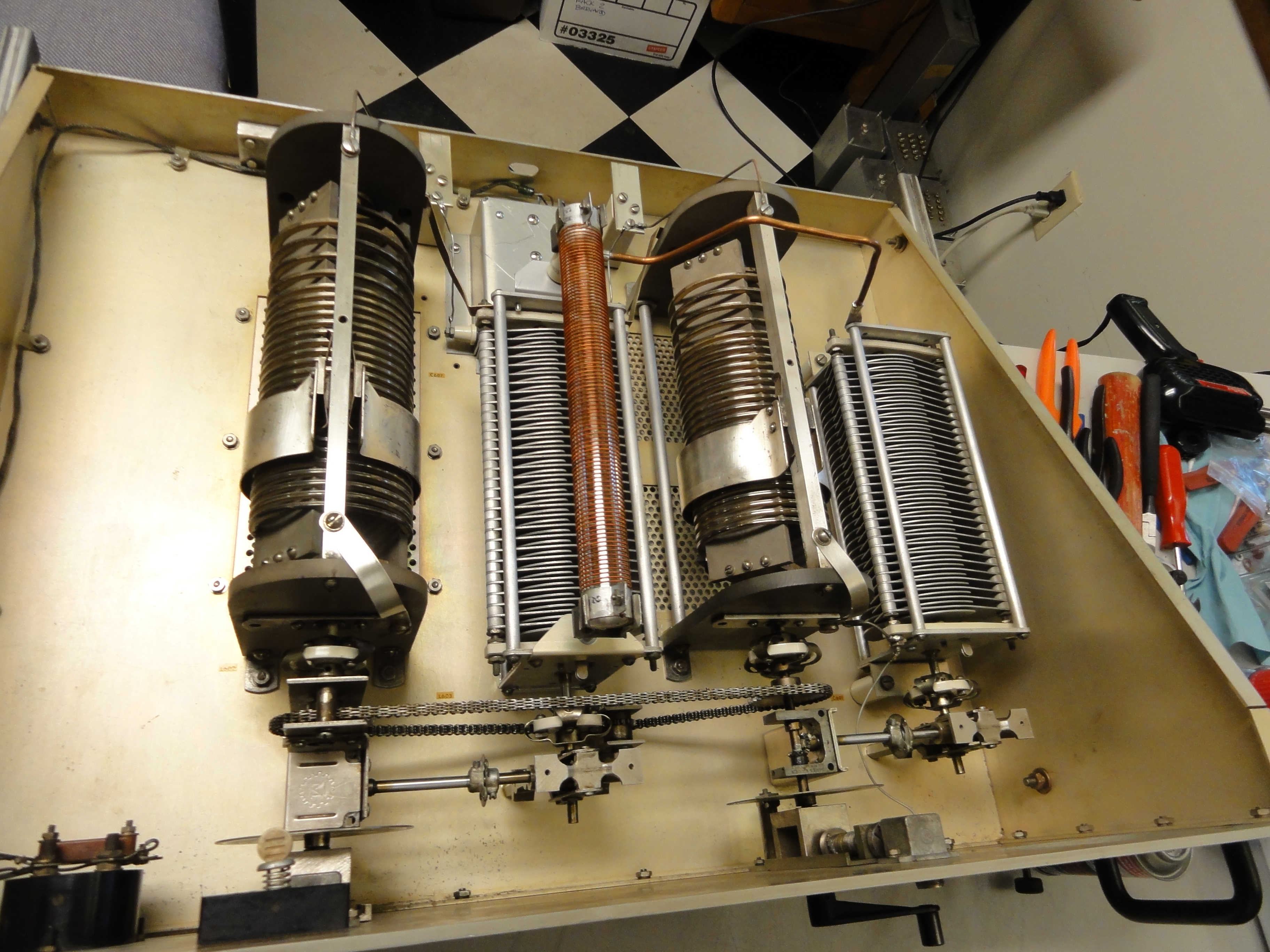

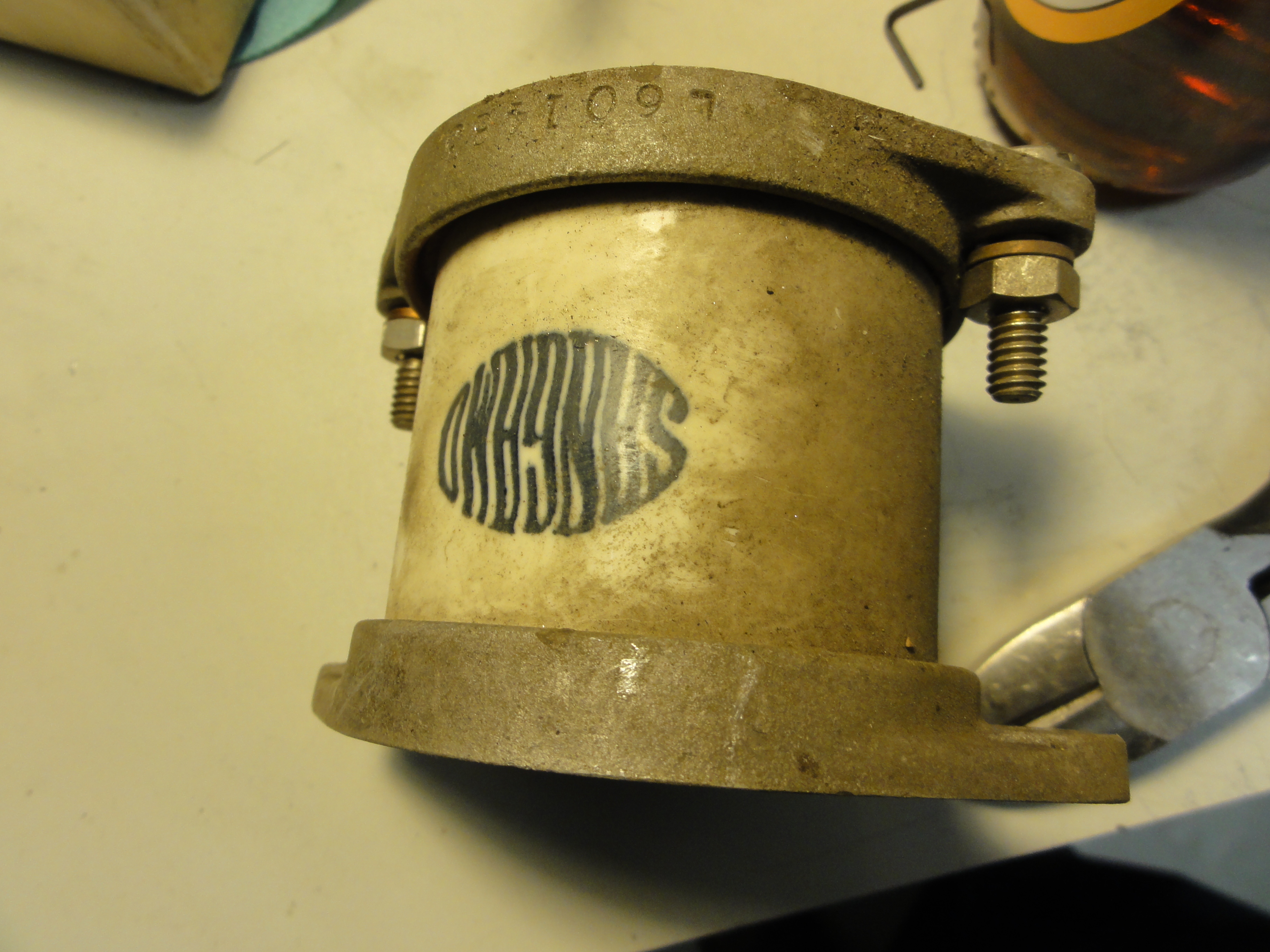

Drawer 2 - PA Tank circuit - modified by previous owner |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

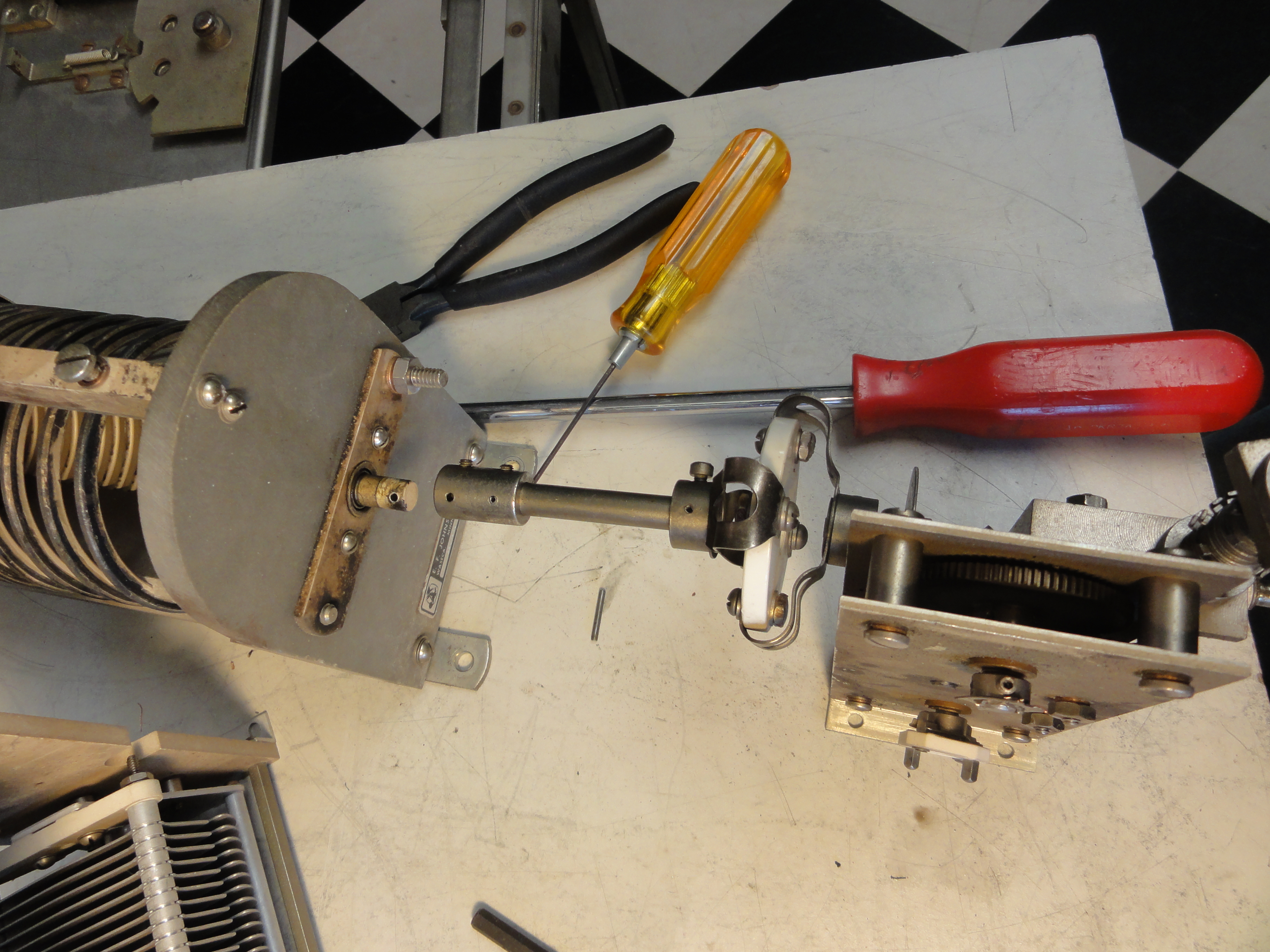

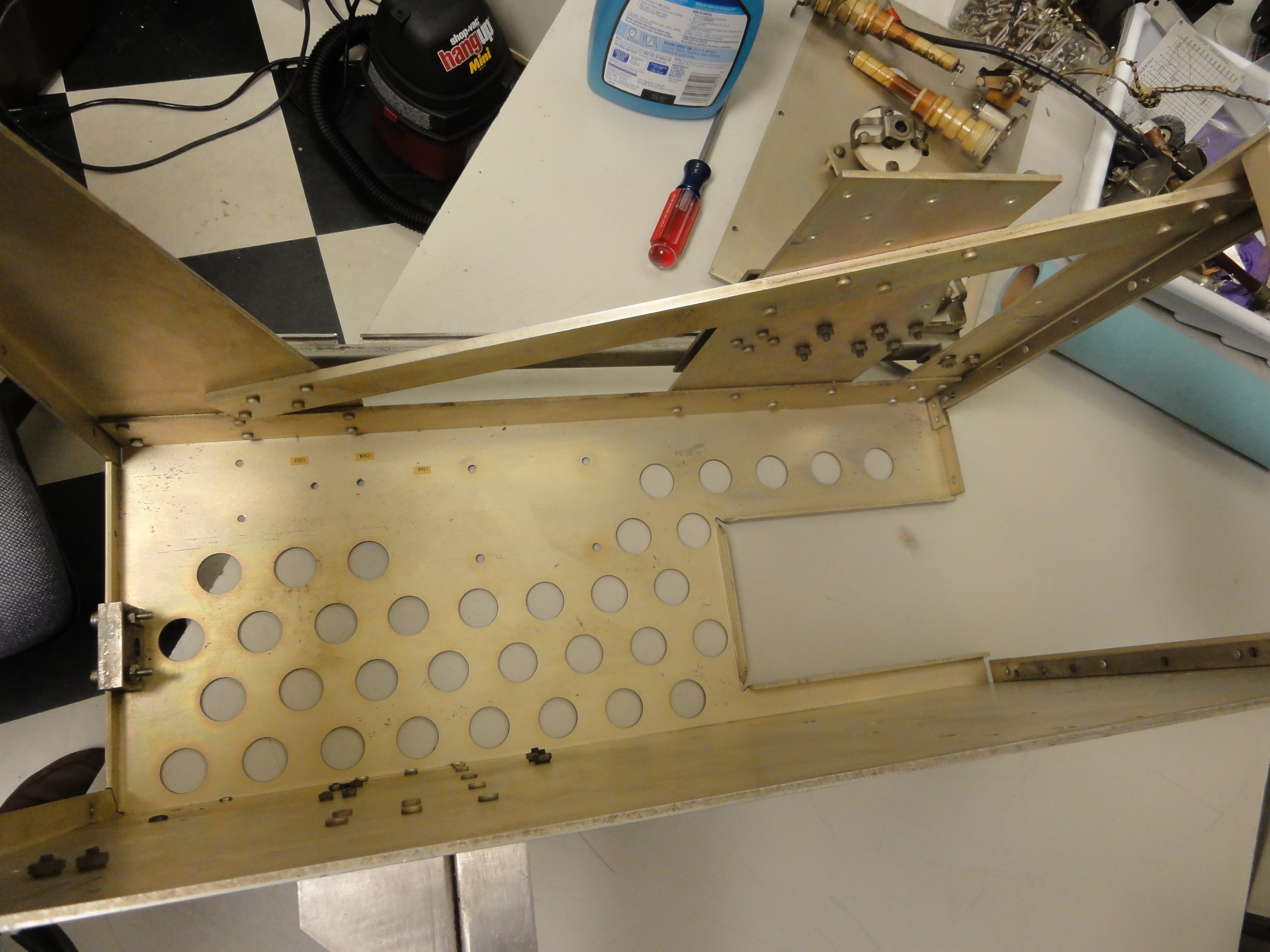

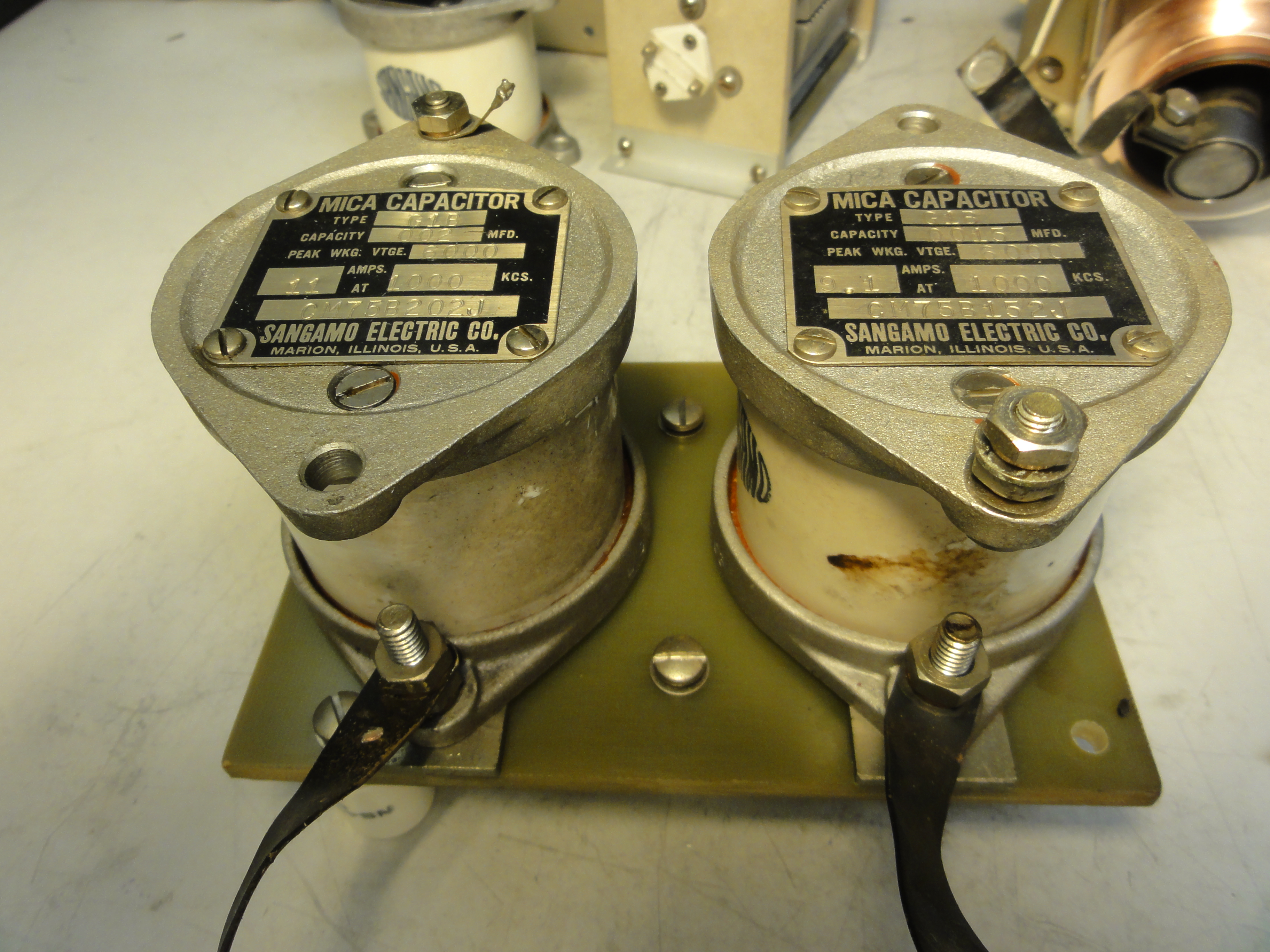

| Stripped and cleaned - ready to start re-assembly |
|

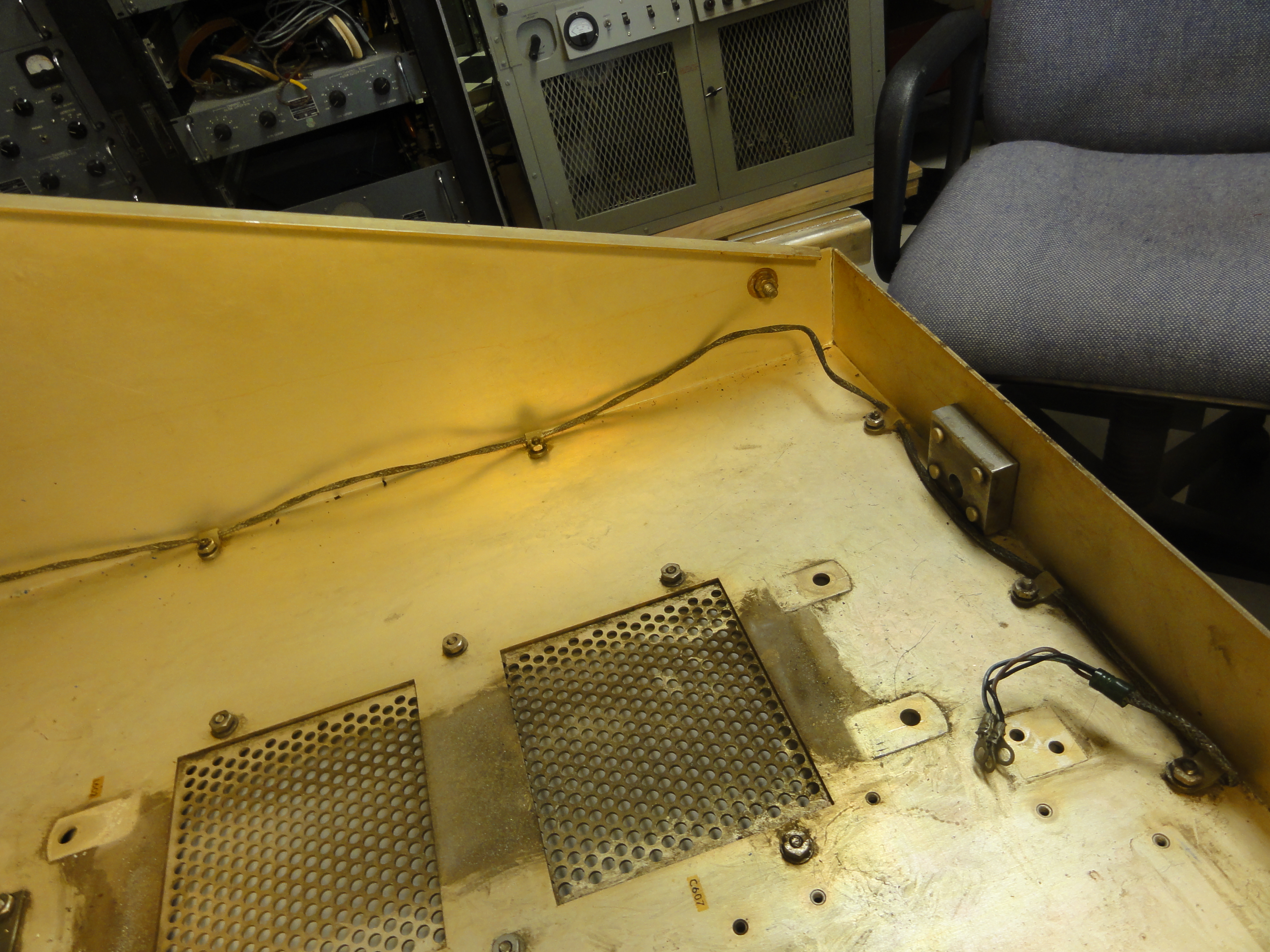

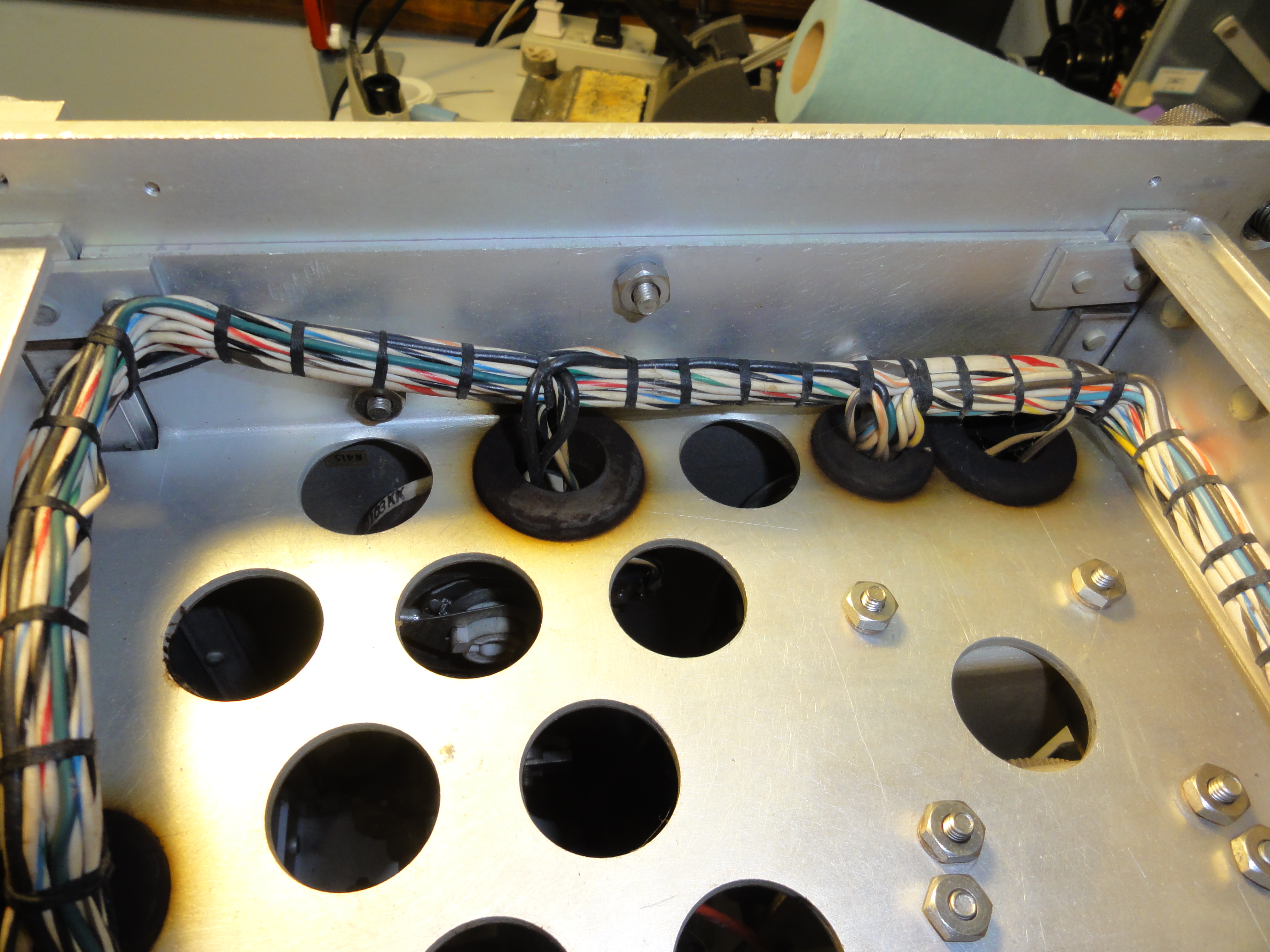

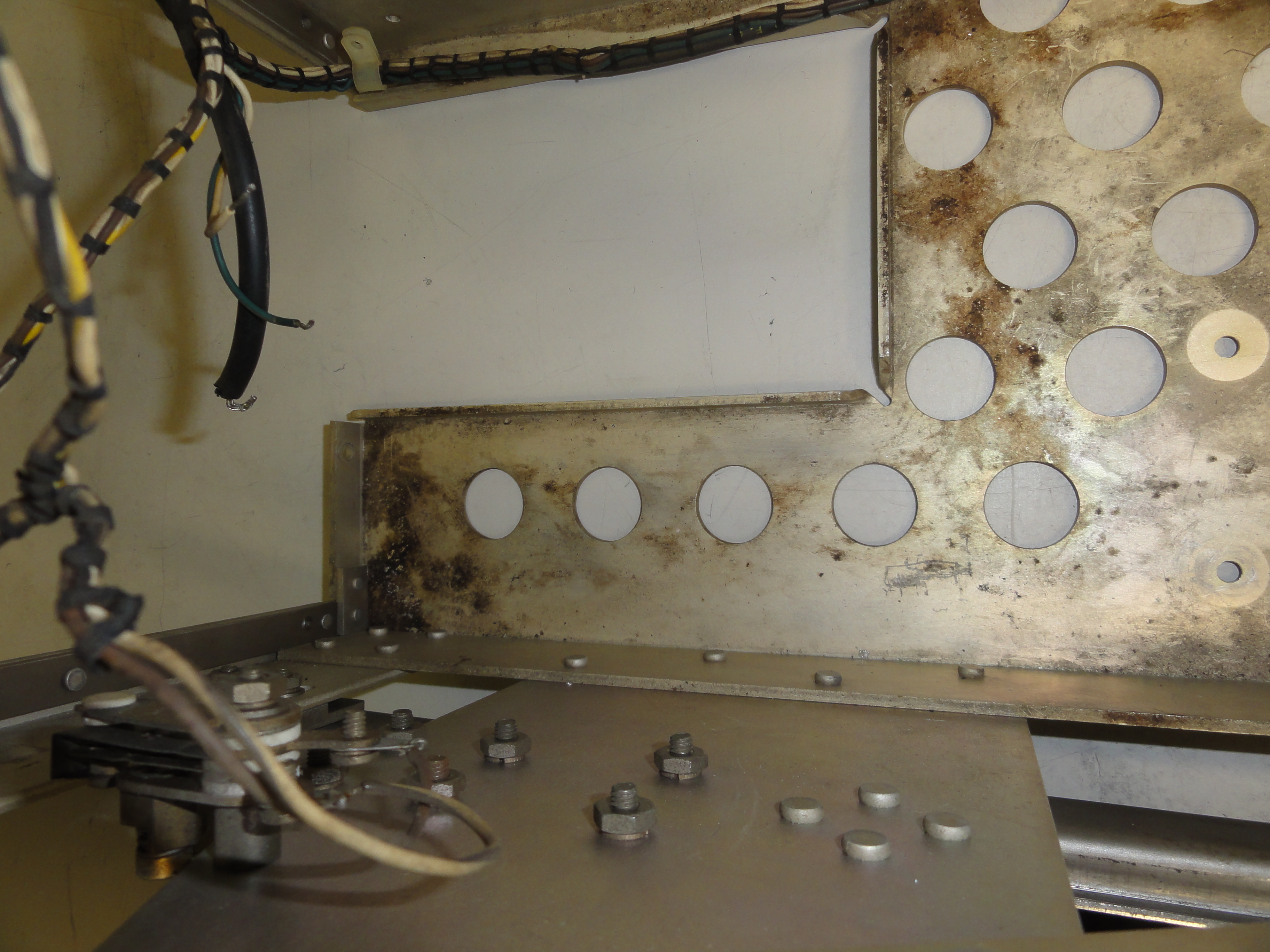

Clean-up |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
| Paul N6FEG's transmitter |
My reconstruction of the missing bits |
Paul N6FEG's transmitter |
My reconstruction of the missing bits |

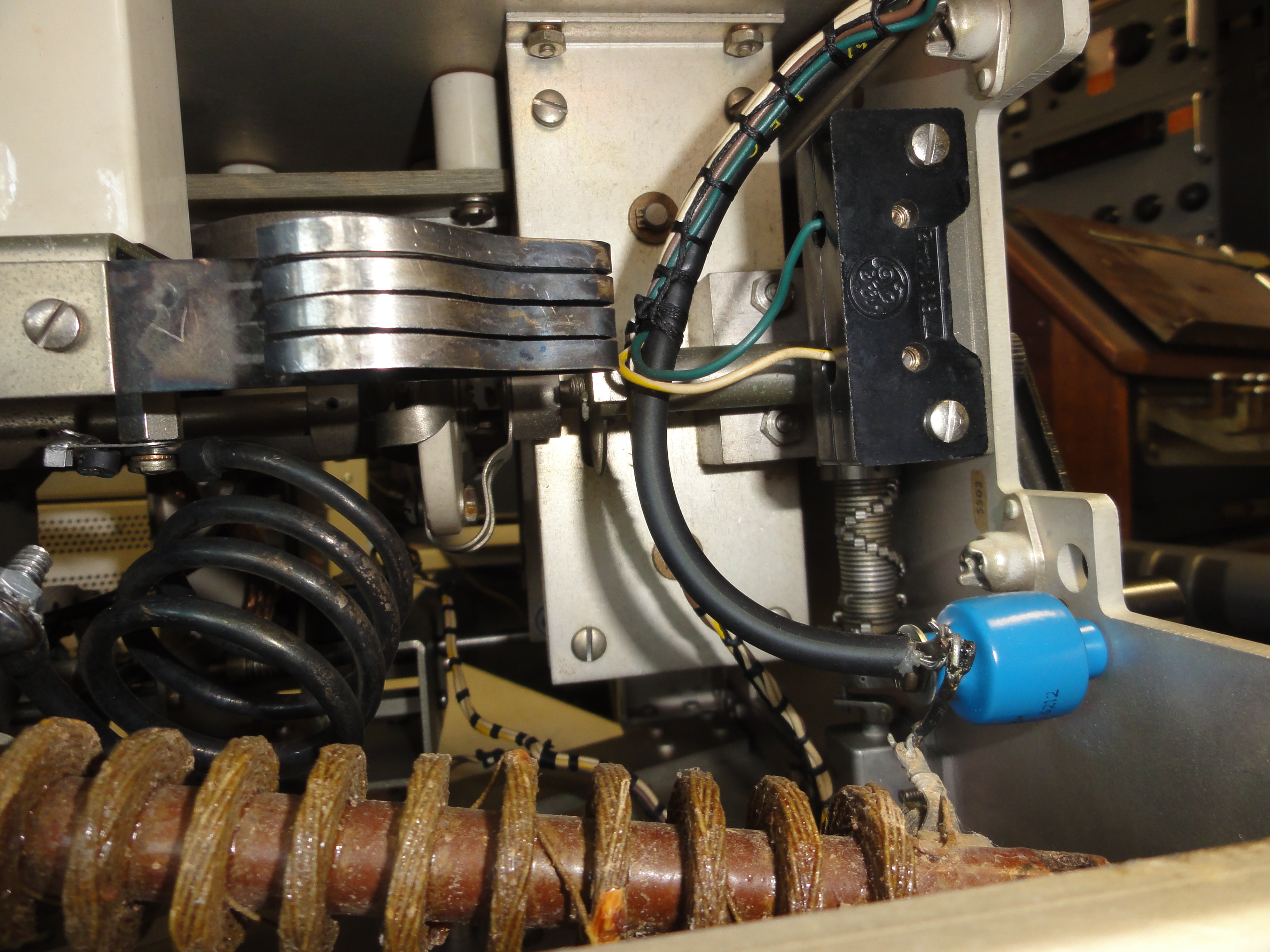

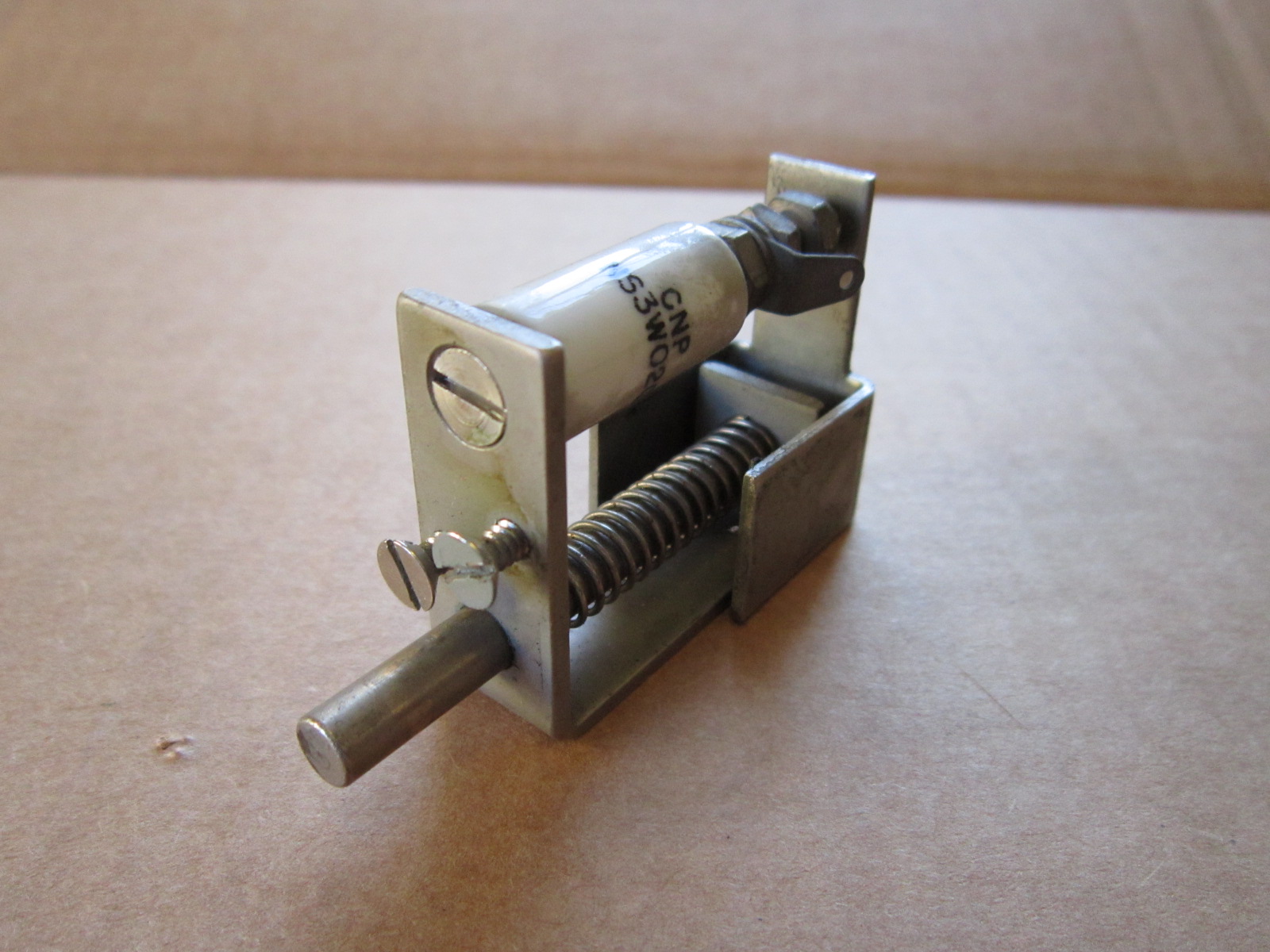

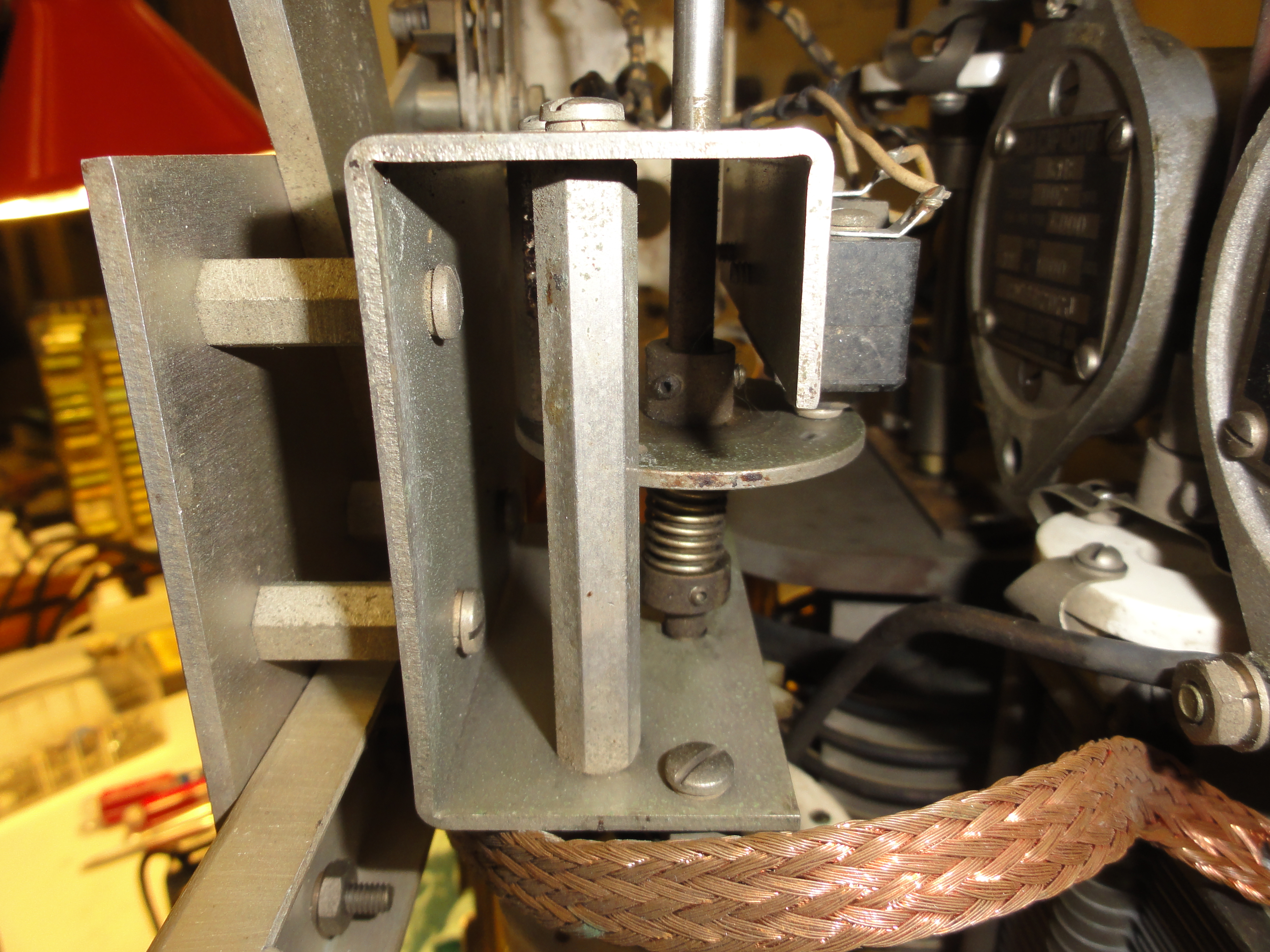

| Paul's HV interlock - I need to fabricate one of these |

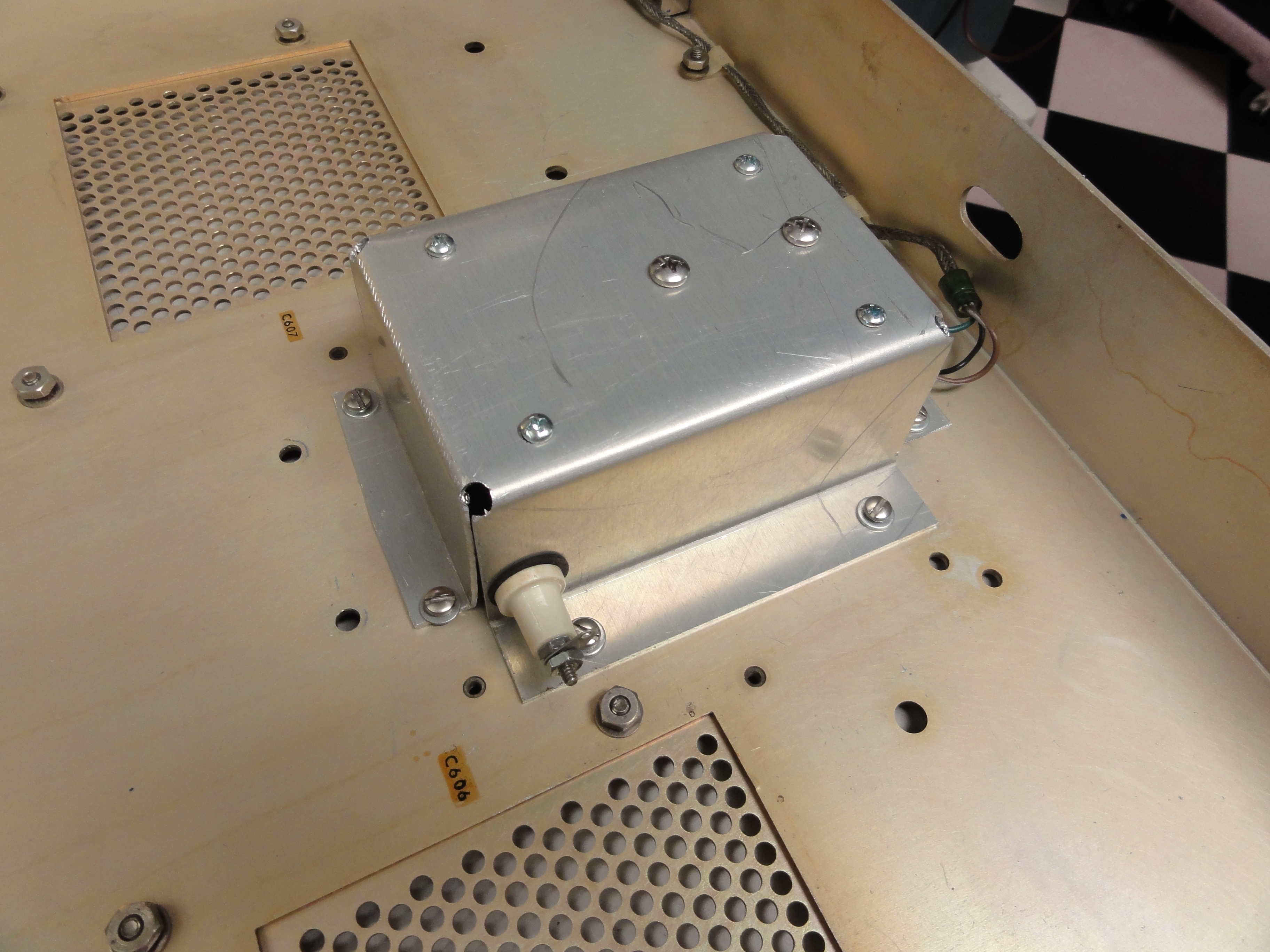

My crude but workable replica |
replica installed |

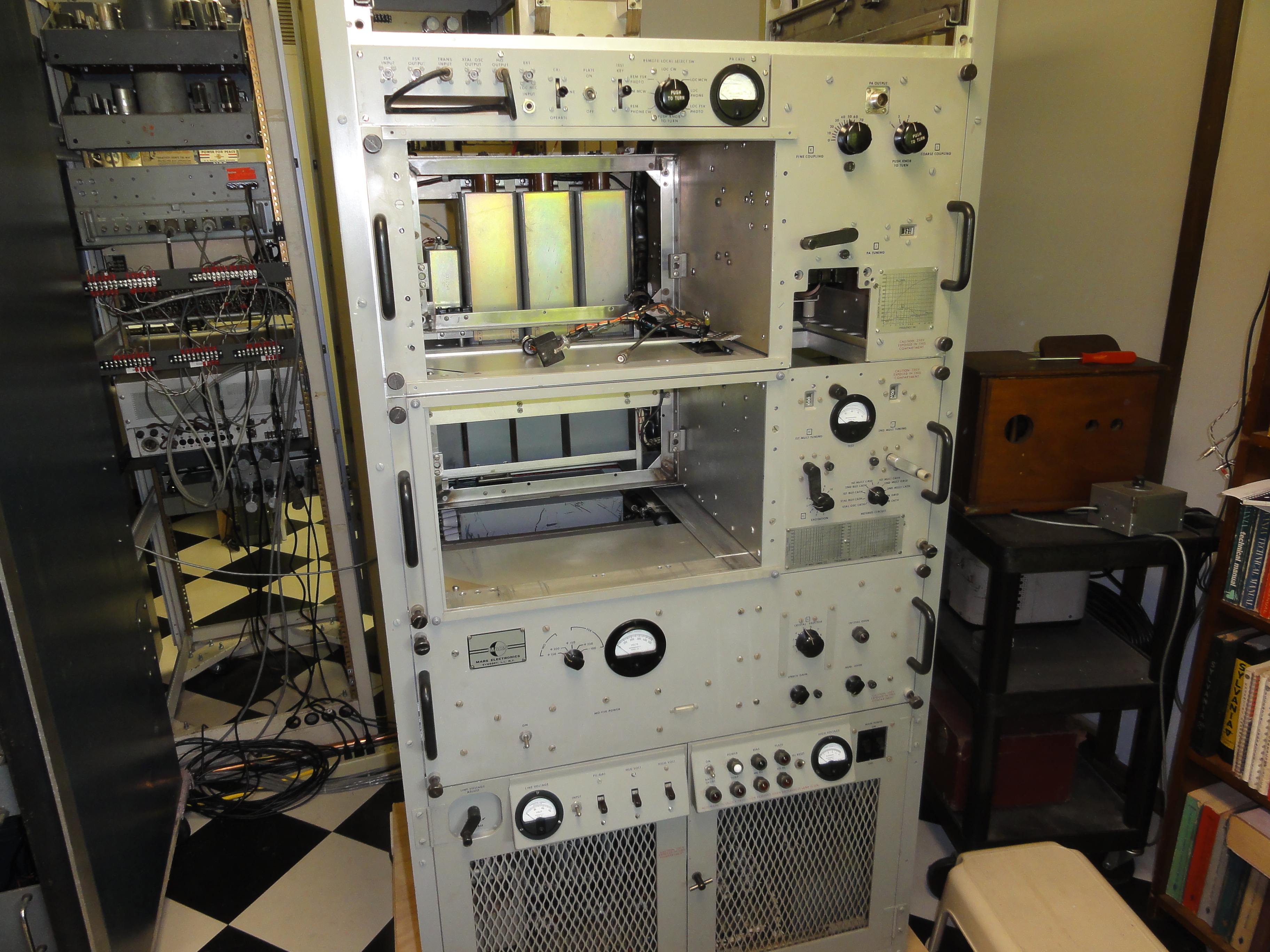

PA Drawer Installed |

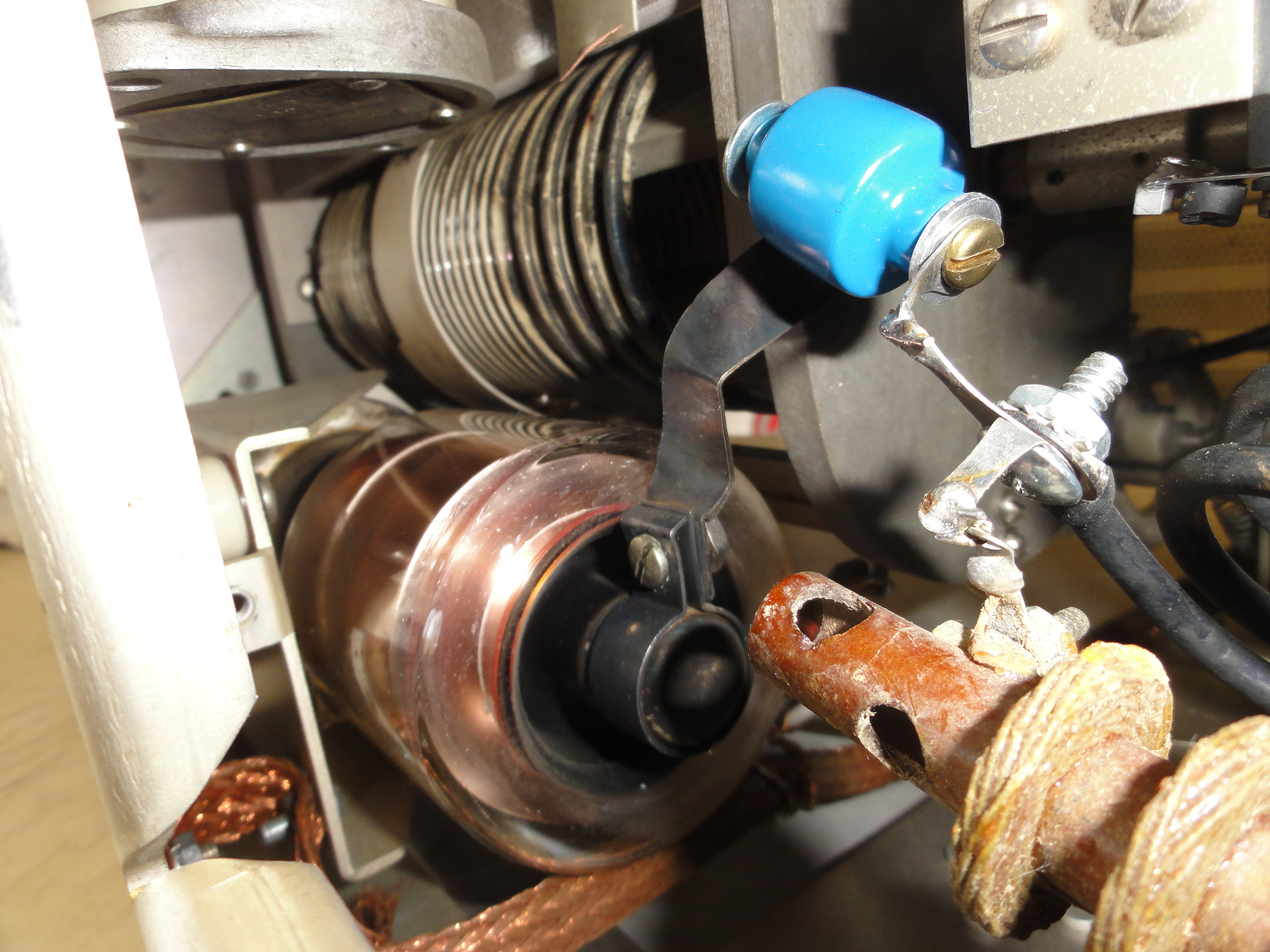

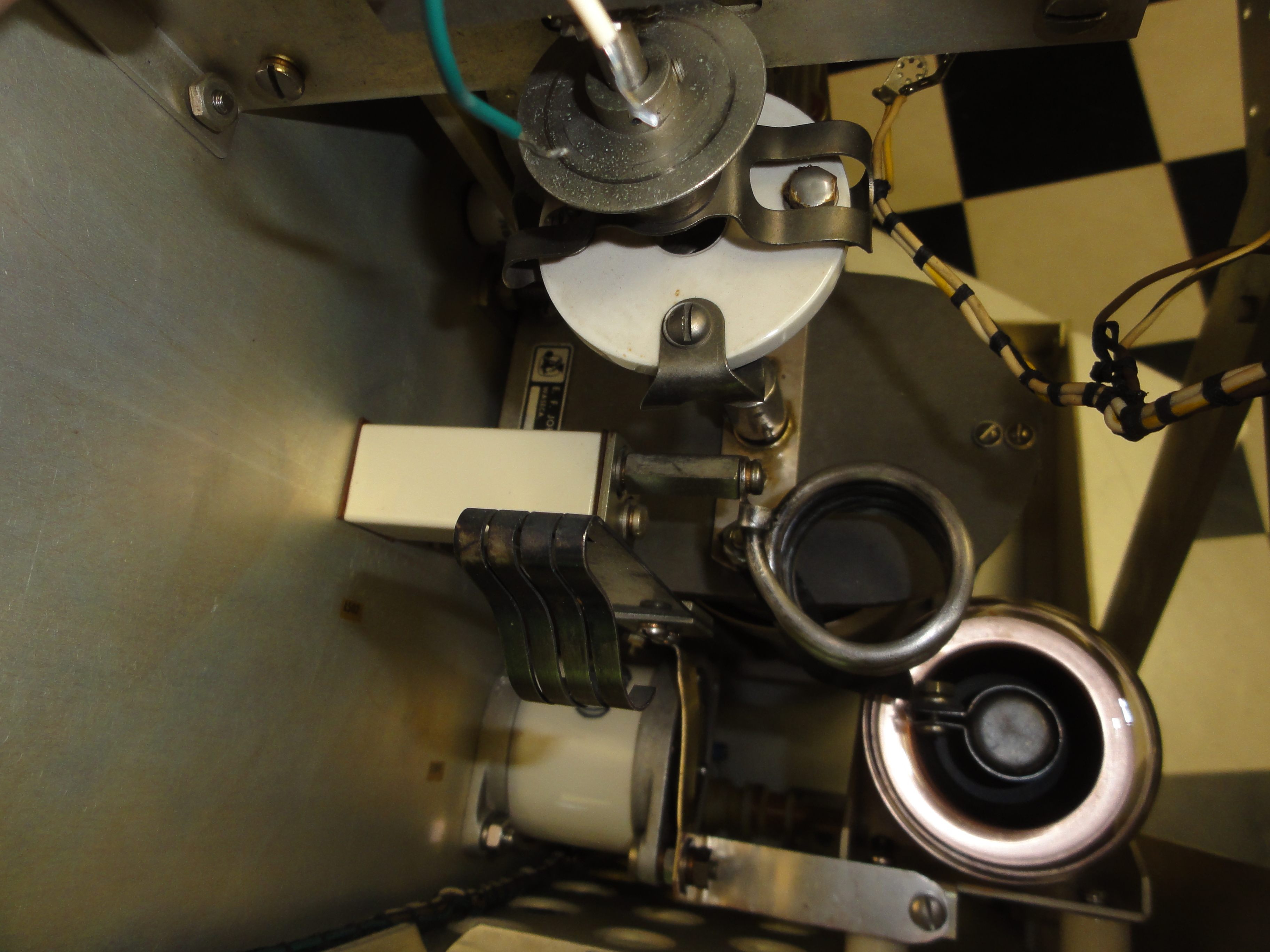

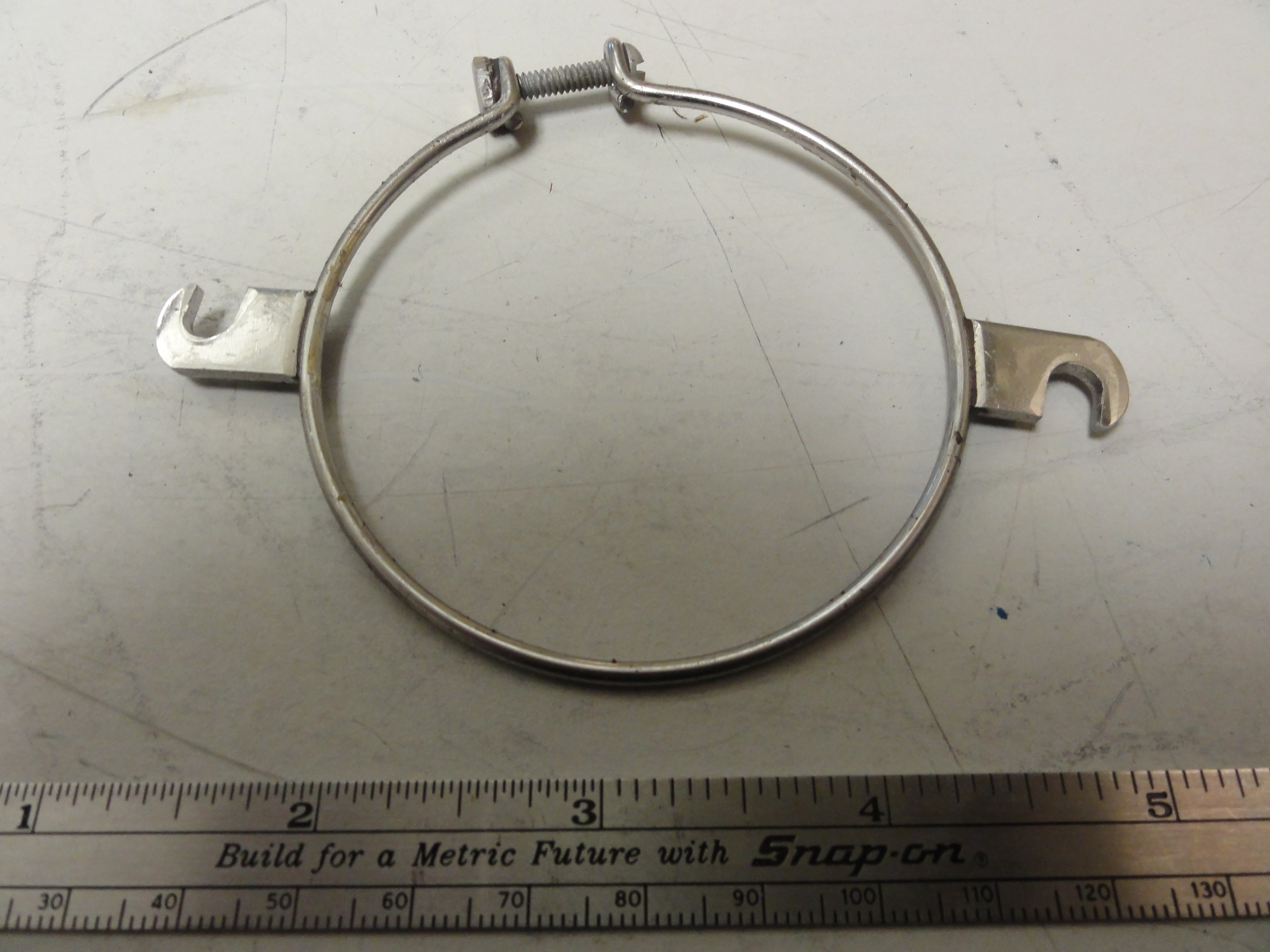

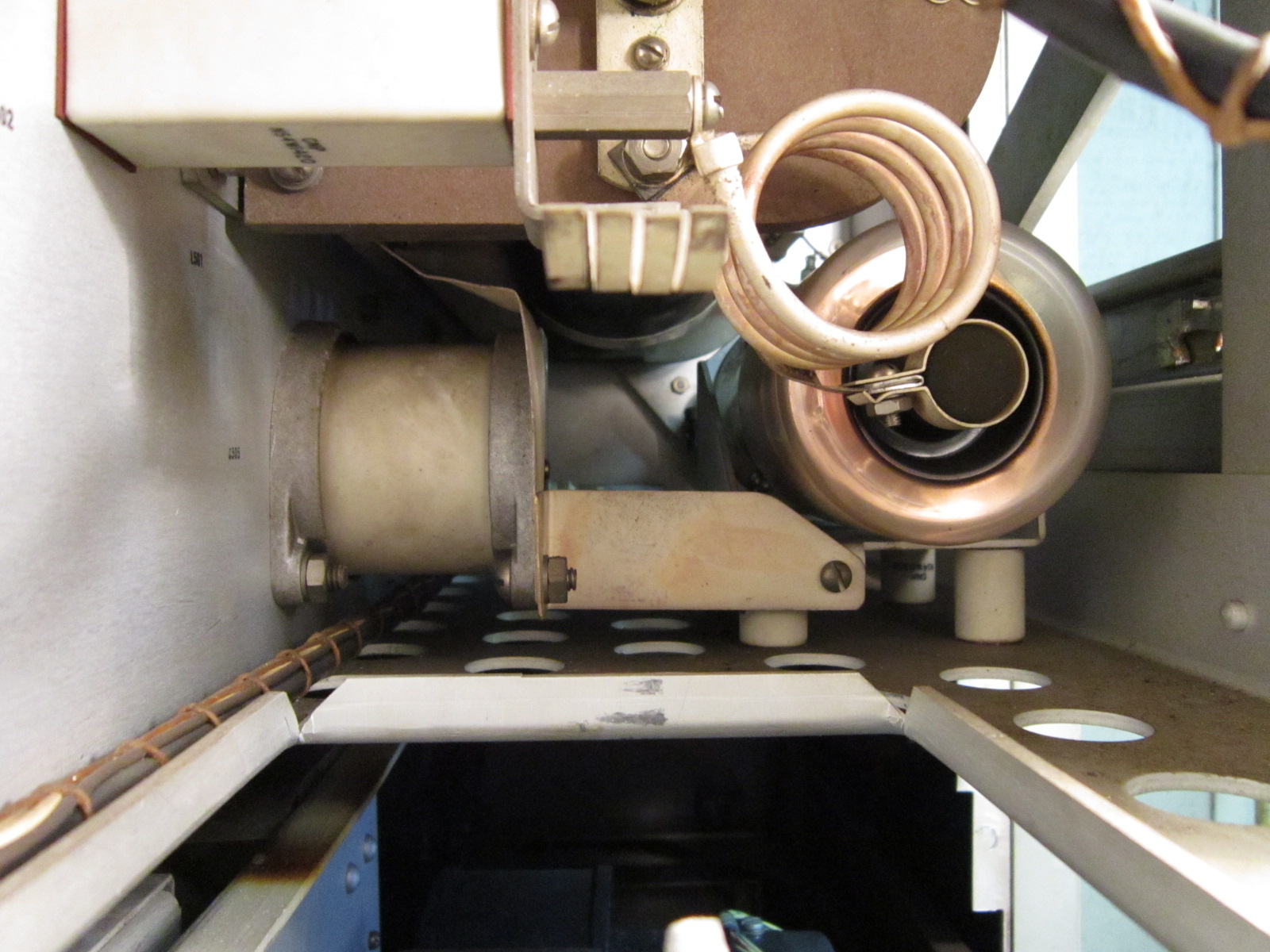

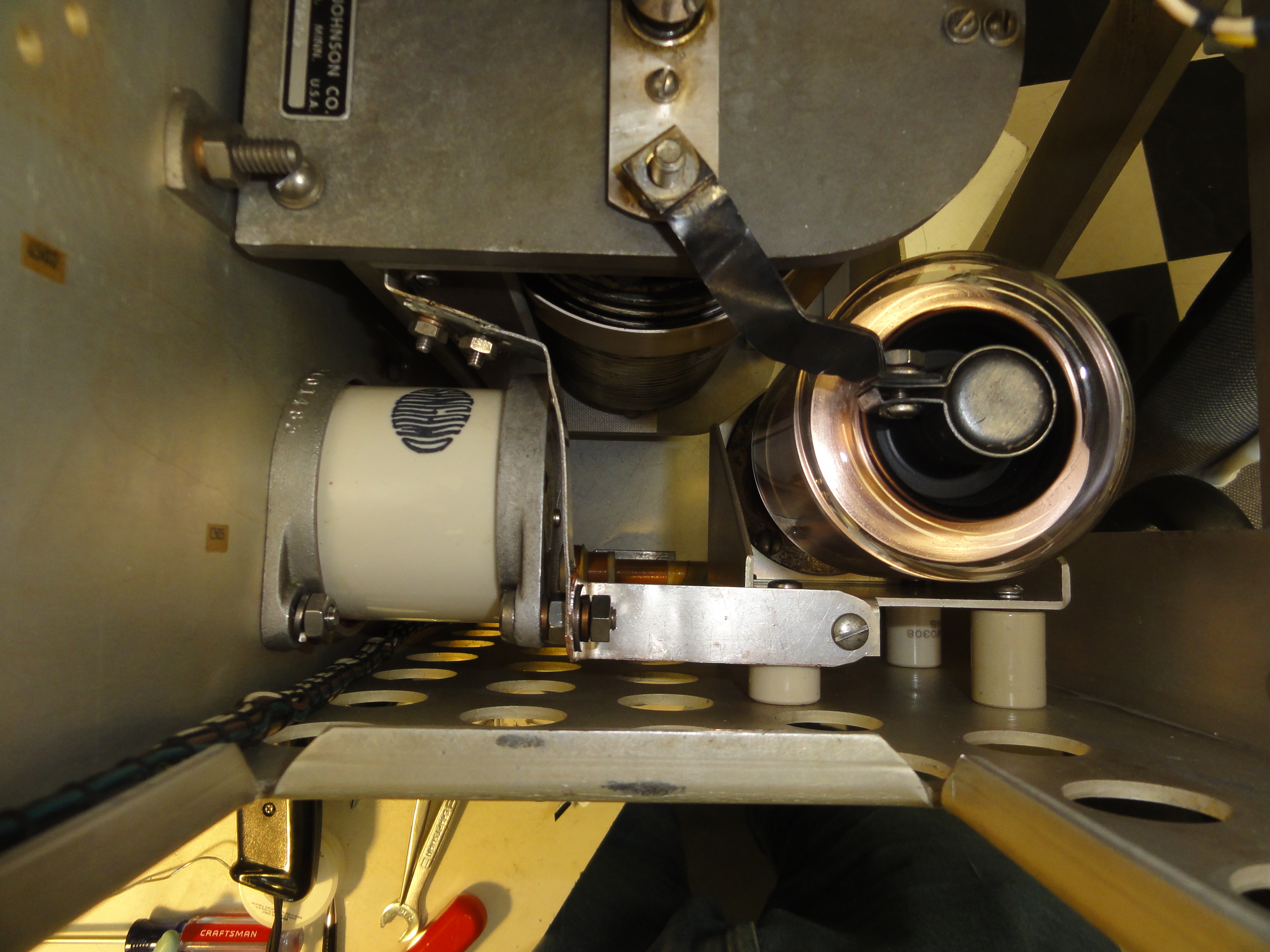

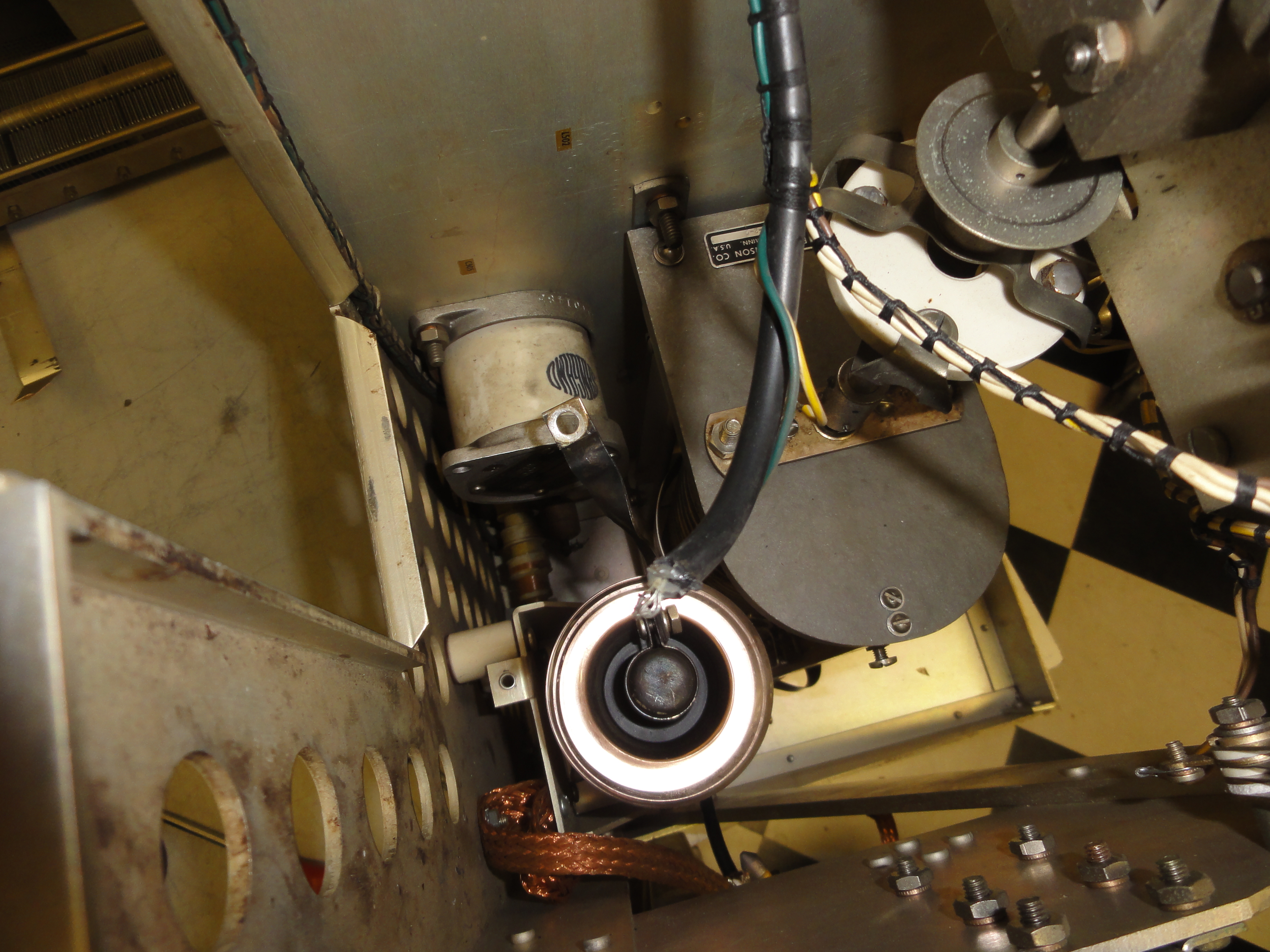

| I need a retaining ring like this for the 4-400 PA tube |
|
-- | -- |

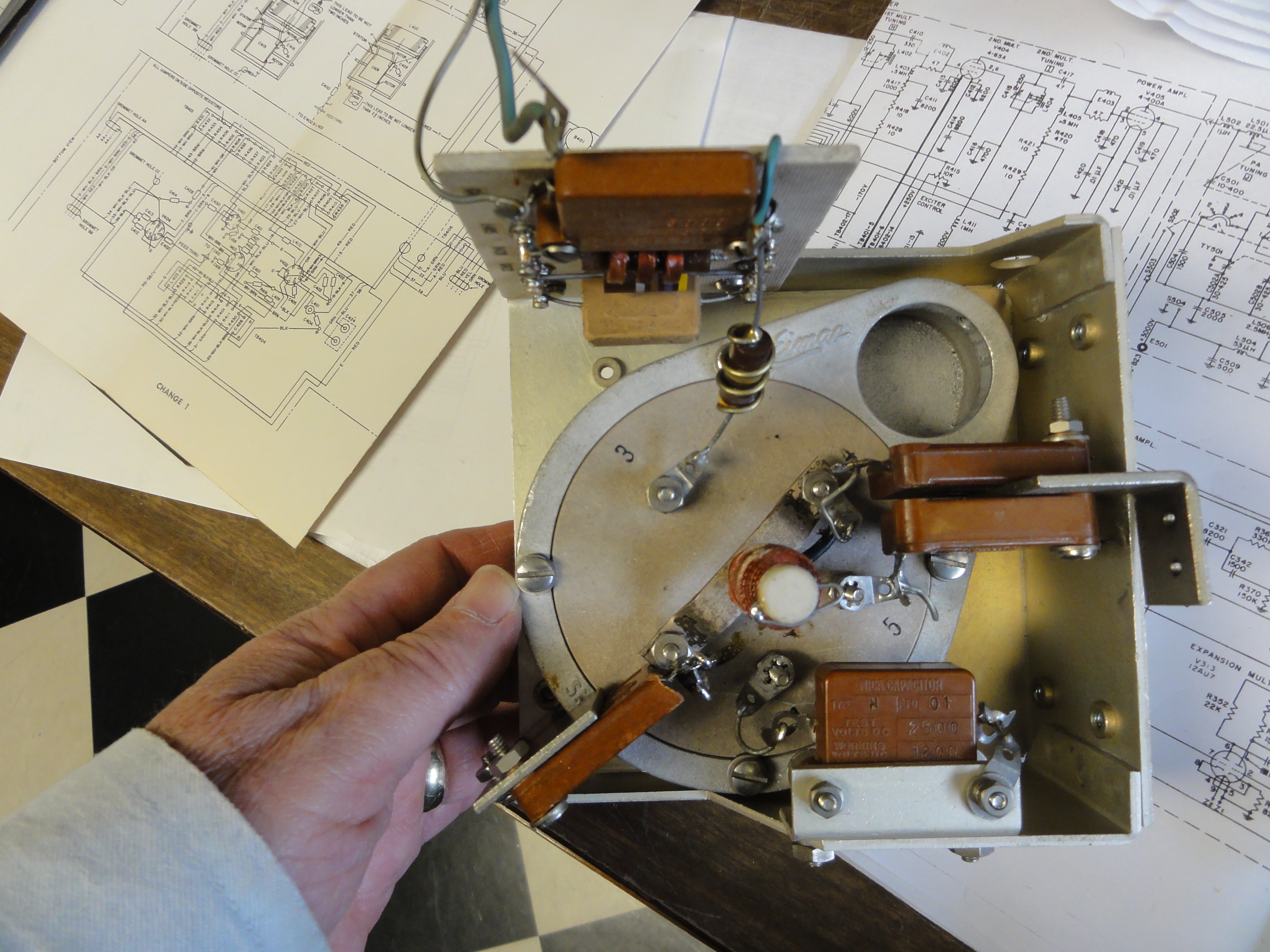

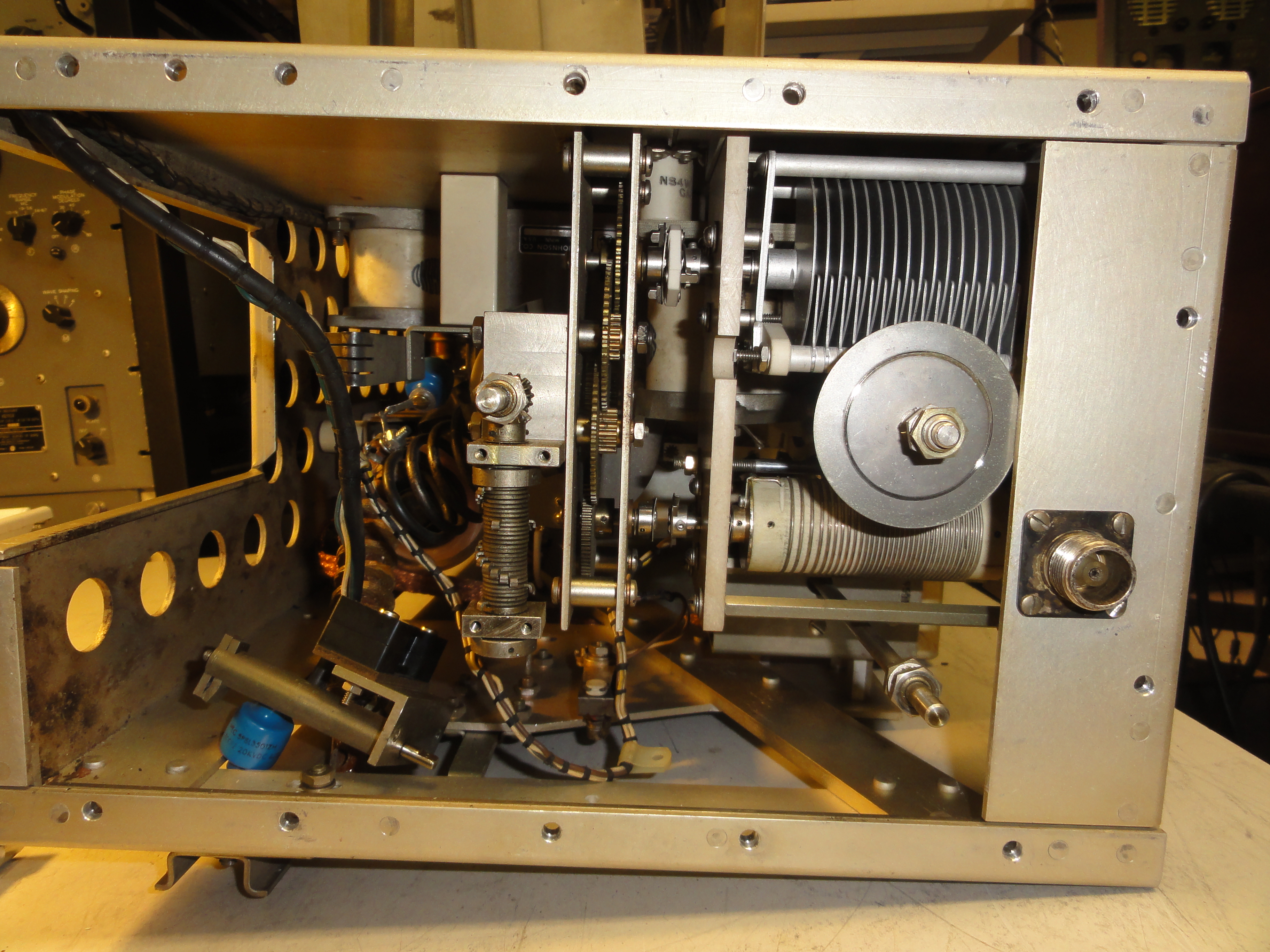

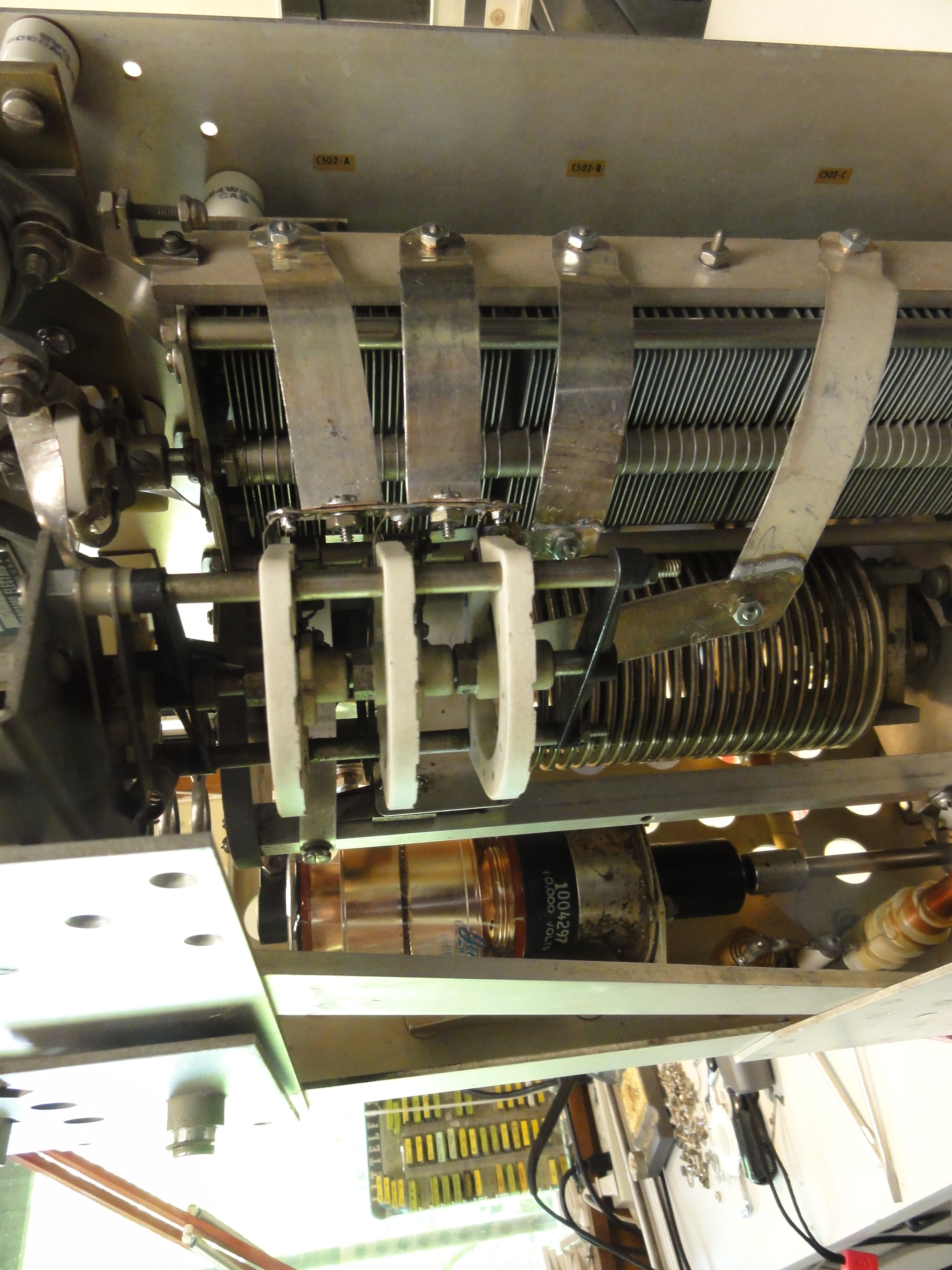

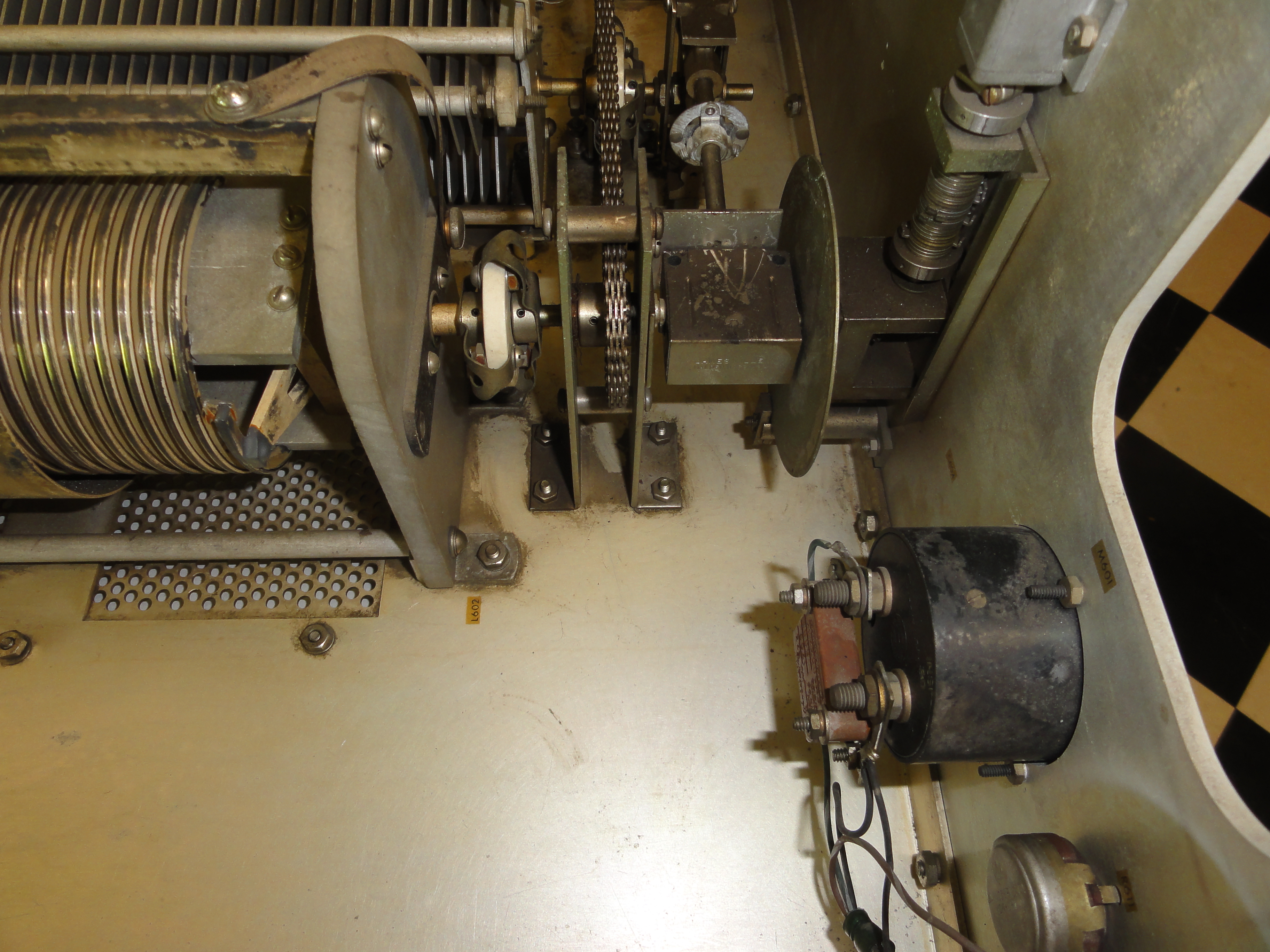

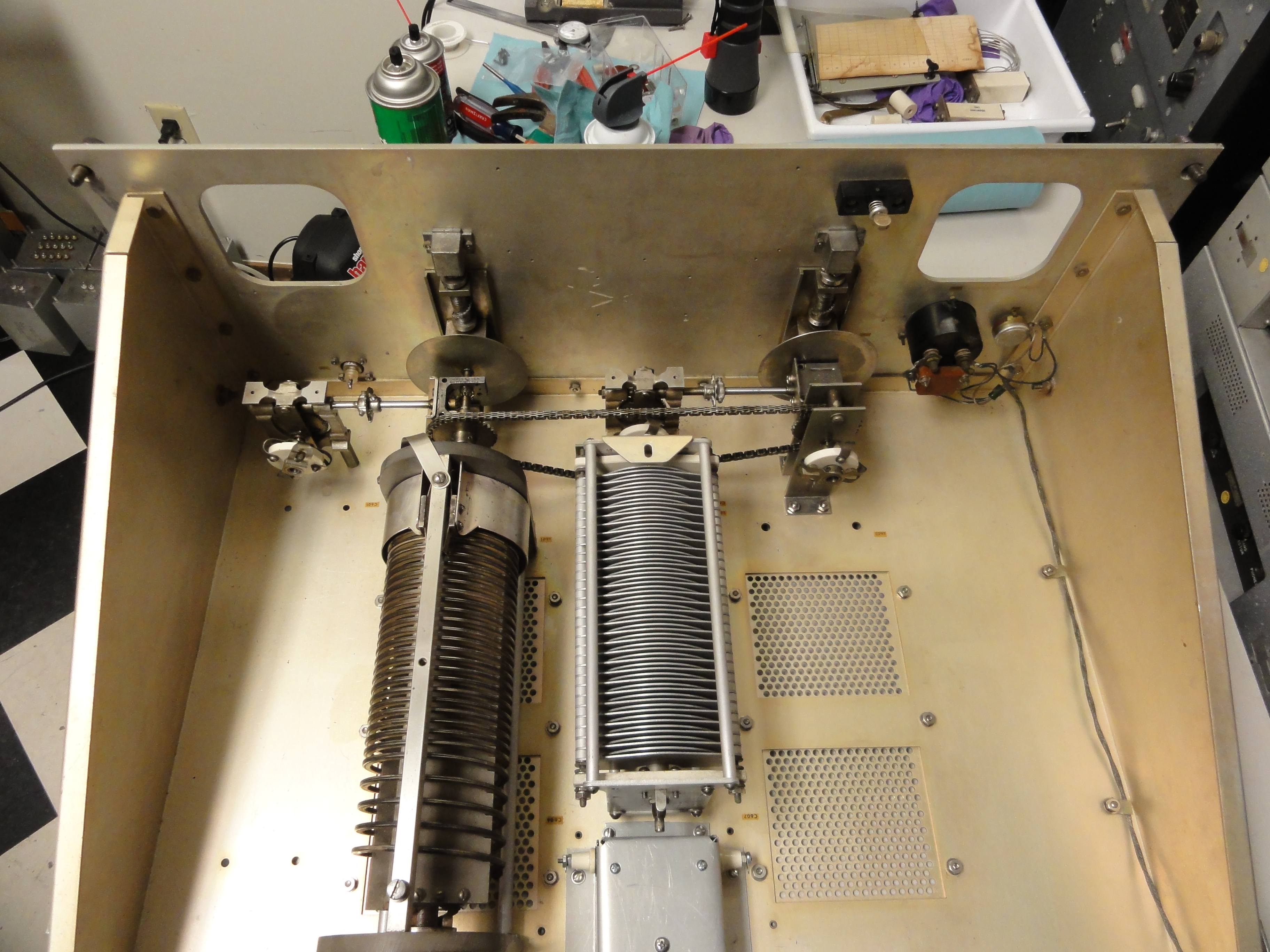

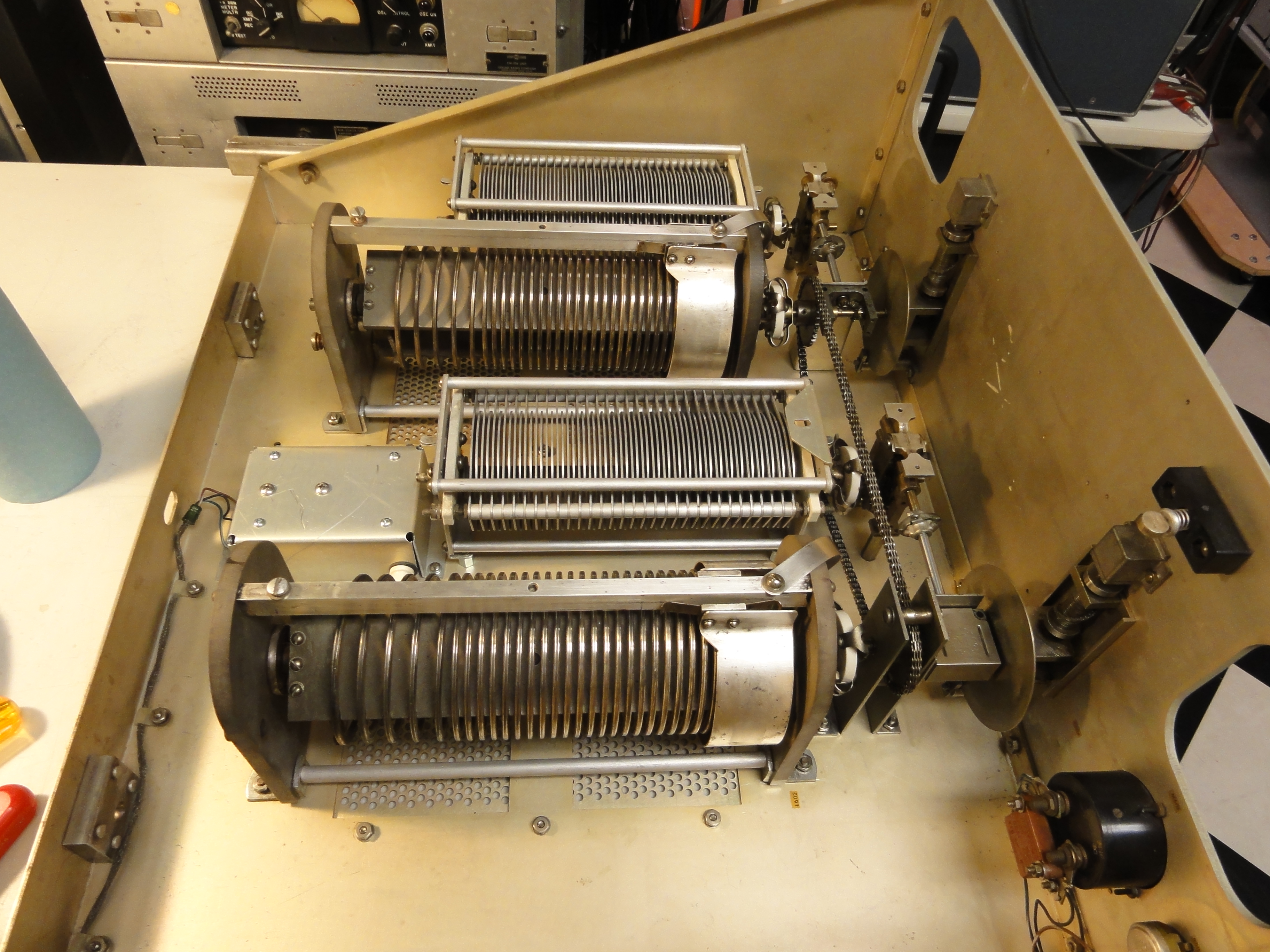

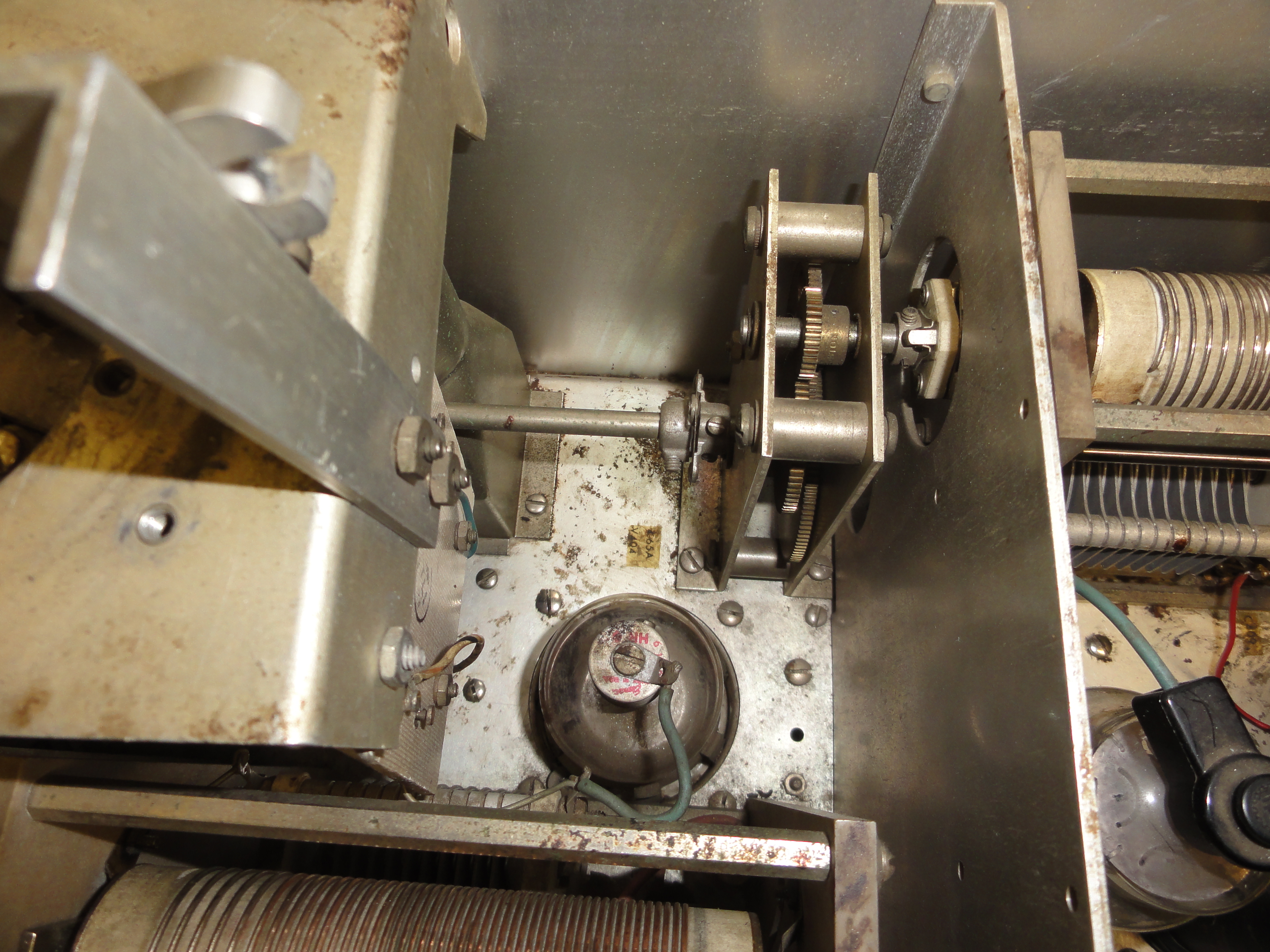

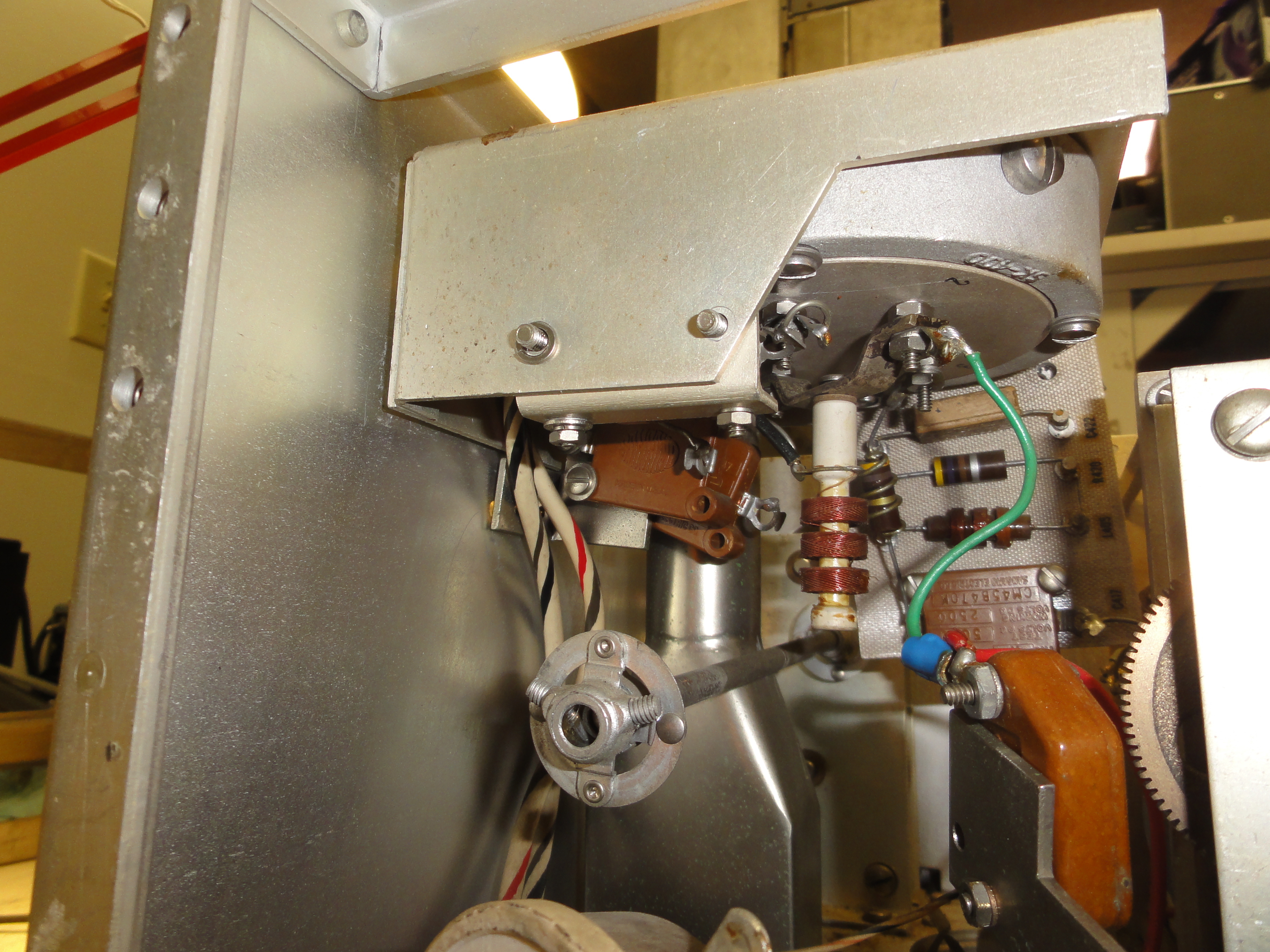

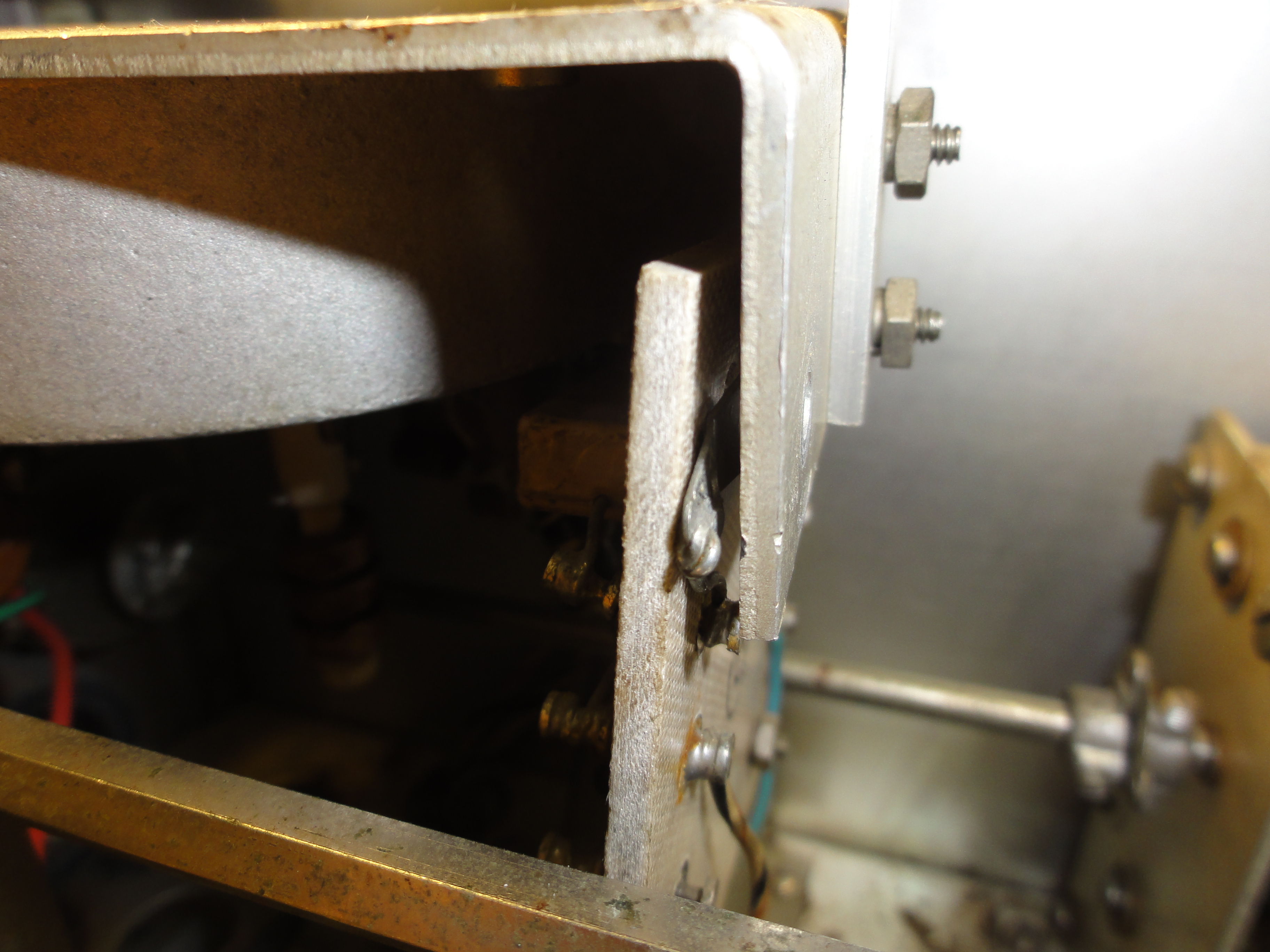

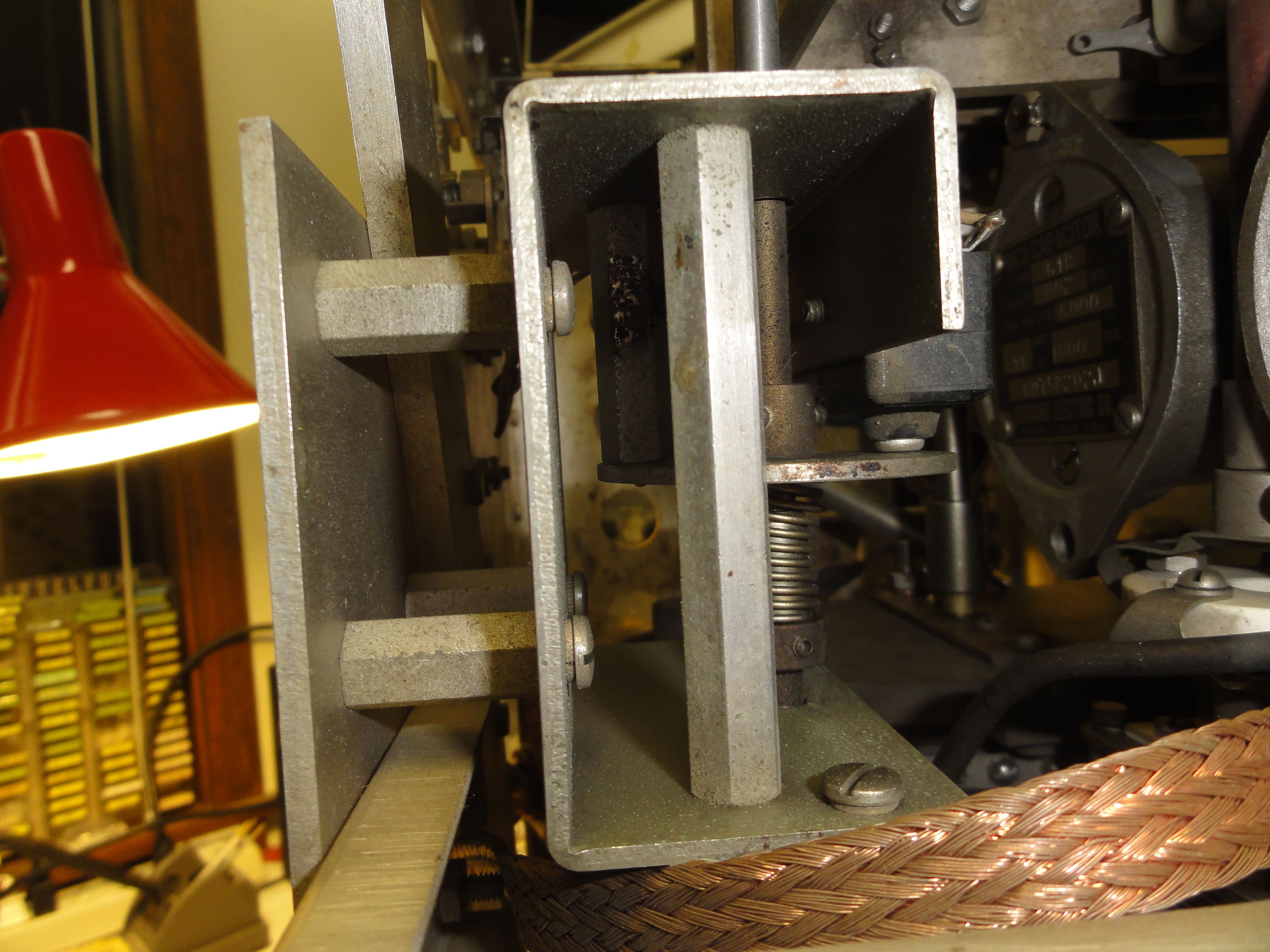

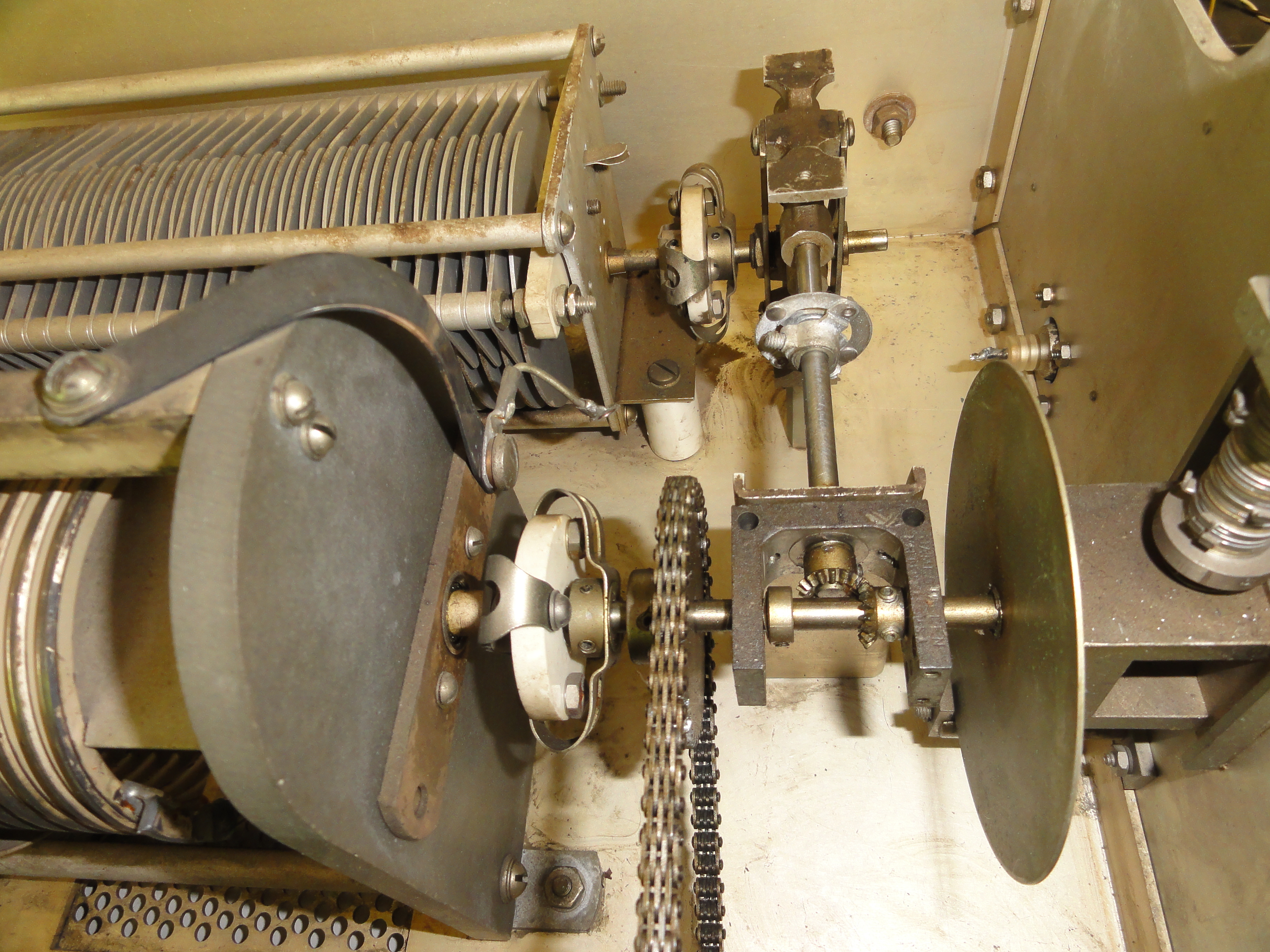

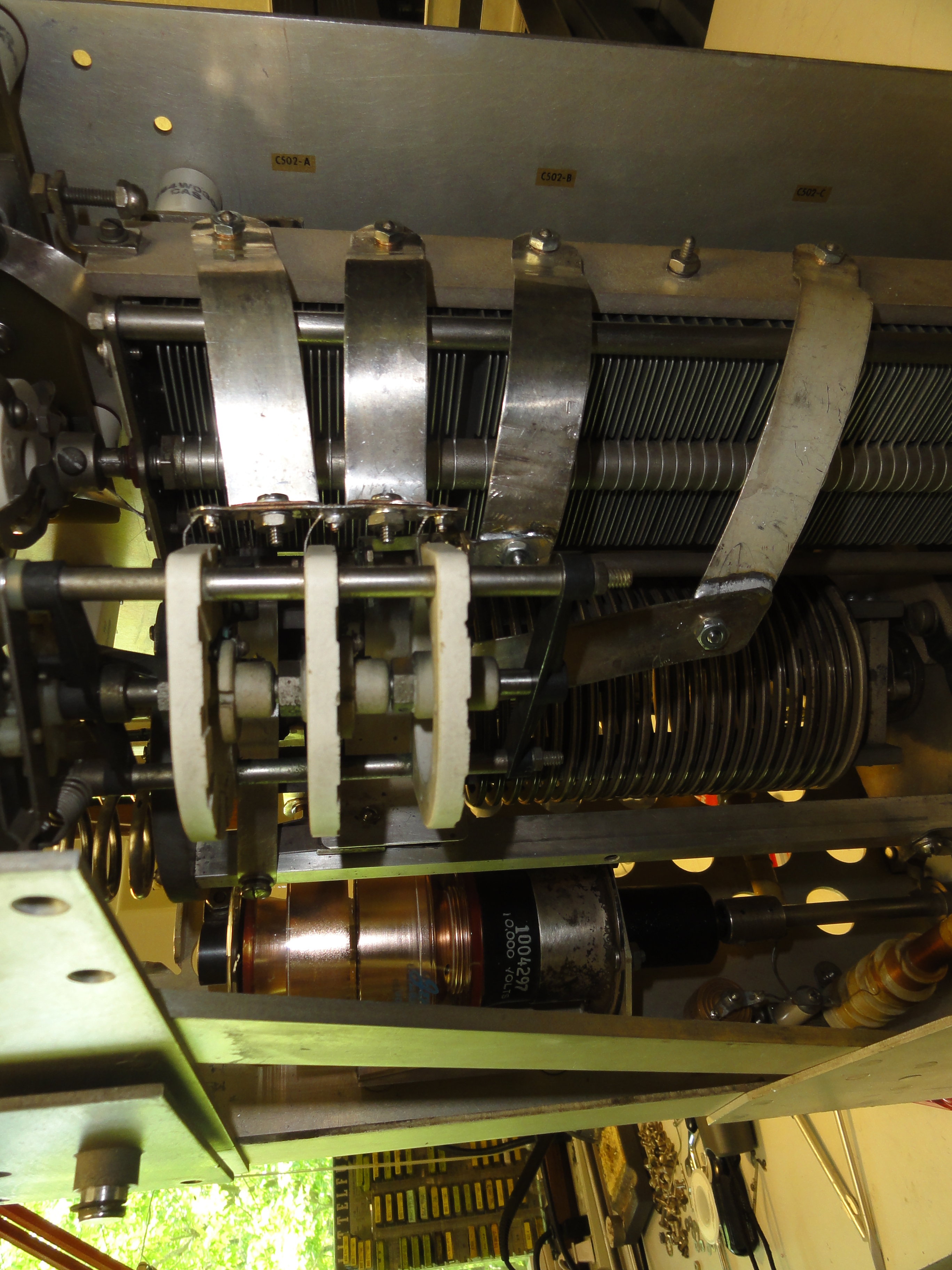

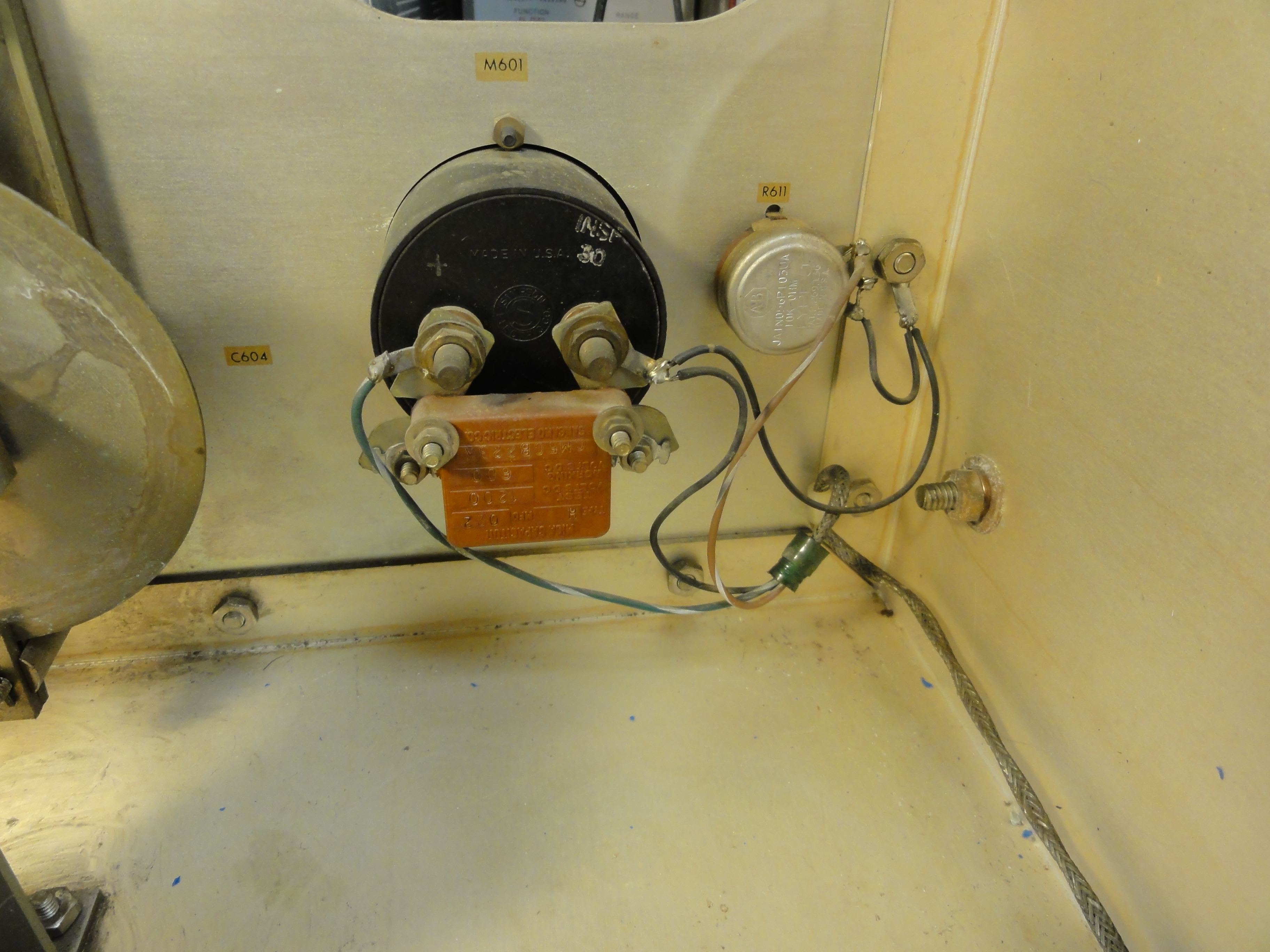

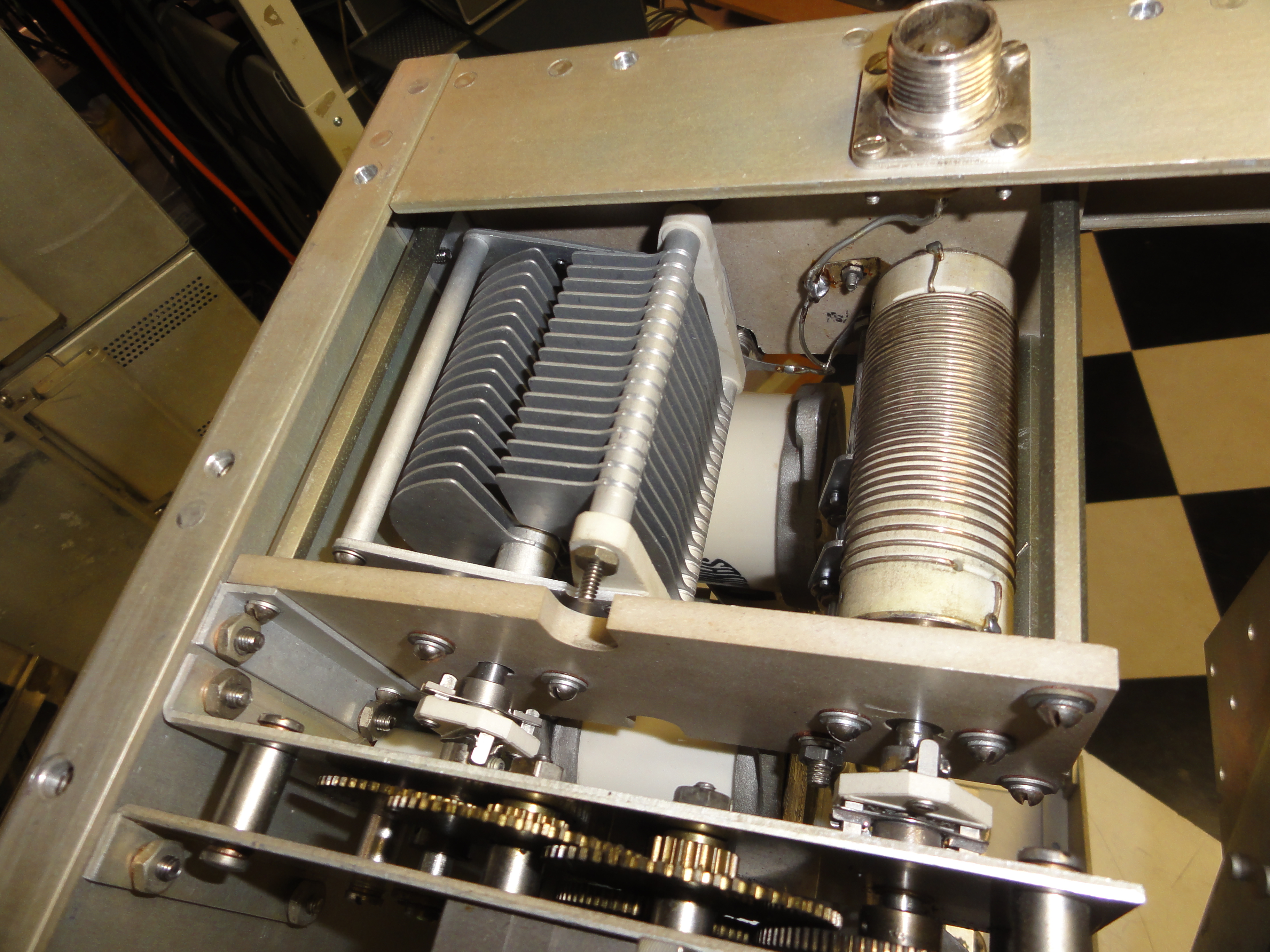

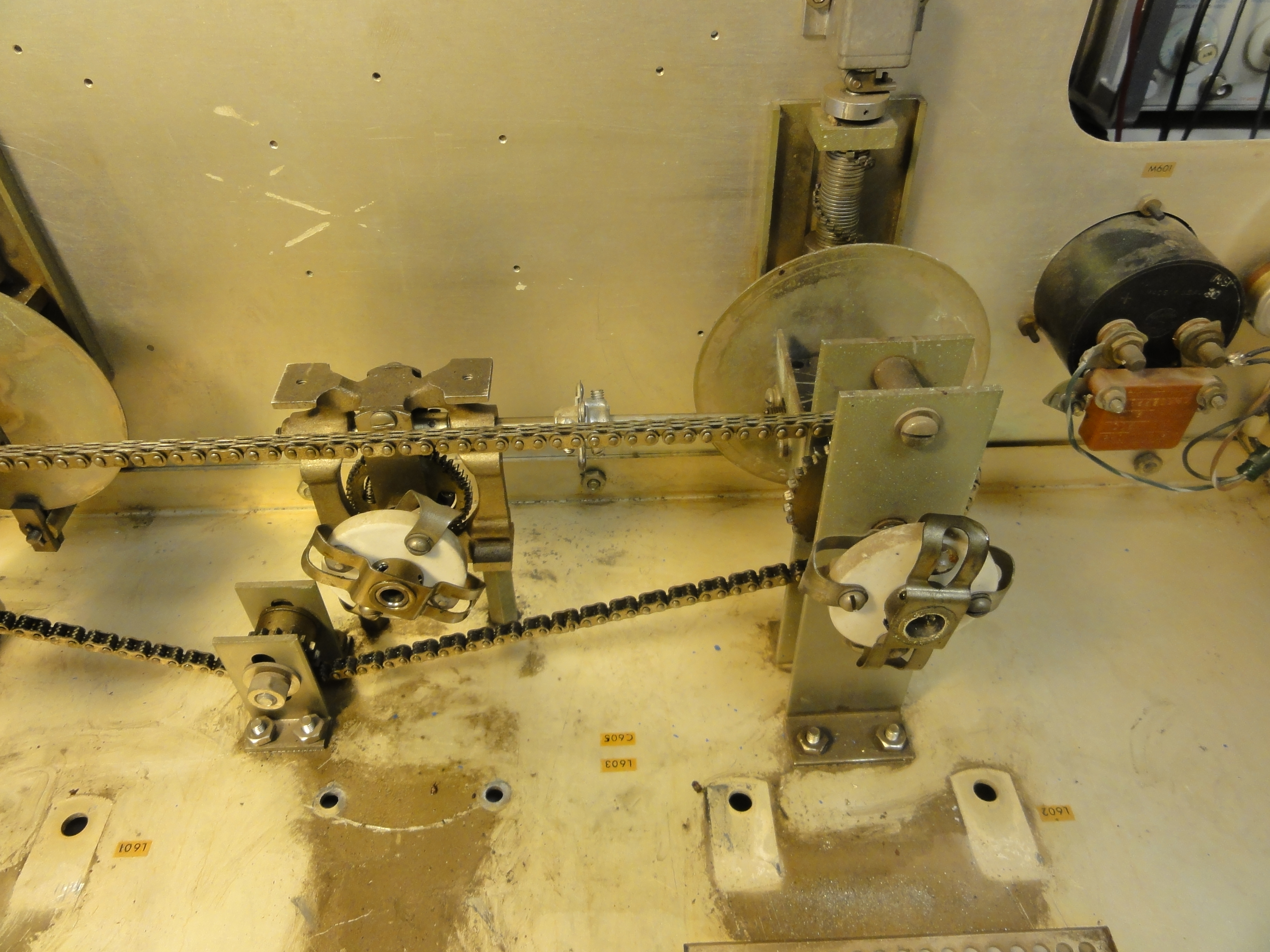

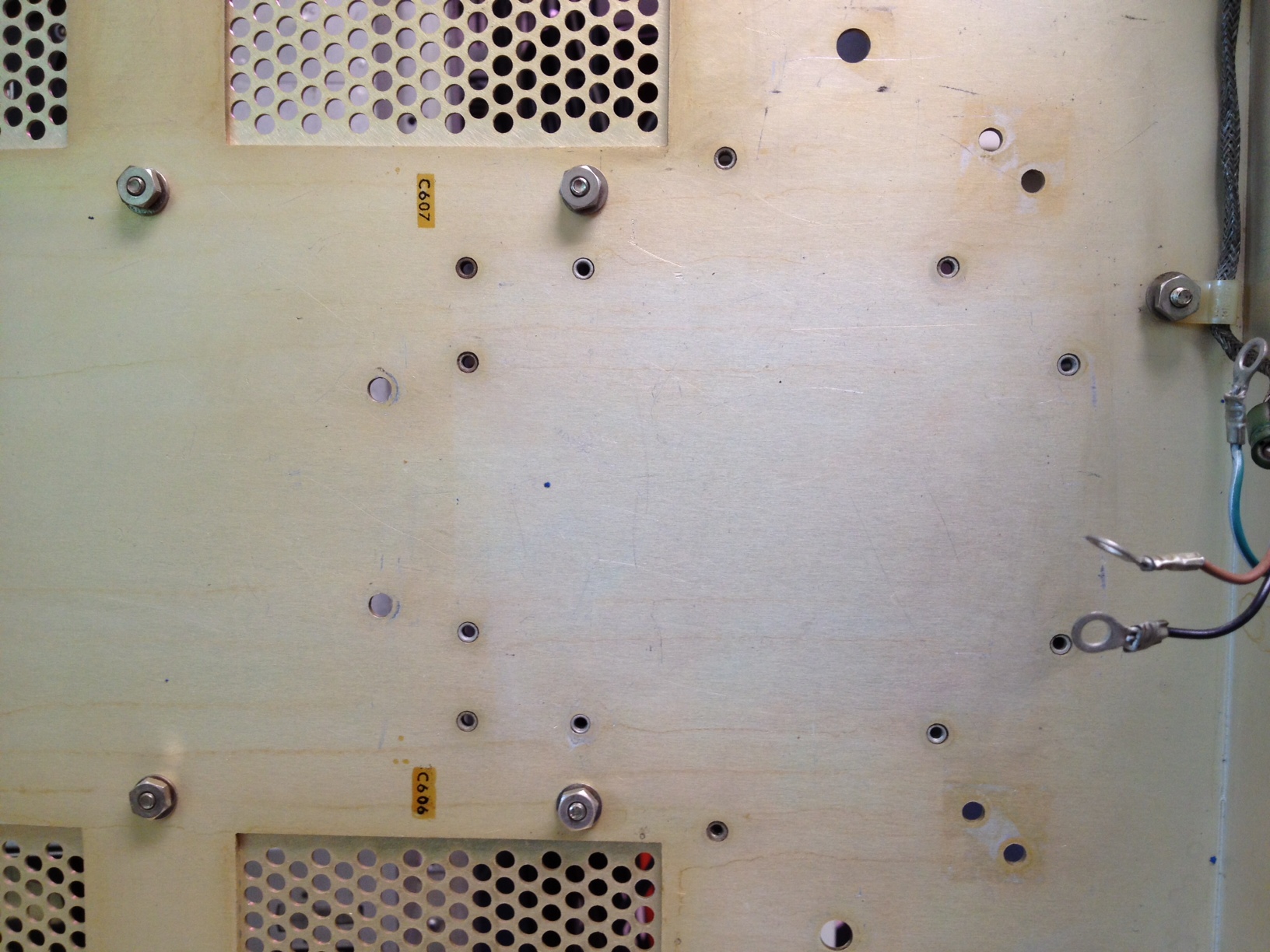

Drawer 1 - Antenna Tuner - modified by previous owner |
|||
|
|
|
|
|
|
|
|
|
|
|
|

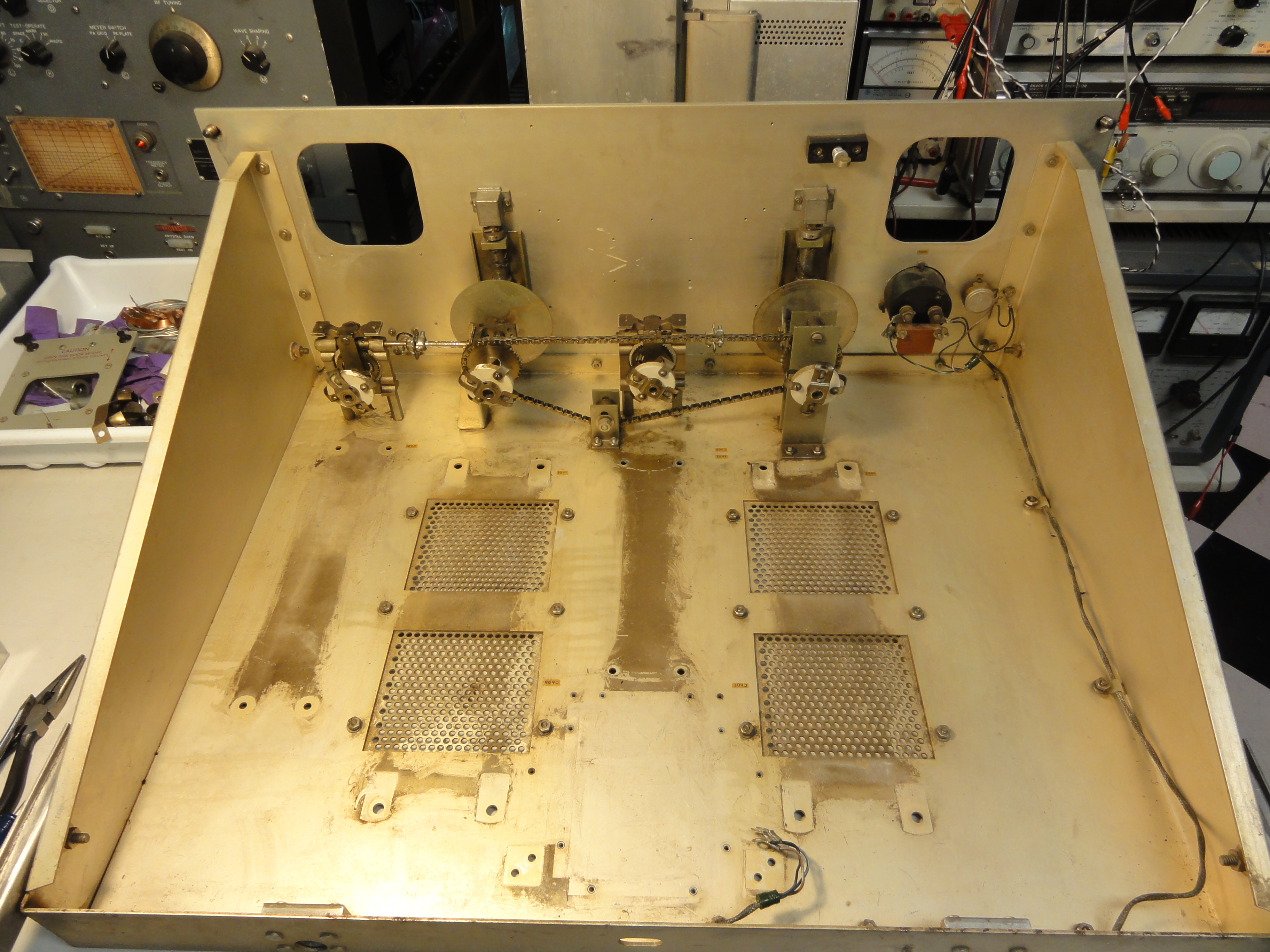

| Cleaned up |
Still to go |

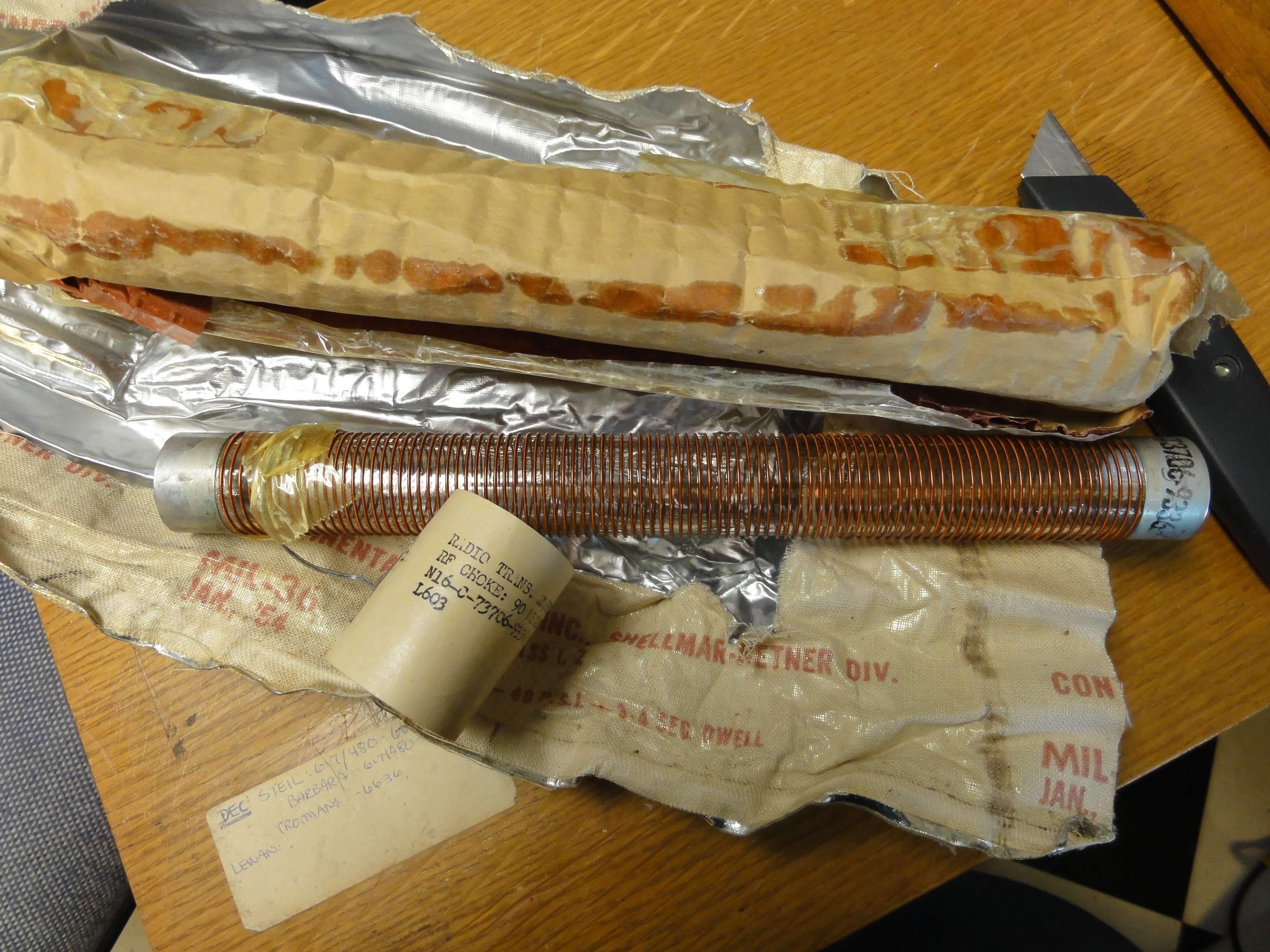

I was missing an RF choke for the tuner - but a buddy turned
up a NOS one! |
|

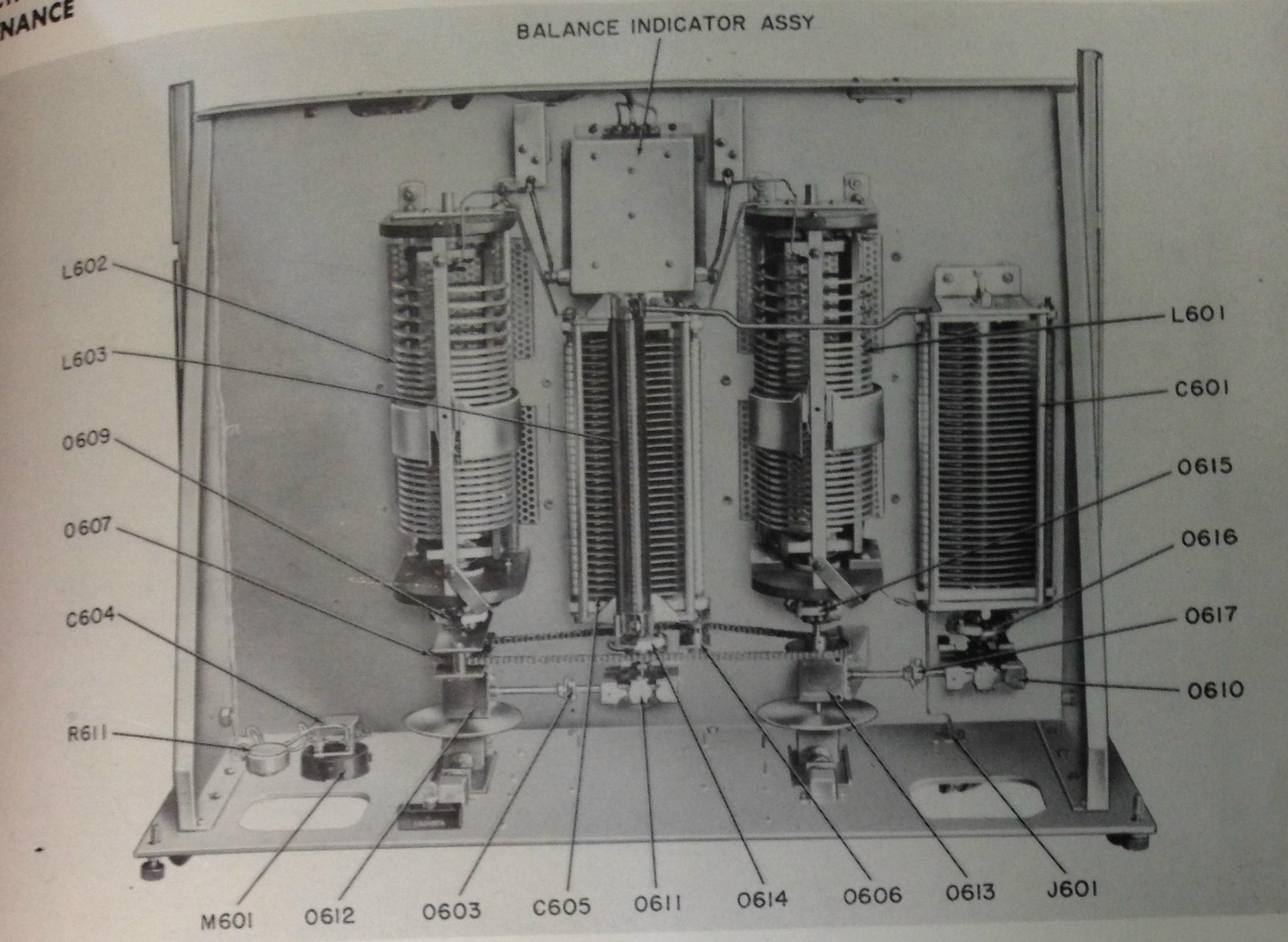

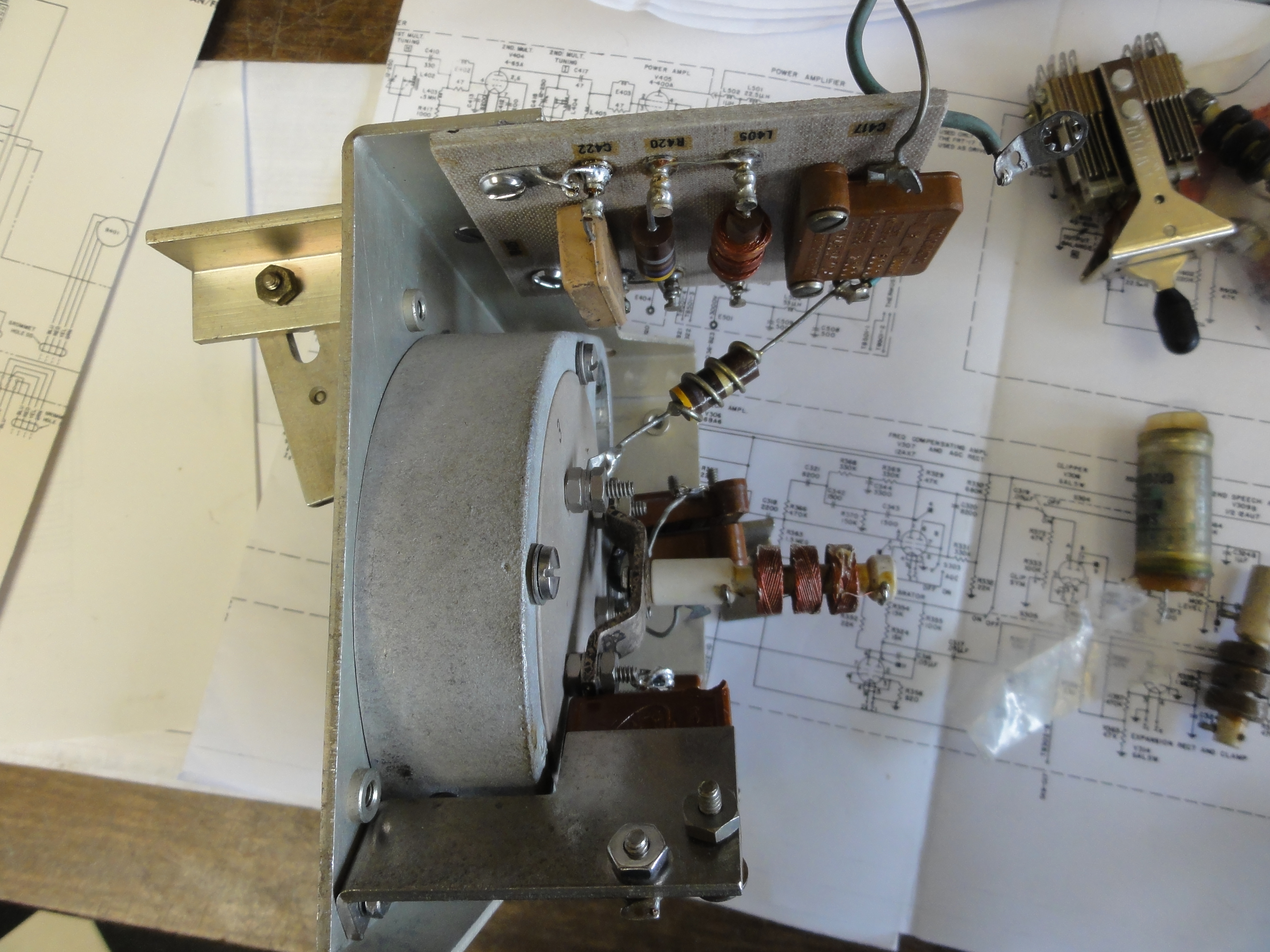

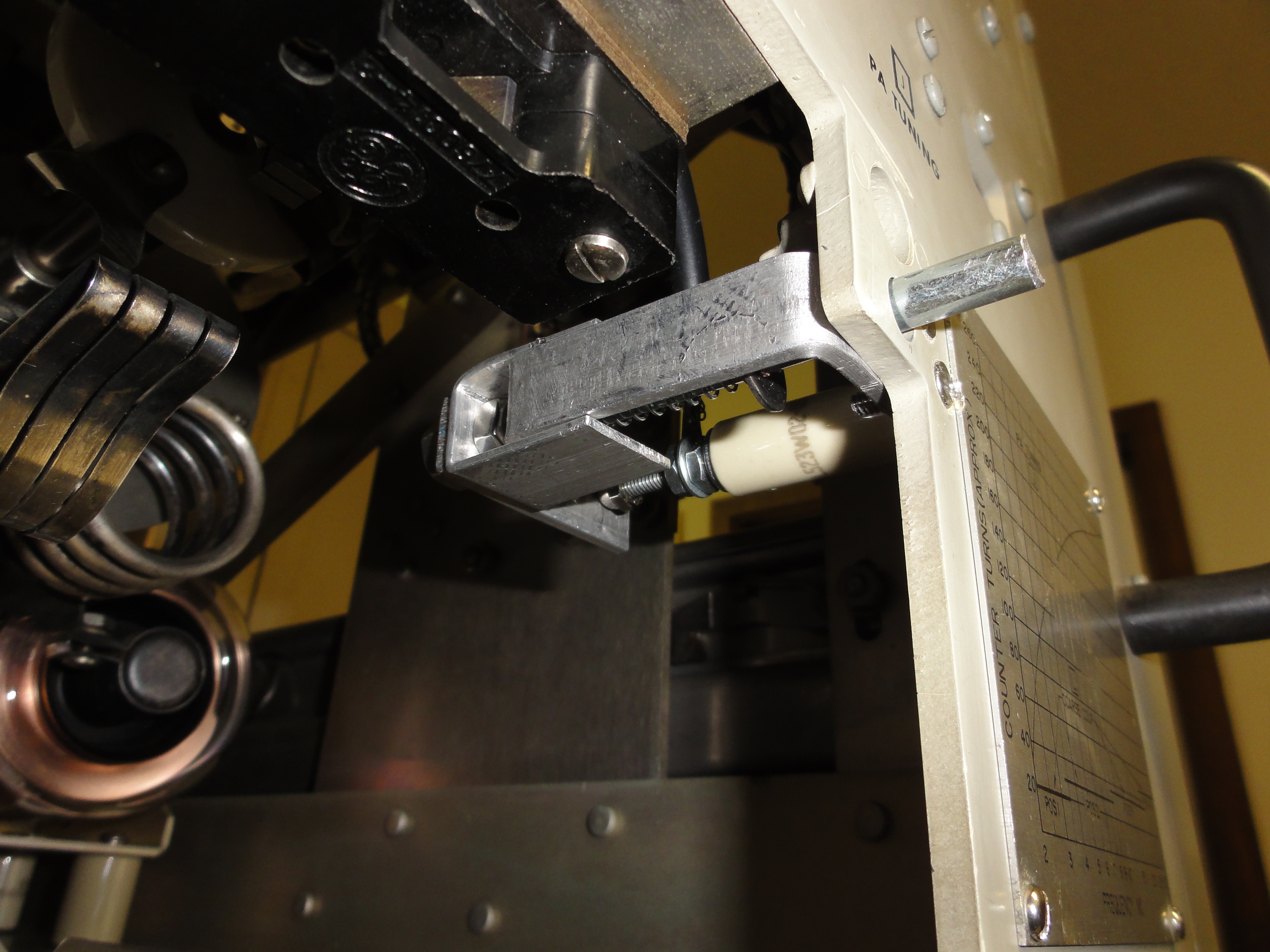

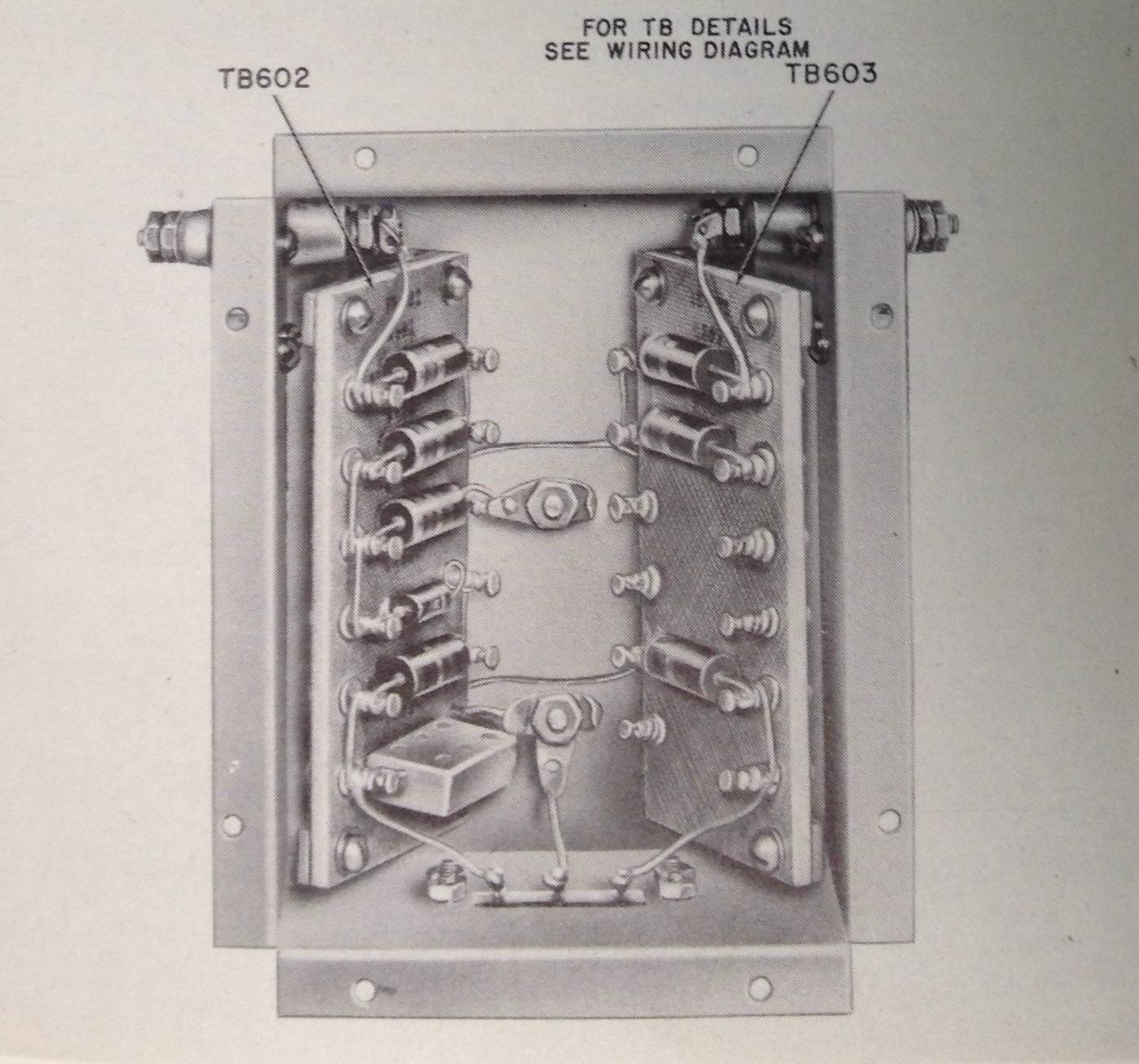

| Missing the Balance Indicator Assy |
|
|
-- |

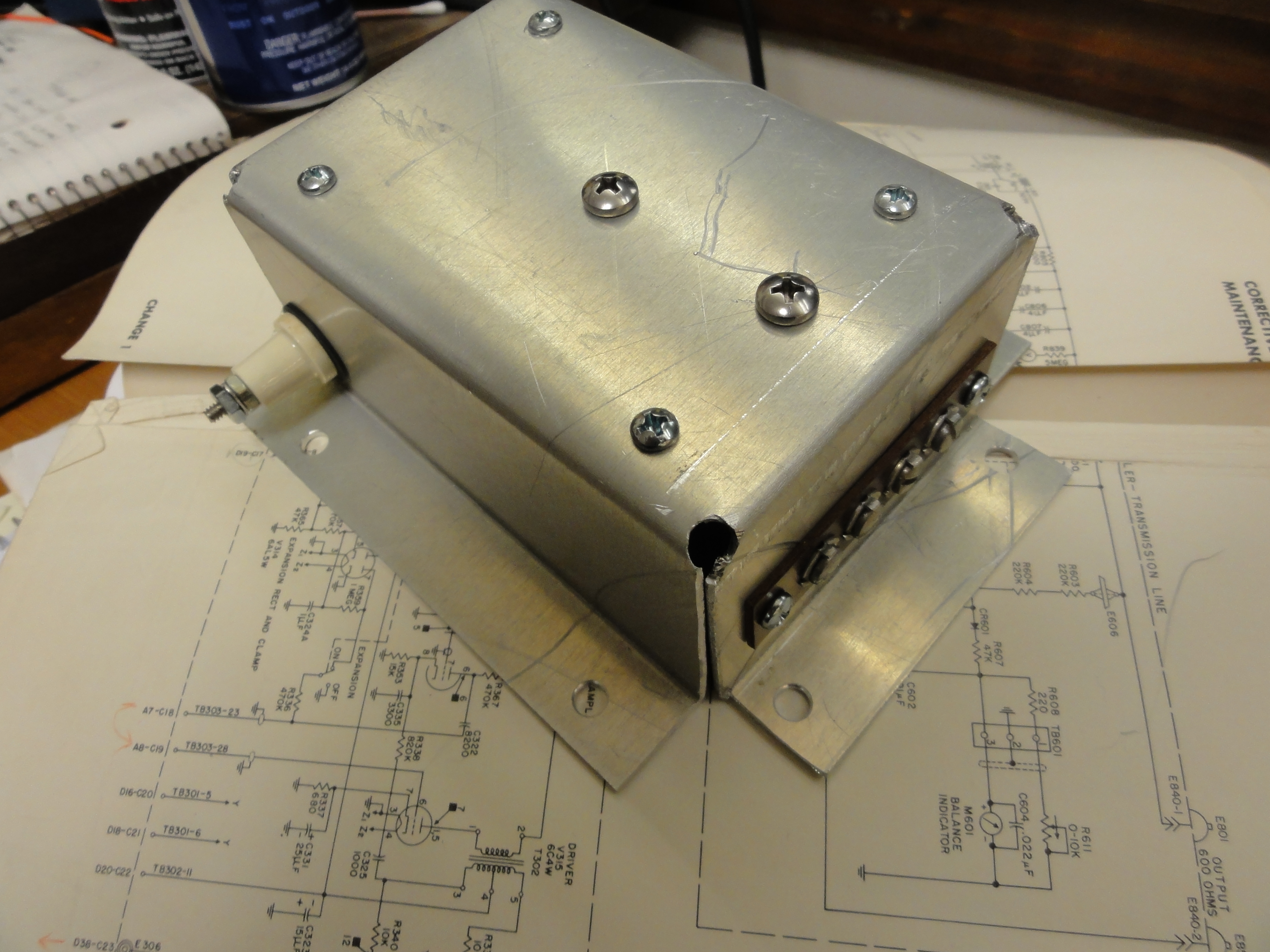

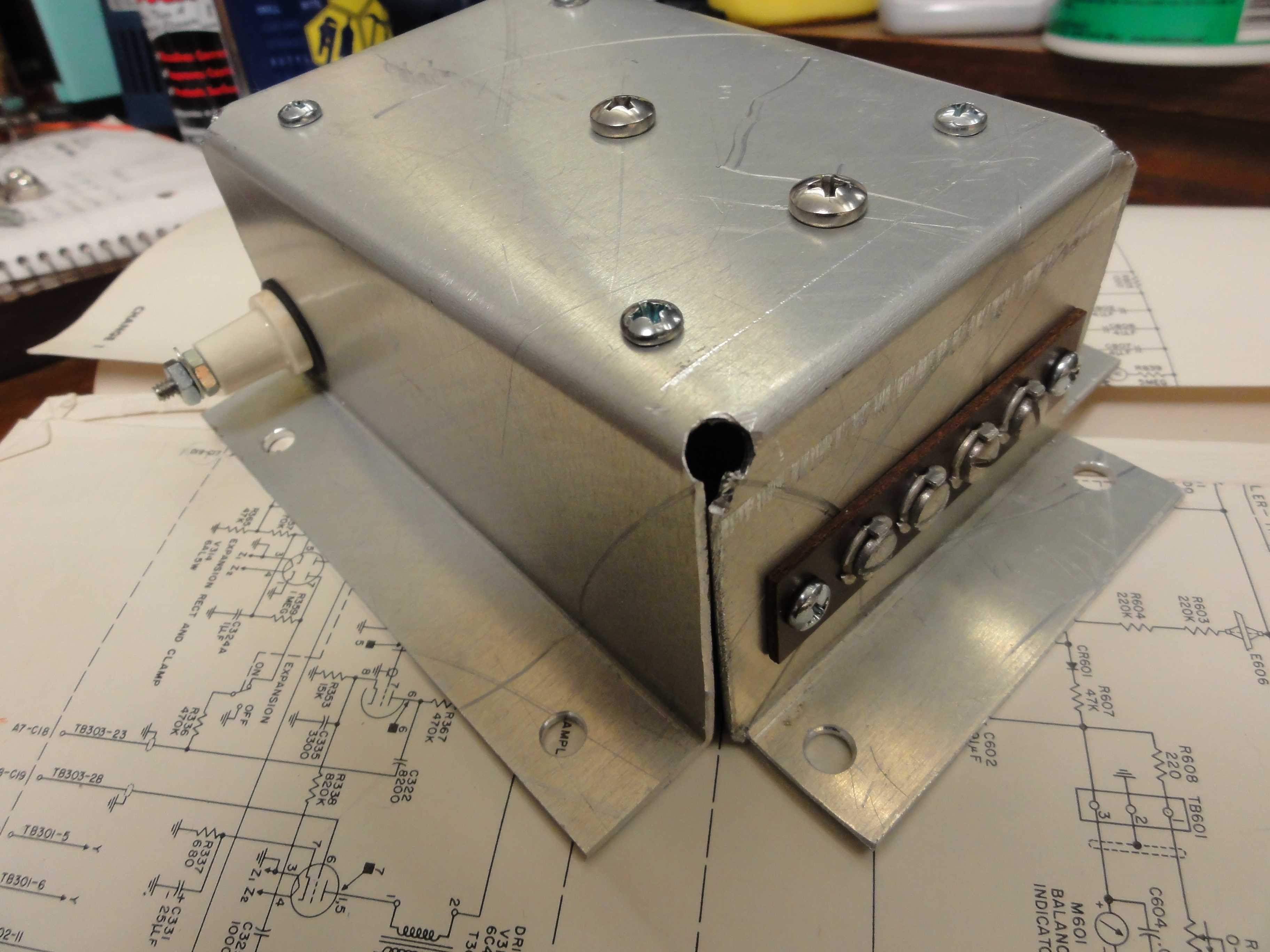

| So my buddy K4OZY helped me make one. |
|
|
|
| now re-assembly can begin |
|
|
|
|
|
Found some mounting clips for the RF choke at the Dayton
hamfest |

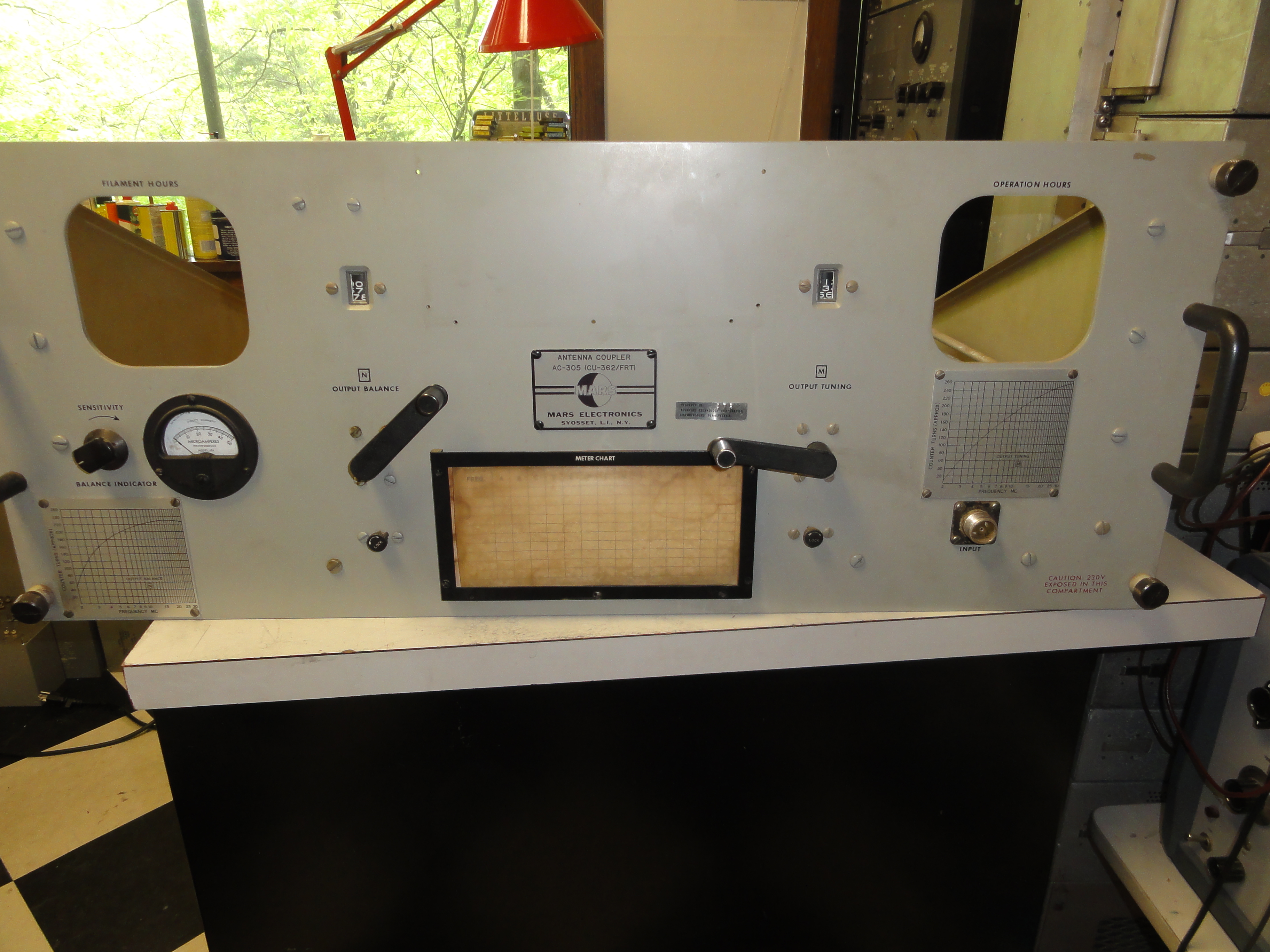

Ready for action.... |
