Mark I Keyboard - LK1, LK2? - same as Mark II but different connectors?
|

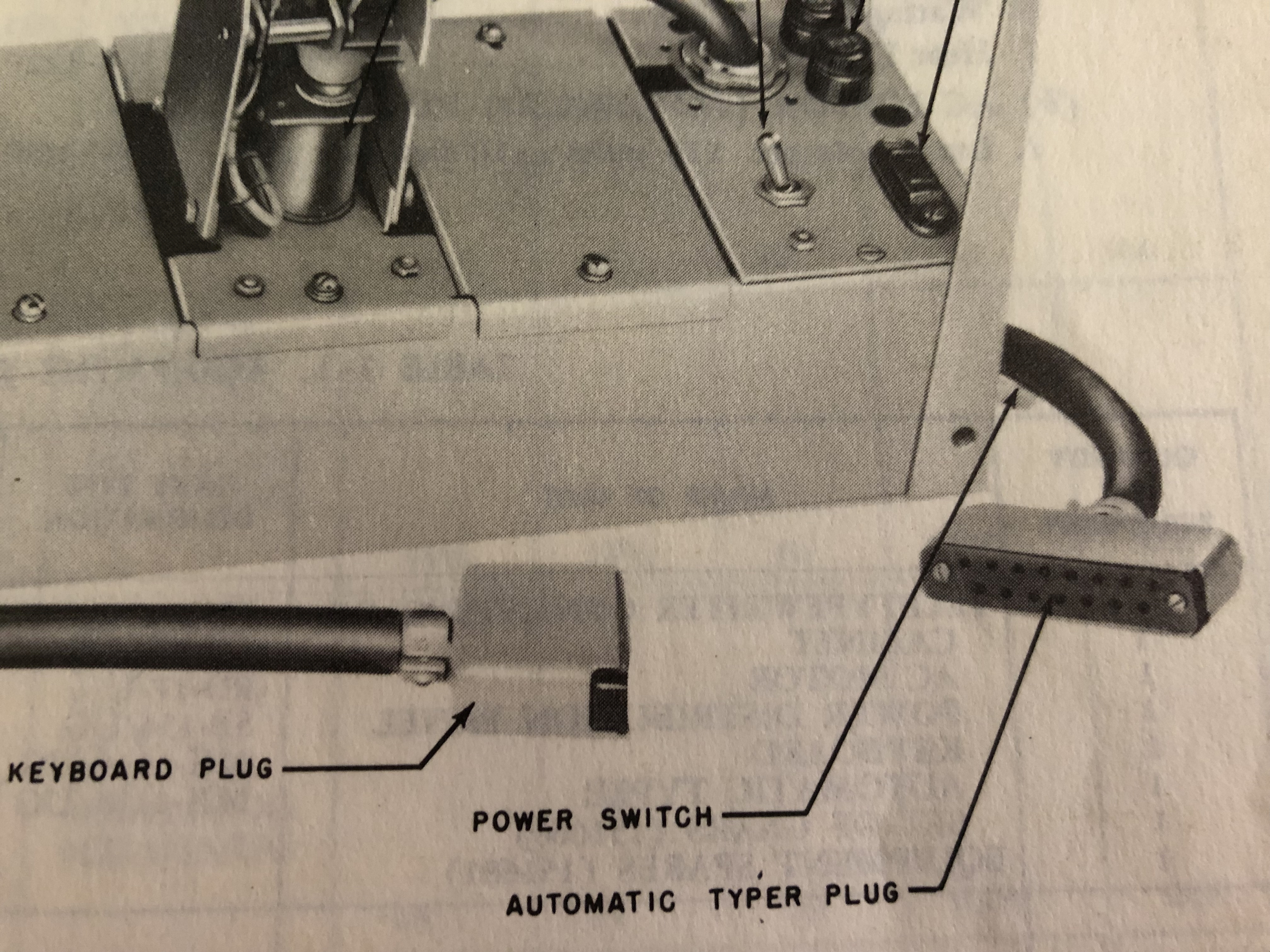

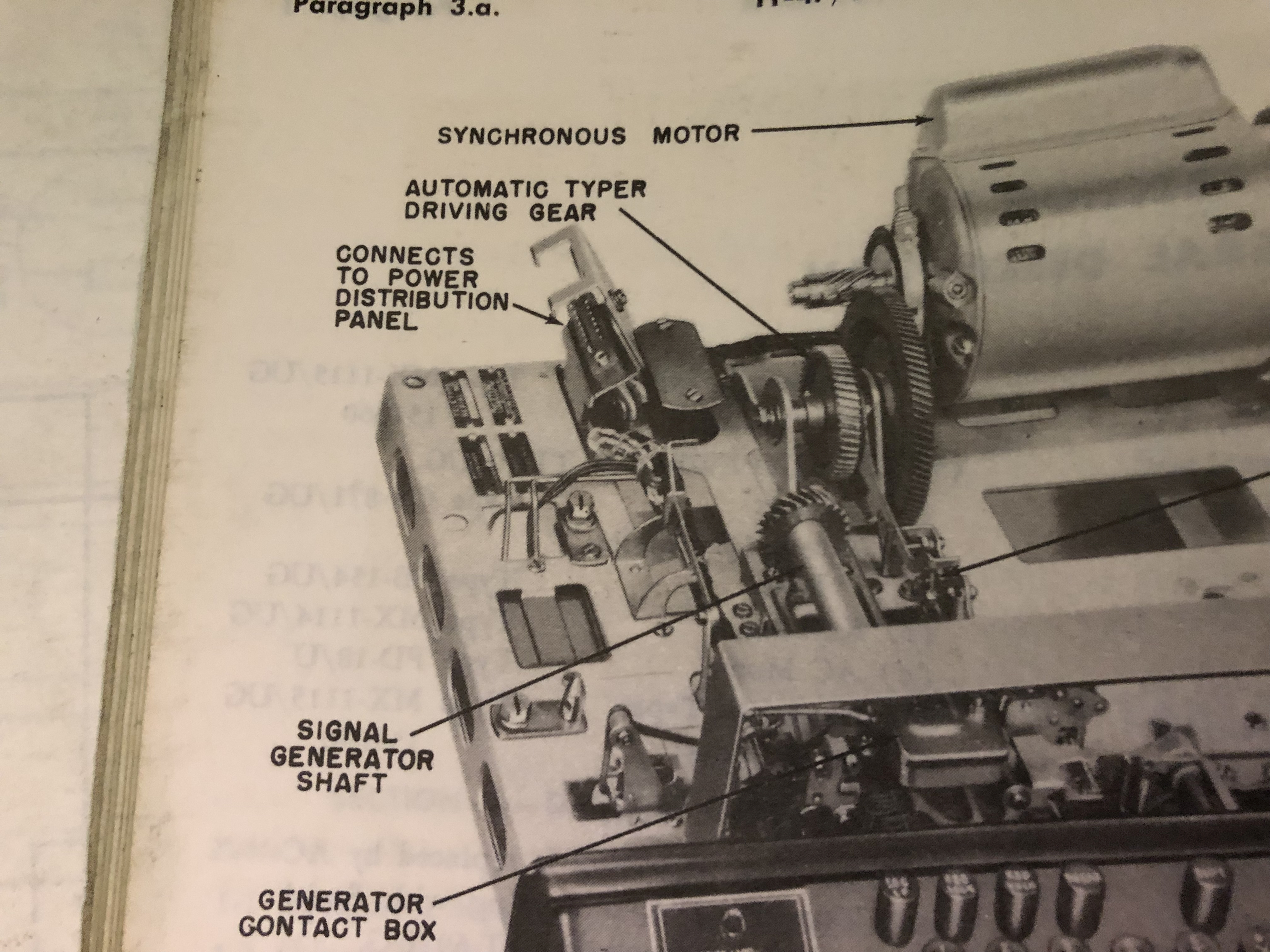

2-row connector on keyboard base
 |
LESU with 2-row connectors
 |

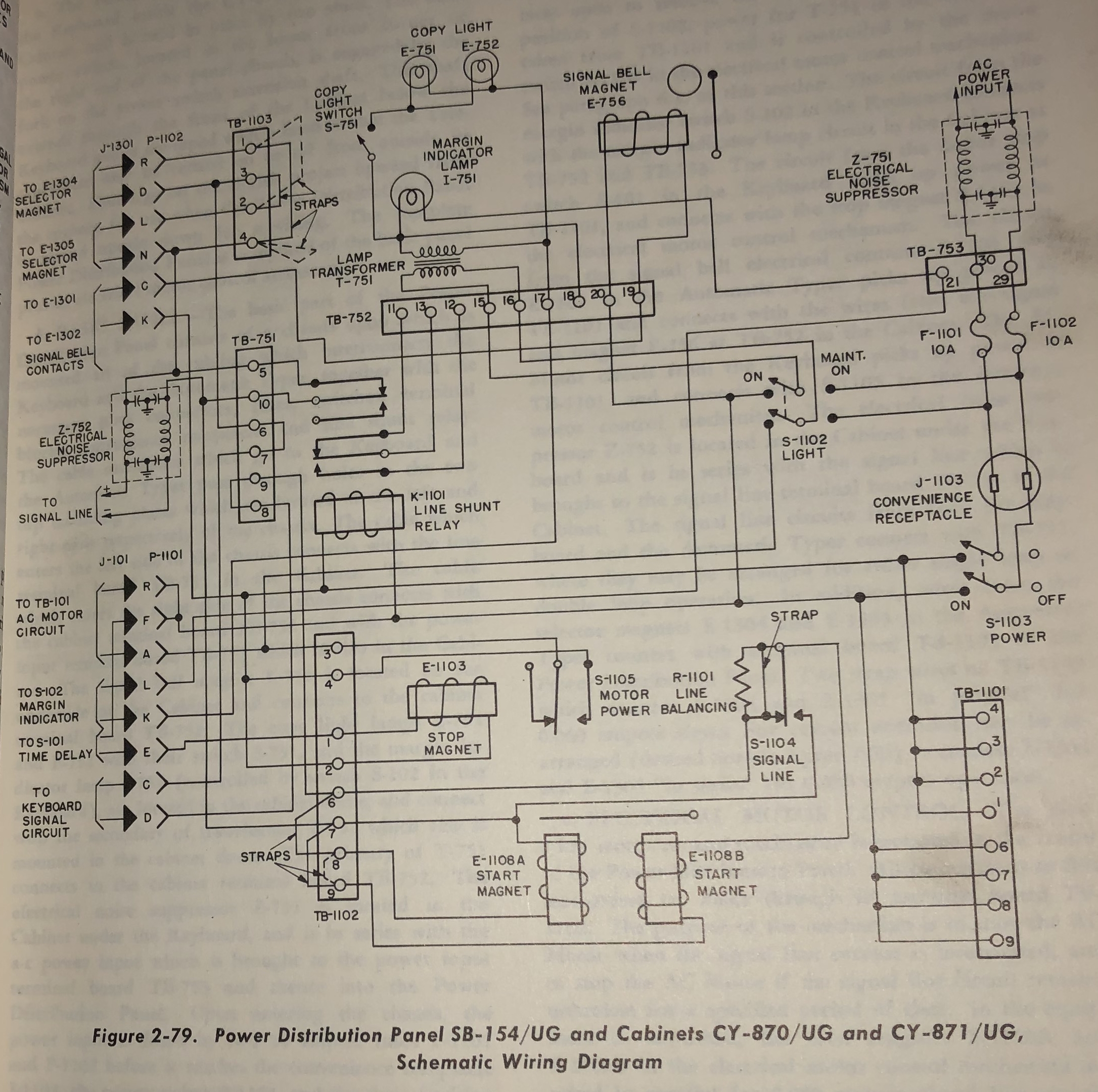

Wiring Diagram
 |
== |
Mark II Keyboard - LK3, LK4, LK5, LK7
- some Mark II keyboard parts
drawings
|
Keyboard transmitter
 |

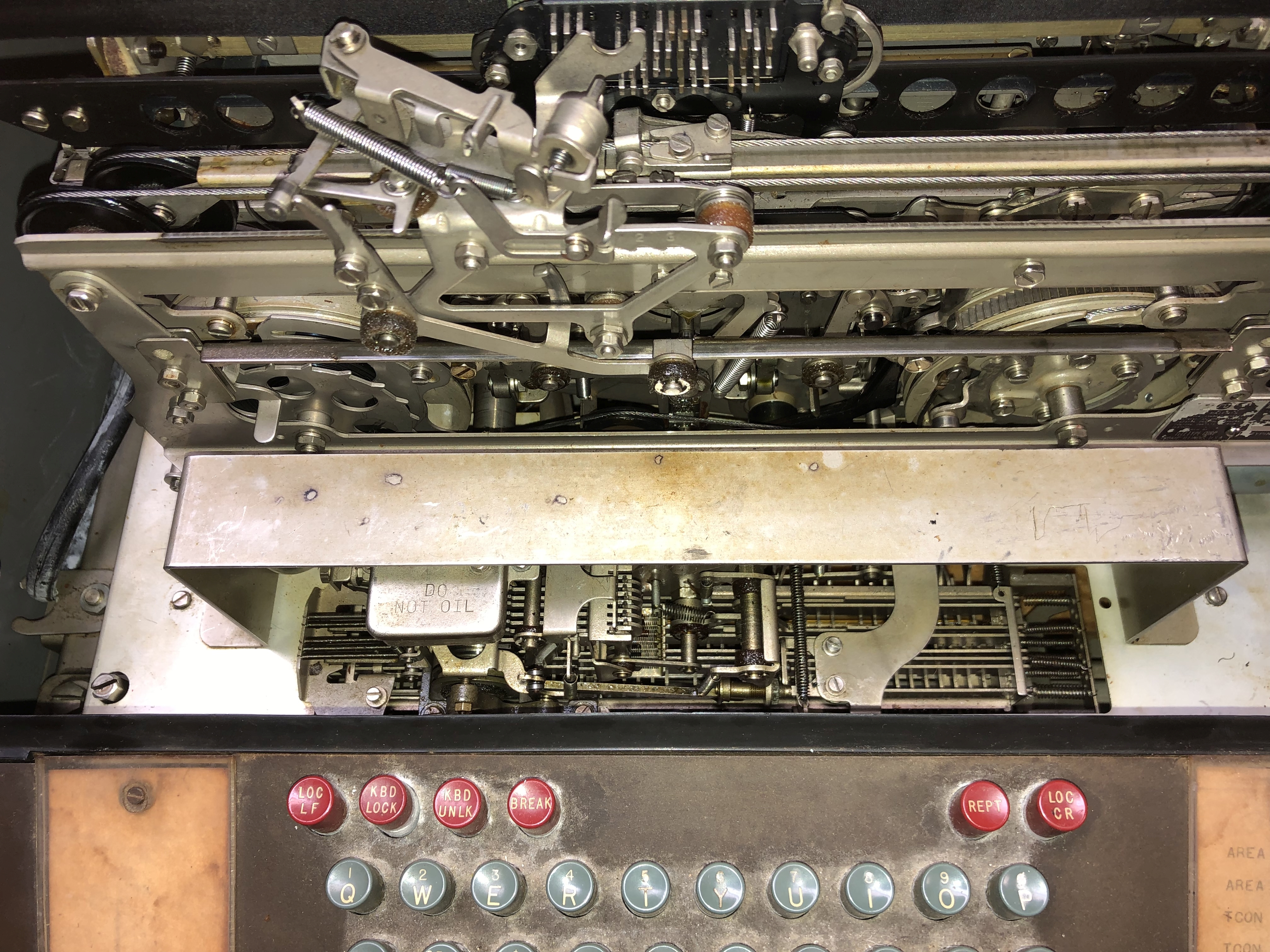

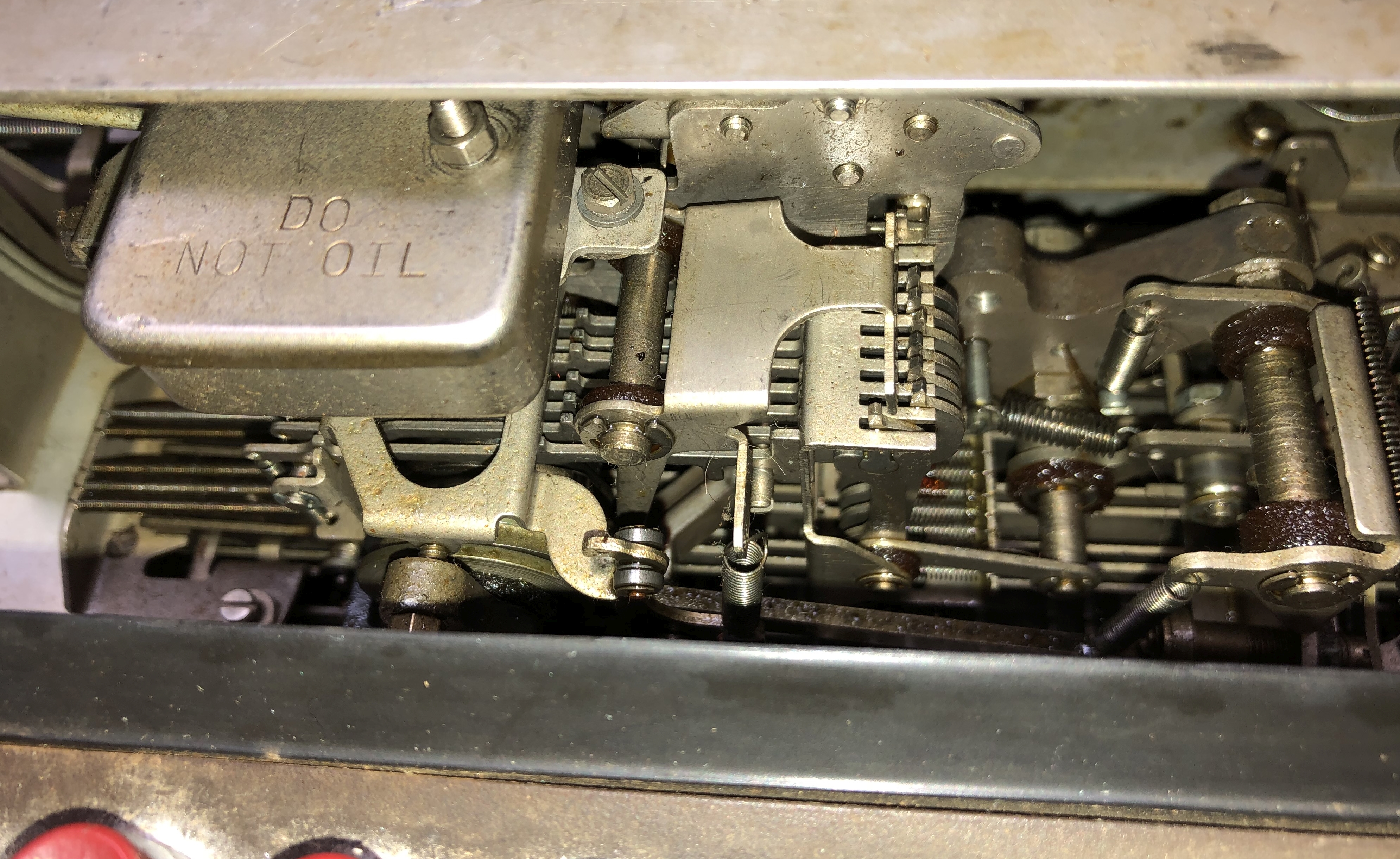

Keyboard mechanism protector bar
 |

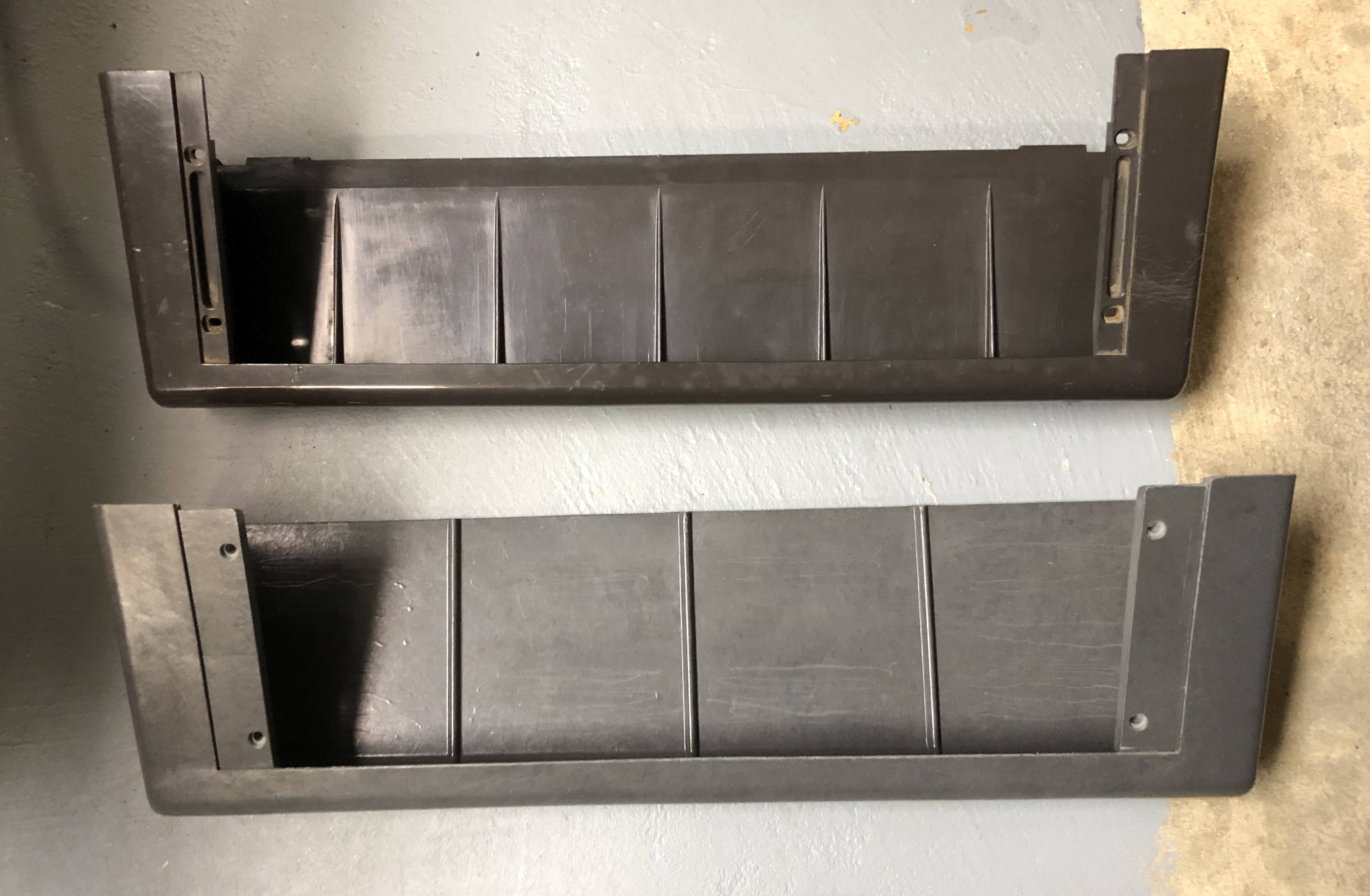

Keyboard cover (hood) top view
Mark III above, Mark II below
 |
Keyboard cover (hood) bottom view
Mark III above, Mark II below
 |
Mark III Keyboard - LK6, LK8 and on
|

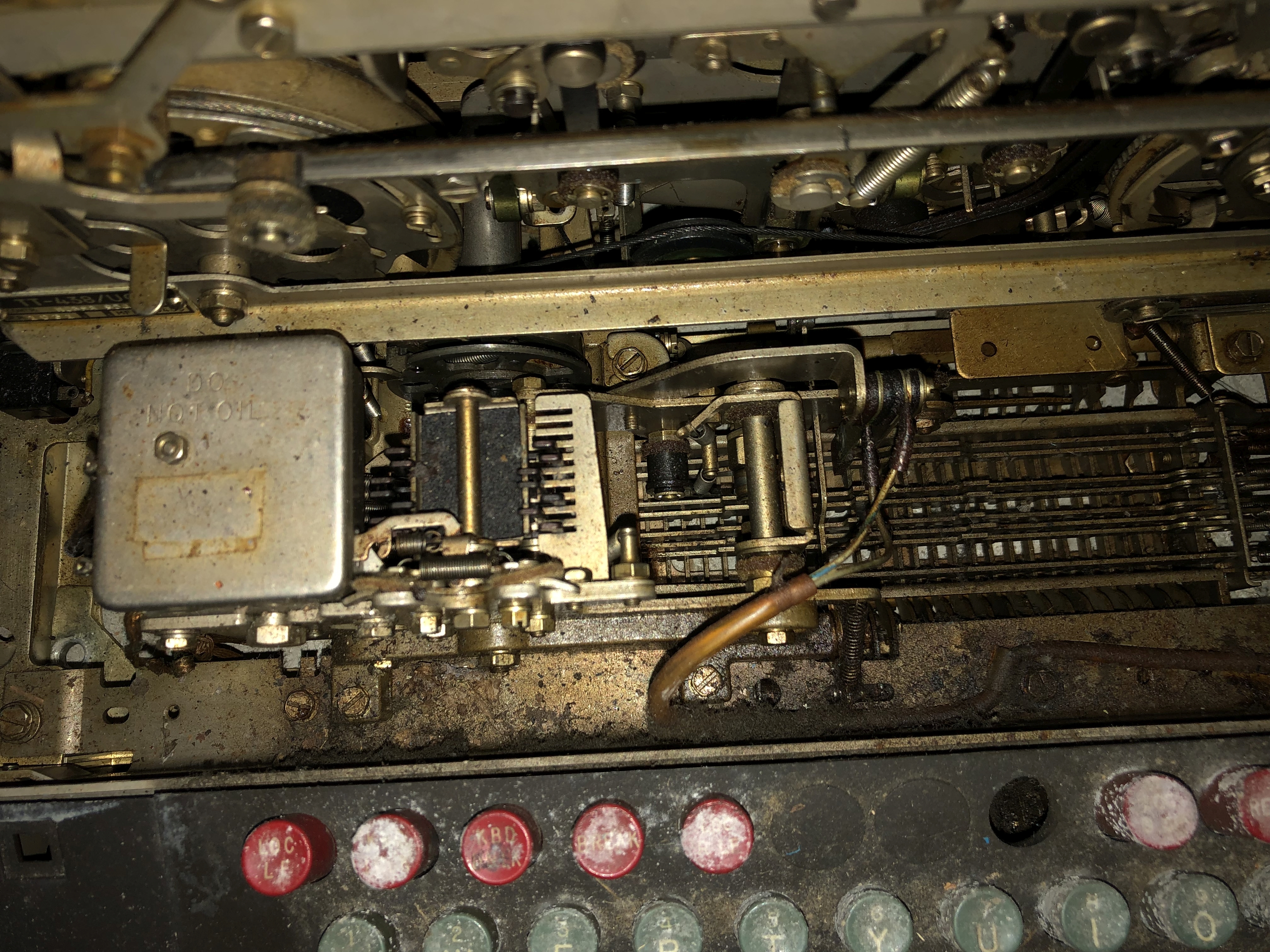

keyboard transmitter
 |
No protector bar |
Keyboard cover (hood) top view
Mark III above, Mark II below
|
Keyboard cover (hood) bottom view
Mark III above, Mark II below
|

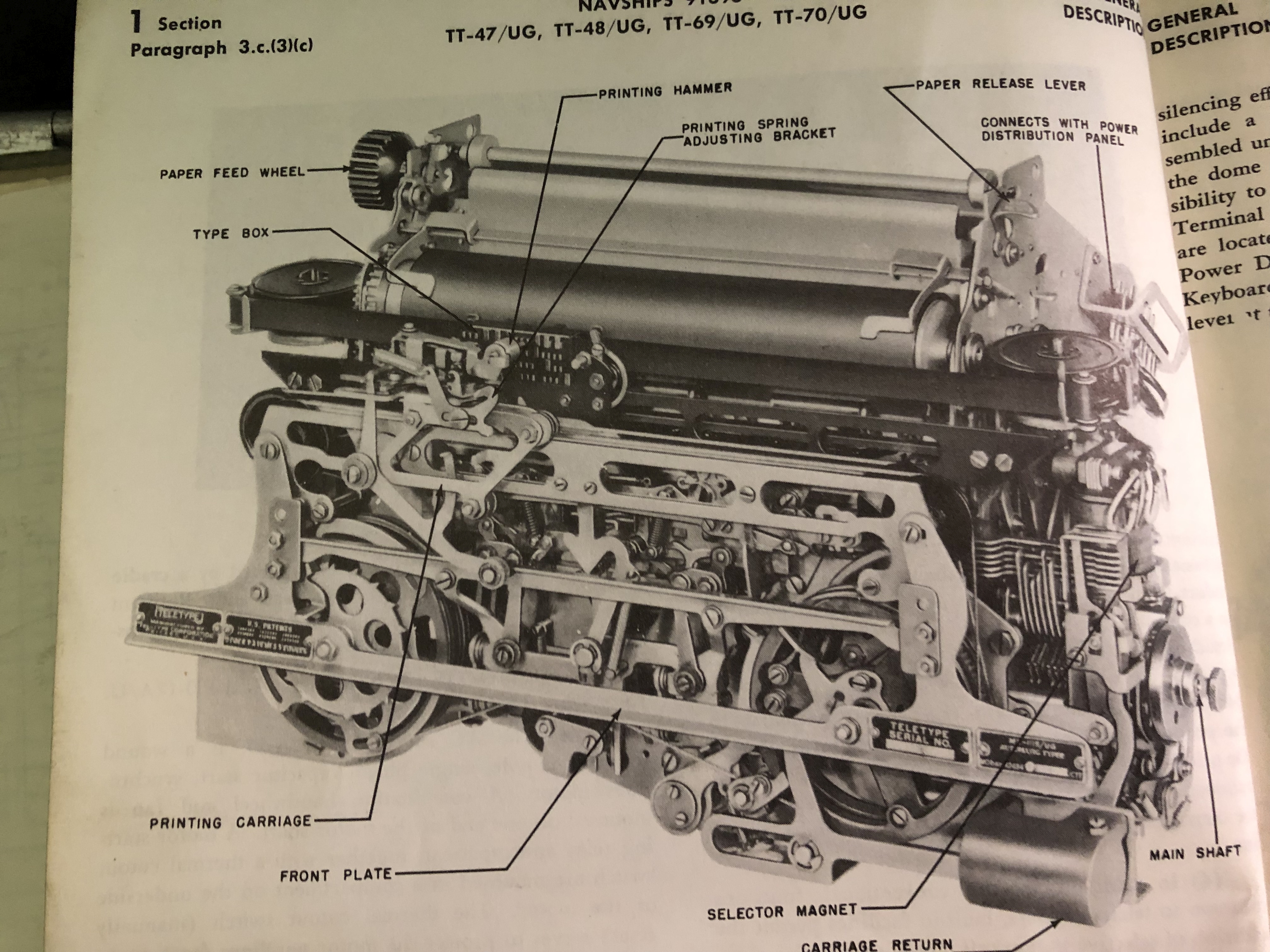

Mark I Printer - LP1, LP2? - almost the same as Mark II?
|
slotted ribbon carriage rail (black)
slotted typebox carriage rail (steel)
(note that this is a flat piece with larger holes than Mark II)
 |

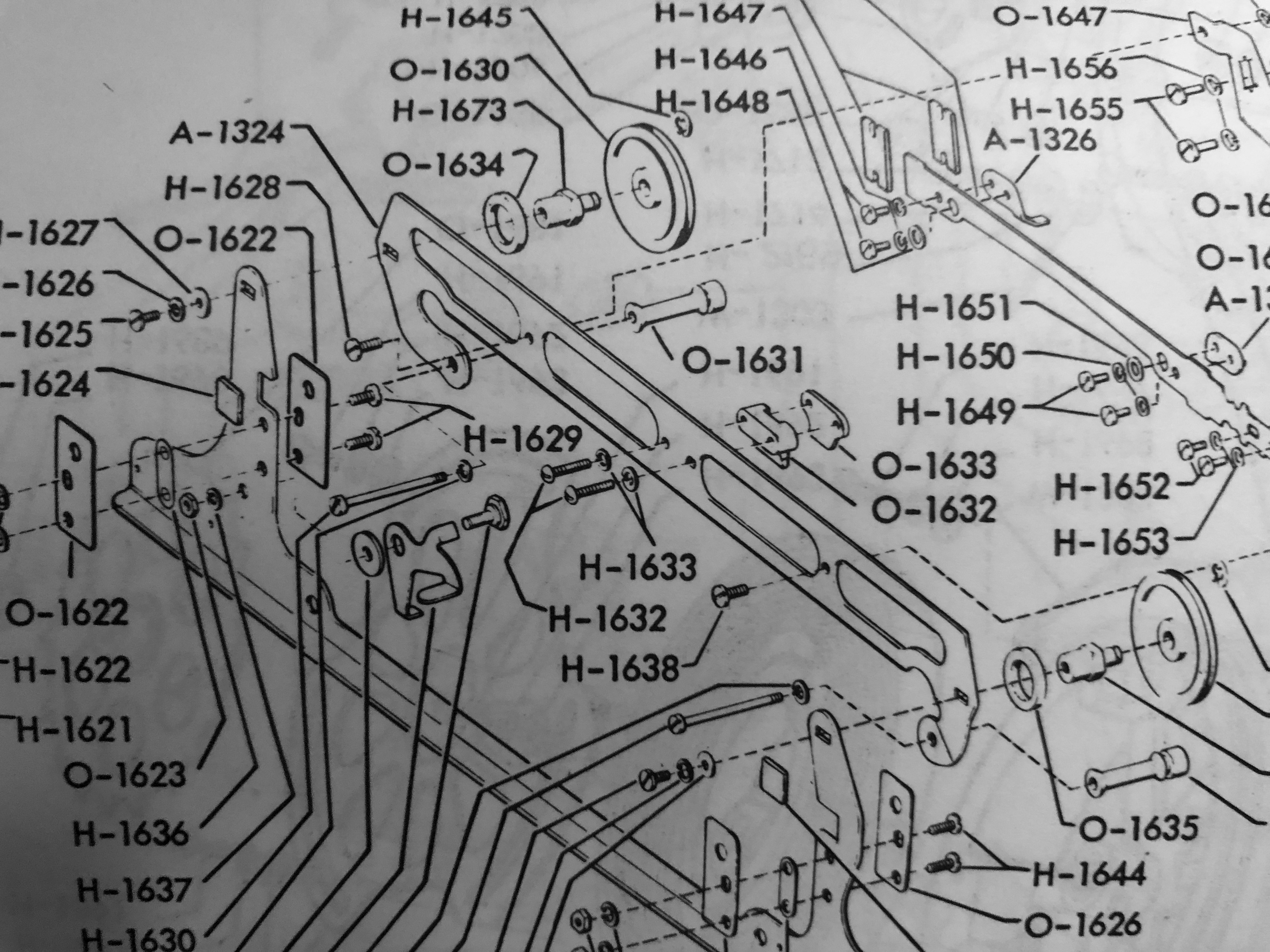

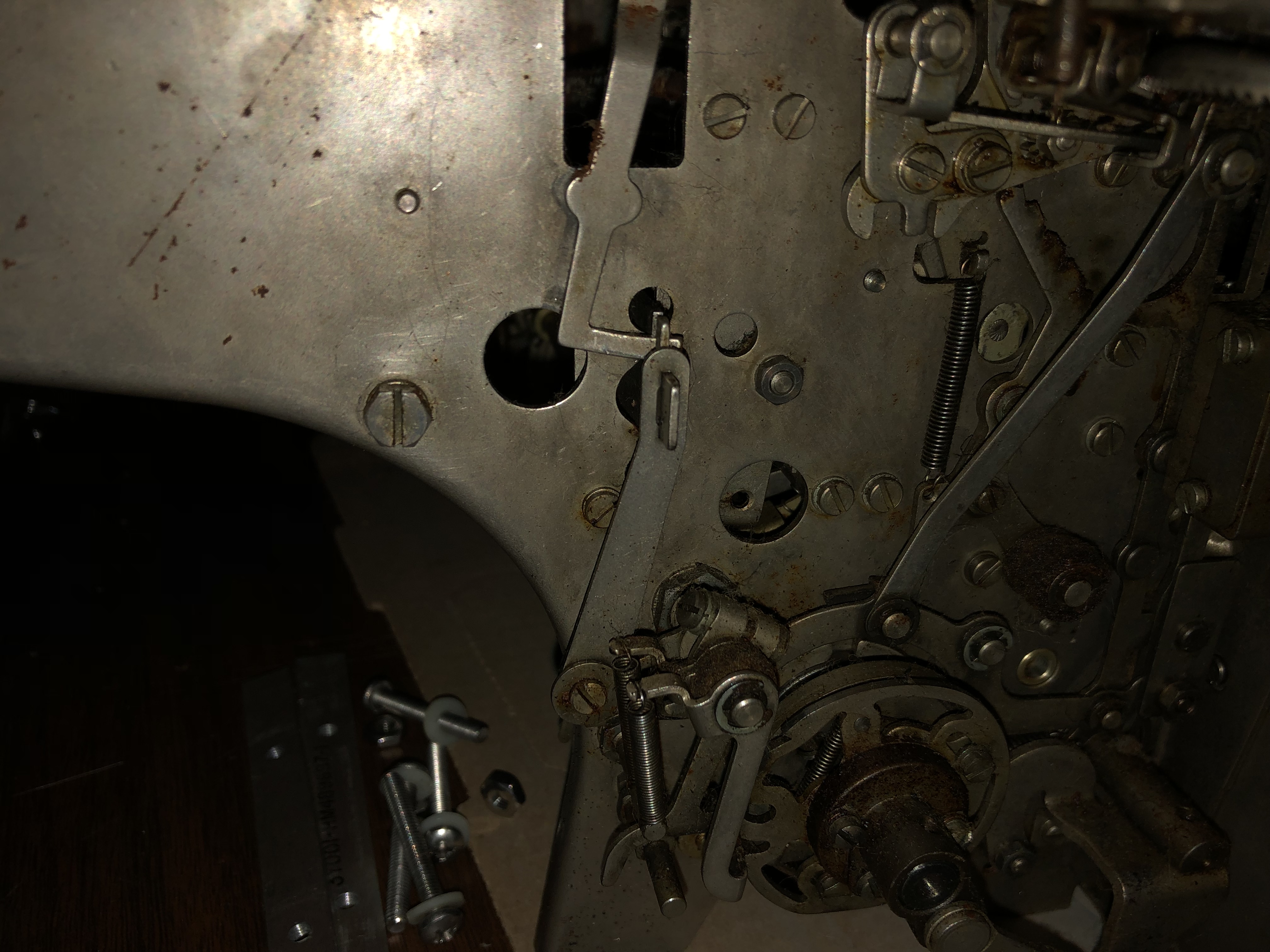

Type box carriage rail A-1324
Teletype Part 150844
 |

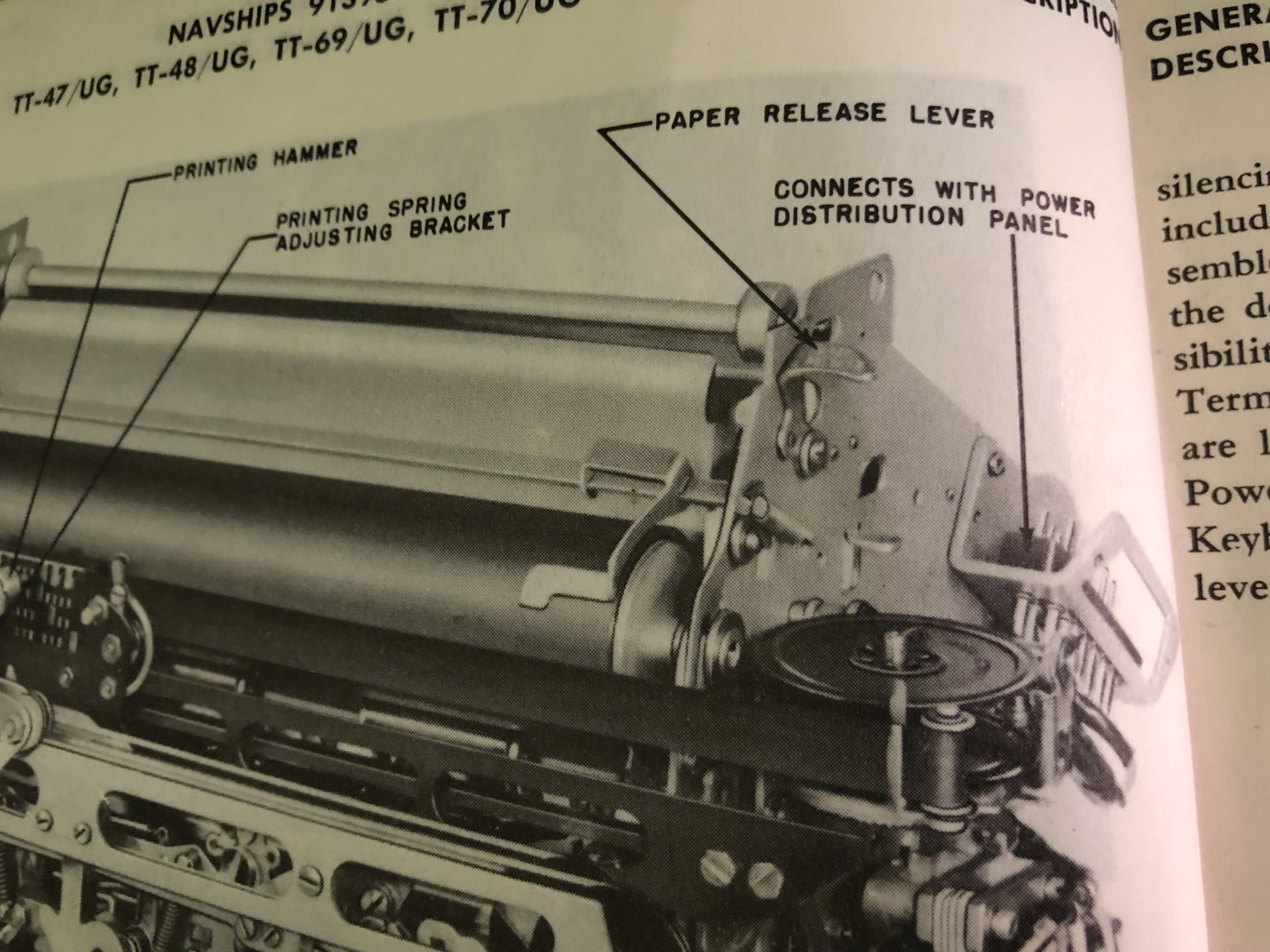

2-row electrical connector
 |

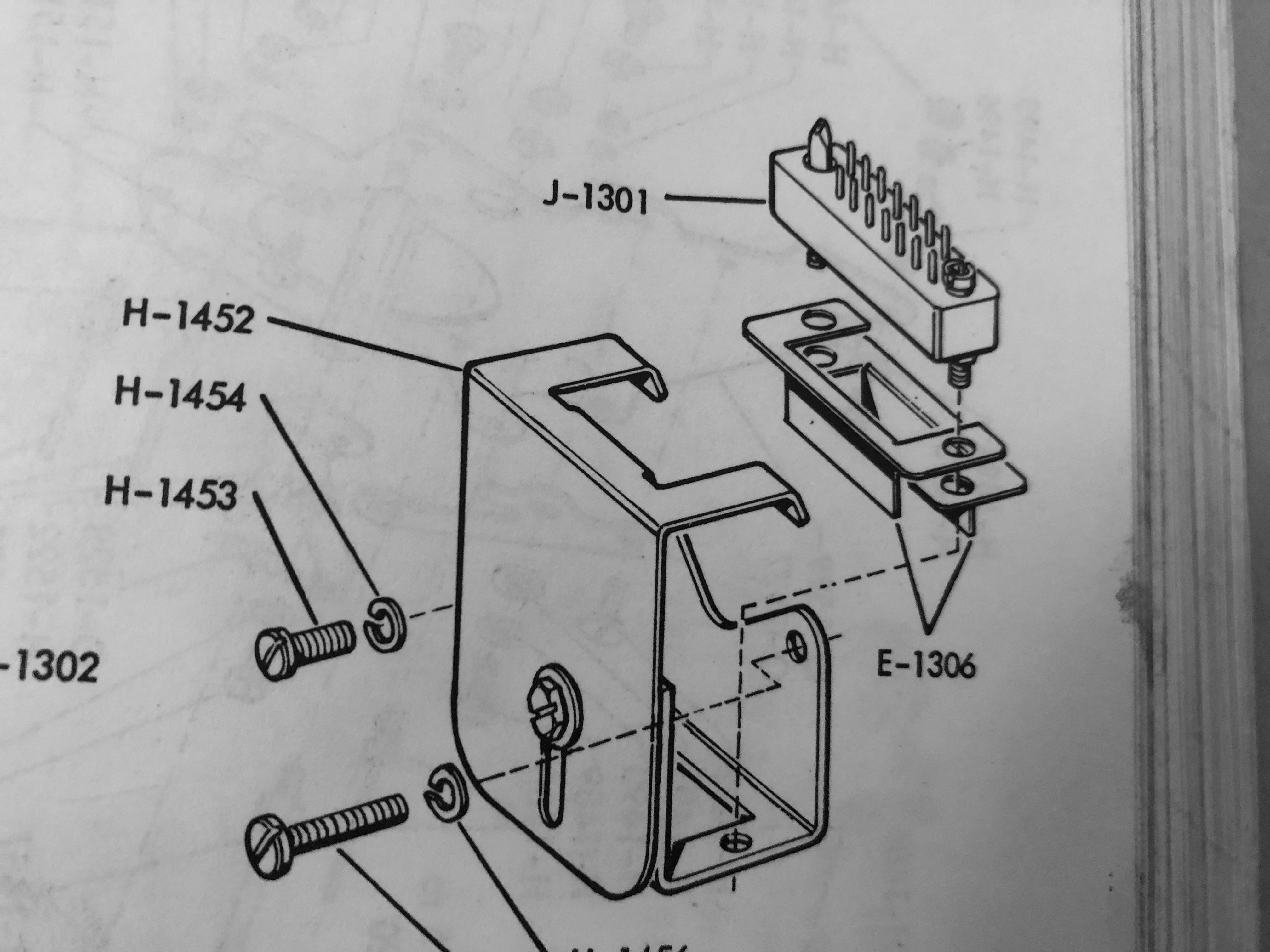

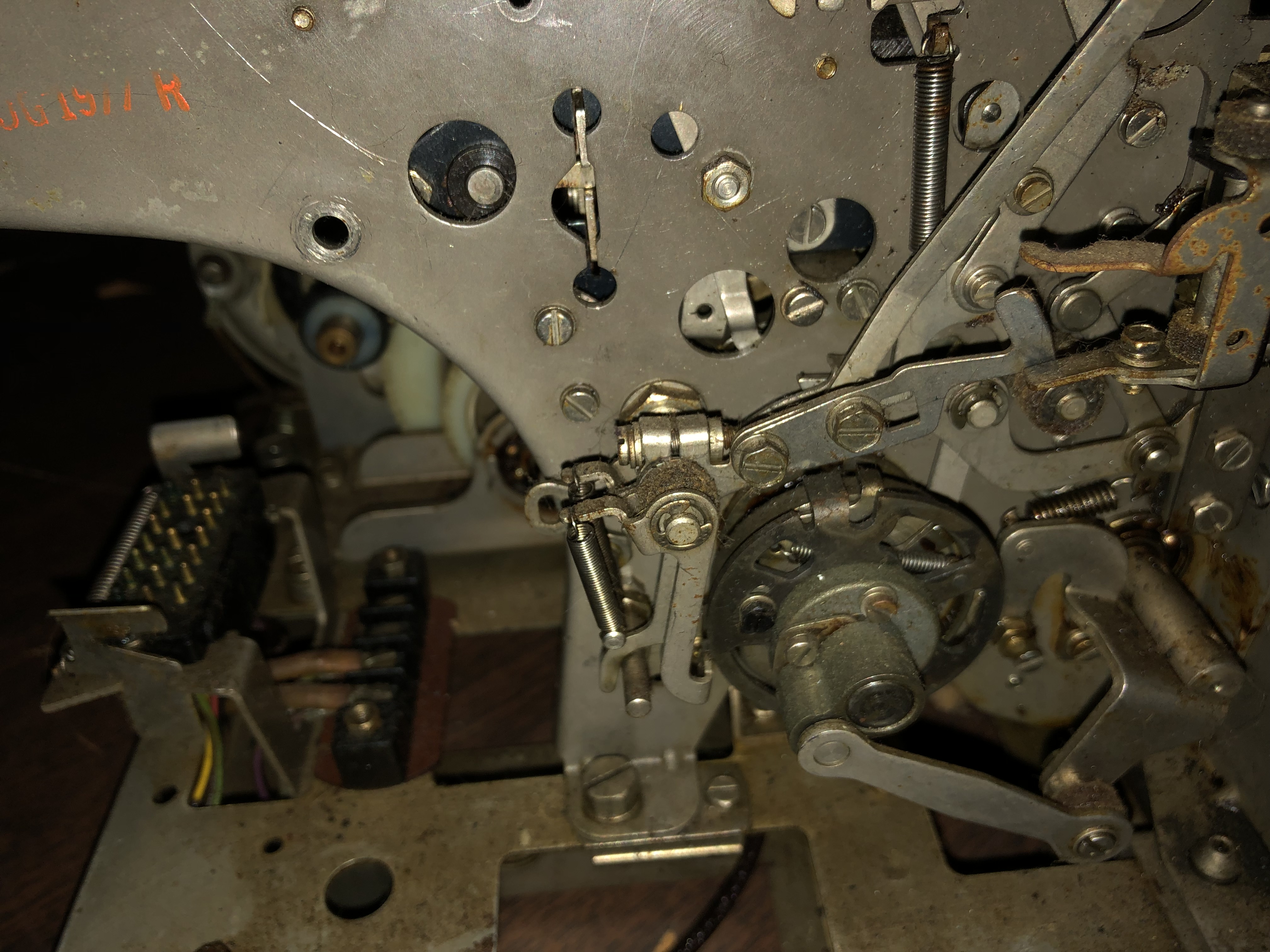

2-row connector J-1301
Teletype Part 151815
 |
Mark II Printer - LP3, LP4, LP5, LP6, LP7, LP8, LP9
- some Mark II printer parts drawings
|

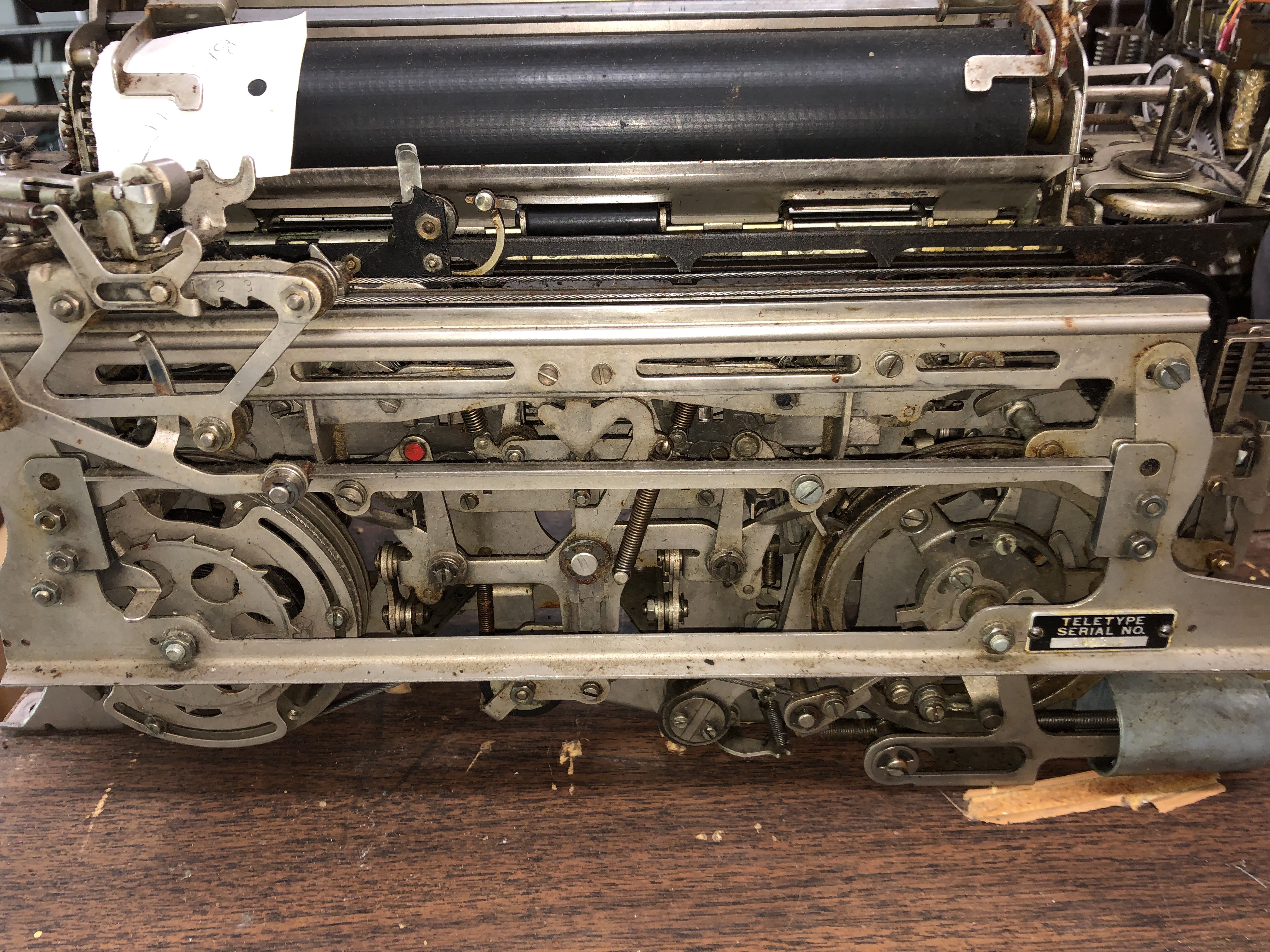

Left side of printer
 |

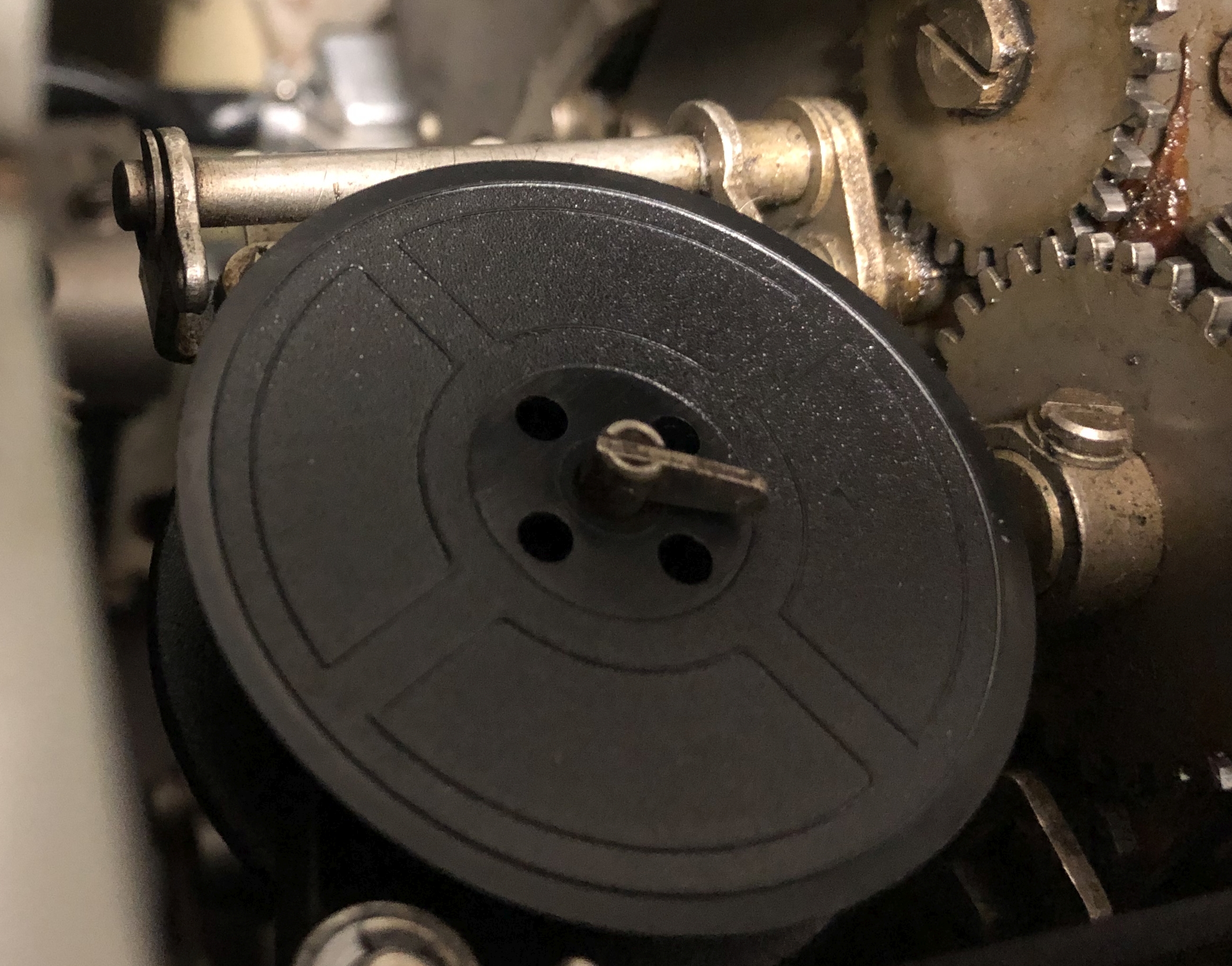

solid ribbon spool retainer clips
 |
slotted ribbon carriage rail (black)
slotted typebox carriage rail (steel)s
 |
slotted ribbon carriage rail (black)
slotted typebox carriage rail (steel)
 |

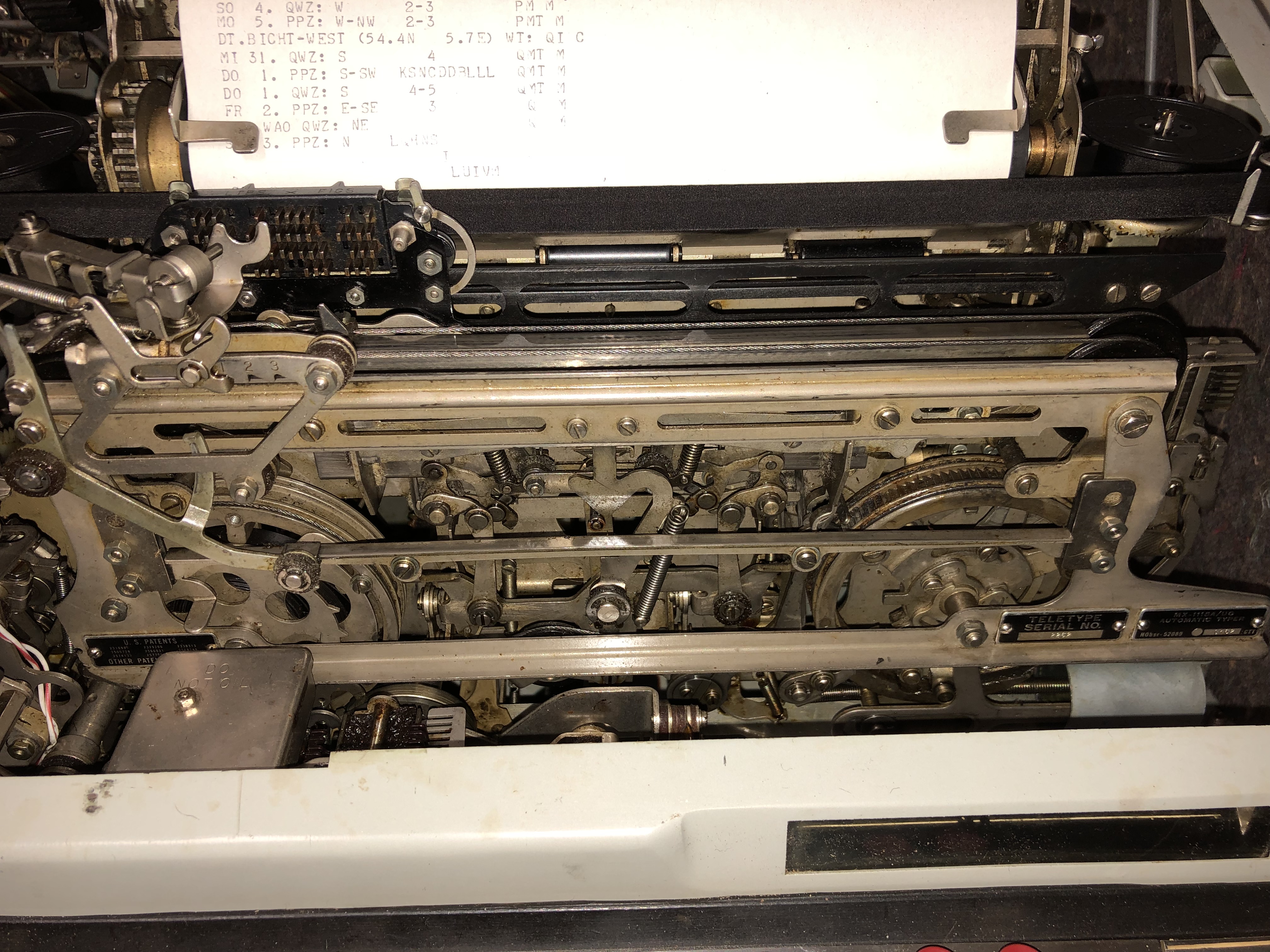

Mark III Printer - LP10 and on
|

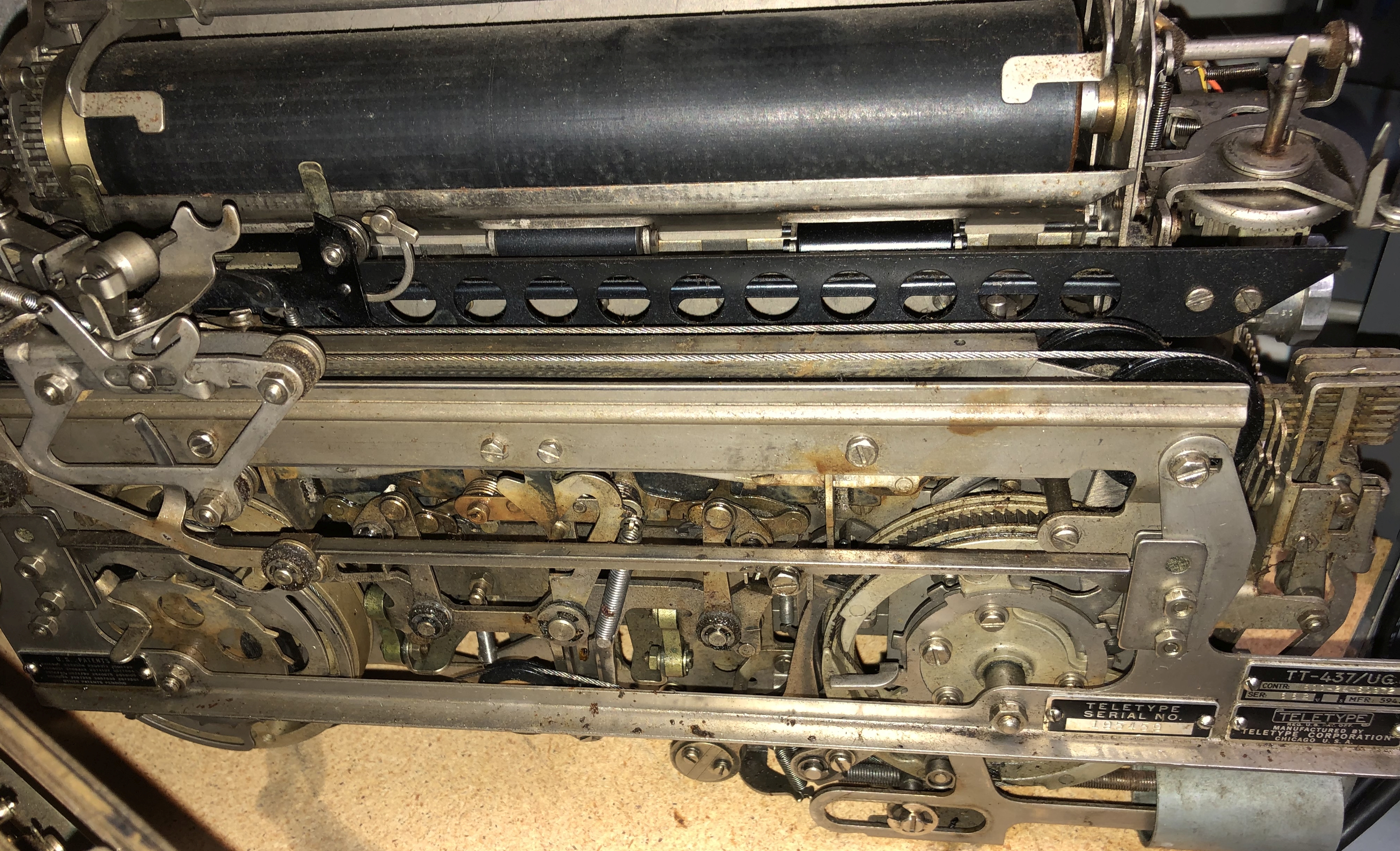

Left side of printer
 |
wire ribbon retainer clips
 |
round hole ribbon carriage rail (black)
unslotted typebox carriage rail (steel)
 |
Hybrid or updated? Mk II solid ribbon retainer clip
and Mk II left side with Mk III round hole ribbon carriage rail (black) and
Mk III unslotted typebox carriage rail (steel)
 |
