10/41 blueprints

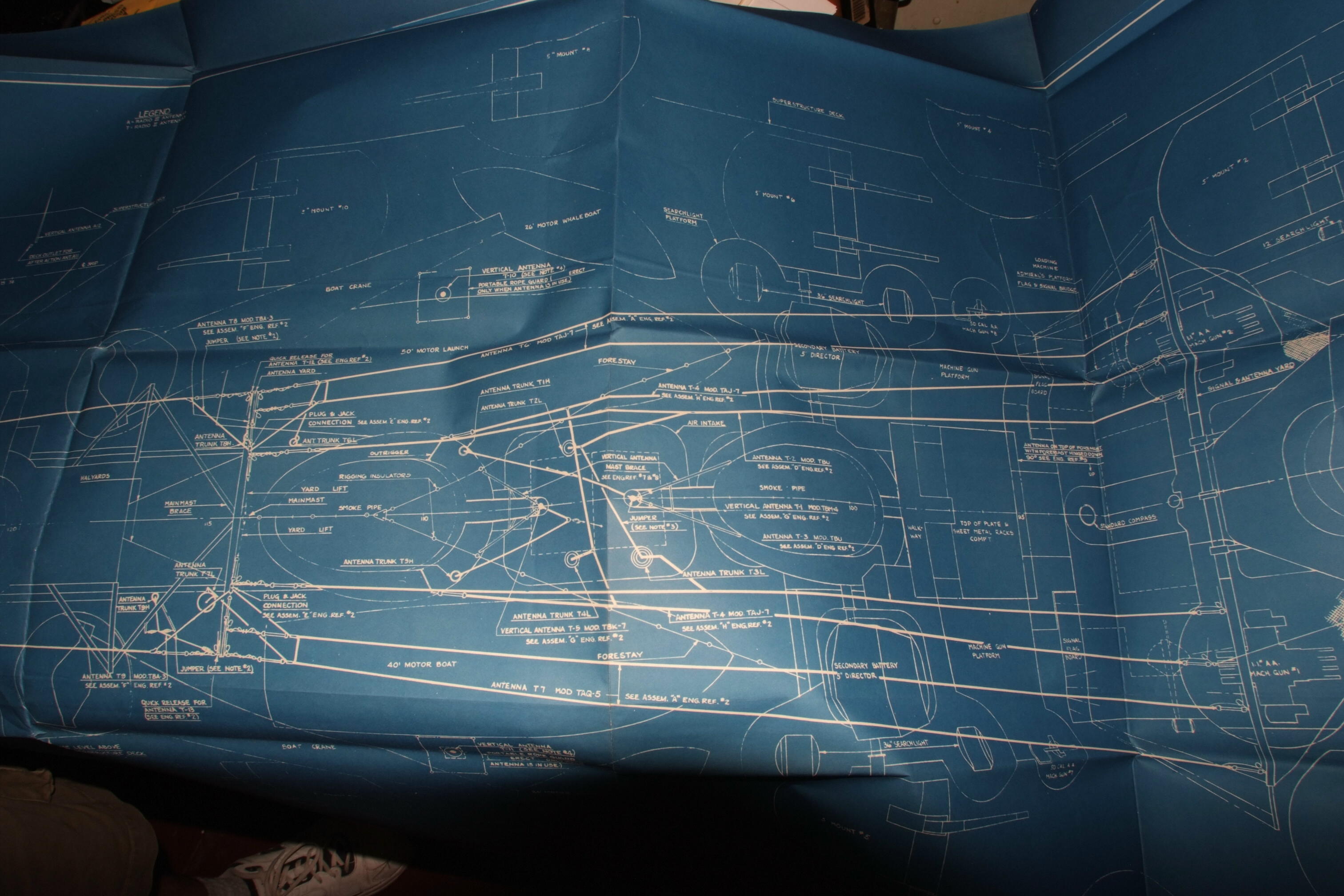

Transmitting Antenna plan - aft

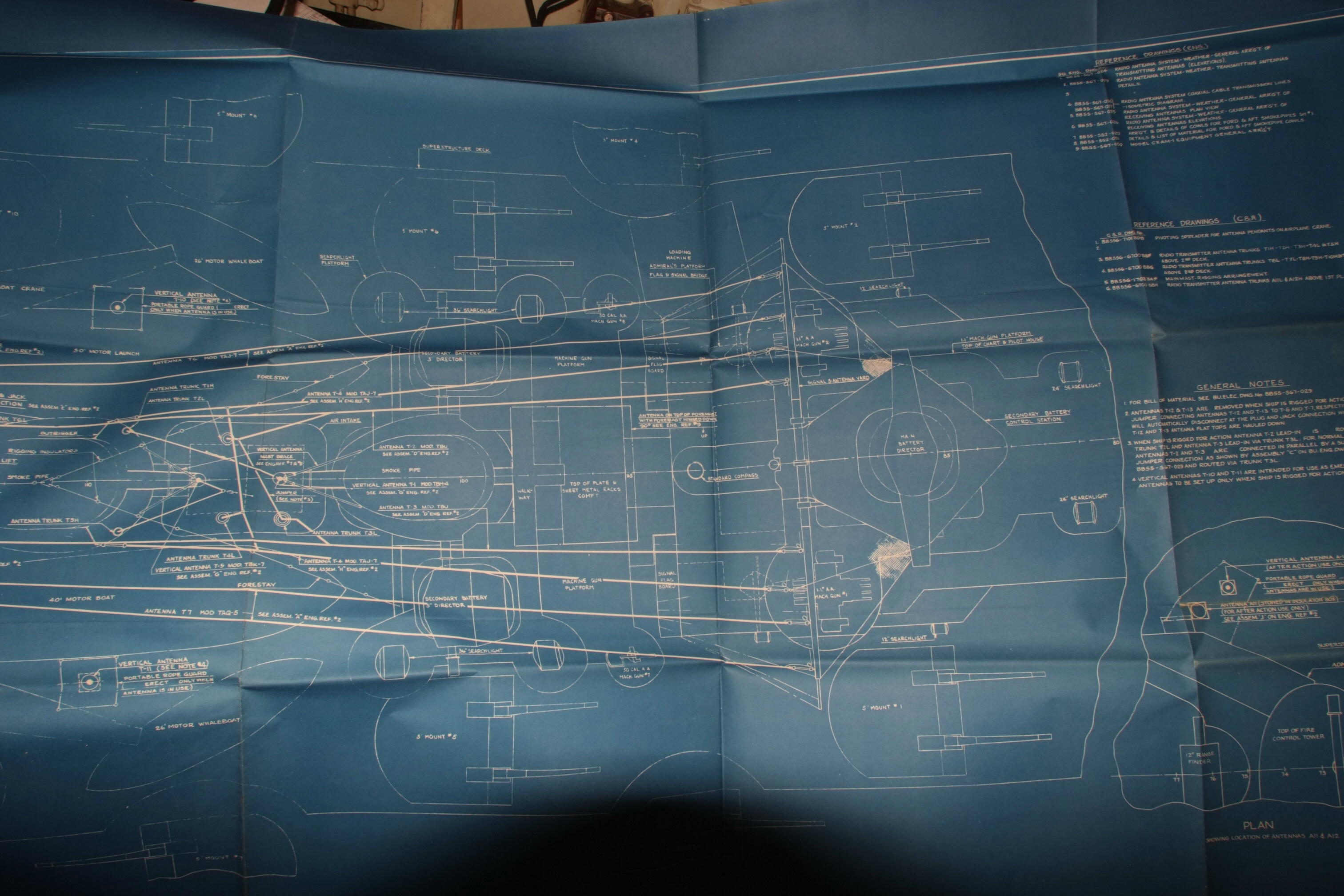

Transmitting Antenna plan - fore

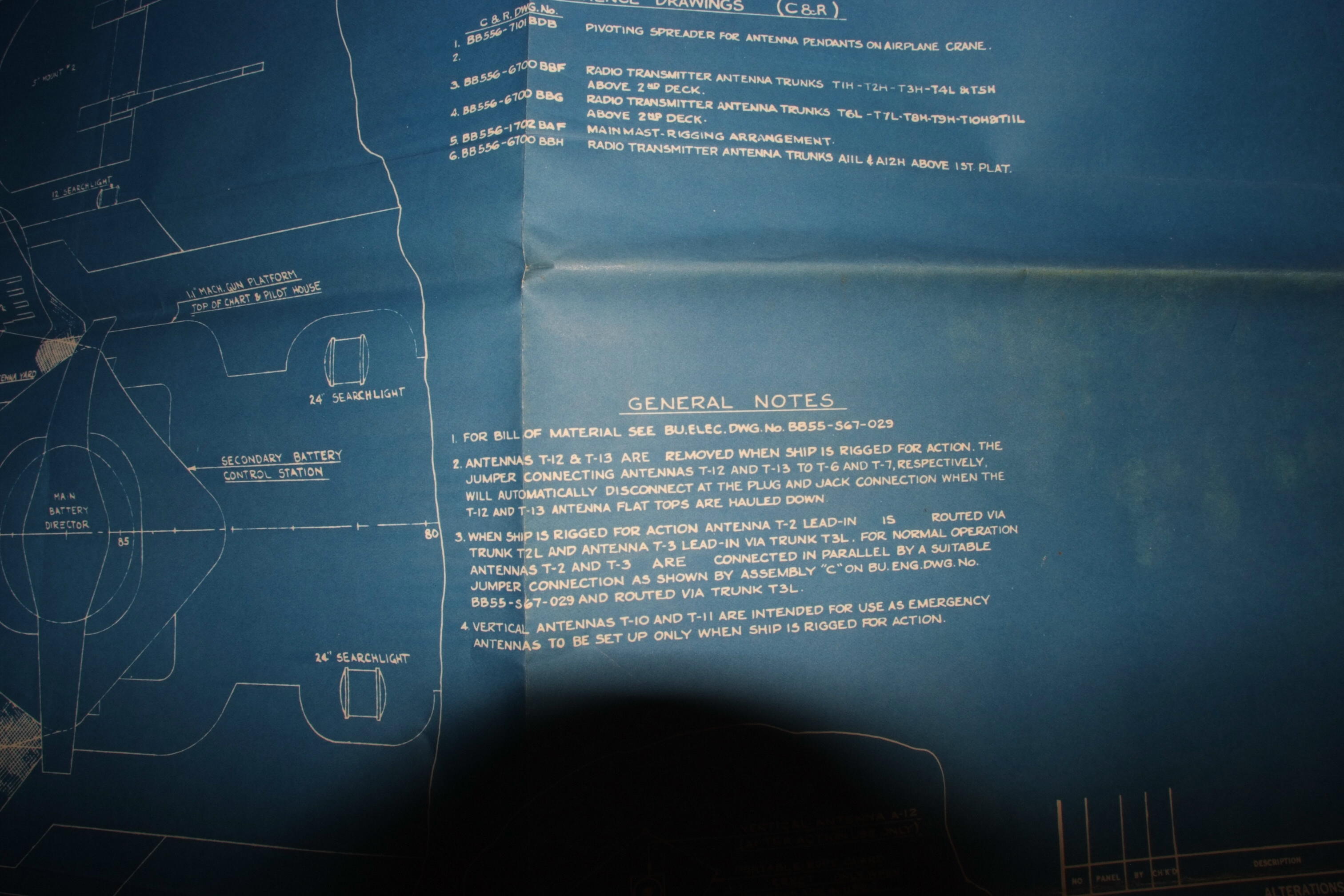

Transmitting Antenna plan - notes

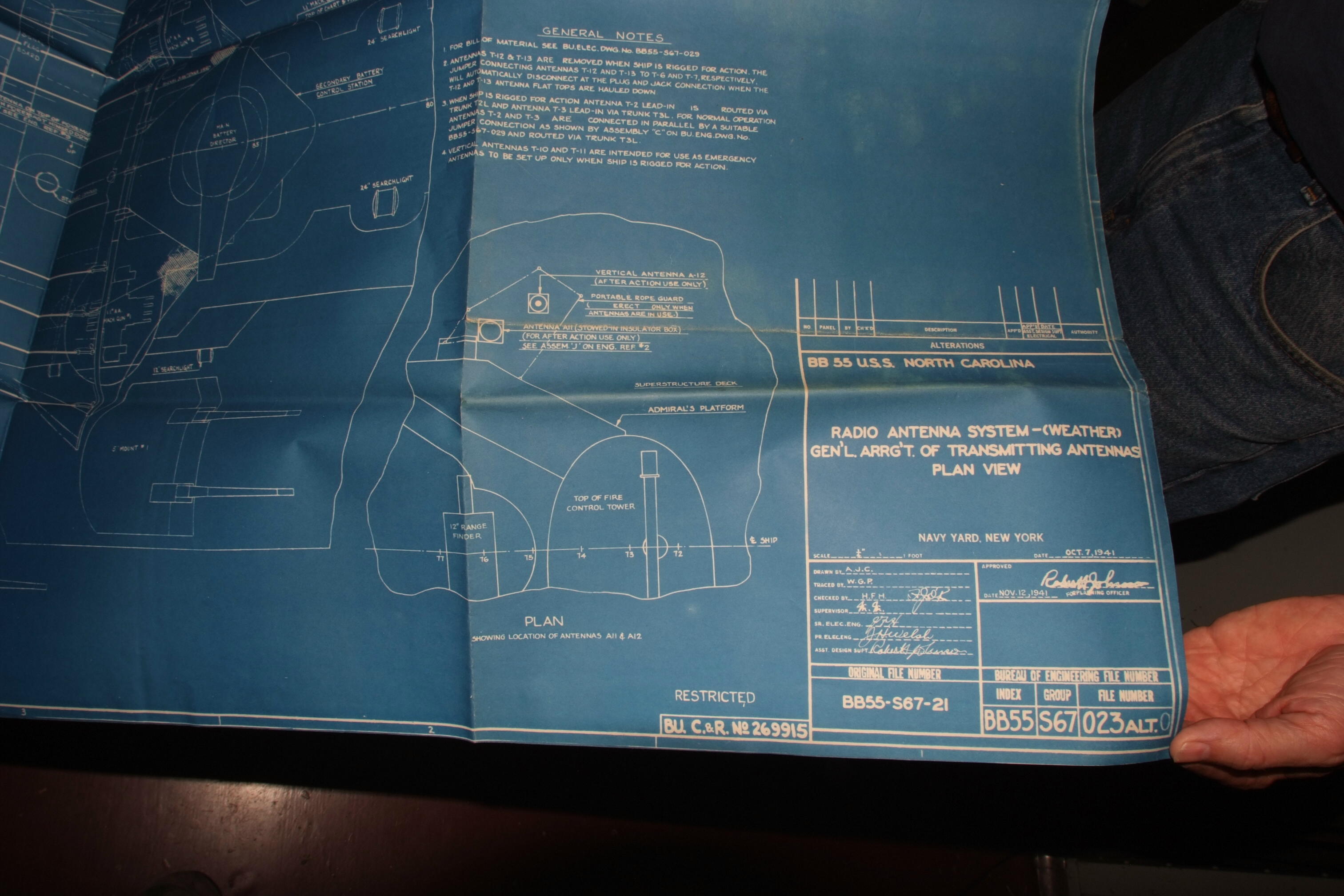

Transmitting Antenna plan - notes
Transmitting Antenna - isometric

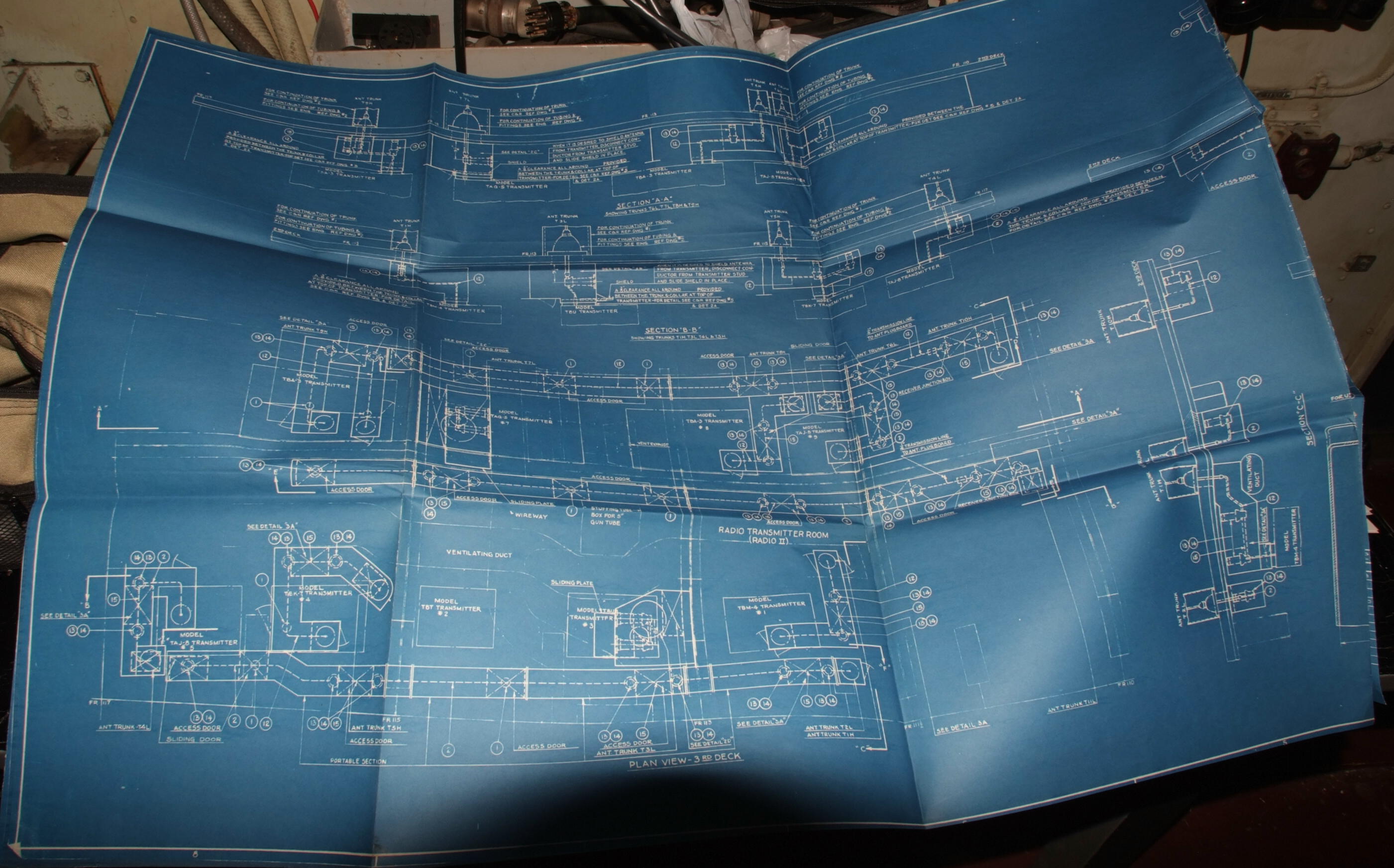

Radio 2 Transmitter Trunk Layout
Transmitting Antenna Trunks from Radio 2 to deck - Transmitters listed according to 10/41 blueprint
- T3L (TBU - 1000w MF xmtr)
- T4L (TAJ-8 - 500w LF xmtr)
- T5H (TBK-7 - 500w HF xmtr)
- T7L (TAQ-5 - 2000w MF xmtr)
- T9H (TBA-3 - 1000w HF xmtr)
4 port side trunks (listed fwd to aft)
- T2L (spare)
- T1H (TBM-4 - 500w HF xmtr)
- T6L (TAJ-8 - 500w LF xmtr)
- T8H (TBA-3 - 1000w HF xmtr)
T2L, T10H, and T11L are spare patch trunks which run through Radio 2 - I don't know the topside location of Trunks T10H & T11L yet.

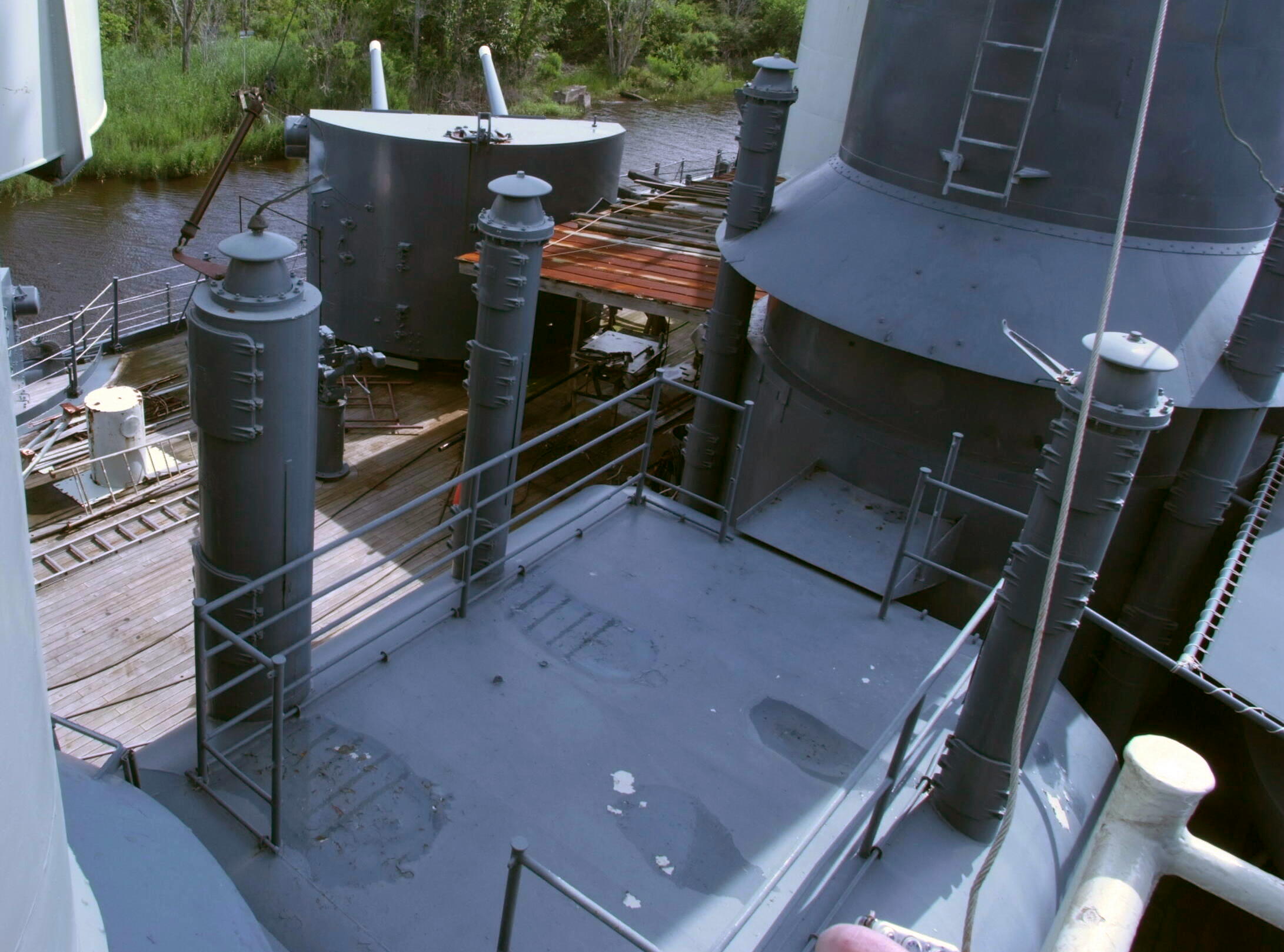

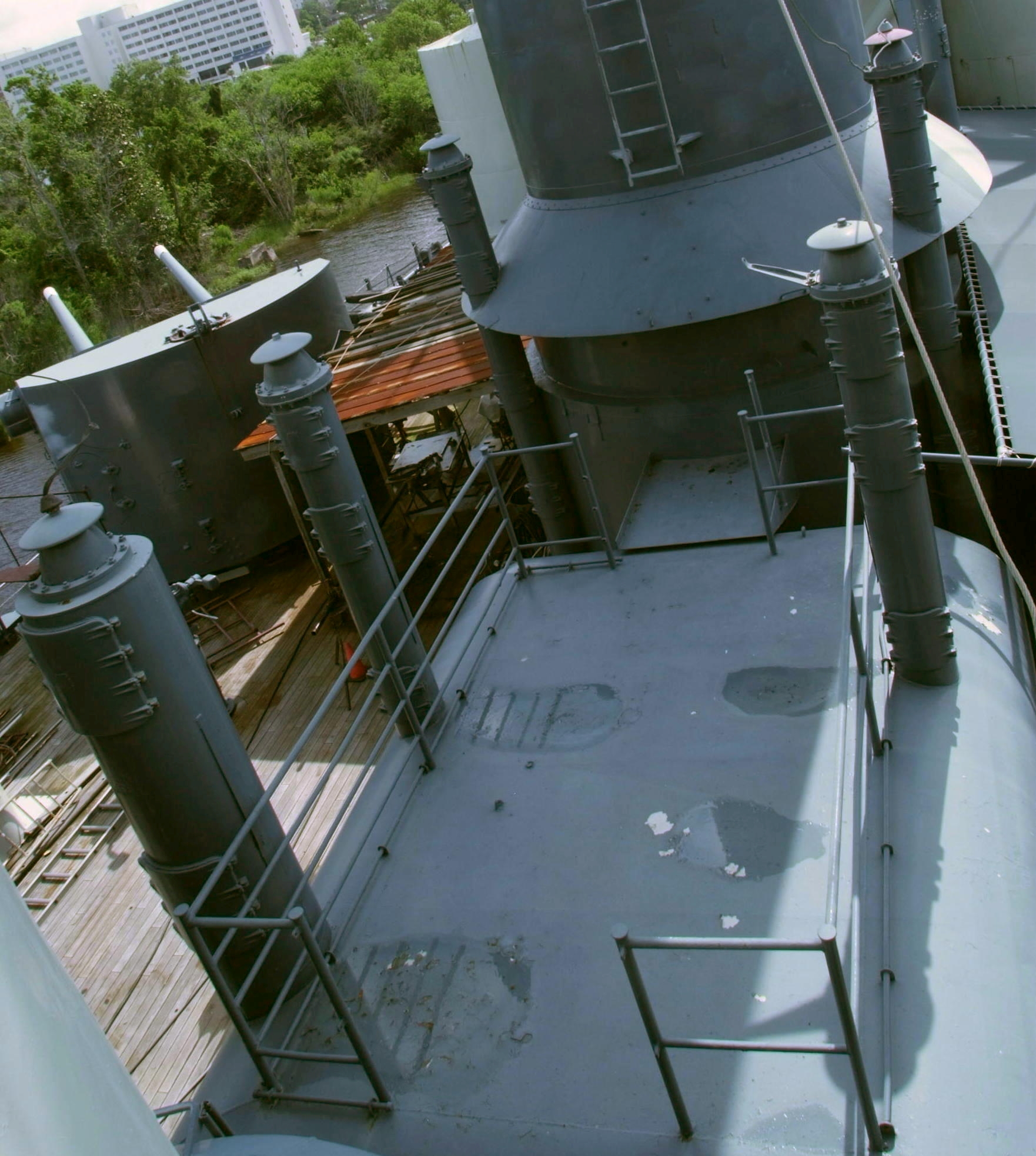

The rounded structure that these trunks come up through is
the cowl for the air intake vent for engine rooms 2 & 3

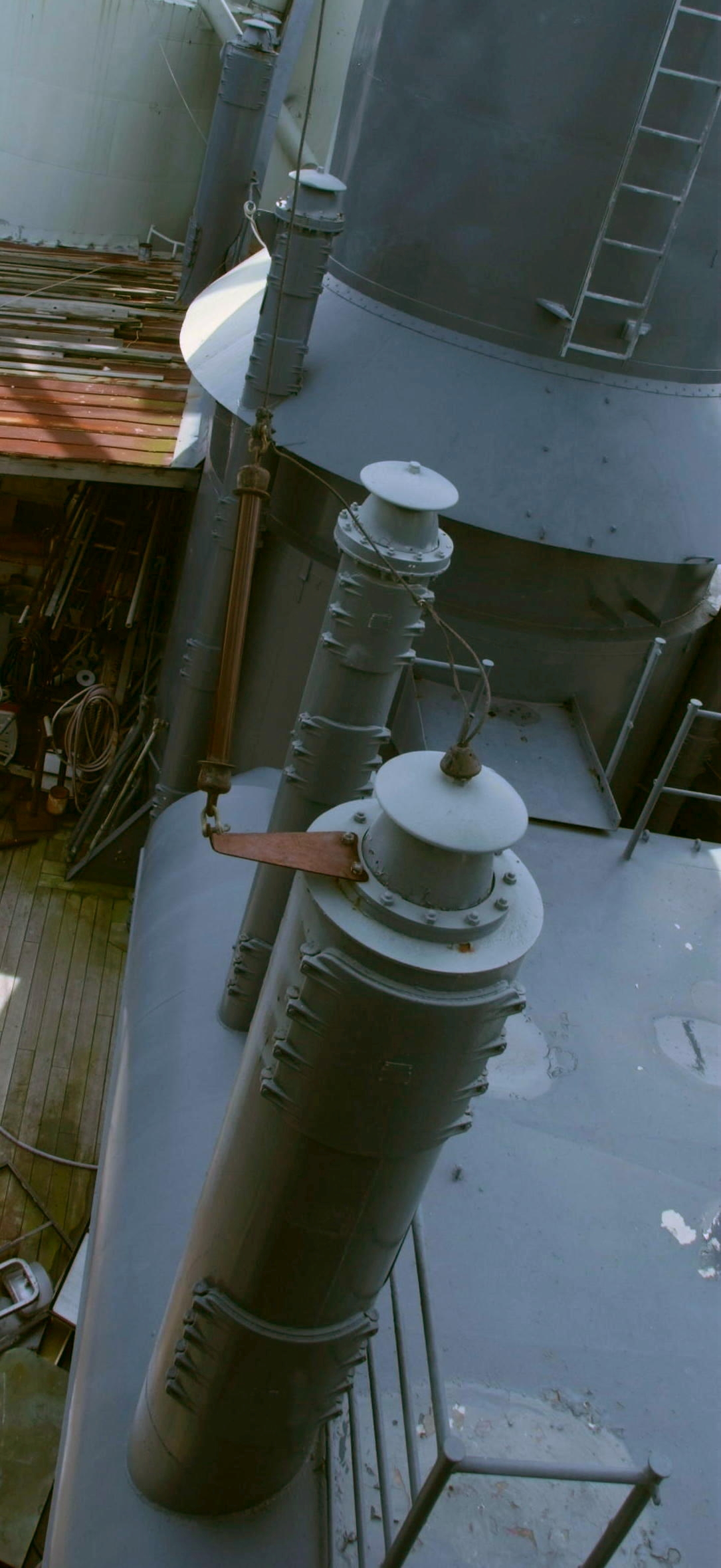

left side of photo - T3L, T4L, T5H
right side of photo - T2L, T1H

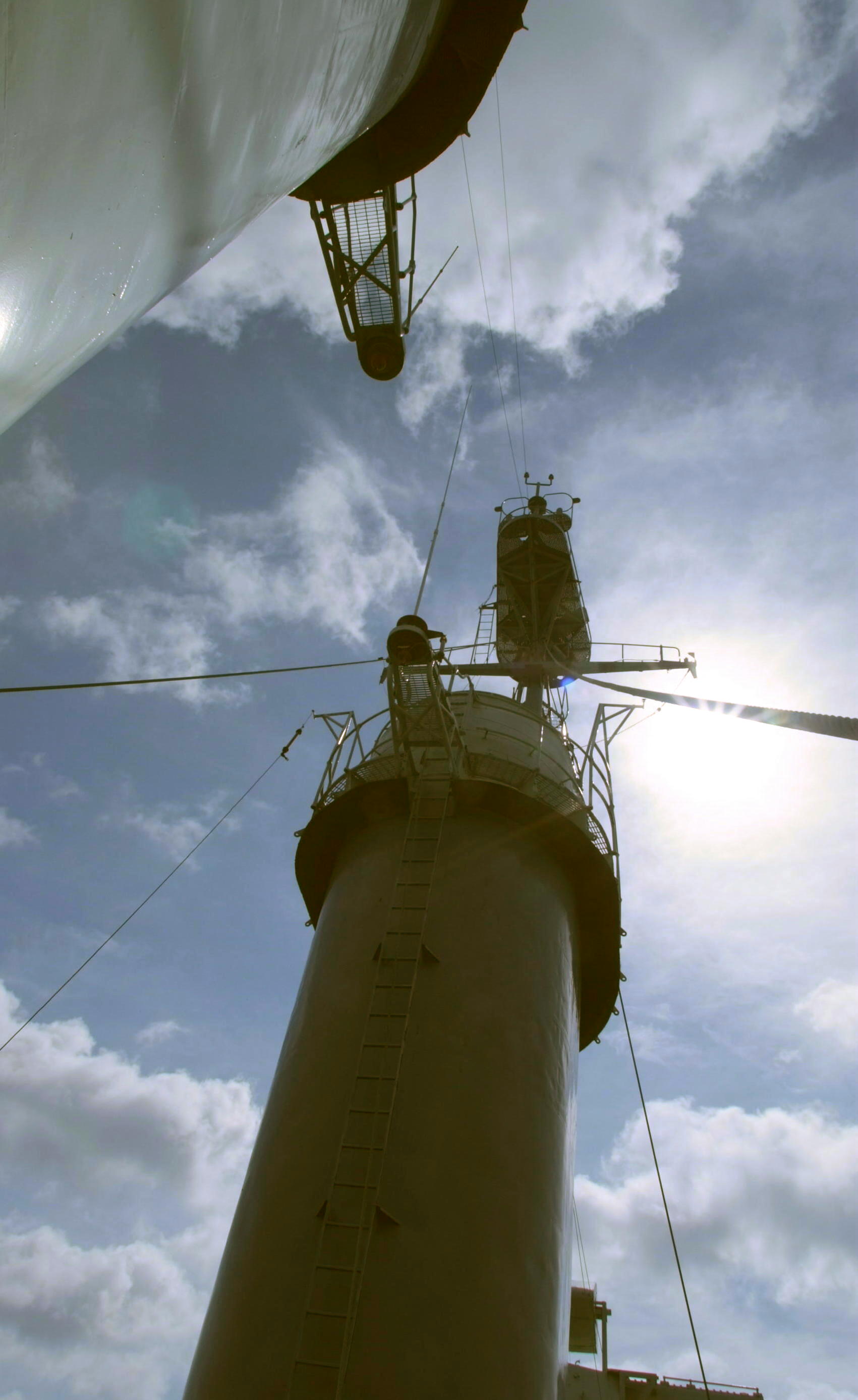

35' whips mounted on smokepipes
whip T-5 on forward mount of aft smokepipe connects to T5H (TBK-7)
whip T-1 on aft mount of forward smokepipe connects to T1H (TBM-4)
Transmitting Antenna Trunks from Radio 3 - four located aft of Conning Tower - no photos yet
Trunks - A11L, A12H and two others?
