AN/FGC-5 Teletype Multiplex System
- "Telegraph Terminal Set"

Back to main Navy TTY Multiplexer Page
Back to main Navy RTTY page
Back to Main Navy Radio Page
Please send me e-mail if you have more photos , info, or if you have any FGC-5 parts for sale or trade.
Go here for TELETYPE SIGNAL, FSK, and AFSK EQUIPMENT MANUALS

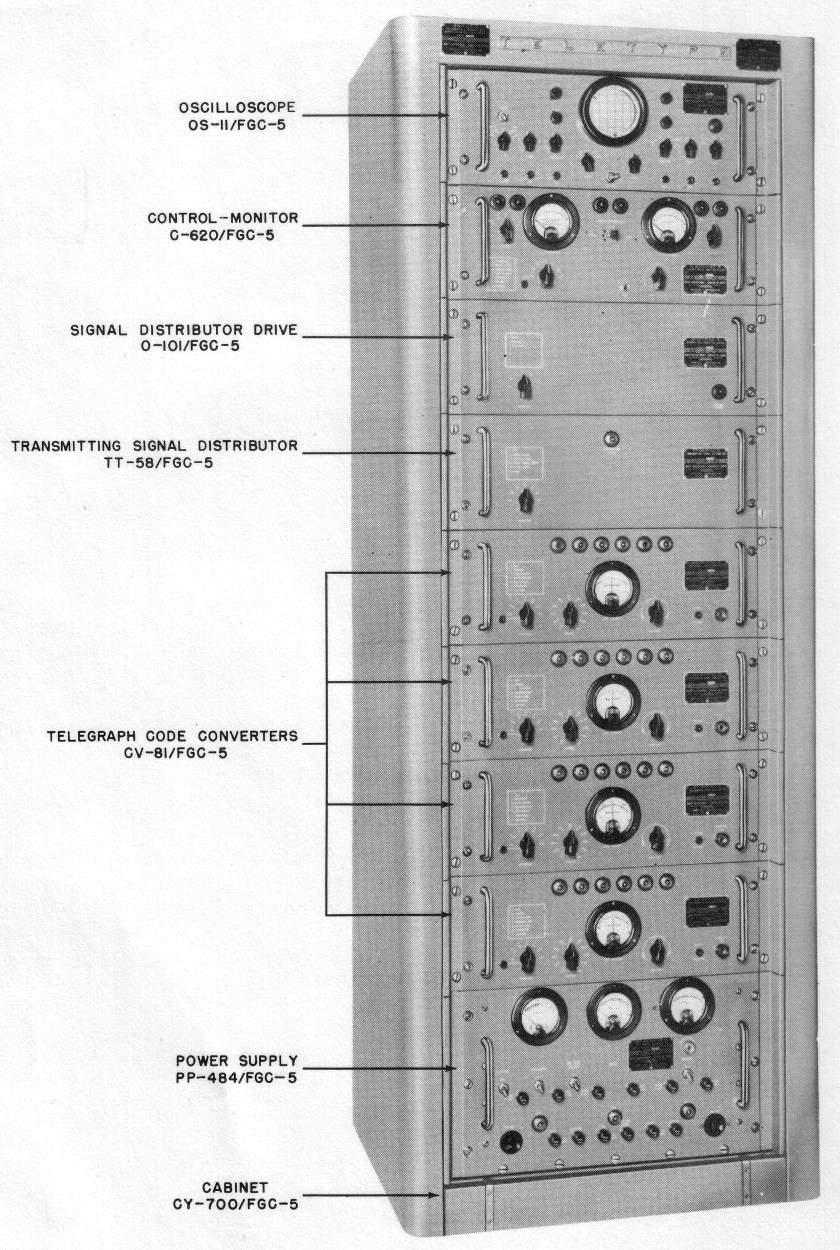

OA-151/FGC-5 transmitting group - 4 tty lines in, one multiplexed signal out
OA-151/FGC-5 block diagram	OA-151/FGC-5 components OS-11/FGC-5 oscilloscope C-620/FGC-5 control monitor O-101/FGC-5 signal distributor drive TT-58/FGC-5 rcvg signal distributor CV-81/FGC-5 code converters (4 ea.) PP-484/FGC-5 power supply		--

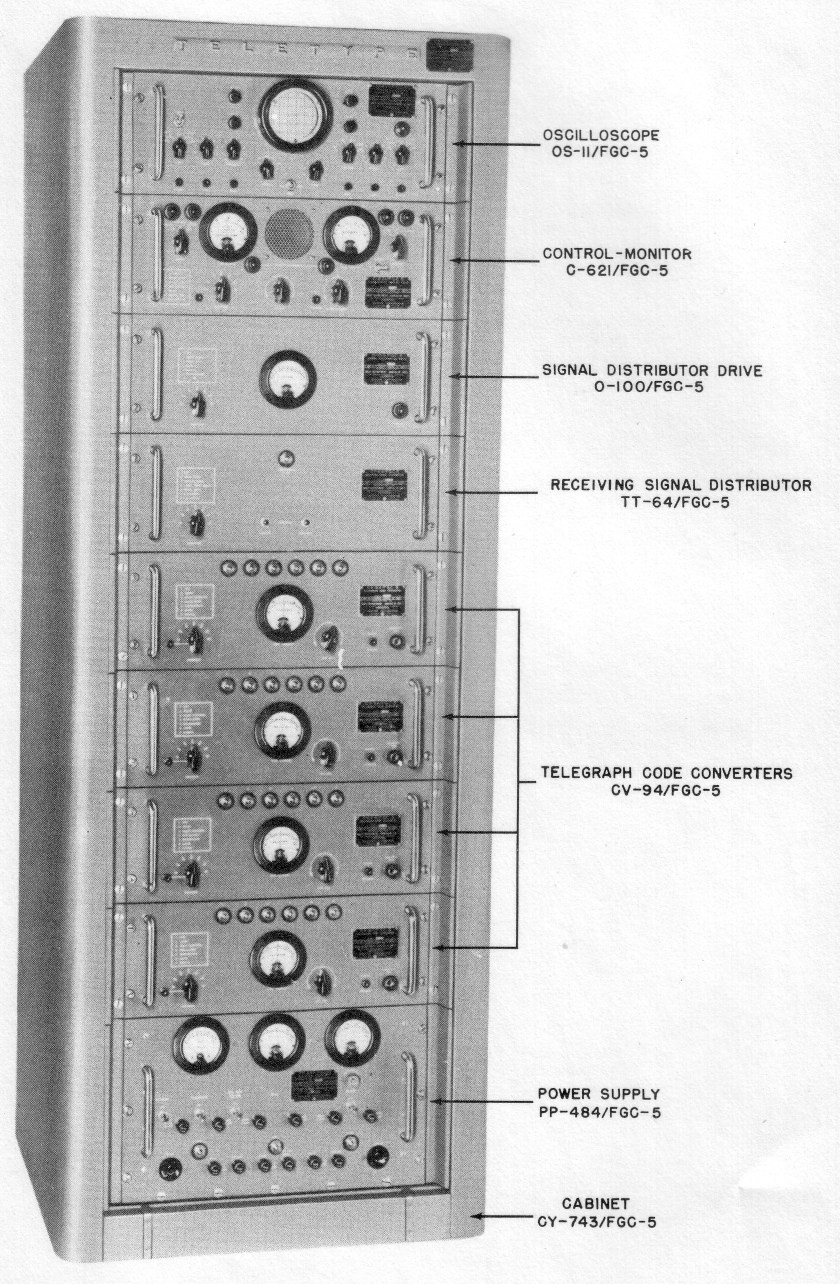

OA-150/FGC-5 receiving group - 1 multiplexed signal in, 4 TTY lines out

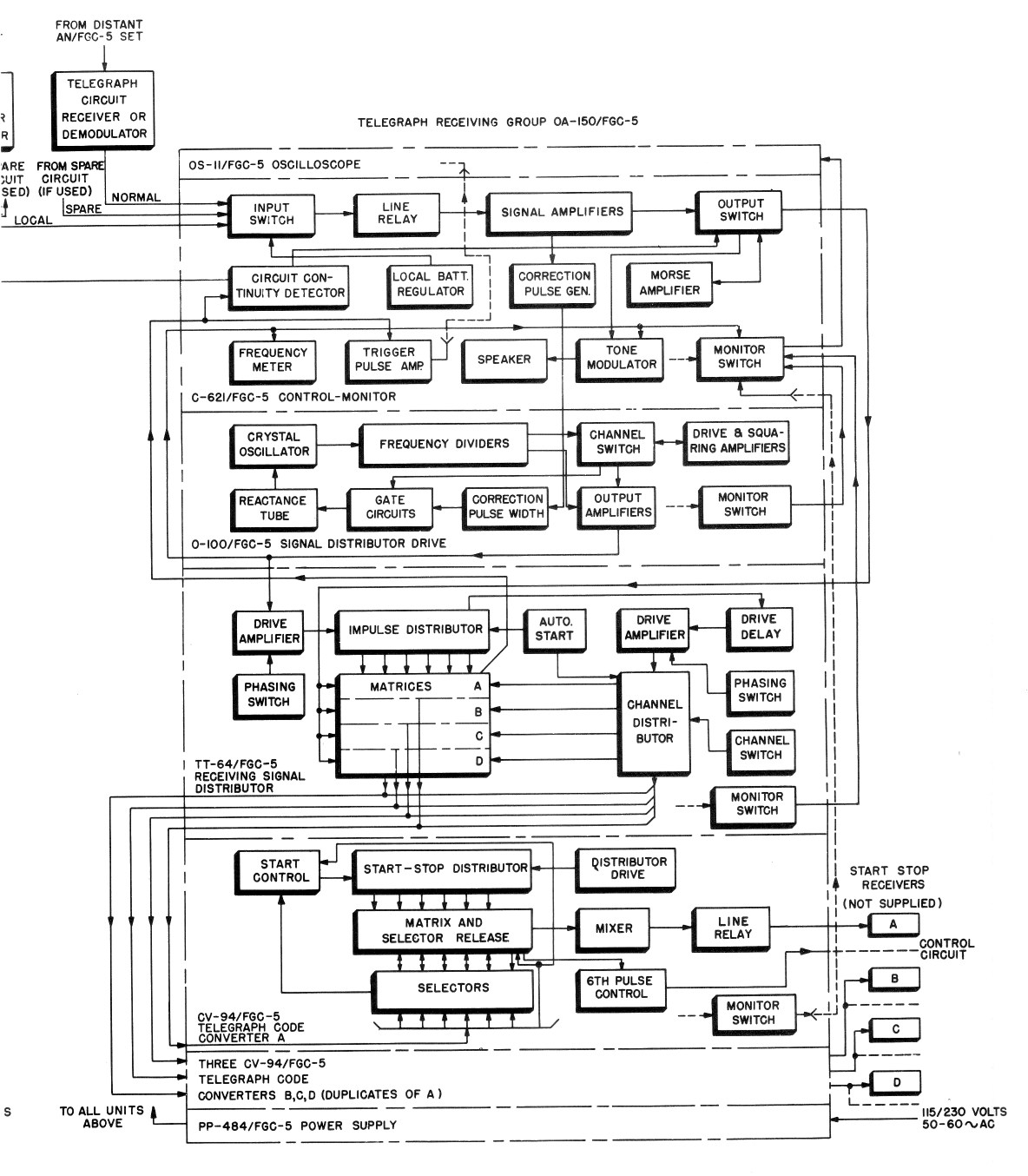

OA-150/FGC-5 block diagram	OA-150/FGC-5 components OS-11/FGC-5 oscilloscope C-621/FGC-5 control monitor O-100/FGC-5 signal distributor drive TT-64/FGC-5 rcvg signal distributor CV-94/FGC-5 code converters (4 ea.) PP-484/FGC-5 power supply

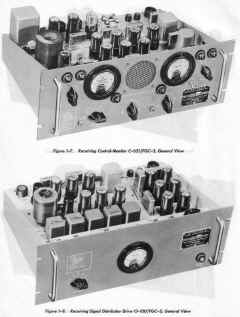

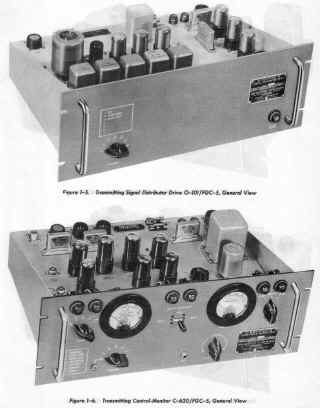

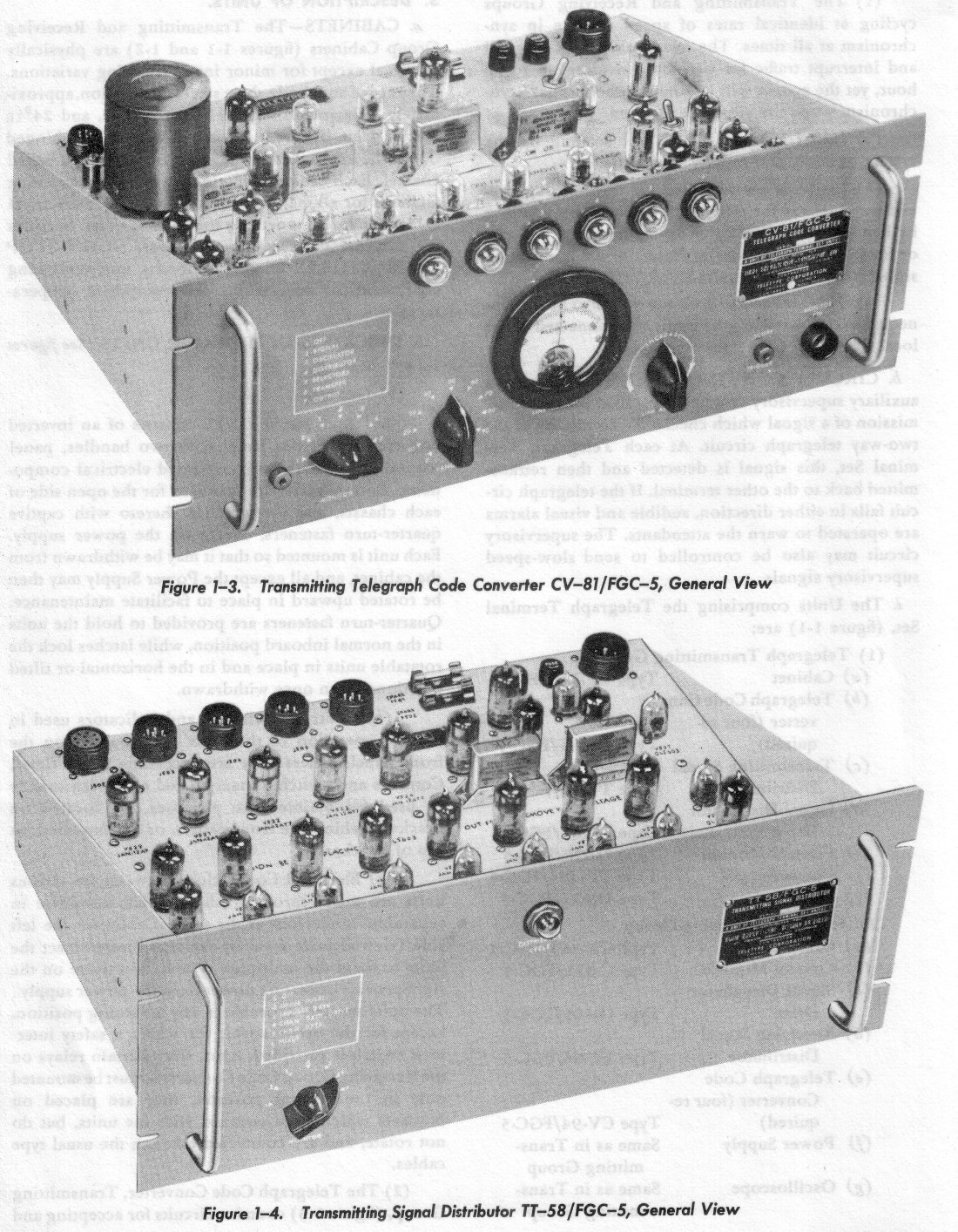

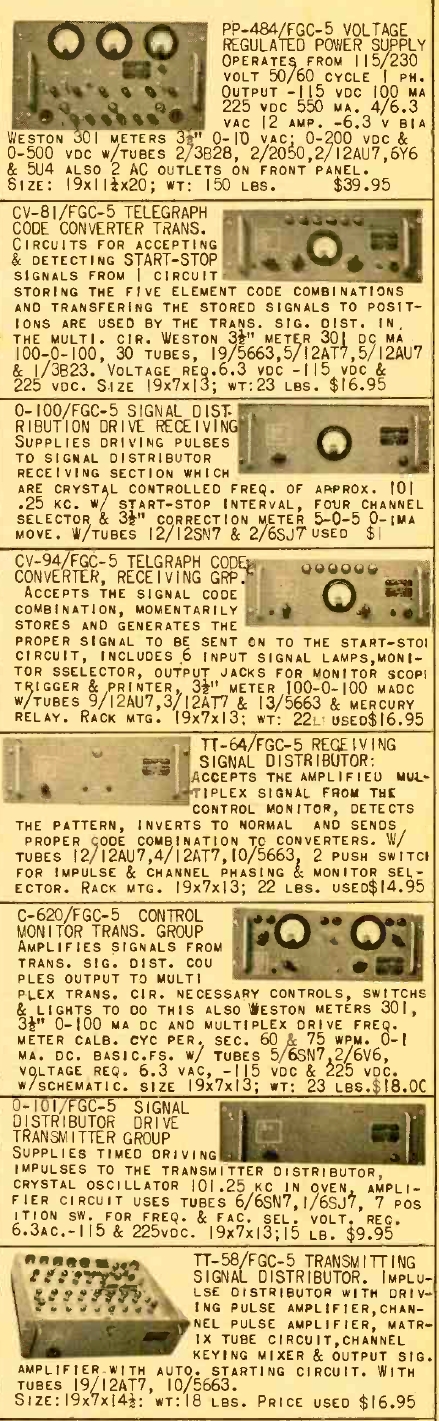

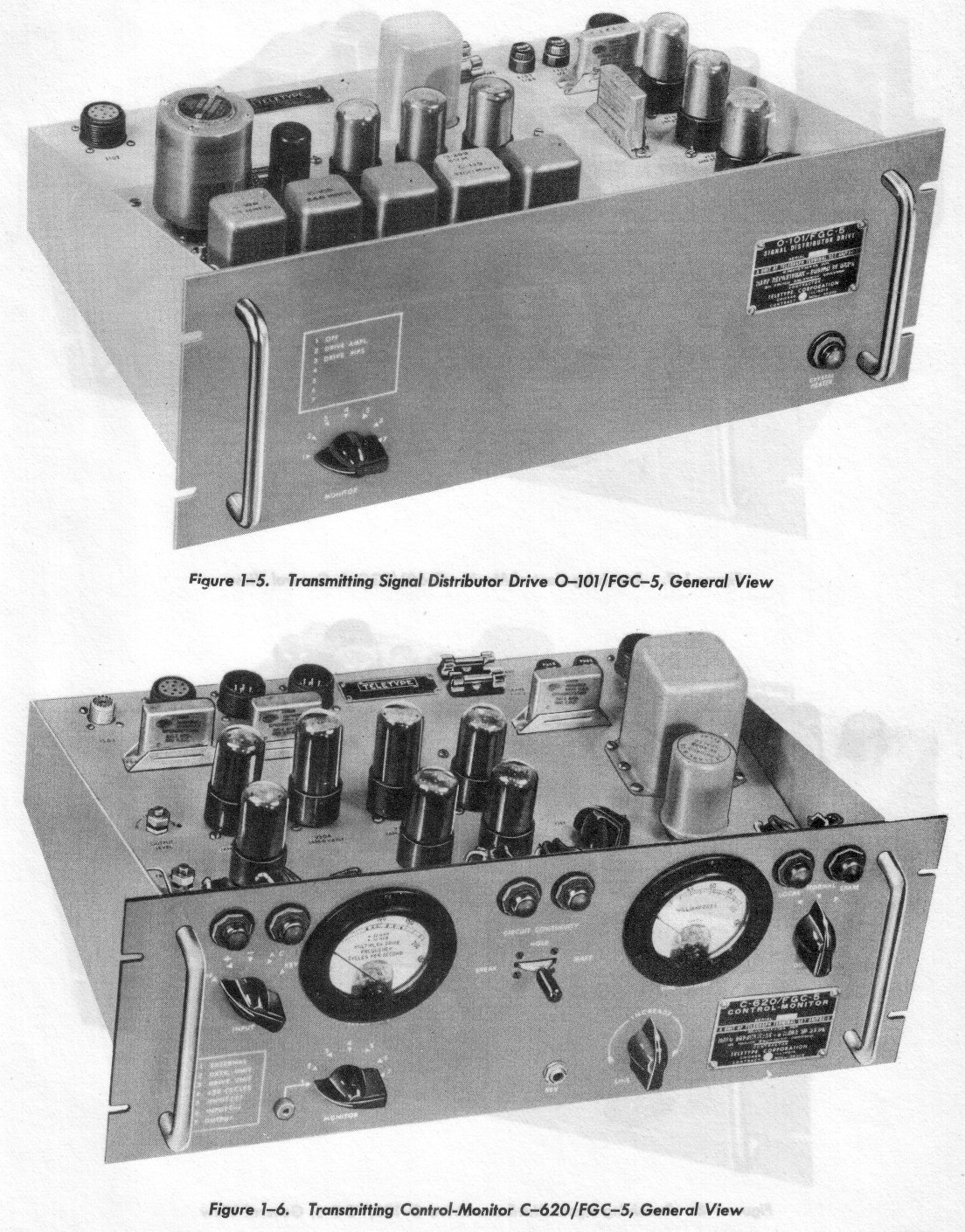

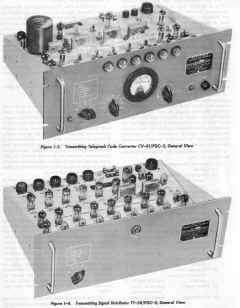

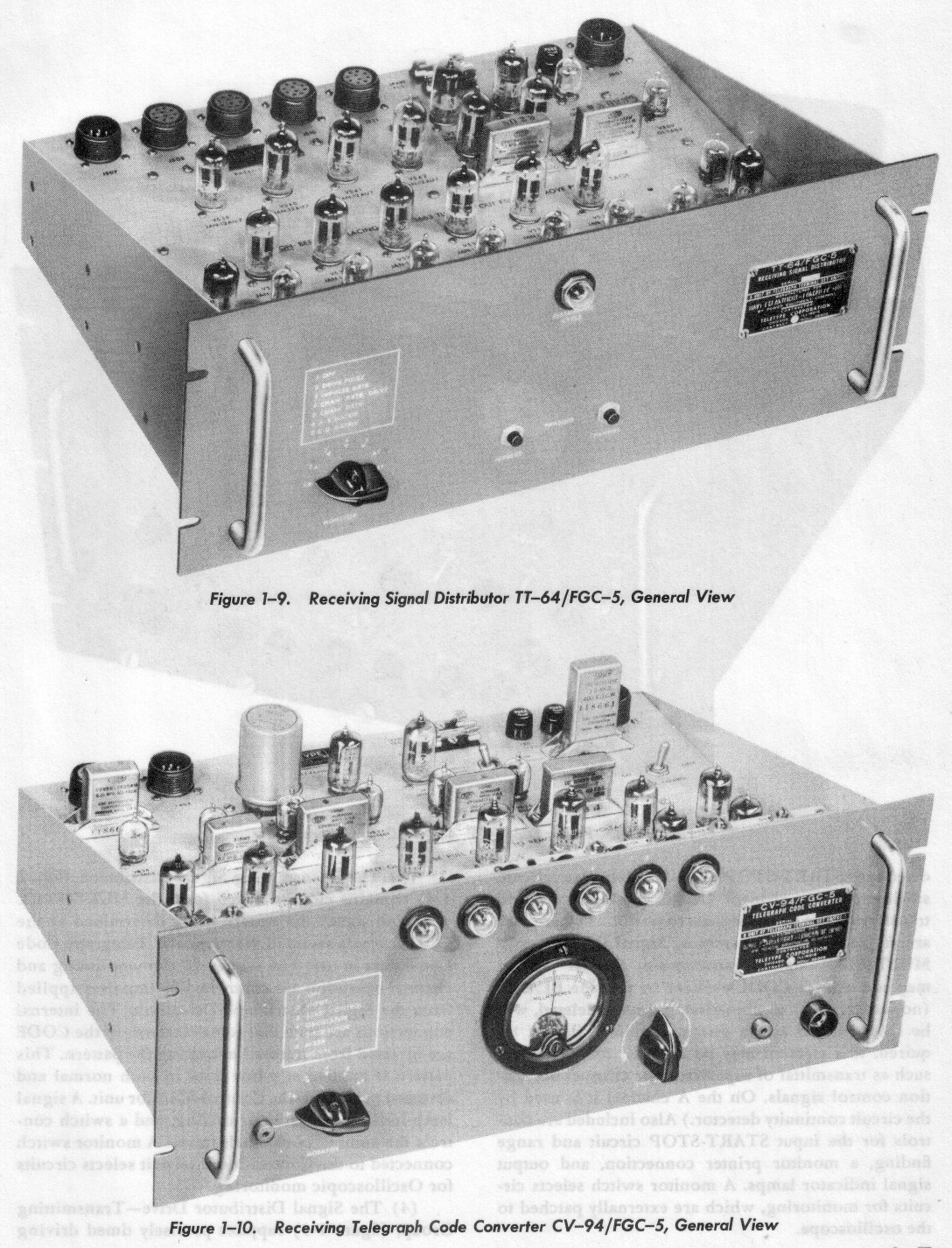

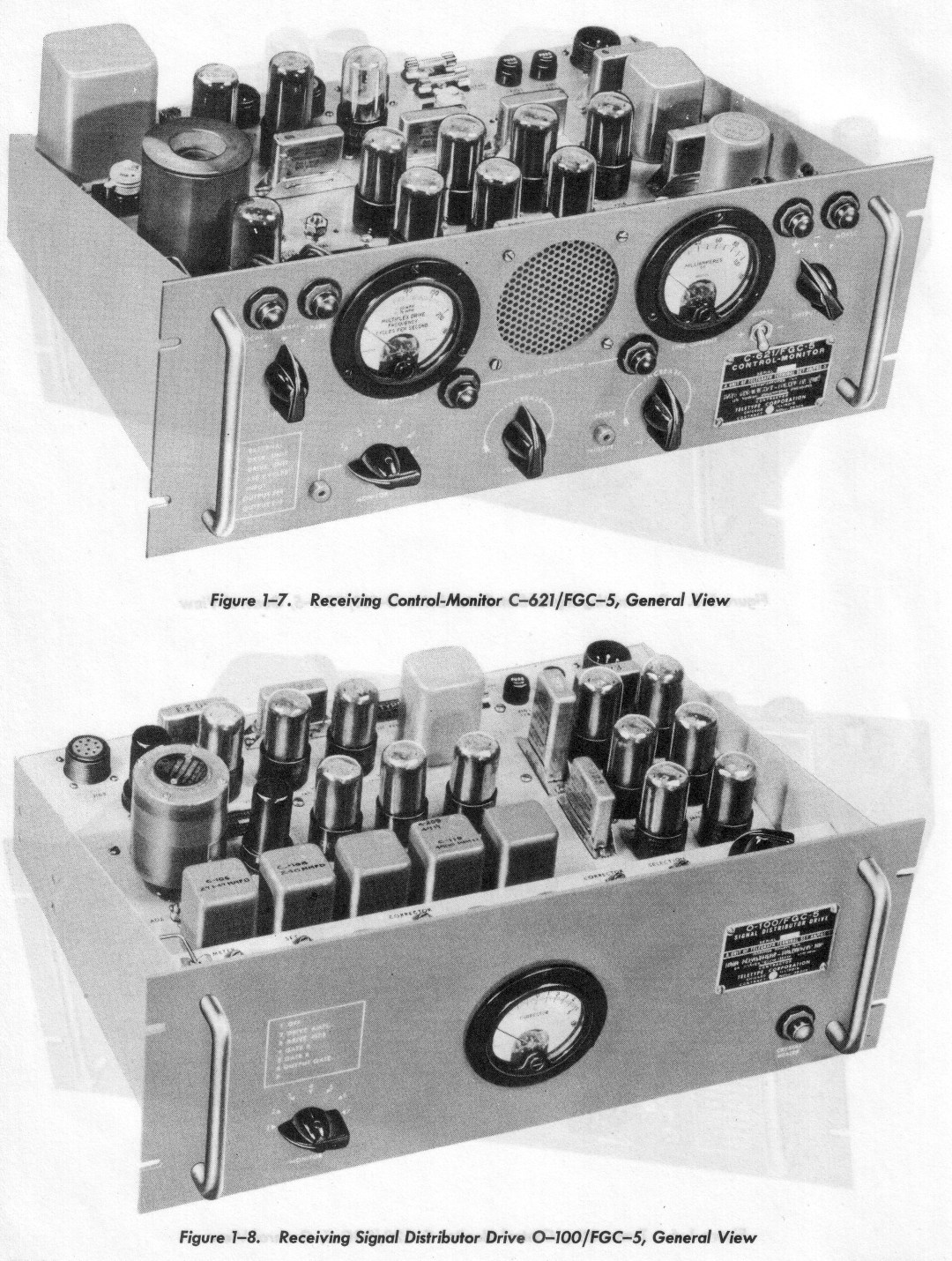

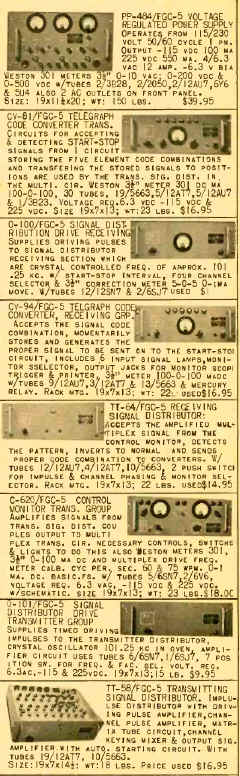

CV-81/FGC-5 code converter TT-58/FGC-5 rcvg signal distributor	O-101/FGC-5 signal distributor drive C-620/FGC-5 control monitor	C-621/FGC-5 control monitor O-100/FGC-5 signal distributor drive	TT-64/FGC-5 rcvg signal distributor CV-94/FGC-5 code converter

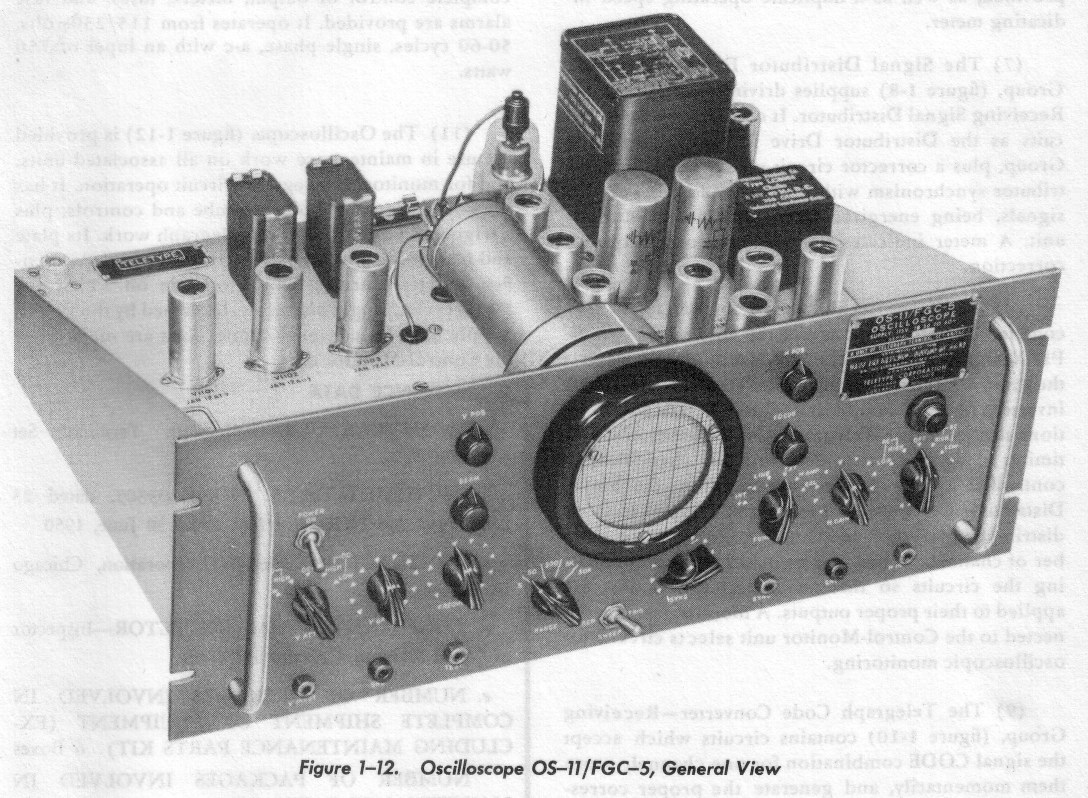

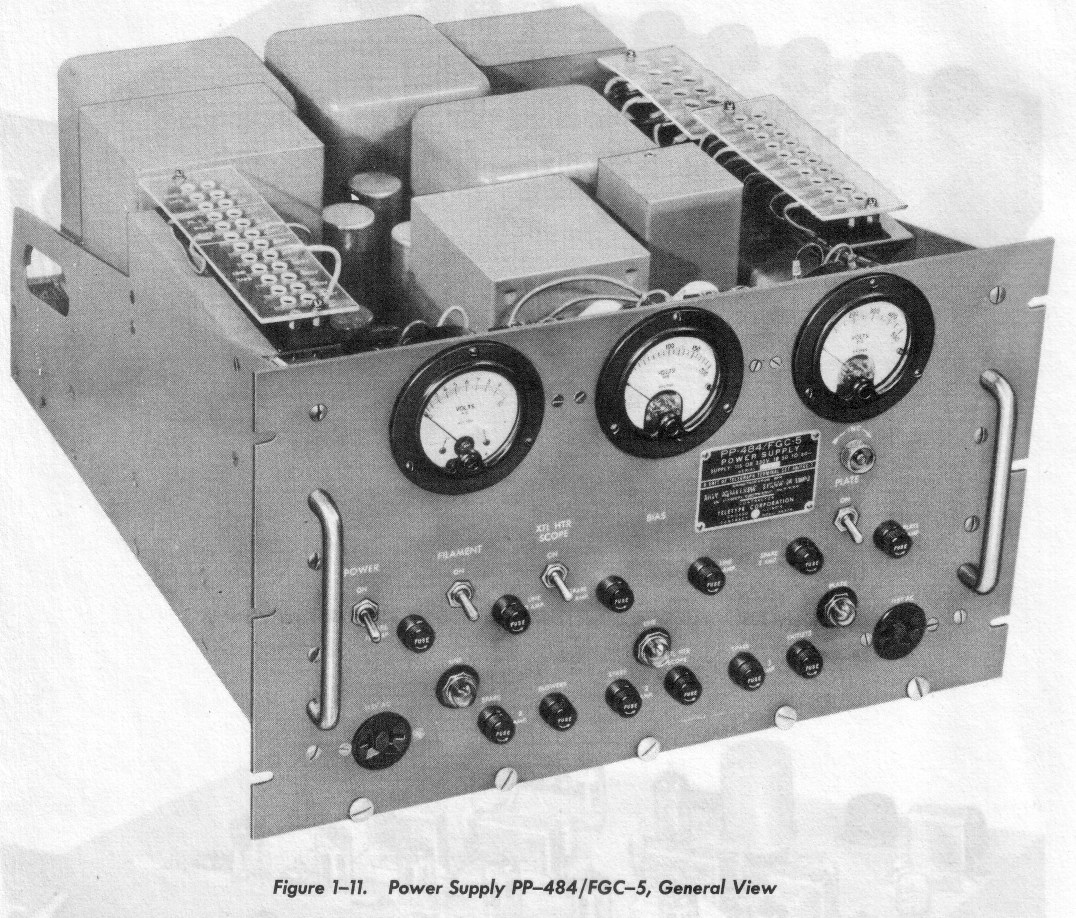

OS-11/FGC-5 oscilloscope OS-11 Manual sections - pdf	PP-484/FGC-5 power supply	--	--
