Navy Receiving Panoramic Adaptor (Panadaptor) Info

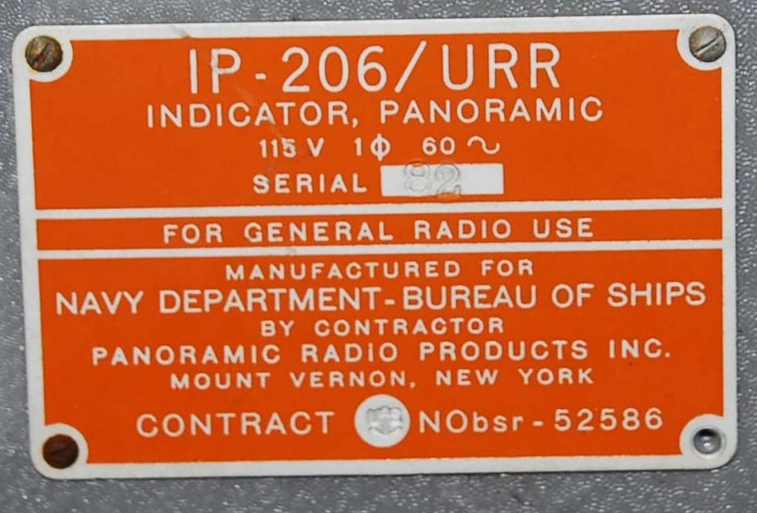

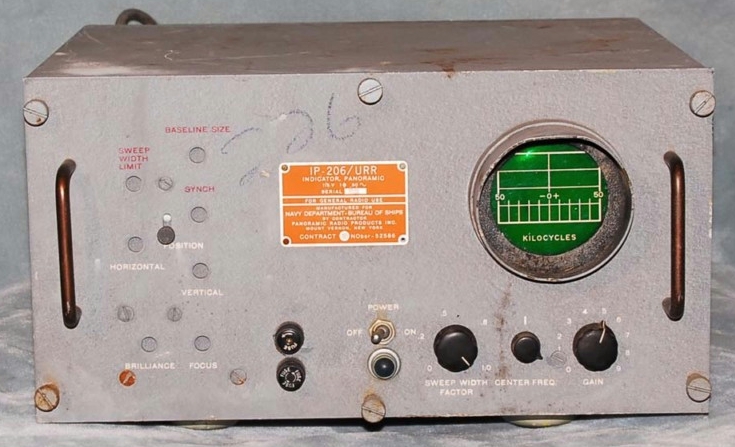

IP-206/URR


Manual download

390-410 kc center freq
+/-50kc scan max
5kc resolution at max scan
30 Hz sweep rate
10 microvolts for 5/8" vertical deflection 50 ohm input

RBU-1

400 kc IF input
50 kc sweep width
50 uv for 1/4 inch deflection

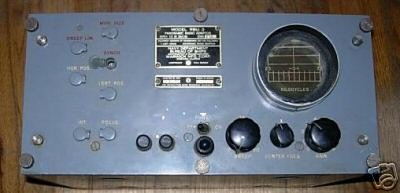

usually used with RBB receiver		 rbu-31.jpg (16716 bytes) manuf Panoramic Radio Corp.

NAVSHIPS 900288 - download manual here - thanks to Chuck N7RHU

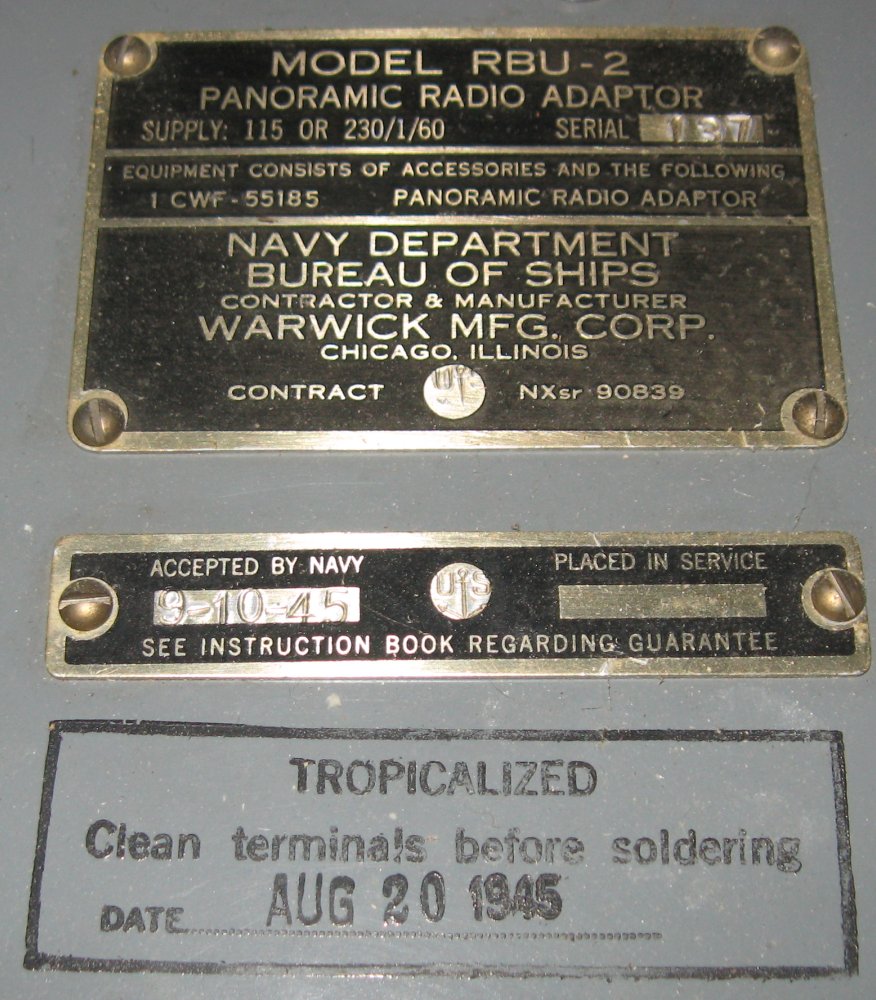

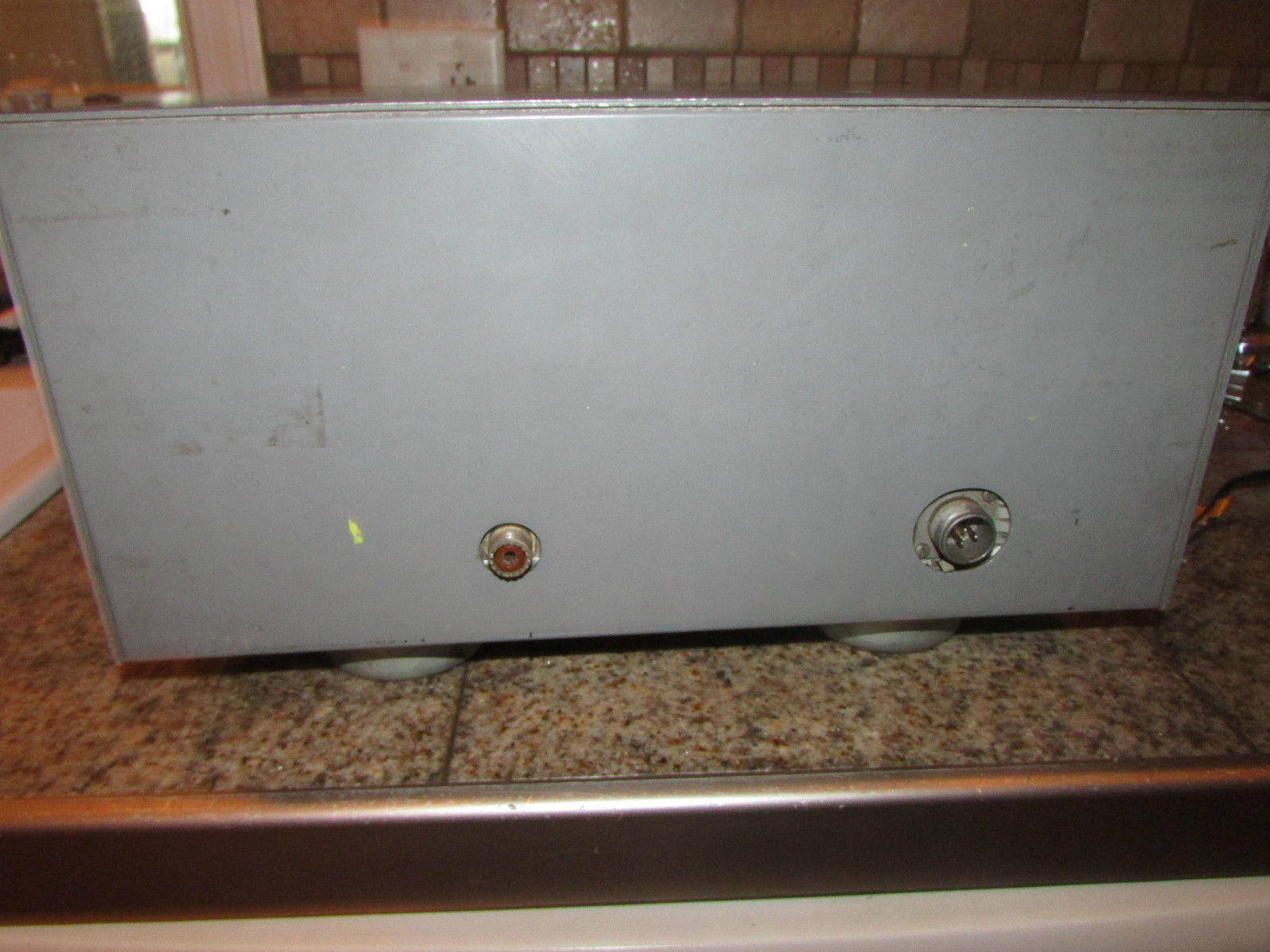

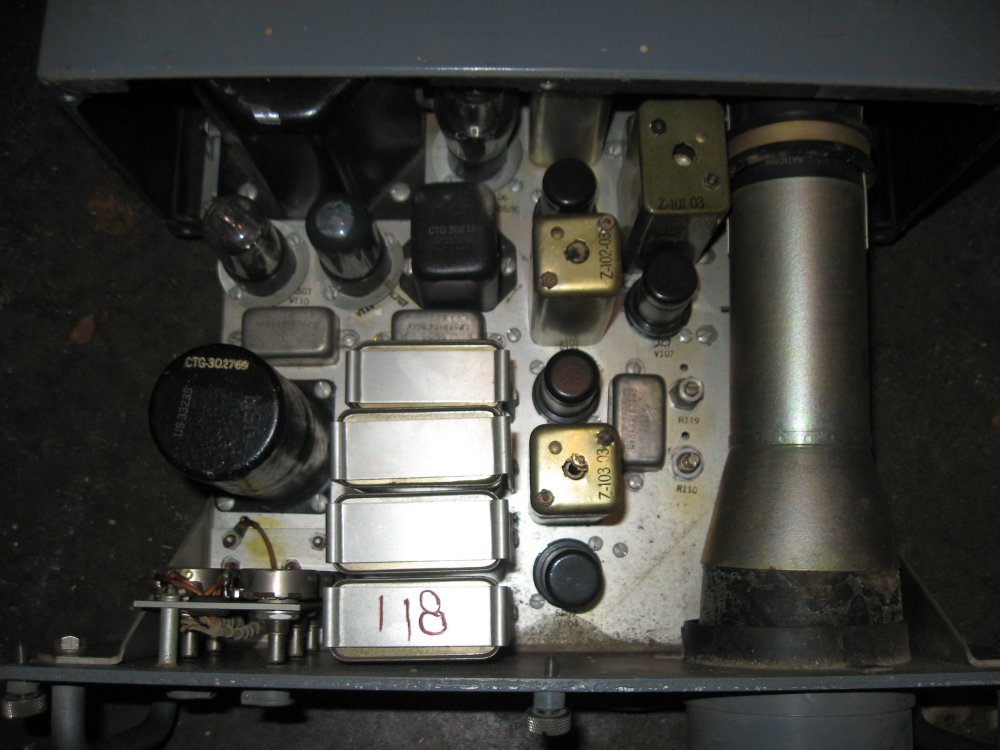

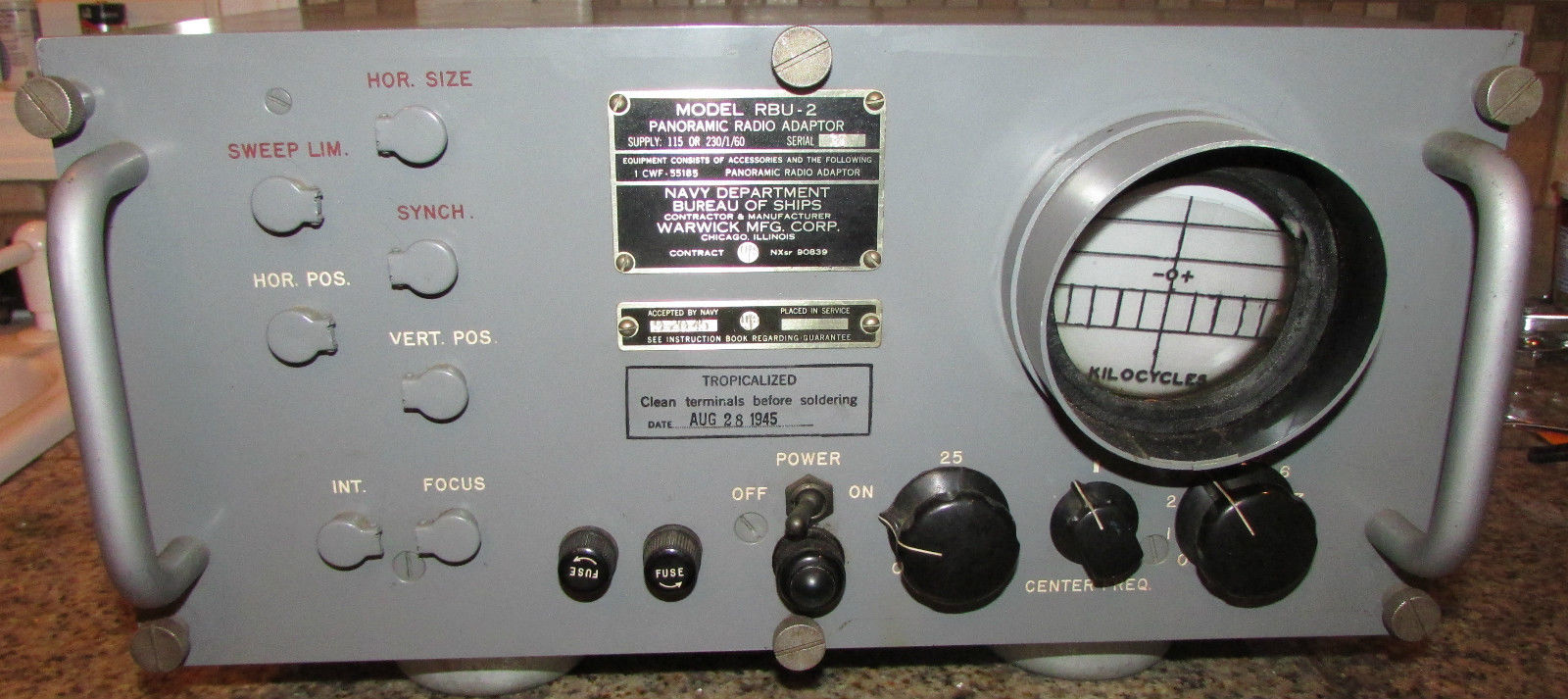

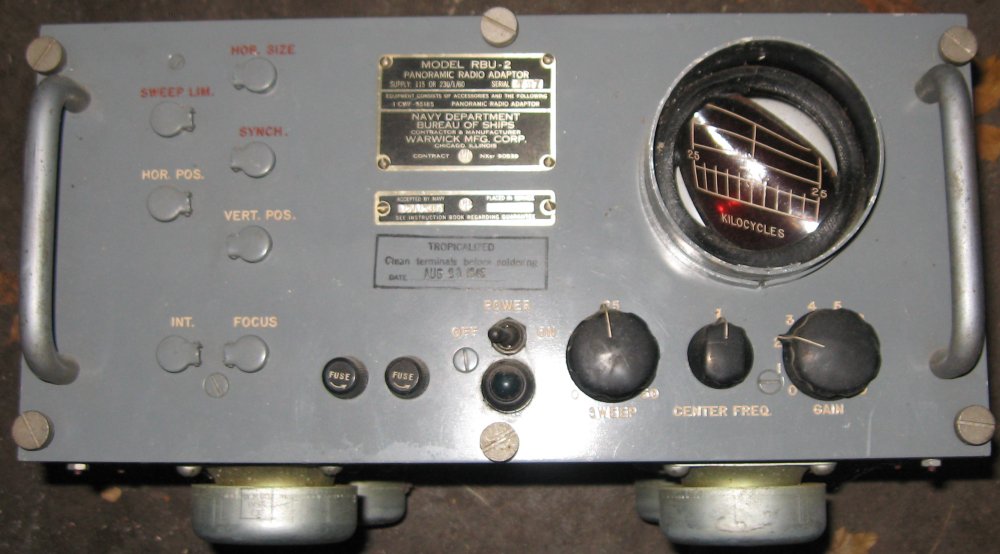

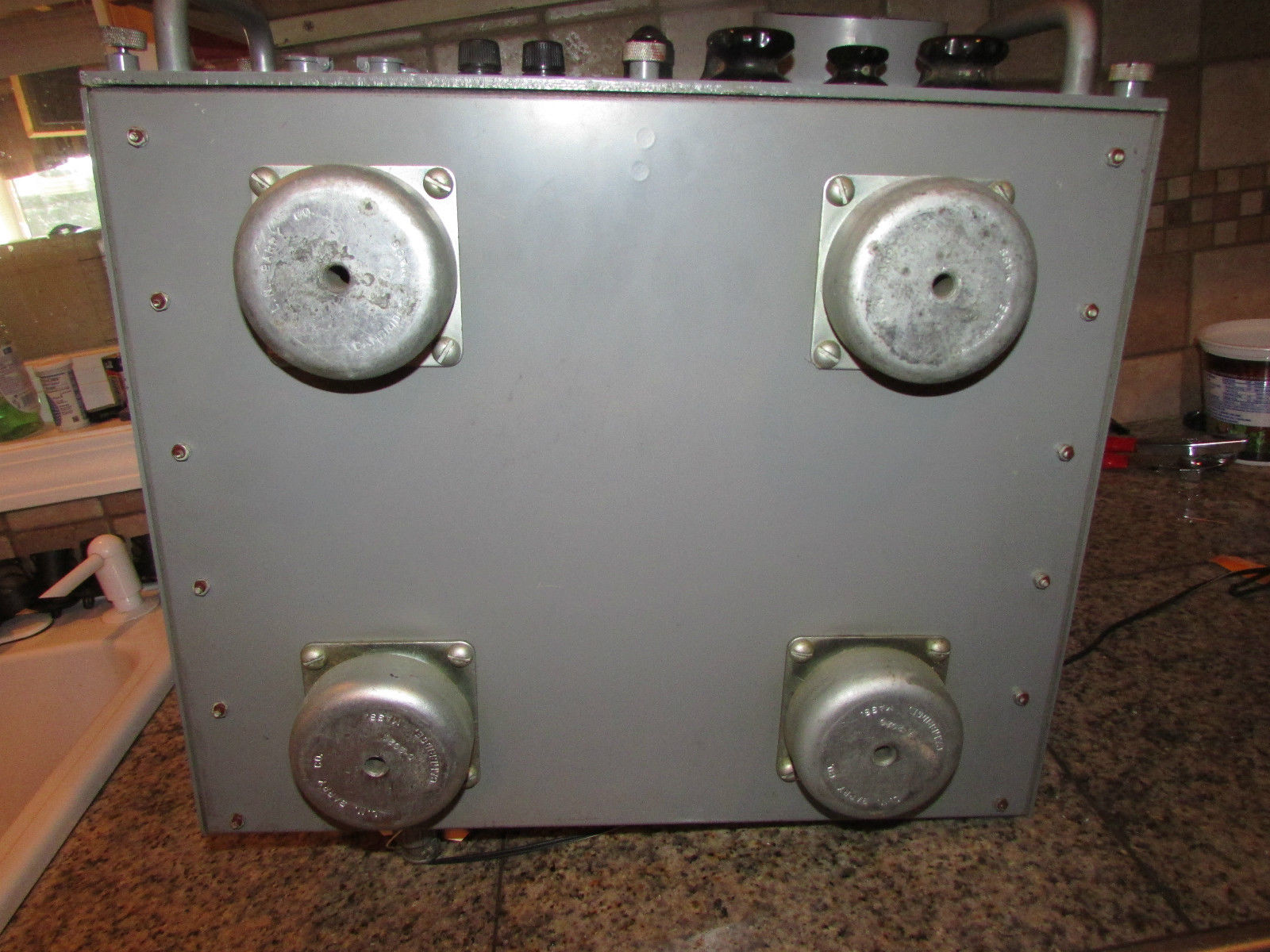

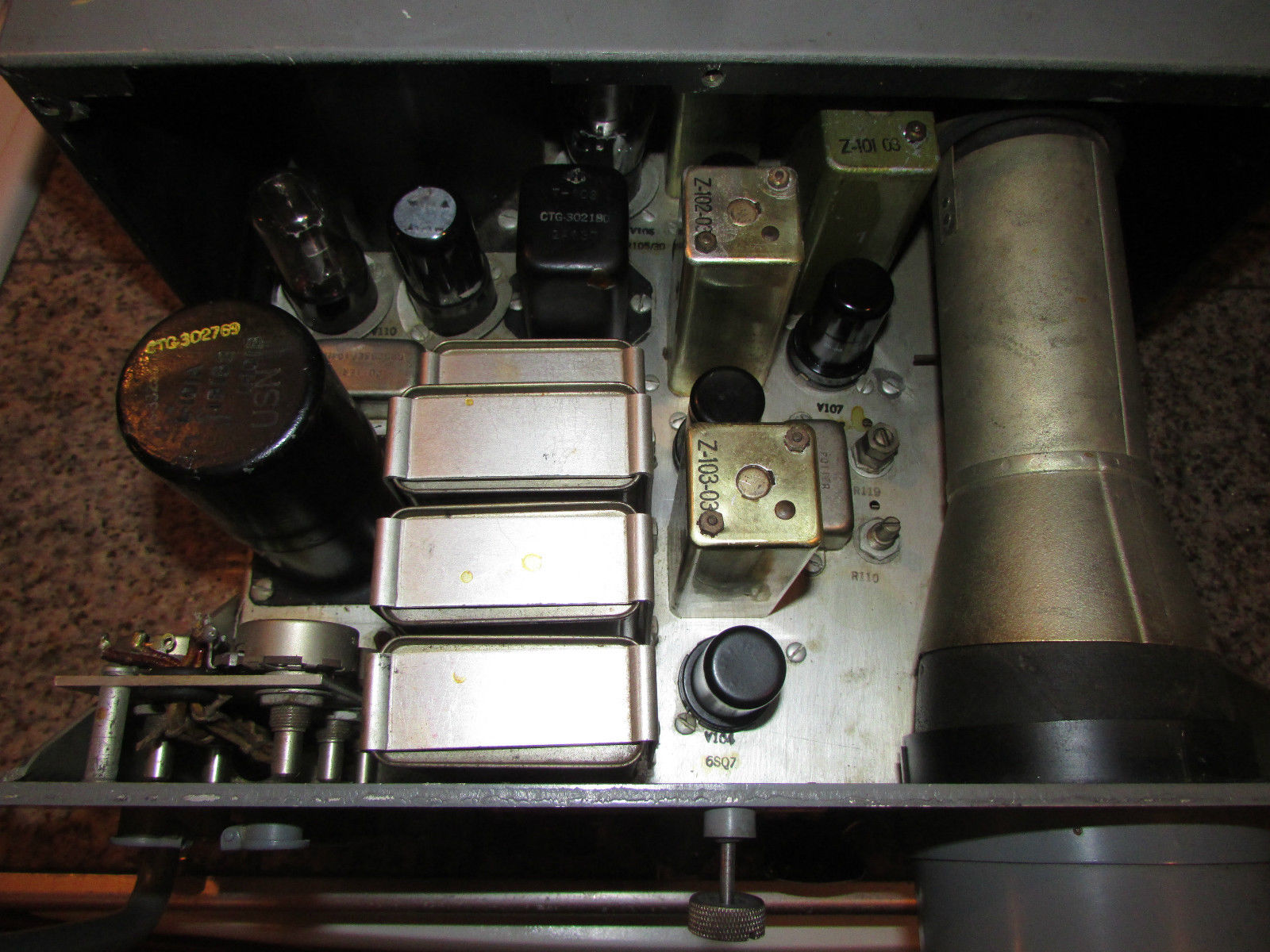

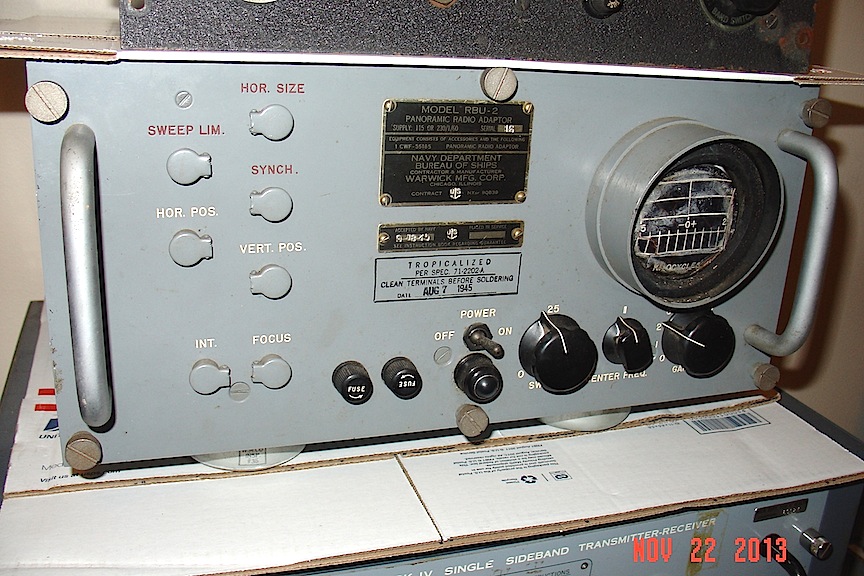

RBU-2



rbu2-1407-01.jpg (211704 bytes) rbu2-1407-03.jpg (304255 bytes) rbu2-1407-02.jpg (320004 bytes) rbu2-1407-04.jpg (244802 bytes)

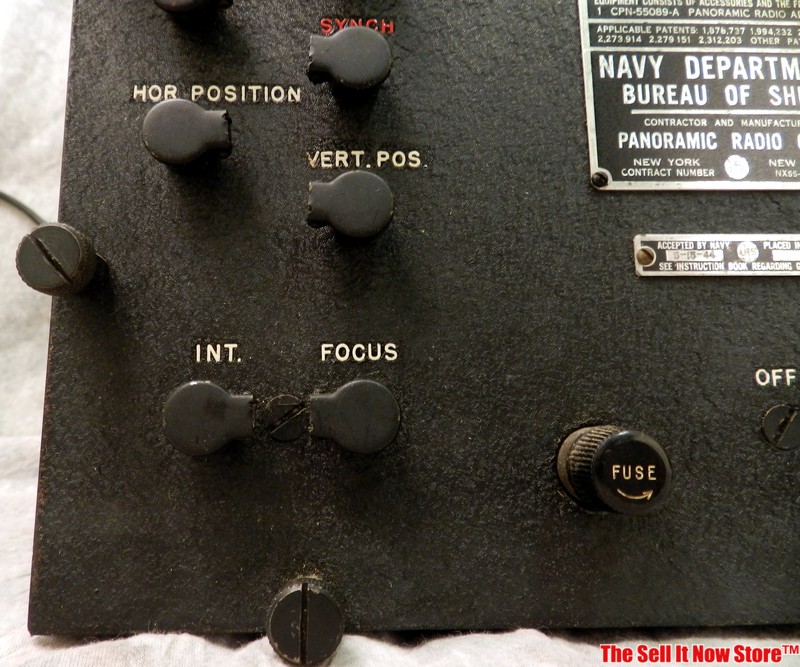

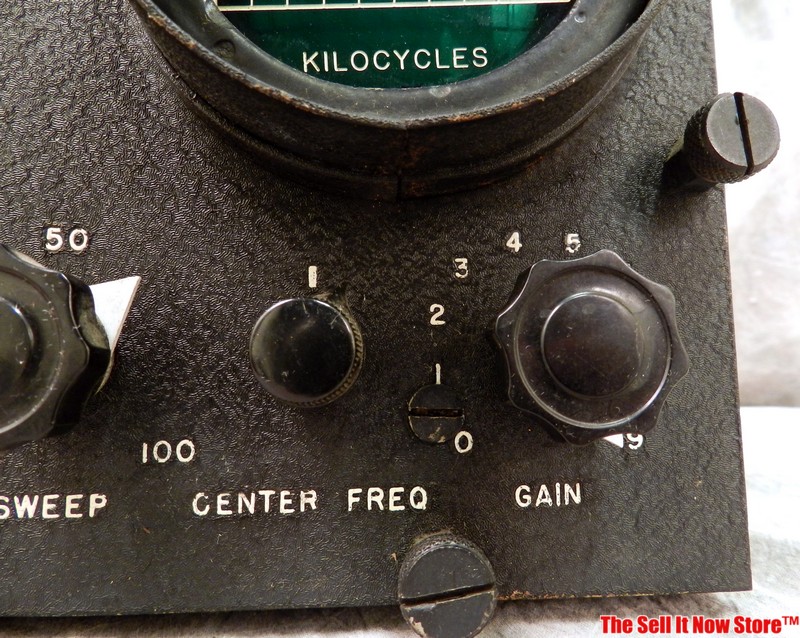

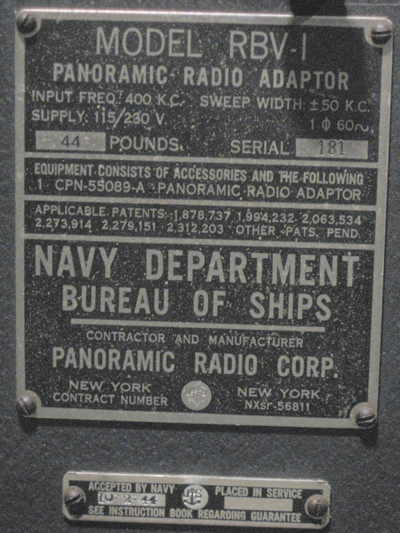

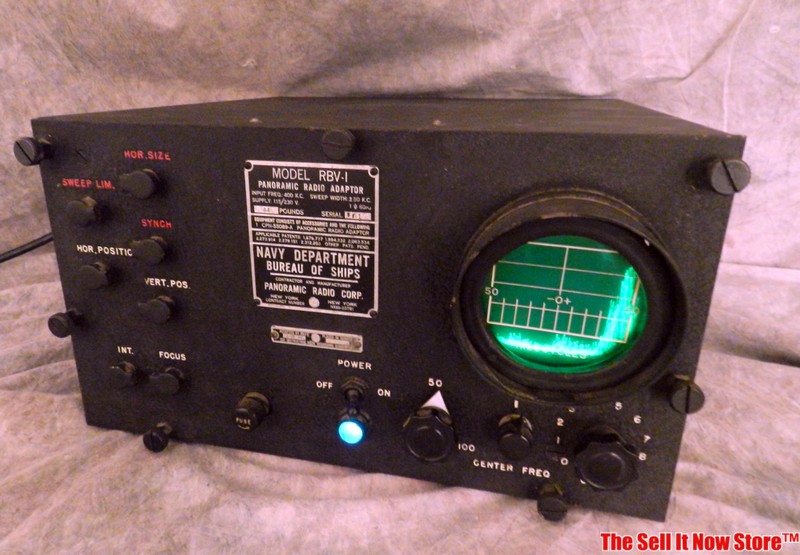

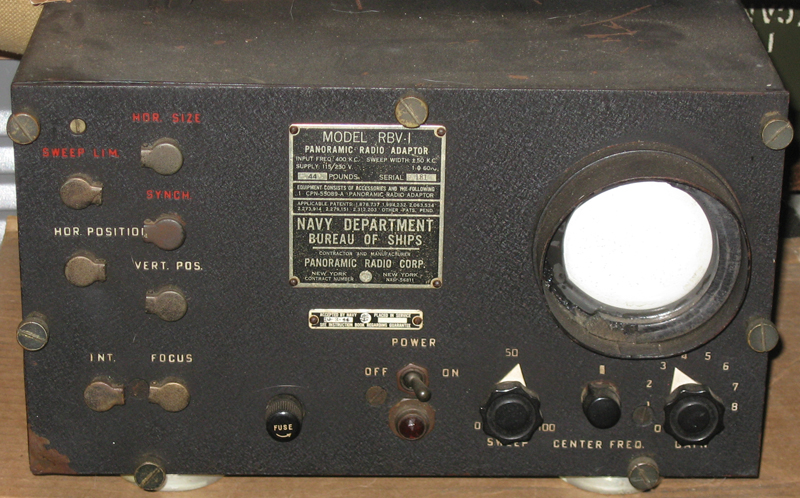

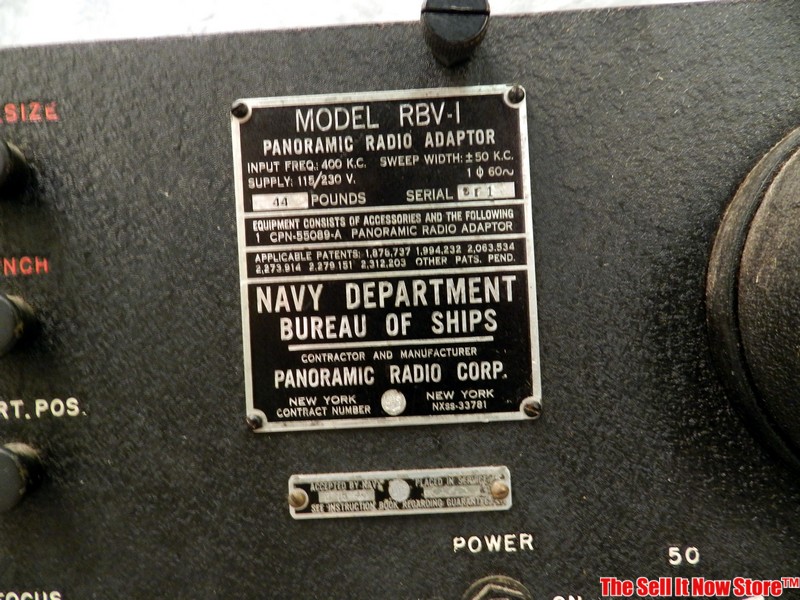

RBV-1 (CPN-55089-A)


100 kc sweep width
50 uv for 1/4 inch deflection
usually used with RBC receiver


 manuf Panoramic Radio Corp.

NAVSHIPS 900288 - download manual here - thanks to Chuck N7RHU

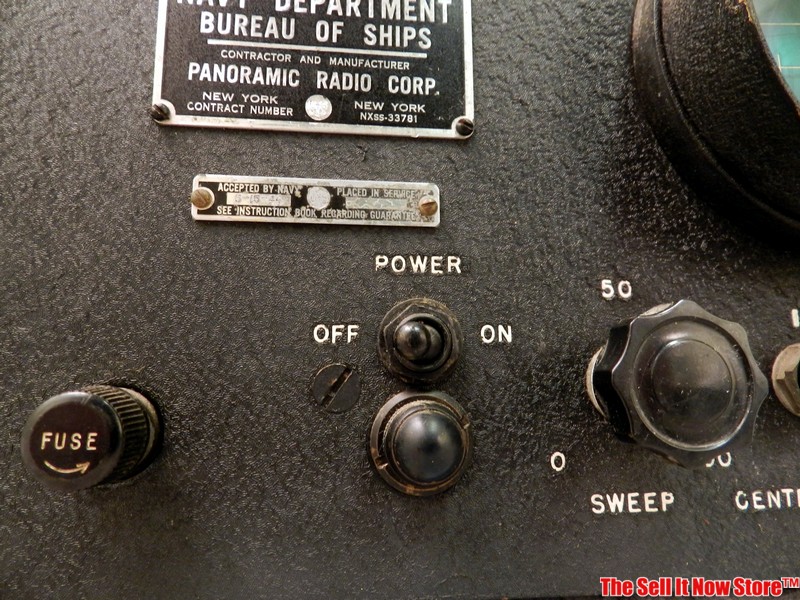

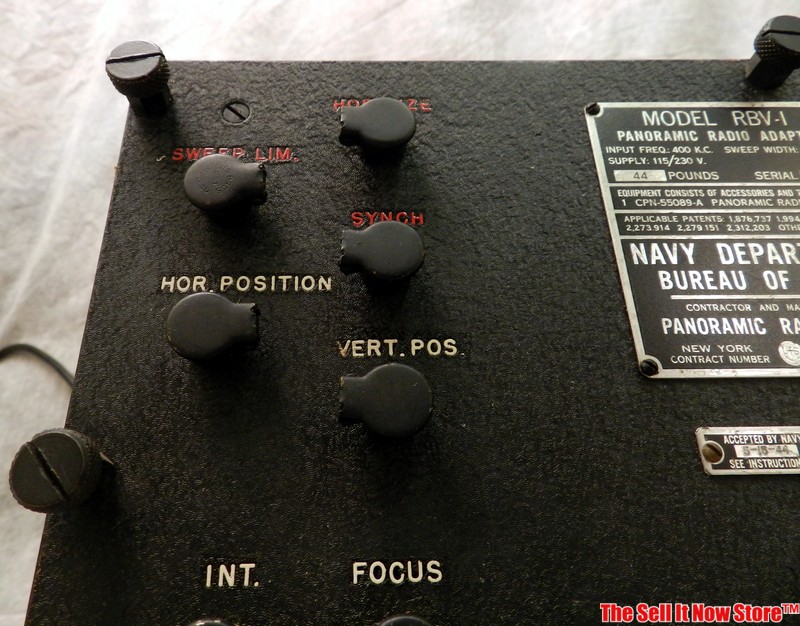

rbv1-1209-08.JPG (119125 bytes) rbv1-1209-02.JPG (178044 bytes) rbv1-1209-03.JPG (167571 bytes) rbv1-1209-04.JPG (199553 bytes)

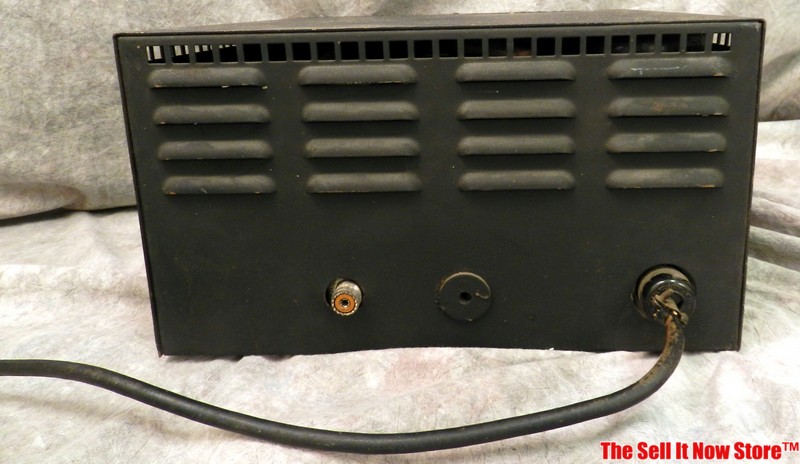

rbv1-1209-05.JPG (201318 bytes) rbv1-1209-06.JPG (275785 bytes) rbv1-1209-07.JPG (170583 bytes) rbv1-1209-09.JPG (92495 bytes)

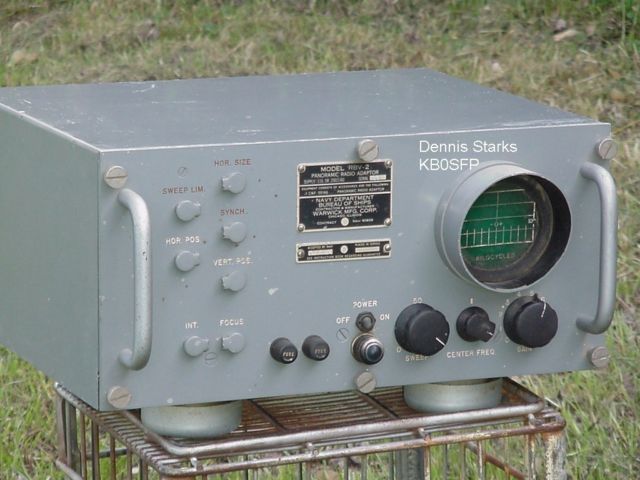

RBV-2

 - 400 kc IF input
100 kc sweep width
50 uv for 1/4 inch deflection
usually used with RBC receiver 		manuf Warwick Manufacturing

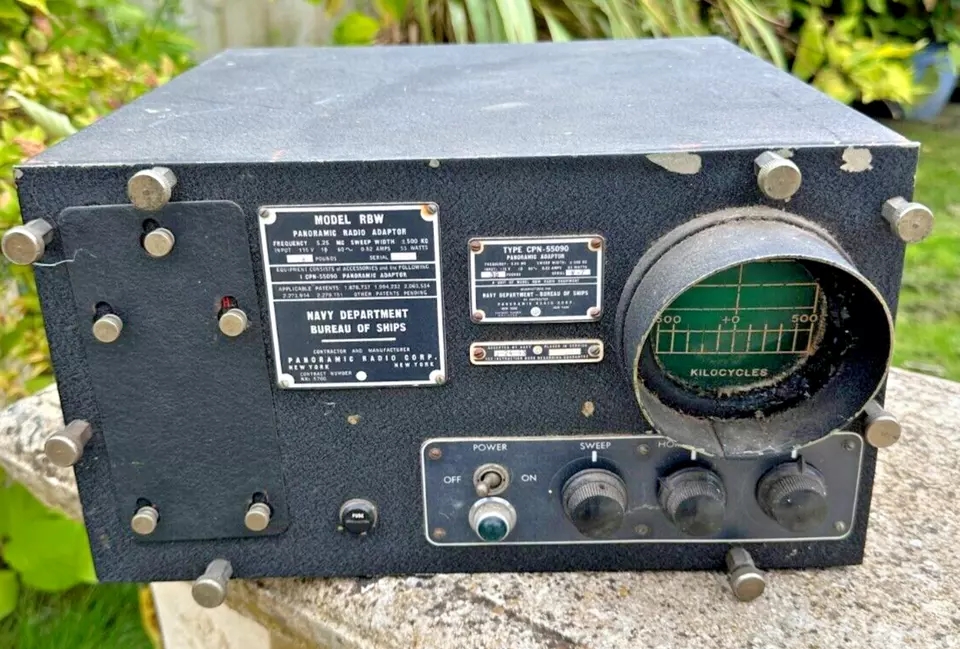

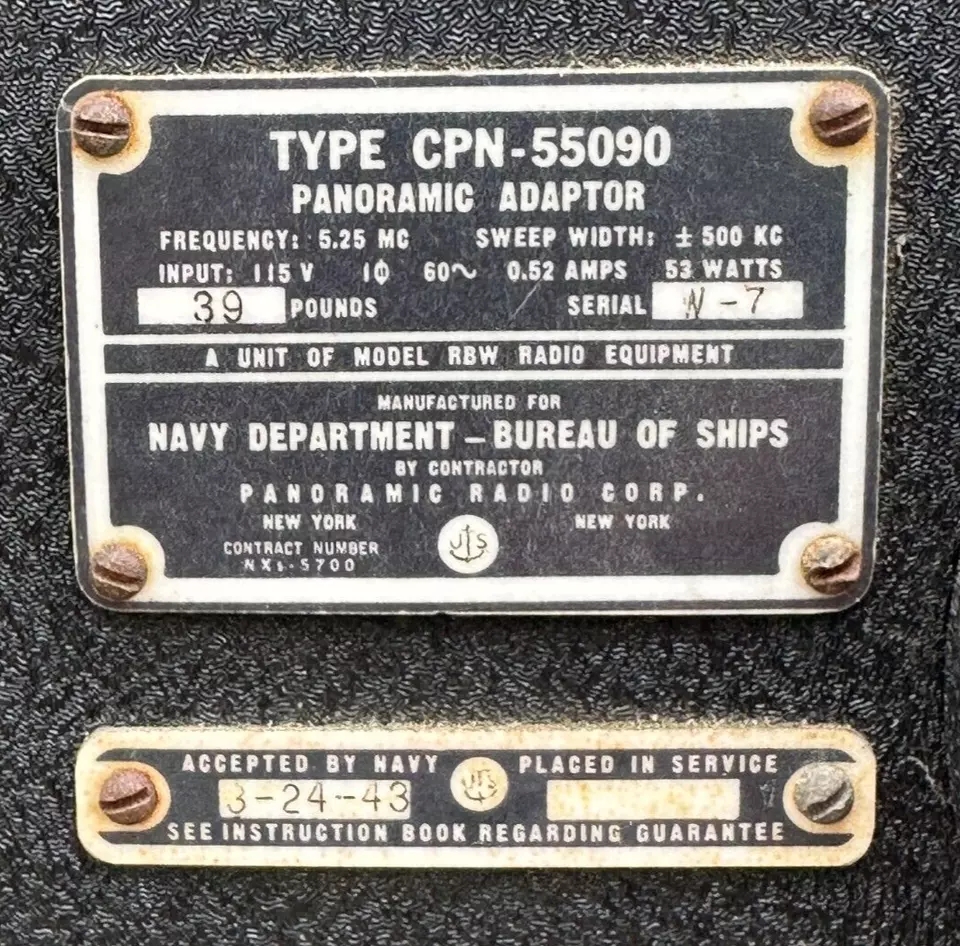

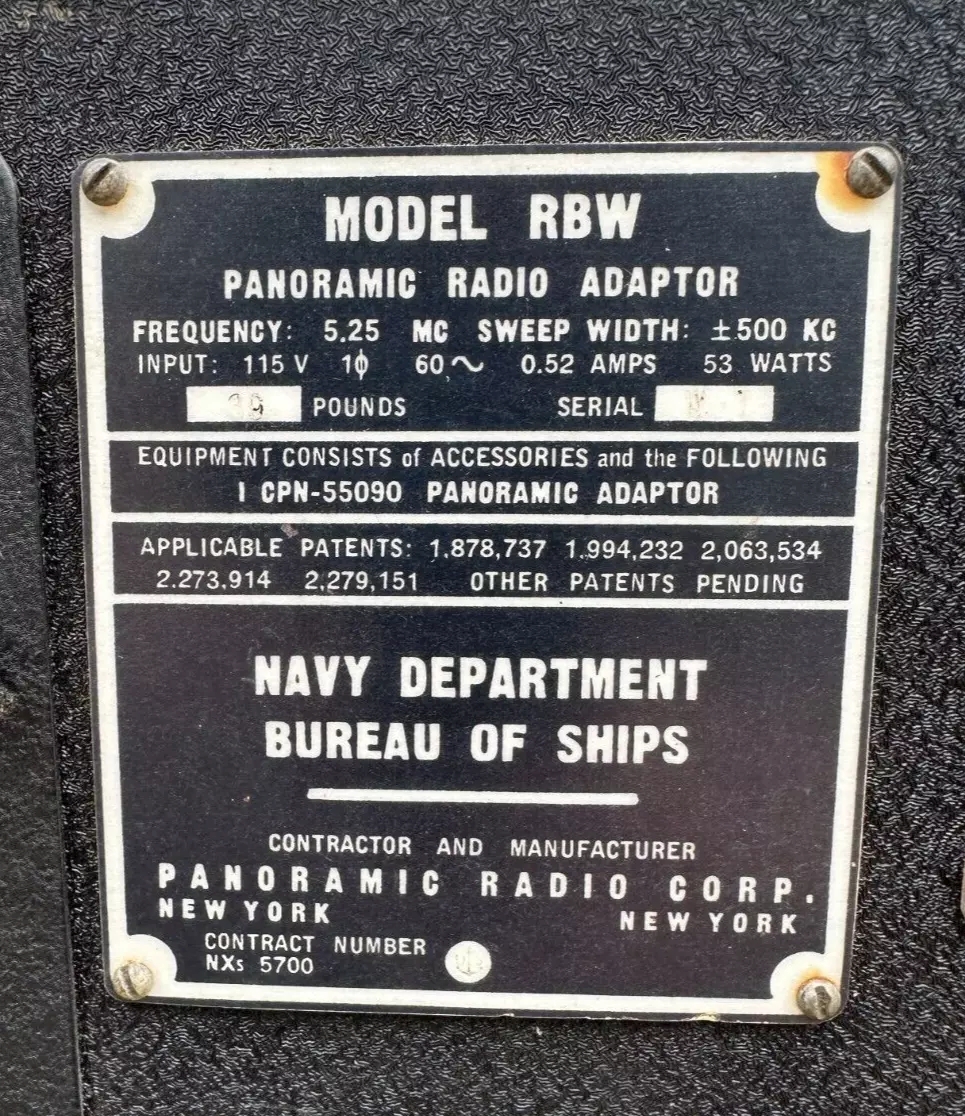

RBW (CPN-55090)

Please let me know if you have more info on this model

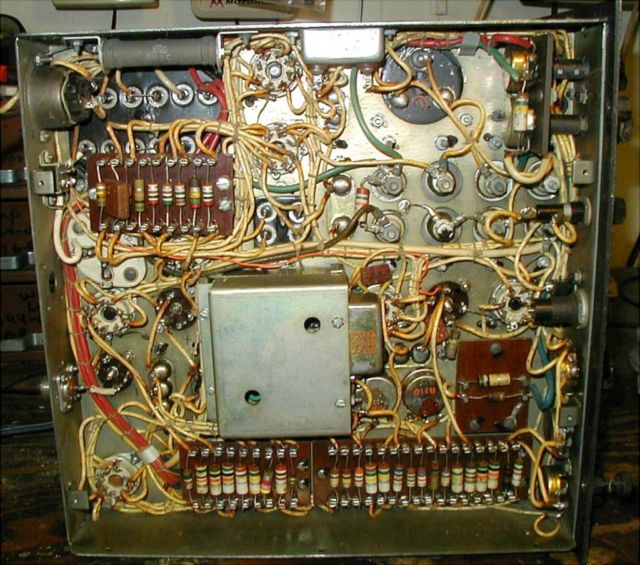

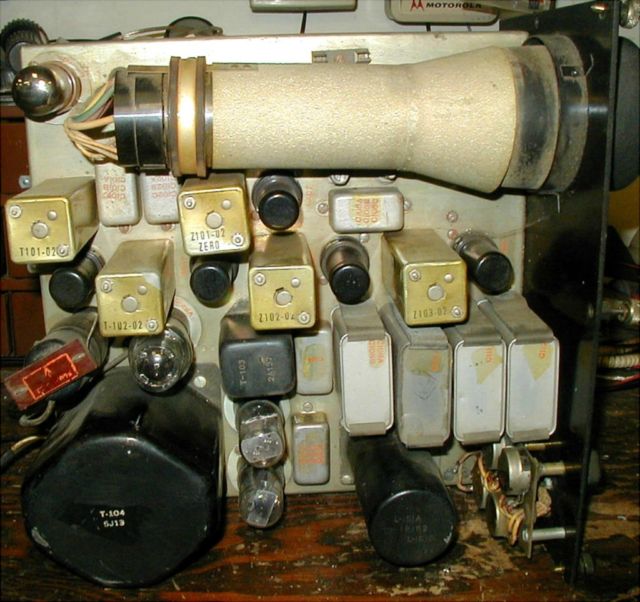

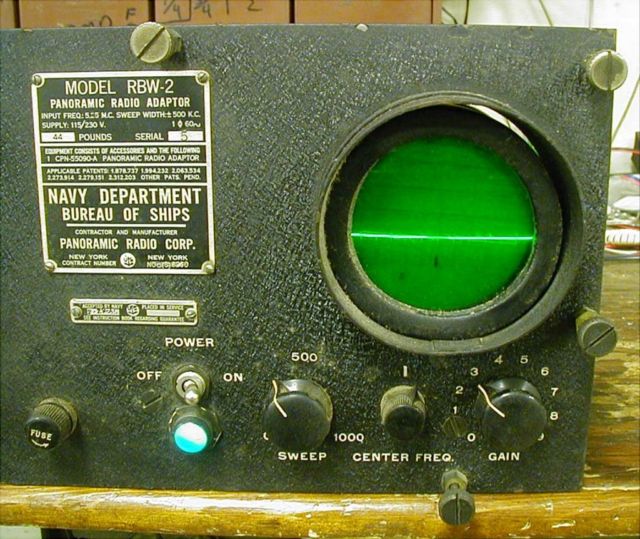

RBW-2 (CPN-55090-A)


200 uv (50k coupling resistor) for 1/4 inch deflection


 manuf Panoramic Radio Corp.

NAVSHIPS 900288 - download manual here - thanks to Chuck N7RHU

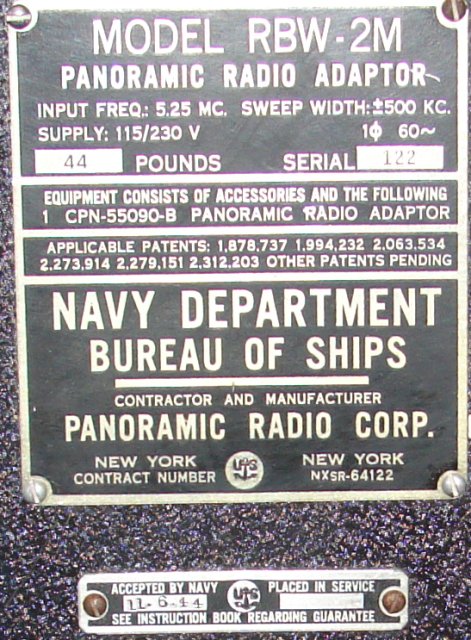

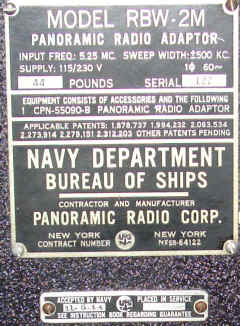

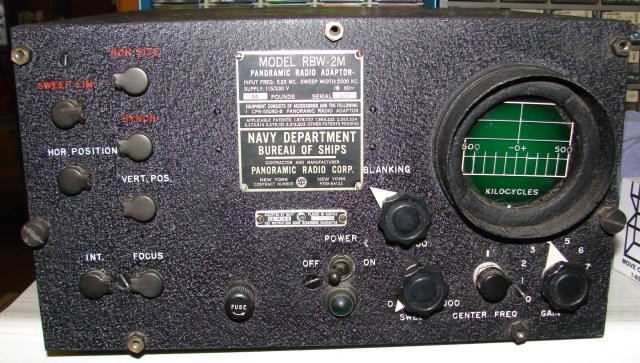

RBW-2M (CPN-55090-B)


1 mc sweep width 		manuf Panoramic Radio Corp.

NAVSHIPS 900288 - download manual here - thanks to Chuck N7RHU

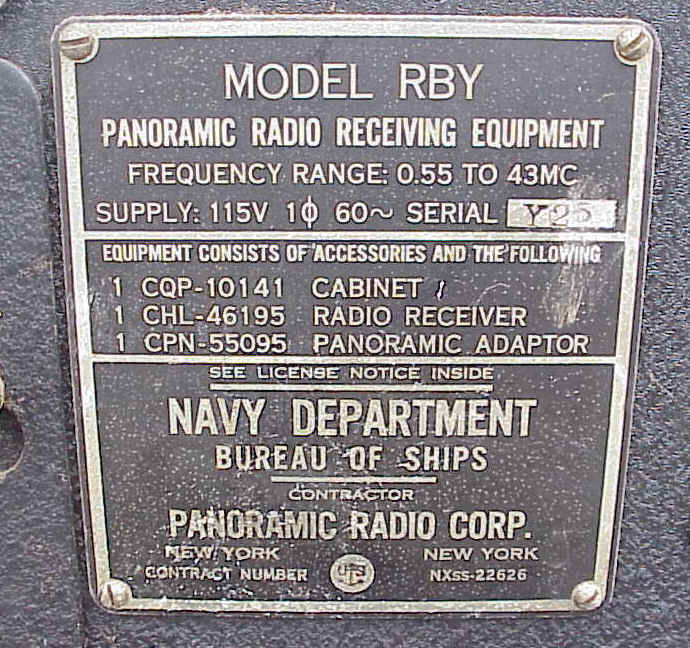

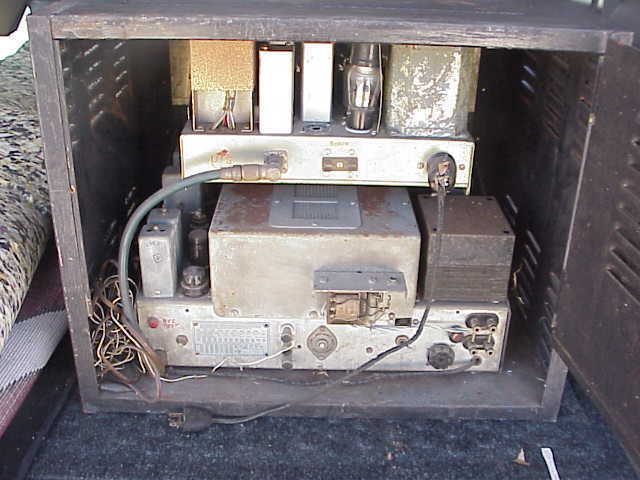

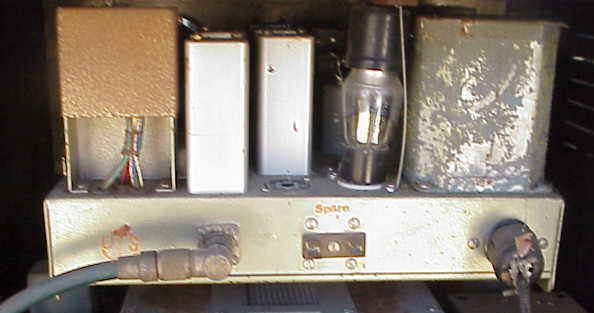

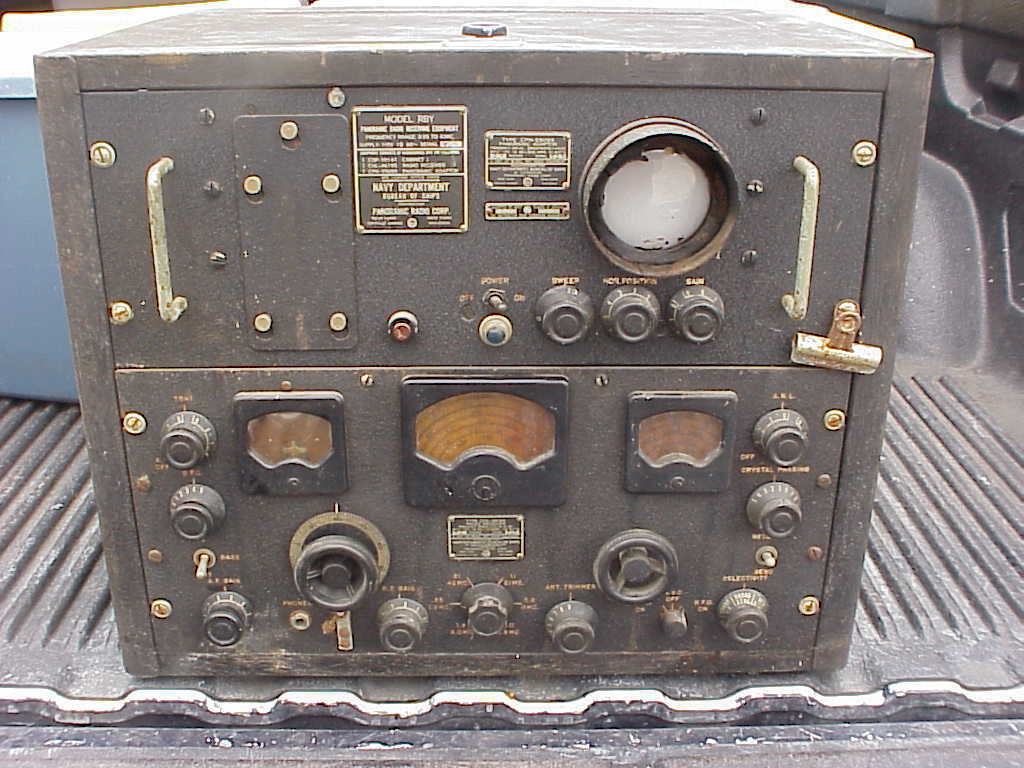

RBY

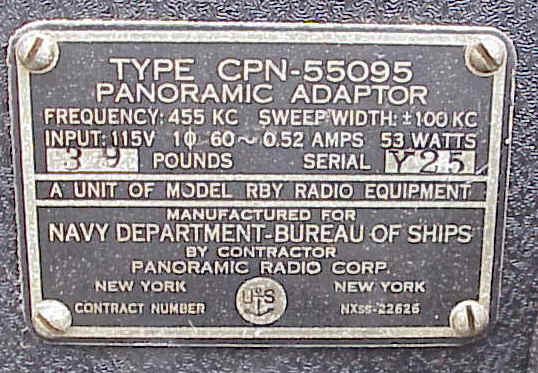

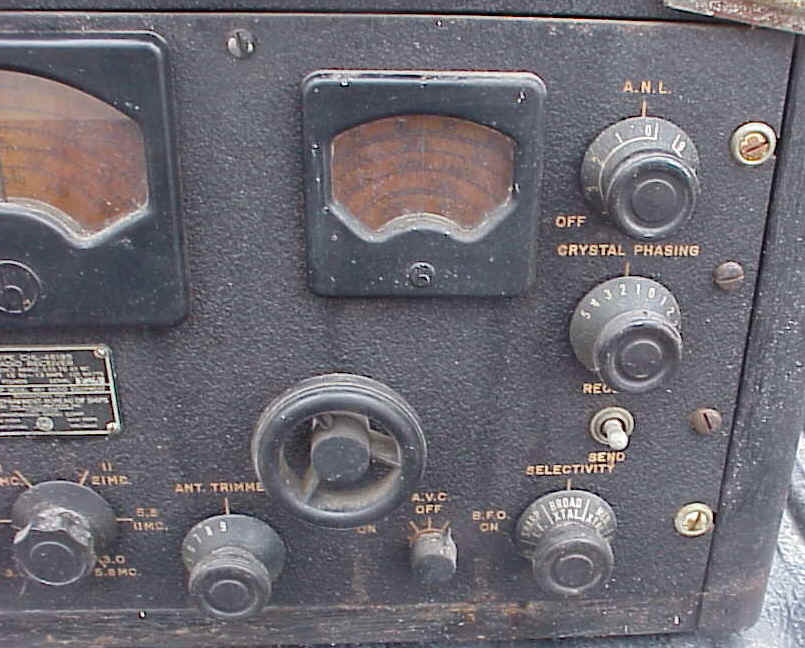

rby-2204-07.jpg (56194 bytes) rby-2204-08.jpg (75250 bytes) rby-2204-04.jpg (111357 bytes) rby-2204-03.jpg (59399 bytes)

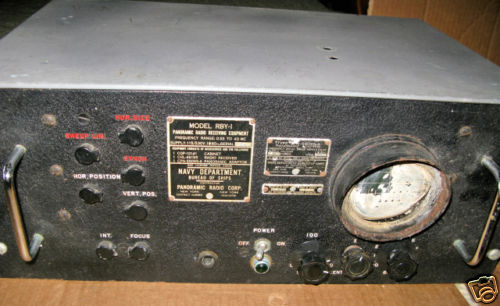

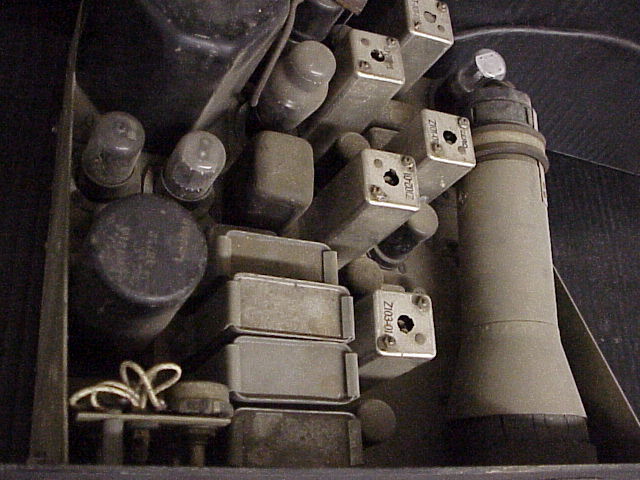

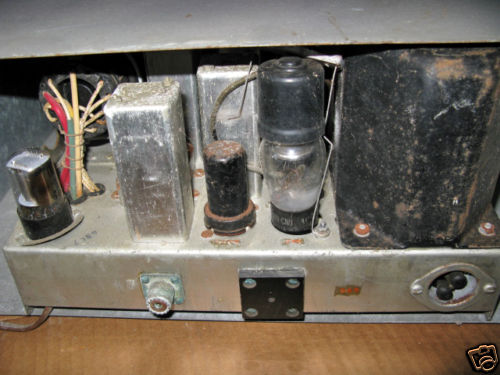

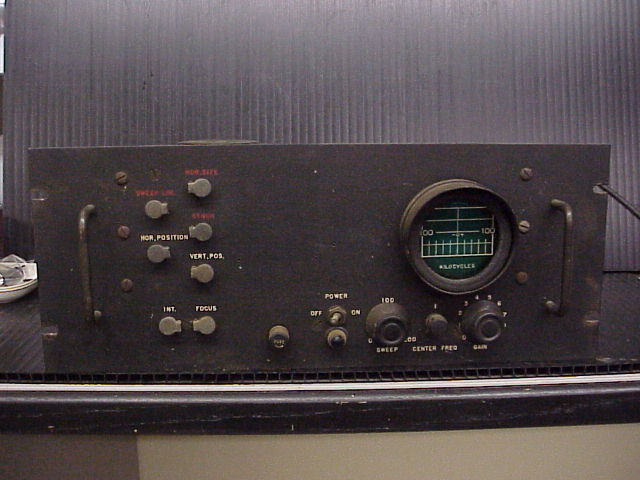

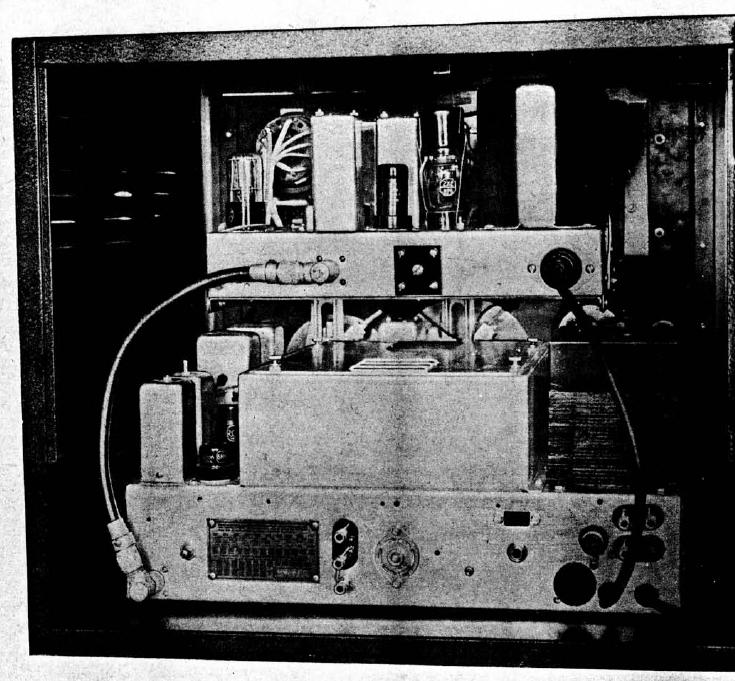

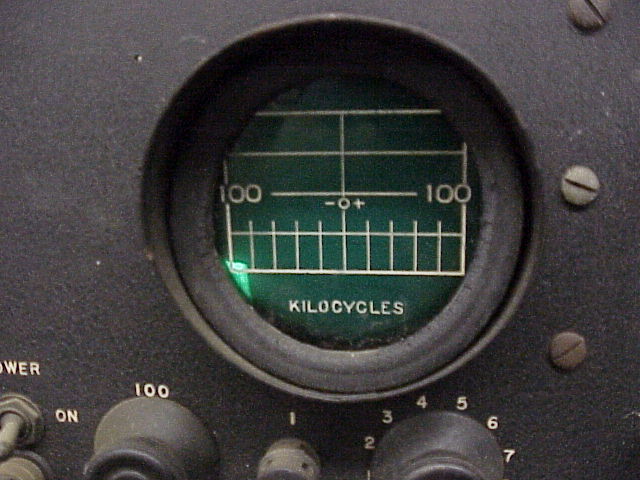

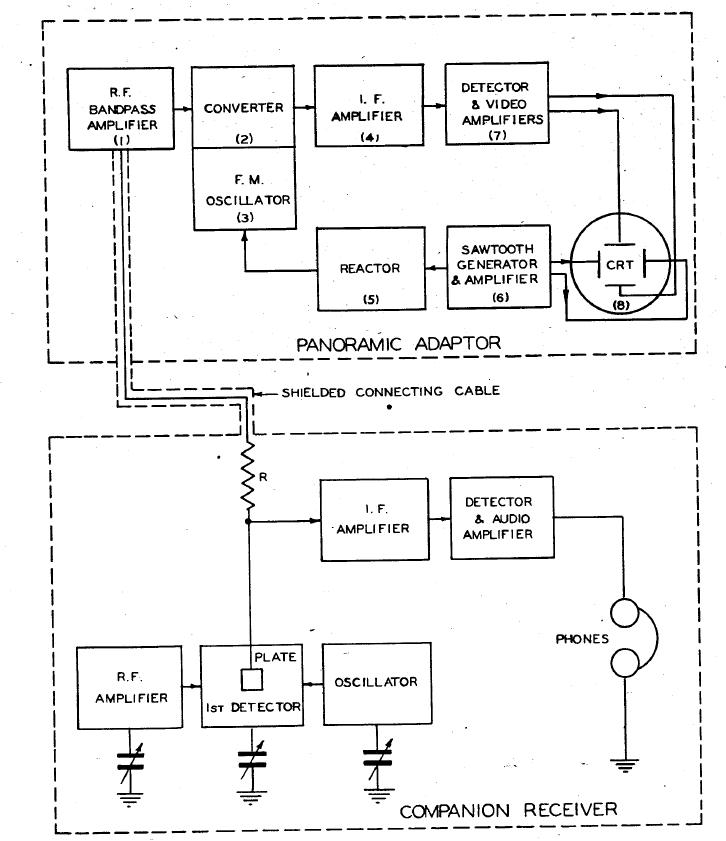

RBY-1
(CPN-55095)
(CHL-46195)

Hallicrafters SX-28 (CHL-46195) + Panoramic Adaptor (CPN-55095)

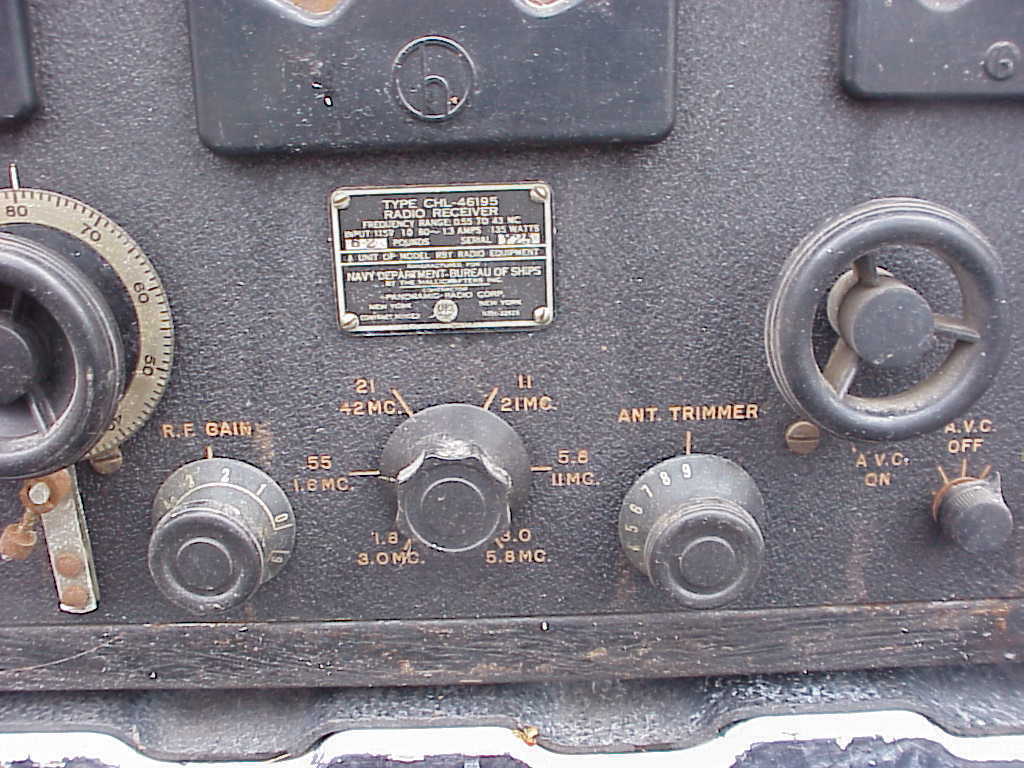

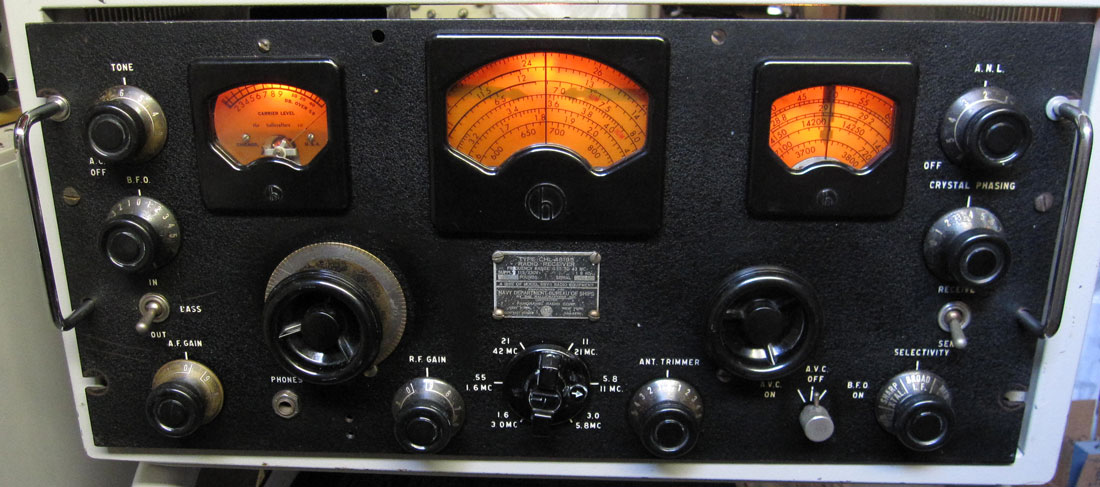

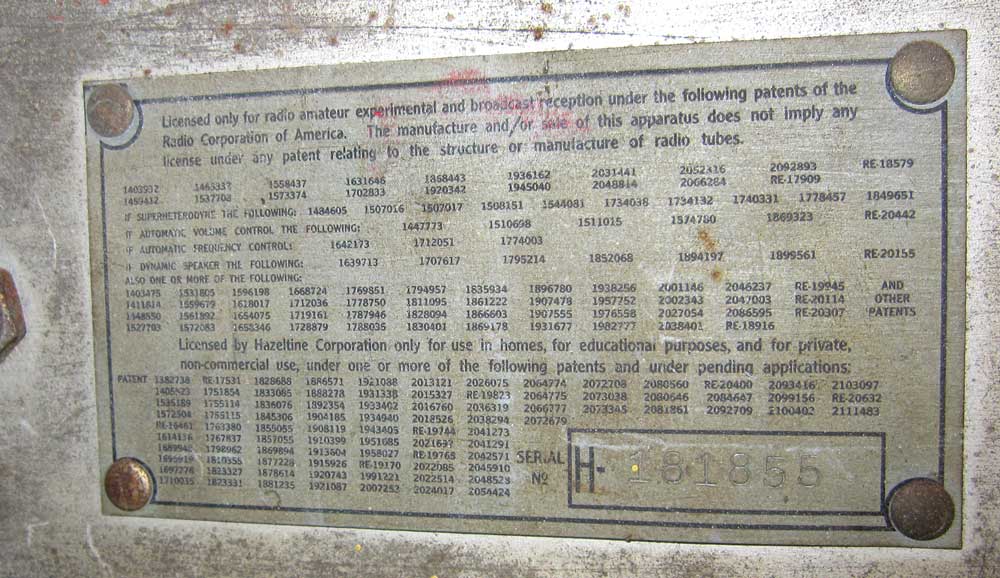

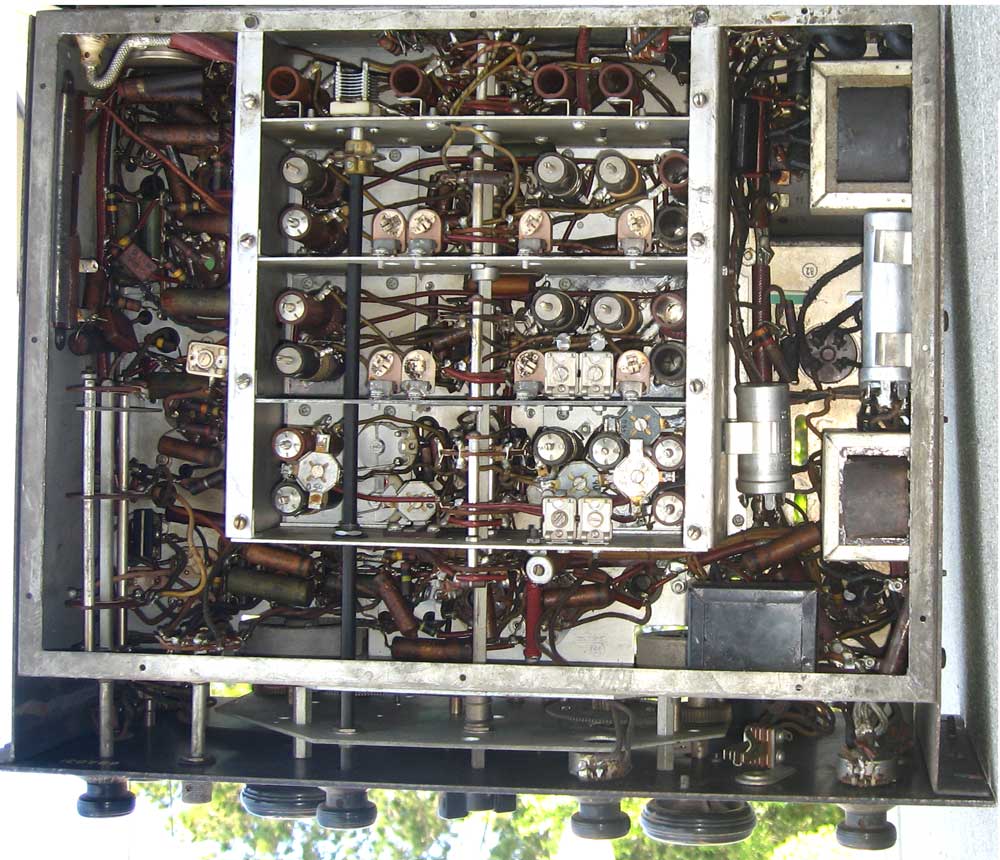

RBY-1 (CHL-46195 receiver)

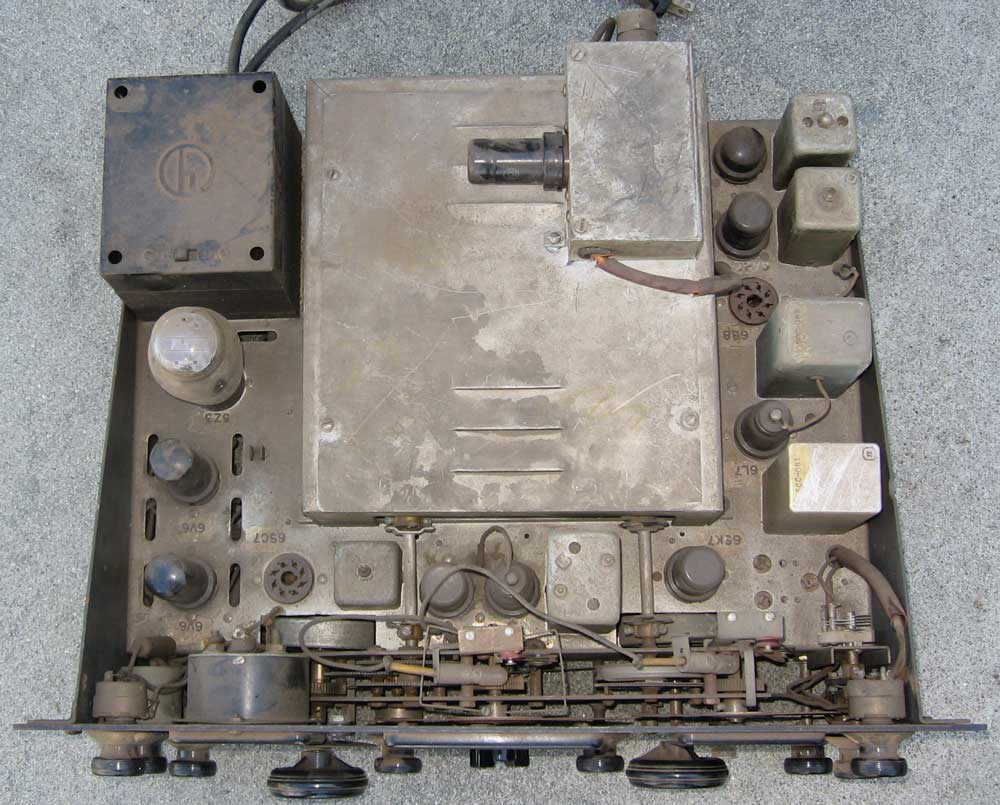

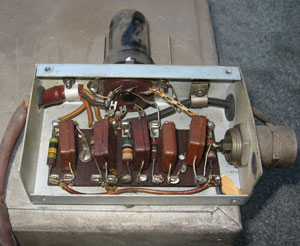

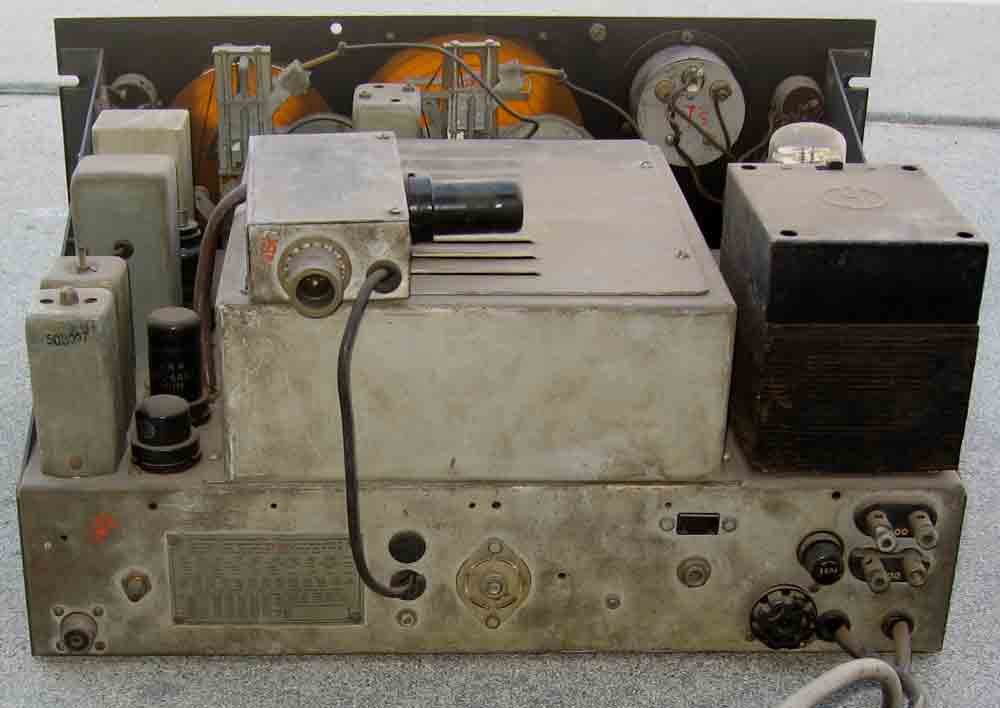

rby1-chl46195-38.jpg (129417 bytes) 		rby1-chl46195-32.jpg (42997 bytes) rby1-chl46195-35.jpg (29311 bytes) rby1-chl46195-37.jpg (114128 bytes)

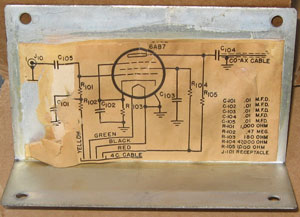

rby1-chl46195-36.jpg (145570 bytes) rby1-chl46195-33.jpg (22546 bytes) rby1-chl46195-34.jpg (19862 bytes) rby1-chl46195-31.jpg (109147 bytes)

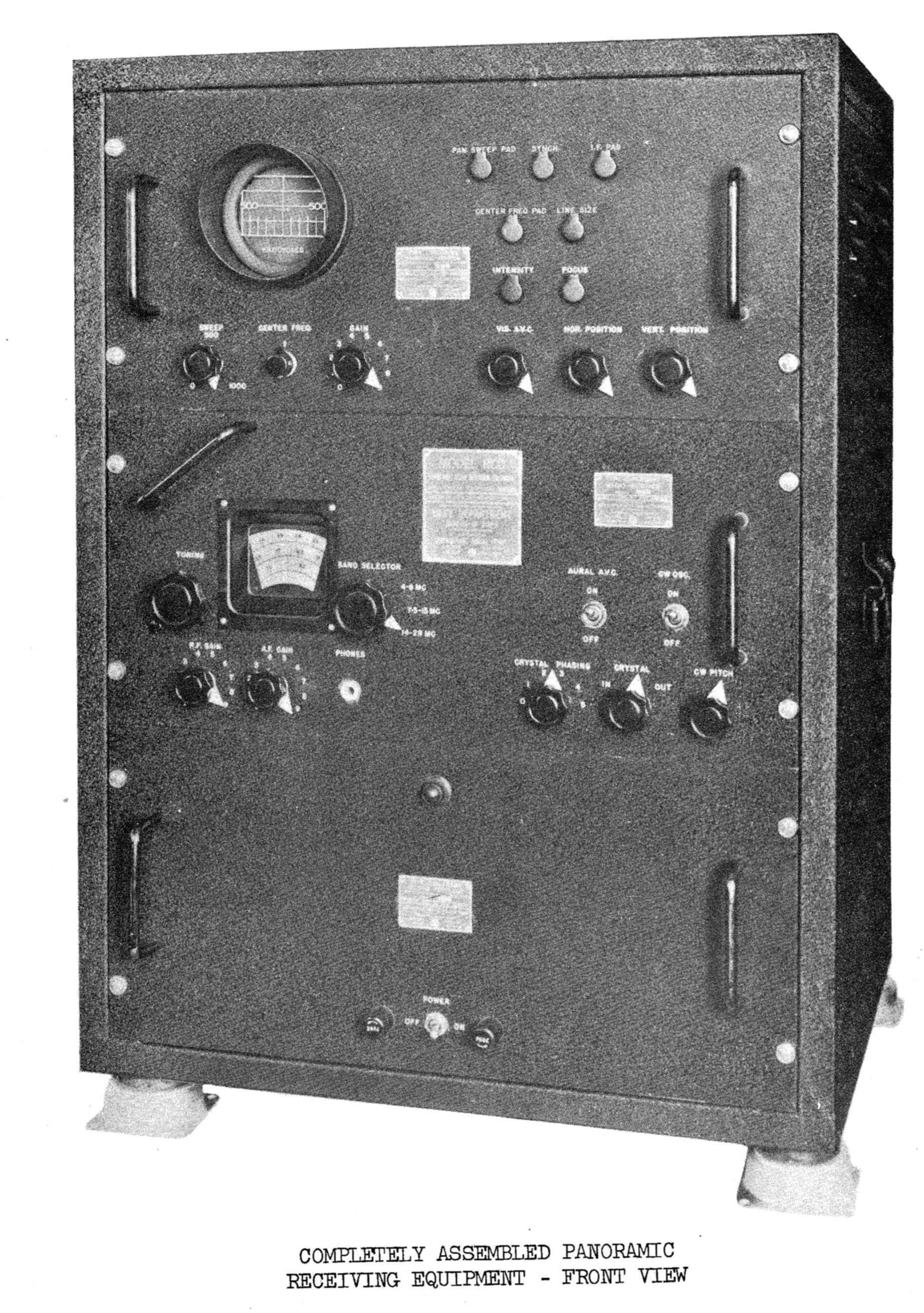

RCD


 4-27 mc receiver + Panoramic Adaptor

"The rcvr in the RCD was apparently built by Panoramic and the panadaptor chassis layout was unique to that combined unit." - from N7RHU

 - manuf Panoramic Radio Corp.

RCL

 RBB receiver + RBU Panoramic Adaptor - -

RCM

 RBC receiver + RBV Panoramic Adaptor - -

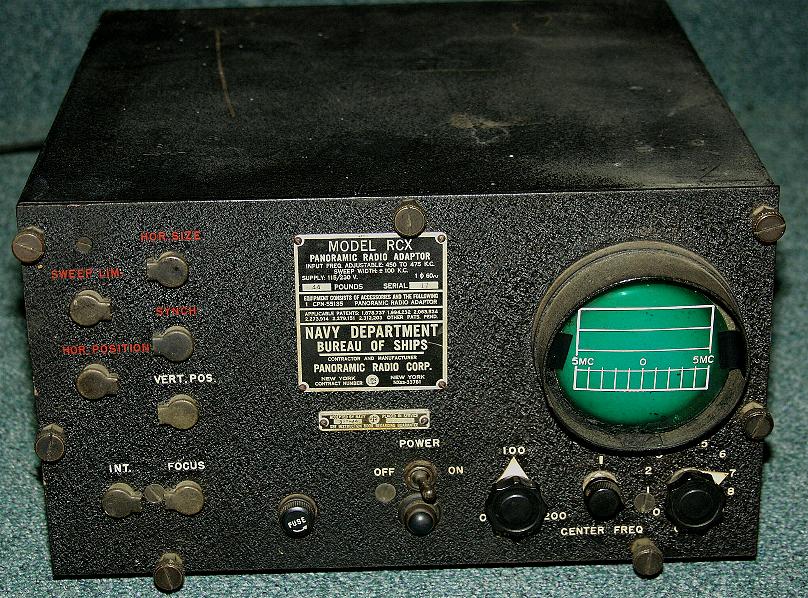

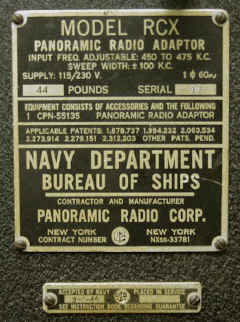

RCX
wrong graticule??

200 kc sweep width
200 uv  (25k coupling resistor) for 1/4 inch deflection		 manuf Panoramic Radio Corp.

NAVSHIPS 900288 - download manual here - thanks to Chuck N7RHU

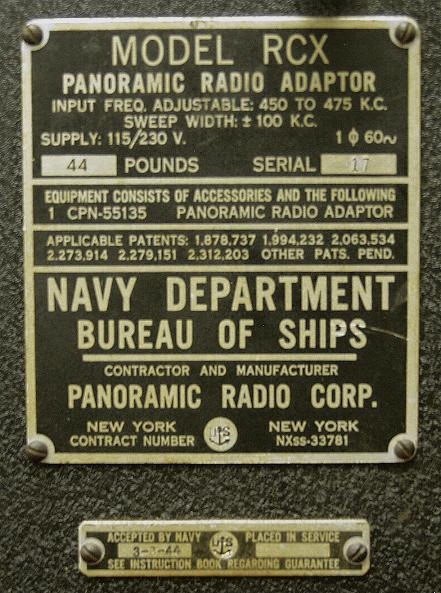

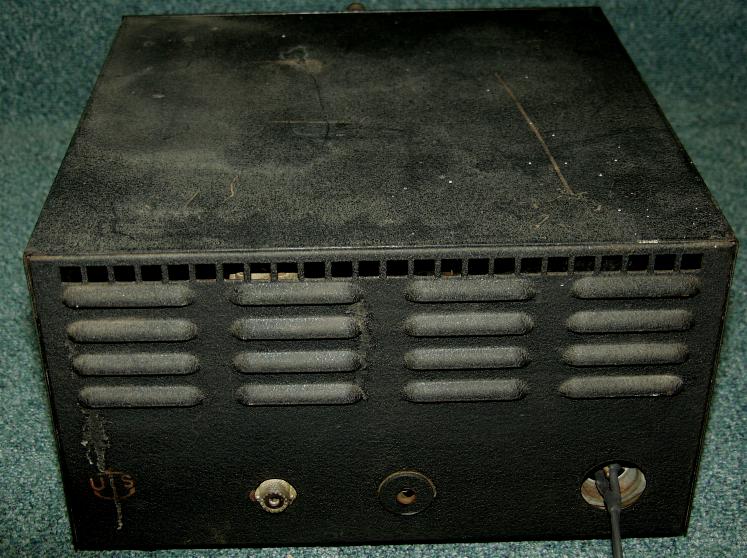

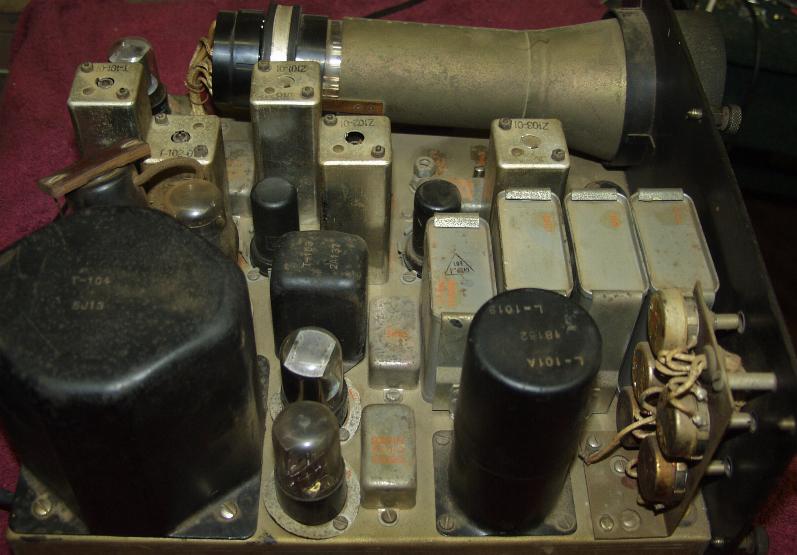

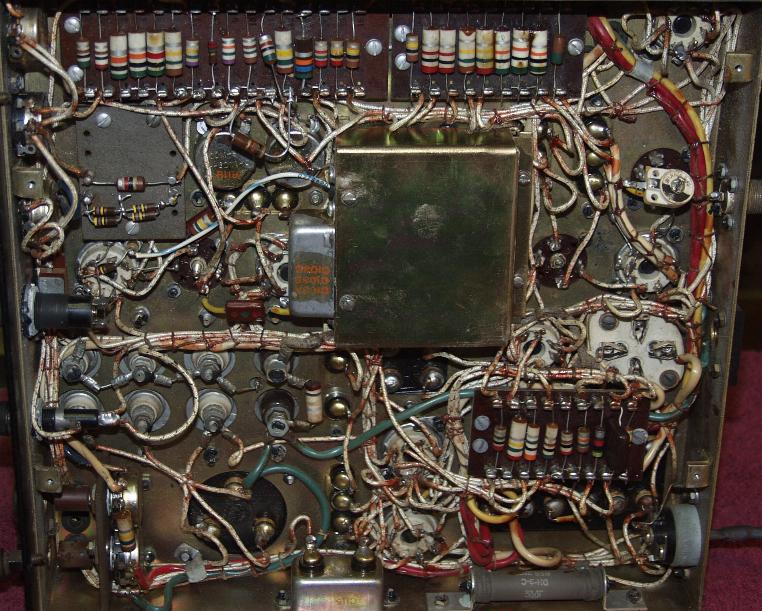

rcx-pano-1203.JPG (66523 bytes) rcx-pano-1204.JPG (119107 bytes) rcx-pano-1205.JPG (59526 bytes) rcx-pano-1206.JPG (58019 bytes)

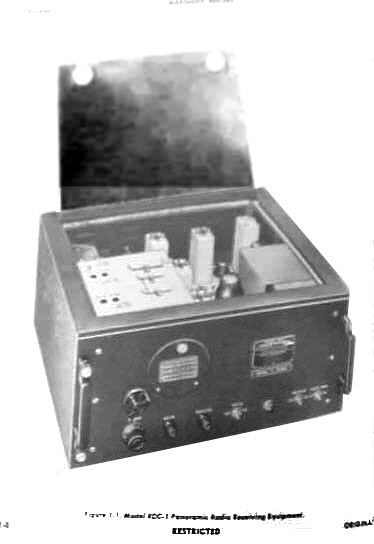

RDC


 Hallicrafters sweeping receiver based on S-36 with external Dumont scope

"The RDC was a strange bird, with motor drive tuning and no provision for manual tuning or readout.  The odd round plate on the front panel covered a pair of automotive ignition contact points, used to derive a scope trigger from the rotating shaft." - from N7RHU

 Use of RDC and RDG in WW2 Guided Missile Countermeasures. -

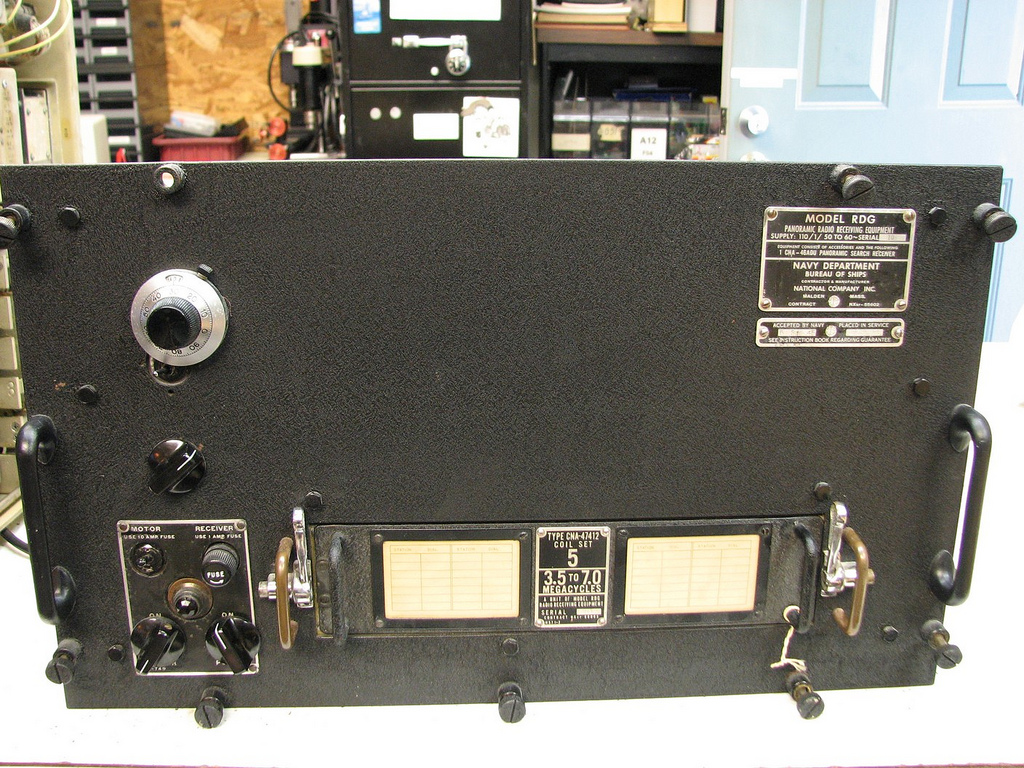

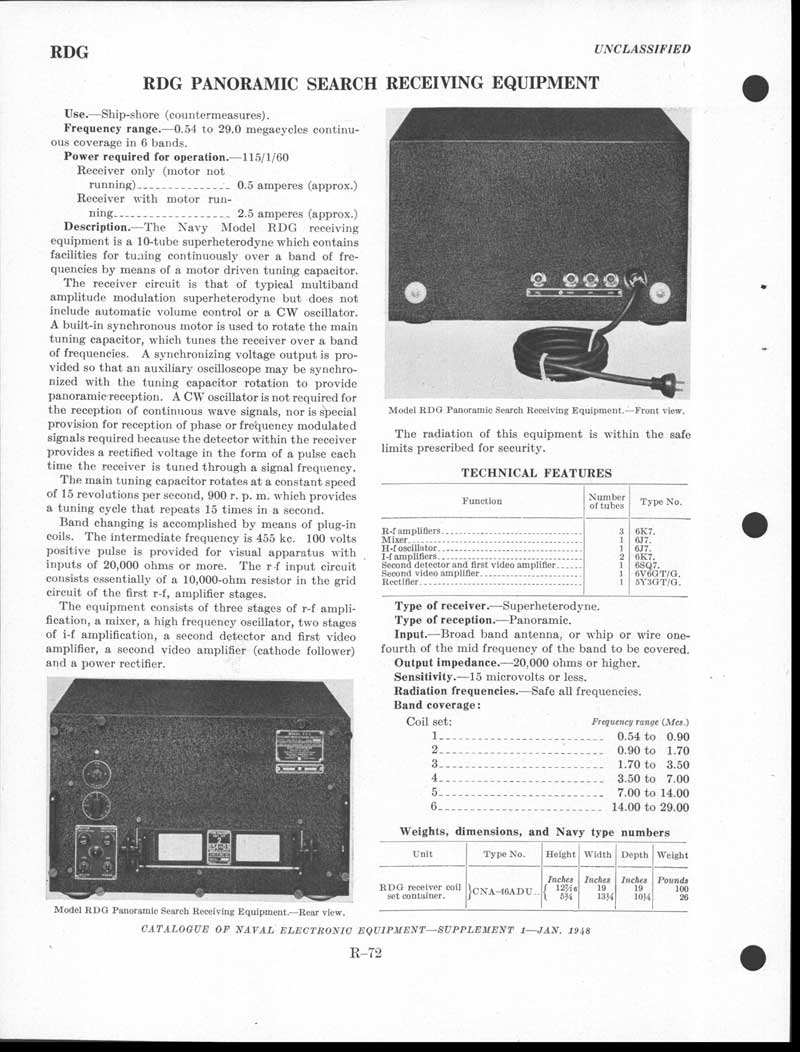

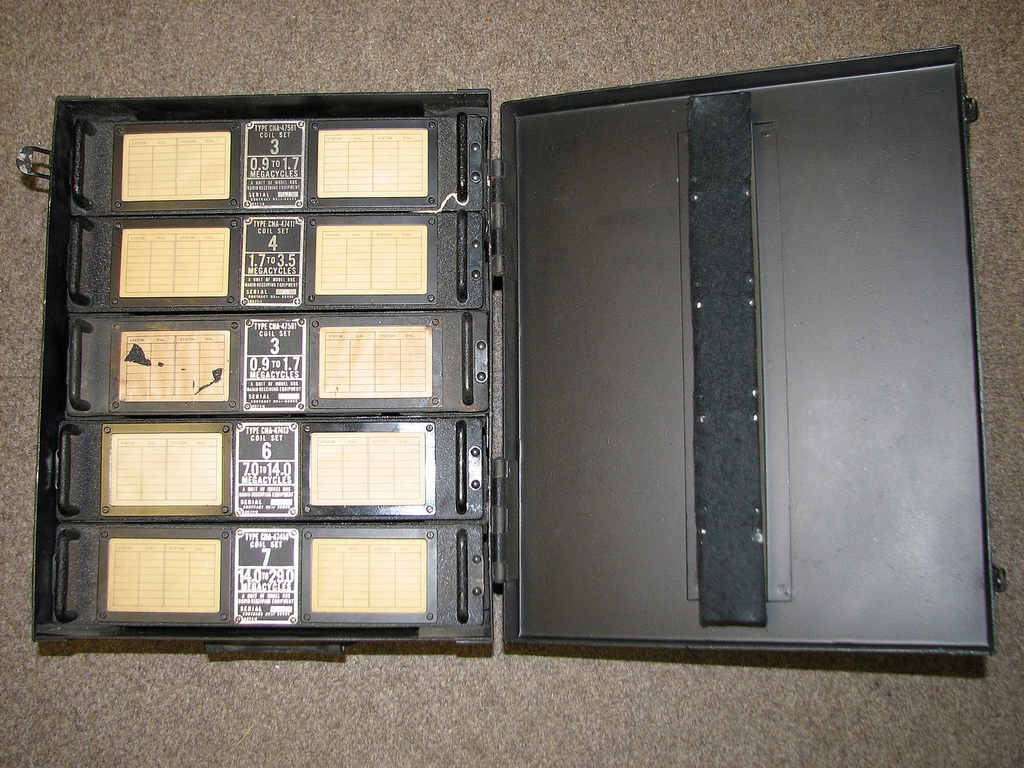

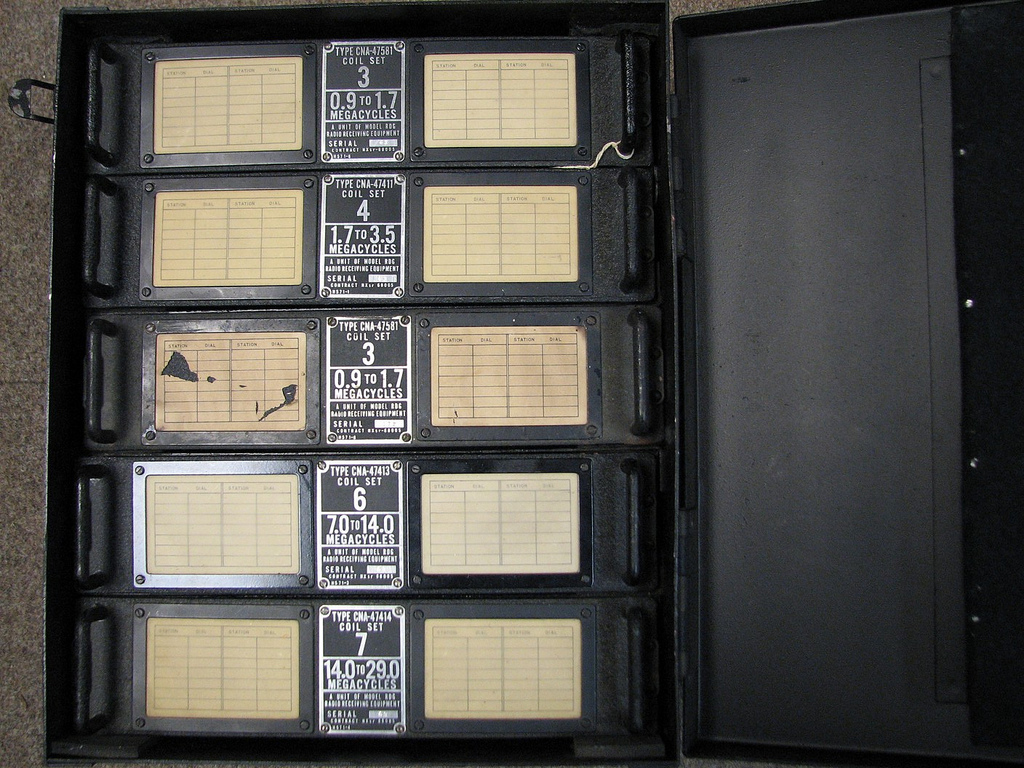

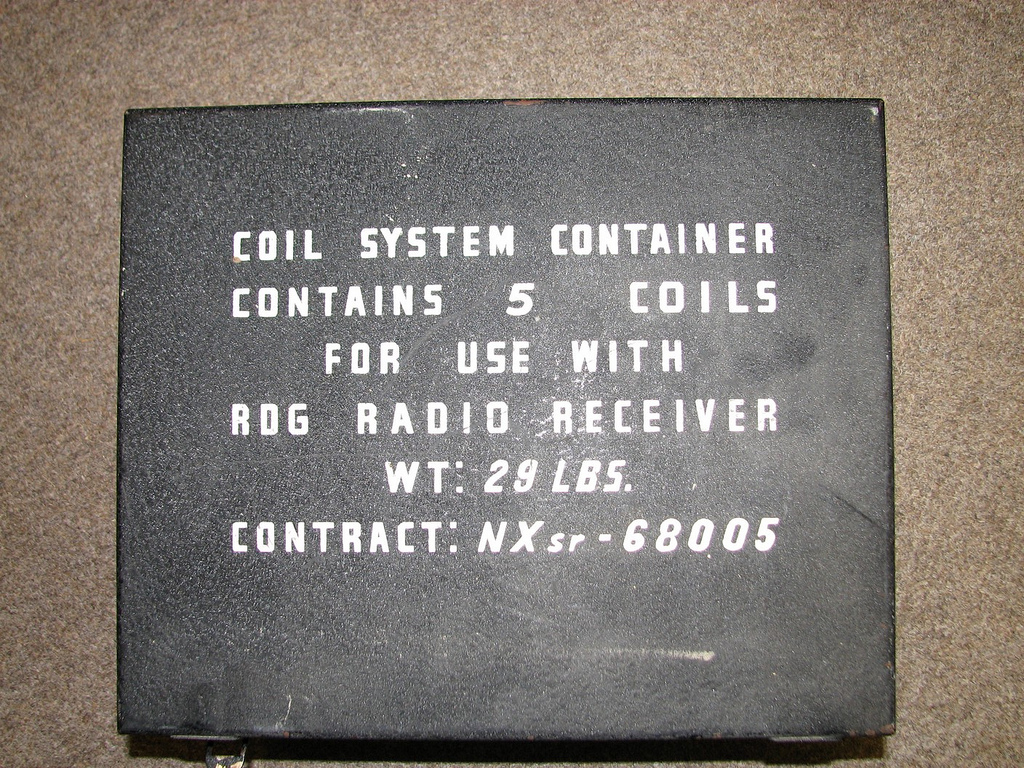

RDG

 National sweeping receiver used with external Dumont scope

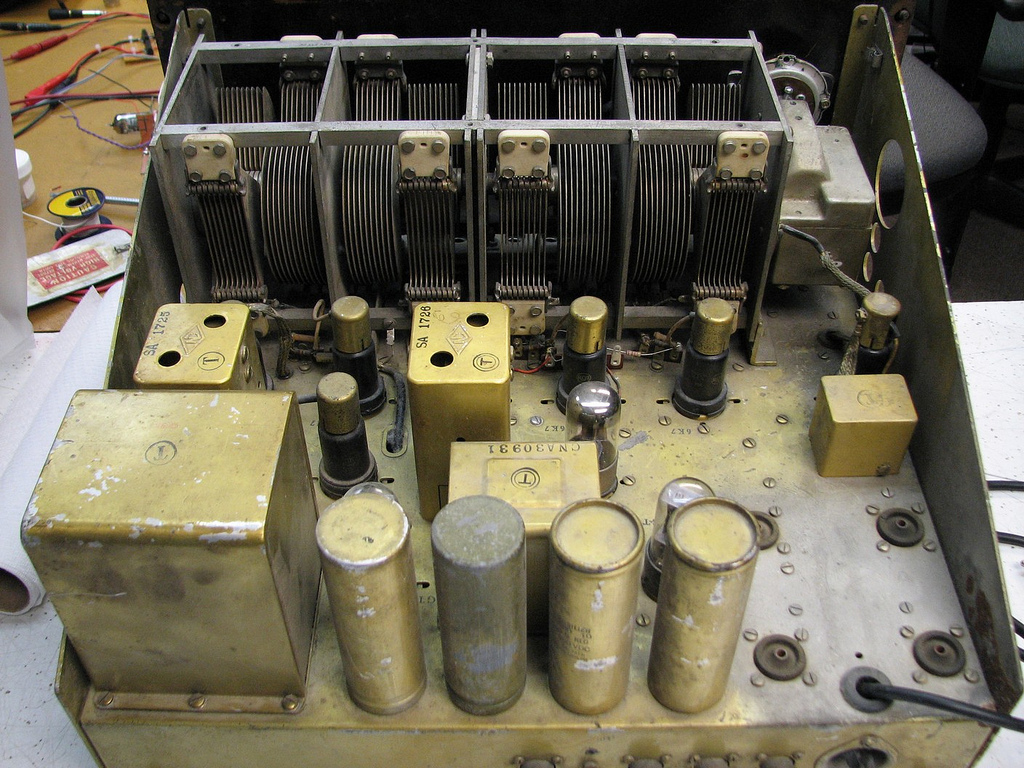

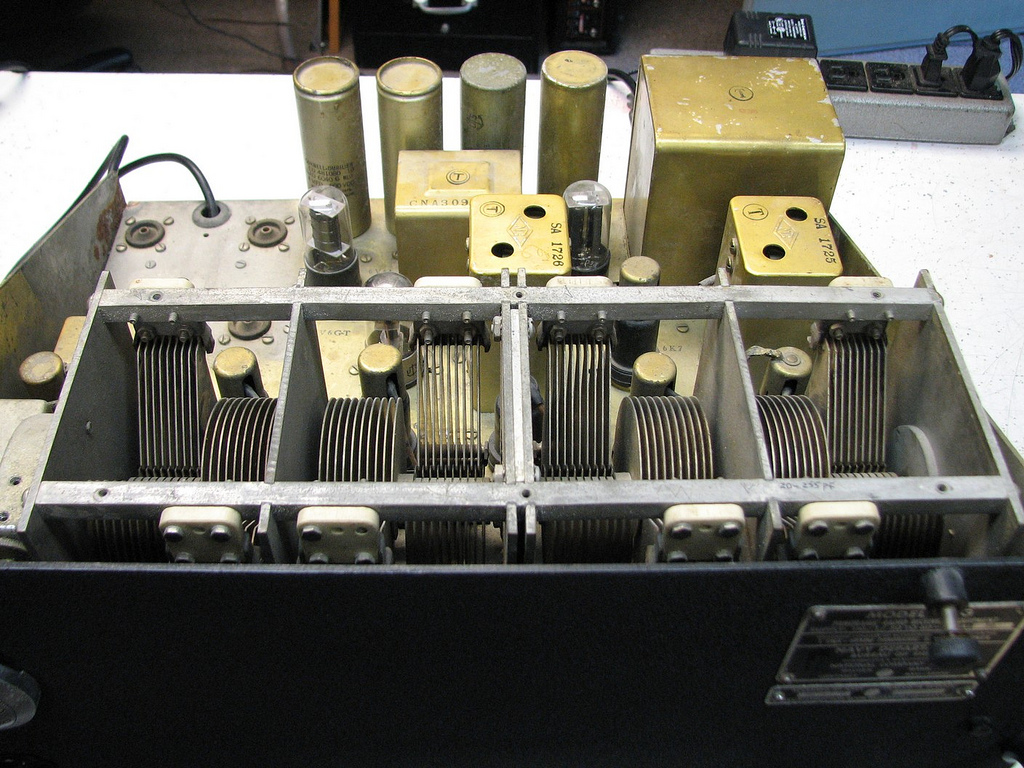

rdg-03.jpg (436541 bytes)		 rdg-01.jpg (469946 bytes) Use of RDC and RDG in WW2 Guided Missile Countermeasures.

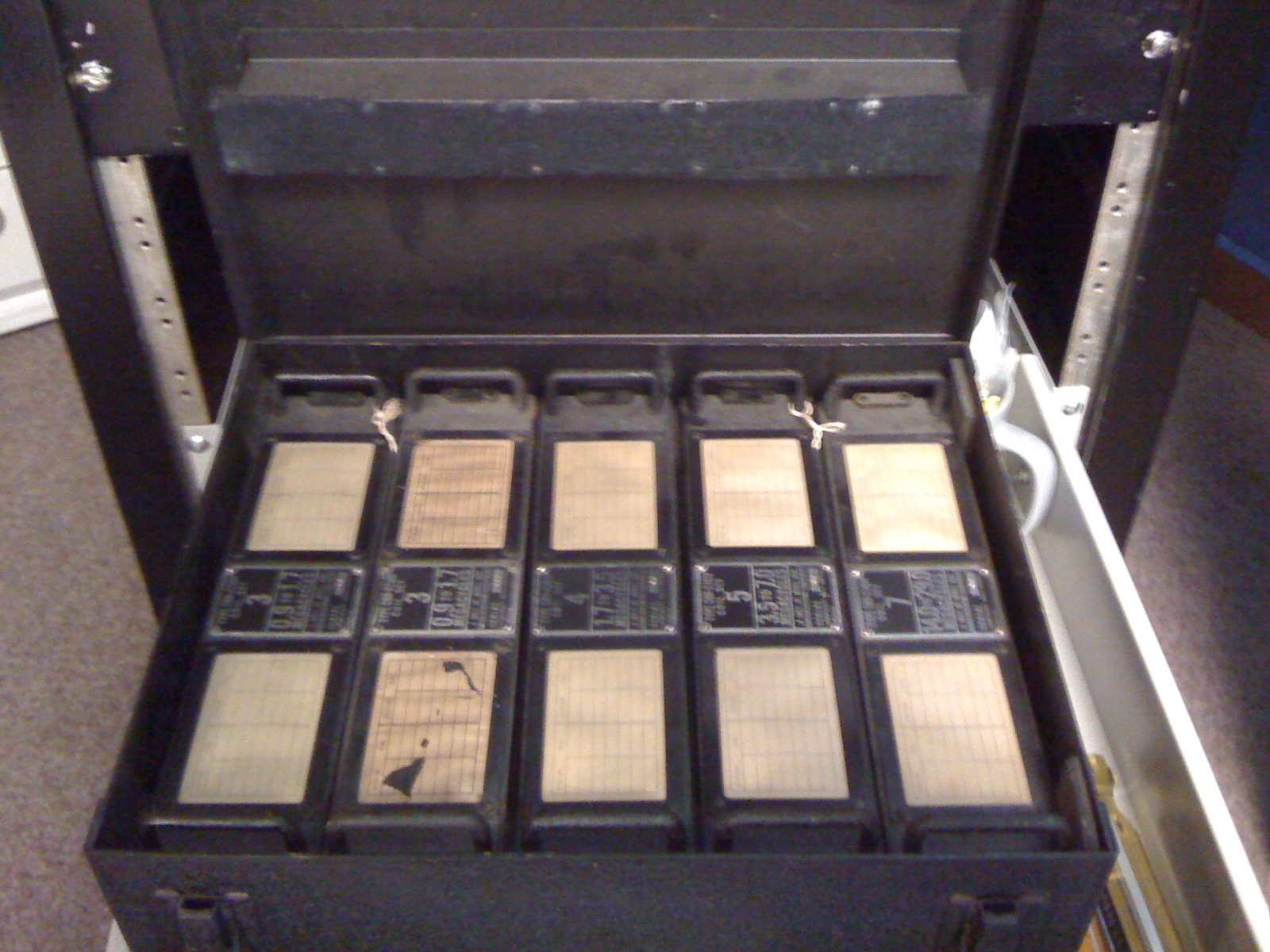

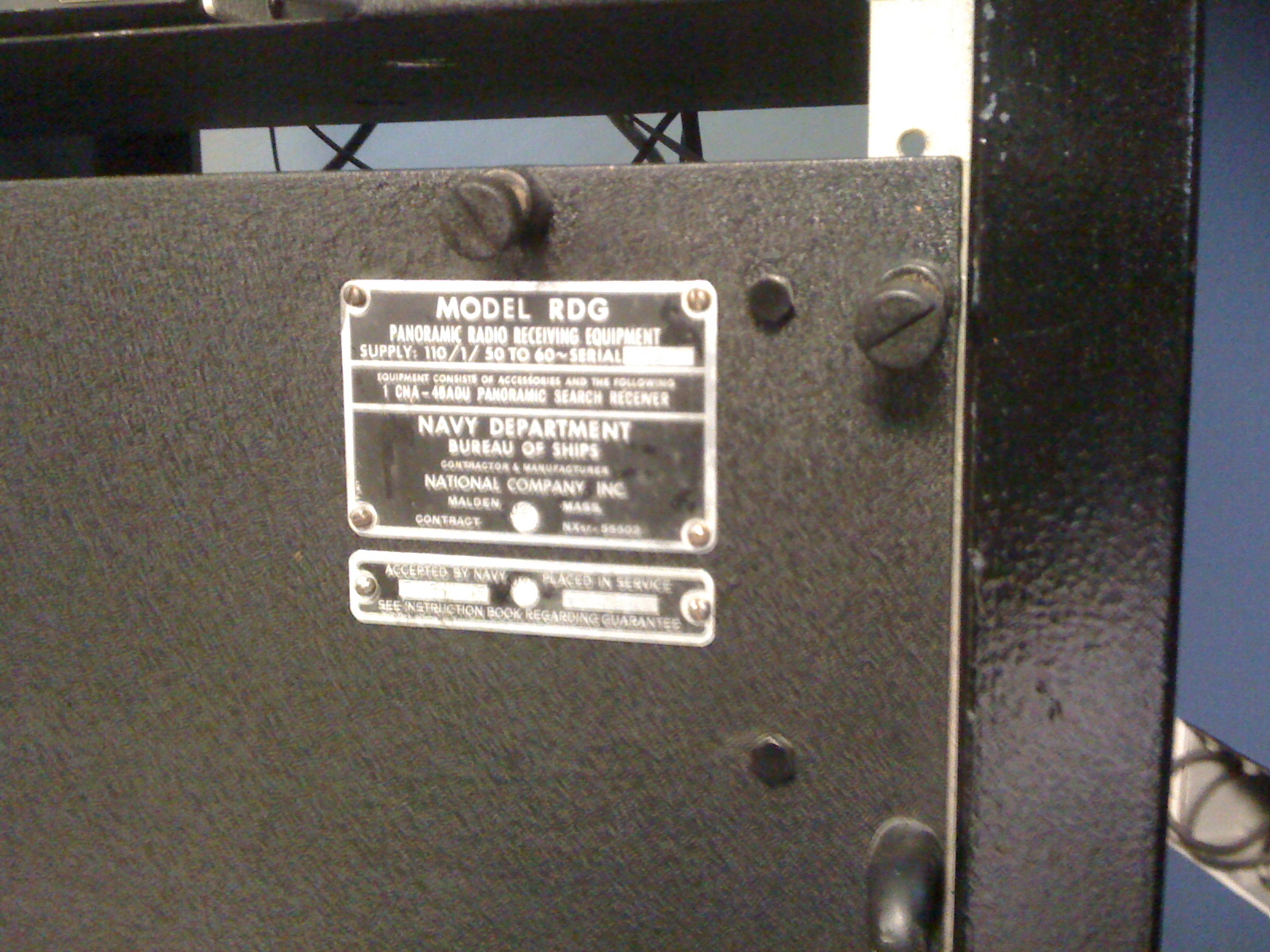

IMG_0845.jpg (678250 bytes) IMG_0847.jpg (655096 bytes) IMG_0848.jpg (745775 bytes) Maintenance Manual available from www.fairradio.com

RDH

need photo and info

 Hallicrafters search receiver 125-600mc - -

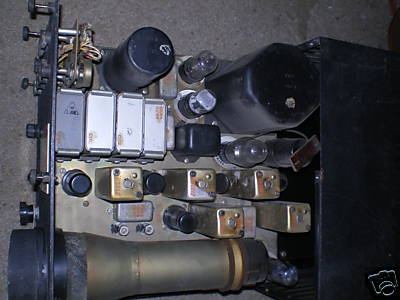

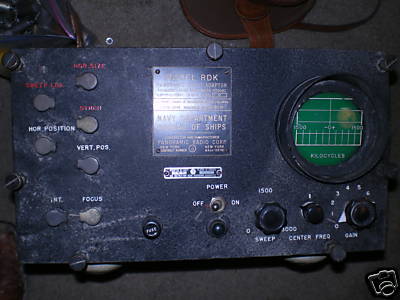

RDK

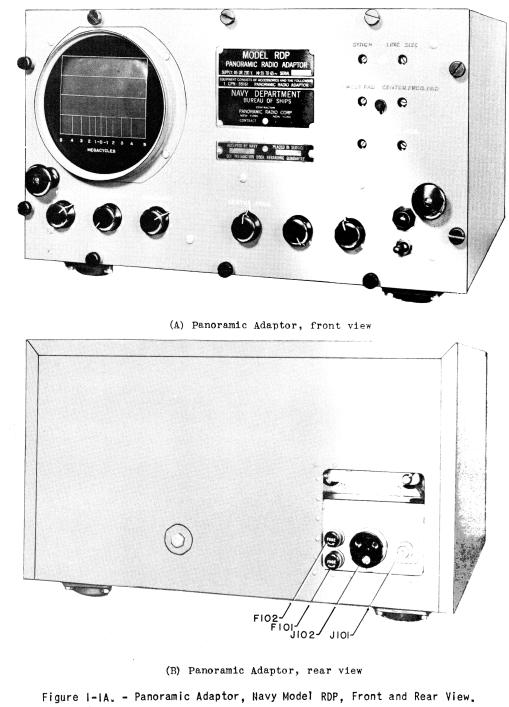

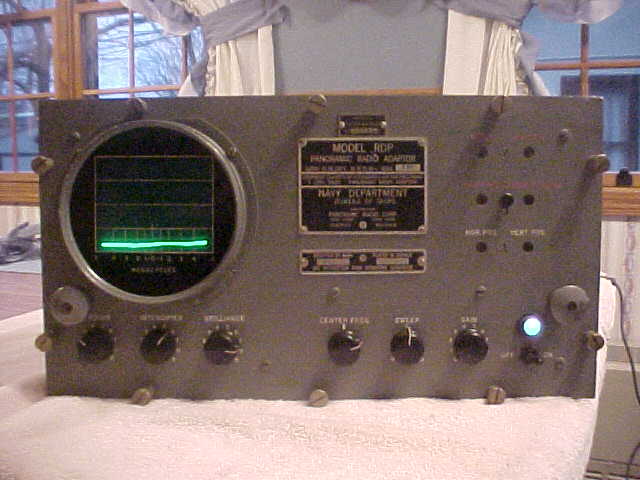

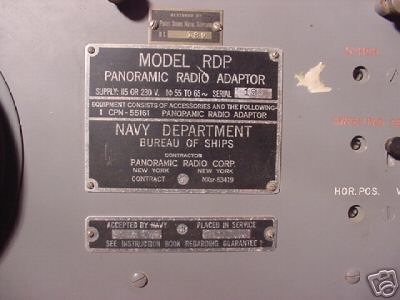

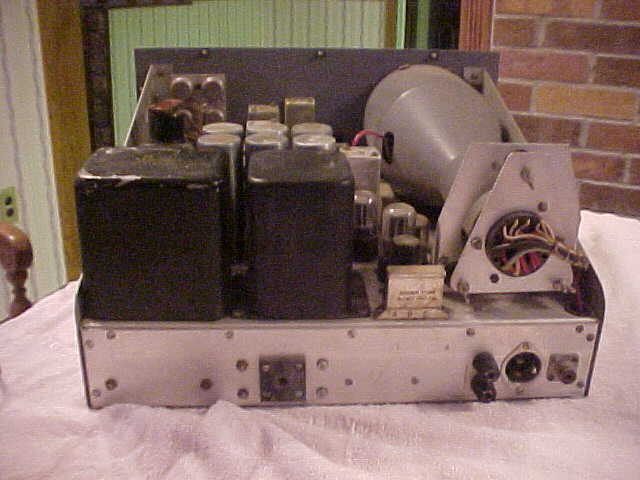

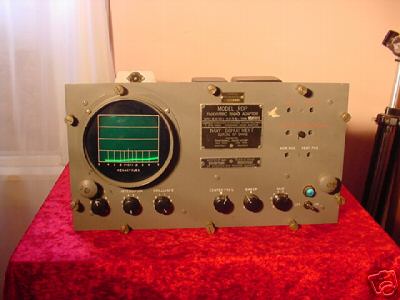

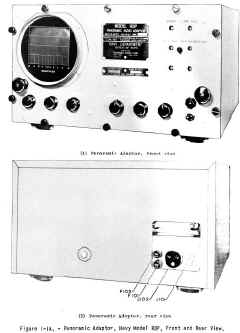

RDP (CPN-55161)

10 mc sweep width
15uv input for 1/4" deflection

manuf Panoramic Radio Corp.

Download manual here

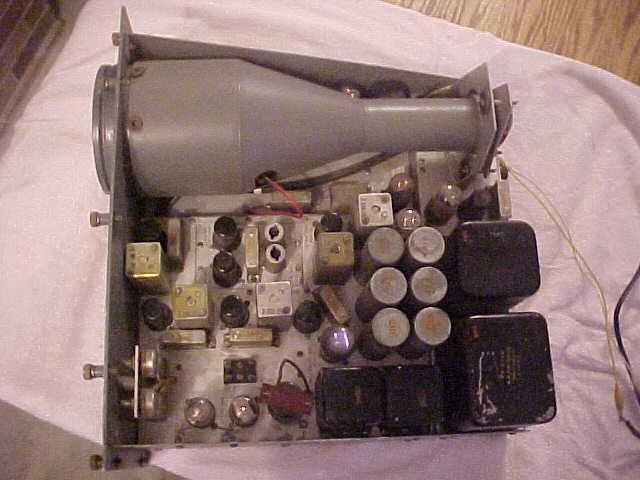

rdp-12-118-01.JPG (36602 bytes) rdp-12-118-02.JPG (41495 bytes) rdp-12-118-03.JPG (36110 bytes) rdp-12-118-04.JPG (34911 bytes)

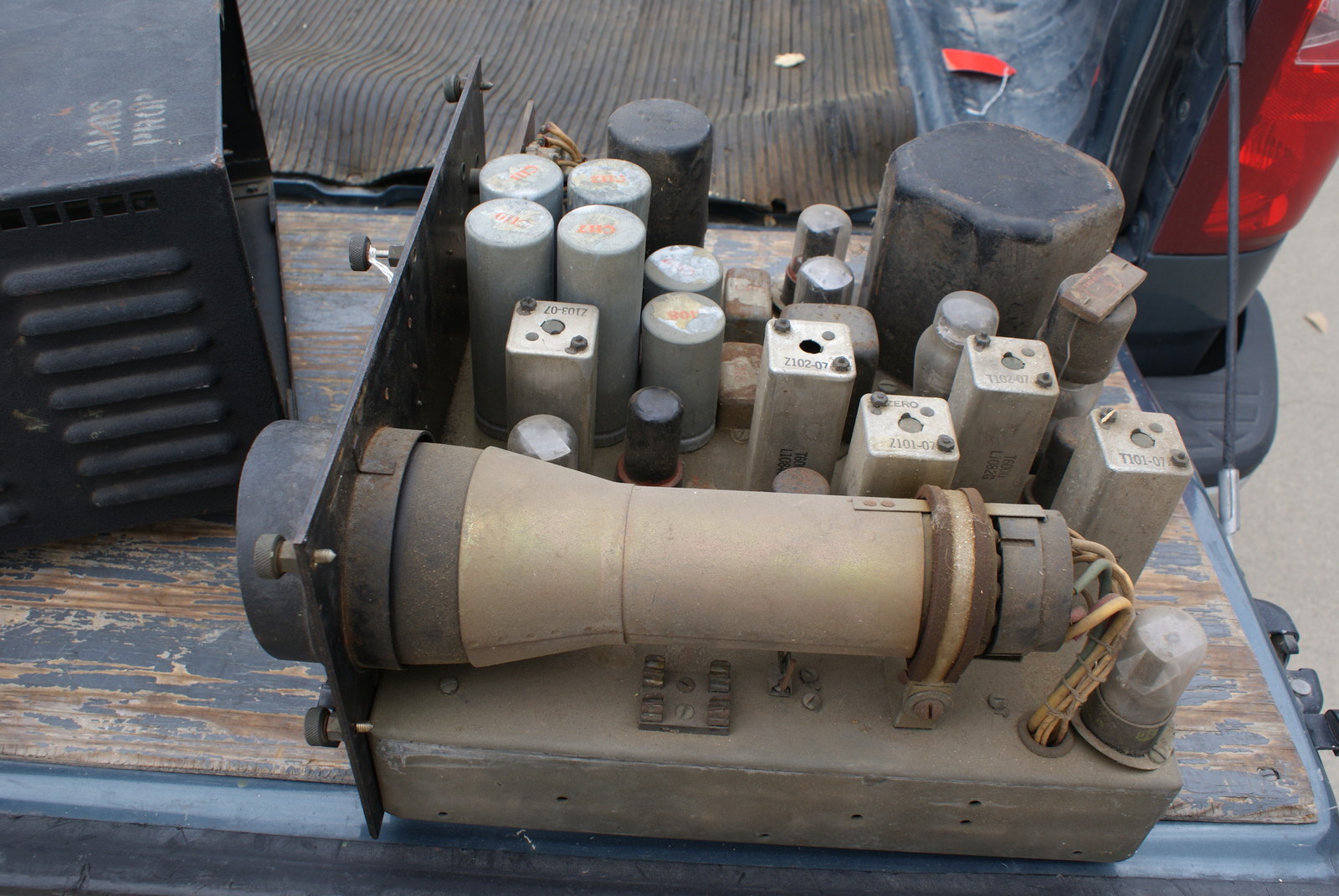

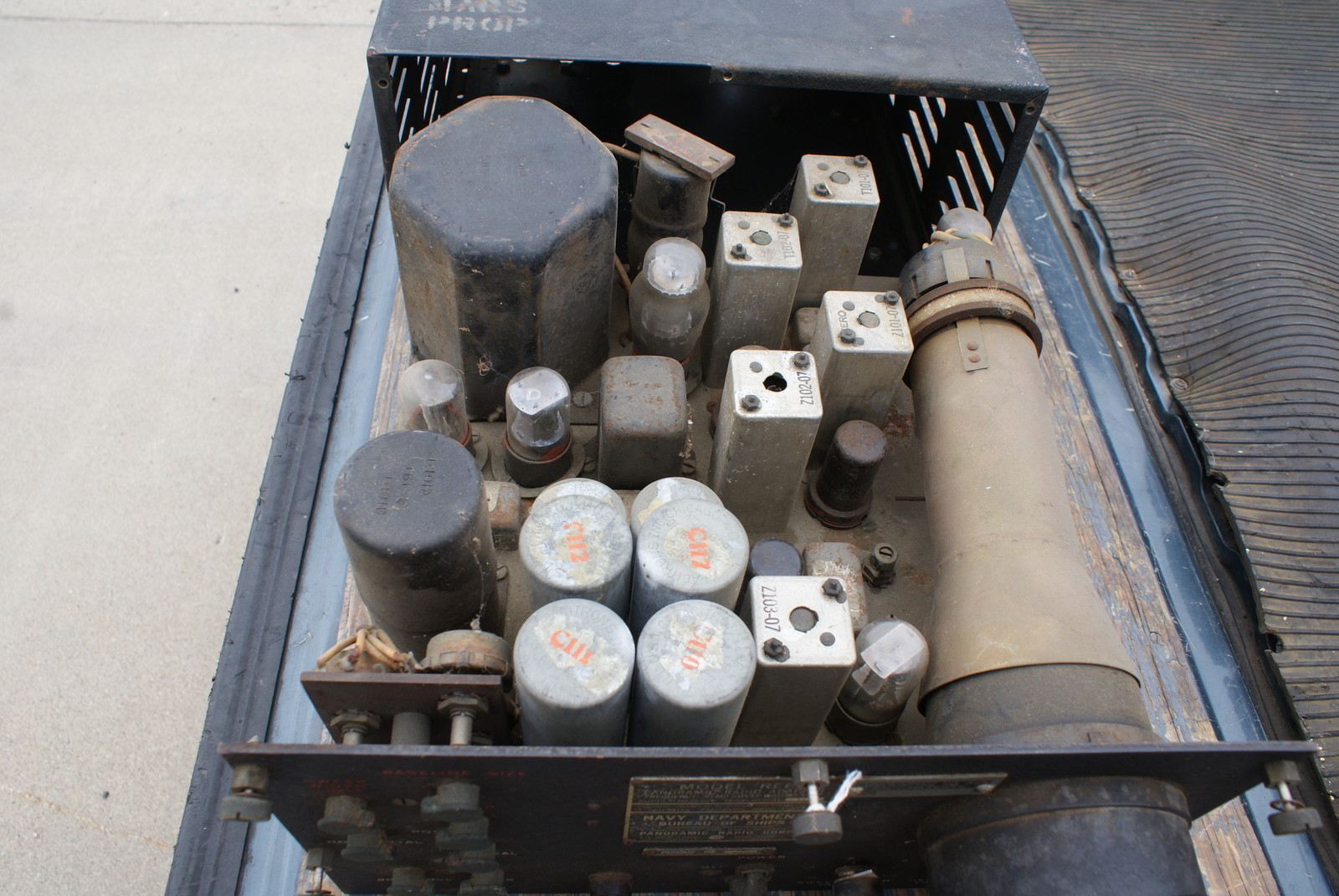

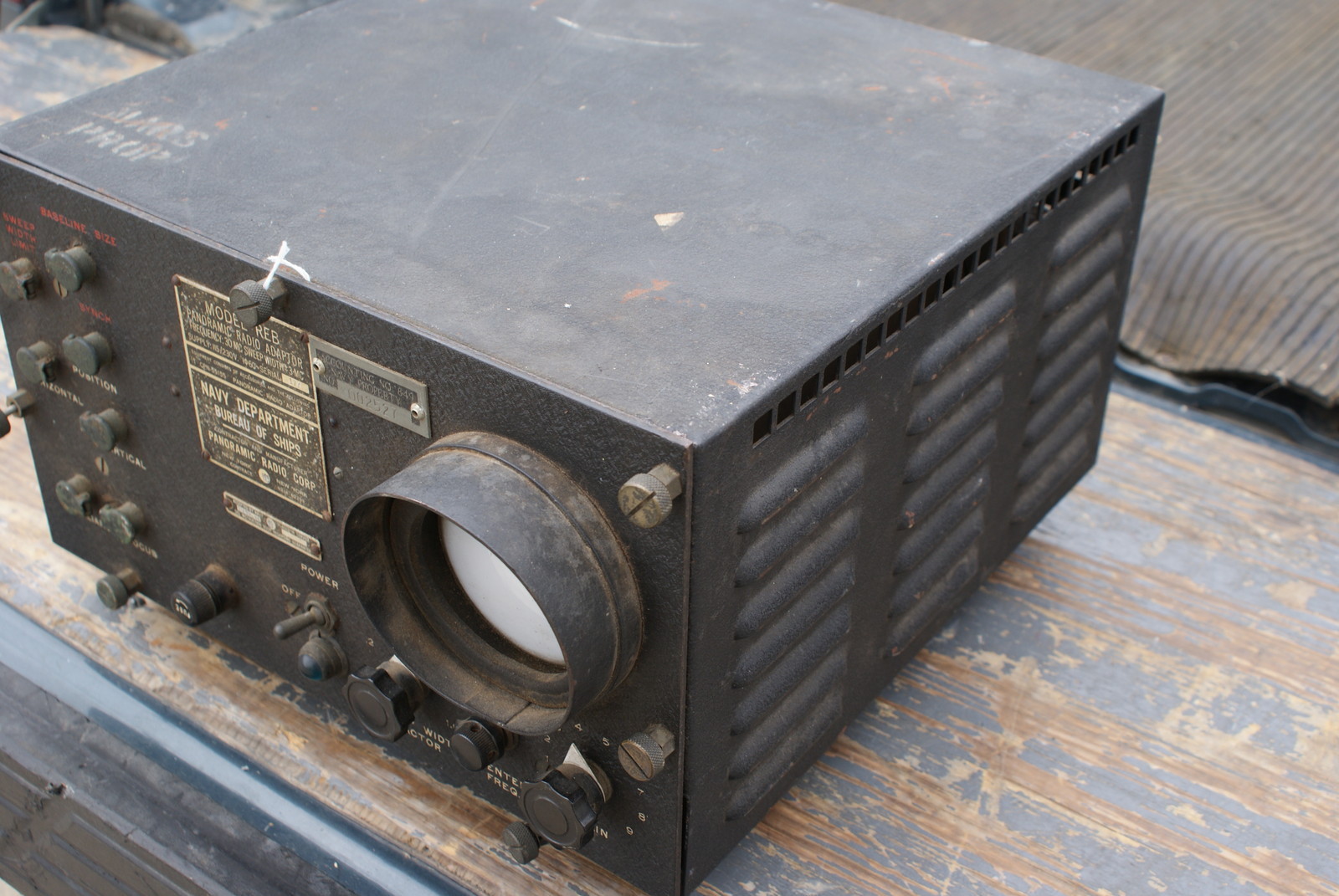

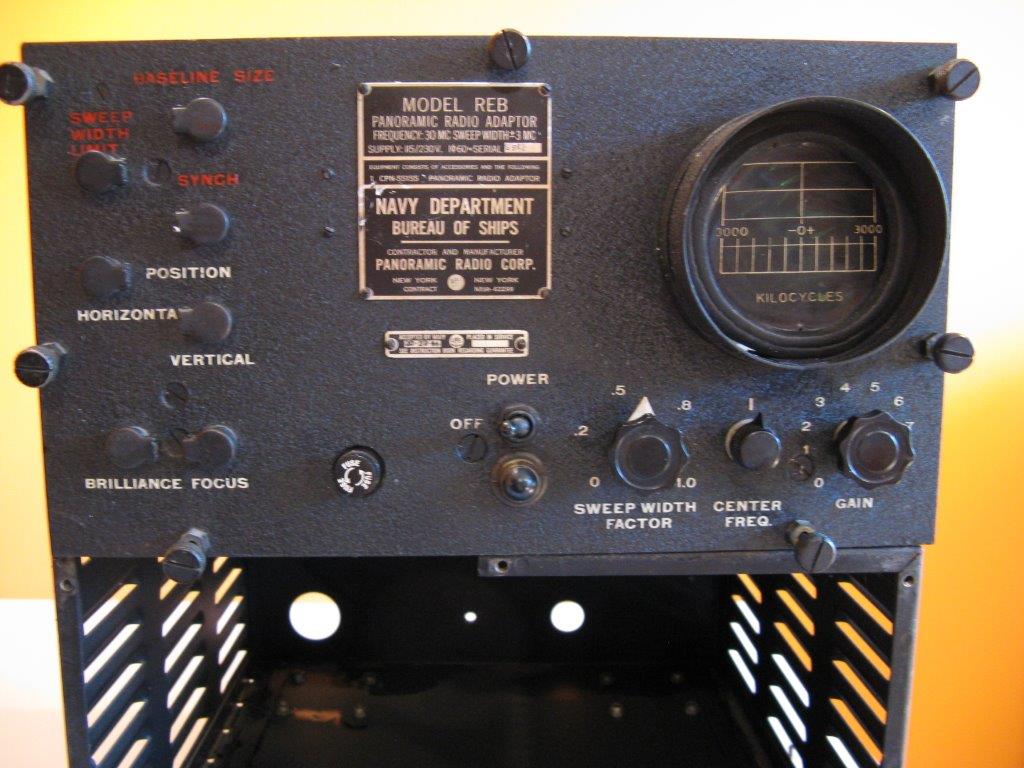

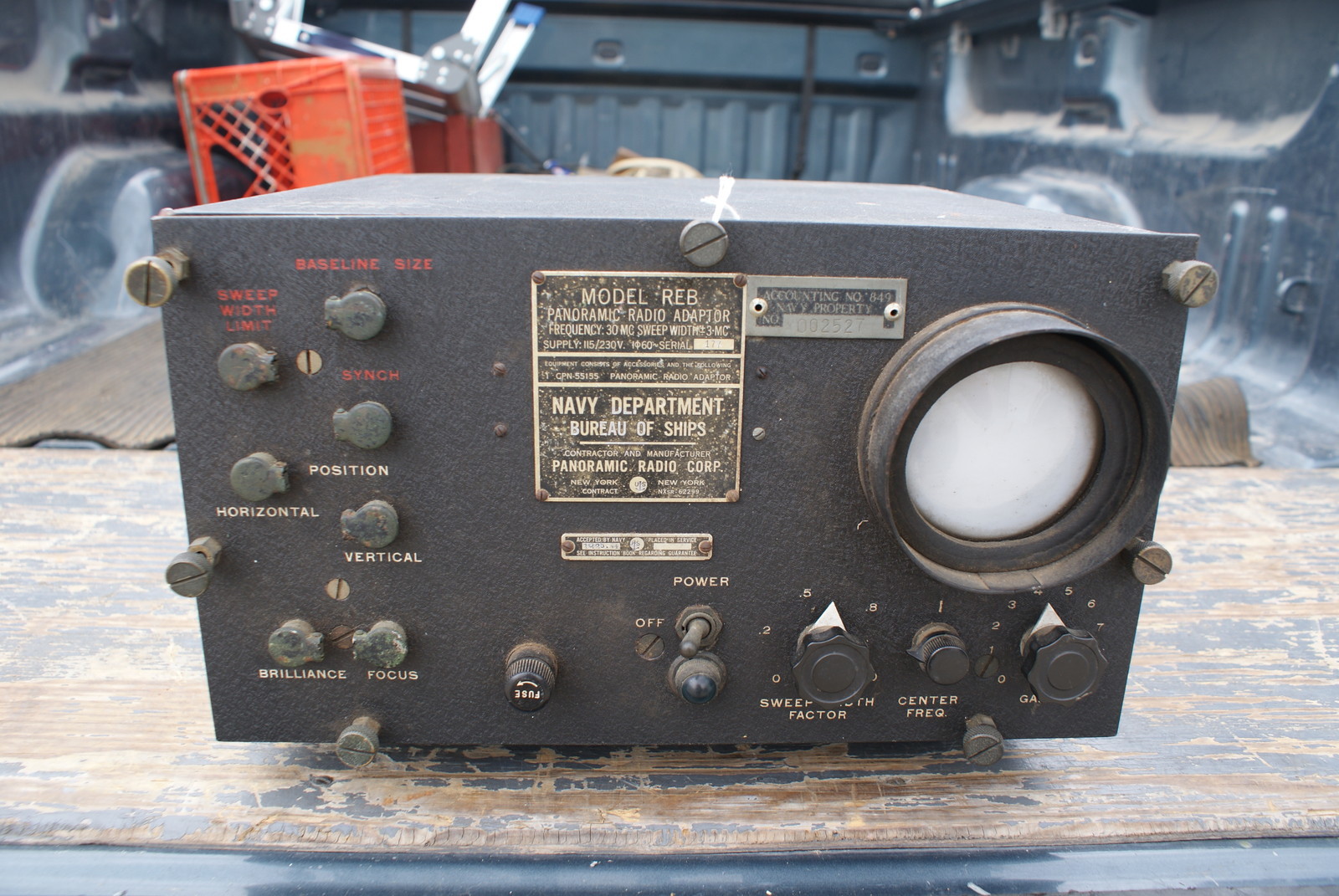

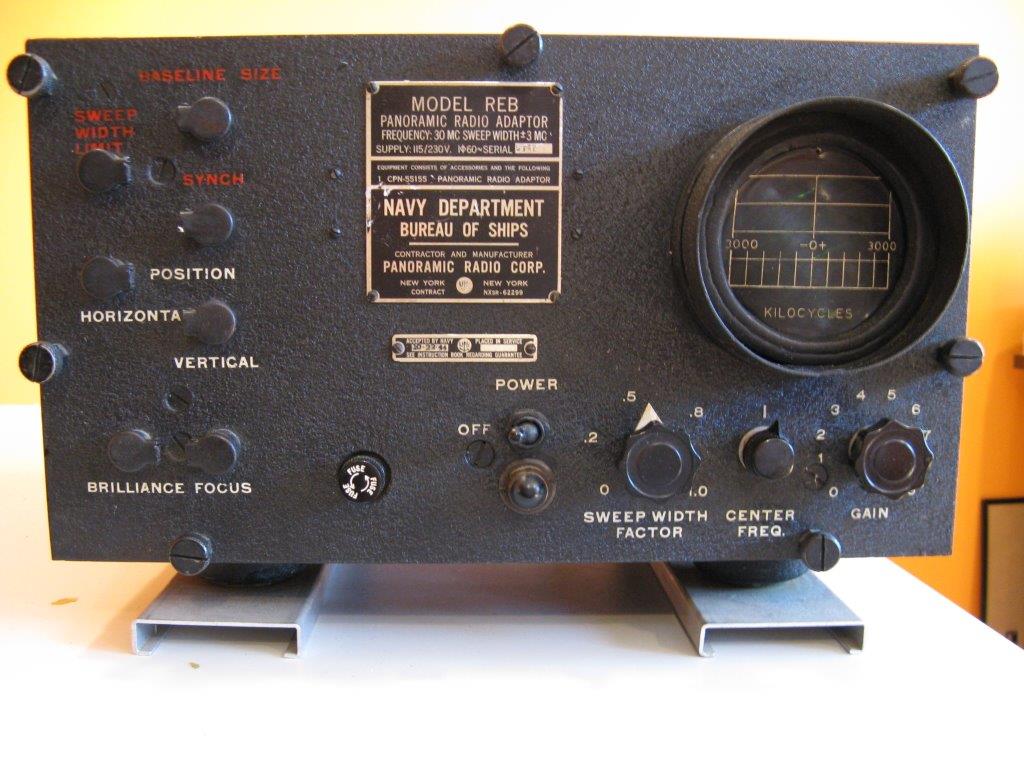

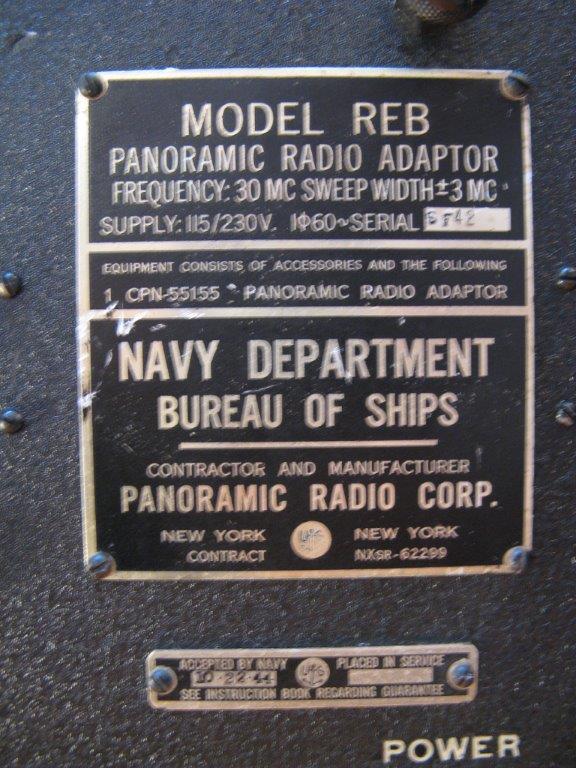

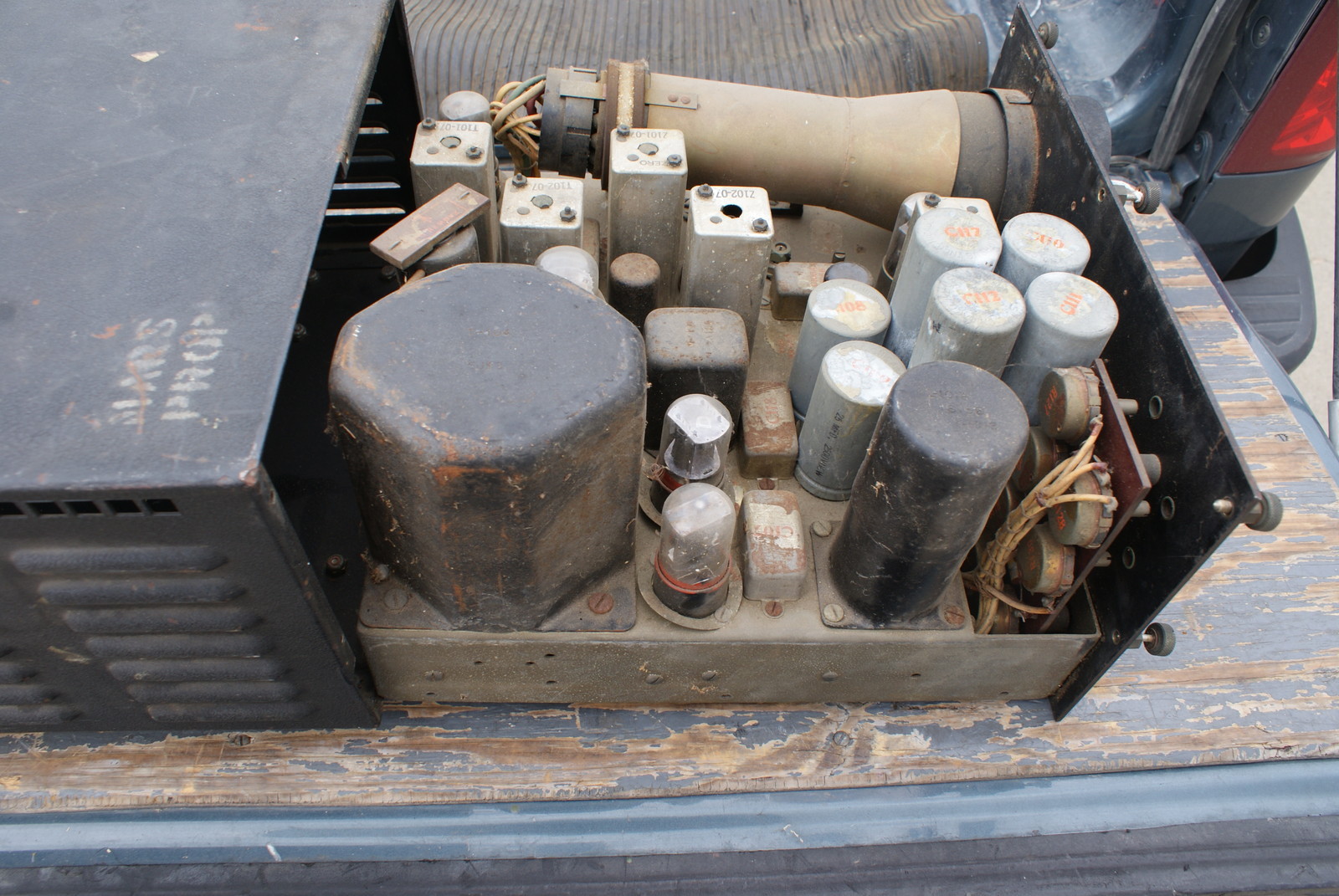

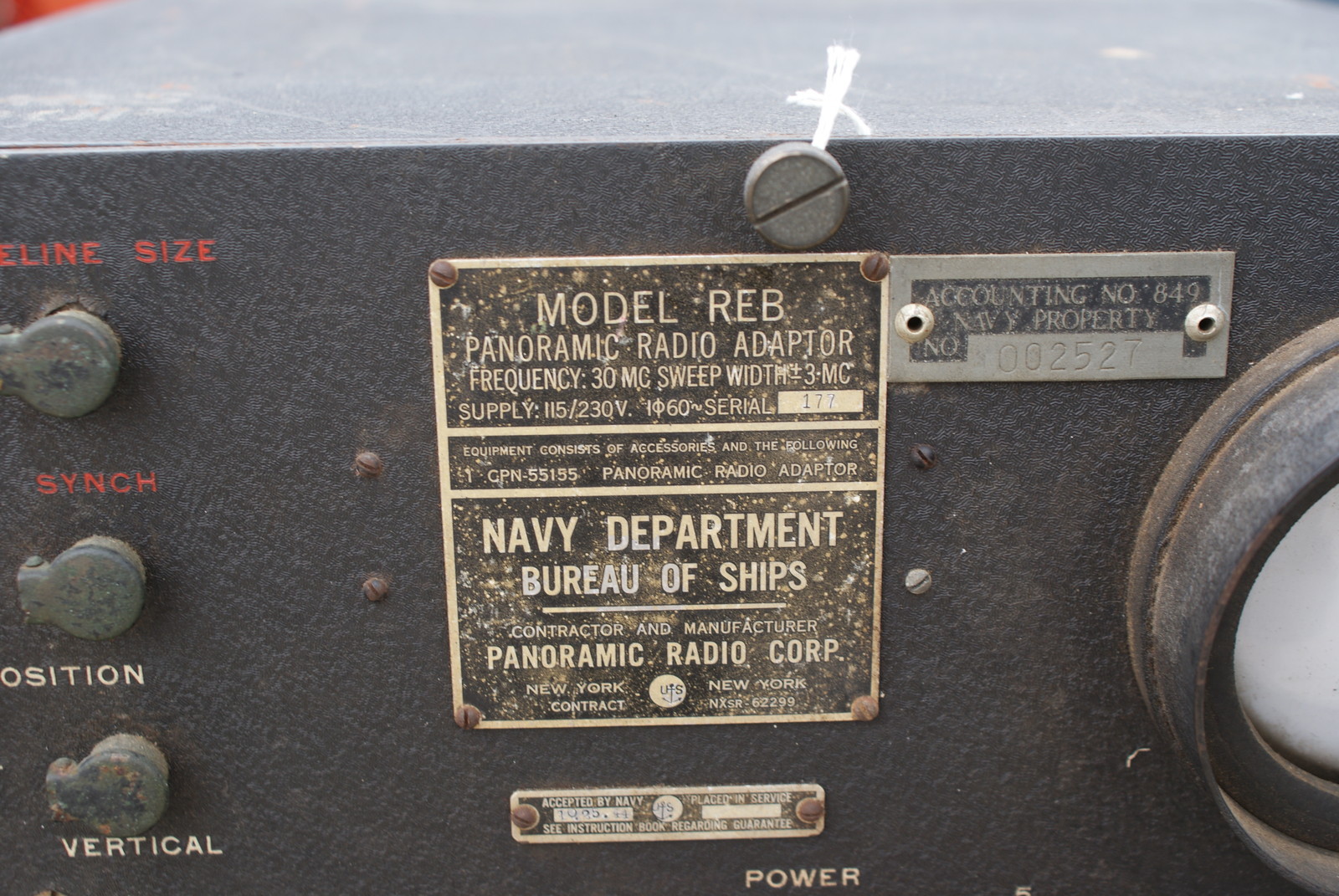

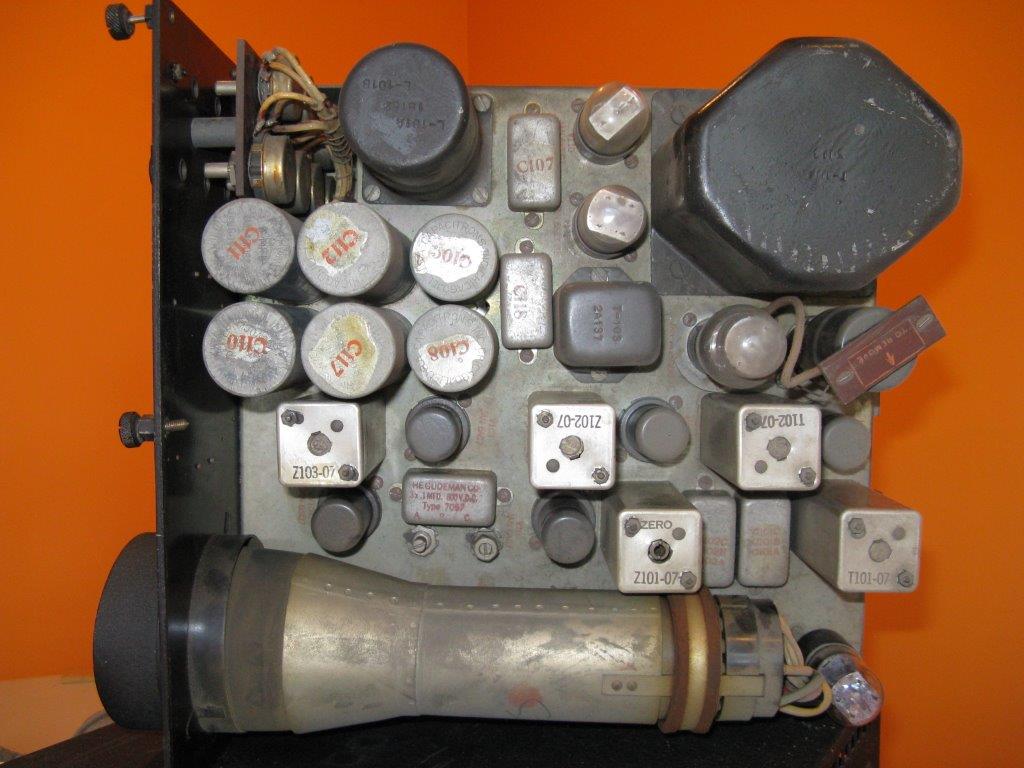

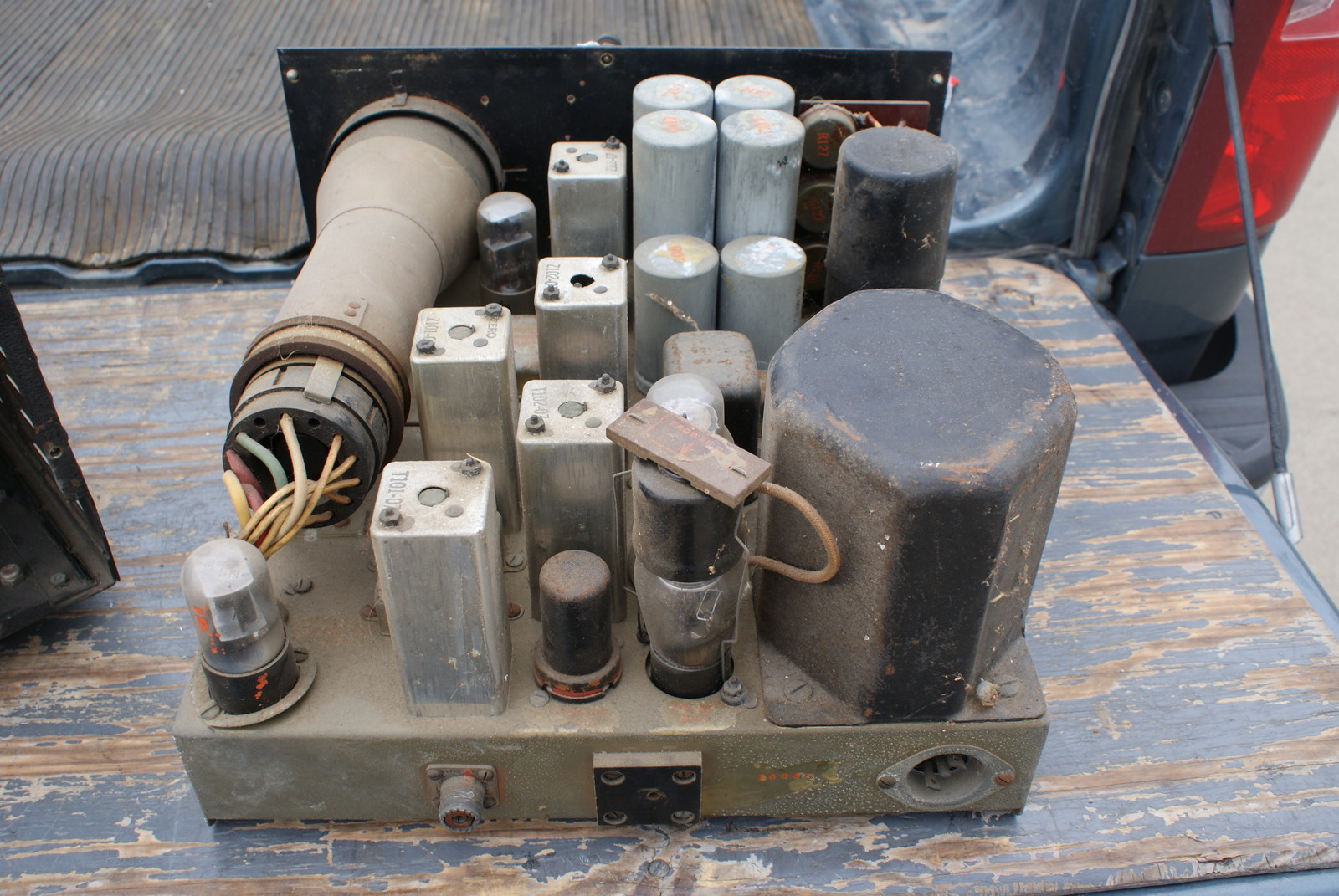

REB

Photo thanks to K9FSV

30 Mc center frequency  +/- 3Mc scan.

Photo thanks to K9FSV

manuf Panoramic Radio Corp.

Photo thanks to K9FSV

 Photo thanks to K9FSV
reb-1308-02.JPG (432494 bytes) reb-1308-03.JPG (487598 bytes) reb-1308-04.JPG (366367 bytes) reb-1308-06.JPG (384122 bytes)
reb-1308-10.JPG (428322 bytes) reb-1308-07.JPG (430440 bytes) reb-1308-08.JPG (396765 bytes) reb-1308-09.JPG (386713 bytes)

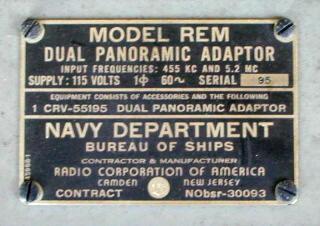

REM
455 kc & 5.25 mc

"1946 - Dual panoramic adapters. Production version of CXCO. Used with RDG, RC-1, RBK-14, RAO-9, etc. Used for setting up jammers. Inputs 455kc, 5.25 Mc and video. 115vac." - from K5FKR

"The REM would have replaced an RBW plus an RCC panadaptor. The heavy protection over the face of the CRT's makes me wonder if this unit was intended for use in a submarine... the Navy shock mounts make it definitely for shipboard use."- from N7RHU

 "Was used to replace the Model RBW-2M and Model RCX-1 Pan Adaptor Equipments used in the communication countermeasures installations. Was used with RAO-9 and RBK-14 receivers which provided LO signals to produce marker pips on the pan presentation. Info from: Communication Equipment Maintenance Bulletin, Supplement No.31 dtd October 1950." - from N7RHU

manuf RCA
