Morse Code (CW) Training Equipment & Material

WW1 - The Naval Radio School at Harvard - by David & Julia Bart - AWA Review Vol 30, 2017 - pp 223-256

1944 USN Training Film showing proper way to use a straight key

1944 USN Training Film showing Radioman training and operations

Navy Morse training course - with downloadable MP3 version of training records

"Learning Morse in the US Navy" - by Hans K0HB - from Morsum Magnificat May/June 2000



Radioman School - 1943-44

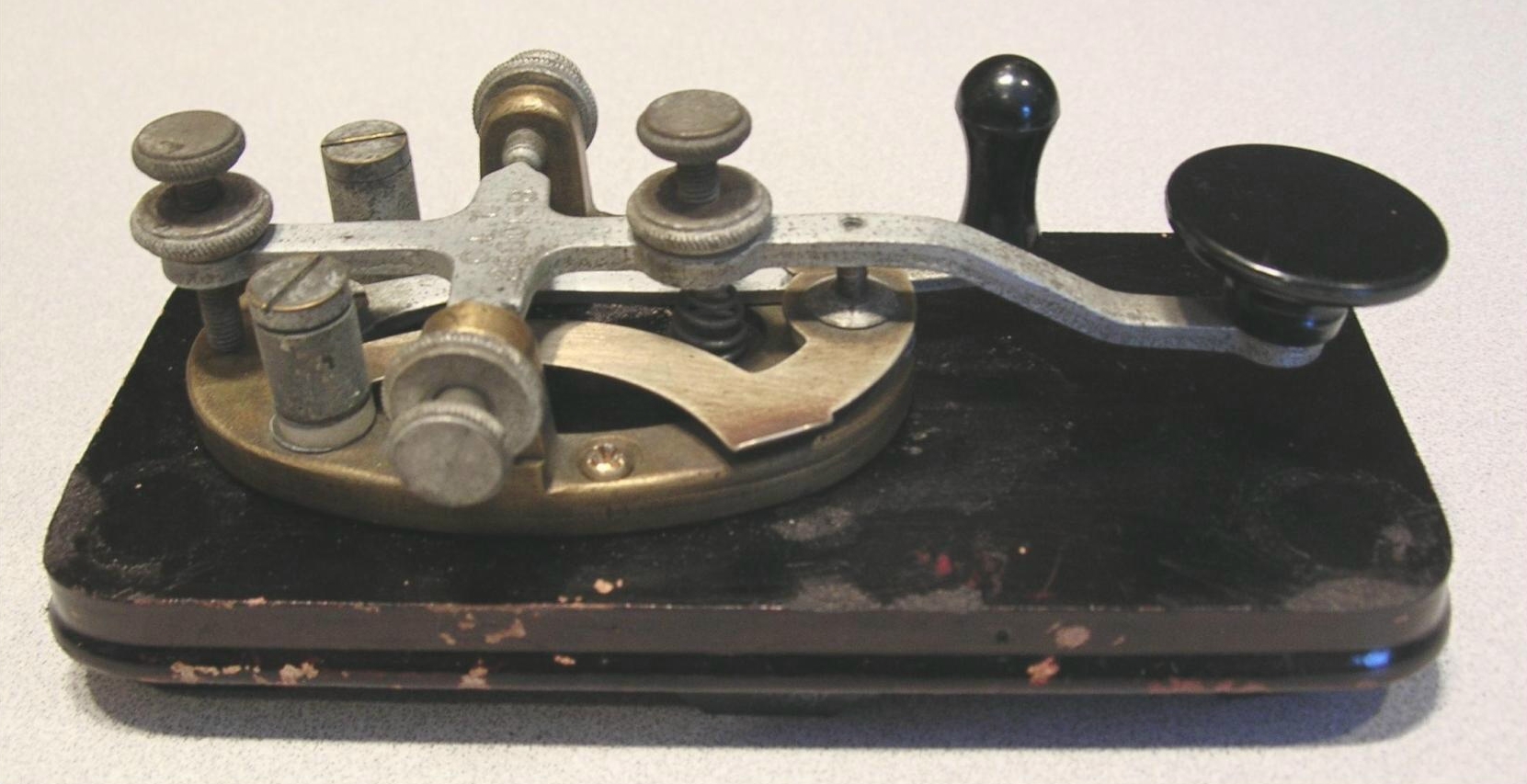

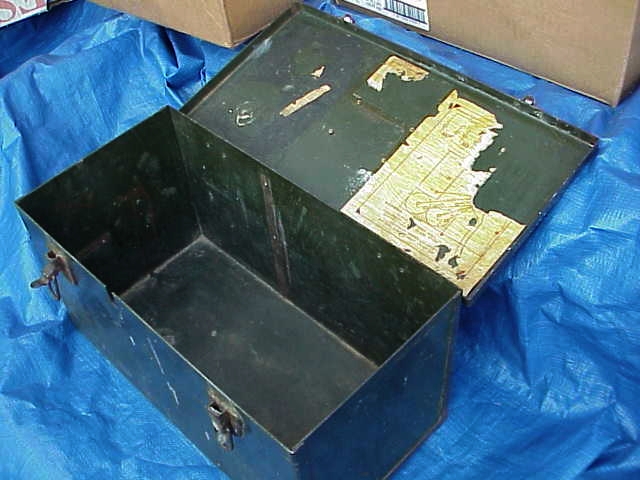

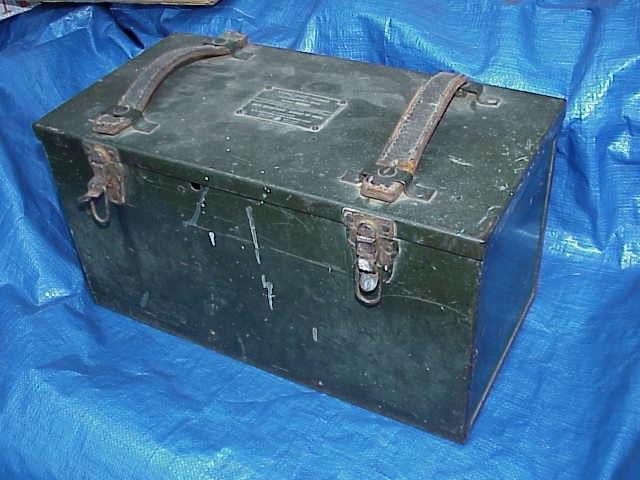

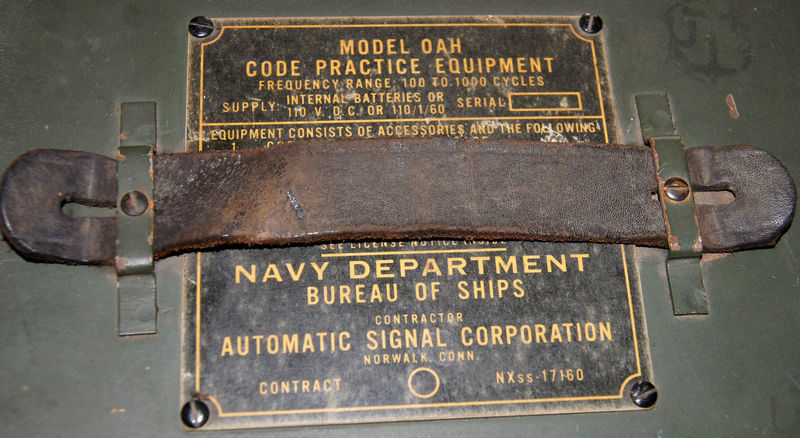

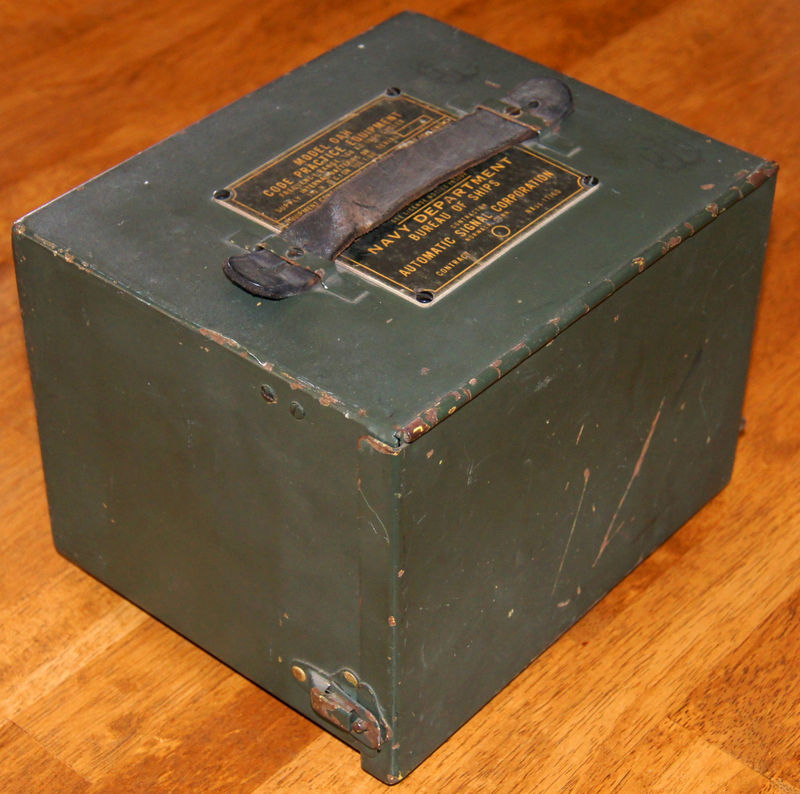

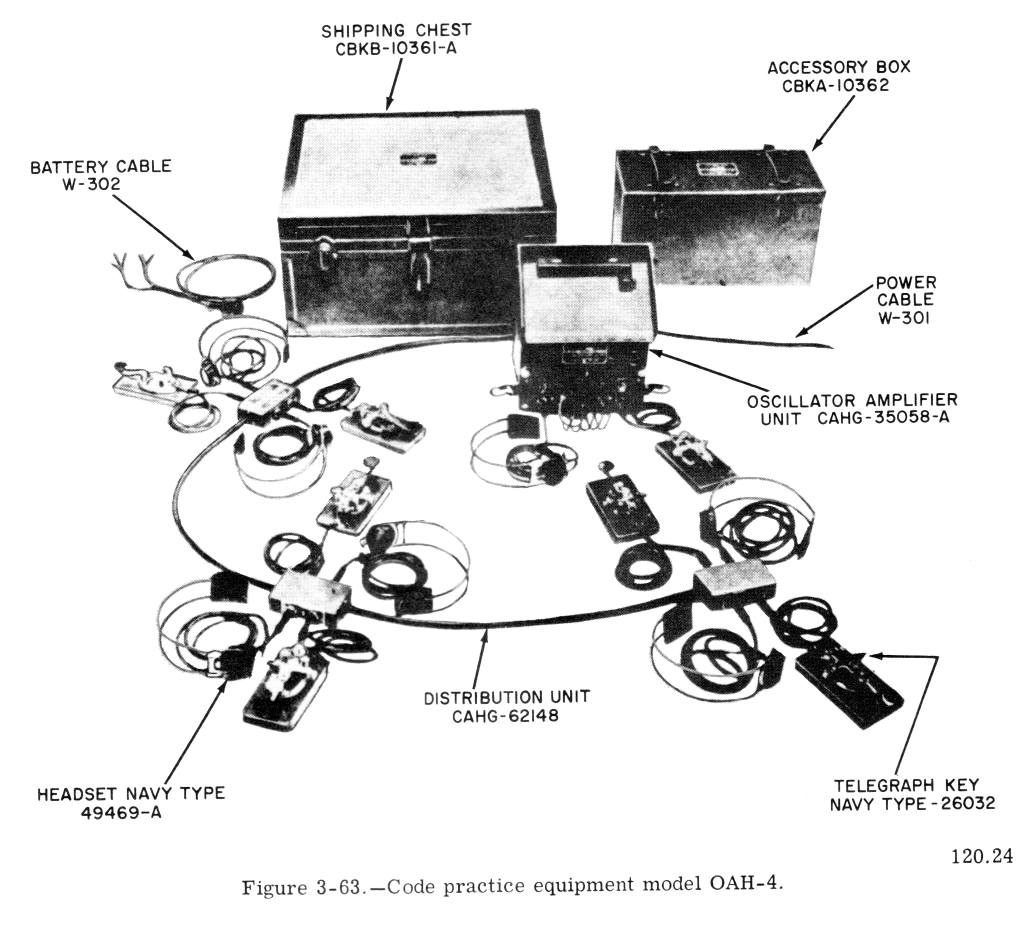

OAH Code Practice System

Download Manual (pdf)
(thanks to Chuck N7UVZ)

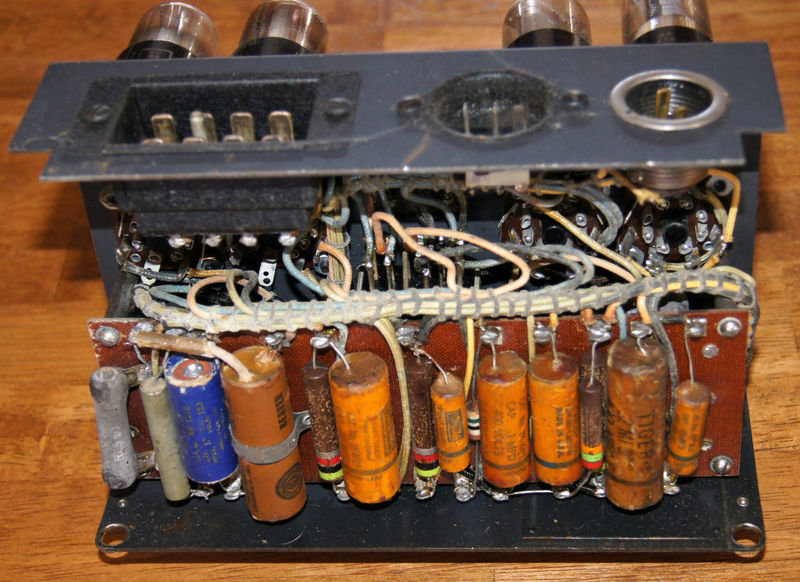

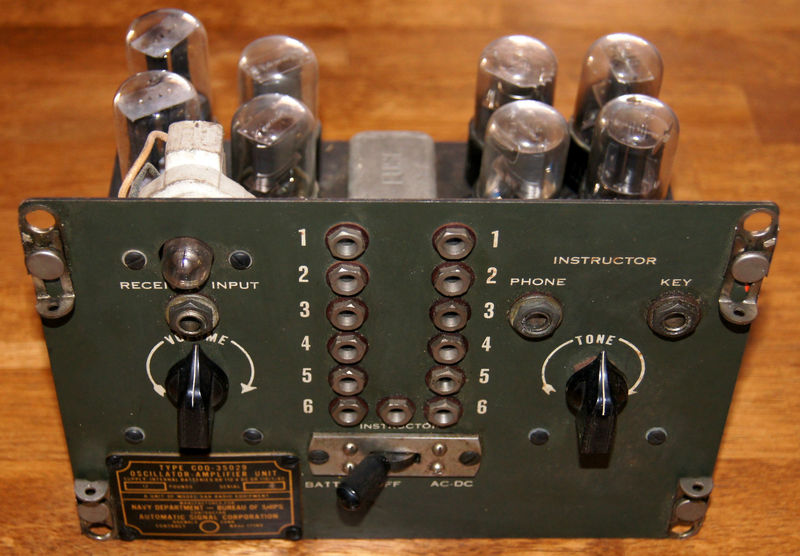

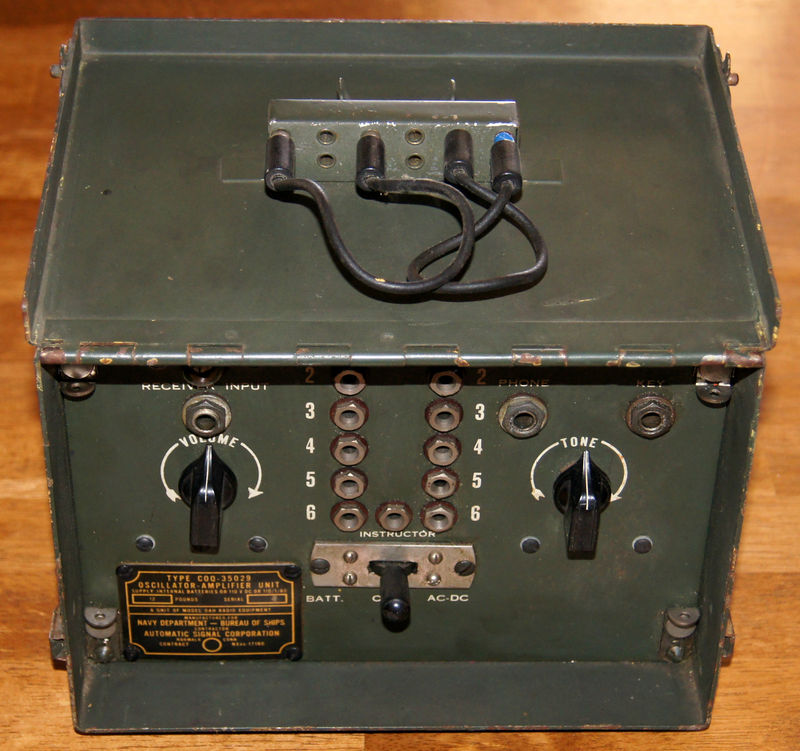

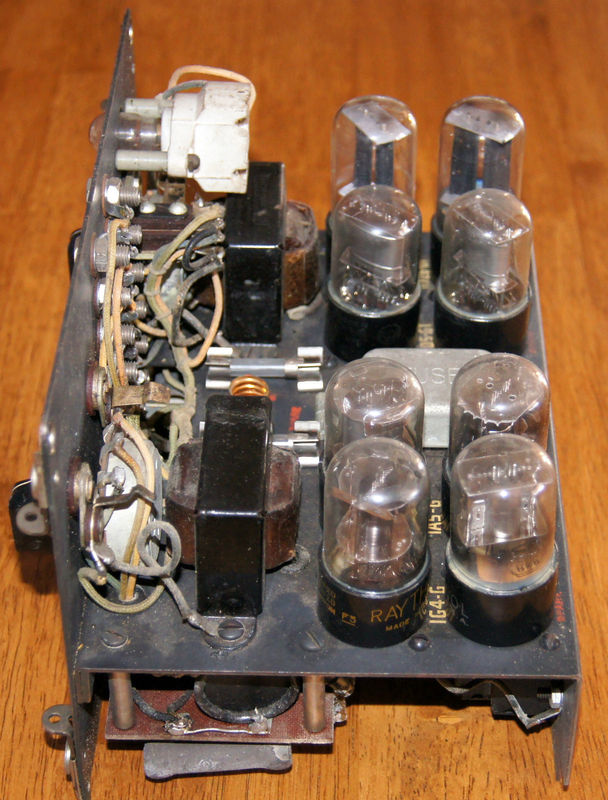

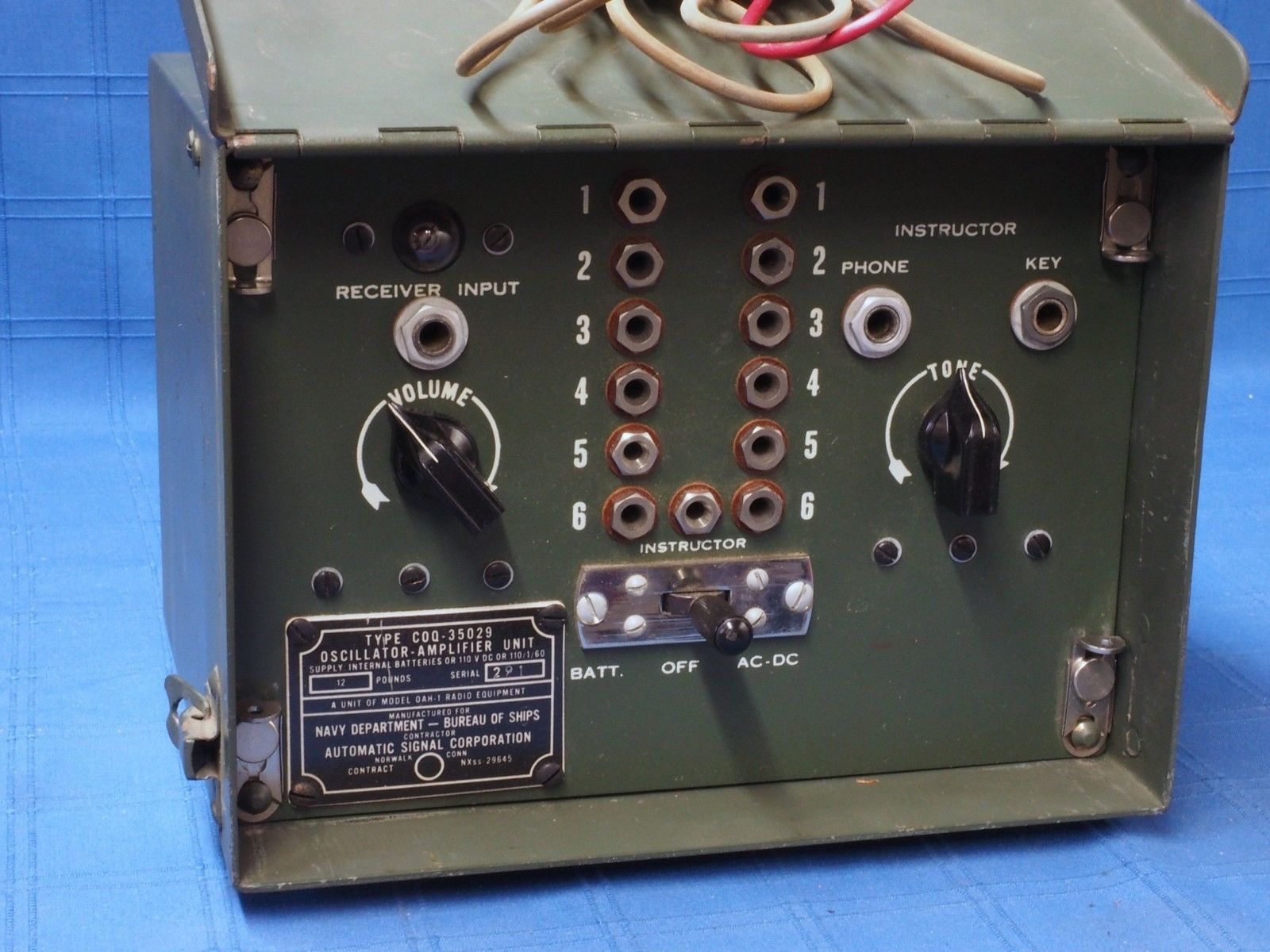

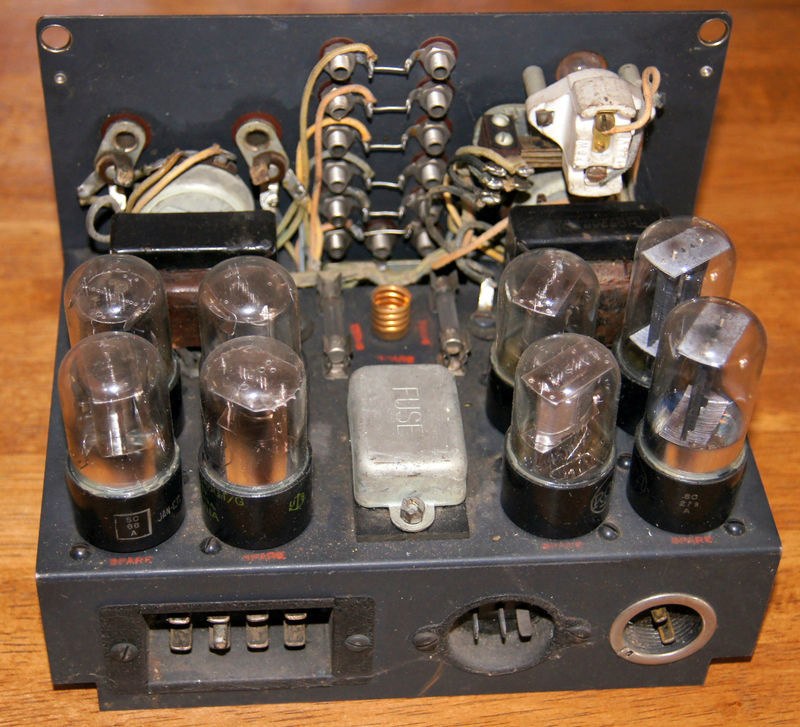

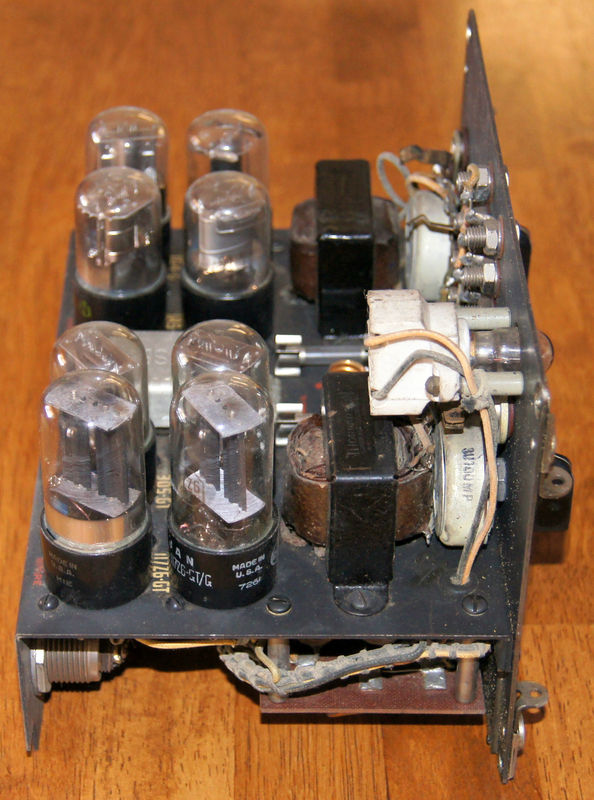

 COQ-35029 OAH Oscillator-Amplifier
oah-120109-06.jpg (118372 bytes) oah-120109-07.jpg (137257 bytes) oah-120109-08.jpg (107633 bytes) oah-120109-09.jpg (125331 bytes)

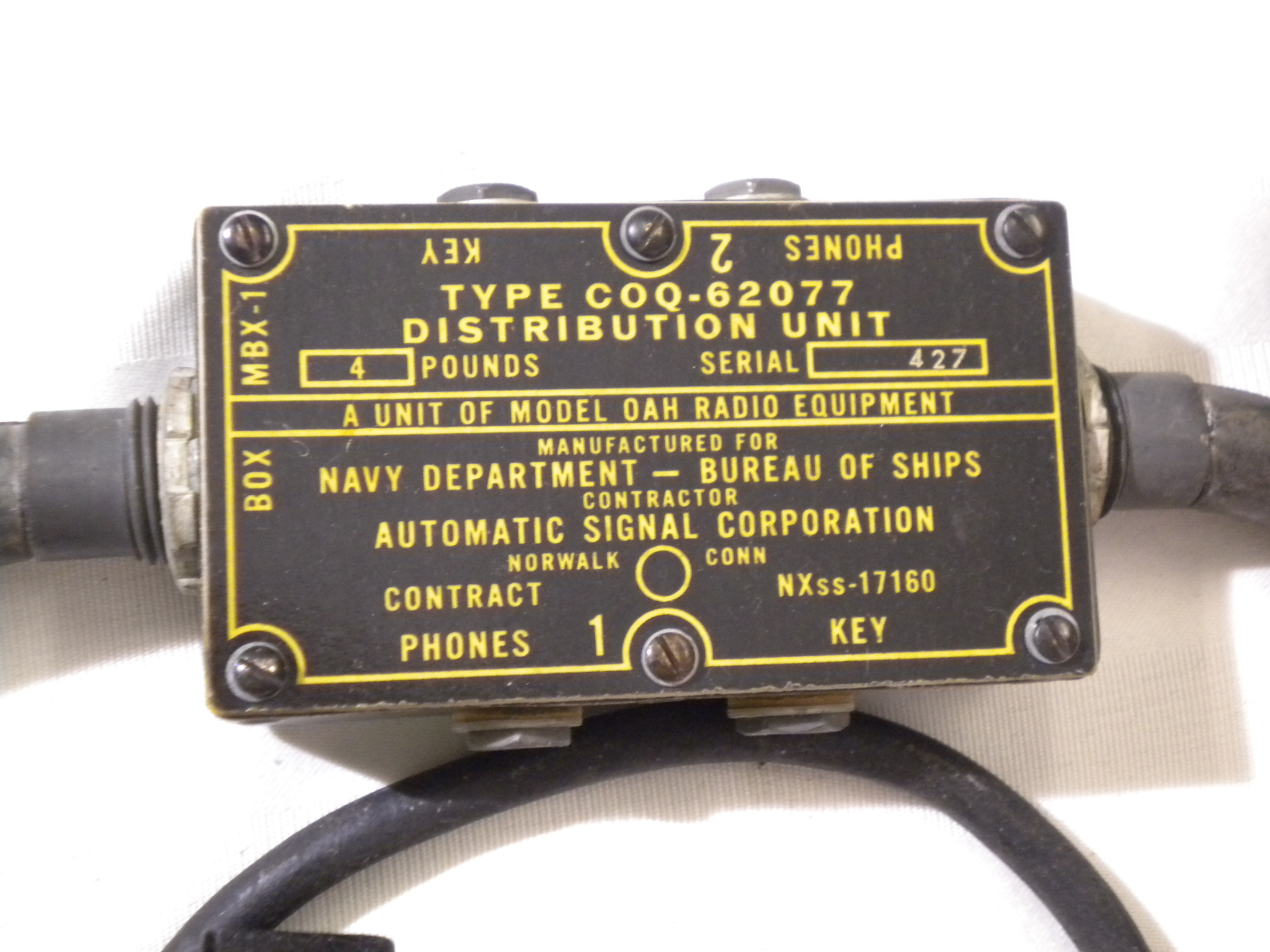

COQ-62077 OAH distribution cable

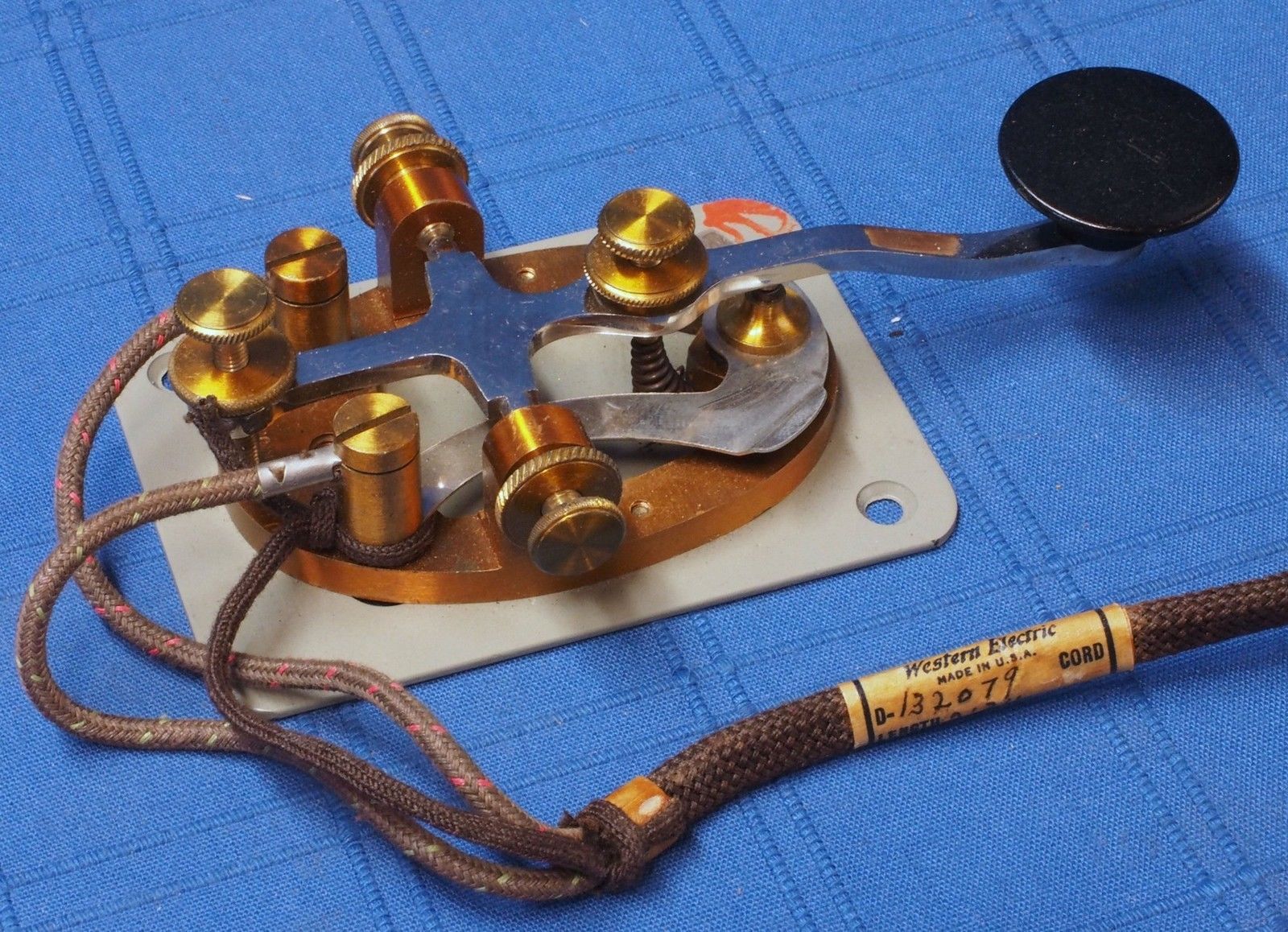

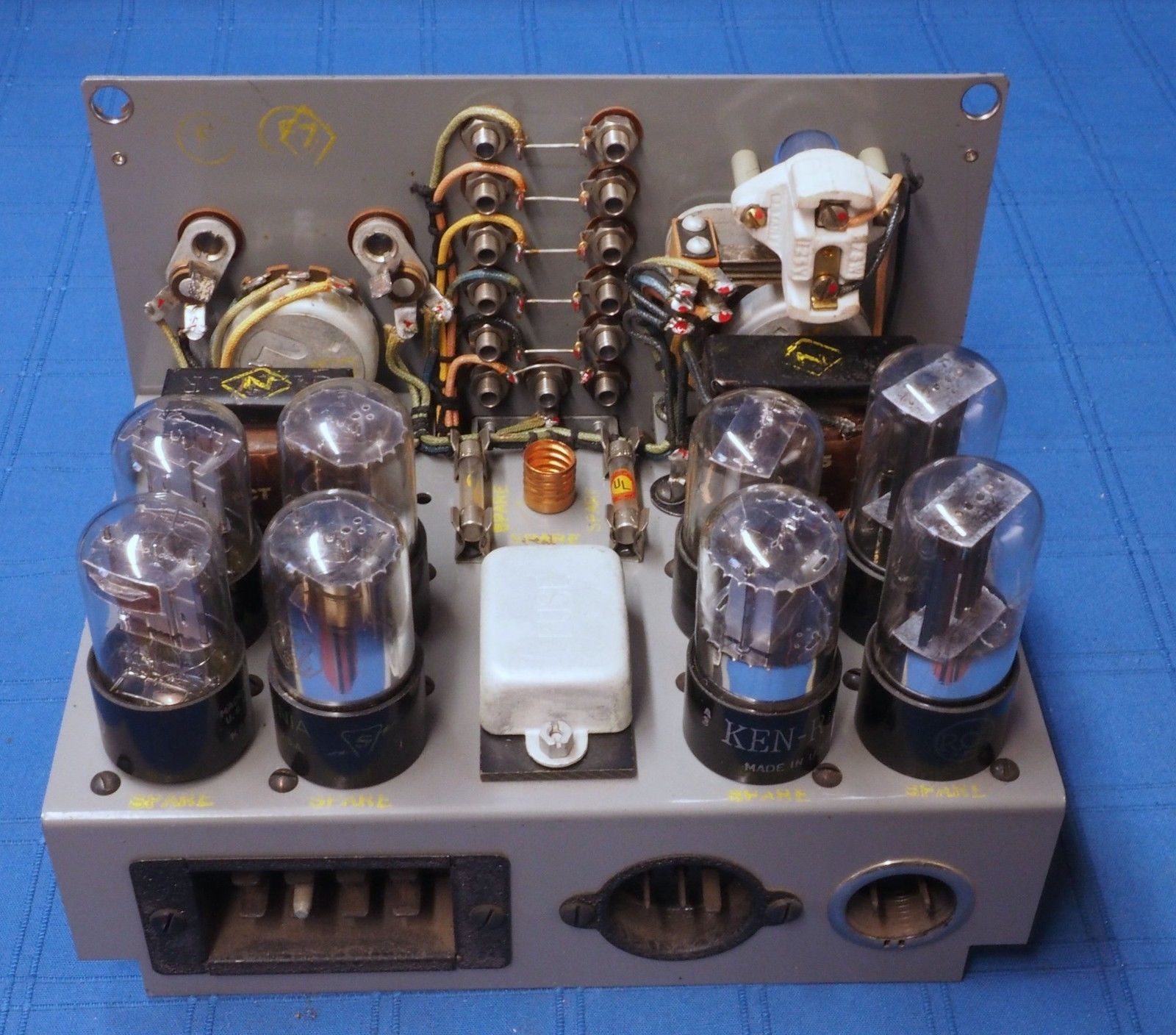

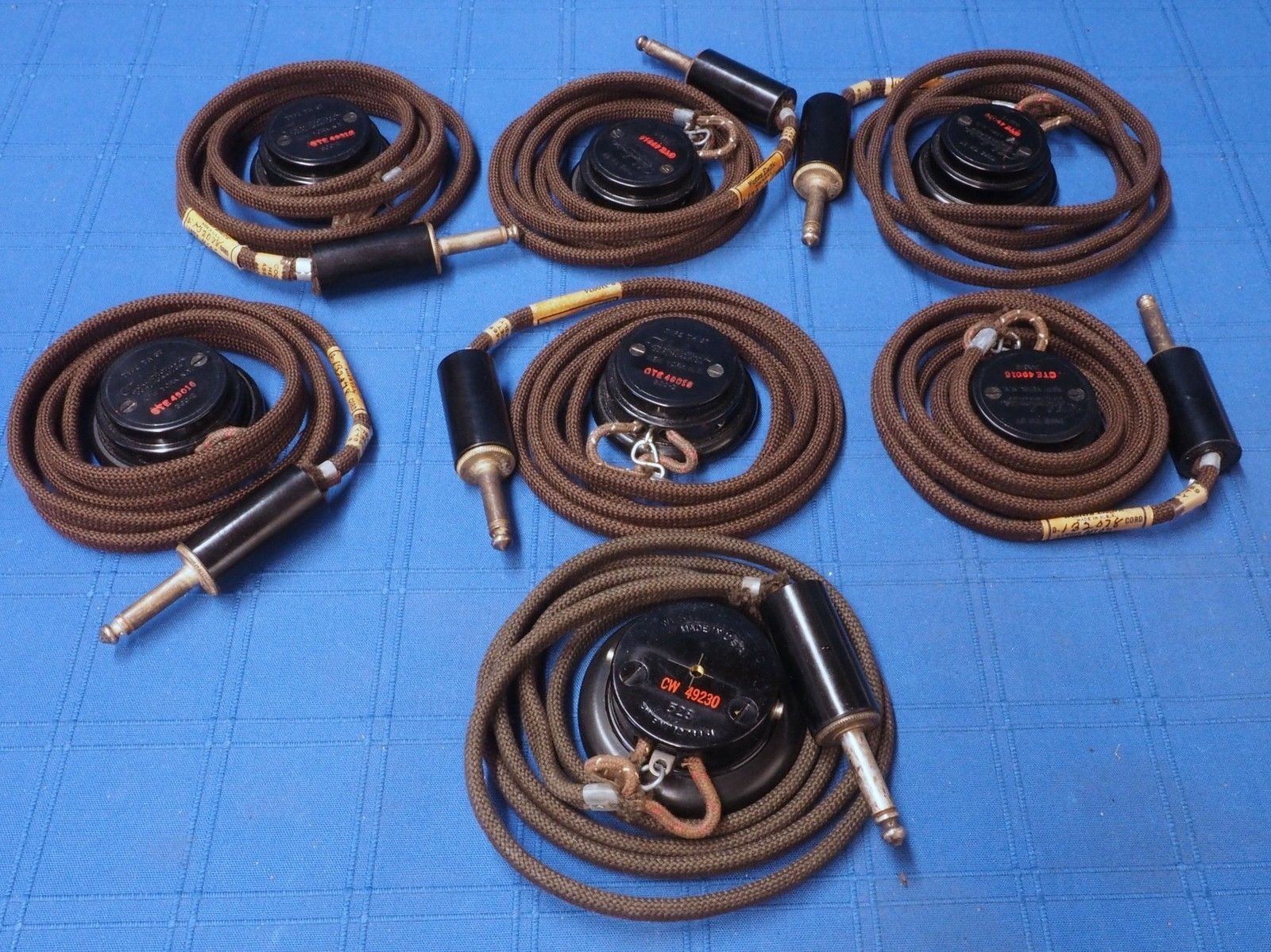

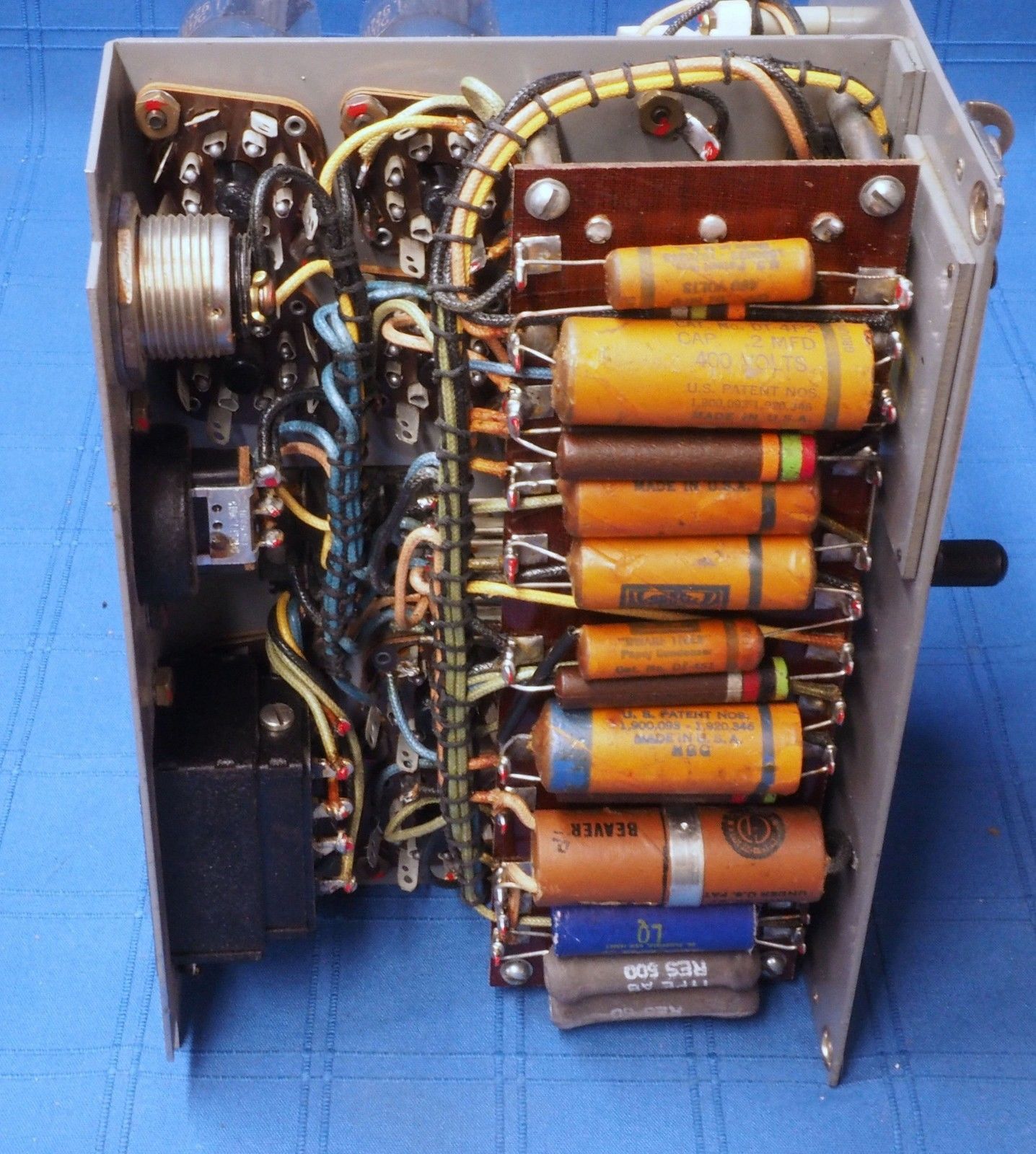

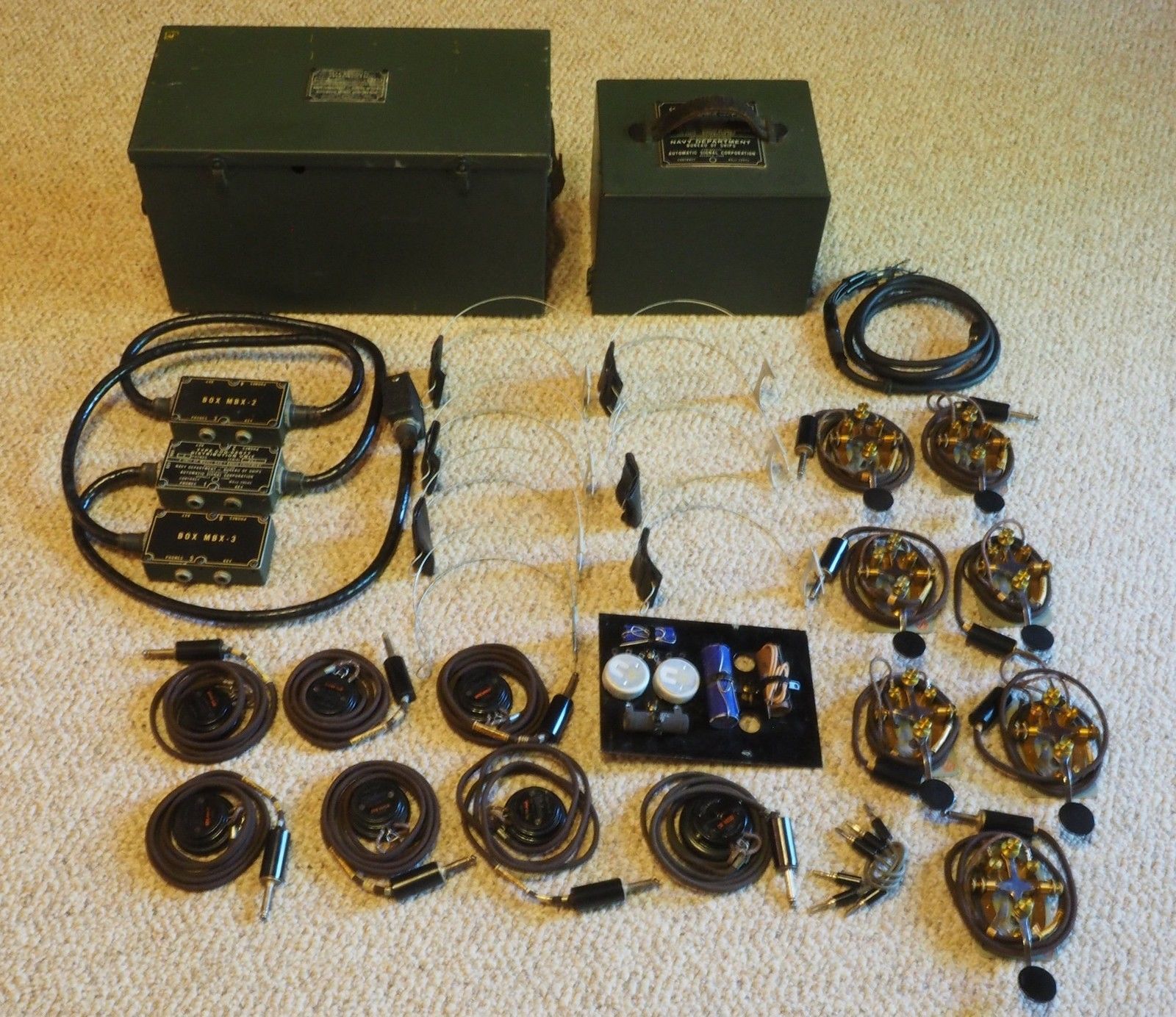

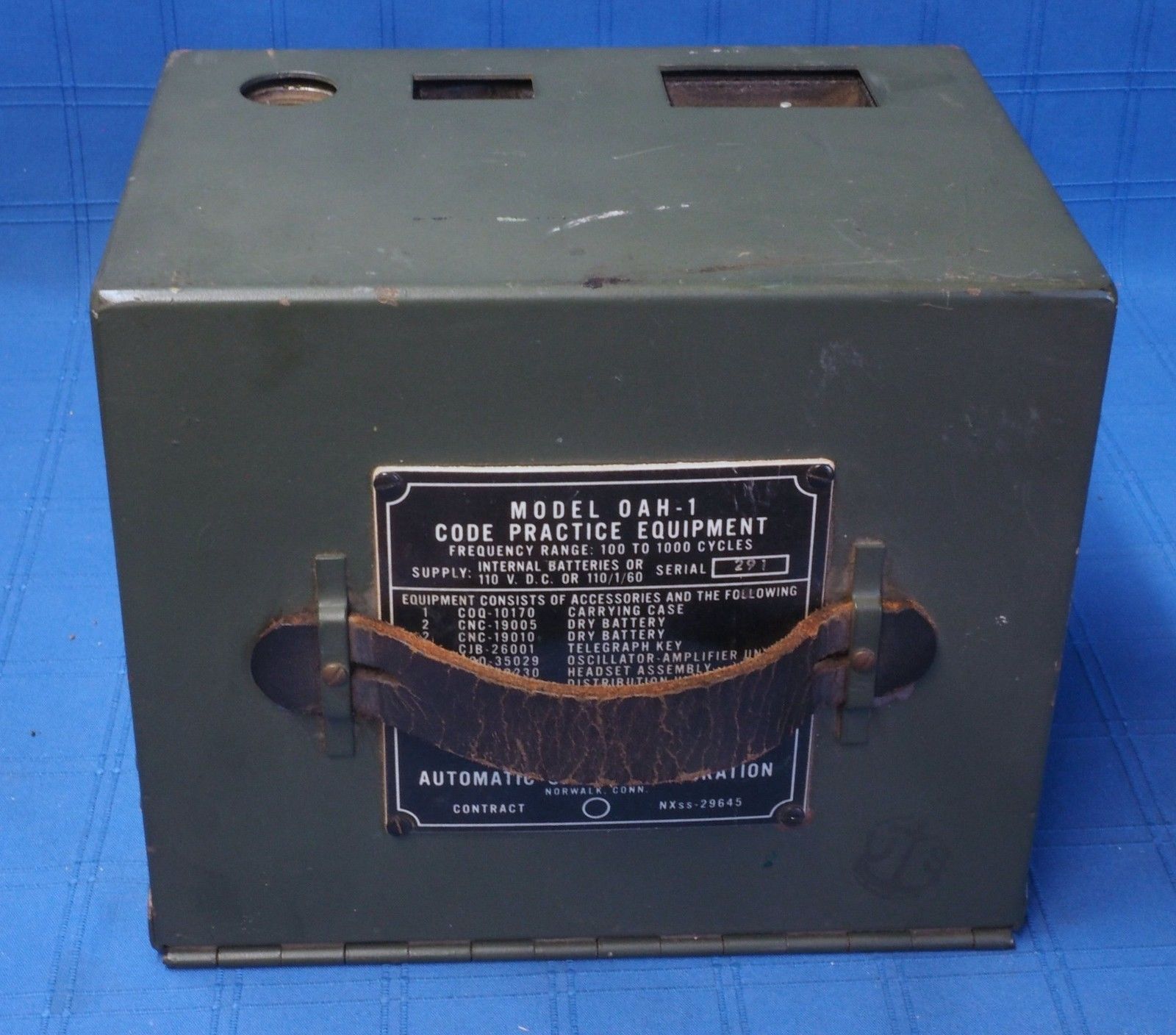

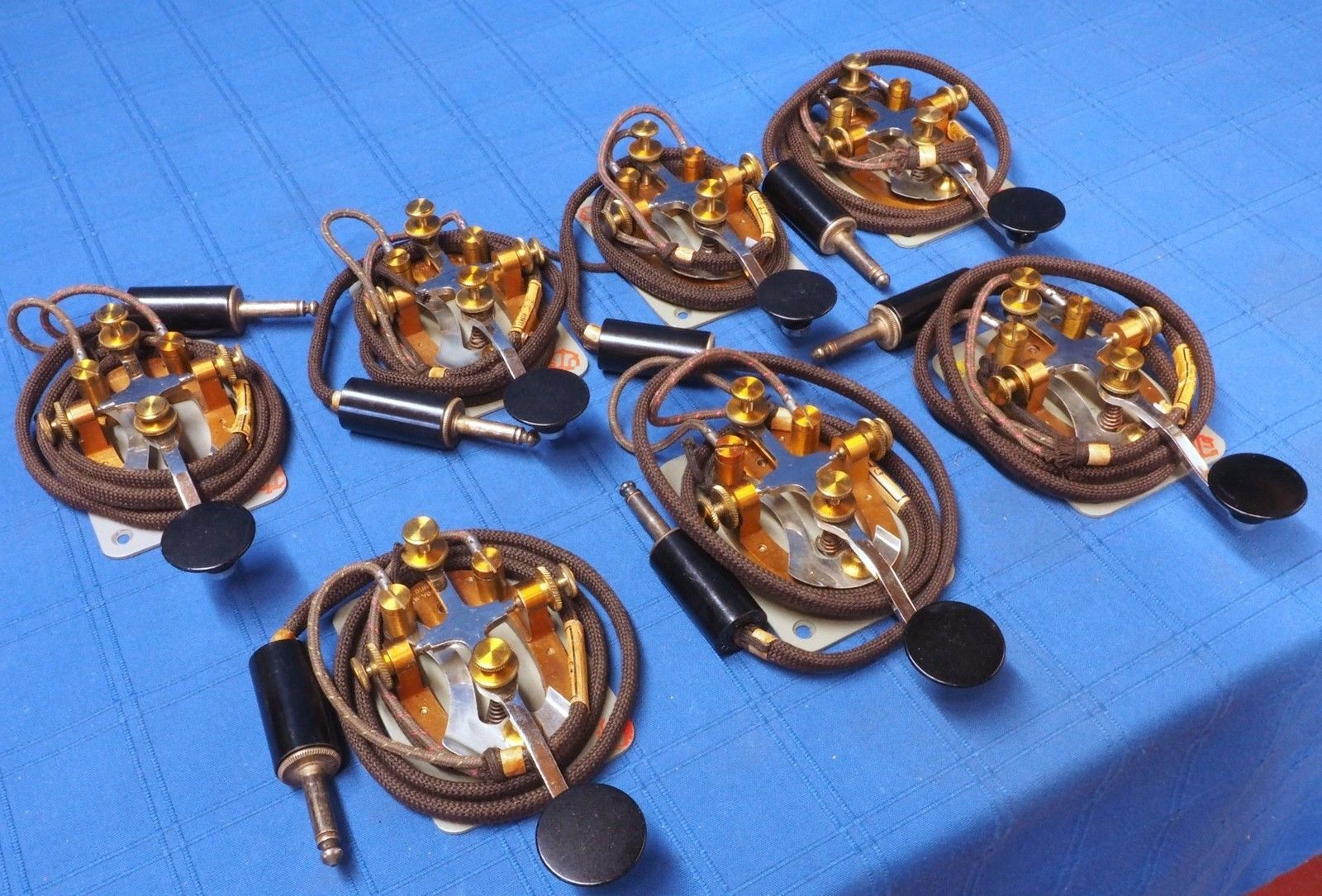

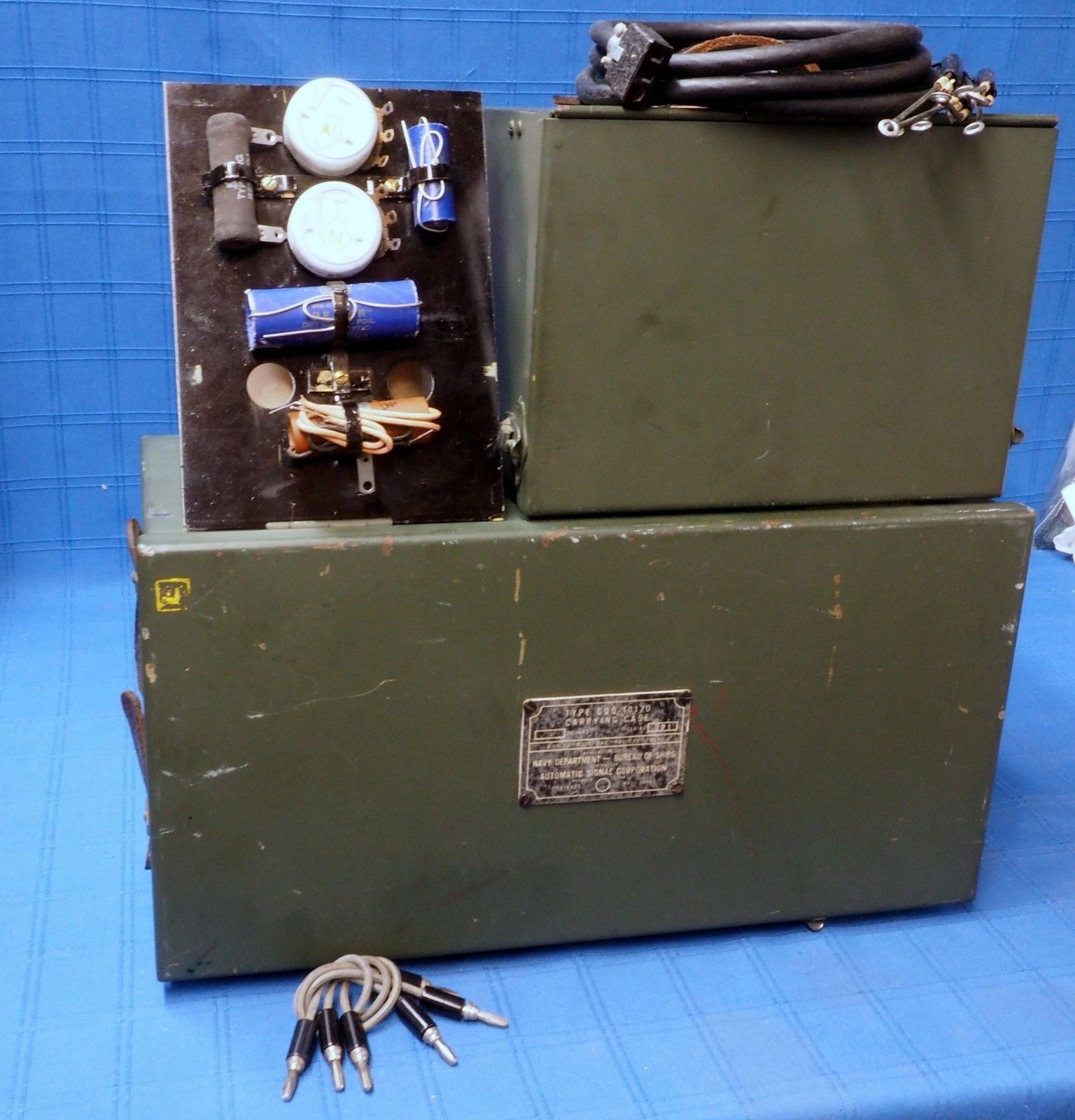

OAH-1 (COQ-35029)

oah1-1604-05.jpg (425063 bytes) oah1-1604-06.jpg (242431 bytes) oah1-1604-07.jpg (242753 bytes) oah1-1604-08.jpg (308161 bytes)

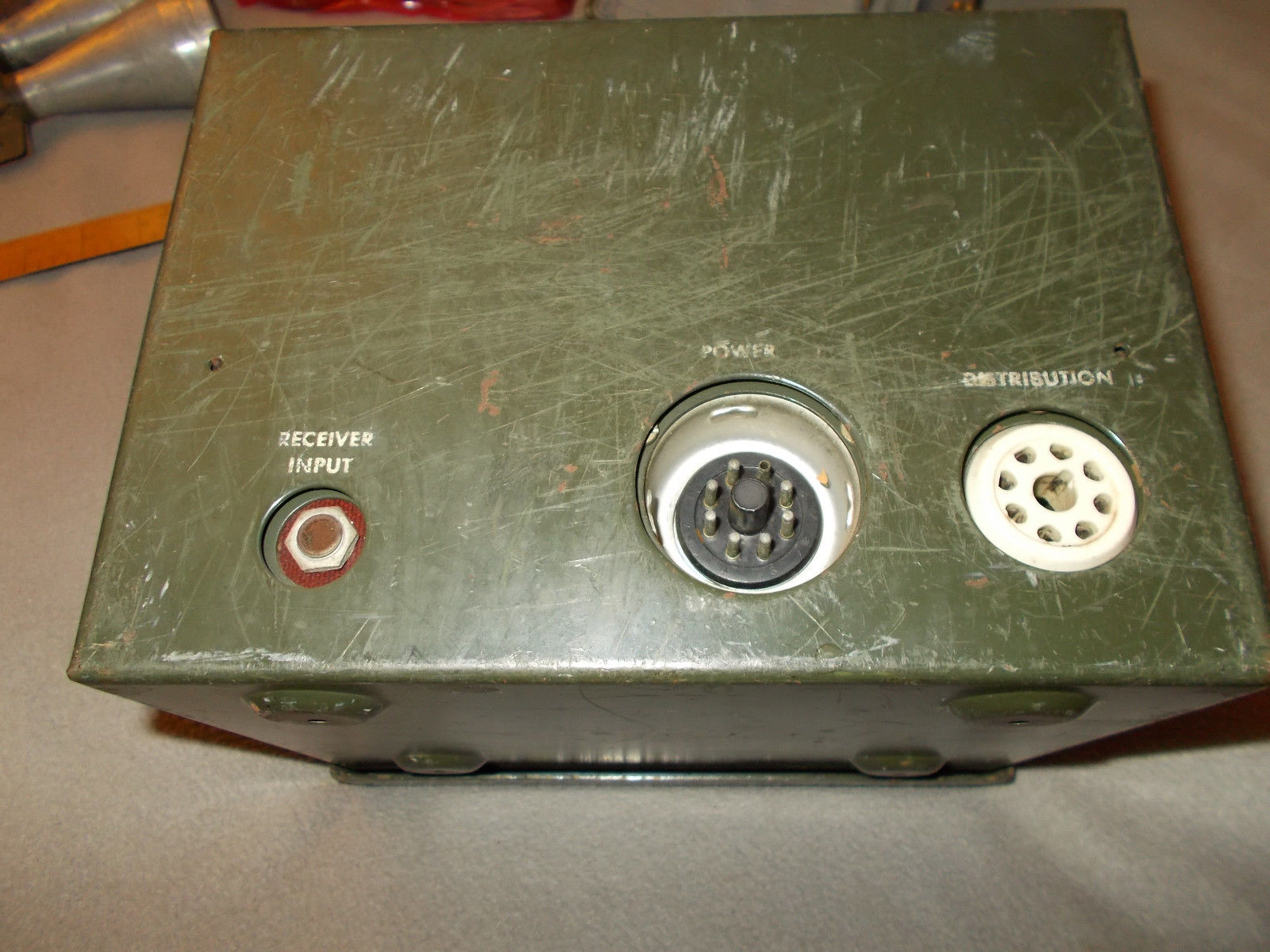

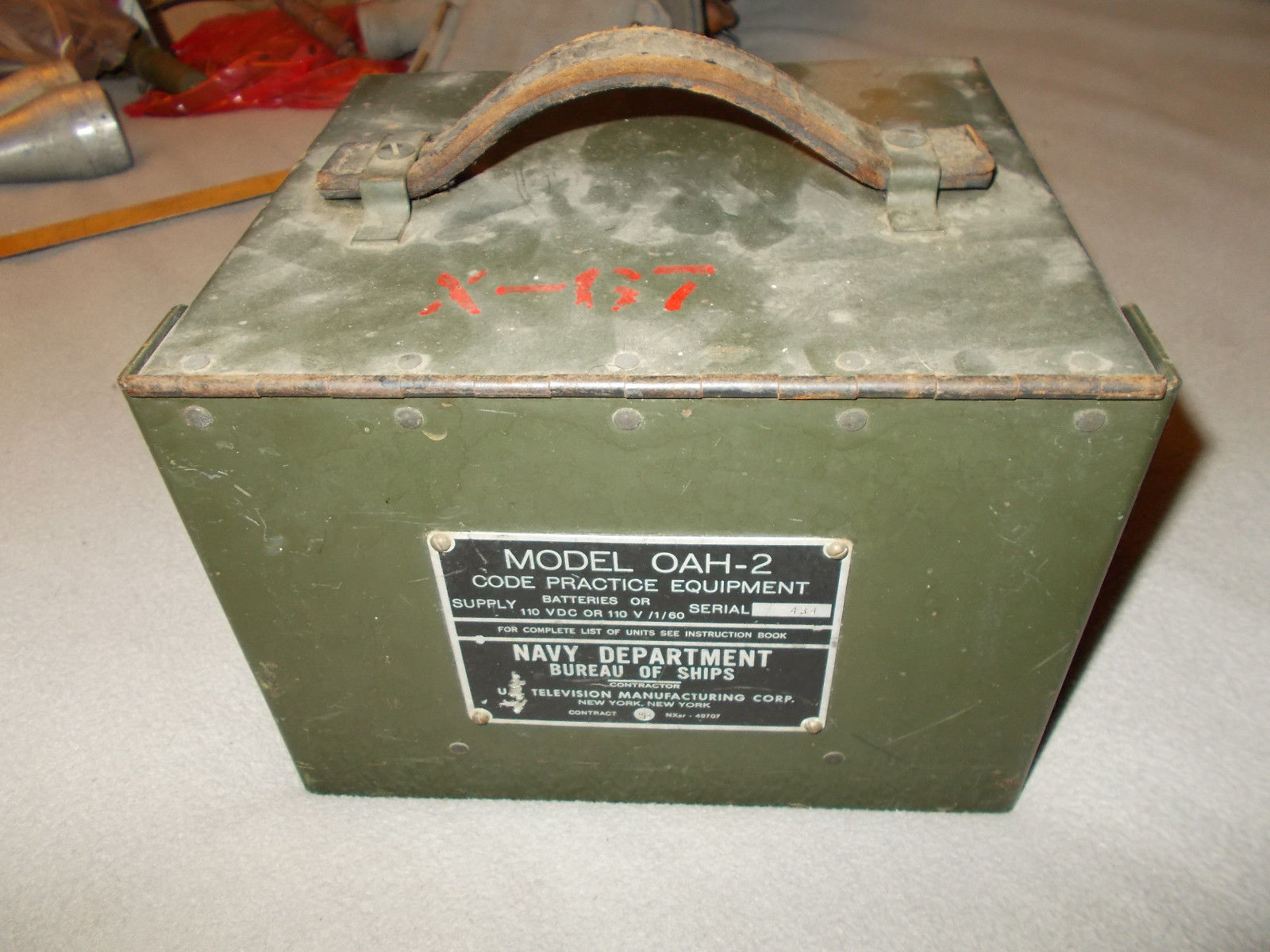

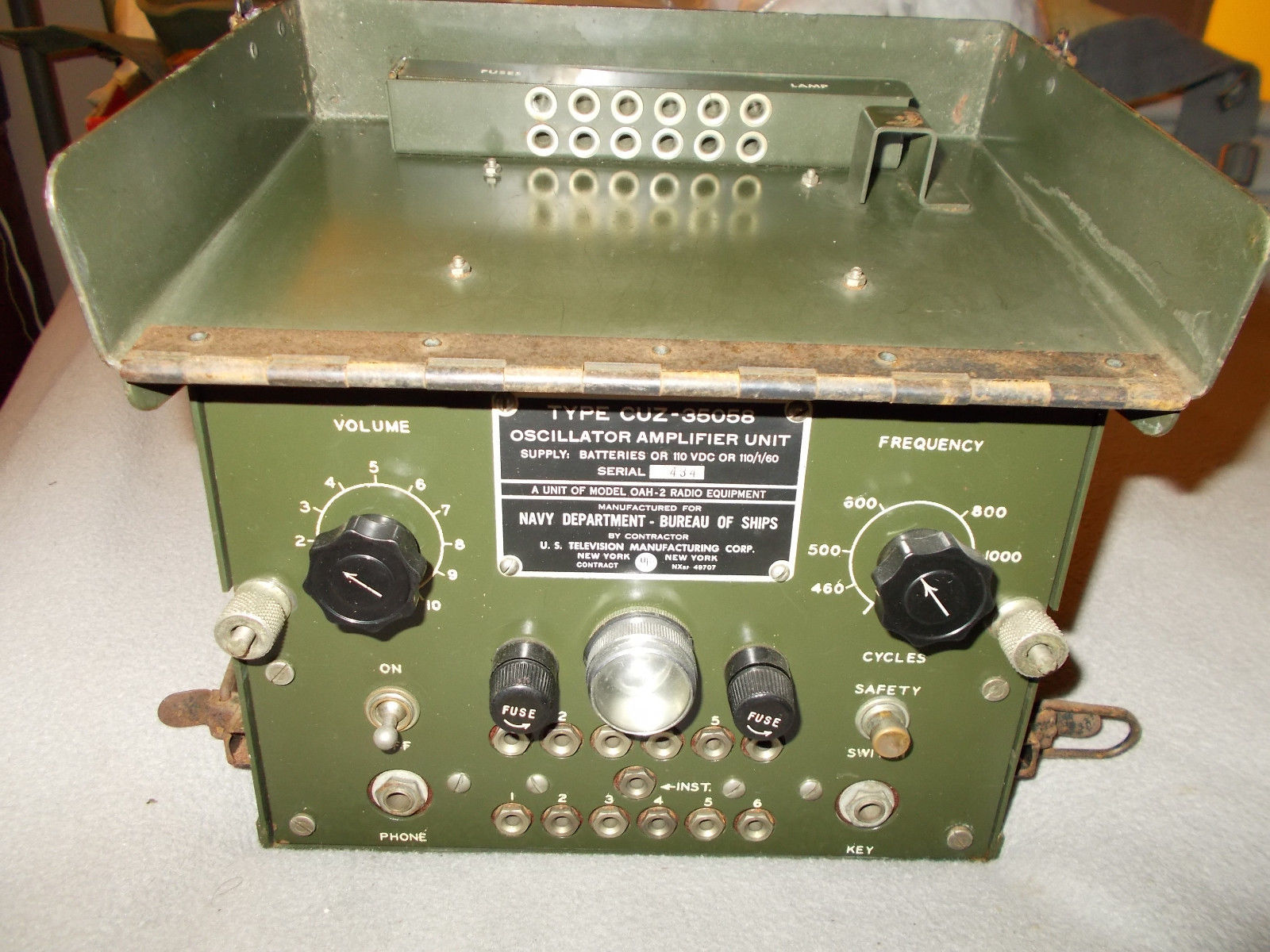

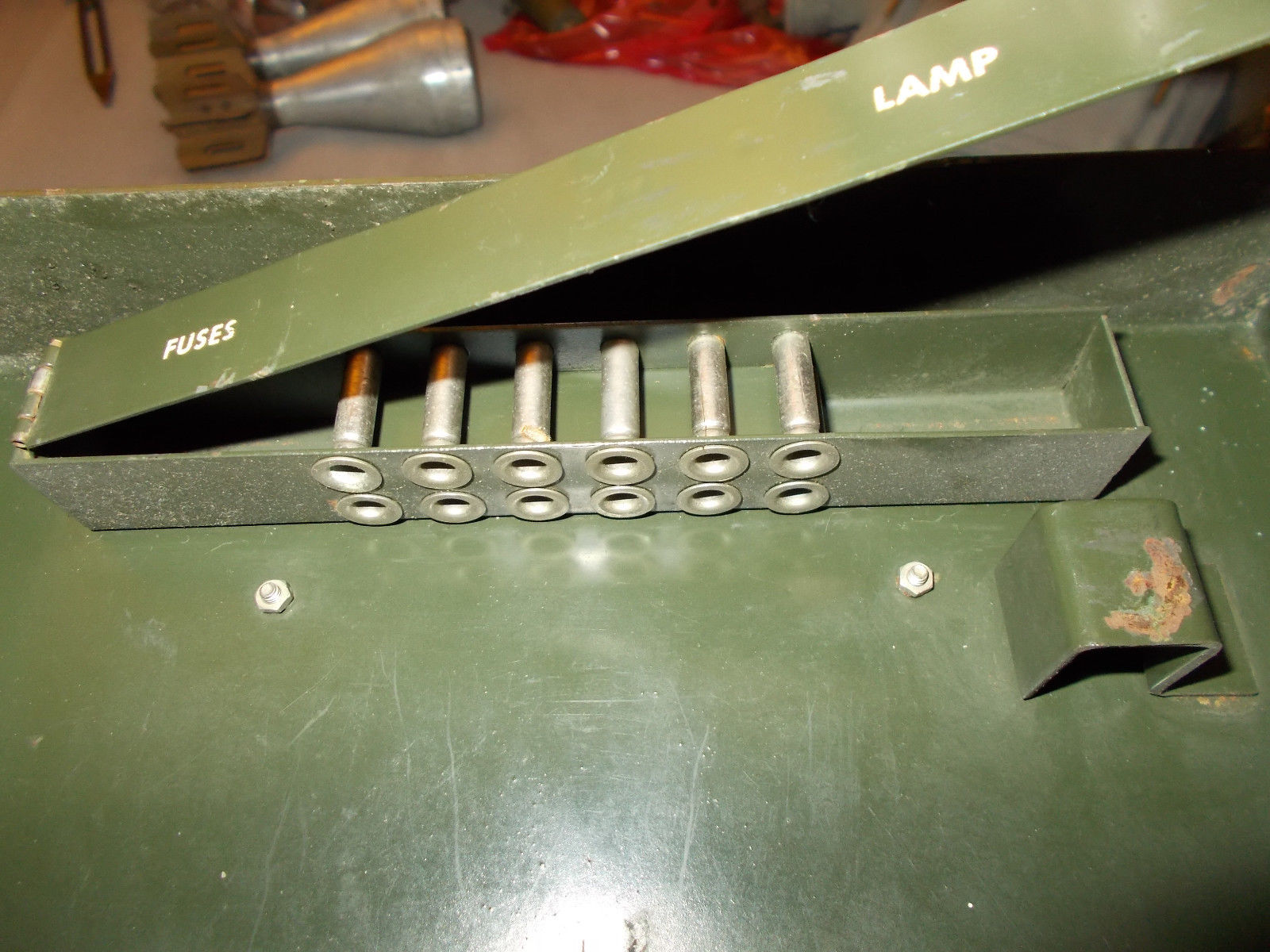

OAH-2 (CUZ-35058)

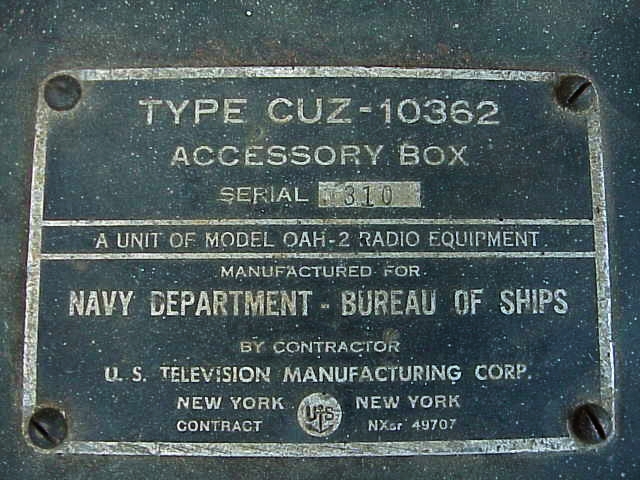

(CUZ-10362)

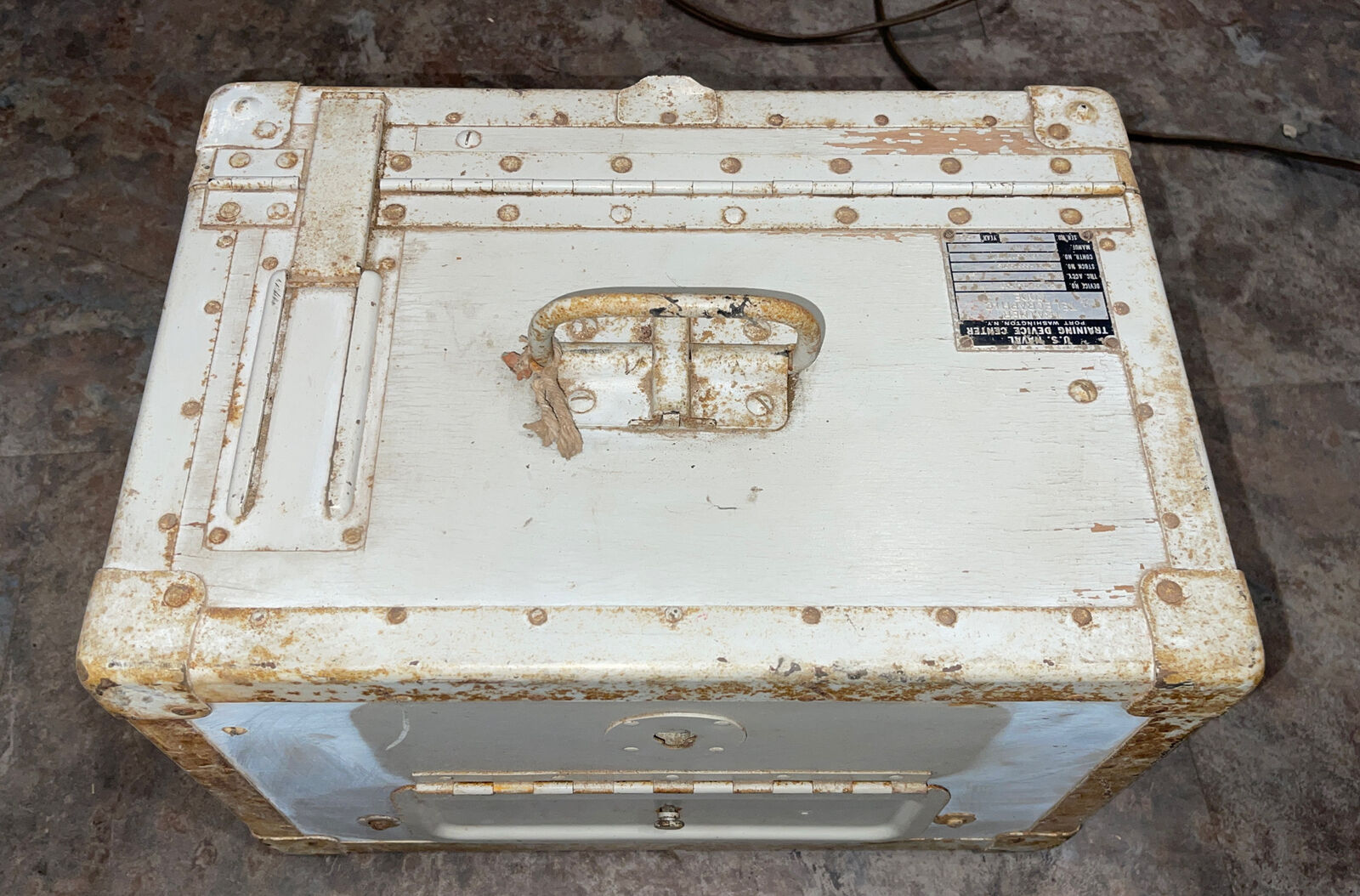

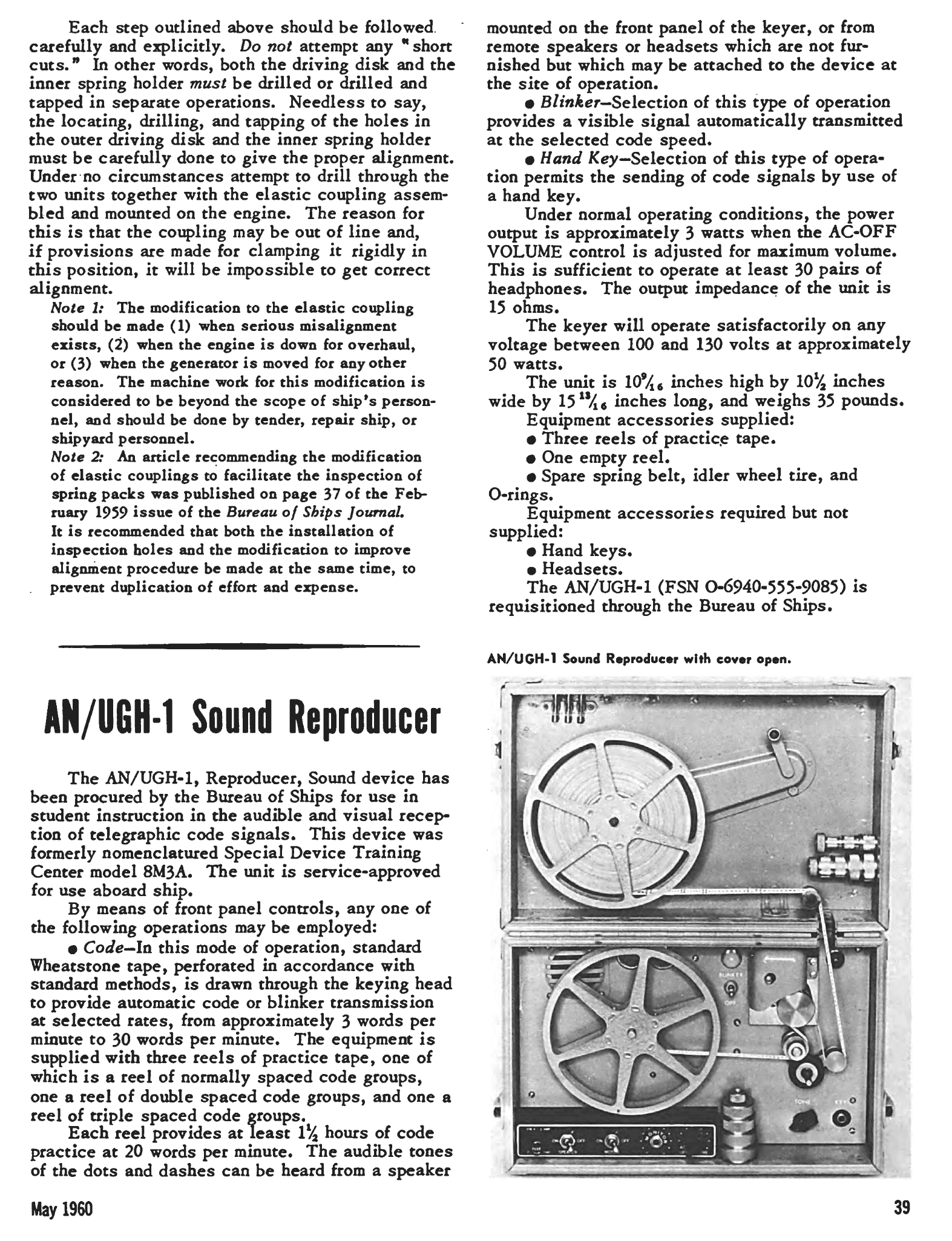

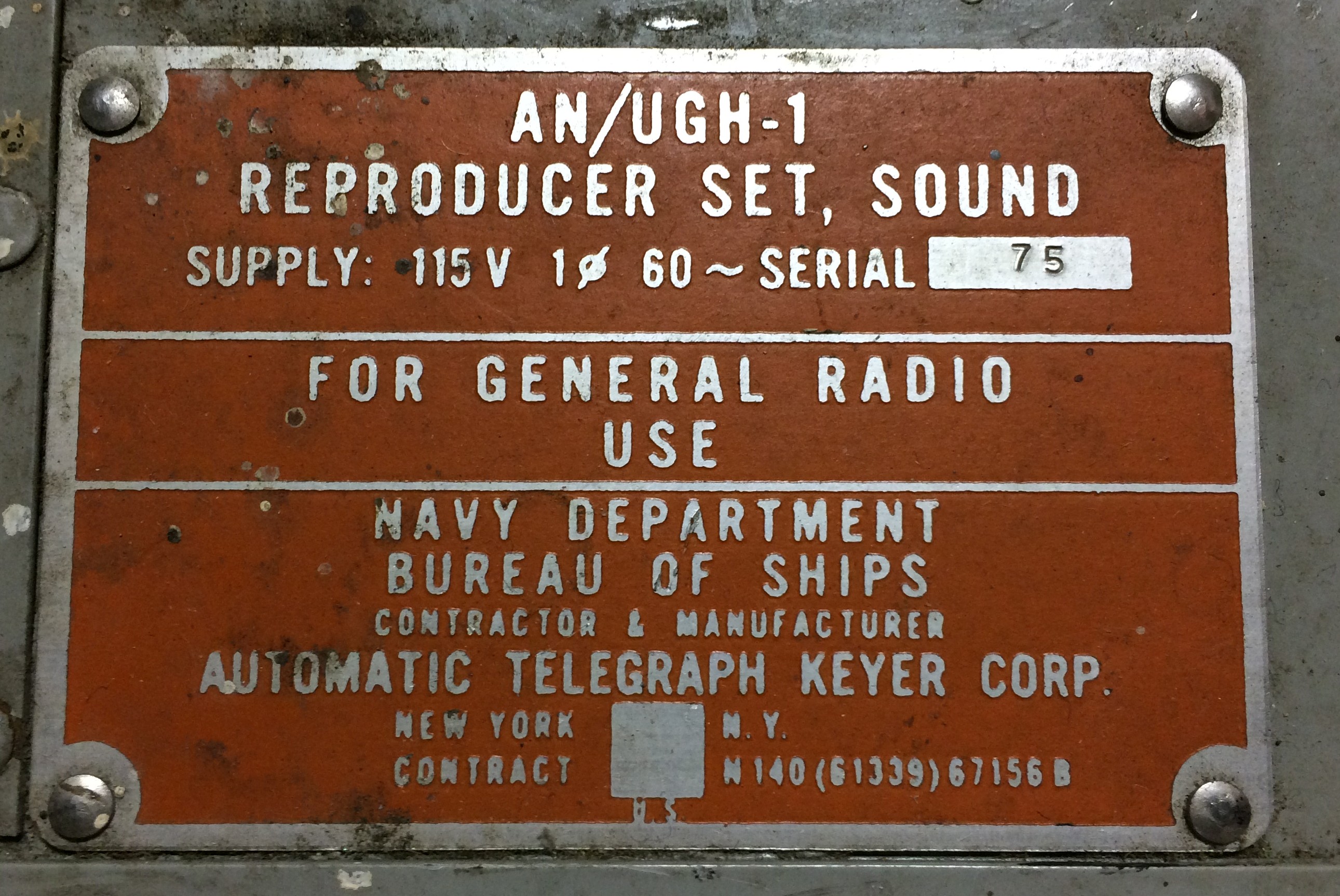

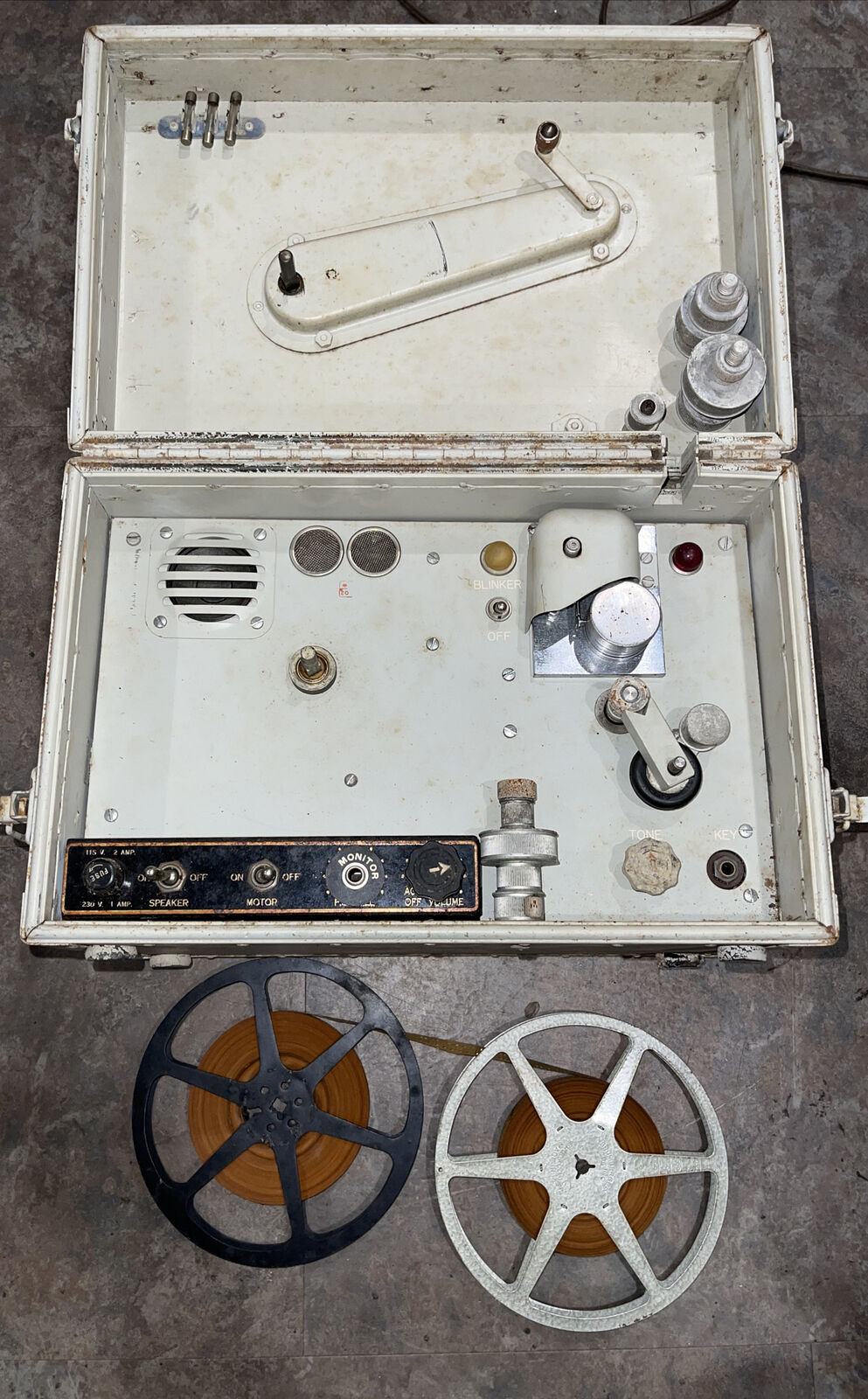

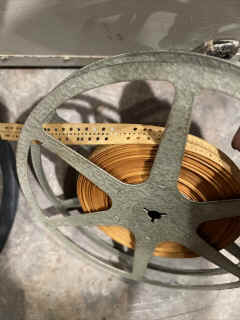

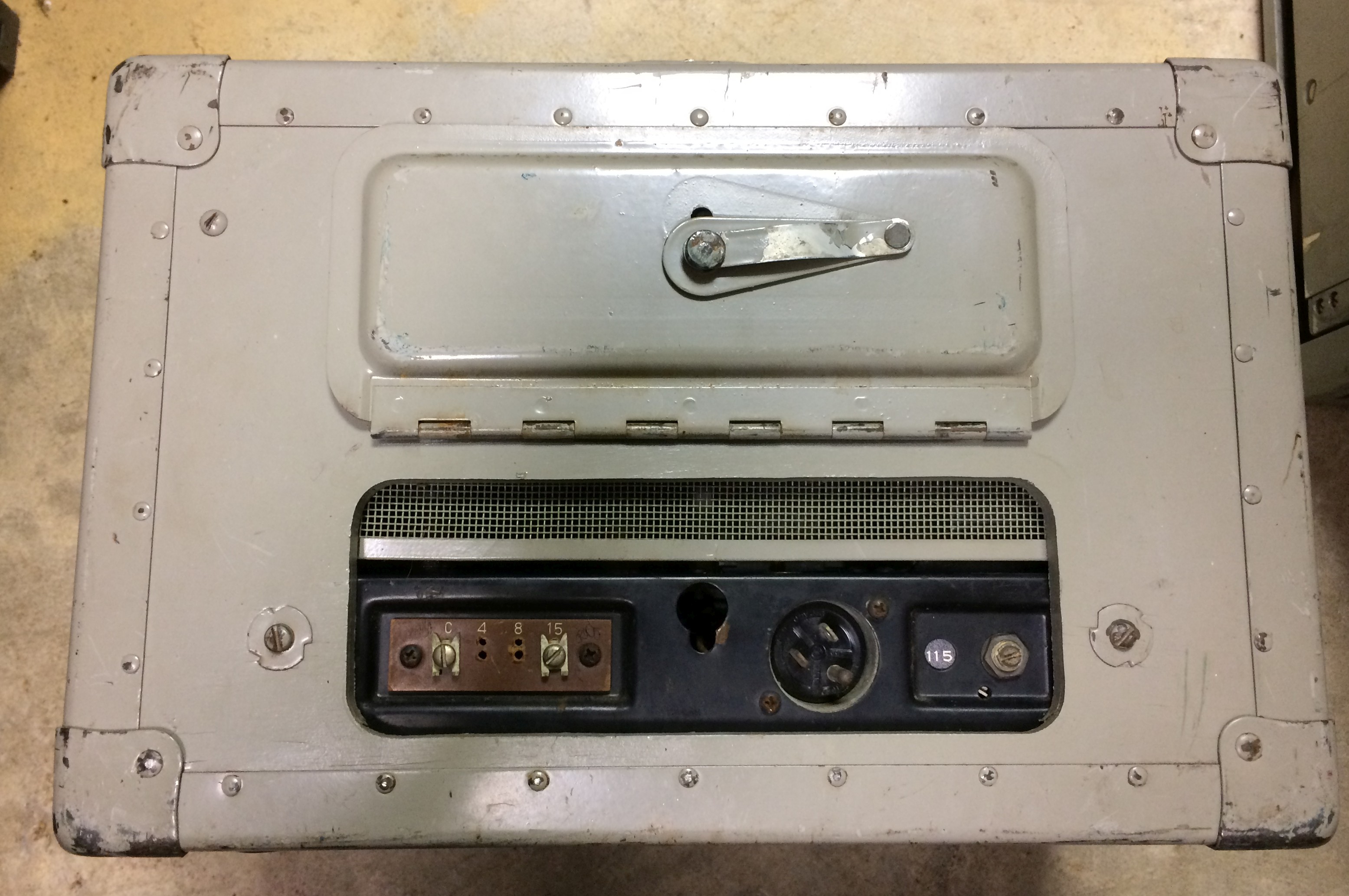

AN/UGH-1 paper tape code practice machine

Please let me know if you have a manual (NAVSHIPS 93364) or schematic

Very similar to TG-34 equipment except UGH-1 reads perforated Wheatstone paper tape instead of inked tape. UGH-1 speed selection uses different sizes of capstan.

Speed 3 to 30 wpm

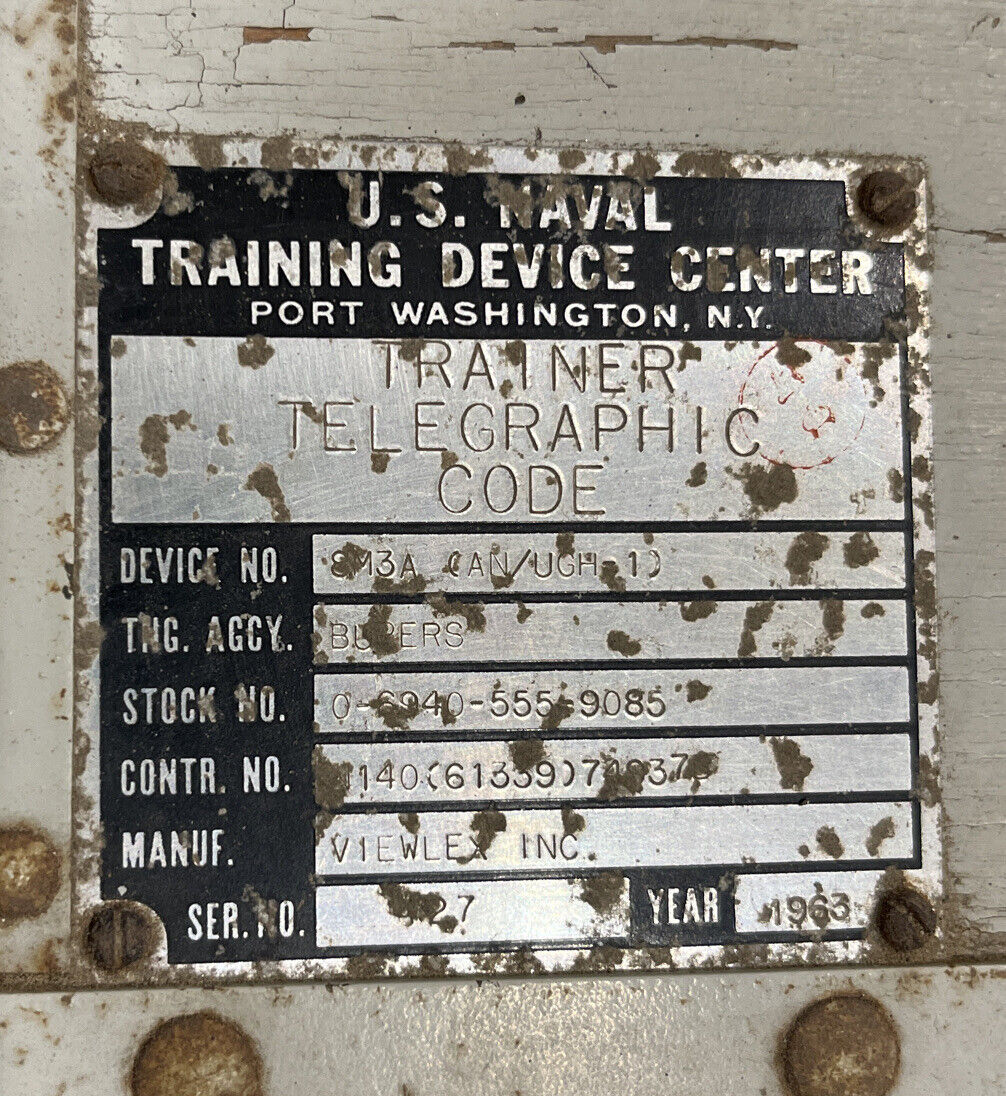

AN/UGH-1 is same as Trainer, Telegraphic Code Device 8M3A







Tape hole contacts

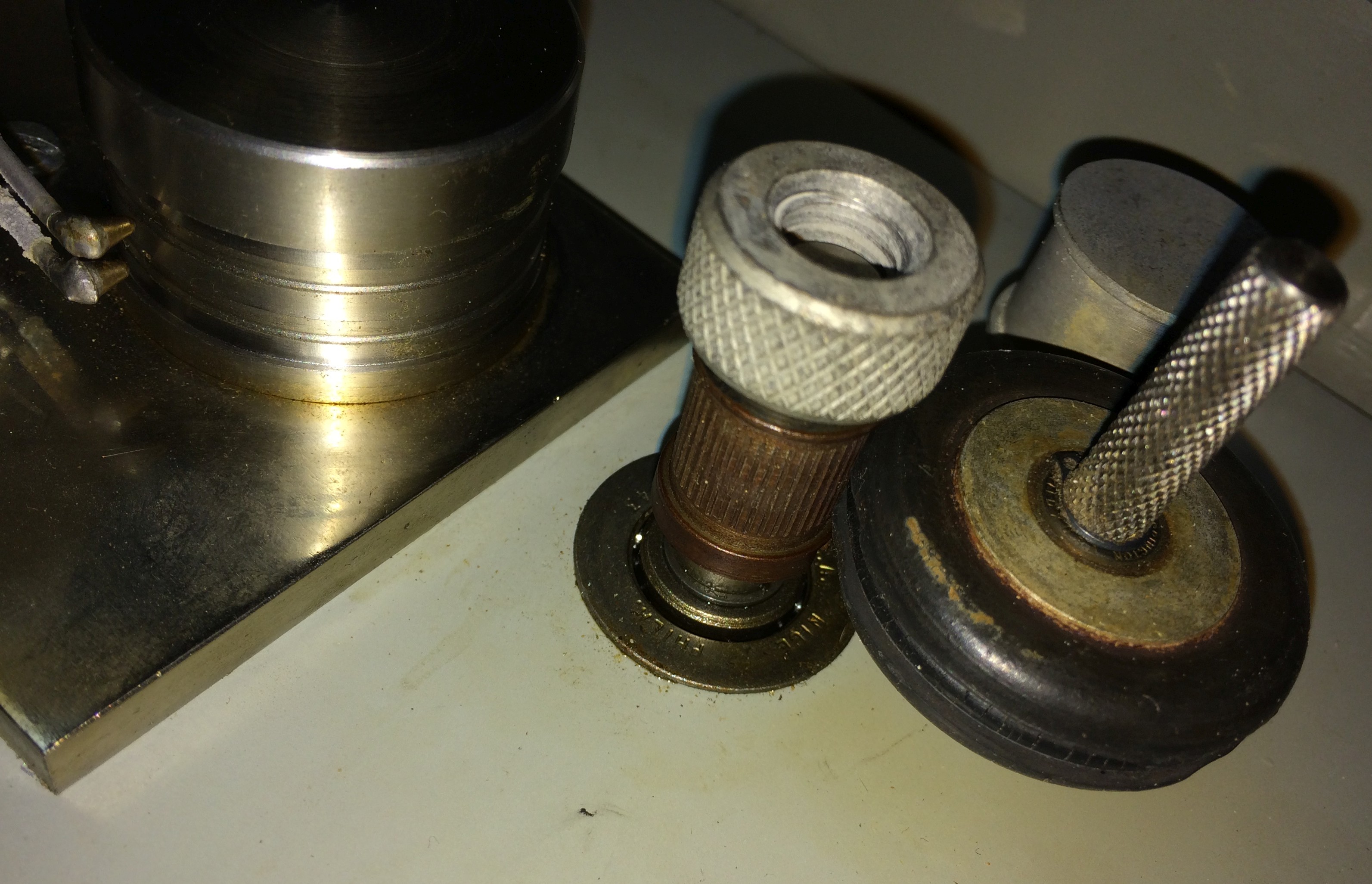

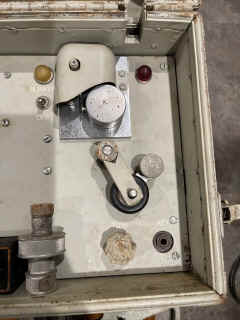

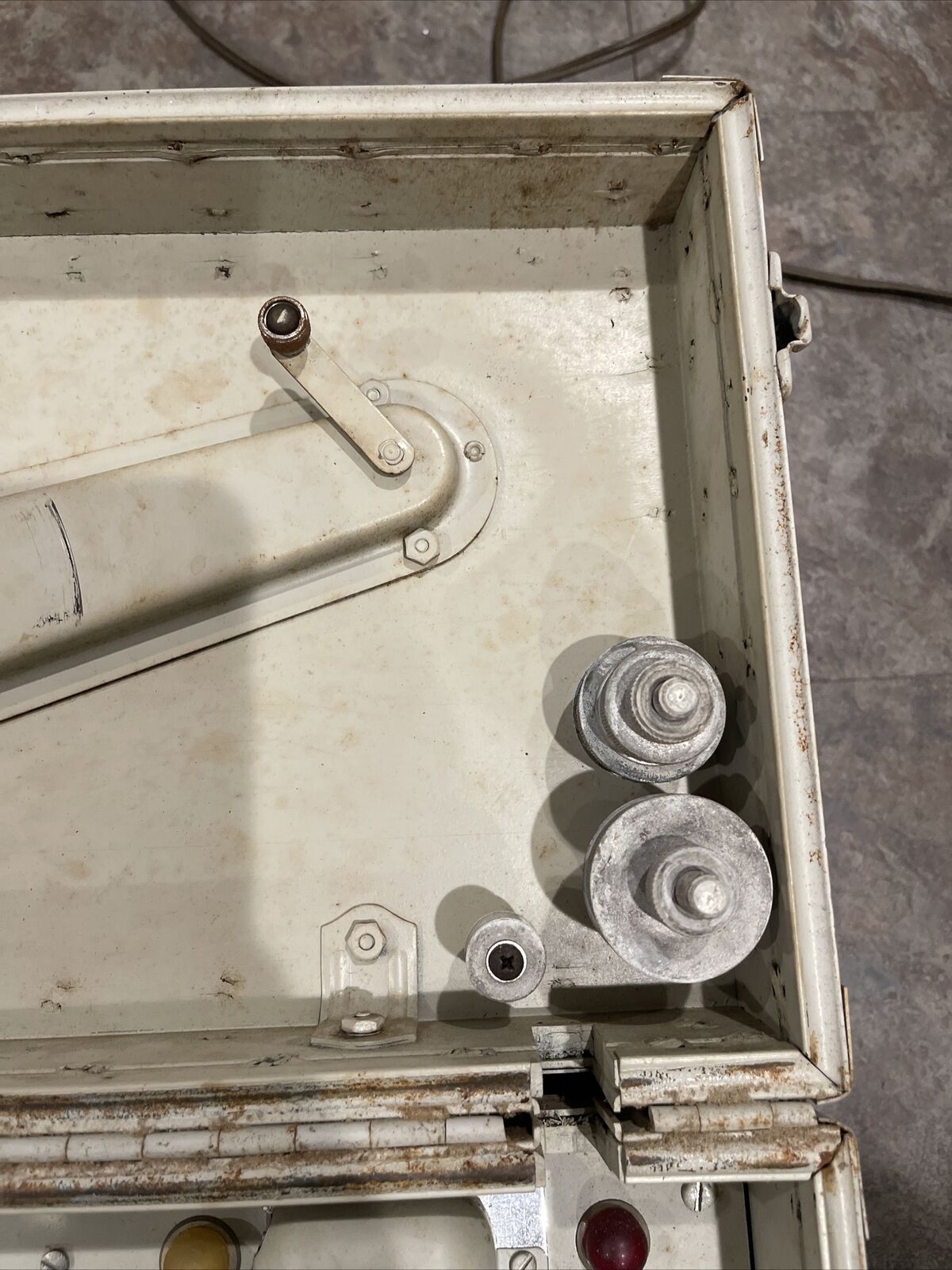

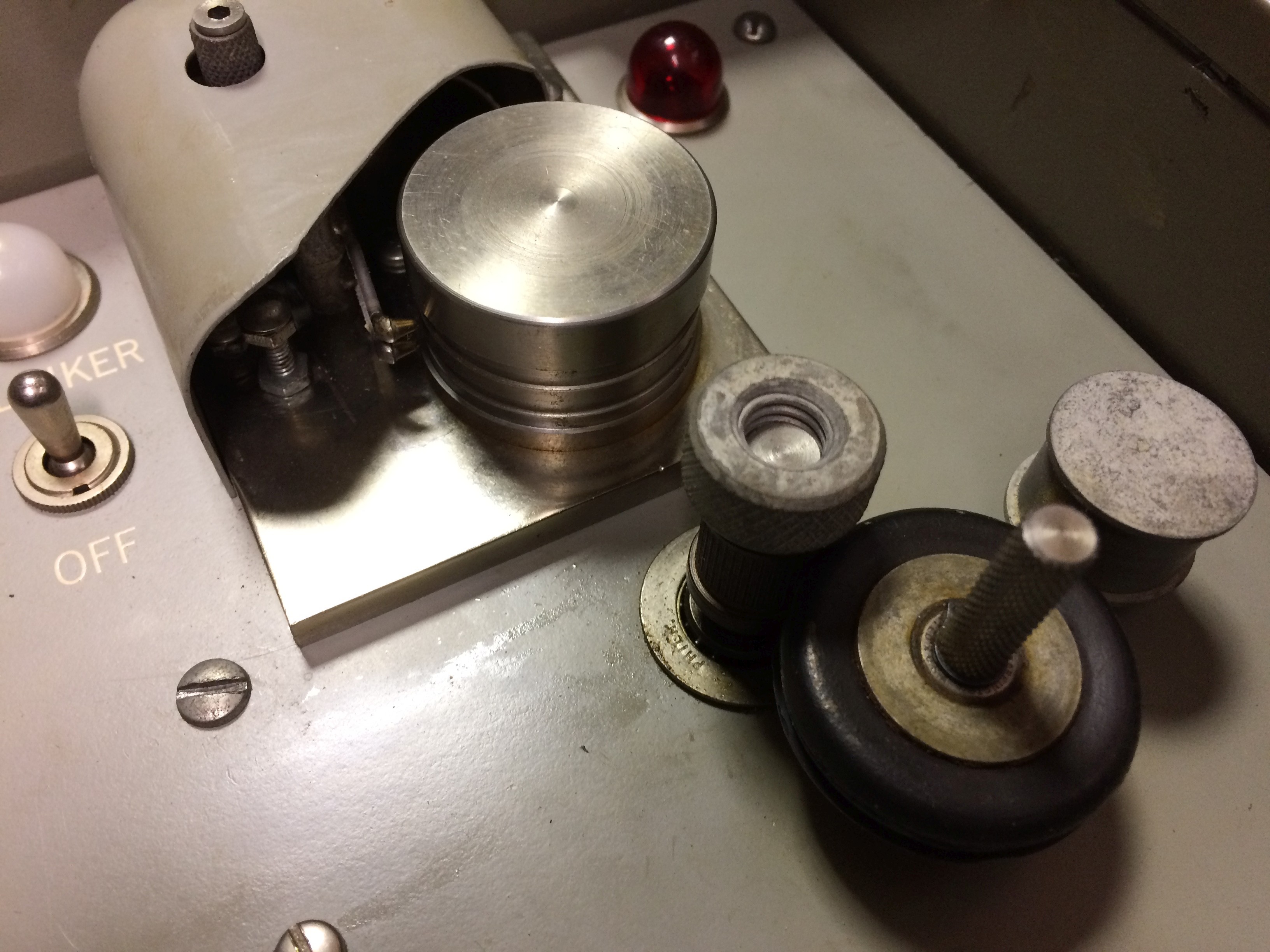

UGH-1 speed selection uses different sizes of capstans. Additional capstans are shown at right


ugh1-buships-6005-01.jpg (1502026 bytes) ugh1-2310-02.jpg (320902 bytes) ugh1-2310-03.jpg (231226 bytes) ugh1-2310-07.jpg (249692 bytes)

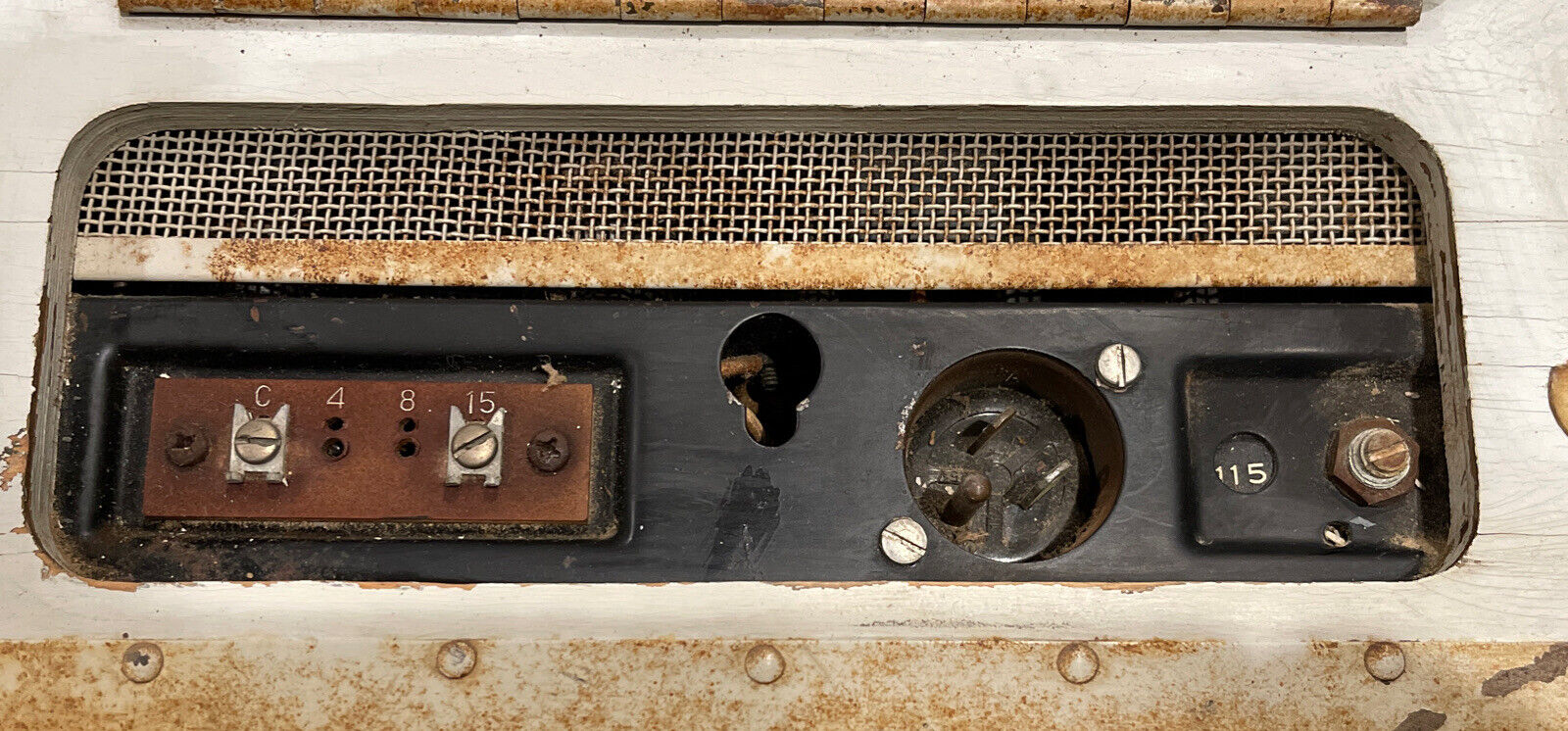

Fathom magazine - 1969 - AN/UGH-1 Shock Hazard
THE AN/UGH-1 Reproducer Set, a telegraphic training device manufactured by ECCO Electronics Components Corp., poses a serious potential shock hazard. The power cord plug supplied with the unit can be inserted into the receptacle socket in any one of three positions, two of which place line voltage to the case of the equipment through the ground terminal. This device is on the allowance of SSNs, SSBNs, and most submarine tenders.

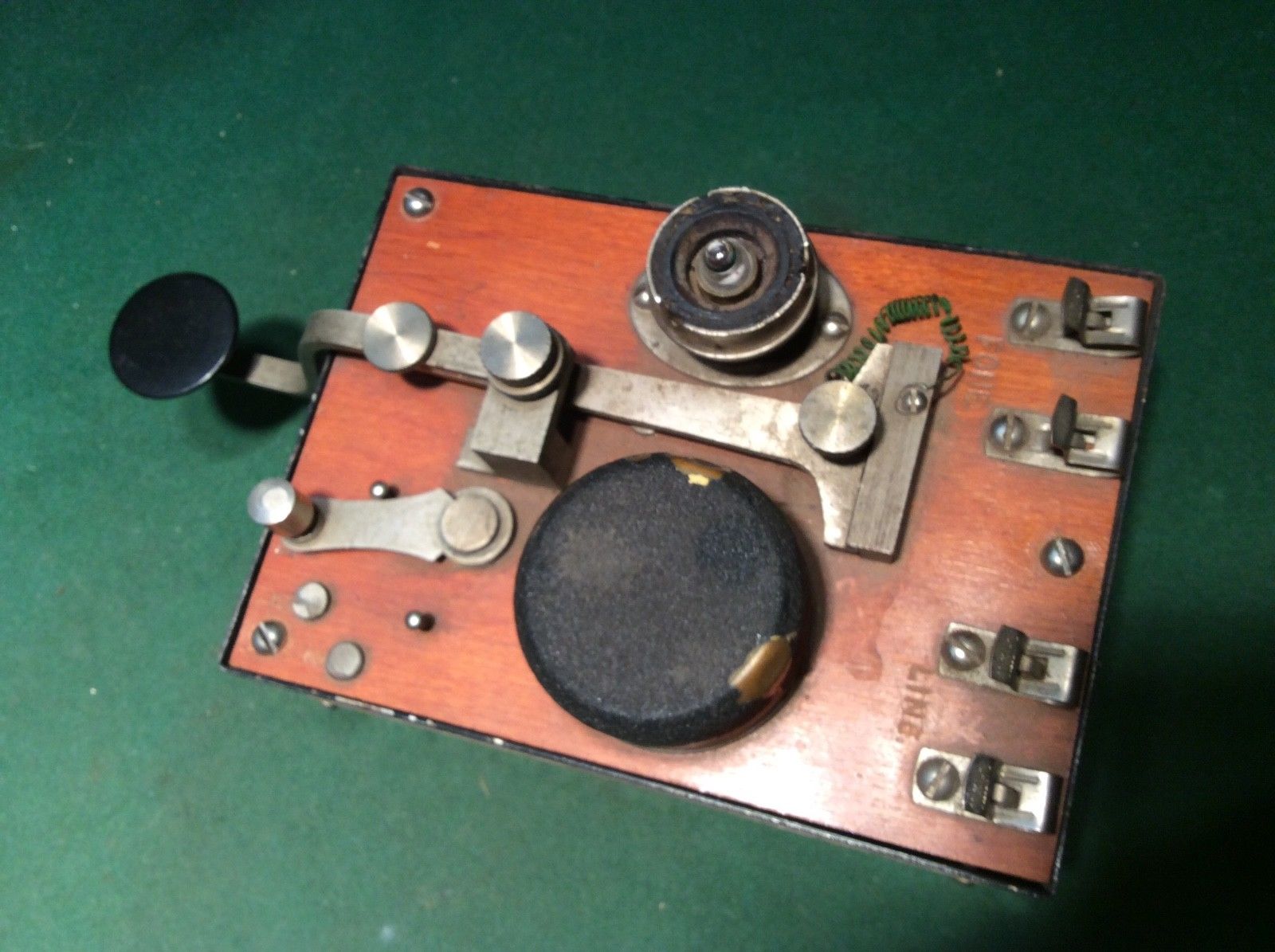

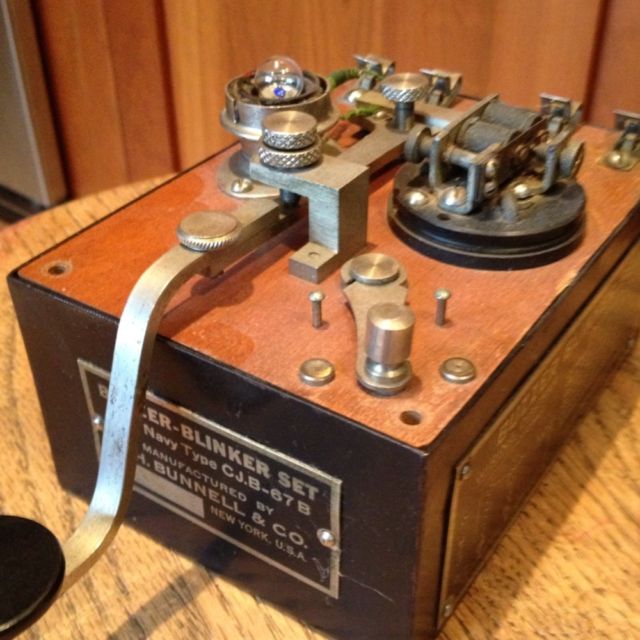

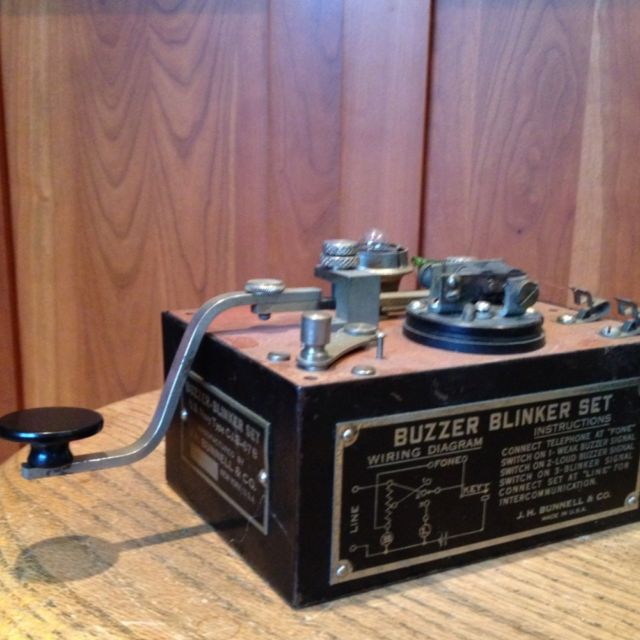

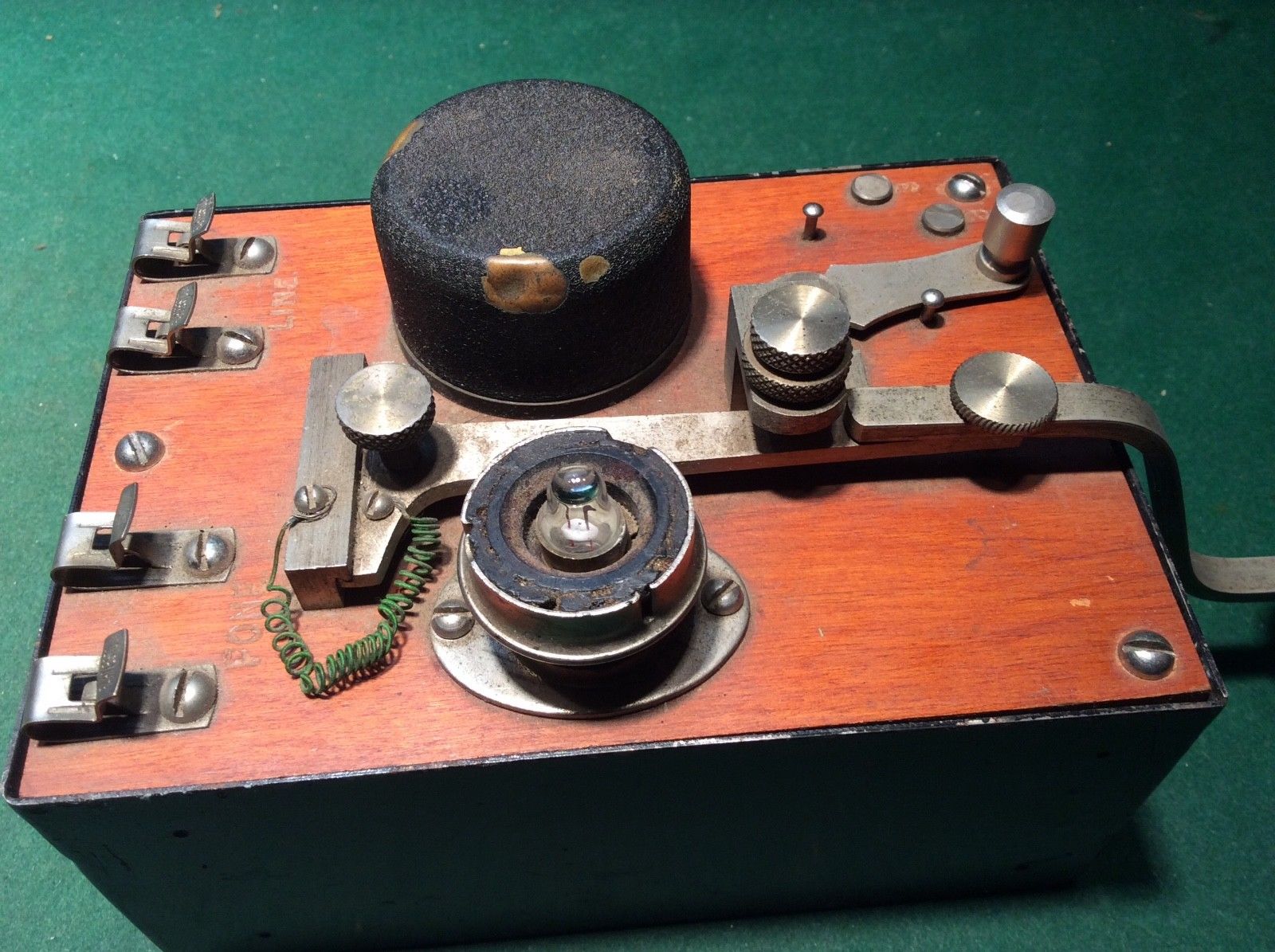

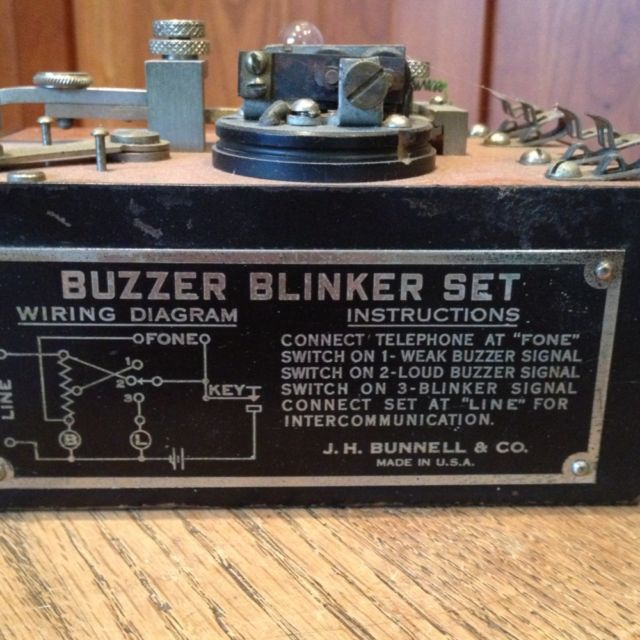

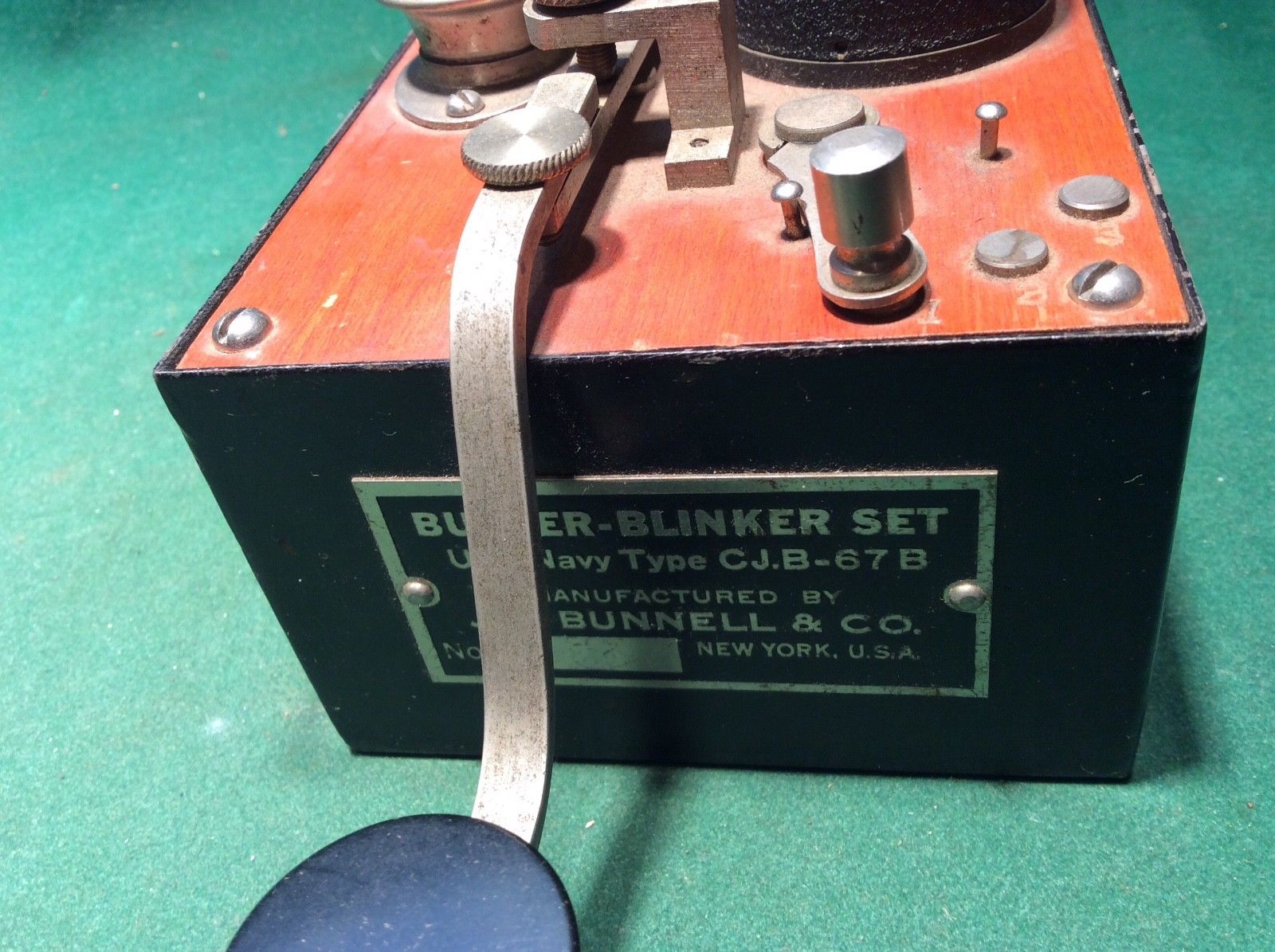

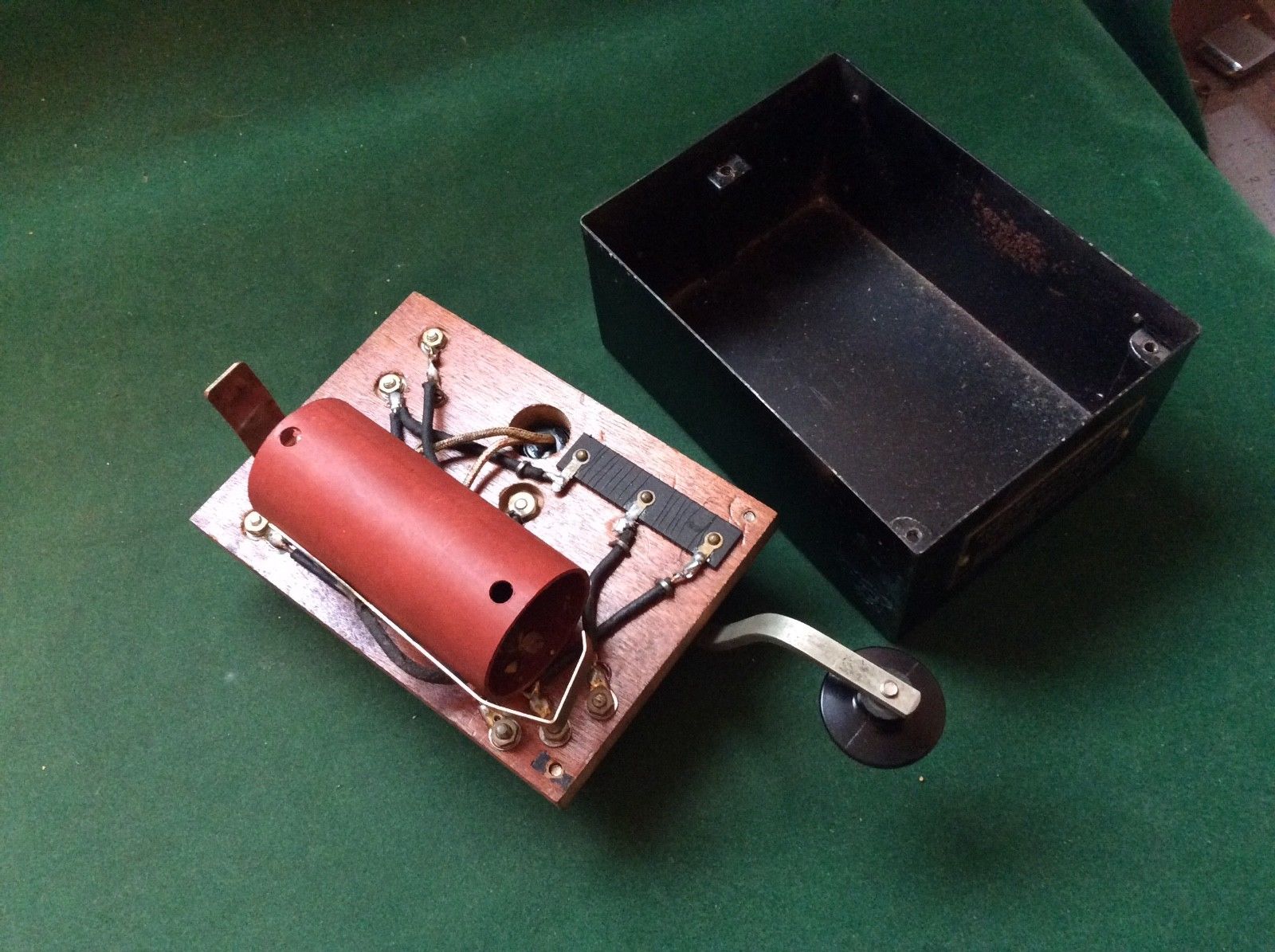

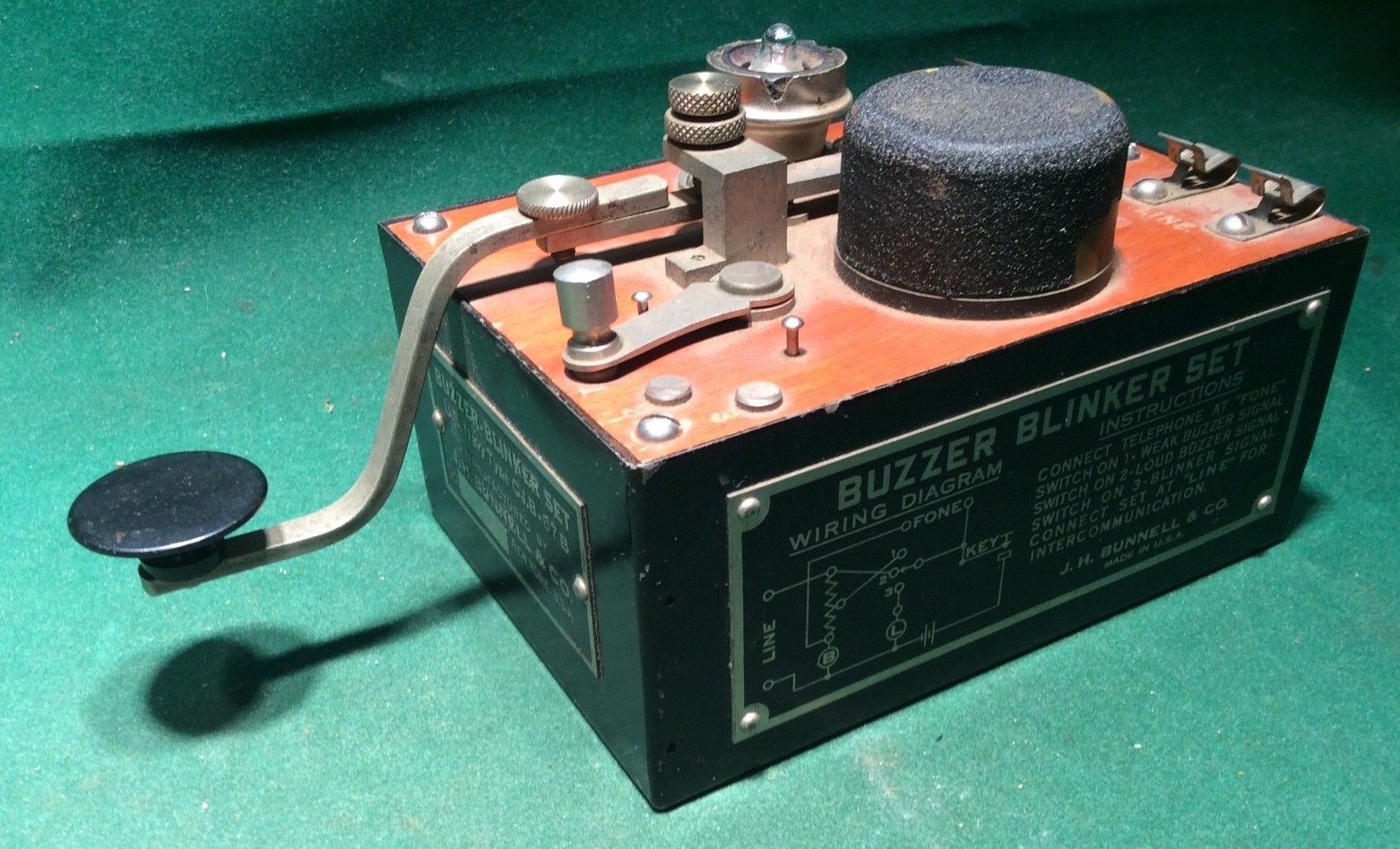

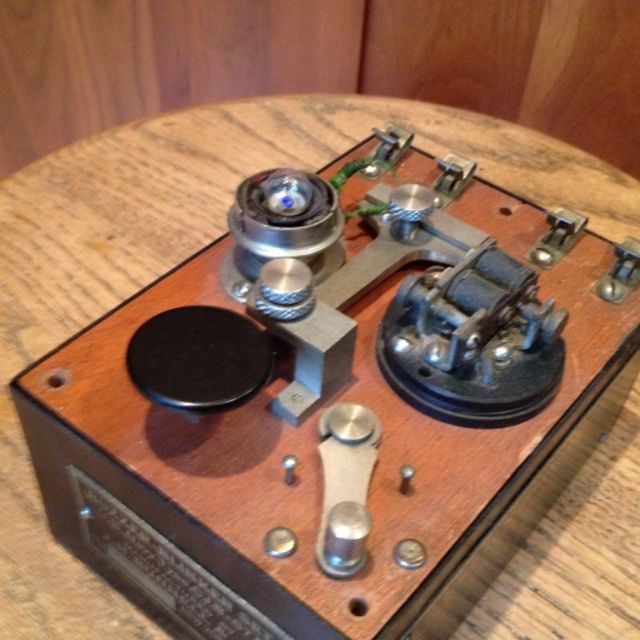

CJB-67B Bunnell Buzzer Blinker  Set

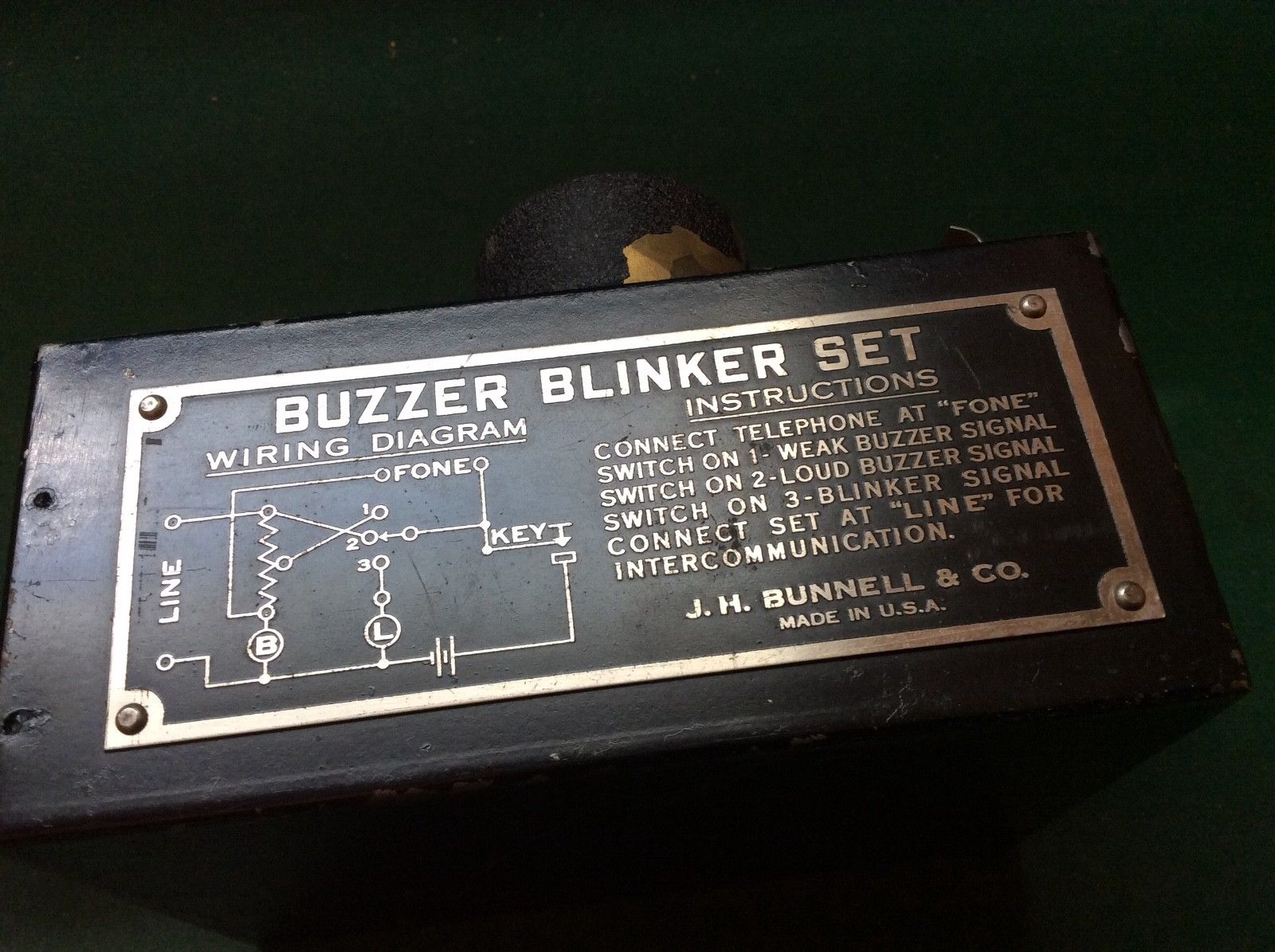

key-buzzer-1711-05.jpg (290083 bytes) key-buzzer-1711-06.jpg (236745 bytes) key-buzzer-1711-07.jpg (266996 bytes) ==
key-cjb67b-01.JPG (67921 bytes) key-cjb67b-02.JPG (57828 bytes) key-cjb67b-03.JPG (63918 bytes) key-cjb67b-05.JPG (75929 bytes)

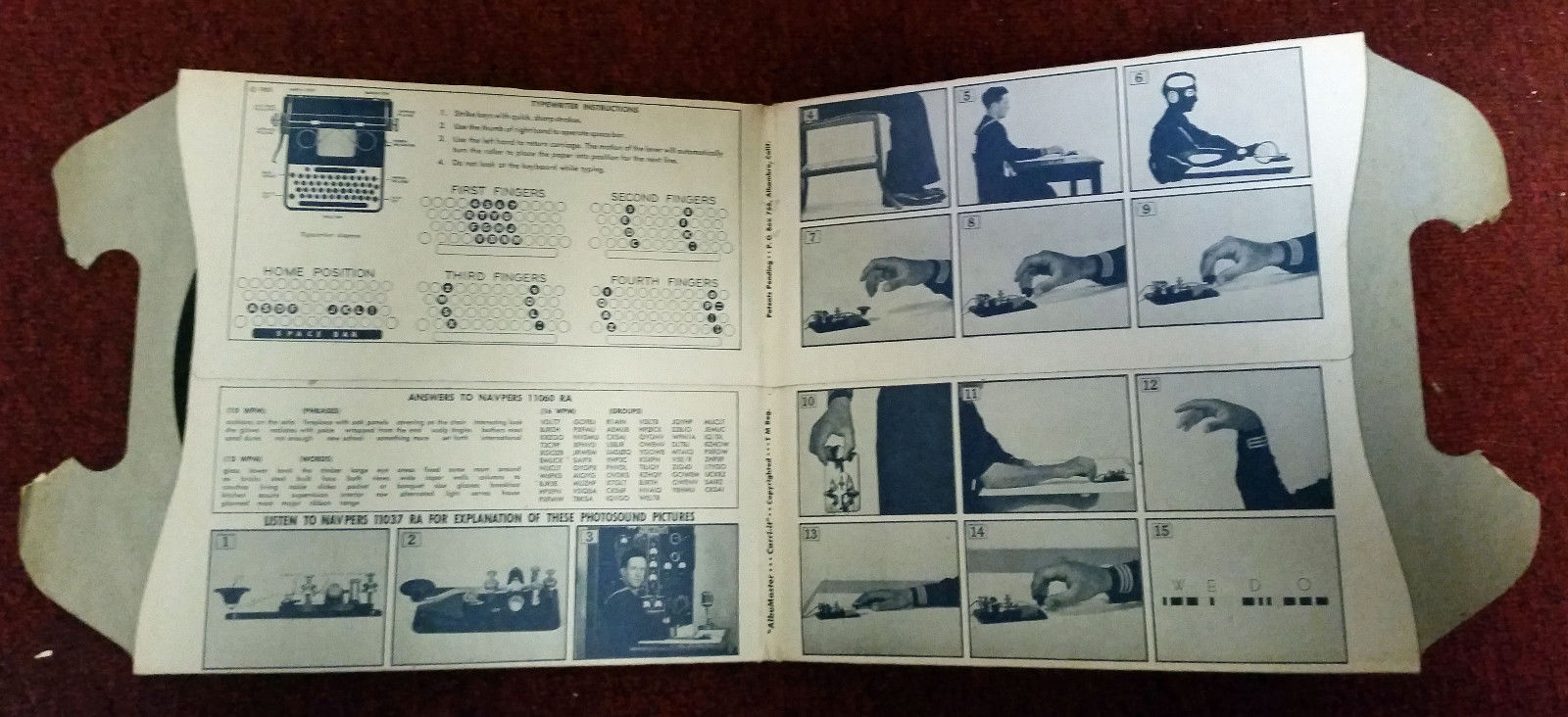

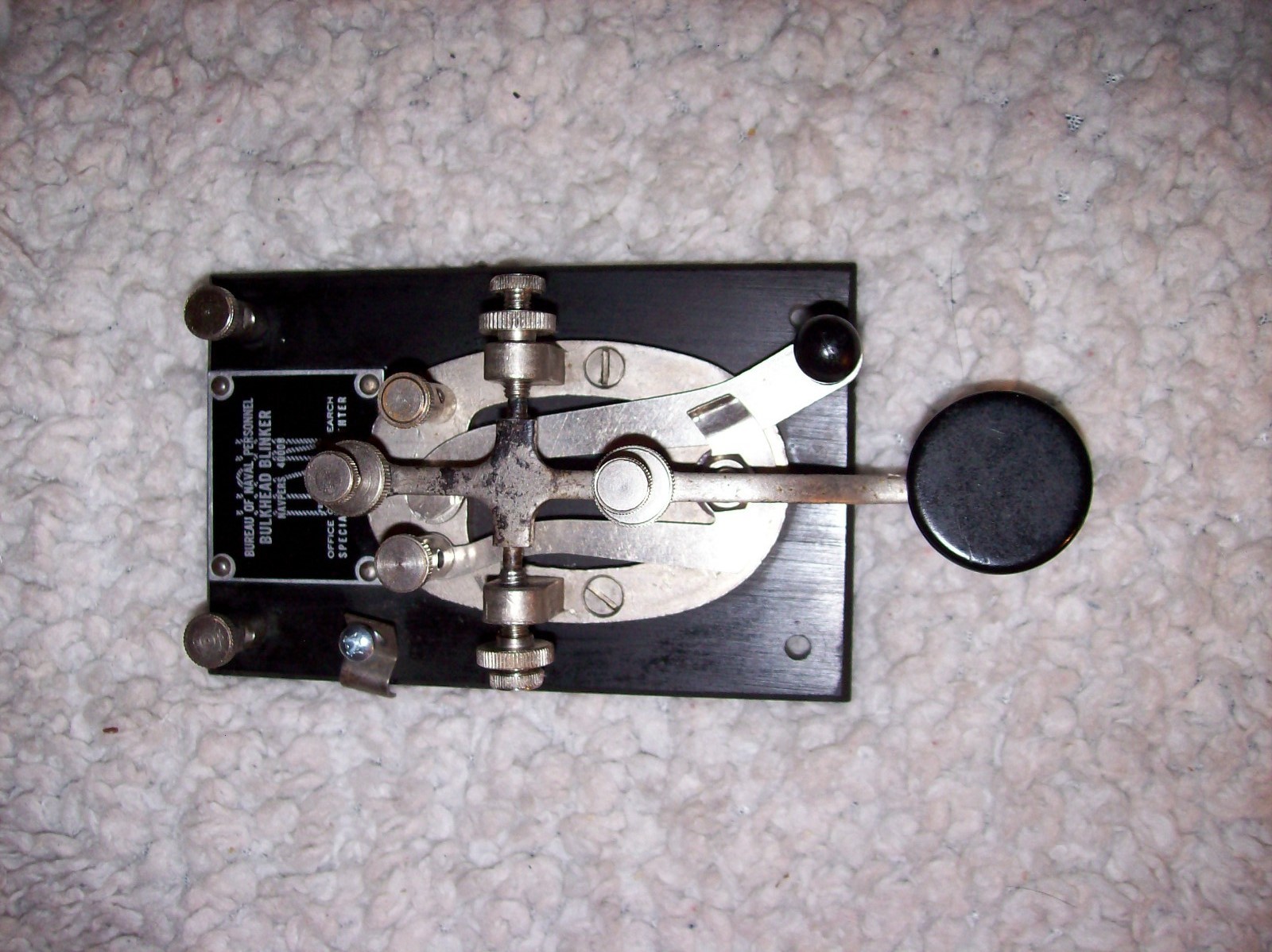

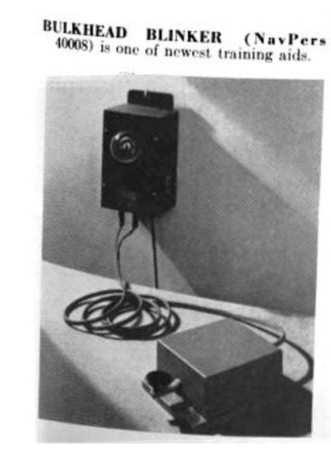

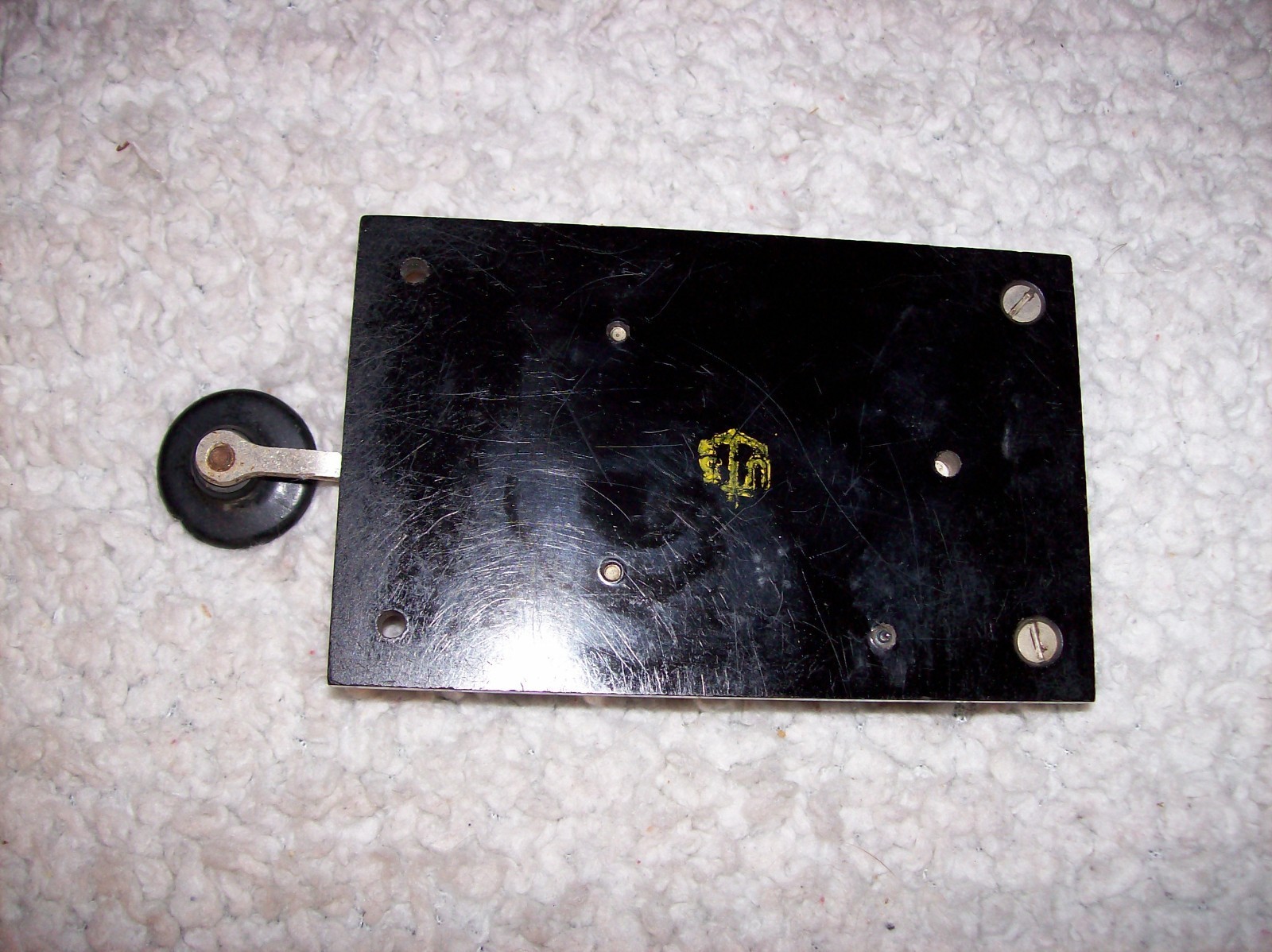

Bulkhead Blinker Key - NAVPERS 40008
Training Aid

Photo from October 1944 NAVPERS Training Bulletin magazine thanks to Pete G4TFH

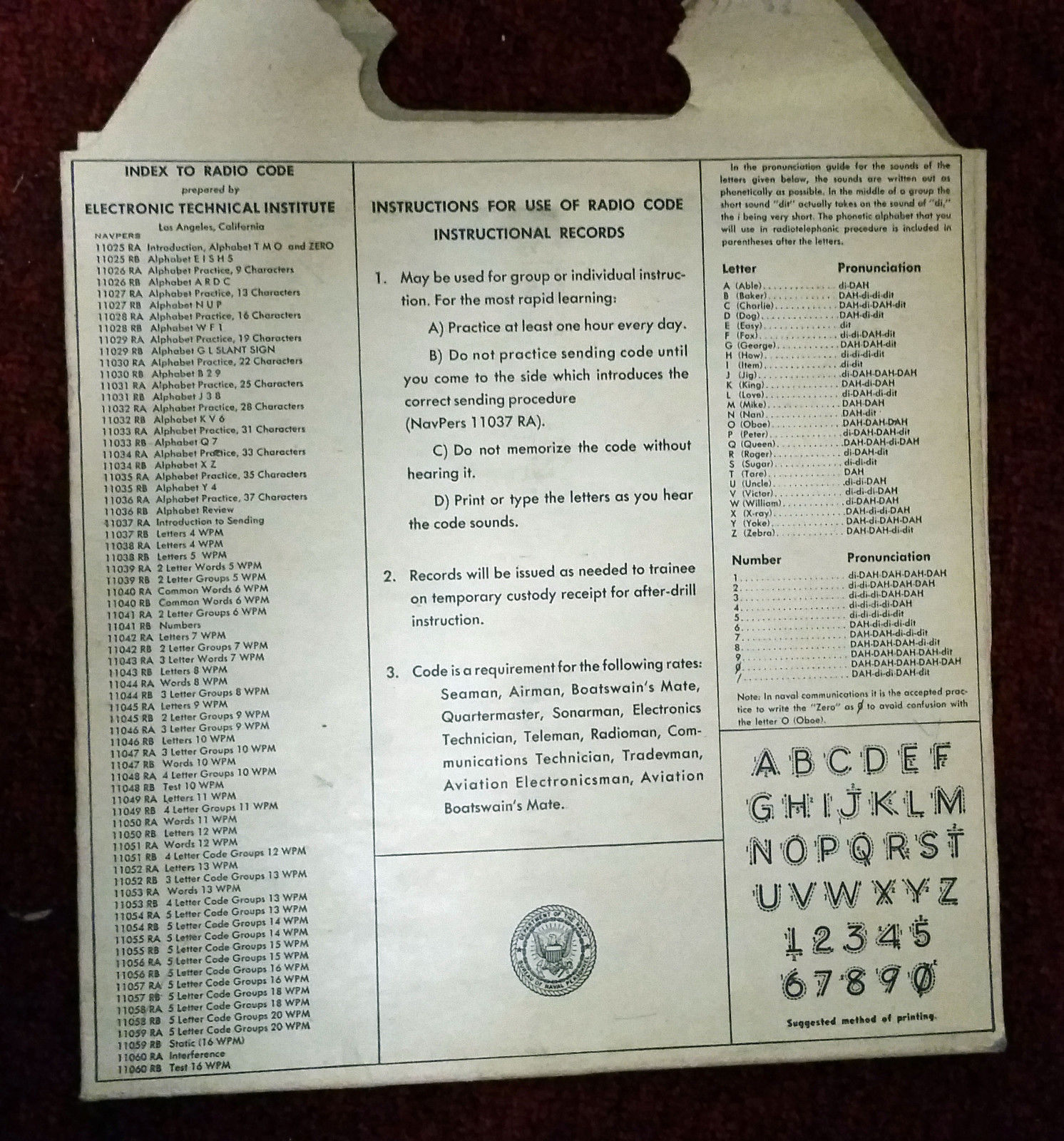

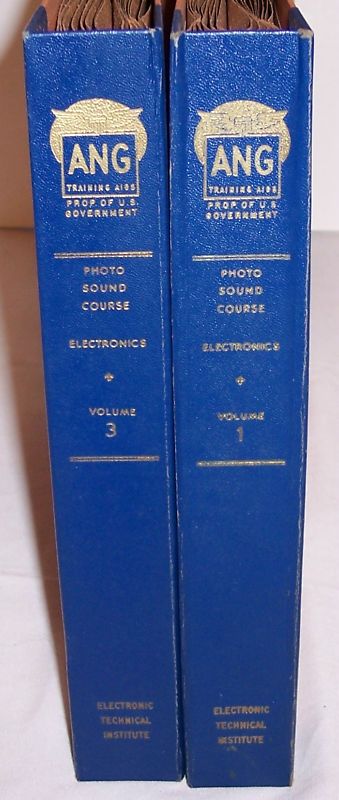

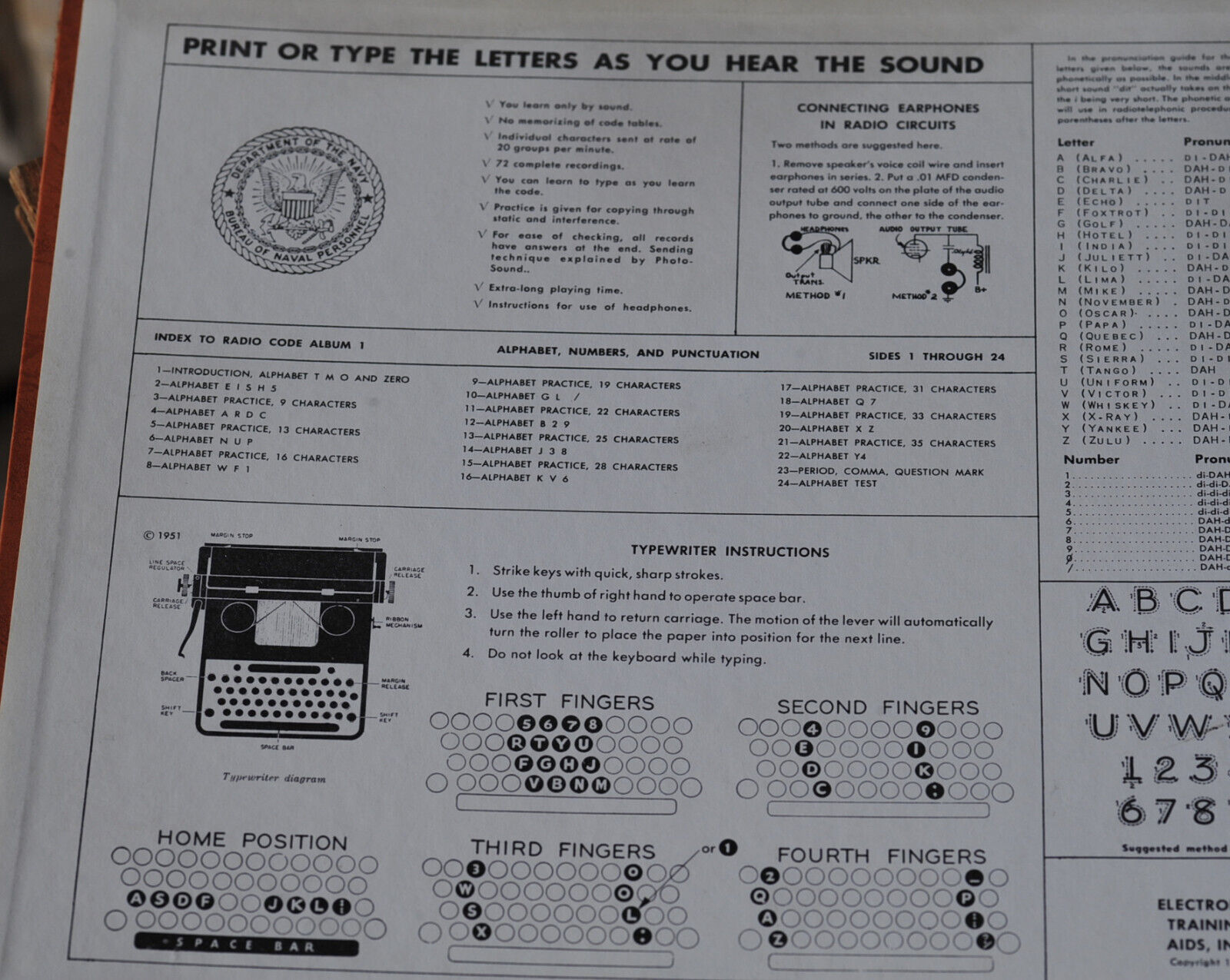

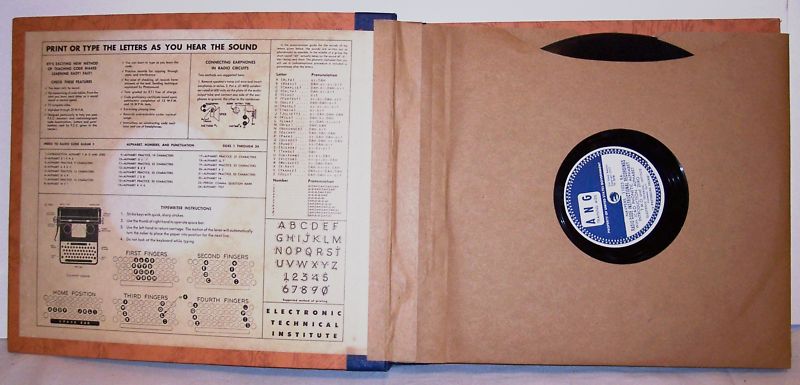

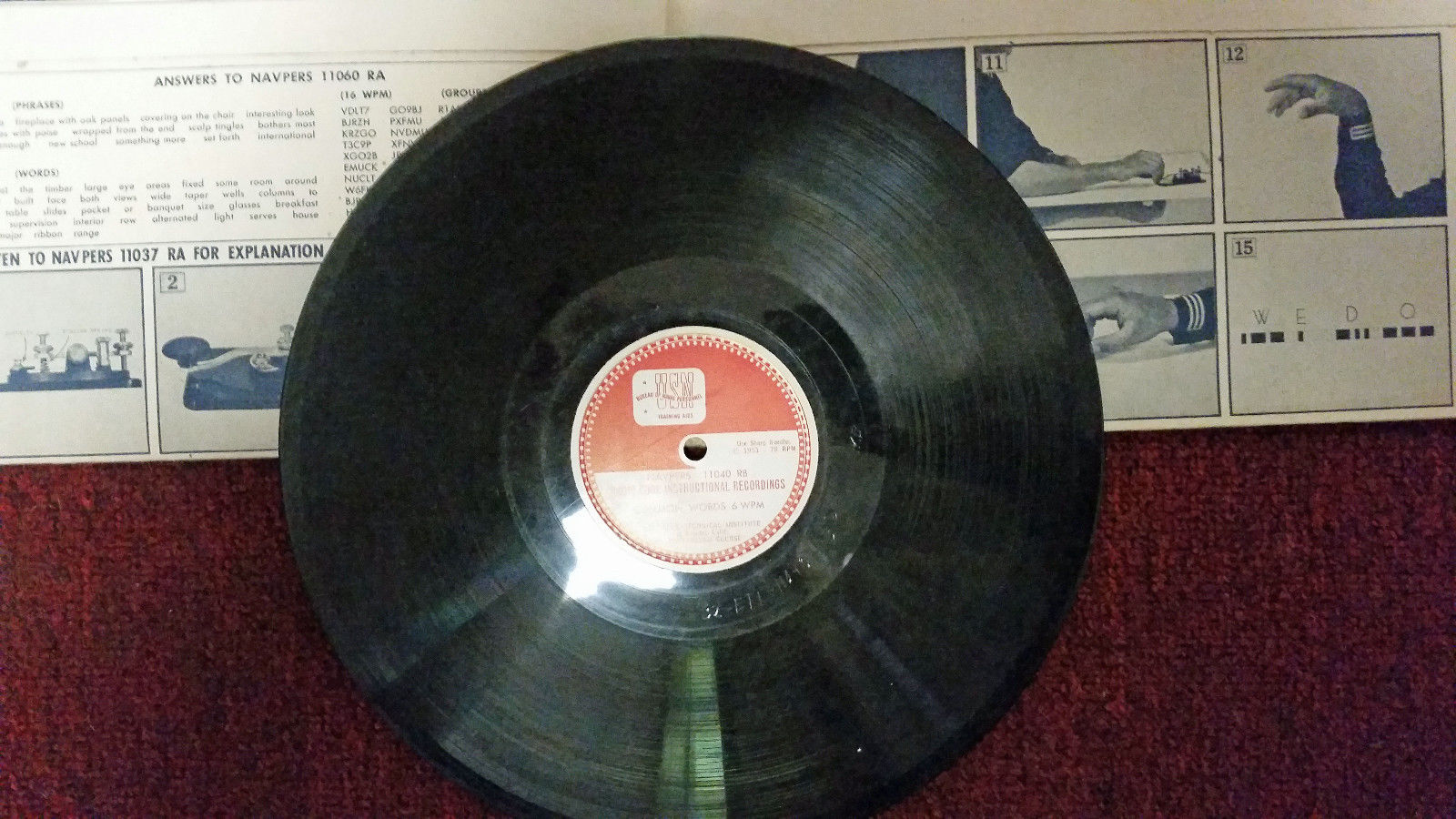

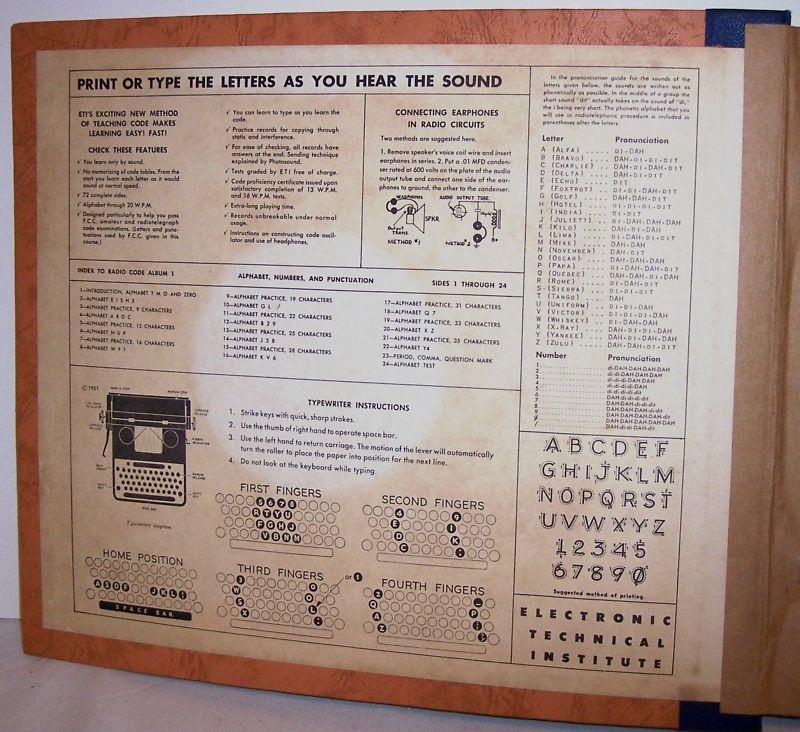

1951 NAVPERS 11025-11060 Radio Code Instructional Recordings (78 rpm)






prepared by Electronic Technical Institute

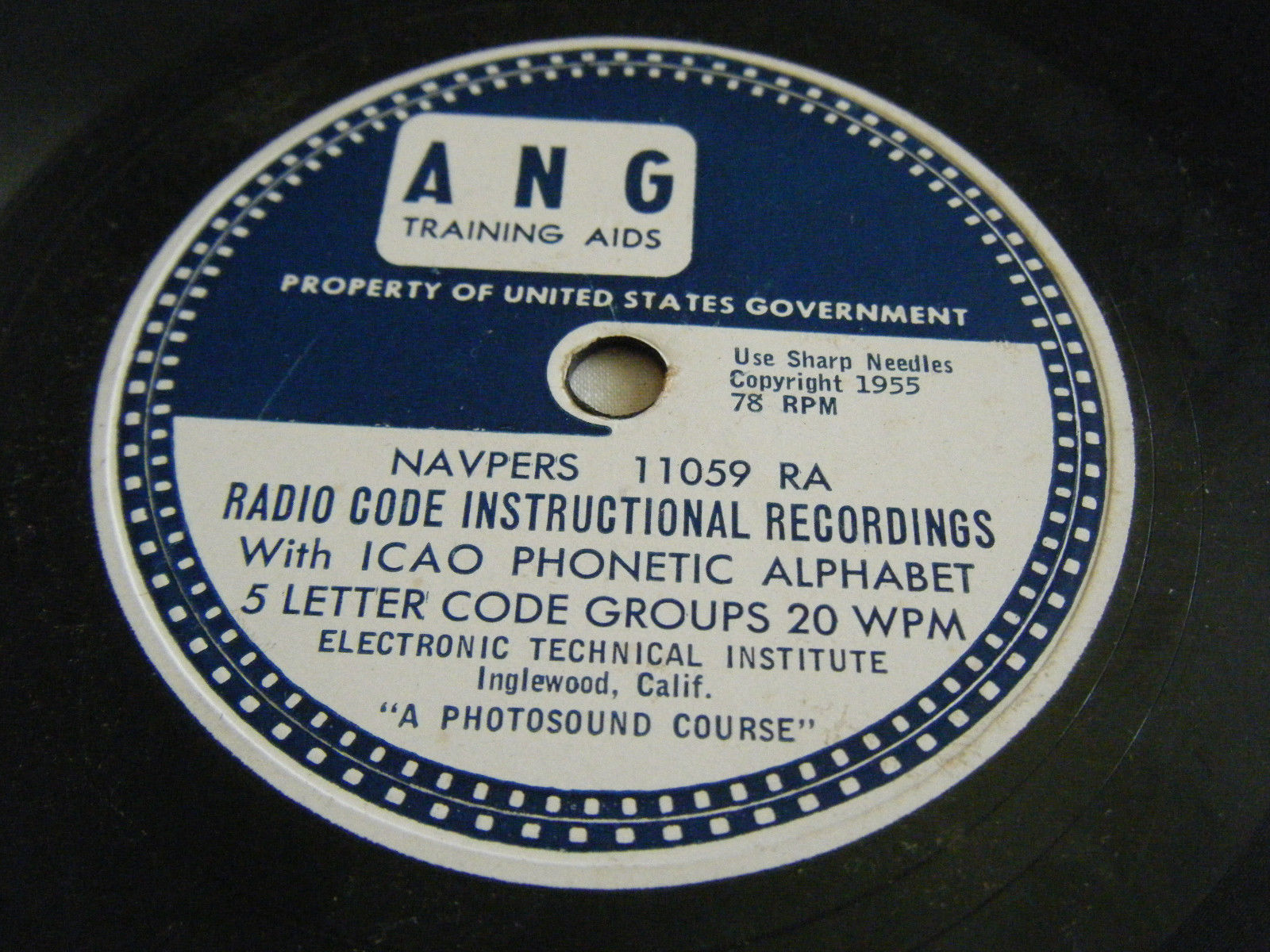

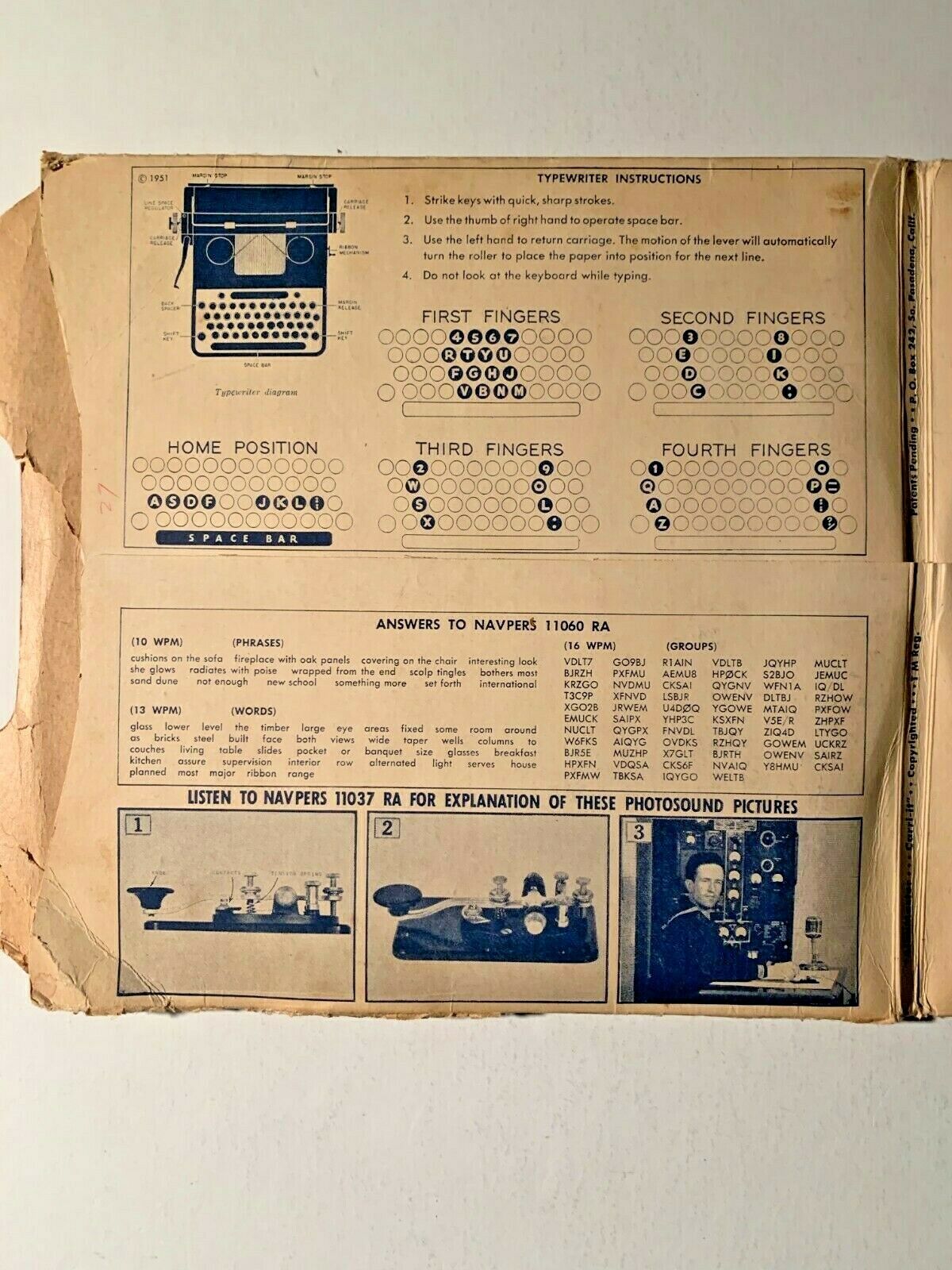

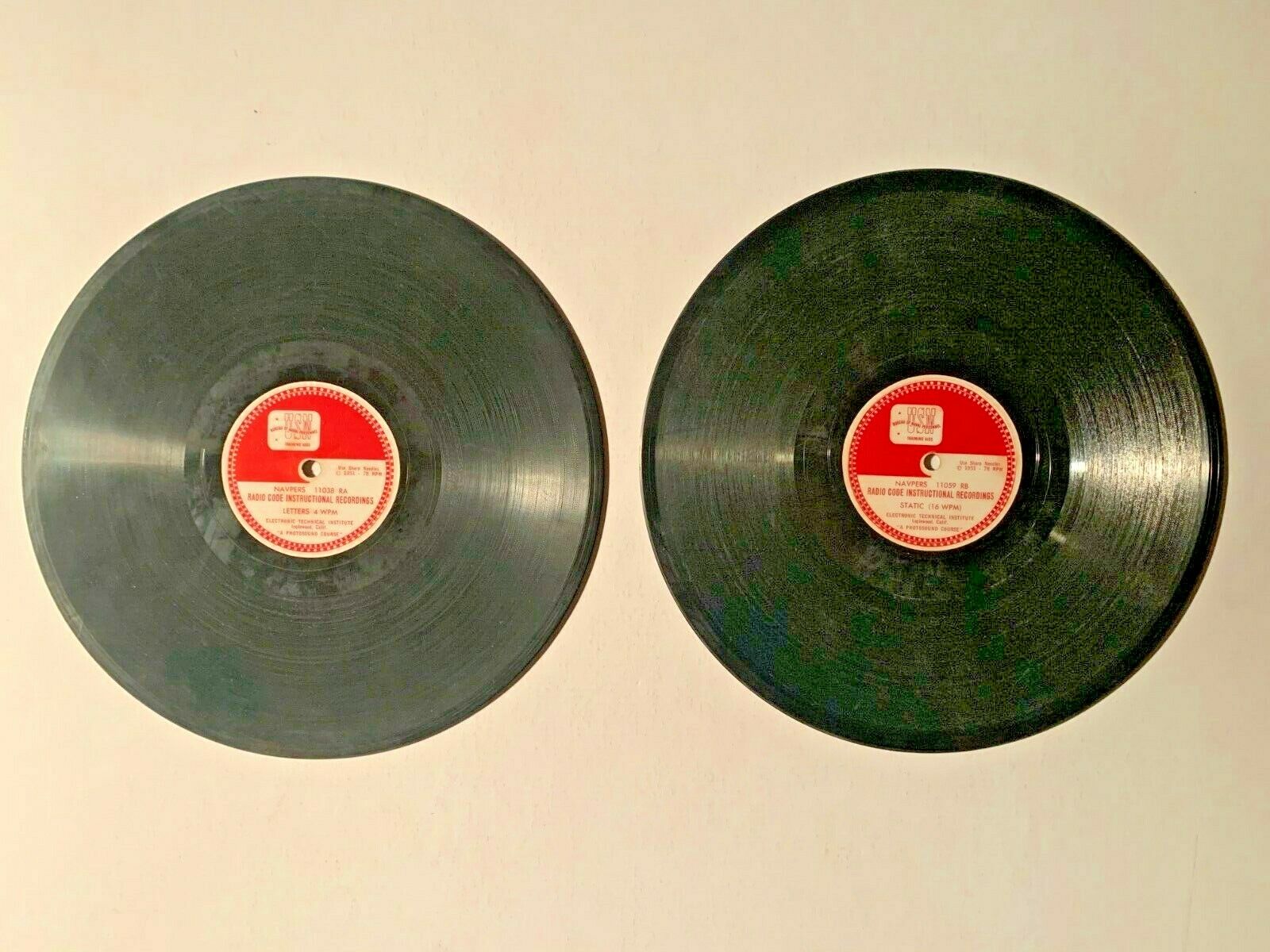

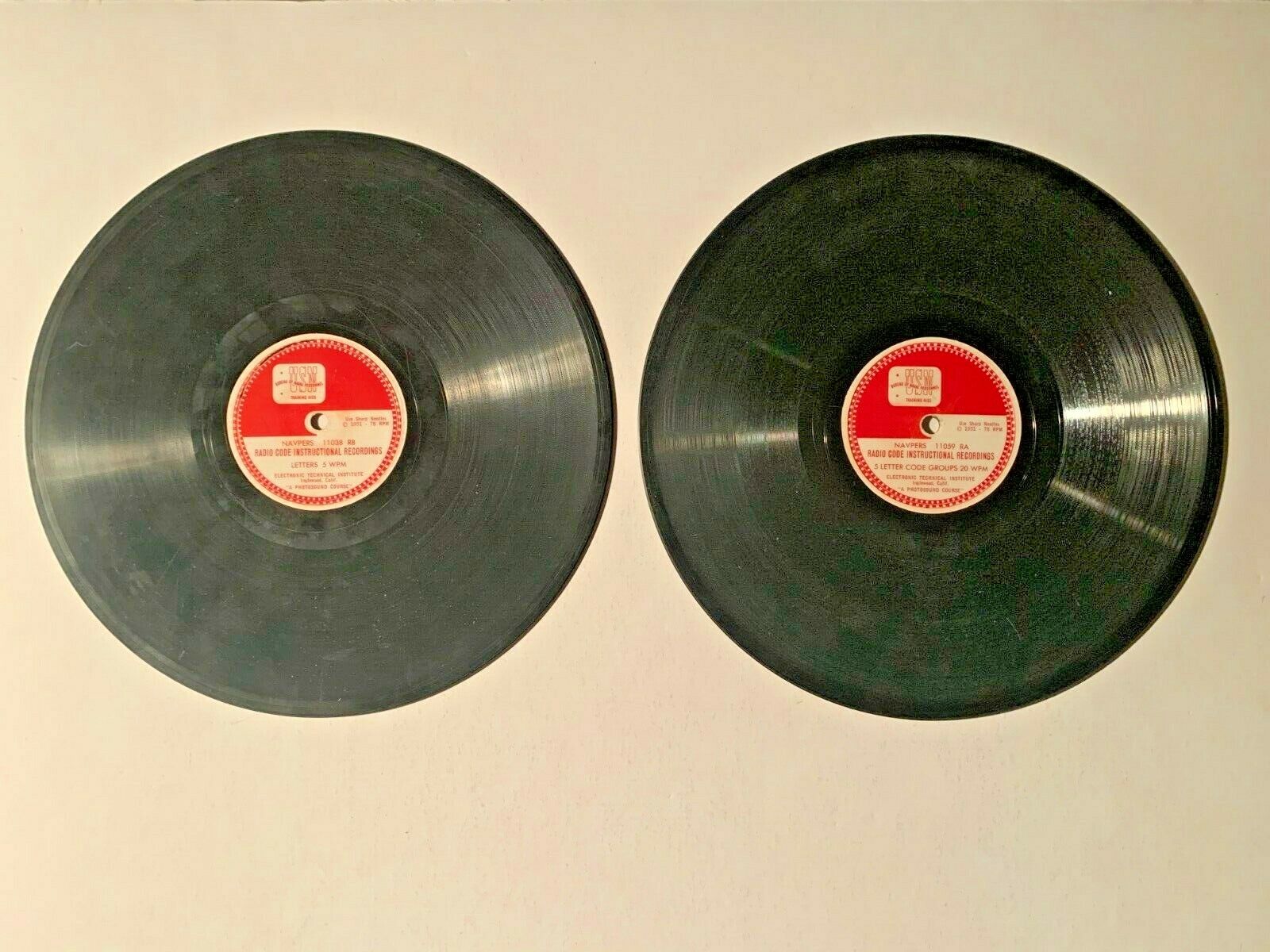

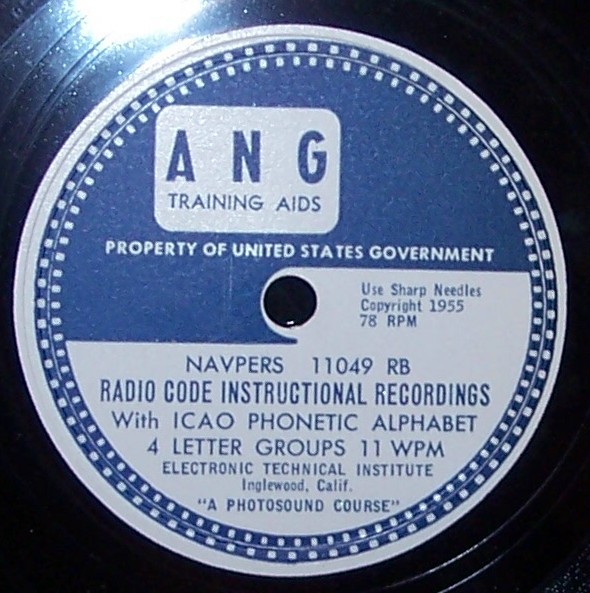

1955 NAVPERS 11025-11060 Radio Code Instructional Recordings  (78RPM)
 - MP3 audio files 11049-11060  - thanks to K6YIC

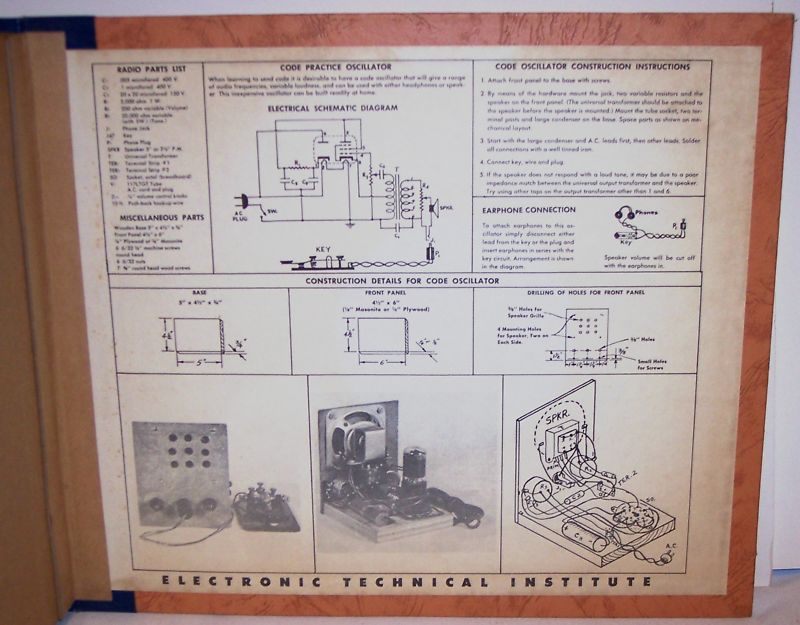

prepared by Electronic Technical Institute

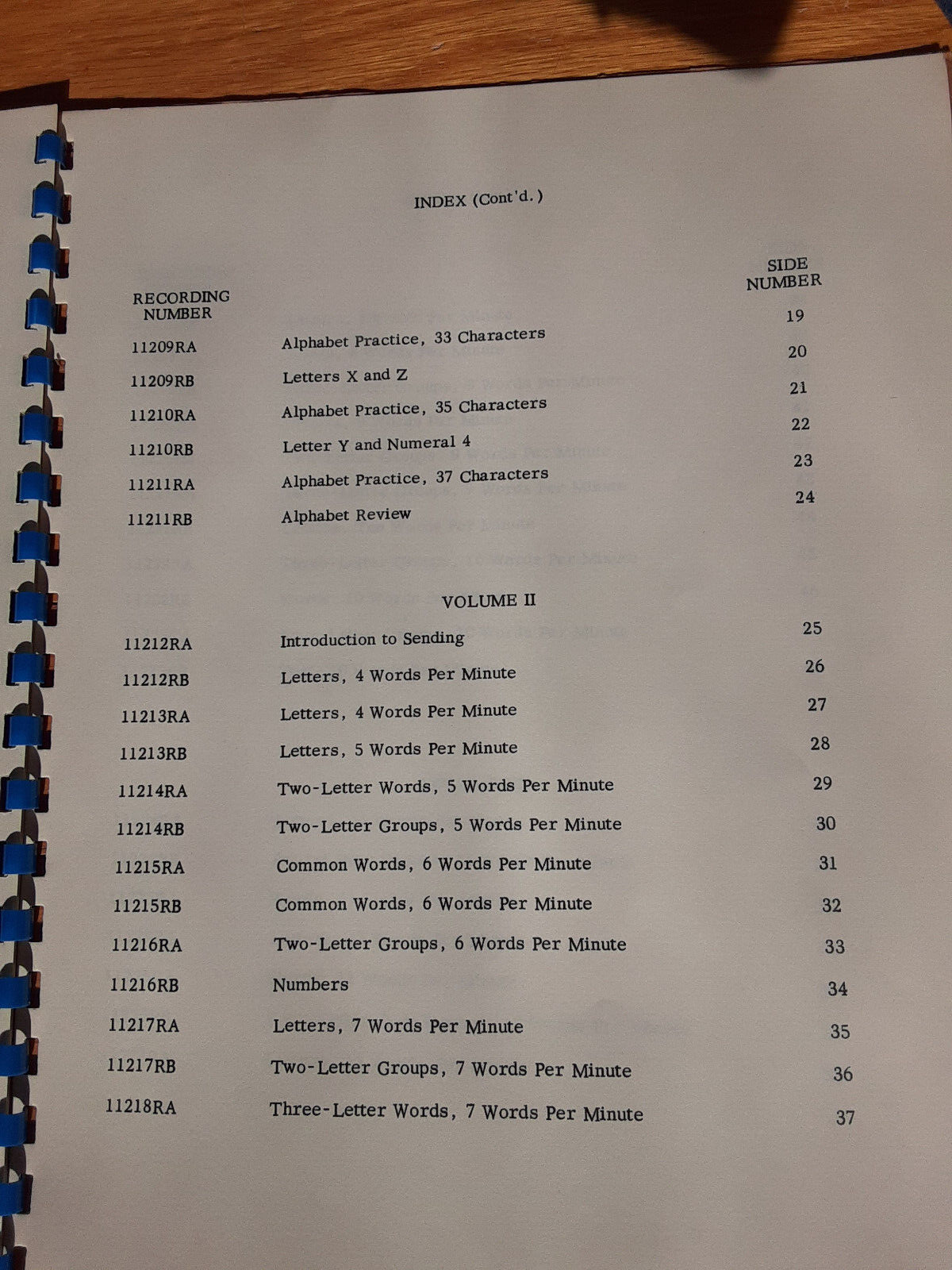

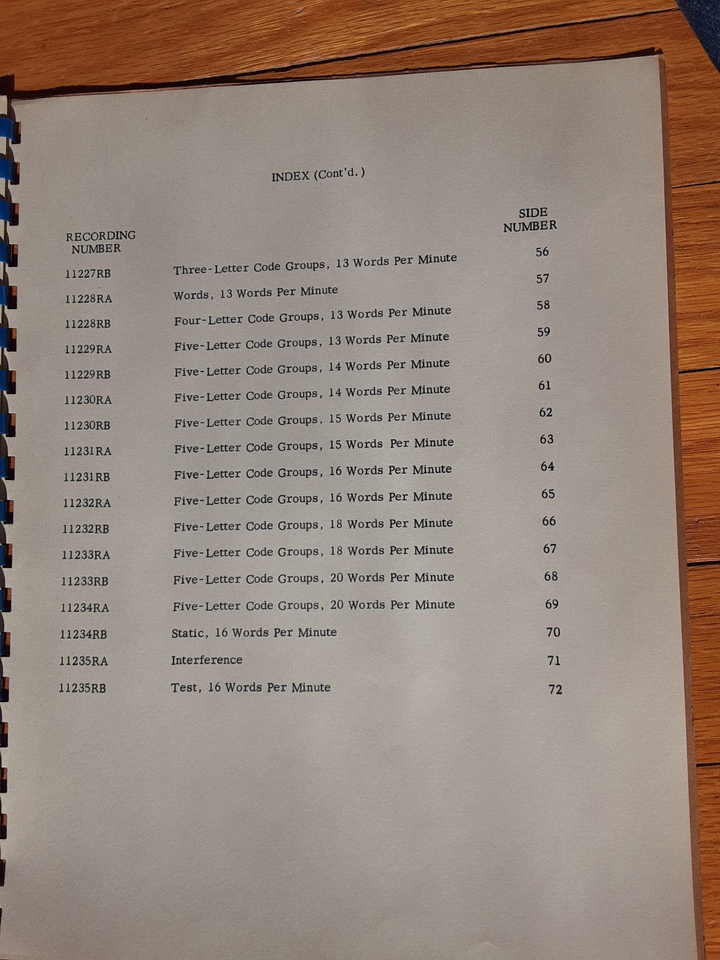

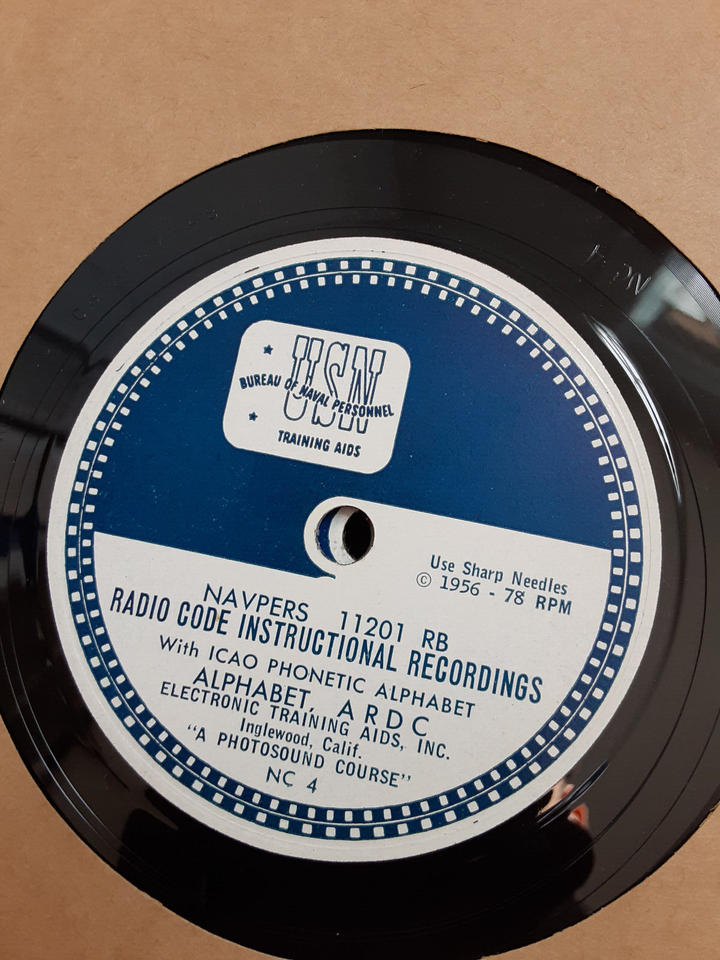

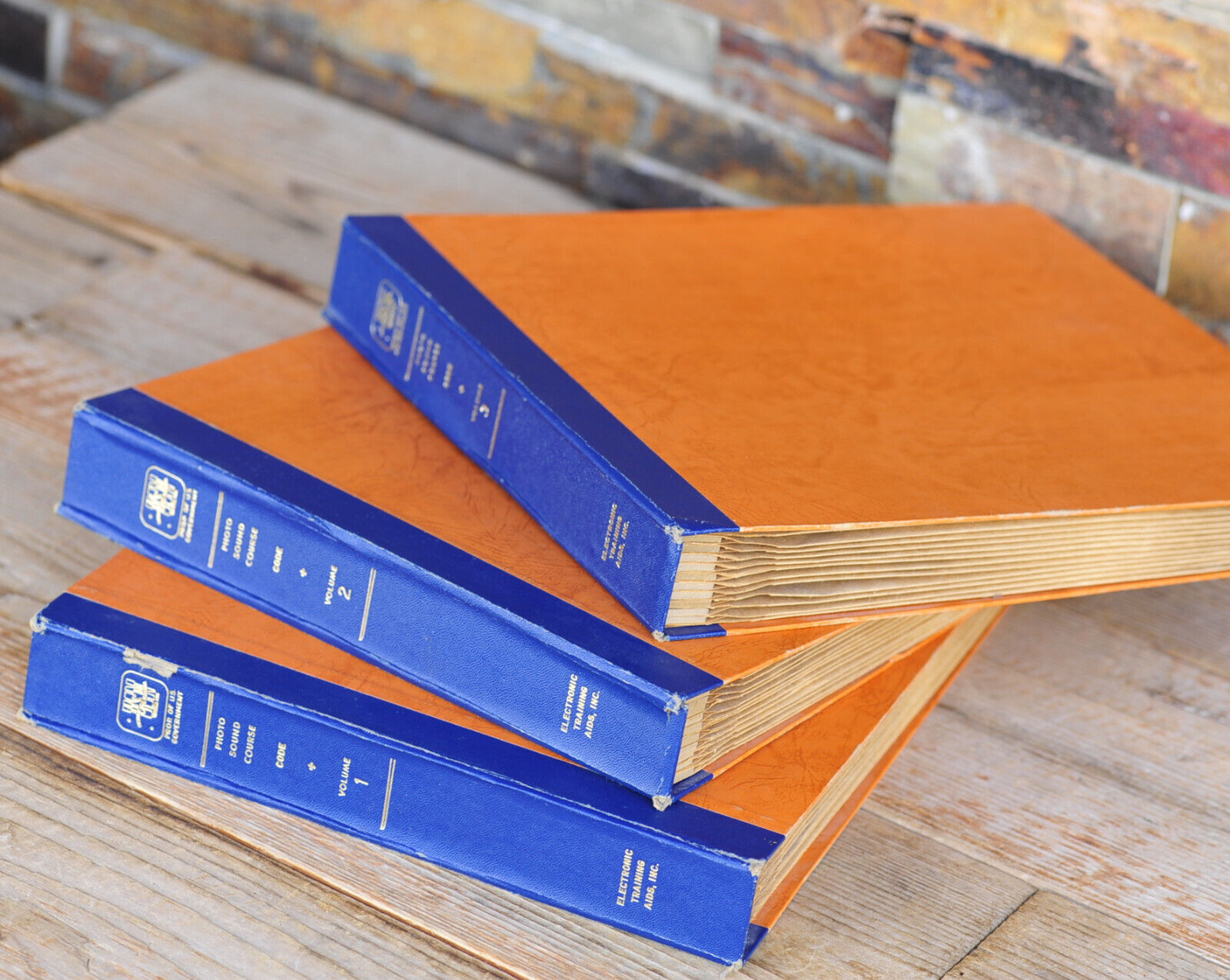

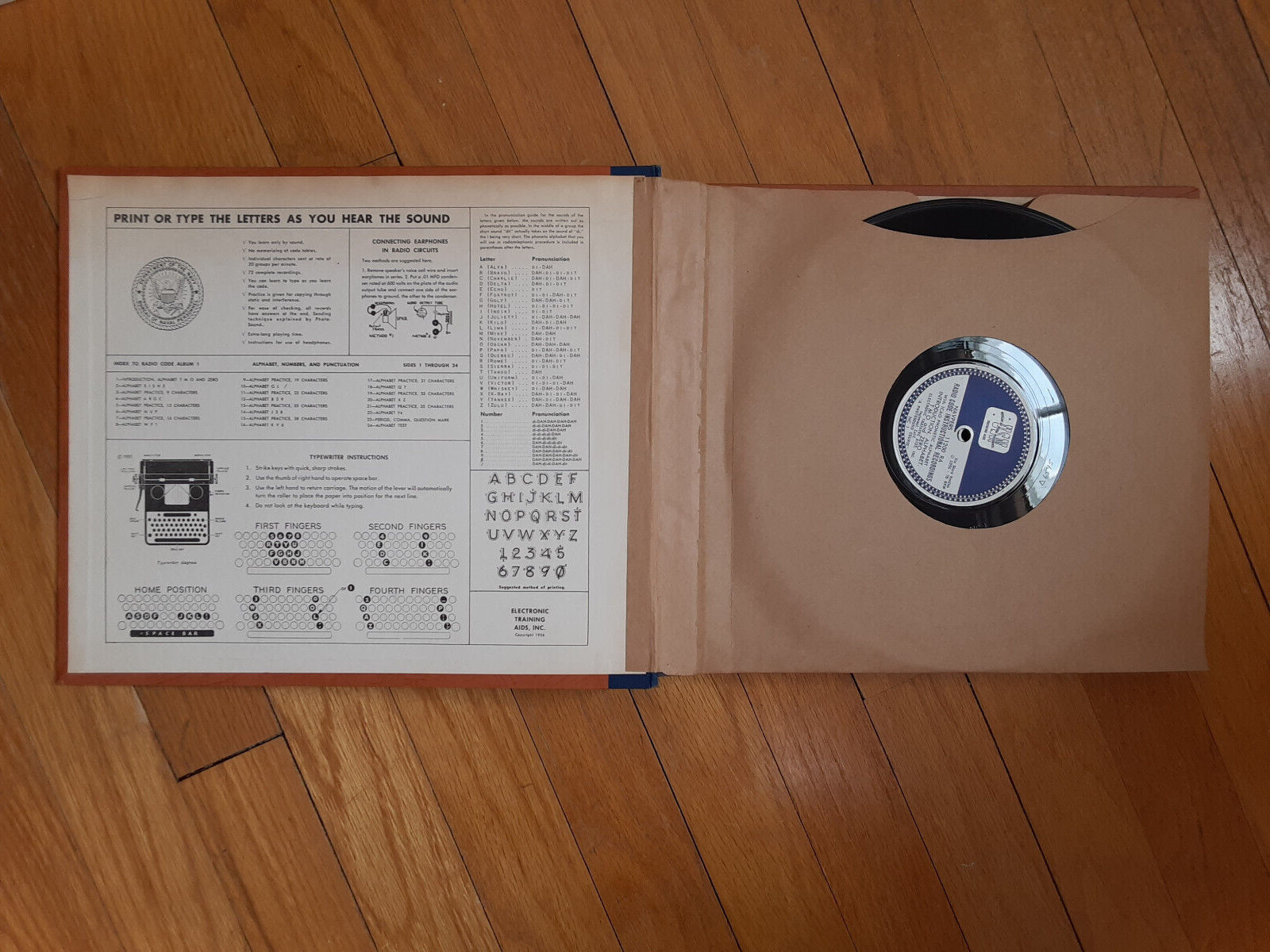

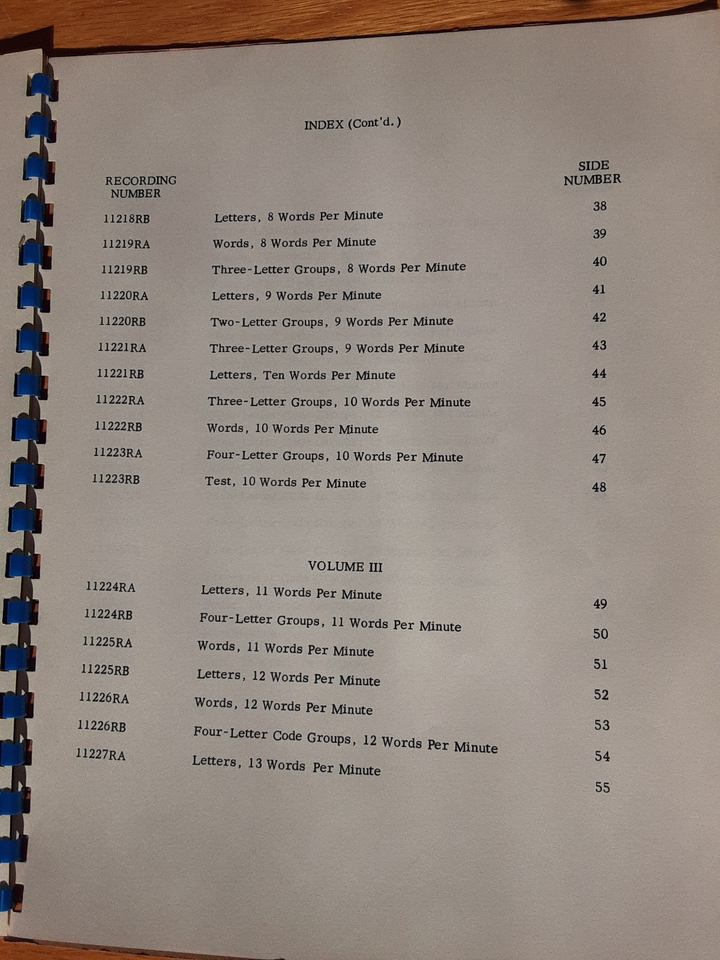

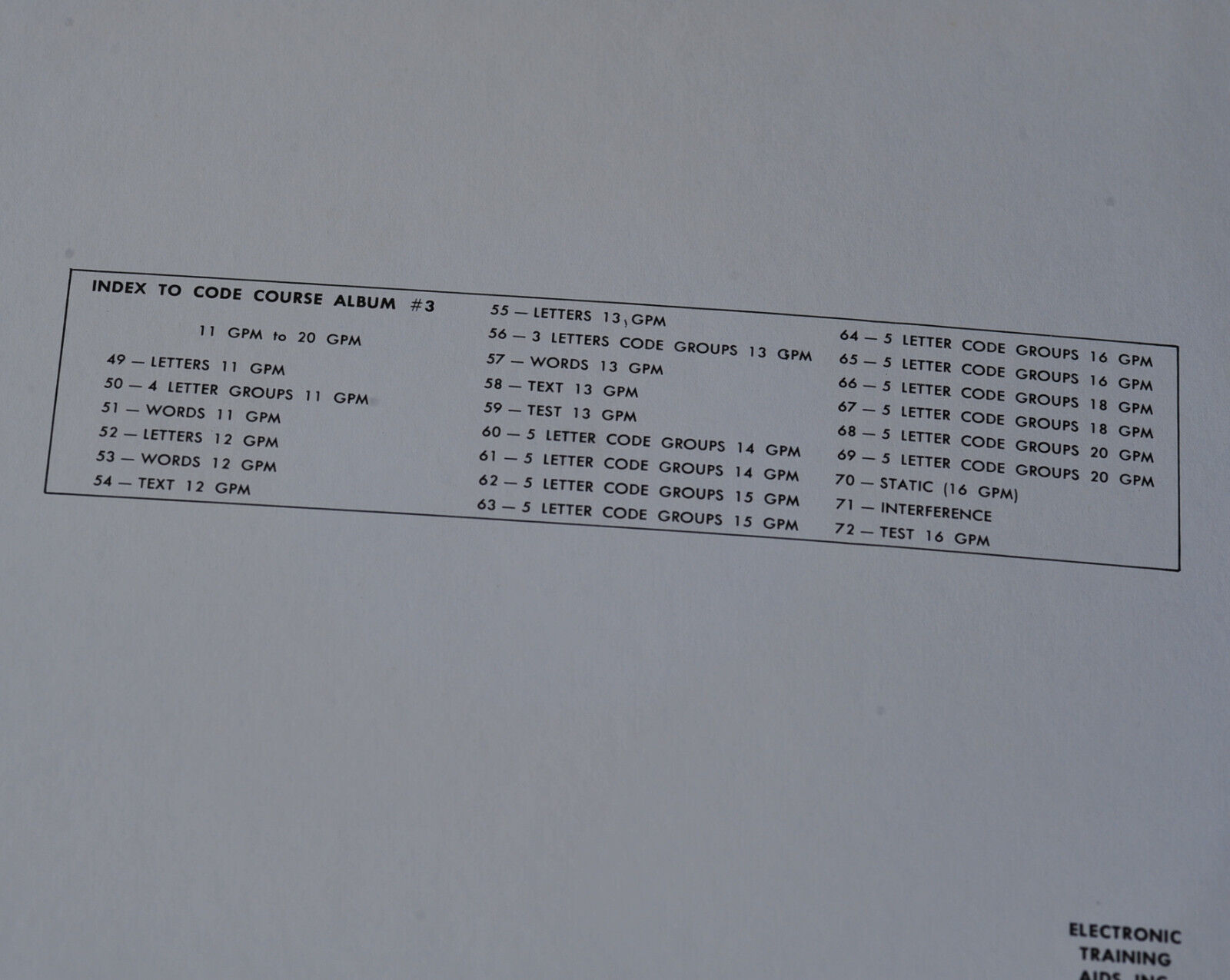

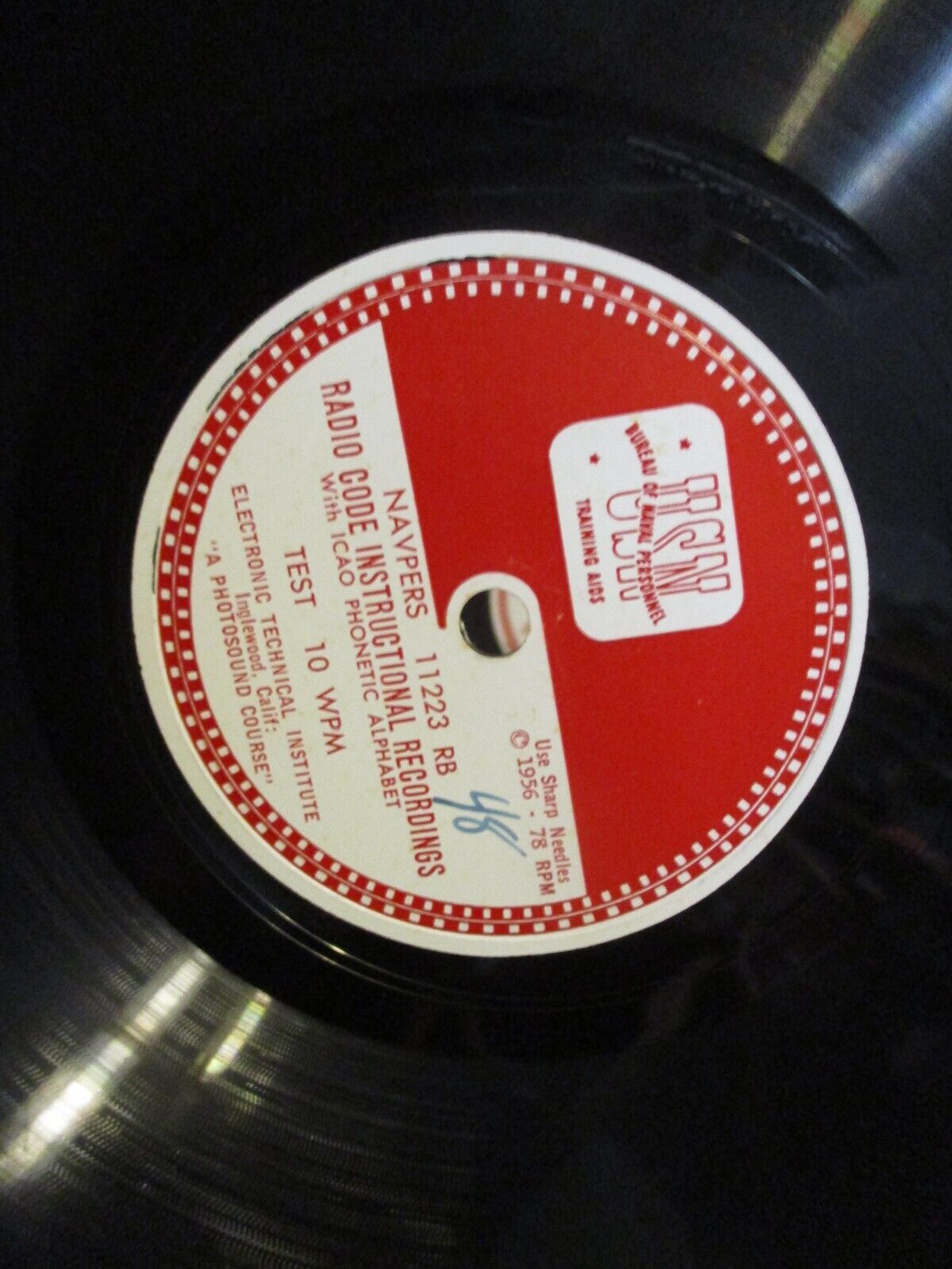

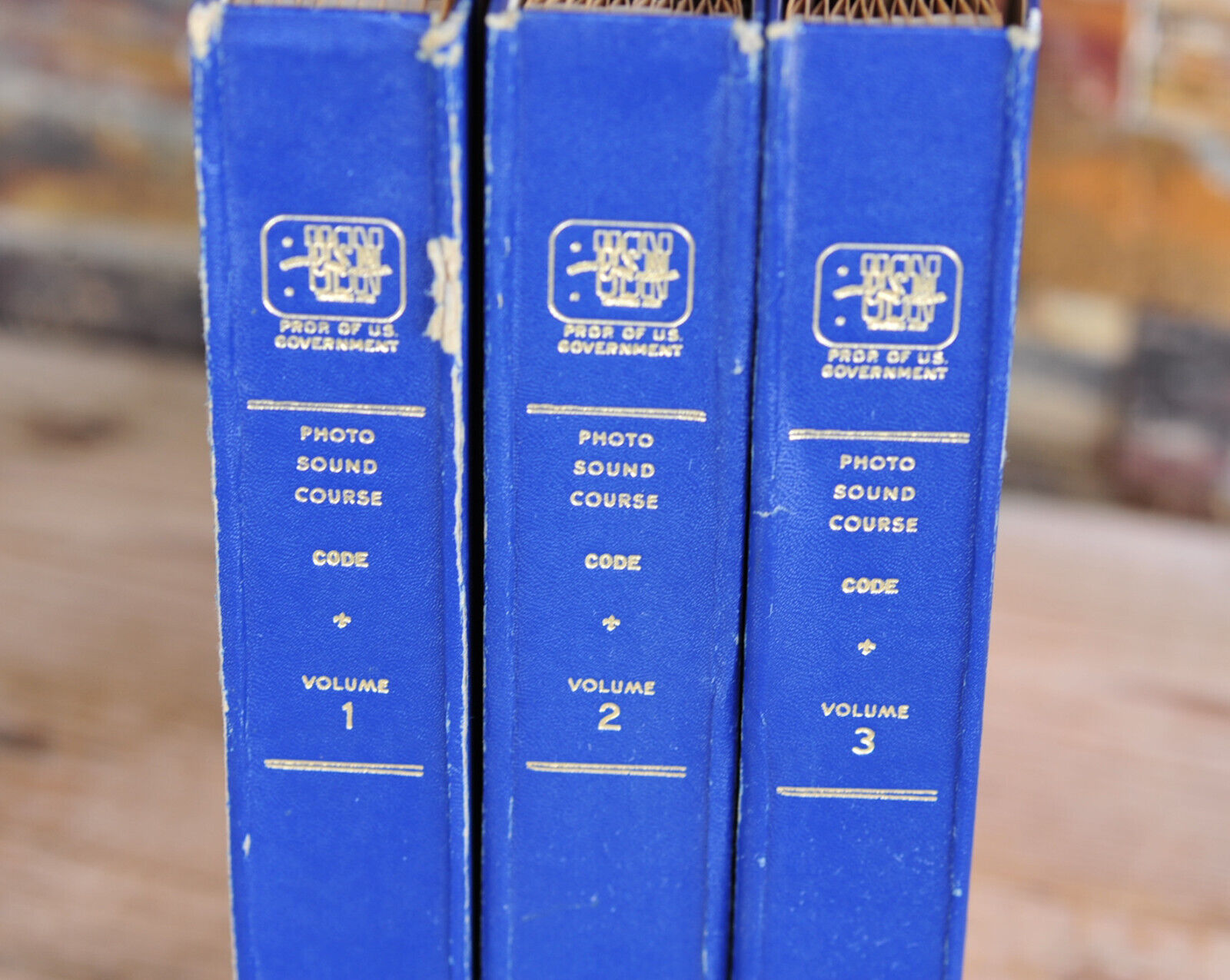

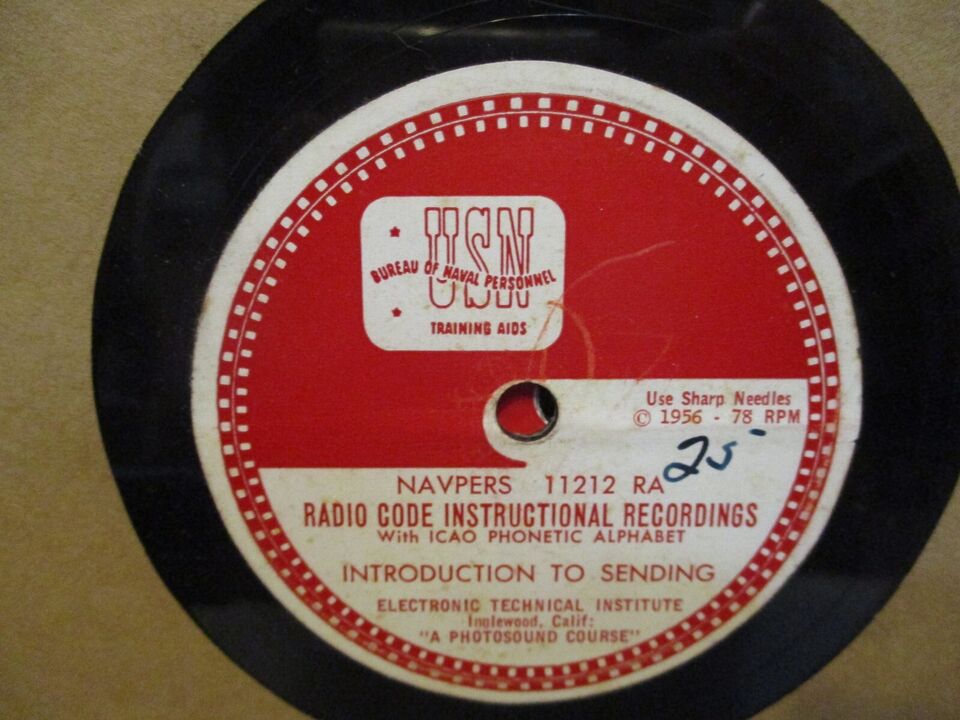

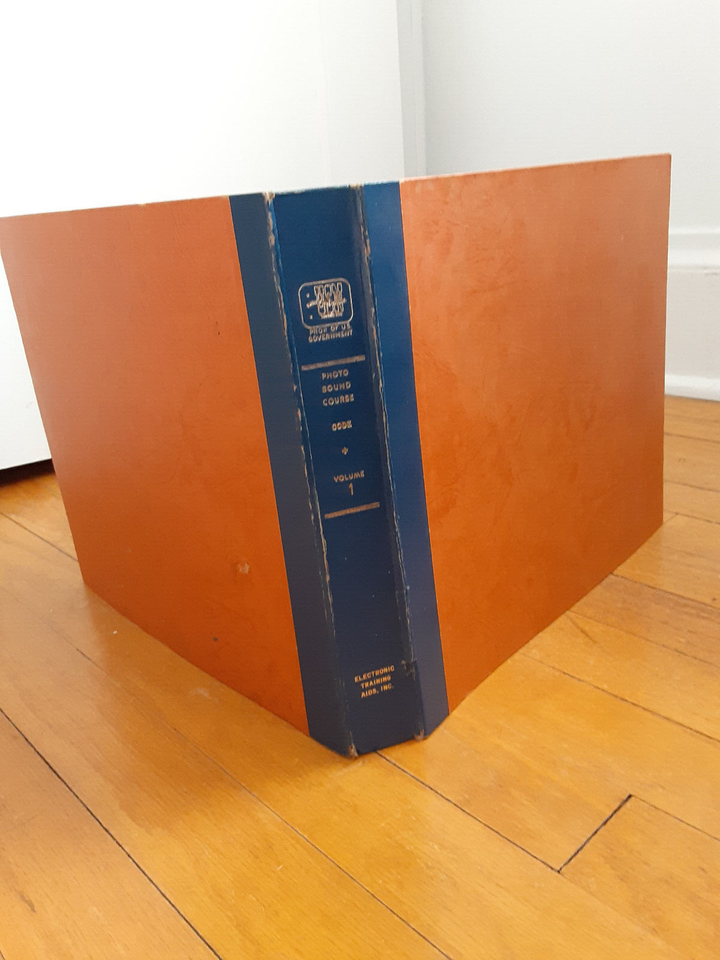

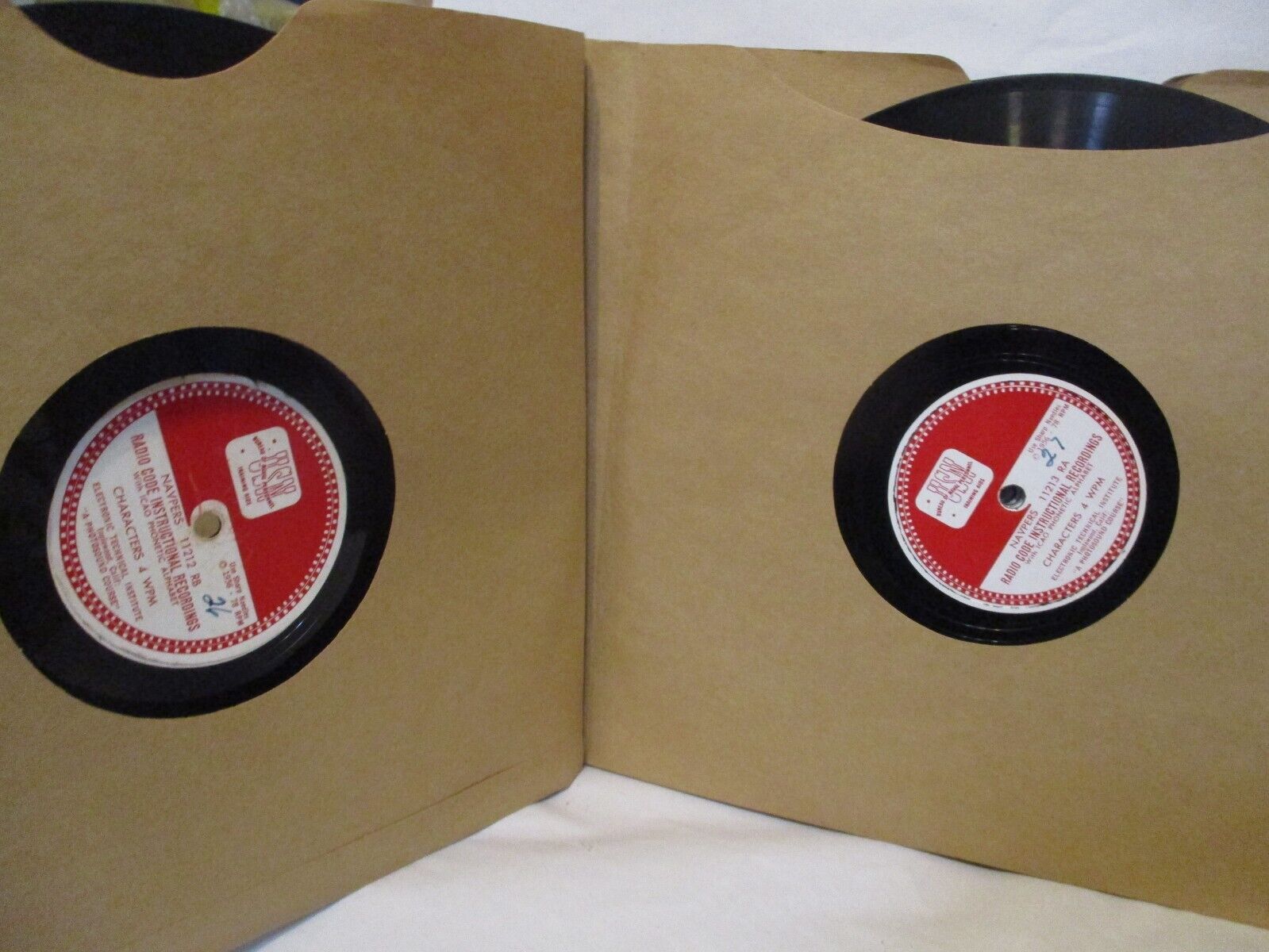

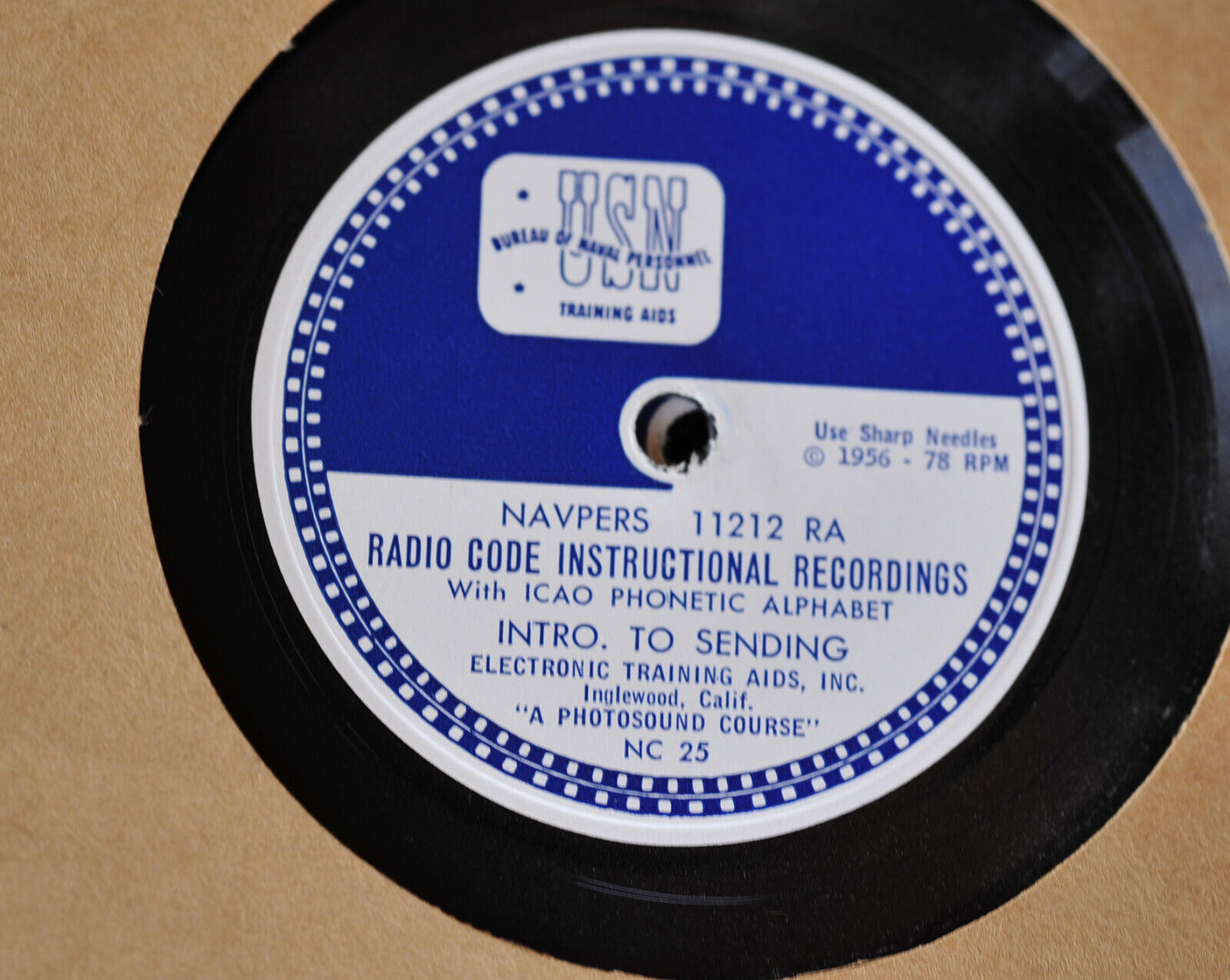

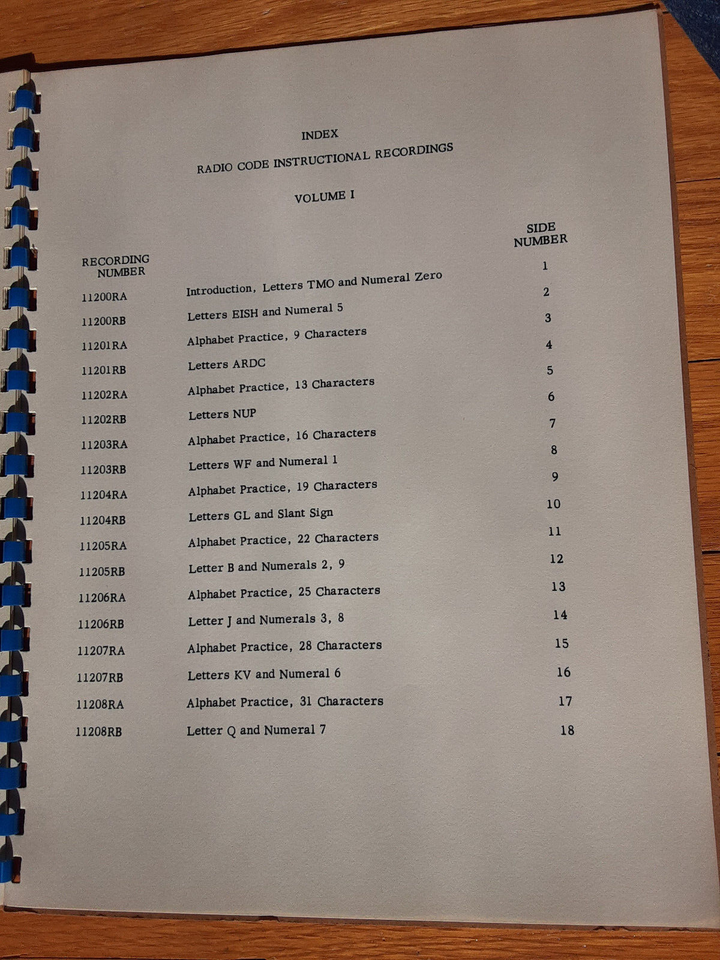

1956 NAVPERS 11200-11235 (sides 01-72) Radio Code Instructional Recordings (78 rpm)

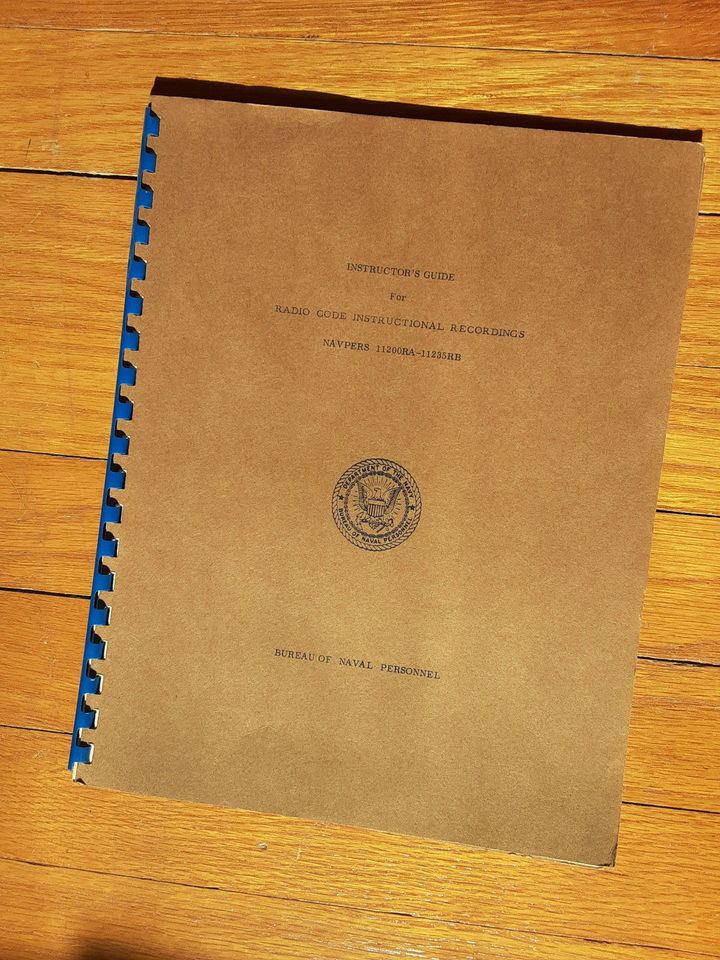

 -  11200 Series Instruction Book - thanks to K6YIC
 -  MP3 audio files 11200-11211 - thanks to K6YIC
 -  MP3 audio files 11224-11235 - thanks to K6YIC

records-vol1-2403-05.png (1145968 bytes) records-vol1-2403-07.png (2756681 bytes) records-vol1-2403-08.png (1108062 bytes) records-vol1-2403-09.png (1158923 bytes)
morse-records-2303-01.jpg (362313 bytes) morse-records-2303-02.jpg (306185 bytes) morse-records-2303-03.jpg (178176 bytes) morse-records-2303-04.jpg (312925 bytes)
morse-records-2303-05.jpg (340410 bytes) morse-records-2303-06.jpg (284153 bytes) record-code-2201-01.jpg (216543 bytes) record-code-2201-02.jpg (210703 bytes)
record-code-2201-03.jpg (296689 bytes) record-code-2201-04.jpg (244633 bytes) records-11212-11223-2403-04.jpg (219526 bytes) record-code-2201-05.jpg (235801 bytes)
records-vol1-2403-01.png (956219 bytes) records-vol1-2403-02.png (2880745 bytes) records-vol1-2403-03.png (1189722 bytes) records-vol1-2403-04.png (1577096 bytes)

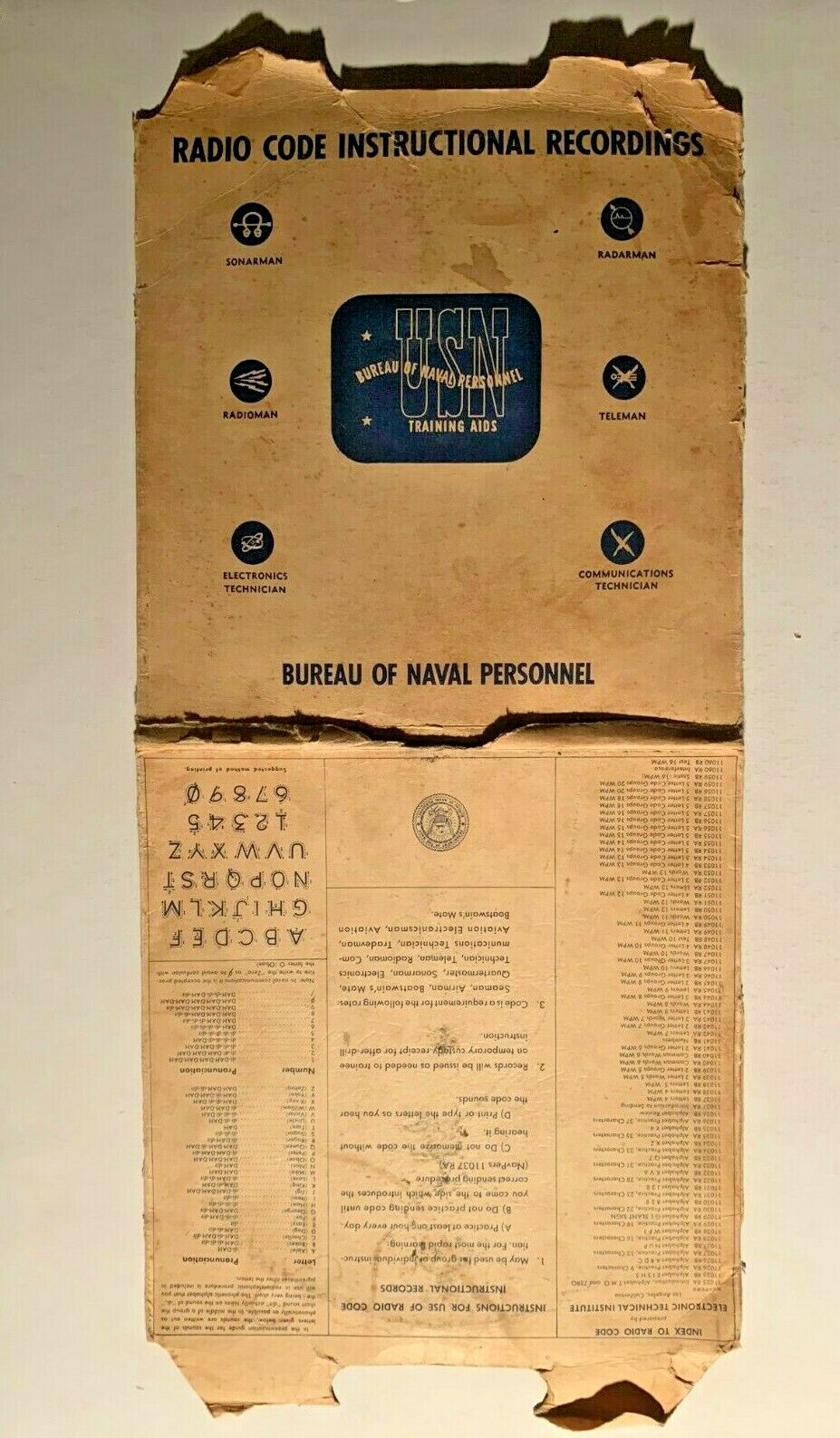

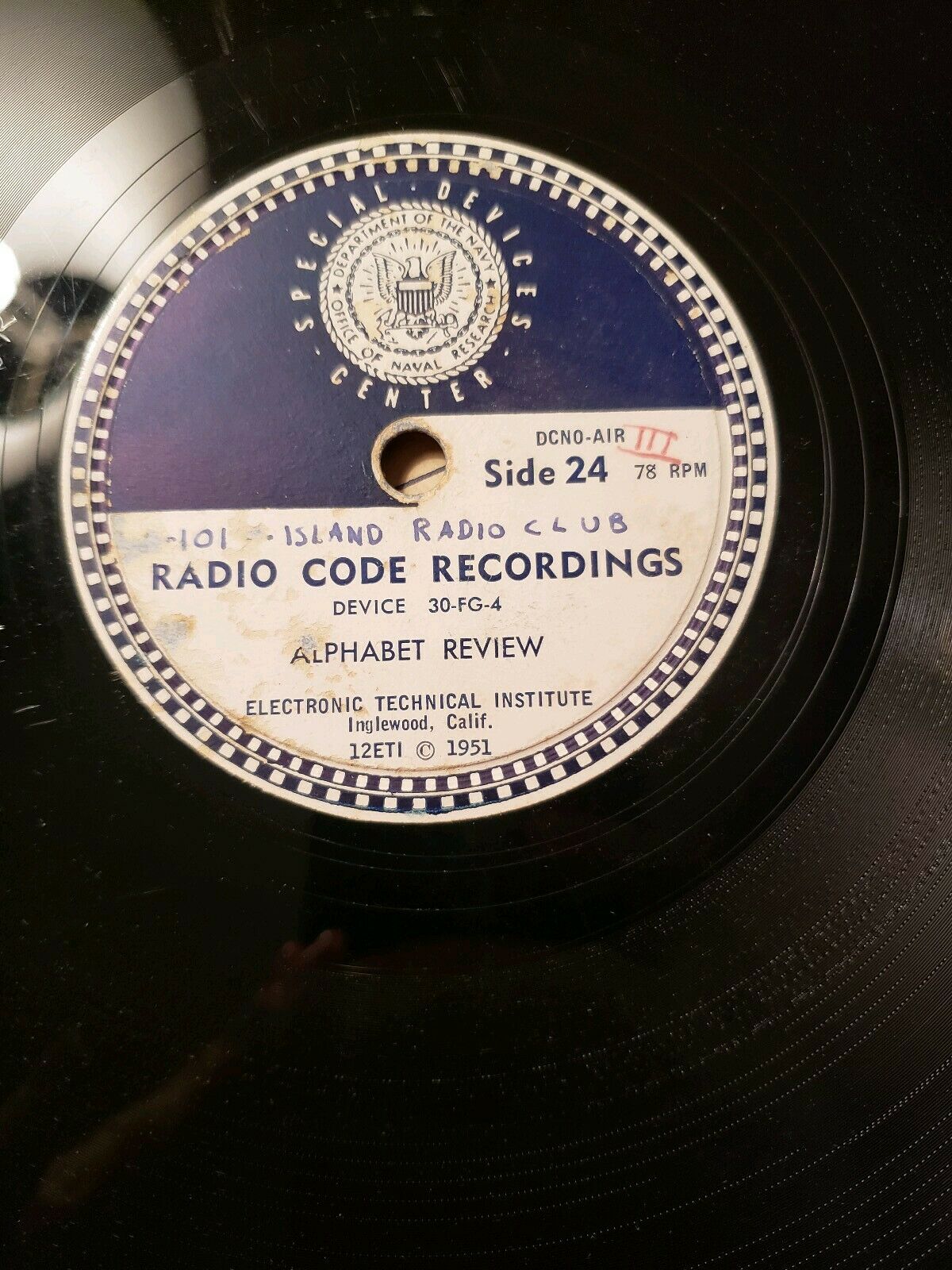

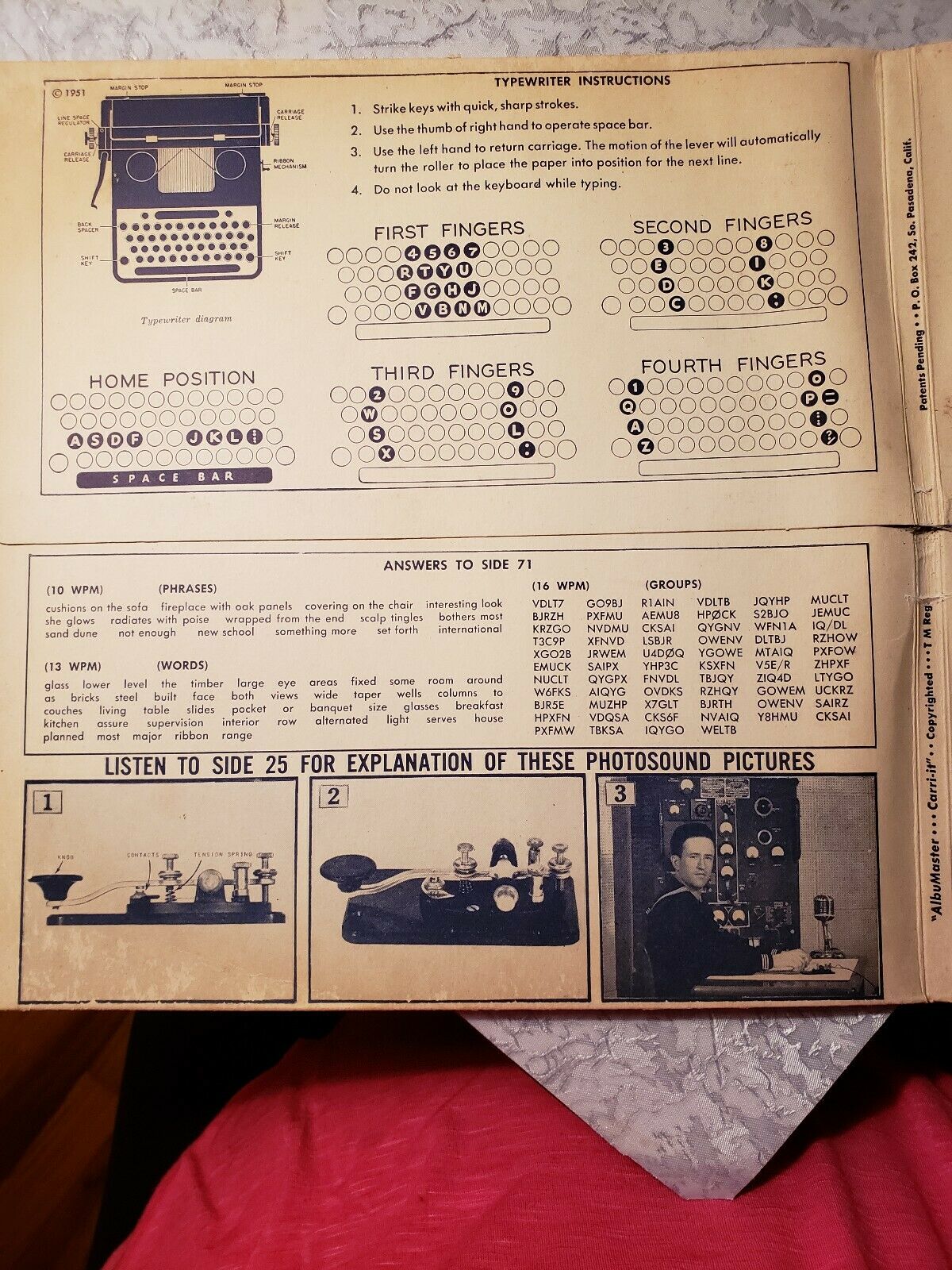

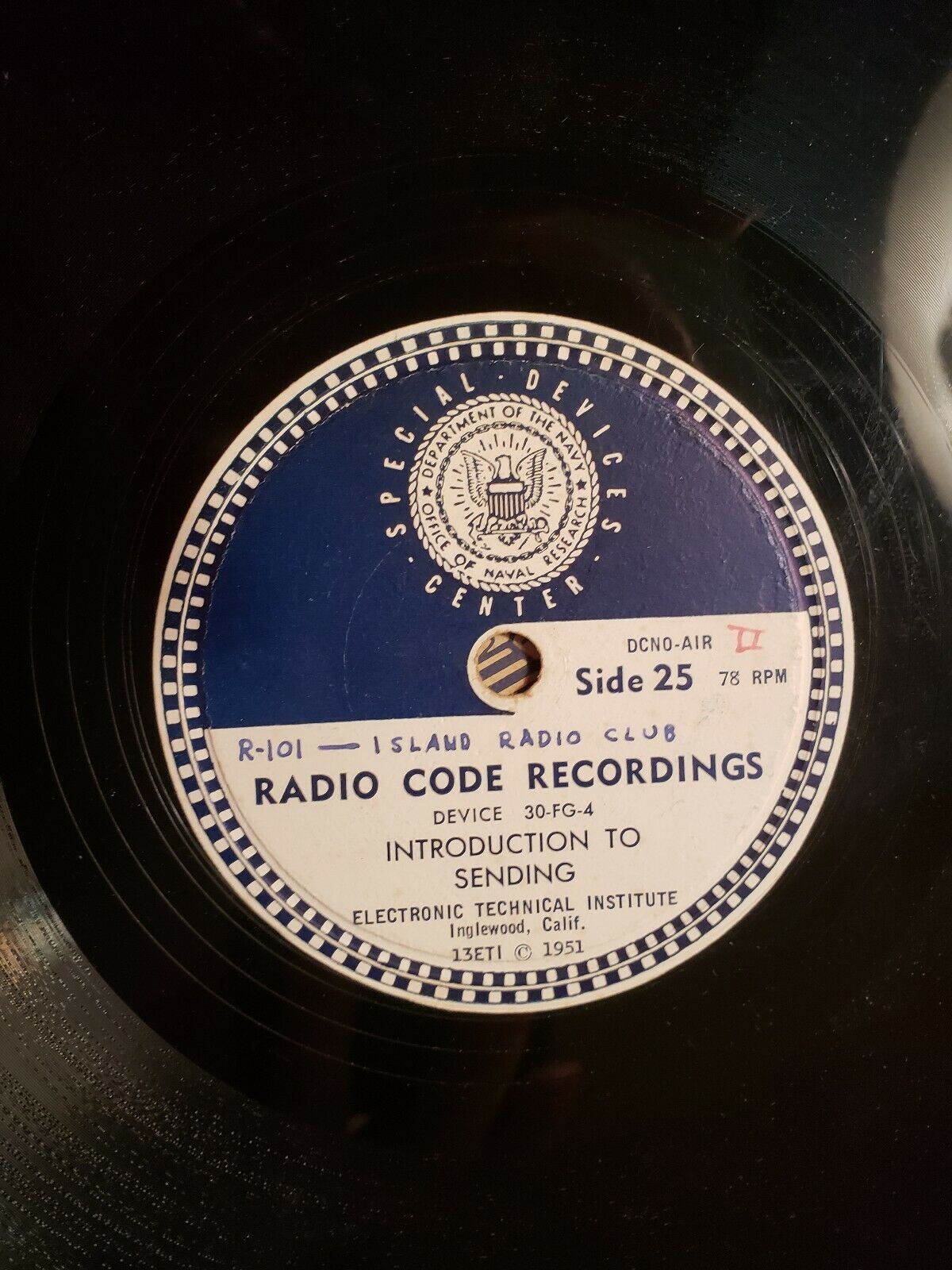

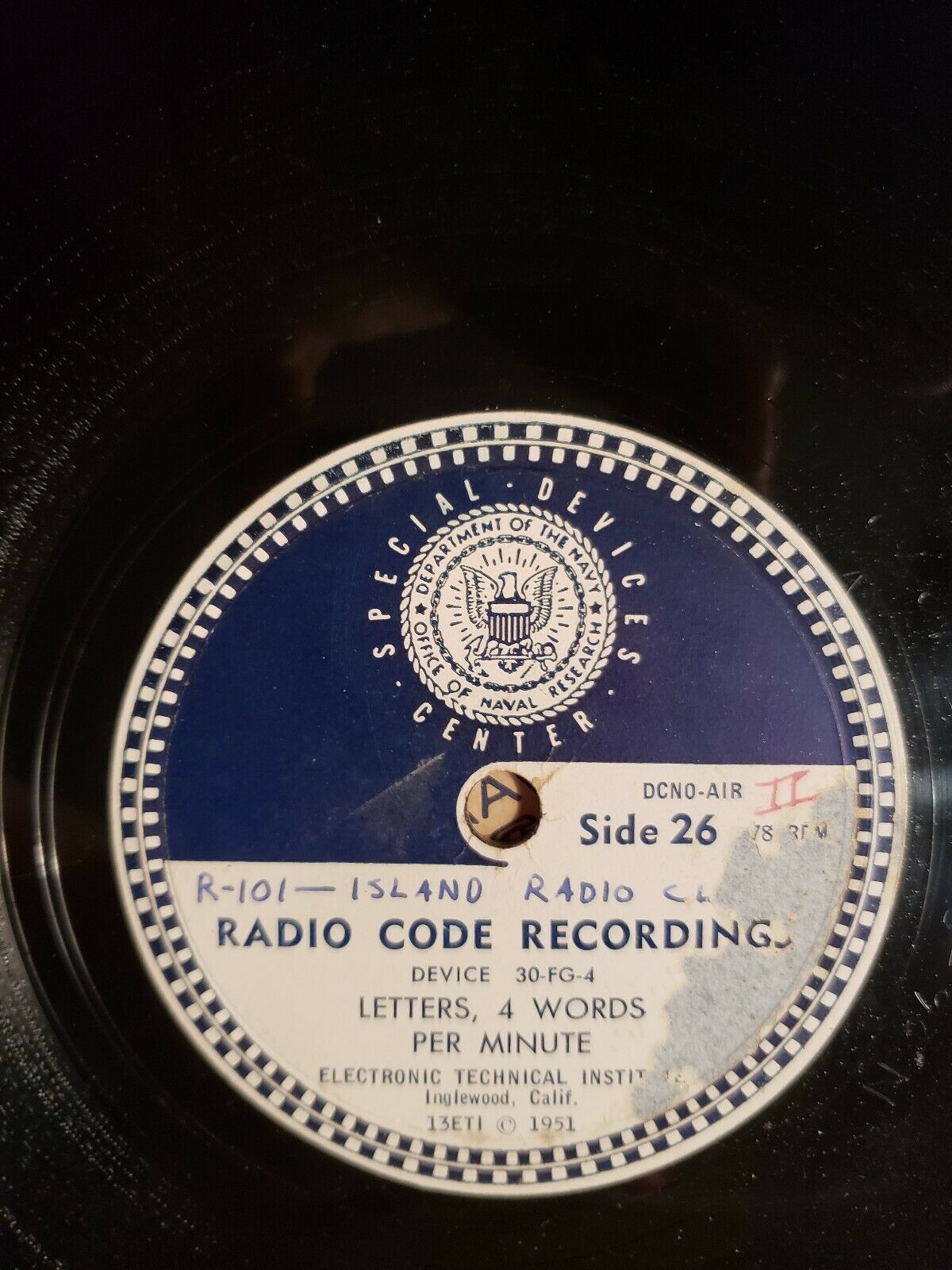

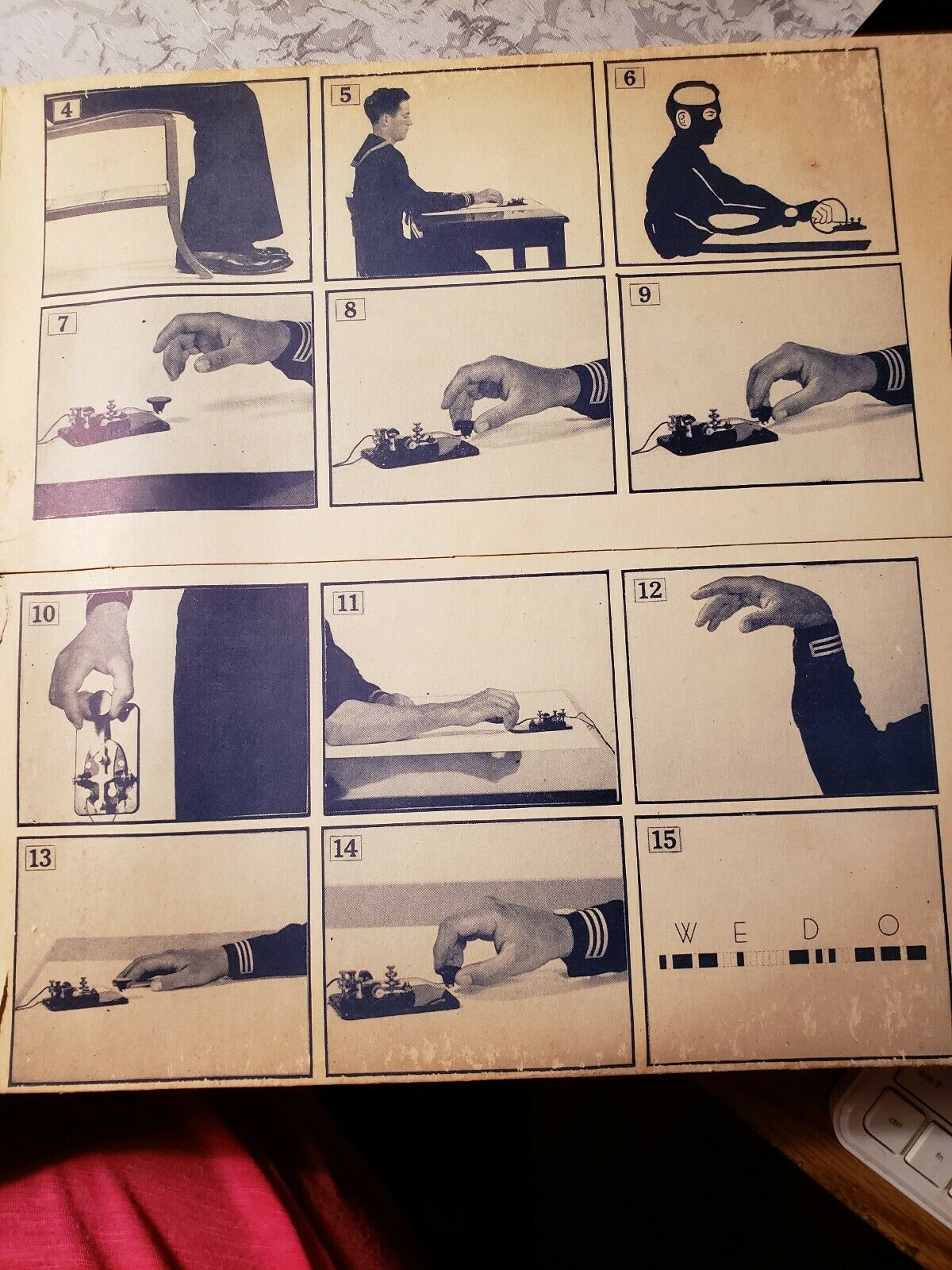

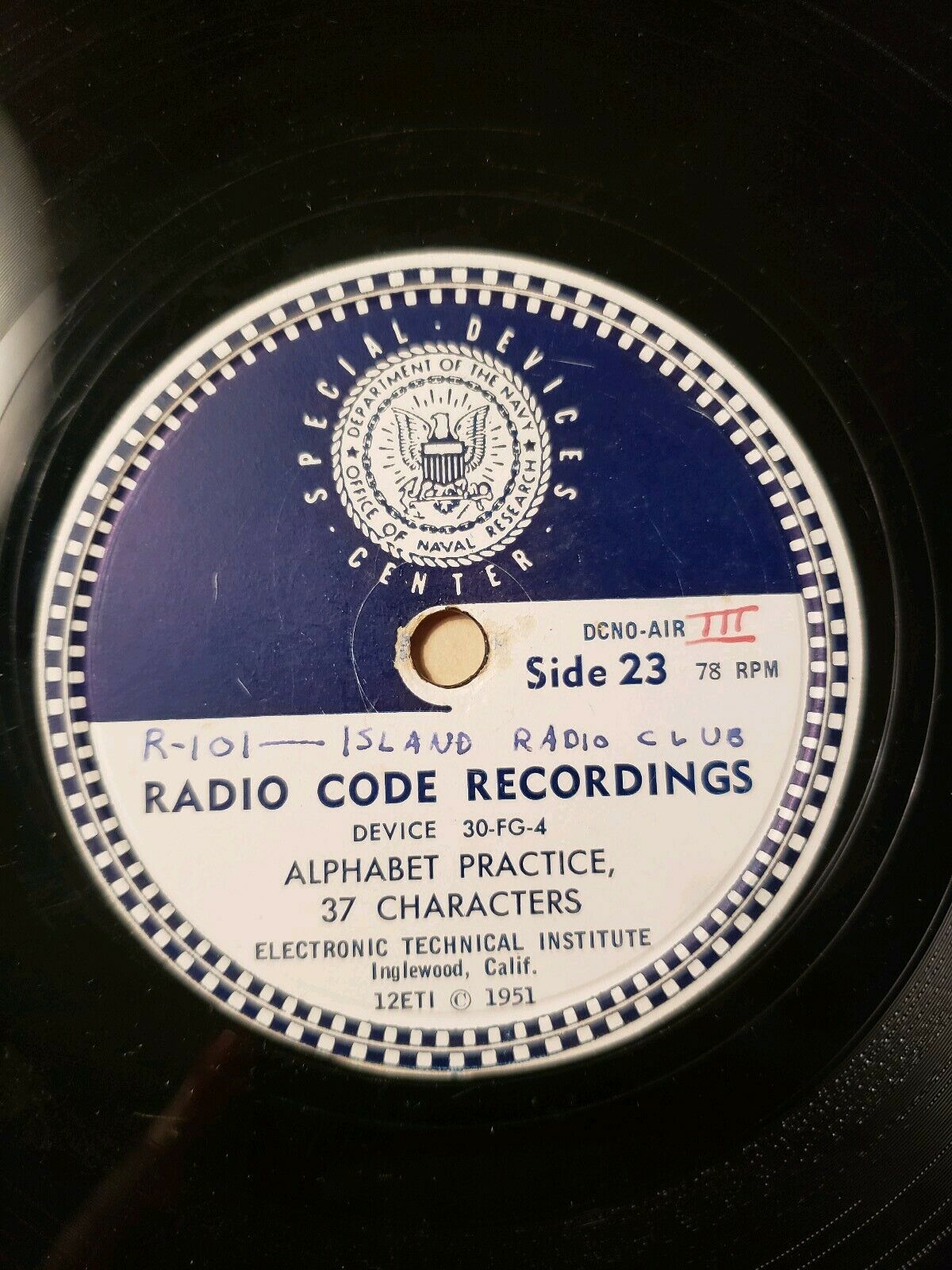

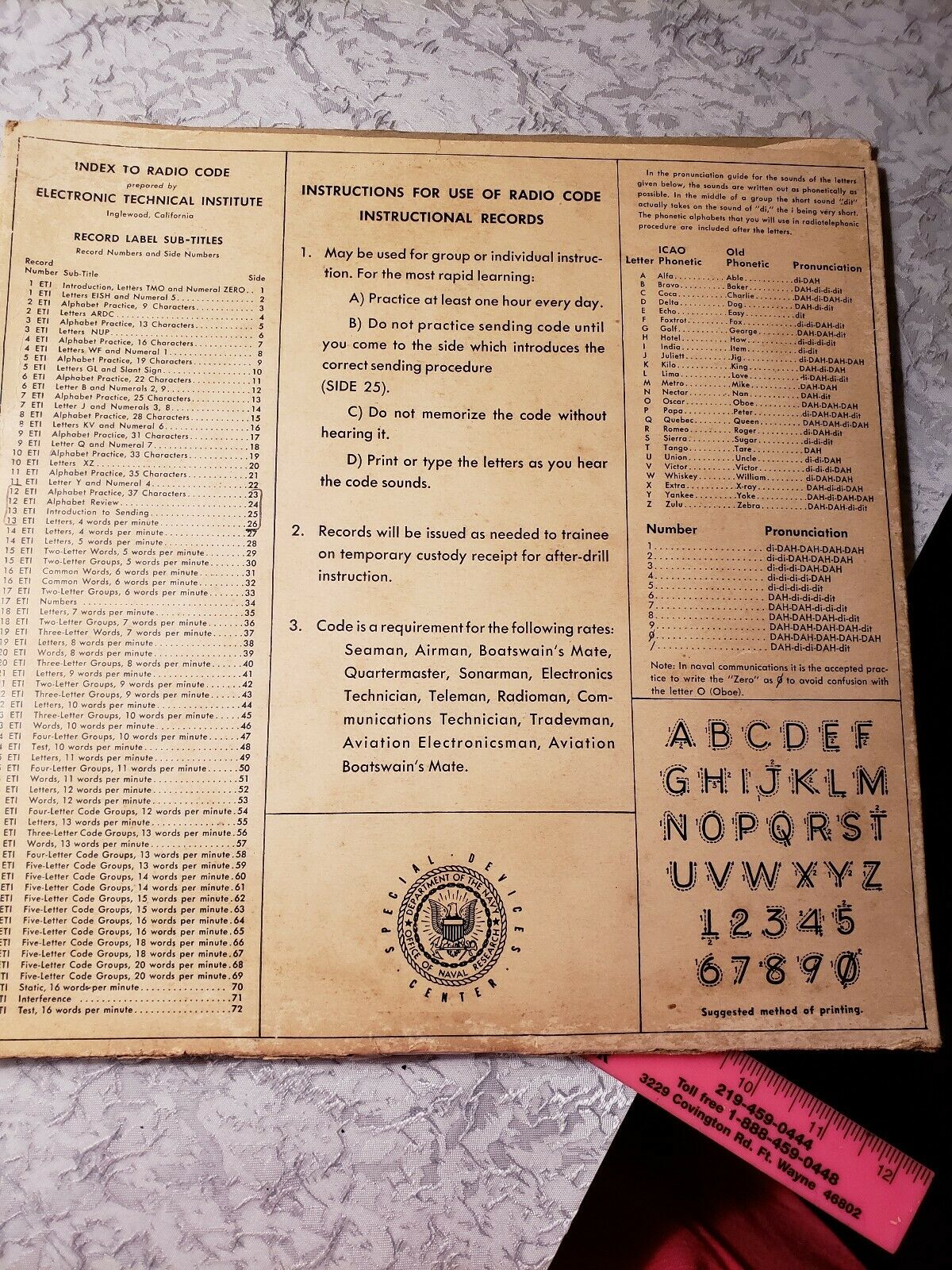

Device 30-FG-4 - "Office of Naval Research Special Devices Center" rather than NAVPERS
morse-30fg4-1902-01.jpg (424639 bytes) morse-30fg4-1902-02.jpg (421080 bytes) morse-30fg4-1902-03.jpg (341918 bytes) morse-30fg4-1902-04.jpg (533591 bytes)
morse-30fg4-1902-07.jpg (267580 bytes) morse-30fg4-1902-08.jpg (298698 bytes) morse-30fg4-1902-05.jpg (255420 bytes) morse-30fg4-1902-06.jpg (243746 bytes)

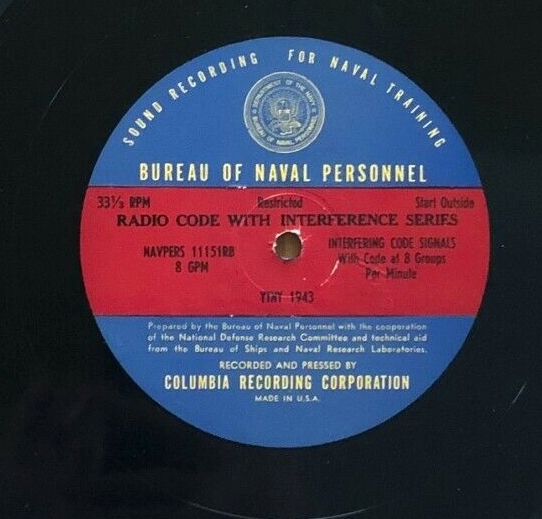

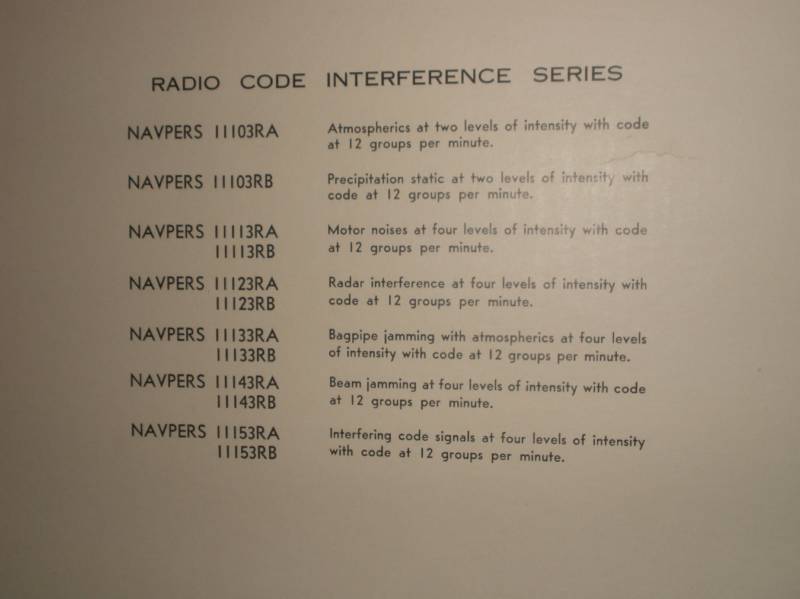

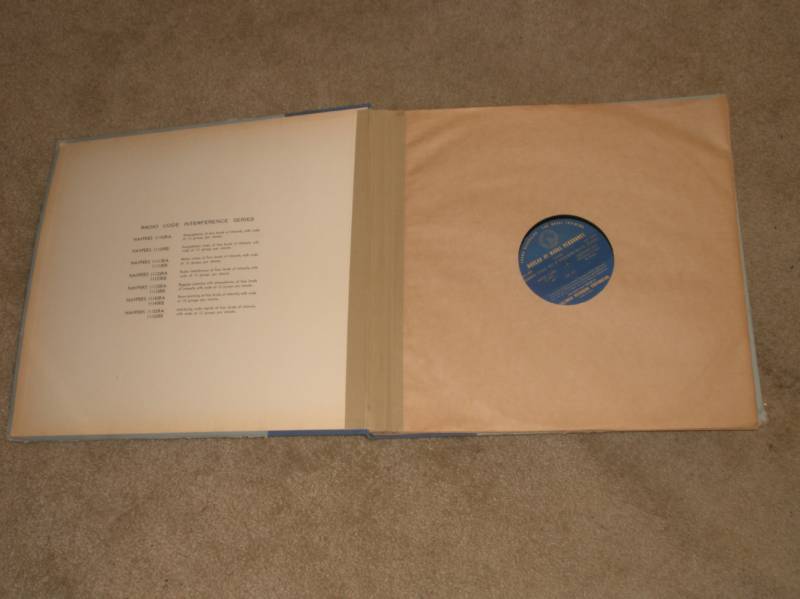

Radio Code with Interference Series - 12 groups/minute (33-1/3 rpm transcription)


 NAVPERS 11103, 11113, 11123, 11133, 11143, 11153


 Code groups with various sorts of radio interference added
11142RA Beam Jamming
Misc. 5 letter code groups
record-code-1709-01.jpg (386988 bytes) record-code-1709-02.jpg (376068 bytes) record-code-1709-03.jpg (380351 bytes) record-code-1709-04.jpg (382708 bytes)
